| Product Type | Power Conditioner / Protection Power Strip |
| Brand | Furman |
| Model | Elite-10E i |
| Dimensions (W x H x D) | 43 x 5.4 x 38 cm (17 x 2.15 x 14.75 inches) |
| Weight | 5 kg (11 lbs) |
| Power Supply | 230 V AC, 10 A (combined input and output) |
| Number of Outlets | 8 (4 with linear filtering + 4 with linear and ultrasonic filtering for digital/video components) |
| Filtering Technology | Linear Filtering (LiFT): 40 dB from 10 kHz to 100 kHz, 80 dB from 100 kHz to 1 GHz |
| Surge Protection | Series Multi-Stage Protection (SMP) – non-sacrificial, clamping voltage 376 V @ 6000 V / 3000 A input |
| Extreme Voltage Shutdown | Yes (> 275 V AC) – requires manual reset |
| Cable/Satellite Protection | Yes, with loss < 0.5 dB at 2 GHz |
| Voltage Indicator | Digital display of input voltage (accuracy ± 2 V AC) |
| Lighting | Retractable LED lamps on front panel, with dimmer |
| Startup | Soft Start (no inrush current) |
| Mounting | Tabletop or 19-inch rack (1U) – mounting kit included |
| Warranty | 3 years (1 year if not registered within 15 days) + connected equipment warranty up to $500 |
| Maintenance | No user-serviceable parts; clean with a dry cloth; return to manufacturer if necessary |
| Safety | For indoor use in a dry location; do not expose to moisture or liquids |
Frequently Asked Questions - Elite-10E i Furman
User questions about Elite-10E i Furman
0 question about this device. Answer the ones you know or ask your own.
Ask a new question about this device
Download the instructions for your Power strip in PDF format for free! Find your manual Elite-10E i - Furman and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. Elite-10E i by Furman.
USER MANUAL Elite-10E i Furman


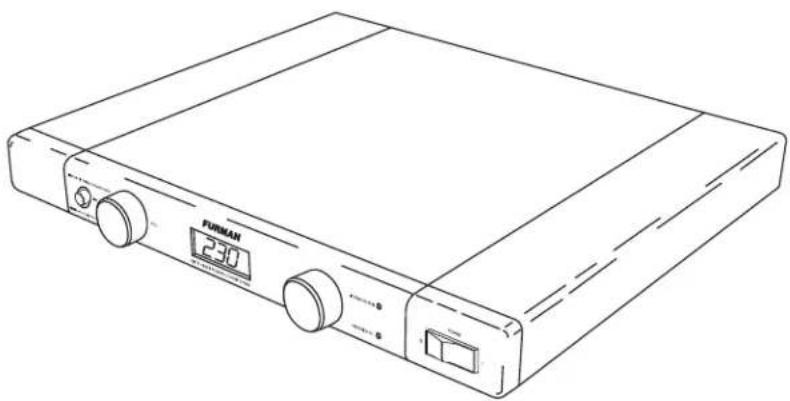

Line drawing of a furman electronic device with control knobs and display (no text or symbols on main body)FURMAN®
ELITE-10E i OWNER'S MANUAL
ELITE-10E i GUIDE DE L'UTILISATEUR
ELITE-10E i MANUAL DEL PROPIETARIO
Elite-10E i Features
• Linear Filtering Technology for unequaled audio and video clarity
- Series Multi-Stage Protection provides virtually maintenance-free AC surge suppression
- Retractable LED lamps illuminate a cabinet or rack full of equipment
• Zero ground contamination circuitry protects critical digital component
Introduction
For over 34 years, Furman has pioneered the development of AC power products for the most demanding audio, video, and broadcast professionals. Though the need for pristine AC power is nothing new, the Elite-10E i's technology and its unique implementation are revolutionary and without peer.
The extreme AC demands encountered in the professional audio/video arena have required technological developments far in excess of typical home theater/audiophile power products. In studios, live sound, and broadcast facilities, breakdown is unacceptable. Equipment failure or poor performance is costly. The same is true of today's home theater. Our solution based technology, extensive engineering expertise, and robust build quality have answered the challenge of today's corrupted power lines, and led to the creation of the Elite-10E i.
Today's power lines are plagued with RF and EMI noise. When connecting sensitive equipment to your home's power outlet, AC noise couples into your system's critical components. This AC noise masks low level signals and cripples performance. This low level content is critical because it relays the crucial harmonics and ambience in audio, as well as the depth and clarity in video. With Furman's exclusive Linear Filtering Technology, televisions, projectors, DVD players, amplifiers, and processors are fed linearly-filtered AC power. This dramatically reduces noise, ensuring consistent peak operation regardless of load conditions or the time of day. For the first time, you will see and hear your theater or audio system as it should be – uncompromised.
Another critical feature is our exclusive Series Multi-Stage Protection. This non-sacrificial surge suppression assures the highest level of AC protection possible, without giving its life when the offending surge is severe – no damaged equipment, no service calls, no down time. Our digital AC voltage meter allows precise measurement of the incoming AC line voltage, (a valuable asset when monitoring systems that are connected to today's potentially poor power grids). Further, our famous retractable front panel LED lamps allow easy viewing of either a rack or cabinet full of equipment, even when your theater lights are off.
When employing the Elite-10E i, you will notice far clearer, stunningly focused sound and visual images from your system. Video presentation will be crisp and colors true with greater gray and black scale definition, as well as noticeably improved depth and clarity. Many of the technological advances previously available only in our flagship Reference Conditioners are cornerstones of the Elite series. Now everyone can reap the benefits of unrivaled power purification and unequalled surge protection.
Installation
Unpacking
Before unpacking your unit, inspect the carton for any obvious severe damage to the box and internal protective materials. If internal damage is likely, contact the carrier who delivered the unit before proceeding with unpacking. If, after unpacking, shipping damage is evident, contact the carrier. Save all shipping and packing materials. You may need them if you should ever have to return the unit to the factory or distributor for servicing.
The box should contain the Elite-10E i unit, rack mount kit, owner's manual - registration card. If anything is missing,
please contact Furman Customer Service. Fill out and return your warranty registration card. Registration is recommended because it can be used to establish whether the unit is within the warranty period should your original ownership documents be lost, and it assists us in informing you about upgrades or other vital information.
Safety Information - Warnings
Please read and observe all of the safety and operating instructions before the Elite-10E i is operated. Retain these instructions for future reference.
- Do not disassemble or modify in any way. No user-serviceable parts inside
- Keep away from moisture and avoid excessive humidity
- Do not allow liquids or foreign objects to enter the unit
The Elite-10E i should be serviced by qualified service personnel when:
- The power supply cord or plug has been frayed or cut.
- Objects have fallen or liquid has spilled into the unit.
• The Elite-10E i has been exposed to rain or other moisture. - The Elite-10E i does not appear to operate normally, or exhibits a marked change in performance.
- The Elite-10E i has been dropped, or the enclosure damaged.
Power Source
The power source to which the Elite-10E i is connected should be adequate for use at 10 Amps.
Placement
The Elite-10E i is manufactured with four rubber feet for placement on any table, cabinet, shelf, or floor. These rubber feet may be easily removed with a standard Philips screw driver when rack mounting adjacent to other components. Placement or proximity to other components is not critical, and the Elite-10E i does not produce any appreciable heat under standard use. The Elite-10E i may also be rack mounted in a standard 19" (483mm) rack by attaching the Elite-10E i rack ears. They are attached to the chassis by installing each rack ear with (3) pan-head Philips screws contained within the Elite-10E i rack mounting kit. The third screw used for each rack ear is for the center hole, located towards the rear and aids in stabilizing the unit when rack mounted.
Connection
AC Cable Routing
The Elite-10E i's male AC cord must be connected to an appropriate socket (see current rating recommendation above as well as the Furman international website for optional AC cords if the standard cord is not suitable for your area).
Connecting Components to the Digital - Video Component AC Outlet Banks
The Elite-10E i's two "Video Component AC Outlets" should be employed for critical video components such as DVD players, projectors, plasma, or LCD video screens.
Connecting Components to the Linear Filtering Power Banks
The Elite-10E i's four rear panel "Audio – Audio-Video AC Outlets" should be employed for any component not connected to the "Video Component AC Outlets". These outlets still possess exceptional AC noise filtering to maximize system performance.
Retractable Front Panel Lights and Dimmer Control
The Elite-10E i includes a front panel mounted dimmer control for the two retractable front panel light tubes. The dimmer knob controls the brightness of both light fixtures. Turn it clockwise to increase brightness; turn it counter-clockwise to decrease brightness. When the light tubes are fully inserted flush to the front panel, the light circuit is turned off via an internal micro-switch. Whether the light tubes are retracted or nearly flush with the front panel, there will be no appreciable heat regardless of dimmer setting due to the efficiency of our full light spectrum LED's.
AC Voltage Meter
Your Elite-10E i contains a precision AC voltage meter. The meter continuously monitors and displays the incoming AC voltage (+/- 2VAC typically).

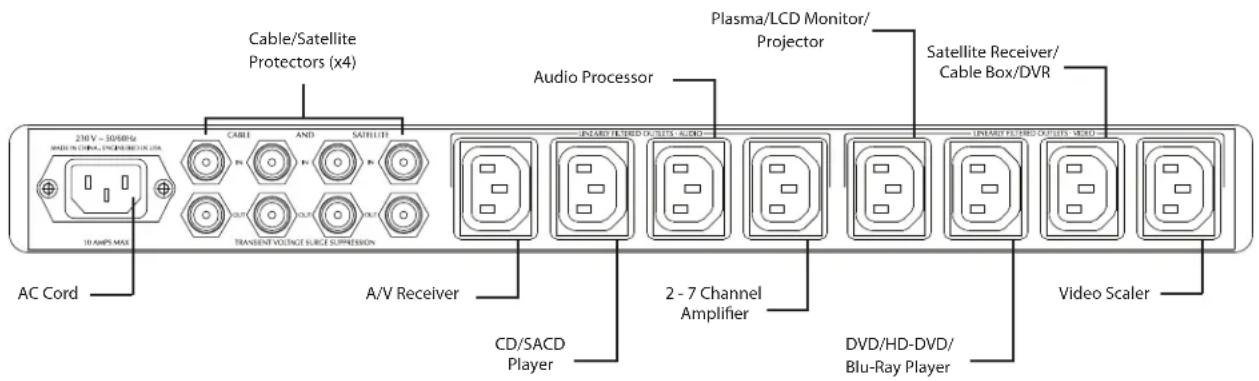

Suggested AC Connection
When power is first applied to the Elite-10E i, (the front panel breaker-power toggle must be switched to the "1" position) the Soft Start feature is activated. There is an audible "clack" when the Elite-10E i is first turned on or off. This sound is produced by the Soft Start circuit's 30 Amp relay engaging or disengaging. There is virtually nothing in the Elite-10E i's construction, design, or componentry to wear over the life time of the product, and there is no power draw from your electric service meter aside from the LED power indicator, lamps, and relay circuits. For this reason the Elite-10E i may be left with its power engaged permanently at a negligible cost per month.
AC Transient Voltage Surge Suppression and Extreme Voltage Shutdown
Extreme Voltage Shutdown Indicator:
This LED is normally off. It monitors AC wiring faults – for example, accidental connection to an open neutral in some countries or a connection well in excess of 300VAC. The Series Multi-stage Protection (SMP) circuit senses voltages that are so high that operation would be impossible and shuts the power down before damage can occur. Upon initially applying power to these units, the Extreme Voltage indicator LED will light if the input voltage is above the extreme voltage cutoff, and power will not be applied to the unit's outlets. If the unit has been operating with an acceptable input voltage and subsequently that voltage exceeds 275V, it will shut off power to the outlet and the Extreme Voltage LED will light. Manual re-set of the power switch will be necessary once the over voltage has been corrected or the unit is plugged into an appropriate outlet.
Protection OK Indicator:
Although the Furman SMP circuit assures virtually maintenance free protection from transient voltage spikes and surges, nature has a way of occasionally creating electrical forces that are beyond the capabilities of any Transient Voltage Surge
Suppression device to absorb without some degree of damage. In the rare instance that this occurs, the blue LED located on the right side of the front panel will dim, even though AC power is present at the unit's outputs. If this happens, some level of protection from voltage surges will remain, but the Furman's clamping voltage rating will be compromised. The unit must be returned to Furman Sound, or an authorized Furman Service center for repair.
Satellite and Cable Transient Voltage Surge Suppressors
The Elite-10E i features transient voltage surge suppression for both cable and satellite lines utilizing standard coaxial connectors. As these surge suppressors are in-line, they will require an additional cable to connect from their output to the control device requiring protection.
All in-line surge suppressors feature our exclusive ground contamination free technology. This aids in eliminating audio buzzing, and the video hum-bars that can result from typical in-line suppressors. Further, our cable and satellite suppressors are DVR friendly as well as HD digital television ready. Both DC carrier signals as well as high bandwidth signals can pass through our circuit. In fact the bandwidth is less than 0.5dB loss at 2GHz!
To connect your cabling to these in-line protectors, simply follow the in and out indications marked next to the Cable and Satellite connectors.
Note:
It is not possible to make an in-line cable or satellite protector "maintenance-free" as we have accomplished with the 120 VAC line. This would necessitate limited signal bandwidth that would not allow the signal to pass. Under extreme conditions, it is possible that the surge suppression in one of these devices could sacrifice itself after a catastrophic event. If the cable or satellite signal will no longer pass through our protector, please contact your local service representative, installer or Furman for servicing. To test this, simply disconnect the incoming and out going cable from the Elite-10E i. Connect the incoming connector to the component that formerly received the out going connector, thus by-passing the in-line protection. If the signal is present (but not when used with the Elite-10E i) then the protection circuit is damaged (assuming it worked properly before a storm or catastrophic event).
Warranty
Furman Sound, LLC. warrants to the original purchaser of this product, the Furman Elite-10E i, that the product will be free from defects in material and workmanship for a period of three years from the date of purchase. The purchaser of the product is allowed fifteen days from the date of purchase to complete warranty registration by mail or on-line at the Furman website. If the purchaser fails to complete the aforementioned registration, the warranty period will be reduced to one year from the date of purchase.
If the product does not conform to this Limited Warranty during the warranty period (as herein above specified), purchaser shall notify Furman in writing of the claimed defects. If the defects are of such type and nature as to be covered by this warranty, Furman shall authorize the purchaser to return the product to the Furman factory or to an authorized Furman repair location. Warranty claims should be accompanied by a copy of the original purchase invoice showing the purchase date; this is not necessary if the Warranty Registration was completed either by mailing in the completed warranty card or by registering on-line at the Furman website. Shipping charges to the Furman factory or to an authorized repair location must be prepaid by the purchaser of the product. Furman shall, at its own expense, furnish a replacement product or, at Furman's option, repair the defective product. Return shipping charges back to purchaser will be paid by Furman.
CoNNECTED EQUIpMENT WARRANTY: Furman Sound's Connected Equipment Warranty covers equipment that is damaged by transient voltage (an "Occurrence") while properly connected through the Furman Elite-10E i to a properly wired AC power line with a protective ground in an indoor location. Furman's Connected Equipment Warranty is limited to the amount of the deductible on the Purchaser's personal property insurance policy up to \$500.00. In order to make a claim for this Connected Equipment Warranty, the Purchaser must forward a copy of his/her personal property insurance claim
for the damaged equipment to Furman and complete the Furman Connected Equipment Warranty claim form (call Furman at (707) 763-1010 to obtain the form). Furman reserves the right to review the damaged Furman product, the damaged connected equipment, and the site where the damage occurred. All cost of shipping damaged equipment to Furman for inspection shall be borne solely by the Purchaser. Damaged equipment must remain available for inspection until the claim is finalized. The Connected Equipment Warranty is also in effect for a period of three years unless the Purchaser does not complete the warranty registration within fifteen days from date of purchase, at which time, the Connected Equipment Warranty period is also reduced to one year from the date of purchase.
All warranties contained herein are null and void if: the Furman Surge Protector in use during the occurrence is not provided to Furman for inspection upon Furman's request at the sole expense of the Purchaser, Furman determines that the Furman Surge Protector has been opened, improperly installed, altered in any way or tampered with, Furman determines that the damage did not result from the Occurrence or that no Occurrence in fact took place or Furman determines that the connected equipment was not used under normal operating conditions or in accordance with Manufacturer's instructions for the connected equipment. All Furman Surge Protectors must be plugged directly into a properly wired AC power line with a protective ground and must not be "daisy-chained" together in serial fashion with other power strips, UPS's, other surge protectors, three-to-two-prong adapters, or extension cords. Any such installation voids this warranty. The Furman warranty only protects against damage to properly connected equipment where Furman has determined, at its sole discretion, that the damage resulted from an Occurrence and does not protect against acts of God (other than lightning) such as flood, earthquake, war, terrorism, vandalism, theft, normal-use wear and tear, erosion, depletion, obsolescence, abuse, damage due to low-voltage disturbances (i.e. brownouts or sags), non-authorized program, or system equipment modification or alteration. Do not use this product in anyway with a generator, heater, sump pump, water-related device, life support device, medical device, automobile, motorcycle, or golf-cart battery charger. To be used indoors only and in dry areas. All warranties contained herein are null and void if used in anyway with any of the aforementioned devices.
THE FoREGoING IS IN LIEU of ALL oTHER WARRANTIES, EXpRESS or IMpLIED, INCLUDING BUT NoT LIMITED To THE IMpLIED WARRANTIES of MERCHANTABILITY AND FITNESS FoR A pARTICULAR pURpoSE. Furman does not warrant against damages or defects arising out of improper or abnormal use or handling of the product; against defects or damages arising from improper installation, against defects in products or components not manufactured by Furman, or against damages resulting from such non-Furman made products or components. This warranty shall be cancelable by Furman at its sole discretion if the product is modified in any way without written authorization from Furman. This warranty also does not apply to products upon which repairs have been affected or attempted by persons other than pursuant to written authorization by Furman.
THIS WARRANTY IS EXCLUSIVE. The sole and exclusive obligation of Furman shall be to repair or replace the defective product in the manner and for the period provided above. Furman shall not have any other obligation with respect to this product or any part thereof, whether based on contract, tort, strict liability, or otherwise. Under no circumstances, whether based on this Limited Warranty or otherwise, shall Furman be liable for incidental, special, or consequential damages. Furman's employees or representatives' oRAL oR oTHER WRITTEN STATEMENTS Do NoT CoSTITUTE WARRANTIES, shall not be relied upon by purchaser, and are not a part of the contract for sale or this limited warranty. This Limited Warranty states the entire obligation of Furman with respect to the product. If any part of this Limited Warranty is determined to be void or illegal, the remainder shall remain in full force and effect.
Warranty claims should be accompanied by a copy of the original purchase invoice showing the date of purchase (if a Warranty Registration Card was mailed in at the time of purchase or if the product was registered on-line, this is not necessary). Before returning any equipment for repair, please be sure it is adequately packed and cushioned against damage in shipment, and that it is insured.
Specifications
AC Current Capacity:
Input - 10 Amp capacity required
Output - 10 Amps RMS (maximum, all outlets combined - continuous)
Linear Noise Attenuation:
Transverse (Differential) Mode:
40 dB from 10Khz. - 100 kHz.
80 dB from 100 Khz. - 1GHz.
(Linear attenuation curve from 0.05 - 100 ohms line impedance)
Transient Voltage Surge Suppression:
230 VAC - Series Multi-Stage Protection - Non-Sacrificial with Zero Ground Contamination.
(376 V peak clamping @ 6000V / 3000A input)
Extreme Voltage Shutdown (>275 VAC)
Cable / Satellite (less than .5dB insertion loss @ 2GHz)
Power Consumption:
6 Watts for display and control circuits independent of actual load
Outlets:
4 (linearly filtered outlets - rear panel)
4 (linearly filtered outlets with additional ultrasonic filtering for video components)
Dimensions:
55mm H x 432mm W x 375mm D (Standard 1 RU height without feet)
Weight:
5 kgs.
Dimensions (H x L x P) :
2,15" H x 17" L x 14,75" P (format 1 U standard sans les pieds)
Poids :
11 lb
