USER MANUAL S_TB503XX Vonroc

Three white water droplets on a black background, no text or symbols present

EN Original Instructions 04

Technical diagram of a spray gun with numbered parts and labeled parts in Chinese

B

8 6 9 10 7

C-1

Diagram illustrating a chemical process involving a bottle with liquid, dropping particles, and multiple lock symbols indicating no chemical protection.

C-2 C-3 30 min.

30 min

E 17 18 11 12 13 14 15 TOTAL Liter 16

1. SAFETY INSTRUCTIONS

Read the enclosed safety warnings, the additional safety warnings and the instructions. Failure to follow the safety warnings and the instructions may result in electric shock, fire and/or serious injury. Save the safety warnings and the instructions for future reference.

The following symbols are used in the user manual or on the product:

Read the user manual.

Denotes risk of personal injury, loss of life or damage to the tool in case of non-observance of the instructions in this manual.

Indicates electrical shock hazard.

Not intended for use by children.

Do not consume treated water or the resin.

Slipping hazard when spilled

Skin and eye irritation by contact

Protect water softener, resin and accessories against frost.

Do not throw the battery into fire.

Do not throw the battery into water

Do not dispose of the product in unsuitable containers.

The product is in accordance with the applicable safety standards in the European directives.

SAFETY WARNINGS

THIS APPLIANCE CAN BE USED BY CHILDREN AGED FROM 8 YEARS AND ABOVE AND PERSONS WITH REDUCED PHYSICAL, SENSORY OR MENTAL CAPABILITIES OR LACK OF EXPERIENCE AND KNOWLEDGE IF THEY HAVE BEEN GIVEN SUPERVISION OR INSTRUCTION CONCERNING USE OF THE APPLIANCE IN A SAFE WAY AND UNDERSTAND THE HAZARDS INVOLVED. CHILDREN SHALL NOT PLAY WITH THE APPLIANCE. CLEANING AND USER MAIN- TENANCE SHALL NOT BE MADE BY CHILDREN WITHOUT SUPERVISION.

Please read these instructions carefully and thoroughly before using this appliance and keep them for future reference. It is very important that you understand how to use this appliance safely so please take the time to familiarise yourself with the requirements as outlined in these instructions.

• If you are in any doubt what so ever about using this appliance, we strongly recommend that you employ the services of a suitably qualified person.
• Keep children and pets well away from the work area and never allow children to use this appliance at any time.
• When not in use, keep this appliance stored in a safe place out of reach of children.
• Never leave the appliance unattended when in use.
• Carry it using the carry handle, be aware of securing the lid tightly when being carried.
• Please observe the applicable rules and regulations, as well as the effective accident prevention regulations.
• Make sure that the area of application has sufficient water drainage. Close feed valve in case of prolonged shut-down times.
• Spilling resin is a slipping hazard.
• Resin can cause skin irritation. Avoid skin contact.
• Can cause eye irritation. Avoid eye contact. Wear safety goggles. In case of eye contact, immediately flush eyes thoroughly with clean water. Consult doctor if symptoms persist.

Operational safety:

CAUTION: The tank may only be filled with a maximum of 5 litres liquid.

• Inspect the Water Softener visually before each use.
• Never leave your Water Softener unattended and do not store for long periods when long periods when full and pressurised.
• Keep the unit out of the reach of children. You are responsible for the safety of others.
• Keep your Water Softener away from heat sources and hot environments.
• Screw on the lid tightly by hand (do not use tools) and ensure that the O-ring is positioned correctly.
• Using water pressure must not be higher than 4bar / 0.4MPa to avoid the damage of product.

Storage safety:

Before storing, drain the water softer from water and close the lid and valves.
- Store away from frost.
- Carry the Water Softener by the handle. Make sure the lid is secured tightly before carrying.
- Make sure that the product is protected from direct sunlight. The product may heat up.

2. MACHINE INFORMATION

Intended use

This device may cause danger if it is improperly installed, not regularly maintained or not used as intended. Use this device only for water treatment to reach an optimal water quality for glass, car, façade and solar panel cleaning. Any other use, especially water treatment for food production (e.g. beverages) is considered as non-intended and not allowed.

When operating with a tap waterline, it must be assured that the connected water tap is equipped with a rebound valve to prevent water flowing back into drink water line!

When operating with water other than from drinking water system, e.g. from a well, a water analysis must be performed prior to application to determine if the water is suitable. Excess impurities in the water may have an adverse effect on system performance and cleaning result.

Operating temperatures, pressures and connection

The system must be protected against frost. The temperatures in the service room must be at least 4^ C. The water temperature may not exceed 30^ C, and maximum operating pressure is 4 bar.

TECHNICAL SPECIFICATIONS

Model No. WS504XX
Container capacity 5 Liter
Weight (incl. resin) 5 kg
Dimension (LxWxH) 255x195x345mm
Max. inlet water pressure 4 bar / 0.4MPA
Max water temp. 30 °C
Min. water temp. 5 °C
Inlet hose length 100cm
Flush hose length 150cm

Flowmeter model No. 490161
Flowmeter battery Li-Mn CR2032

Resin type Lanlang TC008FGF
Amount resin included	4 Liter
Max. operating temperature	120 °C
Particle size range 0.2-0.56mm
PH range	0-14
Service flow rate	5-50 BV/h
Regenerant 10-15% NaCl
Lifespan resin	>10 years

DESCRIPTION

The numbers in the text refer to the diagrams on page 2-4.

1. Tank
2. Lid
3. Inlet valve
4. Outlet valve
5. Flowmeter
6. Inlet hose
7. Flush hose
8. Hose connector
9. Stop connector

10. Flush hose connector

11. Quickconnector

12. Light indicator
13. Battery indicator
14. Volume indicator
15. Reset button
16. Adaptor
17. Li-Mn CR2032 battery
18. Display release button
19. Hardness testing strips
20. Drying cloth

3. Assembly

Inlet hose (Fig. B)

Assembly of the inlet hose.

1. Unscrew the quick connector (8, 9) hose nut from the connector and slide over the hose (6).
2. Press hose (6) over connector-core until completely inserted.
3. Screw hose nut back on the quick connector (8, 9) tightly and make sure the connection is water tight.

Flush hose (Fig. B)

Assembly of the flush hose.

1. Unscrew the quick connector (10) hose nut from the connector and slide over the hose (7).
2. Press hose (7) in connector-core until completely inserted.
3. Screw the hose nut back on the quick connector (10) tightly and make sure the connection is water tight.

Water softener (Fig. A)

Assembly of the system for a ready to use water softener.

1. Connect the flowmeter (5) to a water tap.
2. Make sure to connect the quick connection side (8) of the hose (6) to the outlet of the flowmeter (5). Connect the stop-connector (9) to the water inlet (3) of the tank (1).
3. Connect the utility hose to the water outlet (4) of the softener.
4. Water softener is ready for use.

4. OPERATION

Operational safety

CAUTION: The tank may only be filled with a maximum of 5 litres liquid.

• Inspect the Water Softener visually before each use.
• Never leave your Water Softener unattended and do not store for long periods when long periods when full and pressurised.
• Keep the unit out of the reach of children. You are responsible for the safety of others.
• Keep your Water Softener away from heat sources and hot environments.
• Screw on the lid tightly by hand (do not use tools) and ensure that the O-ring is positioned correctly.
• Using water pressure must not be higher than 4bar / 0.4MPa to avoid the damage of product.

Do not consume treated water or the resin.

Before using (Fig. A)

1. Make sure before using the water softener to check all connections are water tight and of any hose is completely straight without any kinks in the hose. Check the lid (2) if it is fully secured and water tight.
2. Place the water softener in the upright position on an flat and stable underground. Preferably the ground and close to the water supply or tab.
3. Make sure all hoses (6,7) are connected and the valves (3,4) are in the open position.
4. Turn on water supply slowly.
5. Inspect system as it pressurizes and begins producing softened water. Use only with drinking water.
6. Water softener is now ready for use.

Water softener during operation

1. Make sure the area of application has sufficient water drainage, before use of water softener.
2. Periodically inspect the water softener during use. Ensure the hoses are properly attached. Inspect system for leaks and proper fit of the lid.

3. Take care when working to ensure there is enough slack in all hoses that are connected to the valves (3,4) to prevent any damage. Excessive tugging may cause the system to tip over or get damaged.

4. During operation all hoses need to be without kink to ensure maximum waterflow and a proper softening process.

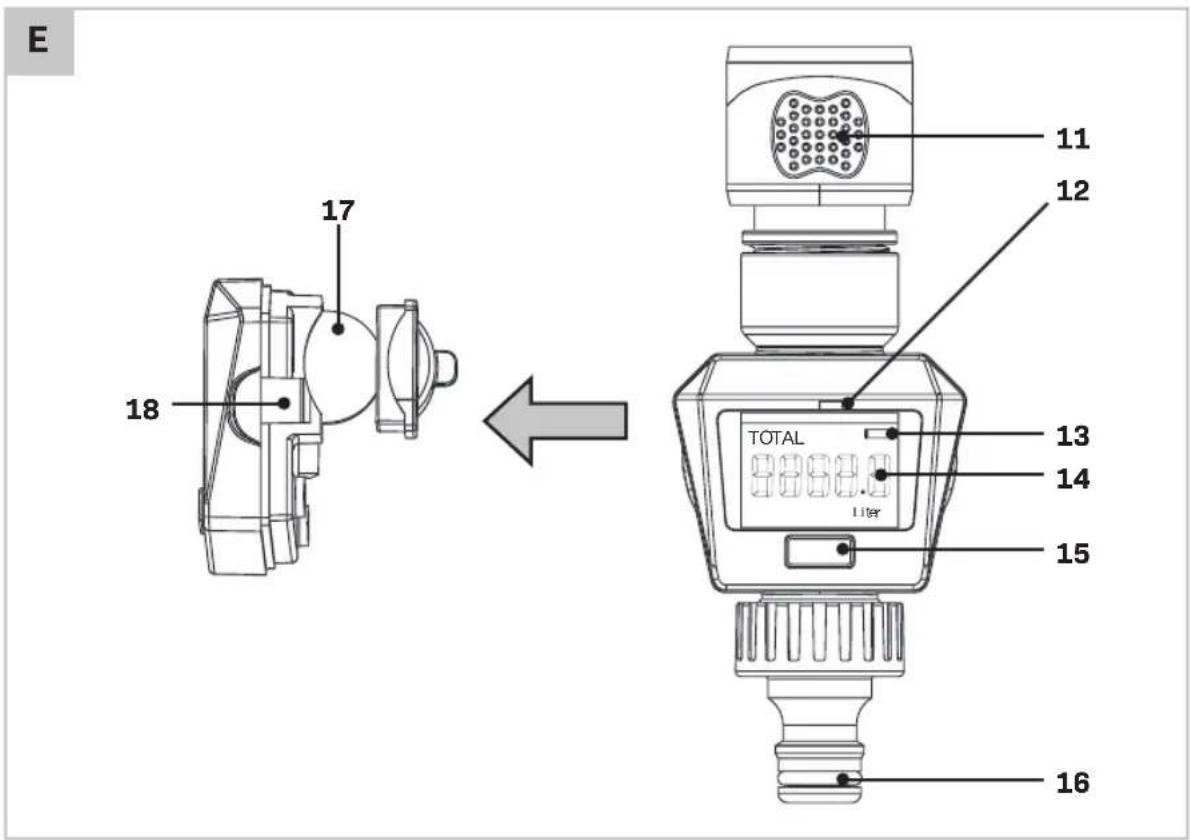

Flowmeter during operation (Fig. E)

1. Flowmeter (5) will turn on automatically when water will starting to run through it and will start to measure amount of water passing true. When water is not flowing, the screen of flowmeter will turn of after 1 minute.
2. When flowmeter reaches 1000 Liters (14), the indicator light (12) will turn on and start flashing and regeneration of the flowmeter (5) is advised.

When screen is not turning on when water is flowing trough meter then batteries need to be replaced. Follow steps “Replacing battery flowmeter” under 5. Maintenance.

Screen will shut off after 60 seconds of not using.

5. MAINTENANCE

Regeneration (Fig. C)

Regeneration is advised after every 1000 Liters of use to maintain a fully softening effect of the hard water. Follow regeneration steps carefully to get a proper regeneration.

1. Close water tap and disconnect water inlet hose from water inlet valve (3).
2. Close water inlet valve (3) and close water outlet valve (4).
3. Disconnect utility-hose from water outlet valve (4)

4. First open the water inlet valve (3) then the water outlet valve (4) and drain water for 10 seconds (Fig C.1).

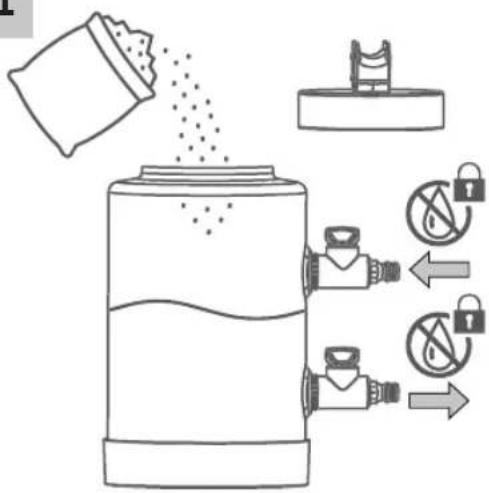

5. Close both valves (3,4) and open the lid (2)

6. Add 1 kg of regular table salt to the tank.

7. Close the lid (2) and keep inlet and outlet valves (3,4) closed during regeneration process.

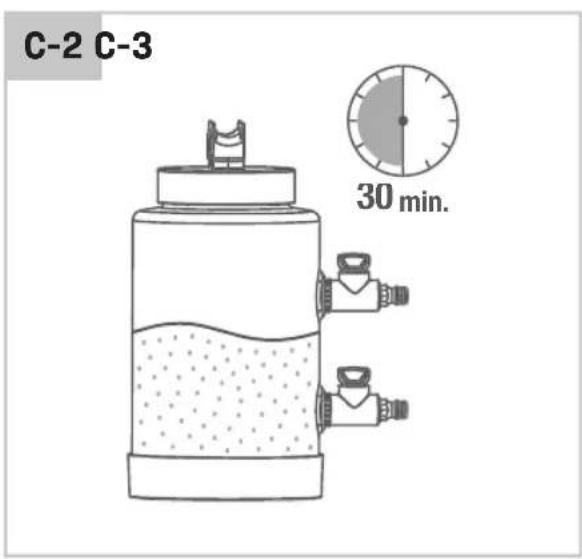

8. Wait 30 minutes for regeneration process to take place (Fig. C.2).

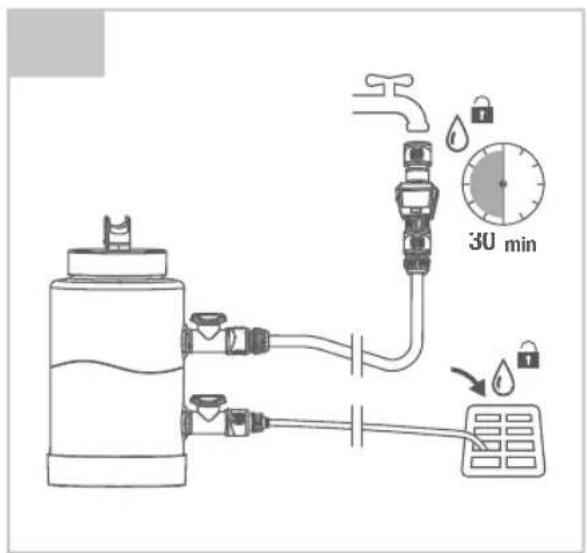

9. After 30 minutes connect water inlet hose (6,8,9) and the flush hose (7,10).

10. Open water inlet and outlet valves (3,4).

11. Open the water tap and flush system for 30 minutes.

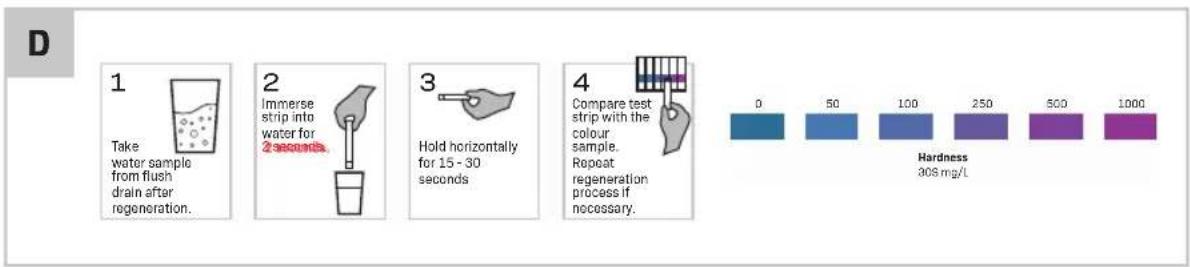

12. After flushing system (Fig. C.3) test the water quality (Fig. D) with the included testing strips (19).

13. Follow step 1 to 4 of testing (Fig. D) and compare results to chart. When fully regenerated the testing strip (19) colour sample should indicate a hardness of 0 on the colour chart. If testing strip indicates >50 or above then regeneration is required.
14. When regeneration process is successful, reset water flow meter (Fig. F).
15. Press and hold reset button (15) on flowmeter (5) for 3 seconds. Flow counter (14) will reset back to 0.
16. Water softener is ready for use.

After regeneration make sure to reset flowmeter to have a correct representation of the amount soft water produced.

Replacing battery flowmeter (Fig. E)

Battery indicator (13) on the screen of flowmeter (5) will appear when the battery (17) is low and need to be replaced.

1. Disconnect flowmeter (5) from closed water tap and inlet hose (6,8,9) and let it dry or wipe dry with towel.
2. Press on both sides the display release buttons (18) and pull display of housing flowmeter.
3. Replace battery (17) with new battery.
4. Press display closed in housing.
5. Re-connect flowmeter (5) to water tap and to inlet hose (6,8,9).
6. Flowmeter is ready for use.

When battery is drained and replaced, status of flow counter (14) will be lost.

Replacement battery must be Li-Mn CR2032.

Cleaning

• Never submerge product in water while cleaning.
• Do not use cleaning agents or solvents. Whip the device using a soft cloth
• Clean the hoses regularly with a soft cloth, preferably after each use.

Do not clean flowmeter with water. This could damage the electrical components inside, resulting in a faulty device. Use a lightly damp or dry cloth for cleaning.

Storage

Before storing, drain the water softer from water and close the lid and valves.
- Store the water softener in a frost-free place. As this could damage the water softer and resin.
- Carry the Water Softener by the handle. Make sure the lid is secured tightly before carrying.

Environment

To prevent damage during transport, the appliance is delivered in a solid packaging which consists largely of reusable material. Therefore please make use of options for recycling the packaging.

The crossed out wheelie bin symbol means that this product shall not be disposed of with normal household waste. Electronic and Electrical Equipment not included in the selective sorting process are potentially dangerous for the environment and human health due to the presence of hazardous substances. Please dispose of responsibly at an approved waste or recycling facility.

Resin can be disposed of at the regular household (closed) bin or at a waste disposal facility. Avoid discharge to sewers, ground and aquatic environment as this can harm the environment.

WARRANTY

VONROC product are developed to the highest quality standards and are guaranteed free of defects in both materials and workmanship for the period lawfully stipulated starting from the date of original purchase. Should the product develop any failure during this period due to defective material and/or workmanship then contact your VONROC dealer directly.

The following circumstances are excluded from this guarantee:

• Repairs and or alterations have been made or attempted to the machine by unauthorized service centers.
• Normal wear and tear.
• The tool has been abused, misused or improperly maintained.
• Non-original spare parts have been used

This constitutes the sole warranty made by company either expressed or implied. There are no other warranties expressed or implied which extend beyond the face hereof, herein, including the implied warranties of merchantability and fitness for a particular purpose. In no event shall VONROC be liable for any incidental or consequential damages. The dealers remedies shall be limited to repair or replacement of nonconforming units or parts.

The product and the user manual are subject to change. Specifications can be changed without further notice.

Only for EC countries

Do not dispose of power tools into domestic waste. According to the European Guideline 2012/19/EU for Waste Electrical and Electronic Equipment and its implementation into national right, power tools that are no longer usable must be collected separately and disposed of in an environmentally friendly way.

(e.g. beverages) is considered as non-intended and not allowed.
