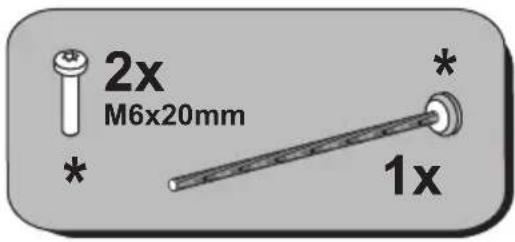

: the parts marked with this symbol can be purchased separately from specialised dealers.

: the parts marked with this symbol are optional essories supplied only with some models and can be chased from the websites www.elica.com and w.shop.elica.com.

1. SAFETY AND REGULATIONS

GENERAL SAFETY

Please note! Pay strict attention to the following instructions: ● The device must be disconnected from the mains before carrying out any installation work. ● Installation or maintenance must be performed by a qualified technician, in compliance with the manufacturer's instructions and local safety regulations. Do not repair or replace any part of the product unless specifically stated in the operating manual. ● By law, the product must be earthed. ● The power cable must be long enough to allow the product, built into the cabinet, to be connected to the mains. ● In order for the installation to comply with current safety regulations, an approved omnipolar switch is required that guarantees complete disconnection from the mains in overvoltage category III, in accordance with the installation rules. ● Do not use power strips or extension cords. ● Once installation is complete, the electrical components must no longer be accessible by the user. ● The product and its accessible parts get hot during use. Be careful not to touch the heating elements. ● Ensure that children do not play with the product; keep children at a safe distance and supervise them as the accessible parts may become very hot during use. ● For people with pacemakers and active implants, it is important to check,

prior to using the induction hob, that their pacemaker is compatible with the product. ● Do not touch the heating elements of the product during and after use. ● Avoid contact with kitchen towels or other flammable materials until all components of the product have sufficiently cooled, fire hazard. ● Do not place flammable materials on or near the product. ● Overheated fats and oils easily catch fire. Supervise the cooking of fatty or oily food. ● If the surface is cracked, switch the product off immediately to prevent the risk of an electric shock. ● The product is not intended to be operated with an external timer or a separate remote control system. ● Unattended cooking on a hob with oil or fat can be dangerous and may cause a fire. ● The cooking process must be supervised. A short cooking process must be constantly monitored. ● NEVER attempt to put fires out using water. Instead, turn off the product and smother the flames, for example with a lid or a fire blanket. ● Fire hazard: do not place objects on the cooking surfaces. ● Do not use steam cleaners, risk of electric shock. ● Do not place metal objects, such as knives, forks, spoons or lids on the hob because they could become hot. ● Before connecting the product to the mains: check the rating plate (on the bottom of the product) to ensure that the voltage and power correspond to the mains supply and that the power socket is suitable. If in doubt, consult a qualified electrician.

Important: ● After use, turn off the hob using its control device and do not rely on the pot detector. ● Prevent liquids from boiling over; therefore, turn the heat down when boiling or heating liquids. ● Do not leave the heating elements turned on with empty pots and pans, or without any cookware. ● Switch off the relevant cooking zone when you have finished cooking. ● Never use aluminium foil for cooking and never place products packaged in aluminium directly on the hob. The aluminium would melt and irreparably damage your product. ● Never heat a tin or can containing foods without opening it first: it might explode! This warning also applies to all other types of hobs. ● High power levels such as the Booster function should not be used to heat certain liquids, such as oil for frying. Excessive heat may be dangerous. In these cases, we recommend the use of a lower power level. ● The cookware must be placed directly on the hob and must be centred. Under no circumstances may any other objects be placed between the pot and the hob. ● If the temperature becomes high, the product automatically decreases the power level of the cooking zones. ● Before doing any cleaning or maintenance work, disconnect the product from the mains by disconnecting the plug or turning off the mains switch. ● For all installation and maintenance operations, always use work gloves. ● The product can be used by children over the age of 8 and by people with reduced physical, sensory or mental capabilities or without experience or the necessary knowledge, as long as they are properly supervised or have been instructed on how to safely use the product and understand the inherent dangers. ● Children must be supervised to ensure they do not play with the product. ● Cleaning and maintenance must never be performed by children unless they are

properly supervised. ● The room must be sufficiently ventilated when the product is used at the same time as other appliances that run on gas or other fuels. ● The product must be cleaned frequently both inside and out (AT LEAST ONCE A MONTH); always follow the instructions given in the maintenance manual. ● Failure to comply with the rules for product cleaning and the cleaning/replacement of filters, may create a fire hazard. ● Flambé cooking is strictly prohibited. ● Using a naked flame may damage the filters and cause a fire hazard, and must therefore be avoided under all circumstances. ● Extra care must be taken when frying to prevent the oil from overheating and catching fire. ● Please note! The accessible parts of the device may become hot when the hob is switched on. ● Please note! Do not connect the product to the mains until the installation is complete. ● The regulations laid down by local authorities must be strictly followed with regard to the technical and safety measures to be adopted for fume extraction. ● The extracted air must not be conveyed through the same ducts used to extract the fumes generated by the combustion of gas or other types of fuels. ● Never use the product without the grille properly installed! ● Only use the fastening screws supplied with the product for installation, or if not supplied, purchase the correct type of screws. Use screws of the right length, as indicated in the installation guide. ● When this product is used together with other devices powered with non-electrical energy, the negative pressure of the room must not exceed 4 Pa (4 x 10-5 bar). ● This manual must be stored for future consultation at any time. If sold, transferred or moved, it must remain with the product.

- Range hoods and other cooking fume extractors may adversely affect the safe operation of appliances burning gas or other fuels (including those in other rooms) due to back flow of combustion gases. These gases can potentially result in carbon monoxide poisoning. After installation of a range hood or other cooking fume extractor, the operation of flued gas appliances should be tested by a competent person to ensure that back flow of combustion gases does not occur.

ELECTRICAL CONNECTION SAFETY

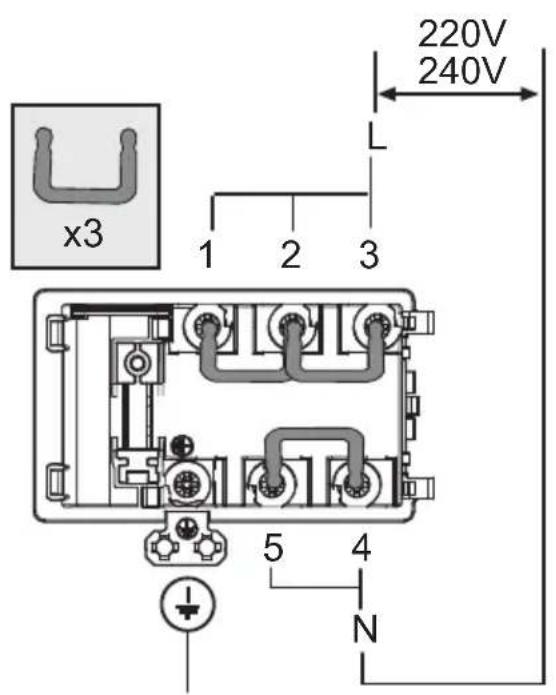

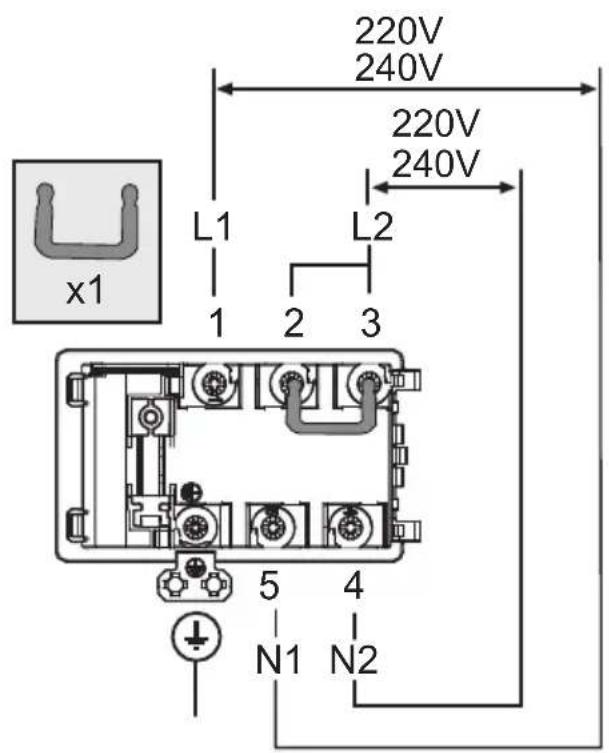

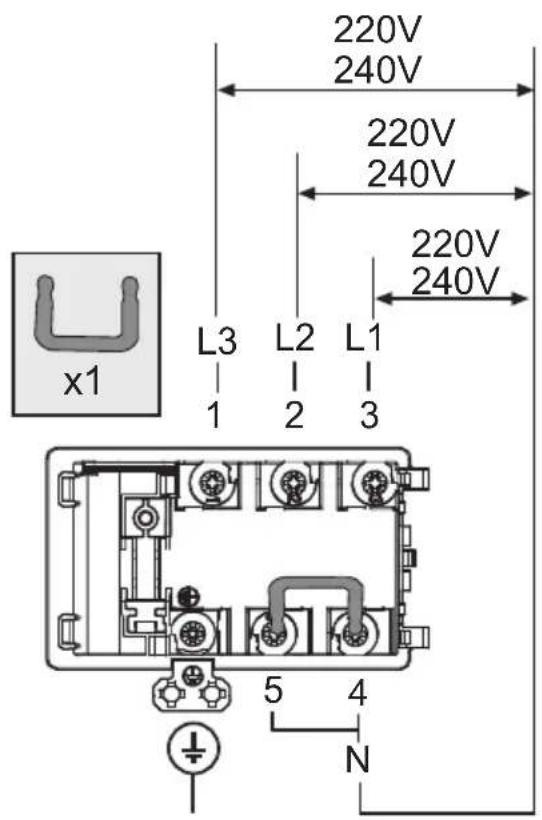

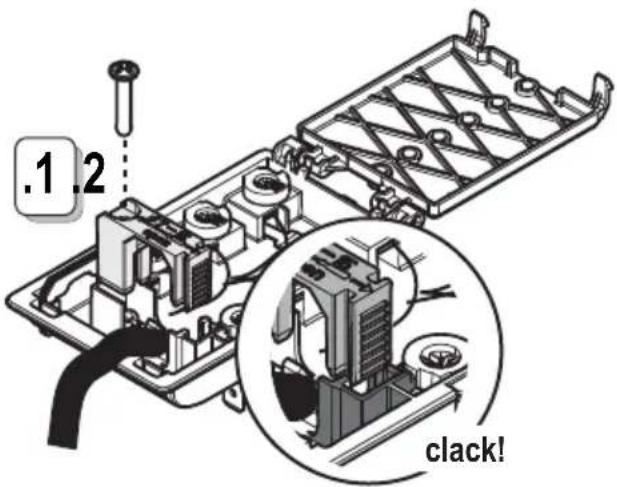

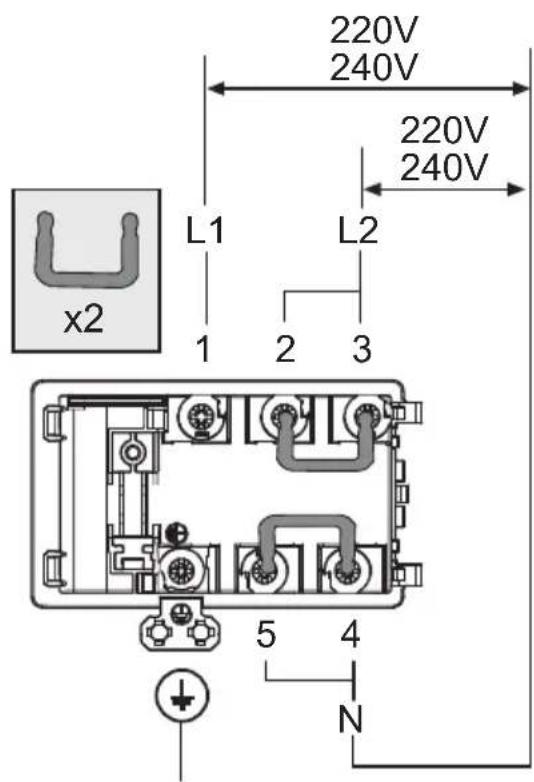

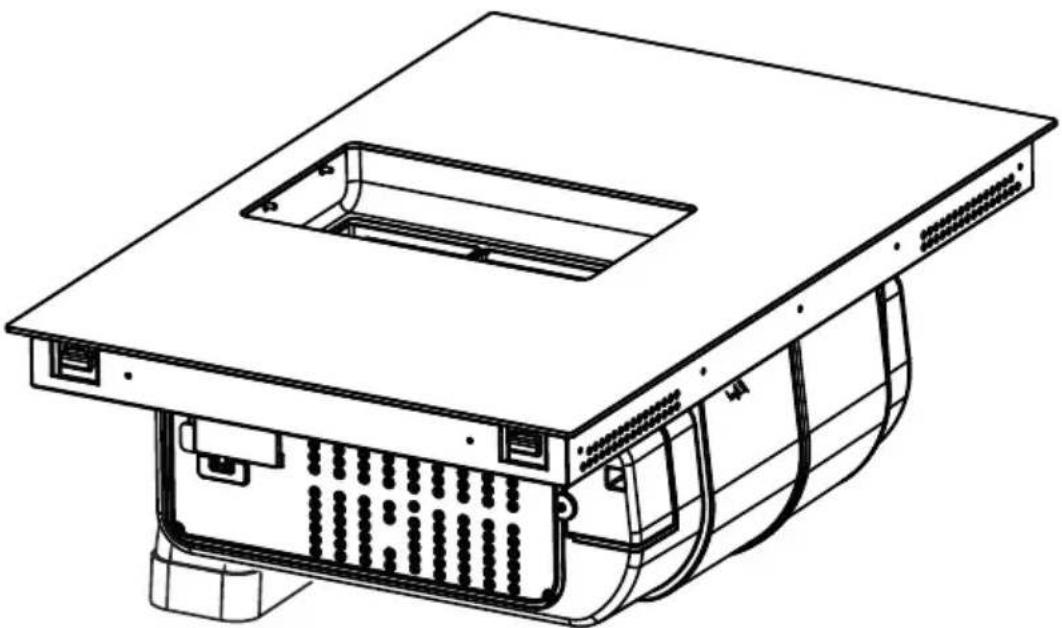

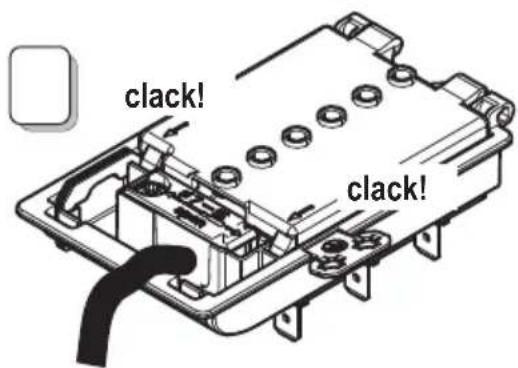

- Disconnect the product from the mains. • The installation must be carried out by professionally qualified personnel with knowledge of the regulations in force for installation and safety. • The manufacturer disclaims all liability for persons, animals or property if the guidelines provided in this chapter are not followed. • The power cable must be long enough to allow removal of the hob from the worktop. • Check that the voltage on the rating plate on the bottom of the product corresponds to that of the domestic environment where it will be installed. • Do not use extension cords. • The earth cable must be 2cm longer than the other cables. • If the product is not equipped with a power cable, use one with a minimum conductor diameter of 2.5 mm2 for power up to 7200 Watt; for higher power levels, the diameter must be 4 mm2. • The temperature must not reach 50°C above room temperature anywhere along the cable. • The product is

intended to be permanently connected to the mains, therefore, make the connection to the mains using an approved omnipolar switch that guarantees complete disconnection from the mains in category III overvoltage conditions, and which is readily accessible after the installation.

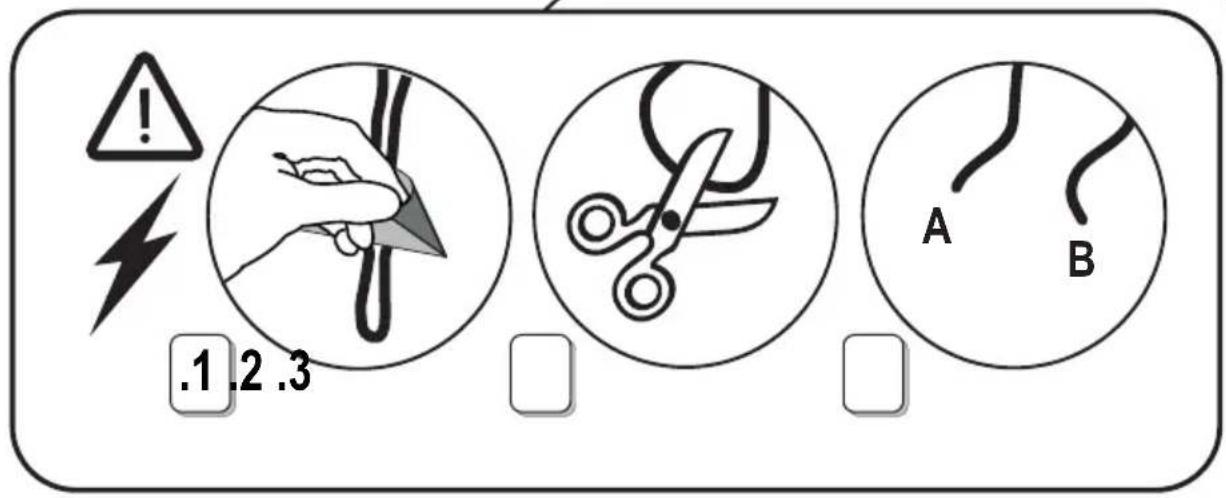

• Please note! The interconnection cable must be replaced by the authorised customer service representative or by a person with similar qualifications.
• Please note! Before reconnecting the circuit to the mains power supply, make sure that it is working correctly, always check that the power cable is correctly installed.

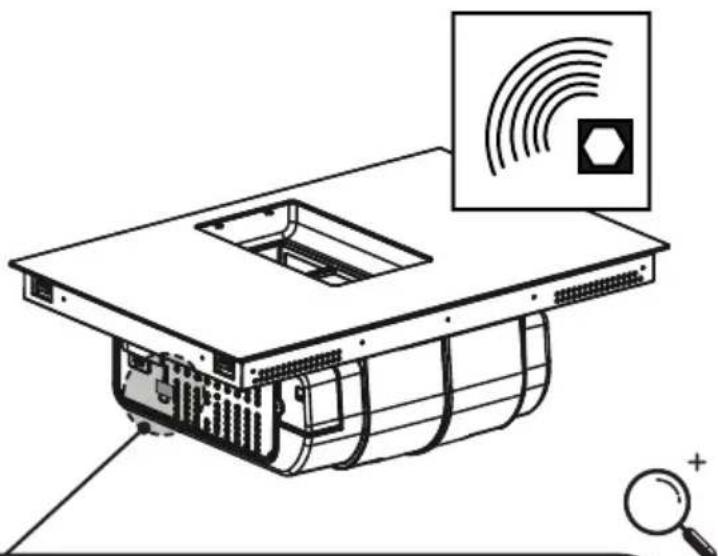

POWER LIMITATION: the product is equipped with a Power Limitation function, which allows a maximum power limit to be set (kw)

The setting must be made when the product is connected to the mains or when the mains power itself is restored (within the following 2 minutes). Size the electrical system protection according to the selected Power Limitation level. For the Power Limitation setting sequence, see the Operation section of this manual.

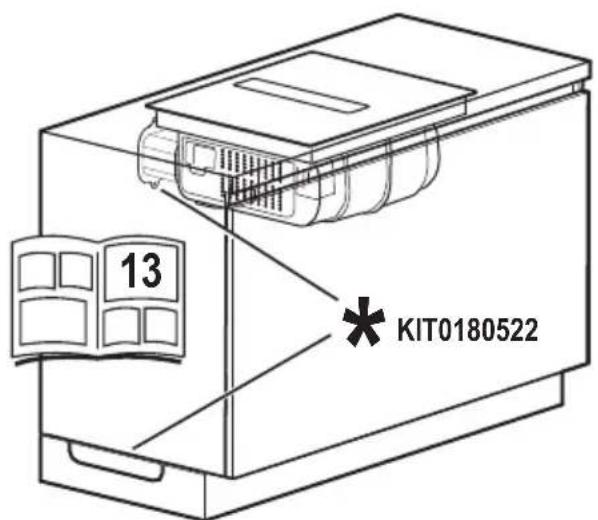

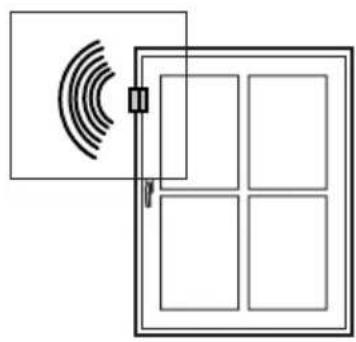

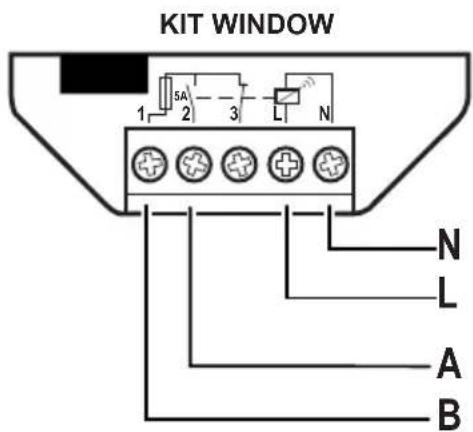

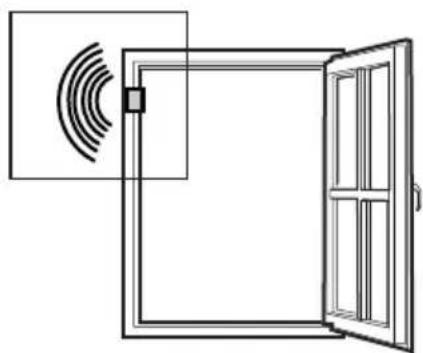

WINDOWS KIT: The product can also be used in conjunction with a Window sensor KIT (not supplied by the manufacturer). If the Window sensor KIT is installed (only if used in DUCT-OUT mode), air extraction will halt every time the window in the room, on which the KIT is applied, is closed. The KIT must be electrically connected to the device by qualified and specialised technical personnel. The KIT must be certified separately in accordance with the safety standards for the component and its use with the device. Installation must be carried out in accordance with current regulations for domestic systems.

PLEASE NOTE: the wiring of the KIT to be connected to the product must be part of a certified safety extra-low voltage (SELV) circuit. The manufacturer of this device disclaims all liability for any inconvenience, damage or fires caused by defects and/or problems associated with the malfunction and/or incorrect installation of the KIT.

INSTALLATION SAFETY

- The electrical and mechanical installation must be performed by qualified personnel. - Before starting the installation: After unpacking the product, check that it has not been damaged during transport and in the case of problems, contact your dealer or Customer Service, before proceeding with the installation; Check that the purchased product is the right size for the installation location; Check for accessories inside the packaging (placed there for ease of transport, such as bags containing screws, the warranty certificate, etc.). Remove and keep them safe; Also check that there is a power socket near the installation area

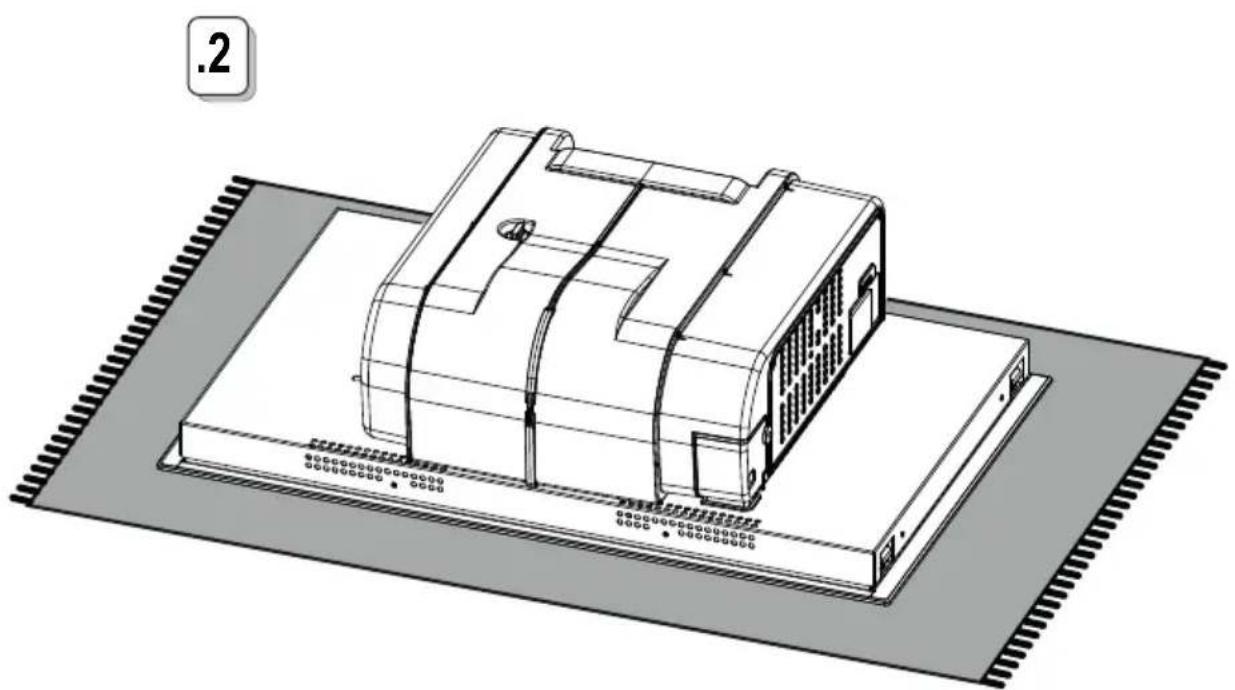

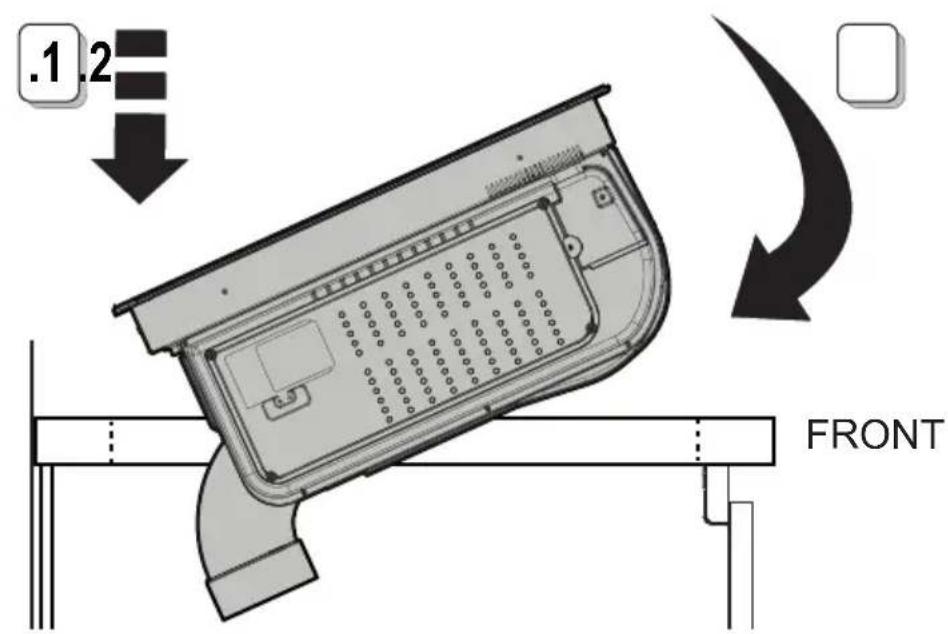

• Preparing the cabinet for installation:

- The product cannot be installed above cooling appliances, dishwashers, heaters, ovens, washing machines and dryers; Create the cut-outs in the cabinet

before inserting the hob and carefully remove shavings or sawdust.

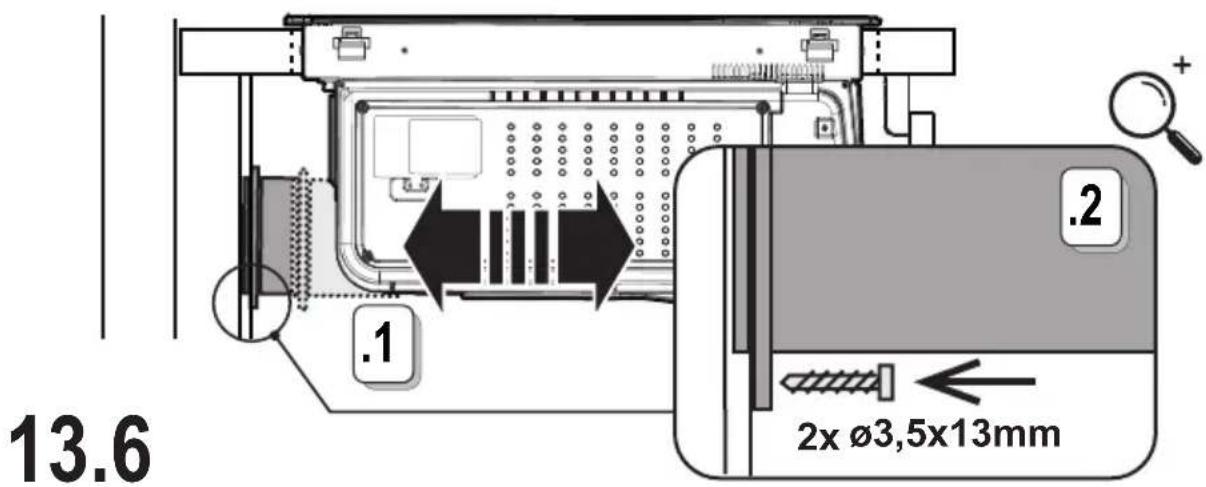

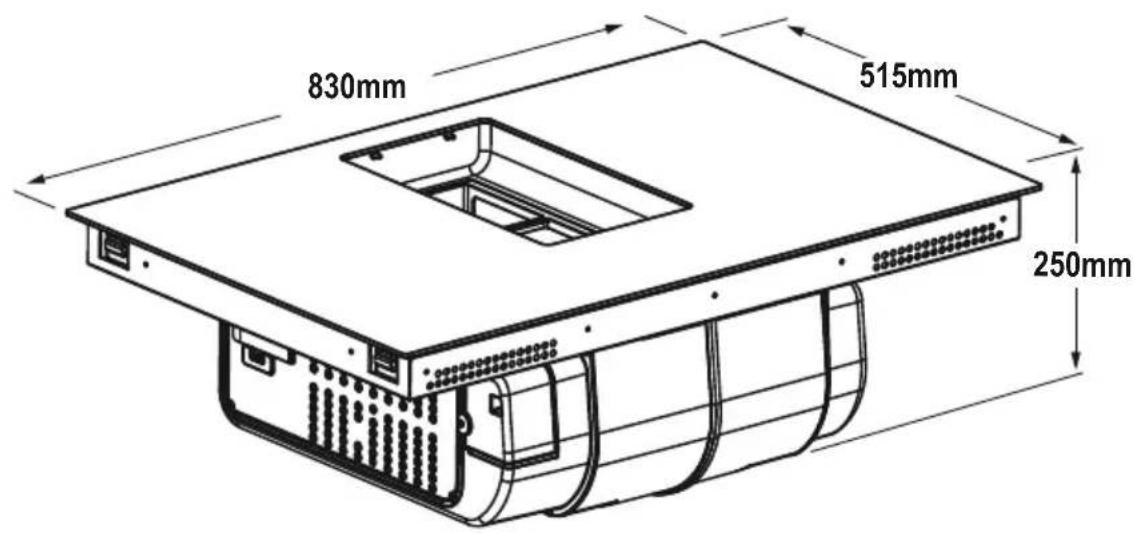

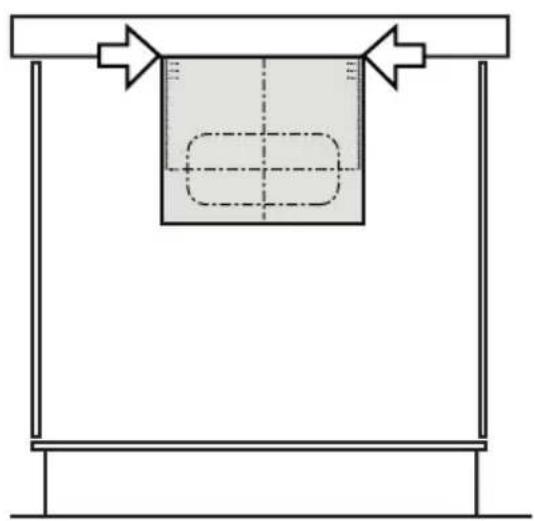

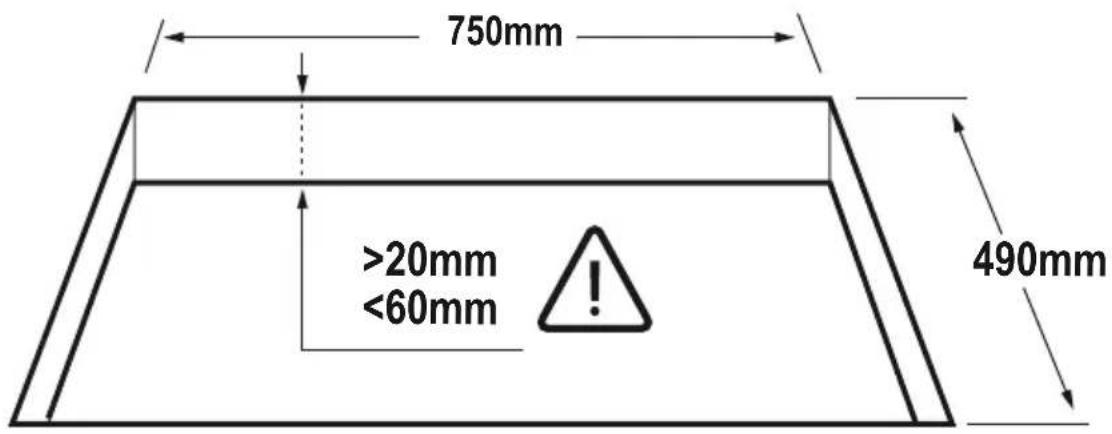

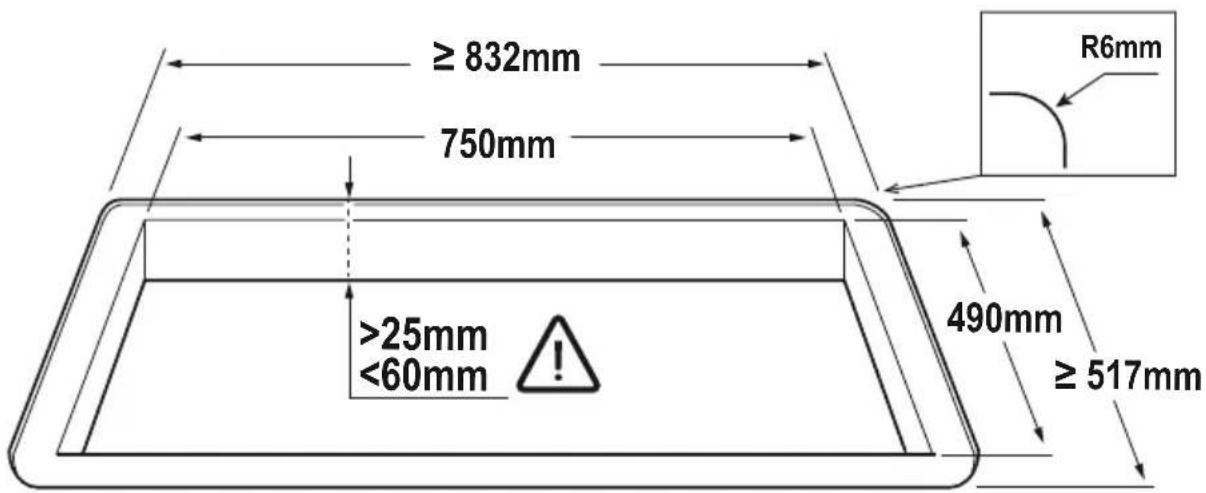

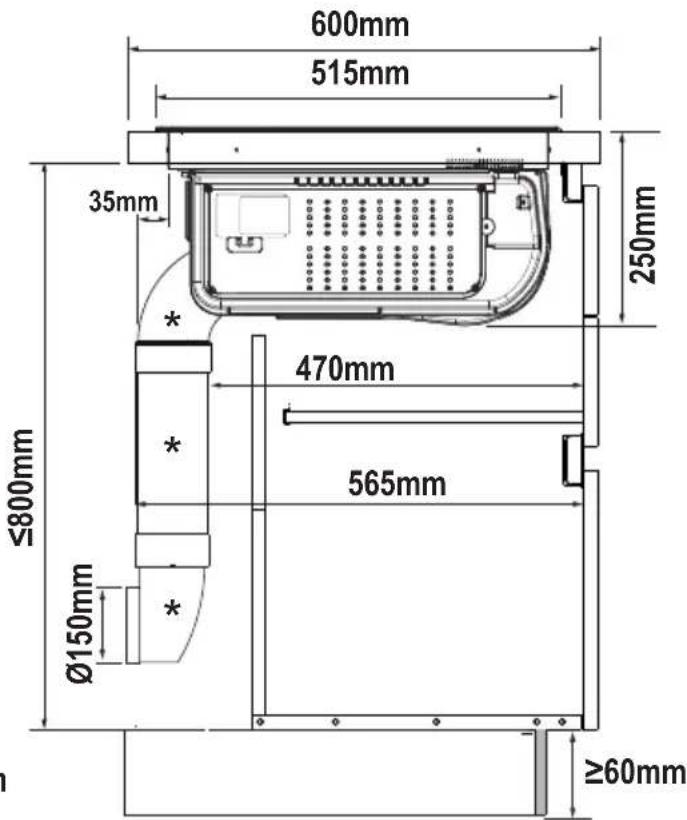

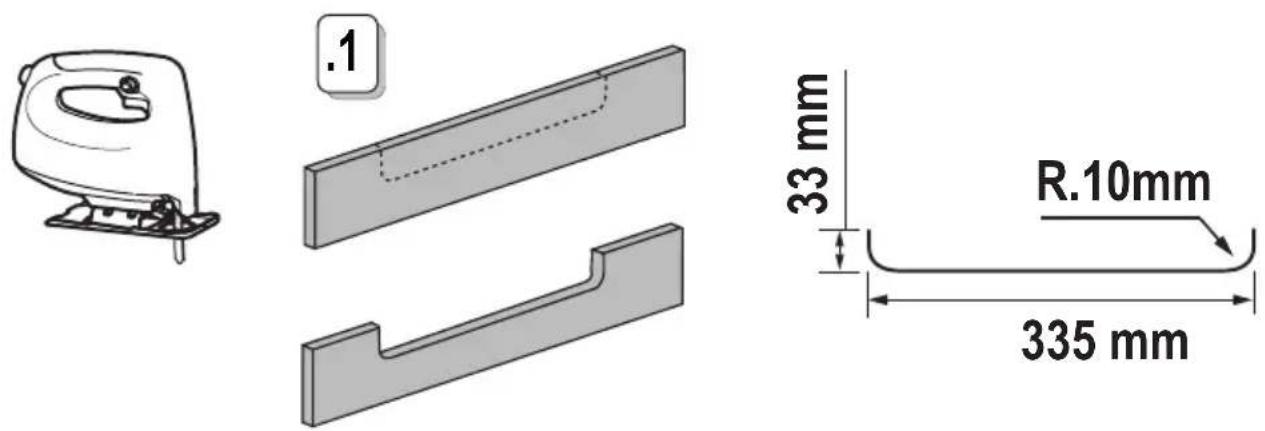

- The product is designed to be built into a worktop with a thickness of 2-6 cm in the case of TOP installation; 2.5-6 cm in the case of FLUSH installation.

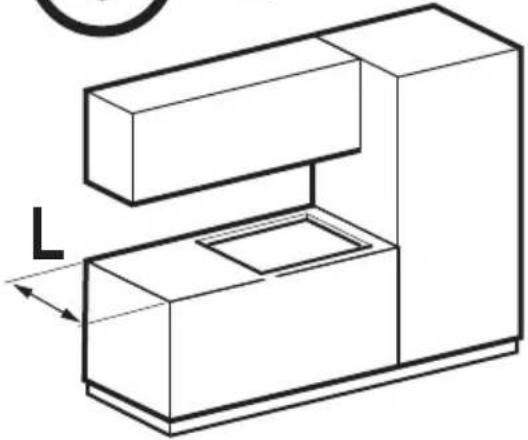

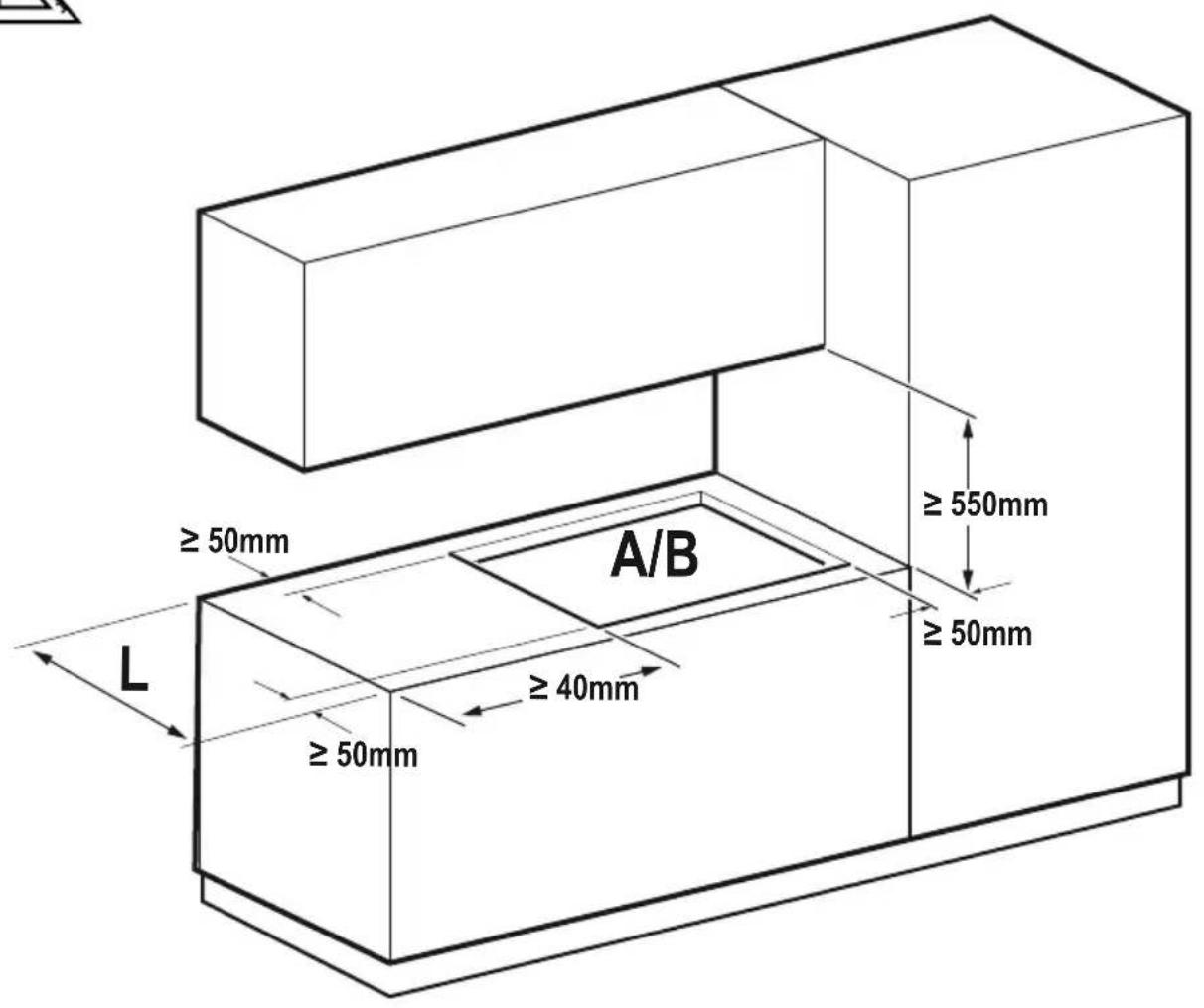

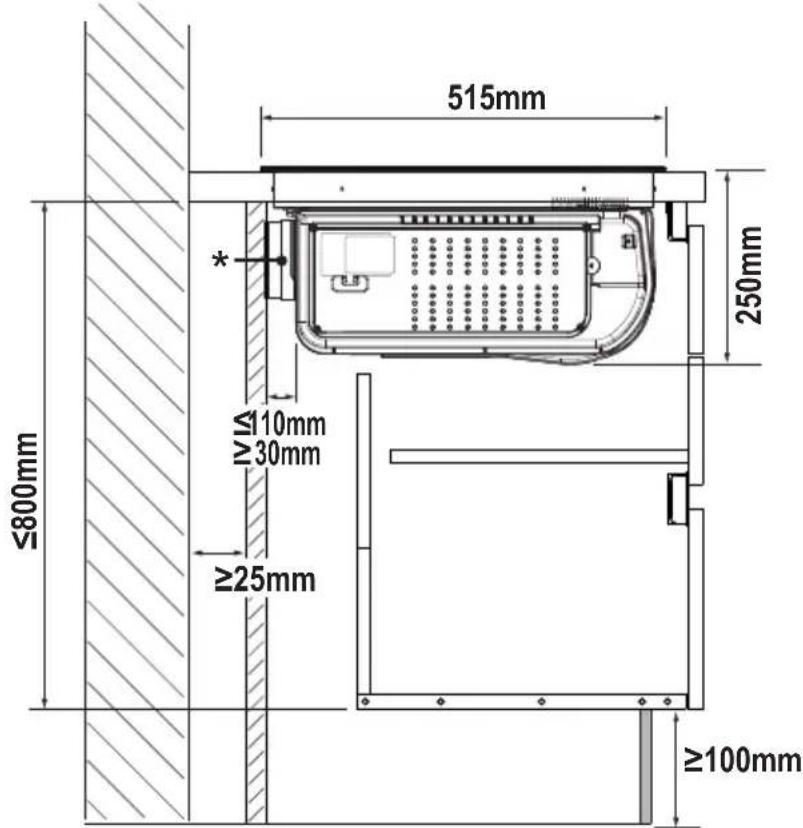

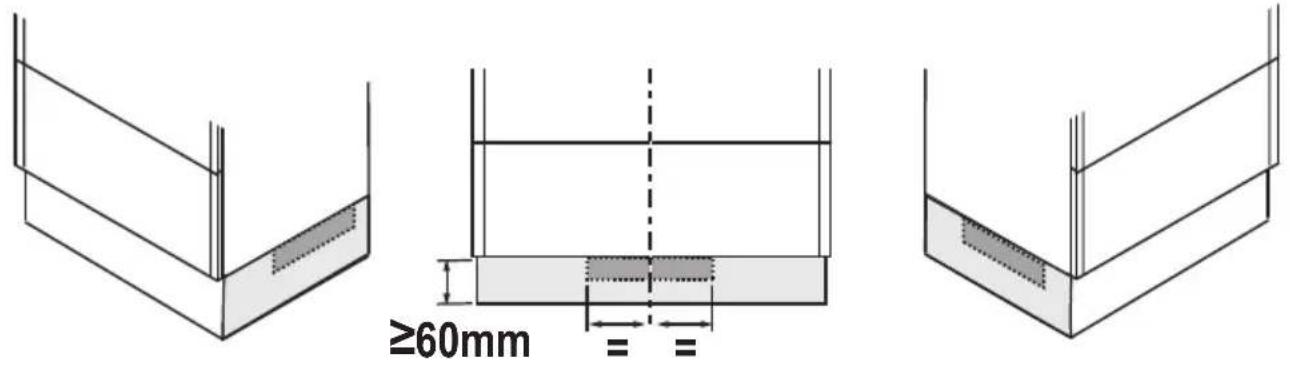

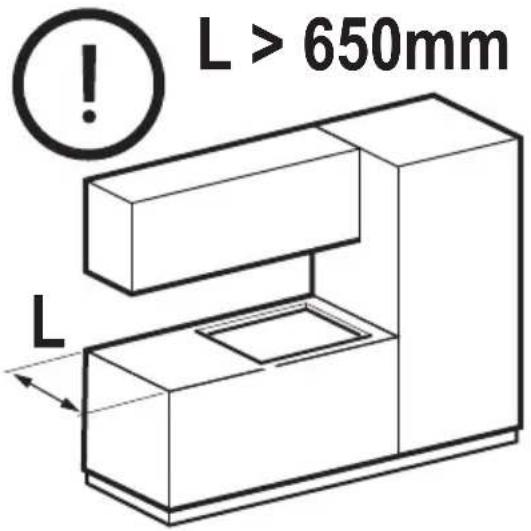

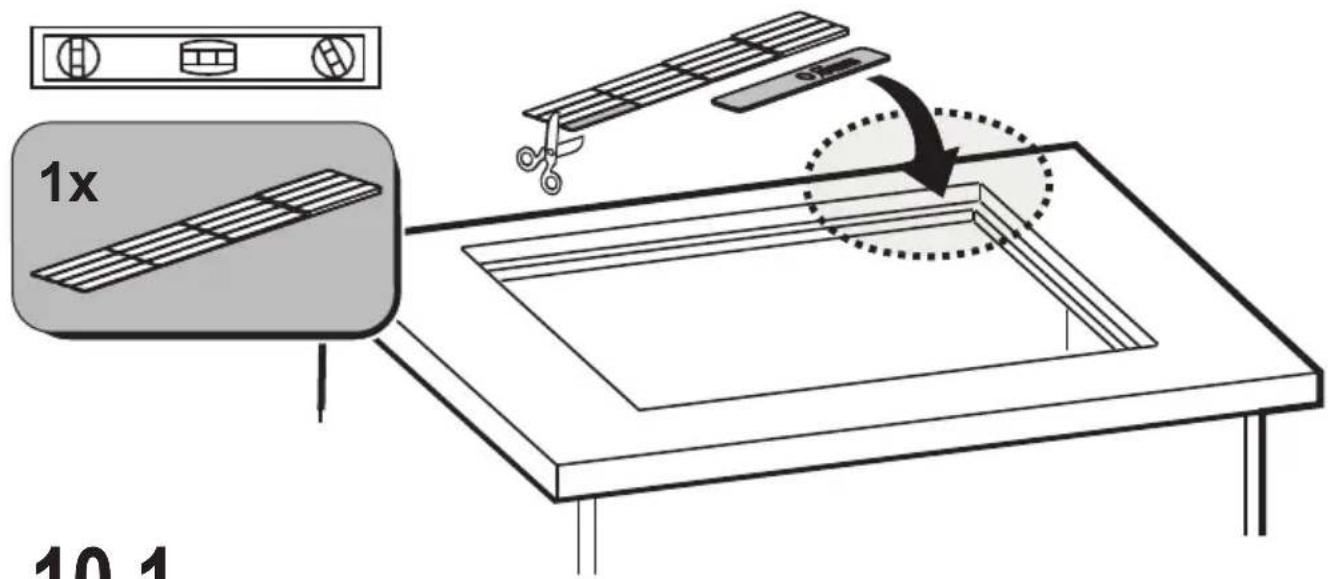

The minimum distance between the hob and the wall must be at least 5 cm in front, at least 4 cm on the sides and at least 50 cm from overhead wall units.

NB = The recommended distances are given as examples: when planning the spaces, the indications of the kitchen manufacturer must be observed.

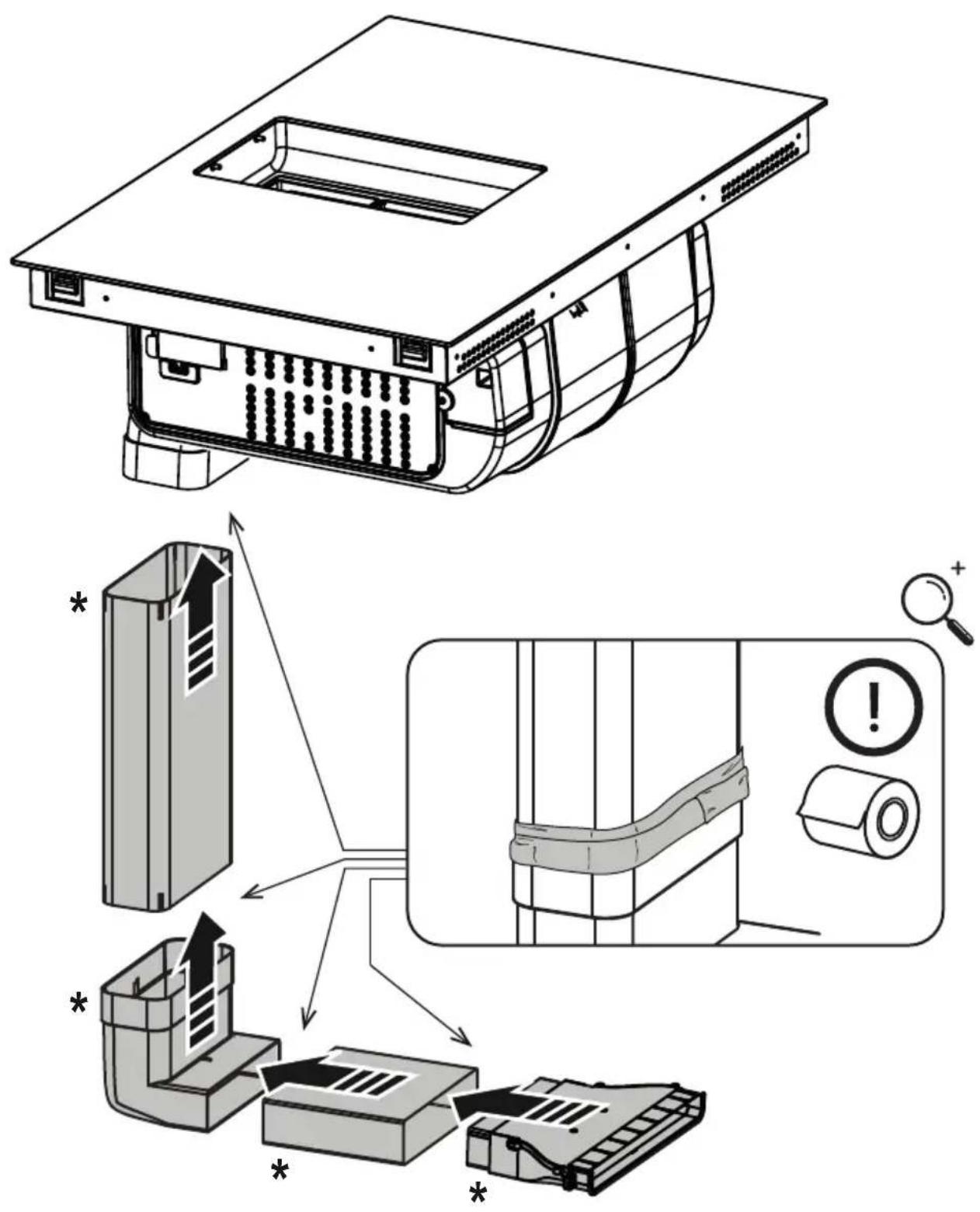

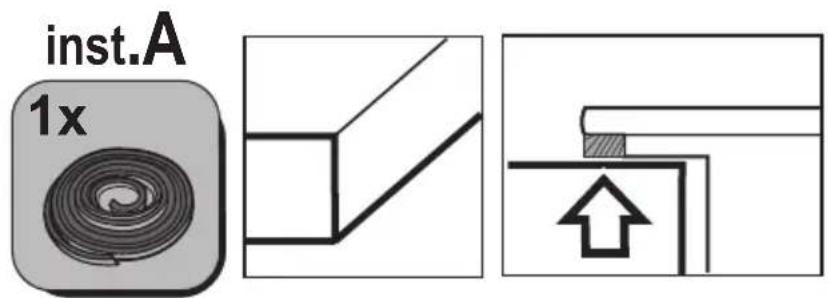

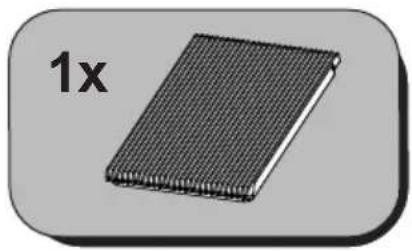

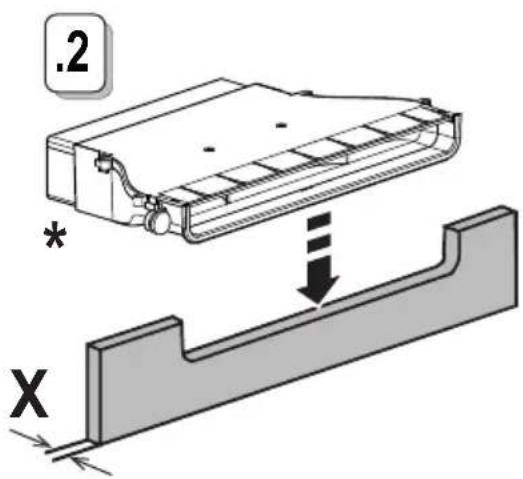

• to optimise the recirculating installation, it is recommended to create a slot in the plinth, in which to insert a commercial grille.

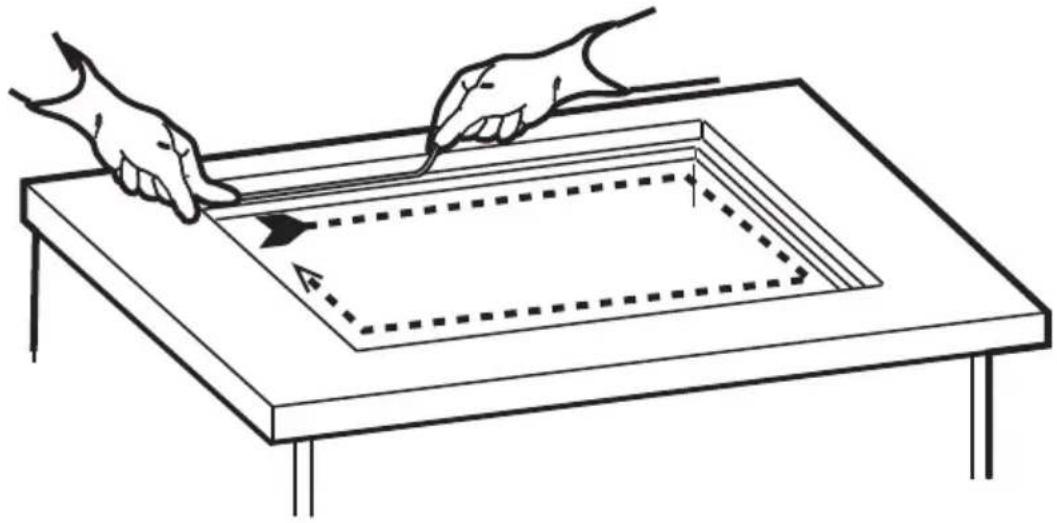

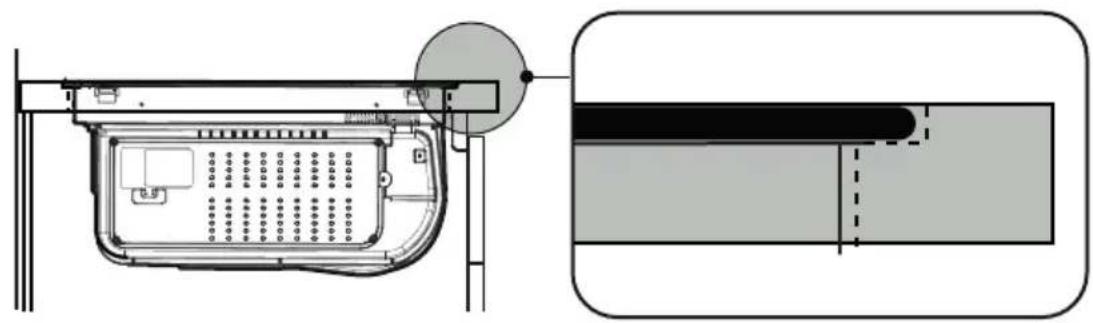

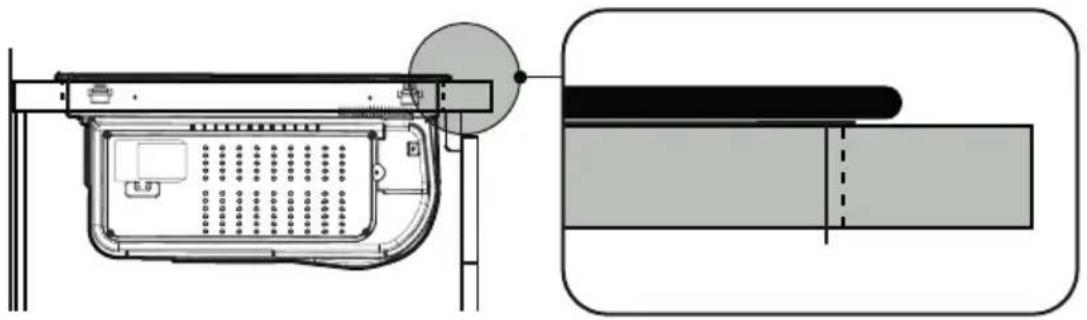

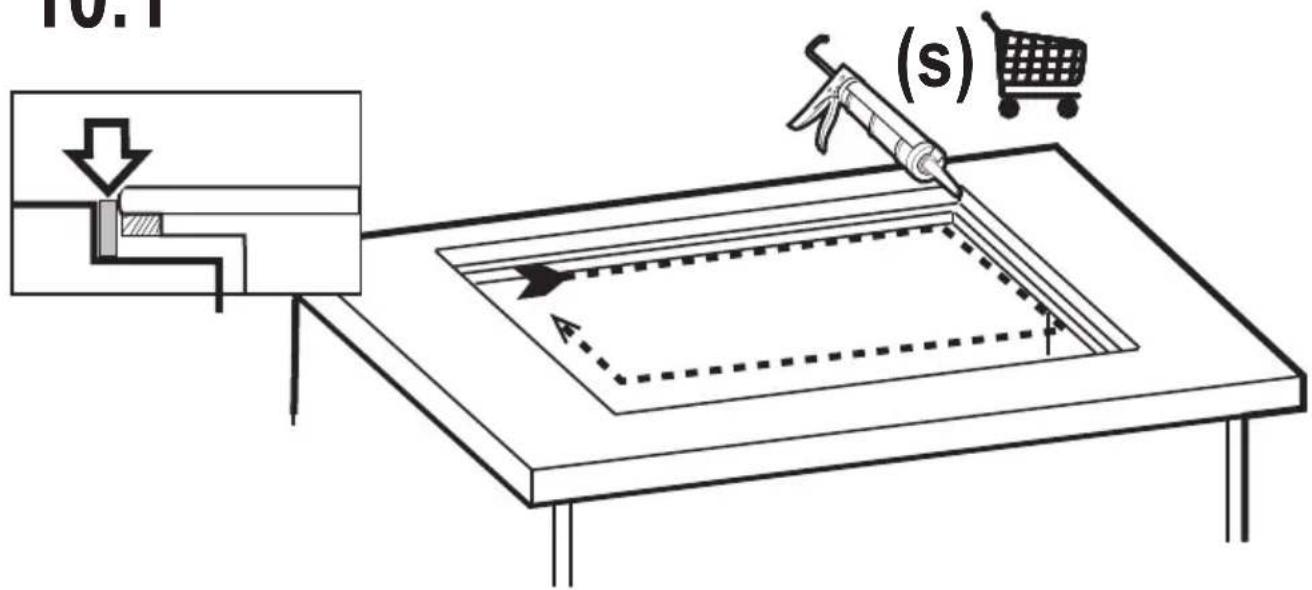

• Important: use a single component adhesive sealant (S) that can withstand high temperatures up to 250^ ; before installation, the surfaces that need to be glued must be thoroughly cleaned, removing all substances that may compromise adhesion (e.g. release agents, preservatives, grease, oils, powders, old adhesive residue, etc.); the adhesive must be evenly spread along the entire perimeter of the frame; after gluing, leave the adhesive to dry for about 24 hours.

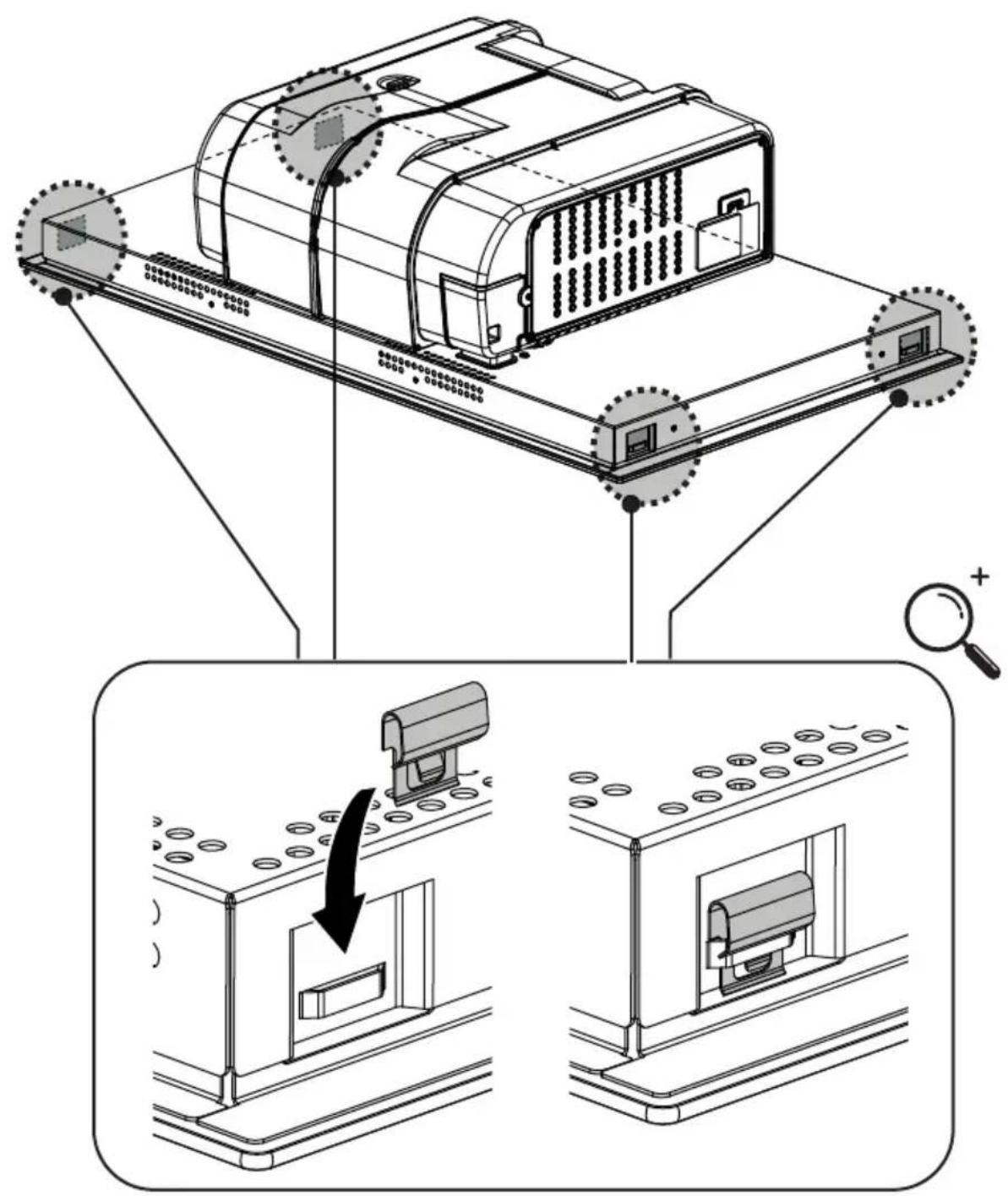

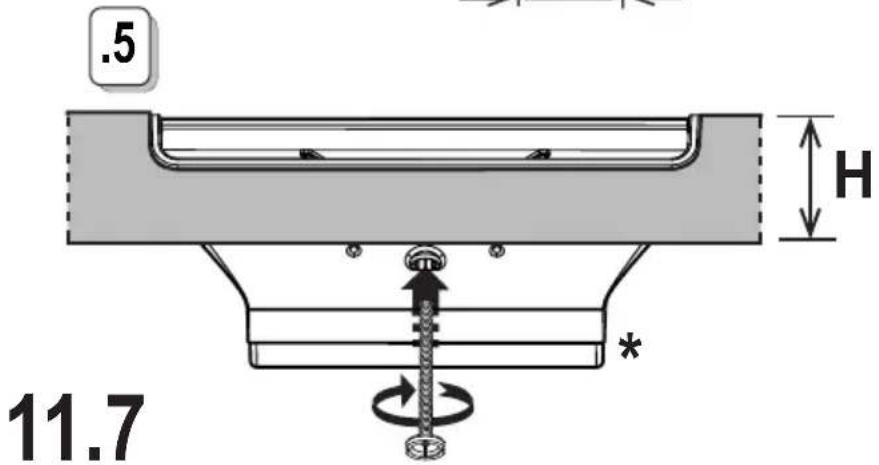

• Please note! Failure to install screws and fasteners in accordance with these instructions may result in electrical hazards.

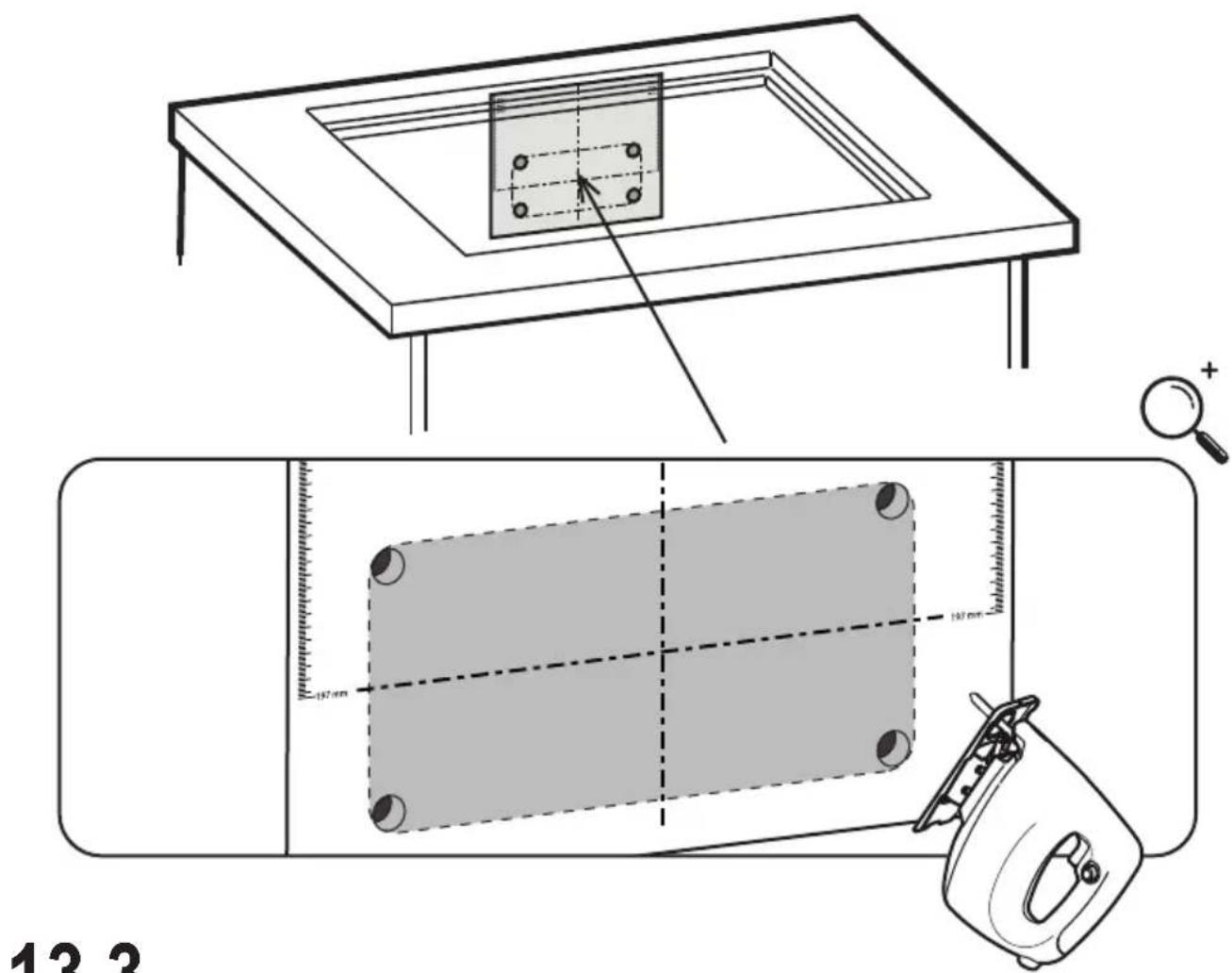

• Note: for correct installation of the product, it is recommended to tape the pipes using an adhesive with the following characteristics: soft elastic PVC film, with acrylic-based adhesive; complies with DIN EN 60454 regulations; flame retardant; excellent resistance against wear; resistant to temperature fluctuations; can be used at low temperatures.

END-OF-LIFE DISPOSAL

This device is marked in compliance with the European Directive 2012/19/EC - UK SI 2013 No.3113, Waste Electrical and Electronic Equipment (WEEE).

Make sure that this product is disposed of correctly. The user helps prevent potential negative consequences for the environment and for health. The symbol on the product or accompanying documentation indicates that this product should not be treated as household waste but should be handed over at a suitable collection point for the recycling of electrical and electronic equipment. Dispose of it in accordance with local regulations for waste disposal. For further information about the treatment, recovery and recycling of this product, please contact your local authority, the collection service for household waste or the shop from where the product was purchased.

REGULATIONS

Device designed, tested and developed in compliance with regulations on:

- Safety: EN/IEC 60335-1; EN/IEC 60335-2-6, EN/IEC 60335-2-31, EN/IEC 62233; • Performance: EN/IEC 61591; ISO 5167-1; ISO 5167-3; ISO 5168; EN/IEC 60704-1; EN/

IEC 60704-2-13; EN/IEC 60704-3; ISO 3741; EN 50564; IEC 62301. EN 60350-2; • EMC: EN 55014-1; CISPR 14-1; EN 55014-2; CISPR 14-2; EN/IEC 61000-3-3; EN/IEC 61000-3-12.

RECOMMENDATIONS FOR USE

Recommendations for correct use in order to reduce the impact on the environment: When cooking begins, the device should be turned on at minimum speed, and left on for a few minutes even after cooking is complete. Increase the speed only if there is a large quantity of fumes and steam, using the Booster function only in extreme cases. To keep the odour reduction system running efficiently, replace the carbon filter/s when necessary. To ensure the high performance of the grease filter, clean it when necessary. To improve efficiency and minimise noise, use the maximum duct diameter indicated in this manual.

2. USE

USING THE HOB

The induction cooking system is based on the physical phenomenon of magnetic induction. The main characteristic of this system is the direct transfer of energy from the generator to the pot.

Benefits: When compared to electric hobs, your induction hob is: Safer: lower temperature on the glass surface.

Faster: shorter food heating times. More accurate: the hob immediately reacts to your commands. More efficient: 90% of the absorbed energy is transformed into heat. Moreover, once the pot is removed from the hob, heat transmission is immediately interrupted, avoiding unnecessary heat loss.

USE OF COOKWARE

- Cookware

Only use pots bearing this symbol.

Important:

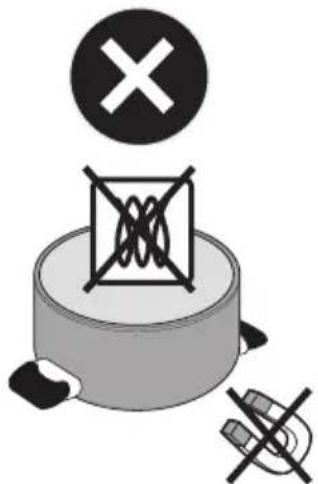

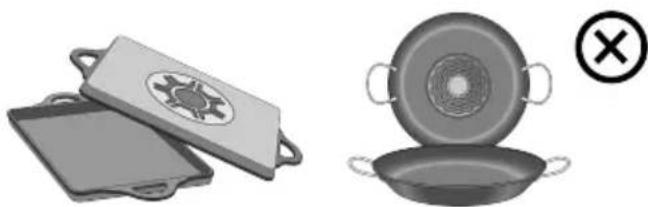

to avoid permanent damage to the hob surface, do not use:

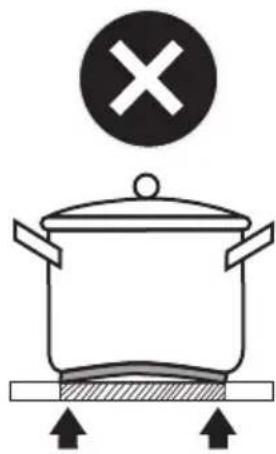

• cookware with a base that is not perfectly flat;
- metal cookware with an enamelled base;
- cookware with a rough base, to avoid scratching the hob surface;
- never place hot pots and pans on the surface of the hob's control panel.
- Not all induction pots work efficiently due to the base only partially consisting of ferromagnetic material! When purchasing pots or pans ensure that:
- the base is made entirely from ferromagnetic material. If this is not the case, heat transmission and uniformity will be less efficient, and the temperatures of the pot/pan surface may not be suitable for cooking

Illustration of cooking utensils including a pan, lid, and pan with a crossed-out mark (no text or symbols)

- The base does not contain aluminium: the cookware does not heat and may not be recognised by the inductors.

Two 3D-rendered cooking panes with handles and a circular vent, one open showing interior (no text or symbols)

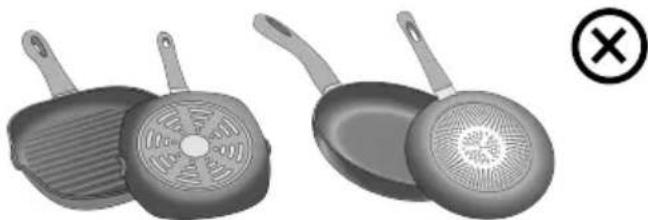

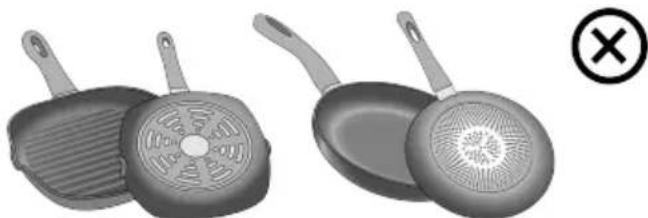

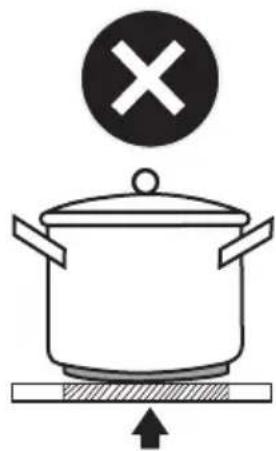

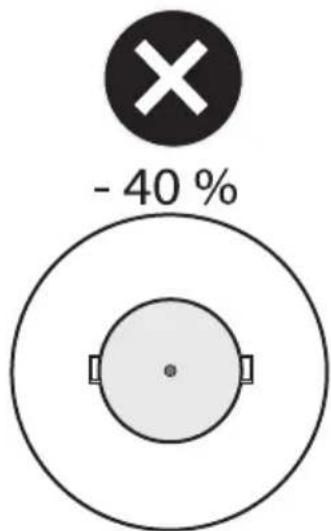

• Bases that are not flat or have rough surfaces.
  • These lower the contact surface area between the inductor and the cookware, reducing efficiency and harming the cooking experience.

Illustration of a frying pan and a cooking pan with a checkmark (no text or symbols)

●Pre-existing cookware

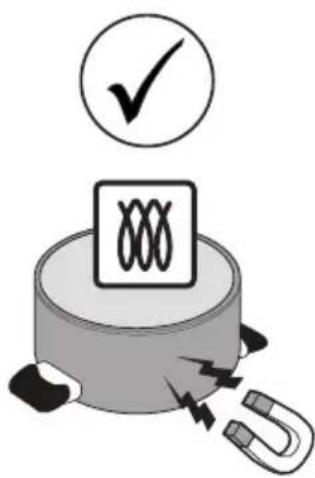

You can check if the pot material is magnetic simply by using a magnet. Pots are not suitable if they are not magnetically detectable. The indications from the previous paragraph also apply here.

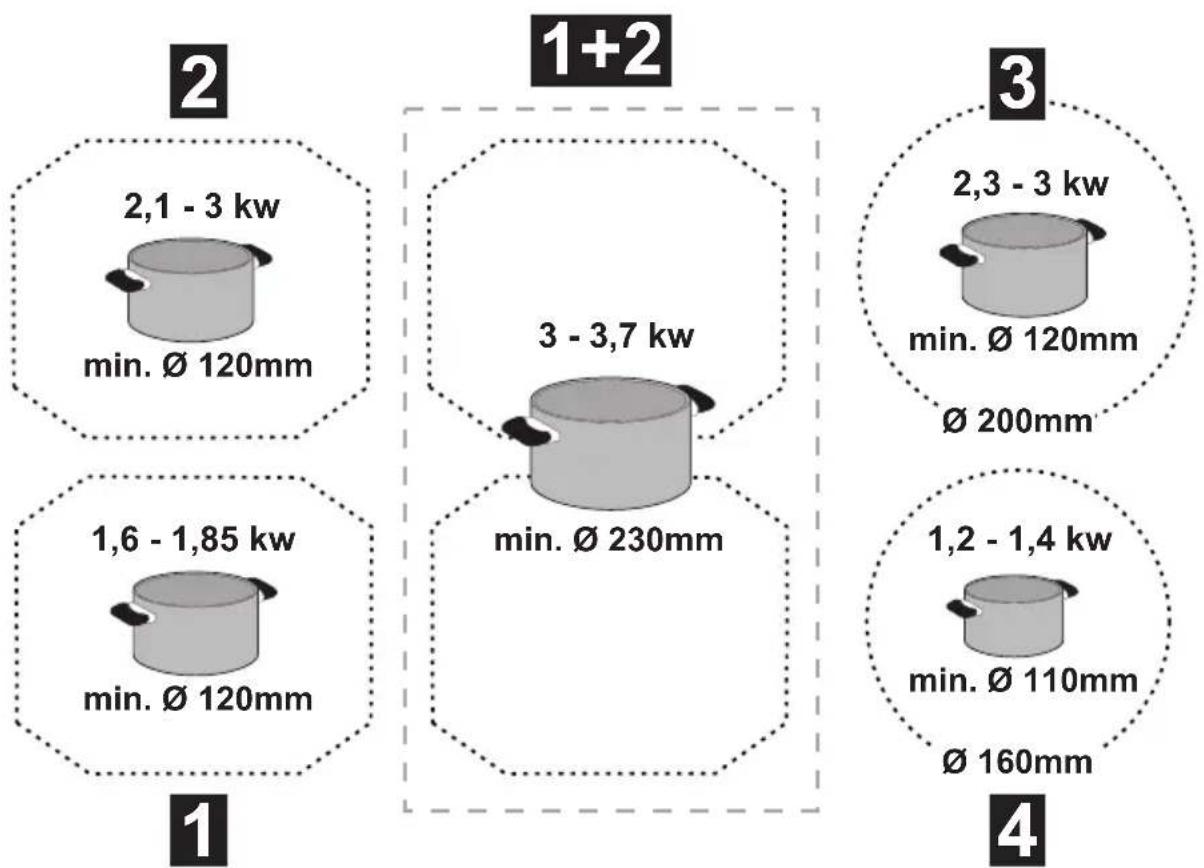

- Recommended pot bottom diameters

IMPORTANT: if the pots are not of the correct size, the cooking zones will not switch on. To see the minimum pot diameters for each individual zone, consult the illustrated section of this manual.

- Energy saving

Use pots and pans with a bottom diameter equal to that of the cooking zone; Use only pots and pans with flat bottoms; - Where possible, keep the lid on pots during cooking; Cook vegetables, potatoes, etc. with a minimal amount of water to reduce the cooking time; Use the pressure cooker, as it further reduces energy consumption and the cooking time; Place the pot in the centre of the cooking zone drawn on the hob.

USING THE EXTRACTOR FAN

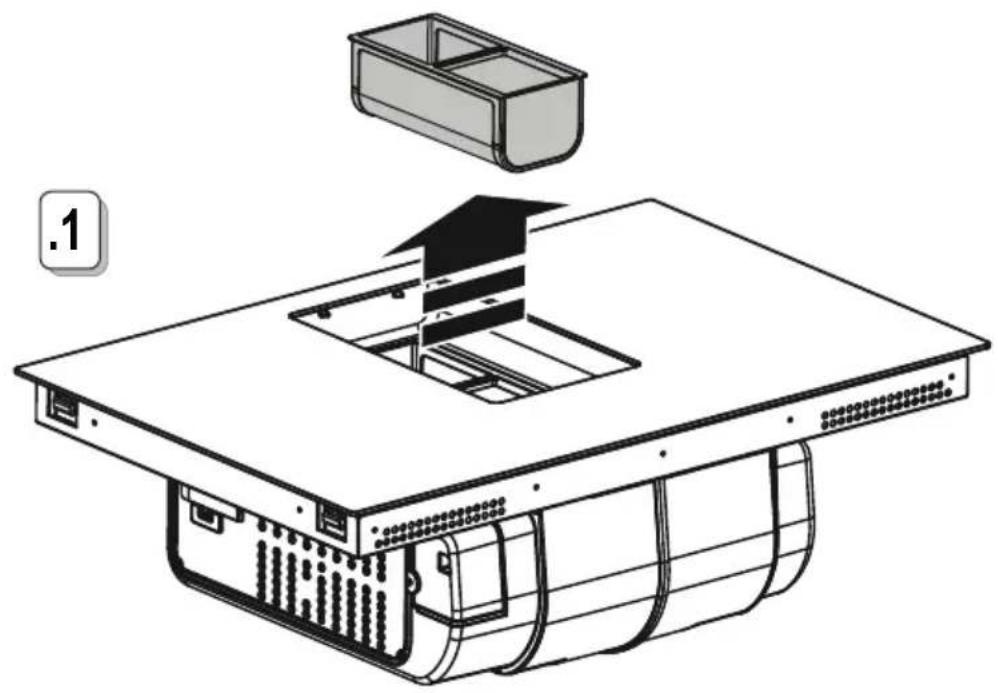

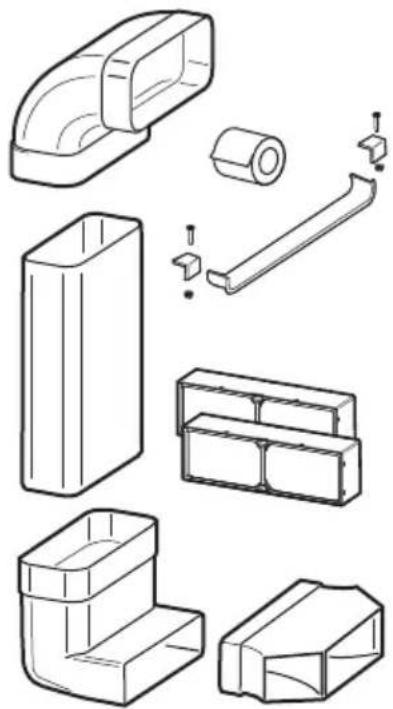

The extraction system can be used in the duct-out version with external evacuation, or in the recirculating version with filtering and internal recirculation.

Consult the website www.elica.com and www.shop.elica.com to view the full range of available kits for the various installations in both the recirculating and duct-out version.

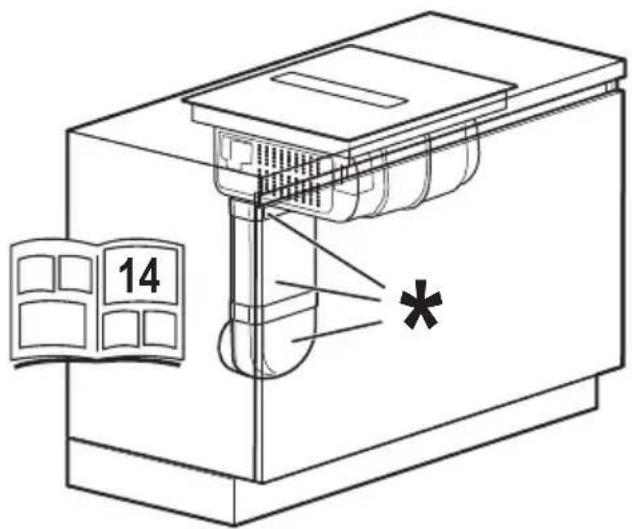

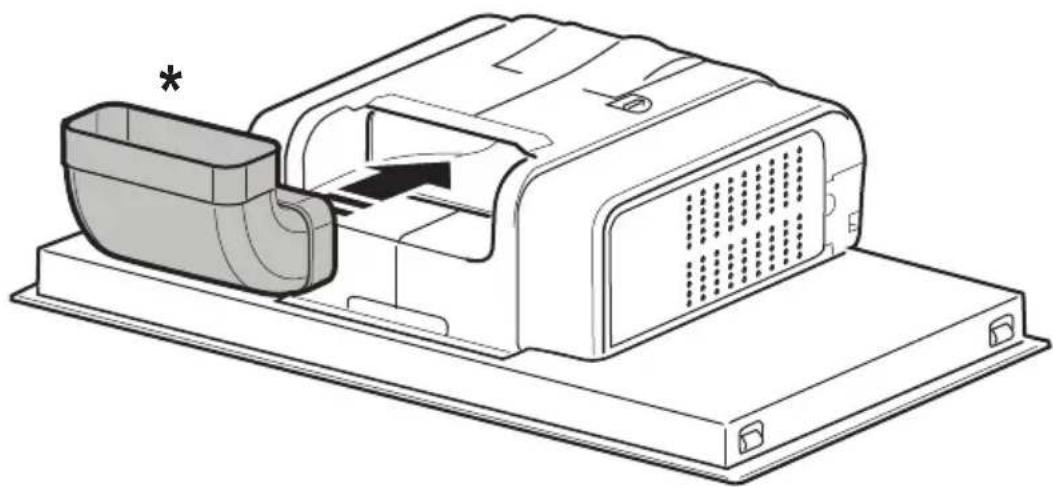

- Duct-Out Version:

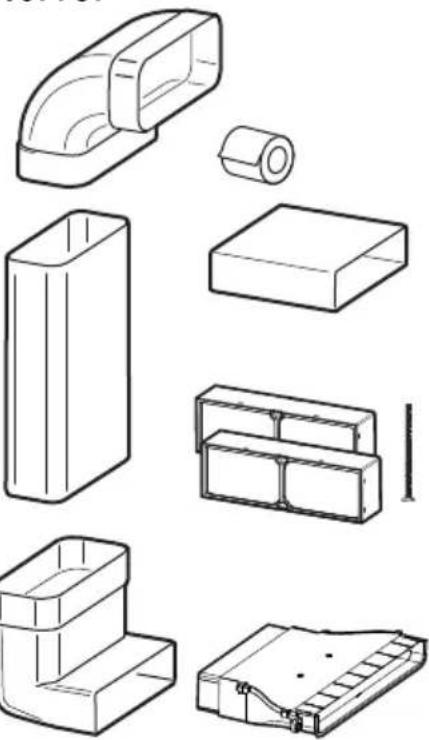

Vapours are exhausted outside via a series of pipes (to be

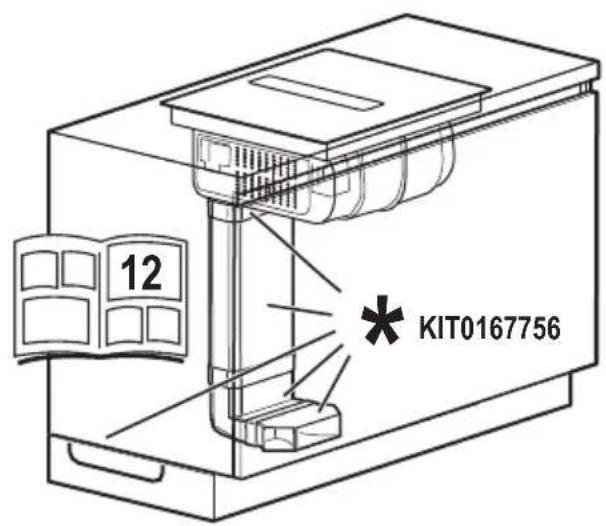

purchased separately). Connect the product to wall-mounted exhaust pipes and holes with a diameter equivalent to the air outlet (connecting flange). For more information on the pipes and their dimensions see the page relating to accessories in the installation manual - Duct-Out version. The use of pipes and outlet holes in the wall with a smaller diameter will reduce the extraction performance and drastically increase the noise level. All responsibility in this regard is therefore denied.

For maximum extraction efficiency: • We recommend a maximum pipe route length of 7 linear metres. • We recommend using no more than two 90° bends along the entire 7 linear metres • Avoid drastic changes in the ducting diameter, seeking to maintain a diameter of ∅ 150 mm (or a rectangular section of 222 x 89 mm).

- Recirculating Version:

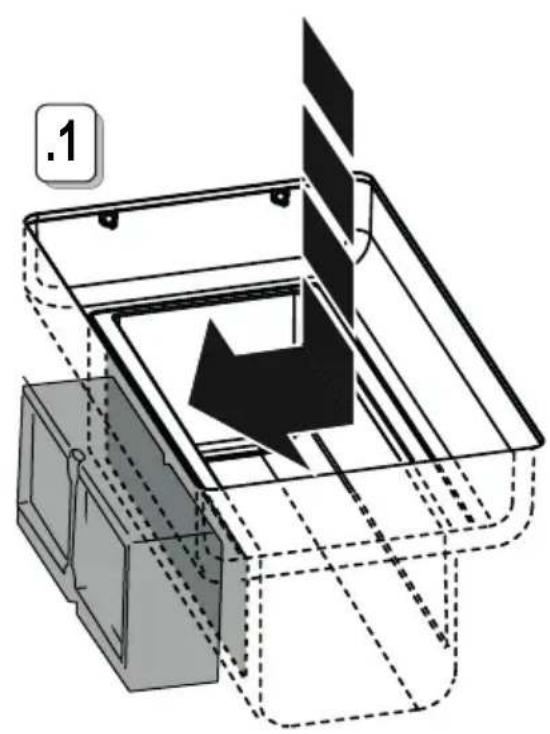

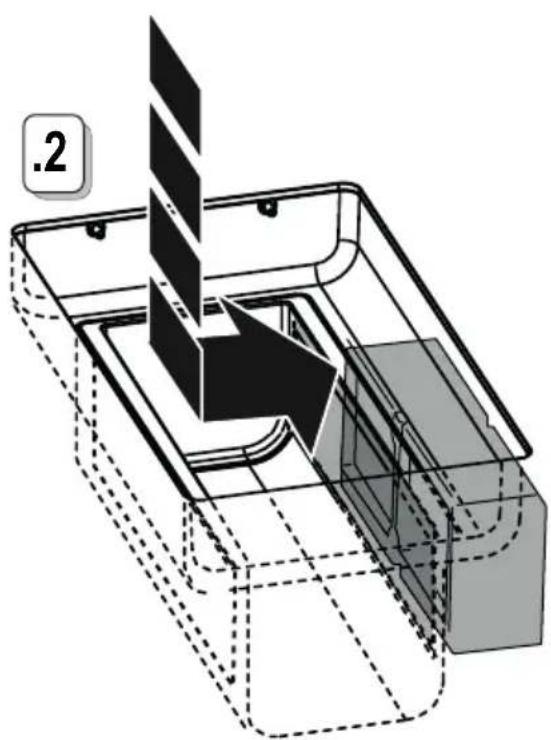

The extracted air will be filtered in special grease filters and odour filters before being sent back into the room. The product is supplied with all parts necessary for standard installation, with the air outlet positioned in the front part of the plinth. The product is equipped with a set of odour filters. For more information, see the page relating to accessories for the recirculating version (in the illustrated part of this manual).

3. OPERATION

CONTROL PANEL

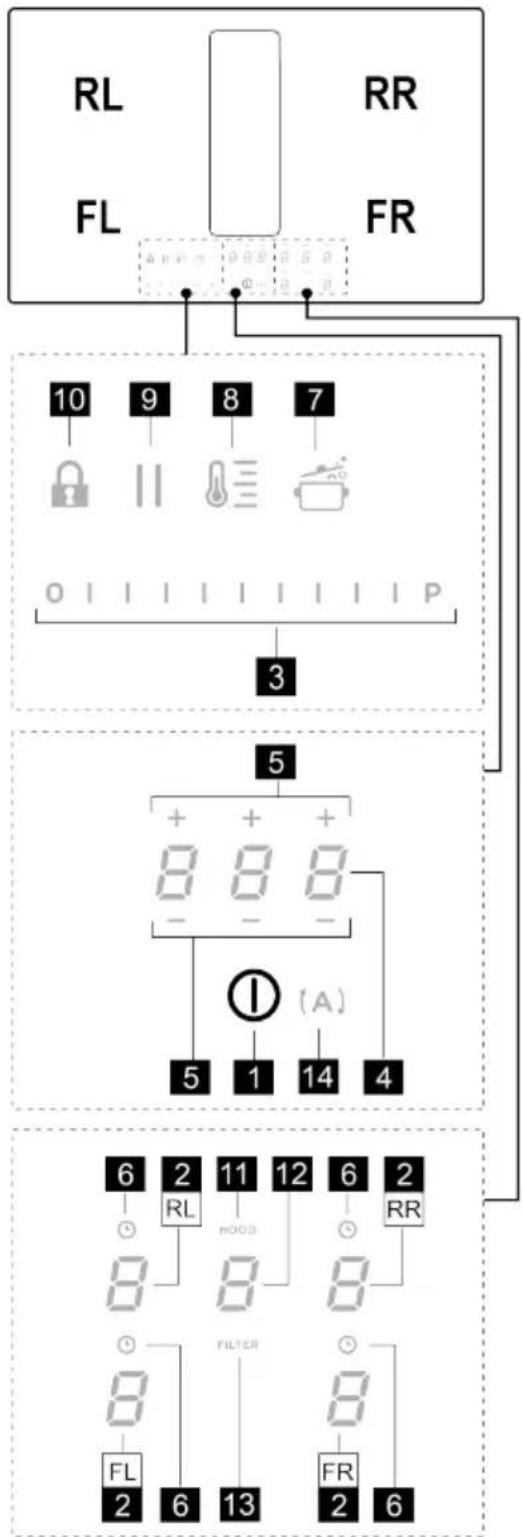

RL FFR RR FL FR 10 9 8 7 0 | | | | | | | P 3 5 + + + 8 8 8 - ( A ) 5 1 14 4 6 2 11 12 6 2 RL HOOD RR 8 8 8 FILTER 8 FL 2 6 13 FR 2 6

T. Function

1	ON/OFF of the hob / hob extractor fan
2	Selection of the cooking zones / Cooking zone display
3	Increase/decrease cooking power level and extraction speed (power)

	Display the cooking power level and extraction speed (power)
4	Activate "STAND ALONE" timer
	Display : "STAND ALONE" timer / Cooking Zones Timer.
5	Increase/Decrease "STAND ALONE" Timer time / Cooking Zones timer
6	Activation of Cooking Zones Timer
	Indicator of Cooking Zones Timer active
7	Automatic Heat Up Activation.
8	Temperature Manager activation (Warming Function)
9	Pause
10	Key Lock
11	Indicator Extractor active
	Activation of Filter Saturation Indicator
12	Extractor Selection/Activation
	Extractor Display
	Display of Carbon/ceramic filter - Grease filter saturation
13	Reset Filter Saturation
14	Activation of extractor automatic function

THINGS TO KNOW BEFORE STARTING

All functions of this hob are designed to comply with the most stringent safety regulations. For this reason:

• Some functions will not be activated, or will be automatically deactivated, in the absence of pots on the burners or when they are poorly positioned.
• In other cases the activated functions will be automatically deactivated after a few seconds, if the specific function requires a further setting that has not been selected (e.g.: "Turning the hob on" without "Selecting the cooking zone" and the "Operating temperature", or the "Lock Function" or the "Timer" function).

Wait for the display to turn off before approaching the cooking zone.

Please note! In the case (for example) of prolonged use, the cooking zone may not immediately shut down because

it is in the cooling phase; the symbol will appear on the cooking zone display to indicate that this phase is under way. Wait for the display to turn off before approaching the cooking zone.

COOKING ZONE DISPLAY

The following is shown on the cooking zone displays:

Function Value
Cooking zone on	☐

Power Level

Residual Heat Indicator

Pot Detector

Bridge Zone Function active

Temperature Manager Function active

Pause function

Automatic Heat UP function

CHARACTERISTICS OF THE HOB

- Safe Activation

The product is activated only in the presence of pots on the cooking zone: the heating process does not start or is interrupted if there are no pots, or if these are removed.

- Pot Detector

The product automatically detects the presence of pots on the cooking zones.

- Safety Shut Down

For safety reasons, each cooking zone has a maximum operating time, which depends on the power level set.

- Residual Heat Indicator

When switching off one or more cooking zones, the residual heat is indicated with a specific visual signal on the

display of the corresponding zone by the symbol.

USING THE HOB

Note: Before activating any functions, the desired zone must be activated

- Power-on

Briefly press (touch) ON/OFF (1) hob / extractor fan:

the symbol lights up; If you continue to press: all the available functions will become visible for a few seconds, after which only the main ones will remain active; the other ones can be used, and will be activated, later, while using the device.

IMPORTANT: all the available functions will be illuminated with light intensity, which will become more intense only when they are activated.

Press again to turn off

Note: This function has priority over the others.

- Selecting the cooking zones

Briefly press (touch) the Selection/Display (2) area corresponding to the desired cooking zone.

- Power Level

The hob features 9 power levels. Touch and slide your fingers along the Selection bar (3):

to the right to increase the power level; to the left to decrease the power level.

The power level set will be displayed in the Selection/Display area (2)

- Power Booster

The product features a supplementary power level (after

level ), which remains active for 5 minutes, after which the temperature returns to the previously set value.

Touch and slide your fingers along the Selection bar (3)

(beyond level) and activate the Power Booster. The Power Booster level is indicated in the Selection / Display

area (2) with the symbol

- Cooking Zone Timer

The Cooking Zone Timer function is a countdown that can be set, even simultaneously, on each cooking zone. At the end of the period set, the cooking zones switch off automatically and the user is notified with a dedicated acoustic signal.

Activation of the cooking zone timer function

- Touch (press) the Selection/Display area (2) (power level other than zero)

- Press (6) relating to the cooking zone

- Use the symbols (5) to set the duration of the Timer, which is shown in the Zone/Display (4); while

setting, the symbol (6) flashes.

Note: wait 10 seconds without pressing any other command, so that the Cooking Zone Timer will start.

Note: by pressing and holding zone Timer is reset. (6) again, the cooking

If desired, repeat the operation for several cooking zones:

Each cooking zone can have a different Timer set; in the display (4) the countdown of the cooking zone selected at that moment will appear; if no zone is selected, press the Display (4) to view the STAND-ALONE Timer countdown.

The countdown display mode is the same as for the STAND-ALONE Timer (see STAND-ALONE Timer paragraph in the WEB version of this manual).

When the timer has finished the countdown, an acoustic signal sounds and the cooking zone switches off.

To switch off the Timer:

- select the cooking zone (2)

- set the duration of the Timer to , using

(5).

- Power Limitation

The Power Limitation function allows the product to be used while limiting its maximum absorption, adjusting the absorbed power in all active cooking zones, ensuring that the total absorbed power of the hob does not exceed the

set maximum absorption level.

Note: the setting must be made with the hob switched off,

without pressing the ON/OFF (1) button, when the hob is connected to the mains, or reconnected to the mains, within the next 2 minutes.

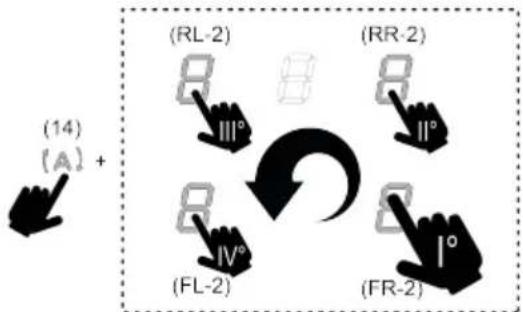

To set the Power Limitation:

- press (which will flash, only for the first 2 minutes after the product has been switched on)

- while continuing to hold down, press, one at a time, all the Selection/Display areas (2) of the cooking zones in a counter-clockwise direction starting from the front left zone (FR); a short acoustic signal will be emitted with each press and when all the Displays (2) have been pressed, it will be possible to release the key:

at this point, the Display (2) of the rear left zone (RL) will

show, in alternating sequence, the symbols and , 0 indicating that the setting can be made.

- select the Display (RL-2) then slide along the Selection

bar (3), until the Display shows the symbols and ;8 The Display (FL-2) will show the current setting with the values in the table:

Displayed value Power (Kw)

0	7.4 Kw (default setting)
1	4.5 Kw
2	3.1 Kw

To change the Power Limitation setting:

- press the Display (FL-2) then slide along the Selection bar (3), to

set the new setting. To save the selection made, press the

① ON/OFF (1) button for 2 seconds; an extended audible signal will be emitted to confirm the setting.

- Bridge Zones

Thanks to the Bridge function, the cooking zones can operate in a combined way, creating a single zone with the same power level. This function allows evenly distributed cooking with large-sized pots and pans.

It is possible to use the front cooking zone in combination with the corresponding rear one (to check which zones feature this function, see the illustrated part of this manual).

To activate the Bridge Function:

• simultaneously select both cooking zones you wish to use
• the Display (2) of the "rear" cooking zone will show the symbol
• using the Selection bar (3), it will be possible to set the operating Level (Power), which will be shown on the Display (2) of the "front" zone

To disable the Bridge Function, simply repeat the activation procedure

Note: the Cooking Zone Timer, activated during the Bridge Function, causes the automatic shut-down of both cooking zones, as in this case they are considered a single combined area.

• Key Lock

The Key Lock allows you to lock the settings of the hob to prevent accidental tampering with the same, while leaving the set functions enabled.

Activation:

- press (10) Repeat the operation to deactivate.

Note: if any other function is pressed while the Key Lock is

active, the symbol 🔒 will flash to indicate that the function is in use and must be deactivated if necessary in order to use the hob.

• Automatic Heat UP

The Automatic Heat UP function allows the set power to be reached more quickly; with this function it is possible to cook food faster without the risk of burning it, insofar as the temperature does not exceed the set level. This function is

available for power levels from to .8

Activation:

- with the cooking zone on, press (7), the Display (2) will show a flashing alternating with the power set in the cooking zone.

By increasing the power level of the cooking zone: the Automatic Heat Up function remains active, with the new temperature setting;

By decreasing the power level of the cooking zone: the Automatic Heat Up function is deactivated.

Note: by selecting another cooking zone at the same time,

the symbol 📄(7) will go back to being illuminated with light intensity, and it will be possible to proceed, also for this zone, with the activation of the function; in any case, the function remains active in the zone in which it has already been set, as indicated in the Display (2).

- Pause

The Pause function allows active functions on the hob to be suspended, bringing the cooking power to zero.

Activation:

- press (9), the symbol will flash on the display (2) To deactivate the function:

- press (9) the Selection bar (3) will light up

- press/slide on the Selection Bar (3) to deactivate the function.

Note: deactivation restores the conditions of the hob before the pause; the hob continues to work with the same settings previously set.

Note: if after 10 minutes, the Pause Function is not deactivated, the hob will turn off automatically.

Note: the Pause Function does not affect the extraction.

- "STAND ALONE" Timer

The Timer function is a countdown independent of the cooking zones (and the extraction zone).

The Timer is activated by pressing the Zone/Display (4).

Use the symbols (5) to set the duration of the Timer, which is shown in the Zone/Display (4)

Note: wait 10 seconds without pressing any other command, so that the countdown starts.

The Timer can be set up to a maximum of 1(h) and 59(min.) The Zone/Display (4) will show the remaining time; an acoustic signal will be emitted at the end of the countdown.

Note: When the remaining time is less than 10 minutes, a fixed dot will appear in the timer after the first number.

Displayed value Remaining time

1.35	1h and 35 min
1.35	1min. and 35 sec.

To switch off the Timer:

- select Zone/Display (4)

- set the duration of the Timer to Zero 0.00, using - + (5)

• Temperature Manager (Warming Function)

Temperature Manager is a control function that allows the maintaining of heat at a constant temperature, at an optimised power level; ideal to keep ready-cooked foods warm. The Temperature Manager function is activated the

first time the key (8) is pressed.

The symbol appears in the display (2) of the zone that is working in the Temperature Manager

Note: by selecting another cooking zone at the same time,

the symbol (8) will go back to being illuminated with light intensity, and it will be possible to proceed, also for this zone, with the activation of the function; in any case,

the function remains active in the zone in which it has already been set, as indicated in the Display (2).

- Press Q8 again to deactivate and switch off, until the level shown in the Display (2) is brought to

Note: if there are several zones operating in Temperature Manager (Warming Function) mode, select the desired zone first using the Selection zone (2); the function can also be deactivated using the Selection bar (3), by

bringing the Power Level to 0

USING THE EXTRACTOR

- Switching the extraction system on:

- Switch on the hob as indicated in the "Power-on" chapter on "using the hob";

• Extraction speed (power):

The extractor has 4 speed (power) levels from 1 to 4,

Touch and slide your fingers along the Selection bar (3): to the right to increase the power level, to the left to decrease the power level.

Note: The set power level will be displayed in the Selection/Display area (12)

- Power Booster

The extractor is equipped with 1 additional extraction level called Power Booster; it is timed and it lasts 5 minutes.

To select it, touch and slide your fingers along the Selection bar (3) (beyond the level), this flashing

symbol will be displayed: P

Note: after the five minutes, the power will go back to the previously set level.

- Automatic mode

The hood will turn on at the most suitable speed, adapting the extraction capacity to the maximum cooking level used in the cooking zones.

When the cooking zones are switched off, the hood adapts its extraction speed, decreasing it gradually, to eliminate residual vapours and odours.

To activate this function:

Press(A)(14);

Repeat the operation to deactivate.

Note: if, during automatic operation, the speeds from 1 to 4 are selected using the Selection bar (3), automatic operation is interrupted; if, on the other hand, the Power Booster is selected, automatic operation will resume at the

end of the timer and, in the meantime, the symbol (A) keeps flashing.

Note: if the hob automatically shuts down with Automatic

mode active, the extractor fan will automatically turn off gradually.

- Filter saturation indicator

The hood indicates when filter maintenance is needed: For the carbon/ceramic odour filters, FILTER (13) lights up For the grease filter, FILTER (13) lights up and flashes

Note: this function is disabled by default (see how to enable it in the paragraph "Activation of filter saturation indicator")

- Reset filter saturation

After performing maintenance on the filters (grease and/or carbon/ceramic) press and hold FILTER (13); it will turn off and the indicator counter will restart.

- Activation of filter saturation indicator

Note: This indicator is normally deactivated.

To activate it, proceed as follows:

- switch on the hob ①

• with the extraction motor and cooking zones off, press the Selection zone (12)

- press and hold HOOD (11) until the Display (12) shows the letters and fleshing alternately.

F = carbon/ceramic odour filters; G grease filters;

CARBON/CERAMIC ODOUR FILTERS

- press the Display (12) when the letter F appears - press FILTER (13) fixed light. - press and hold HOOD (11) again to confirm the activation of the carbon/ceramic odour filter.

GREASE FILTER

- press the Display (12) when the letter appears - press FILTER (13) flashing light. - press and hold HOOD (11) again to confirm the activation of the grease filter indication.

POWER TABLE

Power level Cooking type Use (based on cooking experience and habits)
Max power	P	Heat quickly	raises the temperature of food in a short space of time to boiling point for water, or to quickly heat cooking liquids
	8.9	Fry - boil browning, starting cooking, fry frozen products, boil quickly
High power	7.8	Brown - fry - boil - grill	browning, fast rolling boil, cooking and grilling (for brief periods, 5-10 minutes)
	6.7	Brown - cook - stew - fry - grill	browning, slow rolling boil, cooking and grilling (for medium periods, 10-20 minutes), pre-heat accessories
Medium power	4.5	Cook - stew - fry - grill	stewing, light rolling boil, cooking (for long periods), dressing pasta
	3.4	Cooking - simmering - thickening - creaming	longer cooking (rice, sauces, roasts, fish) with accompanying liquids (e.g. water, wine, stock, milk), dressing pasta
	2.3	Cooking - simmering - thickening - creaming	longer cooking (volumes less than one litre: rice, sauces, roasts, fish) with accompanying liquids (e.g. water, wine, stock, milk)
Low power	1.2	Melt - thaw - keep warm - stir	melting butter, gently melting chocolate, defrosting small products
	1	Melt - thaw - keep warm - stir	keeping small portions of just-cooked food warm or maintaining dishes at serving temperature and creaming risot-tos
OFF	0	Support surface	Hob in stand-by or off (possible presence of residual heat from the end of cooking, signalled by H-L-O)

4. MAINTENANCE

Please note! Before any cleaning or maintenance, make sure the cooking zones are switched off and the heat indicator has turned off.

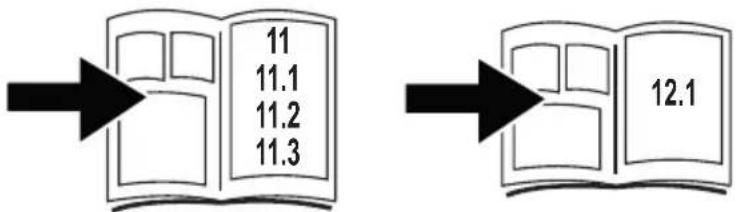

For product maintenance, see the images at the end of the installation marked by this symbol.

HOB MAINTENANCE

- Cleaning the induction hob

The hob must be cleaned after each use.

Important:

• Do not use abrasive sponges, scouring pads. Their use, over time, may ruin the glass.
• Do not use irritant chemical detergents such as oven sprays or stain removers.
  • DO NOT USE STEAM JET CLEANERS!!!

After each use, leave the hob to cool and clean it to remove deposits and stains caused by food residue. Sugar or food with a high sugar content damage the hob and must be removed immediately. Salt, sugar and sand may scratch the glass surface. Use a soft cloth, paper towel or specific products to clean the hob (follow the Manufacturer's instructions).

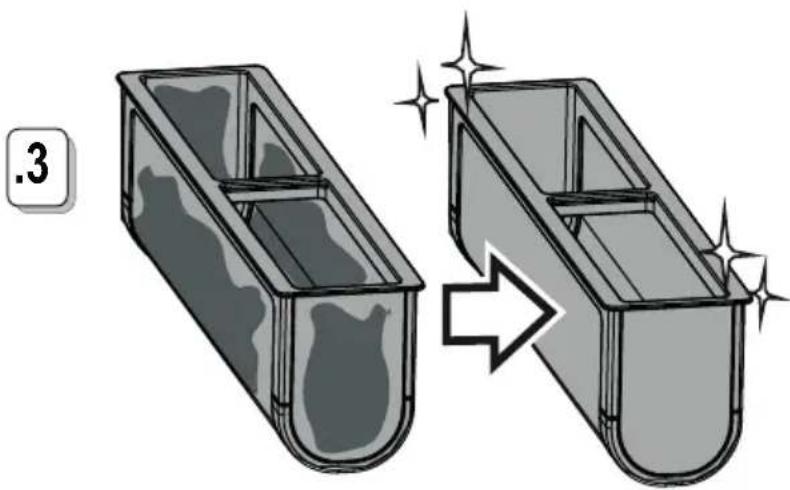

ing the liquid collection channel :

In the event large quantities of liquids accidentally spill out of the pots, they can be drained using the drain valve on the bottom part of the product so as to eliminate any residue and ensure maximum hygiene levels.

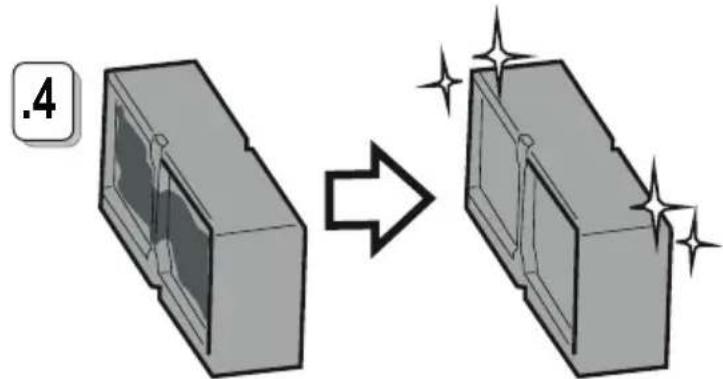

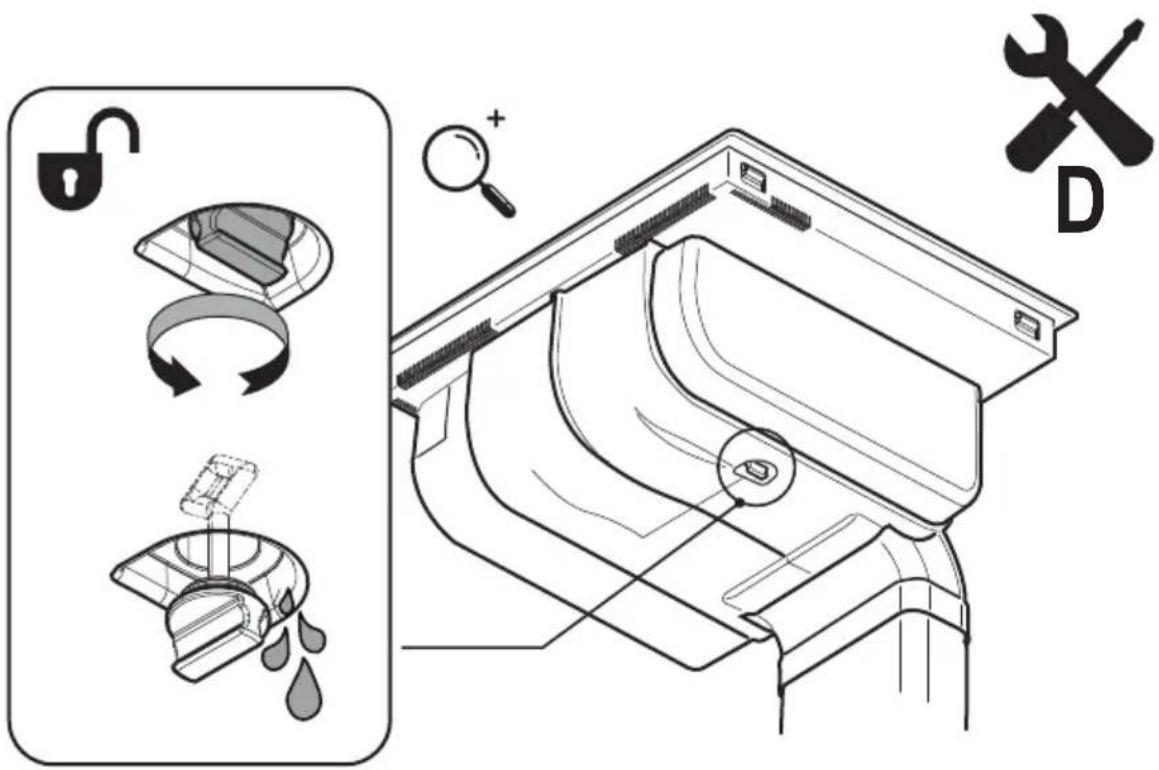

For a more complete and in-depth clean, the bottom collection channel can be completely removed.

• Cleaning the metal grille:

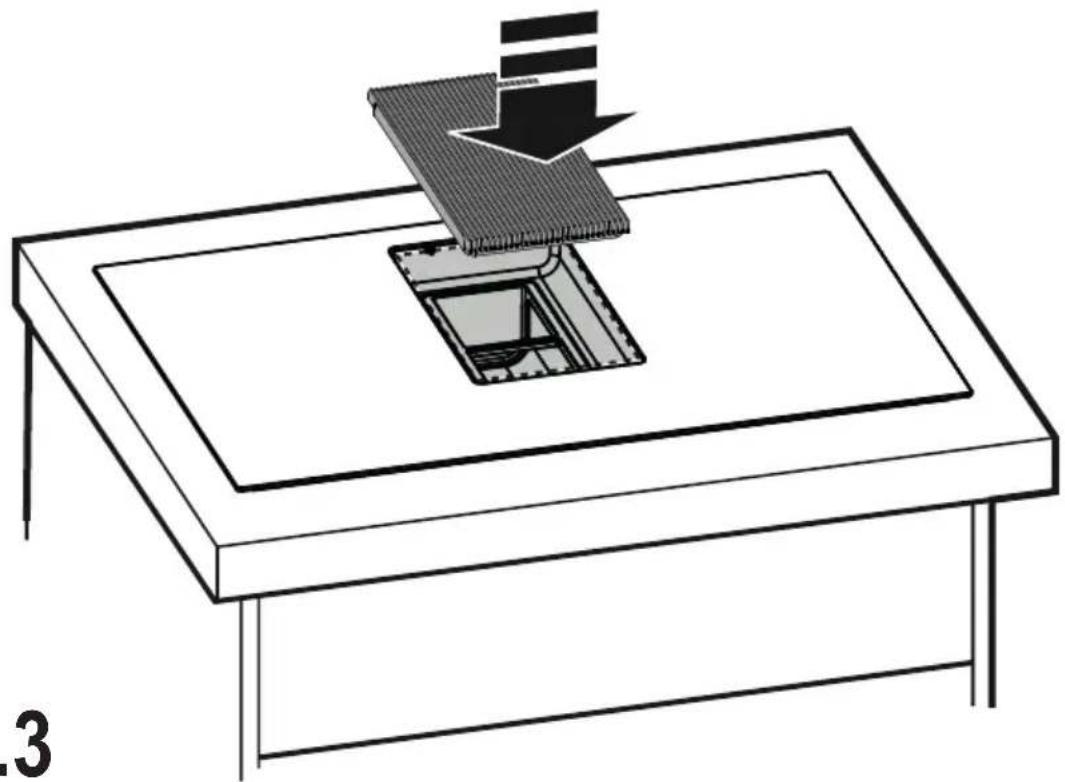

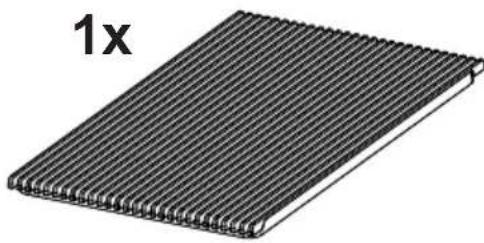

The grille must be washed by hand with hot water and neutral detergent, then dried thoroughly to prevent oxidation.

For cleaning, use ONLY a cloth moistened with neutral liquid detergents.

DO NOT USE CLEANING UTENSILS OR TOOLS!

Avoid the use of products containing abrasives. DO NOT USE ALCOHOL!

• XA crease filter maintenance:

Traps grease particles generated by cooking.

Must be cleaned once a month (or when indicated by the filter saturation indication system), with non-aggressive detergents, either by hand or in the dishwasher at low temperatures and in a short cycle. When cleaned in the dishwasher, the metal grease filter may discolour, but its filtering characteristics remain unchanged.

• Ceramic activated carbon filter maintenance (For Recirculating Version only):

Traps unpleasant odours generated by cooking. The product comes with a set of odour filters.

The saturation of the odour filters can occur after somewhat prolonged use depending on the type of cooking and how regularly the grease filter is cleaned. The odour filters can be thermally regenerated every 2/3 months in an oven pre-heated to 200^ C for 45 minutes. The correct regeneration of the filter ensures that it can constantly filter efficiently for 5 years.

Please note! Do not place the filters on the floor of the oven but rather in a tray, positioned at an intermediate height.

5. ASSISTANCE

TROUBLESHOOTING TABLE

Informative code Description	Possible causes Solution
	The command zone switches off due to an excessively high temperature	The temperature inside the electronic parts is too high	Wait for the hob to cool before reusing it
	Container unsuitable Loss of magnetic properties Remove the pot
	Communication problems between the user interface and induction module	No power supply to the module; the power cable has not been connected correctly or it is faulty	Disconnect the hob from the electrical network and check the connection
For all other error signals	Call customer service and report the error code

CUSTOMER SERVICE

Before contacting Customer Service

1. Check that the problem cannot be solved by consulting the points in "Troubleshooting".

2. Switch the device off and on again to see if the problem resolves itself.

If the fault persists after the above checks, contact the nearest Customer Service centre.

DE

Illustration of cooking utensils including a pan with lid and a lid with lid, alongside a pan with lid and lid (no text or symbols)

Two cooking panes with handles and a circular mark indicating rejection (no text or symbols on the pan surfaces)

Illustration of a frying pan and a cooking pan with a checkmark (no text or symbols)

Illustration of cooking utensils including a pan, lid, and pan with a crossed-out mark (no text or symbols)

Two black-and-white photos of frying panes with handles and a crossed-out circle containing an 'X' symbol (no text or labels)

Illustration of a pan and a frying pan with a checkmark (no text or symbols)

• Residual Heat Indicator

• Temperature Manager (Warming Function)

Illustration of cooking utensils including a pan with a lid and a pan with a lid, alongside a cross symbol (no text or labels)

Two black-and-white photos of frying panes with handles and a crossed-out circle containing an 'X' symbol (no text or labels)

• Niet-vlakke bodem of ruw oppervlak.

Illustration of a cooking pan and a frying pan with a checkmark (no text or symbols)

• Residual Heat Indicator

- selecteer Zone/Display (4)

• Temperature Manager (Warming Function)

- Activering indicator verzadiging filters

Illustration of two cooking utensils: a pan with a lid and a lid with a lid, both open and placed on a plate (no text or symbols)

Two 3D-rendered kitchen utensils with handles, one open and one closed, both with a circled X symbol (no text or symbols on the objects themselves)

Illustration of a frying pan and a cooking pan with a checkmark (no text or symbols)

- Recipientes ya existentes

Illustration of cooking utensils including a pan, lid, and pan with a crossed-out mark (no text or symbols)

Two cooking panes with handles and a circular mark indicating rejection (no text or symbols)

Illustration of a pan and a frying pan with a checkmark (no text or symbols)

- Recipientes preexistentes

• Temperature Manager (Warming Function)

Illustration of cooking pots including a pan with a lid and a pan with a lid, alongside a crossed-out pot (no text or symbols)

Two 3D-rendered cooking panes with handles and a circular mark indicating rejection (no text or symbols on the pots themselves)

Illustration of a frying pan and a frying pan with a checkmark (no text or symbols)

• Temperature Manager (Warming Function)

ΥΠΗΡΕΣΙΑ ΥΠΟΣΤΗΡΙΞΗΣ

Illustration of cooking utensils including a pan with lid and a lid, alongside a pot with a cross symbol (no text or labels)

Two black frying pan illustrations with handles and a circled 'X' symbol (no text or labels)

Illustration of a frying pan and a cooking pan with a checkmark (no text or symbols)

• Befintliga kokkärl

DETTA BÖR DU VETA INNAN DU BÖRJAR

• Temperature Manager (Warming Function)

- tryck in FILTER (13) fast ljus.

Illustration of cooking utensils including a pan, lid, and pan with a crossed-out mark (no text or symbols)

Two black frying panes with handles and a circular vent, one open showing interior (no text or symbols)

Illustration of a frying pan and a frying pan with a checkmark (no text or symbols)

●Entisten kattiloiden tarkistaminen

Temperature Manager (Warming Function)

Illustration of cooking utensils including a pan, lid, and pan with a crossed-out mark (no text or symbols)

Two black-and-white photos of frying panes with handles and a crossed-out mark symbol (no text or labels)

Illustration of a frying pan and a cooking pan with a checkmark (no text or symbols)

●Gamle kokekar

DISPLAY FOR KOKESONE

VEDLIKEHOLD AV PLATETOPPEN

VEDLIKEHOLD AV AVTREKK

Illustration of cooking pots including a pan, lid, and pan with a crossed-out mark (no text or symbols)

Two cooking panes with handles and a circular vent, one open showing a side dish (no text or symbols)

Illustration of a frying pan and a frying pan with a checkmark (no text or symbols)

• Temperature Manager (Warming Function)

Illustration of cooking utensils including a pan, lid, and pan with a crossed-out mark (no text or symbols)

Two 3D-rendered frying pan illustrations with handles and a crossed-out symbol (no text or labels)

Illustration of a pan and a frying pan with a checkmark (no text or symbols)
    A["Hand at (A)"] + B["(RL-2)"]
    B --> C["Arrow to (RR-2)"]
    C --> D["Hand at (FR-2)"]
    D --> E["Hand at (FL-2)"]
    E --> F["Arrow back to (RL-2)"]
    style A fill:#f9f,stroke:#333
    style B fill:#ccf,stroke:#333
    style C fill:#cfc,stroke:#333
    style D fill:#fcc,stroke:#333
    style E fill:#cff,stroke:#333
    style F fill:#ffc,stroke:#333

Illustration of cooking pots including a pan with a lid and a lid open, alongside a crossed-out pot (no text or symbols)

Two black-and-white photos of frying panes with handles and a circular mark indicating rejection (no text or symbols)

Illustration of a frying pan and a frying pan with a checkmark (no text or symbols)

•Původní nádoby

(14) (A) + (RL-2) (RR-2) (RL-2) (RR-2) (RL-2) (RL-2) (RL-2) (RL-2) (RL-2) (RL-2) (RL-2) (RL-2) (RL-2) (RL-2) (RL-2) (RL-2) (RL-2) (RL-2) (RL-2) (RL-2) (RL-2) (RL-2) (RL-2) (RL-2) (RR-2) (RR-2) (RR-2) (RR-2) (RR-2) (RR-2) (RR-2) (RR-2) (RR-2) (RR-2) (RR-2) (RR-2)

Illustration of cooking utensils including a pan, lid, and pan with a crossed-out mark (no text or symbols)

Two black-and-white photos of frying panes with handles and a circular mark indicating rejection (no text or symbols)

Illustration of a frying pan and a frying pan with a checkmark (no text or symbols)

- Existujúce nádoby

Illustration of cooking pots including a pan with a lid and a lid placed on a plate, alongside a cooking pan with a lid and a crossed-out mark (no text or symbols)

Two grayscale illustrations of frying panes with handles and a crossed-out circle containing an 'X' symbol (no text or labels)

Illustration of a frying pan and a frying pan with a checkmark (no text or symbols)

Illustration of cooking utensils including a pan with a lid and a pan with a lid, alongside a crossed-out frying pan (no text or symbols)

Two 3D-rendered kitchen utensils with handles and a cross symbol (no text or labels)

Illustration of a frying pan and a cooking pan with a checkmark (no text or symbols)
    A["Hand at (A)"] + B["(RL-2)"]
    B --> C["Arrow to (RR-2)"]
    C --> D["Hand at (FR-2)"]
    D --> E["Hand at (FL-2)"]
    E --> F["Arrow back to (RL-2)"]
    style A fill:#f9f,stroke:#333
    style B fill:#ccf,stroke:#333
    style C fill:#cfc,stroke:#333
    style D fill:#fcc,stroke:#333
    style E fill:#cff,stroke:#333
    style F fill:#ffc,stroke:#333

Illustration of cooking pots including a lid with a sun icon and a pan with a lid, alongside a crossed-out frying pan (no text or symbols)

Two black-and-white photos of frying panes with handles and a crossed-out mark symbol (no text or labels)

Illustration of a frying pan and a frying pan with a checkmark (no text or symbols)

• Temperature Manager (Warming Function)

Illustration of cooking utensils including a pan, lid, and pan with a crossed-out mark (no text or symbols)

Two 3D-rendered kitchen utensils with handles, one open and one closed, both with a crossed-out mark in the corner (no text or symbols on the objects themselves)

Illustration of a frying pan and a cooking pan with a checkmark (no text or symbols)

Illustration of cooking utensils including a pan, lid, and pan with a crossed-out mark (no text or symbols)

Two black-and-white photos of frying panes with handles and a crossed-out circle containing an 'X' symbol (no text or labels)

Illustration of a pan and a frying pan with a checkmark (no text or symbols)

- Існуючі ємності

Illustration of cooking utensils including a pan, lid, and pan with a crossed-out symbol (no text or labels)

Two 3D-rendered cooking panes with handles and a circular mark indicating rejection (no text or symbols)

Illustration of a frying pan and a frying pan with a checkmark (no text or symbols)

Illustration of cooking pots including a pan with a lid and a lid with a lid, alongside a cooking pan with a lid and a crossed-out mark (no text or symbols)

Two 3D-rendered cooking panes with handles and a circular mark indicating rejection (no text or symbols)

Illustration of a frying pan and a frying pan with a checkmark (no text or symbols)

- Olemasolevad nõud

Illustration of cooking pots including a pan with a lid and a lid with a lid, alongside a crossed-out pot (no text or symbols)

Two grayscale illustrations of frying panes with handles and a crossed-out mark symbol (no text or labels)

Illustration of a frying pan and a frying pan with a checkmark (no text or symbols)

•Ankstesni indai

Illustration of cooking pots and a cooking pan with a warning symbol (no text or labels)

Two black frying panes with handles and a circular mark indicating rejection (no text or symbols on the covers)

Illustration of a frying pan and a frying pan with a checkmark (no text or symbols)

• Esošie trauki

Illustration of cooking pots including a lid and pan with a lid, alongside a cross symbol (no text or labels)

Two cooking panes with handles and a circular mark indicating rejection (no text or symbols on the pan surfaces)

- Dno koje nije ravno ili je sa hrapavom površinom.

Illustration of a frying pan and a frying pan with a checkmark (no text or symbols)

- Postojeće posude

Možete proveriti da li je materijal od kojeg je proizvedena vaša posuda magnetski ili ne, upotrebom jednostavnog magneta. Posude nisu pogodne za upotrebu ako se ne mogu magnetski detektovati. Uputstva iz prethodnog stava se takođe primjenjuju i u ovom slučaju.

- Preporučeni prečnici dna posuda

VAŽNO: ako posude nisu tačnih dimenzija, zone za kuvanje se neće uključiti. Kako biste proverili minimalni prečnik posude pogodne za svaku pojedinu zonu, pogledajte ilustracije sadržane u ovom priručniku.

• Ušteda energije

(14) (A) + (RL-2) (RR-2) (RL-2) (RR-2) (RL-2) (RL-2) (RR-2) (RL-2) (RR-2) (RL-2) (RR-2) (RL-2) (RR-2) (RL-2) (RR-2) (RL-2) (RR-2) (RL-2) (RR-2) (RL-2) (RR-2) (RL-2) (RR-2) (RL-2) (RR-2) (RL-2) (RL-2) (RR-2) (RL-2) (RR-2) (RL-2) (RR-2) (RL-2) (RR-2) (RL-2) (RR-2) (RL-2) (RR-2) (RL-2) (RR-2) (RL-2)

Level (razinu snage) na 0

UPOTREBA ASPIRATORA

• Uključivanje sistema za usisavanje:

- Uključite ploču za kuvanje kako je naznačeno u poglavlju „uključivanje” o „upotrebi ploče za kuvanje”;

• Brzina (snaga) usisavanja:

Aspirator ima 4 nivoa brzine (snage) usisavanja od do

Dodirnite i klizite prstima po Traci za Izbor (3): prema desno za povećavanje nivoa snage, prema levo za smanjivanje nivoa snage.

Napomena: Postavljeni nivo snage će biti prikazan u području Izbor/Display (displej) (12)

• Power Booster (Povećavanje snage)

Aspirator je opremljen sa 1 dodatnim nivoom usisavanja koji se zove Pover Buster (Povećavanje snage); On je vremenski ograničen i traje 5 minuta.

Da biste ga izabrali, dodirnite i klizite prstima po Traci za

Izbor (3) (preko nivoa ), ovaj simbol treperi . P

Napomena: po isteku vremenskog ograničenja snaga se vraća na prethodno podešeni nivo.

- Automatski rad

UPORABA POSODE ZA KUHANJE

- Primerna posoda

Illustration of cooking utensils including a pan, lid, and pan with a crossed-out mark (no text or symbols)

- da dno ne vsebuje aluminija: posoda se ne segreva ker induktorji morda je niti ne prepoznajo.

Two black-and-white photos of frying panes with handles and a circular mark indicating rejection (no text or symbols)

- da niso dna položna ali da so z grobo površino.

Illustration of a frying pan and a cooking pan with a checkmark (no text or symbols)

-Že obstoječa posoda

• Temperature Manager (Warming Function)

Temperature Manager je funkcija za nadzor, ki omogoča ohranjanje toplote s konstantno temperaturo in z optimalno stopnjo moči, idealno za ohranjanje toplih pripravljenih jedi. Funkcija Temperature Manager (Upravljanje temperature) se aktivira s prvim pritiskom na tipko ⚪(8). Na prikazovalniku (2) področja obdelave s funkcijo Temperature Manager (Upravljanje temperature) se pojavi simbol

Illustration of cooking utensils including a pan with lid and lid, a pan with lid, and a pan with lid (no text or symbols)

Two black-and-white photos of frying panes with handles and a circular mark indicating rejection (no text or symbols)

Illustration of a frying pan and a cooking pan with a checkmark (no text or symbols)

- Postojeće posude

• Power Level (razina snage)

Ploča za kuhanje ima 9 razina snage Dodirnite i klizite prstima po Traci za odabir (3):

Level (razinu snage) na

UPORABA NAPE

Illustration of cooking utensils including a pan, lid, and pan with a crossed-out mark (no text or symbols)

Two 3D-rendered cooking panes with handles and a circular pattern on one, both open and one with a crossed-out mark (no text or symbols)

Illustration of a frying pan and a cooking pan with a checkmark (no text or symbols)

•Kullanılan kaplar

(14) (A) + (RL-2) (RR-2) (RL-2) (RR-2) (RL-2) (RR-2) (RL-2) (RR-2) (RL-2) (RR-2) (RL-2) (RR-2) (RL-2) (RR-2) (RL-2) (RR-2) (RL-2) (RR-2) (RL-2) (RR-2) (RL-2) (RR-2)

Two grayscale illustrations of cooking panes with handles and a side panel (no text or symbols)

Illustration of a frying pan and a cooking pan with a checkmark (no text or symbols)

(Pot Detector) (Pot Detector) (Pot Detector)
    A["Hand at (A)"] + B["Arrow to (RL-2)"]
    B --> C["Arrow to (RR-2)"]
    C --> D["Arrow to (FL-2)"]
    D --> E["Arrow to (FR-2)"]
    style A fill:#f9f,stroke:#333
    style B fill:#ccf,stroke:#333
    style C fill:#cfc,stroke:#333
    style D fill:#fcc,stroke:#333
    style E fill:#cff,stroke:#333

Exterior view of a modern black kitchen appliance with a slatted ventilation grille (no visible text or symbols)

Two identical black silhouette figures of men, no text or symbols present

Simple line drawing of two hands with no text or symbols

OFF!

Illustration of two types of medical or industrial tools: a tape measure and a syringe (no text or symbols present)

Line drawing of a pair of industrial tools: a flat soldering machine and a handheld tool (no text or symbols)

Simple line drawing of an open cardboard box (no text or symbols)

4x

1x

2,8 m

1x

3D rendering of a rectangular grid structure with uniform ribbed pattern, labeled '1x' in top-left corner (no other text or symbols)

1x

1x

1x

1x

Simple line drawing of a 3D rectangular object with curved top surface (no text or symbols)

1x

Line drawing of a 3D rectangular L-shaped object with no text or symbols

1x

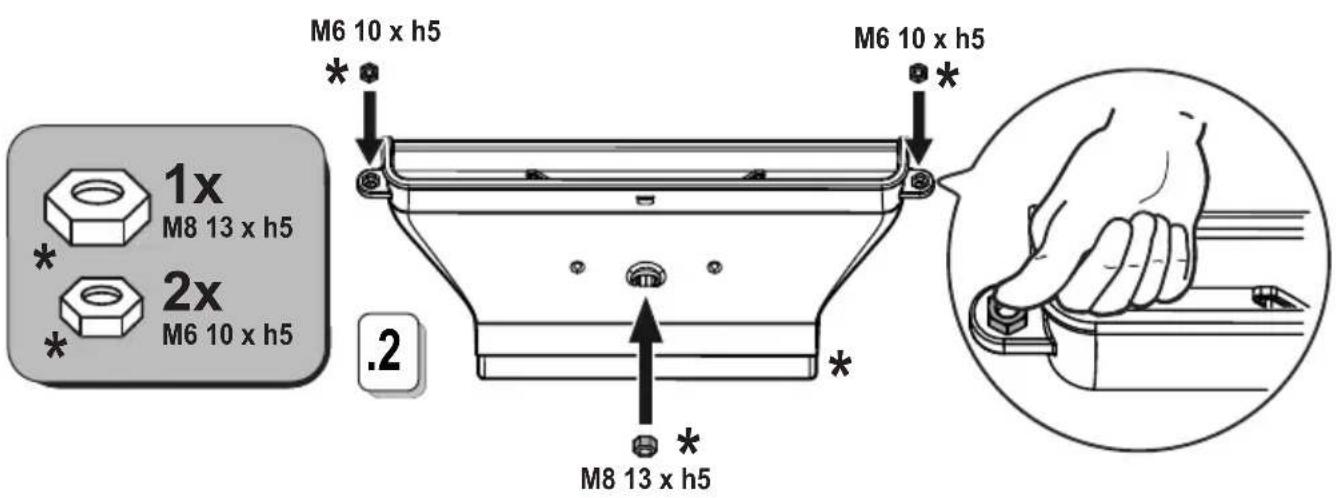

M8 13 x h5

2x

M6 10 x h5

2x

M6x20mm

1x

Simple line drawing of a rectangular block with horizontal lines indicating hidden edges (no text or symbols)

1x

Technical line drawing of a mechanical component with grooves and mounting holes (no text or symbols)

1x

2x

1x

2x

2x

2x

M4x20mm

2x

1x

2x

2x

ø3,5x13mm

www.elica.com

www.shop.elica.com

Simple line drawing of an open box (no text or symbols)

1x

1x

Technical line drawing of a mechanical component (cylinder and rod) with no text or symbols

1x

Simple line drawing of a rectangular mechanical part with curved cutouts (no text or symbols)

1x

Line drawing of a 3D L-shaped mechanical part (no text or symbols)

2x

M4x20mm

2x

2x

1x

Simple line drawing of a rectangular block with horizontal lines indicating hidden edges (no text or symbols)

1x

Simple line drawing of a 3D rectangular block with no text or symbols

2x

1x

Simple line drawing of a rectangular block with horizontal lines, labeled '1x' (no text or symbols on the object itself)

1x

Simple line drawing of a 3D rectangular object with rounded ends and a side gap, labeled '1x' in the top-left corner (no other text or symbols)

1x

*

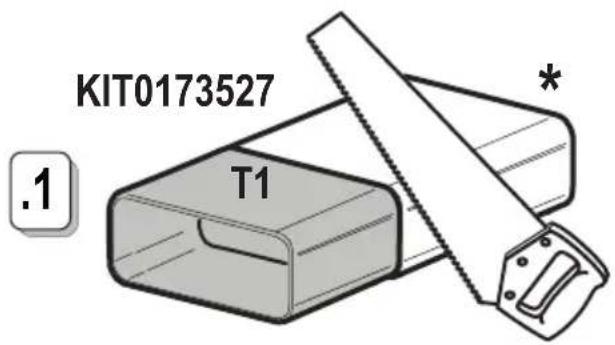

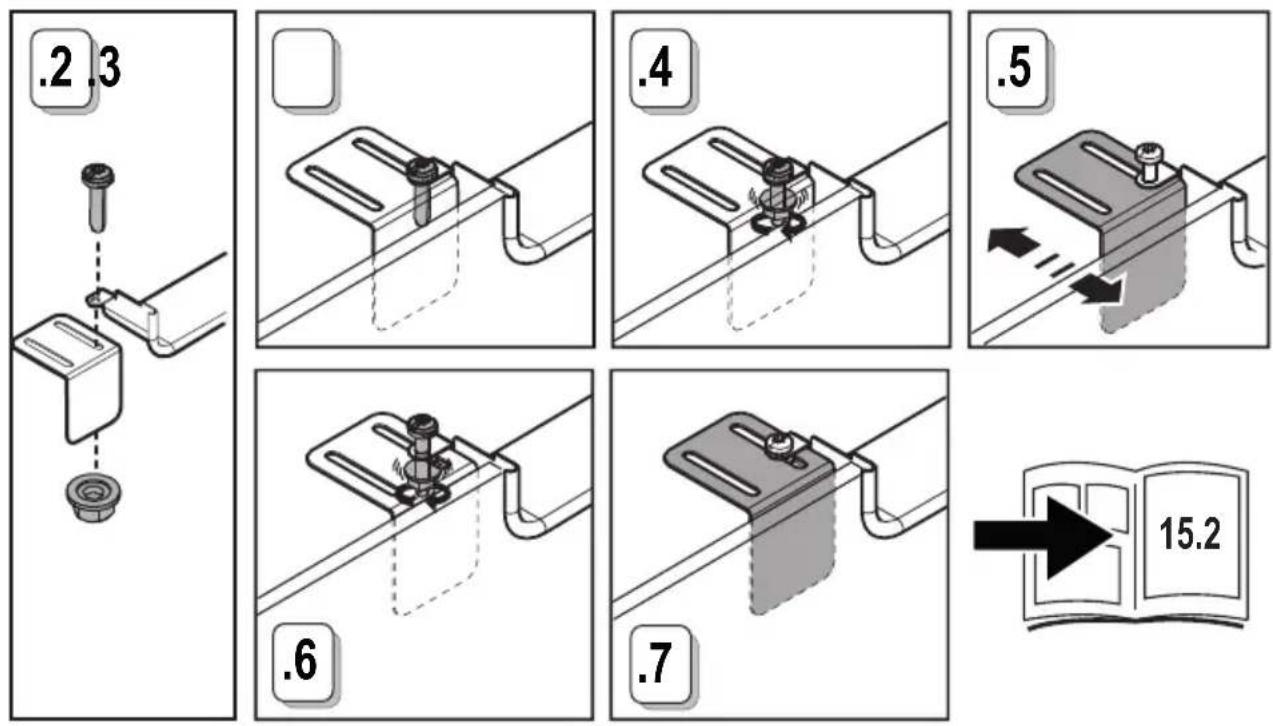

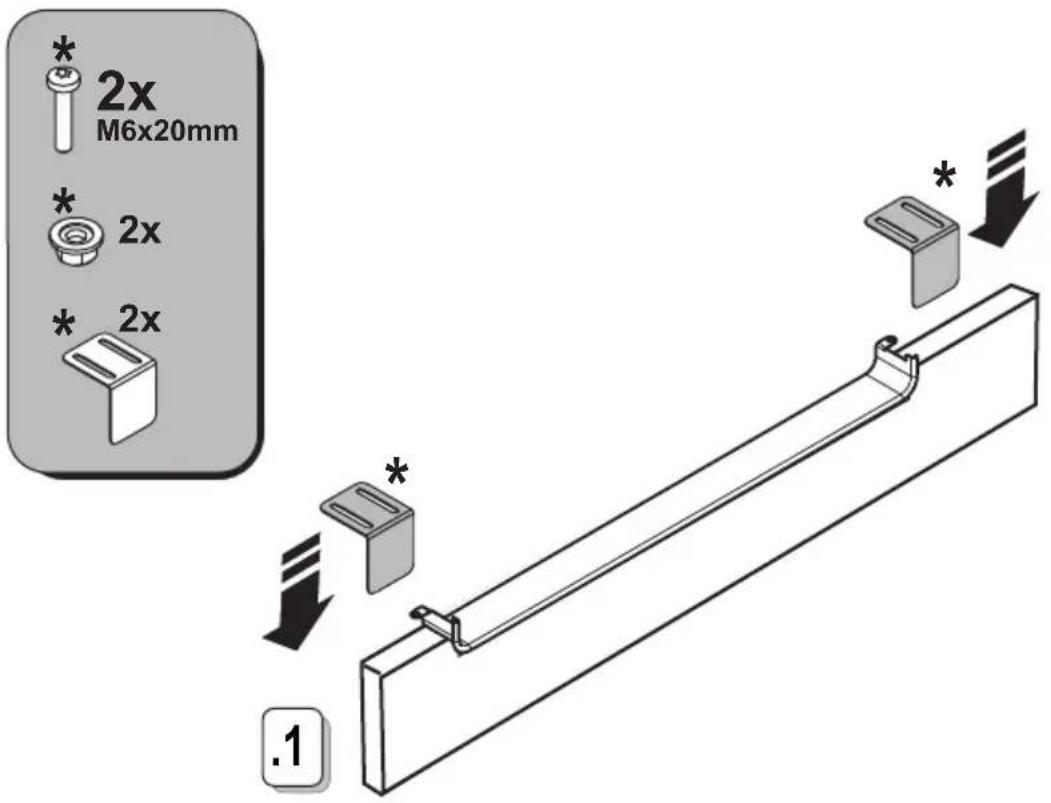

KIT0167756

Technical line drawings of various pipe fittings and components (no text or symbols)

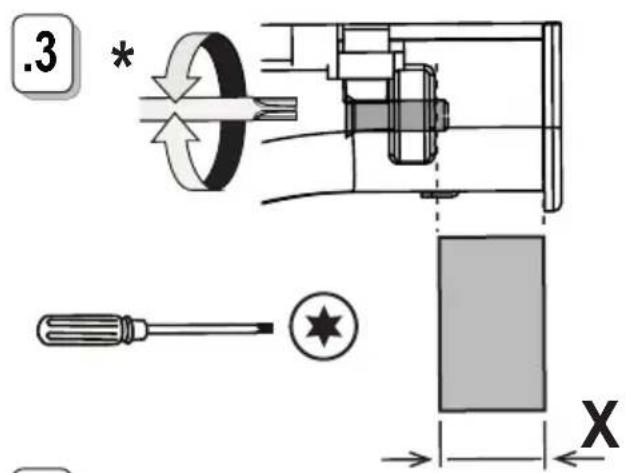

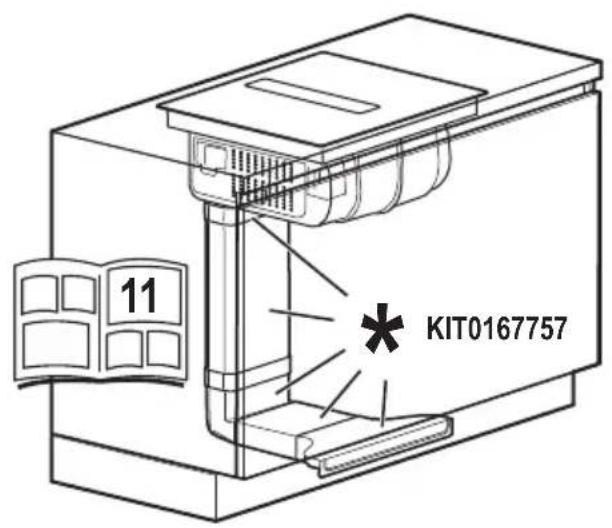

KIT0167757

Technical line drawings of various mechanical components and parts (no text or symbols)

KIT0180522

Technical line drawing of a mechanical housing with components and a folded sheet (no text or symbols)

KIT0167755

KIT0121016 90° 218x55mm

KIT0121002 15° 227x94mm

KIT0126810 227x94mm

KIT0121001 227x94x80mm

KIT0121015 223x59x72mm
KIT0173527 222x89x500mm

KIT0121005 90° 227x94mm

KIT0121017 218x55mm

KIT0168750

KIT0161453
KIT0120991 222x89x1000mm
KIT0121012 218x55x500mm
KIT0121013 218x55x1000mm

www.elica.com

www.shop.elica.com

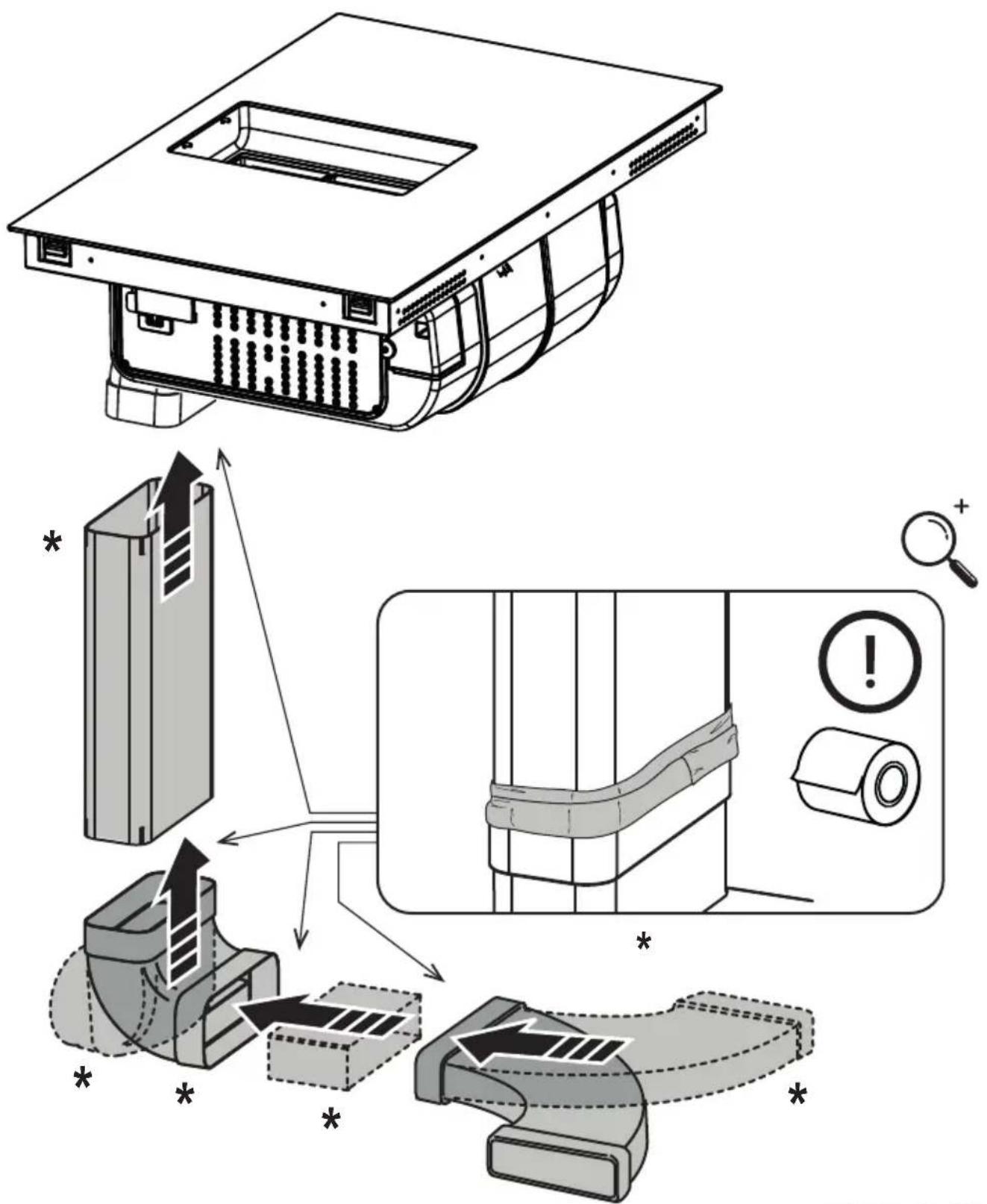

KIT0185767

Simple line drawing of a rectangular block with horizontal lines indicating hidden edges (no text or symbols)

Simple line drawing of a rectangular object with a curved top and side gap (no text or symbols)

KIT0121010

190×190

∅147mm

KIT0121009

INT 216x82mm

EXT 290x160mm

KIT0121006

90°

KIT0121001

227×94×80mm

KIT0126810

227x94mm

KIT0121003

∅158

59mm

KIT0173527

222×89×500mm

KIT0120991

222×89×1000mm

KIT0121004

90^

227×288×94mm

KIT0121008

227x94 ∅153mm

KIT0120996

∅150 - 500mm

KIT0121000

∅150 - 1000mm

KIT0121002

15^

227×94mm

KIT0121005

90^

227×94mm

KIT0161453

KIT0121007

227×94

∅146mm
    note right of B ① ON/OFF

FRONT

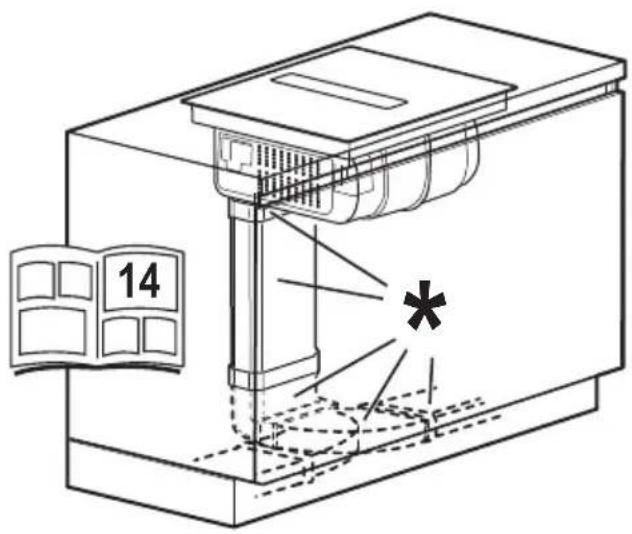

* www.elica.com * www.shop.elica.com

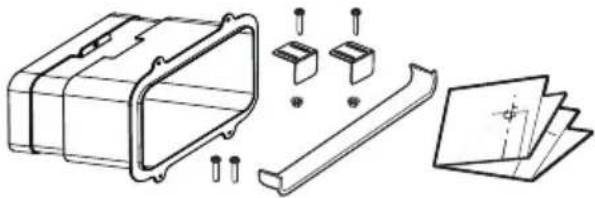

11 KIT0167757

14

12 KIT0167756

14 *

13 KIT0180522

≥ 50mm A/B ≥ 50mm ≥ 50mm ≥ 40mm L

830mm 515mm 250mm

inst.A

Technical line drawing of a mechanical device with mounting bracket and side view (no text or symbols)

750mm >20mm <60mm 490mm

inst.B

Technical line drawing of a mechanical assembly with no visible text or symbols

≥ 832mm 750mm R6mm >25mm <60mm 490mm ≥ 517mm

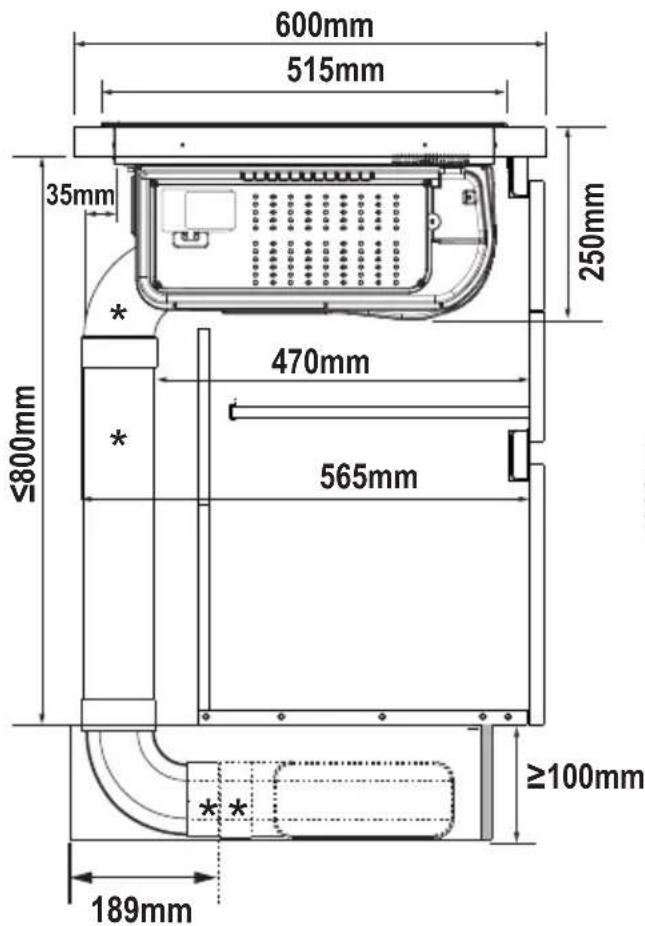

600mm 515mm 35mm 250mm ≤800mm 470mm 565mm ≥60mm 107mm

600mm 515mm 35mm 250mm 470mm 565mm ≥800mm ≥60mm 107mm

Two simple geometric icons: a ruler and a house with a circular arrow (no text or symbols)

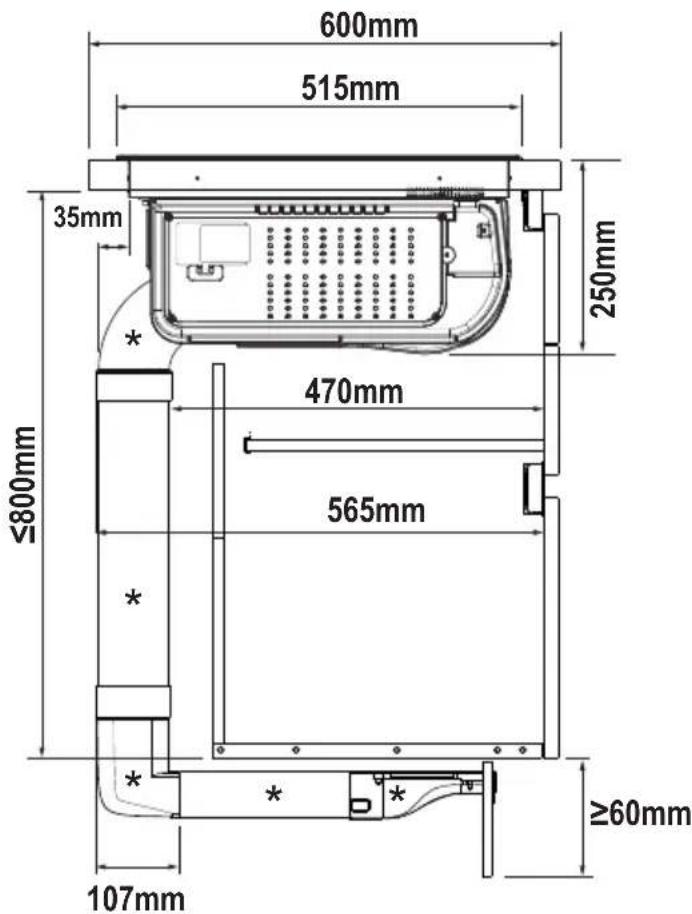

515mm 250mm ≤800mm ≥110mm 30mm ≥25mm ≥100mm

Two simple line drawings: a ruler and a house with an upward arrow (no text or symbols)

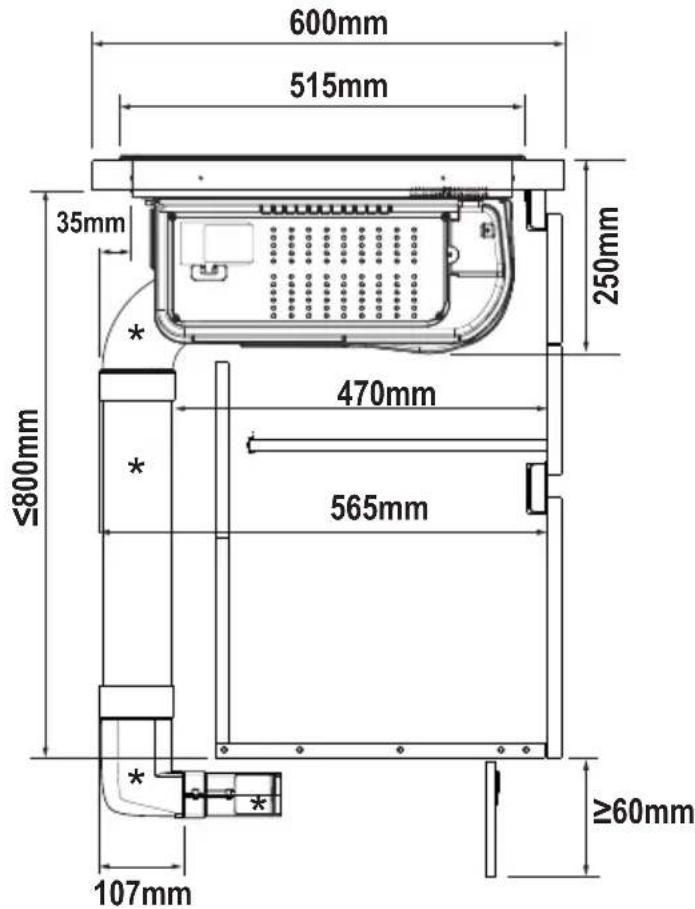

600mm 515mm 35mm 250mm ≤800mm 470mm 565mm ≥100mm 189mm

600mm 515mm 35mm 250mm 470mm 565mm Ø150mm Ø800mm ≥60mm

KIT WINDOW

V-Hz

Diagram showing a window with sound waves and a sensor connected to the left panel (no text or symbols)

OFF

Simple line drawing of a door with sound waves and a small square object on the left (no text or symbols)

ON

KIT WINDOW 1 5A 2 3 L N N L A B

Diagram of an electronic device with a magnifying glass and signal wave overlay (no text or symbols)

! .1.2.3 A B

Technical illustration of a computer setup with an open box and internal components (no text or symbols)

Technical line drawing of a mechanical device with mounting base and grid pattern (no text or symbols)

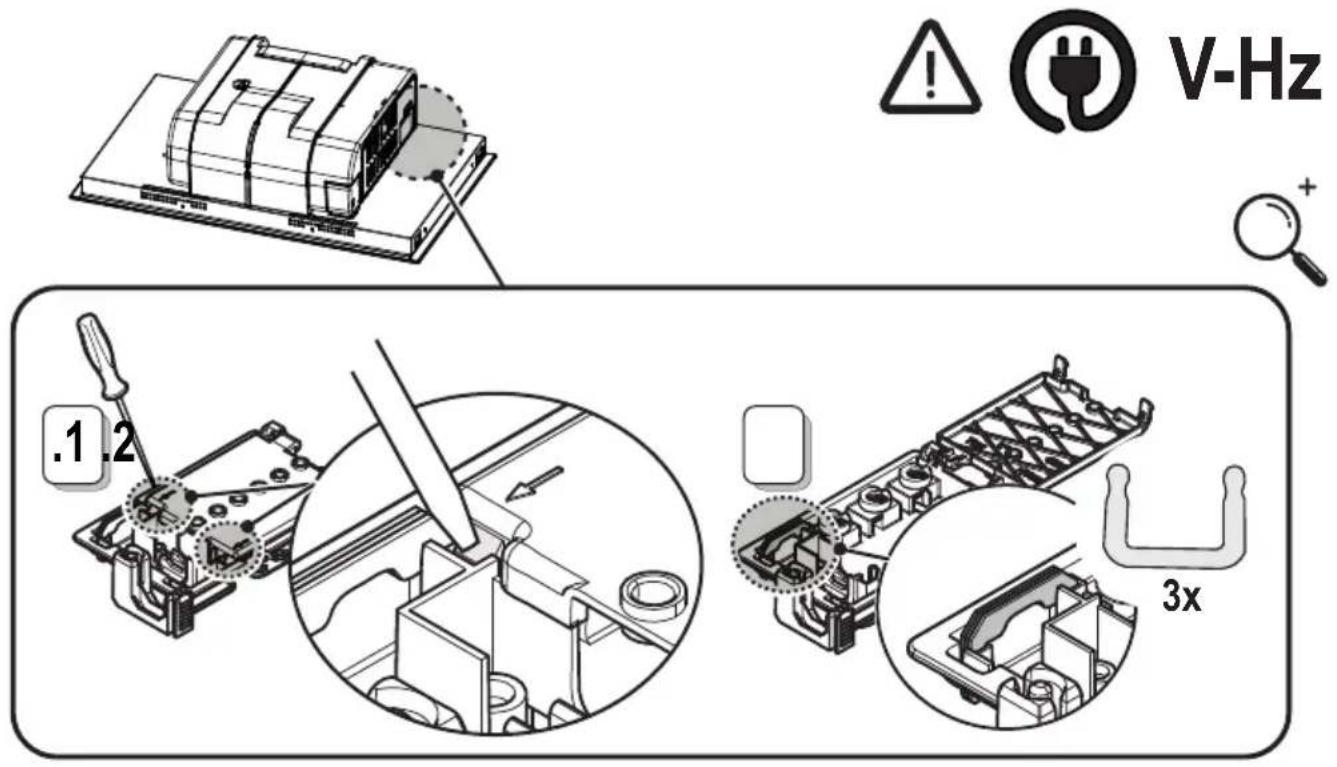

.1.2 3x V-Hz

220V-240V \~ 50Hz/60Hz

x3 1 2 3 220V 240V 5 4 N

7

380V-415V \~ 2N\~ 50Hz/60Hz

220V 240V 220V 240V L1 L2 x2 1 2 3 5 4 N

380V-415V \~ 3N\~ 50Hz/60Hz

220V 240V 220V 240V 220V 240V L3 L2 L1 1 2 3 x1 5 4 N

220V-240V \~ 2N 2L 50Hz/60Hz

220V 240V 220V 240V L1 L2 x1 1 2 3 5 4 N1 N2

.1.2 clack!

V-Hz

clack! clack!

7.1

Illustration of a mechanical component with a 4x multiplier label (no other text or symbols)

Technical diagram illustrating a device assembly with labeled components and a magnified view showing internal structure changes.

inst.A 9

inst.B → 10

inst.A 1x

Line drawing of a computer monitor with hands operating it, showing internal components and wiring (no text or symbols)

inst.B

Abstract spiral pattern inside a rounded square frame (no text or symbols)

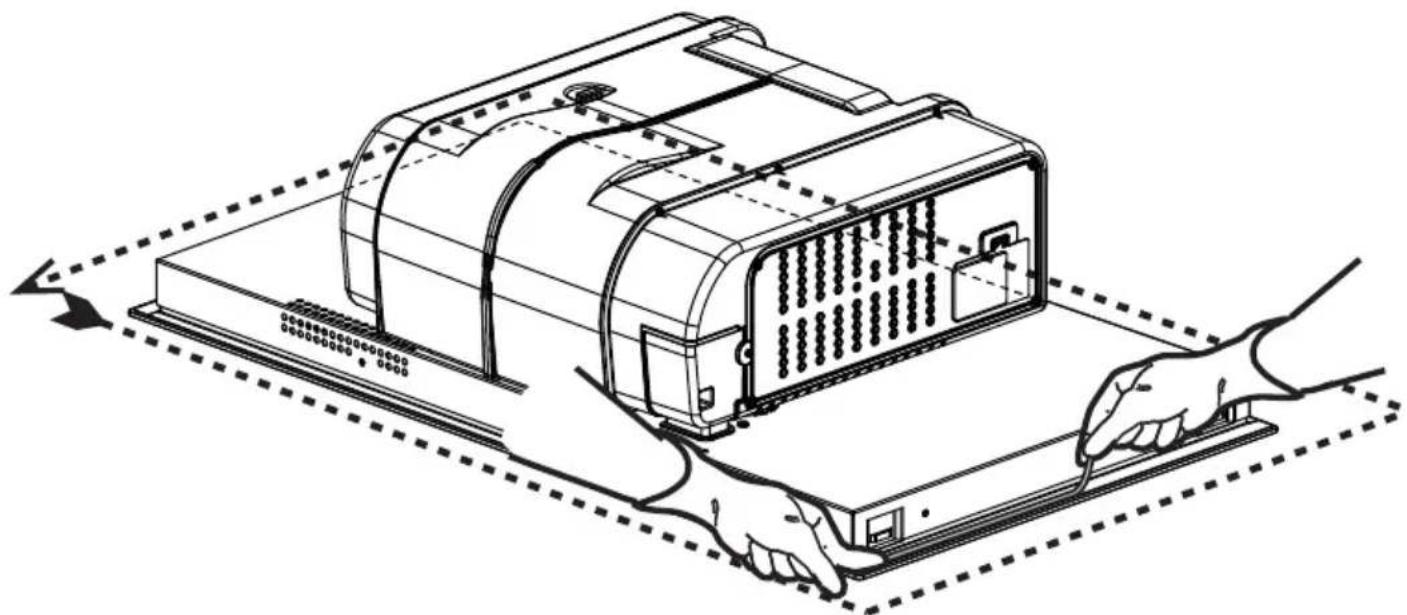

Line drawing of two hands manipulating a rectangular frame with dashed lines indicating movement or alignment (no text or symbols)

10

1x 10.1

10.1

10.1 (s)

10.2

Diagram showing an eye pointing to an open book with the number 1 displayed in the page

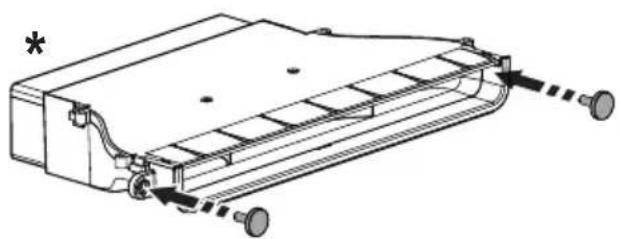

KIT0167757

! L ≤ 650mm

Technical line drawing of a mechanical assembly with no visible text or symbols

Technical line drawing of a device with a container and ventilation unit, no text or symbols present

11

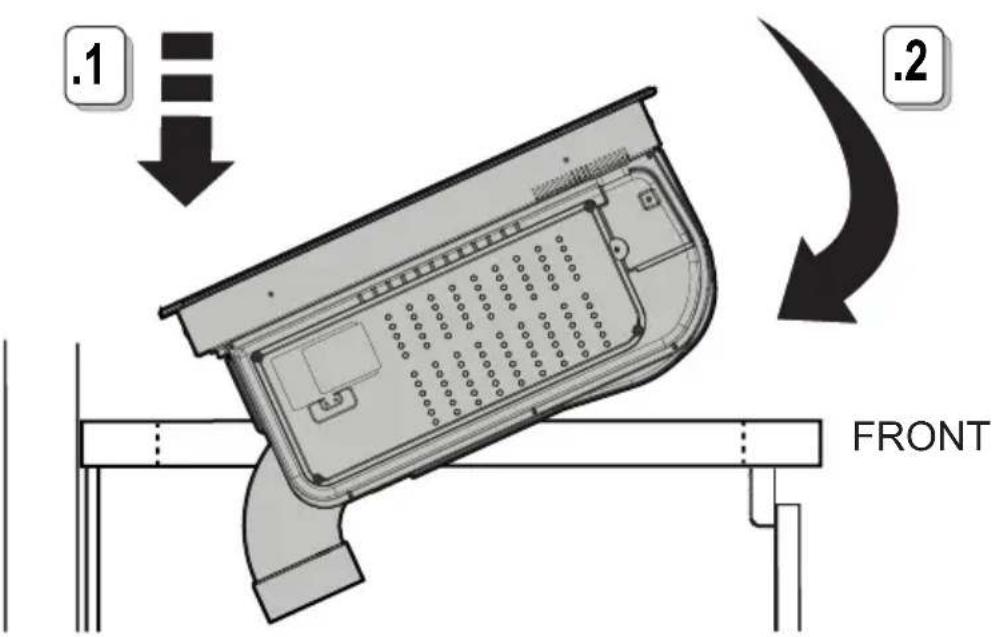

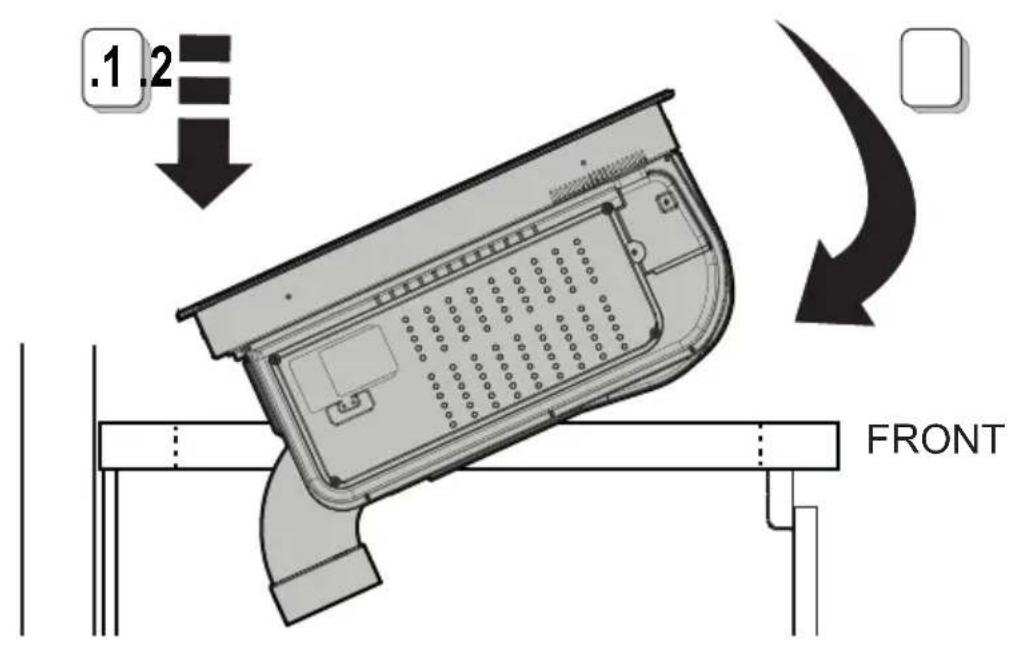

.1.2 FRONT

11.1

KIT0167757

KIT0173527 .1 T1 *

L > 650mm L

.2 T1 * * * KIT0121001

11.2

.1 .2 FRONT

11.3

≥60mm = =

.1 33 mm R.10mm 335 mm

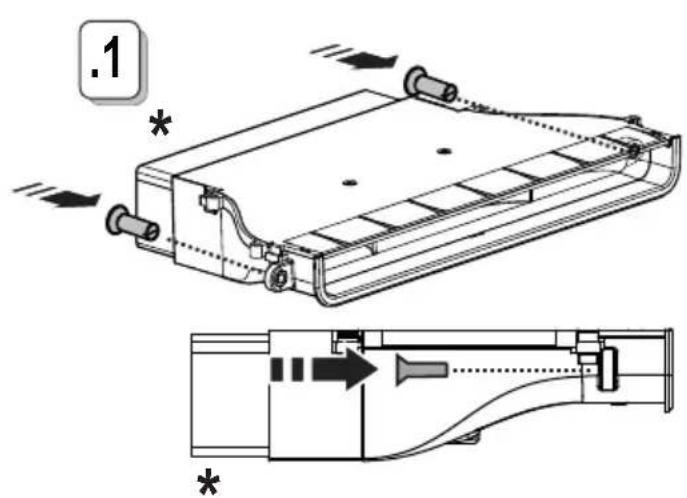

1x M8 13 x h5 2x M6 10 x h5 .2 M6 10 x h5 M6 10 x h5 M8 13 x h5

KIT0167757

www.elica.com

www.shop.elica.com

2x M6x20mm *

Diagram showing a tape measure and directional arrows labeled X and right, likely indicating measurement or transformation.

$$ X = \leq 1 8, 5 \mathrm{mm} $$

$$ X = > 1 8, 5 \mathrm{mm} $$

$$ X = \leq 2 2, 5 \mathrm{mm} $$

X = ≤ 18,5mm

.1

X = 10,6mm *

.2

Three-step diagram showing a pin, a close-up of a circular component, and a checkmark (no text or symbols)

.3

Technical line drawing of a mechanical component with mounting holes and internal channels (no text or symbols)

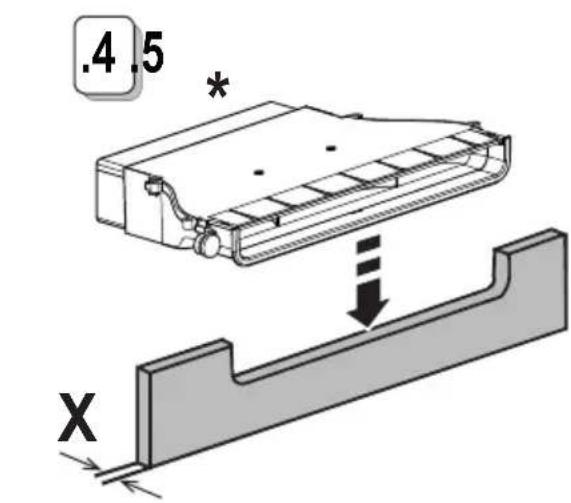

.4.5 * X

Technical diagram of a mechanical device with labeled components and directional arrows indicating motion or flow.

11.6

2x M6x20mm * * 1x

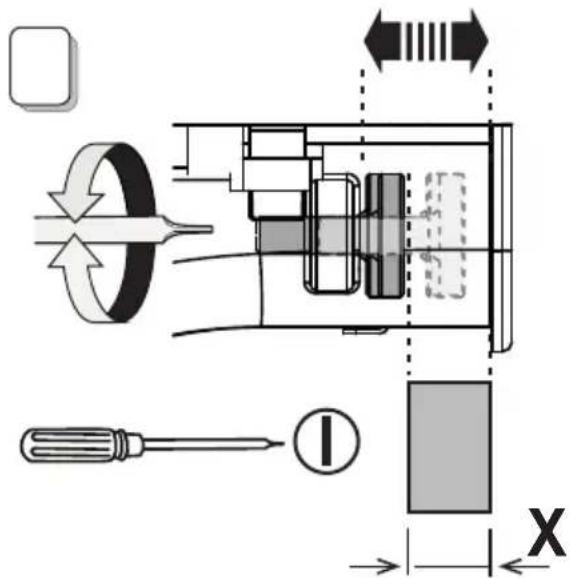

X ≥18,5mm ≤ 22,5mm

.1 *

.2 * X

.3 * X

.4 H

.5 H 11.7

15.2

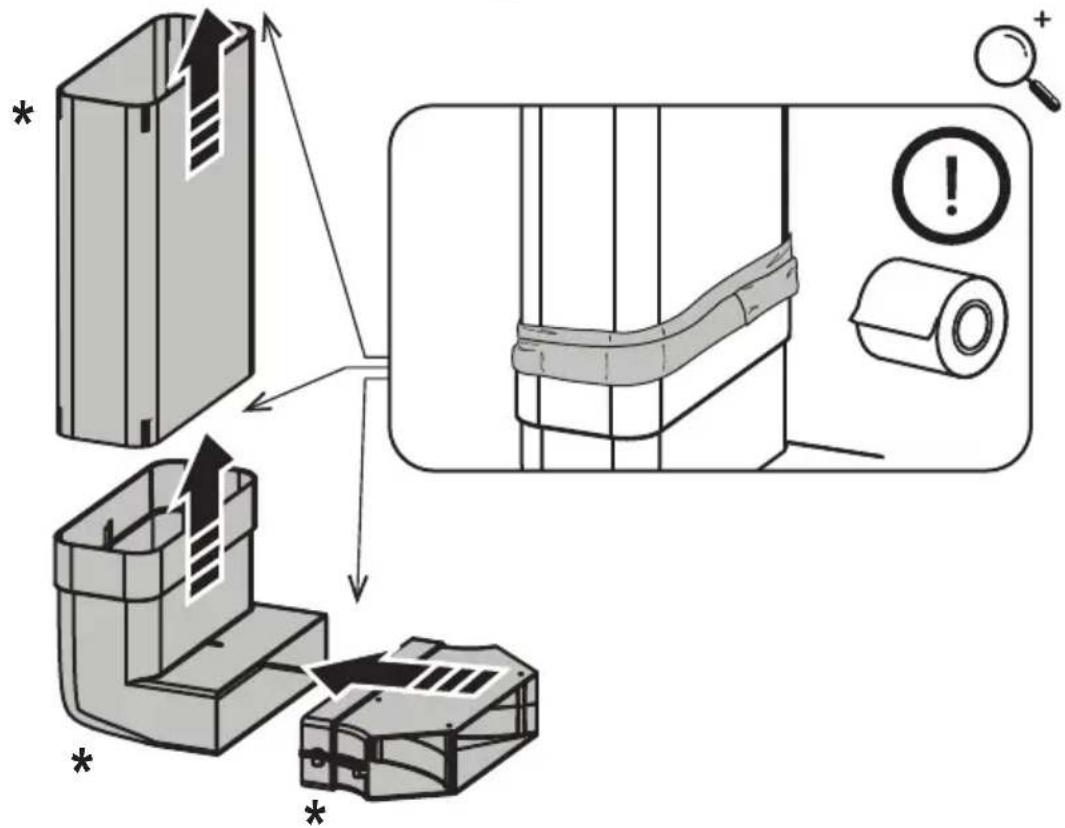

KIT0167756

* www.elica.com www.shop.elica.com

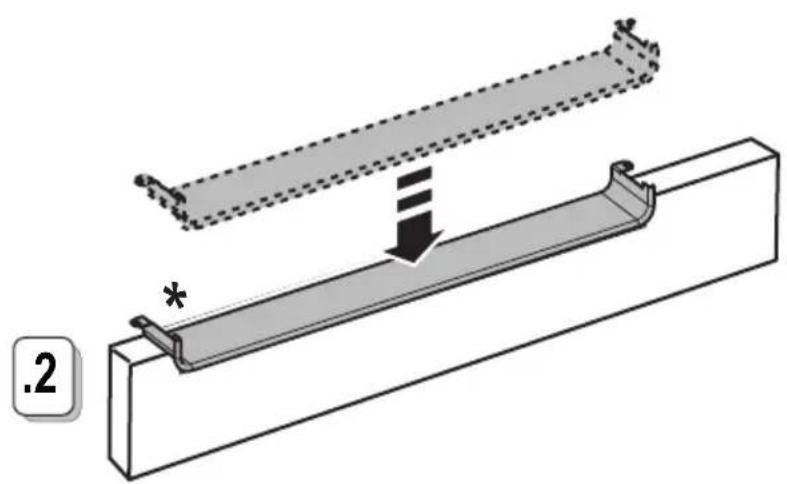

12

11 11.1 11.2 11.3 12.1

Technical line drawing of a device chassis with mounting bracket and internal components (no text or symbols)

Technical diagram illustrating a mechanical assembly process with labeled components and warning indicators

12.1

≥60mm = =

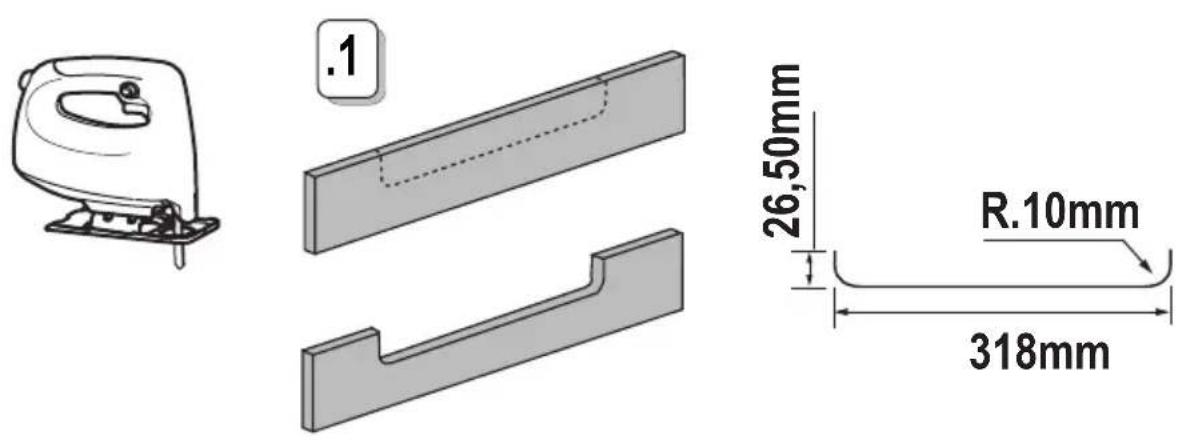

.1 26,50mm R.10mm 318mm

Diagram of a mechanical assembly with a beam and support structure, showing motion direction (no text or symbols)

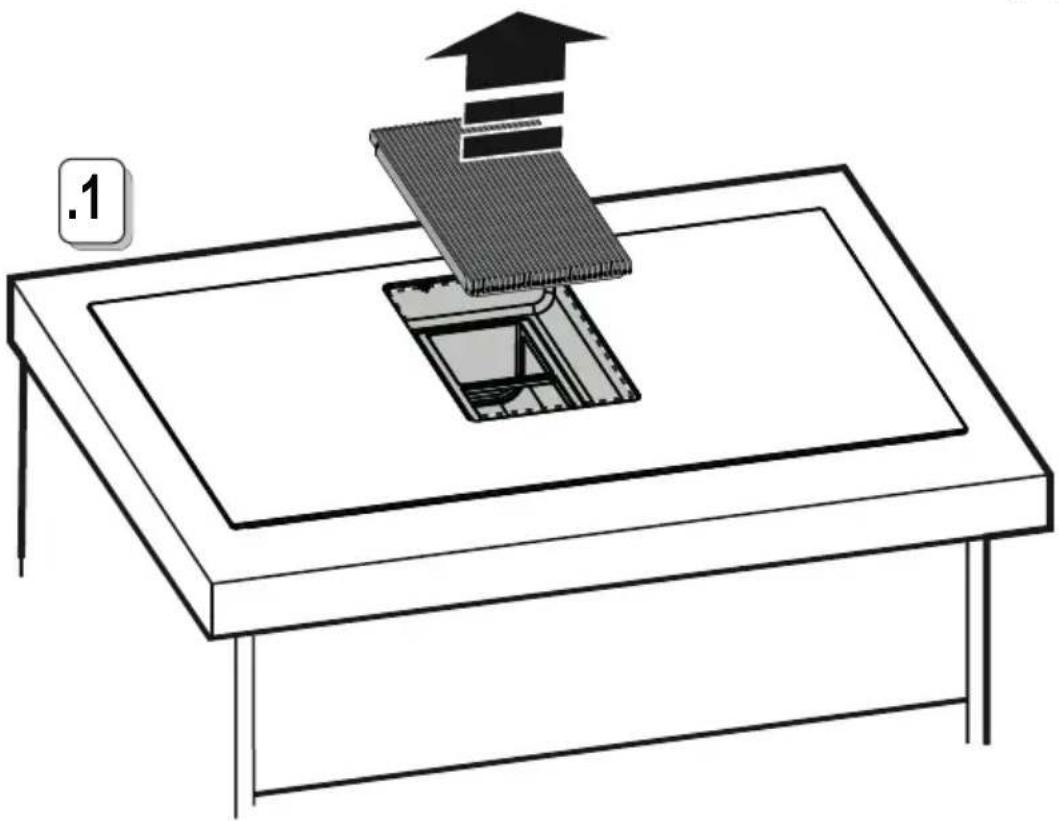

12.2

KIT0167756

* www.elica.com www.shop.elica.com

2x M6x20mm 2x 2x .1

Simple line drawing of a door frame with a left arrow and three vertical bars, no text or symbols present.

Simple line drawing of a container with arrows indicating flow or movement, no text or symbols present

13.1

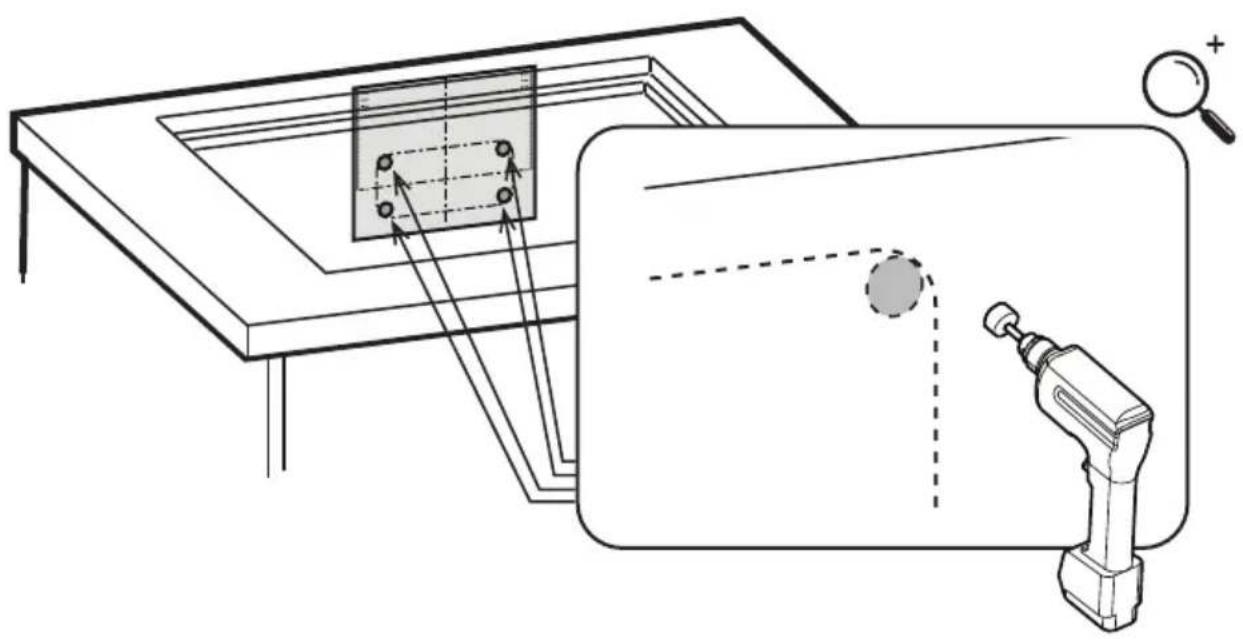

Diagram showing a table with a magnifying glass and a mechanical tool interacting with a panel, no text or symbols present.

13.2

12.3

13.3

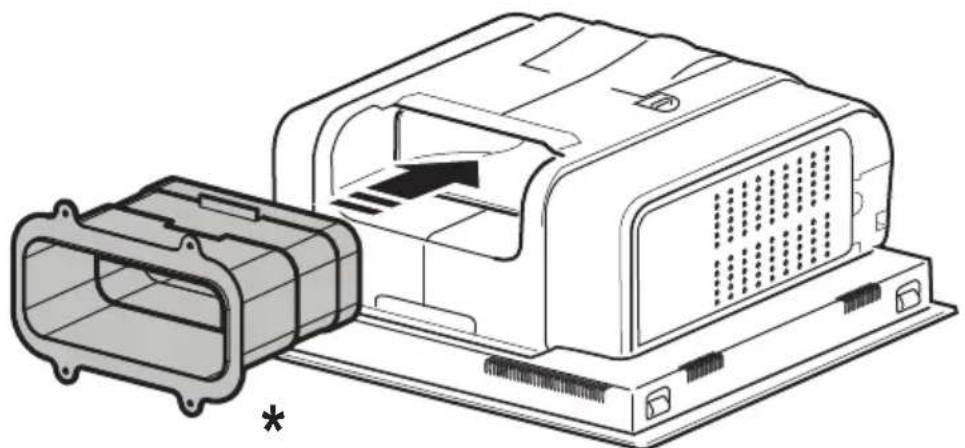

Technical illustration of an electronic device showing a connector housing and internal casing (no text or symbols)

13.4

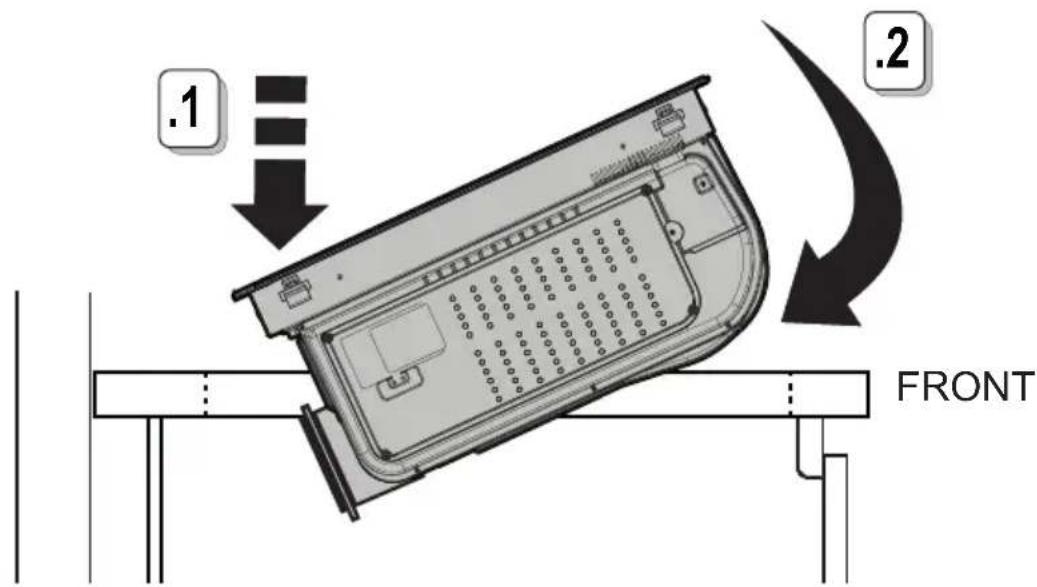

.1 .2 FRONT

13.5

* 2x ø3,5x13mm

13.6 .1 .2 2x Ø3,5x13mm

15.2

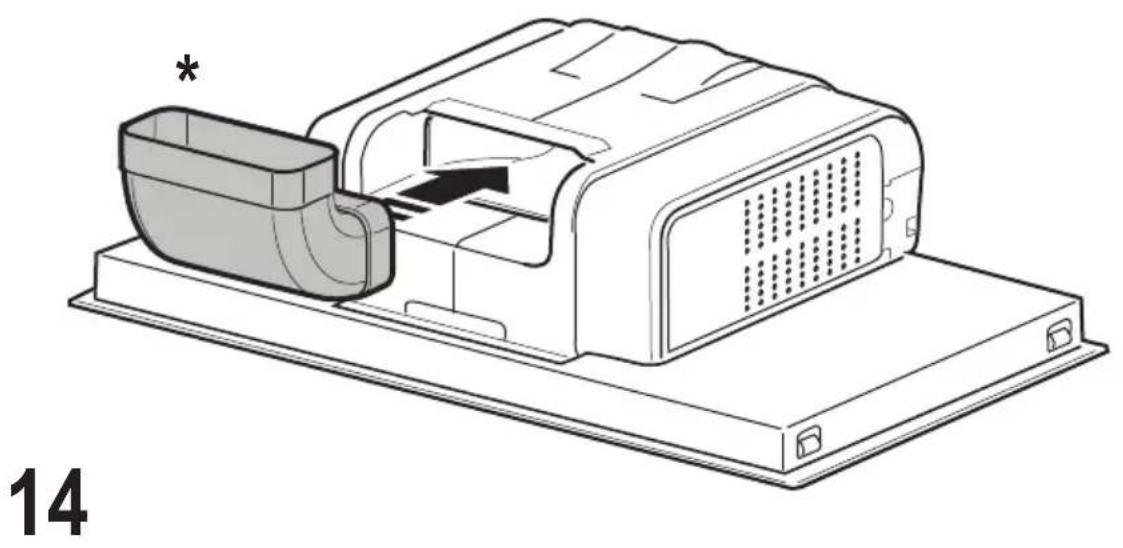

Technical line drawing of a device with a container and internal structure, labeled '14' (no text or symbols on the diagram itself)

.1.2 FRONT

14.1

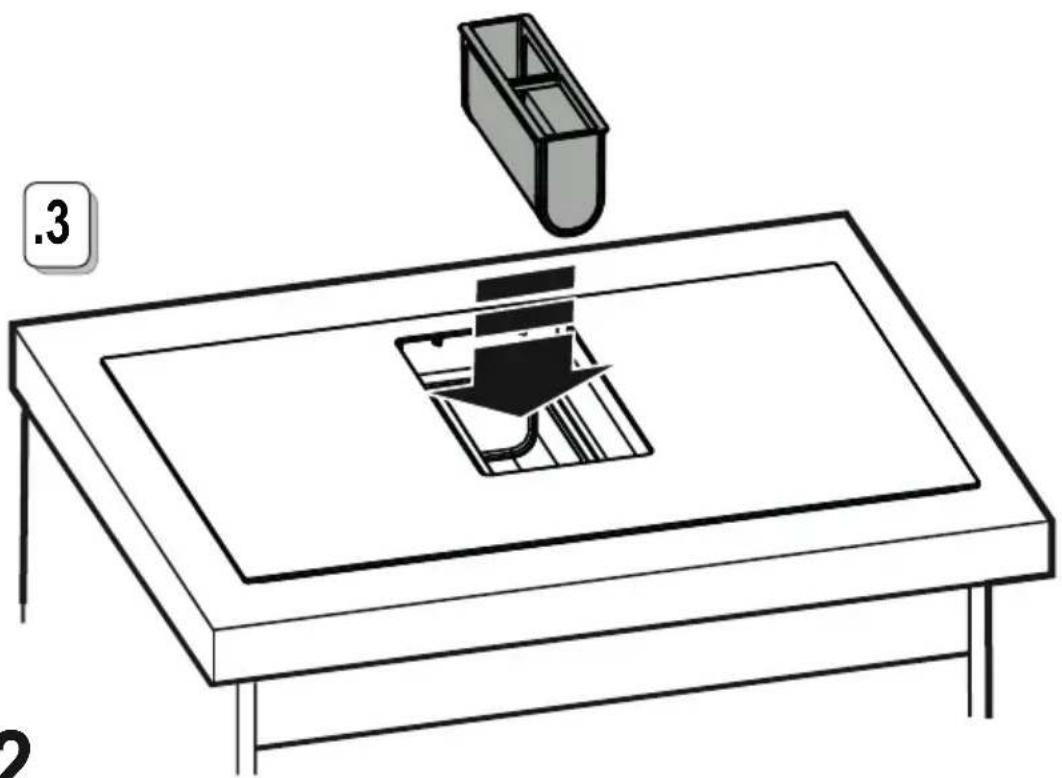

KIT0185767 + CUSTOM

* www.elica.com * www.shop.elica.com

Technical diagram illustrating the installation and assembly of a printer, showing component layout and warning labels.

14.2

15.3

A-B

Diagram of a mechanical assembly with a component being lifted by an upward arrow, no text or symbols present

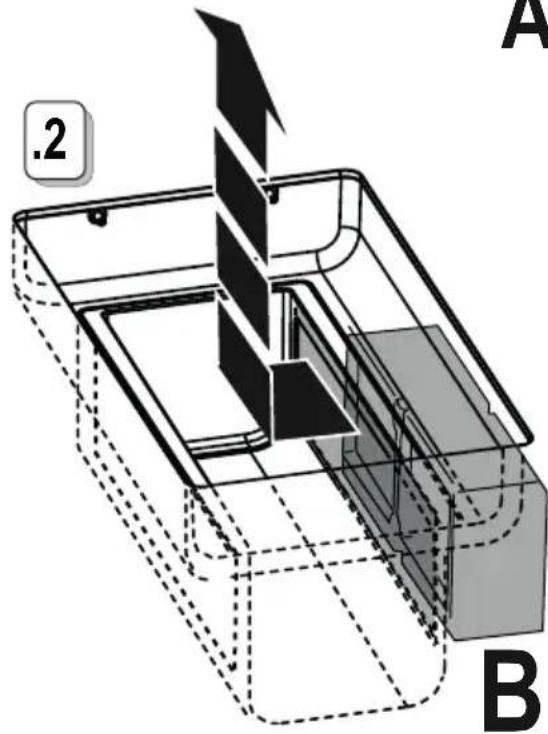

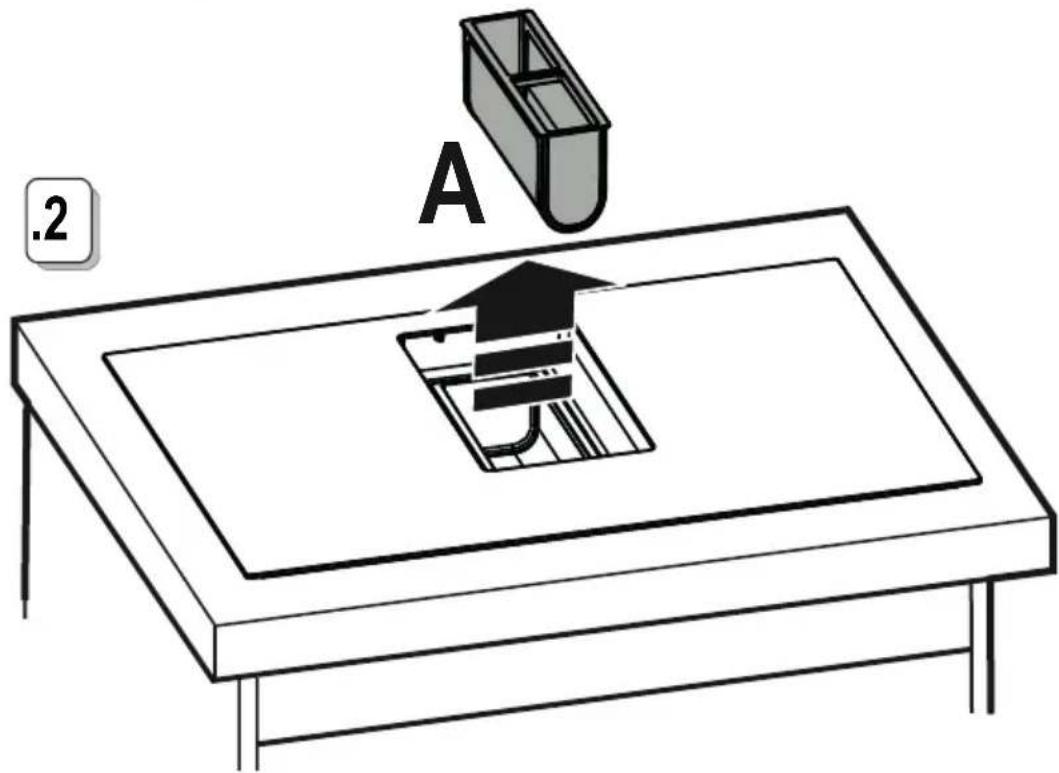

.2 A

A-B

Technical line drawing of a mechanical assembly with no visible text or symbols

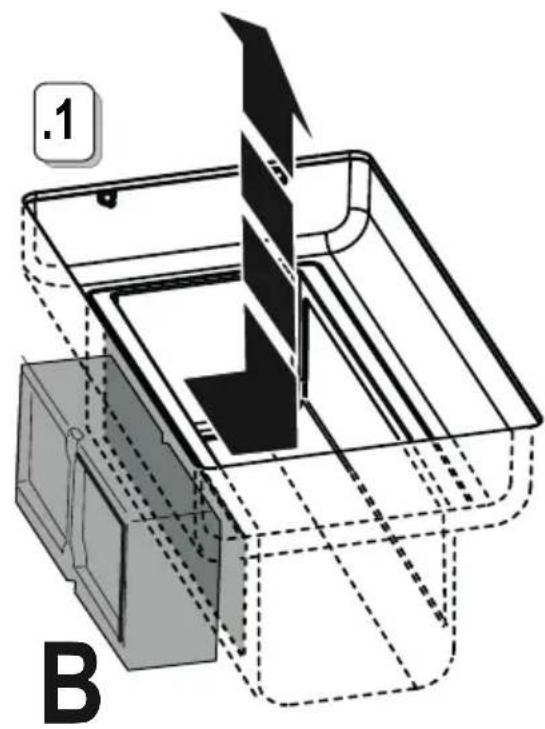

3D diagram of a mechanical assembly with labeled components A and B, showing internal components and dashed lines indicating hidden edges (no text or symbols beyond labels)

Illustration of two containers with different fill patterns, one showing a change from dark to light (no text or symbols)

Diagram showing two 3D rectangular objects with a label '4' and an arrow pointing to a larger object, both emitting sparkles (no text or symbols on the objects themselves)

15.1

Simple 3D illustration of a rectangular box with a side panel, labeled '2x' (no text or symbols on the box itself)

A-B

3D diagram of a mechanical assembly with internal components and dashed lines indicating hidden edges (no text or symbols)

3D technical diagram of a mechanical assembly with internal components and dashed lines indicating hidden edges (no text or symbols)

15.2

Line drawing of a 3D printer on a table with a tray and cover (no text or symbols)

3D rendered image of a grid-patterned rectangular object with '1x' label (no other text or symbols)

A-B

15.3

Diagram of a mechanical assembly with a component being inserted into a base plate (no text or symbols)

16

Diagram illustrating the installation of a door lock mechanism with labeled components and tools

Diagram illustrating a test setup with a checkmark, a box labeled 'Bri dish', and a U-shaped magnet attracting a battery.

Pure electrical circuit symbols without any text or labels

Simple line drawing of a cooking pot with a checkmark above it and three upward arrows below indicating pressure or heat.

Simple line drawing of a cooking pot with an 'X' symbol above it and arrows indicating upward pressure (no text or labels)

Simple line drawing of a cooking pot with a cross symbol above it, no text or labels present.

Simple diagram showing a circular target with a checkmark above it and a dot at the center (no text or symbols)

Two circular diagrams with checkmark and rectangular handles, no text or symbols present

- 40 %

The versatility of features that range from lighting, to suction and cooking, helps create products that were born to amaze. High-quality materials, careful attention to detail, strong passion for design each in their core essence play a leading role in our products capable of transmitting emotions.

Elica, aria nuova

FRAME AND DISCOVER
