USER MANUAL AD-0148 Huslog

-WODA I INNE PŁ YNY-

QR code image containing encoded data, no visible human-readable text

Equipment Delivery Point:

mPTech Sp. z o.o.

Krakowska 119

50-428 Wrocław

Poland

Designed in Poland

Made In China

Manufacturer:

mPTech Sp. z o.o.

Nowogrodzka 31

00-511 Warsaw

Poland

Helpline: ([phone]

Email: [e-mail]

Website: myphone-mobile.com

TABLE OF CONTENTS

1. Safety of use .... 7
2. Technical Specifications ....8

2.1 Technical data....8
2.2 Contents....8

1. Structure of the device .... 9
2. Use of the device....9
3. Troubleshooting.... 10
4. Maintenance and cleaning of the device.... 10
5. Symbol explanation.... 11
6. Use of the manual ...... 12
7. Warranty and Service ......12
8. Declaration of conformity with EU directives ......12

1. Safety of use

Please read the instructions provided here carefully. Failure to follow these instructions may be unsafe or illegal.

-IMPORTANT SAFETY INSTRUCTIONS-

The device can be operated and cleaned by children over 8 years of age and people with limited mental or physical dispositions only when they are under the supervision of caregivers or after handing over the instructions for use of the device in a safe way, understanding the danger posed by the use of the device. The device is not a toy. Disconnect the appliance from the power grid before cleaning or maintaining it. If the power cord is damaged, it must be replaced by the manufacturer's service centre, service centre representative or a qualified person.

-DO NOT RISK-

The device is intended for indoor use. Not suitable for use in the open air. Do not use the device in areas where the use of electrical equipment is prohibited and where it may cause interference or other hazards. Do not switch on or use the appliance near flammable materials. Do not place any flammable objects on the device - this may damage the device or even cause a fire. Do not lift or move the switched-on device.

-SURROUNDINGS-

The device should not work in a dusty environment. Connect the device so that it cannot be damaged and does not pose a threat to people and animals. Make sure that the animals do not have access to the appliance, as they may damage them, and that cracked or broken parts may have sharp edges. Do not expose the device to sunlight and do not use it in close proximity to devices that emit a lot of heat (heaters, radiators, etc.). Components made of plastic may deform, which may affect the operation of the device or lead to its complete deterioration.

-WATER AND OTHER LIQUIDS-

Never immerse the device in water, as this may adversely affect the operation and service life of the components.

—PROFESSIONAL SERVICE—

This product may only be repaired by a qualified manufacturer's service or an authorized service centre. Repair of the device by an unqualified service or by an unauthorized service point may result in damage to the device and loss of warranty. The manufacturer is not responsible for problems caused by self-modifications made by the user.

2. Technical Specifications

2.1 Technical data

Fragrance diffuser
Model	AD-0148
Batch number	613105
Power	5W
Power supply	5V -- 1A
Capacity	280 ml
Additionally	Led backlight, timer

2.2 Contents

• Fragrance diffuser
  USB cable
• User Manual

EN © 2024. huslog All rights reserved

Fragrance diffuser

If any of the above items are missing or damaged, please contact your dealer.

We recommend to keep the packaging in case of any complaint.

It is possible to download the electronic version of the user manual from the following Internet address:

https://huslog.eu/

Or by scanning the QR code:

QR code image containing encoded data, no visible human-readable text

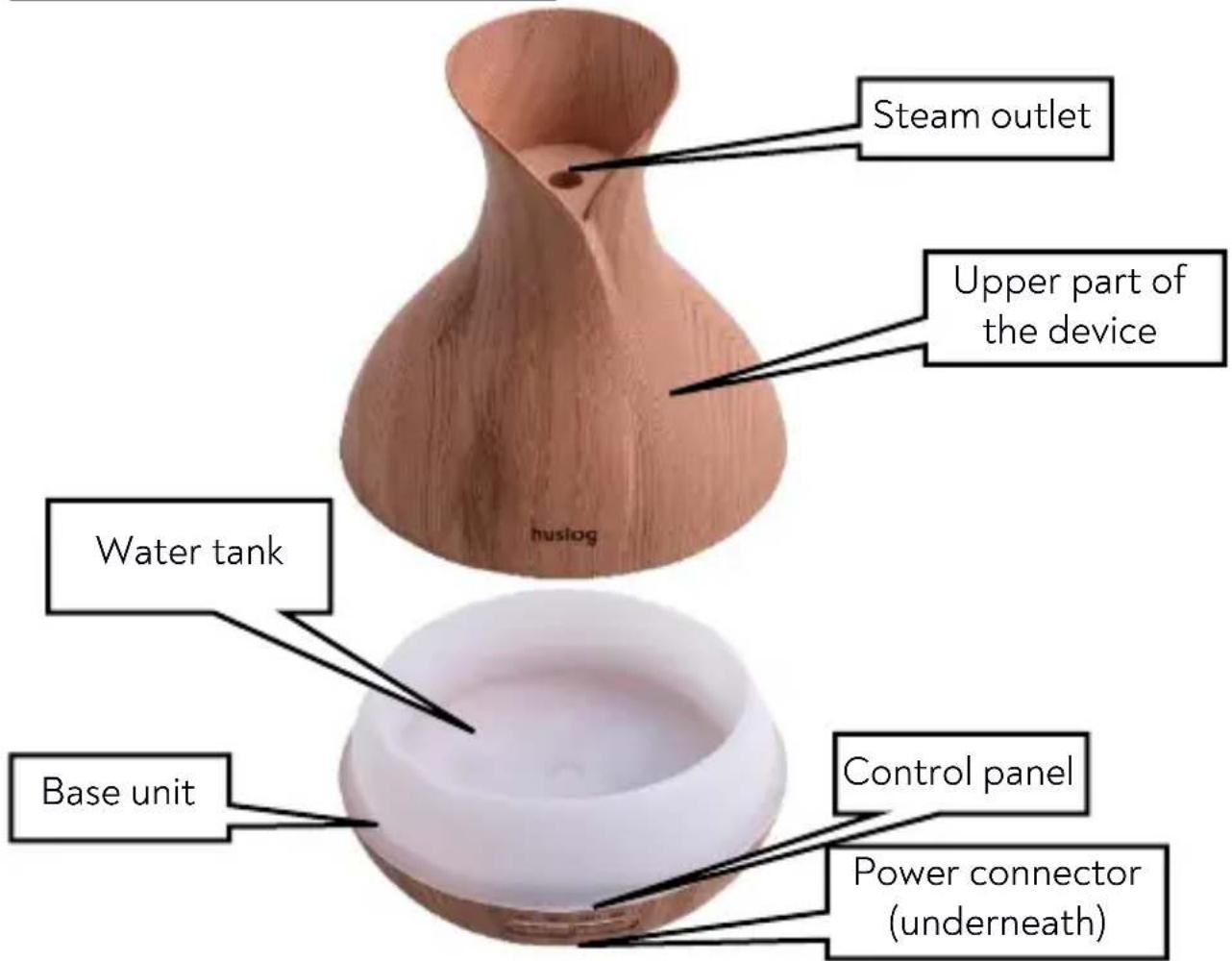

3. Structure of the device

Steam outlet Upper part of the device husiog Water tank Base unit Control panel Power connector (underneath)

4. Use of the device

Do not turn on the appliance if the water tank is empty. Use only clean water in the appliance.

Remove the device and USB cable from the packaging. Connect the round plug of the USB cable to the power connector located underneath the base of the

EN © 2024. huslog All rights reserved

Fragrance diffuser

device and place the diffuser on a stable, flat, horizontal surface. Remove the top of the appliance and fill the tap or spring water tank. You can also add a few drops of essential oils (not included) to your water. The maximum capacity of the water tank is 280 ml. After filling the tank, put the top of the device back on the base. Only after filling the device with water can it be connected to the power supply. To do this, connect the USB plug of the USB cable to a powered USB adapter (not included) with output parameters of 5V = 1A. After connecting the power supply, the device is ready for operation.

The control panel of the device is equipped with two buttons. Right to control the steam mist, left to control the backlight.

Right button - mist:

• 1st press – fog on for 1h
• 1. press – turn on the mist for 3 hours
• 3rd press – fog on for 6h
• 4th press – turning on the mist permanently
• 5th press – mist off

Left button - backlight:

• 1st press – backlight with changing colours
  o presses 2nd to 8th – backlight in one predefined colour
• 1. press – turn off the backlight

The diffuser will automatically switch off when there is not enough water in the water tank.

5. Troubleshooting

In case of problems with the device, please refer to the following tips.

The device does not power on	Check that the power cord or the USB adapter used is not damaged.
When switched on, no water vapour comes out of the appliance	Check the correct connection of the plug to the mains socket.
If the problem has not been resolved, please contact the manufacturer's s

6. Maintenance and cleaning of the device

Warning! The appliance cannot be immersed in water or washed under running water!

Before cleaning the appliance, make sure that your hands are dry and the appliance is to cool down and disconnected from the power grid.

The device is maintenance-free.

The appliance housing can be cleaned using a paper towel or soft cloth. A lightly dampened paper towel or soft cloth can be used for dirt that is harder to remove.

For washing the inside of the device, it is best to use mild, unconcentrated dishwashing liquids, cloths and washcloths with mild bristles or sponges, then rinse abundantly with clean water.

Cleaning the water tank is recommended every 5-6 service cycles of the diffuser, i.e. full emptying of the tank.

If limescale is deposited on the inside of the limescale water tank, use a suitable limescale remover. It can be purchased in most large grocery stores and or stores offering household appliances. These occur in the form of powder or liquid. Follow the instructions for use that come with them.

7. Symbol explanation

The packaging of the device can be recycled according to local requirements.

Symbol indicating corrugated board (packaging mat.).

The symbol indicates that the package contains a user manual which must be read before use.

For internal use only.

The device is marked with the symbol of a crossed-out garbage container, in accordance with the European Directive 2012/19/EU on waste electrical and electronic equipment (WEEE). Products marked with this symbol should not be disposed of or disposed of with other household waste after their time of use. The user is obliged to dispose of waste electrical and electronic equipment by delivering it to the designated point at which such hazardous waste is recycled. The accumulation of this type of waste in indicated places and the proper process of its recovery contribute to the protection of natural resources. Proper recycling of waste electrical and electronic equipment has a beneficial effect on human health and the environment. For information on where and how to dispose of waste electrical

EN © 2024. huslog All rights reserved

Fragrance diffuser

and electronic equipment in an environmentally safe manner, the user should contact the relevant local authority, waste collection point or point of sale where he purchased the equipment.

8. Use of the manual

Without the prior written consent of the manufacturer, no part of this manual may be reproduced, distributed, translated or transmitted in any form or by any electronic or mechanical means, including by photocopying, recording or storing in any storage and information-sharing systems.

All brands and product names are trademarks or registered trademarks of the respective companies.

9. Warranty and Service

The product has a 2-year warranty, starting from the date of sale of the product. In the event of a defect, the product should be returned to the store where it was purchased, remembering the need to present proof of purchase. The product should be complete and preferably placed in its original packaging.

10. Declaration of conformity with EU directives

Hereby mPTech Sp. z o.o. declares that this product complies with the basic requirements and other provisions of the Directives of the so-called “New Approach” of the European Union.
