USER MANUAL Industrial Juicer RGV

Instruction manual (Translation of original instructions)

This appliance is in compliance with all the standards related to electromagnetic fields (EMF). If used properly, following what indicated in this instructions manual, the appliance allows a safe use, as confirmed by the scientific results currently available.

This appliance complies with the 2014/30/EU, 2014/35/EU directives

Elektromagnetische Felder (EmF; Electro magnetic Fields)

Thank you for choosing our product and we are confident that this choice will meet your expectations in full.

Before using this equipment, please read carefully this "instruction manual" in order to optimize the functional characteristics and eliminate any problems that may arise from incorrect use.

Index

EN

A Introduction.. 23
B Important safety information. 24
C Instruction for use 25
D Important warnings 27
E Safety 28
F To reduce the risk of injury to persons. 28
G Package contents. 29
H Specifications 29
Controls and components. 30
J Use 31
K Functioning 34
L Tips 36
MPrecautions 37
N Cleaning 38
0 Troubleshooting 39
P Disposal of the device 40
Q Possible problems 40
R Additional warnings 41
S Conventional warranty conditions 42
T Rating label 83

Meaning of warning signs in the booklet

DANGER: Indicates an imminently hazardous situation which, if not avoided, could result in serious injury or even death. The use of this term is limited to the most extreme situations.

CAUTION: Indicates a potentially hazardous situation which, if not avoided, could result in serious injury (and in extreme cases death).

WARNING: Indicates a potentially hazardous situation which, if not avoided, may result in minor injuries to personnel or damage to equipment. It also alerts the user on incorrect operating modes.

Safety warnings essential before use

Carefully read the instructions in this manual as they provide important information for safe installation, use and maintenance.

Keep this booklet for future reference.

• The packaging materials (plastic bags, polystyrene boxes, etc.) must not be left within reach of children as potential sources of danger.

Read with attention this instruction before the use.

• Use this device only for its intended purpose as described in this instruction manual.Warnings and Important Safety Instructions in this manual do not cover all possible conditions and situations that may occur. It is your responsibility to use common sense, caution, and care when installing, maintaining, and operating your device.

Instruction for use

To ensure safe operation:

• Before each use, verify the mechanical integrity of the device and of all its components.

The device body and all components must not show cracks or tears.

The protective sheath and the plug of the power cord should not be cracked or broken.

Upon the occurrence of the above, disconnect the plug from the wall socket and take the unit to the dealer for the necessary checks.

Before plugging the device, ensure that the line voltage corresponds to that indicated on the rating label (see page 83).

• The electrical safety of the device is ensured only if connected to an efficient earthing system in accordance with current safety standards.

To verify this important requirement you need the help of a professionally qualified personnel.

The manufacturer can not be held responsible for damage caused by lack of earthing.

• For your safety, it is recommended to supply power through a differential switch (RCD) with a tripping current not exceeding 30 mA.
• Do not obstruct the cooling during operation.
• Never immerse the device, the power cord and plug in water or other liquids.
• Do not disconnect the electrical device by pulling the power cord.
• Do not use or store this device outdoors, in a wet environment or near water.
• Place the device on a horizontal supporting and firm plane whose surface is not sensitive (eg, lacquered furniture, tablecloths, etc..). Items such as caps, jars etc.. shall be placed on the apparatus.

Make sure that the unit is placed in a safe manner.

The device may be used by children over the age of 8 or persons with reduced physical, sensory and mental faculties, or who do not have experience or the neces

sary knowledge, provided that under supervision or after receiving instructions on safe use of the device and having understood the related hazards.

Cleaning and maintenance to be carried out by the user may not be carried out by children without the supervision of an adult.

An electric device is not a toy. Use and store it out of reach of children; children must be supervised to make sure that they do not play with the device.

During operation, the power outlet should be easily accessible in the event that it is necessary to disconnect the equipment. not place the appliance under a power outlet

Check that there are no nearby flammable materials (eg curtains, upholstery, etc.).

Do not use the device to process excessively hard or fibrous food (e.g. rhubarb).

DO NOT USE THE DEVICE IF THE FILTER BASKET (6) IS BROKEN OR SLIGHTLY DAMAGED.

• The basket (3) is a very delicate component; it must be kept efficient and should not be used, even if only slightly damaged. It should be replaced at least every year if the device is used frequently.
• Do not put your fingers into the duct on the cover as this could cause injury.

Do not remove the lid (2) from the motor base (7) without first having removed the plug from the mains socket.

After each use disconnect the plug from the mains outlet.

Place the unit away from sinks and faucets.

The device MUST be checked and/ or repaired at an authorized dealer.

Any repairs carried out on the device by unauthorized personnel will void the warranty automatically.

This device should only be used for the purpose for which it was made: as a juice extractor (from fresh fruit and vegetables) for domestic use.

Any other use is considered improper and therefore dangerous. The manufacturer cannot be held responsible for any damage deriving from improper, incorrect, or unreasonable uses.

Only for domestic use

In case of problems of the device, please contact the authorized assistance centres.

Avoid trying to repair the device by yourself.

Any repair operation carried out on the device by unauthorized personnel automatically invalidates the warranty even if its duration hasn't come to an end.

Important warnings

To reduce the risk of fire, electric shock, injury to persons when using your device, follow basic precautions, including the following:

• If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.
• Do not store or use this device outdoors.
• Do not use this device near water, in a wet basement or near a swimming pool.
• Do not connect the unit to the power supply via external timer or remote control systems.

EN

• Do not install this device; near heater, inflammable material; in a humid, oily or dusty location, in a location exposed to direct sunlight and water or where gas may leak; on unlevelled ground.
• Do not spray volatile material such as insecticide onto the surface of the oven.
  Always pull the plug out of the socket before cleaning the device.
• To prevent the appliance from over-heating, do not exceed two minutes of continuous operation. If large amounts of foodstuffs must be processed, alternate maximum functioning times of two minutes with a pause of at least one minute.

Safety

• Do not attempt to repair the device.

Potential injury from misuse!

Avoid contact with all moving parts.

Switch off the device and disconnect from supply before changing accessories or approaching parts that move in use.

To reduce the risk of injury to persons

GROUNDING INSTALLATION

• This device must be grounded. In the event of an electrical short circuit, grounding reduces the risk of electric shock by providing an escape wire for the electric current. This device is equipped with a cord having a grounding wire with a grounding plug. The plug must be plugged into an outlet that is properly installed and grounded.

Electric Shock Hazard. Improper use of the grounding can result in electric shock.

Do not plug into an outlet until device is properly installed and grounded.

Do not disassemble this device.

• Consult a qualified electrician or serviceman if the grounding instructions are not completely understood or if doubt exists as to whether the device is properly grounded.

If it is necessary to use an extension cord, use only a 3-wire extension cord.

• Do not leave the power cord in the reach of children.

Make sure that the power cord is not laying on the floor in order to prevent someone from inadvertently overturning and pulling the unit.

The appliance has a safety switch on the motor base (7), which does not allow start-up if the lid (2), the collecting container (4) and the handles (5) are not positioned correctly.

Do not operate the appliance by operating the safety switch.

Package contents

Device

Pulp tank

Instruction manual

Tamper

1 litre juicer cup

Specifications

Dimensions of the device (lpxh): cm 30 x 25 x 41
Weight of the device (approximate): kg 3,6
- "Motor unit" electrical specifications

-Voltage: V

220-240

• Frequency: Hz

50-60 Hz

• Power: Watt

800

• Speed: Rpm

8000-18000

0 Controls and components

This appliance has a safety switch (11); when the handles (5) are not attached to the lid (2) the motor does not run, to guarantee user safety.

When using for the first time or after a long period of disuse carefully clean all the parts (see "Cleaning" section.

• Wash all of the components, except for the motor base (7), with hot water and a normal dishes detergent. Abundantly rinse and dry all the components before using them.

Before use, check that the bucket (3), the lid (2) and the collector (4) are intact and don't show any cracking.

Do not touch the small sharp blades at the base of the bucket (blade) (3). They're very sharp.

To correctly assemble the appliance

Remove any label or stickers.

Before you assemble the juicer, ensure that the power cord is unplugged.

1. Place the appliance on a flat and stable surface, making sure that all the feet (6) are safely supported.

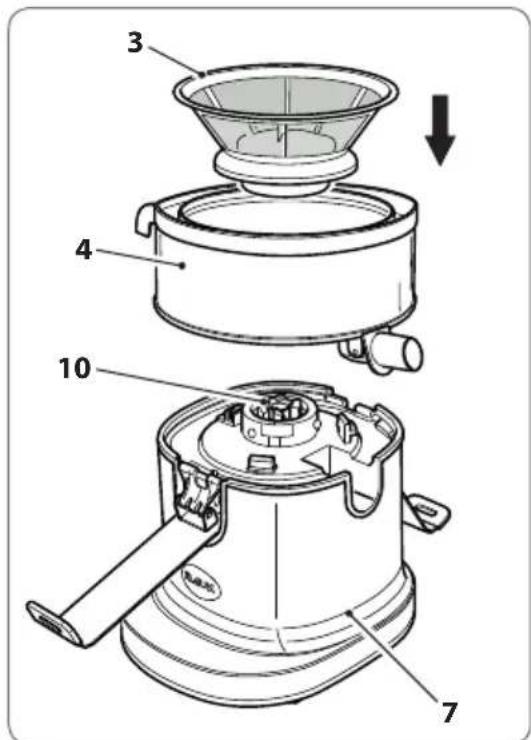

2. Position the collector container (4) on the body of the appliance (7).

Position the basket (blade 3) onto the drive coupling (10) and press it to attach.

Make sure that the bucket (blade) (3) is correctly hooked to the dragging joint (10).

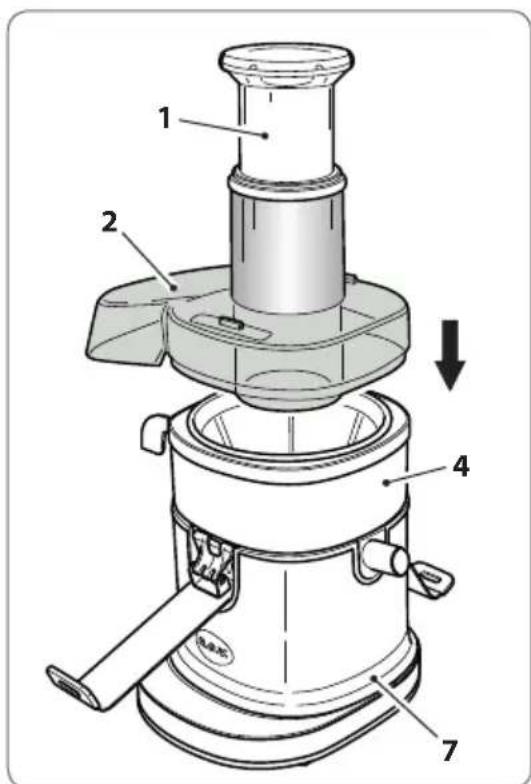

1. Place the transparent lid (2) on the appliance body (7).

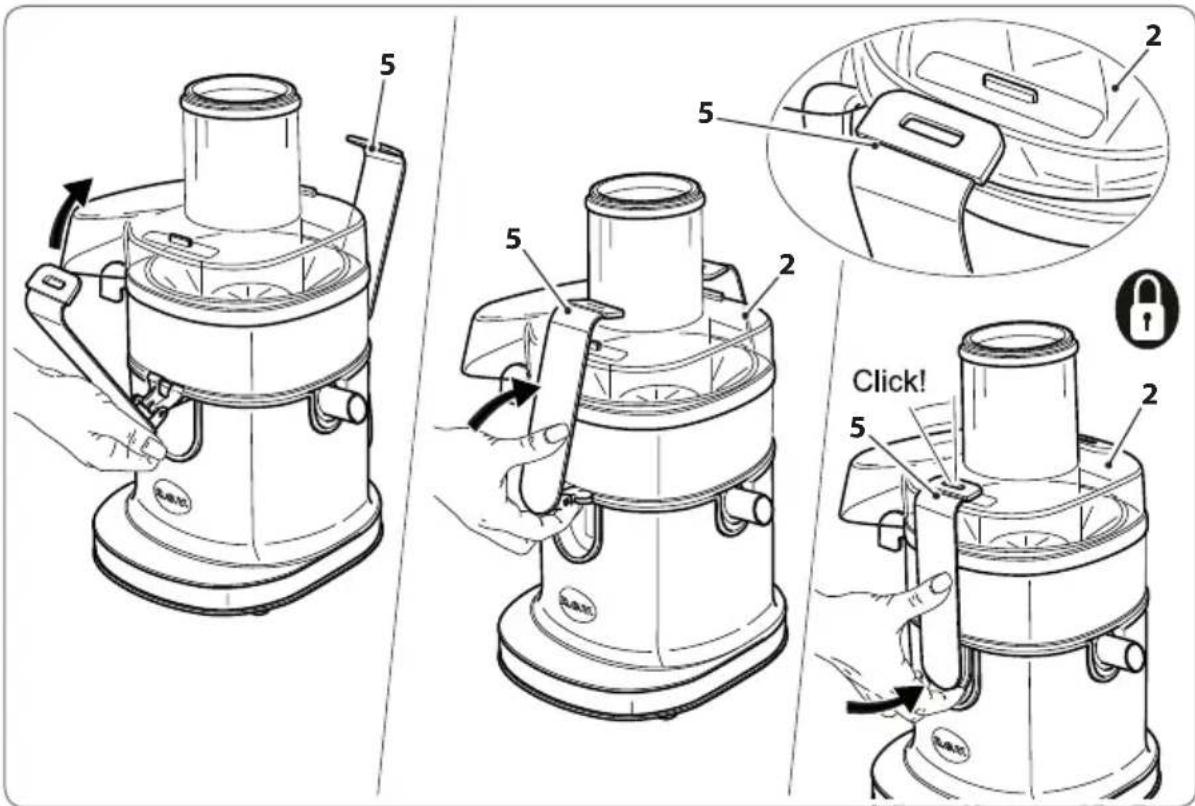

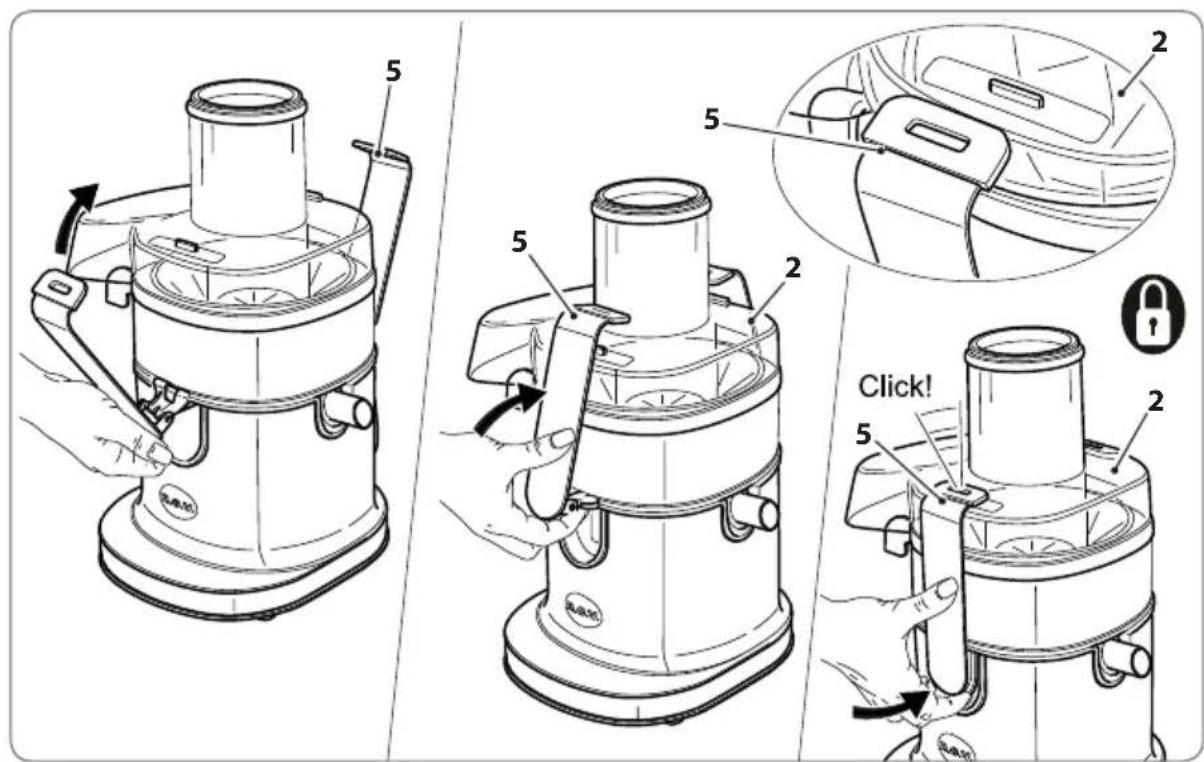

1. Block the transparent lid (2) with the handles (5); a "click" indicates correct attachment.

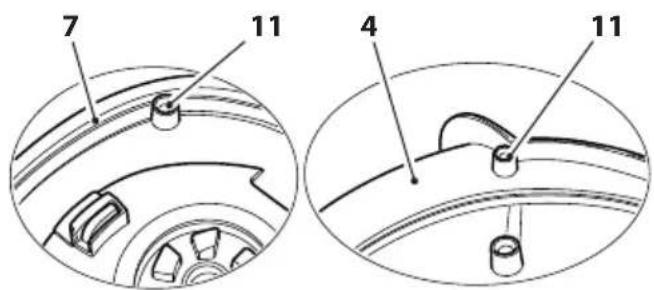

The appliance has a safety switch (11) on the motor base (7) and on the collector container (4), which does not allow start-up if the container (4) and the lid (2) are not positioned correctly.

Do not operate the appliance by operating the safety switch (11).

Removing the lid (2), the appliance stops (the safety unit intervenes).

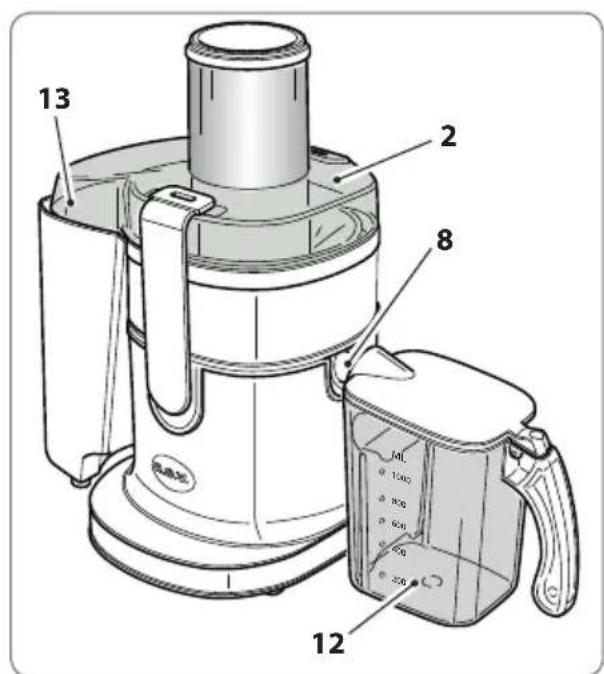

1. Position the container (12) under the spout (8).
2. Position the container (13) in the opposite part of the appliance.

Functioning

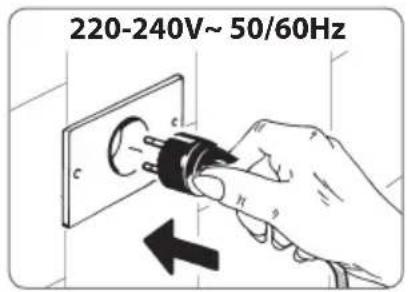

1. Connect the plug to the power socket making sure that the mains voltage corresponds to the one indicated on the appliance data label.

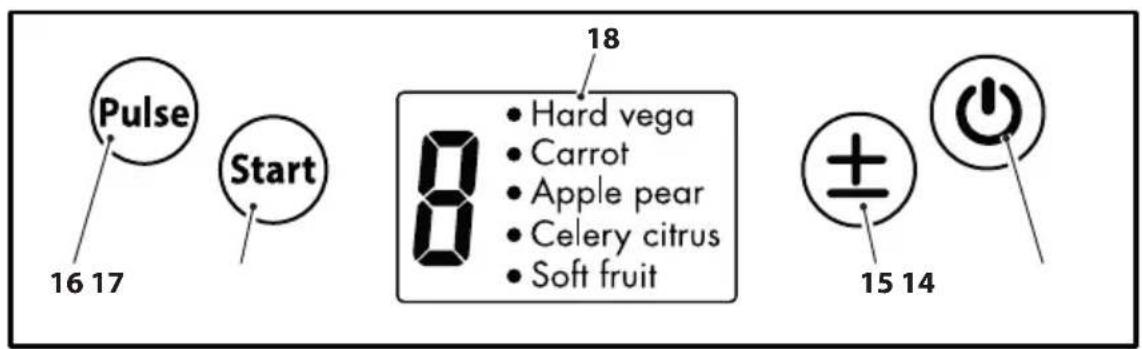

1. Press the ON/OFF key (14); the keys and the display light up.

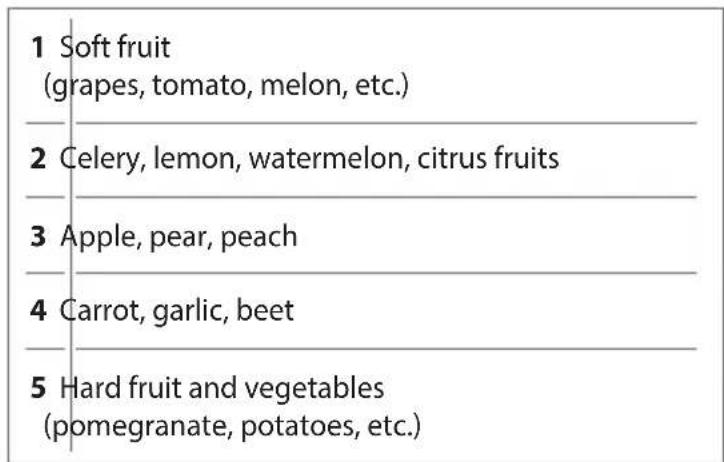

2. Press the ± key (15) to select the desired function. Function "3" is selected by default.

1. Press the START key (17) to start-up the appliance.

2. Wash fruit and/or vegetables and cut it into pieces which could enter the transparent lid supply pipe (2).

3. Make sure that the containers (12 and 13) have been correctly positioned.

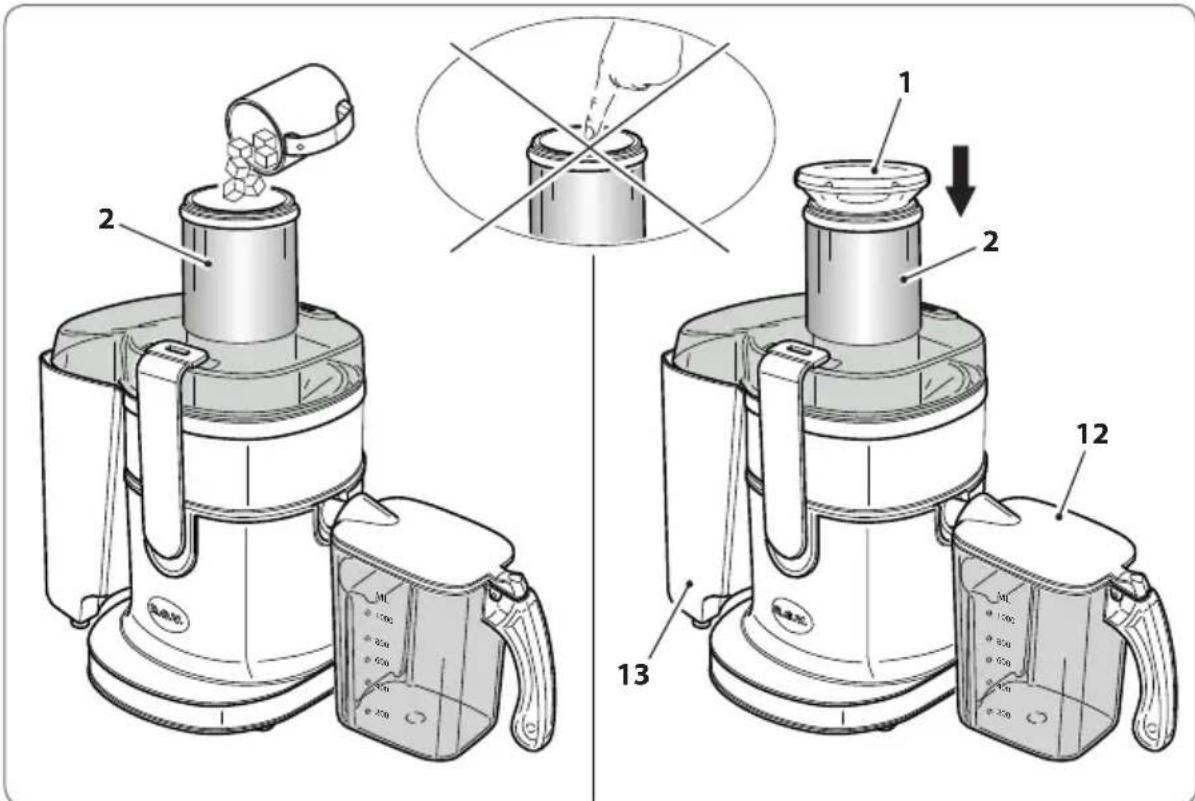

4. Insert cut into pieces foods in the transparent lid (2) supply pipe.
5. Insert the tamper (1) in the supply pipe and let it slide in the pipe.
6. Delicately press downwards using the tamper to ease foods processing.

Do not put an excessive pressure on the tamper as this could negatively affect the final result, going so far as to block the bucket (blade) (3) too.

Never insert your fingers or other objects in the supply pipe. ONLY use the tamper (1).

1. By pressing the "PULSE" key, the appliance functions at maximum speed. By releasing the key, the appliance stops and the display shows function "3".
2. If a different function is selected during operation, the appliance stops. Press START to start it up again.

3. Press the ON/OFF key (14) to switch the appliance off.

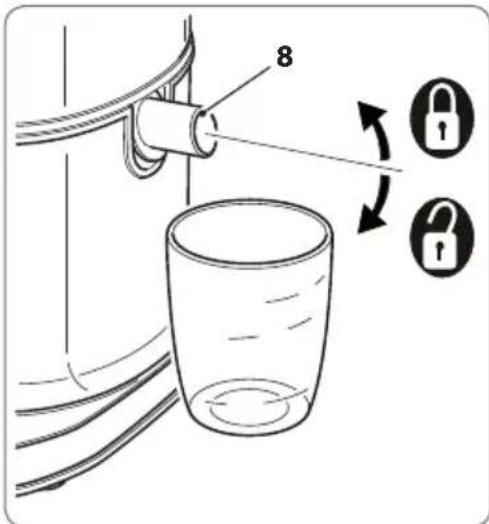

4. Lower the spout (8) to allow the juice to escape.

Lift the spout (8) to temporarily stop the juice from escaping.

EN

1. Switch the appliance off after use or when the collector container (4) or the containers (12 and 13) are full.
2. Remove the lid (2) and clean the scraps. After processing all the ingredients and after juice stopped leaking, turn the appliance off and wait for the bucket (blade) (3) to stop rotating.
3. After having processed all ingredients and when the juice has stopped escaping, lift the spout (8), switch the appliance off and wait for the basket (blade) (3) to stop rotating.

When you press food with the tamper (1), the force exerted must be continuous and uniform, but it must not exceed approximately 1kg and, in particular, it must not be sudden; otherwise, the pressing quality won't be satisfying.

After letting the appliance work for 2 minutes, pause it for 1 minute (approximately), then restart using it.

1. After repeating this sequence 3 times pause for about 5 minutes and do not put the appliance back to work until the motor cooled down; this way, the duration and efficiency of the appliance will be prolonged and it'll offer you a more efficient service.

Tips

1. Use fresh fruit and vegetables as they contain more juice. Pineapple, beets, celery stalks, apples, cucumbers, carrots,Spinaches, melons, tomatoes,pomegranates, oranges and grapes are particularly suitable for centrifuge processing.
2. It is not necessary to remove thin skins. Only harder skins must be removed, like those of oranges, pineapples and raw beets. Remove fruit nuts/seeds too, as they could have a bad taste and damage the filter/grater disc.
3. When you prepare an apple juice, remember that apple juice density depends on the type of apple too. Choose the type of apple which produces your favourite juice. Apple juice darkens very quickly. To slow this process add a few drops of lemon juice.
4. Fruit which contains starch, such as bananas, papayas, avocados, figs and mangos, is not suitable for centrifuge processing. Use a blender for these fruits.
5. Leaves and leaves stalks (for example lettuce) can be processed in the centrifuge too.
6. Drink juice immediately after extracting it. If it's exposed to air even only for a little bit of time, juice loses its taste and its nutritional value.
7. To extract the maximum juice quantity always press the tamper slowly.

8. The centrifuge is not suitable for processing very hard and/or fibrous/rich in starch fruits and vegetables, such as sugar cane.

9. Clean the bucket (blade) every 300 gr when using grapes, apples or currant to obtain a better result.

10. It is possible to prepare juices from different fruits or vegetables without cleaning the centrifuge every time, their tastes won't mix.
11. Consume juice in a short time after preparing it and add lemon juice to preserve it for some hours.

Use the "PULSE" function only for short periods (max 2 seconds) and/or for operations which need continuous checks, even during the food processing.

Precautions

1. Before use, place the appliance on a stable and regular surface and start it following the described methods.
2. Before pressing, make sure that the bucket (blade) and the pin are firmly steady in their correct place and that there's no friction between the bucket (blade) blade and the transparent lid. Place the transparent lid, firmly close the handle, then turn on the appliance.
3. During pressing, make sure that there's not too much juice or scrap in the collection container and in the scraps collection cup; if they're too full, please disconnect the power socket of the appliance from the power supply, empty them and then use the appliance again.
4. During use, do not open the container lid. If the current is connected, do not insert your hand or any other object in the loading conduit as this could cause incidents or could damage the equipment.
5. To prolong the appliance duration and efficiency, the motor has been equipped with a safety device against overheating. If the motor work for long or if it's overcharged, when it exceeds the alarm temperature the current gets automatically excluded. In this case, remove the plug from the power socket and wait for the motor to cool down (about 30 minutes) before using the appliance again.

It is strictly forbidden to sanitize all the appliance components with high temperature disinfection devices or to subject them to disinfection through steam or boiling.

Before performing the cleaning operation, always disconnect the plug from the power socket.

For the appliance cleaning do not use abrasive sponges or detergents or aggressive liquids like alcohol or acetone.

1. The appliance cleaning is easier if it's performed immediately after use.
2. Turn off the appliance. Extract the plug from the wall outlet and wait until the bucket (blade) (3) stops rotating.

Do not touch the small sharp blades at the base of the bucket (blade) (3). They're very sharp.

1. Disassemble the appliance in the following order:

a. Remove the containers (12 and 13).
b. Remove the tamper (1).
c. Free the lid (2) by releasing the levers completely (5).
d. Remove the lid.
e. Remove the collector (4) together with the bucket (blade) (3).
f. Wash these parts in hot water with a soft sponge and dishes liquid detergent.
q. Abundantly rinse all the components with running water and then dry them.

Stainless steel components (bucket/blade "3") can be washed in a dishwasher (MAX 65^ ).

h. Clean the appliance body (7) with a damp cloth.

Do not immerse the appliance body (7) in water or rinse it under running water.

Do not use abrasive or corrosive sponges or detergents.

Before inserting the plug in the mains outlet, ensure that the appliance and all its components are completely dry.

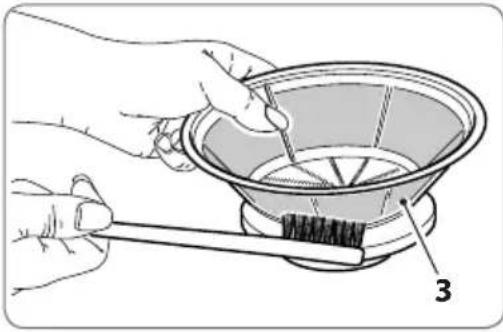

N1 - BUCKET (BLADE) (3):

1. Do not use abrasive or corrosive sponges or detergents.
2. Clean it immediately after each use with the help of a cloth or of a soft brush (toothbrush type).

Do not touch the small sharp blades at the base of the bucket (blade) (3). They're very sharp.

Troubleshooting

This chapter summarizes the most frequent problems which you can encounter while using the centrifuge..

PROBLEM	SOLUTION
- The appliance doesn’t work.	- The appliance is equipped with a safety system. The appliance doesn’t work if its have not been assembled correctly. Turn the appliance off and check that the parts have been assembled correctly.
- The appliance body (7) emanates a bad smell when you use the appliance for the first few times.	- It’s not unusual. If the appliance keeps emanating this smell after the first few uses, check the processed quantities and the processing times.
- The bucket (blade) (3) is blocked.	- Turn off the appliance, clean the supply pipe and the bucket (blade) (3) and process a smaller quantity of food.
- The bucket (blade) (3) touches the supply pipe or greatly vibrates during processing.	- Turn off the appliance and disconnect the power cord. Check that the bucket (blade) (3) is correctly placed in the juice tank. The bucket (blade) (3) must perfectly insert itself on the dragging joint. Check that the bucket (blade) (3) is not damaged.

The crossed-out wheeled bin symbol placed on the product and on the accompanying documentation indicates that the product itself is subject to Directive 2012/19/EU which regulates the collection, the management, the processing and the disposal of electrical and electronic equipment waste (WEEE).

When the product reaches the end of its lifetime must therefore not be disposed of as a common mixed urban waste but it must be subject to sorted collection at authorized collection centers.

Responsible disposal of electrical and electronic equipment waste helps to ease the material resources sustainable recycling and reuse, as well as to avoid possible damages to the environment and to human health caused by uncontrolled waste disposal.

The municipalities organize sorted collection centers specialized for WEEE. For more detailed information regarding the WEEE collection and pick-up systems, it is possible to refer to your own municipality or to the local household waste disposal service.

Moreover, at the time of purchase of a new equivalent equipment intended to be used in a household environment, the customer has the right to freely lend, at the rate of one on one, the used equipment to the distributor which will provide for its disposal as required by law.

Professional purchasers are exhorted to contact their own supplier to check the terms and conditions of the purchase contract.

Possible problems

• In case there is a malfunction contact an authorized dealer or contact the service (technical support).

Additional warnings

• The packaging materials (plastic bags, polystyrene foam, nails, etc.) Must not be left within reach of children as they are potential sources of danger.

• Before connecting the appliance, make sure that the data on the plate correspond to those of the electricity distribution network. The plate is located on the bottom of the unit body.

• In case of incompatibility between the socket and power cable plug, have the socket replaced with a suitable type by a qualified professional who will also have to make sure that the section of the cord is suitable for the power absorbed by the appliance.

We do not recommend the use of adapters, multiple sockets and / or extensions.

When their use is absolutely necessary, you must use only simple or multiple adapters and extensions that comply with current safety standards, taking care not to exceed the range limit.

• The use of an electrical appliance requires the observance of some fundamental rules. In particular:

• do not touch or use the appliance with wet or damp hands or bare feet;

• do not pull the power cord or the appliance itself to remove the plug from the socket;

• do not allow the appliance to be used by children or unfit persons without supervision.

• In case of failure and/or malfunction, turn it off and do not tamper with it.

For repairs only contact an authorized dealer.

Failure to comply with the above may compromise the safety of the device.

• If you decide not to use this appliance again you must make it inoperative by cutting the cord after removing the plug from the socket.

It is also recommended to make harmless those parts which may constitute a danger, especially for children who could use an abandoned appliance for their games.

• The installation must be carried out according to the manufacturer's instructions. Improper installation may cause damage to persons, animals or property in respect of which the manufacturer can not be held responsible.

• To avoid dangerous overheating it is recommended to unroll the power cord for its entire length and use the device as recommended in the paragraph "Instructions for Use".

• DO NOT allow it to be unnecessarily connected to the power. Disconnect the plug from the outlet when the appliance it's not used.

Conventional warranty conditions

This Warranty does not affect your statutory rights under D. Lgs. 02/022002, n. 24.

With this guarantee, the manufacturer suggests the Purchaser to address directly a Point of Sale which to comply with the restoration in a fast, safe and unquestionable quality.

This Warranty is effective regardless of the evidence that the defect - resulting from manufacturing defects present at the time of purchase of the device, except as provided in paragraph "d" of this text.

a) Warranty duration: 24 months from date of purchase.

After the first 12 months of warranty, the warranty on the unit will be managed by the Stores within 12 months of legal guarantee in strict application of the provisions of Legislative Decree 02/022002, n. 24.

b) The warranty is effective: In case of a request for assistance, the warranty is valid only if you show the warranty certificate together with a document, valid receipt, showing the identification details of the seller, the product and the date on which the purchase was made.
c) Warranty extension: Repair DOES NOT stop nor change the duration of the warranty which will expire on its legal deadline.
d) Limitations of Warranty:

The warranty does not cover any damage resulting from:

• negligence, incompetence, recklessness and carelessness in use (failure to comply with the rules in this manual);
• maintenance not covered in this booklet or performed by unauthorized personnel;
• tampering or interventions to increase the power or efficacy of the product;
• incorrect installation (power supply with a voltage other than that listed on the nameplate and in this booklet);
• improper use of the appliance;
• damage due to normal wear and tear of the components, impacts, falls, transport damage.
• the guarantee does not cover the repair / replacement of parts subject to wear during normal use of the product (hooks, kneading, blades, belts, connectors ...).

e) Costs: In cases not covered by the warranty, the manufacturer reserves the right to charge the customer the cost of repair or replacement of the appliance.
f) Manufacturer's responsibility: The manufacturer is not liable for any damage that may directly or indirectly affect persons, property or pets as a consequence of failure to comply with all the requirements set out in this "Instructions for Use" booklet and concerning especially the warnings regarding installation, use and maintenance.

How to contact technical support

Tel. [phone]
Fax [phone]

[e-mail]

www.rgv.it

A Introduction

Cher client,

Stamp and Signature of retailer:

Fill in the fields below for the validity of the Warranty
