USER MANUAL Zense CM10B-A125 WILFA

Exterior view of a modern coffee maker with a black filter and glass pitcher (no visible text or symbols)

ZENSE

COFFEE BREWER CM10B-A125, CM10W-A125

EN · Instruction manual

NO · Bruksanvisning

SE · Bruksanvisning

IMPORTANT SAFETY INSTRUCTIONS

• This appliance can be used by children aged from 8 years and above if they have been given supervision or instruction concerning use of the appliance in a safe way and if they understand the hazards involved. Cleaning and user maintenance shall not be made by children unless they are older than 8 and supervised. Keep the appliance and its cord out of reach of children aged less than 8 years.
• Appliances can be used by persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.
  • Children shall not play with the appliance.
• Be aware that the heating plate will be warm for some time after use.
• This product is intended for indoor, non-industrial, non-commercial; household use only.
• Always unplug the appliance after use and before cleaning.

• Check device and cable regularly for damage. Do not use if it is damaged.

• If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.

• Always return the appliance to the store or a service center for examination or repair. Do not attempt to repair the appliance yourself, otherwise the guarantee becomes invalid.
• Keep the appliance away from heat sources, direct sunlight, moisture and sharp edges.
• Do not use with wet hands. Unplug immediately if the unit is damp or wet. Do not immerse in water.
• When the unit is cleaned after use, it must not be submerged in water or any other fluid.
• Never fill the pot-coffee maker above the maximum level since hot foaming coffee or other liquids (e.g. mils) might overflow during heating.
• The coffee maker shall not be placed in a cabinet during use.
• Do not use the appliance if the surface is cracked.
• Be especially aware of “special safety instructions” below.

SPECIAL SAFETY INSTRUCTIONS FOR THIS UNIT

• The unit must only be filled with fresh water.
• Pull out the plug when the unit is not in use.

EN

INSTRUCTION MANUAL · ZENSE

• Only use original spare parts.
• Never use the glass jug on hotplates or in a microwave oven.
• Always remove the plug from the power socket prior to cleaning.

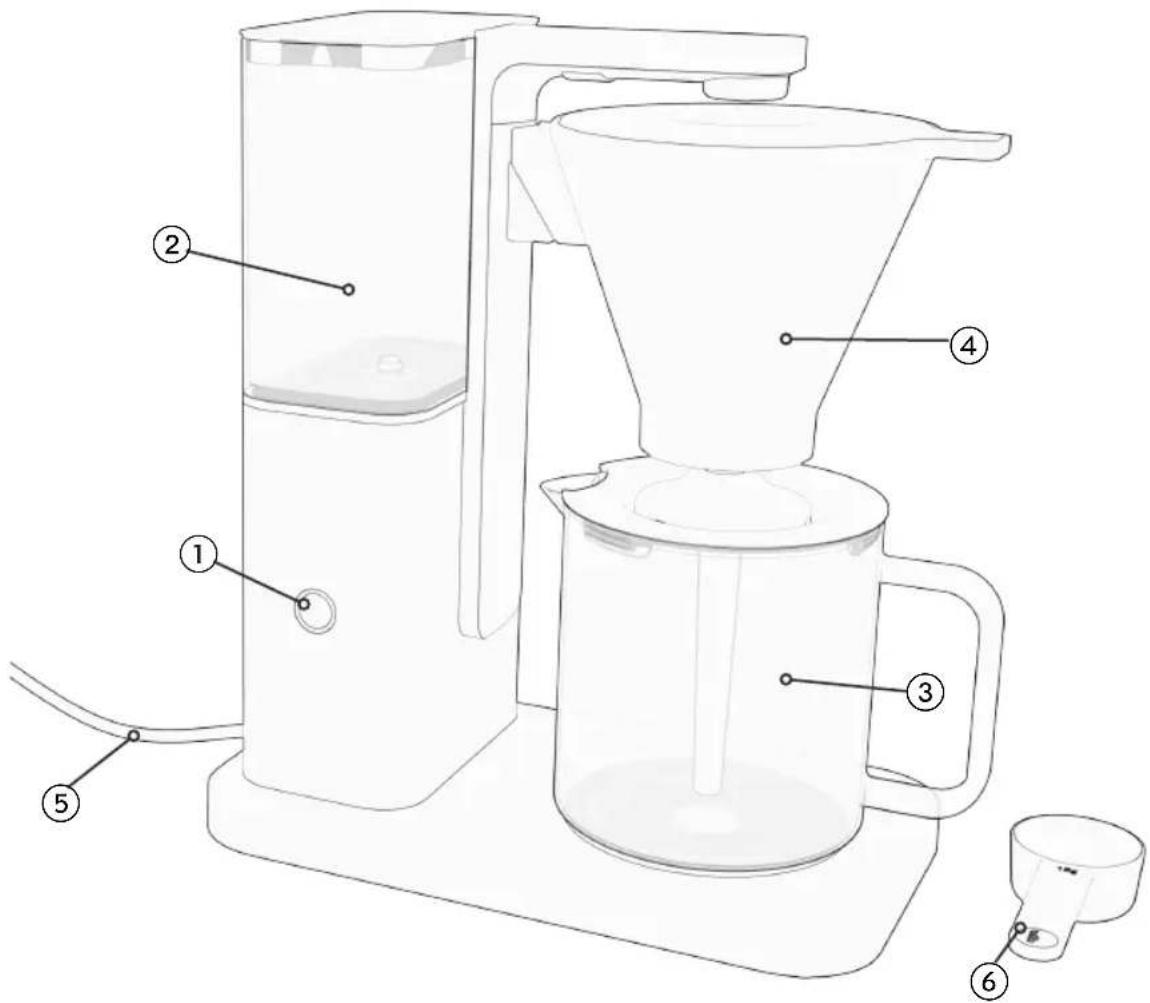

PRODUCT OVERVIEW

Labeled diagram of a coffee maker with numbered parts for identification

1. On/off power switch
2. Removable water tank
3. Coffee jug

4. Filter holder

5. Power cord

6. Measuring spoon

EN

EN

BEFORE USE

ELECTRICAL CONNECTION

Check that the voltage where you shall use the unit is the same as that specified on the unit. Details can be found on the label on the unit's base plate.

WHEN USING THE UNIT FOR THE FIRST TIME

Please run 1.25L fresh water through the unit without using a coffee filter or coffee prior to using the unit for the first time.

OPERATION

• Place the Wilfa Performance on a flat surface. Plug the power cord into the socket.
• Fill the water tank with fresh water to the desired amount. Place a filter paper (1x4) in the filter holder. Place the recommended amount of coffee into the filter.
• We recommend that you use filter ground coffee, 60 g per litre of water. Experiment with the coffee quantities for the first few brewing's to find the amount which you think is optimal.
  • We also recommend that you use a Wilfa scale for best results.
• Attach the filter holder to the bracket.
• We recommend the following ratios of water and coffee (please note that different grinds and coffee types will influence these ratios somewhat):

1.25 | - 75 g

1 | - 60 g

0.75 | - 45 g

0.50 | - 30 g

- Press the start button to start the brewing process. Zense has Wilfa's unique pump system which transports water through the system at an optimal temperature from the first to the last drop.

- When the brewing process is complete, the unit will switch over to the keep warm state. The start button will remain lit up. After 40 minutes the coffee maker will automatically be switched off. If you want to switch off the coffee maker before 40 minutes (with light in start button) just press the start button once and the coffee maker will be switched off.

TIPS

• Rinse the coffee filter in water to remove any unwanted taste prior to brewing.
• Always use fresh coffee. You will obtain the best results if the coffee you use is freshly ground. Grounded coffee loose many of its aromas just after a few minutes and by grinding the coffee yourself just before you brew, you keep all the good aromas for the best coffee taste.
• You can use one of Wilfa's coffee grinders suitable for grinding filter coffee. Using different degrees of grinding will affect the coffee's strength and taste.
• Wilfa does not recommend serving coffee before the filter process is completed, since this will diminish the final coffee result.
• If even hotter coffee is desired, the glass jug should be rinsed with hot water prior to brewing. This is especially recommended if you are making 0.5 litres of coffee or less.
• If the coffee maker has not been used for a while it is recommended to run clean water through the unit prior to use.
• Coffee residue will always stay on parts in contact with the coffee. For optimal coffee taste, you should clean the filter holder, jug and jug lid regularly.
• Do not use the coffee jug to fill the water tank with fresh water as coffee residues will influence on the quality of the brewed coffee.

CLEANING INDICATOR

The light on the start button will slowly pulsate when you start the 180th brewing process. The coffee machine indicates that it is time for cleaning, and you should then clean the unit. The button will pulsate for three brewing cycles before the counter automatically resets.

CLEANING & MAINTENANCE

CLEANING

• Use a cleaning product, like Clean drop or other detergents intended for cleaning coffee makers. Remember to brew through with clean water after the cleaning process.
• If necessary, the device may be cleaned with a damp cloth without any additives.
• Filter holder, coffee jug and lid can be washed in hot soapy water or placed at the top in the dishwasher.
• Never wash other parts of the device in the dishwasher. Never use strong detergents, scouring powders, steel wool or other release agents on any part of the coffee maker.

EN

DESCALING

• Use a commercially available descaling detergent.
• Descaling should be done, as needed. In areas with hard water, descaling must be done regularly.

TROUBLESHOOTING

Problem Possible reasons Solutions

Coffee maker does not start	Power cord is not plugged in.	Plug into power socket
	Power switch is not “on”	Turn on power switch (see No.1 in the description)
	No water in the water tank	Fill the water tank
	Pump is dry	Run the unit with it’s water tank filled to maximum capacity (1.25L)
Coffee maker stops	Limescale in the product	Descale the coffee maker
The coffee is not hot enough	The glass jug is very cold	Preheat the jug with hot water
Filter holder overflowing	Coffee too finely ground	Use filter coffee

EN

BEYOND EXPECTATIONS 5 SINCE 1948 YEAR GUARANTEE

GUARANTEE

Wilfa issues a 5 year guarantee on this product from the day of purchase is done. The guarantee covers production failure or defects that arise during the guarantee period. Your purchase receipt works as proof towards retailer if claiming your guarantee.

The guarantee is valid only for products that are bought and used in private households. The guarantee is not valid if the product is used commercially. The guarantee is not valid if the product is misused, used by negligence, if not following instructions given by Wilfa, if modified or if unauthorized reparation is done. The guarantee is also not valid for normal wear of the product, misuse, lack of maintenance, use of wrong electrical voltage or:

• Overloading of product
- Damage on glass
• Not descaled according to instruction manual
- Parts which are normally worn down
- Parts you can expect being replaced regularly (e.g. filter, battery etc.)

Instructions manual is also available at our website wilfa.com

PRODUCT SPECIFICATIONS

220-240V\~ 50/60Hz, 1600-1800W

SUPPORT AND SPARE PARTS

For support please visit us at wilfa.com, and see our customer service/support page. Here you will find frequently asked questions, spare parts, tips and tricks and all our contact information.

RECYCLABILITY

This marking indicates that this product should not be disposed with other household wastes throughout the EU. To prevent possible harm to the environment or human health from uncontrolled waste disposal, recycle it responsibly to promote the sustainable reuse of material resources. To return your used device, please use the return and collection systems or contact the retailer where the product was purchased. They can take this product for environmentally safe recycling free of charge.

EN

NO

NO

INNHOLD

16 VIKTIGE SIKKERHETSINSTRUKSJONER
17 SPESIELLE SIKKERHETSINSTRUKSER FOR DETTE APPARATET
19 PRODUKTOVERSIKT
20 F∅R BRUK
20 BRUK
21 RENGJ∅RING OG VEDLIKEHOLD
22 PROBLEML∅SING
24 GARANTI
25 PRODUKTSPESIFIKASJONER
25 SUPPORT OG RESERVEDELER
25 GJENVINNING

VIKTIGE SIKKERHETSINSTRUKSJONER

NO

Labeled diagram of a coffee maker with numbered parts for identification

1. Av/på-bryter
2. Avtakbar vanntank
3. Glasskanne

4. Filterholder

5. Strømledning

6. Måleskje

F∅R BRUK

ELEKTRISK TILKOBLING

Labeled diagram of a coffee maker with numbered parts for identification

Labeled diagram of a coffee maker with numbered parts for identification

Diagram of a coffee maker with numbered parts labeled for identification

Diagram of a coffee maker with numbered parts labeled for identification

Technical diagram of a coffee maker with numbered parts and label 'NL' in the corner

Labeled diagram of a coffee maker with numbered parts for identification

Labeled diagram of a coffee maker with numbered parts for identification

CARACTÉRISTIQUES DU PRODUIT

220-240 V\~ 50/60 Hz, 1 800 W

ASSISTANCE ET PIÈCES DÉTACHÉES

Labeled diagram of a coffee maker with numbered parts for identification

Labeled diagram of a coffee maker with numbered parts for identification

FSC www.fsc.org 100% From well- managed forests FSC® C000000
