Brand	Ciarra
Model	CBCB4850
Product type	Island cooker hood
Dimensions (W x D x H)	482 x 318 x 2000 mm
Power supply	220-240 V ~ 50 Hz
Motor power	1 x 85 W
Lighting power	2 x 1 W LED + 2.5 W UV
Speeds	3 speeds + boost (B)
Controls	Electronic touch controls
LED lighting	2 brightness levels
UV lamp	Yes, deodorization
Grease filters	Dishwasher safe
Charcoal filters	Model CBCF003, replace every 2-4 months
Connectivity	Wi-Fi via Smart Life app
Recommended installation height	65-75 cm above the cooktop
Minimum height (gas)	750 mm
Minimum height (electric)	650 mm
Extraction modes	Recirculation (with charcoal filter)
Delay off	Yes, 5 minutes
Protection	Automatic shutdown in case of overheating
Material	Stainless steel
Weight	Not specified, estimated ~15 kg

Frequently Asked Questions - CBCB4850 CIARRA

What is the recommended installation height for the Ciarra CBCB4850 hood?

The recommended height is 65 to 75 cm above the cooktop. For gas hobs, allow at least 750 mm and for electric hobs 650 mm.

How to clean the grease filters?

Grease filters can be cleaned in the dishwasher at high temperature without detergent. You can also wash them by hand with hot water and dish soap.

When to replace the charcoal filter and how?

Replace the charcoal filter (model CBCF003) every 2 to 4 months depending on use. To install, first remove the grease filter, then turn the charcoal filter clockwise to lock it.

How to turn on the UV lamp?

Press and hold simultaneously the 3 and B keys until the LED flashes. To turn it off, repeat the same operation. Do not look directly at the UV lamp.

The hood does not turn on, what to do?

First check that the hood is plugged in and the outlet is working. Test with another device. If the problem persists, contact Ciarra customer service.

How to connect the hood to the Smart Life app?

Download the Smart Life app, create an account, then add a device by selecting Kitchen Appliances > Kitchen Hood. Follow the instructions: press the light key for 5 seconds to enter Wi-Fi mode.

The hood is noisy, what to do?

Check that there are no debris inside. If the noise comes from the motor, contact customer service. Also make sure the filters are clean and properly installed.

What to do if the LED lights do not work?

Turn off the hood and unplug it. Replace the defective LED lamp with a new one (specific model). Also check the wire connections behind the control panel.

How to use the delay off function?

While the hood is operating, press the Quick/Delay Off key to set the shutdown after 5 minutes. This helps remove residual odors.

What cleaning products to use for stainless steel?

Use a soft cloth with warm water and mild detergent, or a stainless steel cleaner. Avoid abrasive sponges, products containing bleach or chlorine.

USER MANUAL CBCB4850 CIARRA

Thank you so much for your purchase, please read this instruction manual carefully before installation & use.

If you have any question, please contact us at:

E-mail: [e-mail]

ENGLISH	INSTALLATION AND USER'S MANUAL	Page 3-26
DEUTSCH	BENUTZERHANDBUCH&INSTALLATION SANLEITUNG	Seite 28-53
FRANÇAIS	MANUEL DE L'UTILISATEUR ET D'INSTALLATION	Page 55-80
ITALIANO	INSTALLAZIONE E MANUALE DELL'UTENTE	Pagina 81
ESPÁÑOL	MANUAL DE USUARIO E INSTRUCCIONES DE INSTALLACION	Págrina 82
NEDERLANDS	INSTALLATIE- EN GEBRUIKERSHANDLEIDING	Pagina 83
SVENSKA	INSTALLATION- OCH BRUKSANVISNING	Sida 84
POLSKI	INSTRUKCJA INSTALLACJI UŽYTKOWANIA	Strona 85

EN

CONTENTS

Safety 3-4

Specifications- 5

Before Using the Cooker Hood 6

Prepare for Installation -7

Installation- 8-16

Install the Hood- 8-15

Carbon Filter Installation- 16

Operation- 17-21

Cleaning and Maintenance- 22-24

Grease Filter 22

Carbon Filter 22

Stainless Steel Cleaning 22

Painted Finish Cleaning- 22

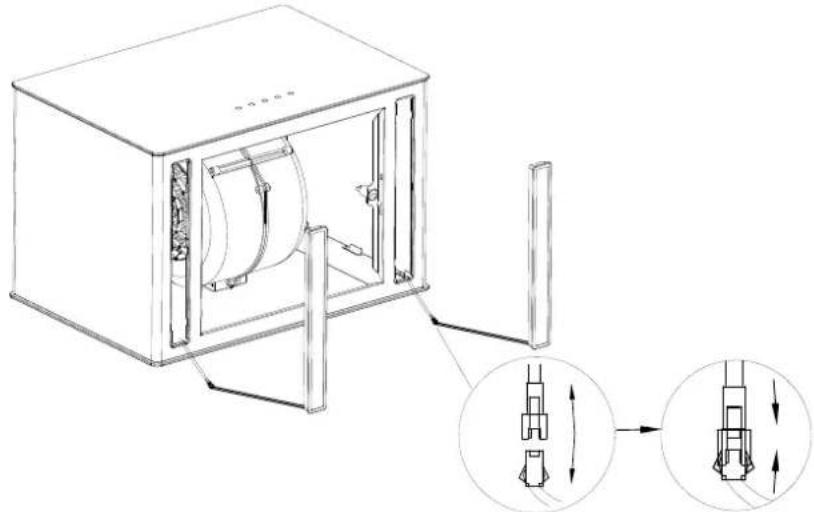

LED Replacement- 23-24

Troubleshooting- 25

Environmental Protection 26

WARNING

TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK, OR INJURY TO PERSONS, OBSERVE THE FOLLOWING:

Use this unit only in the manner intended by the manufacturer. If you have questions, contact the manufacturer at the address or telephone number listed in the warranty.
Before servicing or cleaning unit, unplug or disconnect the cooker hood from the power supply.
This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
■ Installation work and electrical wiring must be done by a qualified person(s) in accordance with all applicable codes and standards, including fire-rated construction.
- Sufficient air is needed for proper combustion and exhausting of gases through the flue (chimney) of fuel burning equipment to prevent back drafting.
- When cutting or drilling into a wall or ceiling, do not damage electrical wiring and other hidden utilities.
Ducted fans must always be vented to the outdoors.
- Ensure the requirements of the local authorities are adhered to concerning the discharge of exhaust air.
This unit must be grounded.
- When applicable local regulations comprise more restrictive installation and/or certification requirements, the aforementioned requirements prevail on those of this document and the installer agrees to conform to these at his own expense.
Clean cooker hood frequently. Grease should not be allowed to accumulate on fans, filters or in exhaust ducts.

Warning: Failure to install the screws or fixing device in accordance with these instructions may result in electrical hazards.

WARNING

TO REDUCE THE RISK OF INJURY TO PERSONS IN THE EVENT OF A RANGE TOP GREASE FIRE, OBSERVE THE FOLLOWING*:

1. SMOTHER FLAMES with a close-fitting lid, cookie sheet or metal tray, then turn off the burner. BE CAREFUL TO PREVENT BURNS. IF THE FLAMES DO NOT GO OUT IMMEDIATELY, EVACUATE AND CALL THE FIRE DEPARTMENT.

2. NEVER PICK UP A FLAMING PAN - You may be burned.

3. DO NOT USE WATER, including wet dishcloths or towels - This could cause a violent steam explosion.

4. Use an extinguisher ONLY if:

a) You own a Class ABC extinguisher and you know how to operate it.
b) The fire is small and contained in the area where it started.
c) The fire department has been called.
d) You can fight the fire with your back to an exit.

CAUTION

For indoor use only.
For general ventilating use only. Do not use to exhaust hazardous or explosive materials and vapors.
To avoid motor bearing damage and noisy and/or unbalanced fan blade, keep drywall spray, construction dust, etc. off cooker hood.
- Your hood motor has a thermal overload which will automatically shut off the motor if it becomes overheated. The motor will restart when it cools down. If the motor continues to shut off and restart, have the hood serviced.
Always follows the cooking equipment manufacturer's requirements regarding the ventilation needs.
To reduce the risk of fire and to properly exhaust air, be sure to duct air outside - Do not exhaust air into spaces within walls or ceiling or into attics, crawl space or garage.
- When installing, servicing or cleaning the unit, it is recommended to wear safety glasses and gloves.
Please read specification label on product for further information and requirements.

EN

Voltage 220V-240V~ 50Hz
Power of Motor	1 x 85W
Power of lamps	2x1W+2.5W(UV)

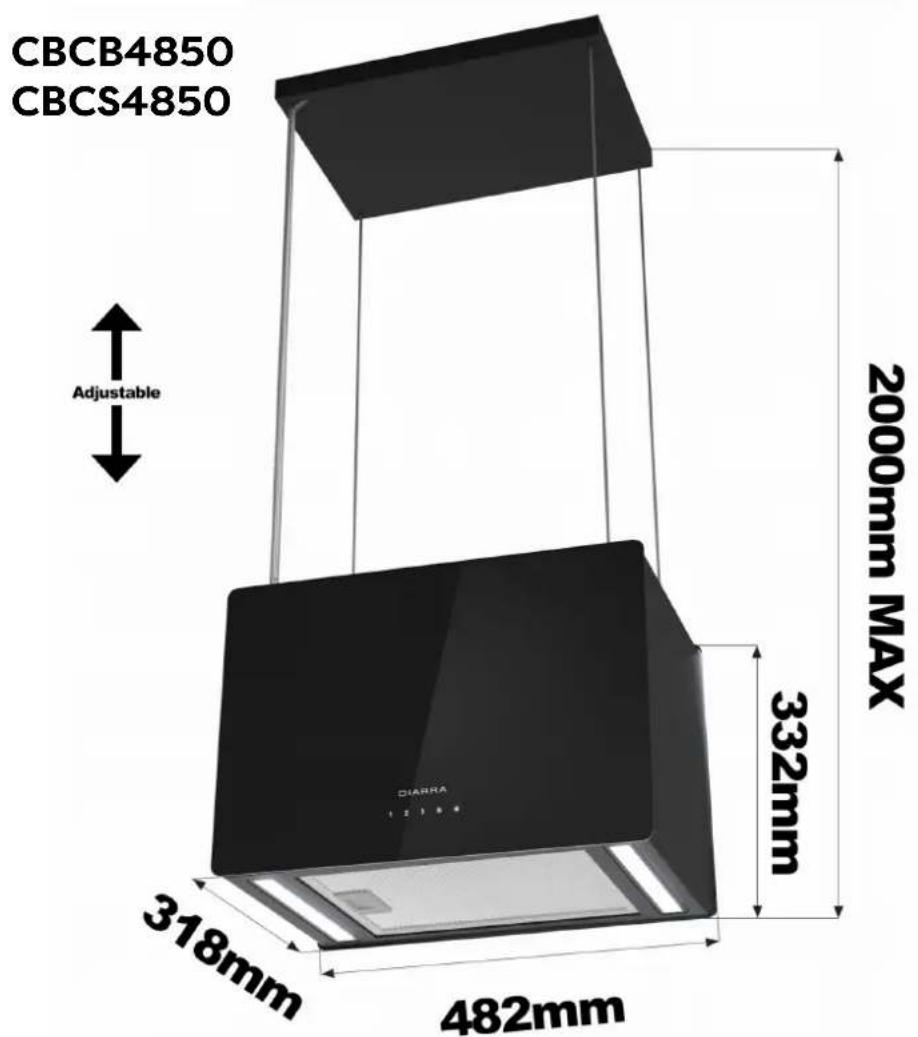

Appliance Dimension	482*318*2000mm MAX (W x D x H)
Note: The manufacturer reserves the right to change any technological improvement or modification without prior notice.

Before Using the Cooker Hood

CAUTION: Before proceeding to the installation, check if items are missing or damaged, contact the manufacturer.

Observe all governing codes and ordinances. Have a qualified technician install the cooker hood. It is the installer's responsibility to comply with installation clearances specified on the model/serial rating plate. The manufacturer declines all responsibility for improper installation and does not accept responsibility for appliance warranty in the event of damage caused by incorrect installation.

COMPONENTS:

Part 1: 6^*40mm Screws

X4

Part 6: Hanging Plate X1

Part 2: Expansion Bolt

X4

Part 7: Decorative Plate X1

Part 3: Steel Cable

X4

Part 8: Cooker Hood Body X1

Part 4: 1:1 Installation Diagram X1

Part 9: Carbon Filter X2 (CBCF003)

Part 5: Installtion Manual X1

YOU WILL BE NEEDING THESE TOOLS FOR INSTALLATION

1. Protective Gloves

1. Double Sided Tape or Tape

2.Spirit Level Ruler

5.Cross-Head Screwdriver Set

3.Measuring Tape

6.Electric drill and 8mm drill

Prepare for Installation

Prepare for Installation:

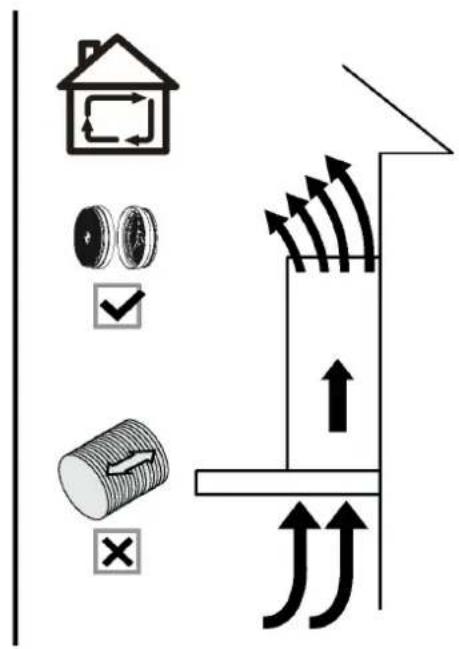

a) Ventilation Mode

Recirculation Mode: Recirculating with carbon filter (required), the smells and odors can be filtered and vented through the top vented hole and the exhaust pipe is not required.

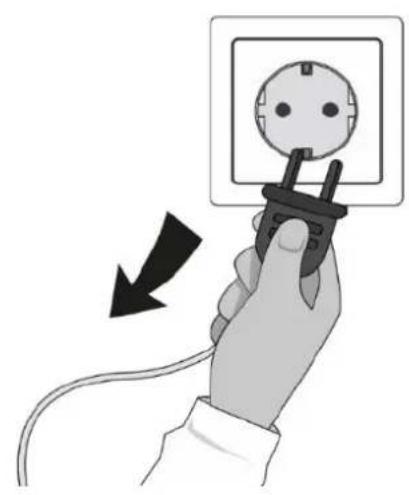

b) Before installation, don't connect the power.

Install the Hood:

1) Remove all protective poly film from the hood and/or parts.

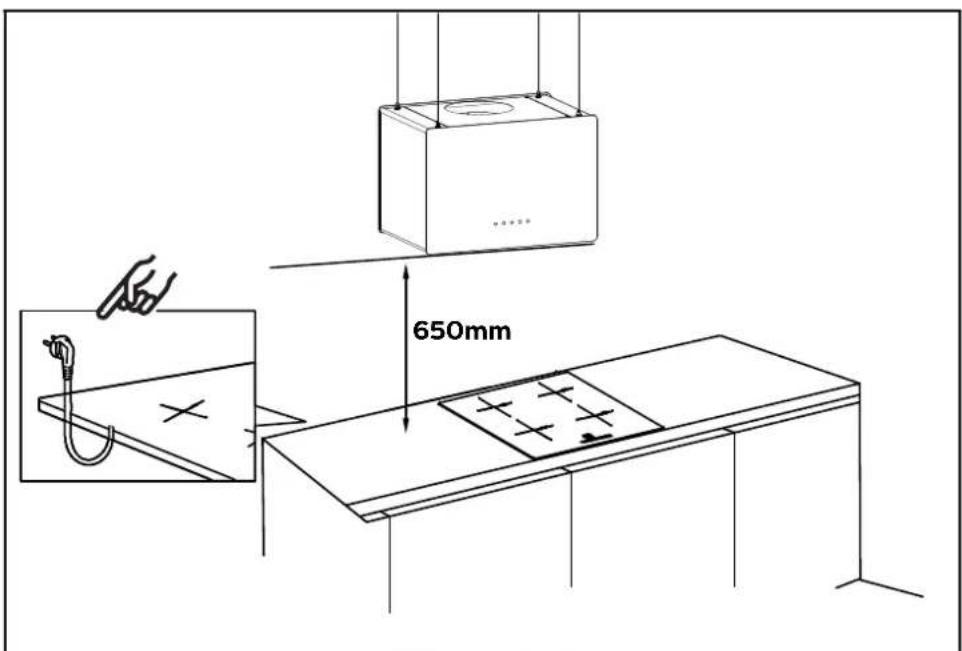

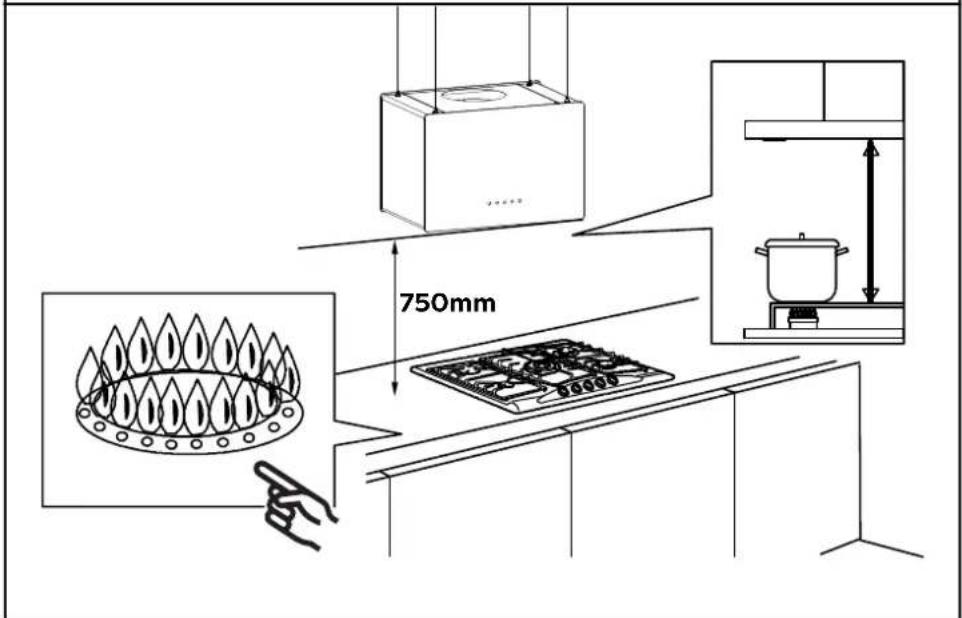

2) Recommend installation height: 65 75cm above the cooktop for best extraction.

Required height over gas hob: 750mm;
Required height over electric hob: 650mm.

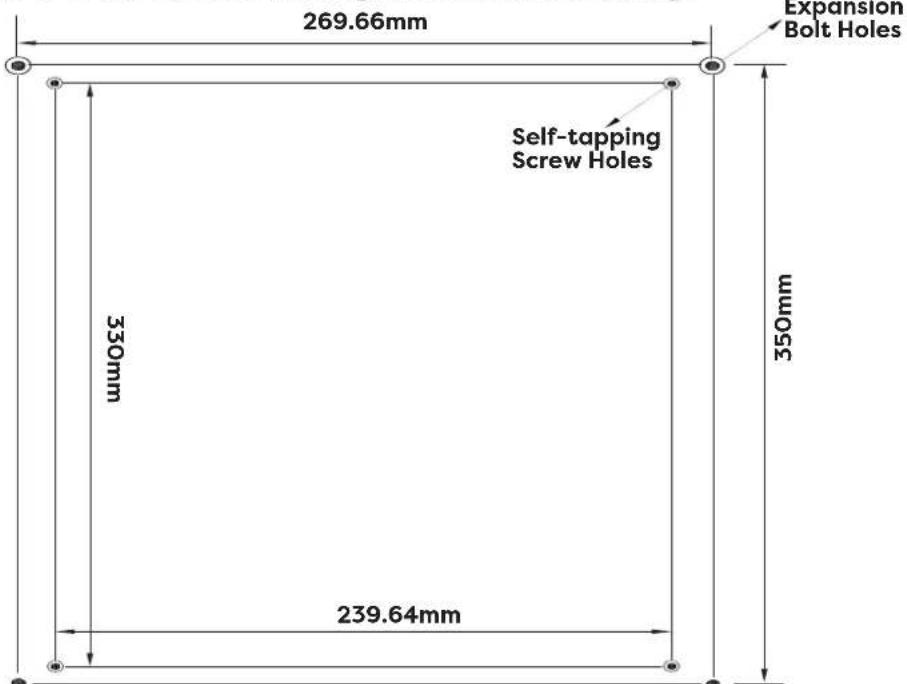

3) Below is the 1:1 hole drilling installation drawing:

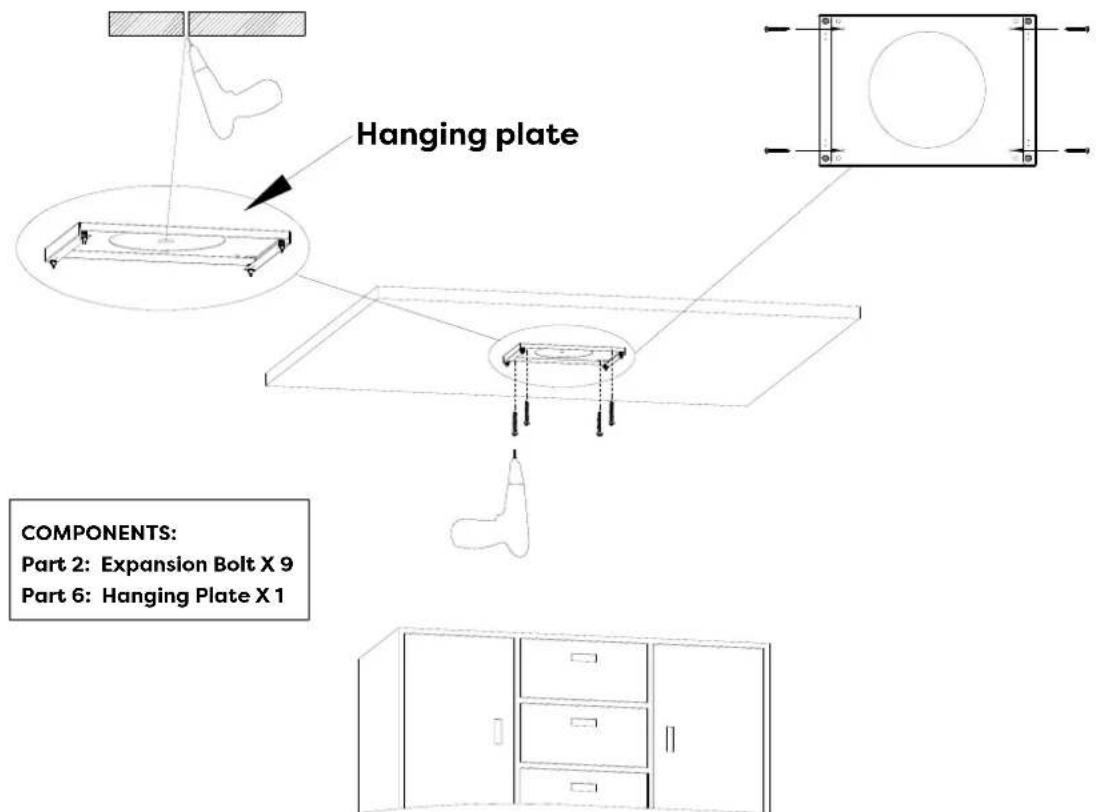

4) According to the 1:1 installation diagram, drill 4^ 8mm holes to accommodate the Hanging plate, tighten the bracket onto the ceiling with the Expansion bolt holes provided.

Attention: If the ceiling is made of wood, there is no need to drill holes, and the hanging plate are directly fixed on the ceiling with 4pcs 6^*40 mm Screws.

Installation

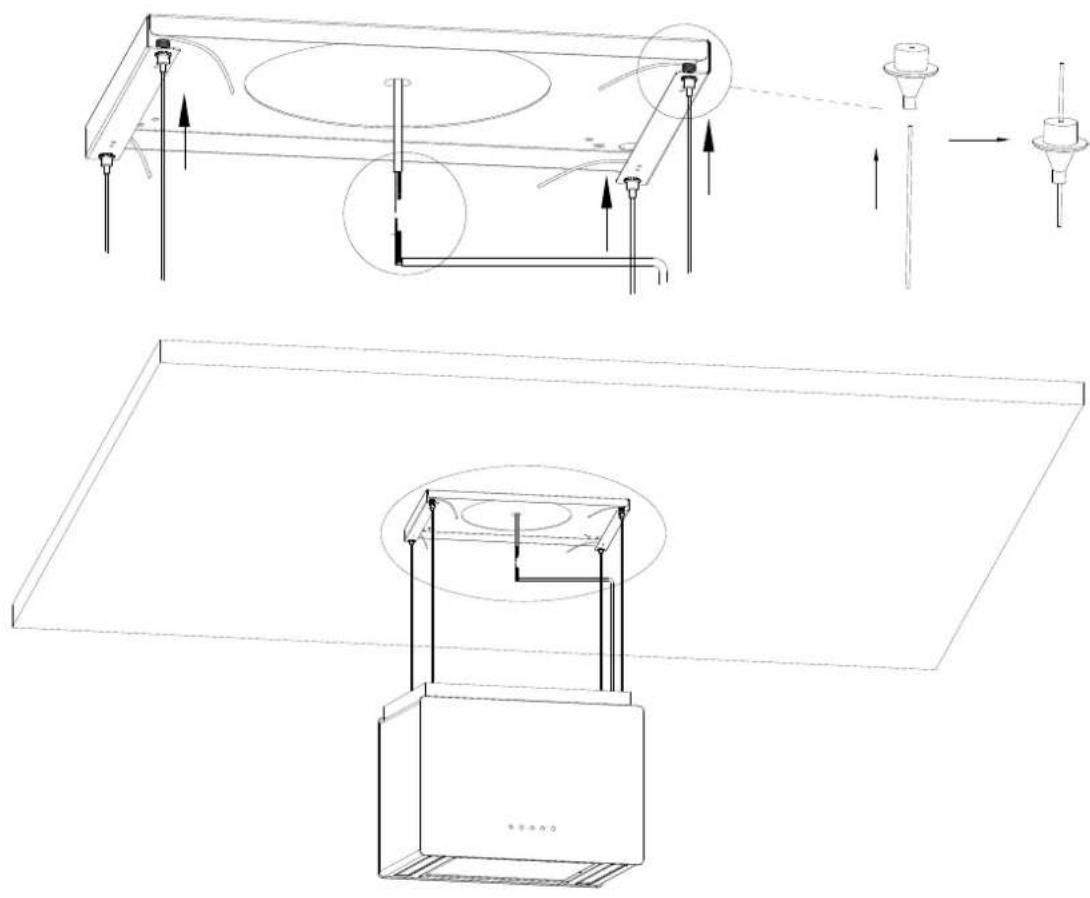

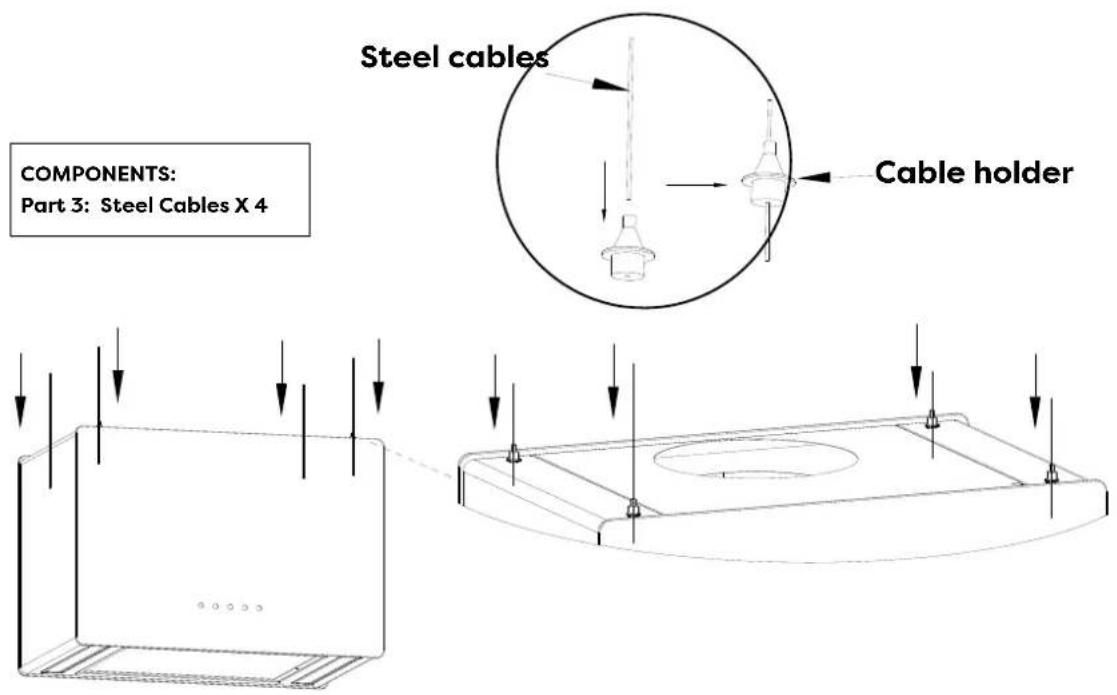

5) Put the four Steel cables through the Cable holder of cooker hood.

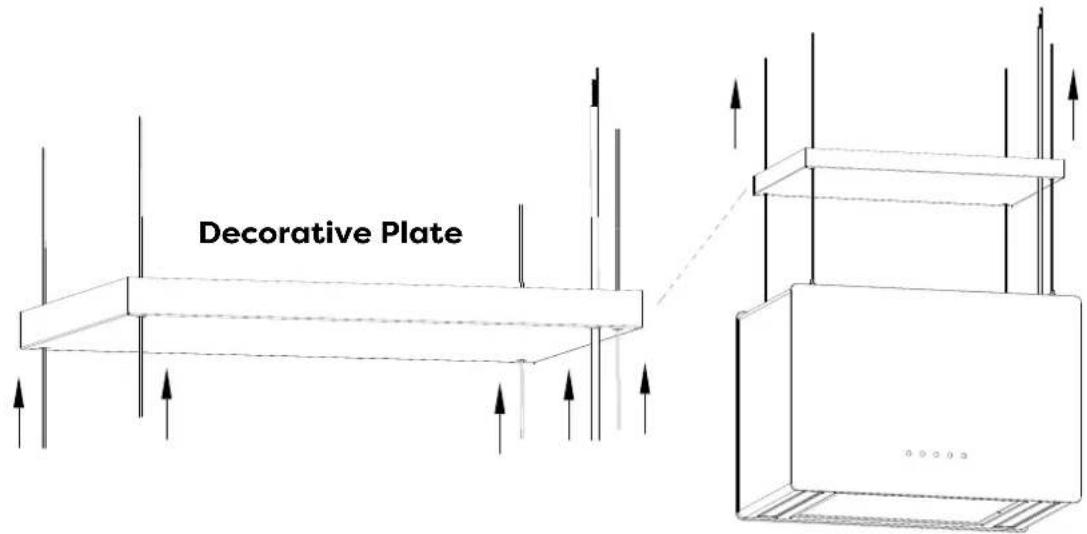

6) Put the four steel cables and the power cord through the decorative plate.

COMPONENTS:

Part 7: Decorative Plate X1

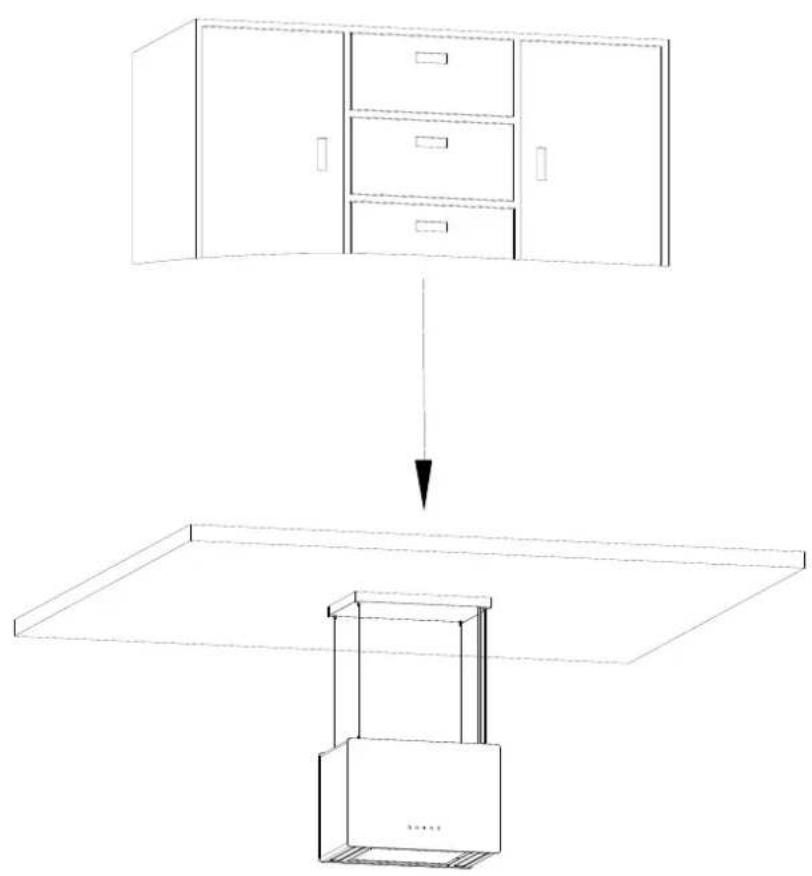

7) Lift the hood (At least two persons), Pass the four steel cables through the corresponding cable holder on the hanging plate. Adjust the height of the hood according to the actual scene, and the cable will be automatically locked by the cable holder.

EN

Installation

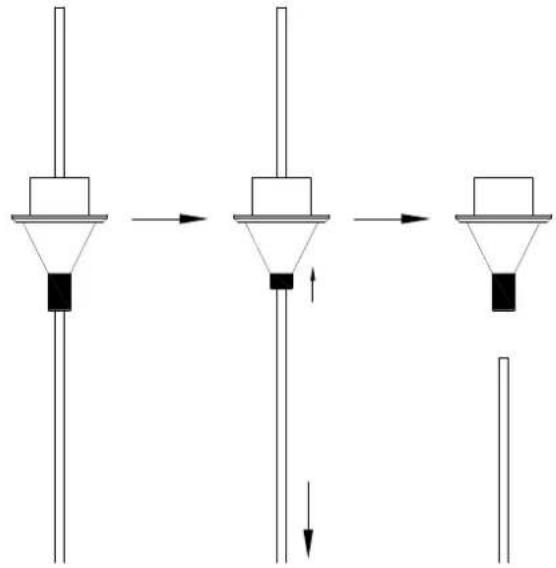

NOTE: The cables can only be adjusted when the Cable holder tips are pressed.

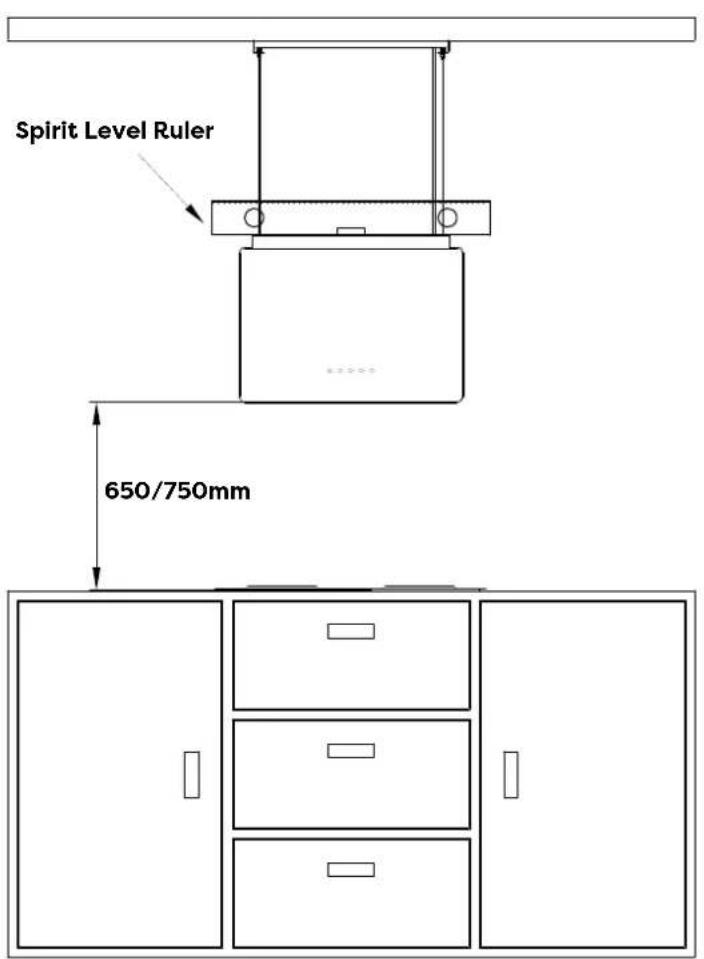

8) Adjust the hight of those 4 Steel cables, and use a Spirit Level Ruler to adjust the hood to horizontal position.

9) Connect the power cord of the hood.

If there is a power connector on the ceiling, you need to put the power cord through the Decorative plate, and connect the power cable to the power connector on the ceiling.

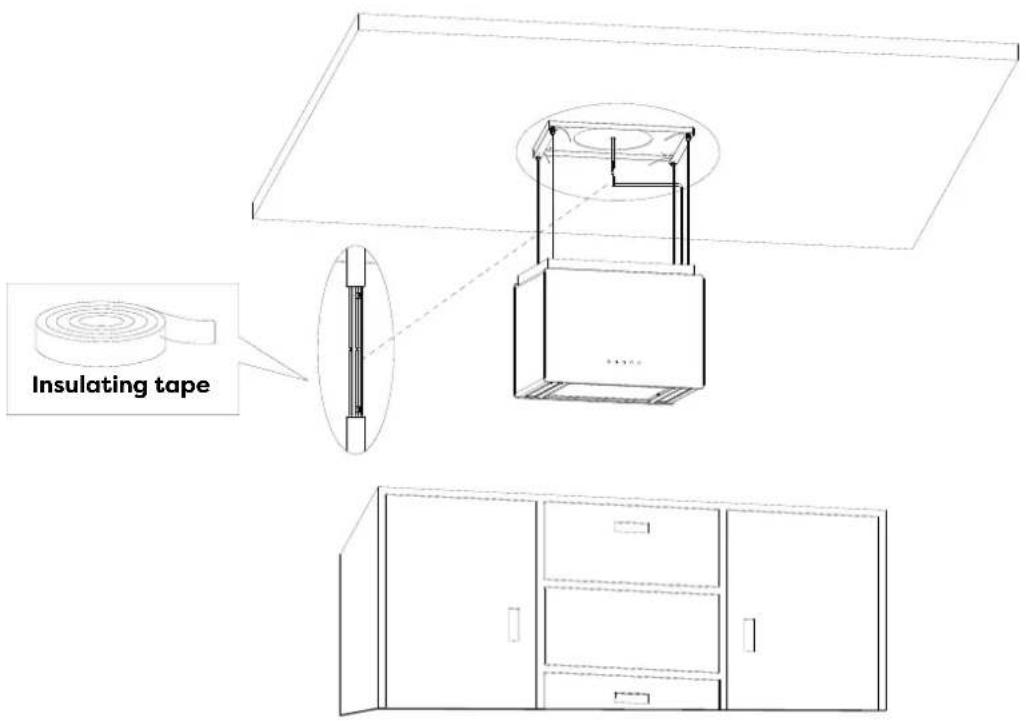

If there is no power connector on the ceiling, connect the power cable to the power connector (not necessarily need to put the power cord through the Decorative plate).

Attention:

Qualified electricians are required to install the power cord.

Please pay attention to personal safety to prevent electric shock.

Installation

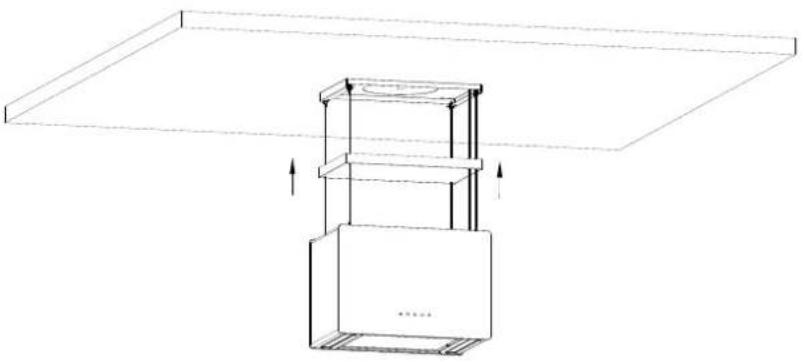

10) Push the Decorative plate up so it can be attached to the magnets from the Hanging plate.

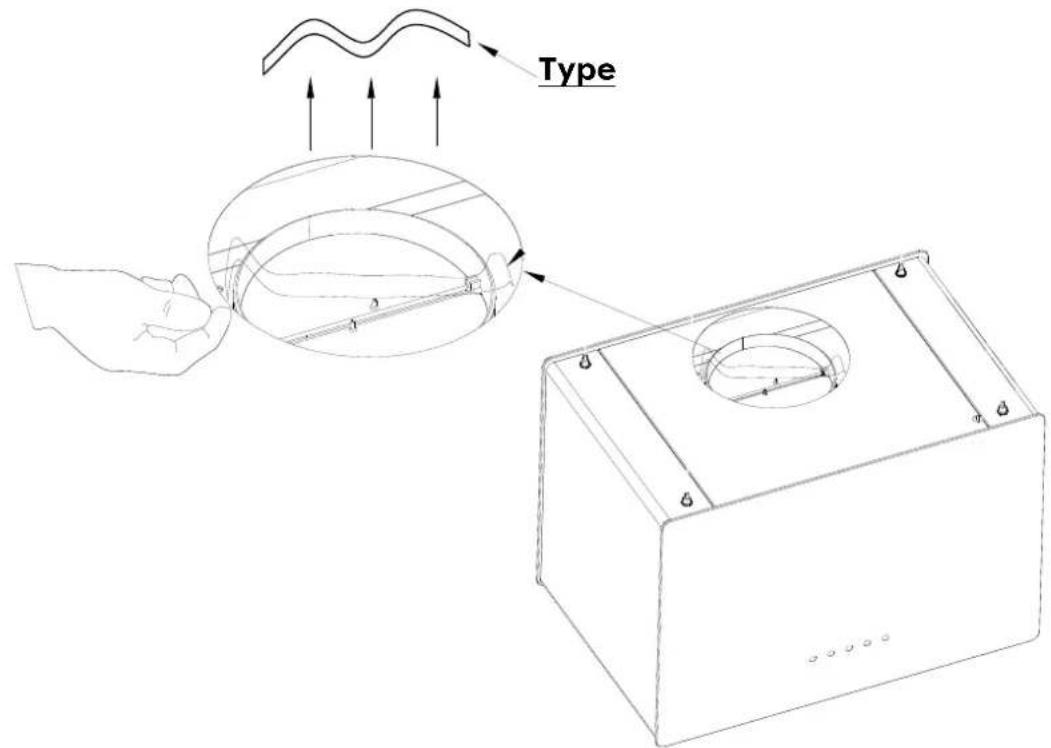

11) Tear off the tape from the air outlet.

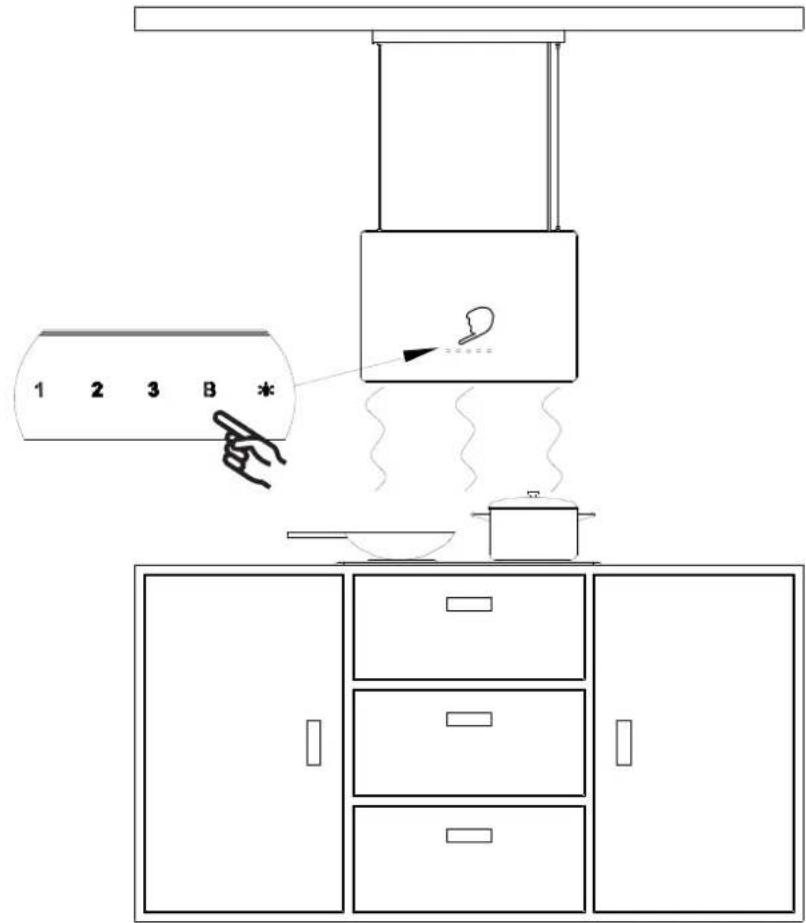

12) Turn the LED lights on/off, and test whether the functions are working properly.

Carbon Filter Installation (Recirculation) :

1. Carbon filter can be used to trap odors.

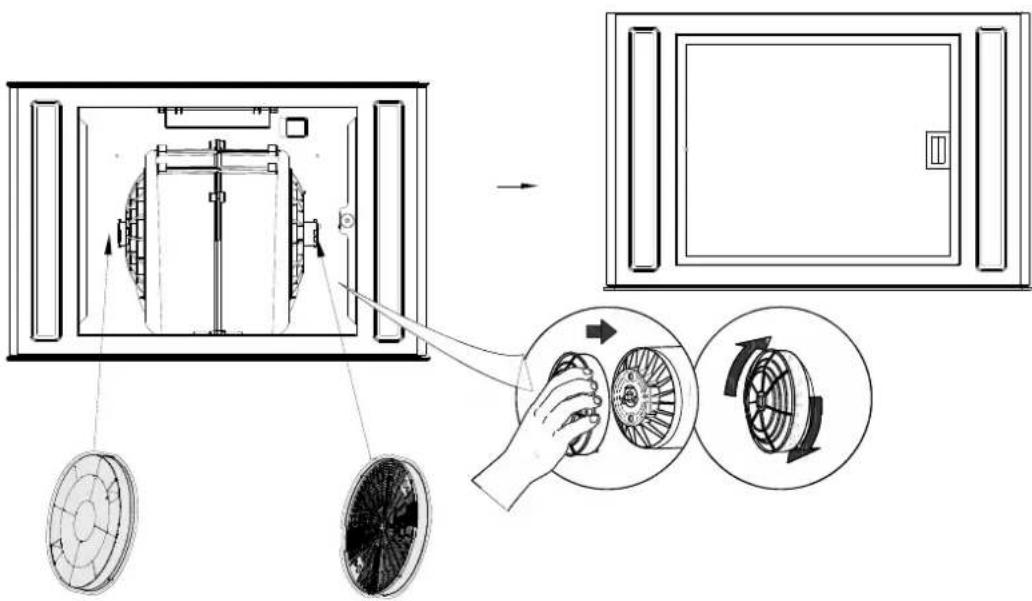

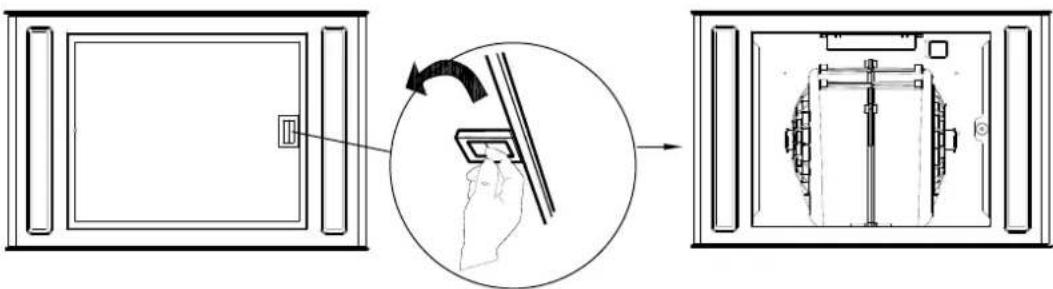

In order to install the carbon filter, the grease filter should be detached first. Press the lock and pull it down.

1. Place the carbon filter into the unit and turn it in the clockwise direction to lock it in place.

1. If the carbon filter needs to be replaced, please turn it in the anti-clockwise direction.

NOTE:

Make sure the carbon filter is securely locked.
When the carbon filter is installed, the suction of the cooker hood will be reduced.
The carbon filter should be changed every 2-4 months depending on the conditions of use.

Always turn your hood on before you begin cooking to establish an airflow in the kitchen.

Electronic button

Operate the hood as follows:

123B

STANDBY MODE

After plug in, When the buzzer makes a sound and all the indicator lights will be turned on for 1S then go out, the cooker hood will enter the standby mode. The [1] button indicator light continues to flash regularly. If there is no operation for 60s, the hood will go into sleep mode; If you need to operate, press any button briefly to start up the cooker hood.

When your cooker hood is in standby mode; you can easily switch on 1.2.3 speed level by pressing the corresponding speed level you want for 2 seconds, press the corresponding speed level button again, the cooker hood will go back to standby mode.

1 Low Speed button

For air ventilation with barely no noise; or simmering with very little smoke and steam.

2 Medium Speed button

For your everyday cooking purpose.

3 High Speed button

High-Speed for stir-fry or cooking with lots of smoke and grease produced.

B Booster button

Instant access to maximum suction power, jump to 3 speed after 10 minutes.

Light button

Press once, turn on the LED light in level 1, Press for the second time, turn on the LED light in level 2, increase brightness; Press for the third time, turn off the LED light.

Smart Life APP

Download and Intallation of Smart Life APP

1. You must use an Android phone or an iPhone to download and use this APP.
2. Search "Smart Life" in the Googel Play store for Android or IOS App Store to download and install the APP.

Video Guide

Cooker Hood and Smart Life APP pairing

1. When you log in to Smart Life APP for the first time, you need to create a new account. When creating a new account, follow the app's instruction to register.
2. If you already have an account, you can use the existing account to log in.
3. After logging in, follow the steps below to connect the cooker hood (the operating procedures of Android and IOS systems are the same)

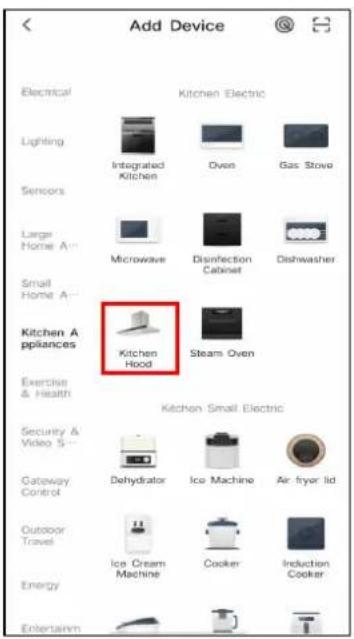

1. Open the smart life app, Click Add Device.

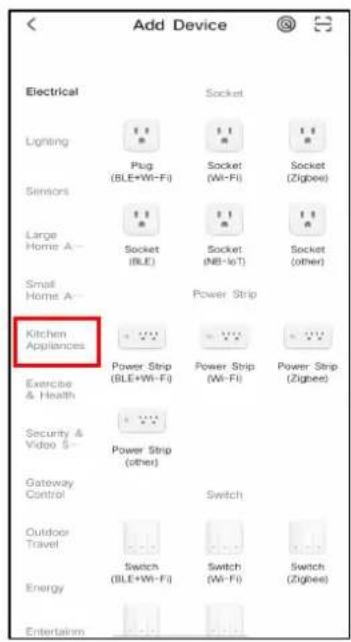

2. Choose kitchen appliances from the menu bar on the left.

3. Choose kitchen hood.

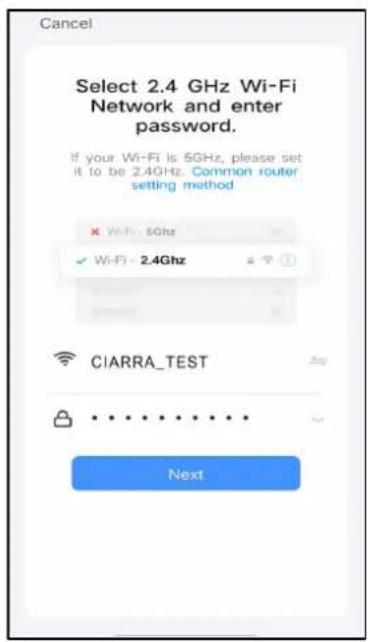

1. Connect your home Wi-Fi and enter the password, then click Confirm.

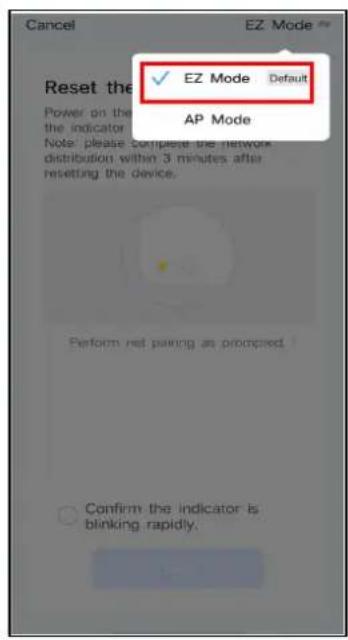

2. When enter this interface, choose EZ Mode on the top right corner.

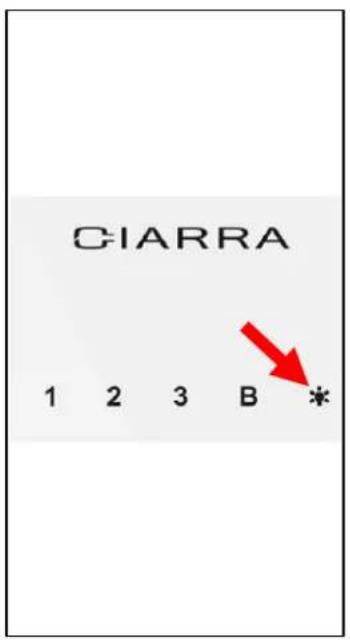

3. Press the "Light" button for 5 seconds, you will hear the beeping sound, and all button lights will be flashing, enter Wi-Fi pairing mode.

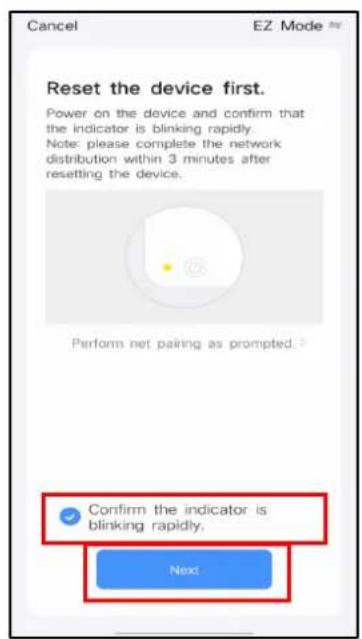

1. Click "Confirm the indicator is blinking rapidly" and chick "Next".

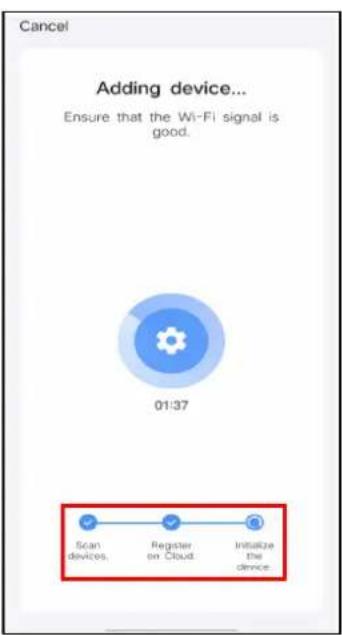

2. Adding device...

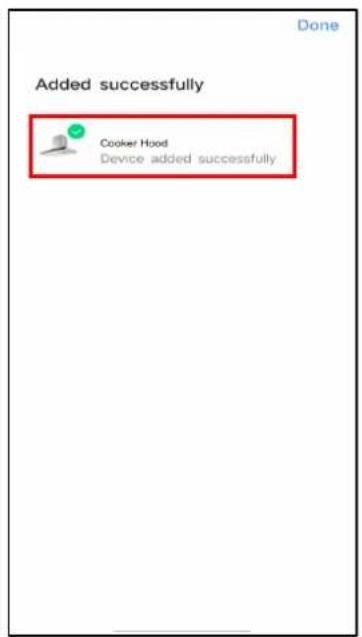

3. When you see this interface it means you have successfully connected your device.

10.Click "Me" and select "Message Center".

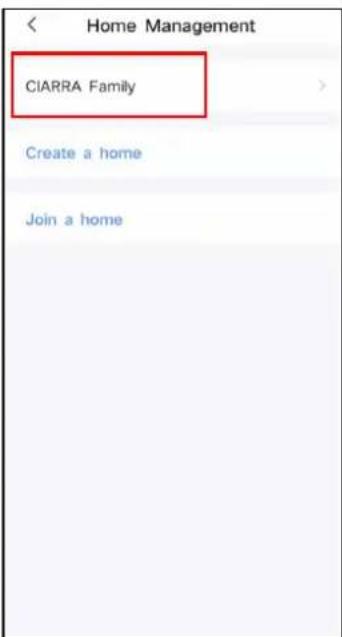

1. You can create a home or join a home in this area. Click "my family management".

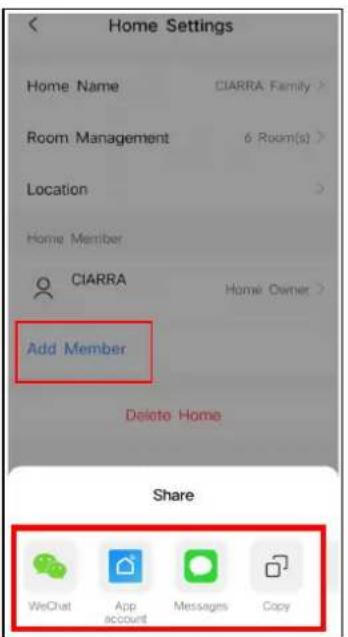

2. Select "Add members" and share to members, after members are successfully join the same family, they can remotely control "Cooker Hood" through WiFi.

The function of UV lamp

CAUTION:

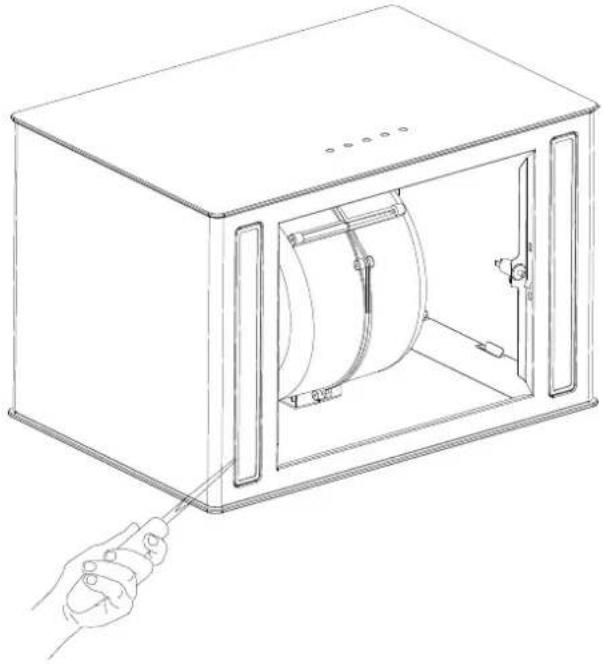

1. UV lamp can not be touched by naked hands and can not be taken off.

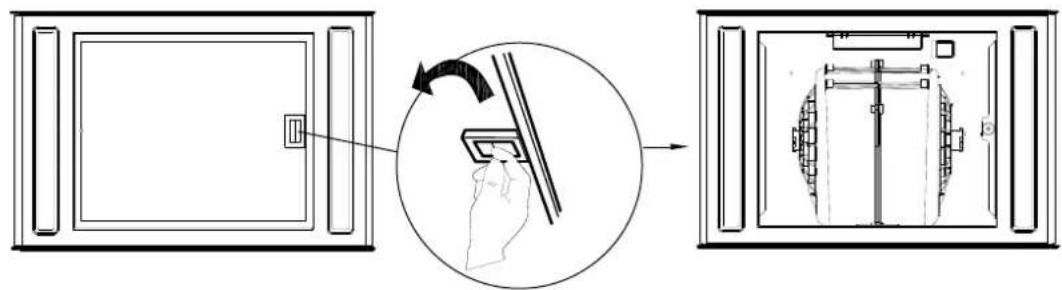

2. When the front panel is open, UV lamp can not be turned on. This appliance contains a UV emitter, Don't look straight at the light to prevent eyes damage.
3. The UV lamp may start slowly in low temperature environment. Please wait patiently. The lamp will return to normal operation after the temperature rises.

It is recommended to turn on the UV lamp when the cooker hood is working (especially when using the activated carbon internal circulation mode).

In the working mode, long press the [3] button and [B] button at the same time to turn on UV lamp, and the light button indicator light starts to flash; Long press the [3] button and [B] button at the same time to turn off the UV lamp, and the light button indicator will stop flashing.

About operation interface:

ON/Off Button

Light Button

When lights are OFF, press once to turn ON the lights. Press this button again to turn OFF the lights.

UV Light Button

When lights are OFF, press once to turn ON the lights. Press this button again to turn OFF the lights.

Fan Speed Button

You can control the corresponding gears of 1-2-3-P on the cooker hood.

Quick Delay Off

Quick Delay Setting

When cooker hood is working, you can set the delay timer through delay function.

Push this button, the cooker hood will stop working in 5 minutes.

Cleaning and Maintenance

Proper maintenance of the Cooker Hood will assure proper performance of the unit. Before cleaning unit, unplug or disconnect the cooker hood from the power supply.

GREASE FILTERS

The grease filters should be cleaned frequently. Can be cleaned in dishwasher under high temperature without using any detergent.

CARBON FILTER

The carbon filter should be changed every 2-4 months depending on the conditions of use. Replace more often if your cooking style generates lots of greases, such as stir frying. These filters are not washable and cannot be reused. Refer to installation instructions included with a carbon filter.

STAINLESS STEEL CLEANING

Do:

• Regularly clean it with a cloth or rag soaked with warm water and mild soap or liquid dish detergent.
• You may also use a specialized household stainless steel cleaner.

Don't:

• Use any steel or stainless-steel wool or any other scrapers to remove stubborn dirt.
• Use any harsh or abrasive cleansers.
• Let plaster dust or any other construction residues reach the hood. During construction/ renovation, cover the cooker hood to make sure no dust sticks to the stainless-steel surface.

Avoid when choosing a detergent:

• Any cleaners that contain bleach will attack stainless steel.
• Any products containing: chloride, fluoride, iodide, bromide will deteriorate surfaces rapidly.
• Any combustible products used for cleaning such as acetone, alcohol, ether, benzol, etc., are highly explosive and should never be used close to a range.

PAINTED FINISH CLEANING:

Clean with warm water and mild detergent only. If discoloration occurs, use a finish polish such as automotive polish. (DO NOT use a rough abrasive cleaner or porcelain cleaner.)

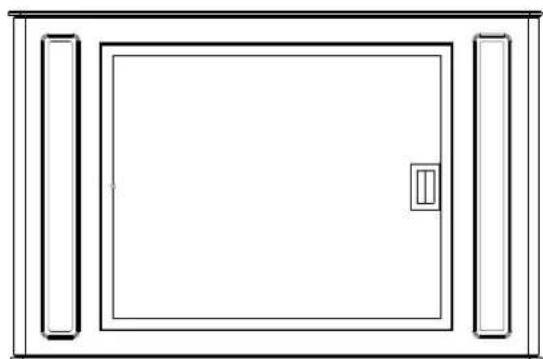

LED REPLACEMENT

• Rectangle LED lamp:

CAUTION:

Before cleaning or repairing and replacing accessories, please make sure to shut down the power before operation, so as to avoid electric shock, damage to human body and even endanger life safety!

1. Turn off the hood and unplug the power outlet. Detach the grease filter in order for you to replace the LED lamp.

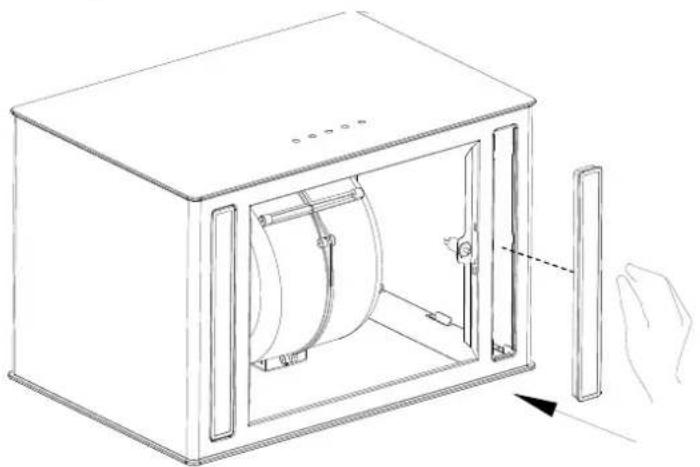

1. Push the LED lamp holder out from the cabinet by hand, or use screwdriver to prize up the LED lamp around the edges, pull out slotted the LED lamp and the wire together.

Cleaning and Maintenance

1. Open the power protection cover, pull out the plug and replace the corresponding model of the LED lamp.

1. Turn the power on and test all blower and light functions to ensure they are operating properly.

Insert the new LED light gently into the light socket, please make sure you aim at the grooves on the lighting panel when installing. Push the LED light in until it is flushed with the light panel.

1. Put the grease filter back on, you are good to go.

Problem	Possible Cause	Solution
Extractor hood does not turn on	No electrical supply	Make sure that range hood is plugged into powered outlet. Test outlet with other device if not working
My range hood has poor performance	Inadequate ventilation	Ensure that the kitchen is sufficiently ventilated to allow entry of fresh air
	The range hood and cooktop are too far away from each other	Optimal distance is 65~75cm above the cooktop for best extraction
	Check and make sure the tape holding down the damper flaps at the vent hole are removed before use	Remove the tape holding down the damper
	Grease filters clogged with grease build-up	Clean the grease filters or replace the grease filters
	Carbon filters clogged with grease build-up	Replace new carbon filters
	Motor is running but no extraction	Please contact CIARRA Customer Care Service
My range hood is noisy	Check inside the range hood for any loose debris and remove	Please contact CIARRA Customer Care Service
	If the noise is from the motor, please contact our Customer Care Service
Lights are not working	Light is damaged	Replace with new LED lamp; remove grease filters, reach inside behind the control panel and locate the wire with clip behind the light housing.
	The light wire terminal is loose	Reset the connection

If problem persists after the above checks, please contact CIARRA Customer Care Centre for assistance.

Environmental Protection

Waste electrical products should not be disposed with household waste. Please recycle where facilities exist. Check with your Local Authority or retailer for recycling advice.

This appliance is marked according to the European directive 2012/19/EU on Waste Electrical and Electronic Equipment (WEEE).

By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product.

The symbol on the product indicates that this product may not be treated as household waste. Instead it shall be handed over to the applicable collection point for the recycling of electrical and electronic equipment.

Disposal must be carried out in accordance with local environmental regulations for waste disposal.

For more detailed information about treatment, recovery and recycling of this product, please contact your local city office, your household waste disposal service or the shop where you purchased the product.

ciarra

Make life easier

Partie 7: Plaque decorative X1

Installer la hotte (Evacuation):
