Dear customer:

Thank you so much for your purchase, please read this instruction manual carefully before installation & use.

If you have any question, please contact us at:

E-mail: [e-mail]

ENGLISH	INSTALLATION AND USER'S MANUAL	Page3-18
DEUTSCH	BENUTZERHANDBUCH&INSTALLATION SANLEITUNG	Seite20-37
FRANÇAIS	MANUEL DE L'UTILISATEUR ET D'INSTALLATION	Page39-56
ITALIANO	INSTALLAZIONE E MANUALE DELL'UTENTE	Pagina57
ESPAÑOL	MANUAL DE USUARIO E INSTRUCCIONES DE INSTALACIÓN	Página58
NEDERLANDS	INSTALLATIE- EN GEBRUIKERSHANDLEIDING	Pagina59
SVENSKA	INSTALLATION- OCH BRUKSANVISNING	Sida60
POLSKI	INSTRUKCJA INSTALACJI I UŻYTKOWANIA	Strona61

CONTENTS

Safety----3-4

Specifications----5

Before Using the Cooker Hood ----6

Prepare for Installation ----7

Installation----8-12

Install the Hood----8-10

Carbon Filter Installation----11-12

Operation---- 13

Cleaning and Maintenance 14-16

Grease Filter----14

Carbon Filter 14

Stainless Steel Cleaning 14

Painted Finish Cleaning----14

LED Replacement----15-16

Troubleshooting----17

Environmental Protection ----18

!WARNING

TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK, OR INJURY TO PERSONS, OBSERVE THE FOLLOWING:

■ Use this unit only in the manner intended by the manufacturer. If you have questions, contact the manufacturer at the address or telephone number listed in the warranty.
■ Before servicing or cleaning unit, unplug or disconnect the cooker hood from the power supply.
This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
■ Installation work and electrical wiring must be done by a qualified person(s) in accordance with all applicable codes and standards, including fire-rated construction.
■ Sufficient air is needed for proper combustion and exhausting of gases through the flue (chimney) of fuel burning equipment to prevent back drafting.
■ When cutting or drilling into a wall or ceiling, do not damage electrical wiring and other hidden utilities.
■ Ducted fans must always be vented to the outdoors.
■ Ensure the requirements of the local authorities are adhered to concerning the discharge of exhaust air.
■ This unit must be grounded.
■ When applicable local regulations comprise more restrictive installation and/or certification requirements, the aforementioned requirements prevail on those of this document and the installer agrees to conform to these at his own expense.
■ Clean cooker hood frequently. Grease should not be allowed to accumulate on fans, filters or in exhaust ducts.

Warning: Failure to install the screws or fixing device in accordance with these instructions may result in electrical hazards.

WARNING

TO REDUCE THE RISK OF INJURY TO PERSONS IN THE EVENT OF A RANGE TOP GREASE FIRE, OBSERVE THE FOLLOWING\*:

1. SMOTHER FLAMES with a close-fitting lid, cookie sheet or metal tray, then turn off the burner. BE CAREFUL TO PREVENT BURNS. IF THE FLAMES DO NOT GO OUT IMMEDIATELY, EVACUATE AND CALL THE FIRE DEPARTMENT.
2. NEVER PICK UP A FLAMING PAN – You may be burned.
3. DO NOT USE WATER, including wet dishcloths or towels — This could cause a violent steam explosion.
4. Use an extinguisher ONLY if:

a) You own a Class ABC extinguisher and you know how to operate it.
b) The fire is small and contained in the area where it started.
c) The fire department has been called.
d) You can fight the fire with your back to an exit.

CAUTION

■ For indoor use only.
■ For general ventilating use only. Do not use to exhaust hazardous or explosive materials and vapors.
■ To avoid motor bearing damage and noisy and/or unbalanced fan blade, keep drywall spray, construction dust, etc. off cooker hood.
- Your hood motor has a thermal overload which will automatically shut off the motor if it becomes overheated. The motor will restart when it cools down. If the motor continues to shut off and restart, have the hood serviced.
- Always follows the cooking equipment manufacturer's requirements regarding the ventilation needs.
■ To reduce the risk of fire and to properly exhaust air, be sure to duct air outside — Do not exhaust air into spaces within walls or ceiling or into attics, crawl space or garage.
■ When installing, servicing or cleaning the unit, it is recommended to wear safety glasses and gloves.
■ Please read specification label on product for further information and requirements.

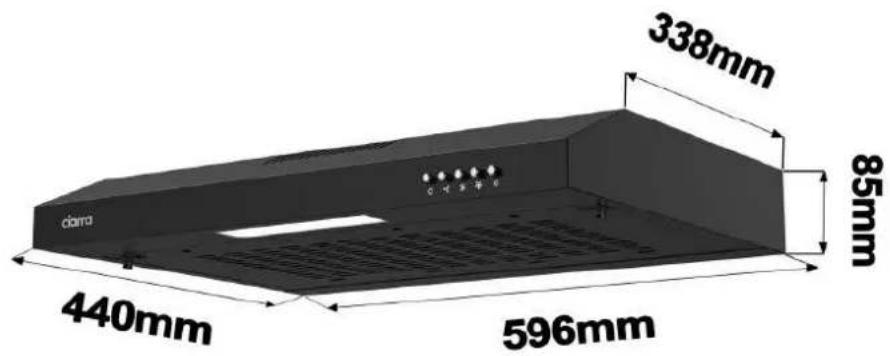

CBCS6903

CBCB6903

Cama 338mm 85mm 440mm 596mm

clara 338mm 85mm 440mm 596mm

Voltage	220V-240V~ 50Hz
Power of Motor	1 x 80W
Power of lamps	1 x 1.5W

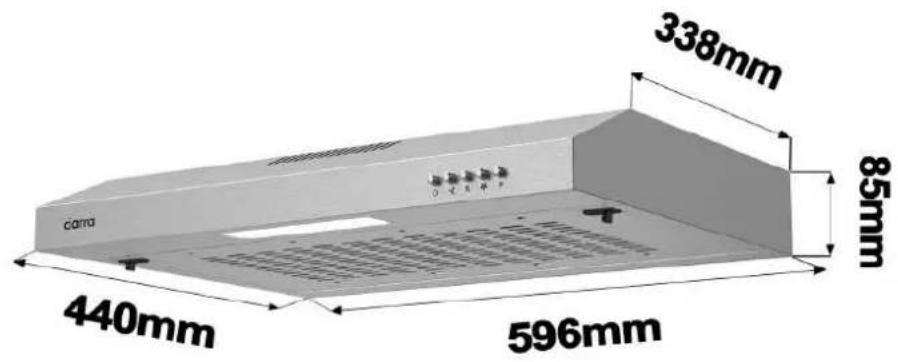

Appliance Dimension	596*440*85mm(W x D x H)
Note: The manufacturer reserves the right to change any technological improvement or modification without prior notice.

Before Using the Cooker Hood

CAUTION: Before proceeding to the installation, check if items are missing or damaged, contact the manufacturer.

Observe all governing codes and ordinances. Have a qualified technician install the cooker hood. It is the installer's responsibility to comply with installation clearances specified on the model/serial rating plate. The manufacturer declines all responsibility for improper installation and does not accept responsibility for appliance warranty in the event of damage caused by incorrect installation.

COMPONENTS:

Part 1: Wall Plug

X4

Part 4: Cooker Hood Body X1

Part 2: 4*20mm Screws X 6

Part 5: Outlet X1

Part 3: Installation Manual X1

Part 6: Windbreak Blade X1

YOU WILL BE NEEDING THESE TOOLS FOR INSTALLATION

1. Protective Gloves

1. Double Sided Tape or Tape

2.Spirit Level Ruler

5.Cross-Head Screwdriver Set

1. Measuring Tape

1. Electric drill and 8mm drill

Prepare for Installation

Prepare for Installation:

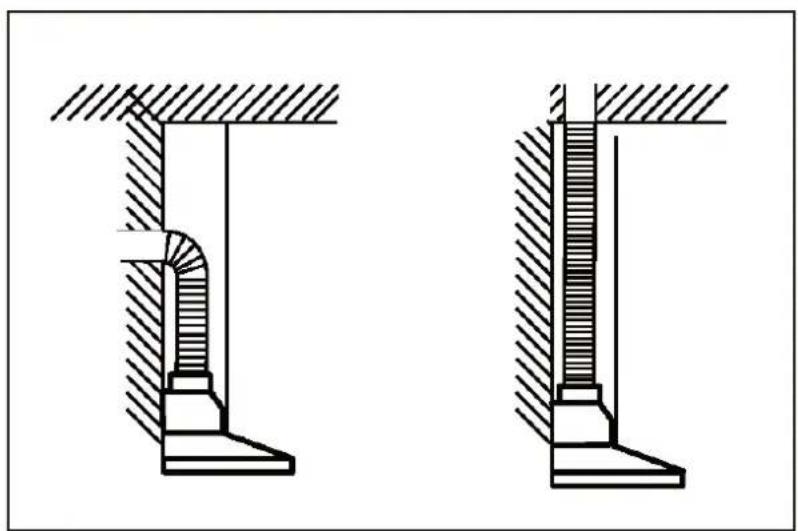

a) Ventilation Mode

Recirculation Mode: Recirculating with carbon filter (required), the smells and odors can be filtered and vented through the top vented hole and the exhaust pipe is not required.

Extraction Mode: You can install the 1.5m long and 120mm diameter aluminum exhaust pipe for extracting.

Diagram illustrating airflow or traffic flow between a house and a pipeline, with checkmarks indicating failure or rejection points.

b) When possible, use at least 60cm straight runs before any turns.

Larger duct work may be required for best performance with longer duct runs.

Technical line drawing of two mechanical components with hatched areas indicating material (no text or symbols)

c) Before installation, don't connect the power.

Install the Hood (Extraction) :

1) Remove all protective poly film from the hood and/or parts.

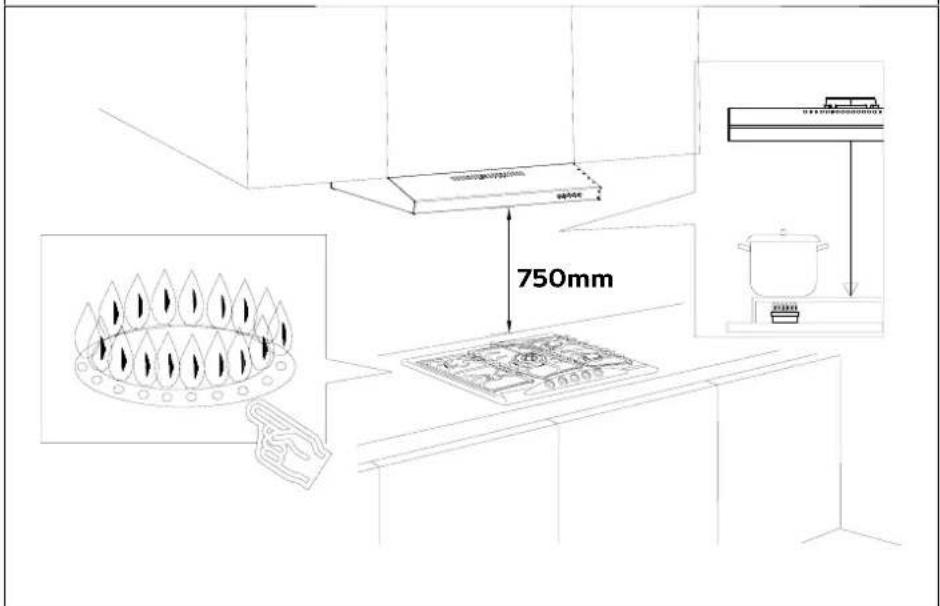

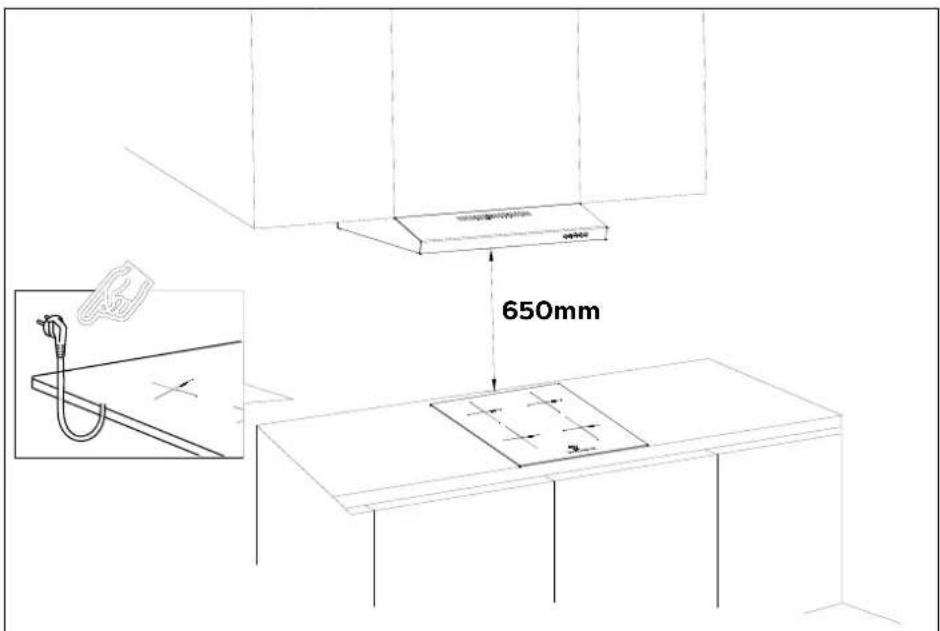

2) Recommend installation height: 65\~75cm above the cooktop for best extraction.

◆ Required height over gas hob: 750mm;
◆ Required height over electric hob: 650mm.

650mm

750mm

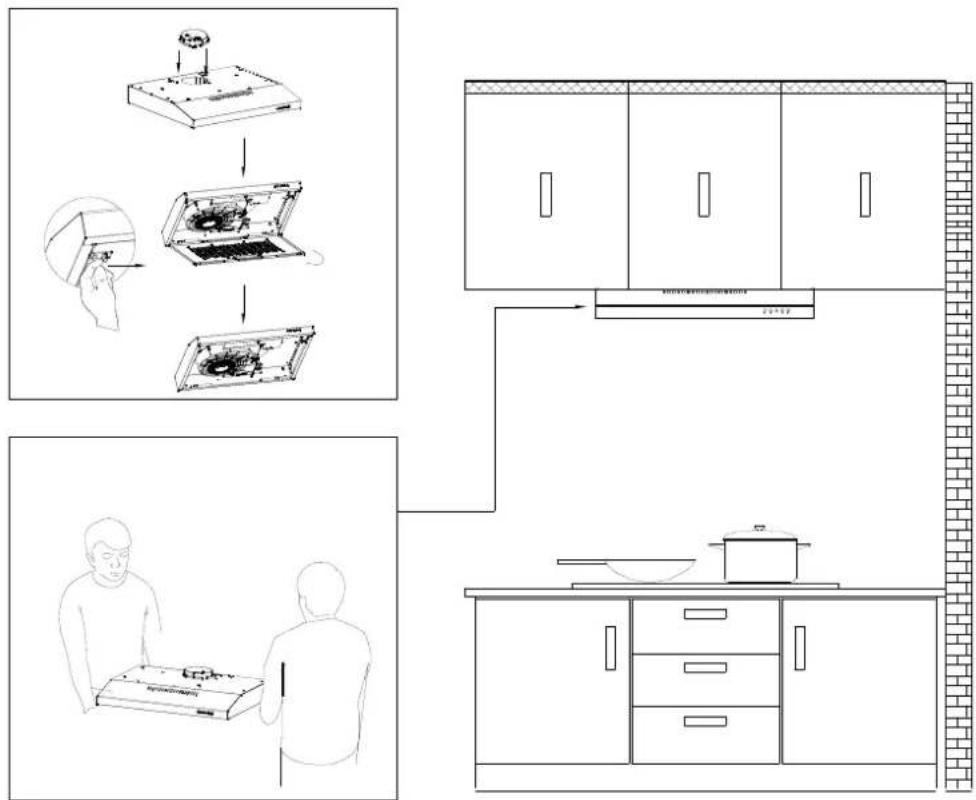

3) Put the outlet onto the cooker hood. Press the lock to the right and detach the iron baffle, then put the cooker hood under the cabinet.


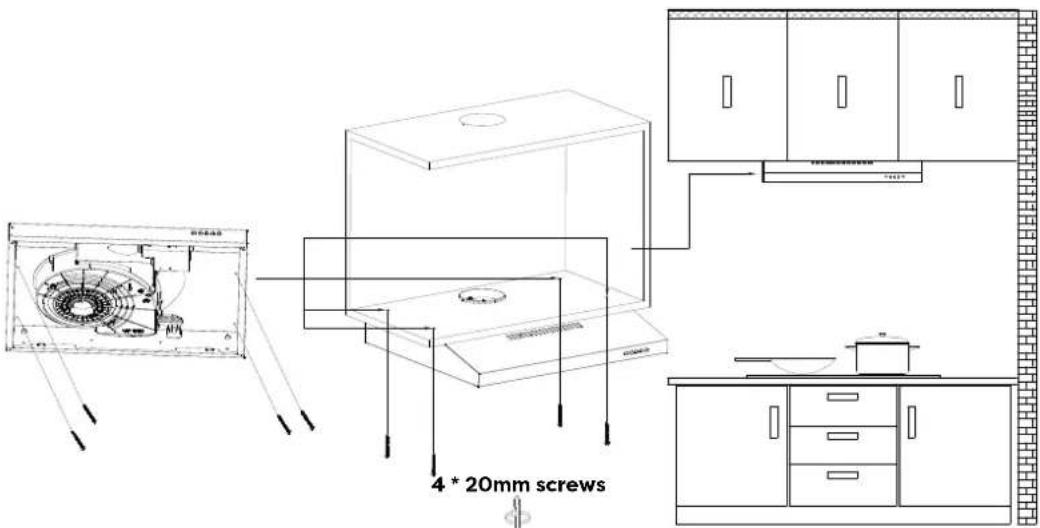

4) Align the air ventilation port of the cook hood with the cabinet ventilation hole at the bottom, pass the power cord through the power hole, and then use four 4 * 20mm screws to lock into the corresponding position to fix the cook hood.

4 * 20mm screws

Installation

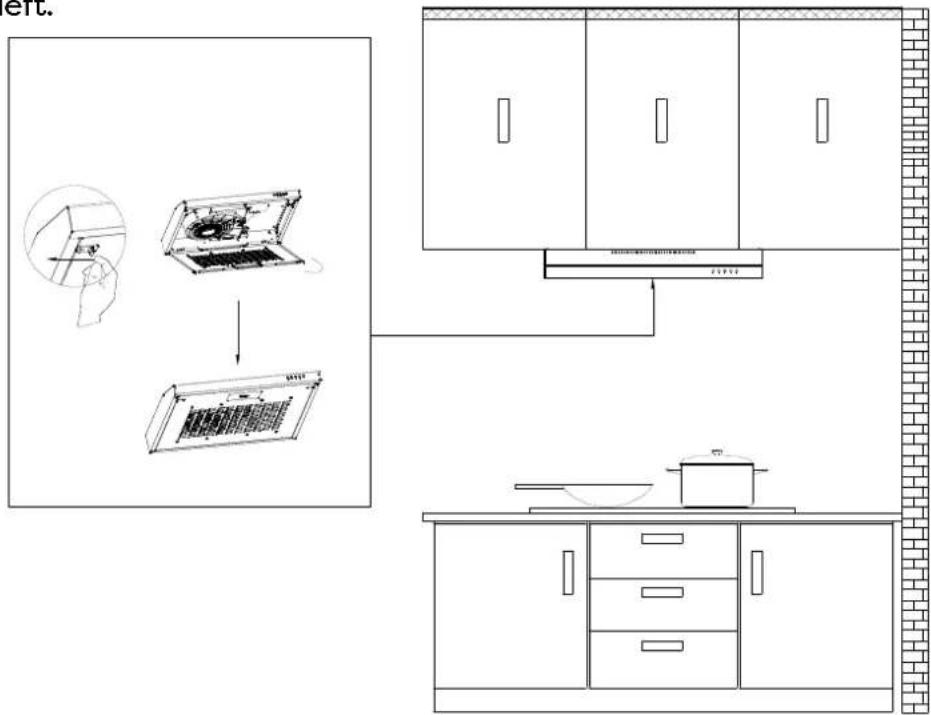

5) Put the iron baffle back on the cooker hood and press the lock to the left.

eft.

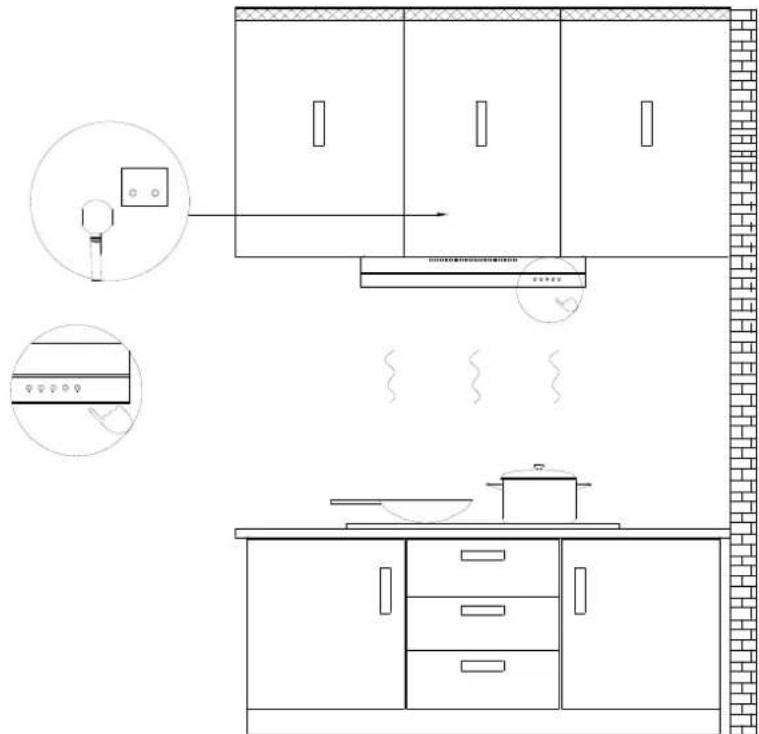

6) Connect the power and turn the LED lights on/off in order to test whether the functions are working properly.

Line drawing of a kitchen interior layout with appliances and fixtures (no text or symbols)

NOTE:

Make sure you remove the tape on the damper and check if the damper opens and closes freely, otherwise it make noises, and the cooker hood will be shaking.

Carbon Filter Installation (Recirculation):

1. Carbon filter can be used to trap odors.

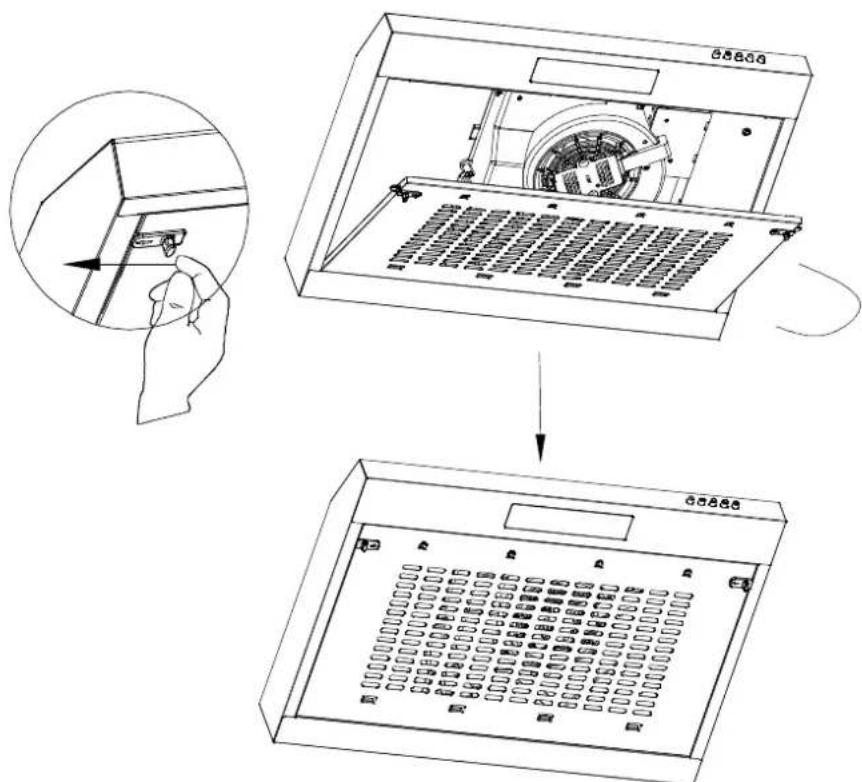

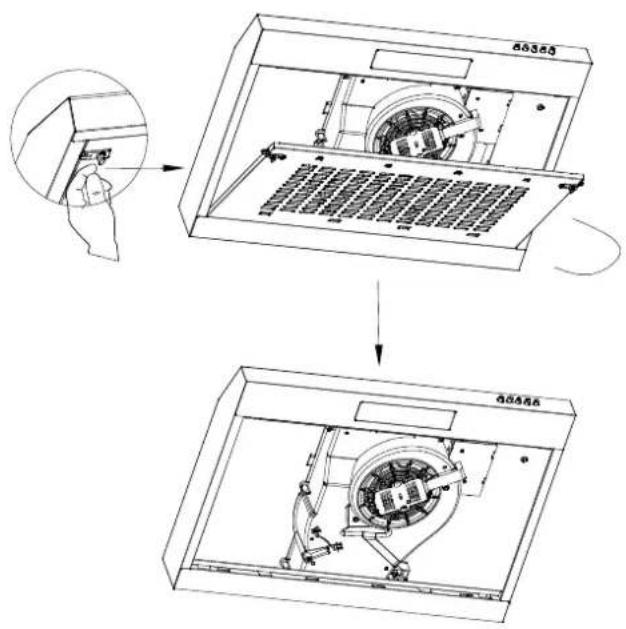

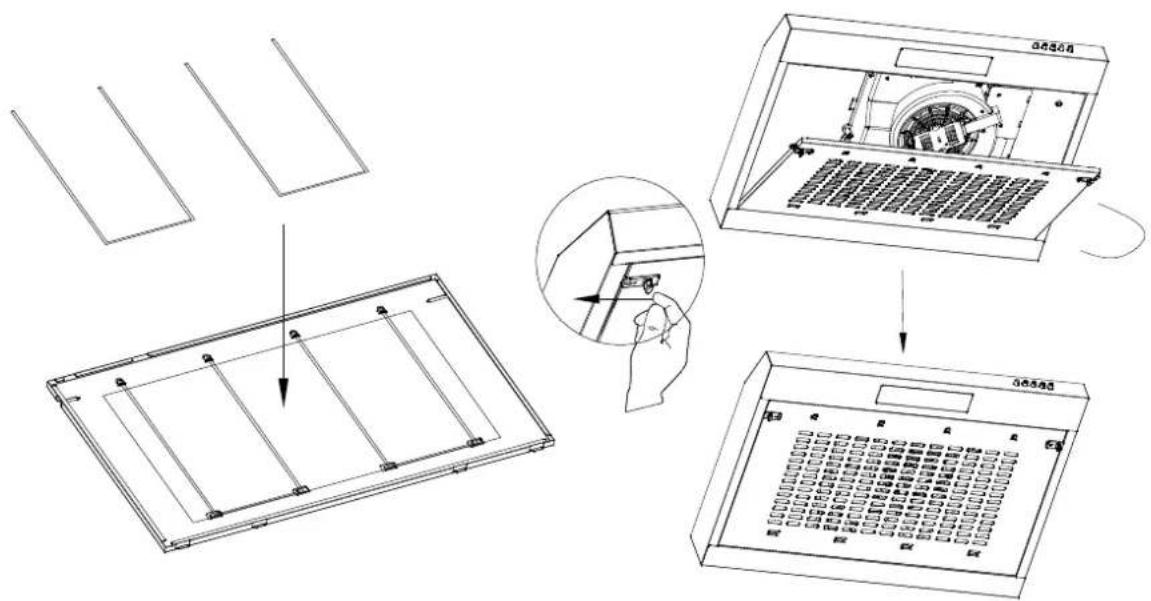

In order to install the carbon filter, the grease filter should be detached first. Press the lock and pull it down.

Technical diagram showing a device interior with labeled components and a hand holding a component, including a magnified inset view.

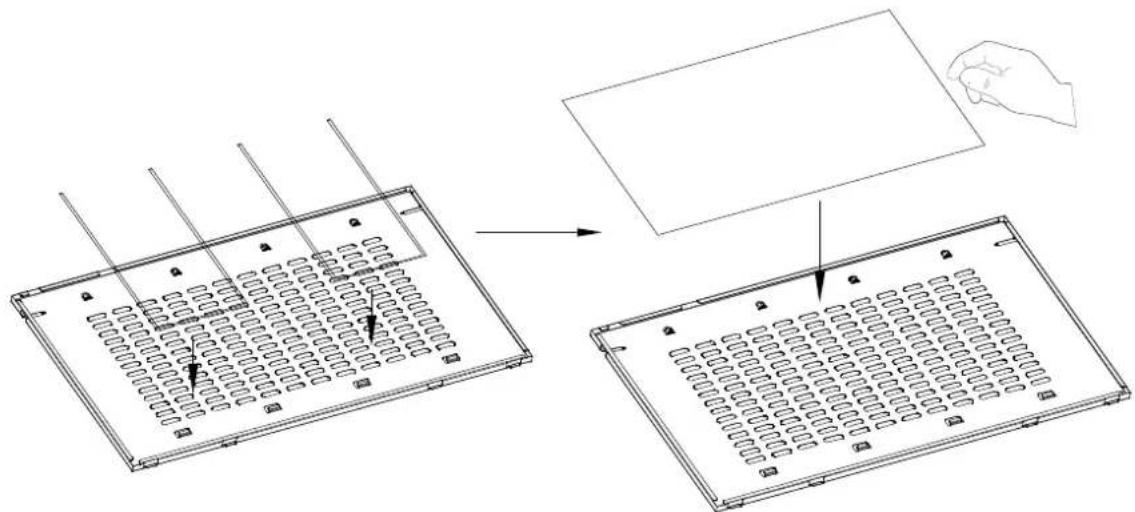

1. Take out the 2 cords on the baffle and install the new activated carbon filter in the range of the air mesh.

Technical diagram showing assembly of a grid-patterned device with labeled components and a hand gesture pointing to a blank panel.

Installation

1. Install the 2 cords to fix the activated carbon filter. Then put the iron baffle back on the cooker hood and press the lock to the left.

Technical diagram showing installation steps of a solar panel with labeled components and a magnified view of the internal structure.

NOTE:

Make sure the carbon filter is securely locked.
When the carbon filter is installed, the suction of the cooker hood will be reduced.
The carbon filter should be changed every 2-4 months depending on the conditions of use.

Always turn your hood on before you begin cooking to establish an airflow in the kitchen.

Let the blower run for a few minutes to clear the air after you turn off the hood. This will help to keep the entire kitchen clean and fresh.

Mechanical Push button

Operate the hood as follows:

Four black icons representing power, sun, wind, and solar symbols (no text or labels)

Off button

It's used to turn off the fan.

Low Speed button

For air ventilation with barely no noise; or simmering with very little smoke and steam.

Medium Speed button

For your everyday cooking purpose.

High Speed button

High-Speed for stir-fry or cooking with lots of smoke and grease produced.

Light button

When lights are OFF, press this button once to turn ON the lights. Press this button again to turn OFF the lights.

Cleaning and Maintenance

Proper maintenance of the Cooker Hood will assure proper performance of the unit. Before cleaning unit, unplug or disconnect the cooker hood from the power supply.

GREASE FILTERS

The grease filters should be cleaned frequently. Can be cleaned in dishwasher under high temperature without using any detergent.

CARBON FILTER

The carbon filter should be changed every 2-4 months depending on the conditions of use. Replace more often if your cooking style generates lots of greases, such as stir frying. These filters are not washable and cannot be reused. Refer to installation instructions included with a carbon filter.

STAINLESS STEEL CLEANING

Do:

• Regularly clean it with a cloth or rag soaked with warm water and mild soap or liquid dish detergent.
• You may also use a specialized household stainless steel cleaner.

Don't:

- Use any steel or stainless-steel wool or any other scrapers to remove stubborn dirt.

- Use any harsh or abrasive cleansers.

- Let plaster dust or any other construction residues reach the hood. During construction/ renovation, cover the cooker hood to make sure no dust sticks to the stainless-steel surface.

Avoid when choosing a detergent:

• Any cleaners that contain bleach will attack stainless steel.
• Any products containing: chloride, fluoride, iodide, bromide will deteriorate surfaces rapidly.
• Any combustible products used for cleaning such as acetone, alcohol, ether, benzol, etc., are highly explosive and should never be used close to a range.

PAINTED FINISH CLEANING:

Clean with warm water and mild detergent only. If discoloration occurs, use a finish polish such as automotive polish. (DO NOT use a rough abrasive cleaner or porcelain cleaner.)

Cleaning and Maintenance

LED REPLACEMENT

■ LED bulb:

Simple rectangular outline with rounded corners, no text or symbols present

CAUTION :

Before cleaning or repairing and replacing accessories, please make sure to shut down the power before operation, so as to avoid electric shock, damage to human body and even endanger life safety!

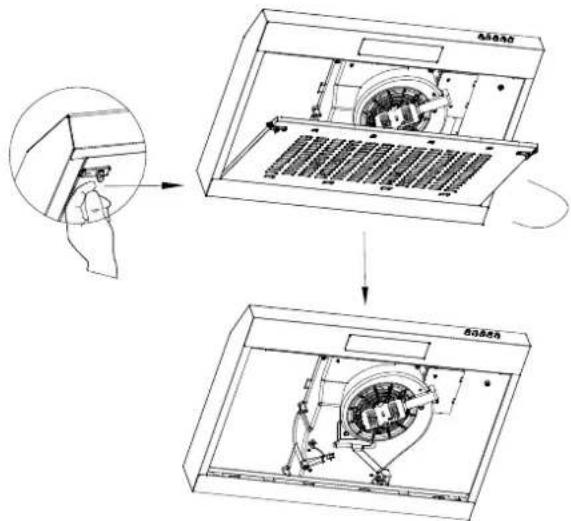

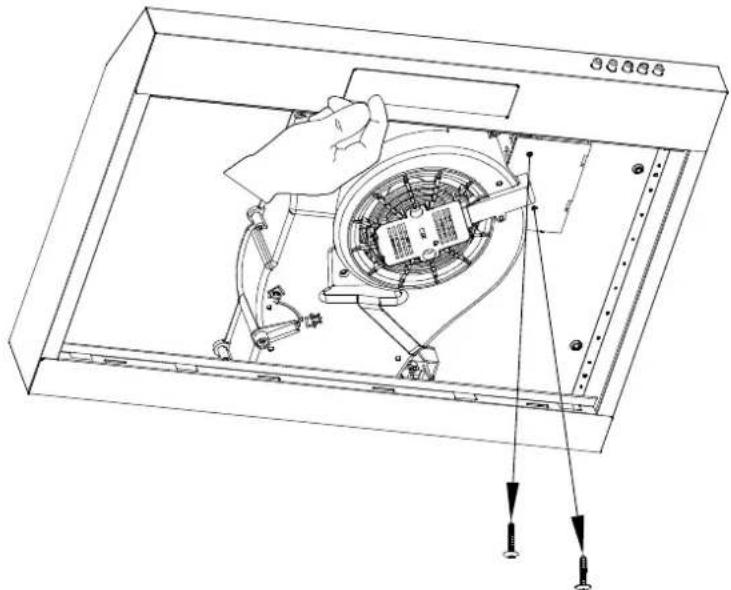

1. Turn off the hood and unplug the power outlet. Detach the iron baffle in order for you to replace the LED bulb.

Technical diagram showing a device interior with labeled components and a magnified view of the interior detail.

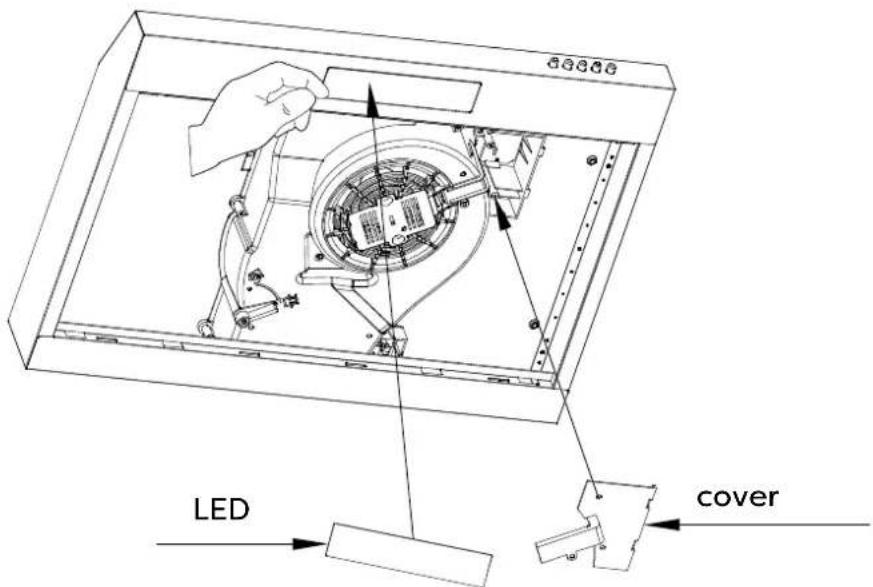

1. Loosen the screws of the circuit control box, remove the cover of the circuit control box and unplug the LED light. Press the LED light buckle from the back of the LED to take out the light.

Technical line drawing of a mechanical assembly with internal components and mounting holes (no text or symbols)

Cleaning and Maintenance

1. To replace the new LED light, press the LED into the LED mounting hole, insert the plug into the corresponding position on the main board of the circuit control box, close the cover of the circuit control box and tighten the screws.

LED cover

1. Put the iron baffle back on the cooker hood and press the lock to the left.

Technical diagram showing a device with internal components and a magnified view of the interior space, including a close-up of a person in protective gear.

Problem	Possible Cause	Solution
Extractor hood does not turn on	No electrical supply	Make sure that range hood is plugged into powered outlet. Test outlet with other device if not working
My range hood has poor performance	Inadequate ventilation	Ensure that the kitchen is sufficiently ventilated to allow entry of fresh air
	The range hood and cooktop are too far away from each other	Optimal distance is 65~75cm above the cooktop for best extraction
	Check and make sure the tape holding down the damper flaps at the vent hole are removed before use	Remove the tape holding down the damper
	Grease filters clogged with grease build-up	Clean the grease filters or replace the grease filters
	Carbon filters clogged with grease build-up	Replace new carbon filters
	Motor is running but no extraction	Please contact CIARRA Customer Care Service
My range hood is noisy	Check inside the range hood for any loose debris and remove	Please contact CIARRA Customer Care Service
	If the noise is from the motor, please contact our Customer Care Service
Lights are not working	Light is damaged	Replace with new LED lamp; remove grease filters, reach inside behind the control panel and locate the wire with clip behind the light housing.
	The light wire terminal is loose	Reset the connection

If problem persists after the above checks, please contact CIARRA Customer Care Centre for assistance.

Environmental Protection

Waste electrical products should not be disposed with household waste. Please recycle where facilities exist. Check with your Local Authority or retailer for recycling advice.

This appliance is marked according to the European directive 2012/19/EU on Waste Electrical and Electronic Equipment (WEEE).

By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product.

The symbol on the product indicates that this product may not be treated as household waste. Instead it shall be handed over to the applicable collection point for the recycling of electrical and electronic equipment.

Disposal must be carried out in accordance with local environmental regulations for waste disposal.

For more detailed information about treatment, recovery and recycling of this product, please contact your local city office, your household waste disposal service or the shop where you purchased the product.

ciarra

Make life easier

Diagram illustrating airflow or traffic flow between buildings with checkmarks and arrows indicating direction of movement

Technical diagram showing two mechanical assembly views with hatched sections and no visible text or symbols

Diagram showing a kitchen appliance installation with labeled components and a 3D diagram of the oven interior.

Line drawing of a kitchen interior layout with appliances and fixtures, no text or symbols present

Hinweis:

Technical diagram showing a device interior with labeled components and a magnified view of the interior space.

Technical diagram showing assembly of a grid-patterned panel with labeled components and an arrow indicating transformation.

Technical diagram showing installation steps of a solar panel with labeled components and a magnified view of the internal structure.

HINWEISE:

Four black icons representing power, sun, wind, and solar symbols (no text or labels)

Aus-Kopf

Simple rectangular outline with rounded corners, no text or symbols present

Technical diagram showing the installation of a refrigerant oven with labeled components and a magnified view of the interior space.

Technical line drawing of a mechanical assembly with a hand operating a circular component (no text or symbols visible)

LED cover

Technical diagram showing a device interior with labeled components and a magnified view of the interior detail.

Störungssuche

Diagram illustrating two scenarios of a moving vehicle, showing directional movement and collision markers with checkmarks.

Technical drawing of two mechanical components with hatched areas indicating material sections (no text or symbols)

Installer la hotte (Evacuation):

650mm 750mm

Line drawing of a kitchen interior layout with appliances and fixtures, no text or symbols present

REMARQUES:

Technical diagram showing the installation of a kitchen fan with internal components and a magnified view of the interior space.

Diagram showing a device panel with grid layout and a hand holding a blank sheet, illustrating assembly or status change.

Montage

Technical diagram showing assembly steps of a device with labeled components and a magnified inset view highlighting the internal structure.

REMARQUES:

Four black-and-white icons: power button, sun, wind turbine, and solar panel (no text or symbols)

Bouton d'arrêt

Simple rectangular outline with rounded corners, no text or symbols present

AVERTISSEMENT:

Technical diagram showing a device's internal structure before and after installation, with an inset view of a person inspecting the component.

Technical line drawing of a mechanical assembly inside a rectangular frame, showing internal components and mounting holes (no text or symbols)

LED cover

Technical diagram showing a device interior with labeled components and a magnified view of the interior mechanism.

QR code image with a central logo, likely linking to a digital resource or website.

QR code image with a central logo, likely linking to a digital resource or website.

ciarra

Make life easier

Estimado cliente:

QR code image with a central logo, likely linking to a digital resource or website.

QR code image with a central logo, likely linking to a digital resource or website.

ciarra

Make life easier

Geachte klant:

QR code image with a central logo, likely linking to a digital resource or website.

QR code image with a central logo, likely linking to a digital resource or website.

ciarra

Make life easier

Kära kund:

QR code image with a central logo, likely linking to a digital resource or website.

QR code image with a central logo, likely linking to a digital resource or website.

ciarra

Make life easier

Drogi kliencie:

QR code image with a central logo, likely linking to a digital resource or website.

QR code image with a central logo, likely linking to a digital resource or website.
