B-Lively Double - Stroller BRITAX - Free user manual and instructions

USER MANUAL B-Lively Double BRITAX

B-LIVELY™ Double Stroller

britax

User Guide

Safety Information. 2

Features. 4

In The Box 5

Assembly. 6

Stroller Frame 6
Front Wheels 6
Rear Wheels. 7
Installing the Canopies. 8

Operation. 9

Using the Stroller 9
Reclining the Seat 10
Using the Parking Brake 11
Using the Front Wheel Swivel Lock 11
Canopy Vent 12
Using the Harness 12

Securing Your Child. 14

Care and Maintenance. 15

Warranty. 16

BRITAX® and B-LIVELY™ are trademarks owned by Britax Child Safety, Inc. All rights reserved.

©2018 Britax Child Safety, Inc. This product and its components are subject to change without notice.

P11174900_A:09.18

Safety Information

WARNING!

Failure to follow all warnings and instructions could result in SERIOUS INJURY or DEATH.

Read these instructions carefully before using this product. To ensure proper use, store this user guide in a convenient place so it can be consulted often.

• Never leave child unattended.
• Do not use stroller with a child taller than 44 inches (111.8 cm) in each seat.
• Do not use stroller with a child who weighs more than 50 lbs (22.7 kg) in each seat. Exceeding this limit may cause stroller to become unstable.
• Avoid serious injury from falling or sliding out. Always use harness to secure child.
• Avoid finger entrapment or injury. Always ensure any child occupants or bystanders are away from the stroller while folding or unfolding.
• Stroller appropriate from birth, however, Britax recommends use only with a child that has head and neck control.
• Do not overload basket - Maximum weight in basket is 10 lbs (4.5kg) . Overloading the basket may cause the stroller to become unstable and tip over.
• Do not overload the hood storage pocket - Maximum weight in each storage pocket is 1 lb (0.45 kg). Overloading the storage pocket may cause the stroller to become unstable and tip over.

• Do not attach parcels, bags, or other items to the handlebar or frame of stroller except those recommended by Britax, as stroller can become unstable and tip over.

• Always make certain that the stroller is fully open and locked before use.
  Assembly of this stroller must be performed only by an adult.
  Only use Britax approved accessories and replacement parts with this stroller.

• Do not allow children to climb on or play with the stroller.
• Do not use the stroller on stairs, escalators, moving vehicles, or steep inclines. Stroller can tip over.
• Stroller is intended for walking speed only. Do not use while jogging, skating, or any activity other than walking.
• Always set the parking brake when stroller is not moving. Never load or unload the stroller without the parking brake set.
• Do not park on inclines. The parking brake is intended to park the stroller on flat surfaces only. Parking on inclines may result in tip over or runaway stroller.
• Do not exceed the manufacturer's maximum weight limit when using an infant car seat with this product. See infant car seat user guide for maximum occupant weight and other instructions.
• All infant car seats MUST be installed rear facing.
• Do not modify the stroller or any labels. Doing so voids the warranty and could lead to a dangerous condition.
• Failure to regularly inspect this product and its components to make sure they are in good condition and good working order can result in injury. Discontinue use of stroller if damaged or any parts are missing.

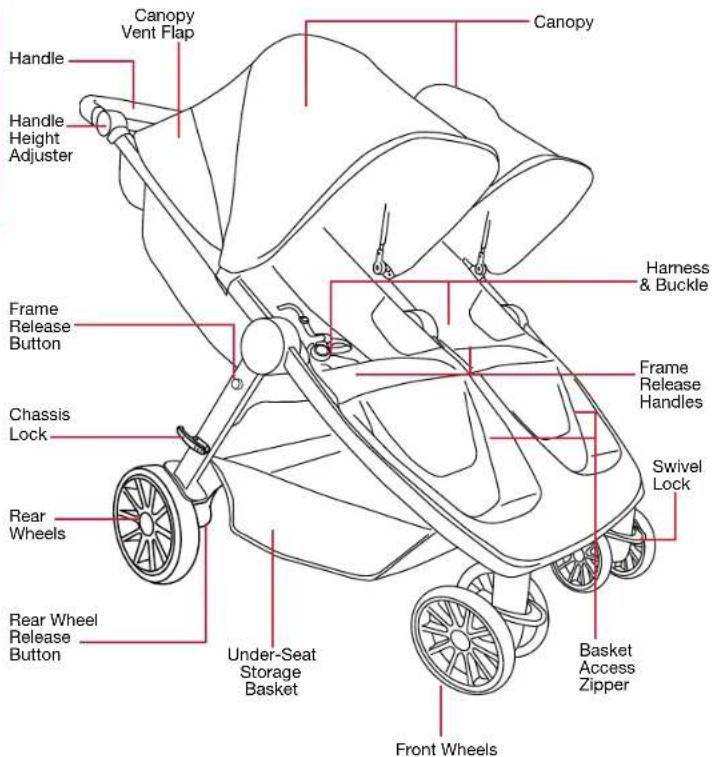

Features

Actual product may vary from images. Actual product may vary from images.

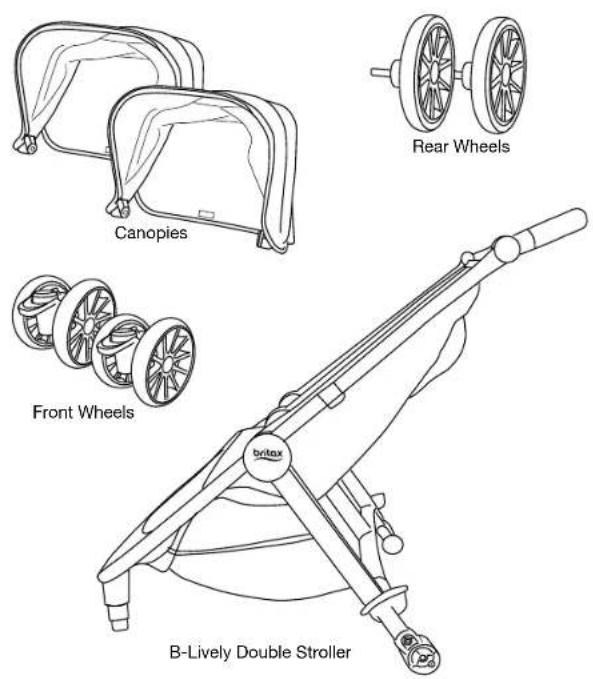

In The Box

Assembly

Stroller Frame

1. Push the release on the chassis lock and open the frame.

1. Lift handle until frame locks into upright position.

NOTE: After stroller is upright, push down on handle to make sure frame is locked in open position.

Front Wheels

Installing the Front Wheels

1. Slide the front wheel assemblies onto the mounting posts at the front of the stroller.

IMPORTANT: Ensure the arrow on the front wheel assembly is pointing up.

1. Pull each wheel to ensure that it is secure.

Removing the Front Wheels

1. Press the release buttons at the bottom of the wheel assembly and pull away from the stroller.

Rear Wheels

Installing the Real Wheels

1. Slide the rear wheel axle into the rear wheel hub mounting bracket until it locks into place.
2. Pull wheel to ensure that it is secure.

Removing the Rear Wheels

1. Pull and hold the release lever at the bottom of the rear wheel hub while pulling the rear wheel away from the stroller.

Installing the Canopies

1. Place the canopy stay bracket over the mounting pin on the side of the stroller frame and rotate until the canopy stay bracket locks into place.
   NOTE: There is a left and a right canopy. Install each canopy so that the canopy brackets face the outside of the stroller frame.
2. Snap the outer support strap to the frame on the outside of the stroller handle, and tighten the support strap by connecting it to the hook and loop fastener under the canopy flap.
3. Insert the inner support strap through the slot at the center of the stroller handlebar. Tighten the support strap by connecting them to the hook and loop fasteners under the canopy flap.
4. Attach the hook and loop fasteners around the outer edge of the canopy and hood to the stroller.
5. Repeat for the canopy on the other side.

Operation

Using the Stroller

Folding the Stroller

IMPORTANT: Always apply brake and remove children before folding the stroller.

1. Press the frame release button.

NOTE: Do not continue to hold the frame release button once pressed.

1. Remove your hand from hinge area and lift both frame release straps in the middle of the seat until the stroller collapses and the chassis lock engages, if used.

Unfolding the Stroller

1. Push the release on the chassis lock, if used, and open the frame.

1. Lift handle until frame locks into upright position.

Reclining the Seat

1. To recline, pull the recline adjuster release lever and slide it away from the seat.

1. To raise, pull both straps apart.

NOTE: Each seat reclines independently.

Using the Parking Brake

1. Press the brake pedal down to lock the brake. Ensure the wheels are locked by attempting to move the stroller.

NOTE: Pressing the brake locks both back wheels.

1. Lift the brake pedal to release the brake.

Using the Front Wheel Swivel Lock

1. Press the swivel lock levers down to lock each of the front wheels.
2. Lift the swivel lock levers to allow each of the front wheels to swivel.

Canopy Vent

1. Fold the canopy vent forward to access additional ventilation.

Using the Harness

IMPORTANT: Shoulder and waist straps separate for care and maintenance, but should always be used together to secure your child.

1. Align the tongues on the waist straps with the retainers of the shoulder straps and slide through until they lock into place.
2. Insert the tongues into the buckle assembly until a click is heard.

Adjusting the Harness

IMPORTANT: The harness can be adjusted to three different heights. Always ensure proper adjustment at or above your child's shoulders.

1. Pull the harness strap retainer away from the seat back and turn 90 degrees to feed it through the harness slot.

1. Push the harness retainer through the appropriate harness slot to the back of the seat.

1. Turn the harness retainer to its original position as shown so it properly retains the harness.

Securing Your Child

1. Release the harness by depressing the button in the center of the buckle while pulling the two tongues away from the buckle assembly.
2. Fasten the harness by inserting the tongues on the harness straps into the buckle assembly.
3. Tighten or loosen the harness straps by sliding the harness adjusters.

Care and Maintenance

IMPORTANT: Before each use, check the stroller and its components to make sure they are in good condition and good working order.

Parking Brake

Periodically check that the parking brake works properly and locks both wheels securely.
- Clean out any dirt or debris that may prevent the brake from working.

Frame - Wipe the frame with a damp cloth and mild soap. Use clean, dry cloth or towel to wipe away excess water and soap.

Fabric and Harness

• Do not machine wash or dry the cover.
• Hand wash with cold water and mild soap. Air dry to prevent shrinking.
• Do not iron.

Plastic Parts

• Wipe with a damp cloth and mild soap. Use a clean, dry cloth or towel to wipe away excess water and soap.
• Do not use abrasives, solvents, strong detergents, or household cleaners. These products can scratch, discolor, and weaken plastic or cause corrosion on metal surfaces.

Maintenance - If the stroller gets wet, wipe with a clean cloth or towel to prevent corrosion

• Do not fold the stroller when wet or damp. Always make sure that the stroller is dry before storing.

Storage - To prevent damage to plastic parts, store away from extreme heat.

• Cover the stroller to prevent dust build-up and exposure to sunlight.
• Do not stack other items on top of the stroller.

Warranty

This product is distributed by Britax Child Safety, Inc. ("Britax"). To the extent allowed by law, Britax warrants this product to the original retail purchaser as follows:

Limited Two-Year Warranty

This product is warranted against defective materials or workmanship for two years from the date of original purchase. Proof of purchase is required. Your exclusive remedy for this warranty is that Britax will, at its option, provide repair or replacement components to the original purchaser for this product or replace the product. Britax reserves the right to discontinue or change fabrics, parts, models or products, or to make substitutions. Labor and shipping costs for returns are not included. Britax products purchased from unauthorized retailers, online auction sites, or as second hand items are not covered under warranty.

To make a claim under this Warranty, you must contact Britax Customer Services Department at 1-888-427-4829 or 704-409-1699 or write to 4140 Pleasant Road, Fort Mill, SC 29708. Proof of purchase is required.

PLEASE COMPLETE AND MAIL THE REGISTRATION CARD WITHIN 30 DAYS OF PURCHASE

You may also register online at us.britax.com/registration.

Warranty Limitations

This warranty does not include damages which arise from negligence, misuse, salt corrosion, or use not in accordance with the user guide.

The use of non-Britax accessories is not approved by Britax. The use of unapproved accessories could cause this product to become damaged or dangerous. Their use may void the Britax warranty.

Limitations of Damages

The warranty and remedies as set forth above are exclusive and in lieu of all others, oral or written, express or implied. In no event will Britax or the retailer selling this product be liable for any damages, including incidental or consequential damages, arising out of the use or inability to use this product.

Limitations of Warranties and Other Warranty Terms and State Law Rights

Any implied warranties, including implied warranties of merchantability and fitness for a particular purpose, shall be limited to the duration and terms of the express written warranty. Some states do not allow certain exclusions or limitations on warranties, so the above may not apply to you. This warranty gives you specific legal rights, and you may have other rights, which vary from state to state. Neither Britain, nor the retailer selling this product, authorizes any person to create for it any other warranty, obligation, or liability in connection with this product.
