USER MANUAL B-Free BRITAX

Illustration of a baby stroller with mesh backrest and wheels, no text or symbols present

User Guide

Safety Information......2

Features......4

In The Box ....5

Assembly....6

Stroller Frame....6

Front Wheel....6

Rear Wheels....7

Canopy....8

Operation....9

Using the Stroller 9

Adjusting the Seat....10

Using the Front Basket Access 11

Adjusting the Handlebar 11

Using the Parking Brake 12

Using the Front Wheel Swivel Lock 12

Removing the Seat Liner....12

Using the Harness 14

Securing Your Child......16

Infant Car Seat Mode ....17

Using the Infant Car Seat Receivers....17

Using a Britax Infant Car Seat ....19

Care and Maintenance....20

Warranty 21

B-FREE™, Britax®, and Click & Go™ are trademarks owned by Britax and registered in the U.S.A., and other countries. All rights reserved. ©2022 Britax Child Safety, Inc. This product and its components are subject to change without notice. P05636200_D:11.22

Safety Information

WARNING!

Failure to follow all warnings and instructions could result in SERIOUS INJURY or DEATH.

Read these instructions carefully before using this product. To ensure proper use, store this user guide in a convenient place so it can be consulted often.

• Never leave child unattended.
- Avoid serious injury from falling or sliding out. Always use harness to secure child.
- Avoid finger entrapment or injury. Always ensure any child occupants or bystanders are away from the stroller while folding or unfolding.
- Stroller appropriate to use from birth, however, Britax recommends using an infant car seat until child has head and neck control.
- Do not use stroller with a child taller than 45 inches (114.3 cm).
- Do not use stroller with a child who weighs more than 65 lbs (29.4 kg). Exceeding this limit may cause stroller to become unstable.
- Do not overload basket – Maximum weight in basket is 10 lbs (4.5 kg). Overloading the basket may cause the stroller to become unstable.
- Do not overload the hood storage pocket - Maximum weight in storage pockets is 1 lb (0.45 kg). Overloading the storage pocket may cause the stroller to become unstable.
- Do not hang or place items on the stroller handle or frame except for those approved by Britax. They may cause an unstable or hazardous condition to exist.

• Always make certain that the stroller is fully open and locked before use.
• Assembly of this stroller must be performed only by an adult.
• Only use Britax approved child restraints, car seats, accessories and replacement parts with this stroller.
• Do not allow children to climb on or play with the stroller.
• Never use stroller on stairs or escalators.
• Stroller is intended for walking speed only. Do not use while jogging, skating, etc.
  • Always set the parking brake when stroller is not moving.
• Do not exceed the manufacturer's maximum weight limit when using an infant car seat with this product. See infant car seat user guide for maximum occupant weight and other instructions.
• All infant car seats MUST be installed rear facing.

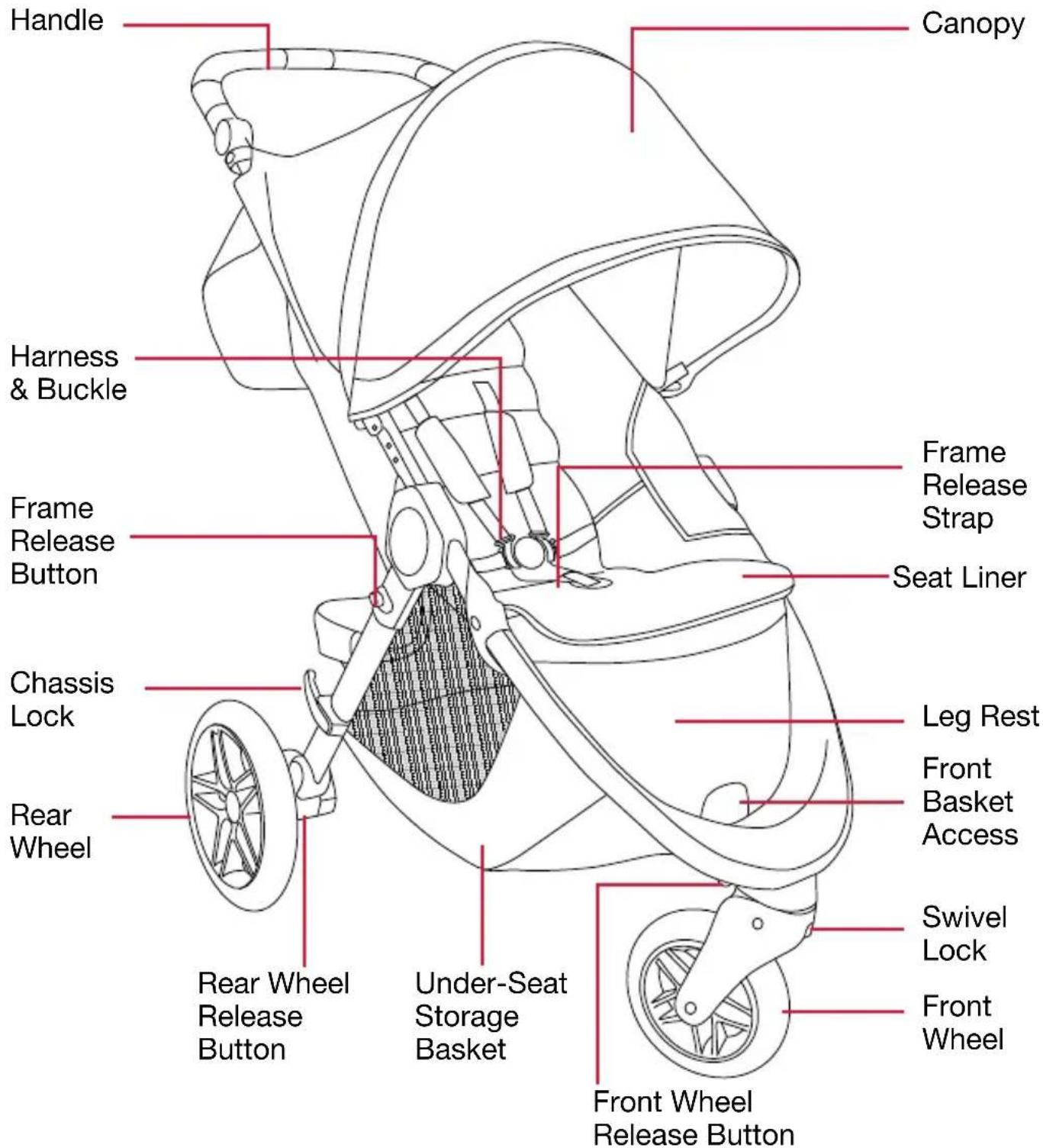

Features

Handle Canopy Harness & Buckle Frame Release Button Frame Release Strap Seat Liner Chassis Lock Leg Rest Rear Wheel Front Basket Access Rear Wheel Release Button Under-Seat Storage Basket Swivel Lock Front Wheel Front Wheel Release Button

Actual product may vary from images.

In The Box

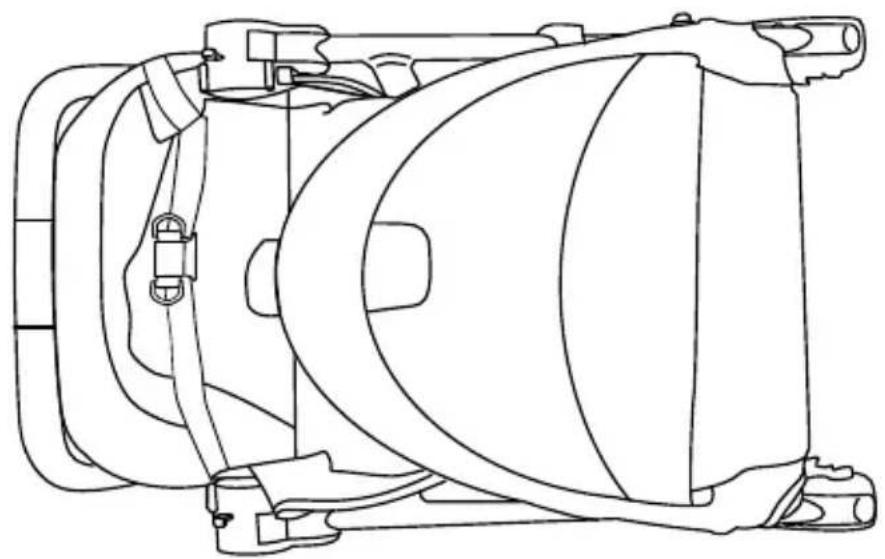

B-FREE Stroller

Technical line drawing of a mechanical component with no visible text or symbols

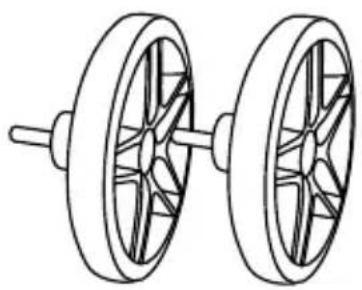

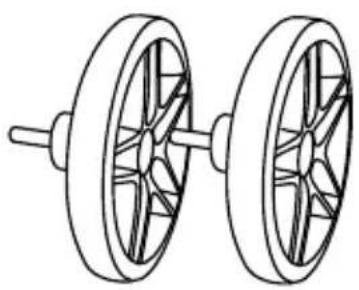

Rear Wheels

Technical line drawing of two wheels with spokes, no text or symbols present

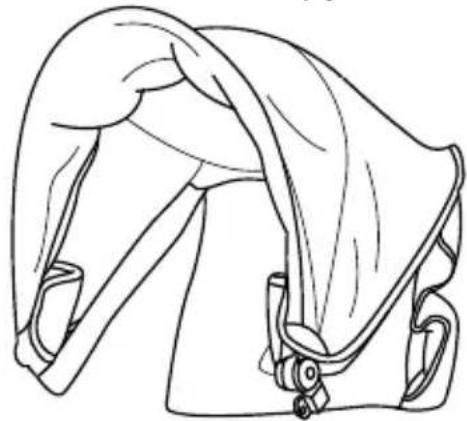

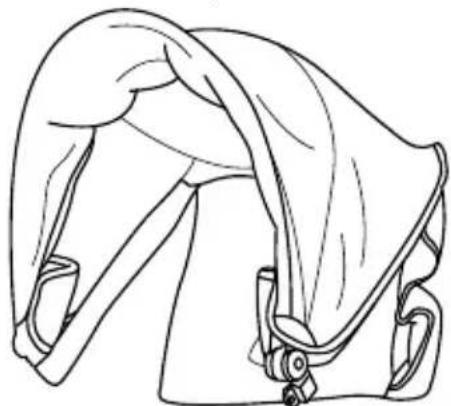

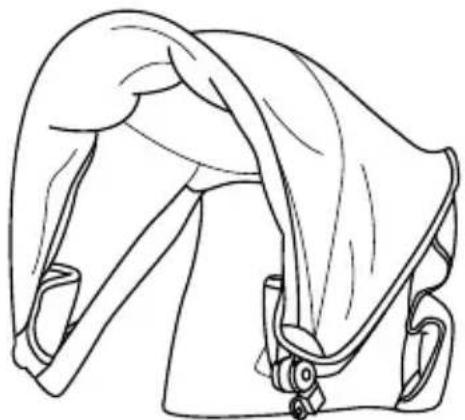

Canopy

Line drawing of a garment sleeve with straps and shoulder clips (no text or symbols)

Infant Car Seat Click & Go ReceiversFront Whee

Line drawing of a two-wheel with a wheel and handle (no text or symbols)

Two identical line drawings of a funnel-shaped object with labeled parts L and R (no text or symbols beyond labels)

Actual product may vary from images.

Assembly

Stroller Frame

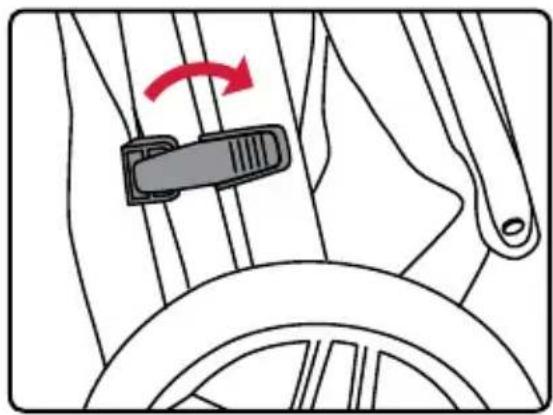

1. Push the release on the chassis lock and open the frame.

Diagram of a car's seatbelt mechanism showing a red arrow indicating clockwise motion (no text or symbols present)

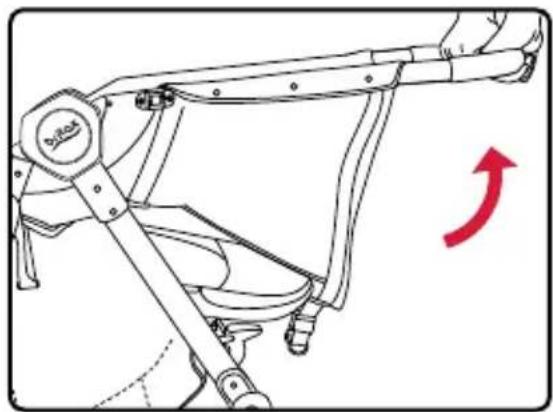

1. Lift handle until frame locks into upright position.

Line drawing of a bicycle seatbelt mechanism with a red arrow indicating rotation (no text or symbols)

Front Wheel

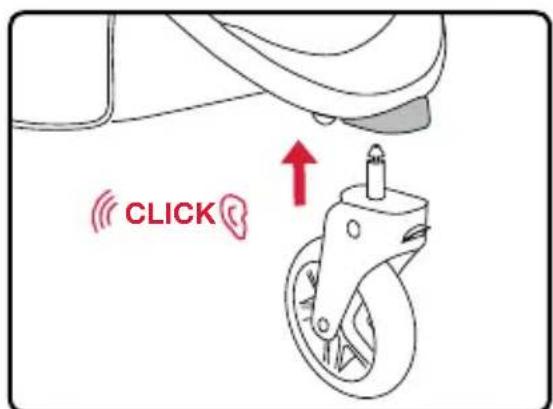

Installing the Front Wheel

1. Slide the front wheel assembly onto the mounting post at the front of the stroller.

2. Pull wheel to ensure that it is secure.

CLICK

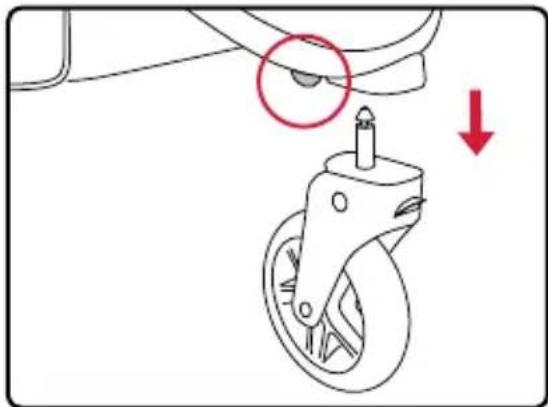

Removing the Front Wheel

1. Press the wheel release button on the front right side of the stroller frame and pull the wheel away from the stroller.

Diagram of a car wheel with a red circle highlighting a specific component, showing no text or symbols.

Rear Wheels

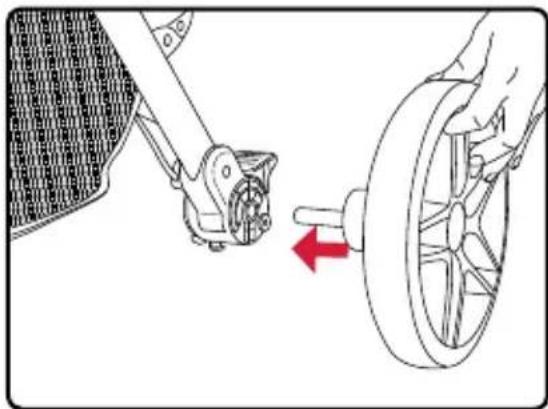

Installing the Real Wheels

1. Slide the rear wheel axle into the rear wheel hub mounting bracket until it locks into place.

2. Pull wheel to ensure that it is secure.

Diagram showing a hand operating a bicycle wheel with a red arrow indicating the wheel's direction (no text or symbols present)

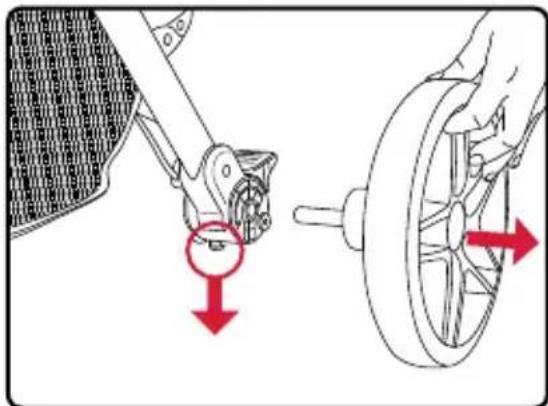

Removing the Rear Wheels

1. Pull and hold the release lever at the bottom of the rear wheel hub while pulling the rear wheel away from the stroller.

Diagram showing bicycle wheel and steering wheel assembly with red directional arrows indicating motion or force vectors

Canopy

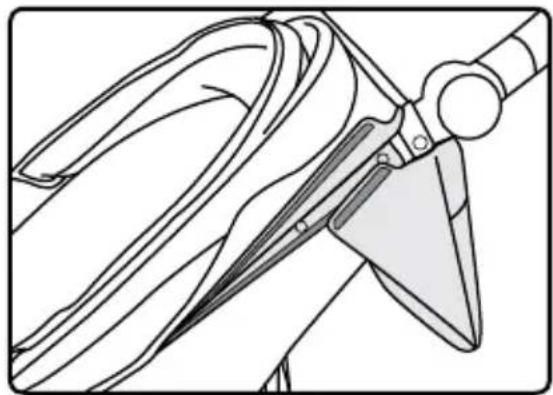

1. Slide the canopy stay brackets into the stroller frame mounts until they lock into place.

Mechanical assembly diagram showing a hand operating a robotic arm with red arrows indicating motion (no text or symbols present)

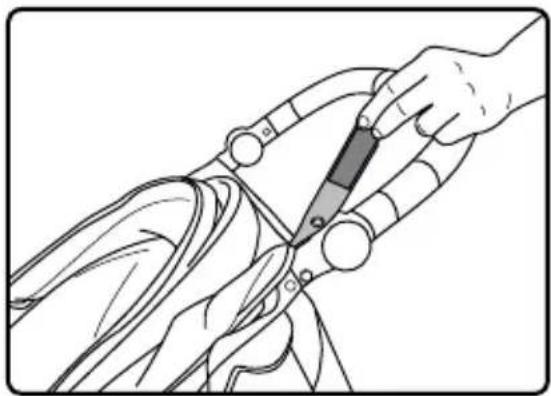

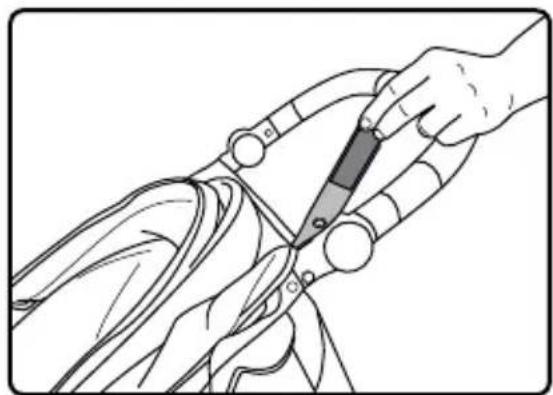

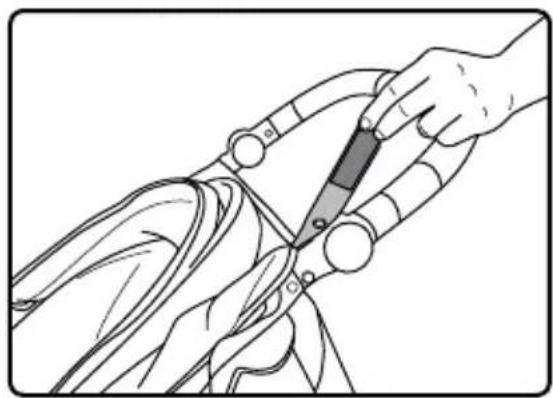

1. Snap the support straps to the frame just below the stroller handle and secure them using the hook and loop fasteners on the inside of the canopy.

Line drawing of hands using a tool to cut fabric or fabric (no text or symbols)

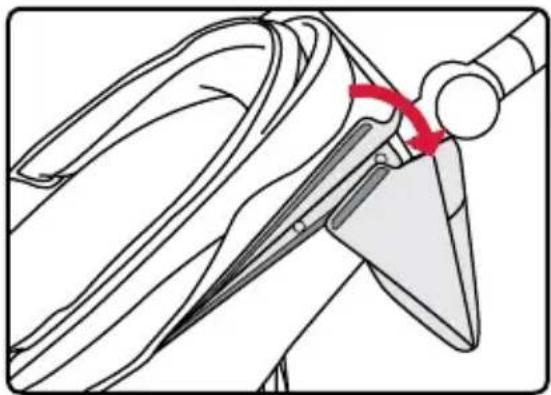

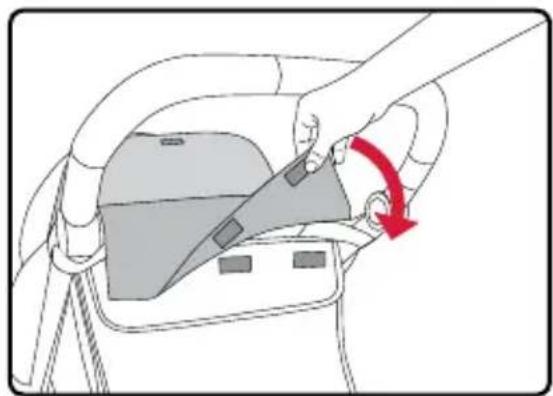

1. Drape the inner canopy flap over the back of the stroller and secure the hook and loop fasteners to the stroller. Drape the outer canopy back flap over the inner canopy flap.

Illustration of a hand adjusting a car seatbelt with a red arrow indicating rotation (no text or symbols)

1. Attach the side of back flap to the hook and loop fasteners to the side of the stroller, then attach the hook and loop fasteners along each outside edge of the canopy to the stroller frame.

Illustration of a sewing machine needle with a red arrow indicating the angle (no text or symbols present)

Operation

Using the Stroller

Folding the Stroller

IMPORTANT: Always apply brake and remove children before folding the stroller.

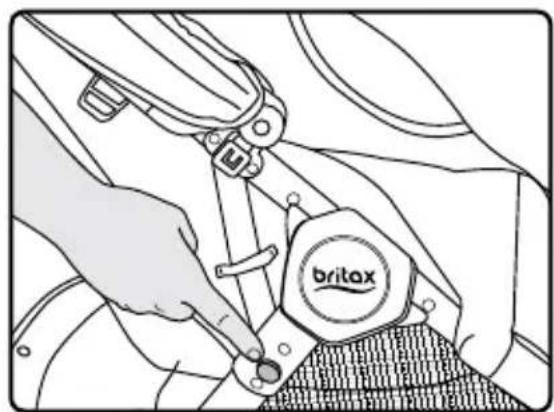

1. Press the frame release button.

NOTE: Do not continue to hold the frame release button once pressed.

Illustration of a hand adjusting a Britax seatbelt buckle (no text or symbols present)

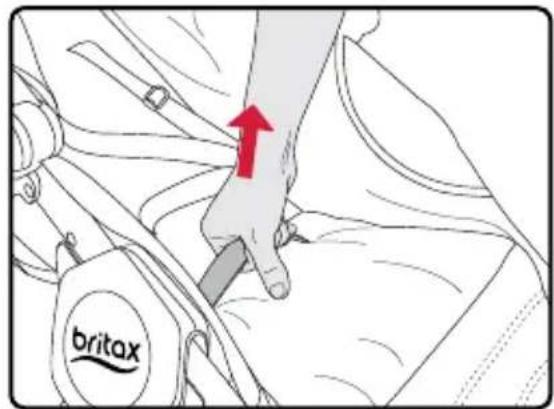

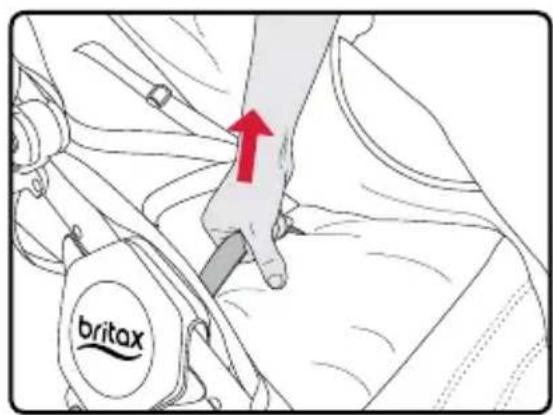

1. Remove your hand from stroller frame and hinge area and lift the frame release strap in the middle of the seat until the stroller collapses. Push stroller closed to engage chassis lock. A click will be heard.

britax

Unfolding the Stroller

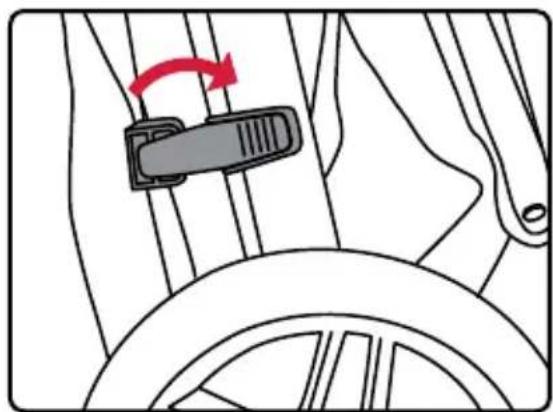

1. Push the release on the chassis lock and open the frame.

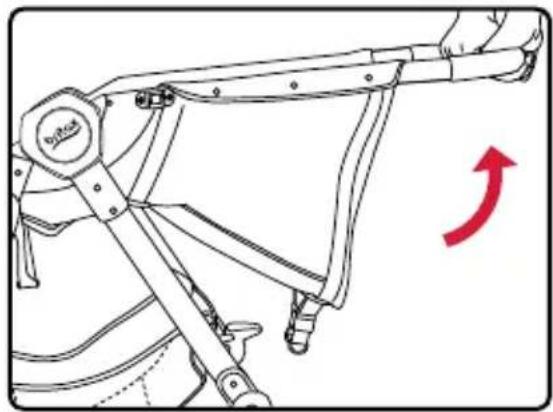

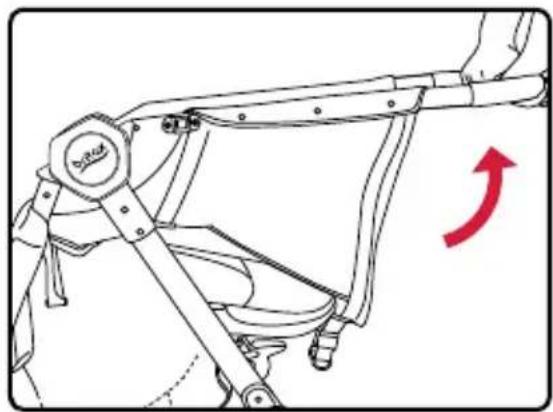

2. Lift the handle until frame locks into upright position.

Diagram of a car's seatbelt mechanism with red arrow indicating rotation (no text or symbols)

Technical line drawing of a bicycle seat assembly with a red arrow indicating direction (no text or symbols)

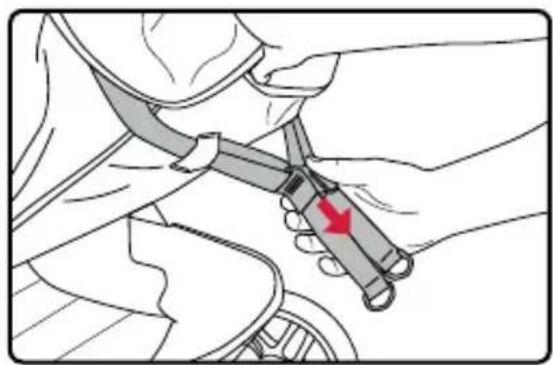

Adjusting the Seat

1. To recline, pull the recline adjuster release lever and slide it away from the seat.

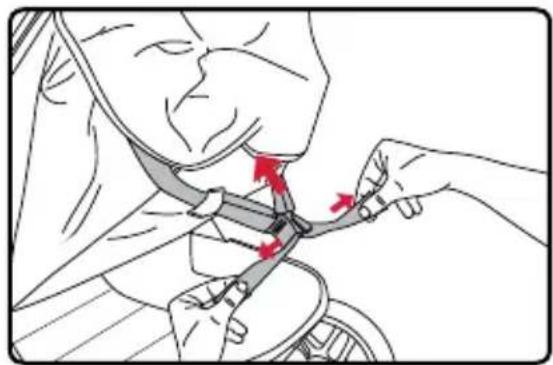

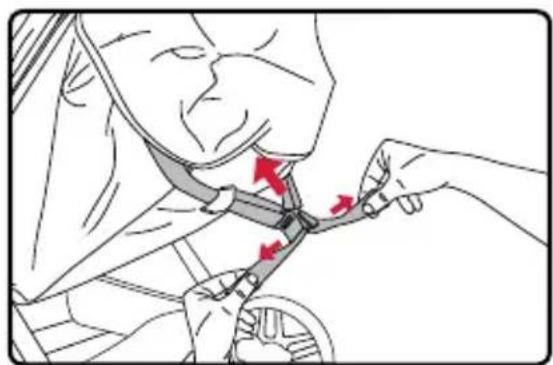

2. To raise, pull both straps apart.

Illustration of a car seatbelt being adjusted for a hand, showing a red arrow indicating the adjustment (no text or symbols present)

Illustration of a person adjusting a car seatbelt with red arrows indicating movement (no text or symbols present)

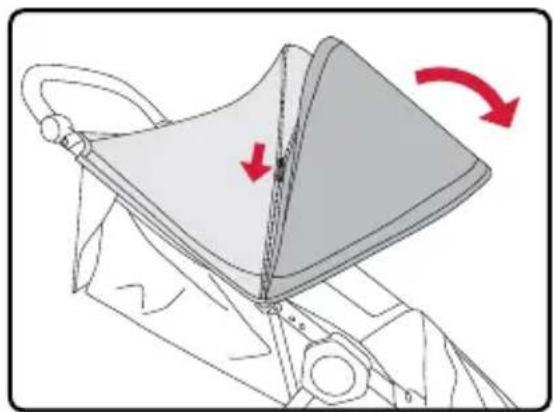

Extending the Canopy

1. Unzip the canopy to extend over the front of the stroller.

Diagram of a mechanical device with a folded top and arrow indicating rotation (no text or symbols)

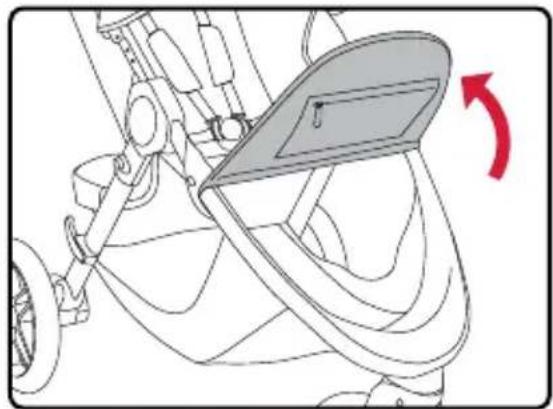

Using the Front Basket Access

1. Pull up on the leg rest to access the zippered storage pocket and under-seat storage basket from the front of the stroller.

NOTE: The leg rest will only stay open if flipped all the way up. Leg rest is not intended to be used as an adjustable leg rest.

Diagram of a stroller with a seatbelt mechanism, showing motion direction (no text or symbols)

1. Push the leg rest down to close.

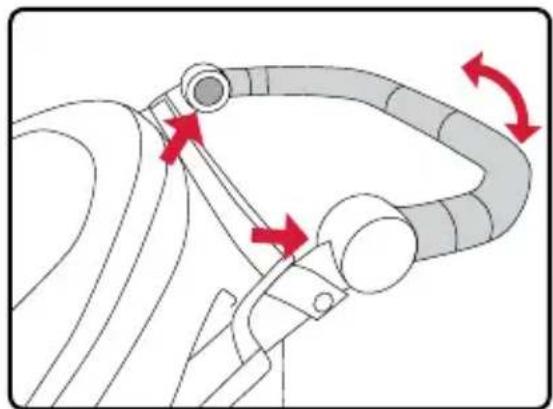

Adjusting the Handlebar

1. Press the two release buttons on the inside of the handle assembly and hold while raising or lowering the handle to the desired position.

Diagram of a mechanical linkage or lever mechanism with red arrows indicating motion direction (no text or symbols)

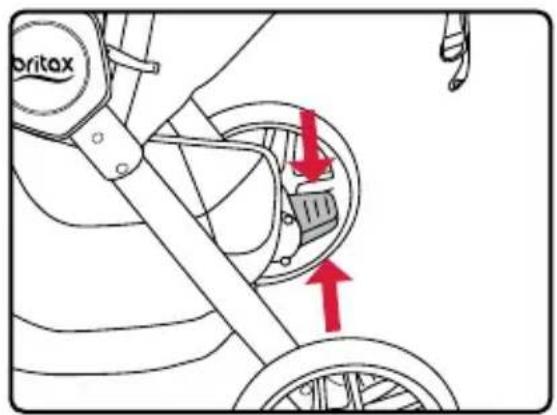

Using the Parking Brake

1. Press the brake pedal down to lock the brake.

NOTE: Pressing the brake locks both back wheels.

1. Lift the brake pedal to release the brake.

britax

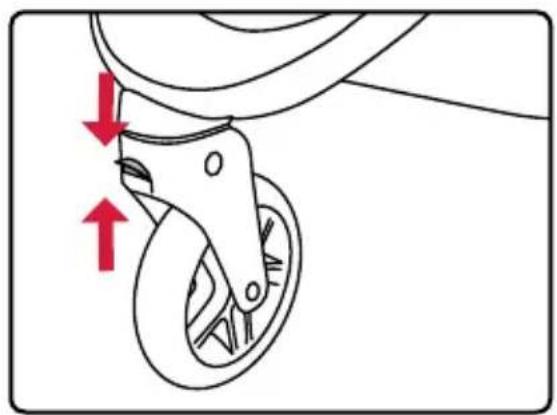

Using the Front Wheel Swivel Lock

1. Push the swivel lock switch fully up to lock the front wheel.
2. Press the swivel lock switch fully down to allow the wheel to swivel.

Illustration of a bicycle steering wheel with red directional arrows indicating motion (no text or symbols)

Removing the Seat Liner

*THIS SECTION ONLY APPLIES TO CERTAIN MODELS. PLEASE VISIT US.BRITAX.COM/FAQS FOR A FULL LIST OF MODEL NUMBERS WHERE THE SEAT LINER CAN BE REMOVED.

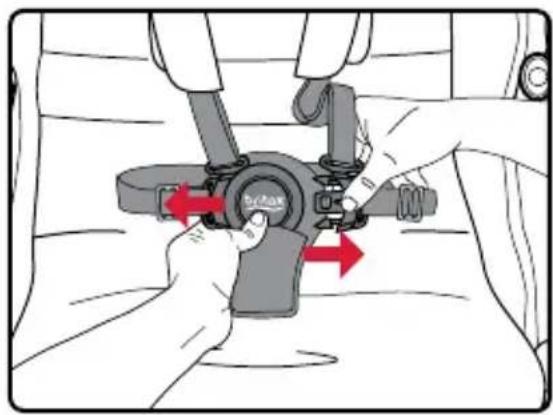

1. Open the harness by pressing the button in the center of the buckle while pulling tongues away from the buckle assembly.

Mechanical assembly diagram showing a hand operating a brake shift lever with red directional arrows indicating motion (no text or symbols present)

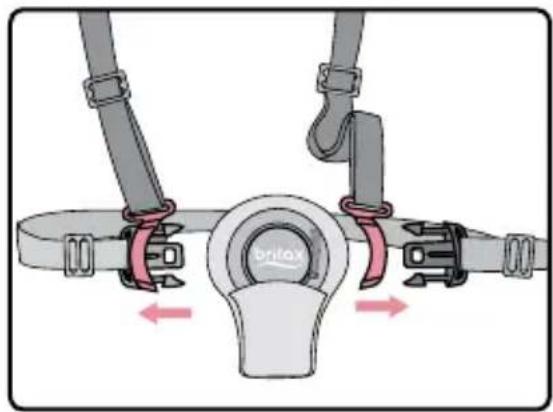

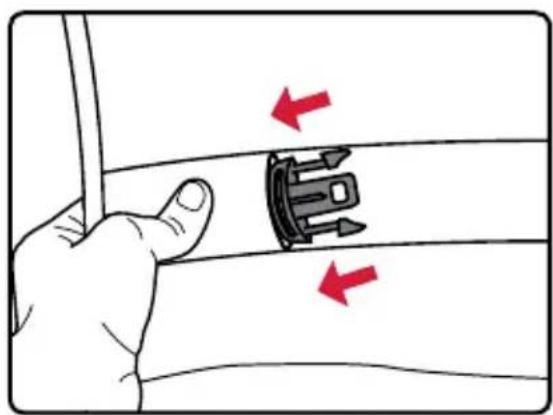

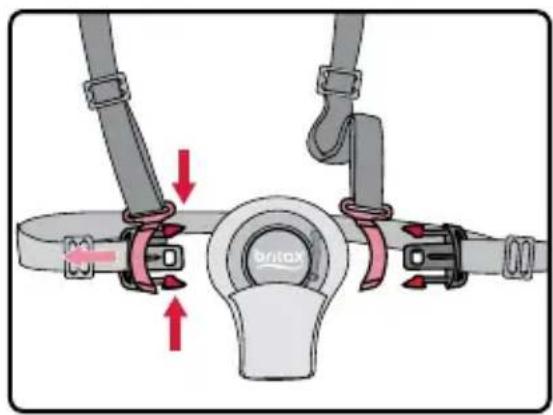

1. Pinch the waist strap tongues while you separate them from the shoulder strap.

Check BROX

1. Pull out the shoulder pads, waist straps, and belly pad and buckle.

2. Remove the seat liner.

Hand holding a connector with red directional arrows indicating movement or force (no text or symbols)

Reinstall the Seat Liner

*THIS SECTION ONLY APPLIES TO CERTAIN MODELS. PLEASE VISIT US.BRITAX.COM/FAQS FOR A FULL LIST OF MODEL NUMBERS WHERE THE SEAT LINER CAN BE REMOVED.

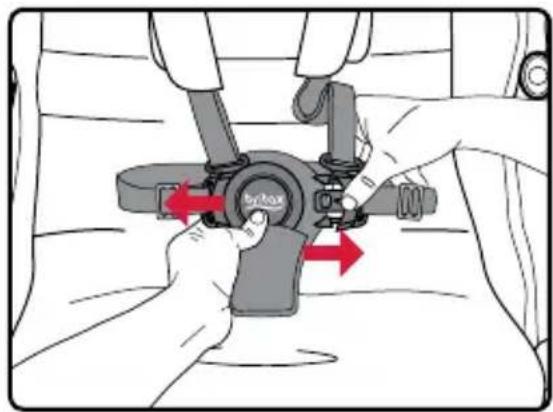

1. Open the harness by pressing the button in the center of the buckle while pulling the tongues away from the buckle assembly.

Diagram showing a mechanical assembly with labeled components and red directional arrows indicating motion or force directions.

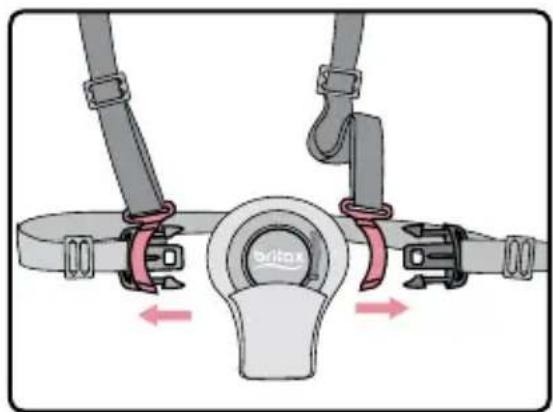

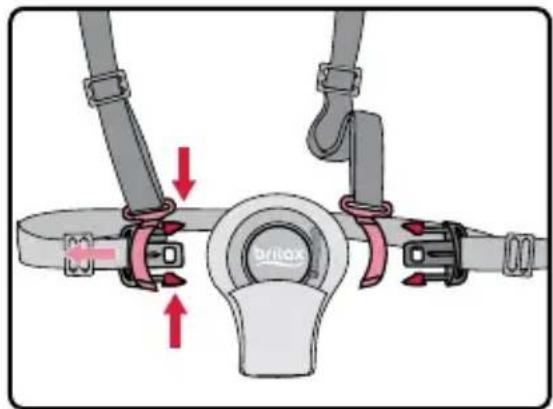

1. Pinch the waist strap tongues while you separate them from the shoulder strap.

Diagram illustrating a brake buckle assembly with labeled components and red directional arrows indicating motion or movement.

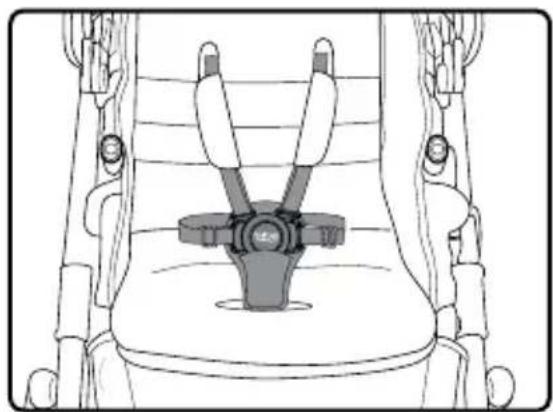

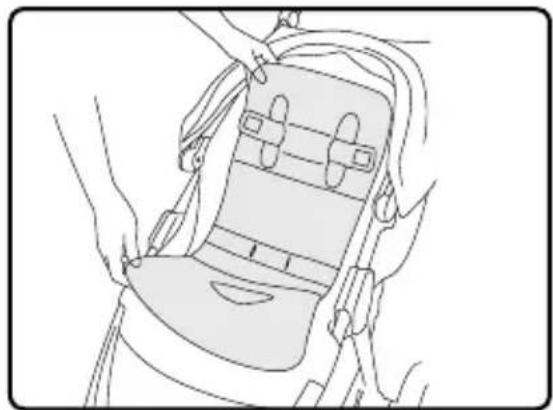

1. Place liner on the seat aligning its openings with the respective straps.

Line drawing of a person using a backpack to adjust the seat area (no text or symbols)

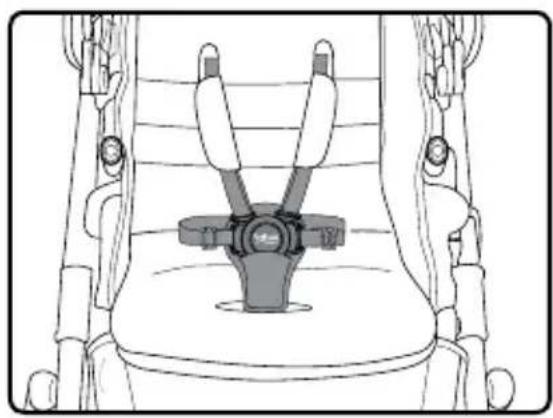

1. Route the shoulder straps through the openings at or above the child's shoulder.

2. Push the waist straps through the middle slots in the liner.

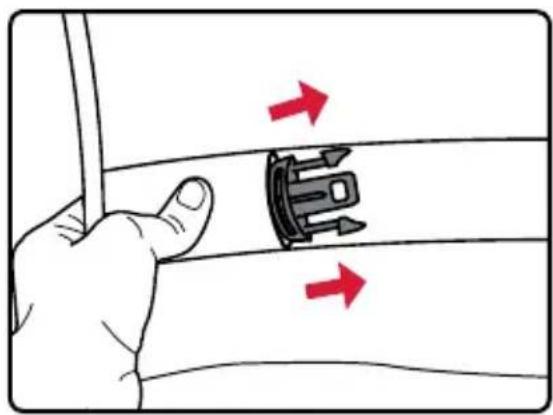

3. Align the waist strap tongues with the shoulder strap retainers and slide through until they click locking into place.

4. Route belly pad and buckle through the lower opening in the liner.

Illustration of a hand holding a connector with red arrows indicating direction (no text or symbols)

Diagram of a Britta bicycle seatbelt mechanism showing rope and belt drive assembly (no text or symbols)

Technical line drawing of a mechanical assembly with no visible text or symbols

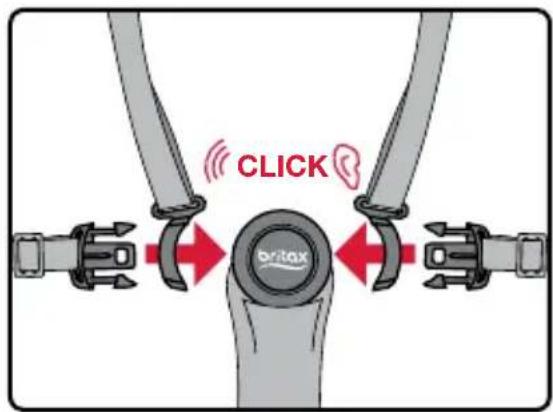

Using the Harness

IMPORTANT: Shoulder and waist straps separate for care and maintenance, but should always be used together to secure your child.

1. Align the tongues on the waist straps with the retainers of the shoulder straps and slide through until they lock into place.
2. Insert the tongues into the buckle assembly until a click is heard.

CLICK Britax

Adjusting the Harness Height Manually

IMPORTANT: The harness can be adjusted to three different heights. Always ensure proper adjustment at or above your child's shoulders.

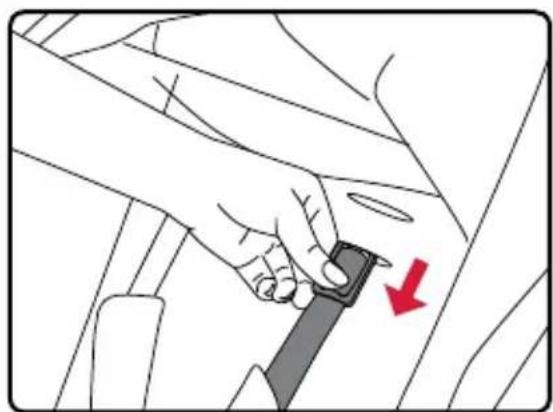

1. Pull the harness strap retainer away from the seat back and turn 90 degrees to feed it through the harness slot.

Illustration of a hand adjusting a car seatbelt with a red arrow indicating the down-left corner (no text or symbols present)

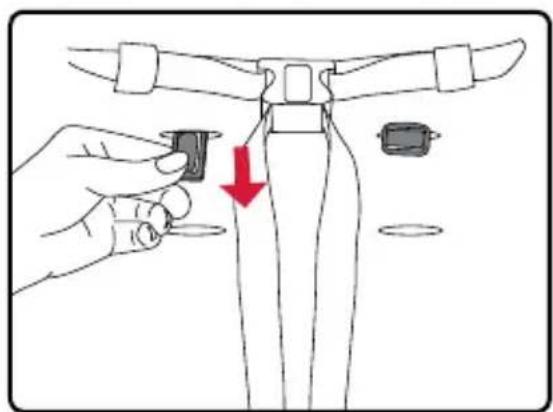

1. Push the harness retainer through the appropriate harness slot to the back of the seat.

Illustration of a hand holding a small object with a red arrow pointing to a mechanical component (no text or symbols)

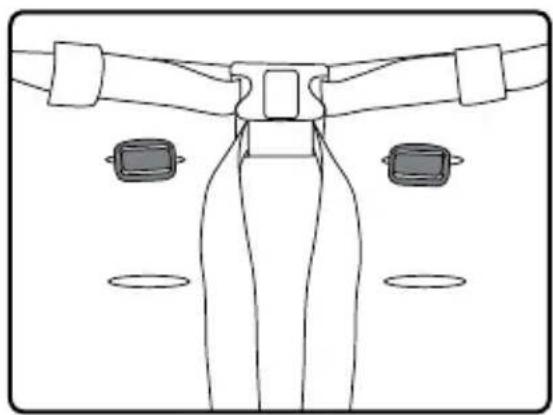

1. Turn the harness retainer to its original position as shown so it properly retains the harness.

Line drawing of a mechanical component with two circular features and three horizontal arms (no text or symbols)

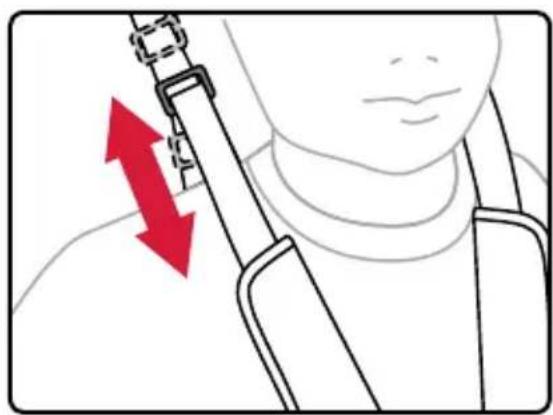

Adjusting the Harness Height with No-Rethread Feature

*THIS SECTION ONLY APPLIES TO CERTAIN MODELS. PLEASE VISIT US.BRITAX.COM/FAQS FOR A FULL LIST OF MODEL NUMBERS.

1. Slide the Shoulder Strap Height Adjust height of shoulder strap to fit just above child shoulder height.

Illustration of a person holding a medical device with red arrows indicating direction (no text or symbols)

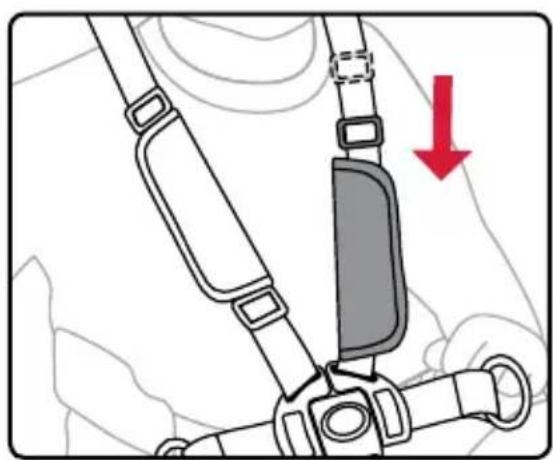

1. Adjust Shoulder Straps Slide comfort pads down for access to buckles. Slide buckle up or down to adjust straps. Seat harness should fit snug and be comfortable.

Mechanical belt buckle assembly diagram showing rope and seat components with a red arrow indicating motion (no text or symbols)

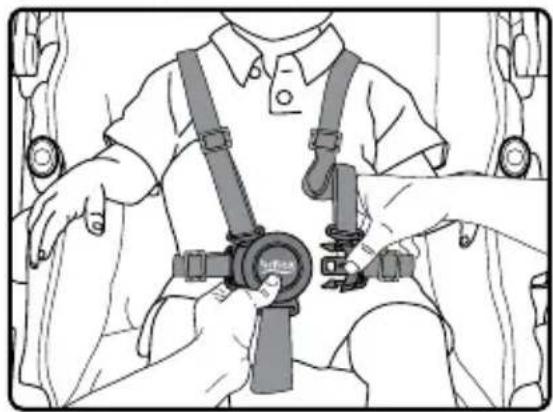

Securing Your Child

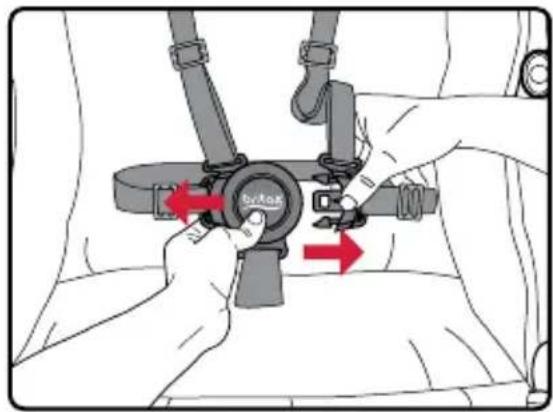

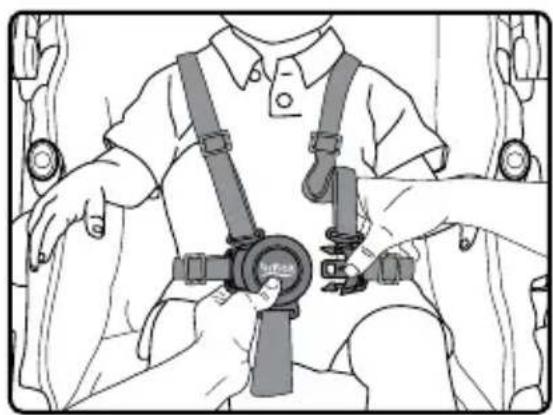

1. Release the harness by depressing the button in the center of the buckle while pulling the two tongues away from the buckle assembly.

2. Fasten the harness by inserting the tongues on the harness straps into the buckle assembly.

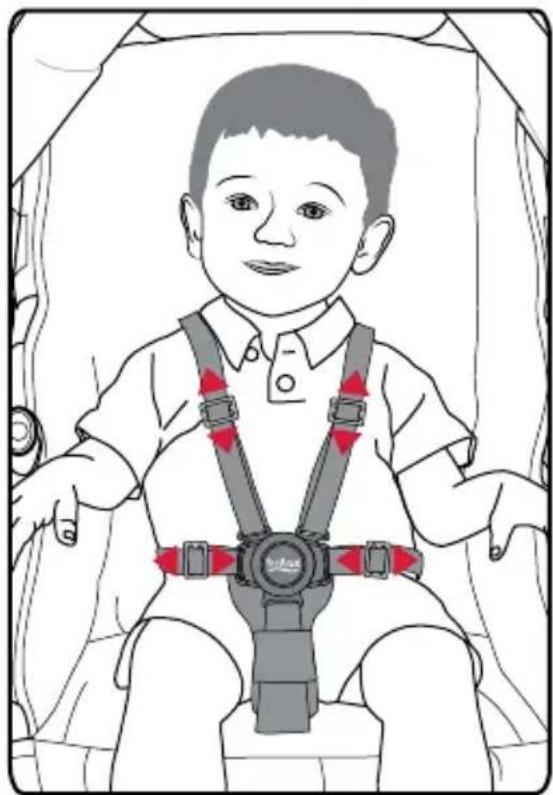

3. Tighten or loosen the harness straps by sliding the harness adjusters.

Diagram showing a person adjusting a brake caliper with red directional arrows indicating motion or force directions.

Line drawing of a person wearing a seatbelt and harness, holding a device with a circular dial (no text or symbols)

Illustration of a child wearing a car seatbelt with red safety belt (no text or symbols)

Infant Car Seat Mode

WARNING!

• All infant car seats MUST be installed rear facing.
• Always remove the infant car seat receivers when not in use. Failure to do so may result in injury.

IMPORTANT: For non-Britax infant car seats, an infant car seat adapter must be used. The adapter is sold separately at select retailers and on us.britax.com.

Using the Infant Car Seat Receivers

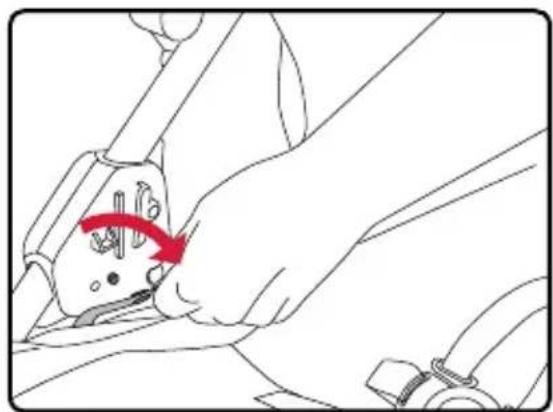

Attaching the Infant Car Seat Receivers

NOTE: Receivers are marked left and right. Attach each from the position of the stroller occupant.

1. Lock the parking brake.

2. Unsnap the stroller seat straps from the frame of the stroller.

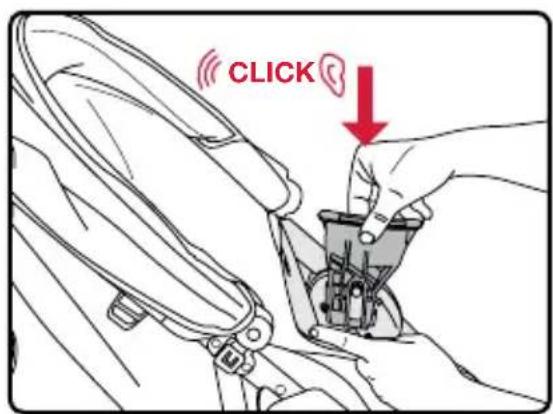

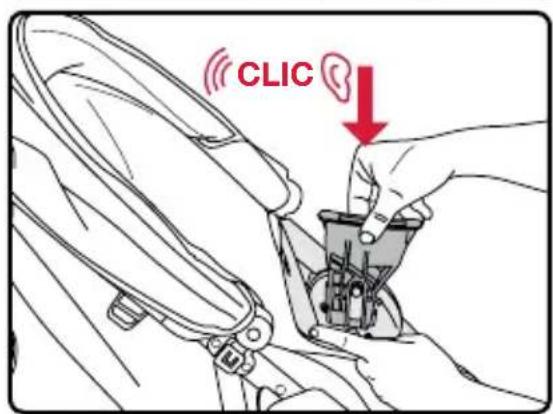

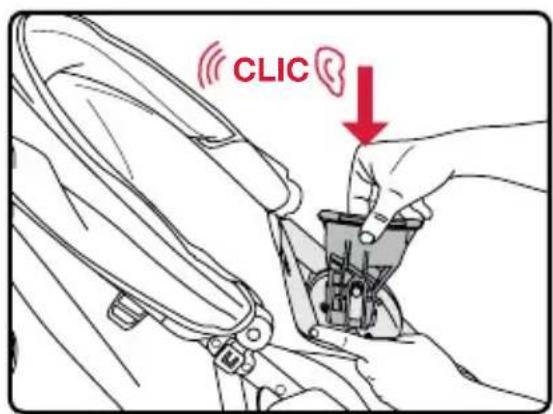

3. Align the receivers with the mounts on the inside frame of the stroller, then push down until a click is heard. Pull up on the receivers to ensure they are secure.

Line drawing of a hand using a tool to adjust or install a car seatbelt, with a red arrow indicating the process (no text or symbols present)

CLICK

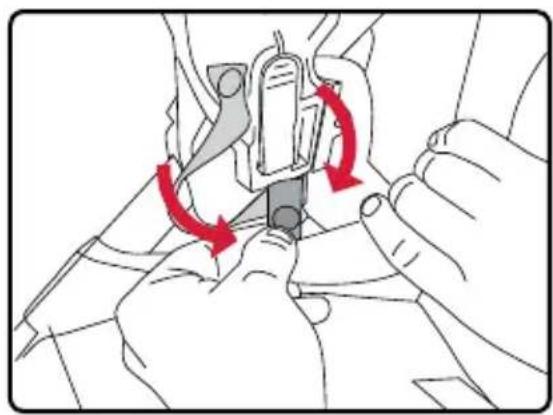

1. Attach the receiver strap snaps to the frame of the stroller, then attach the stroller seat straps to the receiver strap snaps.

Illustration of hands using a tool to adjust or install a mechanical component, with red arrows indicating motion direction (no text or symbols present)

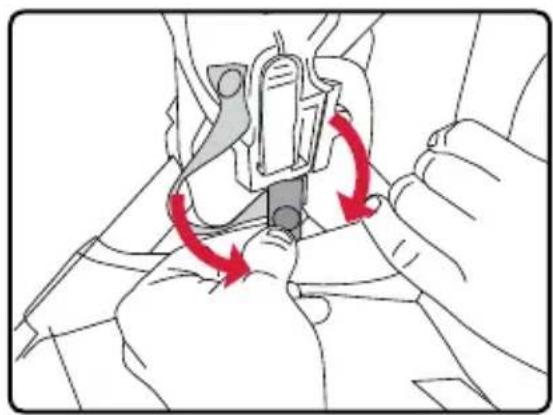

Removing the Infant Car Seat Receivers

1. Unsnap the stroller seat straps from the receiver strap snaps, then unsnap the receiver strap snaps from the frame of the stroller.

Illustration of a mechanical assembly with red arrows indicating motion or force direction (no text or symbols)

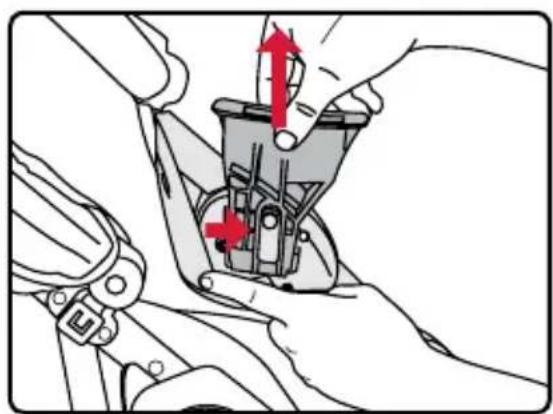

1. Press the button on the receiver and lift upward.

Mechanical assembly diagram showing a belt buckle mechanism with red directional arrows indicating motion (no text or symbols)

1. Reattach the stroller seat strap to the stroller frame.

Using a Britax Infant Car Seat

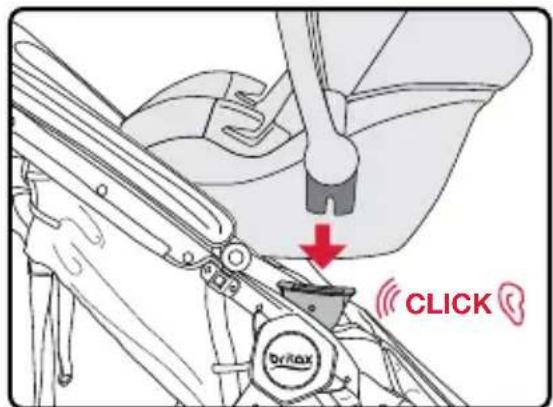

Attaching a Britax Infant Car Seat

1. Set the parking brake.
2. Line up the adapter on the infant car seat with the receivers on the stroller.

CLICK

1. Press down until locked into place.

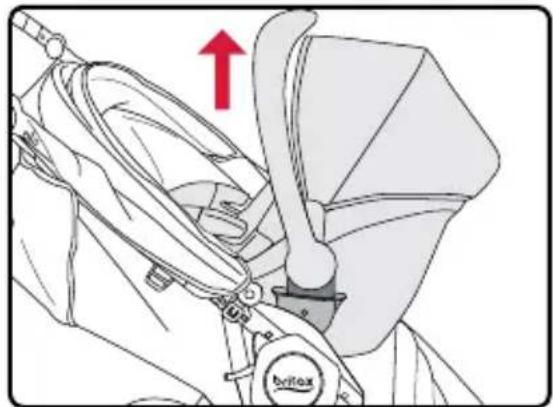

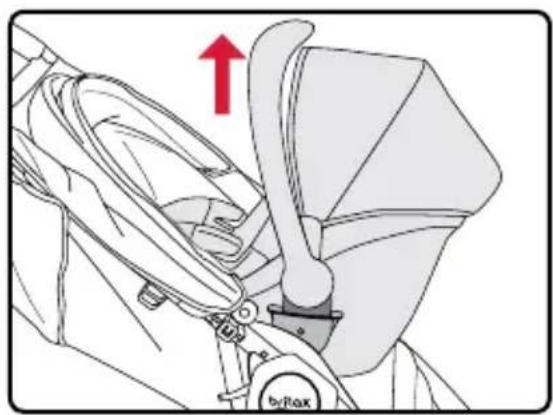

2. Lift up on the infant car seat to ensure that it is secure.

Technical illustration of a belt buckle assembly with a red arrow indicating upward motion (no text or symbols)

Removing a Britax Infant Car Seat

Refer to your infant car seat user guide for information on the removal instructions for your specific model.

Care and Maintenance

Parking Brake	Periodically check that the parking brake works properly and locks both wheels securely.Clean out any dirt or debris that may prevent the brake from working.
Frame • Wipe the frame with a damp cloth and mild soap. Use clean, dry cloth or towel to wipe away excess water and soap.
Fabric and Harness	DO NOT machine wash or dry the cover.Hand wash with cold water and mild soap. Air dry to prevent shrinking.DO NOT iron.
Plastic Parts	Wipe with a damp cloth and mild soap. Use a clean, dry cloth or towel to wipe away excess water and soap.DO NOT use abrasives, solvents, strong detergents, or household cleaners. These products can scratch, discolor, and weaken plastic or cause corrosion on metal surfaces.
Maintenance • If the stroller gets wet, wipe with a clean cloth or towel to prevent corrosion.DO NOT fold the stroller when wet or damp. Always make sure that the stroller is dry before storing.
Storage • To prevent damage to plastic parts, store away from extreme heat.Cover the stroller to prevent dust build-up and exposure to sunlight.DO NOT stack other items on top of the stroller.

Warranty

This product is distributed by Britax Child Safety, Inc. (“Britax”). Britax warrants this product to the original retail purchaser as follows:

Limited Two-Year Warranty

This product is warranted against defective materials or workmanship for two years from the date of original purchase. Proof of purchase is required. Your exclusive remedy for this warranty is that Britax will, at its option, provide repair or replacement components to the original purchaser for this product or replace the product. Britax reserves the right to discontinue or change fabrics, parts, models or products, or to make substitutions. Labor and shipping costs for returns are not included.

To make a claim under this Warranty, you must contact Britax Customer Services Department at 1-888-427-4829 or 704-409-1699 or write to 4140 Pleasant Road, Fort Mill, SC 29708. Proof of purchase is required.

PLEASE COMPLETE AND MAIL THE REGISTRATION CARD WITHIN 30 DAYS OF PURCHASE, OR VISIT US.BRITAX.COM/REGISTRATION.

Warranty Limitations

This warranty does not include damages which arise from negligence, misuse, salt corrosion, or use not in accordance with the user guide.

The use of non-Britax accessories is not approved by Britax. The use of unapproved accessories could cause this product to become damaged or dangerous. Their use may void the Britax warranty.

Limitations of Damages

The warranty and remedies as set forth above are exclusive and in lieu of all others, oral or written, express or implied. In no event will Britax or the retailer selling this product be liable for any damages, including incidental or consequential damages, arising out of the use or inability to use this product.

Limitations of Warranties and Other Warranty Terms and State Law Rights

Any implied warranties, including implied warranties of merchantability and fitness for a particular purpose, shall be limited to the duration and terms of the express written warranty. Some states do not allow limitations on how long an implied warranty lasts or the exclusion or limitation of incidental or consequential damages, so the above limitations may not apply to you. This warranty gives you specific legal rights, and you may have other rights, which vary from state to state. Neither Britax, nor the retailer selling this product, authorizes any person to create for it any other warranty, obligation, or liability in connection with this product.

Table des matières

Technical line drawing of a mechanical component with no visible text or symbols

Roues arrière

Technical line drawing of two wheels with spokes, no text or symbols present

Roue avant

Line drawing of a two-wheeled bicycle wheel with no text or symbols

Capote

Line drawing of a garment sleeve with straps and a zipper (no text or symbols)

Two identical line drawings of a funnel-shaped object with labeled parts (L and R), no text or symbols present.

Diagram of a car seatbelt buckle with a red arrow indicating clockwise motion (no text or symbols)

Line drawing of a bicycle seatbelt mechanism with a red arrow indicating motion direction (no text or symbols)

Roue avant

Diagram of a car wheel with a red circle highlighting a specific component and a downward arrow indicating motion (no text or symbols)

Roues arrières

Diagram showing a hand operating a bicycle wheel with a red arrow indicating the wheel's direction (no text or symbols present)

Diagram illustrating bicycle wheel and steering mechanism with red directional arrows indicating rotation or movement

Capote

Mechanical assembly diagram showing a hand operating a robotic arm with red arrows indicating motion (no text or symbols present)

Line drawing of a hand using a tool to cut or adjust a piece of fabric or cable (no text or symbols present)

Illustration of a car seatbelt being adjusted for a seatbelt, showing a red arrow indicating the angle (no text or symbols present)

Line drawing of a pair of scissors cutting through a metal sheet (no text or symbols)

Opération

Line drawing of a hand adjusting a Britax seatbelt mechanism (no text or symbols present)

britax

Diagram of a car's seatbelt mechanism with red arrow indicating rotation (no text or symbols)

Line drawing of a person using a bicycle seatbelt device with a red arrow indicating motion (no text or symbols)

Ajuster le siège

Illustration of a hand adjusting a bicycle seatbelt with a red arrow indicating the wheel (no text or symbols present)

Illustration of a person using a tool to adjust or install a mechanical component, with red arrows indicating movement (no text or symbols present)

Déployer la capote

Diagram of a mechanical device with a folded top and handle, showing red arrows indicating rotation or movement (no text or symbols present)

Line drawing of a stroller with a seatbelt and directional arrow indicating rotation (no text or symbols)

Ajuster la poignée

Diagram of a mechanical linkage or lever mechanism with red arrows indicating motion direction (no text or symbols)

Diagram of a car wheel with red directional arrows indicating motion or force (no text or symbols)

Mechanical assembly diagram showing hands operating a valve with red directional arrows indicating motion (no text or symbols)

Diagram illustrating a belt drive mechanism with labeled components and directional arrows indicating movement or force.

Hand holding a tool interacting with a connector or socket (no text or symbols visible)

Diagram illustrating a brake buckle assembly with labeled components and directional arrows indicating motion or movement.

Line drawing of a person adjusting a backpack seatbelt (no text or symbols)

Illustration of a hand holding a connector with red arrows indicating direction (no text or symbols)

Diagram of a Britpa bicycle seatbelt mechanism showing rope and belt drive (no text or symbols)

Technical line drawing of a mechanical assembly with no visible text or symbols

Utiliser le harnais

Line drawing of a car seatbelt being adjusted for a person's seatbelt, with a red arrow indicating the angle (no text or symbols present)

Illustration of a hand adjusting a mechanical component with a red arrow indicating a downward motion (no text or symbols present)

Diagram of a mechanical assembly with two belt belts and two circular components (no text or symbols)

Illustration of a person holding a medical device with a red arrow indicating direction (no text or symbols)

Mechanical belt buckle assembly diagram showing rope routing and seatbelt mechanism (no text or symbols)

Diagram showing a car seatbelt mechanism with red directional arrows indicating movement or force directions.

Line drawing of a person wearing a seatbelt and harness, holding a device with no visible text or symbols

Illustration of a child wearing a seatbelt with red safety belt (no text or symbols)

Line drawing of a hand using a tool to adjust or install a car seatbelt, with a red arrow indicating the process (no text or symbols present)

CLIC

Illustration of hands using a tool to adjust or install a mechanical component, with red arrows indicating motion direction (no text or symbols present)

Illustration of a person using a tool to adjust or install a mechanical component, with red arrows indicating motion direction (no text or symbols present)

Mechanical assembly diagram showing a belt drive mechanism with red arrows indicating force direction (no text or labels)

Mechanical assembly diagram showing a lever and gear mechanism with a red arrow indicating motion (no text or symbols present)

Line drawing of a car seatbelt with a red upward arrow indicating direction (no text or symbols)

Technical line drawing of a mechanical component with no visible text or symbols

Ruedas traseras

Technical line drawing of two wheels with spokes, no text or symbols present

Rueda delantera

Line drawing of a two-wheel with wheels and a handle (no text or symbols)

Capota

Line drawing of a garment sleeve with straps and a collar (no text or symbols)

Two identical mechanical funnel designs with labeled ports L and R (no text or symbols beyond labels)

Diagram of a car seatbelt buckle with a red arrow indicating clockwise motion (no text or symbols)

Line drawing of a person using a bicycle seatbelt device with a red arrow indicating motion direction (no text or symbols)

Rueda delantera

Instalar la rueda delantera

Diagram of a car wheel with a red circle highlighting a specific component, showing no text or symbols.

Ruedas traseras

Diagram showing a bicycle wheel being adjusted to a car's steering wheel, with a red arrow indicating the motion direction (no text or symbols present)

Mechanical diagram showing a bicycle suspension system with red arrows indicating force or motion direction (no text or symbols present)

Capota

Mechanical assembly diagram showing a hand operating a robotic arm with a red arrow indicating motion (no text or symbols present)

Line drawing of a hand using scissors to cut fabric or cable, no text or symbols present

Illustration of a hand adjusting a car seatbelt with a red arrow indicating rotation (no text or symbols)

Line drawing of a mechanical tool or cutting tool with a handle and blade (no text or symbols)

Utilización

Line drawing of a hand adjusting a Britax seatbelt on a vehicle (no text or symbols)

Diagram of a car's seatbelt mechanism with red arrow indicating rotation (no text or symbols)

Line drawing of a bicycle seatbelt mechanism with a red arrow indicating motion direction (no text or symbols)

Ajuste del asiento

Illustration of a bicycle seatbelt buckle being adjusted for a hand, showing no text or symbols

Illustration of a person's seatbelt with red arrows indicating movement or pressure points (no text or symbols present)

Diagram of a mechanical device with a folded top and handle, showing red arrows indicating rotation or movement (no text or symbols present)

Line drawing of a stroller with a seatbelt and directional arrow indicating rotation (no text or symbols)

Diagram of a mechanical linkage or lever mechanism with red arrows indicating motion direction (no text or symbols)

Illustration of a bicycle steering wheel with red directional arrows indicating motion (no text or symbols)

Mechanical assembly diagram showing a belt drive mechanism with red directional arrows indicating motion (no text or symbols present)

Hand holding a connector with red directional arrows indicating movement or force (no text or symbols)

Line drawing of a person's seatbelt device with hands adjusting the seat (no text or symbols)

Hand holding a connector with red directional arrows indicating movement or force (no text or symbols)

Mechanical diagram showing a belt buckle assembly with red arrows indicating motion direction (no text or symbols)

Technical line drawing of a mechanical component with no visible text or symbols

Line drawing of a hand adjusting a car seatbelt with a red arrow indicating the down-left corner (no text or symbols present)

Illustration of a hand adjusting a mechanical component with a red arrow indicating downward motion (no text or symbols)

Line drawing of a mechanical component with four circular features, no text or symbols present

Illustration of a person holding a medical device with a red arrow indicating upward motion (no text or symbols)

Mechanical belt buckle assembly diagram showing rope and seat components with a red arrow indicating motion (no text or symbols)

Sujeción del niño

Diagram showing a car seatbelt mechanism with red directional arrows indicating rotation or movement.

Line drawing of a person wearing a seatbelt and harness, holding a car seatbelt (no text or symbols present)

Illustration of a child wearing a seatbelt and harness, with red arrows indicating seatbelt placement (no text or symbols)

Line drawing of a hand using a tool to adjust or install a mechanical component, with a red arrow indicating the motion direction (no text or symbols present)

CLIC

Illustration of hands assembling a mechanical component with red arrows indicating motion (no text or symbols)

Line drawing of a mechanical assembly with red arrows indicating motion or force direction (no text or symbols)

Mechanical assembly diagram showing a belt buckle with red directional arrows indicating force or movement (no text or symbols present)

CLIC Br/Box

Diagram of a car seatbelt mechanism with a red upward arrow indicating motion (no text or symbols present)

Britax Child Safety, Inc.

4140 Pleasant Road

Fort Mill, SC 29708

USA

A Britax Childcare

Group Limited company

Tel.: [phone]

Tel.: [phone]

www.Britax.com
