USER MANUAL B-Ready Second Seat BRITAX

Line drawing of a baby stroller with wheels and seat, no text or symbols present

User Guide

Safety Information......2

Features......4

Assembly....5

Mud Guards 5

Basket....6

Attaching the Second Seat....7

Removing the Second Seat 8

Operating Instructions....8

Second Seat Recline 8

Folding Stroller with Second Seat....9

Adjusting the Second Seat Harness....10

Second Seat with Infant Car Seat....11

Securing Your Child....12

Care and Maintenance....13

Warranty 14

B-READY®, BRITAX®, and Click & Go™, are trademarks owned by Britax and registered in the U.S.A. and other countries. All rights reserved. ©2016 Britax Child Safety, Inc. This product and its components are subject to change without notice. P03983400_A:03.16

Safety Information

WARNING!

Failure to follow all warnings and instructions could result in SERIOUS INJURY or DEATH.

Read these instructions carefully before using this product. To ensure proper use, store this user guide in a convenient place so it can be consulted often.

General Warnings

• Never leave child unattended.
• Avoid serious injury from falling or sliding out. Always use harness to secure child.
• Avoid finger entrapment or injury. Always ensure any child occupants or bystanders are away from the stroller while folding or unfolding.
• Always make certain that the stroller is fully open and locked before use.
  • Always set the parking brake when stroller is not moving.
• Do not hang or place items on the stroller handle or frame except for those approved by BRITAX. They may cause an unstable or hazardous condition to exist.
• Only use BRITAX approved child restraints, car seats, accessories and replacement parts with this stroller.
• Do not overload basket – Maximum weight in basket is 4.5 kg (10 lbs). Overloading the basket may cause the stroller to become unstable.
• Do not allow children to climb on or play with the stroller.
• Never use stroller on stairs or escalators.
• Stroller is intended for walking speed only. Do not use while jogging, skating, etc.

Second Seat Warnings

• Do not use second seat with a child who weighs more than 15.9 kg (35 lbs). Exceeding this limit may cause stroller to become unstable.
• Do not use extension adapters with the top seat.
• Never place heavy items in the underseat storage basket while a child is occupying the second seat.
• Do not allow child to climb into the second seat unassisted. Stroller could become unstable and tip.

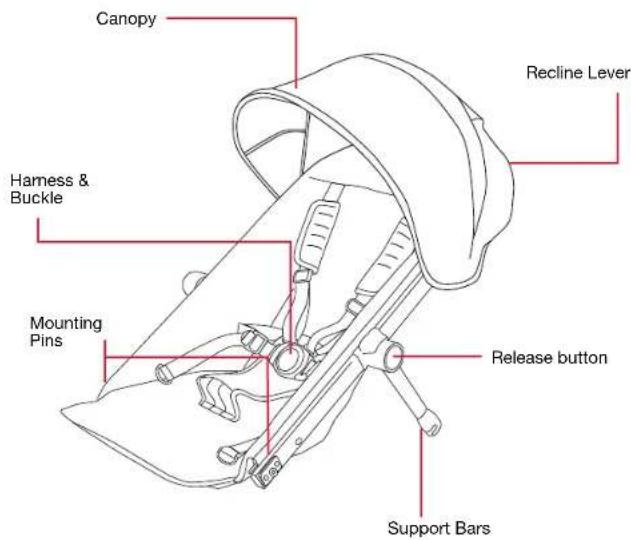

Features

Canopy Harness & Buckle Mounting Pins Recline Lever Release button Support Bars

Actual product may vary from images.

Assembly

Mud Guards

Installing the Mud Guards

1. Press and hold the release button in the center of the wheel and pull away from the wheel housing.

Diagram of a bicycle suspension system with red arrows indicating motion direction (no text or symbols)

1. Slide the mud guard onto the mounting bracket above each rear wheel housing until it locks into place.

Diagram showing a hand operating a car tire with a red arrow indicating motion (no text or symbols present)

1. Replace the rear wheel and repeat on the other side.

Mechanical assembly diagram showing a belt drive mechanism with red arrows indicating direction (no text or symbols)

Basket

1. Slide the hook on each side of the storage basket out of their slots on the stroller frame.

Line drawing of hands operating a mechanical device with rollers and a ruler (no text or symbols)

1. Push the back of the under-seat storage basket inside out and fold within the stroller frame.

Line drawing of a person using a mechanical device to adjust or install a component (no text or symbols visible)

NOTE: The back of the storage basket can be unzipped and removed instead of folded for more leg room.

Line drawing of a hand adjusting a car seatbelt, with a red arrow indicating the angle (no text or symbols present)

Attaching the Second Seat

1. Line up the support bars on the second seat with the mounting brackets on the inside of the frame.

Mechanical assembly diagram showing a lever mechanism with a red arrow pointing to a component (no text or labels visible)

1. Slide the mounting pins into mounting bracket on the stroller.

Diagram showing a car being inserted into a vehicle component with a red arrow indicating the direction (no text or symbols present)

1. Press down until it is locked into place.

Mechanical diagram showing a wheel and gear assembly with a red arrow indicating motion direction (no text or labels)

Removing the Second Seat

1. Press the left button on the rear frame and then press and hold the right release button while lifting upward on the seat.

2. Press the release button on the stroller frame and lift up on the second seat to remove it.

Line drawing of a mechanical assembly with gears and levers (no text or symbols)

Mechanical assembly diagram showing hands operating a component with red arrows indicating motion (no text or symbols)

Operating Instructions

Second Seat Recline

1. Lift the recline lever at the top of the seat and raise or lower the seat into one of the four recline positions.

Illustration of a hand operating a car with red arrows indicating motion direction (no text or symbols)

Folding Stroller with Second Seat

1. Recline the second seat to its lowest position and fold back the canopy.

Illustration of a hand holding a bicycle with a red arrow indicating motion (no text or symbols)

1. Push the seat folding lever and press the second seat down until it lies flat.

Mechanical assembly diagram showing a bracket and valve mechanism with red arrows indicating specific components (no text or labels present)

1. Fold stroller (see stroller user guide if necessary). NOTE: You may need to compress the frame to engage the chassis lock.

Line drawing of a hand holding a small object near a vehicle (no text or symbols)

Adjusting the Second Seat Harness Second Seat with Infant Car Seat

1. Open the hook and loop fasteners at the top of the comfort pads to access the harness strap retainer adjuster.

Illustration of a hand adjusting a seatbelt with a red arrow indicating the angle (no text or symbols present)

1. Slide the harness strap retainer adjuster up or down to the proper height.

NOTE: Adjusted harness height should be at or above the shoulders of the child.

Illustration of a hand holding a medical device with a red arrow indicating direction (no text or symbols)

1. Close the hook and look fasteners and repeat for the other side.

2. Attach the extension adapters to the frame by lining up the Click & Go connectors with the Click & Go receivers and pressing down until they lock into place.

Illustration of hands using a tool to adjust or install a mechanical component, with no visible text or symbols.

1. Attach the fabric guard by connecting the zippers around each side of the frame and securing the elastic bands around the frame hinge bolt.

Diagram of a fabric or mesh structure with directional arrows indicating movement (no text or symbols)

1. Attach top infant car seat by lining up the Click & Go connectors with the extension adapter receivers and pressing down until they lock into place.

NOTE: Infant car seat can be either forward facing or rear facing.

Diagram of a mechanical device with a red arrow indicating force or direction (no text or symbols)

Securing Your Child

1. Release the harness by depressing the button in the center of the buckle while pulling the two tongues away from the buckle assembly.

2. Sit your child in the second seat and position the harness straps around the child.

3. Buckle the harness by pressing the tongues on the harness straps into the buckle assembly.

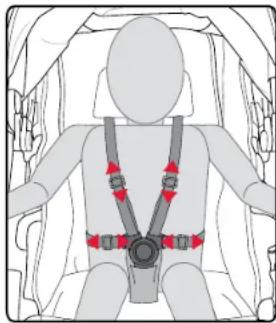

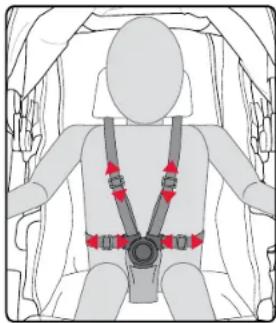

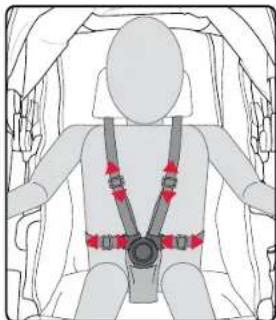

4. Tighten or loosen the harness straps by sliding the harness adjusters.

NOTE: Ensure the straps are not twisted as they may become uncomfortable for the child.

Diagram showing a mechanical device with red arrows indicating directional movement or force, likely illustrating a motion or assembly process.

Mechanical assembly diagram showing hands operating a belt buckle (no text or labels visible)

Top-down view of a person wearing a car seatbelt with red safety harnesses (no text or symbols visible)

Care and Maintenance

Frame

Fabric and Harness

Canopy

Plastic Parts

Storage

- Wipe the frame with a damp cloth and mild soap. Use clean, dry cloth or towel to wipe away excess water and soap.

- Hand wash with cold water and mild soap. Air dry to prevent shrinking.

- Do not machine wash or dry

- Do not iron

- Do not bleach

- Spot clean and air dry.

- Do not machine wash or dry

- Do not iron

- Do not bleach

- Wipe with a damp cloth and mild soap. Use a clean, dry cloth or towel to wipe away excess water and soap.

- Do not use abrasives, solvents, strong detergents, or household cleaners. These products can scratch, discolor, and weaken plastic or cause corrosion on metal surfaces.

- To prevent damage to plastic parts, store away from extreme heat.

- Do not stack other items on top of the stroller.

Warranty

This product is distributed by Britax Child Safety, Inc. ("BRITAX"). BRITAX warrants this product to the original retail purchaser as follows:

Limited Two-Year Warranty

This product is warranted against defective materials or workmanship for two years from the date of original purchase. Proof of purchase is required. Your exclusive remedy for this warranty is that BRITAX will, at its option, provide repair or replacement components to the original purchaser for this product or replace the product. BRITAX reserves the right to discontinue or change fabrics, parts, models or products, or to make substitutions. Labor and shipping costs for returns are not included.

To make a claim under this Warranty, you must contact BRITAX Customer Services Department at 1-888-427-4829, or 1-704-409-1699, or write to us using the address on the back cover of this booklet. Proof of purchase is required.

PLEASE COMPLETE AND MAIL THE REGISTRATION CARD WITHIN 30 DAYS OF PURCHASE, OR VISIT US.BRITAX.COM/.REGISTRATION.

Warranty Limitations

This warranty does not include damages which arise from negligence, misuse, salt corrosion, or use not in accordance with the user guide.

The use of non-BRITAX accessories is not approved by BRITAX. The use of unapproved accessories could cause this product to become damaged or dangerous. Their use may void the BRITAX warranty.

Limitations of Damages

The warranty and remedies as set forth above are exclusive and in lieu of all others, oral or written, express or implied. In no event will BRITAX or the retailer selling this product be liable for any damages, including incidental or consequential damages, arising out of the use or inability to use this product.

Limitations of Warranties and Other Warranty Terms and State Law Rights

Any implied warranties, including implied warranties of merchantability and fitness for a particular purpose, shall be limited to the duration and terms of the express written warranty. Some states do not allow limitations on how long an implied warranty lasts or the exclusion or limitation of incidental or consequential damages, so the above limitations may not apply to you. This warranty gives you specific legal rights, and you may have other rights, which vary from state to state. Neither BRITAX, nor the retailer selling this product, authorizes any person to create for it any other warranty, obligation, or liability in connection with this product.

Table des matières

Diagram of a car wheel assembly with red arrows indicating motion direction (no text or symbols)

Diagram showing hands operating a mechanical component with a red arrow indicating motion (no text or symbols present)

Mechanical assembly diagram showing a wheel and bracket with red arrows indicating motion direction (no text or symbols)

Line drawing of hands operating a mechanical device with a clip (no text or symbols)

Line drawing of a hand using a belt buckle to lift a vehicle (no text or symbols)

Line drawing of a hand adjusting a car wheel (no text or symbols)

Mechanical assembly diagram showing a lever mechanism with a red arrow indicating direction (no text or labels)

Diagram showing a car being inserted into a vehicle chassis, with a red arrow indicating the insertion direction (no text or symbols present)

Mechanical diagram showing a wheel and gear assembly with a red directional arrow (no text or labels)

Line drawing of a mechanical assembly with gears and levers (no text or symbols)

Line drawing of hands operating a mechanical device with a red arrow indicating rotation (no text or symbols)

Illustration of a hand operating a bicycle steering wheel with red directional arrows indicating motion (no text or symbols)

Illustration of a hand holding a bicycle with a red arrow indicating motion (no text or symbols)

Mechanical assembly diagram showing a lever and bracket with red arrows indicating motion or force points (no text or symbols present)

Line drawing of a hand adjusting a seatbelt on a vehicle (no text or symbols)

Illustration of a hand holding a small device with a red circular arrow indicating rotation (no text or symbols)

Illustration of a hand holding a medical device with a red arrow indicating vertical motion (no text or symbols)

Illustration of a mechanical assembly with hands and a red arrow indicating a force or movement (no text or symbols present)

Diagram showing a fabric or mesh structure with directional arrows indicating movement (no text or symbols)

Mechanical assembly diagram showing a hand operating a lever with a red arrow indicating force or motion (no text or symbols present)

Diagram showing car seatbelt adjustment with red arrows indicating left and right motion directions

Mechanical assembly diagram showing belt buckle adjustment with red arrows indicating movement (no text or symbols)

Diagram of a person wearing a seatbelt with red directional arrows indicating movement or force (no text or symbols present)

Soin et entretien

Cadre

Mechanical diagram showing a hand holding a car tire with red arrows indicating motion direction (no text or symbols)

Diagram showing hands operating a car tire with a red arrow indicating motion (no text or symbols present)

Mechanical diagram showing a belt drive mechanism with red arrows indicating motion direction (no text or symbols)

Line drawing of hands using a tool to cut or adjust a mechanical component (no text or symbols visible)

Line drawing of hands installing or adjusting a mechanical component (no text or symbols)

Line drawing of a hand using a tool to adjust or install a vehicle wheel (no text or symbols present)

Mechanical assembly diagram showing a lever mechanism with a red arrow pointing to a component (no text or labels present)

Diagram showing a mechanical component with a red arrow indicating direction (no text or symbols present)

Mechanical diagram showing a wheel and gear assembly with a red arrow indicating motion direction (no text or symbols)

Mechanical assembly diagram showing a lever and wheel assembly (no text or labels)

Mechanical assembly diagram showing a hand holding a component with a red arrow indicating rotation (no text or symbols present)

Operación

Illustration of a hand pulling a bicycle wheel with red arrows indicating motion direction (no text or symbols)

Illustration of a hand holding a bicycle with a red arrow pointing to the handle (no text or symbols present)

Mechanical assembly diagram showing components with red arrows indicating specific parts (no text or labels present)

Line drawing of a hand adjusting a seatbelt on a bicycle (no text or symbols)

Illustration of a hand adjusting a seatbelt with a red arrow indicating rotation (no text or symbols)

Illustration of a hand holding a medical device with a red arrow indicating upward motion (no text or symbols)

Illustration of hands using a tool to adjust or install a mechanical component, with no visible text or symbols.

Diagram of a fabric or mesh structure with directional arrows indicating movement (no text or symbols)

Diagram of a mechanical device with a lever and handle, no text or symbols present

Illustration of a car seatbelt mechanism with hands operating the seatbelt (no text or symbols visible)

Illustration of a car seatbelt buckle with red arrows indicating seat movement (no text or symbols)

Diagram of a child wearing a car seatbelt with red safety belt (no text or symbols)

Britax Child Safety, Inc.

4140 Pleasant Road

Fort Mill, SC 29708 USA

A Britax Childcare company

Tel.: [phone]

Tel.: [phone]

www.Britax.com
