USER MANUAL B-Clever BRITAX

Illustration of a baby stroller with four wheels and a back cover, placed on a red carpet (no text or symbols)

User Guide

Safety Information......2

Features......4

In The Box ....5

Assembly....6

Stroller Frame....6

Front Wheel....6

Rear Wheels....7

Canopy....8

Cup holder 9

Operation 10

Using the Stroller 10

Adjusting the Seat....11

Using the Parking Brake 12

Using the Front Wheel Swivel Lock 12

Using the Harness 12

Securing Your Child ....14

Infant Car Seat Mode ....15

Using the Infant Car Seat Receivers....15

Using a Britax Infant Car Seat ....17

Care and Maintenance....18

Warranty 19

B-CLEVER™ and BRITAX® are trademarks owned by Britax Child Safety, Inc. All rights reserved. ©2019 Britax Child Safety, Inc. This product and its components are subject to change without notice. P11880400_A:06.19

Safety Information

! WARNING!

Failure to follow all warnings and instructions could result in SERIOUS INJURY or DEATH.

Read these instructions carefully before using this product. To ensure proper use, store this user guide in a convenient place so it can be consulted often.

• Never leave child unattended.
- Do not use stroller with a child taller than 44 inches (111.8 cm).
- Do not use stroller with a child who weighs more than 50 lbs (22.6 kg). Exceeding this limit may cause stroller to become unstable.
- Avoid serious injury from falling or sliding out. Always use harness to secure child.
- Avoid finger entrapment or injury. Always ensure any child occupants or bystanders are away from the stroller while folding or unfolding.
- Stroller appropriate from birth, however, Britax recommends use only with an infant car seat until child has head and neck control.
- Do not overload basket – Maximum weight in basket is 10 lbs (4.5 kg). Overloading the basket may cause the stroller to become unstable and tip over.
- Do not overload the hood storage pocket - Maximum weight in storage pockets is 1 lb (0.45 kg) per pocket. Overloading the storage pocket may cause the stroller to become unstable and tip over.
- DO NOT overload cup holder. Maximum weight -16 ounces (0.5 kg).

• Do not attach parcels, bags, or other items to the handlebar or frame of stroller except those recommended by Britax, as stroller can become unstable and tip over.
• Always make certain that the stroller is fully open and locked before use.
• Assembly of this stroller must be performed only by an adult.
• Only use Britax approved car seats, accessories and replacement parts with this stroller.
• Do not allow children to climb on or play with the stroller.
• Do not use the stroller on stairs, escalators, moving vehicles, or steep inclines. Stroller can tip over.
• Stroller is intended for walking speed only. Do not use while jogging, skating, or any activity other than walking.
• Always set the parking brake when stroller is not moving. Never load or unload the stroller without the parking brake set.
• Do not park on inclines. The parking brake is intended to park the stroller on flat surfaces only. Parking on inclines may result in tip over or runaway stroller.
• Do not exceed the manufacturer's maximum weight limit when using an infant car seat with this product. See infant car seat user guide for maximum occupant weight and other instructions.
• All infant car seats MUST be installed rear facing.
• Do not modify the stroller or any labels. Doing so voids the warranty and could lead to a dangerous condition.
• Failure to regularly inspect this product and its components to make sure they are in good condition and good working order can result in injury. Discontinue use of stroller if damaged or any parts are missing.

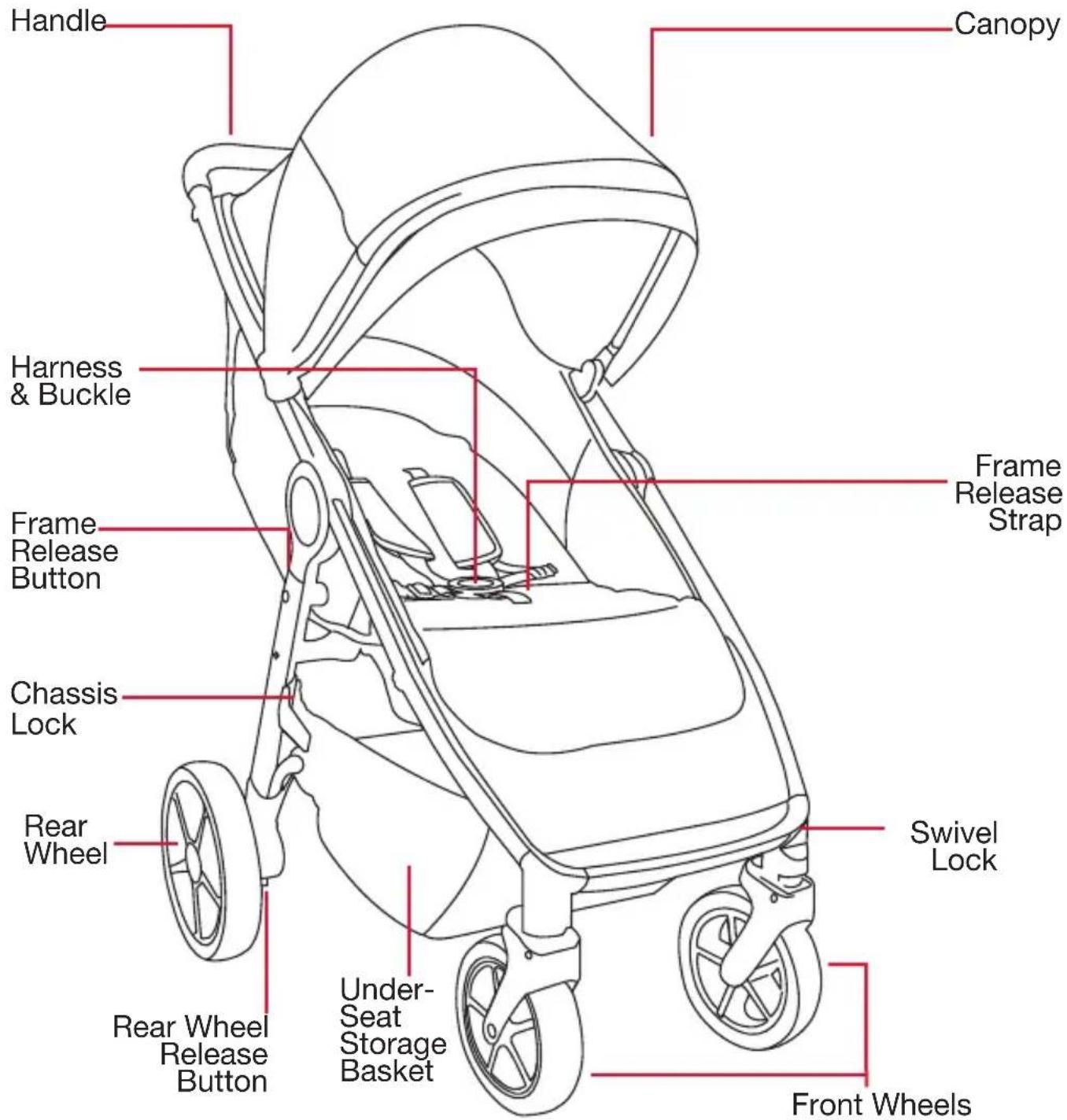

Features

Handle Canopy Harness & Buckle Frame Release Button Frame Release Strap Chassis Lock Rear Wheel Swivel Lock Rear Wheel Release Button Under-Seat Storage Basket Front Wheels

Actual product may vary from images.

In The Box

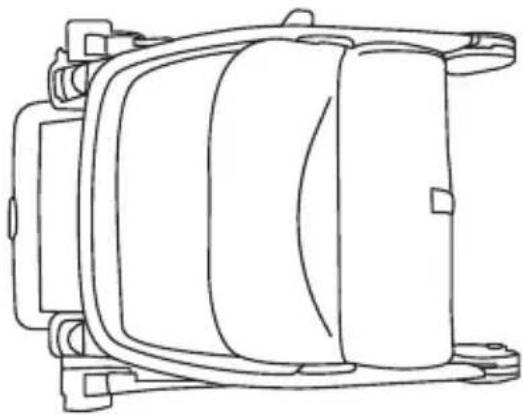

B-Clever Stroller

Technical line drawing of a mechanical component with mounting flanges and internal channels (no text or symbols)

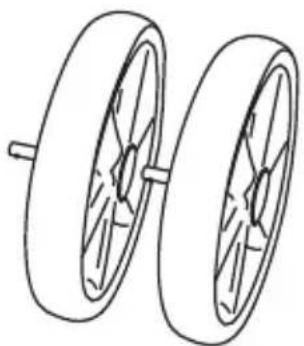

Rear Wheels

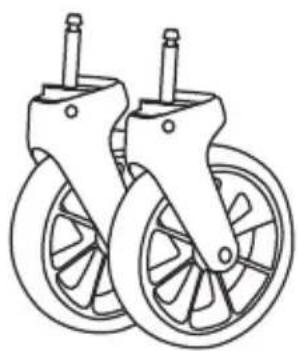

Front Wheels

Line drawing of two bicycle wheels with suspension pins (no text or symbols)

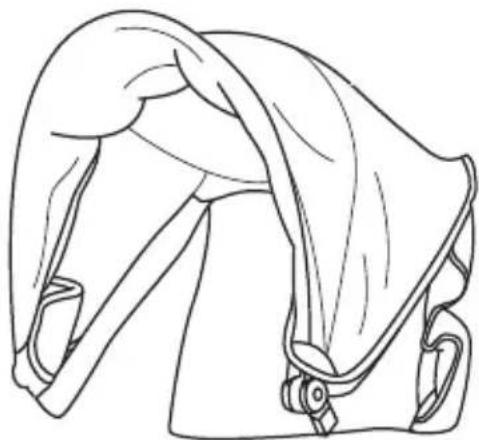

Canopy

Line drawing of two wheels with a central shaft (no text or symbols)

Cup Holder (in select models)

Line drawing of a garment sleeve with straps and shoulder clips (no text or symbols)

Infant Car Seat Receivers

Line drawing of a cup with a lid and circular base (no text or symbols)

Line drawing of two identical mechanical bracket components (no text or symbols)

Actual product may vary from images.

Assembly

Stroller Frame

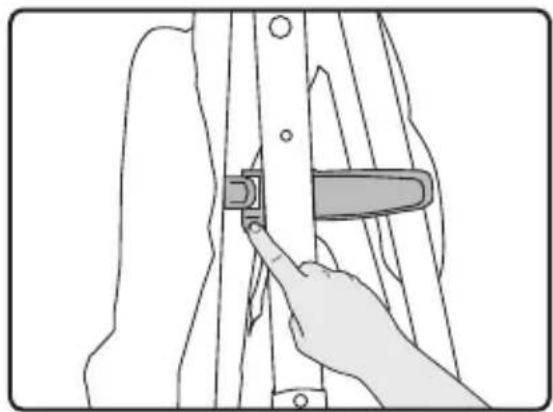

1. Push the release on the chassis lock and open the frame.

Line drawing of a hand inserting a lock into a chair (no text or symbols)

1. Lift handle until frame locks into upright position.

NOTE: After stroller is upright, push down on handle to make sure frame is locked in open position.

Syrac CLICK

Front Wheels

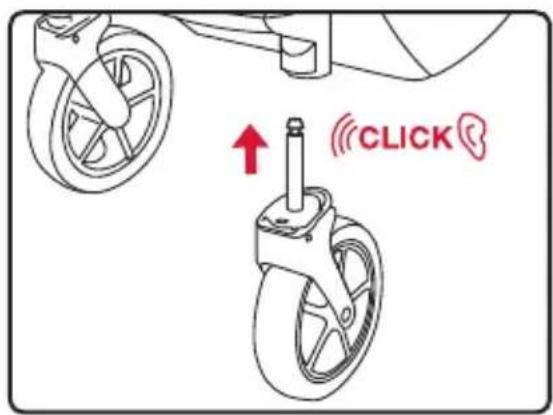

Installing the Front Wheels

1. Slide the front wheel assembly onto the mounting post at the front of the stroller.

2. Pull wheel to ensure that it is secure.

CLICK

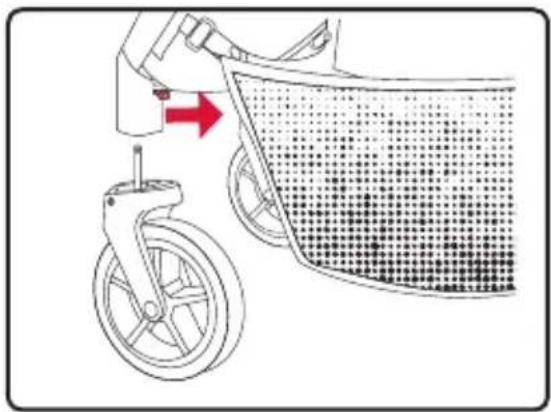

Removing the Front Wheels

1. Pull the release lever at the back of the mounting post and pull the wheel away from the stroller.

Diagram of a bicycle's wheel and seat assembly with a red arrow indicating motion direction (no text or symbols)

Rear Wheels

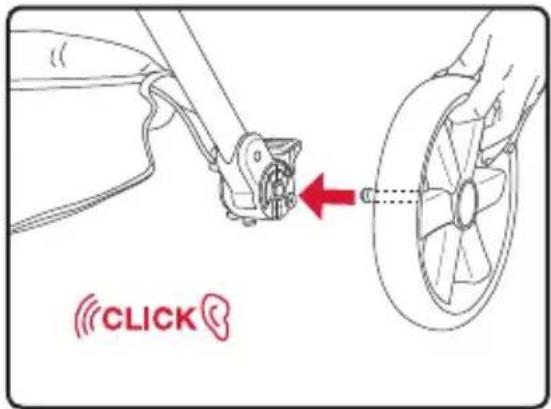

Installing the Real Wheels

1. Slide the rear wheel axle into the rear wheel hub mounting bracket until it locks into place.

2. Pull wheel to ensure that it is secure.

CLICK

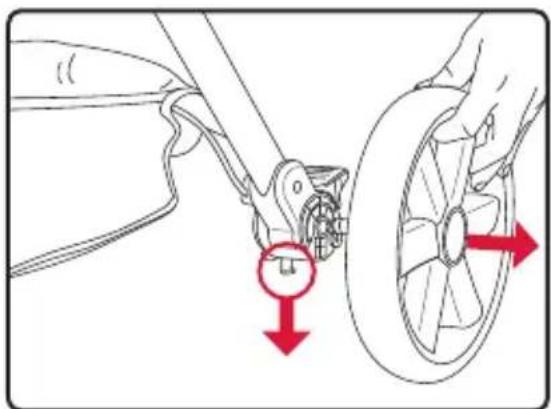

Removing the Rear Wheels

1. Pull and hold the release lever at the bottom of the rear wheel hub while pulling the rear wheel away from the stroller.

Diagram of a bicycle steering wheel and suspension mechanism, showing mechanical components and red directional arrows indicating motion (no text or symbols)

Canopy

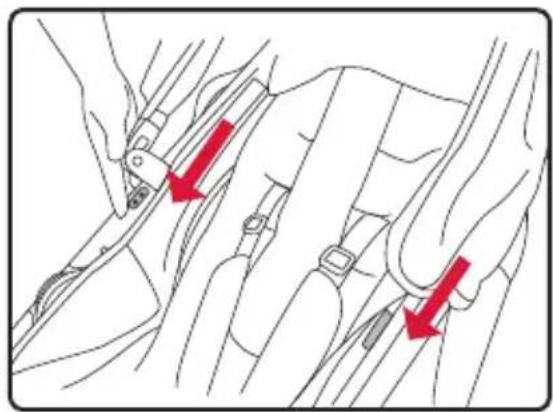

1. Slide the canopy stay brackets into the stroller frame mounts until they lock into place.

Diagram showing two hands adjusting a car seatbelt with red arrows indicating the mechanism (no text or symbols present)

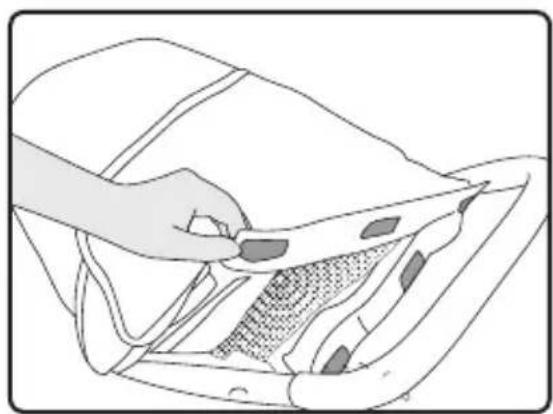

1. Attach the hook and loop fasteners on the hood of the stroller.

Illustration of a hand inserting a component into a car's seat area (no text or symbols)

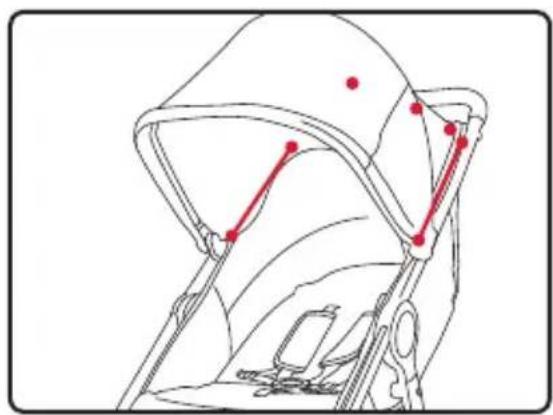

1. Attach the hook and loop fasteners around the outer edge of the canopy and hood to the stroller.

Line drawing of a car's seat and dashboard with red trajectory lines (no text or symbols)

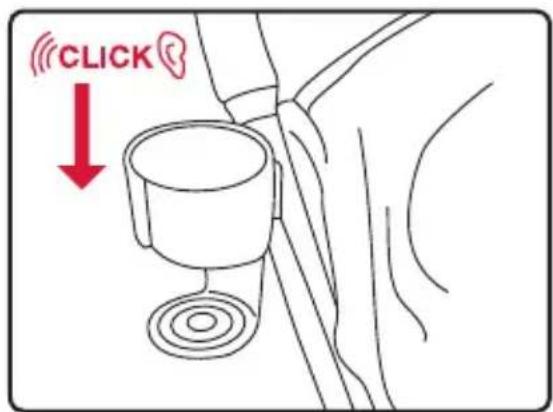

Cupholder (in select models only)

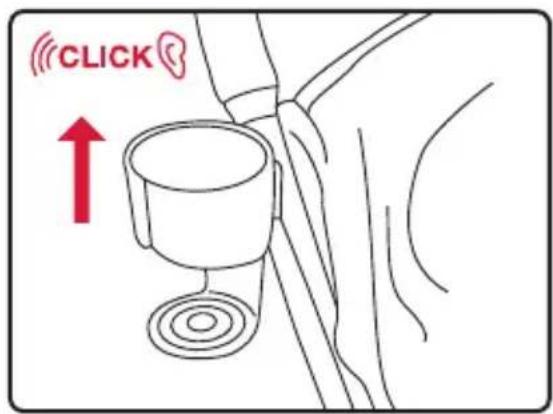

1. To install, push cup holder bracket onto the holding pin located on the side of the stroller handle. A click will confirm it is secure.

CLICK

1. To remove, pull out the cup holder off the holding pin. You will hear a click.

CLICK

Operation

IMPORTANT:

• Before and during use, always make sure the child's hands and feet are away from wheels.
• Protect stroller when transporting and shipping to prevent damage to stroller and stroller components. Check closely for damage after transporting and shipping.

Using the Stroller

Folding the Stroller

IMPORTANT: Always apply brake and remove children before folding the stroller.

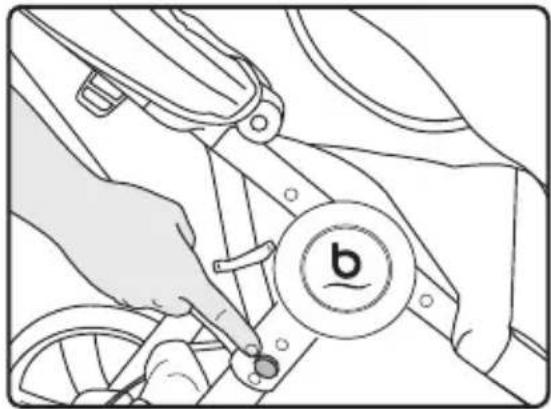

1. Press the frame release button once.
   NOTE: Not necessary to continue to hold the button.

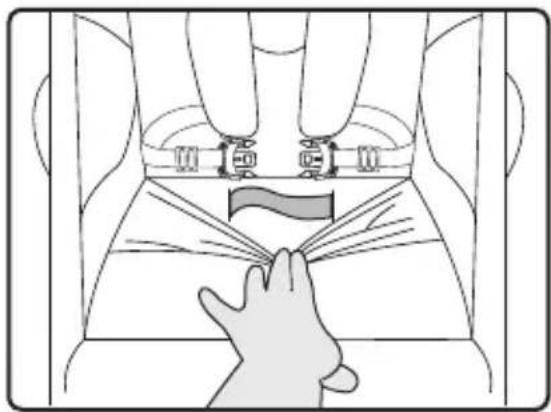

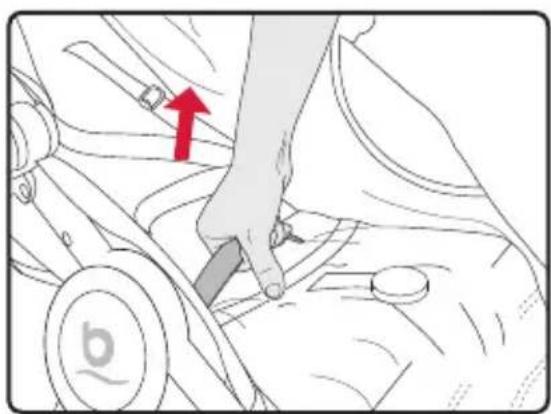

2. Locate the frame release strap under the seat cover in the middle of the seat.

3. Pull the strap until the stroller collapses and locks. Check to make sure the chassis lock is secure.

Line drawing of a hand adjusting a bicycle seatbelt with a circular dial labeled 'b' (no text or symbols beyond the label)

Illustration of a hand pressing down on a garment with a bandage and clasp (no text or symbols)

Illustration of a hand adjusting a car seatbelt with a red arrow indicating the direction (no text or symbols present)

Unfolding the Stroller

1. Push the release on the chassis lock and open the frame.

Line drawing of a hand adjusting a door lock mechanism (no text or symbols)

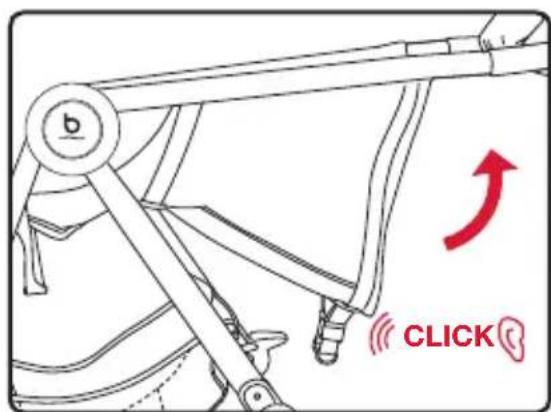

1. Lift the handle until frame locks into upright position.

NOTE: After stroller is upright, push down on handle to make sure frame is locked in open position.

b CLICK

Adjusting the Seat

1. To recline, pull the recline adjuster release lever and slide it away from the seat.

Illustration of a hand holding a knife with a red arrow pointing to the handle (no text or symbols present)

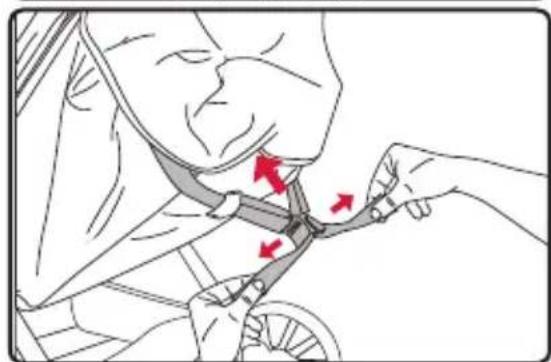

1. To raise, pull both straps apart.

Illustration of a person adjusting a seatbelt with red arrows indicating movement (no text or symbols present)

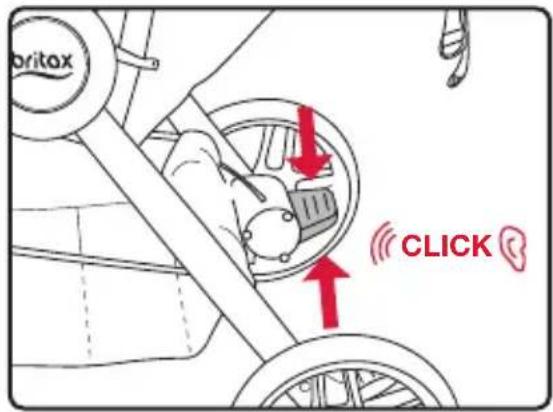

Using the Parking Brake

1. Press the brake pedal down to lock the brake.

NOTE: Pressing the brake locks both back wheels.

1. Lift the brake pedal to release the brake.

britax CLICK

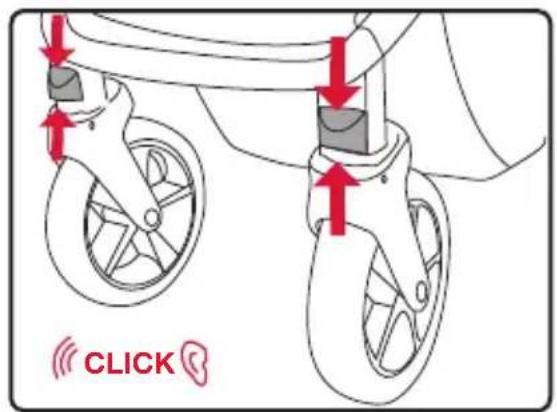

Using the Front Wheel Swivel Lock

1. Press the swivel lock lever down to lock the front wheel.

2. Lift the swivel lock lever to allow the wheel to swivel.

CLICK

Using the Harness

IMPORTANT: Shoulder and waist straps separate for care and maintenance, but should always be used together to secure your child.

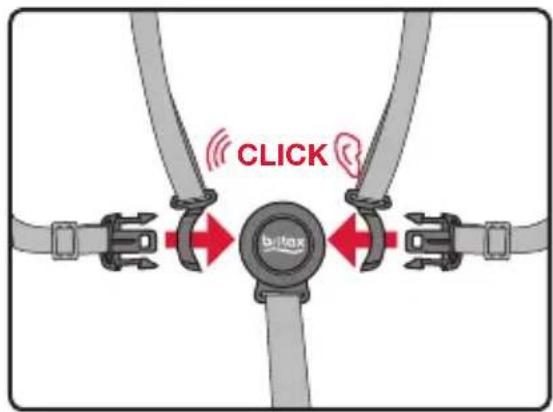

1. Align the tongues on the waist straps with the retainers of the shoulder straps and slide through until they lock into place.

2. Insert the tongues into the buckle assembly until a click is heard.

CLICK Bulfox

Adjusting the Harness

IMPORTANT: The harness can be adjusted to three different heights. Always ensure proper adjustment at or above your child's shoulders.

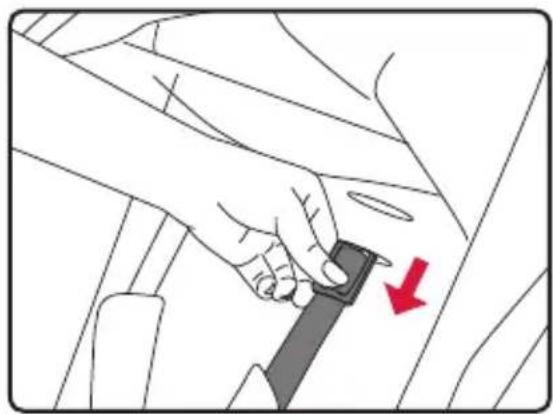

1. Pull the harness strap retainer away from the seat back and turn 90 degrees to feed it through the harness slot.

Illustration of a hand adjusting a car seatbelt with a red arrow indicating the down-left corner (no text or symbols present)

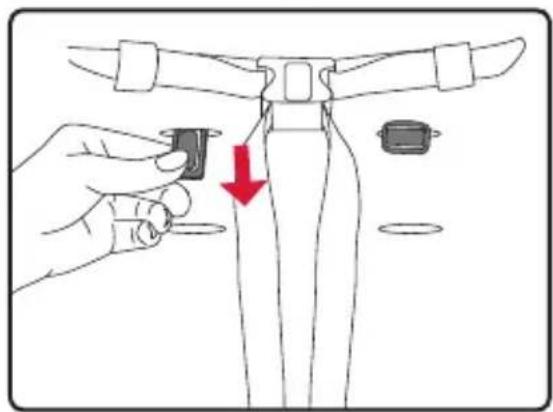

1. Push the harness retainer through the appropriate harness slot to the back of the seat. Turn the harness retainer to its original position as shown so it properly retains the harness.

Illustration of a hand holding a small mechanical component with a red arrow indicating a downward motion (no text or symbols present)

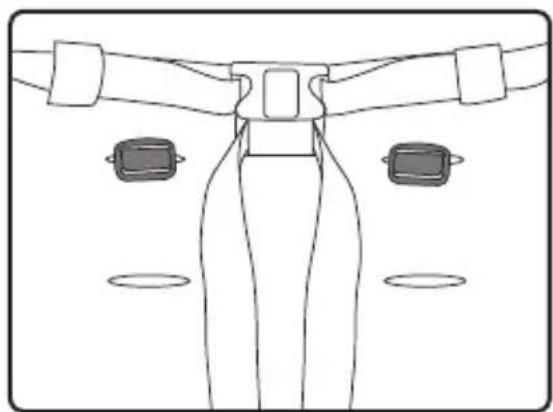

1. Turn the harness retainer to its original position as shown so it properly retains the harness.

Line drawing of a person's torso with arms and two circular objects on the chest (no text or symbols)

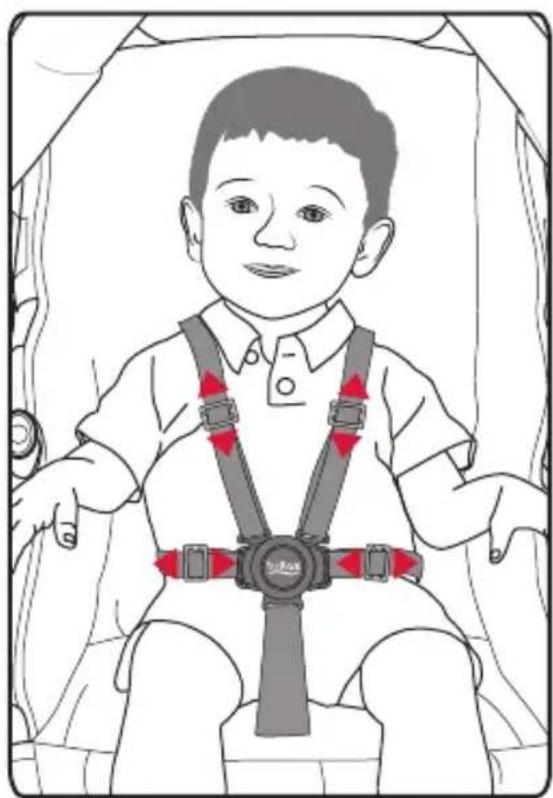

Securing Your Child

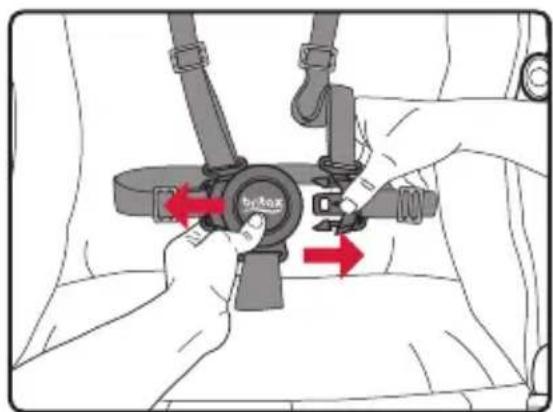

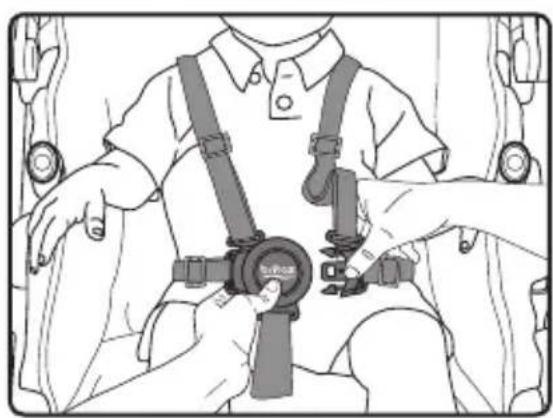

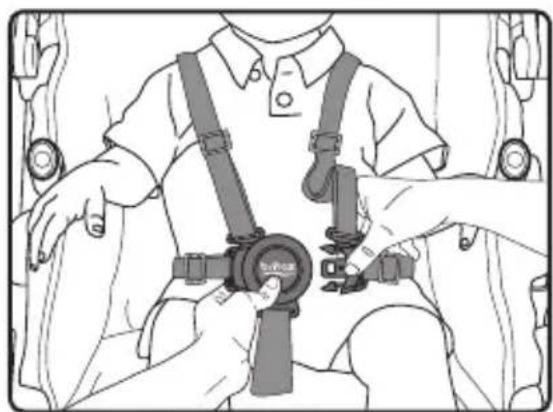

1. Release the harness by depressing the button in the center of the buckle while pulling the two tongues away from the buckle assembly.

2. Fasten the harness by inserting the tongues on the harness straps into the buckle assembly.

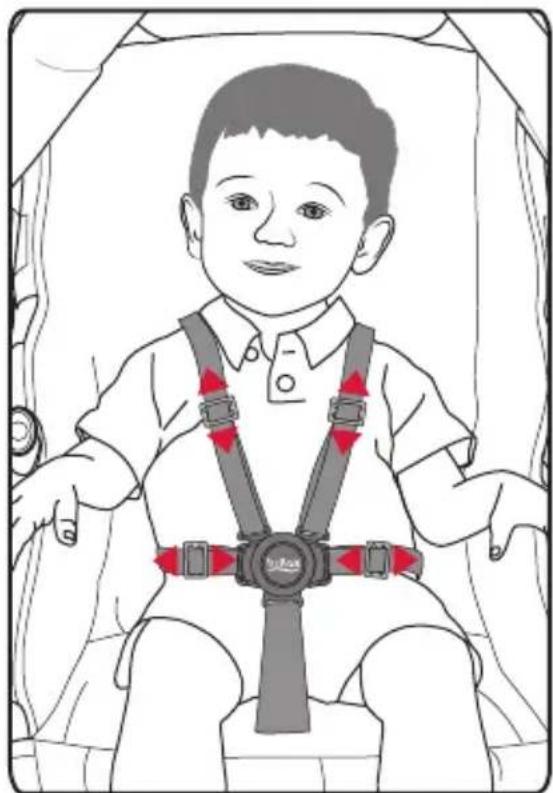

3. Tighten or loosen the harness straps by sliding the harness adjusters.

Diagram showing a car seatbelt adjustment mechanism with red arrows indicating left and right motion directions.

Line drawing of a person wearing a seatbelt and harness, holding a car seatbelt (no text or symbols present)

Illustration of a child wearing a seatbelt with red safety belt (no text or symbols)

Infant Car Seat Mode

WARNING!

• All infant car seats MUST be installed rear facing.
• Always remove the infant car seat receivers when not in use. Failure to do so may result in injury.

IMPORTANT:

• For infant car seats compatibility refer to us.britax.com/faqs/.
  • Always secure child in harness when infant car seat is in use with the stroller.

Using the Infant Car Seat Receivers

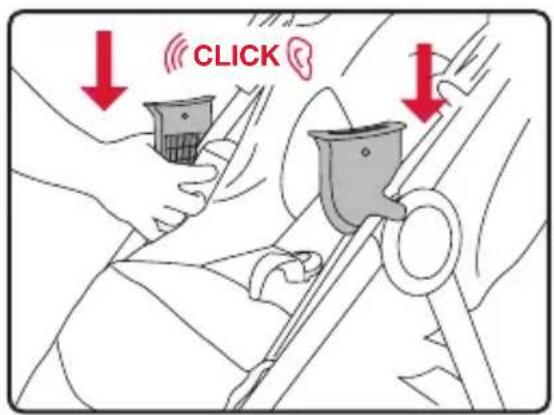

Attaching the Infant Car Seat Receivers

NOTE: Attach the adapters as shown in the image.

1. Lock the parking brake.
2. Align the receiver with the mount on the inside frame of the stroller, then push down until a click is heard. Pull up on the receiver to ensure it is secure.
3. Repeat for the other side.

CLICK

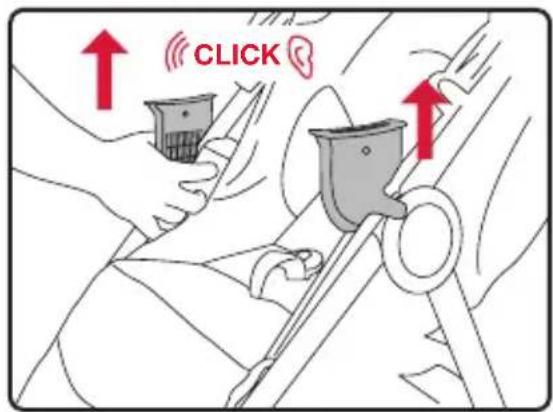

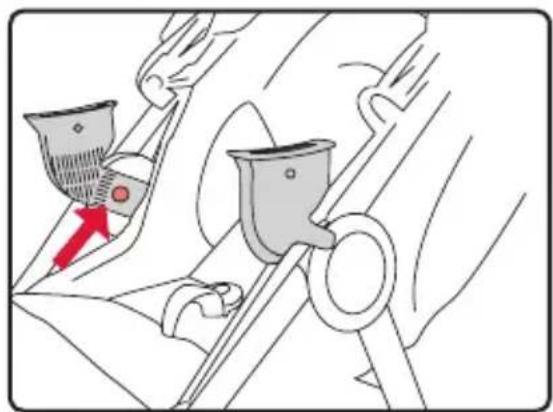

Removing the Infant Car Seat Receivers

1. Press the button on the receiver and slide upward.

2. Repeat for the other side.

Diagram of a hand operating a mechanical device with two lenses and a handle, showing no text or symbols.

CLICK

Using a Britax Infant Car Seat

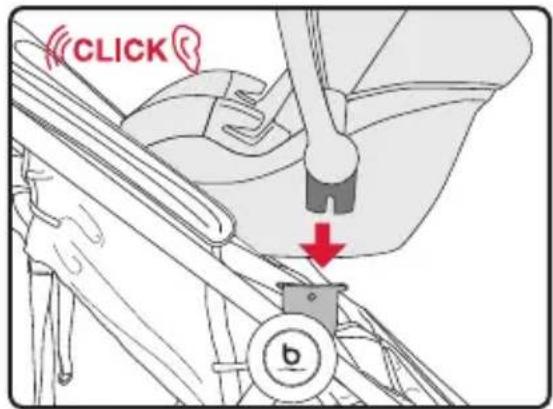

Attaching a Britax Infant Car Seat

1. Set the parking brake.
2. Line up the adapter on the infant car seat with the receivers on the stroller.

3. Press down until locked into place.

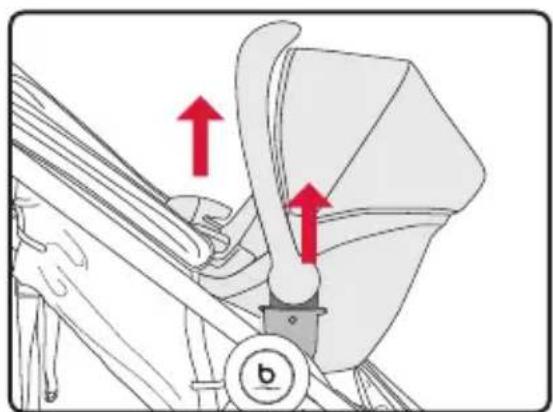

4. Lift up on both sides of the infant car seat to ensure that it is secure.

CLICK b

Mechanical diagram showing a belt drive mechanism with red arrows indicating direction (no text or symbols)

Removing a Britax Infant Car Seat

Refer to your infant car seat user guide for information on the removal instructions for your specific model.

Care and Maintenance

IMPORTANT: Before each use, check the stroller and its components to make sure they are in good condition and good working order.

Parking Brake	Periodically check that the parking brake works properly and locks both wheels securely.Clean out any dirt or debris that may prevent the brake from working.
Frame • Wipe the frame with a damp cloth and mild soap. Use clean, dry cloth or towel to wipe away excess water and soap.
Fabric and Harness	Do not machine wash or dry the cover.Hand wash with cold water and mild soap. Air dry to prevent shrinking.Do not iron.
Plastic Parts	Wipe with a damp cloth and mild soap. Use a clean, dry cloth or towel to wipe away excess water and soap.Do not use abrasives, solvents, strong detergents, or household cleaners. These products can scratch, discolor, and weaken plastic or cause corrosion on metal surfaces.
Maintenance • If the stroller gets wet, wipe with a clean cloth or towel to prevent corrosion.Do not fold the stroller when wet or damp. Always make sure that the stroller is dry before storing.

Storage • To prevent damage to plastic parts, store away from extreme heat.

- Cover the stroller to prevent dust build-up and exposure to sunlight.

- Do not stack other items on top of the stroller.

Warranty

This product is distributed by Britax Child Safety, Inc. (“Britax”). Britax warrants this product to the original retail purchaser as follows:

LIMITED TWO-YEAR WARRANTY

This product is warranted against defective materials or workmanship for two years from the date of original purchase. Proof of purchase is required. Your exclusive remedy for this warranty is that Britax will, at its option, provide repair or replacement components to the original purchaser for this product or replace the product. Britax reserves the right to discontinue or change fabrics, parts, models or products, or to make substitutions. Labor and shipping costs for returns are not included. Britax products purchased from unauthorized retailers, online auction sites, or as second hand items are not covered under warranty.

To make a claim under this Warranty, you must contact Britax Customer Services Department at 1-888-427-4829 or 704-409-1699 or write to 4140 Pleasant Road, Fort Mill, SC 29708. Proof of purchase is required.

PLEASE COMPLETE AND MAIL THE REGISTRATION CARD WITHIN 30 DAYS OF PURCHASE

You may also register online at us.britax.com/registration.

WARRANTY LIMITATIONS

This warranty does not include damages which arise from negligence, misuse, salt corrosion, or use not in accordance with the user guide.

The use of non-Britax accessories is not approved by Britax. The use of unapproved accessories could cause this product to become damaged or dangerous. Their use may void the Britax warranty.

LIMITATIONS OF DAMAGES

The warranty and remedies as set forth above are exclusive and in lieu of all others, oral or written, express or implied. In no event will Britax or the retailer selling this product be liable for any damages, including incidental or consequential damages, arising out of the use or inability to use this product.

OTHER WARRANTY TERMS AND STATE LAW RIGHTS

Any implied warranties, including implied warranties of merchantability and fitness for a particular purpose, shall be limited to the duration and terms of the express written warranty. Some states do not allow certain exclusions or limitations on warranties, so the above may not apply to you. This warranty gives you specific legal rights, and you may have other rights, which vary from state to state. Neither Britax, nor the retailer selling this product, authorizes any person to create for it any other warranty, obligation, or liability in connection with this product.

Table des matières

Technical line drawing of a mechanical component with mounting flanges and internal channels (no text or symbols)

Roues avant

Line drawing of two bicycle wheels with suspension pins (no text or symbols)

Roues arrière

Line drawing of two wheels with a central shaft (no text or symbols)

Pare-soleil

Line drawing of a garment sleeve with straps and shoulder clips (no text or symbols)

Line drawing of a cup with a side handle and circular base (no text or symbols)

Line drawing of two identical mechanical bracket components (no text or symbols)

Line drawing of a hand adjusting a door lock mechanism (no text or symbols)

Syrac CLICK

Roue avant

Diagram of a bicycle's wheel and side panel with a red arrow indicating direction (no text or symbols)

Roues arrière

Diagram of a bicycle steering wheel and suspension mechanism, showing mechanical components and red directional arrows indicating motion (no text or symbols)

Pare-soleil

Diagram showing two hands adjusting a car seatbelt with red arrows indicating the mechanism (no text or symbols present)

Illustration of a hand inserting a component into a car body panel (no text or symbols)

Line drawing of a car's seat and dashboard with red trajectory lines (no text or symbols)

Line drawing of a hand adjusting a bicycle seatbelt with a circular dial labeled 'b' (no text or symbols beyond the label)

Illustration of a hand pressing down on a device with clamps and a ribbon (no text or symbols)

Illustration of a hand pressing down on a car wheel, with a red arrow and letter 'b' indicating a motion or action point (no text or symbols beyond basic diagram)

Line drawing of a hand adjusting a door lock mechanism (no text or symbols)

Illustration of a hand holding a knife with a red arrow pointing to the handle (no text or symbols present)

Illustration of a person adjusting a seatbelt with red arrows indicating movement (no text or symbols present)

Illustration of a hand adjusting a car seatbelt with a red arrow indicating the down-left corner (no text or symbols present)

Illustration of a hand holding a small mechanical component with a red arrow indicating a downward motion (no text or symbols present)

Line drawing of a mechanical assembly with three circular components and a central shaft (no text or symbols)

Diagram showing a car seatbelt adjustment mechanism with red arrows indicating left and right motion directions.

Line drawing of a person wearing a seatbelt and harness, with hands adjusting the seatbelt (no text or symbols present)

Illustration of a child wearing a seatbelt and safety harness, no text or symbols present

Diagram of a mechanical device with a piston and handle, showing motion lines without any text or symbols

CLICK

Mechanical diagram showing a belt drive mechanism with red arrows indicating direction (no text or symbols)

LIMITATIONS DES DOMMAGES

Technical line drawing of a mechanical component with mounting flanges and internal channels (no text or symbols)

Ruedas traseras

Ruedas delanteras

Line drawing of two bicycle wheels with suspension pins (no text or symbols)

Capota

Line drawing of two wheels with a central shaft (no text or symbols)

Portavasos

Line drawing of a garment sleeve with straps and shoulder clips (no text or symbols)

Line drawing of a cup with a side handle and circular base (no text or symbols)

Line drawing of two identical mechanical bracket components (no text or symbols)

Line drawing of a hand adjusting a door lock mechanism (no text or symbols)

SOCK CLICK

Rueda delantera

Instalar la rueda delantera

Diagram of a bicycle wheel with a red arrow indicating direction, showing no text or symbols

Ruedas traseras

Diagram of a bicycle steering wheel and suspension mechanism, showing red arrows indicating motion direction (no text or symbols)

Capota

Diagram showing two hands adjusting a car seatbelt with red arrows indicating the mechanism (no text or symbols present)

Illustration of a hand inserting a component into a car's seat area (no text or symbols)

Line drawing of a car's seat and dashboard with red trajectory lines (no text or symbols)

Line drawing of a hand using a bicycle to adjust the wheel (no text or symbols present)

Illustration of a hand pressing down on a garment with a bandage and clasp (no text or symbols)

Line drawing of a hand pressing down on a car wheel, with a red arrow indicating the motion direction (no text or symbols present)

Line drawing of a hand adjusting a door lock mechanism (no text or symbols)

Illustration of a hand holding a knife with a red arrow pointing to the blade (no text or symbols)

Illustration of a person adjusting a bicycle seatbelt with red arrows indicating movement (no text or symbols)

Illustration of a hand adjusting a car seatbelt with a red arrow indicating the down-left corner (no text or symbols present)

Illustration of a hand holding a small mechanical component with a red arrow indicating a downward motion (no text or symbols present)

Line drawing of a mechanical assembly with three circular components and horizontal bars (no text or symbols)

Sujeción del niño

Diagram showing a car seatbelt mechanism with red directional arrows indicating movement or force directions.

Line drawing of a person wearing a seatbelt and harness, holding a car seatbelt (no text or symbols present)

Illustration of a child wearing a seatbelt and harness, with red triangular buttons indicating seatbelt placement (no text or symbols)

Diagram of a mechanical device with two cups and a handle, showing a red arrow indicating motion direction (no text or symbols)

CLICK

Mechanical diagram showing a belt drive mechanism with red arrows indicating direction (no text or symbols)

Britax Child Safety, Inc.

4140 Pleasant Road

Fort Mill, SC 29708

USA

A Britax Childcare

Group Limited company

Tel.: [phone]

Tel.: [phone]

www.Britax.com
