USER MANUAL AVI Ref. 765 1964 Re-Edition Breitling

Breitling Breitling

BREITLING

1884

INSTRUCTIONS FOR USE

AVI REF.765 1953 RE-EDITION

AVI REF.765 1953 RE-EDITION

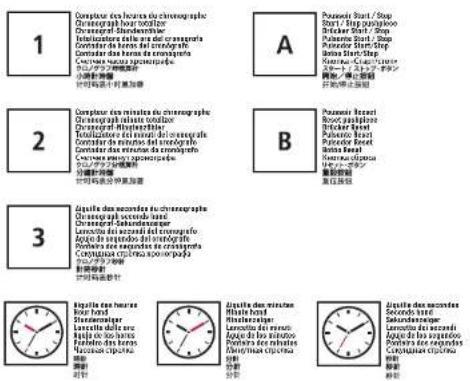

BREITING GATEVOL 1 2 3 A 1 B 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30

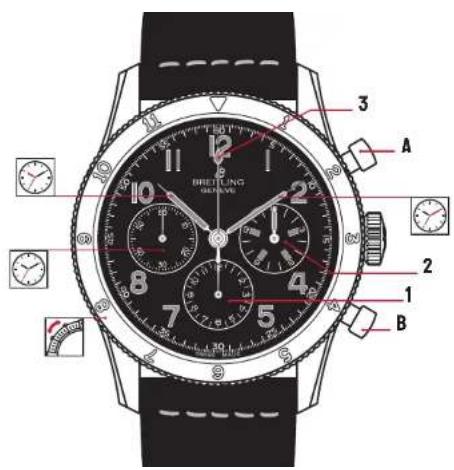

1 A Passive Start / Stop Start/Stop puglakoo Brücker Start / Stop Passive Start/Stop Jahua Start/Stop Kanima - Cagulina 3 B Passive Start Row2 puglakoo Brücker Start Pulceiro Start Jahua Start/Stop Kanima cipulina Kanima cipulina Kanima cipulina 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 56 57 58 59 60 61 62 63 64 65 66 67 68 69 70 71 72 73 74 75 76 77 78 79 80 81 82 83 84 85 86 87 88 89 90 91 92 93 94 95 96 97 98 99 100

FRANÇAIS

MISE EN SERVICE 5

PARTICULARITÉS

MAINTENANCE

ENGLISH

PREPARATION FOR USE 14

SPECIAL CHARACTERISTICS 17

MAINTENANCE

DEUTSCH

INBETRIEBNAHME

BESONDERHEITEN

WARTUNG

ITALIANO

Up-to-date user manuals are available on breitling.com under SERVICE section.

VOTRE CHRONOMÈTRE BREITLING

Two analog clocks showing hand positions and directional arrows, likely for time or digital display.

BOUSSOLE SOLAIRE

Diagram showing two circular compass faces with directional arrows and sun icons, illustrating solar illumination or weathering concepts.

A chronometer is a high-precision instrument that has successfully passed the entire battery of tests imposed by COSC (Swiss Official Chronometer Testing Institute), a neutral and independent body which individually tests each movement according to the prescriptions in force.

The certification test for wristwatches with sprung balance oscillators, according to standard ISO 3159, consists of observing each movement for 15 days and 15 nights, in 5 positions and at 3 different temperatures (8°C, 23°C, 38°C). In order to earn the prestigious chronometer label, a movement's performances must meet 7 very strict criteria, including a daily variation in rate ranging between only -4/+6 seconds.

The term "chronometer" should not be confused with that of "chronograph", which is a complicated watch fitted with an additional mechanism for measurement of the duration of an event. A chronograph is not necessarily chronometer-certified, but all Breitling chronographs bear the much-coveted title of "chronometer".

PREPARATION FOR USE

WINDING - TIME-SETTING

1. Wind the watch completely in a clockwise direction. Do not force.

1. Pull the crown out to position 2 and adjust the hour and minute.

1. Push the crown back into position 1.

Nota bene: wind the watch completely each day (preferably at the same time). Do not force.

USING THE CHRONOGRAPH

I. MEASURING A SINGLE SHORT TIME

1. Press pushpiece A to start the chronograph. Hand 3 shows the measurement in seconds.

2. Stop the measurement by pressing pushpiece A once more. The measurement is made in hours [totalizer 1], minutes [totalizer 2], seconds and 14 of a second [hand 3].

3. Reset the chronograph to zero by pressing pushpiece B.

II. MEASURING AN INTERRUPTED SHORT TIME

1. Press pushpiece A to start the chronograph. Hand 3 shows the measurement in seconds.
2. To interrupt the measurement, press pushpiece A once more. To restart the time measurement, press pushpiece A. This procedure makes it possible to add up several short times.
3. The chronograph is reset to zero by pressing pushpiece B, once the final measurement has been stopped.

SPECIAL CHARACTERISTICS

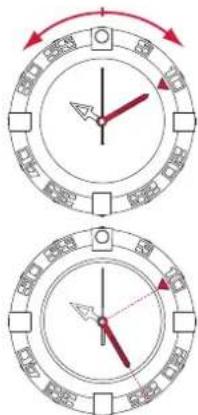

BIDIRECTIONAL BEZEL WITH INDEX MARKERS

The bezel of your watch is marked with 12index markers: they are used as points of reference to mark a start time or a limit time you wish to remember. On models with no chronograph functions, they also provide a «minute chrono» function enabling you to measure the elapsed time in minutes.

Diagram showing two circular clock face setups with red hands and directional arrows indicating rotation or movement.

SUN COMPASS

Your Breitling chronometer may be used as a sun compass, thus enabling you to determine North and South. For regions that have instated daylight saving time, subtract one hour when aligning the watch.

In the Northern Hemisphere

Point the hour hand precisely towards the sun. In relation to the watch dial, the point located midway between the current time and 12 o'clock indicates South, North being exactly opposite.

In the Southern Hemisphere

Point the hour-marker located at 12 o'clock on the dial precisely towards the sun. In relation to the watch dial, the point located midway between the current time and 12 o'clock indicates North, South being exactly opposite.

Diagram showing two circular clocks with sun icons and directional arrows, likely illustrating a weather or solar cycle concept.

MAINTENANCE

Your Breitling chronometer is a sophisticated instrument which is constantly subjected to a wide variety of stresses and strains. Within a very small volume, a large number of components contribute to handling all the functions. Their mechanical action inevitably leads to a certain amount of wear and tear, which may be controlled by maintenance consisting of relubrication and replacing worn components. Like any precision measurement instrument, your watch must be regularly maintained in order to function at its highest level of potential: the frequency of this operation varies according to actual use. Breitling or your authorized retailer will be happy to handle the procedure.

WATER RESISTANCE

The movement of your chronometer is protected by a complex case fitted with gaskets to ensure its water resistance. Under the influence of various external agents - perspiration, chlorinated or salt water, cosmetics, fragrances or dust - these gaskets gradually deteriorate. That is why water resistance cannot be permanently guaranteed. If used intensively in water, we recommend having an annual water resistance check conducted. In any event, such an appraisal must be done every two years. This operation, which takes only a few minutes, may be conducted by a Breitling authorized maintenance centre, or by an authorized retailer (www.breitling.com).

Breitling models are water-resistant to varying degrees. The extent of the water resistance, expressed in metres [M], is a standard value and does not indicate an absolute immersion depth. The crown and pushpieces must not under any circumstances be operated under water or when the watch is wet. The table below indicates the conditions in which your watch may reasonably be used, according to its degree of water resistance:

ACTIVITIES / DEGREE OF WATER RESISTANCE	3 bar/30 M/100 FT	5 bar/50 M/165 FT	10 bar/100 M/330 FT	50 bar/500 M/1650 FT+
Splashing	√	√	√	√
Shower, swimming, surface water sports		√	√	√
Water-skiling, dives, snorkelling			√	√
Diving				√

If your watch is equipped with a screw-lock crown, ensure that this is locked before any use in water. This also applies to screw-lock pushpieces.

USEFUL TIPS

Breitling genuine leather straps are crafted with the most refined materials and represent extremely high-quality products. Like all objects in natural skin (shoes, gloves, etc.), their length of life varies considerably, according to the conditions in which they are worn. In particular, water, cosmetics and perspiration accelerate the ageing process. A metal or

synthetic Breitling bracelet is thus better suited to activities involving frequent contact with water or moisture.

Breitling metal cases and bracelets are made from the fi nest alloys and guarantee sturdiness and wearer comfort. Regular cleaning by rinsing and brushing in clean water will keep your watch shiny. This operation is strongly recommended after each immersion in salty or chlorinated water. For watches fi tted with a leather strap, the same advice applies, as well as avoiding getting the strap wet.

WHAT TO AVOID

Like any valuable objects, Breitling chronometers deserve special care. It is important to protect them from jarring and knocks by hard objects, and not to expose them to chemical products, solvents, dangerous gases, or magnetic fields. Moreover, your Breitling chronometer is designed to run smoothly at temperatures ranging between 0°C and 50°C.

IHR BREITLING-CHRONOMETER

Diagram showing two circular clock face setups with red hands and directional arrows indicating rotation or movement.

BUSSOLA SOLARE

Diagram showing two circular clocks with sun icons and directional arrows, likely illustrating a weather or solar cycle concept.

MANUTENZIONE

Diagram showing two circular clock face designs with red hands indicating clockwise rotation, surrounded by decorative patterns and directional arrows.

BRÚJULA SOLAR

Diagram showing two circular compass faces with red directional arrows and sun icons, illustrating a cyclical or directional relationship.

Diagram showing two circular clock face setups with red hands and directional arrows indicating rotation or movement.

BÚSSOLA SOLAR

Diagram showing two circular clocks with directional arrows and sun icons, likely illustrating a weather or solar cycle concept.

MANUTENÇÃO

Two analog clocks showing hand positions and directional arrows, likely for time or clock movement.

62 63

СОЛНЕЧНЫЙ КОМПАС

Diagram showing two circular clocks with red arrows indicating rotation, surrounded by sun icons and directional arrows.

Diagram showing two circular clock faces with red hands and directional arrows indicating rotation or movement.

太陽コンパス

Diagram showing two circular clocks with red arrows indicating rotation and sun icons, illustrating a cycle or directional change.

メンテナンス

Diagram showing two circular clock face setups with red hands and directional arrows indicating rotation or movement.

80 81

陽光指南功能

Diagram showing two circular clock faces with red hands and directional arrows indicating rotation or movement.

阳光指南功能

Diagram showing two circular clocks with sun icons and directional arrows, likely illustrating a weather or solar cycle concept.

保养须知

0% e instead clable.

This booklet is completely made from residues of sugar cane instead of wood. The paper is biodegradable, compostable, and recyclable.
