USER MANUAL CPTA Soler & Palau

We would like to thank you for placing your trust in us by purchasing this device. You have bought a quality product that has been manufactured in full compliance with recognised technical safety regulations in accordance with the CE standards.

Please read these instructions closely before using and installing this PRE-SENCE SENSOR FOR VENTILATION CONTROL, in order to prevent damages and risk situations from occurring. Any use of this product other than that indicated in this manual may cause short-circuit or injury, and will render the warranty null and void.

The warranty does not cover any defects, deterioration, loss, injury or damage caused by improper use of this product. All legal rights are guaranteed in this respect.

No condition of the warranty excludes or changes the warranty conditions governed by State laws, which cannot be excluded or modified for any reason whatsoever.

Before starting it up, carefully remove all of the device's packaging and check its condition. If you find any defect or damage, do not assemble, install or attempt to repair the appliance. Please contact the distributor.

Do not leave the packaging within reach of children and dispose of it in adherence to recycling regulations.

1.1.DISCLAIMER

• Check that the product matches your order and that the features included in the markings are compatible with the installation features.
• Before installing and using this product, read these instructions carefully; they contain important safety information for you and your users during installation, use and maintenance.
• This manual contains information for all staff who are exposed to the risk of using the product to avoid possible injuries or damage to objects after handing or maintenance.
• The following rules and regulations reflect the current standards, especially in terms of safety.
• We recommend that all staff at risk strictly comply with the accident prevention rules.

• S&P cannot be held liable in any way for injuries or damage to objects due to failure to comply with the safety rules or any changes made to the product.
• You should regularly check the labels and markings on the product. These should be replaced when they become illegible.
• Once the installation is complete, make the manual available for the end user for subsequent queries.

1.2.SAFETYINSTRUCTIONS

The installation of this device, any adjustments and any intervention must be done by a professional electrician, who must apply the installation rules and the safety rules in force.

Before switching on the power supply, check that the voltage of the power supply matches the indications for the product: connecting it to a different voltage could destroy it.

Since this material must be built into an installation, it must be checked that all pieces work together and be signed off by the final installer. Do not change the factory pre-set wiring.

Comply with the installation and connection plan recommended by the manufacturer. Contact your installer before making any installation or changes to the wiring.

The electronic signals sent by this device should not be used for any other purpose other than that described in this manual, since if this information is not followed, it could have severe consequences for the operator and/or the device. Unplug the device before any intervention (installation and maintenance operations) to be made by authorised staff. Even when the product is not plugged into the mains, it can have dangerous voltage levels in external control circuits

Risk of electric shock.

1.3. STORAGE

Each product is scrupulously checked before being shipped. Upon receiving it, you should check to make sure it hasn't been damaged during transport. This product should be stored away from the elements and protected from bumps and strains caused by projections of any kind during transport form the supplier to the end customer and in the place before installation.

• Permitted temperature: 0^ to 45^ .
• Admissible relative humidity: maximum 90% without condensation.

1.4.WARRANTY

Any change or additional devices within the product, as well as any changes to the initial wiring are prohibited without authorisation from the supplier and could result in the cancellation of the certifi cation and the warranty. The device must be used in accordance with the manufacturer's specifi cations, otherwise the function it should perform may be compromised. Defects related with abnormal use or use that is not in accordance with these warnings are excluded from the warranty, as are defects found as a result of normal wear and tear, incident caused by negligence, lack of supervision or maintenance, defects due to incorrect installation of the device or poor storage conditions before assembly. Under no circumstances shall Soler & Palau be held responsible for material that has been modifi ed, repaired or dismantled, even partially.

EN

2.PRODUCT PRESENTATION

• Components of the AJUST'AIR® system.
• Suitable for many flow regulation and modulation applications.
• Presence sensor that detects infra-red radiation connected with the heat emitted by a body in motion.
• Detection of the pyroelectric sensor located beneath the Fresnel lens.
• Detection angle: 360^ .
  Output for ventilation control (dry contact) + illumination (230 V).

3. INSTALLATION

3.1.SIZE

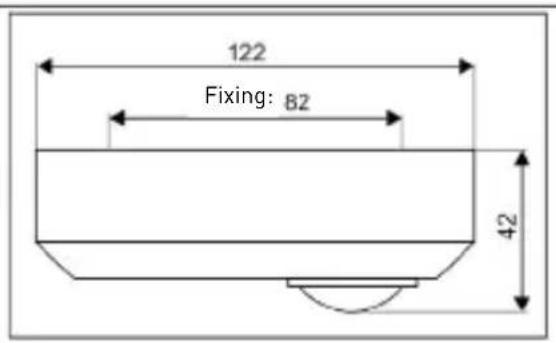

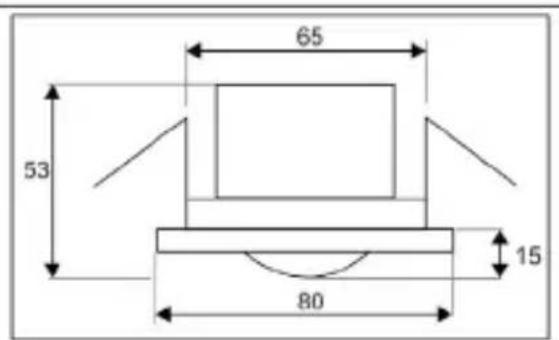

CPTA-S ASSEMBLY CPTA-E EMBEDDED ASSEMBLY

Power box to integrate in false ceiling (L × H × P) = 123 × 58 × 37 ~mm

3.2. INSTALLATION LOCATION

Sensor to be attached to the ceiling of the room to be modulated: Recommended installation height: between 2.5 m and 3.5 m.

Installation height (m) Diameter D of the detection range on the floor (m)
2,5 8,8
3 10,6
3,5 12,4

Specifically avoid: double detection, dead zones, disruptions caused by the surroundings (heat sources like radiators, solar rays, etc.). Electrical connection according to the type of actuator: check the specific installation instructions for each AJUST'AIR® system.

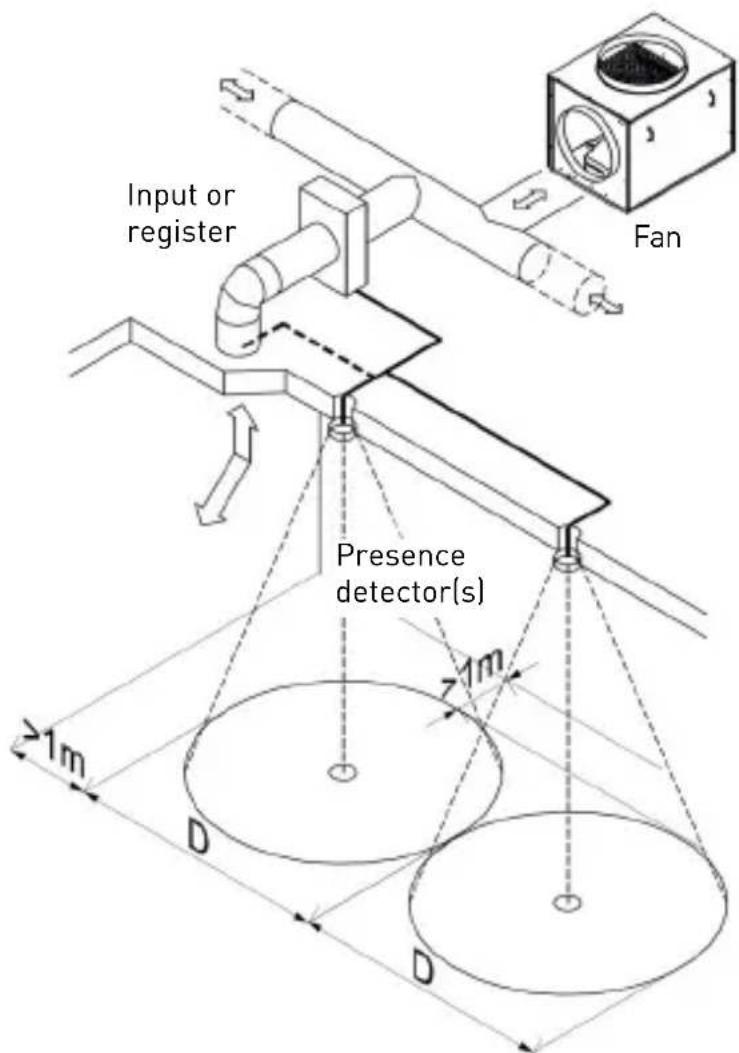

Example of dual control of input or flow register:

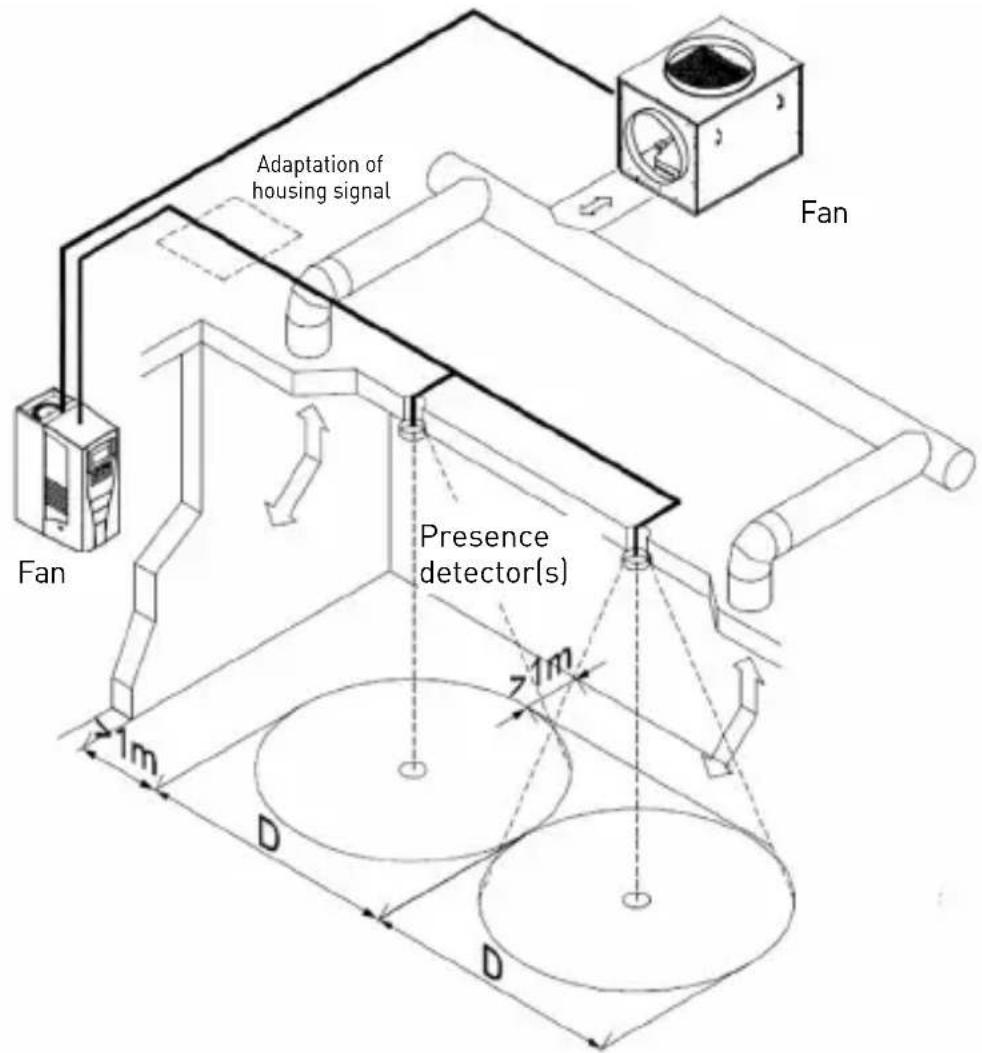

Example of fan control:

EN

4. TECHNICAL FEATURES

	CPTA-S (attached to the ceiling)	CPTA-E (embedded into a false ceiling)
Installation height 2.5 - 3.5 m
Detection angle 360°
Power source Single phase 230 V 50/60 Hz
Consumption 8 VA 12 VA
Light output (L')	230 V closed contact, switching power = 10A AC1 Fluorescent tube 3AX (cosΦ = 0.3); 1000W max. (Incandescent/halogen) - 400VA parallel-compensated (42μF)
Ventilation output (D1-D2)	Dry contact closure, breaking capacity = 5A AC1 / 1A AC3 low 250 VAC or 30 VDC. Detached from brightness
Settings	Illumination output = brightness threshold adjustable from 10 to 2000 lux; adjustable delay time 5 sec / 5 min / 10 min / 20 min. Ventilation output = adjustable delay time 10 sec / 10 min / 15 min / 30 min / 60 min
Protection index (IP) 40 40 (power box = IP20)
Class of electrical insulation	2
Connection capacity 0,75 - 1,5 mm²
Usage conditions 0 - 45°C; max. 90% RH without condensation
Appearance White plastic casing

When switched on:

• The LED comes on for 40 seconds and then switches off (it comes on if a presence is detected).
• L output = 230V for 60 sec and then 0V (230V if a presence is detected).
• D1-D2 output = closed contact for 60 sec and then open contact (closed contact if a presence is detected).

5. SETTINGS

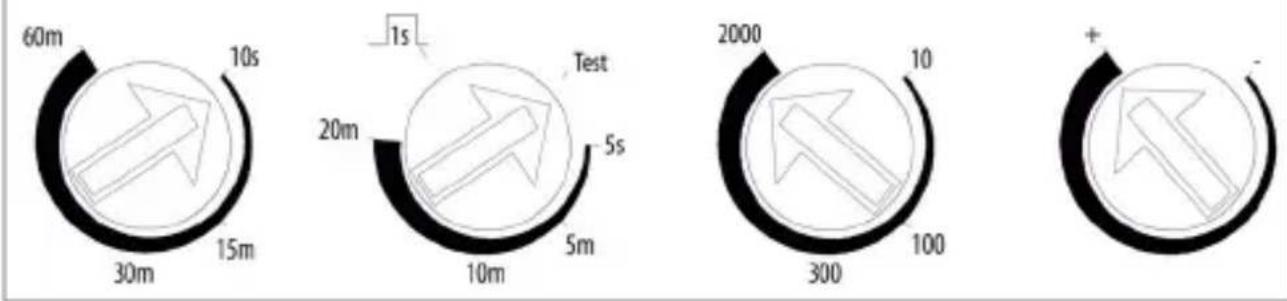

4 settings that can be changed using a fl athead 3 mm screwdriver:

Time 2 Time 1 Luxometres

EN

Time 2: delay when contact of the D1-D2 output comes back (ventilation control). Adjustable to 10 sec / 10 min / 15 min / 30 min and 60 min. To set to 10 minutes.

Time 1: delay in the L' output (illumination control). Adjustable to 5 sec / 5 min / 10 min and 20 min. Set to preference according to need.

Lux: brightness threshold. Influence on the L' output. Adjustable from 10 to 2000 lux.

Metres: detection sensitivity. If there is an AJUST'AIR OPTIC application, set this potentiometer to the maximum value "+" to optimise the best detection area.

CAUTION!

If an "AJUST'AIR OPTIC-V" system is in use, in the settings "2 speed single-phase fan by capacitor": the L' output is used for the PV / GV switching of the fan. Therefore:

• Set "Time 1" to 10 minutes.
• So that the brightness threshold does not affect how the system runs, set "Lux" to the maximum value = 2000.
• CPTA-E: the sensor must be attached to the output labelled "SENSOR A" on the POWER SUPPLY UNIT (the SENSOR B output should not be used).

6. MAINTENANCE

Before starting any maintenance operations, don't forget to unplug the device from the mains.

This product requires regular cleaning (at least once a year) to avoid dust buildup around the lens taking care not to scratch it.

Clean the body of the device with a wet cloth. Do not use detergents or other abrasive products that could damage the finish / colour of the plastic. Do not immerse the device or spray water onto it.

7. PUTTING OUT OF SERVICE AND RECYCLING

EEC legislation and our consideration of future generations mean that we should always recycle materials where possible; please do not forget to deposit all packaging in the appropriate recycling bins. If your device is also labeled with this symbol, please take it to the nearest Waste Management Plant at the end of its servicable life.

8. TECHNICAL ASSISTANCE

S&P's large Technical Service network will guarantee adequate technical assistance.

If a fault is observed in the unit, please contact any of the mentioned technical service offi ces and they will attend to your problem.

Any modification of the appliance by personnel not belonging to the Official S&P Services will result in the guarantee being void. To clarify any questions regarding S&P products contact your local distributor. For its location and to obtain the EU Declaration of Conformity certified technical data sheet and copy of this instruction manual, see our web site www.solerpalau.com
