Product type	Outdoor LED floodlight with PIR motion sensor
Brand	Brennenstuhl
Model	WS 2050 SP
Dimensions (L x W x H)	165 x 170 x 183 mm
Weight	0.63 kg
Power supply	220-240 V~ 50/60 Hz
Power consumption	20.5 W
Max current	0.12 A
Power factor	0.9
Protection class	I (earthing required)
Protection rating	IP44 (protected against splashing water)
Temperature range	-20°C to +40°C
Motion detector	Yes, PIR (passive infrared)
Sensitivity adjustment	Yes, via SENS rotary knob
Lighting duration adjustment	From 10 seconds to 4 minutes (TIME button)
Day/night mode	Selectable: 24-hour activation or only at night
Light source	Non-replaceable LED; replace entire floodlight at end of life
Recommended mounting height	2.5 m (max 3 m)
Dimmer compatibility	Not compatible
Installation	By a qualified professional; cut off power before
Cleaning	Dry or slightly damp cloth; no solvents
Disposal	In accordance with WEEE directive (do not dispose of with household waste)
Package contents	Floodlight, instruction manual, screws, wall plugs, washers, connection plate, clamp

Frequently Asked Questions - WS 2050 SP BRENNENSTUHL

What is the recommended mounting height for the WS 2050 SP?

The recommended mounting height is 2.5 m for models with motion detector, with a maximum of 3 m.

How to adjust the lighting duration of the floodlight?

Use the TIME rotary knob to set the duration between 10 seconds and 4 minutes. Each motion detection resets the duration.

Can this floodlight be used with a dimmer?

No, the WS 2050 SP is not compatible with external dimmers. Using it with a dimmer could damage the device.

How to install the floodlight?

Installation must be carried out by a qualified professional. Cut off the power supply, fix the mounting plate, connect the cable to the terminal block, then mount the floodlight and tighten the screw. Ensure proper earthing (class I).

What do the positions (✝) and ( ) on the detector mean?

The ✝ position means the floodlight turns on day and night with the detector. The ( ) (moon) position means it turns on only at night. Use the SENS button to adjust sensitivity.

What to do if the motion detector does not work?

Check that the day/night mode is correctly set and that the sensitivity (SENS button) is sufficient. Make sure the detector is not obstructed. If the problem persists, contact a professional.

How to clean the floodlight?

Before any cleaning, disconnect the device. Use a dry or slightly damp cloth. Never use solvents or abrasive products.

Is the light source replaceable?

No, the LED light source is not replaceable. At end of life, replace the entire floodlight in accordance with environmental regulations.

What is the protection class of the device?

The WS 2050 SP has protection class I (requires earthing) and an IP44 rating, which protects it against splashing water.

Can this floodlight be used indoors?

Although designed for outdoor use, it can be used indoors if conditions allow. However, it is not suitable for explosive environments and requires compliant installation.

USER MANUAL WS 2050 SP BRENNENSTUHL

EN Operating instructions 7

FR Mode d'emploi 10

Operating Instructions LED Spotlight

WS 2050 S / WS 2050 W

WS 2050 SP / WS 2050 WP

Attention: Before using the product, please carefully read the operating instructions and store them in a proper location!

SAFETY INSTRUCTIONS

- Always check the product for damage before use. Never use the product in case of any damage. If this is the case, please refer to an electrician or the manufacturer's service address.

Non-compliance poses a risk of fatal injury from electrical current!

- Do not use the product in potentially explosive atmospheres – danger of death!

- Keep the floodlight away from children. Children are not aware of the risks imposed by electric current.

Please never look directly into the light.

- A destroyed protective cover cannot be replaced. The floodlight has to be disposed of.

- The spotlight must be installed and serviced by a qualified technician.

- Electrical installations may be performed only in compliance with safety regulations (VDE 0100 for Germany).

- A VDE-certified connection line must be used for the connection.

- The spotlight must be properly grounded (with protection class I).

- If the connection box is damaged, it has to be replaced by a qualified expert.

• Always switch off the power supply before installation. Caution: electric shock.

- Observe the recommended mounting heights (see under Mounting).

Not suitable for applications with external dimmers.

TECHNICAL DATA

Protection class: I

Protection type: IP 44

Temperature range: -20 °C to +40 °C

Type WS 2050 S WS 2050	W WS 2050 SP WS 2050	WP
Motion detector No No Yes		Yes
Rated voltage	220-240 V~ 50/60 Hz	220-240 V~ 50/60 Hz	220-240 V~ 50/60 Hz	220-240 V~ 50/60 Hz
Max. current	0,12 A	0,12 A	0,12 A	0,12 A
Power factor	0,9	0,9	0,9	0,9
Input power	20,5 W	20,5 W	20,5 W	20,5 W
Dimensions L x W x H	165 x 170 x 140 mm	165 x 170 x 140 mm	165 x 170 x 183 mm	165 x 170 x 183 mm
Weight	0,53 kg	0,53 kg	0,63 kg	0,63 kg
Max projected area	115,5 cm ^2	115,5 cm ^2	115,5 cm ^2	115,5 cm ^2

This product is suitable for outdoor lighting purposes.

INSTALLATION AND CONNECTION TO POWER SUPPLY

1. Always switch off the power supply before installation.
2. The spotlight must be mounted at a height of less than 3 m. Recommended mounting height for models with motion detectors is 2.5 m.
3. To fix the mounting plate to the wall, follow the steps (fig. 2-4).
4. Open the sleeve of the connection plug on the back of the light (fig. 1).
5. Feed the connecting cable through the sealed plug sleeve and connect the strands to the luster terminal of the input plug (fig. 5).
6. Connect the spotlight to the mounting plate and tighten the screw (fig. 6).
7. Align the spotlight head.
8. Switch on the power supply again.

ADJUSTING THE SPOTLIGHT WITH MOTION DETECTOR (PIR)

The motion detector has a built-in sensor that can distinguish between daylight and darkness. The (★) position indicates that the connected light is switched on by the motion detector during the day and night.

The ( ) position indicates that the connected luminaire is only switched on by the motion detector during the night. You can set the desired light intensity at which the light is to be switched on using the SENS rotary knob.

SETTING THE LIGHT DURATION

The light duration is the time period for which the motion detector leaves the light on after it has been activated. The lighting time can be set from approx. 10 seconds to approx. 4 minutes. Turning the TIME knob from (+) to (-) reduces the light duration.

Attention: Each time a movement is detected, this period starts again from the beginning.

SCOPE OF DELIVERY

LED-spotlight, operating instructions, screws, dowels, washers, mounting plate, clamp.

MAINTENANCE

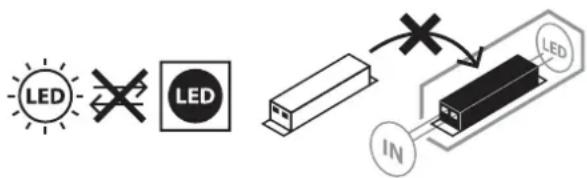

ATTENTION: The LED lamp does not contain components that require maintenance.

The light source in this lamp cannot be replaced; if the light source has reached the end of its service life, the entire lamp has to be replaced. The lamp may not be opened.

CLEANING

Before cleaning, disconnect the floodlight from the mains power.

Do not use solvents, caustic cleaning agents or similar products.

Only use a dry or slightly moistened cloth for cleaning.

DISPOSAL

Dispose of electric appliances in an environmentally friendly manner! Electric appliances must not be disposed of in household waste!

The European Directive 2012/19/EU on Waste Electrical and Electronic Equipment rules that used electric appliances should be collected separately and recycled in an environmentally friendly manner.

For possibilities of disposal of the used appliance, please contact your local or municipal administration.

EU DECLARATION OF CONFORMITY

UK DECLARATION OF CONFORMITY

The declaration of conformity is deposited with the manufacturer.

ADRESSES

For more information please visit the Service/FAQ section on our homepage, www.brennenstuhl.com.
