Product type	Portable rechargeable LED projector
Brand	Brennenstuhl
Model	EL 2000 MA
Category	Lamp
Protection class	III
Ingress protection	IP54
Impact resistance	IK08
Temperature range	-10 °C to +40 °C
Power	20 W
Battery type	Lithium-ion 3.7 V / 6.6 Ah
Charging input	5 V / 2 A
Charging time (at 2 A)	~4 hours
USB output (Powerbank)	5 V / 1 A
Maximum projection surface area	88 cm²
Weight	1.15 kg
Power levels	100% and 50%
Integrated Powerbank function	Yes
Tripod mount	Yes (mounting holes)
Package contents	Projector, USB cable
Maintenance	Dry or slightly damp cloth; no solvents
Safety	Do not look directly into the beam; keep out of reach of children; use certified USB charger; do not use in explosive environments
Spare parts / Repairability	No repairable parts; light source non-replaceable; replace the entire unit
Manufacturer	H. Brennenstuhl S.A.S., 4 Brussels Street, F-67170 Bernolsheim; lectra technik ag, Blegistrasse 13, CH-6340 Baar

Frequently Asked Questions - EL 2000 MA BRENNENSTUHL

How to turn on the EL 2000 MA projector?

Press the switch (A) located at the rear of the projector to turn it on.

How to adjust the light intensity?

Press the switch several times to switch from 100% to 50% power, then turn it off.

What does the charging indicator mean?

The charging indicator (C) lights up automatically when turned on. Press the button (D) to activate it. When all 4 LEDs are lit, the battery is fully charged.

How to recharge the battery?

Use the charging input (E) under the sealing cover at the rear. Connect a USB 5 V/2 A charger. Full charge takes about 4 hours. Close the cover after charging.

Can I use the projector while charging?

Yes, but the charging time will be significantly extended. The projector can be used while charging.

What to do when the battery is almost empty?

The projector flashes 5 times and the indicator flashes continuously. It still works for 5 minutes before the undercharge protection turns it off.

How to use the PowerBank function?

Connect an external device (smartphone, tablet) to the USB port (B). The output is 5 V/1 A. The number of cycles depends on the device and battery status.

How to mount the projector on a tripod?

Use the mounting holes (F) to screw the projector onto a Brennenstuhl tripod (mount not included).

How to clean the projector?

Before cleaning, disconnect the product. Use a dry or slightly damp cloth. Do not use solvents or abrasive products.

What to do in case of malfunction or end of life?

The projector contains no repairable parts. The light source cannot be replaced. At end of life, replace the entire projector in accordance with environmental standards.

USER MANUAL EL 2000 MA BRENNENSTUHL

Mobiler LED Akku Strahler Mobile rechargeable LED Light

EL 2000 MA

GB Operating instructions 6

FR Mode d'emploi 9

Operating instructions Mobile rechargeable LED Light

EL 2000 MA

Attention: Before use of the light, please carefully read the operating instructions and store them at a proper location!

SAFETY INSTRUCTIONS

• Always check the product for damage before use.

Never use the product in case of any damage. In case you find the product to be damaged, please refer to an electrician or the manufacturer's service address.

Non-compliance poses a risk of fatal injury from electrical current!

• Do not use the product in potentially explosive atmospheres – danger of death!
• Keep the light away from children. Children are not aware of the risks posed by electric current.
• To charge the batteries, only use a certified USB power supply unit.
• Please never look directly into the light.
• A destroyed protective cover cannot be replaced. The light has to be disposed of.

Not suitable for applications with external dimmers.

If the minimum distance is not complied with, illuminated objects may overheat.

- The product is not IP54-compliant (dust- and splash-proof)

– during use of the USB output
– during the charging process.

TECHNICAL DATA

Protection class: III

IP class/shock resistance: IP54, IK08

Temperature range: -10 °C - +40 °C

Power: 20 W

Rechargeable battery type: Li-ion 3.7 V/6.6 Ah

Charging input: 5 V/2 A

Charging time (2 A charging): \~4 h

Power bank: 5 V/1 A

Max. projected area: 88 cm ^4

Weight: 1.15 kg

This LED light is suitable for indoor and outdoor lighting purposes.

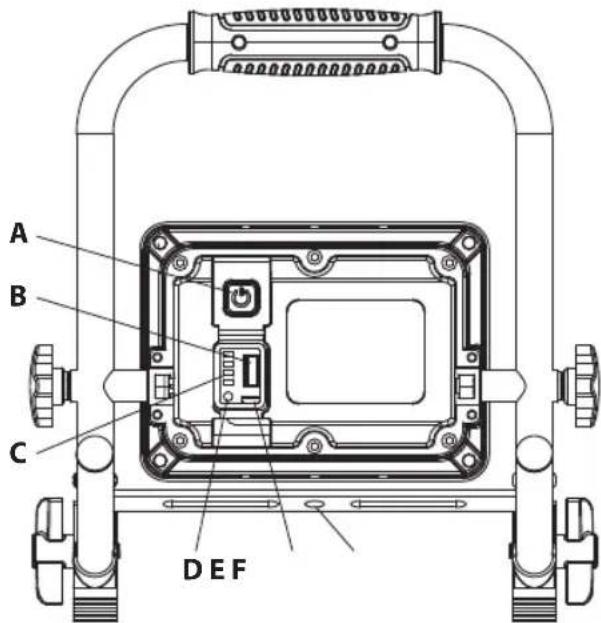

CONTROL ELEMENTS

A Switch
B USB output (power bank)
C Battery status indicator
D Button
E Charging input
F Tripod fastening

COMMISSIONING

Place the light on a dry and level surface.

Use the switch (A) on the back side to switch the light on.

Press the switch multiple times to set the brightness to 100%, then 50% and then "off". The lower the brightness selected, the longer the light will burn.

BATTERY STATUS INDICATOR

The battery status indicator (C) appears automatically when the light is switched on. It can moreover be activated by pushing the button (D) below the battery indicator.

If all 4 LEDs are lit, the battery is fully charged.

If the battery is almost empty, the light flashes 5 times and the battery status indicator flashes continuously. Afterwards, the light will remain on for approx. 5 minutes before the light is switched off by the deep discharge protection function.

This ensures sufficient time to complete the work.

CHARGING THE BATTERY

To ensure optimum functionality, we recommend fully discharging the battery on the first use and fully charging it afterwards.

1. The charging input (E) is located under the cover cap on the back side of the light.
2. The charging status of the battery is indicated by the battery status indicator (see description above).
3. If the device is not used for longer periods of time, charge the battery at regular intervals of approx. 3 months to ensure a long service life.
4. The product may be used during charging. In this operating mode, the battery charging time will be considerably extended.
5. After charging, always close the charging port with the cover cap.

CHARGING EXTERNAL DEVICES VIA USB

The light offers a USB power bank function. An external device like a smartphone or tablet can be connected to the USB port (B) and charged. The number of possible charging cycles depends on the type of external device and on the charging level of the light's battery.

TRIPOD MOUNTING

By means of the holes in the holding bracket (F in the figure), the light can be mounted on a Brennenstuhl tripod (fastening material not included in the scope of delivery).

SCOPE OF DELIVERY

Light, USB cable.

CLEANING

Before cleaning, disconnect the product form the power supply.

Do not use solvents, caustic cleaning agents or similar products. Only use a dry or slightly moistened cloth for cleaning.

MAINTENANCE

ATTENTION: The LED lamp does not contain components that require maintenance. The light source of this lamp cannot be replaced. If the light source has reached the end of its service life, the entire lamp has to be replaced. The lamp may not be opened.

EU DECLARATION OF CONFORMITY

The EU Declaration of Conformity is deposited with manufacturer.

DISPOSAL

Dispose of electric appliances in an environmentally friendly manner! Electric appliances must not be disposed of in household waste!

The European Directive 2012/19/EU on Waste Electrical and Electronic Equipment rules that used electric appliances should be collected separately and recycled in an environmentally friendly manner.

For possibilities of disposal of the used appliance, please contact your local or municipal administration.

Batteries and rechargeable batteries may not be disposed of in household waste!

As a consumer, you are legally obligated to dispose of all batteries and rechargeable batteries at a collection point in your municipality/your district or in a shop so that they can be disposed of in an environmentally-friendly manner, otherwise there are possible risks to the environment and human health.

MANUFACTURER

For more information, we recommend the Service/FAQs

section on our homepage www.brennenstuhl.com.
