USER MANUAL BF 5000 M BRENNENSTUHL

Mobiler 360^ LED Strahler

Mobile 360^ LED Light

Operating Instructions Mobile 360^ LED Light

BF 3000 M / BF 5000 M / BF 5001 M

Note: Before using the floodlight, please carefully read the operating instructions and store them in a proper location!

TECHNICAL DATA

Protection class: I

Protection class: IP 54, IK08

Rated voltage: 220 - 250V 50 / 60Hz

Switch: professional switch

Connection cable: H07RN-F 3G1.5 mm²

Socket: 220 - 250V max.3400W

Typ: BF 3000 M BF 5000 M BF 5001 M
Product number: 1171410300 1171410500 1	171411500
Power plug: DE DE FR
Electrical power (W):	30	50	50
Electricity (A):	0.75	1.22	1.22
Dimensions (mm):	205 x 21 x 222.5	205 x 21 x 222.5	205 x 21 x 222.5
Protective cover dimension (mm):	200 Ø x 85.8 h	200 Ø x 85.8 h	200 Ø x 85.8 h
Weight max. (kg):	2,1	2.85	2.85
Power factor:	>0.9	>0.9	>0.9
Max projected area (cm2):	456	456	456

This LED floodlight is suitable for indoor and outdoor lighting purposes.

SAFETY INSTRUCTIONS

1. Before use, always check the floodlight and the power supply line for any possible damage. Never use the floodlight in case of any damage.

Caution! In case of a damaged floodlight or a damaged power supply line there will be a risk of fatal injury from electrical current!

1. If the connection line of the device is damaged, the line must be replaced by a qualified specialist to avoid any risk.
2. The floodlight must be grounded properly.
3. The floodlight must not be used without properly attached sealing rings.
4. LED floodlights are extremely bright. Please never look directly into the light.
5. A destroyed protective cover cannot be replaced. The floodlight has to be disposed of if the protective cover is broken.
6. Make sure that the floodlight has a safe and stable position.

Make sure that the cables are not crushed or damaged otherwise.

1. Keep the floodlight away from children. Children are not aware of the risks imposed by electric current.

COMMISSIONING

SWITCHING THE FLOODLIGHT ON/OFF

Position the floodlight and switch it on using the switch (A).

The floodlight is lit with 100% light intensity; by pressing again, the light intensity is set to 50% , pressing once more switches the floodlight off.

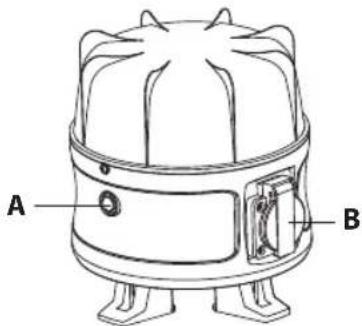

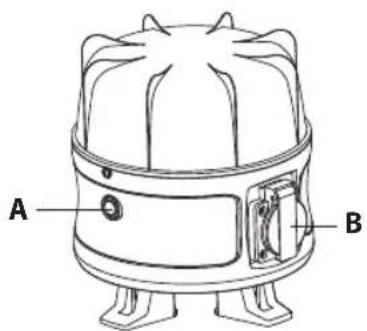

A: On/Off and function switch
B:Socket
C:Hook

OPERATION

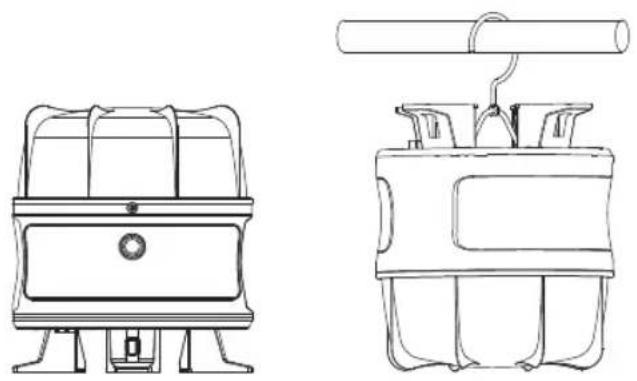

Upright: Place the light on a dry and level surface.

Hanging: Hang the light on a suitable pipe.

Combined: interconnect several BF floodlights

A socket (B) is located on the side of the light which can be used to turn it into a power distributor.

The socket also functions when the light is switched off.

On a stand (not included in the scope of delivery)

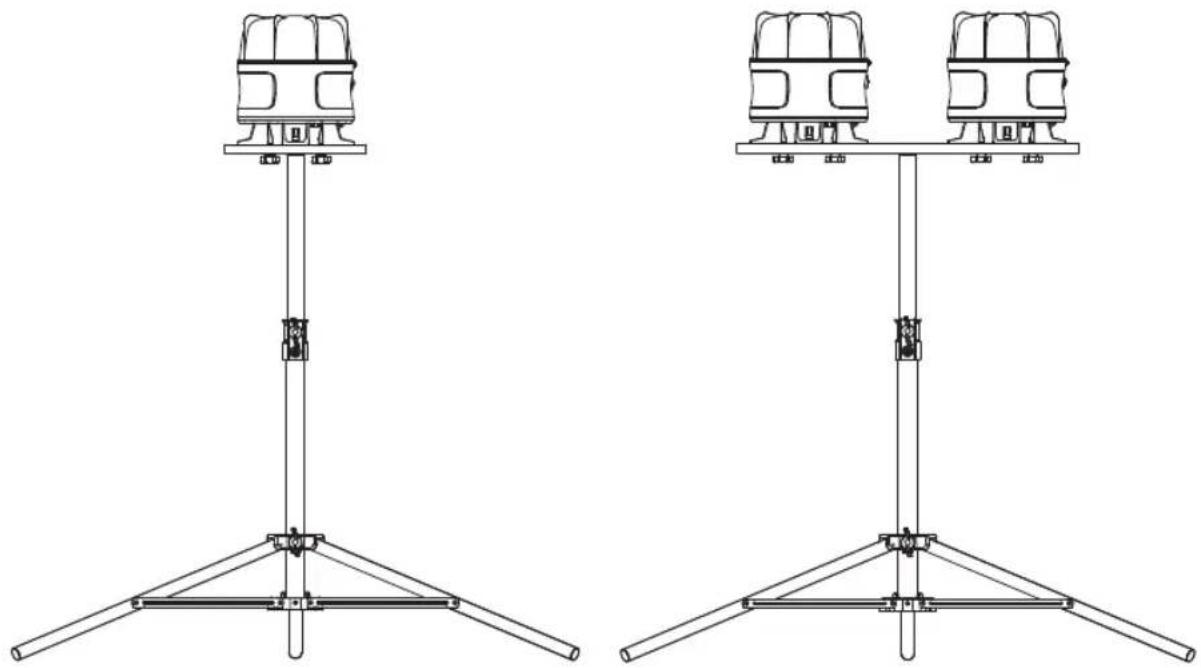

The light can also be installed on a Brennenstuhl stand, either individually or in pairs.

The additional CB 70 1172640059 crossmember is required for installing two lights.

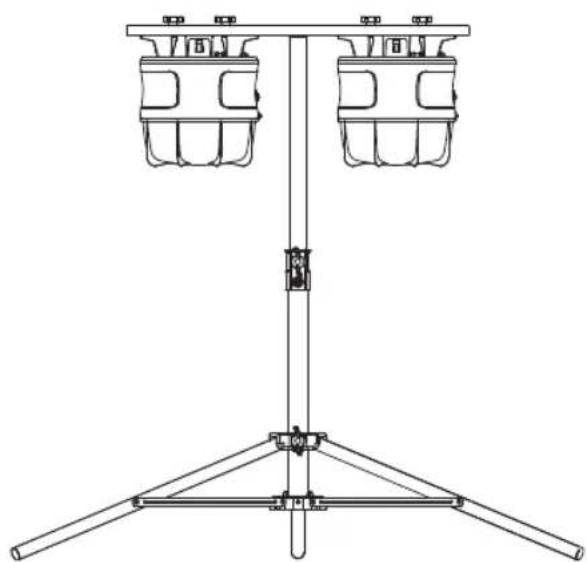

Vertically screwed single floodlight Bolted on hanging light

(just TS 250 1170610020

and TS 170 1170610010

and TS 300 9171991100)

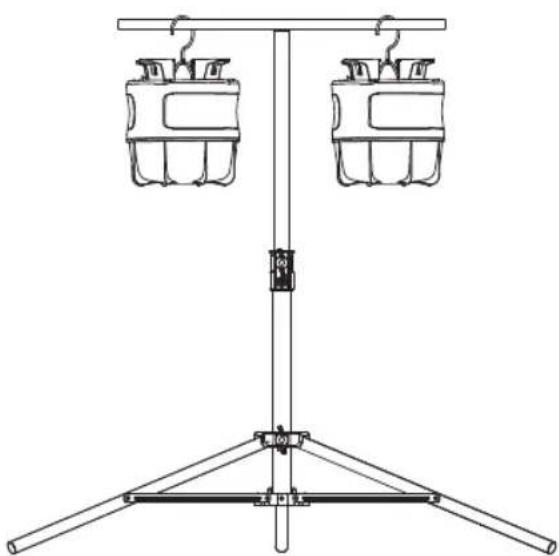

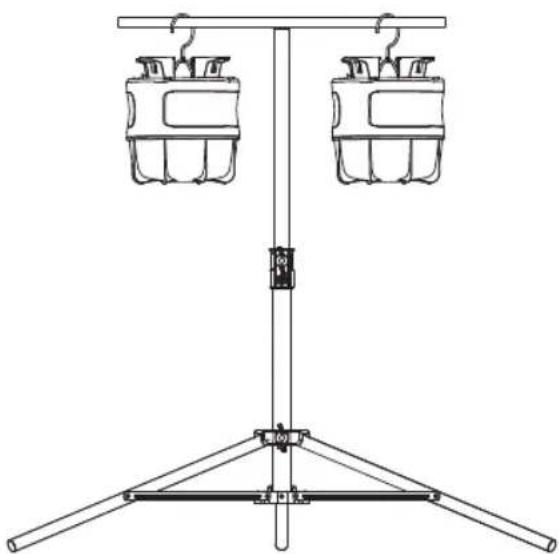

Bolted on hanging light Hanging on a hook

CABLE WRAP

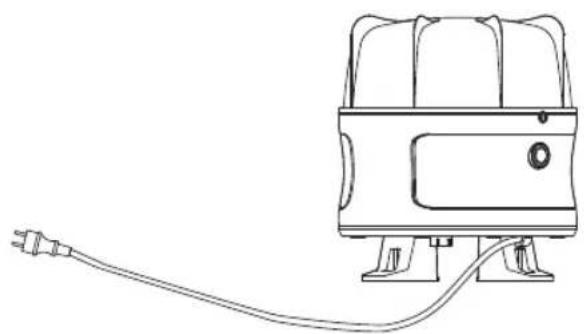

The cable can be wrapped around a groove in the light for transport and storage.

OPTIONAL STAND ACCESSORIES

1170310 stand ST 300

1170610020 stand TS 250

9171991100 stand TS 300

1172640059 cross-member CB 70

MAINTENANCE

The light source of this lamp cannot be replaced; if the light source has reached the end of its service life, the entire lamp has to be replaced.

CLEANING

Do not use solvents, caustic cleaning agents or similar products. Only use a dry or slightly moistened cloth for cleaning.

DISPOSAL

Dispose of electric appliances in an environmentally friendly manner! Electric appliances must not be disposed of in household waste!

The European Directive 2012/19/EU on Waste Electrical and Electronic Equipment rules that used electric appliances should be collected separately and recycled in an environmentally friendly manner.

For possibilities of disposal of the used appliance, please contact your local or municipal administration.

DECLARATION OF CONFORMITY

The declaration of conformity is stored at the manufacturer's.

ADRESSEN

For more information please visit the Service/FAQ section on our homepage, www.brennenstuhl.com.
