Product type	Wood pellet stove
Brand	Palazzetti
Model	Ecofire Marianne 9 air
Nominal thermal output	2.2 - 9.1 kW
Efficiency	91.8% - 94.3%
Fuel	Wood pellets class A1 (ISO 17225-2, ENplus A1, DIN Plus)
Hopper capacity	19 kg
Dimensions (W x H x D)	405 x 1134 x 560 mm
Weight	132 kg
Flue outlet diameter	80 mm
Combustion air inlet diameter	130 mm
Power supply	230 V ~ 50 Hz
Max electrical power during operation	45 W
Electrical power at ignition	330 W
Fuel consumption per hour	0.48 - 2.02 kg/h
Flue gas temperature	65.1 - 159.5 °C
CO emissions (at 13% O₂)	36.6 - 404.2 mg/Nm³
Routine cleaning	Daily cleaning of the brazier, emptying the ash drawer every week, cleaning the glass
Periodic maintenance	Annual check by approved service center (seals, flue gas collector, door safety, flue)
Main functions	Automatic ignition, modulating power regulation, timer programming, room probe, external thermostat management
Safety devices	Safety thermostat, pressure switch, door safety, pellet sensor, automatic shutdown

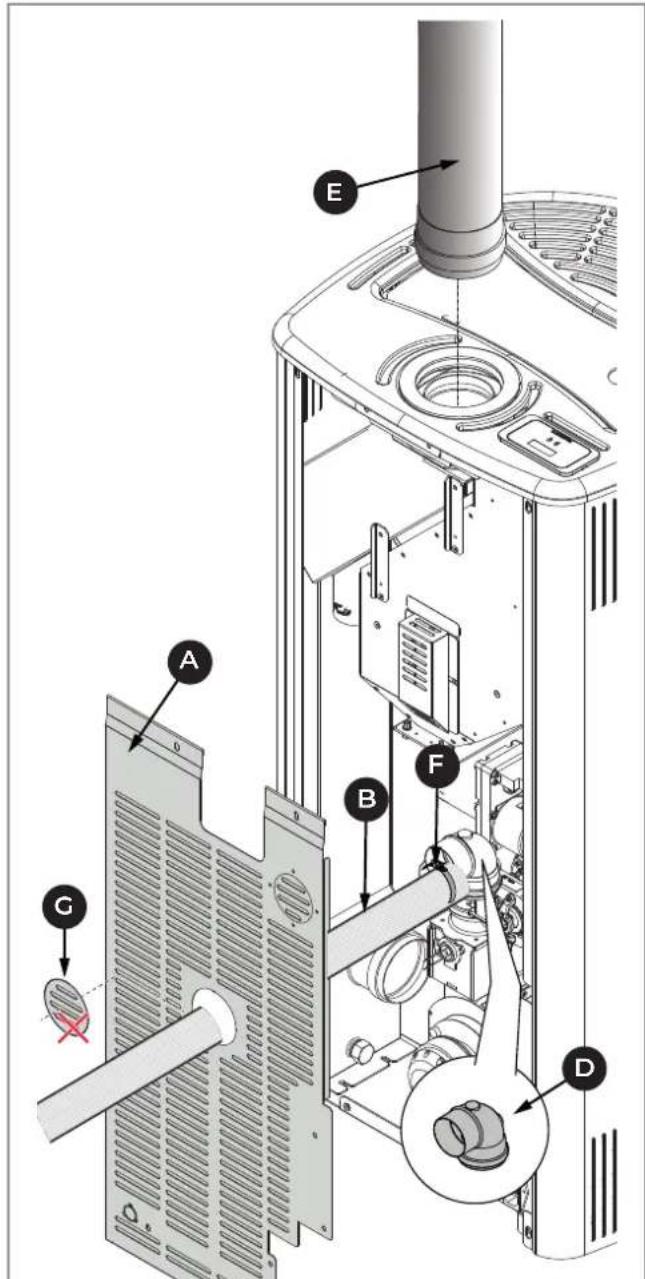

Installation configurations	Coaxial pipe, single-wall pipe with indoor or outdoor air intake
Minimum room volume	40 m³
Safety distance to flammable materials	X1 = 800 mm, X2 = 100 mm, Y1 = 100 mm, Y2 = 100 mm, Z = 600 mm

Frequently Asked Questions - Ecofire Marianne 9 air Palazzetti

What type of pellets should I use?

Use exclusively wood pellets class A1 (ISO 17225-2, ENplus A1, DIN Plus or equivalent). Pellets must be between 3 and 40 mm in length. Avoid moist or low-quality pellets which reduce efficiency and foul the brazier.

How to clean the glass?

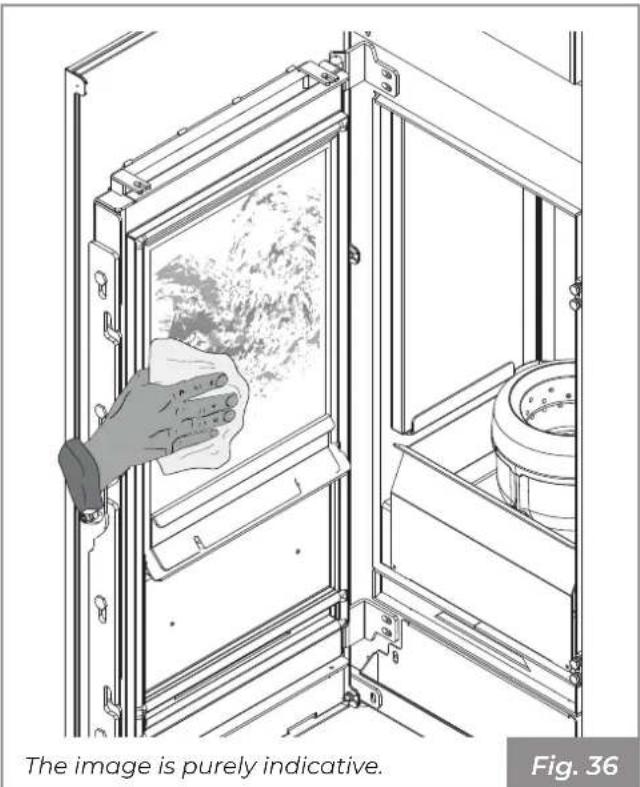

Wait until the appliance is cold. Use a damp cloth or dampened paper dipped in the ashes. Rub gently until the glass is clean. Never use abrasive products, solvents or harsh detergents.

What is the safety distance from walls?

Observe the following minimum distances: 800 mm in front (X1), 100 mm on the sides and rear (X2, Y1, Y2), and 600 mm above (Z). For flue pipes, follow the indications on the rating plate.

What to do in case of malfunction or alarm?

If the appliance displays an alarm or operates abnormally, turn it off and unplug it. Contact an authorized Palazzetti technician. Do not attempt to repair internal components yourself. Common alarms (e.g. lack of pellets, low pressure) are described in the manual.

Can I use an external room thermostat?

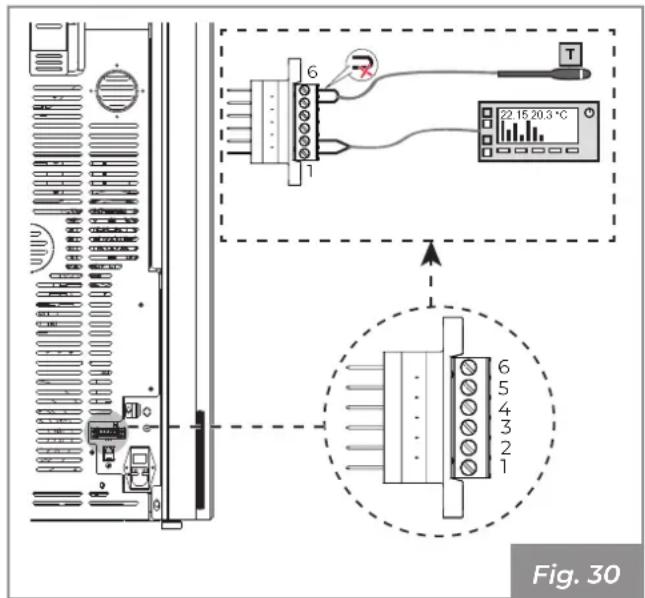

Yes, the stove can be set to Configuration 2 with a room thermostat (not supplied). Connect it to terminals 1 and 2 of the terminal board and remove the shunt. The thermostat turns the appliance on and off according to the programmed temperature.

How to perform the first ignition?

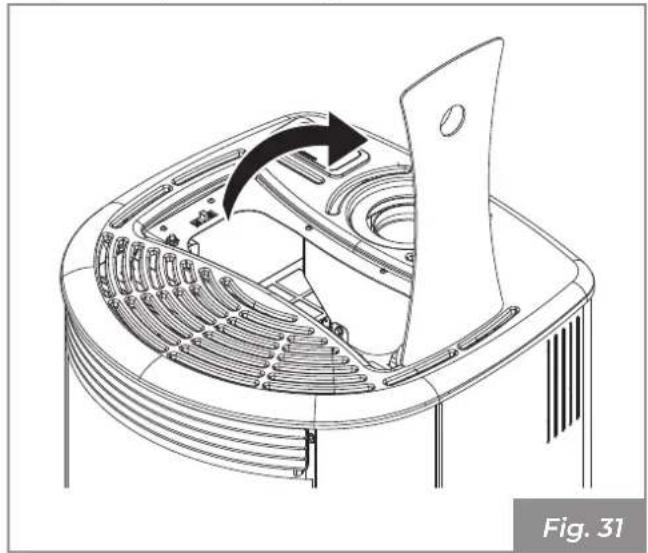

The first ignition must be carried out by the installer. Fill the hopper with pellets, plug in the appliance and set the switch to position 'I'. A series of beeps and the screen lighting up indicate the appliance is ready. Follow the instructions in the display manual.

How often should the brazier be cleaned?

The brazier must be cleaned before each ignition or at least daily. Remove the ashes and check that all holes are free to ensure good combustion air circulation. A dirty brazier can cause explosions or malfunctions.

Can the stove operate without electricity?

No, the stove requires an electrical supply for the fan, ignition and control system. In case of a power cut, the appliance turns off and restarts automatically when power is restored (depending on the configuration).

How to optimize combustion?

After the first installation, you can adjust the combustion value via the 'Combustion' menu (function 14). If excessive residues appear in the brazier, increase the value in steps until a stable flame and little ash is obtained. Consult the manual for more details.

How to store pellets?

Store the pellet bags in a dry place, away from humidity and at moderate temperature. Do not store them within one meter of a heat source. Avoid fragmenting pellets as sawdust can block the feeding system.

USER MANUAL Ecofire Marianne 9 air Palazzetti

9 PRIMA ACCENSIONE 32

Technical illustration of a server rack unit with labeled component A, showing internal structure and ventilation slots (no text or symbols beyond label)

Pile of cylindrical wooden sticks, labeled as Fig. 2 (no text on sticks)

Technical diagram of a device interior with numbered components for identification

Fig. 3

Technical diagram of a server rack with numbered components for identification

Technical diagram of a server rack with numbered components for identification

Fig. 4

Technical illustration of a vacuum cleaner with internal components and directional arrows, no text or symbols present

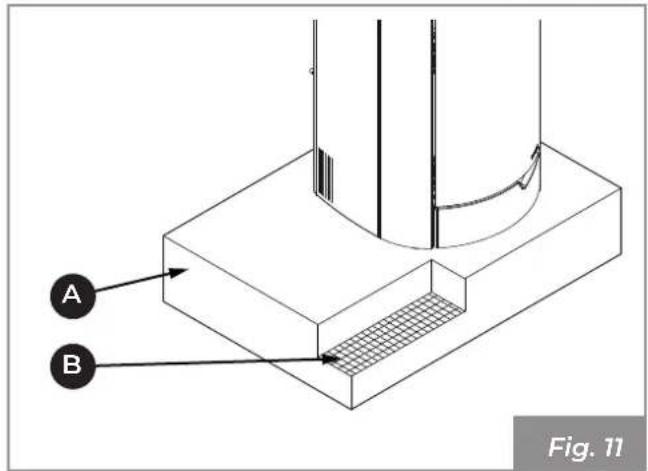

5.1 Trasporto

Technical illustration of a cylindrical device with labeled component A and 10 mm dimension (no text or symbols beyond labels)

A B Fig. 11

Cross-sectional diagram of a building foundation with brick wall and water layers, labeled Fig. 15 (no text or symbols on the diagram itself)

Technical diagram of a device interior with labeled components including fan, ventilation ducts, and mechanical parts

Fig. 24

Line drawing of a hand holding a plug, with a wall-mounted device and a circular component inserted (no text or symbols)

Technical line drawing of a mechanical component with a curved base and internal structure, showing a directional arrow indicating rotation (no text or symbols present)

- Caricare i pellet.

Line drawing of a device's internal components with granular material being inserted, labeled as Fig. 32 (no text or symbols on the diagram itself)

Illustration of hands cleaning a wall-mounted sink with a curved arrow indicating direction (no text or symbols)

Technical illustration of hands installing or adjusting a flexible hose component inside a mechanical housing (no text or symbols visible)

Technical line drawing of a door with a hand cleaning a window, showing internal components and no text or symbols.

Technical illustration of an air conditioner unit with a hand operating the chamber, showing internal components and wiring (no text or symbols)

Symbol of a trash bin crossed with a diagonal line and a horizontal bar below (no text or labels)

1.3 Purpose and content of the manual 40

1.4 Preservation of the manual 40

1.5 Update of this manual 40

1.6 Overview 40

1.7 Compliance 41

1.8 Responsibility of the manufacturer 41

1.9 Technical assistance and maintenance 42

1.10 Spare parts 42

1.11 Serial plate 42

1.12 Delivery of the appliance 42

2 SAFETY WARNING 43

2.1 Warnings for the installer 43

2.2 Warnings for technical maintenance personnel 44

2.3 Warnings for users 44

3 FUEL CHARACTERISTICS 47

3.1 Fuel characteristics 47

3.2 Pellet storage 47

4 BECOMING FAMILIAR WITH THE PRODUCT 48

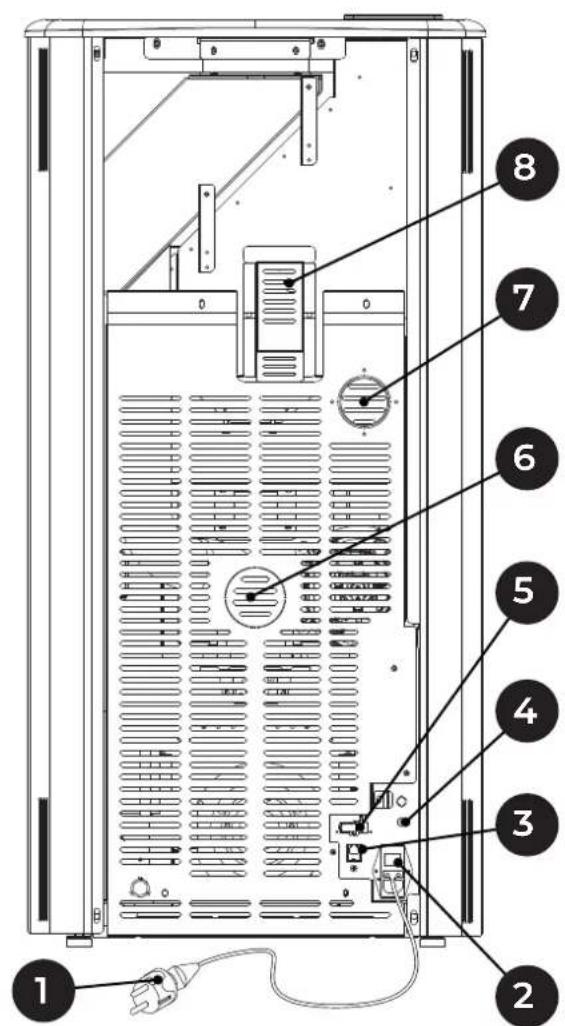

4.1 Description 48

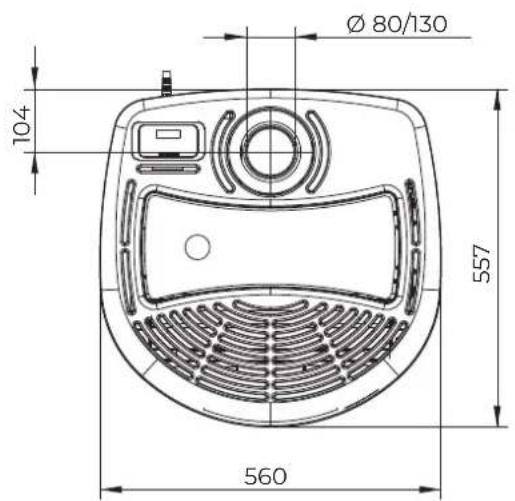

4.2 Dimensions 50

4.3 Technical features 51

4.4 Serial plate 52

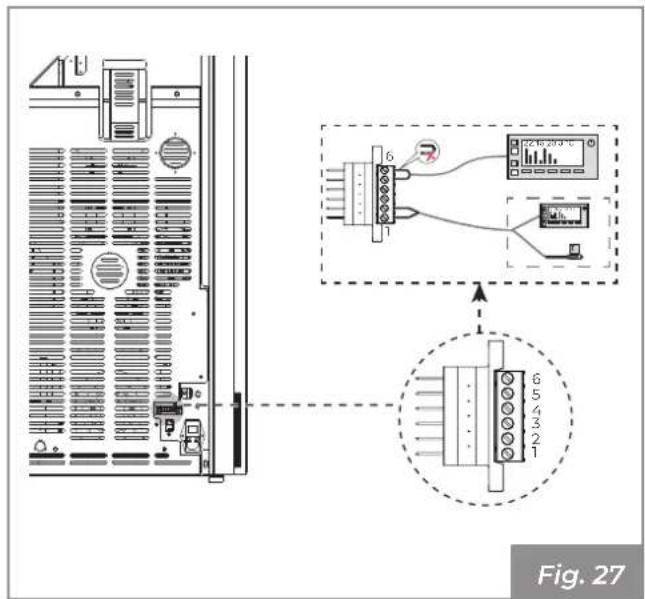

4.5 Wiring diagram 53

5 HANDLING AND TRANSPORTATION 55

5.1 Transportation 55
5.2 Checking the floor where the appliance will be placed 55

6 PREPARING THE PLACE OF INSTALLATION 56

6.1 General considerations 56
6.2 Safety Precautions 56
6.3 Place of installation 57
6.4 Combustion air 57

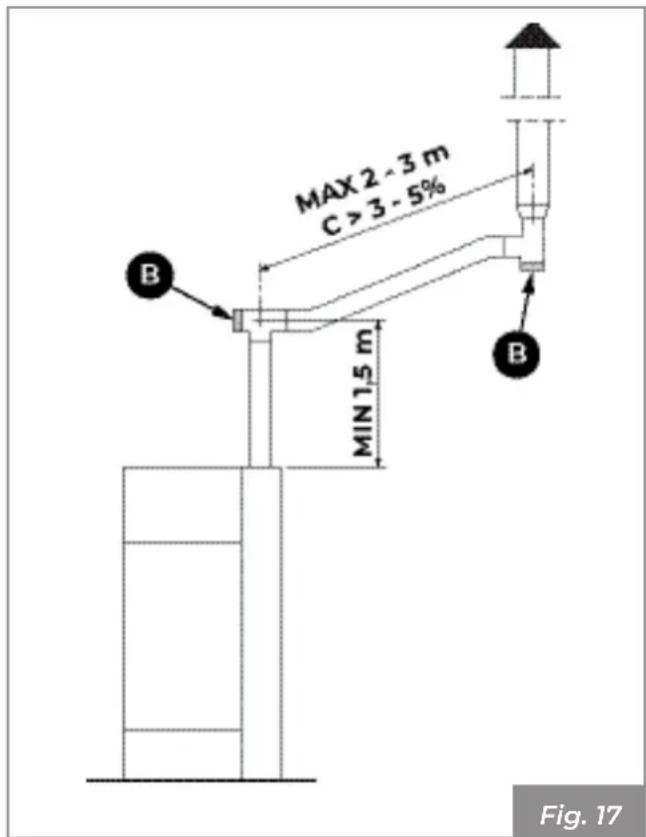

6.5 Flue gas fitting 59

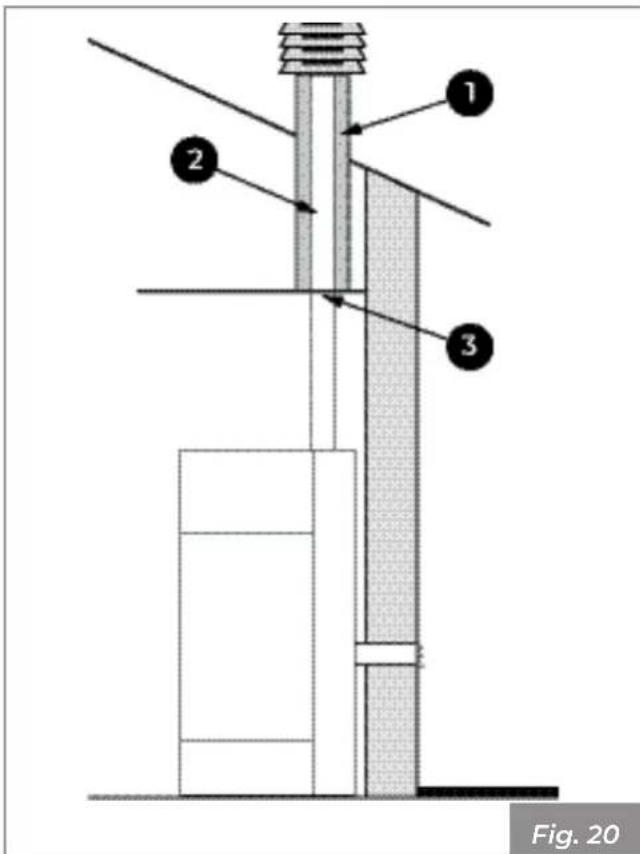

6.6 Roof exhaust with traditional fireplace 60

7 INSTALLATION 61

7.1 General considerations 61

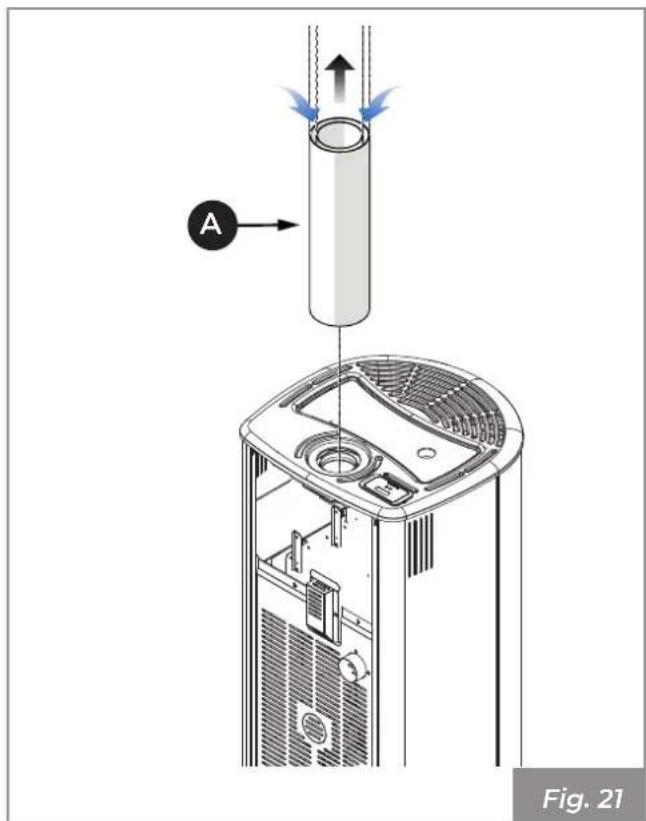

7.2 Installation configurations 61

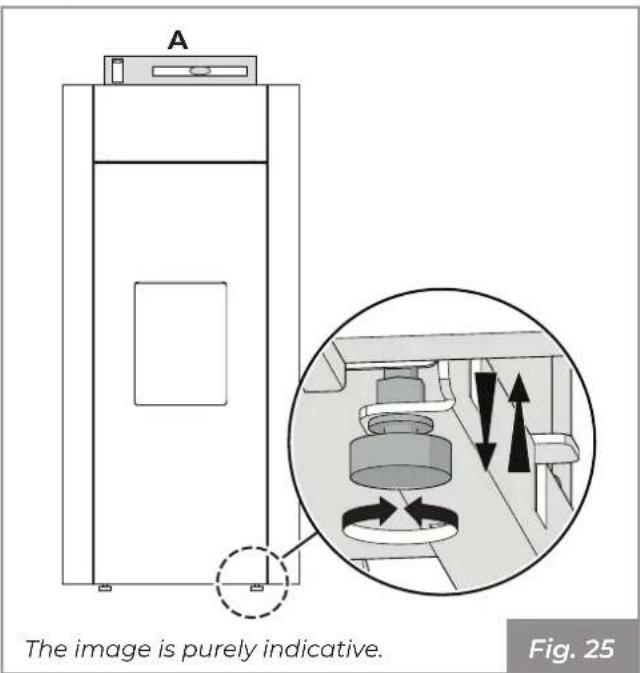

7.3 Levelling of the appliance 63
7.4 Room air circulation 63
7.5 Electrical connection 64
7.6 Fuel optimisation 64

9.1 Pellet loading 67
9.2 First start up 67

10 CLEANING AND MAINTENANCE 68

10.1 Routine maintenance cleaning programme 68

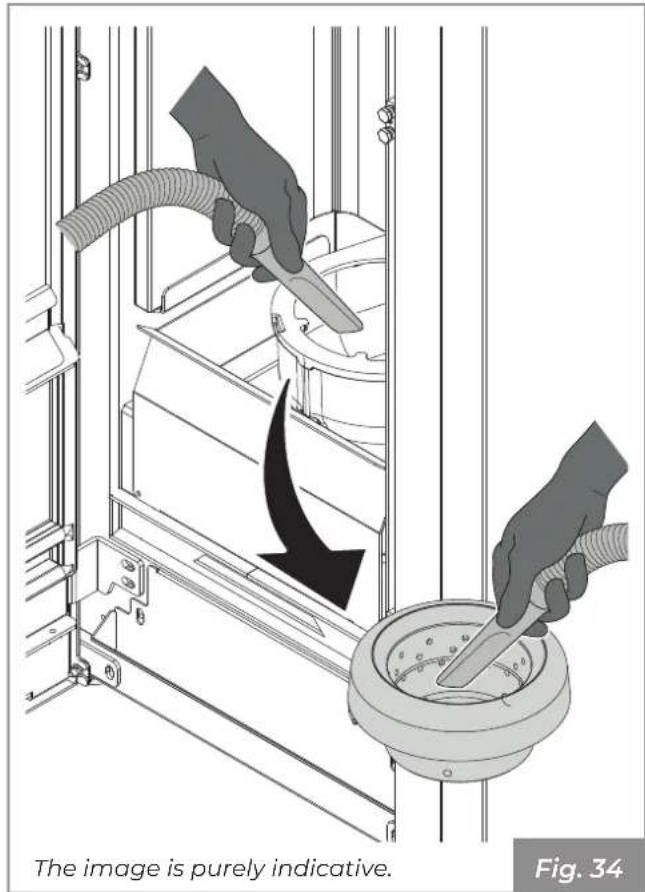

10.2 Routine cleaning 69
10.3 Ordinary maintenance 70

11 DEMOLITION AND DISPOSAL 72

11.1 Disposal of electrical components 72

1 GENERAL INTRODUCTION

Palazzetti heating appliances are manufactured and tested in accordance with the safety requirements set forth in the reference European directives.

Even partial printing, translation and reproduction of this manual are bound by the authorisation from Palazzetti. Technical information, graphical representations and specifications in this manual may not be disclosed to third parties.

Do not operate if not all the information provided in the manual has been thoroughly understood; if in doubt always request the advice or intervention of Palazzetti specialised personnel.

Palazzetti reserves the right to change specifications and technical and/or functional characteristics of the product at any time without prior notice.

1.1 Symbols

In this manual the points of major importance are highlighted by the following symbols:

INDICATION: Indications concerning the correct use of the appliance and the responsibilities of those in charge.

ATTENTION: The point in which a note of particular importance is expressed.

HAZARD: Expresses an important note of behaviour for the prevention of injuries or damage to property.

1.2 Intended use

The appliance, which is the subject of this manual, is an indoor domestic heating stove, powered exclusively by wood pellets with automatic loading.

The appliance must only work with the fire box door closed.

The intended use indicated is valid only for appliances in full structural, mechanical and engineering efficiency.

1.3 Purpose and content of the manual

The purpose of this manual is to provide the fundamental and basic regulations for correct installation of the appliance.

Strict observance of that which is described herein guarantees a higher level of appliance safety and productivity.

1.4 Preservation of the manual

Preservation and consultation

The manual must be kept carefully and must always be available for consultation, both by the user and by the assembly and maintenance staff.

The installation manual is an integral part of the appliance.

Deterioration or loss

If needed, request an additional copy from Palazzetti.

Sale of the appliance

In the event of transferring the appliance the user is obliged to deliver even this manual to the new owner.

1.5 Update of this manual

This manual reflects the latest developments at the time the appliance was placed on the market.

The products already on the market with the relevant technical documentation, will not be considered by Palazzetti as deficient or inadequate due to possible modifications, adjustments or application of new technologies on newly marketed products.

1.6 Overview

The instructions in this manual apply as general rules; it is still necessary to comply with all the rules laid down by the local, national and European legislation in force in the country where the appliance is installed.

Information

In the event that you need to contact the Manufacturer of the appliance, refer to the serial number and the identification data indicated on the identification plate.

In case of problems, contact the dealer or a qualified technician authorised by the manufacturer; in case of repair, request the use of original spare parts.

Periodically check and clean the flue gas duct (connected to the chimney flue).

The pellet stove is not a cooking device.

Store this instruction manual, which is an integral part of the stove, for its entire service life. If the stove is sold or transferred to another user, always make sure it is accompanied by the product booklet.

In case of loss, contact the manufacturer or authorised retailer to receive another copy.

Maintenance

Maintenance operations must be carried out by qualified personnel authorised to work on the appliance to which this manual refers.

Responsibility for the works of installation

Responsibility for the works carried out for the installation of the appliance cannot be considered to be taken on by Palazzetti; it is and remains the responsibility of the installer, who is responsible for carrying out the checks relating to the flue, the air intake and how right the proposed installation solutions are.

1.7 Compliance

The appliances covered by this manual comply with the legislative provisions of the following European directives:

2014/30/EU: Electromagnetic Compatibility Directive

2014/35/EU: Low Voltage Directive

2017/2102/EU: RoHS Directive

2009/125/EC: Ecodesign Directive – Energy related product

2014/53/EU: RED (Radio Equipment Directive)

REGULATION (EU) N. 305/2011 (CPR)

REGULATION (EU) 2015/1185 (ECODESIGN)

The following harmonised standards and/or regulations have been applied:

EMCD:

• EN 55014-1:2017
• EN 61000-3-2:2015
• EN 61000-3-3:2014 /EC:2016
• EN 55014-2:2015

EMF:

- EN 62233:2008 / EC:2008

LVD:

- EN 60335-1:2013 /EC:2014 /A11:2015 /A13:2017

- EN 60335-2-102:2007 /A1:2011

CPR:

- EN 14785:2006

1.8 Responsibility of the manufacturer

With the delivery of this manual, Palazzetti declines all responsibility, both civil and criminal, direct or indirect, due to:

• installation that does not comply with standards in force in the country and with safety directives;
• partial or total non-compliance with the instructions contained in this manual;
• installation by unqualified and/or untrained personnel;
• use not in compliance with the safety directives;
• modifications and/or repairs carried out on the appliance that are not authorised by the manufacturer;
• lack of maintenance;
• exceptional events.

1.9 Technical assistance and maintenance

Palazzetti has a dense network of service centres with specialised, trained and skilled technicians.

The headquarters and our sales network is at your disposal to direct you to the nearest authorised service centre.

1.10 Spare parts

Use only original spare parts.

Do not wait until the components are worn by use before proceeding to their replacement.

Replace a worn component before its breaking favours the prevention of accidents arising from accidents caused by the sudden breakage of components which may cause serious damages to persons and objects.

1.11 Serial plate

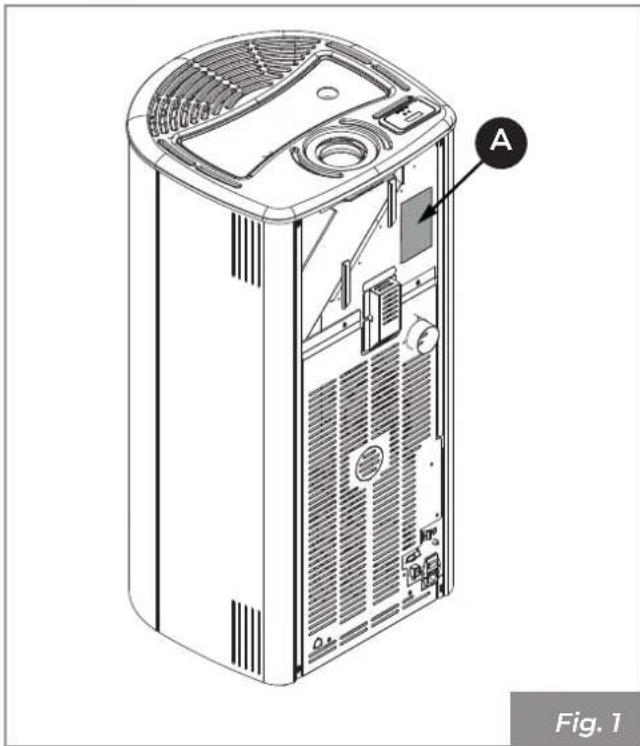

The serial identification plate (A) is positioned on the rear (Fig. 1) and shows all the characteristic data relating to the appliance, including details of the Manufacturer, the Serial number and brand C€

Technical line drawing of a server rack unit with labeled component A, showing internal ventilation and mounting features (no text or symbols beyond label)

The Serial number must always be indicated for any type of request regarding the appliance.

1.12 Delivery of the appliance

The appliance is delivered perfectly packaged and fixed to a wooden platform which allows handling it using fork lift trucks and/or other means.

The following material accompanies the appliance:

• manual for use, installation and maintenance;
• bar code label;
• display booklet.

2 SAFETY WARNING

2.1 Warnings for the installer

Observe the prescriptions contained in this manual.

The instructions for assembly and disassembly of the appliance are reserved for specialist technicians only.

The installation, use and maintenance of the product must be in accordance with the manufacturer's instructions and in compliance with the regulations. Failure to comply with the instructions and any incorrect operations may give rise to hazardous situations, damage to property, animals, health problems or malfunctioning.

Installation, electrical connection, operational testing and maintenance must be carried out exclusively by authorised and qualified personnel.

The installation and maintenance of the product must be carried out exclusively by qualified personnel with suitable knowledge of the product itself. Use only original spare parts recommended by the manufacturer.

Responsibility for the works carried out in the location of the appliance is, and remains, with the user; the latter is also responsible for carrying out the checks relating to the proposed installation solutions.

The installer must comply with all local, national and European safety regulations.

The appliance must be installed on floors with adequate load bearing capacity.

Check that the chimney flue and air inlet set-ups conform to the type of installation.

Do not carry out on-the-fly electrical connections with temporary or uninsulated cables.

Check that the earthing of the electrical system is efficient.

Before starting the assembly or dis- assembly phases of the appliance, the installer must observe the safety precautions required by law and the following indications in particular:

• do not operate in adverse conditions;
  • they must operate in perfect psychophysical conditions and must check that the personal protective equipment is intact and functioning perfectly;
• they must wear gloves and safety shoes;
• they must use tools with electrical insulation;
• they must make sure that the area used during assembly/dismantling is free from obstacles.

The product must only be installed in rooms that are not at risk of fire and equipped with all the necessary services including air and electrical supplies and flue gas exhausts.

Evaluate the static conditions of the surface bearing the weight of the product and provide suitable insulation if it is composed of flammable materials (e.g. wood, carpet, plastic).

Live electrical parts: power the product only once it has been completely assembled.

2.2 Warnings for technical maintenance personnel

Maintenance operations must be carried out only by authorised and qualified personnel.

Observe the prescriptions contained in this manual.

Always use personal protective equipment and other means of protection.

Before starting any maintenance work ensure that the appliance, if it has been used, has cooled down.

Even if only one of the safety devices is not working, the appliance is to be considered not working.

Disconnect the appliance from the mains before carrying out any maintenance operations.

Disconnect the appliance from the electrical mains before working on electrical and electronic parts, connectors and moving parts (pellet loading systems, automatic burn pot cleaning systems, etc.).

2.3 Warnings for users

To ensure correct use of the product and electronic appliances connected thereto and to prevent accidents, it is important to always follow the instructions provided in this manual.

The appliance has particularly hot external surfaces (door, handle, glass, flue gas outlet pipes, etc.). Contact with these parts must therefore be avoided unless wearing suitable protective clothing or equipment, such as heat resistant gloves or in the presence of "cold handle" operating systems.

For this reason, maximum caution is recommended during operation and in particular:

Do not touch and do not get close to the glass of the firebox door, it may cause burns, do not stare at the flame for a long time.

Do not hang laundry directly over the appliance for drying: fire hazard.

· do not touch the flue gas outlet;
· do not perform any type of cleaning;
• do not remove the ashes;
- do not open the firebox door;
- do not open the ash drawer (where provided).

The appliance cannot be used by children under the age of 8 and by people with reduced physical, sensory or mental abilities, or without experience or the necessary knowledge, unless they are under supervision or after they have received instructions relating to the safe use of the appliance and to understanding the inherent dangers.

Children must not play with the appliance. Cleaning for which the user is responsible must not be carried out by unsupervised children.

Before performing any type of operation, the user or whoever is operating the product must have read and fully understood the contents of this installation and use manual. Errors or bad settings may cause hazardous conditions and/or irregular operation.

Unskilled users must be protected from access to any part that could expose them to danger. Therefore, they must not be allowed to intervene on internal parts at risk (electrical or mechanical), even if the disconnection of the power supply is required.

Respect the instructions and warnings highlighted on the sign plates displayed on the appliance.

The sign plates are accident prevention devices, therefore they must always be perfectly legible. If these are damaged and unreadable, it is mandatory to replace them, requesting the original spare parts from the Manufacturer.

Follow the routine and extraordinary maintenance schedule carefully.

Do not use the appliance without having first carried out daily cleaning.

Do not use the appliance if operation is abnormal, you suspect a breakage or if there are unusual noises.

In case of failure or malfunction, turn the appliance off and immediately contact your specialised technician.

Do not throw water on the appliance in operation or to extinguish the fire in the burn pot.

Do not switch the appliance off by disconnecting the mains electrical connection.

Do not lean on open doors, this could compromise the stability of the appliance.

Do not use the appliance as an anchor support of any kind.

It is prohibited to use the product as a ladder or support structure.

Do not clean the appliance until the structure and ashes have completely cooled.

Only touch the door when the appliance is cold.

In case of flue gas leaks in the room or explosions detrimental to the device, turn it off, ventilate the room and immediately contact your installer/service technician.

In case of fire in the chimney flue, turn the appliance off, disconnect it from the power supply and do not open the door. Then call the competent authorities.

In case of failure of the ignition system, do not ignite the appliance with flammable materials.

In electrically powered devices, if unburned gas/fumes accumulate inside the fire box, do not disconnect the electrical power supply and move as far away from the appliance as possible.

In case of malfunction of the appliance due to a poor flue draught, clean the flue in accordance with the procedure described in section "10.3.3 Maintenance of the flue gas system" on page 70.

Do not touch the painted parts during operation to avoid damage to the paintwork.

All responsibility for improper use of the product is fully borne by the user, who relieves the manufacturer of any civil and criminal liability.

It is prohibited to operate the appliance with the door open.

It is prohibited to use the appliance if the door glass or gaskets are damaged.

Any type of unauthorised handling or replacement with non-original spare parts shall place the safety of the operator at risk and relieve the manufacturer of any civil and criminal liability.

It is prohibited to manually load pellets into the burn pot; this type of incorrect behaviour may generate an abnormal amount of unburned gas, giving rise to the risk of explosion inside the chamber.

Unburned pellet deposits in the burn pot after a failed ignition must be removed before making a new ignition attempt.

If the burn pot is not cleaned and regularly serviced, malfunctions and explosions may occur inside the appliance. Be sure to remove all traces of material and deposits from the holes of the burn pot and to clean them each time the ash is emptied or after each failed ignition attempt. Make sure the burn pot holes don't decrease in size as this may have a negative effect on the safe operation of the appliance.

Do not wash the product with water. Water may infiltrate the unit and damage the electrical insulation, causing electric shocks.

Do not sit/stand in front of the product in operation for long periods.

Incorrect use of the product or incorrect maintenance works may create a serious risk of explosion in the combustion chamber.

Only use the fuel recommended by the manufacturer. The product must never be used as an incinerator.

It is prohibited to use benzene, lamp fuel, kerosene, liquid firelighter for wood, ethyl alcohol or similar liquids to light or rekindle a flame in this appliance. Keep these liquids at a due distance from the appliance during operation.

It is prohibited to insert other types of fuels in the tank other than wood pellets.

Some tips to avoid corrosion phenomena:

• carry out routine cleaning operations to avoid the build-up of ash deposits;
• feed the appliance only with fuel having the characteristics described in the section "Fuel characteristics";
• Do not use solvents, acids, aggressive detergents or products to directly clean the glass or other components of the product;
• avoid leaving the product in unfavourable ambient conditions (humidity, airborne salinity, storms, etc.);
• if the appliance is not used for long periods (e.g. during the summer), disconnect the combustion air inlet pipe and place dessicant bags in the combustion chamber to absorb the humidity in the air, making sure to remove them when the product is re-ignited.

3 FUEL CHARACTERISTICS

3.1 Fuel characteristics

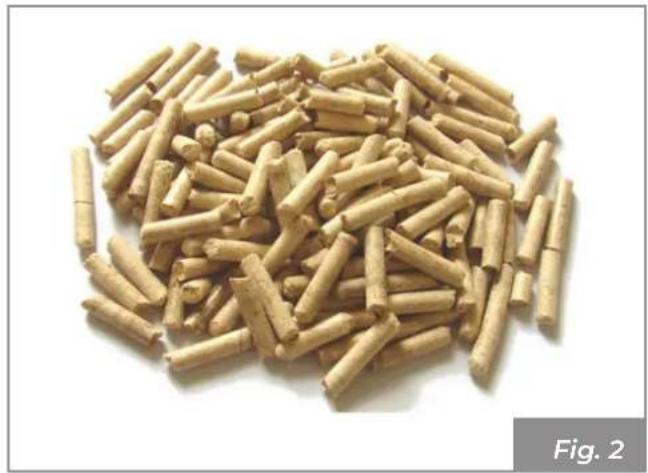

The pellet (Fig. 2) is a compound made from various types of wood pressed together with mechanical procedures in compliance with environment protection regulations, and it is the only fuel required for this type of appliance.

Pile of cylindrical wooden sticks, likely wood or rubber, with no visible text or symbols.

The efficiency and thermal potential of the appliance may vary according to the type and quality of the pellets used.

We recommend the use of class A1 pellets (ISO 17225-2 standard, ENplus A1, DIN Plus or NC 444 category "High Performance NF Pellets Biofuel Quality").

Use pellets with standard length between 3 and 40 mm.

Using poor quality pellets or pellets that do not comply with the manufacturer's indications may compromise the normal operation of the appliance, cause damage (including aesthetic damage) to the product and result in the warranty being voided.

It is prohibited to use the appliance as an incinerator to burn rubbish.

The appliance is equipped with a pellet storage tank having the capacity indicated in table "4.3 Technical features" on page 51.

The loading compartment is positioned at the top, it must always be open for loading of the pellets and must remain closed while the appliance is operating.

3.2 Pellet storage

Pellets must be kept in a dry place, not too cold and the bags must be kept sealed.

It is advisable to keep a number of bags of pellets in the room where the appliance is being used or in an adjacent room provided it is at the correct temperature and humidity and at a safe distance (at least one meter) away from heat sources.

Wet and/or cold pellets (5 °C) reduce the thermal potential of the fuel resulting in the need for more cleaning maintenance of the burn pot (unburned material) and of the fire box.

Pay particular attention to the storage and handling of pellet bags. Their crushing and the formation of sawdust must be avoided.

If sawdust is placed in the appliance tank it could cause the pellet loading system to block.

4 BECOMING FAMILIAR WITH THE PRODUCT

4.1 Description

Technical diagram of a device interior with numbered components for identification

Fig. 3

1 Aesthetic door

2 Aesthetic door glass

3 Technical door glass

4 Fire box technical door

5 Opening handle

6 Ash drawer

7 Room fan

8 Burn pot

9 Tank lid

10 Flue gas outlet

11 Combustion air inlet

12 Display

13 Pellet hopper

MARIANNE MARIANNE PRO 2

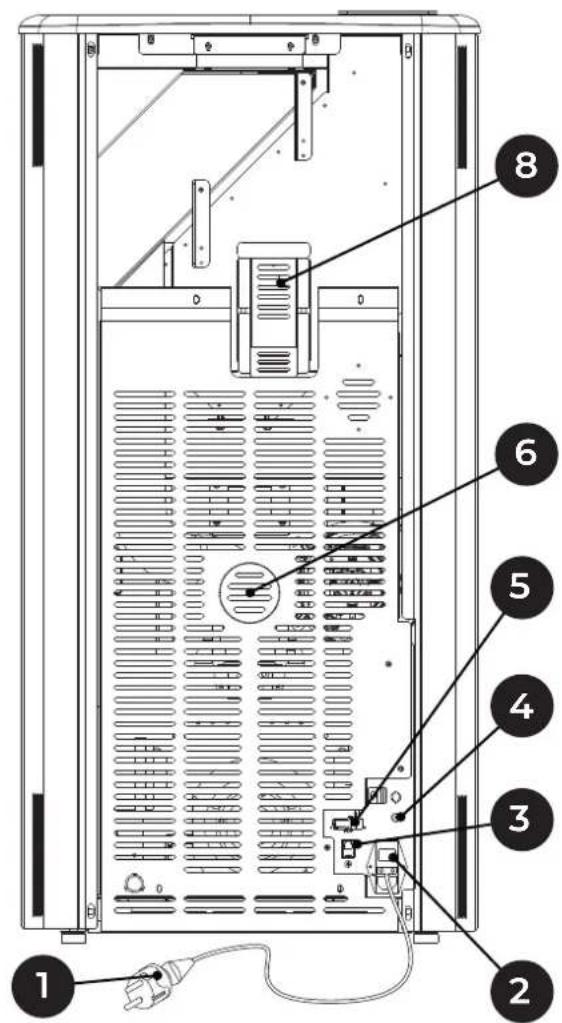

Technical diagram of an internal server rack with numbered components for identification

Technical diagram of a server rack with numbered components for identification

Fig. 4

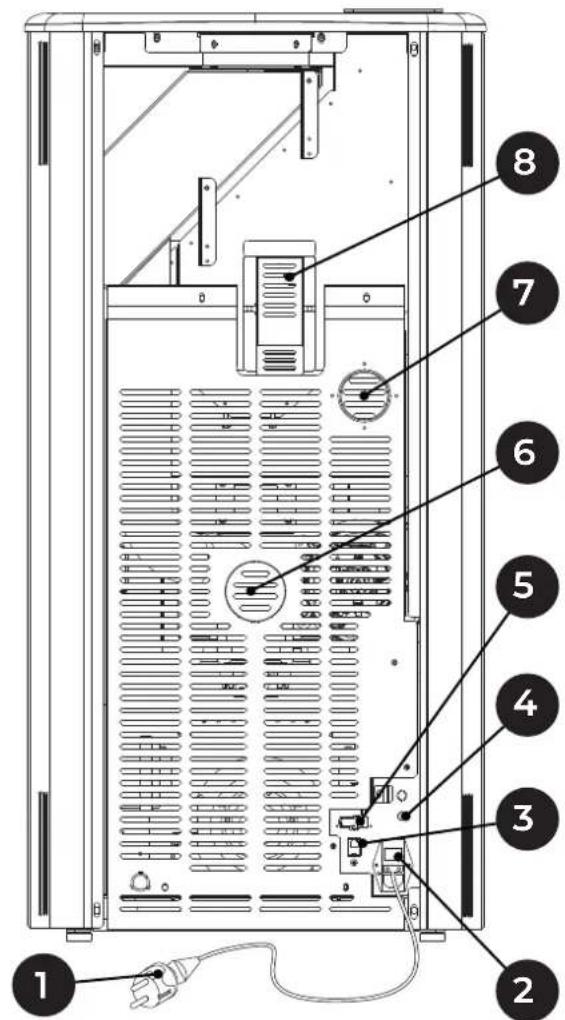

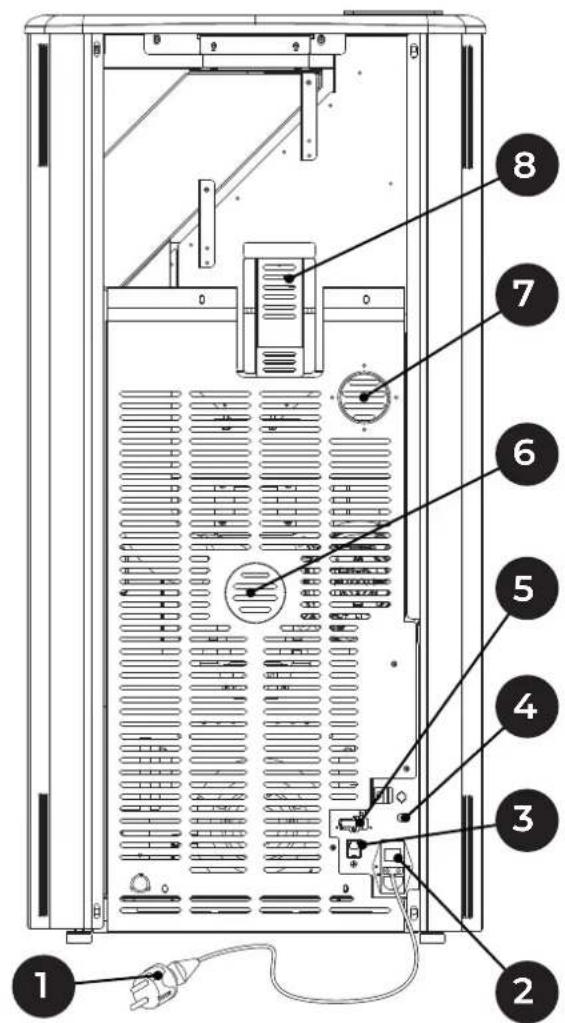

1 Power cable
2 Power switch
3 RJ11 connector
4 Manual reset thermostat
5 Room probe
6 Provision for combustion air ducting
7 Rear fan
8 Pellet sensor

4.2 Dimensions

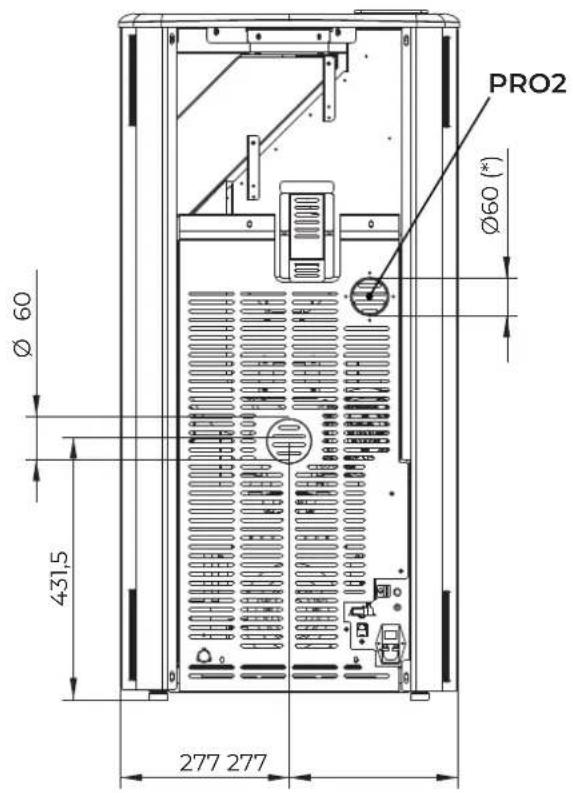

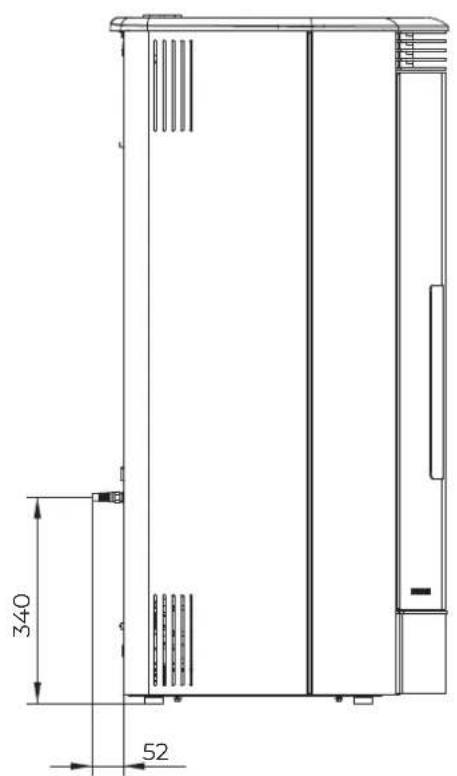

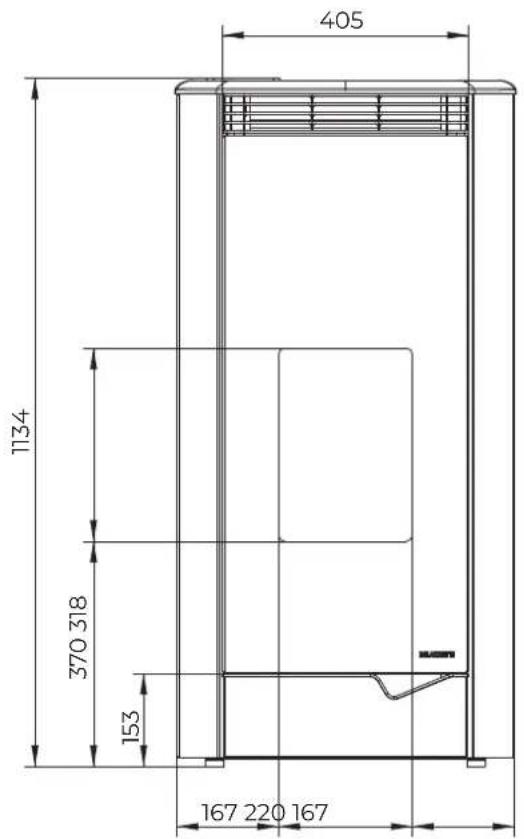

405 1134 370 318 153 167 220 167

340 52

Ø 80/130 104 557 560

PRO2 Ø60 (*) Ø60 431,5 277 277

∅ 130 air inlet
∅ 80 flue gas outlet
(*) only for PRO 2 versions
Dimensions in mm

Fig. 5

4.3 Technical features

MARIANNE		MARIANNE 6 MARIANNE 9
		Min Max Min Max
Overall thermal power (output)	kW	2,2	6,1	2,2	9,1
Yield	%	94,3	93,3	94,3	91,8
Flue gas temperature	°C	65,1	115,5	65,1	159,5
Flue gas flow rate	g/s	2,7	4,2	2,7	5,3
Hourly fuel consumption	kg/h	0,48	1,34	0,48	2,02
Emissions of CO (at 13% of O2)	mg/Nm3	404,2	36,6	404,2	47,2
Flue gas outlet	mm	∅ 80
Combustion air inlet	mm	∅ 130
Outside air intake	mm	∅ 100
Fuel		Wooden pellets
Flue draught	Pa	12 ± 2
Minimum draught for chimney sizing	Pa	0,0
Stove suitable for rooms no smaller than	m3	30		40
Feeding tank capacity	kg	19
Weight	kg	132
No. of room fans	no.	-		1 (PRO2)
Room fan flow rate	m3/h	-		100

Electrical data		MARIANNE
		6 - 9	9 PRO2
Voltage	V	230	230
Frequency	Hz	50	50
Max power absorbed during operation	W	45	85
Power absorbed at electric ignition	W	330	370

4.4 Serial plate

Palazzetti Lelio S.p.A. - via Roveredo 103 - 33080 Porcia (PN)

DOP Nr. 000001385 - N.B. 2458 EN 14785:2006

F	Fuel
Plmax	Max. thermal power input
Plmin	Min. thermal power input
Pmax	Rated thermal power
Pmin	Reduced thermal power
EFFmax	Efficiency at rated power
EFFmin	Efficiency at reduced power
COmax	CO emissions at rated power ( 13% O_2 )
COmin	CO emissions at reduced power ( 13% O_2 )

Dust	Dusts at rated power (13% O_2 )
Tf	Flue gas temperature
X1/X2/Y	Minimum distance from flammable materials
V	Voltage
f	Frequency
Wmin	Max power absorbed during operation
Wmax	Max power absorbed during ignition

4.5 Wiring diagram

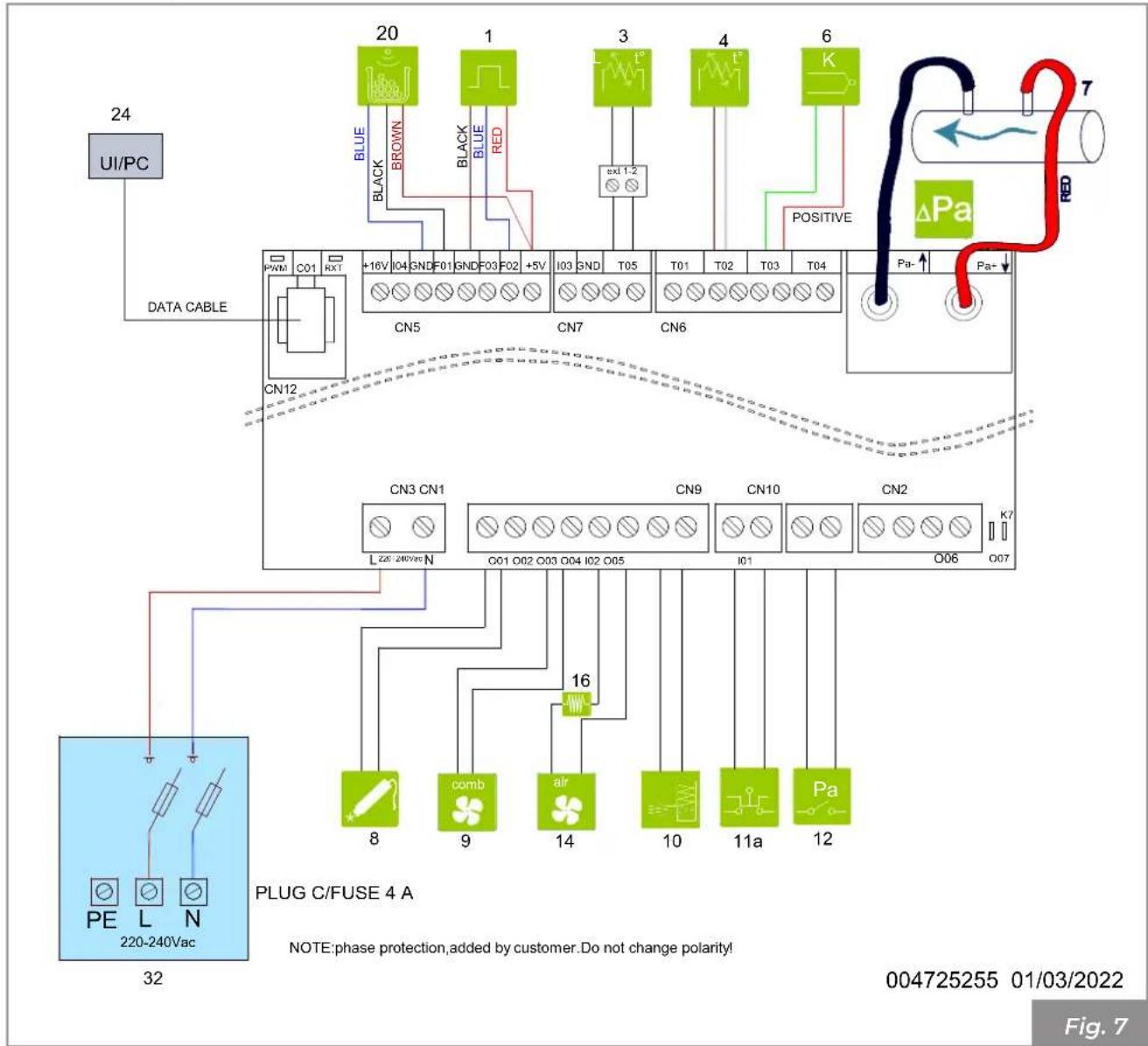

MARIANNE single fan
    note right of BI: NOTE: phase protection, added by customer. Do not change polarity!
    note right of BI: NO4725255 01/03/2022
    note right of BI: FIG. 7

	1 Hall sensor
	3	Room sensor
	4	Pellet probe
	6	Flue gas probe
	7	Pressure differential
	8	Incandescence resistance
	9	Flue gas exhaust fan
	10	Loading dispenser

	11a	STB Safety
	12	Low pressure safety
	14	Room fan
	16	Inductance
	20*	Pellet sensor
	24	Control panel
	32	Main switch

* where present

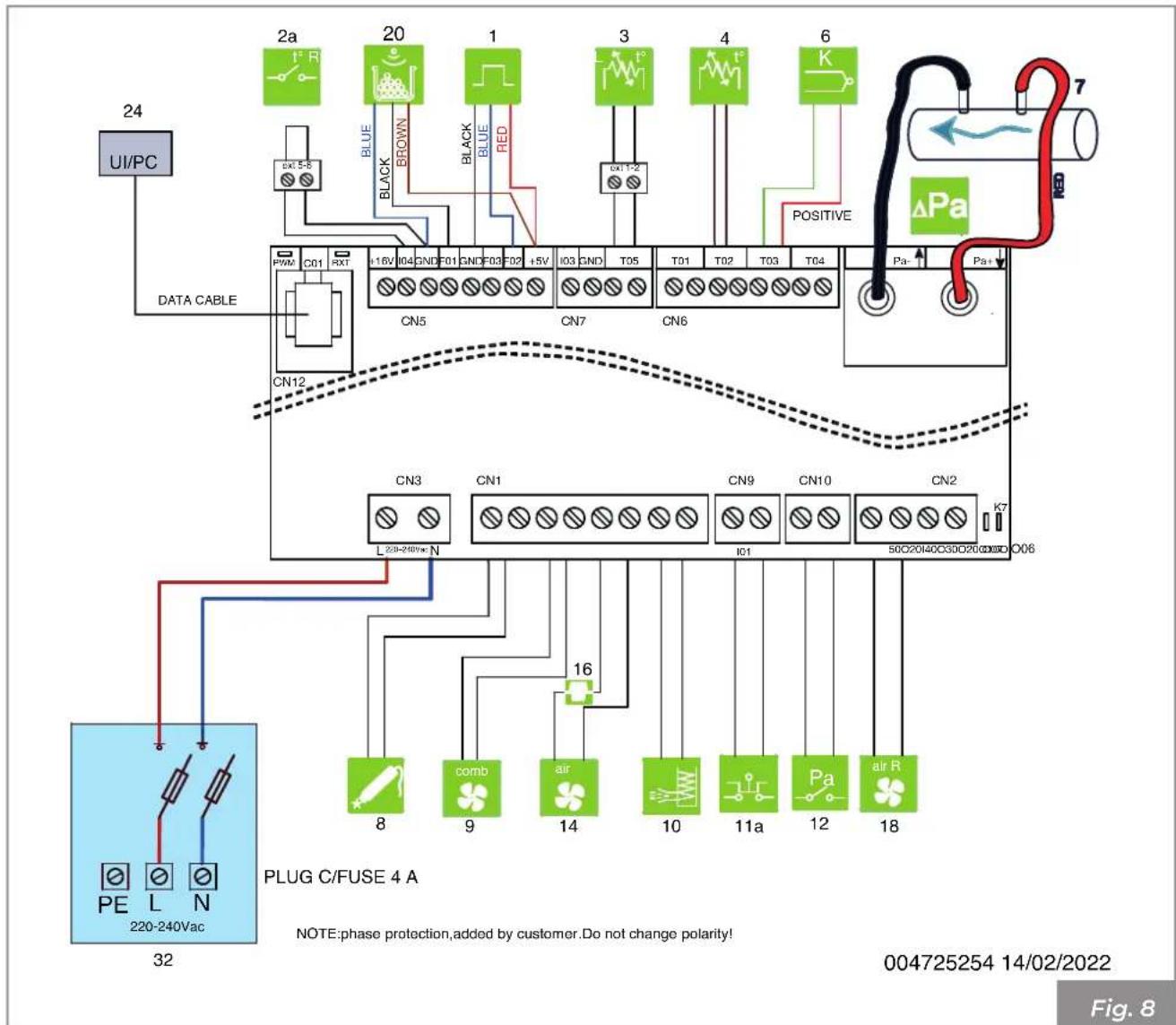

MARIANNE PRO 2
    note right of A: "NOTE:phase protection,added by customer.Do not change polarity!"
    note right of V: "PLUG C/FUSE 4 A"
    note right of AB: "220-240Vac"
    note right of AK: "PE L N"
    note right of AL: "220-240Vac"
    note right of AM: "004725254 14/02/2022"
    note right of AN: "004725254 14/02/2022"
    note right of AJ: "PE L N"
    note right of AL: "220-240Vac"
    note right of AM: "PE L N"
    note right of AN: "220-240Vac"
    note right of AL: "PE L N"
    note right of AN: "220-240Vac"
    note right of AM: "PE L N"
    note right of AN: "220-240Vac"
    note right of AL: "PE L N"
    note right of AN: "220-240Vac"
    note right of AL: "PE L N"
    note right of AN: "220-240Vac"
    note right of AL: "PE L N"
    note right of AN: "220-240Vac"
    note right of AL: "PE L N"
    note right of AN: "220-218Ve N"
    note right of AL: "PE L N"
    note right of AN: "220-218Ve N"
    note right of AL: "PE L N"
    note right of AN: "220-218Ve N"
    note right of AL: "PE L N"
    note right of AN: "220-218Ve N"
    note right of AL: "PE L N"

    %% Note to be a schematic or schematic representation; the diagram shows connections between labeled nodes and lines (e.g., blue, red, black, green, orange, gray) with arrows indicating direction or flow.

	1	Hall sensor
	2a	Right fan thermostat
	3	Room sensor
	4	Pellet probe
	6	Flue gas probe
	7	Pressure differential
	8	Incandescence resistance
	9	Flue gas exhaust fan
	10	Loading dispenser
	11a	STB Safety
	12	Low pressure safety

	14	Room fan
	16	Inductance
	18	Right room fan
	20*	Pellet sensor
	24	Control panel
	32	Main switch

* where present

In configuration 2 component no.3 (room sensor) will be converted into a room thermostat input, which will control the shutdown of the stove.

5 HANDLING AND TRANSPORTATION

The appliance is delivered complete with all the parts required.

Pay attention to the tendency for the appliance to become unbalanced.

The centre of gravity of the appliance is carried towards the front.

Bear in mind the above also when moving the appliance on the transport stand. It is advisable to unpack the appliance only when it has arrived at the installation site.

The product must be handled and unpacked using suitable means.

Make sure that children do not play with the packaging components (e.g. films and polystyrene):

Danger of suffocation!

During moving, lifting, and unpacking of the appliance the following is absolutely necessary:

• always keep it upright;
- never tip it over into a horizontal position;
- never tilt it on the front to avoid breaking the glass of the fire box door.

- Removal of the transport pallet

Disposal can be entrusted to a third party, provided only companies authorised for the recovery and elimination of the materials in question are used.

Always follow the regulations in force in the country in which the appliance is being used for disposal of materials and possibly for the disposal report.

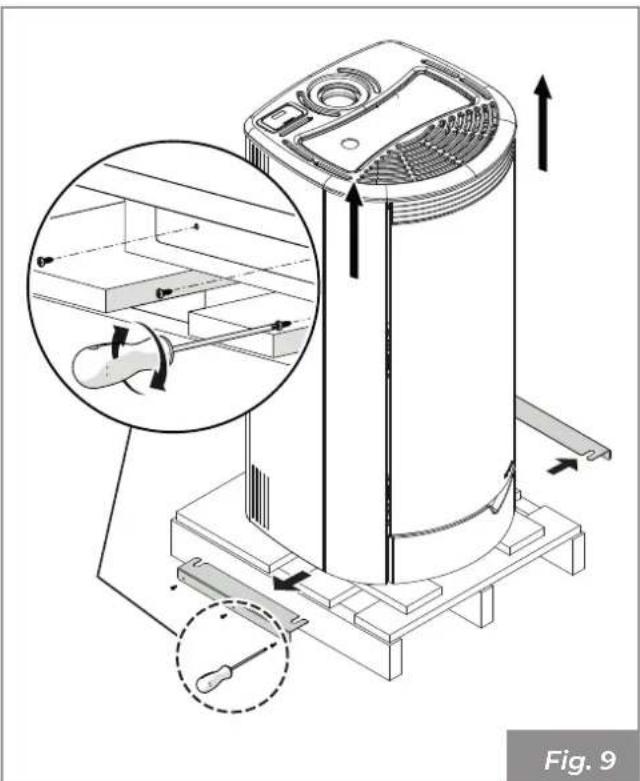

To remove the appliance from the transport pallet:

• Unscrew the side fixing screws
• Remove the fixing brackets
• Lift the appliance
• Remove the transport pallet

Technical illustration of a device with internal components and directional arrows, no visible text or symbols

5.1 Transportation

Make sure that the lifting carriage has a payload higher than the weight of the appliance to be lifted. The full responsibility of the lifting of loads lies with the person handling the lifting equipment.

Ensure wood or timber floors are properly protected in order to prevent the weight of the appliance from damaging them during movement.

During lifting, avoid jerking or abrupt movements.

Pay attention to overbalancing.

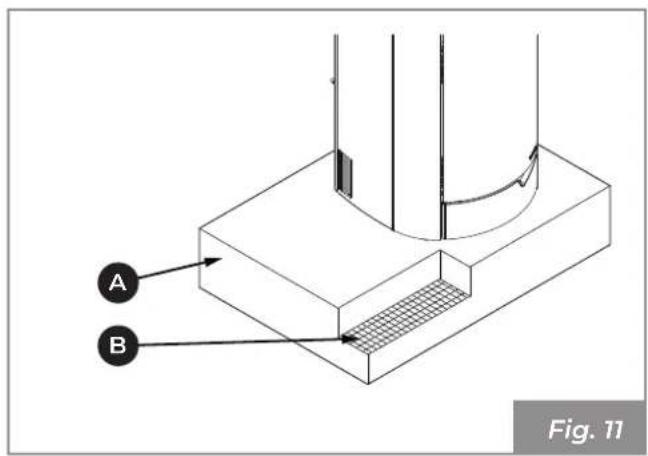

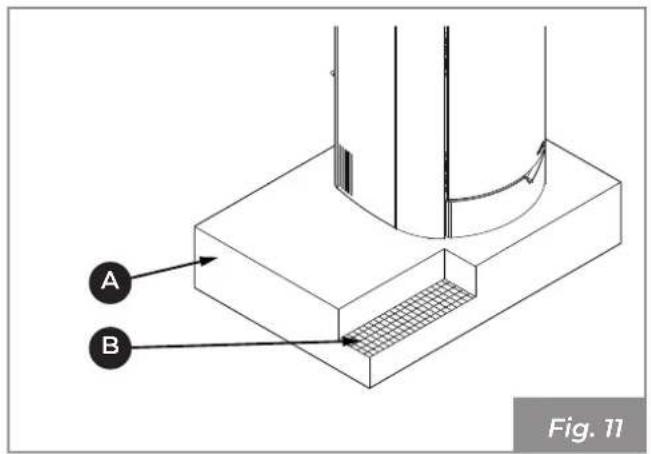

5.2 Checking the floor where the appliance will be placed

Check the load capacity of the floor slab.

If a floor is not suitable for supporting the weight of the appliance, install appropriate steel plates (A - Fig. 10) or concrete base (A - Fig. 11) equipped with 10x10x6 electro-welded mesh (B - Fig. 11) to distribute the weight.

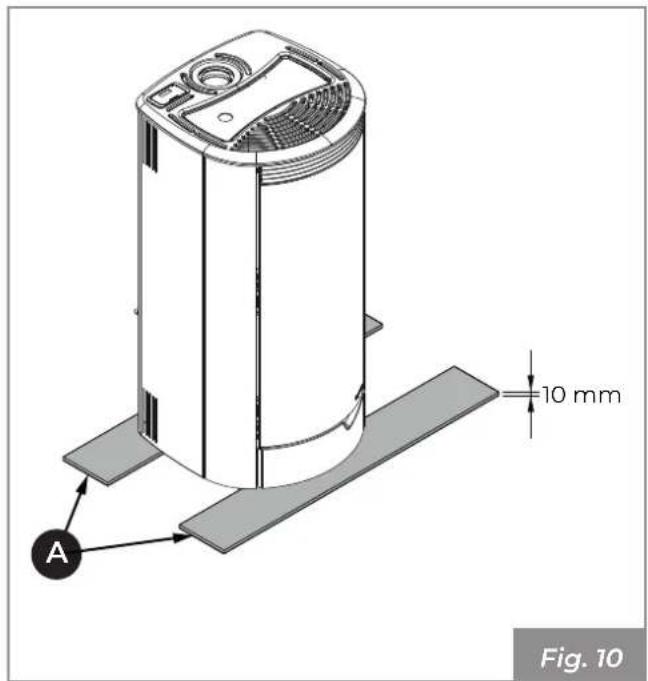

For the dimensions of the plates and the concrete base, use a qualified technician.

Technical diagram of a cylindrical device with labeled component A and 10 mm dimension (no text or symbols beyond labels)

A B Fig. 11

6 PREPARING THE PLACE OF INSTALLATION

6.1 General considerations

The following sections contain some guidelines to be followed to obtain the maximum efficiency of the product purchased and to ensure safe operation. The following indications are however subject to compliance with any possible national, regional and municipal laws and regulations in force in the country where the appliance is installed.

For Italy, installation must be carried out by qualified personnel in compliance with the EN 10683 standard.

6.2 Safety Precautions

The operations for assembly and disassembly of the appliance are reserved for specialist technicians only.

It is recommended to be sure of their qualifications and their actual capacity.

For Italy, these technicians must be in possession of the letter "C" qualification issued by the chamber of commerce based on the Ministerial Decree. 37/08.

6.3 Place of installation

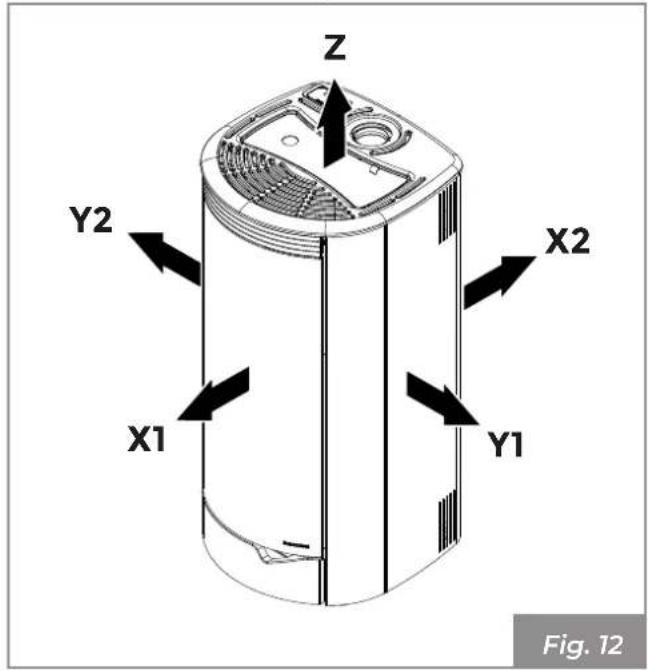

For the minimum distances that must be respected when positioning the appliance with respect to flammable materials and objects, refer to the instructions in Fig. 12.

Z Y2 X2 X1 Y1 Fig. 12

Model X1 X2 Y1 Y2 Z
MARIANNE	800	100	100	100	600	mm

Floors made of flammable material such as wood, parquet, linoleum, laminate or floors covered with carpets must be protected by a fireproof base under the appliance that also protects the front during cleaning from any falling burning residues.

The manufacturer declines all responsibility for any variations in the characteristics of the material constituting the floor under the protection.

Set up an accessible technical space for any maintenance work.

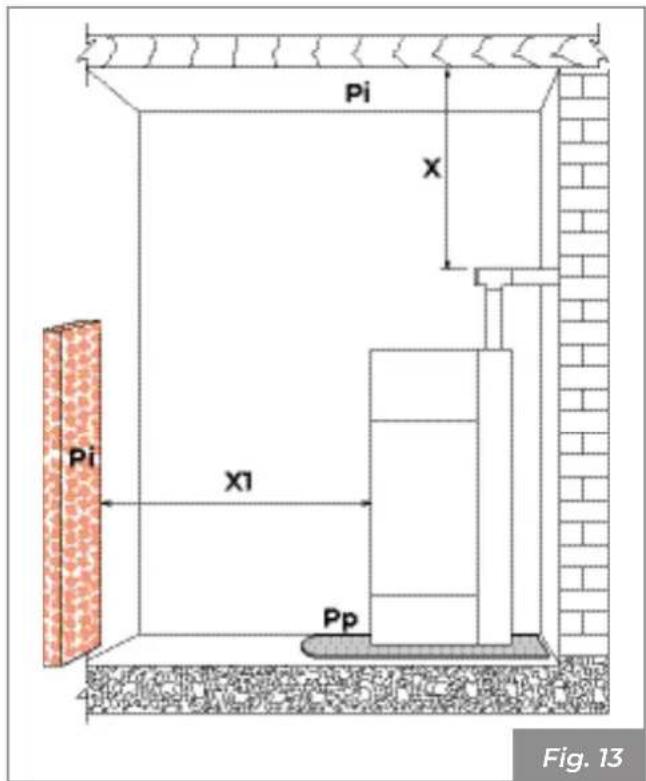

Remember to respect the minimum distance from flammable materials (X), shown on the identification plate of the pipes used to make the chimney (Fig. 13).

Pi = Flammable wall

Pp = Floor protection

Pi X Pi X1 Pp Fig. 13

Set up the electricity supply line to arrive near the appliance for the connection of the power cable.

6.4 Combustion air

The appliance, during its operation, requires combustion air.

The inflow of combustion air can be obtained in the following ways:

• it can come directly from outside with direct connection to the combustion chamber (Fig. 14 - Fig. 15).
• it can come from the installation room or suitable adjacent rooms (Fig. 16)

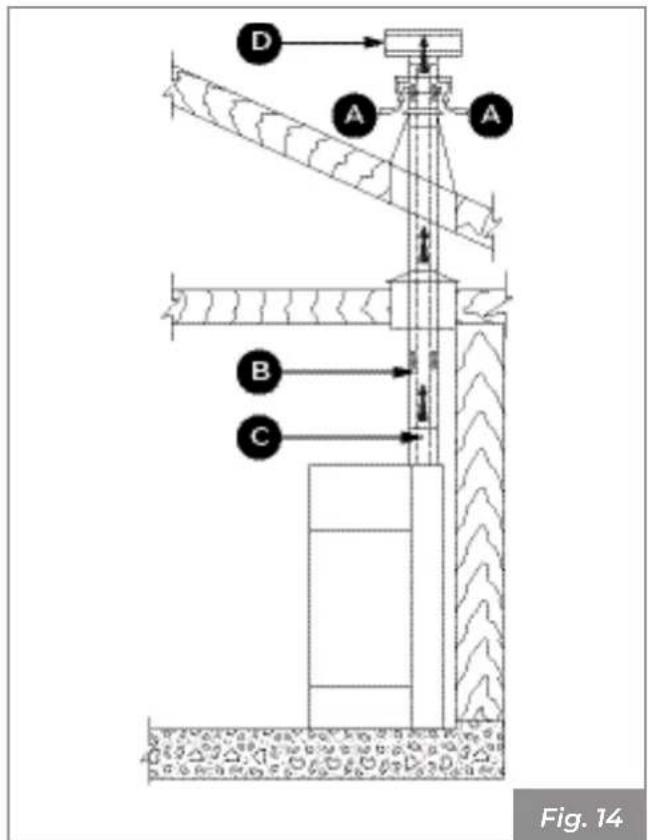

Extraction of combustion air from outside

In this case, a possible alternative may be:

• to channel the combustion air using a coaxial pipe to expel the flue gases and extract the air (Fig. 14 - A, B = Air inlet, C, D = Flue gas outlet); in this case it is not necessary to create a classic air intake in the room.
• to connect the combustion air inlet of the appliance to the air intake using a special pipe (Fig. 15).

D A A B C Fig. 14

Architectural cross-section diagram showing a vertical wall and brick wall with directional arrows indicating movement (no text or symbols)

Extraction of combustion air in the room

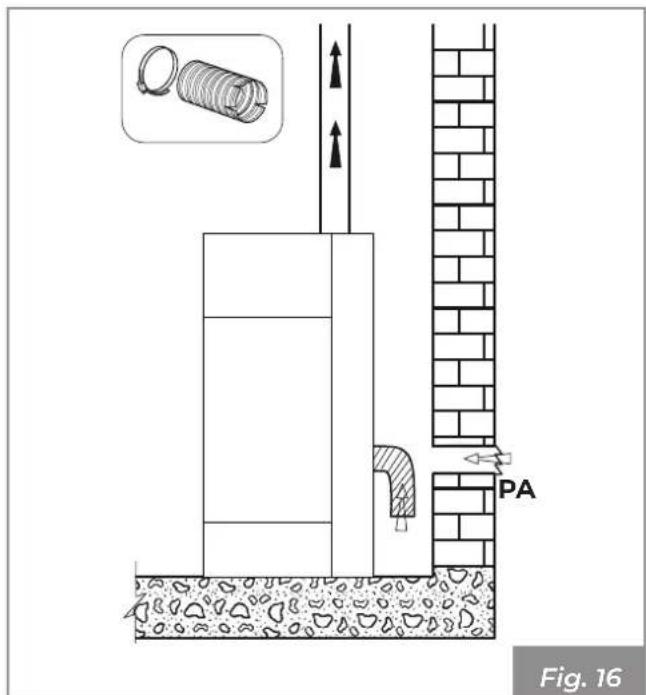

Create the air intake on the wall (Fig. 16 - PA = Air Intake), and leave the appliance to withdraw the room air, making sure to connect the section of corrugated pipe on the air inlet pipe, if supplied, fixing it with the strap and folding it slightly downwards to prevent any resonance effects.

PA Fig. 16

If the rear wall of the appliance is an external wall, make a hole for the intake of combustion air at a height of about 20-30 cm from the ground, observing the dimensions on the technical data sheet in section "4.3 Technical features" on page 51.

A non-closable permanent aeration grid must be placed externally; in areas that are particularly windy and exposed to weathering, provide rain and wind protection.

Ensure that the air intake is positioned so that it won't be accidentally obstructed.

If it is impossible to create an external air intake in the wall behind the appliance (non-perimeter wall), a hole must be made in an external wall of the room where the appliance is positioned.

If it is not possible to create the fresh air intake in the room, an external hole can be created in an adjacent room provided it is permanently interconnected by means of a transfer grille.

It is forbidden to take combustion air from garages, warehouses of combustible material or places with activities at risk of fire.

If there are other heating or extraction appliances in the installation room, combustion malfunctions may occur due to a lack of combustion air. The combustion air intakes must therefore be sized correctly, in order to ensure the necessary supply of air for the correct operation of all devices.

6.5 Flue gas fitting

The appliance works with the combustion chamber at negative pressure. It is therefore essential to make sure that the flue gas evacuation is airtight (this is the responsibility of the installer).

The appliance must be connected to its own flue gas duct, not shared, and which is suitable for ensuring adequate dispersion of the combustion products into the atmosphere, in accordance with the regulations in force in the country of installation.

The components making up the flue gas ducting system must be declared suitable for the specific operating conditions and provided with CE marking.

It is mandatory to create a first vertical section measuring at least 1.5 meters to guarantee correct expulsion of the flue gases.

It is advisable to make a maximum of 3 direction changes, in addition to that resulting from the rear connection of the appliance to the chimney, using 45 - 90° bends or Tee fittings (Fig. 17).

Always use a Tee fitting with inspection cap at each horizontal and vertical change of the flue gas route (Fig. 17).

The horizontal sections must have a maximum length of 2-3 m with an upward slope of 3-5% (Fig. 17).

Anchor the pipes with suitable collars to the wall.

The flue gas fitting MUST NOT BE connected:

• to a chimney used by other generators (boilers, stoves, fireplaces, etc. ...);
• to air extraction systems (hoods, vents etc. ...) even if "ducted".

It is forbidden to install shut-off and draught valves.

MAX 2 - 3 m C > 3 - 5% MIN 1,5 m B B Fig. 17

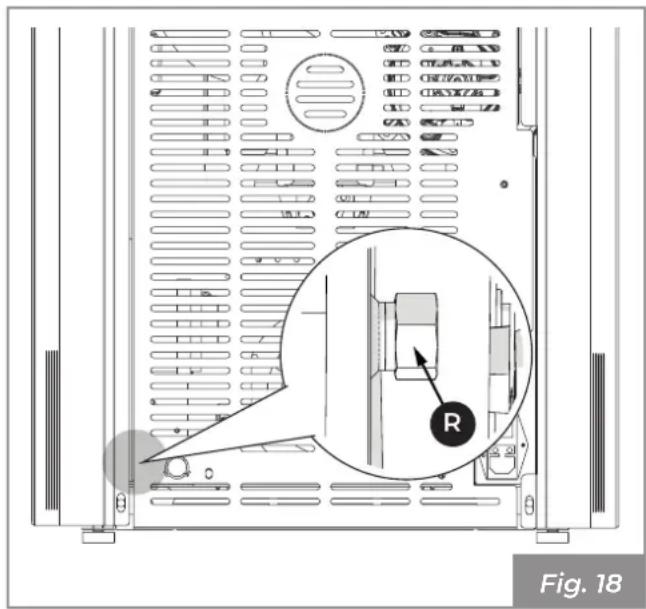

As an additional safety measure, a threaded coupling with "R" closing cap is provided in order to connect a condensate drain pipe (Fig. 18).

Fig. 18

6.6 Roof exhaust with traditional fireplace

The chimney for the evacuation of flue gases must be made by qualified personnel in compliance with standards UNI 10683- EN 1856-1-2- EN 1857-EN 1443- EN 13384-1-3- EN 12391-1 both in terms of the dimensions and the materials used in its construction.

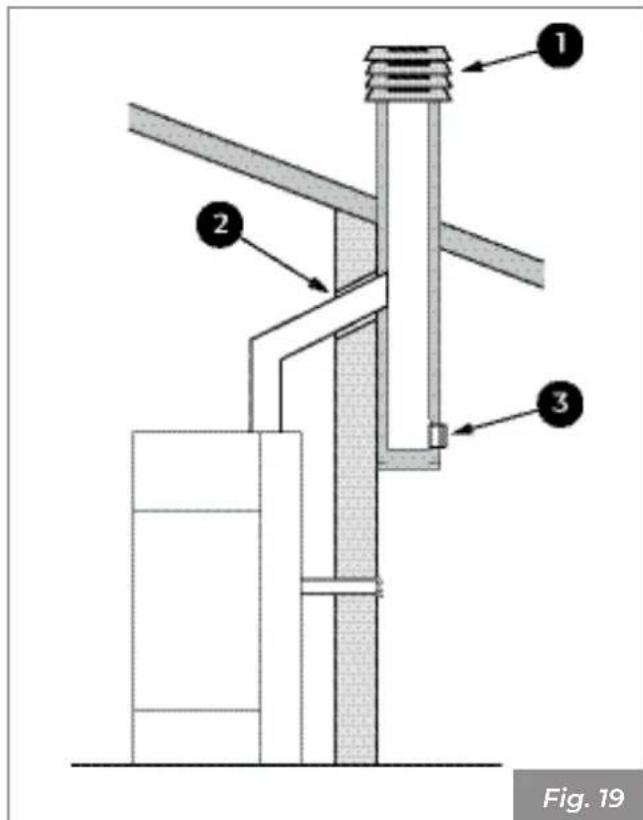

The flue gases can be evacuated through a traditional chimney (Fig. 19) provided the good condition and proper maintenance of the chimney has been verified. In the case of an old chimney, it is advisable to renew it using ducting.

The flue gas exhaust must be on the roof.

1 2 3 Fig. 19

1) Wind-proof cowl
2) Seal
3) Inspect

If the chimney has a larger section, it must be "intubated" with a suitably insulated steel pipe (with diameter suitable for the route (Fig. 20).

Make sure that the connection to the brickwork chimney is properly sealed.

In case of pipes that pass through wooden roofs or walls, it is recommended to use special certified ducting kits commonly available on the market.

1 2 3 Fig. 20

1) Non-combustible material
2) Steel piping
3) Closing panel

7 INSTALLATION

7.1 General considerations

In the following sections some indications are provided to be complied with in order to obtain the maximum performance from the purchased product.

The following indications are how- ever subject to compliance with any possible national, regional and mu- nicipal laws and regulations in force in the country where the appliance is installed.

7.2 Installation configurations

It is possible to install the stove in different ways according to personal requirements:

• Coaxial pipe
  · Single-wall pipe and air intake in room
  · Single wall pipe and outside air intake

7.2.1 Coaxial pipe

It is possible to use a coaxial pipe to expel the flue gases and simultaneously recover the combustion air since the stove has already a factory configuration for this type of installation.

To achieve this:

- Connect the coaxial pipe (A) (Fig. 21).

A Fig. 21

While it is understood that it is the technician's responsibility to properly size the chimney flue based on the installation situation and the product, it is nonetheless advisable not to exceed a length of 7 metres with an 8/13 cm coaxial pipe.

7.2.2 Single-wall pipe and air intake in room

In this case the combustion air will be taken from the room.

To achieve this:

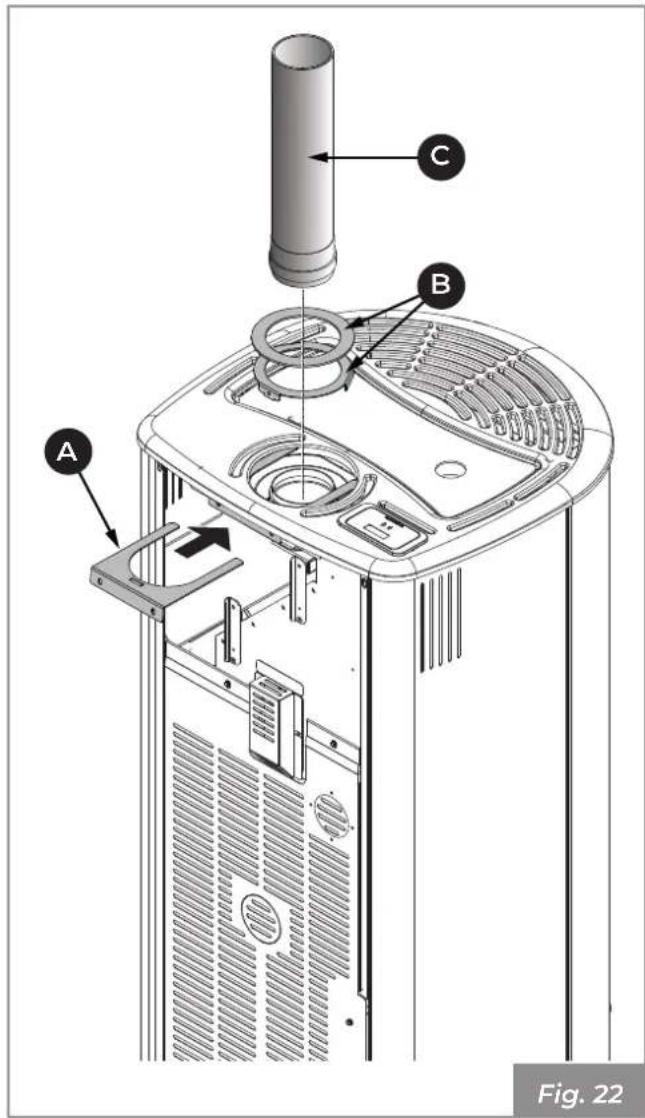

• Insert the aesthetic ring support (A) and the ring (B) (supplied with and placed inside the combustion chamber during transport).
• Connect the flue gas outlet pipe (C) (Fig. 22).

A B C Fig. 22

7.2.3 Single wall pipe and outside air intake

In this case the combustion air is taken directly from outside, from the back of the stove.

• Remove the back panel of the stove (A)
• Disconnect the flexible combustion air hose (B) at the top and bottom.
• Insert the aesthetic ring support (C) and the ring (D) (supplied with and placed inside the combustion chamber during transport) (Fig. 23)

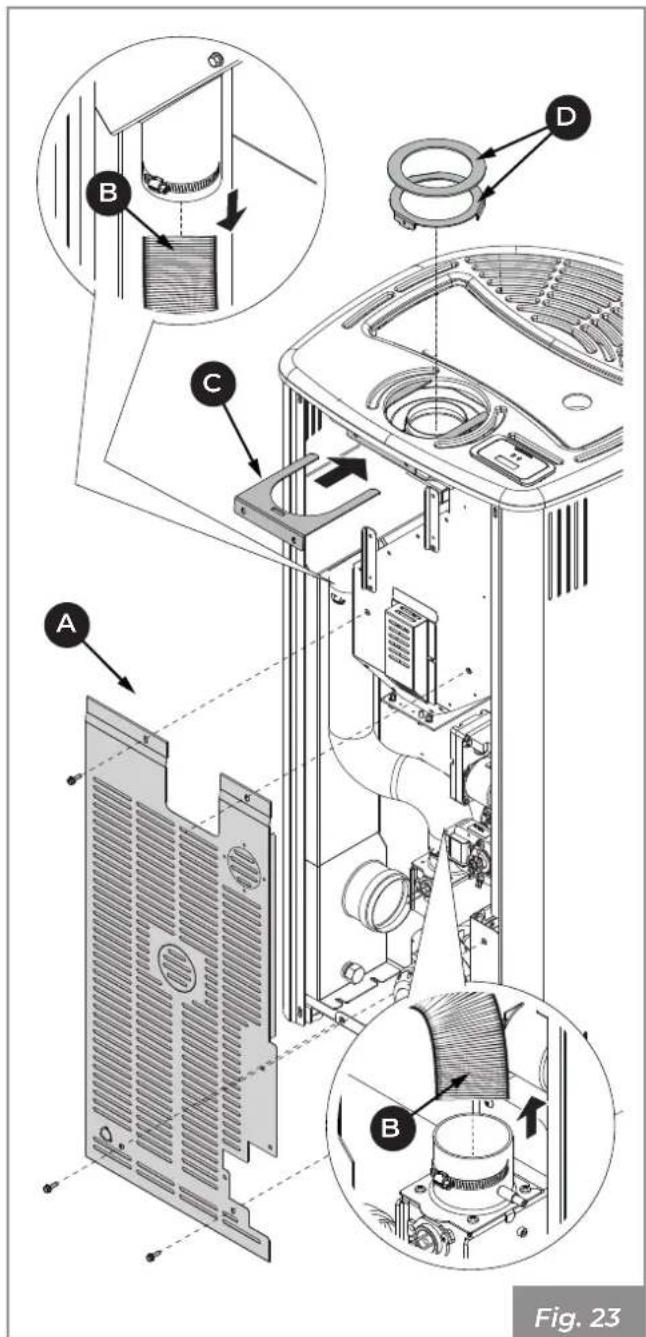

A B C D Fig. 23

• Fit the elbow (D) (Fig. 24)
- Remove the preform (G) on the back panel (A) and insert the flexible hose (B) to connect it to an outside air intake.
- Tighten the hose (B) with the previously loosened metal hose clamp (F)
- Refit the back panel (A)
- Connect the flue gas pipe (E).

Technical diagram of a device interior with labeled components including fan, ventilation ducts, and air gap.

Fig. 24

7.3 Levelling of the appliance

The appliance must be levelled with the help of a spirit level, by regulating the adjustable feet (Fig. 25).

A = Spirit level.

A The image is purely indicative. Fig. 25

7.4 Room air circulation

The stove is designed for ductable rear hot air connection.

In order to function correctly, the PRO 2 and PRO 3 models must be ducted. In the event that ducting is not foreseen, it is necessary to:

• inhibit the operation of the fans by electrically disconnecting them and appropriately insulating their terminals to avoid possible contact with metal and/or hot parts

- close the unused outlets with the special cap supplied as an accessory.

To connect the stove to the ducted heating system, connect a pipe (B) to the rear fan (A) on one side and to the air distribution outlet (C) on the other side, securing it with a hose clamp.

When the stove is used to heat two or more adjacent rooms, it is essential to encourage recirculation of the ambient air to uniform the temperature in the various rooms.

For air ducting, preferably use smooth, internally insulated pipes.

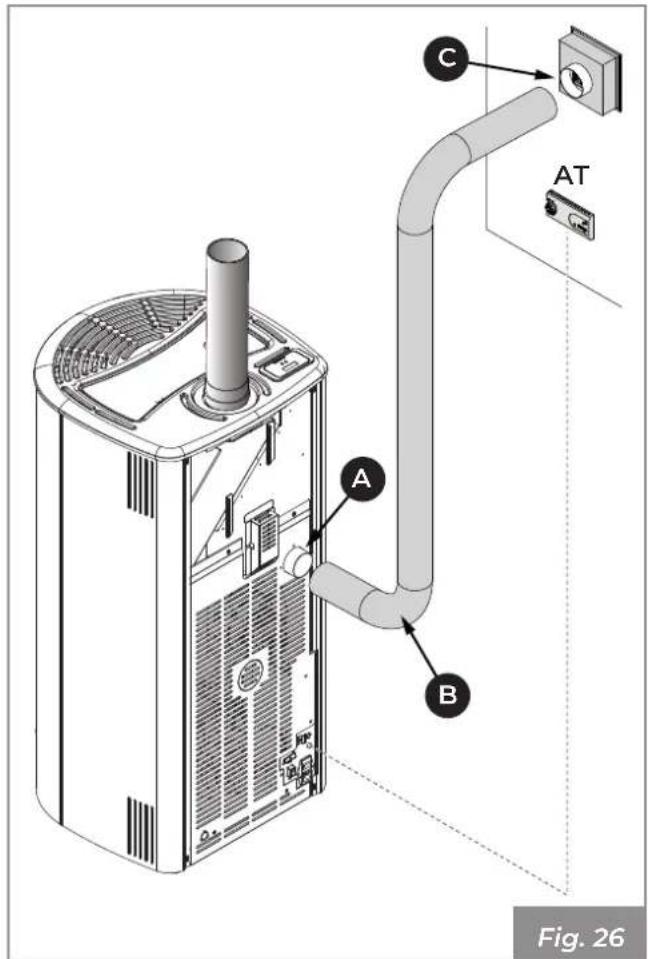

7.4.1 PRO 2

C AT A B Fig. 26

Room thermostat for rear fan control (PRO 2)

Fig. 27

It is possible to connect a room thermostat to the terminal board of the stove so that the rear fan can be switched on and off according to the temperature set on the thermostat.

To use this function, rear fan ventilation must be

set to ON.

The thermostat that controls the rear fan must be connected to terminals 5 and 6 of the terminal board in place of the bridge.

7.5 Electrical connection

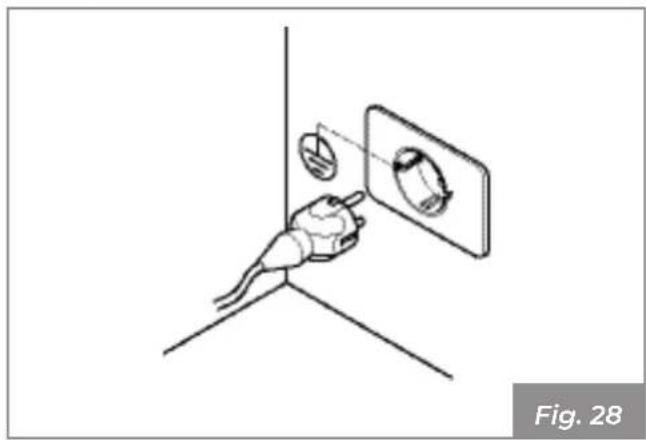

Simply connect the appliance to the electrical system using the supplied plug (Fig. 28).

The electrical connection (plug) must be easily accessible after appliance installation as well.

If the power supply cable is damaged it must be replaced by the technical assistance service or a qualified technician in order to prevent any risk.

Diagram showing a hand holding a pen near a screen with two circular objects, labeled Fig. 28 (no text or symbols on the diagram itself)

The system must be equipped with an earth connection and a differential switch in compliance with the laws in force.

The flue gas evacuation duct must be equipped with its own earth connection.

7.6 Fuel optimisation

Excellent fuel depends on different factors (type of installation, operating and maintenance conditions, type of pellets, etc.)

Upon first ignition, the stove can be regulated for optimum combustion performance.

Generally speaking, if at the end of combustion, there is a lot of residue in the burn pot, you should change the combustion configuration (by increasing the value) until you find the best solution.

Refer to function "(14) Combustion" of the use and functionality manual.

Depending on the type of installation it is necessary to set up the ideal configuration for correct operation of the appliance.

There are two possible configurations:

Description Configuration

Room probe (default) 1
Room thermostat 2

8.1 Configuration 1 - Room probe

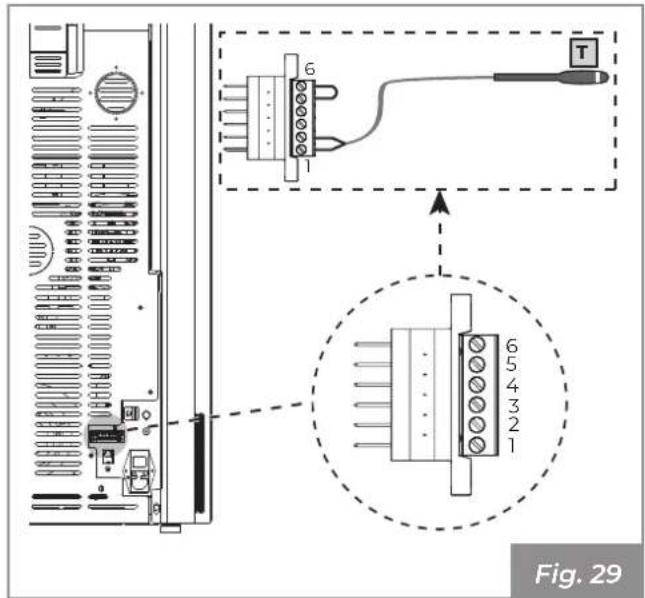

Fig. 29

Configuration 1 is the default configuration for this appliance. In this case it is not necessary to make any changes.

The appliance leaves the factory with the room probe already connected to the terminals and positioned on the rear panel (Fig. 29).

It is possible to place the room probe in another place to detect the desired room temperature.

Set configuration 1 to switch the appliance on and off either manually or according to a program.

The appliance modulates the power according to the room temperature read by the room probe placed on the stove itself.

You can set the "Eco-mode" function to have the appliance switch off or on again according to the room temperature set.

The antifreeze function can also be set in this configuration.

It is important to check that the appliance is set to Configuration 1.

This configuration can also be used to switch the appliance on and off manually or in a programmed way (with the Timer function active).

8.2 Configuration 2 - Room thermostat

6 1 22.15 20.3 °C 6 5 4 3 2 1 Fig. 30

In configuration 2, the appliance is controlled by a external thermostat (or programmable thermostat) (not supplied), which switches the appliance on and off depending on the set temperature (Fig. 30).

When the temperature is satisfied, the thermostat opens the circuit and switches off the stove. The stove switches back on automatically when the temperature falls below the value set on the external thermostat (closed circuit).

This configuration can also be used to switch the appliance on and off manually or in a programmed way (with the Timer function active); to do this it is necessary to put the thermostat on terminals 1 and 2 and remove the bridge.

If the thermostat allows scheduled programming, to avoid overlapping operation time slots, it is advisable to deactivate the appliance timer by setting it to OFF.

In this configuration the appliance turns off when the external thermostat is satisfied, or it will modulate the power (to keep consumption to a minimum) when the set room temperature is reached.

9 FIRST IGNITION

The first ignition must be carried out by the installer.

9.1 Pellet loading

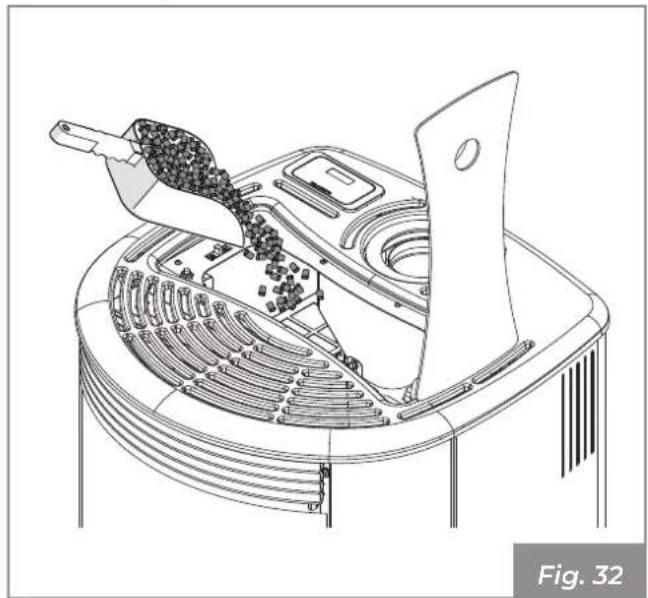

- Open the pellet loading hatch.

Technical line drawing of a mechanical component with a directional arrow indicating rotation (no text or symbols)

- Load the pellets.

Technical line drawing of a device interior with granular material being inserted, labeled as Fig. 32 (no text or symbols on the diagram itself)

- Close the hatch.

The appliance, which is the subject of this manual, is an indoor domestic heating stove, powered exclusively by wood pellets with automatic loading.

9.2 First start up

During the first ignition of the stove, make sure the rooms are properly ventilated as unpleasant odours or fumes may be generated due to the evaporation or drying of certain materials used. This phenomenon will gradually disappear.

Connect the appliance to the mains, operate the power switch on the back of the appliance by turning it to "I".

Fig. 33

If the connection is correct, the appliance emits a series of intermittent noises and the display lights up.

See the display manual.

10 CLEANING AND MAINTENANCE

Cleaning can be carried out by the user.

Maintenance operations must be performed by an authorised technical assistance centre.

Before performing any maintenance operation, take the following precautions:

• Ensure that all appliance parts are cold.
• Make sure that the ashes are completely extinguished.
• Use personal protective equipment provided for by Directive 89/391/EEC.
• Make sure that the general line switch is turned off.
• Make sure that the power supply cannot be accidentally reactivated. Remove the plug from the wall socket.
  • Always use appropriate equipment for maintenance.
• Once maintenance or repair operations have been completed, before putting the appliance back into service, reinstall all the safety guards and reactivate all the safety devices.

10.1 Routine maintenance cleaning programme

10.1.1 Routine cleaning (User)

	EVERY TIME THE APPLIANCE IS TURNED ON	EVERY WEEK

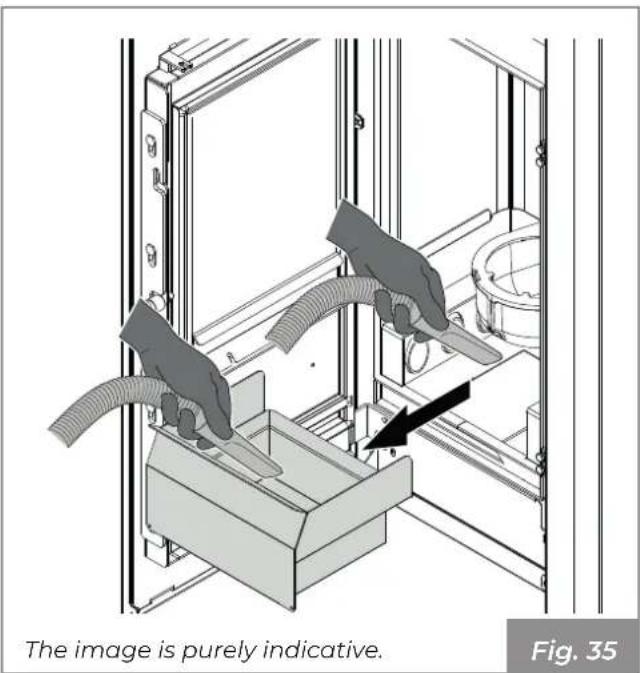

Burn pot (Fig. 35) X
Ash drawer/compartment (Fig. 36) X
Glass (Fig. 37) X

10.1.2 Routine maintenance (certified technical service centre)

	1 YEAR (*)
Door and burn pot seals X
Smoke collector (Fig. 38) X
Door safety (Fig. 39) X
Flue gas system ("10.3.3 Maintenance of the flue gas system" on page 70)	X
Appliance ("10.3.4 Appliance maintenance" on page 71)	X

(*) At least once a year or every 4000 kg of pellets burned.

10.2 Routine cleaning

10.2.1 Cleaning the inside of the firebox

Daily or before each ignition, it is necessary to check that the burn pot is clean to ensure the free flow of combustion air from the holes of the burn pot itself.

Vacuum the ash accumulated in the burn pot (Fig. 35).

Remove the ash from the combustion chamber as the salts present cause corrosion of the metal. In addition, the ash could block the passage of air, varying the development of the flame which, if it approaches the glass, would increase corrosion.

After cleaning the burn pot, remove it from its housing and clean the space where it is contained

The image is purely indicative. Fig. 34

If necessary, remove the ash drawer and empty it, making sure to remove any residue in the compartment where it is contained (Fig. 36).

Using an ash vacuum can simplify the cleaning operations

The image is purely indicative. Fig. 35

10.2.2 Cleaning the glass

This is done with a damp cloth or damp paper towel passed through the ash (Fig. 37).

Rub until the glass is clean.

Do not clean the glass while the stove is on and do not use abrasive sponges.

Do not use solvents, acids or detergents, liquid detergents or aggressive products.

Technical line drawing of a door with a hand cleaning a window, showing no text or symbols on the diagram itself.

10.3 Ordinary maintenance

10.3.1 Maintenance of flue manifold

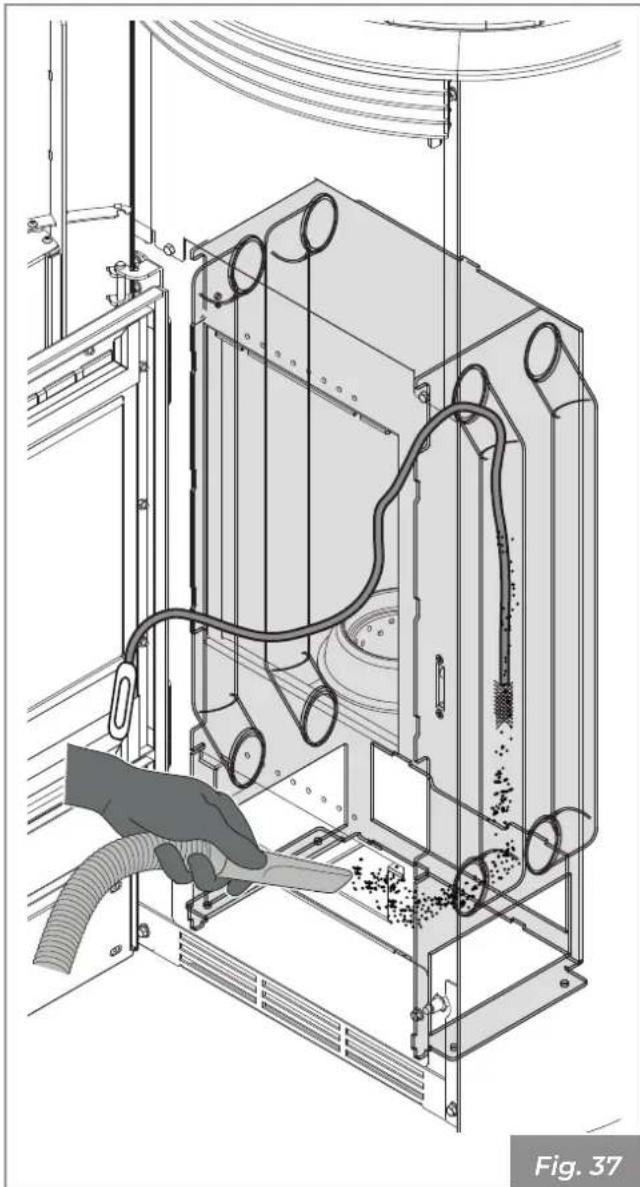

Remove the ash drawer and, using a special ash vacuum, remove any residues in the compartment that contains it. Use a flexible brush to clean the exchanger pipes in the combustion chamber (Fig. 38).

Remove any residues that fall in the flue manifold using an ash vacuum.

Technical illustration of an industrial machine with a hand operating the housing and wiring, showing internal components and no visible text or symbols.

10.3.2 Door safety

In order to guarantee the correct and safe operation of the fire box door, it is necessary to lubricate the springs of the closing mechanism, which may be located at the hinges (A) or at the door closing latch (B).

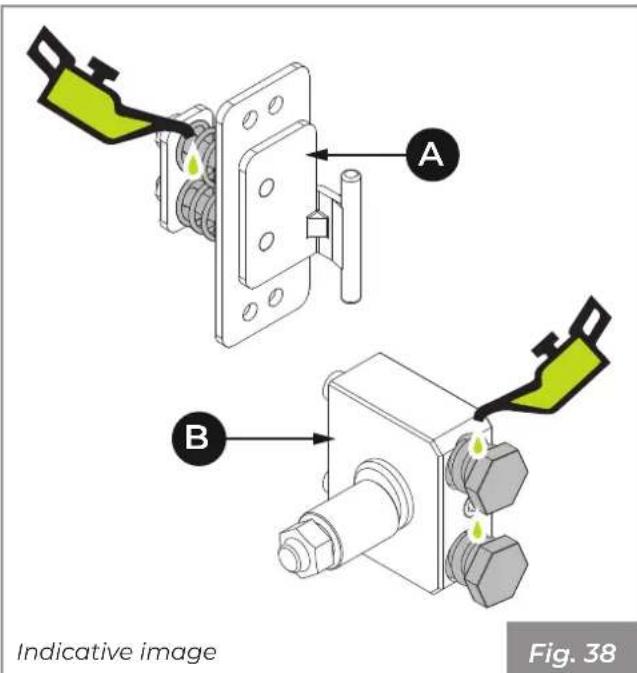

A B Indicative image Fig. 38

10.3.3 Maintenance of the flue gas system

If there are horizontal sections, it is necessary to check and remove any deposits of ash and soot before they obstruct the passage of fumes.

The incrustations inside the flue affect the optimum forced draught. When they reach a thickness of 5-6 mm, with high temperatures and sparks, they can ignite with easily imaginable consequences both for the flue and for the house.

In the event of failure to clean or inadequate cleaning the appliance may have operating problems including:

• bad combustion;
• blackening of the glass;
• blockage of the burn pot with accumulation of ash and pellets;
• deposit of ash and excessive deposits on the exchanger with consequent poor performance.

10.3.4 Appliance maintenance

To be carried out at least once a year, or every time the appliance signals maintenance request.

During the maintenance operation, the technician must:

• clean the flue gas transit area thoroughly and completely;
• check the condition and tightness of all the seals;
• check the condition of all internal components and make sure they are clean;
• make sure the flue gas outlet connection is sealed and clean;
• remove any deposits of pellet residues in the tank;
• check that there are no pellets or pellet residues in the appliance installation space;
• check the correct operation of the appliance;
• reset any warnings or alarms.

11 DEMOLITION AND DISPOSAL

The demolition and disposal of the appliance is the sole responsibility of the owner, who must comply with the current regulations in the country where the appliance is in use for the disposal of materials and, if required, for a declaration of disposal, with regard to safety, respect and protection of the environment.

Disposal can be entrusted to a third party, provided only companies authorised for the recovery and elimination of the materials in question are used.

All dismantling for demolition must be carried out with the appliance stationary and with the power supply cut, where present.

Leaving the appliance in accessible areas is a serious danger to people and animals.

The differentiated disposal of the product makes it possible to avoid potentially negative consequences on the environment and health, and also allows recycling of the materials making up the product in order to achieve significant energy and resource savings.

Any liability for damage to people and animals always falls on the owner. Upon demolition, the CE marking, this manual and other documents relating to this appliance must be destroyed.

11.1 Disposal of electrical components

• Remove all the electrical equipment.
• Separate the accumulators on the electronics boards.
• Scrap the structure of the appliance with the assistance of authorised companies.

INFORMATION FOR THE PROPER DISPOSAL OF THE BATTERIES WITHIN THE MEANING OF THE EU DIRECTIVE 2006/66/EC

Please replace the battery when its electric charge is exhausted: at the end of its useful life this battery must not be disposed of together with unsorted waste. It must be delivered at appropriate selective collection centres for municipal waste or to resellers who provide this service. Disposing

of a battery separately allows you to avoid possible adverse effects on the environment and on human health resulting from improper disposal and allows to recover and recycle the materials of which it is composed, with substantial savings on energy and resources. In order to emphasize on the obligation to dispose of separately the batteries, on the battery itself there is the crossed-out wheeled bin symbol. Abusive disposal of the product by the user involves the application of administrative sanctions provided by law.

Symbol of a trash bin crossed out by two diagonal lines (no text or numbers present)

A crossed-out wheelie bin symbol on the equipment label indicates that the product must not be disposed of as unsorted waste, but should be sent to separate collection facilities for recovery and recycling.

Pursuant to art.13 of Italian Legislative Decree no. 151 of 25 July 2005 implementing Directive 2002/96/EC of 23 February 2003 on Waste Electrical and Electronic Equipment relating to the measures and procedures designed to prevent the production of waste electrical and electronic equipment, called WEEE, promoting the reuse, recycling and other forms of recovery so as to reduce the quantity to be disposed of and improving the intervention of the parties involved in the life cycle of such products.

INHALTSVERZEICHNIS

4 DAS PRODUKT KENNEN

Technical illustration of a server rack unit with labeled component A, showing internal structure and ventilation slots (no text or symbols beyond label)

Pile of cylindrical, beigeish brown granules or pellets on a white background (no text or symbols visible)

4 DAS PRODUKT KENNEN

4.1 Beschreibung

Technical diagram of a device interior with numbered components for identification

Abb. 3

Technical diagram of an internal server rack with numbered components for identification

Technical diagram of a server rack with numbered components for identification

Abb. 4

6.3 Installationsort

Architectural cross-section diagram showing a building foundation with brick wall and water layer, no text or symbols present

Diagram showing a hand holding a small object near a screen, with no visible text or symbols

Technical line drawing of a mechanical component with a paper cutout and directional arrow (no text or symbols)

Line drawing of a washing machine with granular material being inserted into the chamber (no text or symbols)

Technical illustration of an air duct system with a hand operating the duct (no text or symbols visible)

Simple line drawing of a trash bin with two crossed lines indicating no waste or prohibition (no text or symbols)

5 MANUTENTION ET TRANSPORT 125

Technical line drawing of a server rack unit with labeled component A (no text or symbols beyond label)

Pile of cylindrical wooden sticks, likely wood or rubber, with no visible text or symbols.

Technical diagram of a device interior with numbered components for identification

Fig. 3

Technical diagram of an internal server rack with numbered components for identification

Technical diagram of a server rack with numbered components for identification

Fig. 4
        note right of A: "NOTE:phase protection,added by customer.Do not change polarity!"
        note right of B: "PHASE PROTECTION"
        note right of C: "PHASE PROTECTION"
        note right of D: "PHASE PROTECTION"
        note right of E: "PHASE PROTECTION"
        note right of F: "PHASE PROTECTION"
        note right of G: "PHASE PROTECTION"
        note right of H: "PHASE PROTECTION"
        note right of I: "PHASE PROTECTION"
        note right of J: "PHASE PROTECTION"
        note right of K: "PHASE PROTECTION"
        note right of L: "PHASE PROTECTION"
        note right of M: "PHASE PROTECTION"
        note right of N: "PHASE PROTECTION"
        note right of O: "PHASE PROTECTION"
        note right of P: "PHASE PROTECTION"
        note right of Q: "PHASE PROTECTION"
        note right of R: "PHASE PROTECTION"
        note right of S: "PHASE PROTECTION"
        note right of T: "PHASE PROTECTION"
        note right of U: "PHASE PROTECTION"
        note right of V: "PHASE PROTECTION"
        note right of W: "PHASE PROTECTION"
        note right of X: "PHASE PROTECTION"
        note right of Y: "PHASE PROTECTION"
        note right of Z: "PHASE PROTECTION"
        note right of AA: "PHASE PROTECTION"
        note right of AB: "PHASE PROTECTION"
        note right of AC: "PHASE PROTECTION"
        note right of AD: "PHASE PROTECTION"
        note right of AE: "PHASE PROTECTION"
        note right of AF: "PHASE PROTECTION"
        note right of AG: "PHASE PROTECTION"
        note right of AH: "PHASE PROTECTION"
        note right of AI: "PHASE PROTECTION"
        note right of AJ: "PHASE PROTECTION"
        note right of AK: "PHASE PROTECTION"
        note right of AL: "PHASE PROTECTION"
        note right of AM: "PHASE PROTECTION"
        note right of ANA: "PHASE PROTECTION"
        note right of AO: "PHASE PROTECTION"
        note right of AP: "PHASE PROTECTION"
        note right of AQ: "PHASE PROTECTION"
        note right of ARF: "PHASE PROTECTION"
        note right of ASF: "PHASE PROTECTION"
        note right of ATF: "PHASE PROTECTION"
        note right of AUF: "PHASE PROTECTION"
        note right of AVF: "PHASE PROTECTION"
        note right of AWF: "PHASE PROTECTION"
        note right of AXF: "PHASE PROTECTION"
        note right of AYF: "PHASE PROTECTION"
        note right of AZF: "PHASE PROTECTION"
        note right of BAF: "PHASE PROTECTION"
        note right of BBF: "PHASE PROTECTION"
        note right of BCF: "PHASE PROTECTION"
        note right of DAF: "PHASE PROTECTION"
        note right of AEF: "PHASE PROTECTION"
        note right of AFF: "PHASE PROTECTION"
        note right of AGF: "PHASE PROTECTION"
        note right of AHF: "PHASE PROTECTION"
        note right of AIF: "PHASE PROTECTION"
        note right of AZF: "PHASE PROTECTION"
        note right of AKF: "PHASE PROTECTION"
        note right of ALF: "PHASE PROTECTION"
        note right of AMF: "PHASE PROTECTION"
        note right of AVF: "PHASE PROTECTION"
        note right of AWF: "PHASE PROTECTION"
        note right of AXF: "PHASE PROTECTION"
        note right of AZF: "PHASE PROTECTION"
        note right of AYF: "PHASE PROTECTION"
        note right of ALF: "PHASE PROTECTION"
        note right of AWF: "PHASE PROTECTION"
        note right of AXF: "PHASE PROTECTION"
        note right of AYF: "PHASE PROTECTION"
        note right of AYF: "PHASE PROTECTION"
        note right of AYF: "PHASE PROTECTION"
        note right of AYF: "PHASE PROTECTION"
        note right of AYF: "PHASE PROTECTION"
        note right of AYF: "PHASE PROTECTION"
        note right of AYF: "PHASE PROTECTION"
        note right of AYF, please select one or more.
        note right of AYF, please select another or more.
        note right of AYF, please select three or more.
        note right of AYF, please select four or more.
        note right of AYF, please select five or more.
        note right of AYF, please select six or more.
        note right of AYF, please select seven or more.
        note right of AYF, please select eight or more.
        note right of AYF, please select nine or more.
        note right of AYF, please select ten or more.
        note right of AYF, please select nine or more.
        note right of AYF, please select nine or more.
        note right of AYF, please select nine or more.
        note right of AYF, please select nine or more.
        note right of AYF, please select nine or more.
        note right of AYF, please select nine or more.
        note right of AYF, please select nine or more.
        note right of AYF, please select nine or higher.
        note right of AYF, please select nine or higher.
        note right of AYF, please select nine or higher.
        note right of AYF, please select nine or higher.
        note right of AYF, please select nine or higher.
        note right of AYF, please select nine or higher.
        note right of AYF, please select nine or higher.
        note right of AYF, please select nine or higher.
       end

5 MANUTENTION ET TRANSPORT

Technical illustration of a vacuum cleaner with internal components and a close-up inset showing the mechanism (no text or symbols present)

5.1 Transport

Technical line drawing of a cylindrical device with labeled component A and 10 mm dimension (no text or symbols beyond labels)

A B Fig. 11

6 PRÉPARATION DU LIEU D'INSTALLATION

Architectural cross-section diagram showing foundation and wall layers with directional arrows (no text or symbols)

Technical diagram of a refrigerator internal structure with labeled components A, B, C, D and component callouts for assembly or maintenance.

Fig. 23

Technical diagram of a mechanical device labeled 'A' with an inset showing internal components and motion arrows (no text or symbols present)

Illustration of a hand holding a tool near a wall-mounted device, with no visible text or symbols.

Technical line drawing of a mechanical component with a curved base and internal structure, showing no text or symbols.

Line drawing of a device interior with granular material being inserted, labeled as Fig. 32 (no text or symbols on the diagram itself)

- Refermer la porte.

Illustration of hands using a tool to clean or install a wall-mounted device, with no visible text or symbols.

Technical illustration of hands installing or adjusting a flexible hose component inside a mechanical housing (no text or symbols present)

Technical line drawing of a door with a hand cleaning the window, showing internal components and no text or symbols.

Technical illustration of an industrial machine with a hand operating the housing and wiring, showing internal components and no visible text or symbols.

Simple line drawing of a trash bin with crossed lines indicating no waste or discharge (no text or symbols)

2017/2102/UE: Directiva RoHS

2014/53/UE: Directiva RED (Radio Equipment Directive)

REGLAMENTO (UE) N. 305/2011 (CPR)

REGLAMENTO (UE) 2015/1185 (ECODESIGN)

Technical line drawing of a server rack unit with labeled component A (no text or symbols beyond label)

Pile of cylindrical wooden sticks, likely wood or rubber, with no visible text or symbols.

4 CONOCER EL PRODUCTO

4.1 Descripción

Technical diagram of a device interior with numbered components for identification

Fig. 3

Technical diagram of a server rack with numbered components for identification

Fig. 4
        X
        Y
        Z
        AA
        AB
        AC
        AD
        AE
        AF
        AG
        AH
        AI
        AJ
        AK
        AL
        AM
        AN
        AO
        AP
        AQ
        AR
        AS
        AT
        AU
        AV
        AW
        AX
        AY
        AZ
        BA
        BB
        BC
        BD
        BE
        BF
        BG
        BH
        BI
        BJ
        BK
        BL
        BM
        BN
        BO
        BP
        BPB
        BPB
        BPB
    end

    subgraph PLC4
        CA["8"] --> CB["9"] --> CC["14"] --> DD["10"] --> DE["11a"] --> DF["12"] --> DG["18"]
    end

    style PLC4 fill:#f9f,stroke:#333,stroke-width:2px
    note right of PC4: PLUG C/FUSE 4 A
    note bottom of PC4: PE L N 22o-24oVac 32

    note right of PC4: NOTE:phase protection,added by customer.Do not change polarity!
    note right of PC4: 24 UI/PC UI/PC

    %% Legend for PLCs;
    %% Color/Style: Green = Blue, Black = Red, White = Green, Blue = Black, Red = Black, Green = Black, Blue = Black, Red = Black, Green = Black, Blue = Black, Red = Black, Green = Black, Blue = Black, Red = Black, Green = Black, Blue = Black, Red = Black, Green = Black, Blue = Black, Red = Black, Green = Black, Blue = Black, Red = Black, Green = Black, Blue = Black, Red = Black, Green = Black, Blue = Black, Red = Black, Green = Black, Blue = Green, Red = Black, Green = Black, Blue = Black, Red = Black, Green = Black, Blue = Black, Red = Black, Green = Black, Blue = Black, Red = Black, Green = Black, Blue = Black, Red = Black, Green = Black, Blue = Black, Red = Black, Green = Black, Blue = Black, Red = Black, Green = Black, Blue = Black, Red = Black, Green = Black, Blue = Black, Red = Green, Blue=Black, Red=Black, Green=Black, Blue=Blue,Brown,Brown,Brown,Brown,Brown,Brown,Brown,Brown,Brown,Brown,Brown,Brown,Brown,Brown,Brown,Brown,Brown,Brown,Brown,Brown,Brown,Brown,Brown,Brown,Brown,Brown,Brown,Brown,Brown,Brown,Brown,Brown,Brown,Brown,Brown,Brown,Brown,Brown,Brown,Brown,Brown,Brown,Brown,Brown,Brown,Brown,Brown,Brown,Brown,Brown,Bown,Brown,Brown,Brown,Brown,Brown,Brown,Brown,Brown,Brown,Brown,Brown,Brown,Brown,Brown,Brown,Brown,Brown,Brown,Brown,Brown,Brown,Brown,Brown,Brown,Brown,Brown,Brown,Brown,Brown,Brown,Brown,Brown,Brown,Brown,Brown,Brown,Brown,Brown,Brown,Brown,Brown,Brown,Brown,TGND,TGND,TGND,TGND,TGND,TGND,TGND,TGND,TGND,TGND,TGND,TGND,TGND,TGND,TGND,TGND,TGND,TGND,TGND,TGND,TGND,TGND,TGND,TGND,TGND,TGND,TGND,TGND,TGND,TGND,TGND,TGND,TGND,TGND,PA+P+P+P+P+P+P+P+P+P+P+P+P+P+P+P+P+P+P+P+P+P+P+P+P+P+P+P+P+P+P+P+P+P+P+P+P+P+P+P+P+P+P+P+P+P+P+P+P+P+P+ P=24 (data) or (data) / (data) / (data) / (data) / (data) / (data) / (data) / (data) / (data) / (data) / (data) / (data) / (data) / (data) / (data) / (data) / (data) / (data) / (data) / (data) / (data) / (data) / (data) / (data) / (data) / (data) <|caption_end|>
    end

Fig. 8

Technical illustration of a portable air conditioner unit with internal components and directional arrows (no text or symbols)

5.1 Transporte

Technical diagram of a cylindrical device with labeled component A and 10 mm dimension, no readable text or symbols beyond labels

A B Fig. 11

Pi = Pared inflamable

Architectural cross-section diagram showing foundation and wall layers with directional arrows (no text or symbols)

Diagram of a device interior showing internal components and airflow direction, labeled A (no text or symbols beyond label)

Technical diagram of a mechanical device labeled 'A' with an inset showing internal components and directional arrows (no text or symbols present)

Illustration of a hand holding a device near a wall-mounted screen, with no visible text or symbols.

Technical line drawing of a mechanical component with an arrow indicating rotation or assembly (no text or symbols present)

- Cargar los pellets.

Technical line drawing of a device's internal components, showing a tool interacting with granular material (no text or symbols)

- Cerrar la puerta.

Technical illustration of an industrial machine with a hand operating the housing and wiring, showing internal components and material flow (no text or symbols)

Simple line drawing of a trash bin with two crossed lines indicating no waste or restriction (no text or symbols)

The Ground Truth image displays a single, solid horizontal line, which is a stylistic or background element (like a rule line on paper). According to Rule 2, such lines must be ignored by the OCR result. The provided OCR content is "____", which consists of underscores. Underscores are not equivalent to a solid line and are not permitted under the “Stylistic/Background Lines (Ignore)” rule. Outputting underscores for a solid line constitutes an error, as it misrepresents the visual element and violates the instruction to ignore stylistic lines. Therefore, the OCR result is inconsistent with the Ground Truth.

[Non-Text]

The Ground Truth image displays a single, solid horizontal line. According to Rule 2 (UNDERSCORE & LINE RULES), this is a stylistic or background line, not a placeholder underscore. Therefore, the OCR result must ignore it and output nothing or only meaningful text. The provided OCR content is "____", which consists of four underscores. This is an incorrect interpretation of the line as a placeholder, violating the rule that stylistic lines must be ignored. The OCR has hallucinated placeholder underscores where none should exist in the GT. Hence, the OCR result is inconsistent with the Ground Truth.

The image contains no text. The horizontal lines are stylistic or background elements and must be ignored according to the rules. Therefore, the correct OCR output is empty.

(No text to output)

[Non-Text]

The Ground Truth image displays a single, solid horizontal line, which is a stylistic or background element (like a rule line on paper). According to Rule 2, such lines must be ignored by the OCR result. The provided OCR content is "____", which consists of underscores. Underscores are not equivalent to a solid line and are not permitted under the “Stylistic/Background Lines (Ignore)” rule. Outputting underscores for a stylistic line is incorrect because it misinterprets the line as a fill-in-the-blank placeholder. Since the OCR output incorrectly rendered a stylistic line as underscores (which should be ignored), this violates the rule. Therefore, the OCR result is inconsistent with the Ground Truth.

[Non-Text]

The Ground Truth image displays a single, solid horizontal line. According to Rule 2 (UNDERSCORE & LINE RULES), this is a stylistic or background line, not a placeholder underscore. Therefore, the OCR result must ignore it and output nothing or only meaningful text. The provided OCR content is "____", which consists of four underscores. This is an incorrect interpretation of the line as a placeholder, violating the rule that stylistic lines must be ignored. The OCR has hallucinated underscores where none should exist based on the GT's visual context. Hence, the OCR result is inconsistent with the Ground Truth.

[Non-Text]

[Non-Text]

The Ground Truth image displays a single, solid horizontal line, which is a stylistic or background element (like a rule line on paper). According to Rule 2, such lines must be ignored by the OCR result. The OCR content provided is "", which consists of no characters. Since the OCR output correctly ignores the stylistic line, it complies with Rule 2. Therefore, the OCR result is consistent with the Ground Truth.

[Non-Text]

The Ground Truth image displays a single, solid horizontal line, which is a stylistic or background element (like a rule line on paper). According to Rule 2, such lines must be ignored by the OCR result. The OCR content provided is "", which consists of no characters. Since the OCR output correctly ignores the stylistic line, it complies with Rule 2. Therefore, the OCR result is consistent with the Ground Truth.

[Non-Text]

The Ground Truth image displays a single, solid horizontal line, which is a stylistic or background element (like a rule line on paper). According to Rule 2, such lines must be ignored by the OCR result. The provided OCR content is "____", which consists of underscores. Underscores are not equivalent to a solid line and are not permitted under the “Stylistic/Background Lines (Ignore)” rule. Outputting underscores for a stylistic line violates the rule and constitutes an error. Therefore, the OCR result is inconsistent with the Ground Truth.

[Non-Text]

[Non-Text]

Theorem 1.2. (Theorem of [3.6]). Let be a finite field and let (x) be the set of all elements of such that x (x) . Then

[Non-Text]

The image contains no text. The horizontal line is a stylistic or background element and must be ignored according to the rules. Therefore, the correct OCR output is empty.

(No text to output)

[Non-Text]

[Non-Text]

[Non-Text]

The image contains no text. The horizontal line is a stylistic or background element and must be ignored according to the rules.

[Non-Text]

The Ground Truth image displays a single, solid horizontal line. According to Rule 2 (UNDERSCORE & LINE RULES), this is a stylistic or background line, not a placeholder underscore. Therefore, the OCR result must ignore it and output nothing or only meaningful text. The provided OCR content is "____", which consists of four underscores. This is an incorrect interpretation of the line as a placeholder, violating the rule that stylistic lines must be ignored. The OCR has hallucinated underscores where none should exist based on the GT's visual context. Hence, the OCR result is inconsistent with the Ground Truth.

00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 15

[Non-Text]

The Ground Truth image displays a single, solid horizontal line, which is a stylistic or background element (like a rule line on paper). According to Rule 2, such lines must be ignored by the OCR result. The provided OCR content is "____", which consists of underscores. Underscores are not equivalent to a solid line and are not permitted under the “Stylistic/Background Lines (Ignore)” rule. Outputting underscores for a stylistic line is incorrect because it misinterprets the line as a fill-in-the-blank placeholder. Since the OCR output incorrectly rendered a stylistic line as underscores (which should be ignored), this violates the rule. Therefore, the OCR result is inconsistent with the Ground Truth.

[Non-Text]

The Ground Truth image displays a single, solid horizontal line, which is a stylistic or background element (like a rule line on paper). According to Rule 2, such lines must be ignored by the OCR result. The provided OCR content is "____", which consists of underscores. Underscores are not equivalent to a solid line and are not permitted under the “Stylistic/Background Lines (Ignore)” rule. Outputting underscores for a stylistic line is incorrect because it misinterprets the line as a fill-in-the-blank placeholder. Since the OCR output incorrectly rendered underscores for a stylistic line, this violates the “Stylistic/Background Lines (Ignore)” rule. Therefore, the OCR result is inconsistent with the Ground Truth.

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

PALAZZETTI

IL CALORE CHE PIACE ALLA NATURA

Palazzetti Lelio s.p.a.

Via Roveredo, 103

cap 33080 - Porcia (PN) - ITALY

Internet: www.palazzetti.it

Palazzetti reserves the right to change its products at any time and without notice in order to improve them without compromising their essential characteristics.
