VT-5001 - Wall socket V-TAC - Free user manual and instructions

Product Type	Wi-Fi Smart Wall Socket
Brand	V-TAC
Model	VT-5001
Power Supply	230 V ~ 50 Hz
Rated Current	16 A
Maximum Power	3680 W
Connectivity	Wi-Fi 2.4 GHz
Control App	V-TAC Smart Home (iOS/Android)
Voice Compatibility	Amazon Alexa, Google Assistant
Main Functions	Remote on/off, schedule, timer, sharing
Dimensions (approx.)	5.0 × 5.0 × 7.0 cm
Weight (approx.)	100 g
Material	Flame-retardant plastic
Protection Rating	IP20
Operating Temperature	0°C to 40°C
Installation	Plug into a standard wall socket
Maintenance and Cleaning	Unplug before cleaning; use a dry cloth
Safety	Overload protection
Spare parts and repairability	Not user-repairable; contact support
Warranty	2 years

Frequently Asked Questions - VT-5001 V-TAC

How to install and configure the V-TAC VT-5001 socket?

Download the V-TAC Smart Home app, create an account, then press and hold the button on the socket (5 seconds) until the indicator flashes. In the app, press '+' and follow the instructions to connect your Wi-Fi.

What to do if the socket cannot connect to the app?

Make sure your Wi-Fi network is 2.4 GHz (5 GHz is not supported). Reset the socket by holding the button for 10 seconds, then try pairing again in compatible mode if necessary.

Can I control the socket with Amazon Alexa or Google Home?

Yes, enable the V-TAC Smart Home skill in the Alexa app or link your account in Google Home. Then discover the device and use voice commands like 'Alexa, turn on the socket'.

How to set a timer or schedule?

In the V-TAC Smart Home app, tap on the socket name, then on Timer or Schedule. Set the on/off times and repetition (daily, weekly).

Can I share access to the socket with another user?

Yes, in the app, select the Share function and add the other person's email address. They will also need to have the V-TAC Smart Home app.

What is the maximum power supported by the socket?

The socket supports up to 3680 W (16 A) at 230 V. Do not exceed this limit to avoid overload risks.

Is the socket compatible with a light dimmer?

No, this socket is designed for on/off use. It is not compatible with dimmers. Use it with standard appliances.

How to reset the socket to factory settings?

Hold the socket button for about 10 seconds until the indicator flashes rapidly. The socket then returns to pairing mode.

What to do if the indicator does not flash when entering pairing mode?

Make sure the socket is properly plugged in and powered on. If the problem persists, perform a factory reset (see previous question). If nothing works, contact V-TAC support.

Does the socket work without an Internet connection?

No, it requires an active Wi-Fi connection and the app for remote control. However, after configuration, schedules are saved locally.

USER MANUAL VT-5001 V-TAC

White wireless power outlet with a blue circular button and 'SMART HOME' branding (no text or symbols on the device itself)

White smart home power outlet with three leads and a blue circular button (no text or symbols visible)

V-TAC SMART HOME

works with amazon alexa

works with the Google Assistant

INTRODUCTION & WARRANTY

Thank you for selecting and buying V-TAC Product. V-TAC will serve you the best. Please read these instructions carefully before starting the installation and keep this manual handy for future reference. If you have any other query, please contact our dealer or local vendor from whom you have purchased the product. They are trained and ready to serve you at the best.

The warranty is valid for 2 years from the date of purchase. The warranty does not apply to damage caused by incorrect installation or abnormal wear and tear. The company gives no warranty against damage to any surface due to incorrect removal and installation of the product.

(FR) INTRODUCTION & GARANTIE

(PL) WSTEP I GWARANCJAD

(RO) INTRODUCERE, GARANTIA

Download V-TAC SMART HOME APP by via APP Store Google Play Store (OR) Scan the below QR code to download the V-TAC SMART HOME APP, FAQ

QR code image containing encoded data, no visible human-readable text

GOOGLE PLAY

QR code image containing encoded data, no visible human-readable text

IOS

QR code image containing encoded data, no visible human-readable text

FAQ

QR code image containing encoded data, no visible human-readable text

MULTI-LANGUAGE MANUAL

INSTALLATION

WARNING!

1. Please make sure to turn off the power before starting the installation.
2. Must be installed by professional electrician.

This marking indicates that this product should not be disposed of with other household wastes.

Caution, risk of electric shock.

Step 1: Open the V-TAC Smart Home App and register. If you already have an existing account with V-TAC Smart Home, please proceed to logging in.

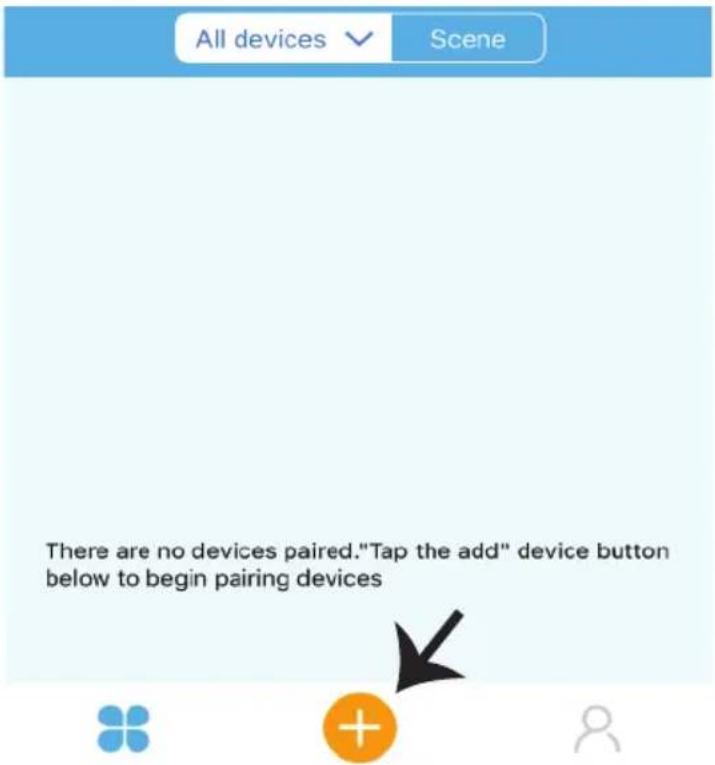

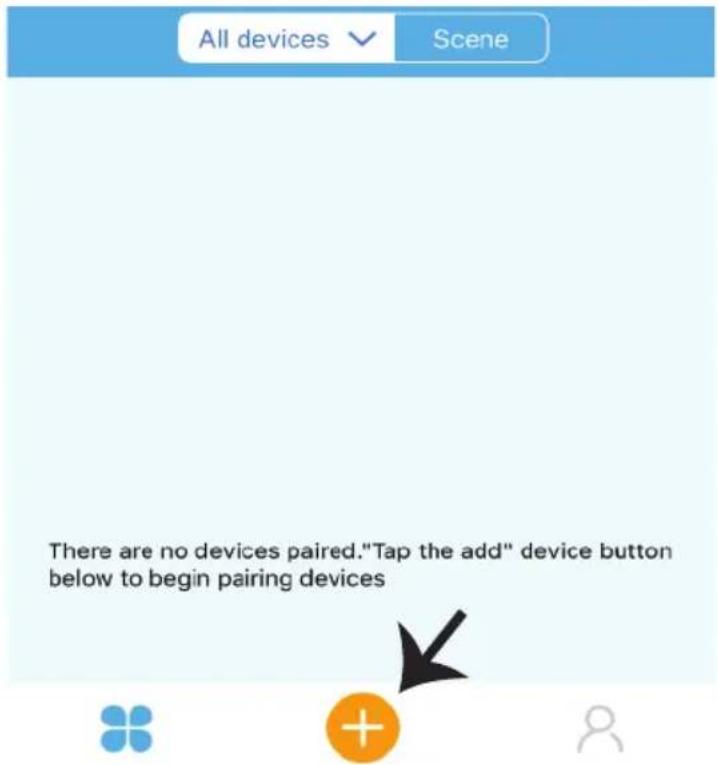

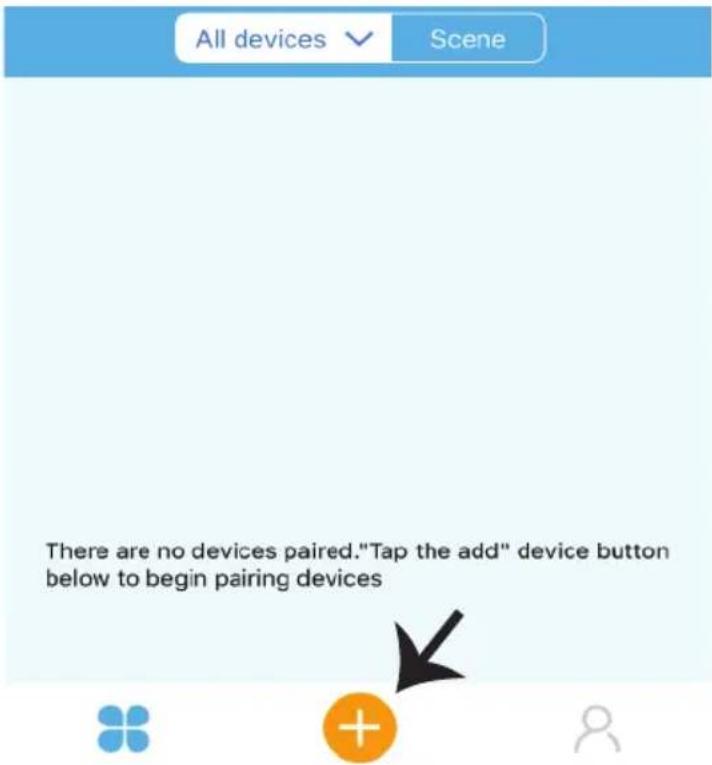

Step 2: To Add a New device tap on the “+” sign(as shown)

V-TAC SMART HOME

V-TAC smart home

Please select a region

Phone number or email address

Password

Login

Reset Password

Register

All devices √ Scene There are no devices paired."Tap the add" device button below to begin pairing devices

Step 3: Make sure your Smart device is powered ON

1) Tap and hold on the power button for 5 seconds to make the device available in pairing mode. Once in pairing mode the LED will start blinking 3 times repeatedly.
2) Tap on Next to start the pairing of device with the app. (Shown in the image)

Note: If you are facing any trouble while pairing in Quick Pairing mode please try to pair the device in Compatible Pairing Mode (Click on the link as shown on the image).

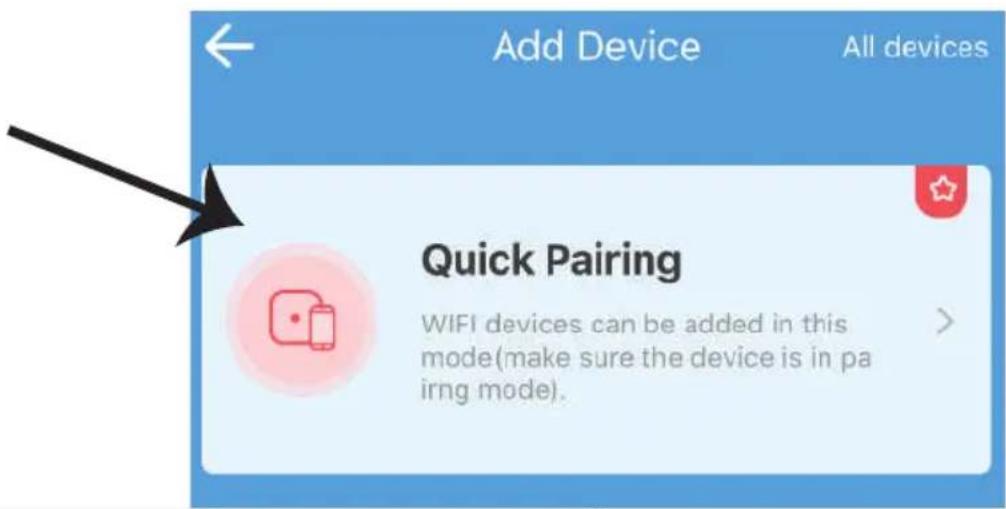

Add Device All devices Quick Pairing WIFI devices can be added in this mode(make sure the device is in pa irng mode).

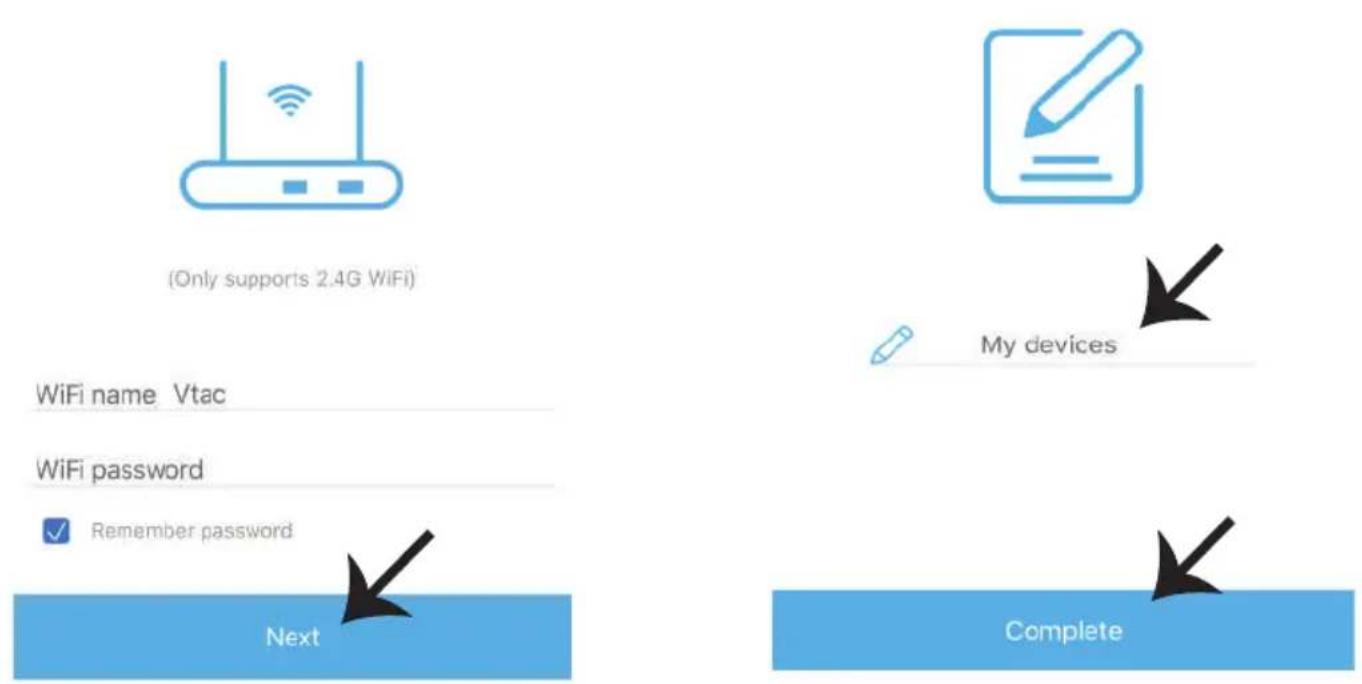

Step 4: Select your Wifi name and enter the password and tap on Next.
Step 5: Give a name to your device (Ex: Smart Plug/ smart switch) & tap on complete.

(Only supports 2.4G WiFi) WiFi name Vtac WiFi password ✓ Remember password Next My devices Complete

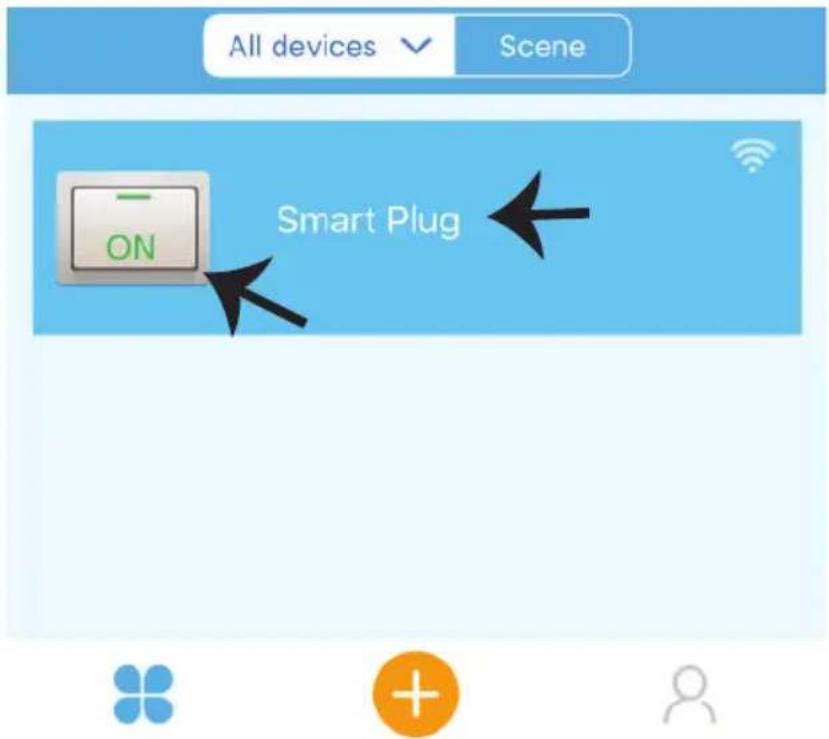

Step 6: Your device is now paired and will appear (Ex: as shown in the below image).
a) To turn the device ON/OFF tap on the ON/OFF icon(as shown in the below image).
b) To enter more settings of the Smart device tap on the Name(Ex: Smart Plug as shown below)

All devices Scene Smart Plug ON

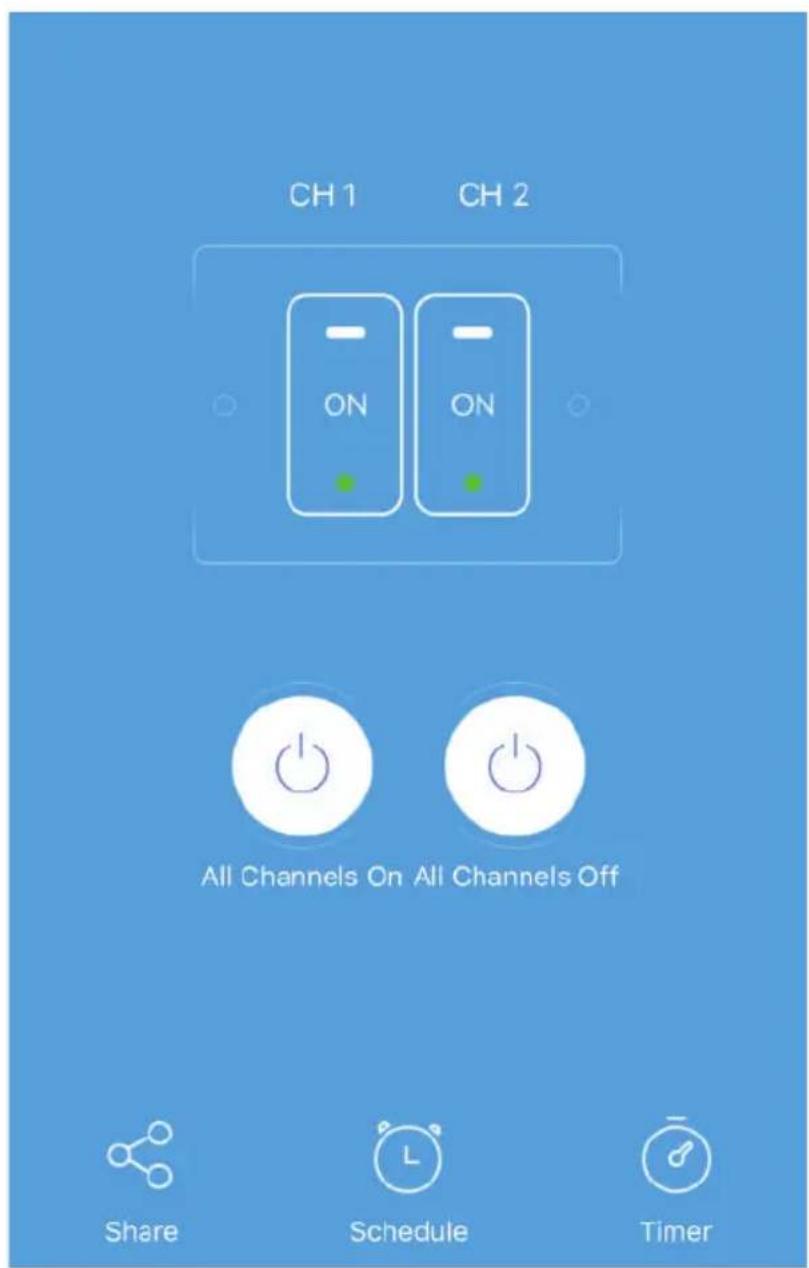

Step 7: V-TAC SMART HOME offers multiple features such as;

a) Share - This function allows you to share the access with another user.

b) Schedule: Schedule timer allows you to turn the device ON/OFF with flexibility of choosing date and time. This feature also allows Repeat mode using which you can set the desired configuration to daily OR any day of the week.

c) Timer : Timer function allows you to set "day-hour-minute" using which you can schedule the device to Turn ON/OFF

CH 1 ON CH 2 All Channels On All Channels Off Share Schedule Timer

ALEXA SETTINGS

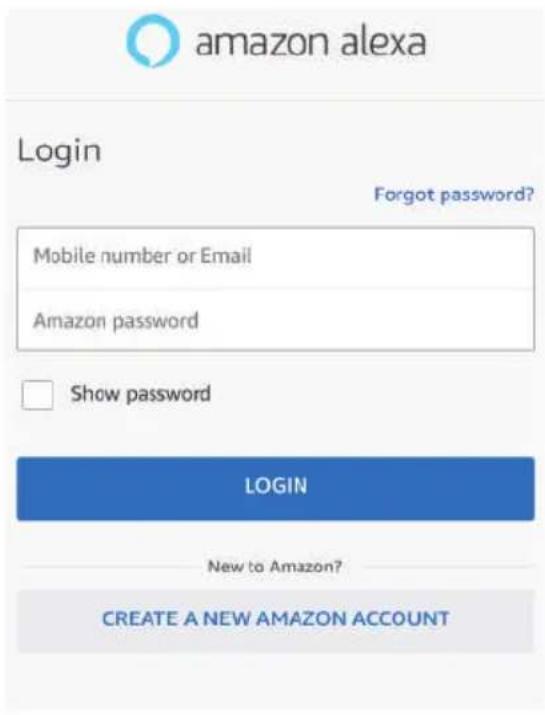

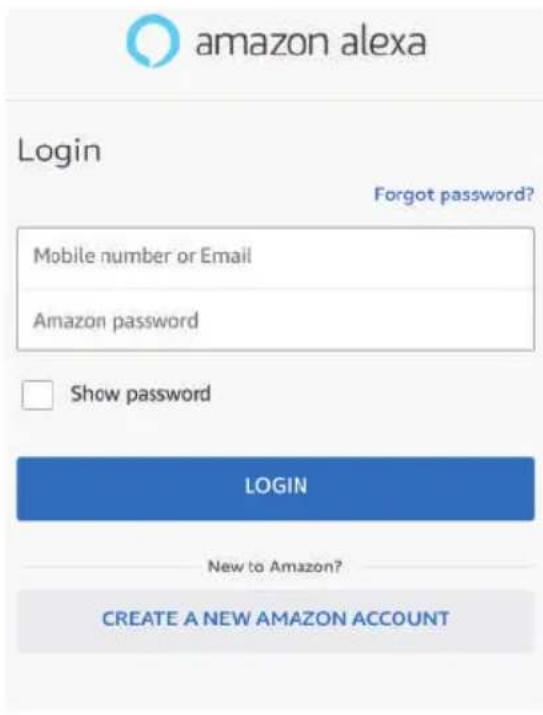

Step 1: Install the Amazon Alexa app via the App Store (iOS) or the Play Store (Android) and register. If you already have an existing account with Amazon Alexa, please proceed to logging in.

amazon alexa Login Forgot password? Mobile number or Email Amazon password Show password LOGIN New to Amazon? CREATE A NEW AMAZON ACCOUNT

Step 3: On the Home page of Amazon Alexa App, Tap on the icon as shown on the image below.

Blue background with a black arrow pointing diagonally down-right (no text or symbols)

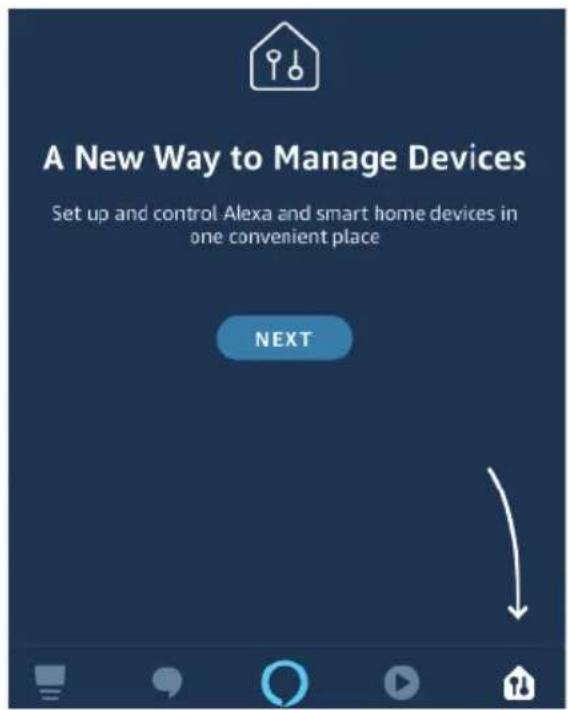

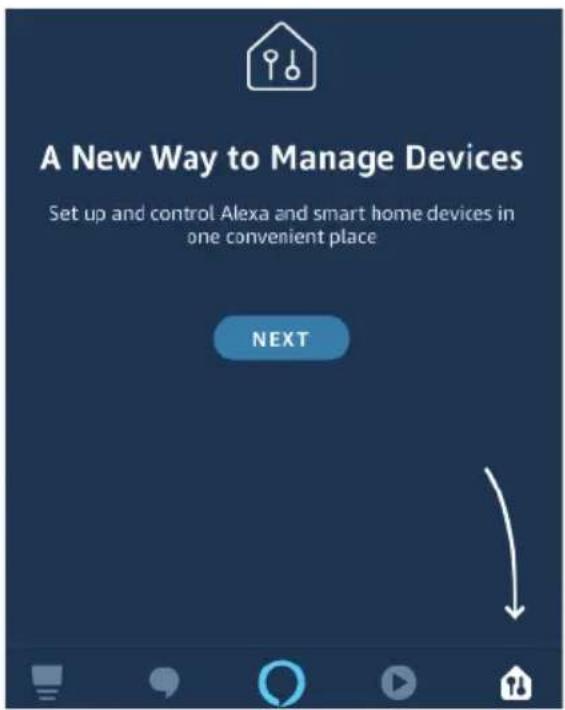

Step 2: Once you are on the Amazon Alexa home page, tap on the lower right icon — where the arrow is pointed— to add a new device and Enable Skills.

A New Way to Manage Devices Set up and control Alexa and smart home devices in one convenient place NEXT

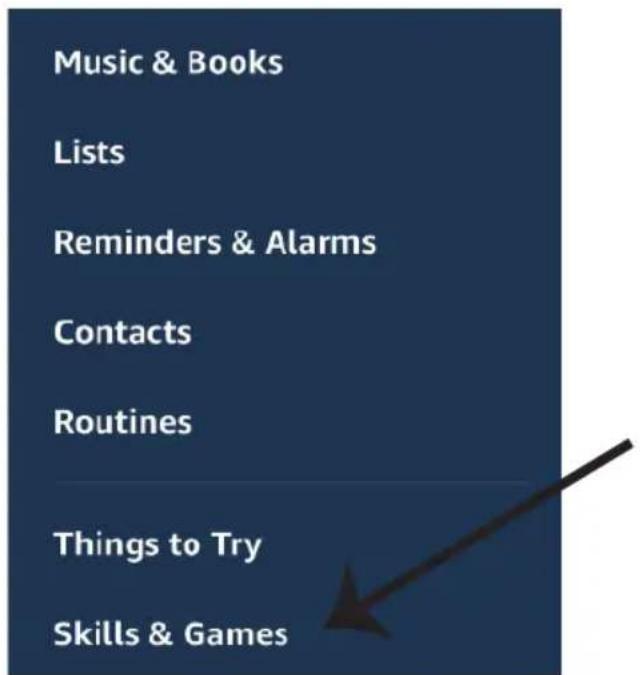

Step 4: Tap on "Skills & Games" as show below

Music & Books Lists Reminders & Alarms Contacts Routines Things to Try Skills & Games

Step 5: On the Search bar as shown type "V-TAC Smart Home" and tap on the V-TAC Smart Home skill as shown on the below image.

Step 6: Tap on "ENABLE TO USE" to link V-TAC Smart Home skill with Amazon Alexa app.

Search

v-tac smart home 2 Results Sort: Relevance

V-TAC Smart Home

Smart Home

V-TAC Smart Home

V-TAC Technologies

Rated: Guidance Suggested

ENABLE TO USE Account linking required

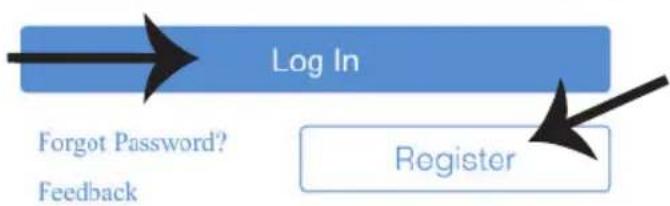

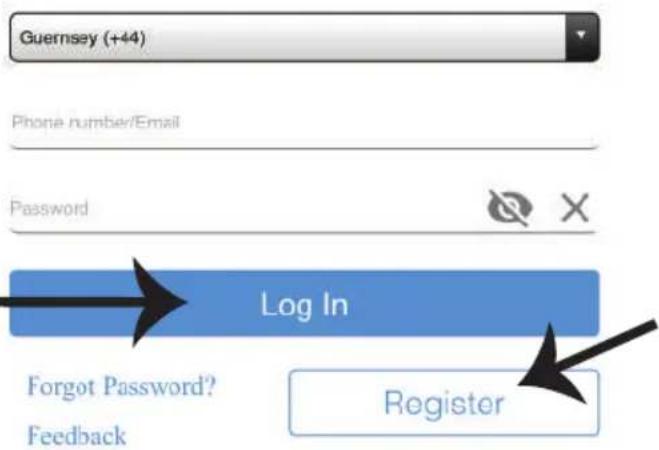

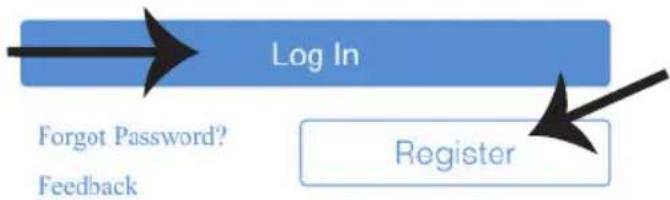

Step 7: Enter Login credentials of V-TAC Smart Home and then tap on Log In. If you do not have a existing account please register by tapping on the register.

Step 8: a) Once you have successfully linked V-TAC Skill close the window & (b) tap on Discover device. Make sure Smart device is paired with V-TAC Smart Home app.

V-TAC SMART HOME

Phone number/Email Password
    note1["Forgot Password?"]
    note2["Feedback"]

a)

V-TAC has been successfully linked.

What to do next:

→ Close this window to discover smart-home devices you can control with Alexa.

b)

Discover Devices

Smart Home devices must be discovered before they can be used with Alexa.

CANCEL DISCOVER DEVICES

Step 9: Discover your smart device on Alexa. Once you have enabled the skill

A) You can use voice command "Alexa discover devices" to the Alexa device which you have.

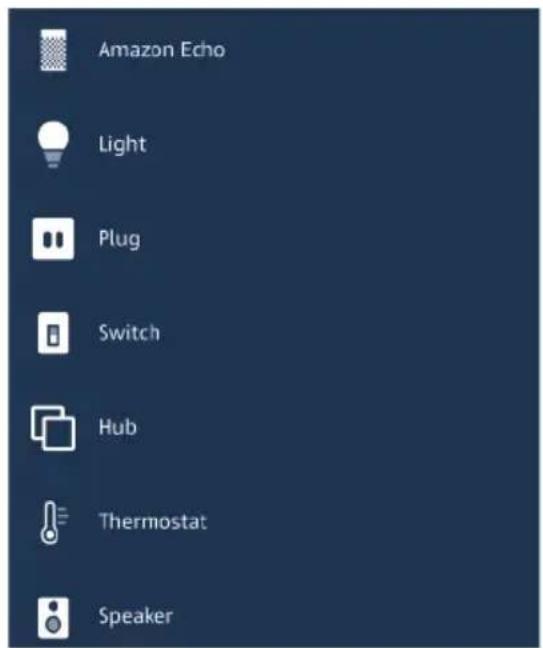

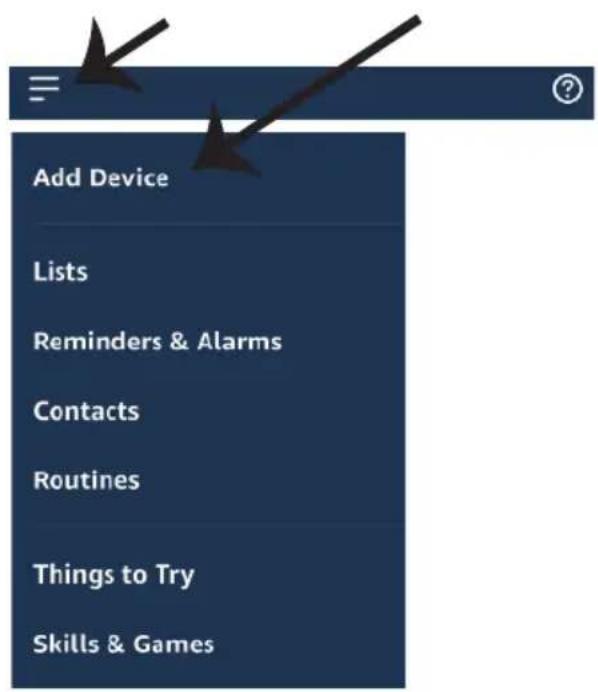

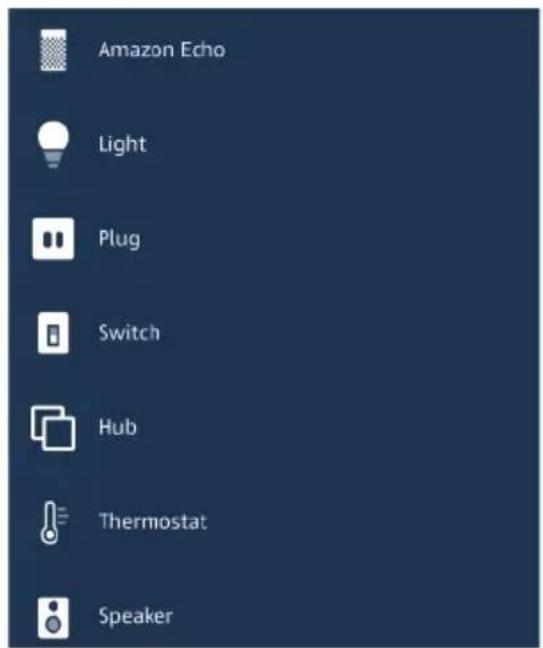

B) To add device manually on home page tap on and tap on Add device, select the device which you are adding and tap on discover device. (Ref Image B)

Add Device Lists Reminders & Alarms Contacts Routines Things to Try Skills & Games

Amazon Echo Light Plug Switch Hub Thermostat Speaker

Note: Discovering the device must be done every time the device's name is changed on the app.

ALEXA Commands

Now, you can control your smart device using voice commands on Alexa. Below are few example commands on how to use Alexa device:

➢! Alexa, turn ON Smart Plug
➢! Alexa, turn OFF Smart Plug

THINGS TO REMEMBER BEFORE STARTING INSTALLATION:

1. V-TAC Smart Home App & Amazon Alexa App
2. Make sure you have Amazon Alexa Device(including Echo, Echo Tap, or Echo Dot)
3. Smart Home Device
4. Stable Wifi network

GOOGLE HOME SETTINGS

Step 1:

a&b) Install the Google Home app via the App Store (iOS) or the Play Store (Android) and register. If you already have an existing account with Google Home, please proceed to logging in. c) Create a New Home/choose from the existing home if any. d) Power ON the Google Home device and connect it to the App. (Then Proceed to step 2)

a. Welcome home

Your content and devices all in one place

b. Choose account

This account will be used to personalize your experience

d. Plug in your device

Make sure your device is nearby and connected to power, then try again

Abstract geometric shapes including squares, circles, and triangles (no text or symbols)

GET STARTED >

c. Choose a home

You will be able to control the devices and services in this home.

Create another home

Step 2: Once you are on the Google home page, tap on the Add "+" icon—to add a new device and skill. And then tap on set up device as shown in below image.

a.

Play

Office

Broadcast

Add

Settings

Office
1 device

Office Speaker
Pause

b.

Add to Home

Set up device

Add home member

Create speaker group

Create new home

Add services

Music and audio

Videos and photos

Step 3: Make sure the Smart device is paired with V-TAC Smart Home app before starting step 3. Tap on the arrow section as highlighted in the below image.

Set up

Set up new devices or add existing devices and services to your home

New devices

Set up new devices

Google Home, smart displays and devices labelled 'Made for Google' such as C by GE smart bulbs

Works with Google

Have something already set up?

Link your smart home services such as Philips Hue and TP-Link

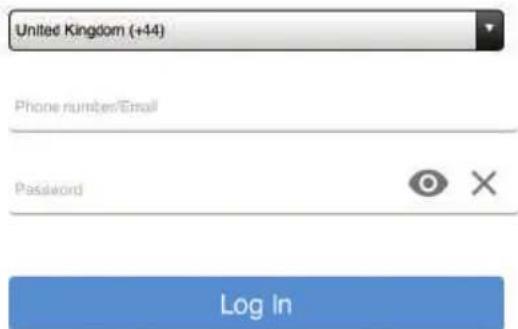

Step 5: Sign In with your V-TAC Smart Home Login credentials to Link the Smart Home device

V-TAC SMART

United Kingdom (+44) Phone number/Email Password Log In

Step 4: Type "Vtac" on the search bar and tap on V-TAC Smart Home icon from the drop down options as shown below.

Vtac

Linked

Add new

VTAC Smart Home

VTAC Smart Light

Step 6:

a. Account will now be linked, please stay on the page you will be redirected in few seconds to select the device to add to your home. b. Select the device and tap on Next as show in image(b)

a. Done

assistant.google.com

Account is now Linked

b. ×

Choose device

Smart Plug Switch

Step 7: Select the Home where you would like to add the Smart Device under. (Or) you can create a New home in order to add the Smart Device to it.

Step 8: You have successfully added V-TAC Smart device to your Google home App.

Choose a home

You will be able to control the devices and services in this home.

Smart-Home

Office

Smart Home

Create another home

Smart-Home

Add

Settings

Master bedroom

1 device

Smart Plug

Off

On

Step 9: You can turn the device On/OFF by taping On/Off options as shown below. (OR) You can tap on the name(Ex:Smart Plug as shown below) to redirect to new page.

Smart-Home

Add

Settings

Master bedroom

1 device

Smart Plug

Off

On

Smart Plug

Master bedroom

On

Google Commands:

Now, you can control your smart device using voice commands on Google Home. Below are a few example voice commands on how to use Google Home device:

➢! OK Google, turn ON Smart Plug
➢! OK Google, turn OFF Smart Plug

THINGS TO REMEMBER BEFORE STARTING INSTALLATION:

1. V-TAC Smart Home App & Google Home App
2. Make sure you have Google Home Device
3. Smart Home Device
4. Stable Wifi network

In case of any query/issue with the product please reach out to us at [e-mail]

V-TAC EUROPE LTD, Bulgaria, Plovdiv 4000, bul.L.Karavelow 9B

Please select a region

Phone number or email address

Password

Login

Reset Password

Register

All devices √ Scene There are no devices paired."Tap the add" device button below to begin pairing devices

Add Device All devices Quick Pairing WIFI devices can be added in this mode(make sure the device is in pa irng mode).

(Only supports 2.4G WiFi) WiFi name Vtac WiFi password ✓ Remember password Next My devices Complete

All devices Scene Smart Plug ON

CH 1 ON CH 2 All Channels On All Channels Off Share Schedule Timer

RÉGLAGES ALEXA

amazon alexa Login Forgot password? Mobile number or Email Amazon password Show password LOGIN New to Amazon? CREATE A NEW AMAZON ACCOUNT

Blue background with a black arrow pointing diagonally down-right (no text or symbols)

A New Way to Manage Devices Set up and control Alexa and smart home devices in one convenient place NEXT

Music & Books Lists Reminders & Alarms Contacts Routines Things to Try Skills & Games

Guernsey (+44) Phone number/Email Password Log In Forgot Password? Feedback Register

Rated: Guidance Suggested

ENABLE TO USE Account linking required

V-TAC has been successfully linked.

What to do next:

→ Close this window to discover smart-home devices you can control with Alexa.

b)

Discover Devices

Smart Home devices must be discovered before they can be used with Alexa.

CANCEL DISCOVER DEVICES

Add Device Lists Reminders & Alarms Contacts Routines Things to Try Skills & Games

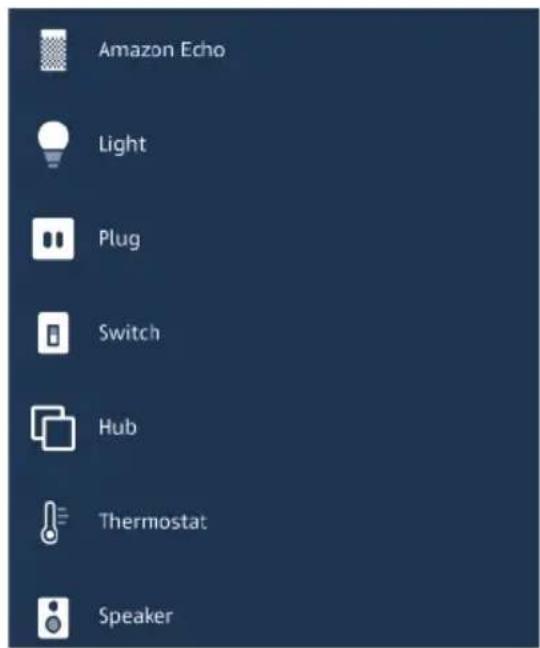

Amazon Echo Light Plug Switch Hub Thermostat Speaker

Your content and devices all in one place

b. Choose account

This account will be used to personalize your experience

d. Plug in your device

Make sure your device is nearby and connected to power, then try again

Abstract geometric shapes including squares, circles, and triangles (no text or symbols)

GET STARTED >

c. Choose a home

You will be able to control the devices and services in this home.

Office
1 device

Office Speaker
Pause

b.

Add to Home

Set up device

Add home member

Create speaker group

Create new home

Add services

Music and audio

Videos and photos

Set up new devices or add existing devices and services to your home

New devices

Set up new devices

Google Home, smart displays and devices labelled 'Made for Google' such as C by GE smart bulbs

Works with Google

Have something already set up?

Link your smart home services such as Philips Hue and TP-Link

United Kingdom (+44) Phone number/Email Password Log In

Account is now Linked

b. ×

Choose device

Smart Plug Switch

Choose a home You will be able to control the devices and services in this home. Smart-Home Office Smart Home Create another home NEXT > Smart-Home Add Settings Master bedroom 1 device Smart Plug Off On

Smart-Home Add Settings Master bedroom 1 device Smart Plug Off On Smart Plug On Smart Plug Master bedroom

Commandes Google:

In case of any query/issue with the product please reach out to us at [e-mail]

V-TAC EUROPE LTD, Bulgaria, Plovdiv 4000, bul.L.Karavelow 9B

Please select a region

Phone number or email address

Password

Login

Reset Password

Register

All devices √ Scene There are no devices paired."Tap the add" device button below to begin pairing devices

Add Device All devices Quick Pairing WIFI devices can be added in this mode (make sure the device is in pairing mode).

Simple line icon of a wireless router with WiFi signal symbol (no text or labels)

(Only supports 2.4G WiFi)

WiFi name Vtac

WiFi password

Remember password

Next

My devices

Complete

All devices Scene Smart Plug ON

CH 1 ON CH 2 All Channels On All Channels Off Share Schedule Timer

ALEXA-EINSTELLUNGEN

amazon alexa Login Forgot password? Mobile number or Email Amazon password Show password LOGIN New to Amazon? CREATE A NEW AMAZON ACCOUNT

Blue background with a black arrow pointing diagonally down-left and a small symbol above it (no text or symbols present)

A New Way to Manage Devices Set up and control Alexa and smart home devices in one convenient place NEXT

Music & Books Lists Reminders & Alarms Contacts Routines Things to Try Skills & Games

Add Device Lists Reminders & Alarms Contacts Routines Things to Try Skills & Games

Amazon Echo Light Plug Switch Hub Thermostat Speaker

Your content and devices all in one place

b. Choose account

This account will be used to personalize your experience

d. Plug in your device

Make sure your device is nearby and connected to power, then try again

Abstract geometric shapes including squares, circles, and triangles (no text or symbols)

GET STARTED >

c. Choose a home

You will be able to control the devices and services in this home.

Create another home

Office
1 device

Office Speaker
Pause

b.

Add to Home

Set up device

Add home member

Create speaker group

Create new home

Add services

Music and audio

Videos and photos

Set up new devices or add existing devices and services to your home

New devices

Set up new devices

Google Home, smart displays and devices labelled 'Made for Google' such as C by GE smart bulbs

Works with Google

Have something already set up?

Link your smart home services such as Philips Hue and TP-Link

United Kingdom (+44) Phone number/Email Password Log In

Account is now Linked

b.

Choose device

Smart Plug Switch

You will be able to control the devices and services in this home.

Smart-Home

Office

Smart Home

Create another home

NEXT >

Please select a region

Phone number or email address

Password

Login

Reset Password

Register

There are no devices paired."Tap the add" device button below to begin pairing devices

Add Device All devices Quick Pairing WIFI devices can be added in this mode (make sure the device is in pairing mode).

(Only supports 2.4G WiFi)

My devices

WiFi name Vtac

WiFi password

Remember password

Next

Complete

Complete

All devices Scene Smart Plug ON

CH 1 ON CH 2 All Channels On All Channels Off Share Schedule Timer

НАСТРОЙКИ НА ALEXA

amazon alexa Login Forgot password? Mobile number or Email Amazon password Show password LOGIN New to Amazon? CREATE A NEW AMAZON ACCOUNT

Blue rectangular background with a black arrow pointing diagonally down-right (no text or symbols)

A New Way to Manage Devices Set up and control Alexa and smart home devices in one convenient place NEXT

Music & Books Lists Reminders & Alarms Contacts Routines Things to Try Skills & Games

Guernsey (+44) Phone number/Email Password Log In Forgot Password? Feedback Register

Rated: Guidance Suggested

ENABLE TO USE Account linking required

V-TAC has been successfully linked.

What to do next:

→ Close this window to discover smart-home devices you can control with Alexa.

b)

Discover Devices

Smart Home devices must be discovered before they can be used with Alexa.

CANCEL DISCOVER DEVICES

Add Device Lists Reminders & Alarms Contacts Routines Things to Try Skills & Games

Amazon Echo Light Plug Switch Hub Thermostat Speaker

Your content and devices all in one place

b. Choose account

This account will be used to personalize your experience

d. Plug in your device

Make sure your device is nearby and connected to power, then try again

Abstract geometric shapes including squares, circles, and triangles (no text or symbols)

GET STARTED >

c. Choose a home

You will be able to control the devices and services in this home.

Create another home

Office
1 device

Office Speaker
Pause

b.

Add to Home

Set up device

Add home member

Create speaker group

Create new home

Add services

Music and audio

Videos and photos

Set up new devices or add existing devices and services to your home

New devices

Set up new devices

Google Home, smart displays and devices labelled 'Made for Google' such as C by GE smart bulbs

Works with Google

Have something already set up?

Link your smart home services such as Philips Hue and TP-Link

United Kingdom (+44) Phone number/Email Password Log In

Account is now Linked

b. ×

Choose device

Smart Plug Switch

You will be able to control the devices and services in this home.

Smart-Home

Office

Smart Home

Create another home

NEXT >

In case of any query/issue with the product please reach out to us at [e-mail]

V-TAC EUROPE LTD, Bulgaria, Plovdiv 4000, bul.L.Karavelow 9B

Korak 1: Otvorite aplikaciju V-TAC Smart Home App i registrirajte se. Ako već imate otvoren račun za V-TAC Smart Home, jednostavno se prijavite.

Please select a region

Phone number or email address

Password

Login

Reset Password

Register

All devices √ Scene There are no devices paired."Tap the add" device button below to begin pairing devices

Korak 3: Provjerite da li je Vaš pametni uređaj napunjen.

1) Pritisnite i zadržite gumb Power na 5 sekundi da biste uključili uređaj u Režim za uparivanje. Kada je režim za uparivanje uključen, LED će početi svjetlucati 3 puta uzastopno.
2) Kliknite Quick pairing da biste započeli uparivanje uređaja s aplikacijom.

Napomena: Ako imate bilo kakvih problema za vrijeme uparivanja u režimu Brzog uparivanja (Quick Pairing), molimo pokušajte upariti uređaj u režimu Kompatibilnog uparivanja (Compatible Pairing) (Pritisnite na vezu kao što je ukazano na slici).

Add Device All devices Quick Pairing WIFI devices can be added in this mode (make sure the device is in pairing mode).

Simple line icon of a wireless router with WiFi signal symbol (no text or labels)

(Only supports 2.4G WiFi)

My devices

WiFi name Vtac

WiFi password

Remember password

Next

Complete

Complete

All devices Scene Smart Plug ON

CH 1 ON CH 2 All Channels On All Channels Off Share Schedule Timer

POSTAVKE ZA ALEXA

Korak 1: Instalirajte aplikaciju Amazon Alexa s App Store-a (iOS) ili s Play Store-a (Android) i registrirajte ju. Ako već imate otvoren račun kod Amazon Alexa, jednostavno se prijavite.

amazon alexa Login Forgot password? Mobile number or Email Amazon password Show password LOGIN New to Amazon? CREATE A NEW AMAZON ACCOUNT

Korak 3: Na domaćoj stranici aplikacije Amazon Alexa, pritisnite na ikonu na način prikazan na slici ispod.

Blue background with a black arrow pointing diagonally down-right (no text or symbols)

Korak 2: Kada ste na domaćoj stranici Amazon Alexa, kliknite na ikonu dolje desno — kuda ukazuje strelica — za dodavanje novog uređaja i vještina.

A New Way to Manage Devices Set up and control Alexa and smart home devices in one convenient place NEXT

Music & Books Lists Reminders & Alarms Contacts Routines Things to Try Skills & Games

Korak 5: Na traci za pretraživanje, kao što je prikazano, upišite "V-TAC [p9Smart Home" i kliknite V-TAC Smart Home, kao što je prikazano na donjoj slici.

Search

v-tac smart home 2 Results Sort: Relevance

V-TAC Smart Home

Smart Home

Korak 7: Unesite vjerodajnice za V-TAC Smart Home, zatim kliknite na Prijavu (Log In). Ako nemate otvoren račun, registrirajte se na "Registracija" (Register).

V-TAC SMART HOME

Guernsey (+44) Phone number/Email Password Log In Forgot Password? Feedback Register

Korak 6: Kliknite "ENABLE TO USE" da biste povezali V-TAC Smart Home s aplikacijom Amazon Alexa.

V-TAC Smart Home

V-TAC Technologies

Rated: Guidance Suggested

ENABLE TO USE Account linking required

Korak 8: a) Kada ste uspješno povezali V-TAC vještinu, zatvorite prozor te & (b) kliknite na Pronađi uređaj. Provjerite da li je pametni uređaj uparen s V-TAC Smart Home aplikacijom.

a)

V-TAC has been successfully linked.

What to do next:

→ Close this window to discover smart-home devices you can control with Alexa.

b)

Discover Devices

Smart Home devices must be discovered before they can be used with Alexa.

CANCEL DISCOVER DEVICES

Korak 9: Otkrijte svoj pametni uređaj u aplikaciji Alexa. Nakon aktiviranja opcije:

A) Možete uputiti glasovnu naredbu "Alexa discover devices" svom uređaju Alexa.

B) Da biste ručno dodali uređaj na početnu stranicu, kliknite Add device, odaberite uređaj koji želite dodati i kliknite Discover device.

Add Device Lists Reminders & Alarms Contacts Routines Things to Try Skills & Games

Amazon Echo Light Plug Switch Hub Thermostat Speaker

Your content and devices all in one place

b. Choose account

This account will be used to personalize your experience

d. Plug in your device

Make sure your device is nearby and connected to power, then try again

Abstract geometric shapes including squares, circles, and triangles (no text or symbols)

GET STARTED >

c. Choose a home

You will be able to control the devices and services in this home.

Create another home

Korak 2: Kada uđete u Googlovu domaću stranicu, kliknite na ikonu Dodaj “+”— za dodavanje novog uređaja i vještine. Zatim pritisnite Postavi uređaj kao što je prikazano na slici ispod.

a.

Play

Office

Broadcast

Add

Settings

Office
1 device

Office Speaker
Pause

b.

Add to Home

Set up device

Add home member

Create speaker group

Create new home

Add services

Music and audio

Videos and photos

Korak 3: Provjerite da li je Smart Device uparen s aplikacijom V-TAC Smart Homeprije nego što napravite korak 3. Kliknite na strelicu kao što je ukazano na slici ispod.

Set up

Set up new devices or add existing devices and services to your home

New devices

Set up new devices

Google Home, smart displays and devices labelled 'Made for Google' such as C by GE smart bulbs

Works with Google

Have something already set up?

Link your smart home services such as Philips Hue and TP-Link

Korak 5: Prijavite se sa svojim V-TAC Smart Home Login vjerodajnicama da biste povezali Smart Home uređaj.

V-TAC SMART

United Kingdom (+44) Phone number/Email Password Log In

1. Etapa: U traku za pretraživanje upišite "Vtac" i kliknite ikonu V-TAC Smart Home na padajućem izborniku opcija, kao što je prikazano u nastavku:

Vtac

Linked

Add new

VTAC Smart Home

VTAC Smart Light

Korak 6:

Account is now Linked

b. ×

Choose device

Smart Plug Switch

You will be able to control the devices and services in this home.

Smart-Home

Office

Smart Home

Create another home

Smart-Home

Add

Settings

Master bedroom

1 device

Smart Plug

NEXT >

Off

On

In case of any query/issue with the product please reach out to us at [e-mail]

V-TAC EUROPE LTD, Bulgaria, Plovdiv 4000, bul.L.Karavelow 9B

Please select a region

Phone number or email address

Password

Login

Reset Password

Register

All devices √ Scene There are no devices paired."Tap the add" device button below to begin pairing devices

Add Device All devices Quick Pairing WIFI devices can be added in this mode (make sure the device is in pa irng mode).

(Only supports 2.4G WiFi) WiFi name Vtac WiFi password ✓ Remember password Next My devices Complete

All devices Scene Smart Plug ON

CH 1 ON CH 2 All Channels On All Channels Off Share Schedule Timer

CONFIGURAÇÕES PARA ALEXA

amazon alexa Login Forgot password? Mobile number or Email Amazon password Show password LOGIN New to Amazon? CREATE A NEW AMAZON ACCOUNT

Blue background with a black arrow pointing diagonally down-right (no text or symbols)

A New Way to Manage Devices Set up and control Alexa and smart home devices in one convenient place NEXT

Music & Books Lists Reminders & Alarms Contacts Routines Things to Try Skills & Games

Guernsey (+44) Phone number/Email Password Log In Forgot Password? Feedback Register

ENABLE TO USE Account linking required

V-TAC has been successfully linked.

What to do next:

→ Close this window to discover smart-home devices you can control with Alexa.

b)

Discover Devices

Smart Home devices must be discovered before they can be used with Alexa.

CANCEL DISCOVER DEVICES

Add Device Lists Reminders & Alarms Contacts Routines Things to Try Skills & Games

Amazon Echo Light Plug Switch Hub Thermostat Speaker

Your content and devices all in one place

b. Choose account

This account will be used to personalize your experience

d. Plug in your device

Make sure your device is nearby and connected to power, then try again

Abstract geometric shapes including squares, circles, and triangles (no text or symbols)

GET STARTED >

c. Choose a home

You will be able to control the devices and services in this home.

Office
1 device

Office Speaker
Pause

b.

Add to Home

Set up device

Add home member

Create speaker group

Create new home

Add services

Music and audio

Videos and photos

Set up new devices or add existing devices and services to your home

New devices

Set up new devices

Google Home, smart displays and devices labelled 'Made for Google' such as C by GE smart bulbs

Works with Google

Have something already set up?

Link your smart home services such as Philips Hue and TP-Link

United Kingdom (+44) Phone number/Email Password Log In

Account is now Linked

b. ×

Choose device

Smart Plug Switch

Log In

You will be able to control the devices and services in this home.

Smart-Home

Office

Smart Home

Create another home

Smart-Home

Add

Settings

Master bedroom

1 device

Smart Plug

NEXT >

Off

。

On

In case of any query/issue with the product please reach out to us at [e-mail]

V-TAC EUROPE LTD, Bulgaria, Plovdiv 4000, bul.L.Karavelow 9B

Please select a region

Phone number or email address

Password

Login

Reset Password

Register

All devices √ Scene There are no devices paired."Tap the add" device button below to begin pairing devices

Add Device All devices Quick Pairing WIFI devices can be added in this mode (make sure the device is in pairing mode).

(Only supports 2.4G WiFi) WiFi name Vtac WiFi password ✓ Remember password Next My devices Complete

All devices Scene Smart Plug ON

CH 1 ON CH 2 All Channels On All Channels Off Share Schedule Timer

amazon alexa Login Forgot password? Mobile number or Email Amazon password Show password LOGIN New to Amazon? CREATE A NEW AMAZON ACCOUNT

Blue background with a black arrow pointing diagonally down-right (no text or symbols)

A New Way to Manage Devices Set up and control Alexa and smart home devices in one convenient place NEXT

Music & Books Lists Reminders & Alarms Contacts Routines Things to Try Skills & Games

Guernsey (+44) Phone number/Email Password Log In Forgot Password? Feedback Register

Rated: Guidance Suggested

ENABLE TO USE Account linking required

V-TAC has been successfully linked.

What to do next:

→ Close this window to discover smart-home devices you can control with Alexa.

b)

Discover Devices

Smart Home devices must be discovered before they can be used with Alexa.

CANCEL DISCOVER DEVICES

Add Device Lists Reminders & Alarms Contacts Routines Things to Try Skills & Games

Amazon Echo Light Plug Switch Hub Thermostat Speaker

Your content and devices all in one place

b. Choose account

This account will be used to personalize your experience

d. Plug in your device

Make sure your device is nearby and connected to power, then try again

Abstract geometric shapes including squares, circles, and triangles (no text or symbols)

GET STARTED >

c. Choose a home

You will be able to control the devices and services in this home.

Office
1 device

Office Speaker
Pause

b.

Add to Home

Set up device

Add home member

Create speaker group

Create new home

Add services

Music and audio

Videos and photos

Set up new devices or add existing devices and services to your home

New devices

Set up new devices

Google Home, smart displays and devices labelled 'Made for Google' such as C by GE smart bulbs

Works with Google

Have something already set up?

Link your smart home services such as Philips Hue and TP-Link

United Kingdom (+44) Phone number/Email Password Log In

Account is now Linked

b. ×

Choose device

Smart Plug Switch

Choose a home You will be able to control the devices and services in this home. Smart-Home Office Smart Home Create another home NEXT > Smart-Home Add Settings Master bedroom 1 device Smart Plug Off On

Smart-Home Add Settings Master bedroom 1 device Smart Plug Off On Smart Plug On Smart Plug Master bedroom

Comandos de Google:

In case of any query/issue with the product please reach out to us at [e-mail]

V-TAC EUROPE LTD, Bulgaria, Plovdiv 4000, bul.L.Karavelow 9B

Please select a region

Phone number or email address

Password

Login

Reset Password

Register

All devices √ Scene There are no devices paired."Tap the add" device button below to begin pairing devices

Add Device All devices Quick Pairing WIFI devices can be added in this mode (make sure the device is in pairing mode).

(Only supports 2.4G WiFi) WiFi name Vtac WiFi password ✓ Remember password Next My devices Complete

All devices Scene Smart Plug ON

CH 1 ON CH 2 All Channels On All Channels Off Share Schedule Timer

ALEXA BEÁLLÍTÁSAI

amazon alexa Login Forgot password? Mobile number or Email Amazon password Show password LOGIN New to Amazon? CREATE A NEW AMAZON ACCOUNT

Blue background with a black arrow pointing diagonally down-left and a small white line above it (no text or symbols)

A New Way to Manage Devices Set up and control Alexa and smart home devices in one convenient place NEXT

Music & Books Lists Reminders & Alarms Contacts Routines Things to Try Skills & Games

Phone number/Email Password

Rated: Guidance Suggested

ENABLE TO USE Account linking required

V-TAC has been successfully linked.

What to do next:

→ Close this window to discover smart-home devices you can control with Alexa.

b)

Discover Devices

Smart Home devices must be discovered before they can be used with Alexa.

CANCEL DISCOVER DEVICES

Add Device Lists Reminders & Alarms Contacts Routines Things to Try Skills & Games

Amazon Echo Light Plug Switch Hub Thermostat Speaker

Your content and devices all in one place

b. Choose account

This account will be used to personalize your experience

d. Plug in your device

Make sure your device is nearby and connected to power, then try again

Abstract geometric shapes including squares, circles, and triangles (no text or symbols)

GET STARTED >

c. Choose a home

You will be able to control the devices and services in this home.

Create another home

Office
1 device

Office Speaker
Pause

b.

Add to Home

Set up device

Add home member

Create speaker group

Create new home

Add services

Music and audio

Videos and photos

Set up new devices or add existing devices and services to your home

New devices

Set up new devices

Google Home, smart displays and devices labelled 'Made for Google' such as C by GE smart bulbs

Works with Google

Have something already set up?

Link your smart home services such as Philips Hue and TP-Link

United Kingdom (+44) Phone number/Email Password Log In

Account is now Linked

b. ×

Choose device

Smart Plug Switch

You will be able to control the devices and services in this home.

Smart-Home

Office

Smart Home

Create another home

Smart-Home

Add

Settings

Master bedroom

1 device

Smart Plug

Off

On

In case of any query/issue with the product please reach out to us at [e-mail]

V-TAC EUROPE LTD, Bulgaria, Plovdiv 4000, bul.L.Karavelow 9B

Please select a region

Phone number or email address

Password

Login

Reset Password

Register

All devices √ Scene There are no devices paired."Tap the add" device button below to begin pairing devices

Add Device All devices Quick Pairing WIFI devices can be added in this mode (make sure the device is in pairing mode).

(Only supports 2.4G WiFi) WiFi name Vtac WiFi password ✓ Remember password Next My devices Complete

All devices Scene Smart Plug ON

CH 1 ON CH 2 All Channels On All Channels Off Share Schedule Timer

amazon alexa Login Forgot password? Mobile number or Email Amazon password Show password LOGIN New to Amazon? CREATE A NEW AMAZON ACCOUNT

Blue background with a black arrow pointing diagonally down-left and a small white horizontal line above it (no text or symbols)

A New Way to Manage Devices Set up and control Alexa and smart home devices in one convenient place NEXT

Music & Books Lists Reminders & Alarms Contacts Routines Things to Try Skills & Games

Guernsey (+44) Phone number/Email Password Log In Forgot Password? Feedback Register

Rated: Guidance Suggested

ENABLE TO USE Account linking required

V-TAC has been successfully linked.

What to do next:

→ Close this window to discover smart-home devices you can control with Alexa.

b)

Discover Devices

Smart Home devices must be discovered before they can be used with Alexa.

CANCEL DISCOVER DEVICES

Add Device Lists Reminders & Alarms Contacts Routines Things to Try Skills & Games

Amazon Echo Light Plug Switch Hub Thermostat Speaker

Your content and devices all in one place

b. Choose account

This account will be used to personalize your experience

d. Plug in your device

Make sure your device is nearby and connected to power, then try again

Abstract geometric shapes including squares, circles, and triangles (no text or symbols)

GET STARTED >

c. Choose a home

You will be able to control the devices and services in this home.

Create another home

1 device

Office Speaker
Pause

b.

Add to Home

Set up device

Add home member

Create speaker group

Create new home

Add services

Music and audio

Videos and photos

Set up new devices or add existing devices and services to your home

New devices

Set up new devices

Google Home, smart displays and devices labelled 'Made for Google' such as C by GE smart bulbs

Works with Google

Have something already set up?

Link your smart home services such as Philips Hue and TP-Link

United Kingdom (+44) Phone number/Email Password Log In

Account is now Linked

b. ×

Choose device

Smart Plug Switch

You will be able to control the devices and services in this home.

Smart-Home

Office

Smart Home

Create another home

Smart-Home

Add

Settings

Master bedroom

1 device

Smart Plug

NEXT >

Off

On

In case of any query/issue with the product please reach out to us at [e-mail]

V-TAC EUROPE LTD, Bulgaria, Plovdiv 4000, bul.L.Karavelow 9B

Please select a region

Phone number or email address

Password

Login

Reset Password

Register

All devices √ Scene There are no devices paired."Tap the add" device button below to begin pairing devices

Add Device All devices Quick Pairing WIFI devices can be added in this mode (make sure the device is in pairing mode).

(Only supports 2.4G WiFi) WiFi name Vtac WiFi password ✓ Remember password Next My devices Complete

All devices Scene Smart Plug ON

CH 1 ON CH 2 All Channels On All Channels Off Share Schedule Timer

USTAWIENIA ALEXA

amazon alexa Login Forgot password? Mobile number or Email Amazon password Show password LOGIN New to Amazon? CREATE A NEW AMAZON ACCOUNT

A New Way to Manage Devices Set up and control Alexa and smart home devices in one convenient place NEXT

Blue rectangular background with a black arrow pointing diagonally down-right (no text or symbols)

Music & Books Lists Reminders & Alarms Contacts Routines Things to Try Skills & Games

Guernsey (+44) Phone number/Email Password Log In Forgot Password? Feedback Register

Rated: Guidance Suggested

ENABLE TO USE Account linking required

V-TAC has been successfully linked.

What to do next:

→ Close this window to discover smart-home devices you can control with Alexa.

b)

Discover Devices

Smart Home devices must be discovered before they can be used with Alexa.

CANCEL DISCOVER DEVICES

Add Device Lists Reminders & Alarms Contacts Routines Things to Try Skills & Games

Amazon Echo Light Plug Switch Hub Thermostat Speaker

Your content and devices all in one place

b. Choose account

This account will be used to personalize your experience

d. Plug in your device

Make sure your device is nearby and connected to power, then try again

Abstract geometric shapes including squares, circles, and triangles (no text or symbols)

GET STARTED >

c. Choose a home

You will be able to control the devices and services in this home.

Create another home

a. Office Play Broadcast Add Settings Office 1 device Office Speaker Pause

b.

Add to Home

Set up device

Add home member

Create speaker group

Create new home

Add services

Music and audio

Videos and photos

Set up new devices or add existing devices and services to your home

New devices

Set up new devices

Google Home, smart displays and devices labelled 'Made for Google' such as C by GE smart bulbs

Works with Google

Have something already set up?

Link your smart home services such as Philips Hue and TP-Link

United Kingdom (+44) Phone number/Email Password Log In

Account is now Linked

b. ×

Choose device

Smart Plug Switch

You will be able to control the devices and services in this home.

Smart-Home

Office

Smart Home

Create another home

Smart-Home

Add

Settings

Master bedroom

1 device

Smart Plug

NEXT >

Off

On

In case of any query/issue with the product please reach out to us at [e-mail]

V-TAC EUROPE LTD, Bulgaria, Plovdiv 4000, bul.L.Karavelow 9B

Please select a region

Phone number or email address

Password

Login

Reset Password

Register

All devices √ Scene There are no devices paired."Tap the add" device button below to begin pairing devices

Add Device All devices Quick Pairing WIFI devices can be added in this mode (make sure the device is in pairing mode).

(Only supports 2.4G WiFi) WiFi name Vtac WiFi password ✓ Remember password Next My devices Complete

All devices Scene Smart Plug ON

CH 1 ON CH 2 All Channels On All Channels Off Share Schedule Timer

PYOMISEIIS THΣ ALEXA

amazon alexa Login Forgot password? Mobile number or Email Amazon password Show password LOGIN New to Amazon? CREATE A NEW AMAZON ACCOUNT

Blue background with a black arrow pointing diagonally down-right (no text or symbols)

A New Way to Manage Devices Set up and control Alexa and smart home devices in one convenient place NEXT

Music & Books Lists Reminders & Alarms Contacts Routines Things to Try Skills & Games

Phone number/Email Password
    note1["Forgot Password?"]
    note2["Feedback"]

Rated: Guidance Suggested

ENABLE TO USE Account linking required

V-TAC has been successfully linked.

What to do next:

→ Close this window to discover smart-home devices you can control with Alexa.

b)

Discover Devices

Smart Home devices must be discovered before they can be used with Alexa.

CANCEL DISCOVER DEVICES

Add Device Lists Reminders & Alarms Contacts Routines Things to Try Skills & Games

Amazon Echo Light Plug Switch Hub Thermostat Speaker

Your content and devices all in one place

b. Choose account

This account will be used to personalize your experience

d. Plug in your device

Make sure your device is nearby and connected to power, then try again

Abstract geometric shapes including squares, circles, and triangles (no text or symbols)

GET STARTED >

c. Choose a home

You will be able to control the devices and services in this home.

Office
1 device

Office Speaker
Pause

b.

Add to Home

Set up device

Add home member

Create speaker group

Create new home

Add services

Music and audio

Videos and photos

Set up new devices or add existing devices and services to your home

New devices

Set up new devices

Google Home, smart displays and devices labelled 'Made for Google' such as C by GE smart bulbs

Works with Google

Have something already set up?

Link your smart home services such as Philips Hue and TP-Link

United Kingdom (+44) Phone number/Email Password Log In

Account is now Linked

b. ×

Choose device

Smart Plug Switch

Choose a home You will be able to control the devices and services in this home. Smart-Home Office Smart Home Create another home NEXT > Smart-Home Add Settings Master bedroom 1 device Smart Plug Off On

Smart-Home Add Settings Master bedroom 1 device Smart Plug Off On Smart Plug On Smart Plug Master bedroom

Google εντολές:

In case of any query/issue with the product please reach out to us at [e-mail]

V-TAC EUROPE LTD, Bulgaria, Plovdiv 4000, bul.L.Karavelow 9B

Please select a region

Phone number or email address

Password

Login

Reset Password

Register

All devices √ Scene There are no devices paired."Tap the add" device button below to begin pairing devices

Add Device All devices Quick Pairing WIFI devices can be added in this mode (make sure the device is in pairing mode).

Simple line icon of a wireless router with Wi-Fi symbol (no text or labels)

(Only supports 2.4G WiFi)

WiFi name Vtac

WiFi password

Remember password

Next

My devices

Complete

All devices Scene Smart Plug ON

CH 1 CH 2 ON ON All Channels On All Channels Off Share Schedule Timer

SETĂRILE ALEXA

amazon alexa Login Forgot password? Mobile number or Email Amazon password Show password LOGIN New to Amazon? CREATE A NEW AMAZON ACCOUNT

Blue background with a black arrow pointing diagonally down-right (no text or symbols)

A New Way to Manage Devices Set up and control Alexa and smart home devices in one convenient place NEXT

Music & Books Lists Reminders & Alarms Contacts Routines Things to Try Skills & Games

Guernsey (+44) Phone number/Email Password Log In Forgot Password? Feedback Register

ENABLE TO USE Account linking required

amazon alexa TatC SMART

V-TAC has been successfully linked.

What to do next:

→ Close this window to discover smart-home devices you can control with Alexa.

b)

Discover Devices

Smart Home devices must be discovered before they can be used with Alexa.

CANCEL DISCOVER DEVICES

Add Device Lists Reminders & Alarms Contacts Routines Things to Try Skills & Games

Amazon Echo Light Plug Switch Hub Thermostat Speaker

Your content and devices all in one place

b. Choose account

This account will be used to personalize your experience

d. Plug in your device

Make sure your device is nearby and connected to power, then try again

Abstract geometric shapes including squares, circles, and triangles (no text or symbols)

GET STARTED >

c. Choose a home

You will be able to control the devices and services in this home.

Office
1 device

Office Speaker
Pause

b.

Add to Home

Set up device

Add home member

Create speaker group

Create new home

Add services

Music and audio

Videos and photos

Set up new devices or add existing devices and services to your home

New devices

Set up new devices

Google Home, smart displays and devices labelled 'Made for Google' such as C by GE smart bulbs

Works with Google

Have something already set up?

Link your smart home services such as Philips Hue and TP-Link

United Kingdom (+44) Phone number/Email Password Log In

Account is now Linked

b. ×

Choose device

Smart Plug Switch

You will be able to control the devices and services in this home.

Smart-Home

Office

Smart Home

Create another home

Smart-Home

Add

Settings

Master bedroom

1 device

Smart Plug

NEXT >

Off

On

In case of any query/issue with the product please reach out to us at [e-mail]

V-TAC EUROPE LTD, Bulgaria, Plovdiv 4000, bul.L.Karavelow 9B

Please select a region

Phone number or email address

Password

Login

Reset Password

Register

There are no devices paired."Tap the add" device button below to begin pairing devices

Add Device All devices Quick Pairing WIFI devices can be added in this mode (make sure the device is in pa irng mode).

Simple line icon of a wireless router with Wi-Fi symbol (no text or labels)

(Only supports 2.4G WiFi)

My devices

WiFi name Vtac

WiFi password

Remember password

Next

Complete

Complete

All devices Scene Smart Plug ON

CH 1 ON CH 2 All Channels On All Channels Off Share Schedule Timer

NASTAVENÍ APLIKACE ALEXA

amazon alexa Login Forgot password? Mobile number or Email Amazon password Show password LOGIN New to Amazon? CREATE A NEW AMAZON ACCOUNT

Blue rectangular background with a black arrow pointing diagonally down-right (no text or symbols)

A New Way to Manage Devices Set up and control Alexa and smart home devices in one convenient place NEXT

Music & Books Lists Reminders & Alarms Contacts Routines Things to Try Skills & Games

Guernsey (+44) Phone number/Email Password Log In Forgot Password? Feedback Register

Rated: Guidance Suggested

ENABLE TO USE Account linking required

V-TAC has been successfully linked.

What to do next:

→ Close this window to discover smart-home devices you can control with Alexa.

b)

Discover Devices

Smart Home devices must be discovered before they can be used with Alexa.

CANCEL DISCOVER DEVICES

Add Device Lists Reminders & Alarms Contacts Routines Things to Try Skills & Games

Amazon Echo Light Plug Switch Hub Thermostat Speaker

Your content and devices all in one place

b. Choose account

This account will be used to personalize your experience

d. Plug in your device

Make sure your device is nearby and connected to power, then try again

Abstract geometric shapes including squares, circles, and triangles (no text or symbols)

GET STARTED >

c. Choose a home

You will be able to control the devices and services in this home.

Create another home

Office
1 device

Office Speaker
Pause

b.

Add to Home

Set up device

Add home member

Create speaker group

Create new home

Add services

Music and audio

Videos and photos

Set up new devices or add existing devices and services to your home

New devices

Set up new devices

Google Home, smart displays and devices labelled 'Made for Google' such as C by GE smart bulbs

Works with Google

Have something already set up?

Link your smart home services such as Philips Hue and TP-Link

United Kingdom (+44) Phone number/Email Password Log In

Account is now Linked

b. ×

Choose device

Smart Plug Switch

You will be able to control the devices and services in this home.

Smart-Home

Office

Smart Home

Create another home

Smart-Home

Add

Settings

Master bedroom

1 device

Smart Plug

NEXT >

Off

On
