VT-1112-3 - Wall socket V-TAC - Free user manual and instructions

Product Type	Double Timer Socket with Mechanical Timer for Outdoor Use
Brand	V-TAC
Model	VT-1112-3
Number of Outlets	2 (double)
Programming Type	Mechanical, timer
Programming Interval	15 minutes
Maximum On/Off Cycles per Day	24
Power Supply	230 V ~ 50 Hz
Rated Current	16 A
Maximum Power	3680 W
Usage	Outdoor, vertical only
Water Protection	Yes, against water ingress
Manual On/Off Function	Yes, switch with ON position
Installation	Screw the stake into the housing, insert into the ground
Housing Material	Weather-resistant plastic
Dimensions (approx.)	10 x 10 x 15 cm
Weight (approx.)	300 g
Repairability	No user-serviceable parts, intervention by a qualified electrician
Maintenance and Cleaning	Avoid humidity, clean with a dry cloth
General Information	Ideal for outdoor lighting control, home automation, and energy saving

Frequently Asked Questions - VT-1112-3 V-TAC

How to program the timer?

To program, set the switch to the timer position. Turn the timer dial clockwise until the current time (24h) aligns with the arrow. Then push down the pins corresponding to the desired time periods. Each pin represents 15 minutes.

Can I use this socket indoors?

Yes, it can be used indoors, but it is designed for vertical use and must be protected from humidity. Outdoors, ensure the socket is protected against water ingress.

What to do if the timer does not work?

Check that the switch is set to the timer position. Make sure the current time is set correctly. If the problem persists, the product may be defective. Do not attempt to repair it yourself; contact a qualified electrician or after-sales service.

What is the maximum supported power?

The maximum power is 3680 W (16 A at 230 V). Do not connect devices exceeding this limit to avoid risk of overheating or fire.

How to use manual mode?

For manual control, set the switch to the ON position. The socket will then be permanently on, regardless of programming. To return to automatic mode, set the switch back to the timer position.

Is it water resistant?

Yes, it is designed to resist water ingress, but it must be installed vertically and the stake must be firmly inserted into the ground. Avoid immersion and protect the socket from direct splashes.

How to install the garden stake?

Screw the stake firmly onto the socket housing. Then push the stake into the ground until the device is stable and vertical. Make sure the socket is protected from ground moisture.

Can I connect a high-power device?

Yes, as long as the total power does not exceed 3680 W (16 A). Examples of compatible devices: electric lawn mower, outdoor lighting, garden tools. Check the power of your device before connecting.

What to do if the socket heats up?

Slight warmth is normal, but if it becomes very hot, disconnect the device immediately. This may indicate overload or poor contact. Check the power of the device and the condition of the socket. If the problem persists, have it checked by an electrician.

How to set the current time?

Turn the timer dial clockwise until the current time (24h format) is opposite the fixed arrow. For example, for 14:30, turn until 14:30 is aligned. Do not turn counterclockwise.

USER MANUAL VT-1112-3 V-TAC

WEEE Number: 80133970

INSTALLATION INSTRUCTION

GARDEN SPIKE SOCKET WITH TIMER

INTRODUCTION

Thank you for selecting and buying V-TAC product. V-TAC will serve you the best. Please read these instructions carefully before starting the installing and keep this manual handy for future reference. If you have any another query, please contact our dealer or local vendor from whom you have purchased the product. They are trained and ready to serve you at the best.

SAFETY INSTRUCTIONS

• Unit must be fixed in an upright position.
• Never connect or disconnect electrical appliances in wet condition or when surrounding area is wet.
  • Supply plug must be protected from water ingress.
• No user serviceable parts-repair be qualified electrician only

1. FUNCTIONS

• Twin sockets, both controlled by mechanical timer on top.
• Turns appliances on and off as per your setting.
• Programmable in 15 minutes intervals
  • Max. 24 ON/OFFs per day
• It is ideal for controlling outdoor lighting or other appliances for the purposes of home security, home automation and energy saving.

2. WARNING

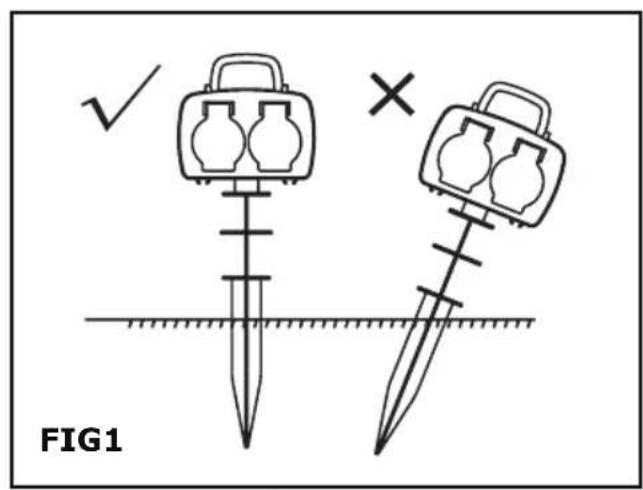

• Vertical use only (Refer to FIG 1)

3. TO START

1. Screw the stake firmly onto the socket outlets housing.
2. Insert the garden spike into the ground firmly so the unit is securely fixed vertically.
3. Plug in the power cord making sure it is protected from water ingress.

4. USING THE TIMER

• For manual override set switch to (ON)
• For automatic timer settings set switch to
• Rotate the timer wheel clockwise until the current 24hr time is set to the arrow (Refer to FIG 2)

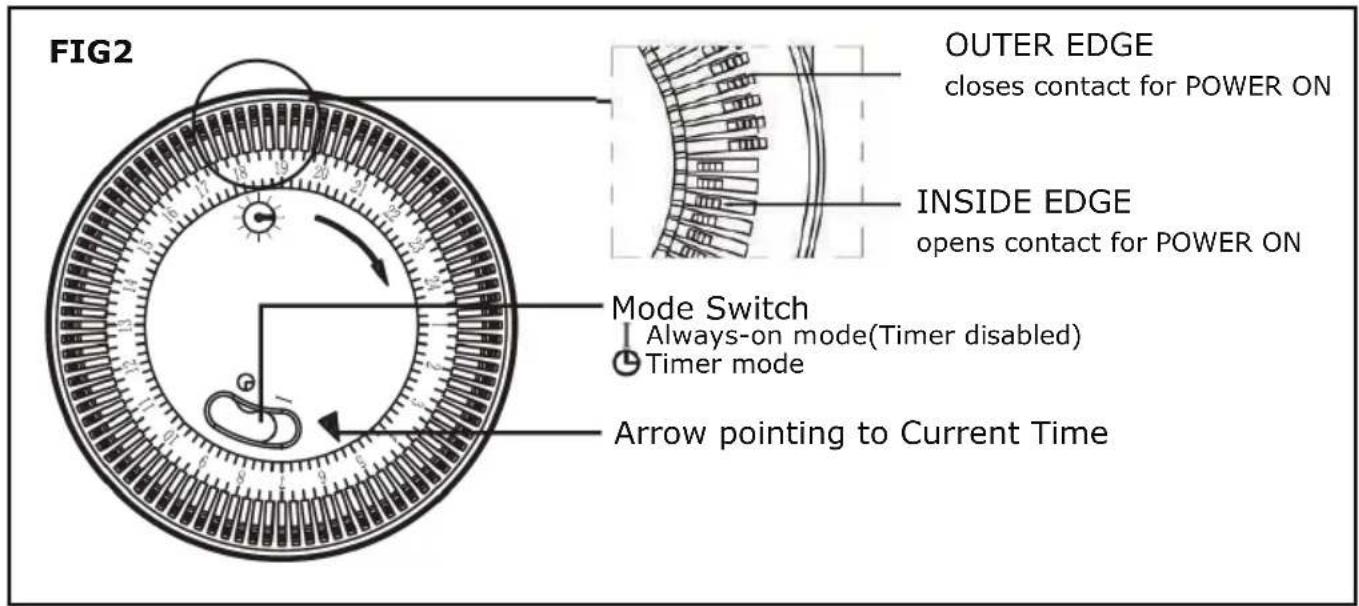

TIMER DIAGRAM:

1. Pull segments to OUTER edge for ON(Segments in 15min increments)
   2.Push segments to INSIDE edge for OFF

WARNING

Please make sure to turn off the power before starting the installation.

Caution, risk of electric shock.

This marking indicates that this product should not be disposed of with other household wastes.
