USER MANUAL MRT16D2BST MIDEA

Simple diagram of two stacked rectangular blocks with gray connectors at the bottom (no text or symbols)

Refrigerator

TOP MOUNTED FREEZER SERIES

USER MANUAL

MRT16D2BBB

MRT16D2BST

MRT16D2BWW

Warning notices: Before using this product, please read this manual carefully and keep it for future reference.

The design and specifications are subject to change without prior notice for product improvement.

Consult with your dealer or manufacturer for details.

The diagram above is just for reference. Please take the appearance of the actual product as the standard.

LANGUAGES

ENEnglish

FRFrench

ESSpanish

THANK YOU LETTER

Thank you for choosing Midea! Before using your new Midea product, please read this manual thoroughly to ensure that you know how to operate the features and functions that your new appliance offers in a safe way.

CONTENTS

THANK YOU LETTER 01

SPECIFICATIONS 02

PRODUCT OVERVIEW 03

PRODUCT INSTALLATION 04

OPERATION INSTRUCTIONS 11

CLEANING AND MAINTENANCE 13

TROUBLESHOOTING 15

SPECIFICATIONS

Product model	MRT16D2B**
Total Storage Volume	16 cu.ft.
Rated Voltage	115V~/60Hz
Rated Current	1.9A
Overall Dimension (H x W x D)	64.92 in x 27.56 in x 28.78 in

PRODUCT OVERVIEW

Names of components

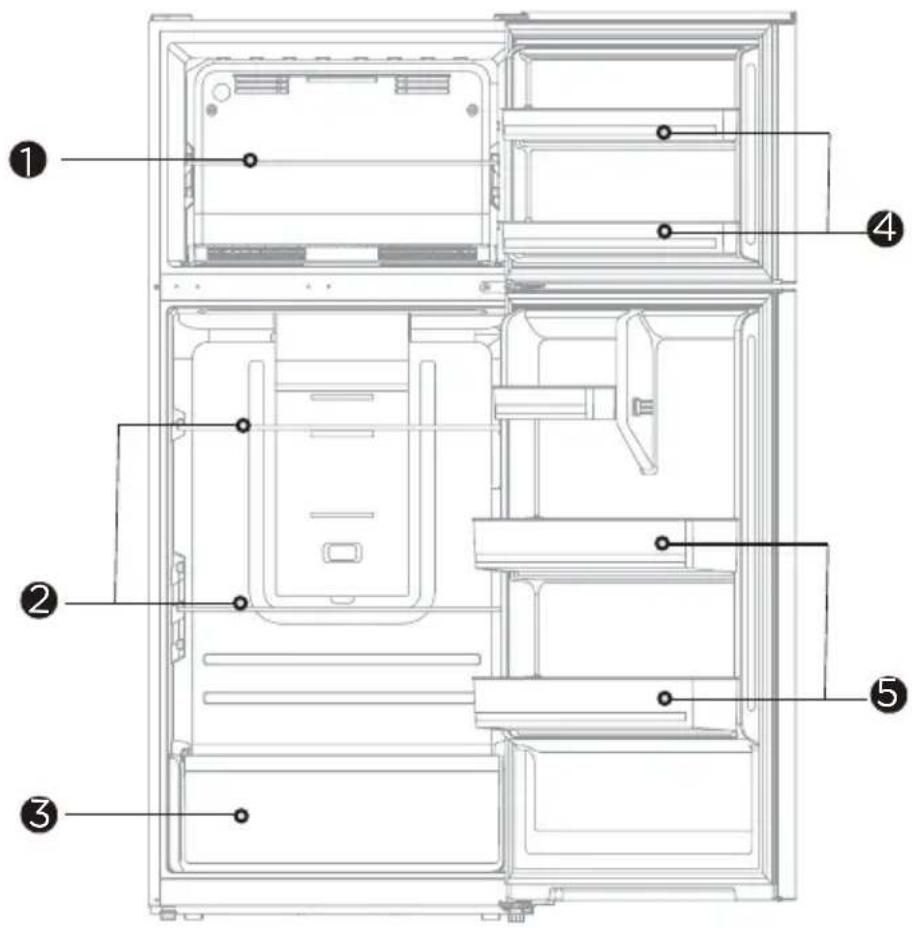

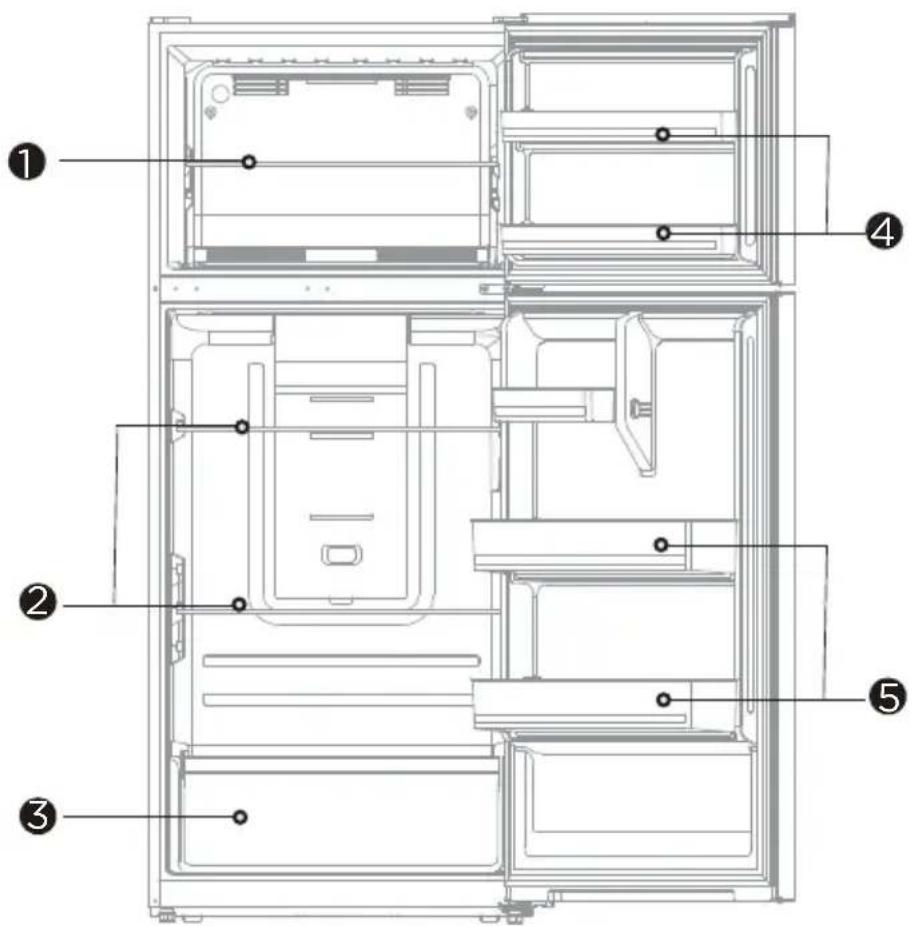

Technical diagram of a refrigerator interior with numbered labels pointing to different compartments

1 Freezer glass shelf

4 Freezer door trays

2 Refrigerator glass shelf

5 Refrigerator door tray

3 Fruit and vegetable box

ATTENTION

The picture above is only for reference. The actual configuration will depend on the physical product or statement by the distributor.

When the refrigerator is powered on for the initial time, storing too much food may adversely affect the cooling effect of the refrigerator.

Do not block the air outlet during food storage, which may adversely affect the cooling effect. If the temperature in fridge compartment is cold, please adjust the switcher to the weaker position. If the temperature in fridge compartment is not cold enough, please adjust the switcher to the strong position.

PRODUCT INSTALLATION

Installation Instructions

Finding a suitable location

• This refrigerator is designed to be free standing only, and should not be recessed or built-in.
• The refrigerator should be placed in a well-ventilated indoor place; the ground shall be flat and sturdy.
• Keep away from heat and avoid direct sunlight. Do not place the refrigerator in moist or watery places to prevent rust or reduction of insulating effect.

Dimensions and Clearances

- Too small of a distance from adjacent items may result in the degradation of freezing capability and increased electricity costs. the refrigerator both sides should be placed against the wall with a free distance more than 100mm, and the refrigerator back against the wall distance not more than 75 mm.

>100mm >100mm >100mm

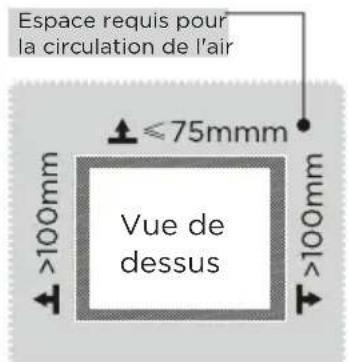

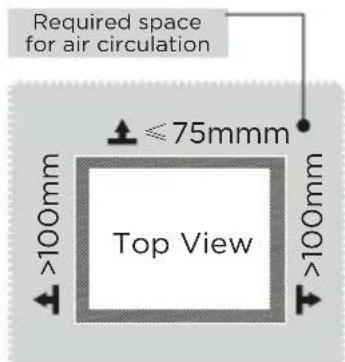

Required space for air circulation ≤75mm Top View >100mm >100mm

Providing a proper power supply

• Check your local power source. This refrigerator requires a AC115 V, 60 Hz power supply.
• Use a receptacle that accepts the grounding prong. The power cord is equipped with a 3-prong (grounding) plug which mates with a standard 3-prong (grounding) wall outlet to minimize the possibility of electric shock hazard from this refrigerator.

CAUTION

The refrigerator should always be plugged into its own individual electrical outlet which has a voltage rating that matches the rating plate.

Never unplug your refrigerator by pulling on the power cord. Always grip the plug firmly and pull straight out from the outlet.

Start to use

• The refrigerator shall stay for 2 hours before connecting power when it is firstly started.
• The refrigerator shall run 2 to 3 hours before loading fresh or frozen foods; the refrigerator shall run for more than 4 hours in summer in advance considering that the ambient temperature is high.

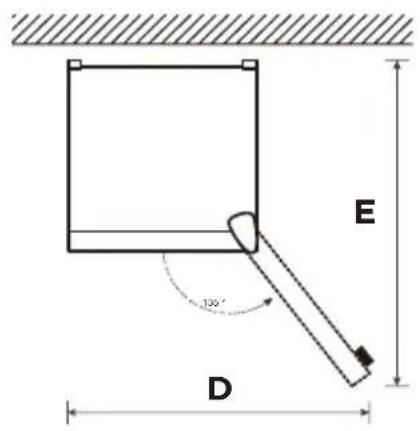

Space requirement diagram (when the door is open and when the door is closed)

B A

C1 B C

E 135° D

Width	Overall Height	Depth	Depth Only Cabinet	Door Open 135° Width	Doors Open 135° Depth
A B C	C1 D E
700 1649	731 650	1085 1310

Notice: All dimensions in mm

Door right-left change

List of tools to be provided by the user

	Cross screwdriver
	Allen wrench
	Putty knife, Thin-blade screwdriver
	5/16” socket and ratchet
	Masking tape

Parts to be used for door reverse

SN Parts Quantity Notes
1 Upper hinge 1			Pre-installed on the box and still needs to be used when changing the door
2 Upper hinge cover 1
3 Upper hinge shaft 1
4 Upper hinge screw 3
5 Hole cover 1
6 Middle hinge screw 2
7 Middle hinge 1
8 Hole plug		2
9 Adjustable foot		1
10	Center beam screw	2
11	Center beam screw cap	1
12	Lower hinge screw 3
13	Lower hinge 1
14	Stopper	2
15	Stopper screw	2
16	Right door self-locking	2	Pre-installed on the door body, removed when changing the door, and retained
17	Left door self-locking	2	Put it in the accessory bag and use it when changing the door
18	Screw self-locking 2		Pre-installed on the door and still needs to be used when changing the door
19	Hole plug	1

Step

1. Unplug your refrigerator and remove all food from refrigerator.

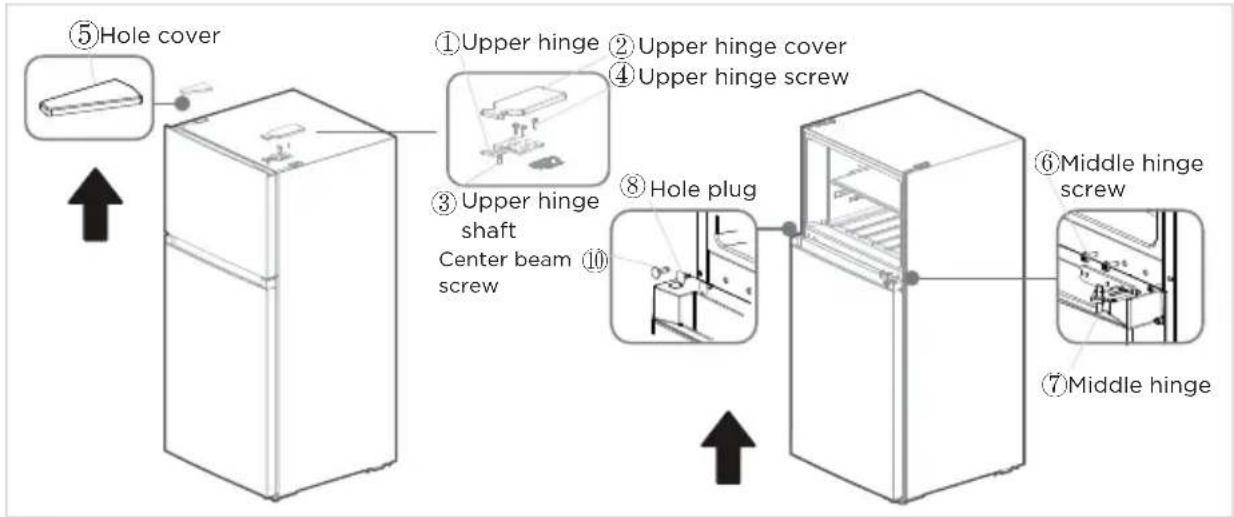

2. Remove the top hinge cover, screws and upper hinge on the top of the cabinet, and the cover plate on the left; take out the freezing door upwards.
3. Unscrew the hinge screws, remove the middle hinge, remove the plug pins, and take out the refrigeration door upwards.

ATTENTION

Images show a refrigerator that opens on the left side. Your refrigerator may open on the right side.

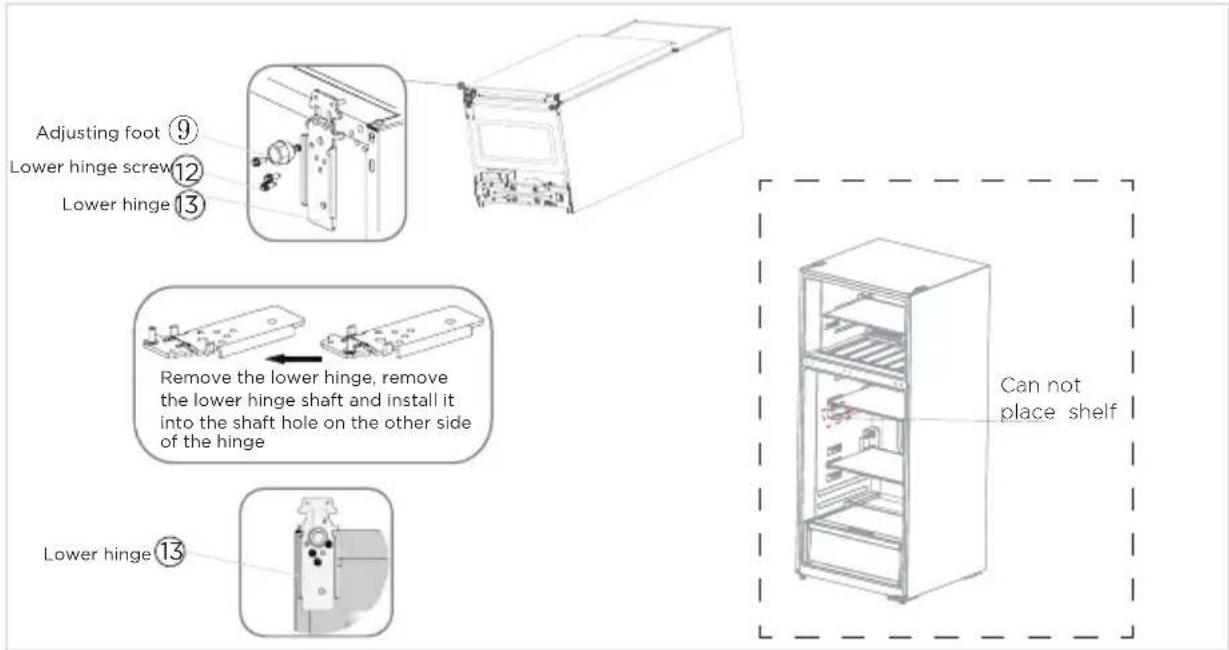

1. Put the refrigerator down, unscrew the lower hinge screw and adjusting foot, remove the lower hinge, remove the lower hinge shaft and install it into the shaft hole on the other side of the hinge.

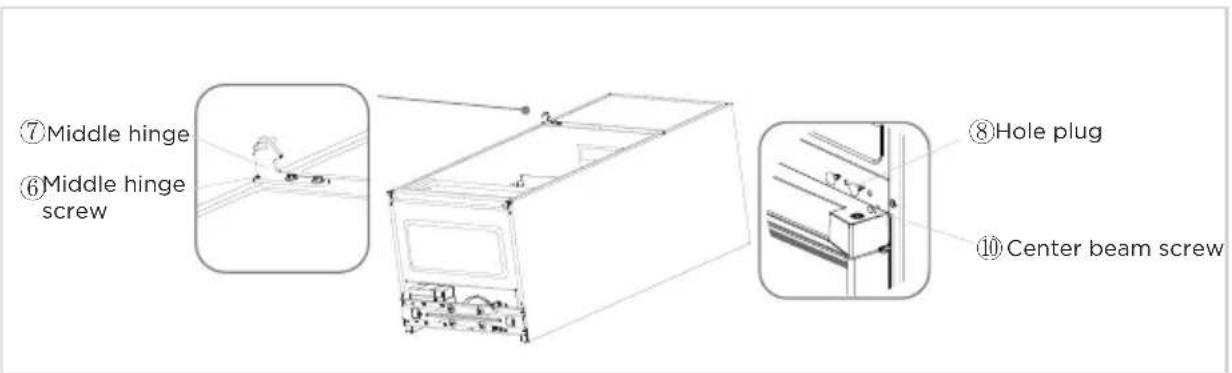

2. Install the middle hinge to the left side of the middle beam and the plug pin to the right side of the middle beam.

⑦Middle hinge ⑥Middle hinge screw ⑧Hole plug ⑩Center beam screw

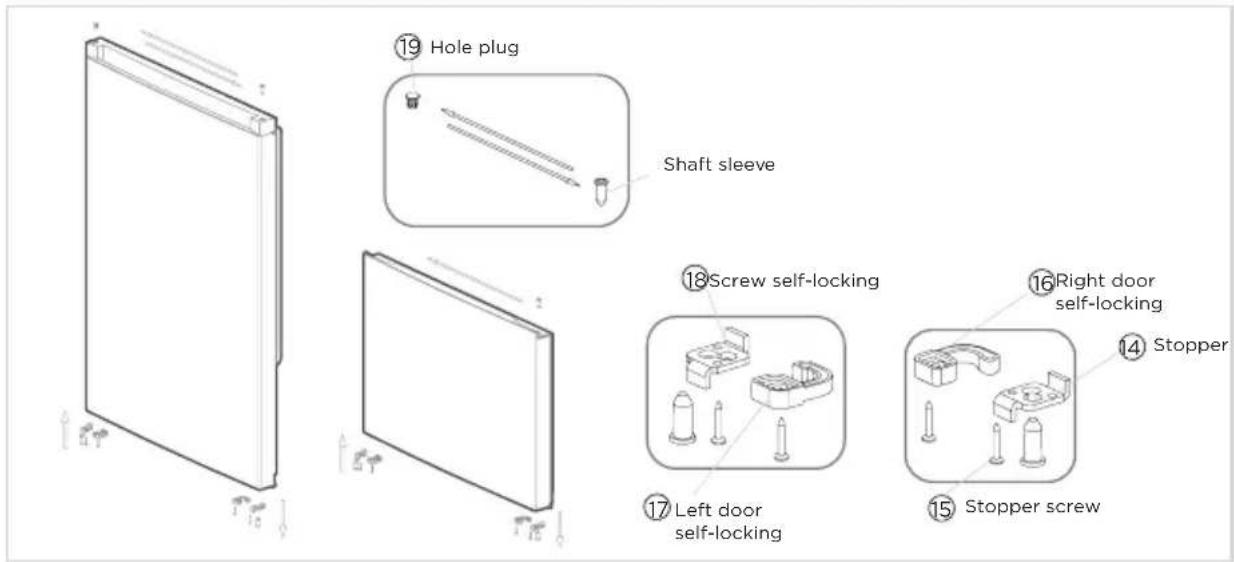

1. Unscrew and remove the shaft sleeves, stopper and right door self-locking screws of the two door bodies, take out the left door self-locking from the accessory bag, and install it to the left corner of the door body together with the stopper and shaft sleeves. Take out the hole plug and shaft sleeve on the upper part of the refrigeration door and adjust their positions before installing them into the door body. Take out the shaft sleeve on the freezing door and install it on the other side.

⑲ Hole plug Shaft sleeve ⑱ Screw self-locking ⑯ Right door self-locking ⑭ Stopper ⑰ Left door self-locking ⑮ Stopper screw

1. Install the refrigerator door on the middle hinge, install the lower hinge on the left side of the refrigerator and tighten the screws, and install two adjusting feet to erect the refrigerator

Adjusting foot ⑨ Lower hinge screw ⑫ Lower hinge ⑬ Remove the lower hinge, remove the lower hinge shaft and install it into the shaft hole on the other side of the hinge Lower hinge ⑬ Can not place shelf

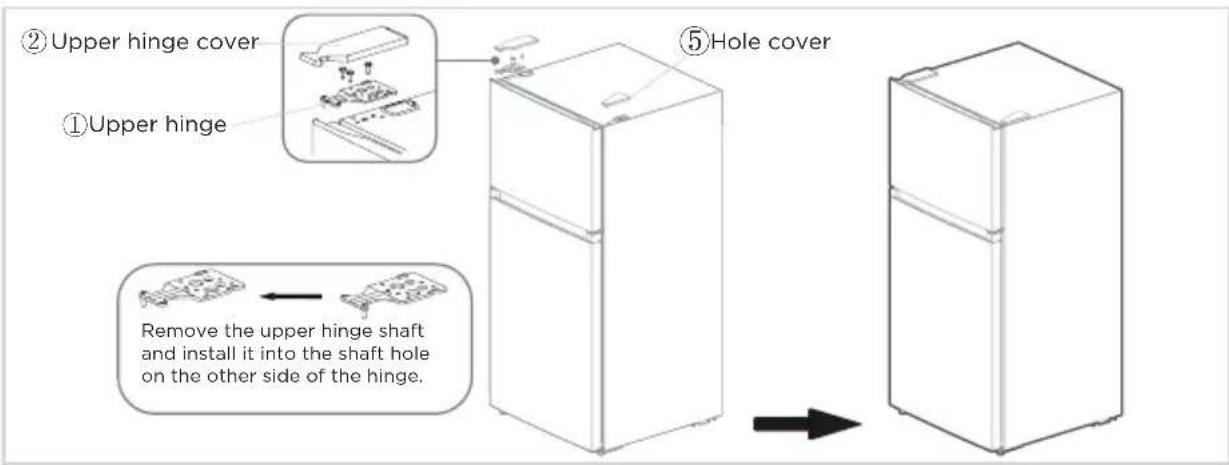

1. Install the freezing door on the middle hinge, remove the upper hinge shaft and install it into the shaft hole on the other side of the hinge, install the upper hinge and tighten the screws, and install the upper hinge cover and the right hole cover.
2. The door change is completed.

② Upper hinge cover ① Upper hinge ⑤ Hole cover Remove the upper hinge shaft and install it into the shaft hole on the other side of the hinge.

ATTENTION

The picture above is only for reference. The actual configuration will depend on the physical product or statement by the distributor.

Leveling feet

To avoid vibration, the unit must be leveled.

If required, adjust the leveling screws to compensate for the uneven floor.

The front should be slightly higher than the rear to aid in door closing.

Leveling screws can be turned easily by tipping the cabinet slightly.

Turn the leveling screws counterclockwise to raise the unit, clockwise to lower it.

Moving the appliance

1. Remove all food from inside the appliance.
2. Pull the power plug out, insert and fix it into the power plug hook at the rear or on top of the appliance.
3. Tape parts such as shelves and the door handle to prevent from falling off while moving the appliance.
4. Move the appliance with more than two people carefully. When transporting the appliance over a long distance, keep the appliance upright.
5. After installing the appliance, connect the power plug into a socket outlet to switch on the appliance.

ATTENTION

Precautions before operation:

Before making changes the refrigerator must be disconnected from power.

Precautions should be taken to prevent any personal injury.

Changing the light

- Any replacement or maintenance of the LED lamps is intended to be made by the manufacturer, its service agent or similar qualified person.

Connecting the appliance

After installing the appliance, connect the power plug into a socket outlet.

ATTENTION

After connecting the power supply cord (or plug) to the outlet, wait 2 or 3 hours before you put food into the appliance. If you add food before the appliance has cooled completely, your food may spoil.

Tips for energy saving

• Do not place the appliance near cookers, radiators or other heat sources. If the ambient temperature is high, the compressor will run more frequently and for longer, resulting in increased energy consumption.
• Ensure that there is sufficient ventilation at the base of the appliance, on the sides of the appliance and at the back of the appliance. Never cover ventilation openings.
• Please also observe the spacing dimensions in the chapter "Installation".
• The arrangement of drawers, shelves and racks as shown in the illustration offers the most efficient use of energy and should therefore be retained as far as possible. All drawers and shelves should remain in the appliance to keep the temperature stable and save energy.
• To obtain a larger storage space (e.g. for large refrigerated/frozen goods), the middle drawers can be removed. The top and bottom drawers and shelves should be removed last if necessary.
• An evenly filled refrigerator/freezer compartment contributes to optimal energy use. Therefore, avoid empty or half-empty compartments.
• Allow warm food to cool before placing it in the refrigerator/freezer. Food that has already cooled down increases energy efficiency.
• Allow frozen food to defrost in the refrigerator. The coldness of the frozen food reduces the energy consumption in the refrigerator compartment and thus increases the energy efficiency.
• Open the door only as briefly as necessary to minimise cold loss. Opening the door briefly and closing it properly reduces energy consumption.
• The door seals of your appliance must be perfectly intact so that the doors close properly and energy consumption is not increased unnecessarily.

OPERATION INSTRUCTIONS

Control Panel

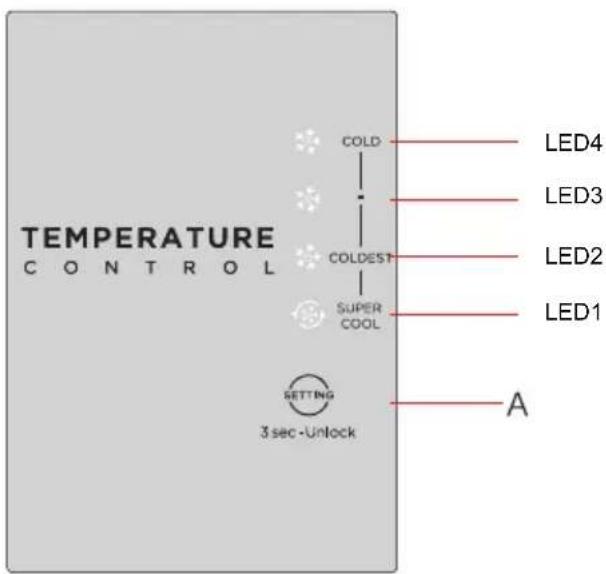

TEMPERATURE CONTROL COLD COLDEST SUPER COOL SETTING 3 sec -Unlock LED4 LED3 LED2 LED1 A

(The picture above is only for reference. The actual configuration will depend on the physical product or statement by the distributor)

1)Button

A. Temperature setting button of refrigerator compartment

2) Display screen

①LED4:

COLD

②LED3:

③LED2:

COLDEST

④LED1:

SUPER

COOL

3) Temperature setting

Each time the temperature setting button A is pressed once, the temperature setting changes one time. After the temperature setting has been completed, the refrigerator will run according to the set value after 15s.

The shift regulation is:

4) Display

When electrify the refrigerator for first time, the display screen shines fully for 3 seconds, and then the refrigerator runs according to coldest. In case of a failure, the corresponding LED blinks. In case of no failures, it shows the temperature setting of refrigerator.

Fault Code Fault Description
LED1 / LED2 flashing	Refrigerator temperature sensor faults
LED1 / LED3 flashing	Freezing frost sensor faults
LED1 / LED4 flashing	Ambient temperature faults

5)Lock/Unlock

When the temperature control panel is in lock state, it needs to long press temperature setting key for 3 seconds for unlocking the panel, all LEDs will blink for 2 seconds when panel is unlocked.

When the temperature control panel is in unlock state, if there is no operation on control panel within 15 seconds, it will enter into lock state automatically.

Tips on storing food

Freezer compartment

• The freezer is designated for the storage of food frozen at very low temperature, long-term storage of frozen food, and for the production of ice.
• Only use the shelves in the door of the freezer to store frozen food, not for storing hot food designated for freezing.
• Do not put fresh and frozen food next to each other. The frozen food may thaw.
• When freezing fresh food (such as meat, fish or chopped meat), cut them into parts that can be used at the same time.
• Storing frozen food: instructions are usually stated on the packages, which must be followed. If there is no information on the packaging, food should not be stored for longer than three months from the date of purchase.
• When purchasing frozen food, make sure that it was frozen at a suitable temperature and that the packaging is not damaged.
• Frozen food should be kept in suitable packages to retain the quality and should be returned to the freezer compartment as soon as possible.
• If a package of frozen food shows moisture or abnormal bulging, it is probable that it was stored at the wrong temperature and the content is spoiled.
• The storage period for frozen food depends on the room temperature, the thermostat setting, the frequency of opening the door of the freezer, the type of food and the time of transporting the product from the shop to the household. Always follow the instructions printed on the packaging and never exceed the maximum storage time stated on the package.

Refrigerator compartment

• To reduce moisture and subsequent ice build-up, never put liquid into the refrigerator in unsealed containers. Frost tends to concentrate in the coolest parts of the evaporator. Storing uncovered liquids results in a more frequent need for defrosting.
• Never put warm foods in the refrigerator. These should first cool down at room temperature and then be placed so as to ensure adequate air circulation in the refrigerator.
• Foods or food containers should not touch the back wall of the refrigerator because they could freeze to the wall. Do not keep regularly opening the door of the refrigerator.
• Meat and clean fish (packed in a package or plastic foil) can be placed in the refrigerator, which can be used in 1–2 days.
• Fruit and vegetables without packaging can be placed in the part designated for fresh fruit and vegetables.

ATTENTION

The optimal temperature setting of each compartment depends on the ambient temperature. Above optimal temperature is based on the ambient temperature of 25^ C.

Storage of too much food during operation after the initial connection to power may adversely affect the freezing effect of the refrigerator. Foods stored shall not block the air outlet; or otherwise the freezing effect will also be adversely affected.

When store beverages at coldest setting, inside fruits and vegetables are at risk of freezing, please set on towards less cooling if coldest setting is very cool.

CLEANING AND MAINTENANCE

Defrosting

- The refrigerator is made based on the air-cooling principle and thus has automatic defrosting function. Frost formed due to change of season or temperature may also be manually removed by disconnection of the appliance from power supply or by wiping with a dry towel.

Cleaning of door tray

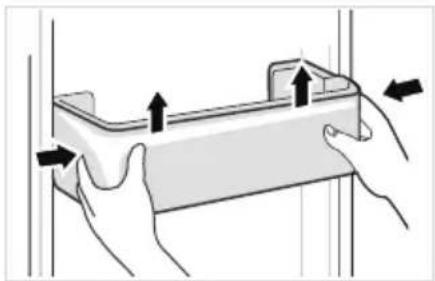

• According to the direction arrow in the figure below, use both hands to squeeze the tray, and push it upward, then you can take it out.
  • After washing the tray having been taken out, you can adjust its installing height in accordance with your requirement.

Illustration of hands holding a rectangular object with arrows indicating movement or force (no text or symbols)

Cleaning of glass shelf

• As the innermost part of the refrigerator liner where contacting the shelves has a backstop, you shall raise the shelves upward, then you can be able to take it out.
• Adjust or clean the shelves according to your requirement.

Illustration of a hand interacting with a flat surface, showing upward arrows and a magnified view of a device (no text or symbols)

Cleaning the fruit and vegetable box

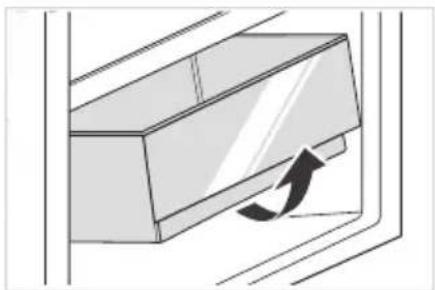

• Remove the contents of the drawer. Hold the handle of the vegetable drawer and pull it out completely until it stops.
• Lift the vegetable drawer up and remove it by pulling it out.

Diagram of a door handle with an arrow indicating clockwise motion (no text or symbols)

ATTENTION

Soft towels or sponge dipped in water and non-corrosive neutral detergents are suggested for cleaning. The freezer of shall be finally cleaned with clean water and dry cloth. Open the door for natural drying before the power is turned on. Do not use hard brushes, clean steel balls, wire brushes, abrasives, such as toothpastes, organic solvents (such as alcohol, acetone, banana oil, etc.), boiling water, acid or alkaline items clean refrigerator considering that this may damage the fridge surface and interior.

Stop using

Power failure:

In case of power failure, even if it is in summer, foods inside the appliance can be kept for several hours; during the power failure, the times of door opening shall be reduced, and no more fresh food shall be put into the appliance.

Long-time nonuse:

The appliance shall be unplugged and then cleaned; then the doors are left open to prevent odor.

Moving:

Before the refrigerator is moved, take all objects inside out, fix the glass partitions, vegetable holder, freezing chamber drawers and etc. with tape, and tighten the leveling feet; close the doors and seal them with tape. During moving, the appliance shall not be laid upside down or horizontally, or be vibrated; the inclination during movement shall be no more than 45^ .

ATTENTION

The appliance shall run continuously once it is started. Generally, the operation of the appliance shall not be interrupted; otherwise the service life may be impaired.

Foods can be preserved for a couple of hours even in summer in case of power failure; it is recommended to reduce the frequency of opening door.

TROUBLESHOOTING

The following simple issues can be handled by the user. Please call the after-sale service department if the issues are not solved.

Problem Possible reason
Failed operation	·Check whether the appliance is connected to power or whether the plug is in well contact
	·Check whether the voltage is too low
	·Check whether there is a power failure or partial circuits have tripped
Odor	·Odorous foods shall be tightly wrapped
	·Check whether there is any rotten food
	·Clean the inside of the refrigerator
Long-time operation of the compressor	·Long operation of the refrigerator is normal in summer
	·When the ambient temperature is high it is not suggestible having too much food in the appliance at the same time
	·Food shall get cool before being put into the appliance
	·The doors are opened too frequently
Light fails to get lit	·Check whether the refrigerator is connected to power supply and whether the illuminating light is damaged
	·Have the light replaced by a specialist
Door can not be properly closed	·The door is stuck by food packages
	·Too much food is placed
	·The refrigerator is tilted
Loud noises	·Check whether the floor is level and whether the refrigerator is placed stably
	·Check whether accessories are placed at proper locations

EN

Problem Possible reason
Door seal fails to be tight	Remove foreign matters on the door seal
	Heat the door seal and then cool it for restoration (or blow it with an electrical drier or use a hot towel for heating)
Water pan overflows	There is too much food in the chamber or food stored contains too much water, resulting in heavy defrosting
	The doors are not closed properly, resulting in frosting due to entry of air and increased water due to defrosting
Hot housing	Heat dissipation of the built-in condenser via the housing, which is normal when housing becomes hot due to high ambient temperature, storage of too much food or shutdown of the compressor is shut down, provide sound ventilation to facilitate heat dissipation
Surface condensation	Condensation on the exterior surface and door seals of the refrigerator is normal when the ambient humidity is too high. Just wipe the condensate with a clean towel
Abnormal noise	Buzz: The compressor may produce buzzes during operation, and the buzzes are loud particularly upon start or stop. This is normal
	Creak: Refrigerant flowing inside of the appliance may produce creak, which is normal

LETTRE DE REMERCIEMENT

INSTALLATION DU PRODUIT 04

INSTRUCTIONS D'OPÉRATION 11

NETTOYAGE ET ENTRETIEN 13

DÉPANNAGE 15

SPÉCIFICATIONS

Courant nominal 1,9A

Dimension globale (L x H x P) 64,92 pouces x 27,56 pouces x 28,78 pouces

PRÉSENTATION DU PRODUIT

Noms des composants

Technical diagram of a refrigerator interior with numbered labels pointing to different compartments

INSTALLATION DU PRODUIT

>100mm >100mm >100mm >100mm

Illustration of hands holding a rectangular object with arrows indicating movement or force (no text or symbols)

Illustration of a hand pressing down on a flat surface with upward arrows, no text or symbols present

Diagram of a door handle with an arrow indicating clockwise motion (no text or symbols)

ATTENTION

Corriente Nominal 1,9A

Technical diagram of a refrigerator interior with numbered labels pointing to different compartments

Illustration of hands holding a rectangular object with arrows indicating movement or force (no text or symbols)

Illustration of a hand pressing down on a flat surface with upward arrows, no text or symbols present

Diagram of a door handle with an arrow indicating clockwise motion (no text or symbols)

ATENCIÓN

make yourself at home
