Decamax ZM500-LX3 - PC Power Supply ZALMAN - Free user manual and instructions

Product Type	PC Power Supply
Brand	Zalman
Model	Decamax ZM500-LX3
Nominal Power	500 W
Dimensions (L x W x H)	150 mm x 140 mm x 86 mm
Weight	1.8 kg
Fan	120 mm, ball bearing
Efficiency	80+ Bronze (typical)
Protections	OVP, OCP, SCP, UVP
Cable Modularity	Non-modular
Input Voltage	100-240 V AC, 50-60 Hz
Max Current on +12V Rail	40 A (480 W)
Main Connectors	1 x ATX 20+4 pin, 1 x EPS 4+4 pin, 2 x PCIe 6+2 pin, 4 x SATA, 2 x Molex
Certifications	CE, CB, RoHS
Maintenance and Cleaning	Unplug before cleaning; use a dry cloth; do not open the casing
Safety	Do not open or insert objects into the fan; avoid humidity and extreme temperatures
Spare Parts and Repairability	Unit not user-serviceable; warranty covers the unit only (cables not included for modular version)
General Information	Designed for desktop, multimedia, and gaming PCs; indoor use only

Frequently Asked Questions - Decamax ZM500-LX3 ZALMAN

What to do if the power supply does not turn on?

Check that the power cable is properly connected and the wall switch is in the ON position. Make sure the 0/1 button on the back of the unit is set to '1'. If the problem persists, test with another outlet or contact support.

How to connect the power supply to the motherboard?

Connect the ATX 20+4 pin connector (the largest) to the corresponding port on the motherboard. Insert the EPS 4+4 pin connector (often 8 pins) for CPU power. Ensure the locks click into place.

Can I use this power supply for a high-end graphics card?

This 500W power supply can power a mid-range graphics card. Verify that the graphics card has compatible PCIe connectors (2 x 6+2 pin provided) and that the total system power (CPU + GPU) does not exceed 480W on the +12V rail.

The fan is noisy, is this normal?

The 120 mm fan runs continuously. Slight noise is normal. If the noise is abnormal (grinding or clicking), this may indicate a defect. In that case, stop using and contact after-sales service.

How to clean the power supply?

Unplug the power cable. Use a dry, soft cloth to wipe the exterior of the casing. Never open the casing: internal components are live and not user-serviceable. Clean the ventilation grilles with compressed air if necessary.

What types of cables are included?

The package contains the following cables: 1 ATX 20+4 pin cable, 1 EPS 4+4 pin cable, 2 PCIe 6+2 pin cables, 4 SATA cables, 2 Molex cables, and a power cord.

Is the power supply compliant with safety standards?

Yes, the power supply is certified CE, CB, and RoHS. It is designed to meet electrical safety standards. Please follow the warnings in the manual to avoid electric shock hazards.

What to do in case of overvoltage or short circuit?

The power supply has built-in protections (OVP, OCP, SCP) that automatically shut off power in case of an issue. If this happens, unplug the power supply, check connections, and restart. If the problem persists, contact technical support.

Is this power supply modular?

No, this model is non-modular: all cables are fixed at the factory. For a modular version, please check other models in the Decamax series.

What is the typical lifespan of this power supply?

Lifespan depends on usage conditions (temperature, load). Under normal use, a quality power supply can last 5 to 8 years. It is recommended not to exceed 80% of the maximum continuous load.

USER MANUAL Decamax ZM500-LX3 ZALMAN

Warnings and Safety Precautions

Neglecting the following may cause serious injury or death.

• Opening the cover of the product while the power cord is plugged into an outlet may cause electrocution or critical damage to the product.
• Handling the power cord with wet hands may cause electrocution.
• Inserting fingers or metallic objects into the cooling fan may cause injury or electrocution.

Neglecting the following may cause minor injuries, degrade product conditions or cause malfunction.

• Operating the product in an extremely cold or hot environment can degrade product performance and lifespan.
• Exposure to liquids may cause malfunction.
  ▶ Operation in a humid or non-ventilated environment may reduce product lifespan.
• Plugging the main power connector P1 into the motherboard while the product is connected to the AC power source may cause damage to the motherboard.
  ▶ Make sure that the connectors are connected to their designated locations, and that the connectors are not oriented in the wrong direction when connecting the DC output connectors.
  ▶ Please use gloves to prevent injuries during installation.
• Product designs and specifications may be revised without prior notification to improve quality and performance.

WARNING

This product is designed for computer use only, such as offices, multimedia, the Internet and games. Using this product in any other application will void the warranty. The power supply unit(PSU) is for integration into a computer system and not intended for external or outdoor usage. Please note that Full Modular PSU's warranty is applicable to the power supply unit ONLY and does not include accessories such as, power cable, connector and etc. Non-Modular warranty is applicable to PSU and its power cables. If you have any questions, please ask a specialist for help.

DISCLAIMER

Zalman Tech Co., Ltd. is not responsible for any damages due to external causes, including but not limited to, improper use, problems with electrical power, accident, neglect, alteration, repair, improper installation, or improper testing.

Cable Ties x5Screws x4Power

User's ManualAC Power Cord

2. ZM500-LX3 Specifications

1) Electrical & Physical Specifications

AC Input Range	Voltage 200-240V~				Vout	Output Load Rating			Combined Power
	Frequency 50Hz-60Hz I					min	Imax	Ipeax
AC Input Current 240VAC 5A					+3.3V 0.1A 18A				100W	500W
					+5V 0.2A 18A
PFC Type Active PFC +12V 0.3A 38A 456W
Power Factor Correction Max 99% -12V 0.05A 0.3A 3.6W
Inrush Current Limit (@ Cold Start at 25°C)	240VAC Max 100A				+5VSB 0A 3A 15W
					Ambient Temperature
Efficiency	Max 85% @ 230VAC, Typical load				Operation		0 ~ +40°C
DC Output Voltage Regulation	Vout	Regulation Range		At Full Load	Storage		-20 ~ +70°C
	+3.3VDC	±5%	+3.14 ~ +3.47V		Ambient Humidity
	+5VDC	±5%	+4.75 ~ +5.25V		Operation		5% ~ 85% RH
	+12VDC	±5%	+11.4 ~ +12.6V		Storage		5% ~ 95% RH
	-12VDC	±10%	-10.8 ~ -13.2V		Dimensions		140(L) X 150(W) X 86(H) mm
	+5VSB	±5%	+4.75 ~ +5.25V		Weight		1.35Kg
DC Output Ripple & Noise	Vout	Standard Range		At Full Load	Protection Funtions
	+3.3VDC	50mV			Over-Voltage Protection (OVP)
	+5VDC	50mV			Over-Power Protection (OPP)
	+12VDC 120mV				Under-Voltage Protection (UVP)
	-12VDC	120mV			hort-Circuit Protection (SCP)
	+5VSB	50mV

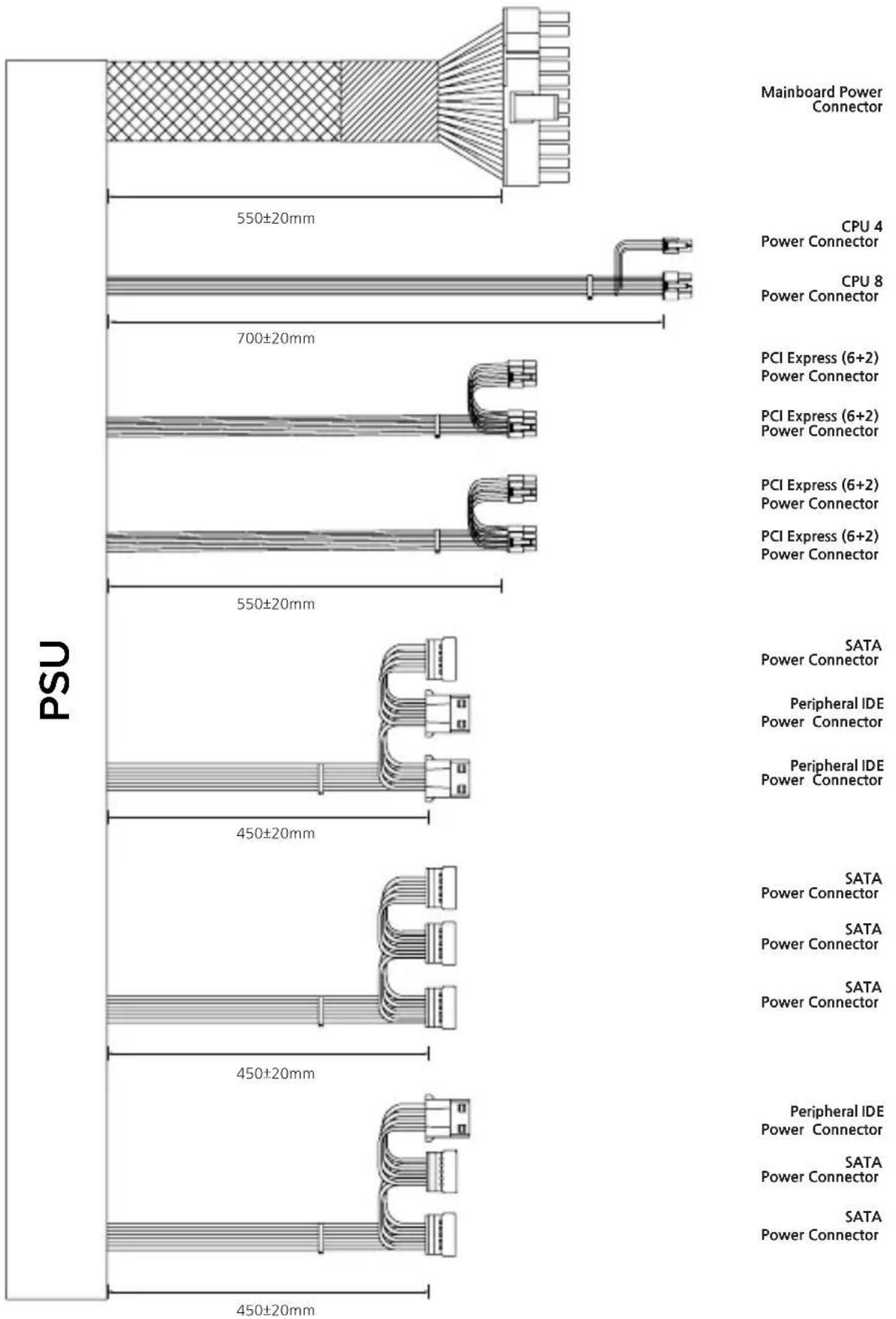

2) Cable Specifications

2. ZM600-LX3 Specifications

1) Electrical & Physical Specifications

AC Input Range	Voltage 200-240V~			Vout	Output Load Rating			Combined Power
	Frequency 50Hz-60Hz I				min	Imax	Ipeak
AC Input Current 240VAC 5A				+3.3V 0.1A 18A				100W	600W
				+5V 0.2A 18A
PFC Type Active PFC +12V 0.3A 46A 552W
Power Factor Correction Max 99% -12V 0.05A 0.3A 3.6W
Inrush Current Limit (@ Cold Start at 25°C)	240VAC Max 100A			+5VSB 0A 3A 15W
				Ambient Temperature
Efficiency	Max 85% @ 230VAC, Typical load			Operation		0 ~ +40°C
DC Output Voltage Regulation	Vout	Regulation Range		At Full Load	Storage		-20 ~ +70°C
	+3.3VDC	±5%	+3.14 ~ +3.47V		Ambient Humidity
	+5VDC	±5%	+4.75 ~ +5.25V		Operation		5% ~ 85% RH
	+12VDC	±5%	+11.4 ~ +12.6V		Storage		5% ~ 95% RH
	-12VDC	±10%	-10.8 ~ -13.2V		Dimensions		140(L) X 150(W) X 86(H) mm
	+5VSB	±5%	+4.75 ~ +5.25V		Weight		1.5Kg
DC Output Ripple & Noise	Vout	Standard Range		At Full Load	Protection Funtions
	+3.3VDC	50mV			Over-Voltage Protection (OVP)
	+5VDC	50mV			Over-Power Protection (OPP)
	+12VDC 120mV				Under-Voltage Protection (UVP)
	-12VDC	120mV			Short-Circuit Protection (SCP)
	+5VSB	50mV

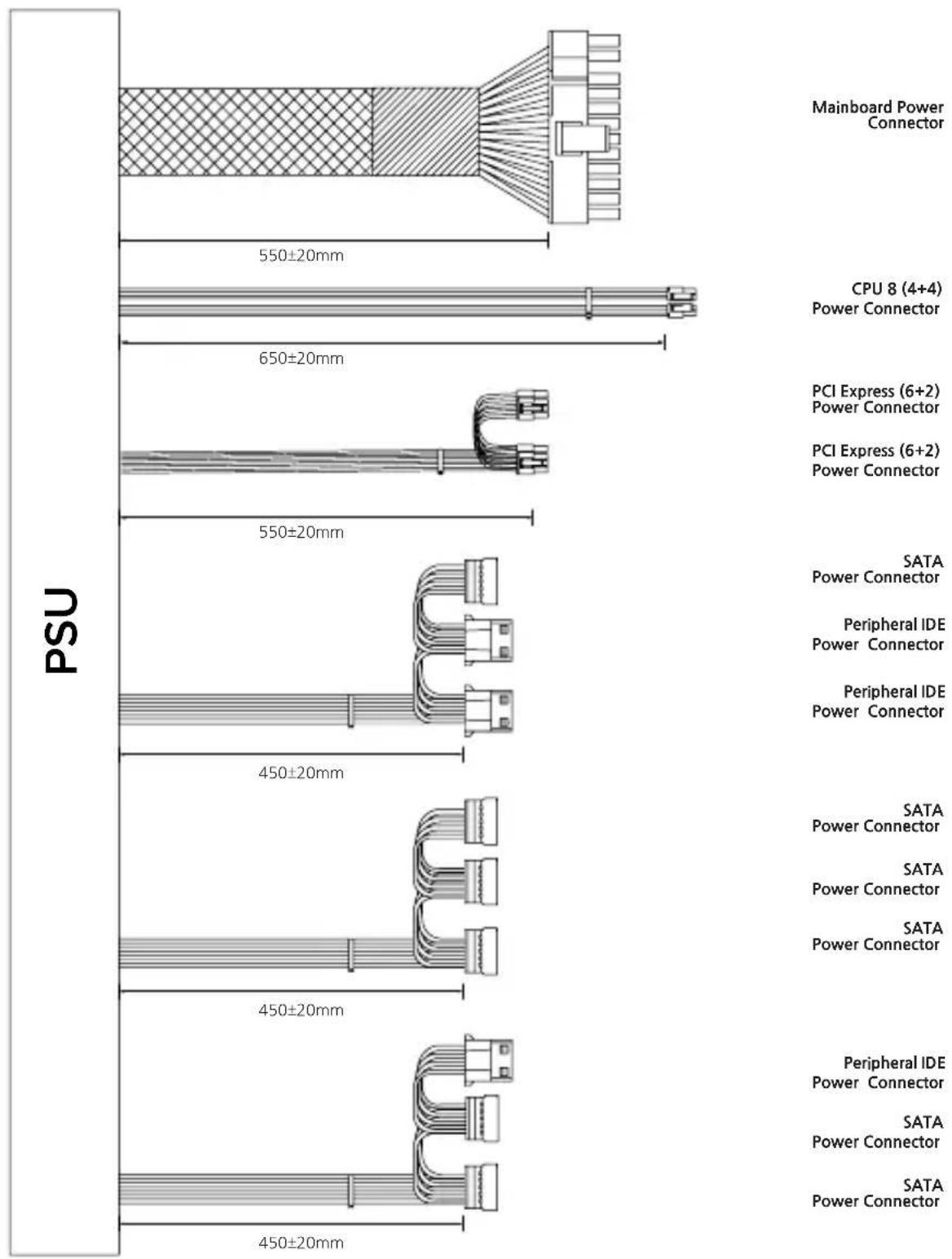

2) Cable Specifications

3. ZM700-LX3 Specifications

1) Electrical & Physical Specifications

AC Input Range	Voltage 200-240V~				Vout	Output Load Rating			Combined Power
	Frequency 50Hz-60Hz I					min	Imax	Ipeax
AC Input Current 240VAC 5A					+3.3V 0.1A 20A				120W	700W
					+5V 0.2A 20A
PFC Type Active PFC +12V 0.3A 54A 648W
Power Factor Correction Max 99% -12V 0.05A 0.3A 3.6W
Inrush Current Limit (@ Cold Start at 25°C)	240VAC Max 100A				+5VSB 0A 3A 15W
					Ambient Temperature
Efficiency	Max 85% @ 230VAC, Typical load				Operation		0 ~ +40°C
DC Output Voltage Regulation	Vout	Regulation Range		At Full Load	Storage		-20 ~ +70°C
	+3.3VDC	±5%	+3.14 ~ +3.47V		Ambient Humidity
	+5VDC	±5%	+4.75 ~ +5.25V		Operation		5% ~ 85% RH
	+12VDC	±5%	+11.4 ~ +12.6V		Storage		5% ~ 95% RH
	-12VDC	±10%	-10.8 ~ -13.2V		Dimensions		140(L) X 150(W) X 86(H) mm
	+5VSB	±5%	+4.75 ~ +5.25V		Weight		1.6Kg
DC Output Ripple & Noise	Vout	Standard Range		At Full Load	Protection Funtions
	+3.3VDC	50mV			Over-Voltage Protection (OVP)
	+5VDC	50mV			Over-Power Protection (OPP)
	+12VDC 120mV				Under-Voltage Protection (UVP)
	-12VDC	120mV			Short-Circuit Protection (SCP)
	+5VSB	50mV

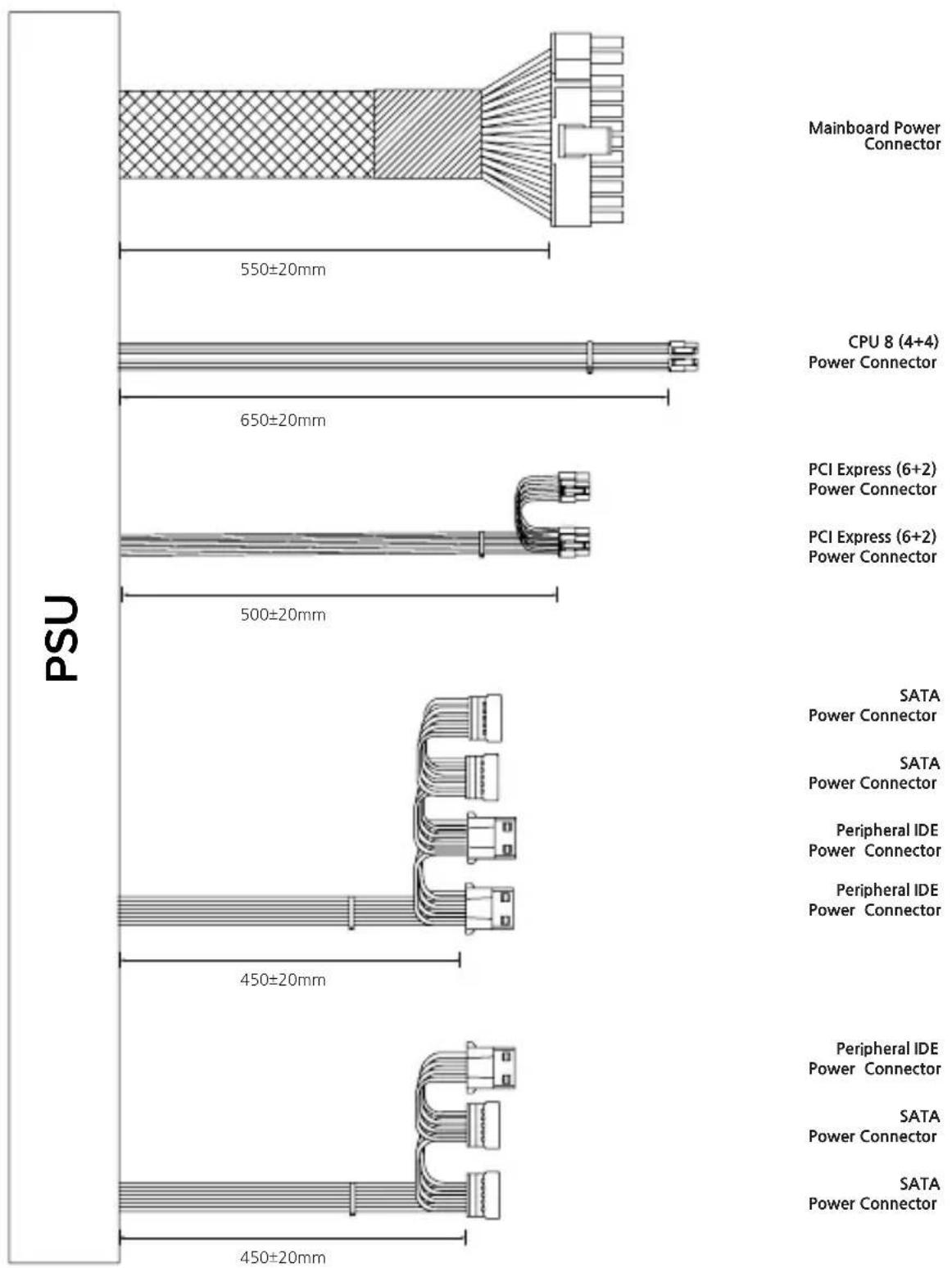

2) Cable Specifications
