Product Type	PC ATX Power Supply
Brand	Zalman
Model	TeraMax ZM850-TMX
Rated Power	850 W
Form Factor	ATX
Dimensions (L x W x H)	150 x 140 x 86 mm
Weight	1.8 kg
Cable Modularity	Fully Modular
Fan	135 mm Silent
Energy Efficiency	80+ Gold Certification (estimated)
Protection	OVP, OCP, SCP, OPP, OTP
Main Connectors	1 x ATX 24-pin, 1 x EPS 8-pin, 2 x PCIe 6+2-pin, etc. (estimated)
Compatibility	ATX, micro-ATX motherboards, etc.
Maintenance and Cleaning	Unplug and use a dry cloth; do not open
Safety	Do not use in damp environment; do not open while powered
Warranty	Manufacturer's limited warranty (see manual)
Repairability	Spare parts not available separately; replace the unit if faulty

Frequently Asked Questions - TeraMax ZM850-TMX ZALMAN

What is the power rating of the Zalman TeraMax ZM850-TMX power supply?

The rated power is 850 watts, sufficient for a high-end gaming configuration.

Is this power supply modular?

Yes, it is fully modular, allowing you to connect only the necessary cables for better airflow management.

What protections are included?

It includes protections OVP (overvoltage), OCP (overcurrent), SCP (short circuit), OPP (overpower), and OTP (overtemperature).

How to install the power supply in a case?

Place the power supply in the case, secure it with the provided screws, then connect the modular cables to the components respecting polarities.

What is the size of the fan?

The fan is 135 mm with a silent design for efficient cooling with low noise.

What connectors are provided?

It includes a 24-pin ATX connector, an 8-pin EPS (or 4+4), several 6+2-pin PCIe connectors for graphics cards, SATA and Molex connectors.

Is it compatible with ATX motherboards?

Yes, it is compatible with ATX, micro-ATX and other standard format motherboards.

How to clean the power supply?

Unplug the power supply, use a soft dry cloth to dust the grilles. Never open the casing as it voids the warranty and presents a risk of electrocution.

What is the warranty of this product?

The warranty is a limited warranty from the manufacturer. Consult the full manual for exact conditions.

What to do in case of failure?

If the power supply stops working, check the connections and test with another cable. If the problem persists, contact Zalman's customer service.

USER MANUAL TeraMax ZM850-TMX ZALMAN

Warnings and Safety Precautions

Neglecting the following may cause serious injury or death.

• Opening the cover of the product while the power cord is plugged into an outlet may cause electrocution or critical damage to the product.
• Handling the power cord with wet hands may cause electrocution.
• Inserting fingers or metallic objects into the cooling fan may cause injury or electrocution.

Neglecting the following may cause minor injuries, degrade product conditions or cause malfunction.

• Operating the product in an extremely cold or hot environment can degrade product performance and lifespan.
• Exposure to liquids may cause malfunction.
  ▶ Operation in a humid or non-ventilated environment may reduce product lifespan.
• Plugging the main power connector P1 into the motherboard while the product is connected to the AC power source may cause damage to the motherboard.
  ▶ Make sure that the connectors are connected to their designated locations, and that the connectors are not oriented in the wrong direction when connecting the DC output connectors.
  ▶ Please use gloves to prevent injuries during installation.
• Product designs and specifications may be revised without prior notification to improve quality and performance.

WARNING

This product is designed for computer use only, such as offices, multimedia, the Internet and games. Using this product in any other application will void the warranty. The power supply unit(PSU) is for integration into a computer system and not intended for external or outdoor usage. Please note that Full Modular PSU's warranty is applicable to the power supply unit ONLY and does not include accessories such as, power cable, connector and etc. Non-Modular warranty is applicable to PSU and its power cables. If you have any questions, please ask a specialist for help.

DISCLAIMER

Zalman Tech Co., Ltd. is not responsible for any damages due to external causes, including but not limited to, improper use, problems with electrical power, accident, neglect, alteration, repair, improper installation, or improper testing.

Français

Cable Ties x5Screws x4Power

User's ManualAC Power Cord Cable Bag

2. ZM750-TMX Specifications

1) Electrical & Physical Specifications

AC Input Range	Voltage 100~240VAC				Vout	Output Load Rating			Combined Power
	Frequency 50Hz ~ 60Hz I					min	Imax	Ipeax
AC Input Current	100VAC	10A~5A			+3.3V 0.3A 20A				120W	750W
	240VAC +5V 0.3A 20A
PFC Type Active PFC +12V 0.6A 62.5A 750W
Power Factor Correction Max 99% -12V 0.01A 0.3A 3.6W
Inrush Current Limit (@ Cold Start at 25°C)	100VAC	Max 100A			+5VSB 0.1A 3A			15W
	240VAC				Ambient Temperature
Efficiency	Max 90% @ 115VAC, Typical load				Operation		0 ~ +40°C
DC Output Voltage Regulation	Vout	Regulation Range		At Full Load	Storage		-20 ~ +70°C
	+3.3VDC	±5%	+3.14 ~ +3.47V		Ambient Humidity
	+5VDC	±5%	+4.75 ~ +5.25V		Operation		5% ~ 85% RH
	+12VDC	±5%	+11.4 ~ +12.6V		Storage		5% ~ 95% RH
	-12VDC	±10%	-10.8 ~ -13.2V		Dimensions		140(L) X 150(W) X 86(H) mm
	+5VSB	±5%	+4.75 ~ +5.25V		Weight		2.3Kg
DC Output Ripple & Noise	Vout	Standard Range		At Full Load	Protection Funtions
	+3.3VDC 50mV				Over-Current Protection (OCP)
	+5VDC	50mV			Over-Voltage Protection (OVP)
	+12VDC	120mV			Over-Power Protection (OPP)
	-12VDC 120mV				Over-Temperature Protection (OTP)
	+5VSB	50mV			Under-Voltage Protection (UVP)
					Short-Circuit Protection (SCP)

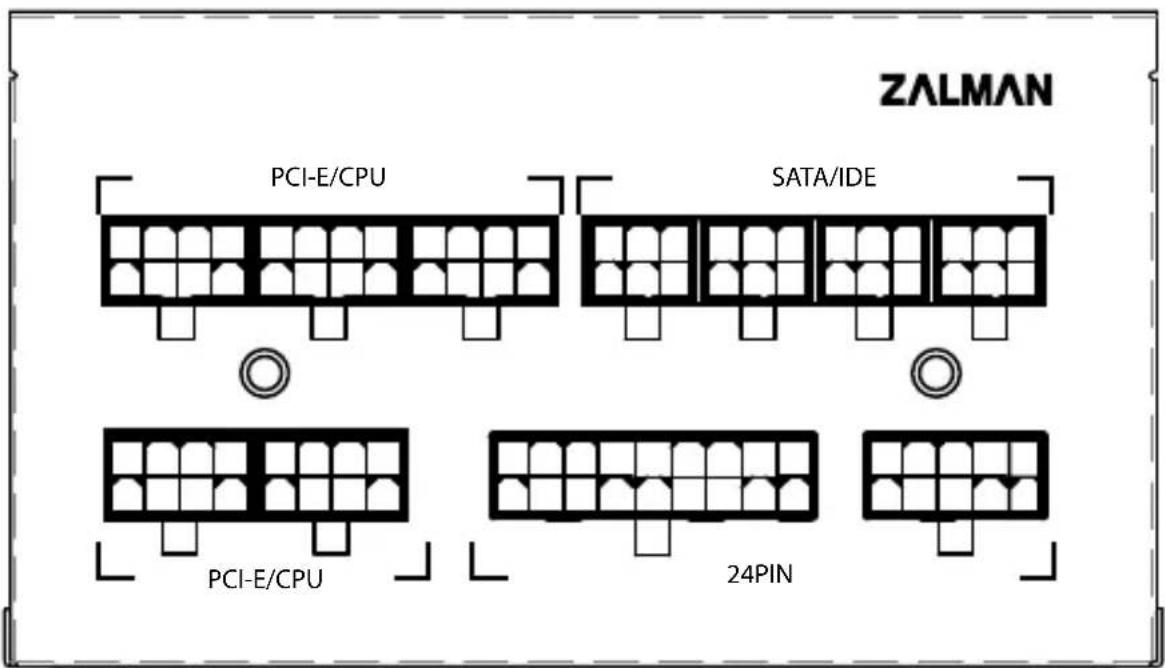

2) Connector Specifications

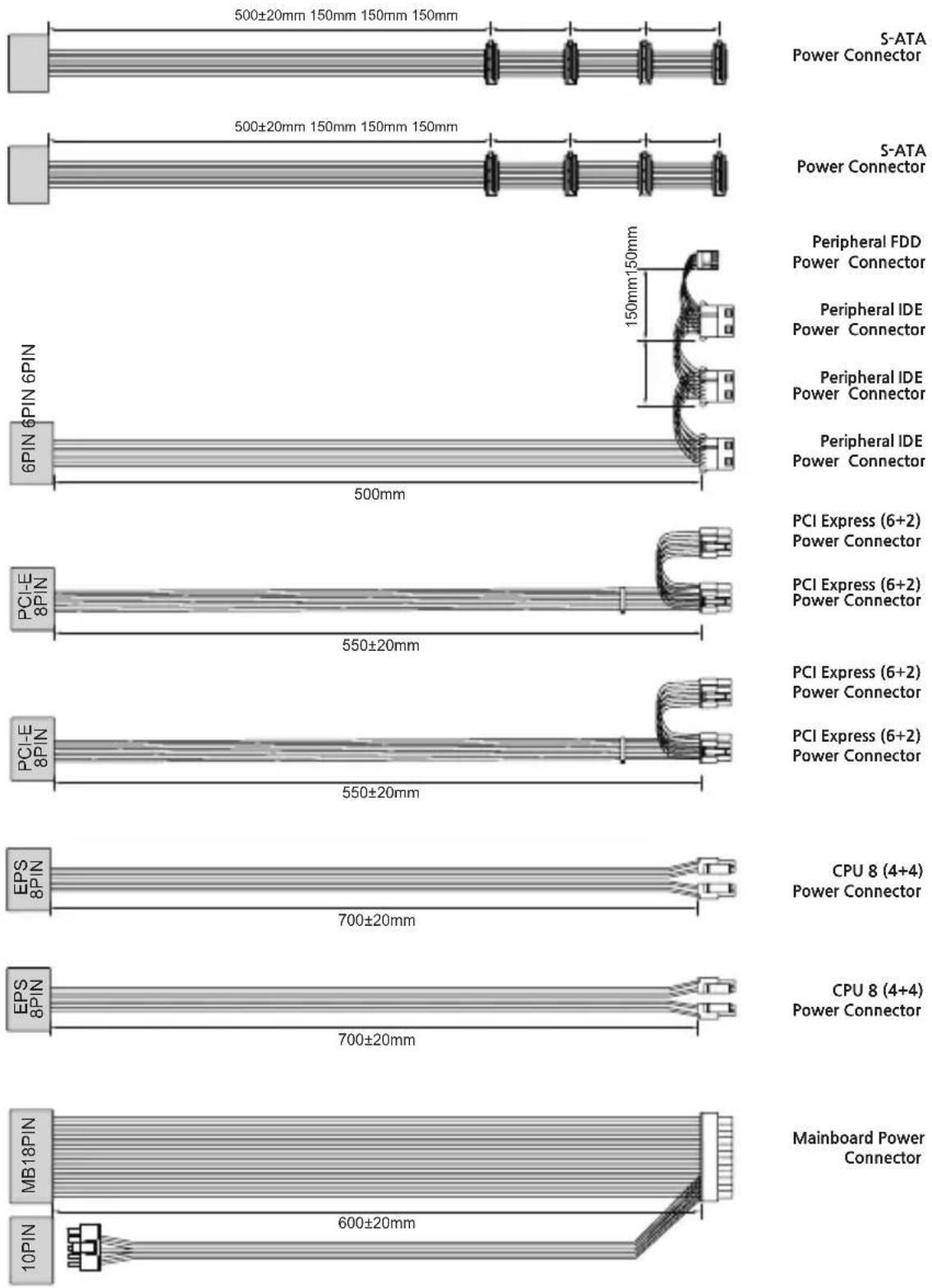

3) Cable Specifications

S-ATA Power Connector
S-ATA Power Connector
Peripheral FDD Power Connector
Peripheral IDE Power Connector
Peripheral IDE Power Connector
Peripheral IDE Power Connector
PCI Express (6+2) Power Connector
PCI Express (6+2) Power Connector
PCI Express (6+2) Power Connector
PCI Express (6+2) Power Connector
CPU 8 (4+4) Power Connector
CPU 8 (4+4) Power Connector
Mainboard Power Connector

3. ZM850-TMX Specifications

1) Electrical & Physical Specifications

AC Input Range	Voltage 100~240VAC				Vout	Output Load Rating			Combined Power
	Frequency 50Hz ~ 60Hz I					min	Imax	Ipeax
AC Input Current	100VAC	12A~6A			+3.3V 0.3A 20A				120W	850W
	240VAC +5V 0.3A 20A
PFC Type Active PFC +12V 0.6A 70.83A 850W
Power Factor Correction Max 99% -12V 0.01A 0.3A 3.6W
Inrush Current Limit (@ Cold Start at 25°C)	100VAC	Max 100A			+5VSB	0.1A	3A		15W
	240VAC				Ambient Temperature
Efficiency	Max 90% @ 115VAC, Typical load				Operation		0 ~ +40°C
DC Output Voltage Regulation	Vout	Regulation Range		At Full Load	Storage		-20 ~ +70°C
	+3.3VDC	±5%	+3.14 ~ +3.47V		Ambient Humidity
	+5VDC	±5%	+4.75 ~ +5.25V		Operation		5% ~ 85% RH
	+12VDC	±5%	+11.4 ~ +12.6V		Storage		5% ~ 95% RH
	-12VDC	±10%	-10.8 ~ -13.2V		Dimensions		140(L) X 150(W) X 86(H) mm
	+5VSB	±5%	+4.75 ~ +5.25V		Weight		2.4Kg
DC Output Ripple & Noise	Vout	Standard Range		At Full Load	Protection Funtions
	+3.3VDC 50mV				Over-Current Protection (OCP)
	+5VDC	50mV			Over-Voltage Protection (OVP)
	+12VDC	120mV			Over-Power Protection (OPP)
	-12VDC 120mV				Over-Temperature Protection (OTP)
	+5VSB	50mV			Under-Voltage Protection (UVP)
					Short-Circuit Protection (SCP)

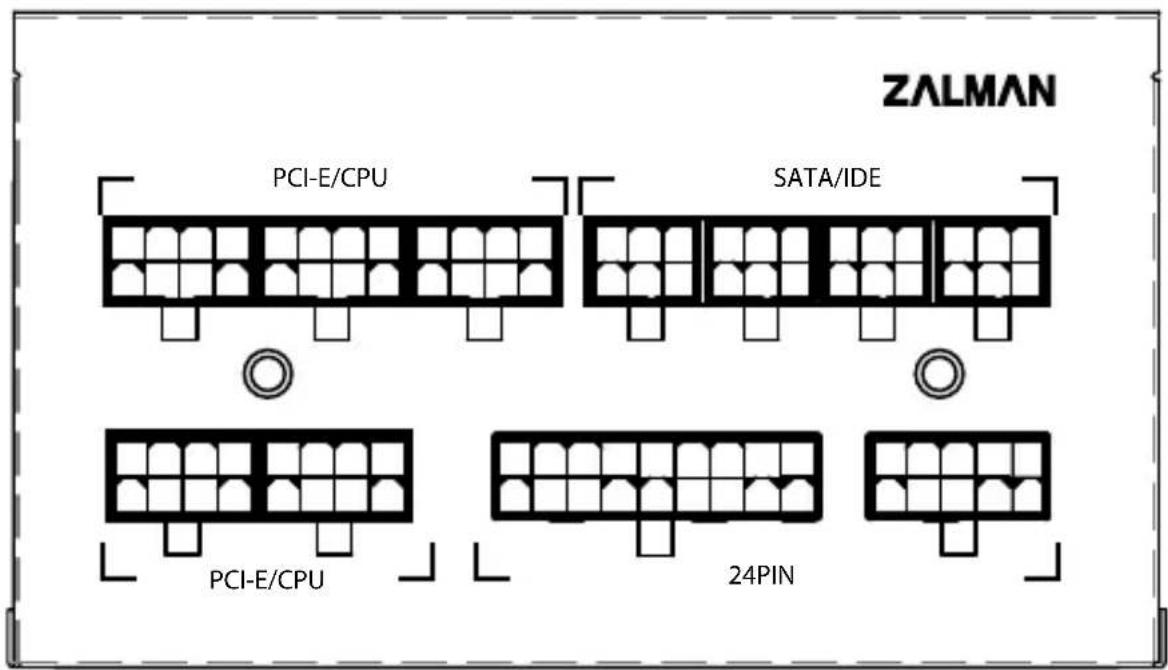

2) Connector Specifications

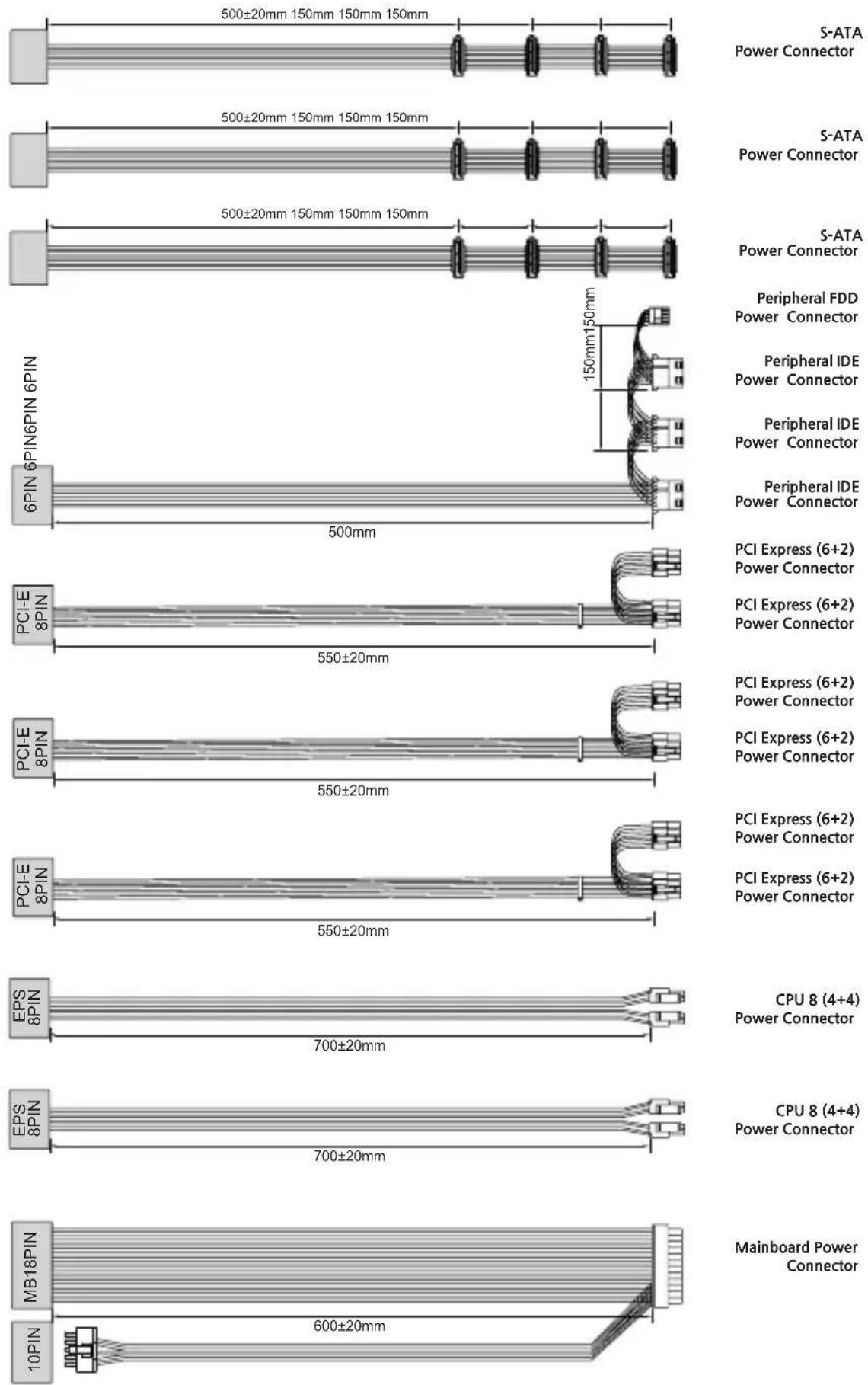

3) Cable Specifications

S-ATA
Power Connector
S-ATA
Power Connector
S-ATA
Power Connector
Peripheral FDD
Power Connector
Peripheral IDE
Power Connector
Peripheral IDE
Power Connector
Peripheral IDE
Power Connector
PCI Express (6+2)
Power Connector
PCI Express (6+2)
Power Connector
PCI Express (6+2)
Power Connector
PCI Express (6+2)
Power Connector
PCI Express (6+2)
Power Connector
PCI Express (6+2)
Power Connector
CPU 8 (4+4)
Power Connector
CPU 8 (4+4)
Power Connector
Mainboard Power
Connector

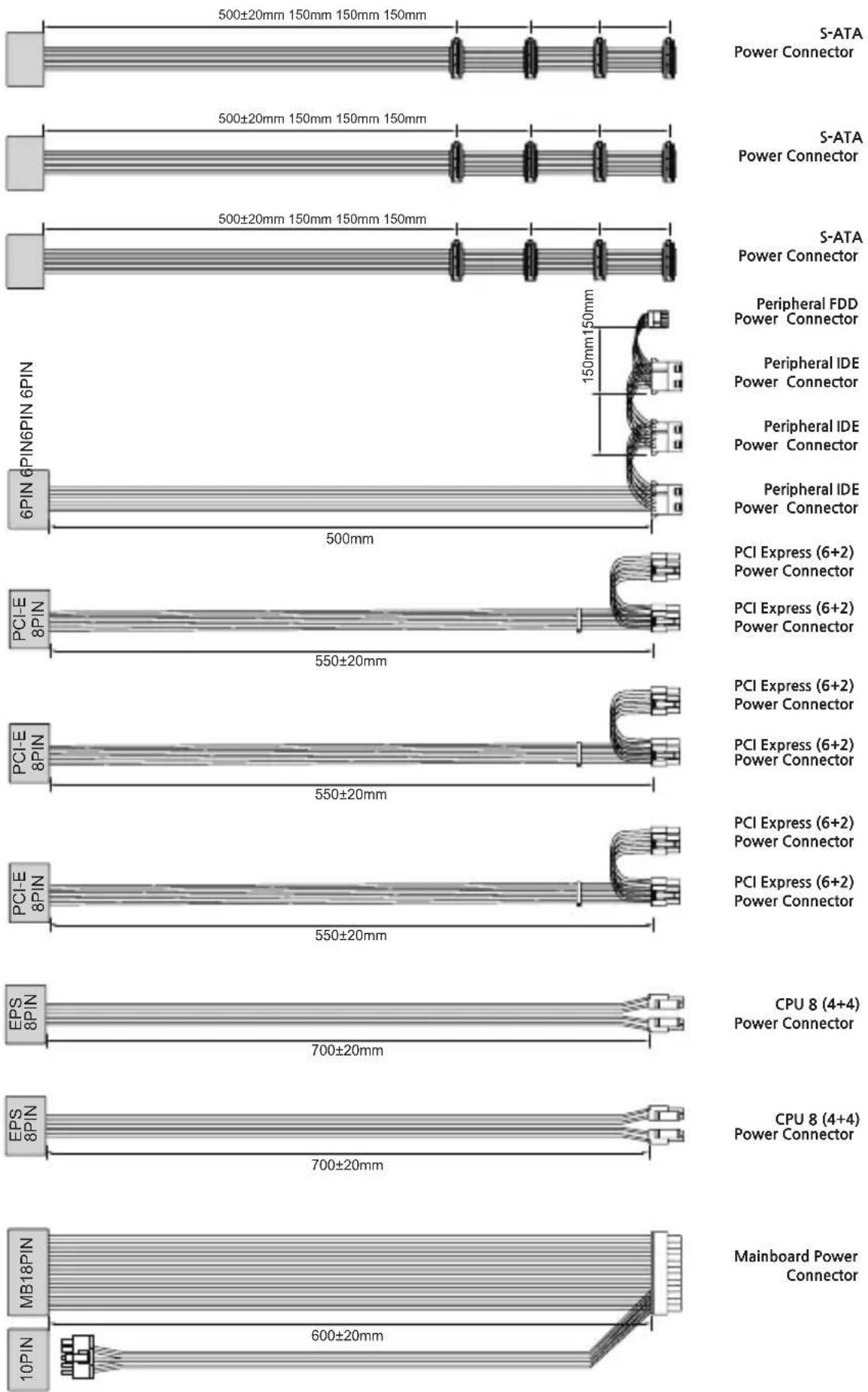

3. ZM1000-TMX Specifications

1) Electrical & Physical Specifications

AC Input Range	Voltage 100~240VAC				Vout	Output Load Rating			Combined Power
	Frequency 50Hz ~ 60Hz I					min	Imax	Ipeax
AC Input Current	100VAC	12A~6A			+3.3V 0.3A 25A				125W	1000W
	240VAC +5V 0.3A 25A
PFC Type Active PFC +12V 0.6A 83.33A 1000W
Power Factor Correction Max 99% -12V 0.01A 0.3A 3.6W
Inrush Current Limit (@ Cold Start at 25°C)	100VAC	Max 100A			+5VSB	0.1A	3A		15W
	240VAC				Ambient Temperature
Efficiency	Max 90% @ 115VAC, Typical load				Operation		0 ~ +40°C
DC Output Voltage Regulation	Vout	Regulation Range		At Full Load	Storage		-20 ~ +70°C
	+3.3VDC	±5%	+3.14 ~ +3.47V		Ambient Humidity
	+5VDC	±5%	+4.75 ~ +5.25V		Operation		5% ~ 85% RH
	+12VDC	±5%	+11.4 ~ +12.6V		Storage		5% ~ 95% RH
	-12VDC	±10%	-10.8 ~ -13.2V		Dimensions		140(L) X 150(W) X 86(H) mm
	+5VSB	±5%	+4.75 ~ +5.25V		Weight		2.45Kg
DC Output Ripple & Noise	Vout Standard Range			At Full Load	Protection Funtions
	+3.3VDC 50mV				Over-Current Protection (OCP)
	+5VDC	50mV			Over-Voltage Protection (OVP)
	+12VDC	120mV			Over-Power Protection (OPP)
	-12VDC 120mV				Over-Temperature Protection (OTP)
	+5VSB	50mV			Under-Voltage Protection (UVP)
					Short-Circuit Protection (SCP)

2) Connector Specifications

3) Cable Specifications

3. ZM1200-TMX Specifications

1) Electrical & Physical Specifications

AC Input Range	Voltage 100~240VAC				Vout	Output Load Rating			Combined Power
	Frequency 50Hz ~ 60Hz I					min	Imax	Ipeax
AC Input Current	100VAC	14A~7A			+3.3V 0.3A 25A				125W	1200W
	240VAC +5V 0.3A 25A
PFC Type Active PFC +12V 0.6A 100A 1200W
Power Factor Correction Max 99% -12V 0.01A 0.3A 3.6W
Inrush Current Limit (@ Cold Start at 25°C)	100VAC	Max 100A			+5VSB	0.1A	3A		15W
	240VAC				Ambient Temperature
Efficiency	Max 90% @ 115VAC, Typical load				Operation		0 ~ +40°C
DC Output Voltage Regulation	Vout	Regulation Range		At Full Load	Storage		-20 ~ +70°C
	+3.3VDC	±5% +3.14 ~ +3.47V			Ambient Humidity
	+5VDC	±5%	+4.75 ~ +5.25V		Operation		5% ~ 85% RH
	+12VDC	±5%	+11.4 ~ +12.6V		Storage		5% ~ 95% RH
	-12VDC	±10% -10.8 ~ -13.2V Dimensions			140(L) X 150(W) X 86(H) mm
	+5VSB	±5% +4.75 ~ +5.25V			Weight		2.5Kg
DC Output Ripple & Noise	Vout	Standard Range		At Full Load	Protection Funtions
	+3.3VDC 50mV				Over-Current Protection (OCP)
	+5VDC	50mV			Over-Voltage Protection (OVP)
	+12VDC	120mV			Over-Power Protection (OPP)
	-12VDC 120mV				Over-Temperature Protection (OTP)
	+5VSB	50mV			Under-Voltage Protection (UVP)
					Short-Circuit Protection (SCP)

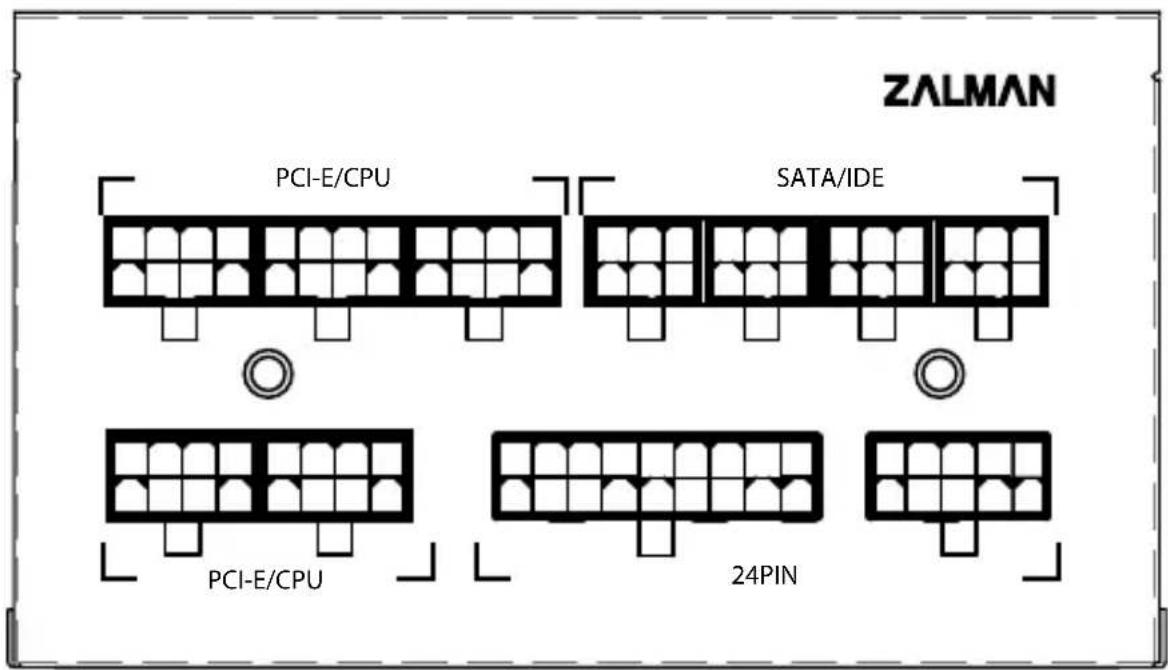

2) Connector Specifications

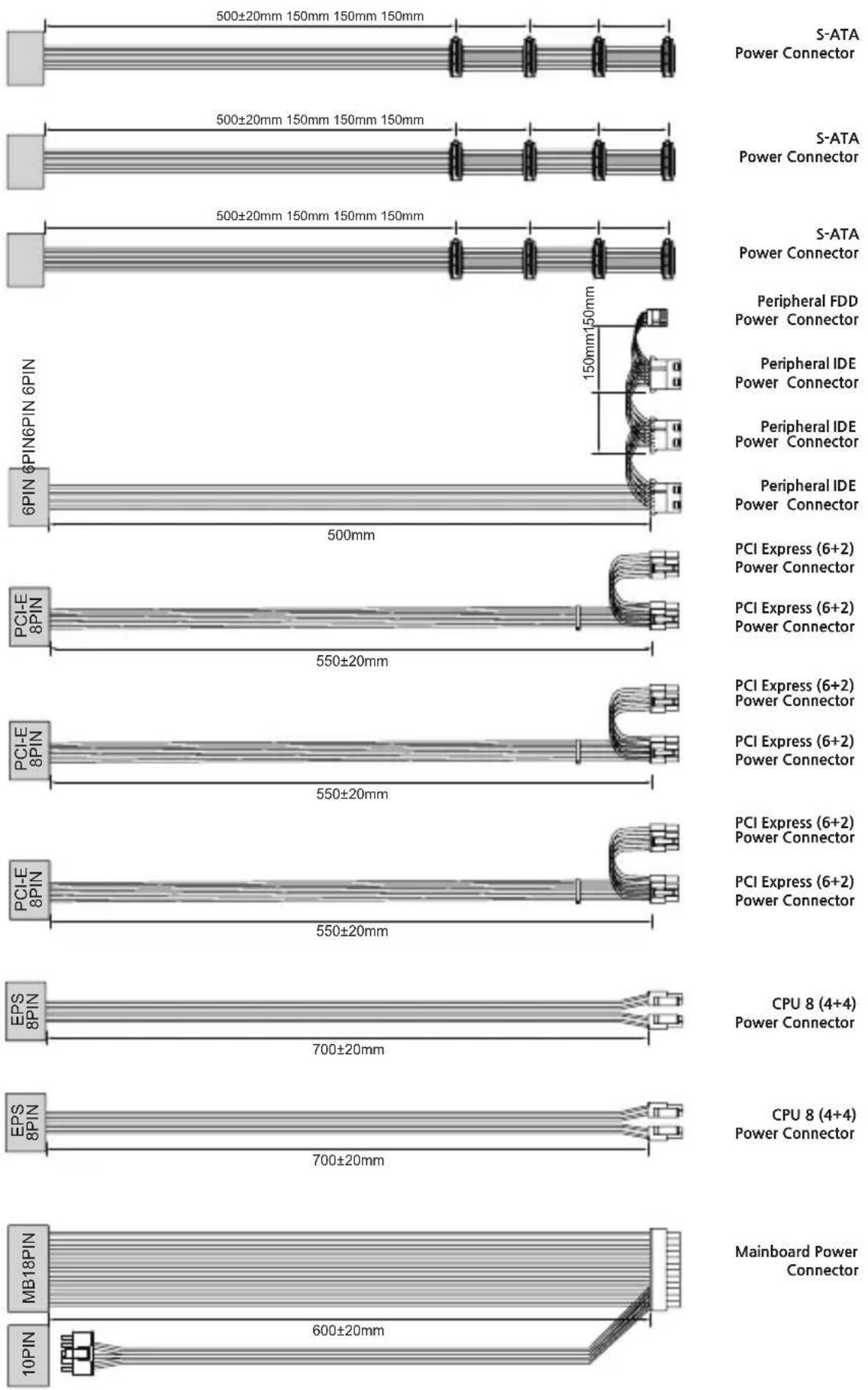

3) Cable Specifications
