USER MANUAL GigaMax III ZM750-GV3 ZALMAN
English Warnings and Safety Precautions
WARNING
Neglecting the following may cause serious injury or death.
- Opening the cover of the product while the power cord is plugged into an outlet may cause electrocution or critical damage to the product.
- Handling the power cord with wet hands may cause electrocution.
- Inserting fingers or metallic objects into the cooling fan may cause injury or electrocution.
CAUTION
Neglecting the following may cause minor injuries, degrade product conditions or cause malfunction.
- Operating the product in an extremely cold or hot environment can degrade product performance and lifespan.
Exposure to liquids may cause malfunction.
Operation in a humid or non-ventilated environment may reduce product lifespan. - Plugging the main power connector P1 into the motherboard while the product is connected to the AC power source may cause damage to the motherboard.
- Make sure that the connectors are connected to their designated locations, and that the connectors are not oriented in the wrong direction when connecting the DC output connectors.
- Please use gloves to prevent injuries during installation.
Product designs and specifications may be revised without prior notification to improve quality and performance.
WARNING
This product is designed for computer use only, such as offices, multimedia, the Internet and games. Using this product in any other application will void the warranty. The power supply unit(PSU) is for integration into a computer system and not intended for external or outdoor usage. Please note that Full Modular PSU's warranty is applicable to the power supply unit ONLY and does not include accessories such as, power cable, connector and etc. Non-Modular warranty is applicable to PSU and its power cables. If you have any questions, please ask a specialist for help.
DISCLAIMER
Zalman Tech Co., Ltd. is not responsible for any damages due to external causes, including but not limited to, improper use, problems with electrical power, accident, neglect, alteration, repair, improper installation, or improper testing.
Cable Ties x5Screws x4Power
Modular Cable
User's Manual AC Power Cord
2. ZM650-GV3 Specifications
1) Electrical & Physical Specifications
| AC Input Range | Voltage 200-240V~ | Vout | Output Load Rating | Combined Power | |||||
| Frequency 50Hz-60Hz I | min | imax | beak | ||||||
| AC Input Current 240VAC 5A | +3.3V 0.3A 20A | 110W | 650W | ||||||
| +5V 0.3A 20A | |||||||||
| PFC Type Active PFC +12V 0.6A 54.16A 650W | |||||||||
| Power Factor Correction Max 99% -12V 0.01A 0.3A 3.6W | |||||||||
| Inrush Current Limit (@ Cold Start at 25°C) | 240VAC Max 100A | +5VSB 0.1A 3A | 15W | ||||||
| Ambient Temperature | |||||||||
| Efficiency | Max 88% @ 230VAC, Typical load | Operation | 0 ~ +40°C | ||||||
| DC Output Voltage Regulation | Vout | Regulation Range | Storage | -20 ~ +70°C | |||||
| +3.3VDC | ±5% | +3.14 ~ +3.47V | Ambient Humidity | ||||||
| +5VDC | ±5% | +4.75 ~ +5.25V | Operation | 5% ~ 85% RH | |||||
| +12VDC | ±5% | +11.4 ~ +12.6V | Storage | 5% ~ 95% RH | |||||
| -12VDC | ±10% | -10.8 ~ -13.2V | Dimensions | 140(L) X 150(W) X 86(H) mm | |||||
| +5VSB | ±5% | +4.75 ~ +5.25V | Weight | 1.65Kg | |||||
| DC Output Ripple & Noise | Vout | Standard Range | Protection Funtions | ||||||
| +3.3VDC | 50mV | Over-Current Protection (OCP) | |||||||
| +5VDC | 50mV | Over-Voltage Protection (OVP) | |||||||
| +12VDC 120mV | Over-Power Protection (OPP) | ||||||||
| -12VDC | 120mV | Over-Temperature Protection (OTP) | |||||||
| +5VSB | 50mV | Under-Voltage Protection (UVP) | |||||||
| Short-Circuit Protection (SCP) | |||||||||

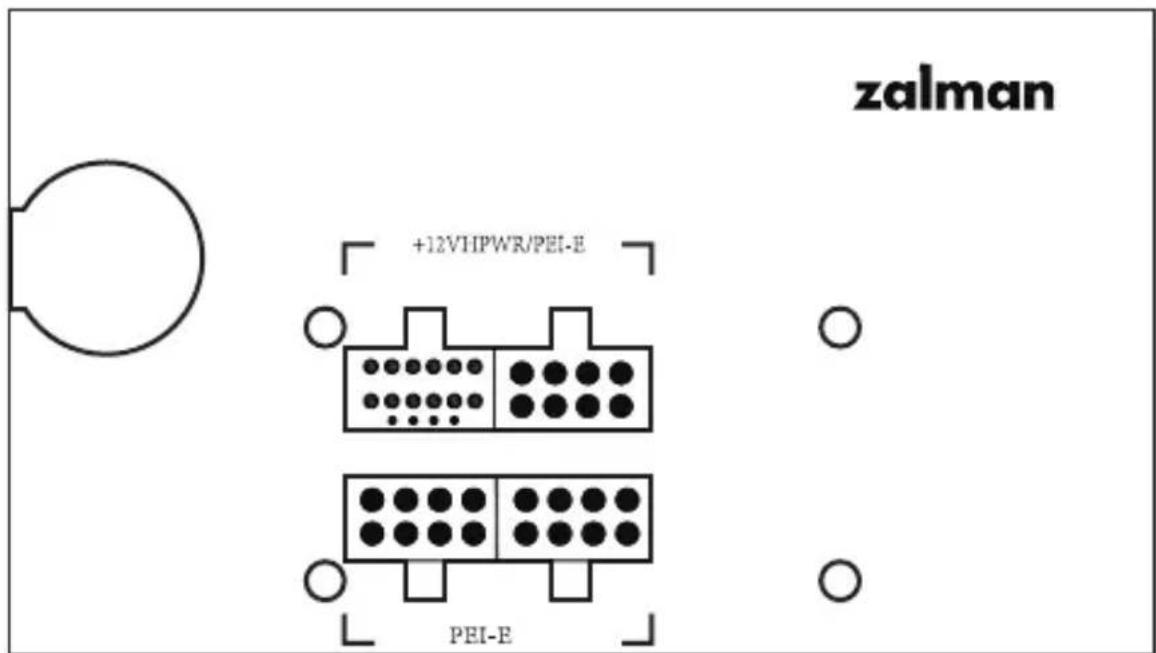

2) Connector Specifications
3) Cable Specifications
2. ZM750-GV3 Specifications
1) Electrical & Physical Specifications
| AC Input Range | Voltage 200-240V~ | Vout | Output Load Rating | Combined Power | |||||
| Frequency 50Hz-60Hz I | min | imax | Ipeak | ||||||
| AC Input Current 240VAC 6A | +3.3V 0.3A 20A | 120W | 750W | ||||||
| +5V 0.3A 20A | |||||||||
| PFC Type Active PFC +12V 0.6A 62.5A 750W | |||||||||
| Power Factor Correction Max 99% -12V 0.01A 0.3A 3.6W | |||||||||
| Inrush Current Limit (@ Cold Start at 25℃) | 240VAC Max 100A | +5VSB 0.1A | 3A | 15W | |||||
| Ambient Temperature | |||||||||
| Efficiency | Max 88% @ 230VAC, Typical load | Operation | 0 ~ +40°C | ||||||
| DC Output Voltage Regulation | Vout | Regulation Range | Storage | -20 ~ +70°C | |||||
| +3.3VDC | ±5% | +3.14 ~ +3.47V | Ambient Humidity | ||||||
| +5VDC | ±5% | +4.75 ~ +5.25V | Operation | 5% ~ 85% RH | |||||
| +12VDC | ±5% | +11.4 ~ +12.6V | Storage | 5% ~ 95% RH | |||||
| -12VDC | ±10% | -10.8 ~ -13.2V | Dimensions | 140(L) X 150(W) X 86(H) mm | |||||
| +5VSB | ±5% | +4.75 ~ +5.25V | Weight | 1.7Kg | |||||
| DC Output Ripple & Noise | Vout | Standard Range | Protection Funtions | ||||||
| +3.3VDC | 50mV | Over-Current Protection (OCP) | |||||||
| +5VDC | 50mV | Over-Voltage Protection (OVP) | |||||||
| +12VDC 120mV | Over-Power Protection (OPP) | ||||||||
| -12VDC | 120mV | Over-Temperature Protection (OTP) | |||||||
| +5VSB | 50mV | Under-Voltage Protection (UVP) | |||||||
| Short-Circuit Protection (SCP) | |||||||||

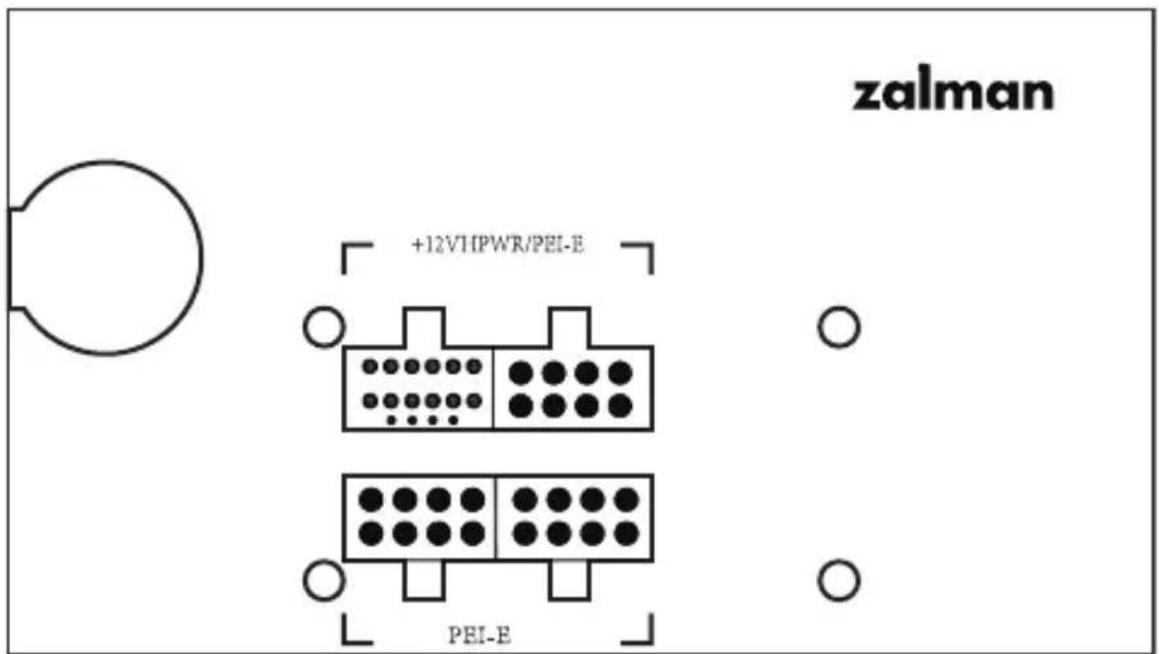

2) Connector Specifications
3) Cable Specifications
3. ZM850-GV3 Specifications
1) Electrical & Physical Specifications
| AC Input Range | Voltage 200-240V~ | Vout | Output Load Rating | Combined Power | |||||
| Frequency 50Hz-60Hz I | min | imax | Ipeak | ||||||
| AC Input Current 240VAC 7A | +3.3V 0.3A 20A | 130W | 850W | ||||||
| +5V 0.3A 20A | |||||||||
| PFC Type Active PFC +12V 0.6A 70.83A 850W | |||||||||
| Power Factor Correction Max 99% -12V 0.01A 0.3A 3.6W | |||||||||
| Inrush Current Limit (@ Cold Start at 25°C) | 240VAC Max 100A | +5VSB 0.1A 3A | 15W | ||||||
| Ambient Temperature | |||||||||
| Efficiency | Max 88% @ 230VAC, Typical load | Operation | 0 ~ +40°C | ||||||
| DC Output Voltage Regulation | Vout | Regulation Range | Storage | -20 ~ +70°C | |||||
| +3.3VDC | ±5% | +3.14 ~ +3.47V | Ambient Humidity | ||||||
| +5VDC | ±5% | +4.75 ~ +5.25V | Operation | 5% ~ 85% RH | |||||
| +12VDC | ±5% | +11.4 ~ +12.6V | Storage | 5% ~ 95% RH | |||||
| -12VDC | ±10% | -10.8 ~ -13.2V | Dimensions | 140(L) X 150(W) X 86(H) mm | |||||
| +5VSB | ±5% | +4.75 ~ +5.25V | Weight | 1.8Kg | |||||
| DC Output Ripple & Noise | Vout | Standard Range | Protection Funtions | ||||||
| +3.3VDC | 50mV | Over-Current Protection (OCP) | |||||||
| +5VDC | 50mV | Over-Voltage Protection (OVP) | |||||||
| +12VDC 120mV | Over-Power Protection (OPP) | ||||||||
| -12VDC | 120mV | Over-Temperature Protection (OTP) | |||||||
| +5VSB | 50mV | Under-Voltage Protection (UVP) | |||||||
| Short-Circuit Protection (SCP) | |||||||||

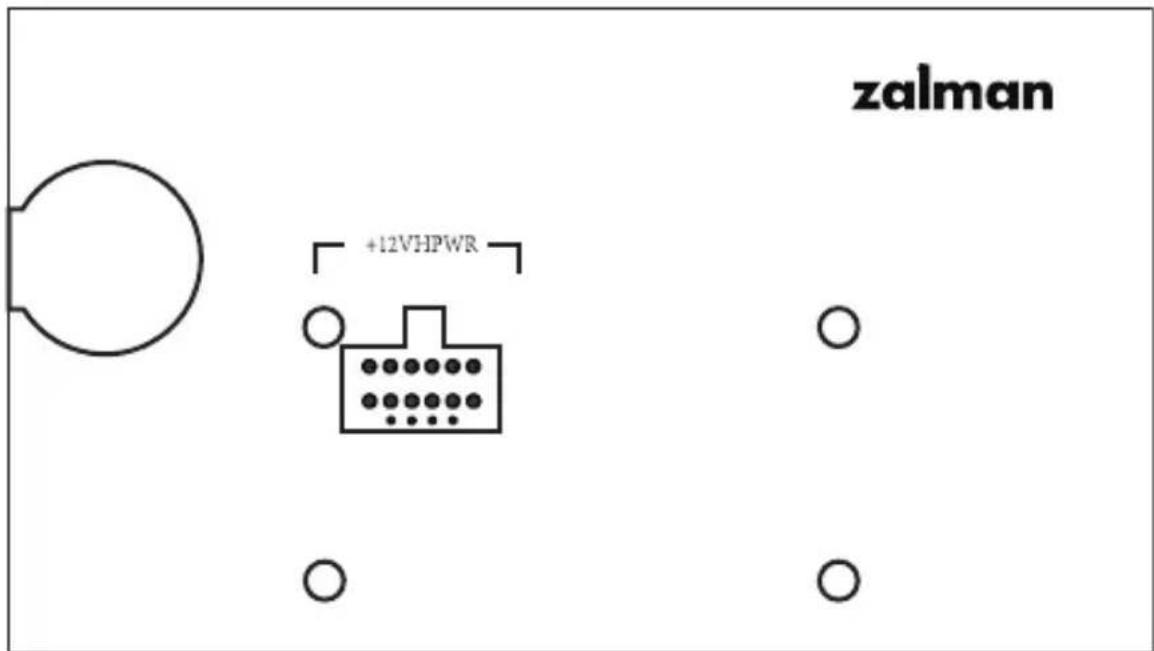

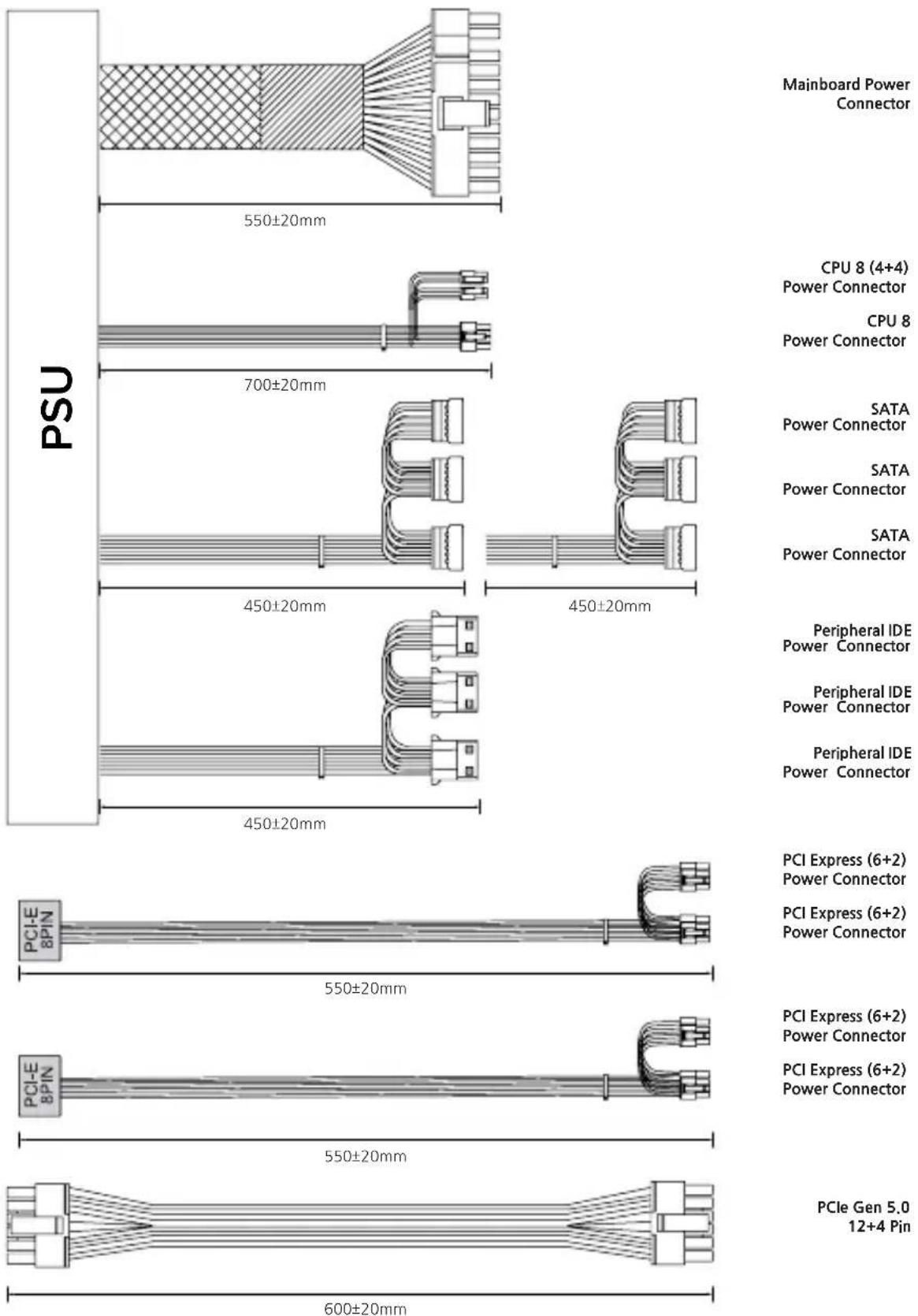

2) Connector Specifications
3) Cable Specifications

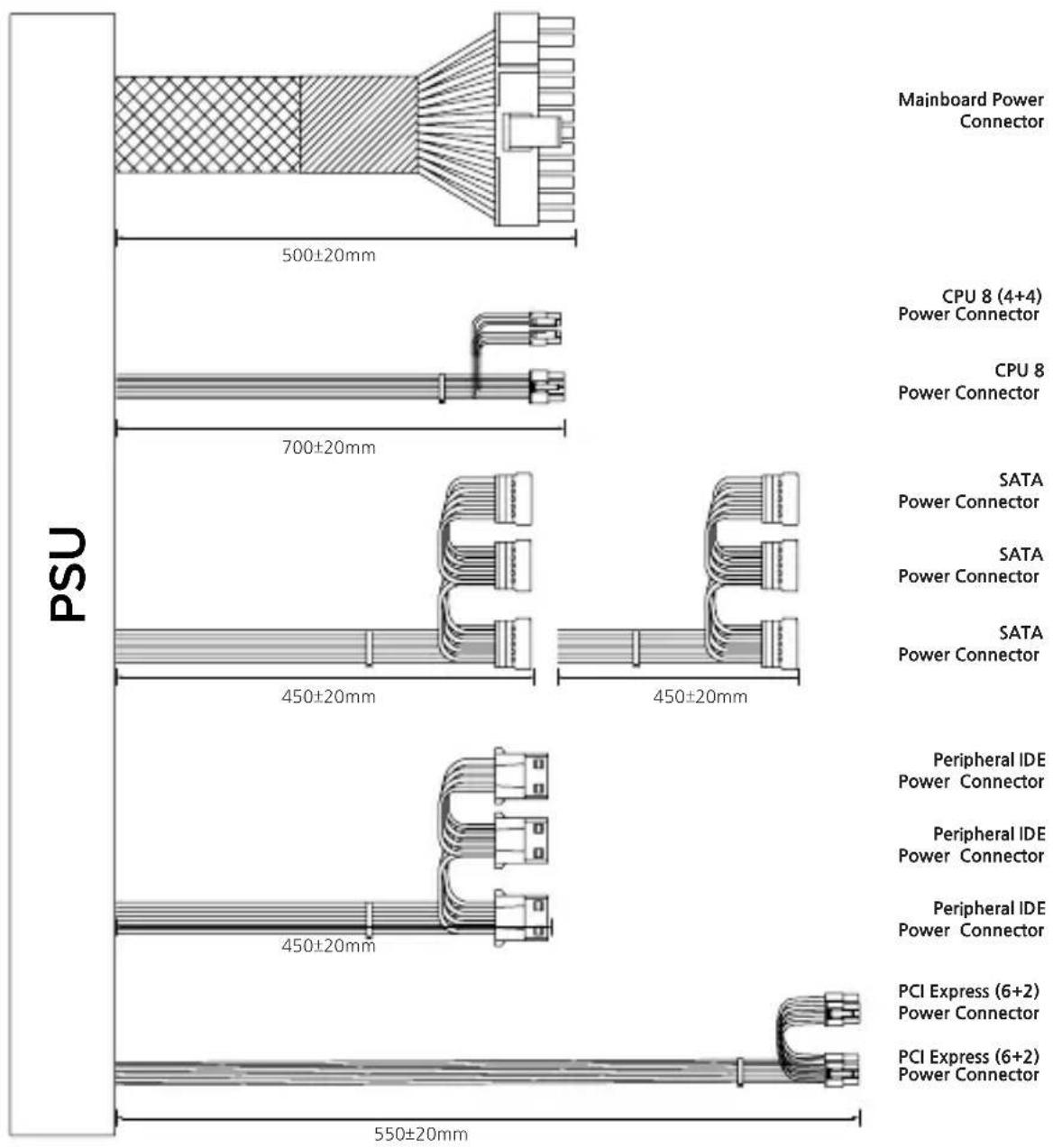

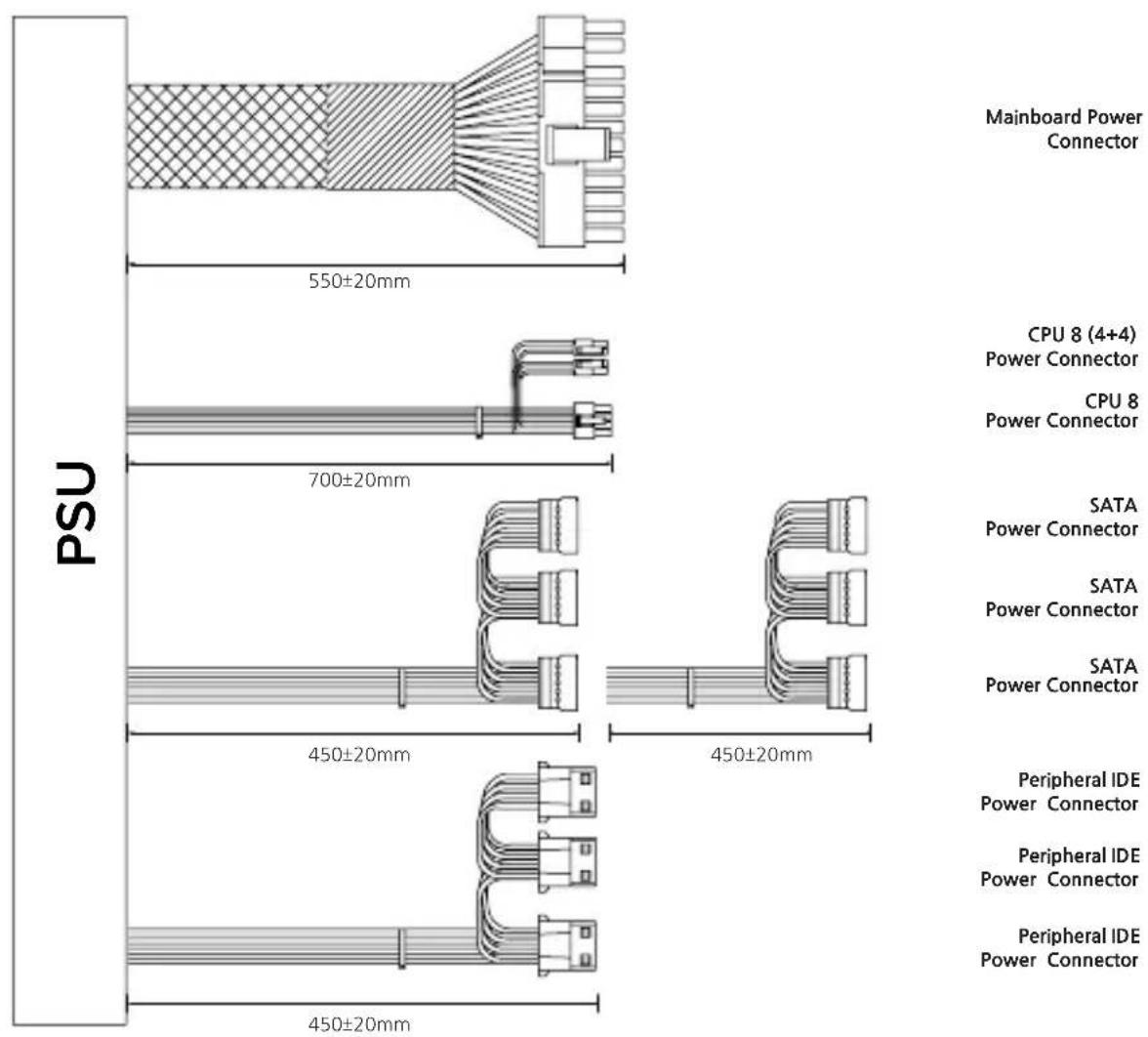

Mainboard Power
Connector
CPU8 (4 + 4)
Power Connector
CPU8
Power Connector
SATA
Power Connector
SATA
Power Connector
SATA
Power Connector
Peripheral IDE
Power Connector
Peripheral IDE
Power Connector
Peripheral IDE
Power Connector

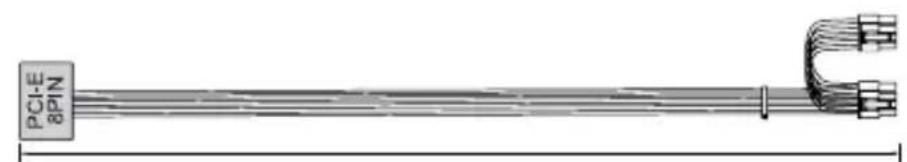

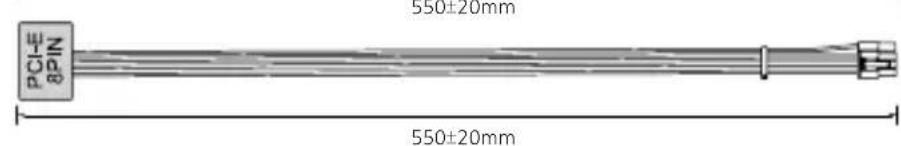

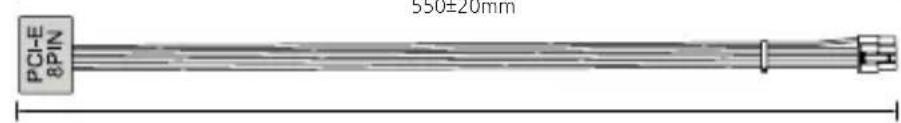

PCI Express (6+2)
Power Connector
PCI Express (6+2)
Power Connector
PCI Express (6+2)
Power Connector
PCI Express (6+2)
Power Connector

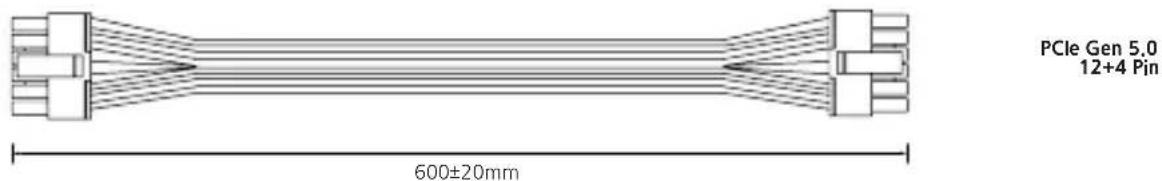

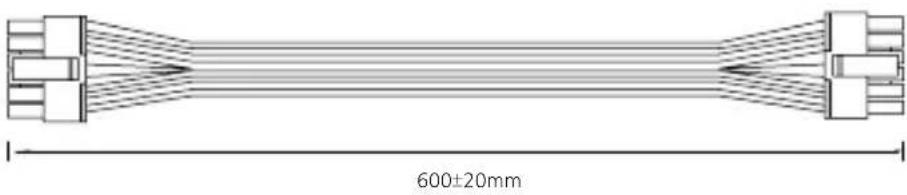

PCIe Gen 5.0
12+4 Pin
