USER MANUAL GA 04 Palmer

ADIG-LB is the latest development of our legendary speaker simulator PDI-03, which has proven itself around the world in recording studios and is being used by such well-known artists as Keith Richards/ Rolling Stones, Alex Lifeson/Rush, Warren Curcurullo/Duran Duran or even Eddie van Halen and Def Leppard to name a few.

With the ADIG-LB (Advanced Direct Injection for Guitar/Load Box, trademark pending) we want to offer guitarists/recording engineers new sound possibilities which go far beyond the speaker/microphone combination. The device has a built-in load box (120 W continuous power with LED indicator) and is thus intended for direct connection to an amplifier, head or combo. With a filter section comprising two tone controls and a switch, a wide scope of sound manipulation can be achieved.

A volume control determines the output level of the filter section. Another "Full Range" volume control determines the volume of the unfiltered frequency band. This makes it possible to produce the sound directly in the console to create simulated guitars which is very popular when playing with a clean sound. Since both sounds are now miscible with each other, you can achieve completely new variants, which can otherwise only be accomplished via elaborate multi-channel recordings using several amplifiers. But the full-range controller can also be trimmed in the upper frequency range by means of a very steep filter. So, the combination of the two approaches opens up a plethora of different sounds. This represents a real alternative to the speaker signal recorded with a microphone, without possessing the latter's disadvantages, such as space-dependent sound, nuisance due to excessive noise levels in the room, crosstalk of the microphone signal, etc.

If you opt for "monitor sound" as the speaker sound in a live performance, ADIG-LB can be connected between the amplifier and the speaker like a normal DI box.

SAFETY INFORMATION

1. Please read these instructions carefully.
2. Keep all information and instructions in a safe place.
3. Follow the instructions.
4. Observe all safety warnings. Never remove safety warnings or other information from the equipment.
5. Use the equipment only in the intended manner and for the intended purpose.
6. Use only sufficiently stable and compatible stands and/or mounts (for fixed installations). Make certain that wall mounts are properly installed and secured. Make certain that the equipment is installed securely and cannot fall down.
7. During installation, observe the applicable safety regulations for your country.
8. Never install and operate the equipment near radiators, heat registers, ovens or other sources of heat. Make certain that the equipment is always installed so that is cooled sufficiently and cannot overheat.
9. Never place sources of ignition, e.g., burning candles, on the equipment.
10. Ventilation slits must not be blocked.
11. Do not use this equipment in the immediate vicinity of water (does not apply to special outdoor equipment - in this case, observe the special instructions noted below. Do not expose this equipment to flammable materials, fluids or gases.
12. Make certain that dripping or splashed water cannot enter the equipment. Do not place containers filled with liquids, such as vases or drinking vessels, on the equipment.
13. Make certain that objects cannot fall into the device.
14. Use this equipment only with the accessories recommended and intended by the manufacturer.
15. Do not open or modify this equipment.
16. After connecting the equipment, check all cables in order to prevent damage or accidents, e.g., due to tripping hazards.
17. During transport, make certain that the equipment cannot fall down and possibly cause property damage and personal injuries.
18. If your equipment is no longer functioning properly, if fluids or objects have gotten inside the equipment or if it has been damaged in another way, switch it off immediately and unplug it from the mains outlet (if it is a powered device). This equipment may only be repaired by authorized, qualified personnel.
19. Clean the equipment using a dry cloth.
20. Comply with all applicable disposal laws in your country. During disposal of packaging, please separate plastic and paper/cardboard.
21. Plastic bags must be kept out of reach of children.

FORE EQUIPMENT THAT CONNECTS TO THE POWER MAINS:

1. CAUTION: If the power cord of the device is equipped with an earth- ing contact, then it must be connected to an outlet with a protective

ground. Never deactivate the protective ground of a power cord.

1. If the equipment has been exposed to strong fluctuations in temperature (for example, after transport), do not switch it on immediately. Moisture and condensation could damage the equipment. Do not switch on the equipment until it has reached room temperature.
2. Before connecting the equipment to the power outlet, first verify that the mains voltage and frequency match the values specified on the equipment. If the equipment has a voltage selection switch, connect the equipment to the power outlet only if the equipment values and the mains power values match. If the included power cord or power adapter does not fit in your wall outlet, contact your electrician.
3. Do not step on the power cord. Make certain that the power cable does not become kinked, especially at the mains outlet and/or power adapter and the equipment connector.
4. When connecting the equipment, make certain that the power cord or power adapter is always freely accessible. Always disconnect the equipment from the power supply if the equipment is not in use or if you want to clean the equipment. Always unplug the power cord and power adapter from the power outlet at the plug or adapter and not by pulling on the cord. Never touch the power cord and power adapter with wet hands.
5. Whenever possible, avoid switching the equipment on and off in quick succession because otherwise this can shorten the useful life of the equipment.
6. IMPORTANT INFORMATION: Replace fuses only with fuses of the same type and rating. If a fuse blows repeatedly, please contact an authorised service centre.
7. To disconnect the equipment from the power mains completely, unplug the power cord or power adapter from the power outlet.
8. If your device is equipped with a Volex power connector, the mating Volex equipment connector must be unlocked before it can be removed. However, this also means that the equipment can slide and fall down if the power cable is pulled, which can lead to personal injuries and/or other damage. For this reason, always be careful when laying cables.
9. Unplug the power cord and power adapter from the power outlet if there is a risk of a lightning strike or before extended periods of disuse.

CAUTION:

Never remove the cover, because otherwise there may be a risk of electric shock. There are no user serviceable parts inside. Have repairs carried out only by qualified service personnel.

The lightning flash with arrowhead symbol within an equilateral triangle is intended to alert the user to the presence of uninsulated "dangerous voltage" within the product's enclosure that may be of sufficient magnitude to constitute a risk of electrical shock.

The exclamation mark within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance instructions.

CAUTION - HIGH VOLUME LEVELS WITH AUDIOPRODUCTS!

This equipment is intended for professional use. Therefore, commercial use of this equipment is subject to the respectively applicable national accident prevention rules and regulations. As a manufacturer, Adam Hall is obligated to notify you formally about the existence of potential health risks.

Hearing damage due to high volume and prolonged exposure: When in use, this product is capable of producing high sound-pressure levels (SPL) that can lead to irreversible hearing damage in performers, employees, and audience members. For this reason, avoid prolonged exposure to volumes in excess of 90 dB.

CAUTION! IMPORTANT INFORMATION ABOUT LIGHTING PRODUCTS

1. Do not look into the beam from a distance of less than 40 cm.
2. Do not stare into the beam for extended periods at short-to-medium distances.
3. Do not view the beam directly with optical instruments such as magnifiers.
4. Under some circumstances, stroboscopic effects may trigger epileptic seizures in sensitive individuals! For this reason, persons who suffer from epilepsy should always avoid places where strobe lights are used.

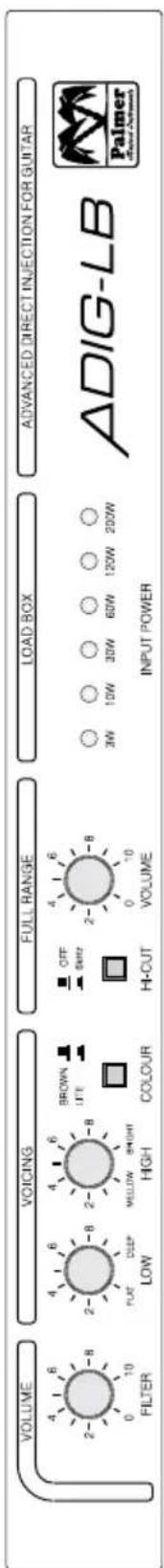

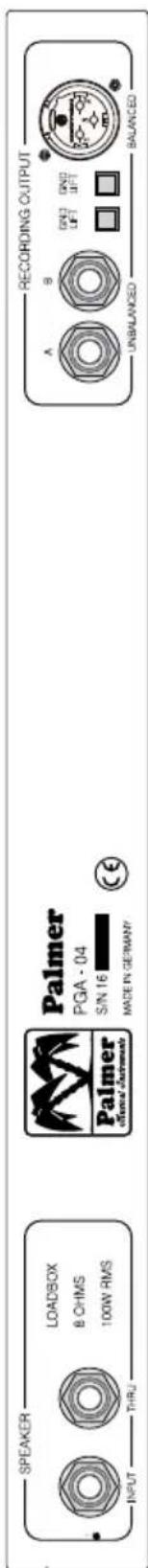

FRONT-/BACKPANEL

CONNECTIONS:

Connect the speaker output of the amplifier to the "Speaker Input" jack on the PGA04. Turn the amplifier to 8 ohms or use the appropriate output jack. A speaker cable with the corresponding cross sections (min. 0.75 mm²) should be used. If an additional box is to be connected (during live operation), the "Speaker Thru" socket is available for this purpose. The internal load box is then switched off; next set the impedance selector on the amplifier according to the resistance value of the box. The built-in load box can handle a maximum of 100 watts of continuous power. With an externally connected speaker, amplifiers of up to 200 watts can be connected. Please keep in mind that the built-in load box converts the amplifier power into heat. The unit should therefore be built into a 19" rack with enough space for adequate air circulation. The LED-chain on the front panel gives information about the power handling capacity of the load box. Never let the last red LED display segments illuminate continuously. In this event, there is an acute risk of overloading the unit. Since for an externally connected speaker, the internal load box is switched off, the LED indicator on the front has no function in this case.

For further processing of the signal (Recording, PA, effects) two unbalanced jack outputs and a balanced XLR jack are available. All outputs can be used in parallel. Only high quality shielded cables should be used for connection. In the studio, the XLR plug should preferably be connected to the microphone input of the mixer using a micro cable. This output is low impedance and also provides the cleanest signal over long cable lengths. A ground lift switch disconnects the input ground from the output, thus preventing possible ground loops.

CONTROLS AND SWITCHES

Set your guitar amplifier volume on the ADIG-LB to minimum (FILTER AND FULL RANGE) as you would normally do when using a box. To begin, adjust the amplifier volume so that when the first chords are played, the first two LEDs on the ADIG-LB light up (50 Watt amplifier; with a 100 W amplifier, the third LED can also be flashing).

With "Filter Volume" or "Full Range Volume", you can control the devices connected to the output of ADIG-LB. If you want to use the natural power amp distortion of your amp, you can continue to turn it up and then of course turn down the output level of the ADIG-LB accordingly.

VOICING

Anyone who has ever tried the different types of speakers and boxes side by side, will confirm that they greatly influence the guitar sound. When miking, the microphone type and placement play a crucial role. This fact is taken into account by the ADIG-LB via a comprehensive sound control. There are two potentiometers available in the filter channel. They can be used to influence both the lower and the upper end of the frequency band. With the "HIGH" control, the speaker sound can be continuously and seamlessly adjusted from soft "MELLOW" to aggressive "BRIGHT". Of course, without mentioning any other brands, the experienced musician will be familiar with the terms British/California as sound categories for speakers. The "LOW" control determines the box type, whereby the term "FLAT" stands for the thinned sound of open 2 x 10" speakers, while the other extreme "DEEP" represents the thrust of a stack with two closed 4 x 12". In between, lies a wide area to choose from. The "COLOUR" control defines the character of the speaker. "BROWN" is a slightly nasal and darker basic sound, while "LITE" gives a more open sound. The effect of the COLOUR control is also influenced by the position of the HIGH control. Those who prefer very aggressive sounds, should mix in the "FULL RANGE VOLUME" as well; it is then necessary to activate the "HI-CUT" control, otherwise you might get the infamous "paper cutter" sound. For extra clean sounds, however, it is recommended to mix in FULL RANGE without activating the HI-CUT. In this way, one can come close to the sound of an "acoustic" guitar. Since we know from many sound engineers that they have used the PDI-03 not only for guitars, but also for other instruments, we look to the mixing capabilities of ADIG-LB's Filter and Full Range sounds to create previously unimagined new possibilities for the creative sound artist. Since every guitar/amp combination has its own unique sound, we do not intend to come up with random example settings. Finding your own sound should always be the top priority for dedicated musicians and sound artists.

CAUTION!

In the built-in load box, halogen lamps are used as dynamic components. These begin to glow visibly at continuous high levels. This light can then be seen through the upper and lower cooling vents and also through

other openings. Do not be alarmed: your device does not contain any components that are about to "burn down". However, as already mentioned above, you should always make sure that sufficient airflow is provided for adequate heat dissipation. It should be pointed out that power tubes do wear out, depending on the delivered output power of the amplifier. Therefore, if you continuously operate your amp at high levels, you can expect an increased wear of the output tubes.

SPECIFICATIONS

Product Type: speaker simulator
Type: passive
Number of Channels: 1
Input Type: unbalanced
Number of Inputs: 1
Input Connections: 6.3 mm jack
Output Type: balanced, unbalanced
Number of Outputs: 2
Output Connections: XLR, 6.3 mm jack
Output Impedance: 600 (XLR), 10 k (6.3 mm jack) Ohm
Controls: High, Hi-Cut, Volume, Low, Ground-Lift, Full Range Volume, Colour, Filter Volume
Indicators: loadbox load
Loadbox: yes
Load Box Impedance: see printing on rear of unit
Max. Load: 100 W
Voicing Filter: yes
Power Attenuator: no
Transformer-balanced Outputs: yes
Cabinet Material: sheet steel
Cabinet Surface: powder-coated
Width (inches): 19
Height (U): 1
Dimensions (W x D x H): 480 x 180 x 44.5 mm
Weight: 2.59 kg

Adam Hall GmbH, all rights reserved. The technical data and the functional product characteristics can be subject to modifications.

MANUFACTURER'S WARRANTY

PALMER is a brand of the Adam Hall group.

This warranty covers the Adam Hall brands.

It applies to all products distributed by Adam Hall.

This warranty declaration does not affect the statutory warranty claims against the manufacturer, but expands them with additional warranty claims vis-a-vis Adam Hall.

Adam Hall warrants that the Adam Hall product that you have purchased from Adam Hall or from an Adam Hall authorized reseller is free from defects in materials or workmanship under normal use for a period of 2 or 5 years (please inquire on a product-by-product basis) from the date of purchase.

The warranty period begins on the date on which the product was purchased, proof of which must be produced (through presentation of the invoice or the delivery note with the date of purchase) in the event of a warranty claim. Should products of the brands named above be in need of repair within the limited warranty period, you are entitled to warranty service according to the terms and conditions stated here.

During the Limited Warranty Period, Adam Hall will repair or replace the defective component parts or the product. In the event of repair or replacement during the Limited Warranty Period, the replaced original parts and/or products become property of Adam Hall.

In the unlikely event that the product which you purchased has a recurring failure, Adam Hall has the right, at its discretion, to replace the defective product with another product, provided that the new product is at least equivalent to the product being replaced with regard to the technical specifications.

Adam Hall does not warrant that the operation of this product will be uninterrupted or error-free. Adam Hall is not responsible for damage that occurs as a result of your failure to follow the instructions included with the Adam Hall branded product. The manufacturer's warranty does not cover - expendable parts (e.g., rechargeable batteries) - products from which the serial number has been removed or with a serial number that has been damaged as a result of an accident - damage due to improper use, user error or other external reasons

• damage to devices operated outside the usage parameters stated in the documentation included with the product

• damage due to the use of replacement parts not manufactured, sold or recommended by Adam Hall,

• damage due to modification or servicing by anyone other than Adam Hall. These terms and conditions constitute the complete and exclusive warranty agreement between you and Adam Hall regarding the Adam Hall branded product you have purchased.

LIMITATION OF LIABILITY

If your Adam Hall branded hardware product fails to work as warranted above, your sole and exclusive remedy shall be repair or replacement. Adam Halls' maximum liability under this limited warranty is expressly limited to the lesser of the price you have paid for the product or the cost of repair or replacement of any components that malfunction under conditions of normal use.

Adam Hall is not liable for any damages caused by the product or the failure of the product, including any lost profits or savings or special, incidental, or consequential damages. Adam Hall is not liable for any claim made by a third party or made by you for a third party.

This limitation of liability applies whether damages are sought, or claims are made, under this Limited Warranty or as a tort claim (including negligence and strict product liability), a contract claim, or any other claim, and cannot be rescinded or changed by anyone. This limitation of liability will be effective even if you have advised Adam Hall or an authorized representative of Adam Hall of the possibility of any such damages, but not, however, in the event of claims for damages in connection with personal injuries.

This manufacturer's warranty grants you specific rights; depending on jurisdiction (nation or state), you may be entitled to additional claims. You are advised to consult applicable state or national laws for a full determination of your rights.

REQUESTING WARRANTY SERVICE

To request warranty service for the product, contact Adam Hall or the Adam Hall authorized reseller from which you purchased the product.

ECDECLARATION OF CONFORMITY

The equipment marketed by Adam Hall complies (where applicable) with the essential requirements and other relevant specifications of Directives 1999/5/EC (R&TTE), 2004/108/EC (EMC) und 2006/95/EC (LVD). Additional information can be found at www.adamhall.com.

PROPER DISPOSAL OF THIS PRODUCT

(WASTE ELECTRICAL AND ELECTRONIC EQUIPMENT)

(Valid in the European Union and other European countries with waste separation)

This symbol on the product, or the documents accompanying the product, indicates that this appliance may not be treated as household waste. This is to avoid environmental damage or personal injury due to uncontrolled

waste disposal. Please dispose of this product separately from other waste and have it recycled to promote sustainable economic activity.

Household users should contact either the retailer where they purchased this product, or their local government office, for details on where and how they can recycle this item in an environmentally friendly manner. Business users should contact their supplier and check the terms and conditions of the purchase contract. This product should not be mixed with other commercial wastes for disposal

ENVIRONMENTAL PROTECTION AND ENERGY CONSERVATION

Energy conservation is an active contribution to environmental protection. Please turn off all unneeded electrical devices. To prevent unneeded devices from consuming power in standby mode, disconnect the mains plug.
