Brand	SKIL
Model	3211 CA
Product type	Cordless brushless impact driver
Max torque (hard screwdriving ISO 5393)	250 Nm
Variable speed	Yes, by pressing the trigger
Direction of rotation	Reversible (switch)
Power supply	SKIL BR1*31**** lithium-ion battery
Compatible charger	SKIL CR1*31****
Included bit	50 mm screwdriver bit with locking groove
Integrated LED light	Yes, turns on automatically
Charge level indicator	On the battery, 3 levels
Battery protection	Overload, temperature, deep discharge
Operating temperature	-20°C to +50°C
Charging temperature	4°C to 40°C
Sound pressure level	78 dB(A) (uncertainty K=3 dB)
Sound power level	86 dB(A) (uncertainty K=3 dB)
Vibration (triax vector sum)	<2.5 m/s² (uncertainty K=1.5 m/s²)
Safety	Lock-off switch, automatic shut-off in case of overload
Maintenance	Regularly clean ventilation slots
After-sales service	SKIL authorized, repair by professional
Warranty	According to conditions (see www.skil.com)
Recycling	Do not dispose of with household waste, mandatory recycling
Recommended accessories	Bits with locking groove, universal bit holder

Frequently Asked Questions - 3211 CA SKIL

How to install a bit on the Skil 3211 CA impact driver?

To install a bit, pull the locking sleeve C forward, insert the bit into the bit holder and release the sleeve to lock it. Pull slightly on the bit to verify it is securely attached.

How to reverse the direction of rotation?

Use the switch B located on the tool to reverse the direction of rotation. Ensure the tool is completely stopped before changing direction.

What does the flashing of the battery charge level indicators mean?

If the lowest level flashes, the battery is discharged and needs to be charged. If two levels flash, the battery is outside the permitted operating temperature range (between -20°C and +50°C).

What is the maximum storage temperature of the tool?

The tool, charger and battery can be stored at a maximum temperature of 50°C. Do not expose them to higher temperatures.

How to clean the Skil 3211 CA impact driver?

Remove the battery from the tool before cleaning. Keep the tool clean, especially the ventilation slots D. Use a dry or slightly damp cloth.

What to do if the tool stops suddenly?

Sudden stop may be due to overload, out-of-range temperature or discharged battery. Remove the load and restart, or wait for the battery to cool. If the problem persists, contact after-sales service.

Can I use bits without locking groove?

It is recommended to use only bits with locking groove. Other bits can be used with a universal bit holder that has a locking groove. Do not use bits with a damaged shaft.

How to select the speed mode (low or high)?

Press the speed button E to toggle between low (L) and high (H) mode. The change can only be made after lightly pressing the on/off switch and when the tool is completely stopped.

Where can I find spare parts for the Skil 3211 CA?

Contact a SKIL authorized after-sales service center or visit www.skil.com for addresses and the exploded view of the tool.

How to recycle the used battery?

Do not dispose of the battery with household waste. Before recycling, cover the terminals with insulating tape to avoid short circuits. Deposit the battery at an appropriate collection point or at a recycling center.

USER MANUAL 3211 CA SKIL

Illustration of a SKIL electric drill with visible circuit patterns and a 20-pin base (no text or symbols on the device itself)

BRUSHLESS CORDLESS

IMPACT DRIVER

3211 (SD1\*3211\*\*)

GB ORIGINAL INSTRUCTIONS 8
(F) NOTICE ORIGINALE 11
D ORIGINALBETRIEBSANLEITUNG 15
NL ORIGINELE GEBRUIKSAANWIJZING 19
S BRUKSANVISNING | ORIGINAL 23
DK ORIGINAL BRUGSANVISNING 26
N ORIGINAL BRUKSANVISNING 30
FIN ALKUPERÄISET OHJEET 33
E MANUAL ORIGINAL 37
(P) MANUAL ORIGINAL 41
I ISTRUZIONI ORIGINALI 45
(H) EREDETI HASZNÁLATI UTASÍTÁS 49
CZ PÚVODNÍM NÁVODEM K POUŽÍVÁNÍ 53
TR ORİJINAL İŞLETME TALİMATI 56
PL INSTRUKCJA ORYGINALNA 60
RU ПОДЛИННИК РУКОВОДСТВА ПО 64 ЭКСПЛУАТАЦИИ

UA ОРИГИНАЛЬНА ІНСТРУКЦІЯ 69
З ЕКСПЛУАТАЦІЇ
GR ΠΡΩΤΟΥΠΟ ΟΔΗΓΙΩΝ ΧΡΗΣΗΣ 73
RO INSTRUCTIUNI DE FOLOSIRE 77 ORIGINALE
BG ОРИГИНАЛНО РЪКОВОДСТВО 81 ЗА ЕКСПЛОАТАЦИЯ
SK PÔVODNÝ NÁVOD NA POUŽITIE 86
HR ORIGINALNE UPUTE ZA RAD 89
SRB ORIGINALNO UPUTSTVO ZA RAD 93
SLO IZVIRNA NAVODILA 96
EST ALGUPÄRANE KASUTUSJUHEND 100
LV ORIGINĀLĀ LIETOŠANAS PAMĀCĪBA 103
LT ORIGINALI INSTRUKCIJA 107
МК ИЗВОРНО УПАТСТВО ЗА РАБОТА 111
AL UDHËZIMET ORIGJINALE 115
AR دليل الاستعمال 128
④ RAHENMAI AUSLI 126

www.skil.com

CE

3211

GB	EU Declaration of conformityCordless impact driver Article number	We declare under our sole responsibility that the stated products comply with all applicable provisions of the directives and regulations listed below and are in conformity with the following standards.Technical file at:★
F	Déclaration de conformité UEVisseuse à chocs sans-fil Numéro d'article	Nous déclarons sous notre propre responsabilité que les produits décrits sont en conformité avec les directives, règlements normatifs et normes énumérés ci-dessous.Dossier technique auprès de:★
D	EU-KonformitätserklärungAkku-Drehschlagschrauber Sachnummer	Wir erklären in alleiniger Verantwortung, dass die genannten Produkte allen einschlägigen Bestimmungen der nachfolgend aufgeführten Richtlinien und Verordnungen entsprechen und mit folgenden Normen übereinstimmen.Technische Unterlagen bei:★
NL	EU-conformiteitsverklaringAccu-slagschroevendraaier Productnummer	Wij verklaren op eigen verantwoordelijkheid dat de genoemde producten voldoen aan alle desbetreffende bepalingen van de hierna genoemde richtlijnen en verordningen en overeenstemmen met de volgende normen.Technisch dossier bij:★
S	EU-konformitetsförklaringSladdlös slagskruvdragare Produktnummer	Vi förklarar under eget ansvar att de nämnda produkterna uppfyller kraven i alla gällande bestämmelser i de nedan angivna direktiven och förordningarnas och att de stämmer överens med följande normer.Teknisk dokumentation:★
DK	EU-overensstemmelseserklæringAkku-slagskruetrækker Typenummer	Vi erklærer som eneansvarlige, at det beskrevne produkt er i overensstemmelse med alle gældende bestemmelser i følgende direktiver og forordninger og opfylder følgende standarder.Tekniske bilag ved:★
N	EU-samsvarserklæringBatteridrevet slagskrutrekker Produktnummer	Vi erklærer under eneansvar at de nevnte produktene er i overensstemmelse med alle relevante bestemmelser i direktivene og förordningene nedenfor og med følgende standarder.Teknisk dokumentasjon hos:★
FIN	EU-vaatimustenmukalsuusvakuutusAkkuiskuruuvinväännin Tuotenumero	Vakuutamme täten, että mainitut tuotteet vastaavat kaikkia seuraavien direktiivien ja asetusten asiaankuuluvia vaatimuksia ja ovat seuraavien standardien vaatimusten mukaisia.Tekniset asiakirjat saatavana:★
E	Declaración de conformidad UEAtornillador de impactoa batería Número de artículo	Declaramos bajo nuestra exclusiva responsabilidad, que los productos nombrados cumplen con todas las disposiciones correspondientes de las directivas y los reglamentos mencionados a continuación y están en conformidad con las siguientes normas.Documentos técnicos de:★
P	Declaração de conformidade CEAparafusadora de impactosem fio Número do produto	Declaramos sob nossa exclusiva responsabilidade que os produtos mencionados cumprem todas as disposições e os regulamentos indicados e estão em conformidade com as seguintes normas.Documentação técnica pertencente à:★
I	Dichiarazione di conformità UAEvvitatore ad impulsia batteria Codice prodotto	Dichiariamo sotto la nostra piena responsabilità che i prodotti indicati sono conformi a tutte le disposizioni pertinenti delle direttive e dei regolamenti elencati di seguito, nonché alle seguenti normative.Documentazione tecnica presso:★
H	EU konformitási nyilatkozatAkkus ütvecsavarozó Cikkszám	Egyedüli felelőséggel kijelentjük, hogy a megnevezett termékek megfelelnek az alábbiakban felsorolásra kerülő irányelvek és rendeletek valamennyi idevágó előírásainak és megfelelnek a következő szabványoknak.Műszaki dokumentumok megőrzési pontja:★
CZ	EU prohlásení o shoděAkumulátorový rázovýšroubovák Objednací číslo	Prohlásujeme na výhradní zodpovědnost, že uvedený výrobek splňuje všechna příslušná ustanovení niže uvedených smérnic a nařízení a je v souladu s následujícími normami.Technické podklady u:★
TR	AB Uygunluk beyanıAkülü darbeli vidalamamakinesi Urün kodu	Tek sorumlu olarak, tanimlanan ürünün aşağıdaki yönetmelik ve direktiflerin geçerli bütün hükümlerine ve aşağıdaki standartlara uygun olduğunu beyan ederiz.Teknik belgelerin bulunduğu yer:★
PL	Deklaracja zgodności UEAkumulatorowa zakrętarkaudarowa Numer katalogowy	Oświadczamy z pełną odpowiedzialnością, że niniejsze produkty odpowiadają wszystkim wymaganiom poniżej wyszczególnionych dyrektyw i rozporządzeń, oraz że są zgodne z następującymi normami.Dokumentacja techniczna:★
RU	Заявление о соответствии ЕСАккумуляторный ударныйшуруповерт Товарный номер	Мы заявляем под нашу единоличную ответственность, что названные продукты соответствуют всем действующим предписаниям нижеуказанных директив и распоряжений, а также нижеуказанных норм.Техническая документация хранится у:★
UA	Заява про відповідність ЄСАкумуляторний ударнийшуруповерт Товарный номер	Мизаявляемо під нашу одноособову відповідальність, що названі вироби відповідають усім чинним положенням нищеозначених директив і розпоряджень, а також нижеуказначеним нормам.Технічна документація зберігається у:★

CE

3211

GR	Δήλωση πιστότητας ΕΕ
	Παλμικό κατσαβίδι μπαταρίας	Αριθμός ευρετηρίου
RO	Declarație de conformitate UE
	Şurubelnită cu impact cu accumulatori	Număr de identificare
BG	EC декларация за съответствие
	Акумулаторен ударен гайковерт	Каталожен номер
SK	EU vyhlásenie o zhode
	Akumulátorový rázový skrutkovač Vecné číslo
HR	EU izjava o sukladnosti
	Akumulatorski udarni odvijač Kataloški broj
SRB	EU-izjava o usaglašenosti
	Akumulatorski udarni odvijač Broj predmeta
SLO	Izjava o skladnosti ES
	Akumulatorski udarni vijačnik Številka artikla
EST	EL-vastavusdeklaratsloon
	Akulöökkruvikeeraja Tootenumber
LV	Deklarăcija par atbilstību EK standartiem
	Akumulatora triecienskrüvgriezis Izstrădajuma numurs
LT	ES atitikties deklaracija Akumuliatorinis smüginis suktuvas Gaminio numeris
MK	EU-Изјава за сообразност
	Ударен завртувач Број на артикл
AL	EU Deklarata e konformitetit
	Vidator me çekiç me bateri Numri i nenit
	3211 SD1*3211**
		2006/42/EC EN 62841-1:2015 + A11:20222014/30/EU EN 62841-2-2:20142011/65/EUEN 55014-1: 2021EN 55014-2: 2021EN 63000: 2018
		SKIL Skil BVRithmeesterpark 22 A14838 GZ BredaThe Netherlands
		Olaf DijkgraafApproval ManagerSkil BV, Rithmeesterpark 22 A1, 4838 GZ Breda, NL04.03.2024

Declaration of ConformityCordless impact driver Article number	We declare under our sole responsibility that the stated products comply with all applicable provisions of the directives and regulations listed below and are in conformity with the following standardsTechnical file at:Chervon Europe Ltd., 34 Bridge Street, Reading, RG1 2LU, United Kingdom
3211 SD1*3211**	Supply of Machinery (Safety) Regulations 2008 (SI 2008/1597)Electromagnetic Compatibility Regulations 2016 (SI 2016/1091)The Restriction of the Use of Certain Hazardous Substances in Electrical and Electronic Equipment Regulations 2012 (SI 2012/3032)EN 62841-1:2015+A11:2022EN 62841-2-2:2014EN 55014-1:2021EN 55014-2:2021EN 63000:2018
	SKIL® Chervon Europe Ltd., 34 Bridge Street, Reading, RG1 2LU, United Kingdom, as authorized representative (in terms of above regulations) acting on behalf of Skil BV, Rithmeesterpark 22 A1, 4838GZ Breda, The Netherlands
	James McCroryTechnical Service ManagerJames McRoryPlace of issue: ReadingDate of issue: 04/03/2024

①

3211

2

SKIL C B A D H E F G 20

3

4

5

⑥

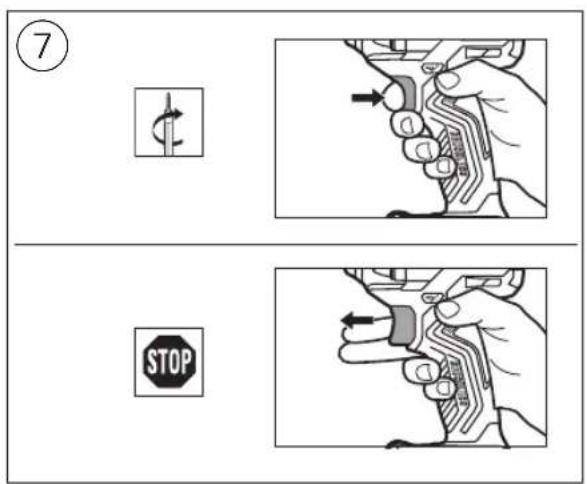

⑦ STOP

SKIL POWER 15 30

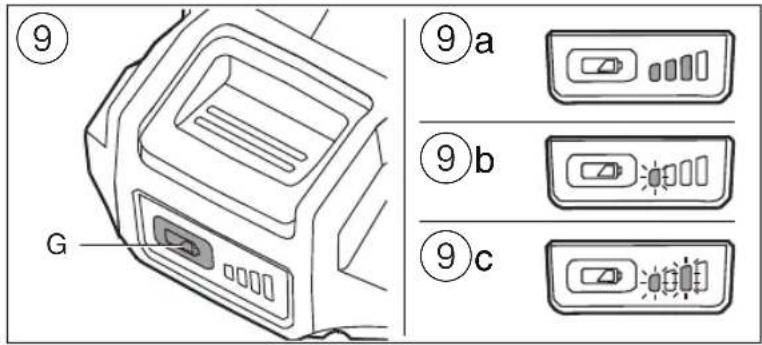

⑨ G ⑨a ⑨b ⑨c

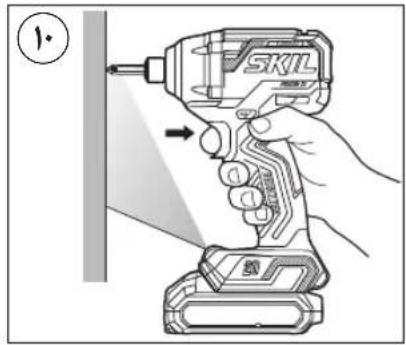

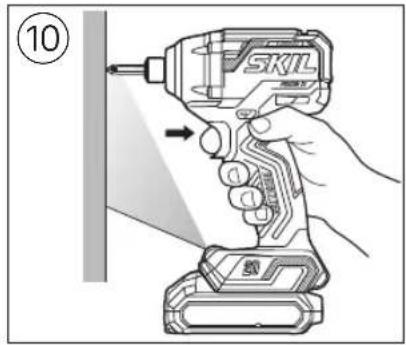

10 SKIL

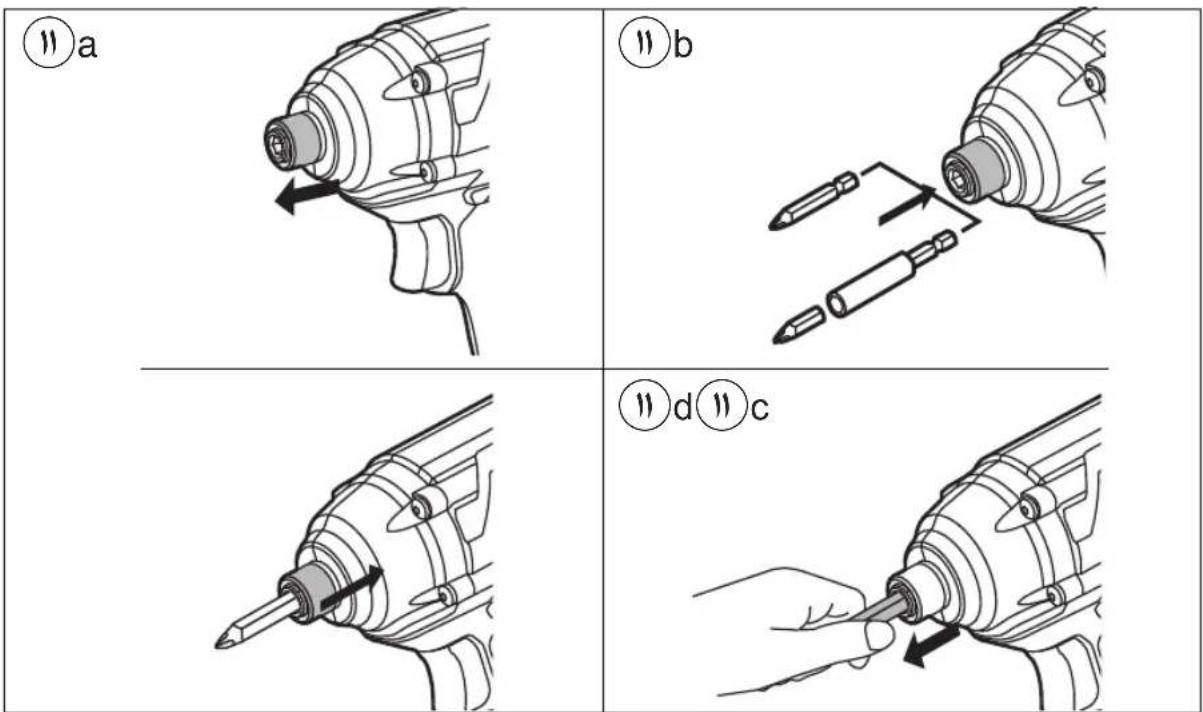

⑪a ⑪b ⑪d⑪c

Diagram illustrating three types of hand tools: moving a wooden object, locking a key, and moving a wooden tool with a padlock.

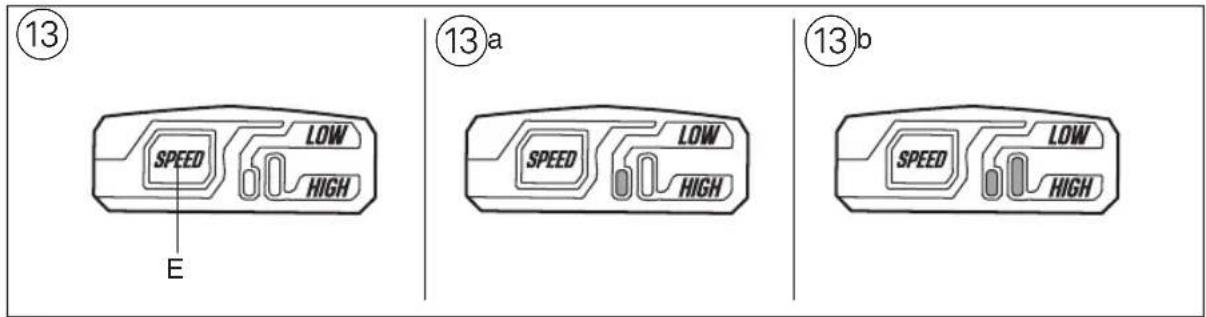

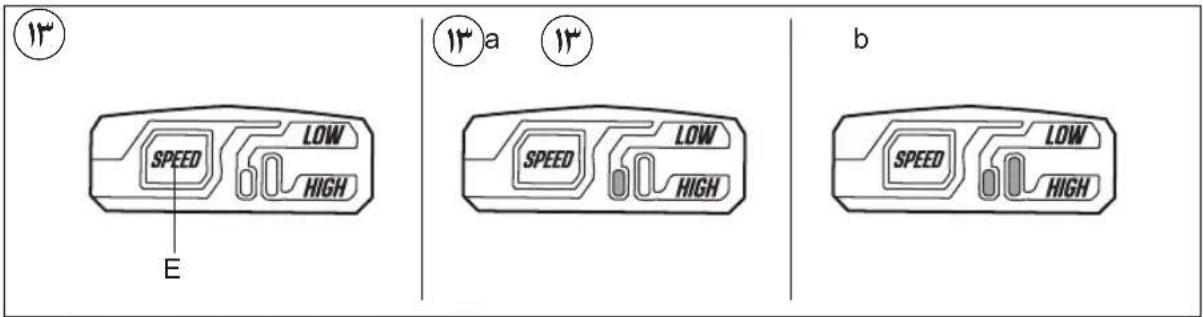

⑬ SPEED LOW HIGH E ⑬ a SPEED LOW HIGH ⑬ b SPEED LOW HIGH

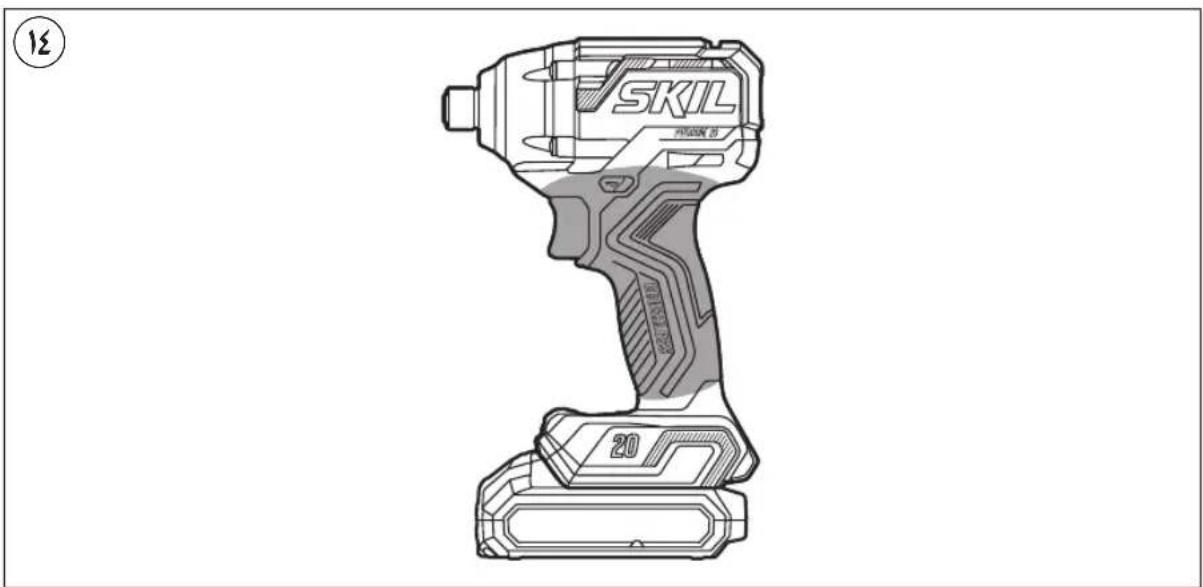

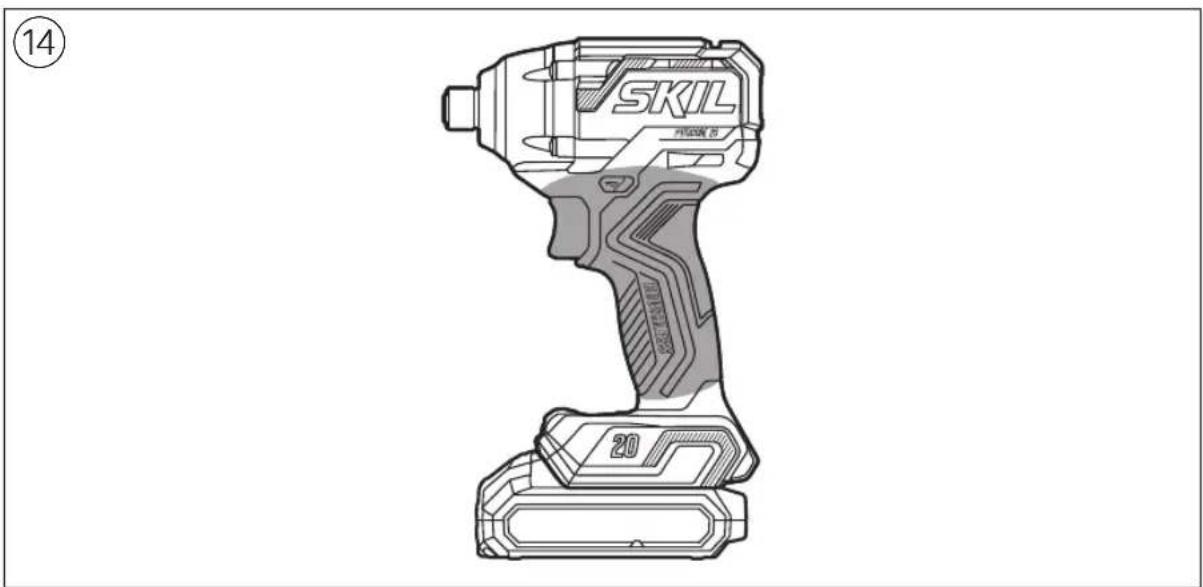

Line drawing of a SKIL brand electric drill with labeled components (no text or symbols beyond branding)

ACCESSORIES → WWW.SKIL.COM

GB

Brushless cordless impact driver 3211

INTRODUCTION

• This tool is intended for driving in and loosening screws and bolts
-Check whether the packaging contains all parts as illustrated in drawing ②
-When parts are missing or damaged, please contact your dealer
- Read and save this instruction manual ③
-Pay special attention to the safety instructions and warnings; failure to follow these may result in serious injury

TECHNICAL DATA①

Max. torque for hard screwdriving application according to ISO 5393 : 250Nm

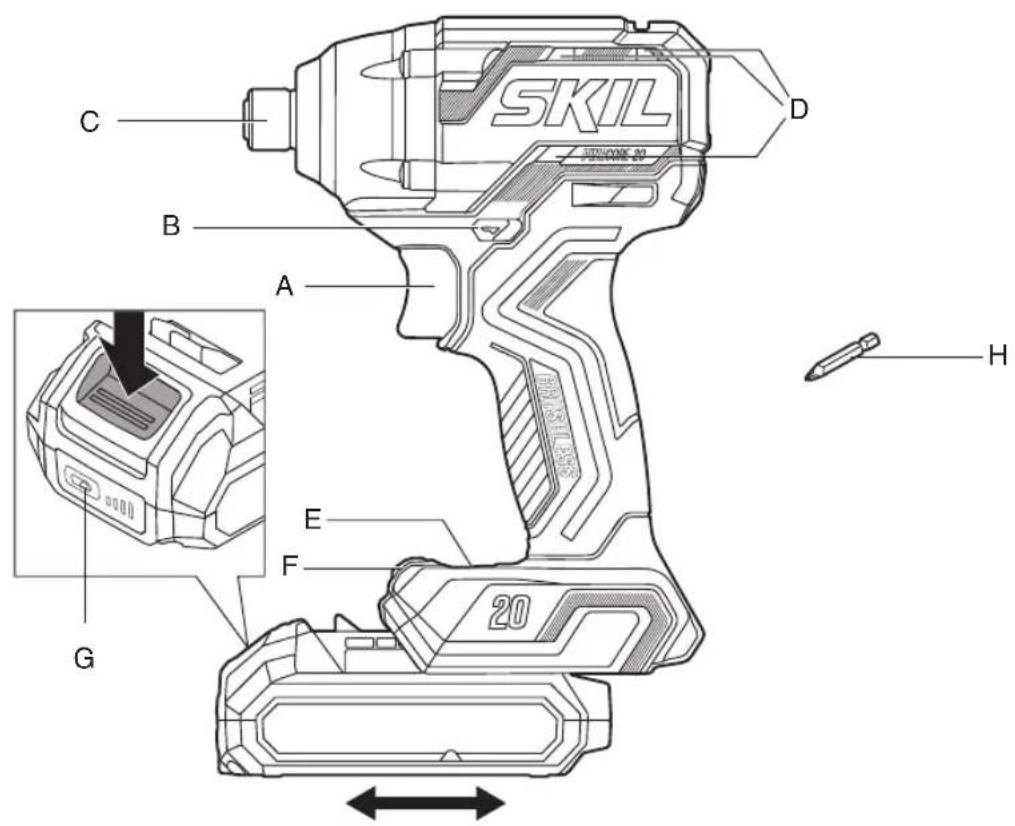

TOOL ELEMENTS ②

A Switch for on/off and speed control
B Switch for changing direction of rotation
C Locking sleeve
D Ventilation slots
E Speed button
F LED-light
G Battery level indicator
H 50mm driver bit

SAFETY

GENERAL POWER TOOL SAFETY WARNINGS

WARNING Read all safety warnings, instructions, illustrations and specifications provided with this power tool. Failure to follow all instructions listed below may result in electric shock, fire and/or serious injury.

Save all warnings and instructions for future reference.

The term "power tool" in the warnings refers to your mains-operated (corded) power tool or battery-operated (cordless) power tool.

1) WORK AREA SAFETY
a) Keep work area clean and well lit. Cluttered or dark areas invite accidents.
b) Do not operate power tools in explosive atmospheres, such as in the presence of flammable liquids, gases or dust. Power tools create sparks which may ignite the dust or fumes.
c) Keep children and bystanders away while operating a power tool. Distractions can cause you to lose control.
2) ELECTRICAL SAFETY
a) Power tool plugs must match the outlet. Never modify the plug in any way. Do not use any adapter plugs with earthed (grounded) power tools. Unmodified plugs and matching outlets will reduce risk of electric shock.

b) Avoid body contact with earthed or grounded surfaces such as pipes, radiators, ranges and refrigerators. There is an increased risk of electric shock if your body is earthed or grounded.
c) Do not expose power tools to rain or wet conditions. Water entering a power tool will increase the risk of electric shock.
d) Do not abuse the cord. Never use the cord for carrying, pulling or unplugging the power tool. Keep cord away from heat, oil, sharp edges or moving parts. Damaged or entangled cords increase the risk of electric shock.
e) When operating a power tool outdoors, use an extension cord suitable for outdoor use. Use of a cord suitable for outdoor use reduces the risk of electric shock.
f) If operating a power tool in a damp location is unavoidable, use a residual current device (RCD) protected supply. Use of an RCD reduces the risk of electric shock.
3) PERSONAL SAFETY
a) Stay alert, watch what you are doing and use common sense when operating a power tool. Do not use a power tool while you are tired or under the influence of drugs, alcohol or medication. A moment of inattention while operating power tools may result in serious personal injury.
b) Use personal protective equipment. Always wear eye protection. Protective equipment such as a dust mask, non-skid safety shoes, hard hat, or hearing protection used for appropriate conditions will reduce personal injuries.
c) Prevent unintentional starting. Ensure the switch is in the off-position before connecting to power source and/or battery pack, picking up or carrying the tool. Carrying power tools with your finger on the switch or energising power tools that have the switch on invites accidents.
d) Remove any adjusting key or wrench before turning the power tool on. A wrench or a key left attached to a rotating part of the power tool may result in personal injury.
e) Do not overreach. Keep proper footing and balance at all times. This enables better control of the power tool in unexpected situations.
f) Dress properly. Do not wear loose clothing or jewellery. Keep your hair and clothing away from moving parts. Loose clothes, jewellery or long hair can be caught in moving parts.
g) If devices are provided for the connection of dust extraction and collection facilities, ensure these are connected and properly used. Use of dust collection can reduce dust-related hazards.
h) Do not let familiarity gained from frequent use of tools allow you to become complacent and ignore tool safety principles. A careless action can cause severe injury within a fraction of a second.
4) POWER TOOL USE AND CARE
a) Do not force the power tool. Use the correct power tool for your application. The correct power tool will do the job better and safer at the rate for which it was designed.
b) Do not use the power tool if the switch does not turn

it on and off. Any power tool that cannot be controlled with the switch is dangerous and must be repaired.

c) Disconnect the plug from the power source and/or remove the battery pack, if detachable, from the power tool before making any adjustments, changing accessories, or storing power tools. Such preventive safety measures reduce the risk of starting the power tool accidentally.

d) Store idle power tools out of the reach of children and do not allow persons unfamiliar with the power tool or these instructions to operate the power tool. Power tools are dangerous in the hands of untrained users.

e) Maintain power tools and accessories. Check for misalignment or binding of moving parts, breakage of parts and any other condition that may affect the power tool's operation. If damaged, have the power tool repaired before use. Many accidents are caused by poorly maintained power tools.

f) Keep cutting tools sharp and clean. Properly maintained cutting tools with sharp cutting edges are less likely to bind and are easier to control.

g) Use the power tool, accessories and tool bits etc., in accordance with these instructions, taking into account the working conditions and the work to be performed. Use of the power tool for operations different from those intended could result in a hazardous situation.

h) Keep handles and grasping surfaces dry, clean and free from oil and grease. Slippery handles and grasping surfaces do not allow for safe handling and control of the tool in unexpected situations.

5) BATTERY TOOL USE AND CARE

a) Recharge only with the charger specified by the manufacturer. A charger that is suitable for one type of battery pack may create a risk of fire when used with another battery pack.

b) Use power tools only with specifically designated battery packs. Use of any other battery packs may create a risk of injury and fire.

c) When battery pack is not in use, keep it away from other metal objects like paper clips, coins, keys, nails, screws, or other small metal objects that can make a connection from one terminal to another. Shorting the battery terminals together may cause burns or a fire.

d) Under abusive conditions, liquid may be ejected from the battery; avoid contact. If contact accidentally occurs, flush with water. If liquid contacts eyes, additionally seek medical help. Liquid ejected from the battery may cause irritation or burns.

e) Do not use a battery pack or tool that is damaged or modified. Damaged or modified batteries may exhibit unpredictable behaviour resulting in fire, explosion or risk of injury.

f) Do not expose a battery pack or tool to fire or excessive temperature. Exposure to fire or temperature above 130°C may cause explosion.

g) Follow all charging instructions and do not charge the battery pack or tool outside the temperature range specified in the instructions. Charging improperly or at temperatures outside the specified range may damage the battery and increase the risk of fire.

6) SERVICE

a) Have your power tool serviced by a qualified repair person using only identical replacement parts. This will ensure that the safety of the power tool is maintained.

b) Never service damaged battery packs. Service of battery packs should only be performed by the manufacturer or authorized service providers.

SAFETY INSTRUCTIONS FOR CORDLESS IMPACT DRIVERS

- Hold the power tool by insulated gripping surfaces, when performing an operation where the fastener may contact hidden wiring (fasteners contacting a "live" wire may make exposed metal parts of the power tool "live" and could give the operator an electric shock)

GENERAL

- Dust from material such as paint containing lead, some wood species, minerals and metal may be harmful (contact with or inhalation of the dust may cause allergic reactions and/or respiratory diseases to the operator or bystanders); wear a dust mask and work with a dust extraction device when connectable

- Certain kinds of dust are classified as carcinogenic (such as oak and beech dust) especially in conjunction with additives for wood conditioning; wear a dust mask and work with a dust extraction device when connectable

- Follow the dust-related national requirements for the materials you want to work with

- Do not work materials containing asbestos (asbestos is considered carcinogenic)

- Ensure that switch B ② is in the middle (locking) position before making any adjustments or changing accessories as well as when carrying or storing the tool

ACCESSORIES

- SKIL can assure flawless functioning of the tool only when original accessories are used

- Use only accessories with an allowable speed matching at least the highest no-load speed of the tool

BEFORE USE

- Avoid damage that can be caused by screws, nails and other elements in your workpiece; remove them before you start working

- Secure the workpiece (a workpiece clamped with clamping devices or in a vice is held more securely than by hand)

- Use suitable detectors to find hidden utility lines or call the local utility company for assistance (contact with electric lines can lead to fire or electrical shock; damaging a gas line can result in an explosion; penetrating a water pipe will cause property damage or an electrical shock)

BATTERIES

- The battery supplied, if any, is partially charged (to ensure full capacity of the battery, completely charge the battery in the battery charger before using your power tool for the first time)

- Only use the following batteries and chargers with this tool

-SKIL battery: BR1*31****

-SKIL charger: CR1*31****

- Do not use battery when damaged; it should be replaced immediately

- Do not disassemble the battery

- Do not expose tool/battery to rain

- Permitted ambient temperature (tool/charger/battery):

-when charging 4...40°C

-during operation -20...+50°C

-during storage -20...+50°C

EXPLANATION OF SYMBOLS ON TOOL/BATTERY

③ Read the instruction manual before use
④ Batteries may explode when disposed of in fire, so do not burn battery for any reason
⑤ Store tool/charger/battery in locations where temperature will not exceed 50°C
⑥ Do not dispose of electric tools and batteries together with household waste material

USE

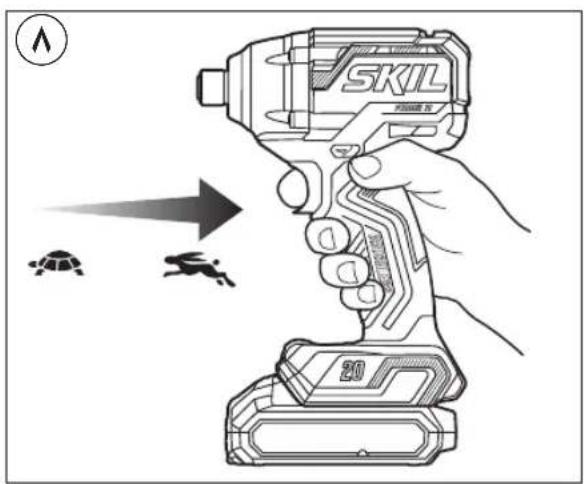

- Combined switch for on/off and speed control A ⑦ -control the speed steplessly from zero to maximum by putting less or more pressure on the trigger A⑧

- Charging battery ! read the safety warnings and instructions provided with the charger

- Removing/installing the battery ②

- Battery level indicator ⑨ -press the battery level indicator button G to show the current battery level ⑨a ! when the lowest level of the battery indicator starts flashing after pressing button G ⑨b, the battery is empty

! when 2 levels of the battery indicator start flashing after pressing button G ⑨c, the battery is not within the allowable operating temperature range

- Battery protection The tool is suddenly being switched off or prevented from being switched on, when

- the load is too high --> remove load and restart -the battery temperature is not within the allowable operating temperature range of -20 to +50°C --> 2 levels of the battery level indicator start flashing when pressing button G ⑨c; wait until battery has returned within the allowable operating temperature range -the battery is nearly empty (to protect against deep discharge) --> a low battery level or flashing low battery level ⑨b is shown by the battery level indicator when pressing button G; charge battery ! do not continue to press the on/off switch after the tool is switched off automatically; battery may be damaged

- LED-light:⑩ LED-light automatically lights on when activating the on/off switch ! when LED-light starts flashing, the battery protection is activated (see above)

- Installing and removing bits -to install a bit, pull the locking sleeve C forward, insert the bit into the bit holder and release the locking sleeve C to lock the bit. ⑪a ⑪b ⑪c

! pull the bit forward to check if it is locked ^① d-to remove a bit, pull the locking sleeve C forward! only use bits with ball catch, other bits can be used with a universal bit holder with ball catch! do not use bits with a damaged shank

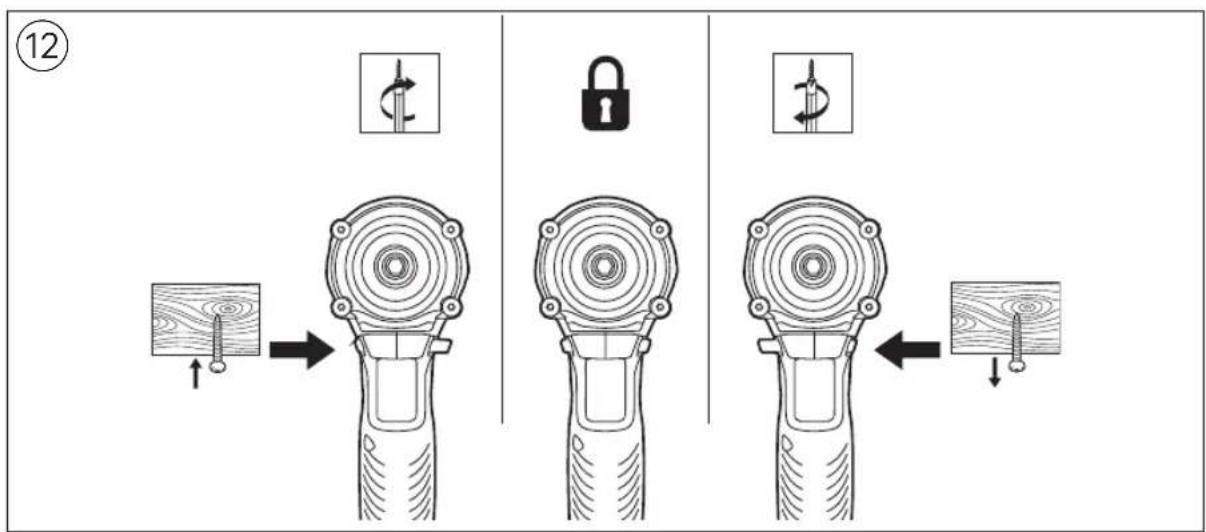

- Changing direction of rotation ⑫ - when not properly set in left/right position, switch A② cannot be activated

! change direction of rotation only when tool is at a complete standstill

- Mode selection ⑬

-press the speed button E to select the desired tightening or loosening mode when the tool is set to forward or reverse rotation:

Low speed mode ⑬a

-tightening or loosening with less force and low speed -for smaller screws

High speed mode ⑬b

-tightening or loosening with high force and speed -for large screws and bolts

! modes can only be changed after slightly pressing the on/off switch (LED(s) are activated) and when the tool is at a complete standstill

- Holding and guiding the tool ⑭

! while working, always hold the tool at the grey-coloured grip area(s)

-keep ventilation slots D② uncovered

-do not apply too much pressure on the tool; let the tool do the work for you

APPLICATION ADVICE

• Use the appropriate bits
• When turning in a screw at/near the cross cut end or an edge of wood, pre-drill a hole in order to avoid cracking of the wood
• When screwdriving in hard wood one should pre-drill a hole
• When tightening a screw, do not over-tighten. As the force of the impact driver can break the fastener. Hold the tool aligned with the screw to prevent damage to the head of the fastener.
• The torque depends on the impact duration. Maximum torque is achieved after an impact duration of 6-10 seconds.

! always check tightening torque with a torque driver

• For an optimal use of the tool a steady pressure on the screw is required, especially while removing a fastener.
  • For more information see www.skil.com

MAINTENANCE / SERVICE

• Always keep tool clean (especially ventilation slots D ②) ! remove battery from tool before cleaning
• If the tool should fail despite the care taken in manufacturing and testing procedures, repair should be carried out by an after-sales service centre for SKIL power tools

- send the tool undismantled together with proof of purchase to your dealer or the nearest SKIL service station (addresses as well as the service diagram of the tool are listed on www.skil.com)

- Be aware that damage due to overload or improper handling of the tool will be excluded from the warranty (for the SKIL warranty conditions see www.skil.com or ask your dealer)

ENVIRONMENT

Only for EU countries

- Do not dispose of electric machines, accessories and packaging together with household waste material

-in observance of European Directive 2012/19/EC on waste of electric and electronic equipment and its implementation in accordance with national law, electric machines that have reached the end of their life must be collected separately and returned to an environmentally compatible recycling facility

- symbol ⑥ will remind you of this when the need for disposing occurs

! prior to disposal protect battery terminals with heavy tape to prevent short-circuit

Only for UK

- Do not dispose of electric machines, accessories and packaging together with household waste material

-in observance of Waste Electric and Electronic Equipment Regulations 2013 (SI 2013/3113), electric machines that have reached the end of their life must be collected separately and returned to an environmentally compatible recycling facility

- symbol ⑥ will remind you of this when the need for disposing occurs

! prior to disposal protect battery terminals with heavy tape to prevent short-circuit

NOISE / VIBRATION

• Measured in accordance with EN 62841 the sound pressure level of this tool is 78 dB(A) and the sound power level 86 dB(A) (uncertainty K = 3 dB), and the vibration <2.5 m/s ^2 (triax vector sum; uncertainty K = 1.5 m/s ^2 )
• The vibration emission level has been measured in accordance with a standardised test given in EN 62841; it may be used to compare one tool with another and as a preliminary assessment of exposure to vibration when using the tool for the applications mentioned -using the tool for different applications, or with different or poorly maintained accessories, may significantly increase the exposure level -the times when the tool is switched off or when it is running but not actually doing the job, may significantly reduce the exposure level
  ! protect yourself against the effects of vibration by maintaining the tool and its accessories, keeping your hands warm, and organizing your work patterns

F

1) SIKKERHET PÅ ARBEIDSPLASSEN

VEDLIKEHOLD / SERVICE

APKALPOŠANA / APKOPE

TECHNINIAI DUOMENYS ①

Diagram illustrating three types of hand tools: moving a wooden object, locking a key, and moving a wooden tool with a lock.

13 13 a 13 SPEED LOW E SPEED LOW SPEED HIGH b SPEED LOW HIGH

Line drawing of a SKIL brand electric drill with 20Ω power cord (no text or symbols on the device itself)

Diagram illustrating a hand operating a circuit board with a stop button, showing step-by-step instructions for voltage and current control.

SKIL 30

⑨ G ⑨ a ⑨ b ⑨ c

SKIL

⑪a ⑪b ⑪d⑪c

①

3211

1

SKIL D C B A H E F G 20

Icon of a person reading a book inside a circle, with a small circular symbol above (no text or symbols)

Warning sign with crossed-out symbols and a circled number 3, indicating no hazard or caution.

max.50 °C

①

Illustration of a SKIL electric drill press tool (no text or symbols on the device body)

دليل الاستعمال AR راهنماي اصلی FA
