USER MANUAL OAKZ9 379 H IX WHIRLPOOL

THANK YOU FOR PURCHASING A WHIRLPOOL PRODUCT

To receive more comprehensive help and support, please register your product at www.whirlpool.eu/register

You can download the Safety Instructions and the Use and Care Guide by visiting our website docs.whirlpool.eu and following the instructions on the back of this booklet.

Before using the appliance carefully read the Health and Safety guide.

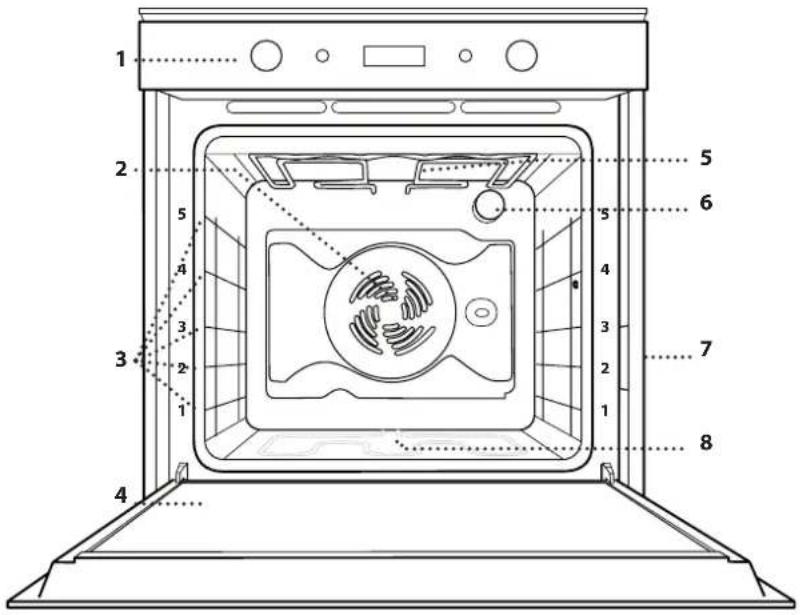

PRODUCT DESCRIPTION

1 2 3 4 5 6 7 8 1 2 3 4 5 6 7 8

1. Control panel
2. Fan
3. Shelf guides

(the level is indicated on the front of the oven)

1. Door
2. Upper heating element/grill
3. Lamp
4. Identification plate (do not remove)
5. Lower heating element (not visible)

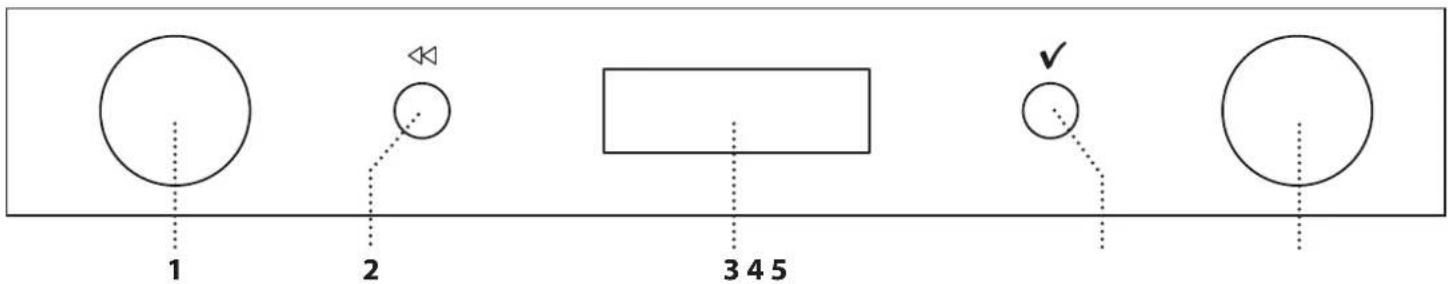

CONTROL PANEL DESCRIPTION

1 2 3 4 5 ✓

1. SELECTION KNOB

For switching the oven on by selecting a function. Turn to the "0" position to switch the oven off.

2. BACK

For returning to the previous screen. During cooking allows to change settings.

3. DISPLAY

4. CONFIRM

For confirming a selected function or a set value.

5. ADJUSTMENT KNOB

For scrolling through the menus and applying or changing settings.

Please note: The knobs are retractable. Press the knobs in the middle and they pop up.

ACCESSORIES

Simple line drawing of a rectangular plate with vertical lines, no text or symbols present

Use to cook food or as a support for pans, cake tins and other ovenproof items of cookware

Simple line drawing of a rectangular frame with rounded corners and a separate curved line on the right (no text or symbols)

Use for cooking all bread and pastry products, but also for roasts, fish en papillotte, etc.

Simple line drawing of a square frame with a separate curved line on the right side (no text or symbols)

Use as an oven tray for cooking meat, fish, vegetables, focaccia, etc. or position underneath the wire shelf to collect cooking juices.

To facilitate inserting or removing accessories.

* Available only on certain models

The number and the type of accessories may vary depending on which model is purchased.

Other accessories can be purchased separately from the After-sales Service.

INSERTING THE WIRE SHELF AND OTHER ACCESSORIES

Insert the wire shelf horizontally by sliding it across the shelf guides, making sure that the side with the raised edge is facing upwards.

Other accessories, such as the drip tray and the baking tray, are inserted horizontally in the same way as the wire shelf.

REMOVING AND REFITTING THE SHELF GUIDES

• To remove the shelf guides, lift the guides up and then gently pull the lower part out of its seating: The shelf guides can now be removed.

• To refit the shelf guides, first fit them back into their upper seating. Keeping them held up, slide them into the cooking compartment, then lower them into position in the lower seating.

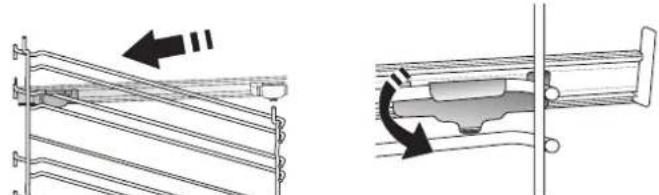

FITTING THE SLIDING RUNNERS (IF PRESENT)

Remove the shelf guides from the oven and remove the protective plastic from the sliding runners.

Fasten the upper clip of the runner to the shelf guide and slide it along as far as it will go. Lower the other clip into position. To secure the guide, press the lower portion of the clip firmly against the shelf guide. Make sure that the runners can move freely. Repeat these steps on the other shelf guide on the same level.

Technical diagram showing two mechanical assembly states: one with a rotating component and the other with a curved arrow indicating rotation (no text or symbols present)

Please note: The sliding runners can be fitted on any level.

FUNCTIONS

OFF

To switch off the oven.

LIGHT

To switch the oven light on/off.

SPECIALS

• DEFROST

To speed up defrosting of food. Place food on the middle shelf. Leave food in its packaging to prevent it from drying out on the outside.

- WARM KEEPING

For keeping just-cooked food hot and crisp.

• RISING

For optimal proving of sweet or savoury dough. To maintain the quality of proving, do not activate the function if the oven is still hot following a cooking cycle.

CONVENTIONAL

To cook any kind of dish on one shelf only. Use the 3rd level. To bake pizzas, savoury pies and cakes with liquid fillings use the 1st or 2nd level. Preheat the oven before placing food inside.

CONVECTION BAKE

For baking cakes with liquid filling (sweet or savoury) on a single shelf. This function can also be used for cooking on two shelves. Switch the position of the dishes to cook food more evenly. Use the 3rd shelf to cook on one shelf only, and the 1st and 4th to cook on two shelves. Preheat the oven before cooking.

• GENTLE FAN

For cooking meat, filled pies (cheesecake, strudel, fruit pies) and stuffed vegetables on one level only. This function uses discontinuous, delicate fan assistance, which prevents excessive drying of foods.

GRILL

For grilling steaks, kebabs and sausages, cooking vegetables au gratin or toasting bread. When grilling meat, we recommend using a drip tray to collect the cooking juices: Position the tray on any of the levels below the wire shelf and add 500 ml of drinking water.

• TURBO GRILL

For roasting large joints of meat (legs, roast beef, chicken). We recommend using a drip tray to collect the cooking juices: Position the pan on any of the levels below the wire shelf and add 500 ml of drinking water. The turnspit (if provided) can be used with this function.

MAXI COOKING

To cook large joints of meat (above 2.5 kg). Use the 1st or 2nd shelves, depending on the size of the joint. The oven does not have to be preheated. It is advisable to turn the meat over during cooking for more even browning. It is best to baste the meat every now and again to prevent it from drying out.

SETTINGS

For adjust the oven settings.

When "ECO" mode is active the brightness of the display will be reduced to save energy and lamp switches off after 1 minute. It will be reactivated automatically whenever any of the buttons are pressed.

BREAD / PIZZA

To bake different types and sizes of bread and pizza. This function has two programmes with predefined settings. Just indicate the required values (temperature and time) and the oven will automatically manage the optimum cooking cycle. Place the dough on the 2nd shelf after preheating the oven.

STARCLEAN

To eliminate the dirt created by cooking by means of a low temperature cycle. The combined action of the special enamel and the water vapour released during the cycle facilitates removal of grime. Activate the function when the oven is cold. Place 200ml of water in the bottom of the cavity.

FAST PREHEATING

To preheat the oven rapidly

FIRST TIME USE

1. SELECT THE LANGUAGE

You will need to set the language and the time when you switch on the appliance for the first time: "ENGLISH" will scroll along the display.

ENGLI

Turn the adjustment knob to scroll through the list of available languages and select the one you require. Press √ to confirm your selection.

Please note: The language can subsequently be changed from the "Settings" menu.

2. SET THE TIME

After selecting the language, you will need to set the current time: The two digits for the hour will flash on the display.

12:00:00 12:00:00

Turn the adjustment knob to set the correct hour and press √: The two digits for the minutes will flash on the display.

12:00 12:00

Turn the adjustment knob to set the minutes and press √ to confirm.

Please note: You may need to set the time again following lengthy power outages.

3. SET THE POWER CONSUMPTION

The oven is programmed to consume a level of electrical power that is compatible with a domestic network that has a rating of more than 3 kW: If your household uses a lower power, you will need to decrease this value.

Turn the selection knob until "SETTINGS" is shown on the display, then press OK select confirm.

Turn the adjustment knob to select the "POWER" menu item and press 10K select confirm.

POWER

Turn the adjustment knob to select "Low" and press to confirm.

LOW

4. HEAT THE OVEN

A new oven may release odours that have been left behind during manufacturing: This is completely normal. Before starting to cook food, we therefore recommend heating the oven with it empty in order to remove any possible odours.

Remove any protective cardboard or transparent film from the oven and remove any accessories from inside it.

Follow the instructions for setting the function correctly.

Please note: It is advisable to air the room after using the appliance for the first time.

DAILY USE

1. SELECT A FUNCTION

Turn the selection knob to switch on the oven and show the function you require on the display: The display will show the icon for the function and its basic settings.

To select an item from the menu (the display will show the first available item), turn the adjustment knob until the item you require is shown.

[▼]TURBO 2 ▼

Press to confirm your selection: The display will show the basic settings.

2. SET THE FUNCTION

After having selected the function you require, you can change its settings. The display will show the settings that can be changed in sequence.

TEMPERATURE/GRILL LEVEL

[□]----:----=200°C

When the value flashes on the display, turn the adjustment knob to change it, then press √ to confirm and continue to alter the settings that follow (if possible).

Please note: Once the function has been activated, the temperature can be changed using the adjustment knob.

DURATION

[ ] --:-- 200°C =○

When the icon flashes on the display, use the adjustment knob to set the cooking time you require, then press √ to confirm. You do not have to set the cooking time if you want to manage cooking manually: Press √ to confirm and start the function.

In this case, you cannot set the end cooking time by programming a delayed start.

Please note: You can adjust the cooking time that has been set during cooking by pressing ◀: use the adjustment knob to amend it and then press √ to confirm.

SET THE COOKING END TIME

In many functions, once you have set a cooking time you can delay starting the function by programming its end time. The display shows the current end time that is set and the 🔗 icon flashes.

[ ] 12:30 200°C =

Turn the adjustment knob to set the time you want cooking to end, then press √ to confirm and start the function. Place the food in the oven and close the door: The function will start automatically after the period of time that has been calculated in order for cooking to finish at the time you have set.

[ ] 13:30 200°C ⑦

Please note: Programming a delayed cooking start time will disable the oven preheating phase: The oven will reach the temperature your require gradually, meaning that cooking times will be slightly longer than those listed in the cooking table. During the waiting time, you can use the adjustment knob to amend the programmed end time or press ◀ to change the settings.

Please note: Delay to start functionality is not available for Grill and Turbo Grill functions.

3. ACTIVATE THE FUNCTION

Once you have applied the settings you require, press √ to confirm the time that cooking will end and activate the function.

Please note: Once cooking has started, the display will recommend the most suitable level for each function.

[ ] 0:05 2:10°C

You can turn the selection knob to pause the function that has been activated at any time.

4. PREHEATING

Some functions have an oven preheating phase: Once the function has started, the display indicates that the preheating phase has been activated.

Once this phase has finished, an audible signal will sound and the display will indicate that the oven has reached the set temperature:

[ ]2 10^0 C^-2 10^o

At this point, open the door, place the food in the oven, close the door and start cooking.

Please note: Placing the food in the oven before preheating has finished may have an adverse effect on the final cooking result. Opening the door during the preheating phase will stop pause it. The cooking time does not include a preheating phase. You can always change the temperature you want the oven to reach using the adjustment knob.

5. END OF COOKING

An audible signal will sound and the display will indicate that cooking is complete.

[ ] ENDO 210°C

Press to continue cooking in manual mode (without a programmed cooking time) or turn the adjustment knob to extend the cooking time by setting a new duration. In both cases, the temperature or the grill level settings will be retained.

BROWNING

Some functions of the oven enable you to brown the surface of the food by activating the grill once cooking is complete.

When the display shows the relevant message, if required press √ to start a five-minute browning cycle.

[ ] 0:05 100°C

Once the browning function has been activated, you can change the time for which it will run by turning the adjustment knob. You can also stop the function at any time by turning the selection knob to select a different function or by turning it to 0 to switch the oven off.

. TIMER

When the oven is switched off, the display can be used as a timer. To activate this function, make sure that the oven is switched off and turn the adjustment knob: The ⏻ icon will flash on the display.

0:00 1

Turn the adjustment knob to set the length of time you require and then press √ again to activate the timer. An audible signal will sound and the display will indicate once the timer has finished counting down the selected time.

07:30

Please note: The timer does not activate any of the cooking cycles. Use the adjustment knob to change the time set on the timer; press to switch the timer off at any time.

KEY LOCK

To lock the keypad, press and hold and at the same time for at least five seconds.

[ ] x ---0

Do this again to unlock the keypad.

Please note: This function can also be activated during cooking. For safety reasons, the oven can be switched off at any time by turning the selection knob to 0.

.STARCLEAN

Before activating this function, pour 200ml of drinking water on to the bottom of the oven and shut the door. Turn the selection knob to select the "STARCLEAN" function and press to confirm.

Press to set the end time of the cleaning cycle or to activate the function.

A countdown will indicate the status of the cycle in progress.

To prevent steam from coming out and thus jeopardizing the final results, it is recommended not to open the door during the cleaning cycle.

Once finished, wait for the oven to cool down and then finish cleaning by drying the surfaces with a sponge or a soft cloth.

Please note: like with the other manual functions, it is also possible to set the end time for the self-cleaning cycle.

COOKING TABLE

RECIPE FUNCTION PREHEAT TEMPERATURE (°C) DURATION (Min.)							SHELF AND ACCESSORIES
Leavened cakes / Sponge cakes		Yes 160	180 30 - 90				2/3
		Yes 160	180 30 - 90*				4 1
Filled cakes(cheesecake, strudel, apple pie)		GENTLE	Yes 160	200 35 - 90			2
			Yes 160	200 35 - 90 * 4
Cookies			Yes 170	180	15 - 45		3
			Yes 160	170	20 - 45 *	4
Choux buns			Yes 180	200 30 - 40			3
			Yes 180	190	35 - 45 *		4 1
Meringues			Yes	90		110 - 150	3
			Yes	90		130 - 150 *	4 1
Pizza / Bread / Focaccia			Yes 190	250	15 - 50		1/2
			Yes 190	250 25 - 50 *			4 1
Bread		BREAD	Yes 180	220 30 - 50			2
Pizza		PIZZA	Yes 220	250 15 - 30			2
Frozen pizza			Yes	250		10 - 15	3
			Yes	250		10 - 20 *	4 1
Savoury pies(vegetable pie,quiche)			Yes 180	190	40 - 55		3
			Yes 180	190	40 - 55 *		4 1
Vols-au-vent / Puff pastry crackers			Yes 190	200 20 - 30			3
			Yes 180	190	15 - 40 *		4 1
Lasagne / Flans / Baked pasta / Cannelloni			Yes 190	200 45 - 65			3
Lamb / Veal / Beef / Pork 1 kg		GENTLE	Yes 180	190	80 - 120		2
Chicken / Rabbit / Duck 1 kg		GENTLE	Yes 200	220 50 - 100			3
Turkey / Goose 3 kg			Yes 190	200	80 - 130		2
Baked fish / en papillote (fillets, whole)			Yes 180	200 40 - 60			3
Stuffed vegetables(tomatoes, courgettes, aubergines)		GENTLE	Yes 170	190	30 - 60		2
Toast			—	3 (High)		3 - 6	5
Fish fillets / Steaks			—	2 (Mid)		20 - 30 **	4 3
Sausages / Kebabs / Spare ribs / Hamburgers			—	2 - 3 (Mid - High)		15 - 30 **	5 4
Roast chicken 1-1.3 kg			—	2 (Mid)		55 - 70 ***	2 1
Roastbeef rare				2 (Mid)		35 - 50 ***	3
FUNCTIONS	Conventional	Convection bake	Grill	TurboGrill		Bread / Pizza	GENTLE Gentle fan
ACCESSORIES	Wire shelf	Oven tray or cake tin on wire shelf	Drip tray / Baking tray or oven tray on wire shelf			Drip tray / Baking tray	Drip tray with 500 ml of water

RECIPE FUNCTION PREHEAT TEMPERATURE (°C) DURATION (Min.)					SHELF AND ACCESSORIES
Leg of lamb / Shanks — 2 (Mid) 60 - 90 ***					3
Roast potatoes — 2 (Mid) 35 - 55 ***					3
Vegetable gratin — 3 (High) 10 - 25					3
Lasagna & Meat		Yes	200	50 - 100 ****	4	1
Meat & Potatoes		Yes	200	45 - 100 ****	4	1
Fish & Vegetables		Yes	180	30 - 50 ****	4	1

* Switch levels halfway through cooking.
**Turn food halfway through cooking.
*** Turn food two thirds of the way through cooking (if necessary).
**** Estimated length of time: dishes can be removed from the oven at different times depending on personal preference.

HOW TO READ THE COOKING TABLE

The table lists the best function, accessories and level to use to cook different types of food.

Cooking times start from the moment food is placed in the oven, excluding preheating (where required).

Cooking temperatures and times are approximate and depend on the amount of food and the type of accessory used.

Use the lowest recommended settings to begin with and, if the food is not cooked enough, then switch to higher settings.

Use the accessories supplied and preferably darkcoloured metal cake tins and baking trays. You can also use Pyrex or stoneware pans and accessories,

but bear in mind that cooking times will be slightly longer.

TESTED RECIPES

Compiled for the certification authorities in accordance with the standard IEC 60350-1

RECIPE FUNCTION PREHEAT TEMPERATURE (°C) DURATION (Min.)					SHELF AND ACCESSORIES *
Short bread		Yes	150	30 - 40	3
		Yes	150	25 - 40	3
		Yes	150	25 - 35 **	4	1
Small cakes		Yes	170	20 - 30	3
		Yes	160	20 - 30	3
		Yes	160	25 - 35 **	4	1
Fatless sponge cake		Yes	170	30 - 40	2
		Yes	160	30 - 40	2
		-	160	35 - 45 **	4	1
Toast		-	3 (High)	4 - 6	5
Burgers		-	3 (High)	18 - 30 ***	5	4

* The accessories that are not supplied with this oven are available for purchase from our After-Sales Service.
**Switch levels halfway through cooking.
*** Turn food halfway through cooking.
Energy efficiency class (in accordance with the IEC 60350-1 standard): refer to the specific table to conduct the test.

FUNCTIONS	Conventional	Convection bake	Grill	TurboGrill	Bread / Pizza	GENTLE Gentle fan
ACCESSORIES	Wire shelf	Oven tray or cake tin on wire shelf	Drip tray / Baking tray or oven tray on wire shelf	Drip tray / Baking tray	Drip tray with 500 ml of water

CLEANING AND MAINTENANCE

Make sure that the oven has cooled down before carrying out any maintenance or cleaning. Do not use steam cleaners.

Do not use wire wool, abrasive scourers or abrasive/corrosive cleaning agents, as these could damage the surfaces of the appliance.

Wear protective gloves. The oven must be disconnected from the mains before carrying out any kind of maintenance work.

EXTERIOR SURFACES

• Clean the surfaces with a damp microfibre cloth. If they are very dirty, add a few drops of pH-neutral detergent. Finish off with a dry cloth.
• Do not use corrosive or abrasive detergents. If any of these products inadvertently comes into contact with the surfaces of the appliance, clean immediately with a damp microfibre cloth.

INTERIOR SURFACES

• After every use, leave the oven to cool and then clean it, preferably while it is still warm, to remove any deposits or stains caused by food residues To dry any condensation that has formed as a result of cooking foods with a high water content, let the oven to cool completely and then wipe it with a cloth or sponge.

- Clean the glass in the door with a suitable liquid detergent. - The oven door can be removed to facilitate cleaning.

ACCESSORIES

Soak the accessories in a washing-up liquid solution after use, handling them with oven gloves if they are still hot. Food residues can be removed using a washing-up brush or a sponge.

REMOVING AND REFITTING THE DOOR

1. To remove the door, open it fully and lower the catches until they are in the unlock position.

Diagram illustrating a mechanical or electrical setup with labeled components and directional arrows, likely illustrating a system or motion path.

1. Close the door as much as you can. Take a firm hold of the door with both hands – do not hold it by the handle. Simply remove the door by continuing to close it while pulling it upwards at the same time until it is released from its seating. Put the door to one side, resting it on a soft surface.

~15° a b

1. Refit the door by moving it towards the oven, aligning the hooks of the hinges with their seating and securing the upper part onto its seating.
2. Lower the door and then open it fully. Lower the catches into their original position: Make sure that you lower them down completely.

Diagram illustrating a mechanical assembly or disassembly process with labeled components (a and b) and directional arrows indicating movement.

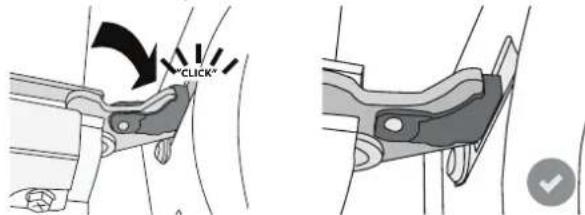

Apply gentle pressure to check that the catches are in the correct position.

CLICK

1. Try closing the door and check to make sure that it lines up with the control panel. If it does not, repeat the steps above: The door could become damaged if it does not work properly.

REPLACING THE LAMP

1. Disconnect the oven from the power supply.
2. Unscrew the cover from the light, replace the bulb and screw the cover back on the light.
3. Reconnect the oven to the power supply.

Please note: Only use 20-40 W/230 \~ V type G9, T300°C halogen bulbs. The bulb used in the product is specifically designed for domestic appliances and is not suitable for general room lighting within the home (EC Regulation 244/2009). Light bulbs are available from our After-sales Service.

- If using halogen bulbs, do not handle them with your bare hands as your fingerprints could cause damage. Do not use the oven until the light cover has been refitted.

TROUBLESHOOTING

Problem Possible cause Solution
The oven is not working.	Power cut.Disconnection from the mains.	Check for the presence of mains electrical power and whether the oven is connected to the electricity supply.Turn off the oven and restart it to see if the fault persists.
The display shows the letter “F” followed by a number or letter.	Oven failure.	Contact you nearest Client After-sales Service Centre and state the number following the letter “F”.

PRODUCT FICHE

www The product fiche with energy data of this appliance can be downloaded from Whirlpool website docs.whirlpool.eu

HOW TO OBTAIN THE USE AND CARE GUIDE

www Download the Use and Care Guide from our website docs.whirlpool.eu (you can use this QR Code), specifying the product's commercial code.

Alternatively, contact our Client After-sales Service.

CONTACTING OUR AFTER-SALES SERVICE

You can find our contact details in the warranty manual. When contacting our Client After-sales Service, please state the codes provided on your product's identification plate.

C:\WINDOWS\2019\1\PLC\2019\2019 Model:www20000000 CE EER 2000000000000000000000000000000000000000000000000000000000000000000000000000000000000 © 2019-2019

GUIDE

D'UTILISATION QUOTIDIENNE

MERCI D'AVOIR ACHETÉ UN PRODUIT WHIRLPOOL

Simple line drawing of a rectangular plate with vertical lines, no text or symbols present

Simple line drawing of a rectangular frame with decorative border and a separate curved line (no text or symbols)

Simple line drawing of a square frame with a separate curved line on the right side (no text or symbols)

Pure mechanical assembly diagram showing parallel rods and a bracket with an arrow indicating direction (no text or symbols)

Pure mechanical diagram showing a lever mechanism with no text or symbols

[▼]TURBO 2

[ ] 12:30 200°C =

[ ] 13:30 200°C ②

[ ]2 10° C² 10°C

[ ] END 210°C

[ ] x ---0

Convection naturelle

Convection forcée

Grill

Turbo Grill

Pain / Pizza

CHALEUR

Chaleur tournante

ACCESSOIRES

Grille métallique

Diagram illustrating a mechanical device with labeled parts (a and b) and directional arrows indicating motion or movement.

Diagram illustrating a mechanical assembly or disassembly process with labeled components (a and b) and directional arrows indicating movement.

Simple line drawing of a rectangular grid with vertical lines, no text or symbols present

Simple line drawing of a rectangular frame with rounded corners and a separate curved line on the right (no text or symbols)

Simple line drawing of a square frame with a separate curved line on the right side (no text or symbols)

Technical diagram showing two mechanical assembly states: one with a left-angle arrow indicating motion, the other with a right-angle arrow indicating rotation or adjustment (no text or symbols present)

[ ] 12:30 200°C

[ ] 13:30 200°C ⑦

[ ]2 10° C-2 10°C

[ ] ENND 210°C

Diagram illustrating a mechanical device with labeled parts (a) and (b), showing motion directions and component placement.

Diagram illustrating a mechanical assembly or disassembly process with labeled components (a) and (b), showing a laptop and clamping mechanism.

Simple line drawing of a rectangular grid with vertical lines, no text or symbols present

Simple line drawing of a rectangular frame with rounded corners and a separate curved line on the right (no text or symbols)

Simple line drawing of a square frame with a separate zigzag line on the right side (no text or symbols)

Pure mechanical assembly diagram showing diagonal metal rods and a bracket with an arrow indicating direction (no text or symbols)

Mechanical assembly diagram showing a rotating component with directional arrow (no text or labels)

• MANUTENCAO DO CALOR

[▼]TURBO 2

[ ]----:---- =200°C

[ ] 12:30 200°C

[ ] 13:30 200°C ⑦

[ ] x ---0

REMOVER E REPOR A PORTA

Diagram illustrating a mechanical device with labeled parts (a) and (b), showing motion directions and component placement.

Diagram illustrating a mechanical or electrical setup with labeled components (a and b) and directional arrows indicating motion or movement.

Simple line drawing of a rectangular grid with vertical lines, no text or symbols present

Simple line drawing of a rectangular frame with rounded corners and a separate curved line on the right (no text or symbols)

Simple line drawing of a square frame with a separate curved line on the right side (no text or symbols)

Technical diagram showing two mechanical assembly states: one with a rotating component and the other with a curved arrow indicating rotation (no text or symbols present)

[▼]TURBO 2 Y

[ ] 12:30 200°C

[ ] 13:30 200°C ⑦

[ ] 07:05 210°C

[ ] END 210°C

[ ] x ---0

Diagram illustrating a mechanical assembly or disassembly process with labeled steps a and b, showing motion directions and component placement.

Diagram showing a laptop with labeled parts (a and b) and a mechanical device, illustrating a mechanical assembly or disassembly process.
