USER MANUAL CoolMatic MDC 65 DOMETIC

Interior view of a stainless steel refrigerator with open doors and internal compartments (no visible text or symbols)

MDC065, MDC065K, MDC090, MDC090K

EN Refrigerator

Operating manual 7

Kühlschrank

Technical diagram of an air conditioning unit with labeled parts and a magnified inset showing internal components.

2

Simple line drawing of a vertical object with a handle and small dots, no text or symbols present.

4 1 2 3 4 5

5 1 2 3 4 5

6 sw rt 1

Please read this instruction manual carefully before first use, and store it in a safe place. If you pass on the product to another person, hand over this instruction manual along with it.

Contents

1 Explanation of symbols....8
2 Safety instructions....8
3 Intended use ....10
4 Scope of delivery .....10
5 Accessory 11
6 Technical description ..... 11
7 Setting up and connecting the cooling device .....12
8 Operation 16
9 Cleaning and maintenance....19
10 Guarantee....19
11 Disposal....19
12 Troubleshooting 20
13 Technical data 23

1 Explanation of symbols

DANGER!

Safety instruction: Failure to observe this instruction will cause fatal or serious injury.

WARNING!

Safety instruction: Failure to observe this instruction can cause fatal or serious injury.

CAUTION!

Safety instruction: Failure to observe this instruction can lead to injury.

NOTICE!

Failure to observe this instruction can cause material damage and impair the function of the product.

NOTE

Supplementary information for operating the product.

2 Safety instructions

The manufacturer accepts no liability for damage in the following cases:

• Faulty assembly or connection
- Damage to the product resulting from mechanical influences and excess voltage
• Alterations to the product without express permission from the manufacturer
- Use for purposes other than those described in the operating manual

2.1 General safety

DANGER!

• Danger of fatal injuries!

When using the device on boats: if the device is powered by the mains, ensure that the power supply has a ground fault interrupter circuit.

WARNING!

- Before starting up the device for the first time, check whether the operating voltage and the battery voltage correspond (see type plate).

- If the connection cable is damaged, it must be replaced to prevent possible electrical hazards. Only replace a damaged connection cable with a connection cable of the same type and specifications.

- Have a trained technician make installations in wet rooms.

- This device may only be repaired by qualified personnel. Inadequate repairs can lead to considerable hazards.

Should your device need to be repaired, please contact customer services.

• Electronic devices are not toys!

Always keep and use the device out of the reach of children.

- People (including children) whose physical, sensory or mental capacities or whose lack of experience or knowledge prevent them from using this product safely should not use it without the supervision or instruction of a responsible person.

- Food may only be stored in its original packaging or in suitable containers.

- Do not store any explosive substances, such as spray cans with propellants in the device.

NOTICE!

- Do not open the refrigerant circuit under any circumstances.

- Set up the device in a dry location where it is protected against splashing water.

- Do not place the device near naked flames or other heat sources (heaters, direct sunlight, gas ovens etc.)

- If you connect your refrigerator to a battery, please remember that the battery contains acid.

- Ensure that the ventilation slots are not covered.

- The cooling device is not suitable for transporting caustic materials or materials containing solvents.

2.2 Operating the device safely

CAUTION!

• Do not place any electrical devices inside the refrigerator.
• If you connect the device to a battery, make sure that food does not come into contact with the battery acid.
• Protect the device against rain and moisture.

- Disconnect the cooling device and other power consuming devices from the battery before connecting the battery to a quick charging device.

Overvoltage can damage the electronics of the device.

NOTE

• Defrost the device in good time to save energy.
• Disconnect the device if you are not going to use it for a long time.

3 Intended use

The refrigerator is suitable for refrigerating foodstuffs and storing frozen foodstuffs. The device is also suitable for use on boats.

CAUTION! Health hazard!

Please check if the cooling capacity of the device is suitable for storing the food or medicine you wish to cool.

4 S c o p e o f d

Quantity Description

1 Refrigerator

1 Assembly kit for changing the door hinge

1 Operating manual

5 A c c e s s o r y

If you wish to operate the cooling device with a 230 V AC mains supply, please use one of the following rectifiers.

Available as accessory (not included in scope of delivery):

Description Ref. no.

CoolPower EPS100W rectifier 9600000440

CoolPower MPS35 rectifier 9600000445

6 Technical description

CoolMatic MDC series refrigerators are suitable for use with a 12 V or 24 V DC voltage and can therefore also be used for camping or on boats. You can also use the CoolPower EPS100W and MPS35 rectifiers to connect them to a 230 V mains supply.

The refrigerator can chill products and keep them cool. Frozen products can be stored in the freezer compartment.

You can use the continuously variable thermostat to set the desired temperature.

All materials used in the refrigerator are compatible for use with foodstuffs. The refrigerant circuit is maintenance-free.

When used on boats the refrigerator can be subjected to a constant inclination of 30^ .

6.1 Operating and display elements

No. in fig. 1, Explanation page 3

1 Temperature controller

2 Operating status LED

3 Error code LED

4 Ventilation slots (only MDC090/MDC090K)

Error codes in the error code LED, see chapter "Troubleshooting" on page 20.

7 Setting up and connecting the cooling device

7.1 Setting up the cooling device

The device is designed for ambient temperatures between +16 °C and +32 °C. In continuous operation, the air humidity may not exceed 90 %.

Set up the cooling device in a dry, sheltered place. Avoid placing it near heat sources such as radiators, gas ovens or hot water pipes. Do not let it stand in the direct, strong sunlight.

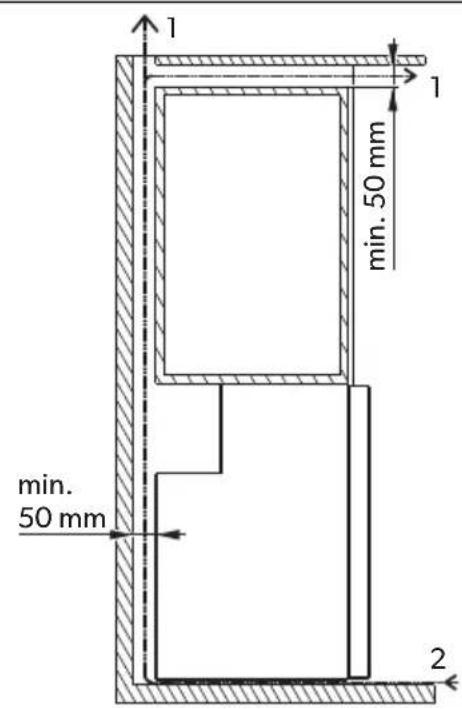

The cooling device must be positioned so that heated air can dissipate easily. Therefore make sure there is adequate ventilation (fig. 2, page 4).

No. in fig. 2, Explanation page 4

1 Hot waste air

2 Cold intake air

7.2 Sealing system

The cooling device has a locking mechanism to protect it during transport. The following settings are possible:

• Position 1 (transport lock) (fig. 3 1, page 4): The door is locked and secured. To open the door, turn the bolt to position 2.
• Position 2 (releasing transport lock) (fig. 3 2, page 4): The door can be opened.
• Position 3 (VENT position) (fig. 3 3, page 4): The door is slightly open, but fixed in position. Use this position, for example, if you are not going to use the device for a long time.

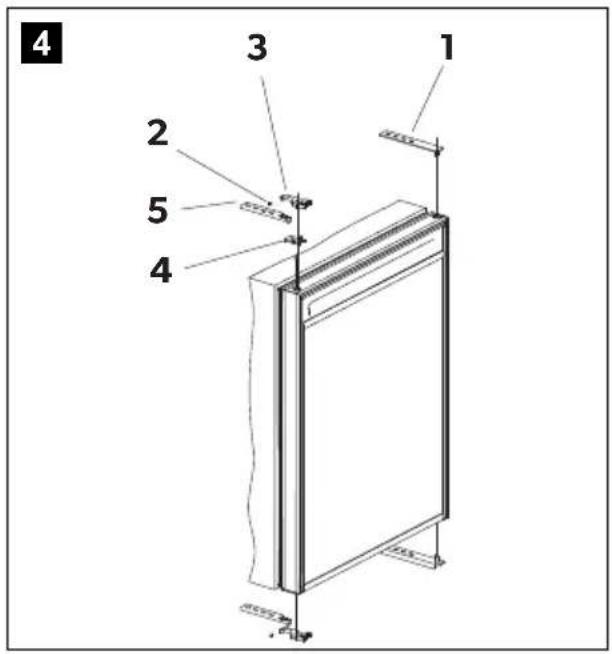

7.3 Changing the door hinge

You can also change the hinge of the door, so that it opens to the left rather than the right.

To change the door hinge, proceed as follows (fig. 4, page 5):

▶ Remove the upper door hinge (fig. 4 1, page 5).
▶Carefully lift out the door.
▶ Remove the threaded pins (fig. 4 2, page 5).
▶ Pull the locking hook (fig. 4 3, page 5) off the rod.
Remove the locking plate (fig. 4 4, page 5) and fit it on the opposite side.
▶ Pull the rod downwards and out and put it in the other side.
▶ Fasten the locking hook (fig. 4 3, page 5) back on the rod.
▶ Detach the top and bottom lock holders (fig. 4 5, page 5) on the left side.
▶ Detach the top and bottom door hinges (fig. 4 1, page 5) on the right side.
▶ Fasten the top and bottom door hinges (fig. 4 1, page 5) to the left side.
▶ Fasten the top and bottom lock holders (fig. 4 5, page 5) to the left side.

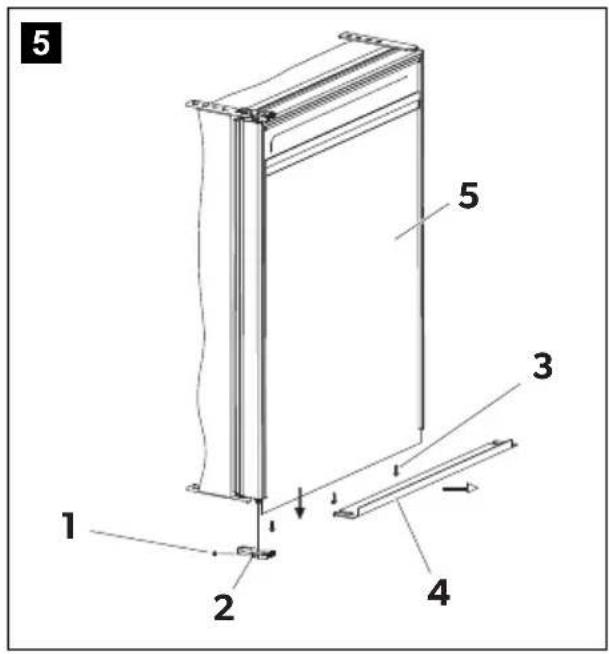

7.4 Changing the decorative plate

You can change the decorative plate on your cooling device to improve the appearance.

This is how to change the decorative plate:

▶ Remove the screws 1 and 3 (fig. 5 1 and 3, page 5).
▶ Remove components 2 and 4 (fig. 5 2 and 4, page 5).
▶ Pull down the old decorative plate out of the door frame. Caution: there is a risk of injury!
▶Put the new decorative plate in the door frame.
▶ Fit the components 2 and 4 (fig. 5 2 and 4, page 5) back on the device.
▶ Fasten the screws 1 and 3 (fig. 5 1 and 3, page 5).

7.5 Connecting the cooling device

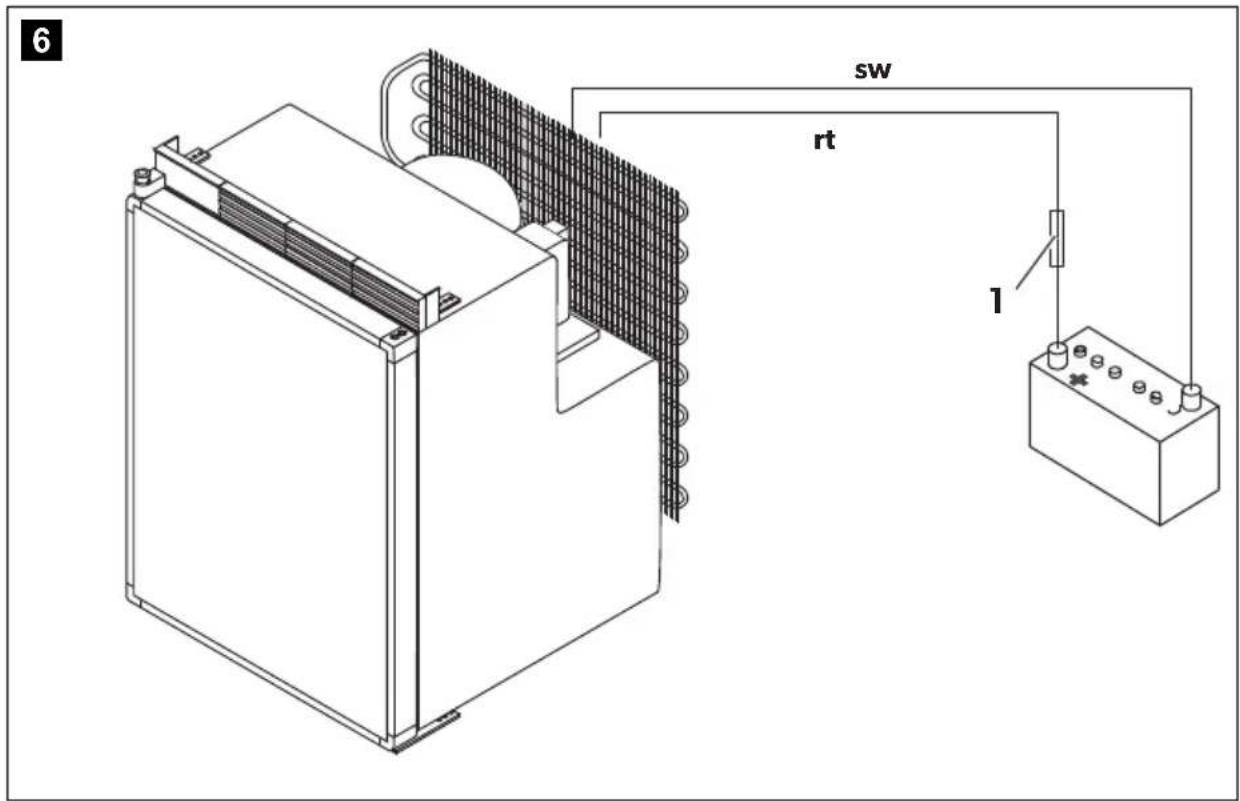

For the electrical connection you also need the wiring diagram (fig. 6, page 5).

Cable colours:

No. in fig. 6, Meaning page 5

sw black

rt red

Connecting to a battery

The cooling device can be operated with a 12 V or 24 V DC voltage supply.

NOTICE!

To avoid voltage loss and therefore a drop in performance, the cable should be kept as short as possible and should not be interrupted if this is possible.

For this reason avoid additional switches, plugs or power strips.

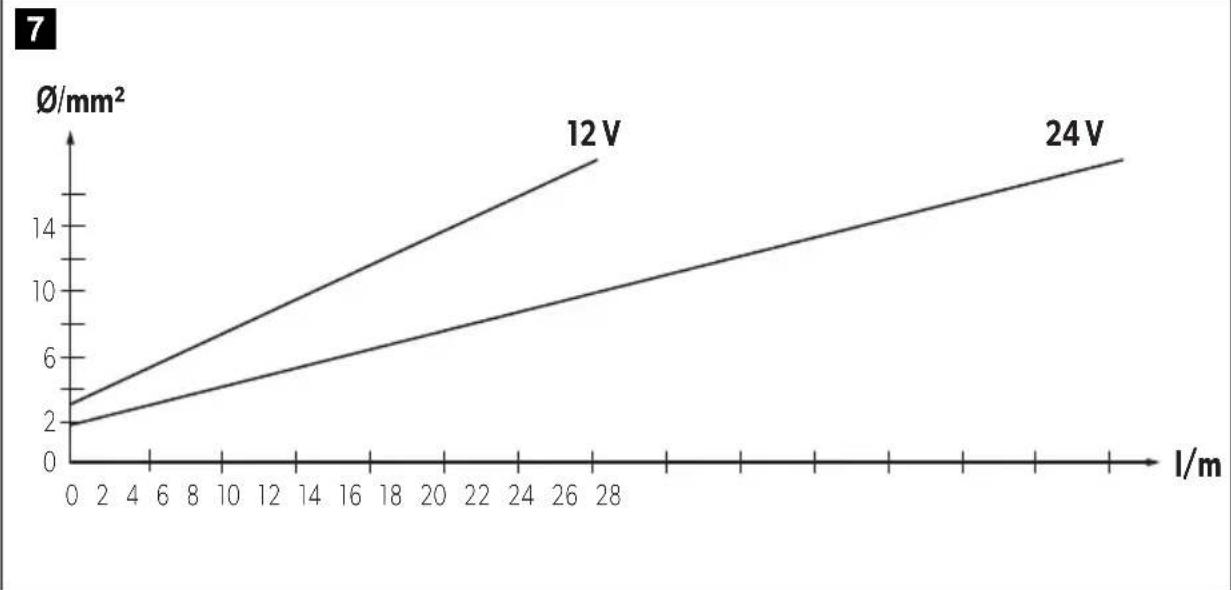

▶Determine the required cross section of the cable in relation to the cable length according to fig. 7, page 6.

Key for fig. 7, page 6

Co-ordinate axis Meaning Unit

| Cable length m

∅Cable cross section

mm²

NOTICE!

Make sure that the polarity is correct.

- Before starting up the device for the first time, check whether the operating voltage and the battery voltage correspond (see type plate).

▶Connect the cooling device

• As directly as possible to the pole of the battery or
• To a plug socket which is fused with at least 15 A (at 12 V) or 7.5 A (at 24 V).

NOTICE!

Disconnect the cooling device and other power consuming devices from the battery before connecting the battery to a quick charging device.

Overvoltage can damage the electronics of the device.

The cooling device is equipped with an electronic device to protect against reversing the polarity and short circuits when connecting to a battery. To protect the battery, the cooling device switches off automatically if the voltage is insufficient (see table below).

	12 V 24 V
Switch-off voltage	10.4 V 22.8 V
Switch-on voltage	11.7 V 24.2 V

Connecting to 230 V mains supply

DANGER!

• Never handle plugs and switches with wet hands or if you are standing in a puddle.
• If you are operating your cooling device on board a boat with a mains connection of 230 V from the land, you must install a ground protection circuit breaker between the 230 V mains supply and the cooling device.

Seek advice from a trained technician.

▶To operate the cooling device with a 230 V mains supply, use an CoolPower EPS100W or MPS35 rectifier.

8 O p e r a t i o n

NOTE

Before starting your new cooling device for the first time, you should clean it inside and outside with a damp cloth for hygienic reasons (please also refer to the chapter "Cleaning and maintenance" on page 19).

8.1 Energy saving tips

• Choose a well ventilated installation location which is protected against direct sunlight.
• Allow food to cool down first before placing it in the device.
• Do not open the cooling device more often than necessary.
• Do not leave the door open for longer than necessary.
• Defrost the cooling device as soon as a layer of ice forms.
• Avoid unnecessarily low temperatures.
• Clean the condenser of dust impurities at regular intervals.

8.2 Using the cooling device

The fridge device conserves fresh foodstuffs. You can also conserve frozen foodstuffs in the freezer compartment.

NOTICE!

Ensure that food or liquids in glass containers are not excessively refrigerated.

Liquids expand when they freeze and can thus destroy the glass containers.

▶ Switch the cooling device on by turning the knob (fig. 1 A, page 3) to the right.

NOTE

After switching on, the cooling device requires approx. 60 s until the compressor starts up.

NOTICE!

Ensure that the objects placed in the cooling device are suitable for cooling to the selected temperature.

Setting the temperature

You can set the temperature to any level using the knob. The built-in temperature control regulates the temperature as follows:

• 1 (left limit) = warmest setting
• 7 (right limit) = coldest setting

NOTE

The cooling capacity can be influenced by:

• The ambient temperature
• The amount of food to be conserved
• The frequency with which the door is opened
- Adequate ventilation

Conserving foodstuffs

You can conserve foodstuffs in the cooling device compartment. The time for which the food can be conserved in this way is usually stated on the package.

NOTICE!

Do not conserve warm food in the cooling device compartment. Do not place glass containers with liquid in the freezer compartment.

NOTE

Food which can easily absorb tastes and odours and liquids and products with a high alcohol content should be conserved in air-tight containers.

The cooling device compartment is divided in different zones with different temperatures:

• The colder zones are immediately over the base, near the back wall.
• Observe the temperature information and best before date on the food packaging.

▶Observe the following when using the device:

• Do not re-freeze products which are defrosting or have been defrosted, consume them as soon as possible.
• Wrap food in aluminium foil or cling film and shut it in a suitable box with a lid. This ensures that aromas, the shape and the freshness are better conserved.

Securing the refrigerator door

You can prevent the refrigerator door from being opened inadvertently.

▶ Put the locking mechanism on the top of the door to position 1 (fig. 3 1, page 4).

Defrosting the cooling device

Humidity can form frost in the interior of the cooling device or on the vaporiser. This reduces the cooling capacity. Defrost the device in good time to avoid this.

NOTICE!

Never use hard or pointed tools to remove ice or to loosen objects which have frozen in place.

To defrost the cooling device, proceed as follows:

▶Take out the contents of the cooling device.
▶ Place them in another cooling device to keep them cool, if necessary.
▶ Set the knob to 0.
▶Leave the door open.
Wipe off the water resulting from defrosting or – if present – empty the collecting tray. If your device has a water drain, drain the thawed water off.

Switching off and storing the cooling device

If you do not intend to use the cooling device for a long time, proceed as follows:

▶Turn the knob to 0.
▶ Disconnect the power cable from the battery or pull the DC cable plug out of the rectifier.
▶ Clean the cooling device (see chapter "Cleaning and maintenance" on page 19).
Leave the lid or door open for to avoid unpleasant odours building up.
▶ Put the lock in the VENT position (fig. 3 3, page 4). This prevents odours from building up.

9 Cleaning and maintenance

NOTICE!

• Do not use abrasive cleaning agents or hard objects during cleaning as these can damage the cooling device.
• Never use brushes, scouring pads or hard or pointed tools to remove ice or to loosen objects which have frozen in place.

▶ Clean the cooling device regularly as soon as it becomes dirty with a damp cloth.
▶Make sure that no water drips into the sealings. This can damage the electronics.
▶Wipe the cooling device dry with a cloth after cleaning.

10 Guarantee

The statutory warranty period applies. If the product is defective, please contact the manufacturer's branch in your country (see the back of the instruction manual for the addresses) or your retailer.

For repair and guarantee processing, please include the following documents when you send in the device:

• A copy of the receipt with purchasing date
- A reason for the claim or description of the fault

11 Disposal

NOTICE!

When disposing of the device, make sure it is not overheated, as the insulating foam was made with flammable gas.

▶ Place the packaging material in the appropriate recycling waste bins wherever possible.

If you wish to finally dispose of the product, ask your local recycling centre or specialist dealer for details about how to do this in accordance with the applicable disposal regulations.

12 Troubleshooting

The significance of the red LED (fig. 1 2, page 3)

For operational faults it illuminates several times. The number of pulses depends on the type of fault.

Each flash lasts for one quarter of a second. After the series of impulses a pause follows. The sequence for the fault is repeated every four seconds.

Number of flashes	Fault Possible cause
1 Supply voltage The supply voltage is outside of the set range.
2 Excessive fan current The fan loads the electronics unit with more than 1 A.
3 The motor doesn't start The rotor is jammed.	The pressure difference in the cooling system is too high (>5 bar).
4 Speed too low If the cooling system is overloaded, the minimum speed of the motor of 1850 RPM cannot be maintained.
5 Overheating of the electronics unit	If the cooling system is loaded too heavily or the temperature is set too high, the electronics can overheat.

Interior temperature too low in control level "1"

Fault Possible cause Remedy
Compressor runs constantly	Faulty thermostat Change the thermostat
Compressor runs for a long time	Large quantities have been frozen in – the freezer compartment

Compressor does not run (battery connection)

Fault Possible cause Remedy

U_KL=0V There is an interruption in the connection between the battery and the - electronics		Establish a connection
U_KL≤ U_EIN	Battery voltage is too low Charge the battery
Start attempt with U_KL≤ U_OFF	Loose cables	Establish a connection
	Poor contact (corrosion)
	Battery capacity too low Replace the battery
	Cable cross section too small Replace the cable
Start attempt with U_KL≥ U_ON	Ambient temperature too high -
	Insufficient ventilation and/or air supply	Move the refrigerator to another location
	Condenser is dirty Clean the condenser
Electric circuit between the pins in the compressor interrupted	Defective compressor Replace the compressor

U_KL Voltage between the positive and negative terminals of the electronics

U_ON Cut-in voltage of the electronics

U_OFF Cut-off voltage of the electronics

Compressor is not running (connected to AC supply)

Fault Possible cause Remedy

No voltage Interruption in the supply cable Establish a connection
	Main switch faulty (if installed) Replace the main switch
	Additional supply line fuse has blown (if installed)	Replace the supply line fuse
Voltage is present but the compressor doesn't run	Ambient temperature too high –
	Insufficient ventilation and/or air supply	Move the refrigerator to another location
	Condenser is dirty Clean the condenser
Electric circuit between the pins in the compressor interrupted	Defective compressor Replace the compressor

Poor cooling, interior temperature increases

Fault Possible cause Remedy

Compressor runs for a long time/continuously	Ambient temperature too high –
	Insufficient ventilation and/or air supply	Move the refrigerator to another location
	Condenser is dirty Clean the condenser
	Faulty fan Replace the fan
Compressor runs intermittently	Battery capacity exhausted Charge the battery

Unusual noises

Fault Possible cause Remedy

Loud humming A component of the refrigerant circuit cannot move freely (touching the wall)	Bend the component carefully away from the obstruction
Foreign body jammed between the cooling unit and the wall	Remove the foreign body
Fan noise –

13 Technical data

All MDC series refrigerators have the following features:

• Connection voltage 12 V = or 24 V=
  • Cooling device compartment temperature: +10 °C to +2 °C
  • Freezer compartment temperature: 0 °C to -18 °C
  • Relative humidity: maximum 90%
• Constant inclination: maximum 30^

- Test/certificates:

complies with ErP/EuP directive

	MDC065MDC065K	MDC090MDC090K
Overall capacity: 64 | 90 | Freezer compartment: 10 | 10 |
Average power consumption: 45 W
Coolant quantity: 60 g
CO2 equivalent: 0.086 t
Global warming potential (GWP): 1430
Dimensions (W x H x D) in mm:	485 x 673 x 475	485 x 830 x 475
Weight:	20 kg	28 kg

The coolant circuit contains R-134a.

Contains fluorinated greenhouse gases

Hermetically sealed equipment

6 Description technique

Dometic Australia Pty. Ltd.

1 John Duncan Court

Varsity Lakes QLD 4227

1800 212121

[phone]

Mail: [e-mail]

AUSTRIA

Dometic Austria GmbH

Neudorferstraße 108

A-2353 Guntramsdorf

[phone]

[phone]

Mail: [e-mail]

BENELUX

Dometic Branch Office Belgium

Zincstraat 3

B-1500 Halle

[phone]

[phone]

Mail: [e-mail]

BRAZIL

Dometic DO Brasil LTDA

Avenida Paulista 1754, conj. 111

SP 01310-920 Sao Paulo

[phone]

[phone]

Dometic Group Asia Pacific

Suites 2207-11 · 22/F · Tower 1

The Gateway · 25 Canton Road,

Tsim Sha Tsui · Kowloon

[phone]

[phone]

Mail: [e-mail]

HUNGARY

Dometic Zrt. Sales Office

Kerékgyártó u. 5.

H-1147 Budapest

[phone]

[phone]

Dometic Italy S.r.l.

Via Virgilio, 3

I-47122 Forli (FC)

[phone]

[phone]

Mail: [e-mail]

JAPAN

Dometic KK

Maekawa-Shibaura, Bldg. 2

2-13-9 Shibaura Minato-ku

Tokyo 108-0023

[phone]

品 [phone]

Mail: [e-mail]

MEXICO

Circuito Médicos No. 6 Local 1

Colonia Ciudad Satélite

CP 53100 Naucalpan de Juárez

Estado de México

[phone]

[phone]

Mail: [e-mail]

NETHERLANDS

Dometic Benelux B.V.

Ecustraat 3

NL-4879 NP Etten-Leur

[phone]

[phone]

Mail: [e-mail]

NEW ZEALAND

Dometic New Zealand Ltd.

PO Box 12011

Penrose

Auckland 1642

[phone]

[phone]

Mail: [e-mail]

NORWAY

Dometic Norway AS

∅sterøyveien 46

N-3232 Sandefjord

[phone]

[phone]

Mail: [e-mail]

POLAND

Dometic Poland Sp. z o.o.

Ul. Puławska 435A

PL-02-801 Warszawa

[phone]

[phone]

Mail: [e-mail]

PORTUGAL

Dometic Spain, S.L.

Komsomolskaya square 6-1

RU-107140 Moscow

[phone]

[phone]

Mail: [e-mail]

SINGAPORE

Dometic Pte Ltd

18 Boon Lay Way 06-140 Trade Hub 21

Singapore 609966

[phone]

[phone]

Mail: [e-mail]

SLOVAKIA

Dometic Slovakia s.r.o. Sales Office Bratislava

Nádražná 34/A

900 28 Ivánka pri Dunaji

/ [phone]

Mail: [e-mail]

SOUTH AFRICA

Dometic (Pty) Ltd.

Regional Office

South Africa & Sub-Saharan Africa

2 Avalon Road

West Lake View Ext 11

Modderfontein 1645

Johannesburg

[phone]

[phone]

Mail: [e-mail]

SPAIN

Dometic Spain S.L.

Avda. Sierra del Guadarrama, 16

E-28691 Villanueva de la Cañada

Madrid

[phone]

[phone]

Mail: [e-mail]

SWEDEN

Dometic Scandinavia AB

Gustaf Melins gata 7

Dometic Switzerland AG

Riedackerstrasse 7a

CH-8153 Rümlang

[phone]

[phone]

Mail: [e-mail]

UNITED ARAB EMIRATES

Dometic Middle East FZCO

P.O.Box17860

S-D 6, Jebel Ali Freezone

Dubai

[phone]

[phone]

Mail: [e-mail]

UNITED KINGDOM

Dometic UK Ltd.

Dometic House, The Brewery

Blandford St. Mary

Dorset DT119LS

[phone]

[phone]

Mail: [e-mail]

USA

Dometic RV Division

1120 North Main Street

Elkhart, IN 46515

[phone]
