RP536TSE1

RP536TXE1

USER MANUAL

REFRIGERATOR

PLEASE READ ALL INSTRUCTIONS BEFORE USING THIS APPLIANCE

Contents

Thank you for buying our refrigerator. We hereby express our thanks.

Welcome to use our refrigerator. We will do our best to provide you with quality service.

Safety instructions P2

Product introduction P5

Handling and placement P6

Preparations prior to use P7

Operation keys P8

Care and maintenance P13

Failure analysis P14

Non-failure P14

Technical parameter P15

Packing list---- P15

Safe recovery instructions P16

Description of climate types P16

1. This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety. Children should be supervised to ensure that they do not play with the appliance.

2. If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.

3. This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.

4. WARNING: Keep ventilation openings, in the appliance enclosure or in the built-in structure, clear of obstruction.

5. WARNING: Do not use mechanical devices or other means to accelerate the defrosting process, other than those recommended by the manufacturer.

6. WARNING: Do not damage the refrigerant circuit.

7. WARNING: Do not use electrical appliances inside the food storage compartments of the appliance, unless they are of the type recommended by the manufacturer.

8. Do not store explosive substances such as aerosol cans with a flammable propellant in this appliance.

9. This appliance is intended to be used in household and similar applications such as

— Staff kitchen areas in shops, offices and other working environments;

— Farm houses and by clients in hotels, motels and other residential type environments;

— Bed and breakfast type environments;

— Catering and similar non-retail applications.

1. This product contains a light source of energy efficiency class F for light source ERP, test with (without) light cover.

Safety instructions

1. Warning

Warning: No barrier is allowed around the appliance or in the embedded structure in order to ensure the free ventilation.

Warning: It is forbidden to speed up the defrosting process with any mechanical equipment or by other method except for the method recommended by the manufacturer.

Warning: Never damage the refrigerating circuit.

Warning: Never use any electric apparatus in the food chamber of the appliance except for the type recommended by the manufacturer.

Warning: Never place the liquid beverage or food contained with glass container in the freezing chamber for fear of cracking.

Warning: If powered off, the refrigerator shall be powered on 5min later for fear of damaging the compressor.

Warning: If any live part, abnormal noise, smell, smoke or other abnormality is found during use, it is necessary to power off the appliance immediately and contact the after-sales service department of the Company timely.

Warning: Never place your finger or hand under the refrigerator, especially rear bottom of refrigerator; otherwise, you may be hurt by the sharp matter.

Warning: The children must not play or climb the refrigerator. The operation by the children must be supervised by their parents for fear of danger.

Warning: Never place your hand between the doors to open or close door for fear of jamming your finger. The door handle shall be used to open or close the door.

Warning: Under the rated climate types SN, N and ST, the operating ambient range of the appliance is 10^ C\~ 38^ C; under the climate types SN, N, ST and T, the operating ambient range of the appliance is 10^ C\~ 43^ C. If the appliance operates outside the rated climate type (ambient temperature range), the appliance may not maintain the satisfying interior temperature.

Warning Risk of fire / flammable materials:

Warning: When positioning the appliance, ensure the supply cord is not trapped or damaged.

Warning: Do not locate multiple portable socket-outlets or portable power supplies at the rear of the appliance.

Children aged from 3 to 8 years are allowed to load and unload refrigerating appliances. Opening the door for long periods can cause a significant increase of the temperature in the compartments of the appliance.

Clean regularly surfaces that can come in contact with food and accessible drainage systems. Clean water tanks if they have not been used for 48 h; flush the water system connected to a water supply if water has not been drawn for 5 days.

Store raw meat and fish in suitable containers in the refrigerator, so that it is not in contact with or drip onto other food.

Two-star frozen-food compartments are suitable for storing pre-frozen food, storing or making ice-cream and making ice cubes.

One-, two- and three-star compartments are not suitable for the freezing of fresh food. If the refrigerating appliance is left empty for long periods, switch off, defrost, clean, dry, and leave the door open to prevent mould developing within the appliance.

2. Cautions

Cautions: The power supply of this product must be uniform with the power supply mentioned on the nameplate, and the standard independent 3-hole socket shall be used (above 10A, and reliably grounded). One socket must not be shared by more than one appliance; otherwise, fire may be caused due to overheat.

Cautions: Never pull the power wire by hand. It is necessary to hold and unplug the power connector from the socket to disconnect the power supply. The power wire or connector must not be touched by the wet hand for fear of electric shock.

Cautions: The power wire must not be squeezed by the refrigerator or any heavy load, and the power wire shall not be bent extremely. The damage or peeling of power wire may result in fire or electric shock. If the power wire is broken or cut, please contact the after-sales service department immediately.

Cautions: No flammable or explosive matter or corrosive acid or alkaline matter is allowed in the refrigerator.

Safety instructions

Cautions: The refrigerator must not be used in the rain or under the sunshine.

Cautions: It is forbidden to place the container with fluid on the refrigerator because the breakage or turnover of the container may affect the electrical insulation of refrigerator and result in electric shock or fire.

Cautions: The refrigerator must not be disassembled or modified without permission. The repair of refrigerator must be performed by the specialist.

Cautions: In case of leakage of any flammable gas such as coal gas, it is necessary to close the leaking valve first and then open the window for ventilation, and forbidden to unplug the refrigerator connector immediately for fear of fire or explosion due to electric spark.

Cautions: Refrigerating appliances – in particular a refrigerator-freezer Type I – might not operate consistently (possibility of defrosting of contents or temperature becoming too warm in the frozen food compartment) when sited for an extended period of time below the cold end of the range of temperatures for which the refrigerating appliance is designed;

Cautions: The fact that effervescent drinks should not be stored in food freezer compartments or cabinets or in low-temperature compartments or cabinets, and that some products such as water ices should not be consumed too cold.

Cautions: The need to not exceed the storage time(s) recommended by the food manufacturers for any kind of food.

Cautions: The precautions necessary to prevent an undue rise in the temperature of the frozen food while defrosting the refrigerating appliance, such as wrapping the frozen food in several layers of newspaper.

Cautions: The fact that a rise in temperature of the frozen food during manual defrosting, maintenance or cleaning could shorten the storage life.

Cautions: The care required with regard to frozen food in storage in the event of an extended non-running of the refrigerating appliance (interruption of power supply or failure of the refrigerating system).

Cautions: The action to be taken when the refrigerating appliance is switched off and taken out of service temporarily or for an extended period (e.g. emptied, cleaned and dried, and the door(s) or lid(s) propped ajar).

Prod

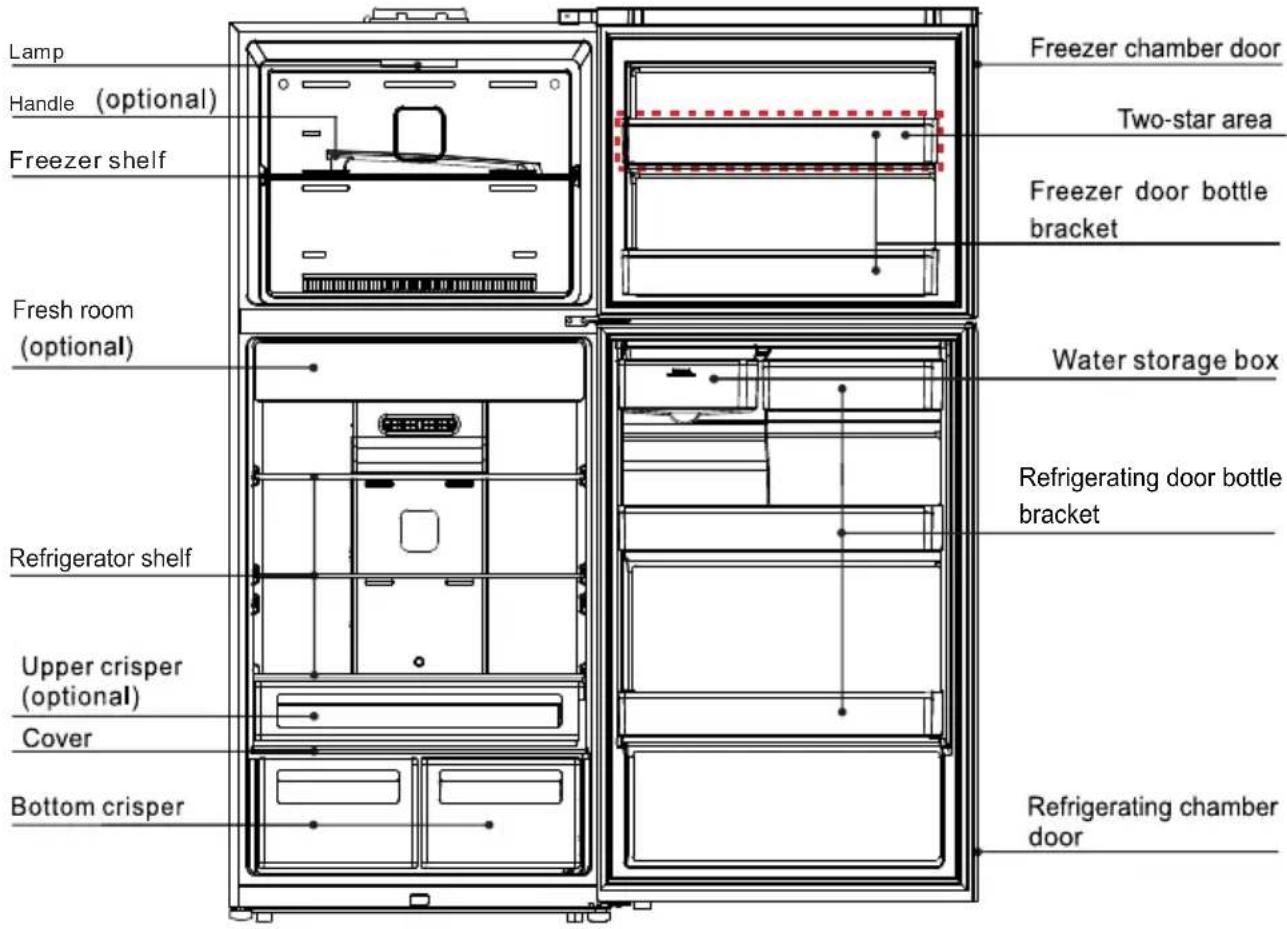

Lamp Handle (optional) Freezer shelf Fresh room (optional) Refrigerator shelf Upper crisper (optional) Cover Bottom crisper Freezer chamber door Two-star area Freezer door bottle bracket Water storage box Refrigerating door bottle bracket Refrigerating chamber door

The pictures are for reference only. Please refer to the object

Features

--Computer intelligent temperature control, air cooled and frost free

It adopts computer intelligent temperature control, visual operation, which is intelligent and convenient, and adopts air cooling and frost free system, which is safe and efficient.

--Hidden handle

The appearance is simple and elegant and it is easy to operate

The transparent drawer is fashionable and the food inside is clear at a glance

A handle with a hidden air lamp

Double decker fruit box with high spatial utilization

The lower fruit box is added with the humidity adjusting structure, which is easy to store food and regulate dry and wet

The door with simple water dispenser

Freezer with rotating ice maker

--Swing Flow Technology

Warm prompt:

If your product is improved product, it may not be totally same as that in the instructions. But it will not change the performance and method of application.

Please feel relieved about usage.

Handling and placement

Certain space shall be left around the refrigerator, shown in the figure.

>10cm >10cm >10cm

During handling, the door side of the refrigerator shall not contact with the handling tools

<45°

The refrigerator shall be placed in an environment which is dry, has good ventilation, far from direct sunshine and heat source.

Illustration of a cartoon character standing beside a box with steam rising, under sunny conditions (no text or symbols)

The refrigerator shall be placed on the flat and firm surface. If the ground is not flat, adjust the adjusting leg to keep it level.

Cartoon illustration of a smiling rectangular box with arms and legs, standing on tiled floor with arrows indicating movement (no text or symbols)

Never place the refrigerator into a too cold environment that may get frozen.

Cartoon illustration of a character holding a box with expressive faces, surrounded by snowflakes and motion lines (no text or symbols)

Removing the foam base is beneficial for bottom heat dissipation and can avoid fire.

Cartoon illustration of a smiling cube with steam rising, placed on a base with wavy lines (no text or symbols)

Warm prompt:

--When handling the refrigerator, at least two persons are required – one lifts the top of rear part, the other one handles the bottom (if one part is clamped, it is quite dangerous and may cause accident).

--When moving the refrigerator, the lower runner may damage and scratch the floor. If you need to move the refrigerator for a long distance, the internal accessories shall be fixed using adhesive tape. Otherwise, the accessories may get damaged due to crashing each other.

--Please place the refrigerator in the position with small vibration or little exposed to vibration. For users in the area where earthquake often occurs, please fix the refrigerator against the wall or pole. Otherwise, the falling of refrigerator will cause accident.

--Sufficient clearance shall be left around. If the clearance is too small or place goods on the top or close to the side, or paste on the sides, the heat dissipation of refrigerator will be affected, and thus to cause unnecessary electric energy waste as well as burn out of the wall and other goods; the contact between the back and wall will cause vibration and noise; --Adjust the front part and adjusting leg of the refrigerator to level it. Unlevel of the refrigerator will cause vibration and noise.

Handling and placement

This refrigerating appliance is not intended to be used as a built-in appliance. The outline dimension of the product and the space needed by the use of product are shown in the following.

pictures:

Outline dimension of product

L1 W1

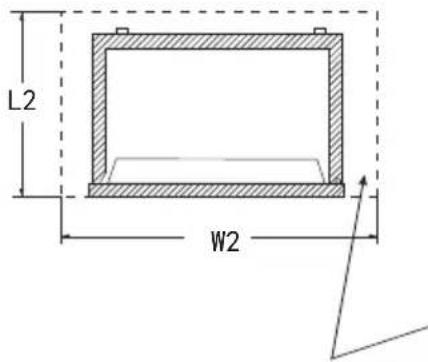

Space needed by the use of product

L2 W2

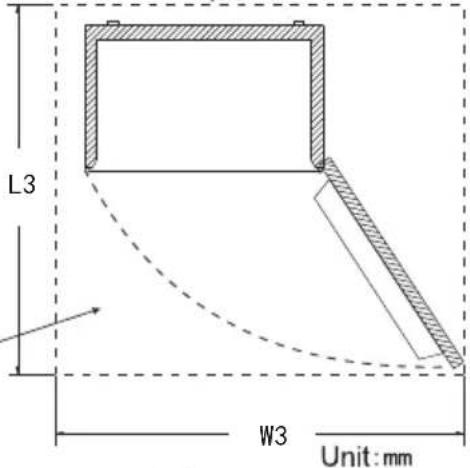

Total space needed by the use of product

Space needed by the free ventilation

Outline dimension of product		Space needed by the use of product		Total space needed by the use of product
L1	W1	L2	W2	L3	W3
	836688	>L1+100	>W1+200	>L1+840	>W1+600

Preparations prior to use

1. Remove all packing assemblies such as case fixing tape etc., especially the foam base.
2. Use warm wet cloth to clean both interior and exterior of the refrigerator, (neutral detergent can be added in warm water).

3. After leveling and cleaning the refrigerator, stand it for about 2 hours before plugging the power plug for powering on, and cool the refrigerator for 2 to 3 hours before storing foods.

4. Remove fixing tape

Wipe with warm and wet cloth

In hot summer, 24 hours are needed to fully freeze the food. Check the refrigerating condition on the second day.

1. Connect to power

1. Store food after connecting to power for 2-3 hours

Do not open the doors frequently to save electricity.

The plastics deodorant will disappear automatically after freezing for a while.

The appliance should be located in the coolest area of the room, away from heat producing appliances or heating ducts, and out of the direct sunlight.

Let hot foods cool to room temperature before placing in the appliance. Overloading the appliance forces the compressor to run longer. Foods that freeze too slowly may lose quality, or spoil.

Be sure to wrap foods properly, and wipe containers dry before placing them in the appliance. This cuts down on frost build-up inside the appliance.

Appliance storage bin should not be lined with aluminum foil, wax paper, or paper toweling. Liners interfere with cold air circulation, making the appliance less efficient.

Organize and label food to reduce door openings and extended searches. Remove as many items as needed at one time, and close the door as soon as possible.

Please refer to the product introduction picture on page 5 for the placement of accessories.

Operation and diagram of display board

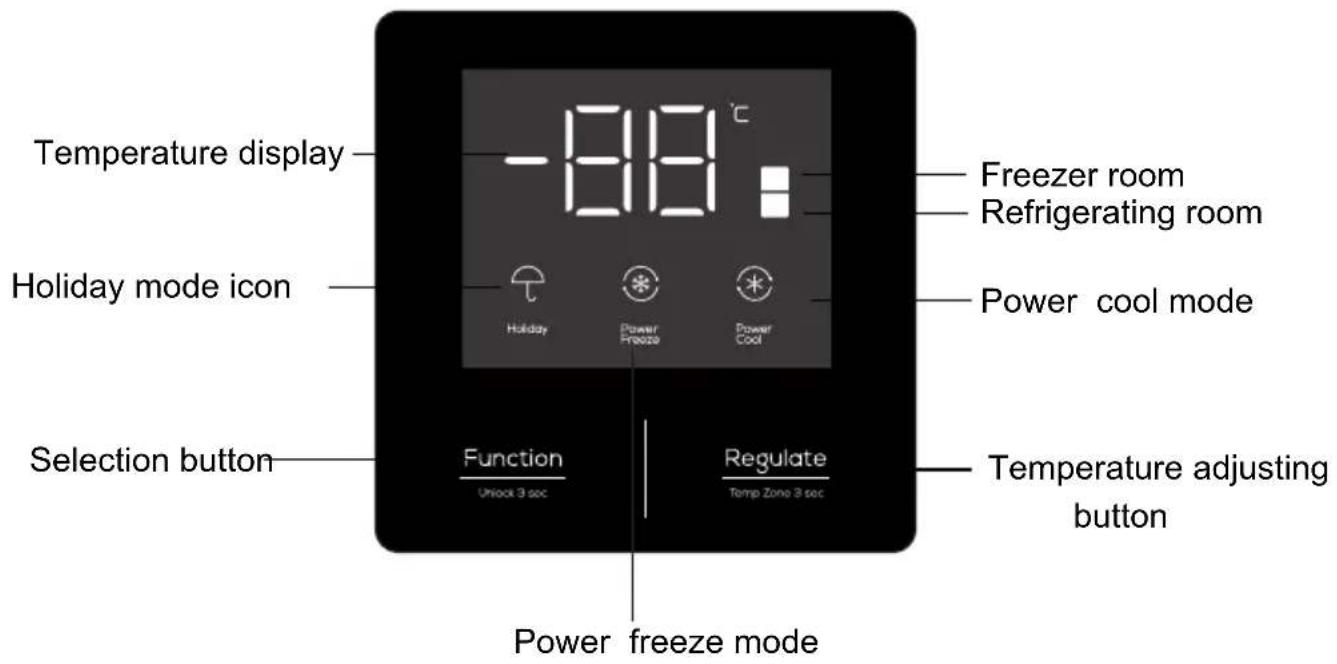

Temperature display -818°C Holiday mode icon Selection button Function Unlock 3 sec Regulate Temp Zone 3 sec Power freeze mode Freezer room Refrigerating room Power cool mode Temperature adjusting button

The above is the computer control board of the product

Operation keys

First time to electricity

The first time to electricity, the cooling room runs at the 5°C and the freezing room runs at the -18°C

The function of adjusting the temperature manually

Temperature adjustment in cooling room(2°C\~8°C)

Under unlock status, long press" Regulate "key for 3 seconds until the icon switches to refrigerator compartment. Press" Regulate "key to adjust temperature in refrigerator compartment. And then the temperature drops by 1°C every time press " Regulate " key. The shift of refrigerator compartment stalls recycles around "08" - "07" - "06" - "05" - "04" - "03" - "02" - "08". Stop button operation and wait for 5 seconds after appropriate temperature is selected, and then set the temperature shift for confirmation.

Temperature adjustment of freezer compartment (-24°C\~-15°C)

Under unlock status, long press" Regulate " key for 3 seconds until the icon switches to freezer compartment. Press " Regulate " key to adjust temperature in freezer compartment. And then the temperature drops by 1°C every time press " Regulate " key. The shift of freezer compartment stalls recycles around "-15"- "-16"- "-17"- "-18"- "-19"- "-20"- "-21"- "-22"- "-23"- "-24"- "-15". Stop button operation and wait for 5 seconds after appropriate temperature is selected, and then set the temperature shift for confirmation.

Quick refrigerating function

Under unlock status, repeatedly press "Function" key until the "Power Cool" icon flashes. Stop key operation and wait for 5 seconds to enter quick refrigerating function of refrigerator compartment. Manually exit quick refrigerating function through the same operation. Automatically exit quick refrigerating function after two hours. When the "Power Cool" function is on, set temperature to 2^ for refrigerator compartment, until the function exits. (Under quick refrigerating status, adjust set temperature of refrigerator compartment to automatically exit quick refrigerating function. Open refrigerator door over three minutes exit quick refrigerating function under quick refrigerating status.)

Quick freezing function

Under unlock status, repeatedly press "Function" key until the "Power Freeze" icon flashes. Stop key operation and wait for 5 seconds to enter quick freezing function of freezer compartment. Manually exit quick freezing function through the same operation. Automatically exit quick freezing function after four hours in high freezing status.

When the "Power Freezer" function is on, set temperature to -32^ for freezer compartment, until the function exits. (Under quick freezing status, adjust set temperature of freezer compartment to automatically exit quick freezing function. Open freezer door over three minutes exit quick freezing function under quick freezing status.)

Operation keys

Holiday function

Under unlock status, repeatedly press "Function" key until the " 🔍 🔍 🔍 🔍 🔍 🔍 🔍 🔍 🔍 🔍 🔍 🔍 🔍 🔍 🔍 🔍 🔍 🔍 🔍 🔍 🔍 🔍 🔍 🔍 🔍 🔍 🔍 🔍 🔍 🔍 🔍 🔍 🔍 🔍 🔍 🔍 🔍 🔍 🔍 🔍 🔍 🔍 🔍 🔍 🔍 🔍 🔍 🔍 🔍 🔍 🔴️. Stop key operation and wait for 5 seconds to enter intelligent function. Manually exit holiday function through the same operation. (Under the holiday mode, the setting of other function may quit the holiday function automatically.) (Notice: Please take the food out from the cold chamber before the holiday function is activated.) When the "Holiday" function is active, the cold chamber is turned off, and the temperature setting of cold chamber is OF.

Child lock function

It accesses to the child lock under the unlocked state :

The display panel has no buttons. After 30 seconds, the child lock is turned on, and the keyboard is locked. Exit child lock: when the child lock open, press the "function button" for 3 seconds, then, it will be unlocked.

Power-off memory

When the power is cut off, the instantaneous working state of blackout will be locked and resume the state after power on.

Door alarm

When the refrigerator or freezer door is not well closed or open for over 1 minute, the buzzer siren will send off sound. Press down any key to stop alarming and the siren sounds "beep, beep, beep" again after 1 minute; close refrigerator or freezer door to stop alarming.

Freezer compartment temperature reminder

When the temperature of freezer compartment is higher than -12^ , the corresponding temperature area is lit, the digital area flashes. Press down any key to display temperature of freezer compartment when the power is on, press again or wait for 10 seconds to restore normal display state.

Display protection function

The refrigerator will enter display protection function without any key operation for 30 seconds, and the key board is locked automatically. Under display protection mode, press any key to exit display protection function.

Operation keys

Foods storage

Refrigerating chamber (2°C\~8°C)

--The refrigerating chamber is mainly used for storing short-term foods, like milk, eggs and bottled drink.
--Vegetables, melons and fruits shall be put into the fruit and vegetable box to prevent water loss.
--The cooked foods shall be put into the refrigerator after packaging with the preservative bags, to prevent the back from frosting and the power from increasing.

Freezing chamber (-22°C\~-15°C)

--Fish and meat to be frozen shall be cut into small pieces, packaged with preservative bags separately and then put into the frozen drawer.
--The glass container or the sealed container filled with liquid shall not be stored in the freezing chamber, to prevent the risk of burst due to freezing.
--The fresh foods shall not be stored together with the frozen foods.
--Do not place food close to inside wall in freezer lest food and wall should be frozen together.

★★ Warm tips:

The stored food, if any, shall not block the air duct outlet and return port for fear of affecting the refrigerating effect.

Before being stored in the refrigerator, the overheated water and food shall be cooled to the room temperature.

Disassembly and assembly method of accessory

Handles Install Instructions: Take out the Handles from Freezer Cabinet, the short handle is for freezer door and the long one is for fridge door. Holding the handle with both of your hands, installing along the slide of the fix bases. After installing them, checking whether there are any gaps between the handle with the door panel, it means successful without any gaps.

Ice-making (If the appliance has it)

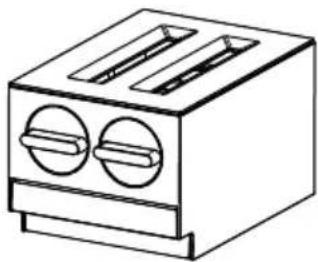

Fill the ice-making box with 4/5 water and put the box into the freezing chamber. After the water in the box turns into ice, twist the box slightly to separate the ice from the box. However, don't bend the box. When separating the ice, wrap the box with dry box to avoid finger frostbite.

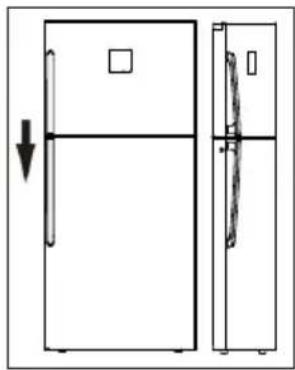

Diagram of a refrigerator with a door and side door, showing front and side views (no text or symbols)

Line drawing of a rectangular electronic component with two circular slots and two side slots (no text or symbols)

Operation keys

Disassembly and assembly method of accessory

--Glass shelf in the refrigerating chamber: the height of the shelf is adjustable, which facilitates the storage of articles with different volumes. Pull the shelf outwardly and upwardly in a slight way to take out.

--Fruit and vegetable box: for storing vegetables and fruits. It can be taken out by pulling outwardly.

--Drawer in the freezing chamber: storing foods to be preserved for long-term, such as meat and fish. It can be taken out by pulling outwardly and lifting upwardly.

Kindly tips: It is recommended to put into the large piece of meat after being cut into small pieces, to avoid difficult cutting after being frozen. The quick-freezing foods shall be distributed uniformly and stored together after being frozen.

--Refrigerating cabinet door holder: for storing eggs, different kinds of bottled drinks and other fragmentary items. When is disassembled, it can be gently squeezed from both sides to the middle and at the same time observe whether the buckles are removed and then slowly lift it out.

--Caution: do not pull out the refrigerating cabinet door holder forcibly when it is dismantled, so as not to damage the refrigerator

--Water tank assy.: For water storage of water-dispenser.

--Water feeding to the tank : Flap the tank cover to 120°, then feed water to the tank. After feeding water close the cover

--Installation of components of water storage box: Before installing the water storage box, firstly, cover the water storage box firmly and reliably, then hold the both sides of the water storage bucket by hand with balanced force, and slowly press along the arrow direction until it cannot be pressed. It indicates that the water storage box is installed well, otherwise, please continue to install.

--Disassembly of components of water storage box: The disassembly method of the water storage box is same with the installation method. Just implement it in the reverse direction.

Technical line drawing of a mechanical assembly with no visible text or symbols

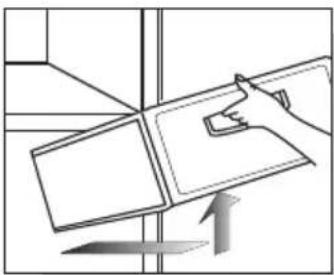

Take out by pulling upwardly and outwardly in a slight way

Pure diagram of a hand holding a rectangular object with an arrow indicating upward motion, no text or symbols present.

Take out by pulling outwardly and upwardly in a slight way

MACAR 120°

Gently pull and get out along the reverse direction of arrow

★★ Warm prompt:

When adding the water in the water storage box, the water addition cannot exceed the tip line of maximum water storage scale;

To ensure the water quality, it is suggested to clean the water storage bucket and outlet water pipe regularly.

During the maintenance and cleaning of water storage box and pipes, it is suggested to disconnect power supply to avoid the accident.

Pay attention to the operating strength when opening the door, lest the water in the storage tank overflowed by opening the door too fast.

Operation keys

-- Water dispenser: The users can take the drinking water through the equipment at any time according to the own needs, - Water taking: When the users want to drink water, they need to press (extrude) the water-taking handle or use the rigid container to press (extrude) the water-taking handle until the water outlet flows the water and after meeting the needs. After taking water, stop pressing(extruding), release the water-taking handle, and the water stops flowing.

★★ Warm prompt:

Before taking water, please ensure the water storage box has enough drinking water;

Please ensure the water quality in the water storage box is better without impurities and foreign matters, etc., to avoid blocking the water outlet.

The users are suggested to use 2.5L of drinking water at least in one week to ensure the fresh water source in the water way system.

When taking water, it is suggested to close the door with water dispenser to avoid the shaking of refrigerator door, sprinkling of water and other accidents in the process of taking water.

Due to the different areas and seasons, as well as the instability of indoor environment temperature and humidity, it is the normal phenomenon if the water dispenser has water droplets and condensation in other places except for the water outlet. Please wipe it with towel and duster cloth, will not affect the usage.

Changing the Light

Any replacement or maintenance of the LED lamps is intended to be made by the manufacturer, its service agent or similar qualified person.

Care and maintenance

It is suggested to maintain the refrigerator once per month;

--Unplug the power plug to prevent from electric shock;
--Use wet cloth or neutral detergent (cleanser essence) to wipe off the oil contamination and other dirt. Then completely wipe off the detergent.
--Do not use alkaline detergent, soap powder, gasoline and alcohol, talcum powder etc.; otherwise the coats or plastics may be damaged;
--Regularly clean the refrigerator body and clear the ground dusts to keep the refrigerator clean.

Inspections after maintenance:

1. Whether there are damages to the power line and plug; 2. Whether there are dusts on the power plug; 3. Whether there is abnormal heat on the plug; 4. Whether the socket is loose; 5. Whether the plug is totally inserted.

Note:

If the power line and plug is damaged and there exist dusts, electric shock or fire may occur;

After unplugging the plug, 5 minutes must pass before re-plugging it;

Do not put your hands under the refrigerator to avoid getting hurt.

Water-taking handle

Illustration of an electrical plug and a wall-mounted switch with a lightning bolt symbol (no text or labels)

Unplug the refrigerator plug before cleaning

Nieuw ral deta grent

Please use neutral detergent

Failure analysis

The following items shall be inspected before occurring failures which require maintenance:

Failures: Refrigerator does not work, The refrigeration effect is poor

Causes:1. Check the connection of power supply. 2. Check whether the refrigerator is exposed to direct sunlight or whether there is heat source nearby. 3. Check whether there is heat dissipation space around refrigerator.

Remedies:1. Connect the power supply. 2. Move the refrigerator to a place without direct sunlight and heat source. 3. Leave sufficient space between refrigerator and wall.

Failures: Foods in refrigerating chamber are frozen

Causes:1. Check whether the setting temperature is too low. 2. Check whether foods with too much water are too close to the rear wall.

Remedies:1. Adequately increase the temperature. 2. Move the foods with too much water to the door side of glass shelf

Failures: There is abnormal sound in refrigerator

Causes:1. Check whether the bottom of refrigerator is stable. 2. Check whether the refrigerator is too close to the wall. 3. Check whether the refrigerator touches other objects.

Remedies:1. Adjust the bottom adjusting leg to stabilize the refrigerator. 2. Leave sufficient space around refrigerator. 3. Remove the obstacles.

Failures: There is abnormal odor in refrigerator

Causes:1. Check whether the foods are sealed for storage. 2. Check whether the refrigerator is clean. 3. Check whether the foods are stored for too long time.

Remedies:1. Sealed foods for storage. 2. Regularly clean the refrigerator. 3. Do not store foods for too long time.

Non-failures

Phenomenon:Fever or hot on two sides and spacing part surface between refrigerating chamber and freezing chamber.

Cause: Refrigerator pipes (condenser, anti-fog pipes) are on two sides and front part of refrigerator for heat dissipation and to prevent from condensation.

Phenomenon:The door is too tight and not easy to open

Cause: Reopening of the door immediately after closing it is hard because hot air enters the refrigerator and contracts to produce pressure difference. It is easy to open the door after a while.

Phenomenon: There is water ripple in refrigerator

Cause: When starting or stopping the compressor, the refrigerant will make such sound; Water produced after defrosting will also make such sound.

Phenomenon: There is "Click" sound or tick sound in refrigerator

Cause: Shrinkage and swelling of case will make such sound; When the case is cold or the door is opened, this sound will occur; Phenomenon: There is hum sound in refrigerator

Cause: Running of compressor will make such sound (if the refrigerator is not leveled, this sound will be louder)

Phenomenon: There is condensation or frosting freezing chamber door surface or food surface

Cause: Temperature or humidity around the refrigerator is high; The door is opened for too long time; The foods with too much water are not sealed or tightly wrapped

Phenomenon: There is condensation on the built-in light surface

Cause: Light will produce heat after being lit, and the door is opened for too long time. So there is temperature difference, and thus the light case will have condensation.

Phenomenon: There is condensation and water mist on body

Cause: Humidity around refrigerator is high, and the moisture in the air will gather in the case to form condensation

Technical parameter

Model	RP536TSE1	RP536TXE1
Climate type	SN/N/ST /T	SN/N/ST /T
Electric shock resistance	I	I
Star sign	* * * *	* * * *
Total volume	536L	536L
Fresh food compartment	394L	394L
Storage volume of freezer	126L	126L
Volume of two-star section	16L	16L
Power type	220-240V~/50Hz	220-240V~/50Hz
Rated current	1.5A	1.5A
Lamp power	6W	6W
Weight	87kg	87kg
Dimension(WxDxHmm)	836x688x1850	836x688x1850
Refrigerant and charge amount	R600a,66g	R600a,66g
Noise level (dB(A)re 1 pW)	42	42
Energy consumption E32	1.0 kWh/24h	1.0 kWh/24h
Annual energy consumption	286 kWh/annum	286 kWh/annum

Packing list

Annex\Model	RP536TSE1	RP536TXE1
Refrigerator shelf	3	3
Freezer shelf	1	1
Fresh room	/	/
Cover	1	1
Water storage box	1	1
Upper crisper	/	/
Bottom crisper	2	2
Refrigerating door bottle bracket	3	3
Freezer door bottle bracket	2	2
Ice-making box	1	1
Egg box	1	1
Handle	2	2
Operating instruction	1	1

Safe recovery instructions

Disposal

Old appliances still have some surplus value. An environmentally friendly approach will ensure that valuable raw materials are recycled.

The refrigerants used in your equipment and insulation materials require special handling procedures. Make sure there is no pipe damage on the back of the equipment before handling. Up-to-date information on the options for disposing of old equipment and packaging from old equipment can be obtained from the local municipal office.

Correct Disposal of this product.

This marking indicates that this product should not be disposed with other household wastes throughout the EU. To prevent possible harm to the environment or human health from uncontrolled waste disposal, recycle it responsibly to promote the sustainable reuse of material resources. To return your used device, please use the return and collection systems or contact the retailer where the product was purchased. They can take this product for environmental safe recycling.

Description of climate types

Table 1 Climate classes

Class Symbol		Ambient temperature ranges°C
Extended temperate		+ 10 to + 32SN
Temperate		+ 16 to + 32N
Subtropical		+ 16 to + 38ST
Tropical		+ 16 to + 43T

Extended temperate: 'this refrigerating appliance is intended to be used at ambient temperatures ranging from 10 °C to 32 °C';

temperate: ‘this refrigerating appliance is intended to be used at ambient temperatures ranging from 16 °C to 32 °C’;

Subtropical: 'thisrefrigeratingapplianceisintendedtobeusedatambienttemperatures rangingfrom16°Cto38°C';

Tropical: 'thisrefrigerating appliance is intended to be used at ambient temperatures ranging from 16°C to 43°C';

Dear customer

If you need customer service, please check warranty card for further information.

Illustration of a cartoon box with steam rising, sun and monitor in foreground (no text or symbols)

Cartoon illustration of a smiling rectangular box with arms and legs, standing on a tiled floor (no text or symbols)

Cartoon character holding a box with snowflakes in the background (no text or symbols)

Cartoon illustration of a smiling cube with steam rising from its base (no text or symbols)

Remarques:

Diagram of a refrigerator with an arrow indicating downward motion, showing front and side views (no text or symbols)

Line drawing of a rectangular electronic component with two circular slots and two horizontal slots (no text or symbols)

Pure technical line drawing of a mechanical assembly without any text, numbers, or symbols

Diagram showing a hand pressing down on a panel with an upward arrow, no text or symbols present

MAX3.0L 120°

Illustration of a plug and a wall socket with a switch, showing electrical connection (no text or symbols)

Neutral detergent

Illustration of a cartoon character standing next to a box with steam rising, under a sun and fan (no text or symbols)

Cartoon illustration of a smiling rectangular character with arms and legs, no text or symbols present

Cartoon illustration of a smiling face inside a box surrounded by snowflakes and falling petals (no text or symbols)

Cartoon illustration of a smiling cube with steam lines, placed on a base with no text or symbols

Netter Hinweis:

Diagram of a refrigerator with an arrow indicating downward motion, showing front and side views (no text or symbols)

Line drawing of a rectangular electronic component with two circular slots and two horizontal slots (no text or symbols)

Bedienungstasten

Technical line drawing of a mechanical assembly with no visible text or symbols

Diagram showing a hand pressing down on a panel with an upward arrow, no text or symbols present

Line drawing of a kitchen appliance with a 120° angle indicator (no text or symbols)

Illustration of a plug and a wall socket with a switch, showing an electrical switch (no text or symbols present)

Neutral detergent

Illustration of a cartoon refrigerator with steam rising, sun and microwave oven nearby (no text or symbols)

Cartoon illustration of a smiling rectangular character with arms and legs, standing on a tiled floor (no text or symbols)

Cartoon illustration of a smiling face inside a box surrounded by snowflakes and decorative elements (no text or symbols)

Cartoon illustration of a smiling cube with steam rising from its base (no text or symbols)

Recordatorio:

Diagram of a refrigerator with a door and side door, showing front and side views (no text or symbols)

Line drawing of a rectangular electronic component with two circular cutouts and two side slots (no text or symbols)

Technical line drawing of a mechanical assembly with no visible text or symbols

Diagram showing a hand interacting with a document or folder, with an upward arrow indicating direction (no text or symbols present)

MAX AIR 120°

Illustration of a plug and a wall socket with a switch, showing electrical connections (no text or symbols)

Neutral detergent

Illustration of a distressed cardboard box with steam rising, under sunny conditions (no text or symbols)

Cartoon illustration of a smiling rectangular box with arms and legs, standing on a tiled floor (no text or symbols)

Cartoon illustration of a surprised face inside a box surrounded by snowflakes and falling petals (no text or symbols)

Cartoon illustration of a smiling cube on a steaming platform (no text or symbols)

Alerta morno:

Diagram of a refrigerator with an arrow indicating downward motion, showing front and side views (no text or symbols)

Simple line drawing of a rectangular electronic component with two circular cutouts and three horizontal slots (no text or symbols)

Teclas de operação

Technical line drawing of a mechanical assembly with no visible text or symbols

Pure diagram of a hand holding a rectangular object with an upward arrow, no text or symbols present

MAX34L 120°

Illustration of a plug and a wall socket with a directional arrow (no text or symbols)

Neutral detergent

Illustration of a cartoon cardboard box with surprised expression, emitting steam from a sun and a monitor below (no text or symbols)

Cartoon illustration of a smiling rectangular character standing on a tiled floor, with arms and legs pointing downward (no text or symbols)

Cartoon illustration of a smiling face inside a box surrounded by snowflakes and decorative elements (no text or symbols)

Cartoon illustration of a cube-shaped object with steam rising, placed on a base with wavy lines indicating motion (no text or symbols)

Diagram of a refrigerator with a side panel showing internal structure and a downward arrow indicating motion (no text or symbols)

Macchina del ghiaccio (Se prevista per l'apparecchio)

Line drawing of a rectangular electronic component with two circular cutouts and two side slots (no text or symbols)

Tasti funzione

Technical line drawing of a mechanical assembly with no visible text or symbols

Pure diagram of a hand holding a rectangular object with an upward arrow, no text or symbols present

120° MAX 4.5

Simple line drawing of an electric plug and a wall socket with a switch, no text or symbols present.

Neutral detergent

Illustration of a cartoon cardboard box with surprised expression, emitting steam, and a sun symbolizing sunlight (no text or symbols)

Cartoon illustration of a smiling rectangular character with arms and legs standing on a tiled floor, no text or symbols present.

Cartoon illustration of a surprised face inside a box surrounded by snowflakes and decorative elements (no text or symbols)

Cartoon illustration of a smiling cube with steam rising, placed on a base with wavy lines indicating motion (no text or symbols)

Προειδοποίηση:

Diagram of a refrigerator with front and side views showing internal structure (no text or symbols)

GR

Line drawing of a rectangular electronic component with two circular cutouts and two side slots (no text or symbols)

Κουμπιά λειτουργίας

Technical line drawing of a mechanical assembly with no visible text or symbols

Diagram showing a hand interacting with a document or folder, with an upward arrow indicating growth (no text or symbols present)

120° MWT2.8

Illustration of a plug and a wall socket with a lightning bolt, showing electrical connection (no text or symbols)

Neutral detergent

Illustration of a cartoon box with steam rising, next to a sun and a monitor (no text or symbols)

Cartoon illustration of a smiling rectangular character standing on a tiled floor with arrows pointing downward (no text or symbols)

Cartoon illustration of a surprised ice cube with snowflakes around (no text or symbols)

Cartoon illustration of a smiling cube with steam rising, placed on a base with wavy lines indicating motion (no text or symbols)

Vřelá výzva:

Diagram of a refrigerator with front and side views showing internal components (no text or symbols)

Line drawing of a rectangular electronic component with two circular cutouts and two side slots (no text or symbols)

Ovládací tlačítka

Technical line drawing of a mechanical assembly with no visible text or symbols

Diagram showing a hand pressing down on a panel with an upward arrow, no text or symbols present

Illustration of an electrical outlet with a plug and switch, showing a wall-mounted socket (no text or symbols)

Neutral detergent

Diagram of a refrigerator with a side panel showing internal structure and a downward arrow indicating motion (no text or symbols)

Line drawing of a rectangular electronic component with two circular cutouts and two side slots (no text or symbols)

PL

Technical line drawing of a mechanical assembly with no visible text or symbols

Diagram showing a hand pressing down on a panel with an upward arrow, no text or symbols present

MAX3.8L 120°

Simple line drawing of an electrical plug and a wall socket with a downward arrow (no text or symbols)

Neutral detergent
