USER MANUAL P23 Maruyama

Technical line drawing of a mechanical tool or device with articulated arms and a handle, no visible text or symbols.

The POWER in Outdoor Power

Completely read and understand this manual PRIOR to using this product.

Limited Warranty Statement

All Maruyama commercial/ industrial products are warranted to the original purchaser to be free from defects in material and workmanship from the date of purchase for the time periods listed as follows:

Lifetime for inner drive shaft on trimmers and brushcutters and all ignition modules.

3 years for residential, non-institutional, non-income producing use.

1 year for industrial, commercial, institutional, rental and income producing use.

Maruyama AE series engines and Kawasaki TEX45/TEX54 are covered exclusively for one additional year of industrial, commercial, institutional, rental and income producing use (total of 2 years).

All other engines refer to engine manufacturer's warranty statement.

Any part of a Maruyama product found to be defective within the applicable warranty period shall, at Maruyama's option, be repaired or replaced without charge. Warranty consideration is obtained by delivering any Maruyama product believed to be defective to an Authorized Maruyama Servicing Dealer within the applicable warranty period.

The purchaser shall not be charged for diagnostic labor that leads to the determination that a warranted part is defective, if the diagnostic work is performed at a Maruyama Dealer.

Any warranted part which is not scheduled for replacement as required maintenance, or which is scheduled only for regular inspection to the effect of "repair or replace as necessary" shall be warranted for the warranty period. Any warranted part, which is scheduled for replacement as, required maintenance shall be warranted for the period of time up to the first scheduled replacement point for that part. Maruyama Mfg. Co., Inc. is liable for damages to other engine components caused by the failure of a warranted part still under warranty.

The purchaser is responsible for the performance of the required maintenance, as defined by Maruyama Mfg. Co., Inc. in the Owner's/Operator's Manual.

EMISSION-RELATED PARTS WARRANTY: In addition to the above warranty coverage, Maruyama Mfg. Co., Inc. will repair or replace, free of charge, for the original purchaser and each subsequent purchaser any emission-related part or parts found to be defective in material and workmanship for two (2) years from original retail delivery date except catalytic converter. Catalytic converter is warranted one year from original retail delivery date. Emission-related parts are the carburetor assembly, the ignition coil assembly, the ignition rotor and the spark plug, the catalytic converter and the fuel tank. Any replacement part that is equivalent in performance and durability may be used in non-warranty maintenance or repairs, and shall not reduce the warranty obligations of Maruyama Mfg. Co., Inc.

This warranty does not cover the following:

1. Maintenance items (excluding defects in materials and workmanship) including hoses, spark plugs, starter rope, air and fuel filters, clutch shoes, vibration isolators, throttle cables and all cutting attachments, etc.
2. Extra expenses including shipping and handling, travel, payment for lost time or pay and for any inconvenience and storage.
3. Alterations or modifications including aftermarket parts not authorized by Maruyama U.S., Inc.
4. Wear, accident, abuse, neglect, misuse, negligence, improper fuels, lubricants, fuel mixtures (when applicable), or failure to operate or maintain the product in accordance with instructions approved by Maruyama.

Repair or replacement as provided under this warranty is the exclusive remedy of the consumer. Maruyama shall not be liable for any incidental or consequential damages for breach of any express or implied warranty on these products except to the extent prohibited by applicable law. Any implied warranty of merchantability or fitness for a particular purpose on these products is limited in duration to the warranty period as defined in the limited warranty statement. Maruyama reserves the rights to change or improve the design of the product without notice and does not assume obligation to update previously manufactured products.

This warranty provides you with specific legal rights, which may vary from state to state.

It is the Owner's and Dealer's responsibility to make sure the Warranty Registration Card is properly filled out and mailed to Maruyama U.S., Inc. Proof of purchase and registration will be required in order to obtain warranty service.

To locate an Authorized Maruyama Servicing Dealer nearest you, contact:.

Maruyama U.S., Inc.

Denton, TX 76207

[phone]

The engine exhaust from this product contains chemicals known to the State of California to cause cancer, birth defects or other reproductive harm.

THE AIR INDEX OF THIS ENGINE IS 3 0 2 4 6 8 10 MOST CLEAN LEAST CLEAN NOTE: THE LOWER THE AIR INDEX, THE LESS POLLUTION. THIS ENGINE IS CERTIFIED TO BE EMISSIONS COMPLIANT FOR THE USE EXTENDED: 300HOURS CHECK THE OWNER'S MANUAL FOR FURTHER DETAILS.

P23

FEDERAL EMISSION CONTROL WARRANTY STATEMENT YOUR WARRANTY RIGHTS AND OBLIGATIONS

The U.S. Environmental Protection Agency (EPA), and Maruyama Manufacturing Company, Inc. are pleased to explain the emission control system warranty on your small off-road engine. New 1997 and later model year small off-road engines must be designed, built and equipped, at the time of sale, to meet the U.S. EPA regulations for small off-road engines. The equipment engine must be free from defects in materials and workmanship which cause it to fail to conform with U.S. EPA standards for the first two years of engine use from the date of sale to the ultimate purchaser. Maruyama Manufacturing Company, Inc. must warrant the emission control system on your small off-road engine for the period of time listed above provided there has been no abuse, neglect or improper maintenance of your small off-road engine.

Emission durability of 300 hours.

Your emission control system may include parts such as the carburetor or fuel injection system, the ignition system, and catalytic converter. Also included may be hoses, belts, and connectors and other emission related assemblies.

Where a warrantable condition exists, Maruyama Manufacturing Company, Inc. will repair your small off-road engine at no cost to you, including diagnosis (if the diagnostic work is performed at an authorized dealer), parts, and labor.

MANUFACTURER'S WARRANTY COVERAGE:

The 1997 and later model year small off-road engines are warranted for two years. If any emission-related part on your engine is defective, the part will be repaired or replaced by Maruyama Manufacturing Company, Inc. free of charge.

OWNER'S WARRANTY RESPONSIBILITIES:

(a) As the small off-road engine owner, you are responsible for the performance of the required maintenance listed in your owner's manual.

Maruyama Manufacturing Company, Inc. recommends that you retain all receipts covering maintenance on your small off-road engine, but Maruyama Manufacturing Company, Inc. cannot deny warranty solely for the lack of receipts or for your failure to ensure the performance of all scheduled maintenance. Any replacement part or service that is equivalent in performance and durability may be used in non-warranty maintenance or repairs, and shall not reduce the warranty obligations of the engine manufacturer.

(b) As the small off-road engine owner, you should be aware, however, that Maruyama Manufacturing Company may deny you warranty coverage if your small off-road engine or a part has failed due to abuse, neglect, improper maintenance or unapproved modifications.
(c) You are responsible for presenting your small off-road engine to a Maruyama Manufacturing Company, Inc. service center as soon as a problem exists. The warranty repairs should be completed in a reasonable amount of time, not to exceed 30 days.

If you have any questions regarding your warranty rights and responsibilities, you should contact Maruyama U.S., Inc. at 1-866-783-7400.

COVERAGE

Maruyama Manufacturing Company, Inc. warrants to the ultimate purchaser and each subsequent purchaser that your small off-road engine will be designed, built and equipped, at the time of sale, to meet all applicable regulations. Maruyama Manufacturing Company, Inc. also warrants to the initial purchaser and each subsequent purchaser that your small off-road engine is free from defects in materials and workmanship which cause the engine to fail to conform with applicable regulations for a period of two years.

The 1997 and later model years, EPA requires manufacturers to small off-road engines for two years. These warranty periods will begin on the date the small off-road engine is purchased by the initial purchaser. If any emission-related part on your engine is defective, the part will be replaced by Maruyama Manufacturing Company, Inc. at no cost to the owner.

Maruyama Manufacturing Company, Inc. shall remedy warranty defects at any authorized Maruyama Manufacturing Company, Inc. engine dealer or warranty station. Any authorized work done at an authorized dealer or warranty station shall be free of charge to the owner if such work determines that a warranted part is defective. Any manufacturer-approved or equivalent replacement part may be used for any warranty maintenance or repairs on emission-related parts, and must be provided free of charge to the owner if the part is still under warranty, Maruyama Manufacturing Company, Inc. is liable for damages to other engine components caused by the failure of a warranted part still under warranty.

EPA considers emission-related warranted parts to include all the parts listed below. These warranted parts are: the carburetor assembly, the ignition coil assembly, the ignition rotor, the spark plug, the catalytic converter, and the fuel tank.

MAINTENANCE REQUIREMENTS

The owner is responsible for the performance of the required maintenance as defined by the Maruyama Manufacturing Company, Inc. in the owner's manual.

LIMITATIONS

This Emission Control System Warranty shall not cover any of the following:

(a) repair or replacement required because of misuse or neglect, lack of required maintenance, repairs improperly performed or replacements not conforming to Maruyama Manufacturing Company, Inc. specifications that adversely affect performance and/or durability, and alterations or modifications not recommended or approved in writing by Maruyama Manufacturing Company, Inc., and
(b) replacement of parts and other services and adjustments necessary for required maintenance at and after the first scheduled replacement point.

CALIFORNIA EMISSION CONTROL WARRANTY STATEMENT YOUR WARRANTY RIGHTS AND OBLIGATIONS

The California Air Resources Board (CARB), and Maruyama Manufacturing Company, Inc. are pleased to explain the emission control system warranty on your 2011 and later small off-road engine. In California, new small off-road engines must be designed, built and equipped to meet the State's stringent anti-smog standards. Maruyama Manufacturing Company, Inc. must warrant the emission control system on your small off-road engine for the period of time listed above provided there has been no abuse, neglect or improper maintenance of your small off-road engine.

Your emission control system may include parts such as the carburetor or fuel injection system, the ignition system, and catalytic converter. Also included may be hoses, belts, and connectors and other emission related assemblies.

Where a warrantable condition exists, Maruyama Manufacturing Company, Inc. will repair your small off-road engine at no cost to you, including diagnosis, parts, and labor.

MANUFACTURER'S WARRANTY COVERAGE:

The 1995 and later small off-road engines are warranted for two years. If any emission-related part on your engine is defective, the part will be repaired or replaced by Maruyama Manufacturing Company, Inc.

OWNER'S WARRANTY RESPONSIBILITIES:

(a) As the small off-road engine owner, you are responsible for the performance of the required maintenance listed in your owner's manual.
Maruyama Manufacturing Company, Inc. recommends that you retain all receipts covering maintenance on your small off-road engine, but Maruyama Manufacturing Company, Inc. cannot deny warranty solely for the lack of receipts or for your failure to ensure the performance of all scheduled maintenance
(b) As the small off-road engine owner, you should be aware, however, that Maruyama Manufacturing Company may deny you warranty coverage if your small off-road engine or a part has failed due to abuse, neglect, improper maintenance or unapproved modifications.
(c) You are responsible for presenting your small off-road engine to a Maruyama Manufacturing Company, Inc. distribution center as soon as a problem exists. The warranty repairs should be completed in a reasonable amount of time, not to exceed 30 days.

If you have any questions regarding your warranty rights and responsibilities, you should contact Maruyama U.S., Inc. at 1-866-783-7400.

Emission System Parts

Exhaust Emission

Carburetor

Muffler

Catalytic Converter

Ignition Coil / Magneto

Spark Plug

Air Filter

EGR Valve (piston)

Fuel Filter

Evaporative Emission Fuel Tank

Contents

Page US-

Limited Warranty Statement 1

Federal Emission Control ....3

California Emission Control 5

Contents 6

Product Description 7

Introduction 8

Safety 8

Operator Safety 8

Pruner Safety 9

Fuel Safety....9

Pruner Operating Safety....10

Safety and Instruction Decals.... 11

Assembly 12

Assembling Engine and Drive Shaft Assembly..1.2

Loop Handle Installation ....12

Connecting Throttle Cable and Stop Switch Wires... 12

Installing Shaft and Gearcase 13

Installing Guide Bar and Chain 13

Before Operation 14

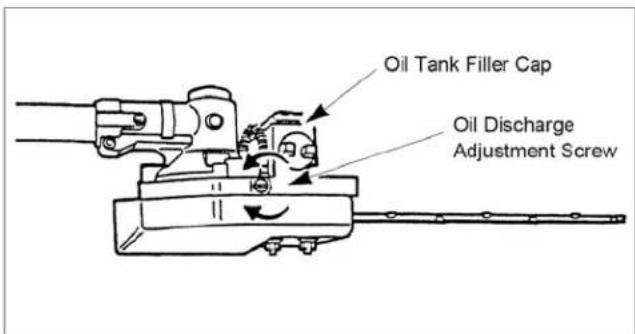

Chain Oil 14

Oil and Fuel 15

Recommended Oil Type 15

Recommended Fuel Type 15

Use Of Fuel Additives 15

Page US-

Mixing Gasoline And Oil 16

Fuel Mixture 16

Fuel Mixture Chart 16

Mixing Instructions 16

Starting And Stopping 17

To Stop The Engine 18

Operation 18

Maintenance.... 19

Idle Speed Adjustment.... 19

Air Filter.... 20

Fuel Filter 20

Spark Plug 21

Cylinder Cooling Fins 21

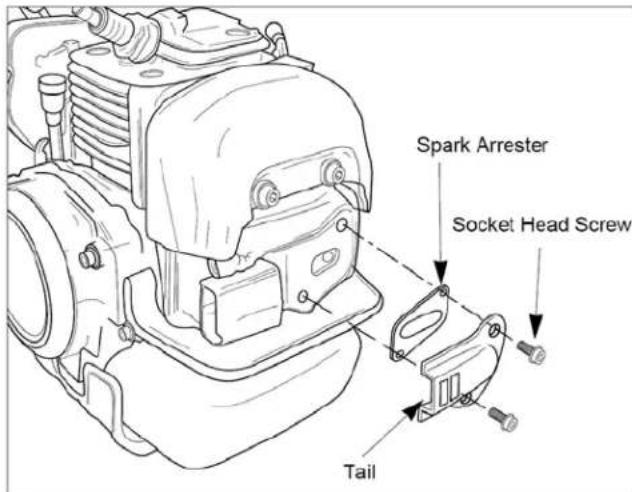

Spark Arrester.... 21

Exhaust Muffler.... 22

Lubrication 22

General Cleaning and Tightening 23

Storage 23

Troubleshooting 24

Maintenance Period 24

Specifications 25

Product Description

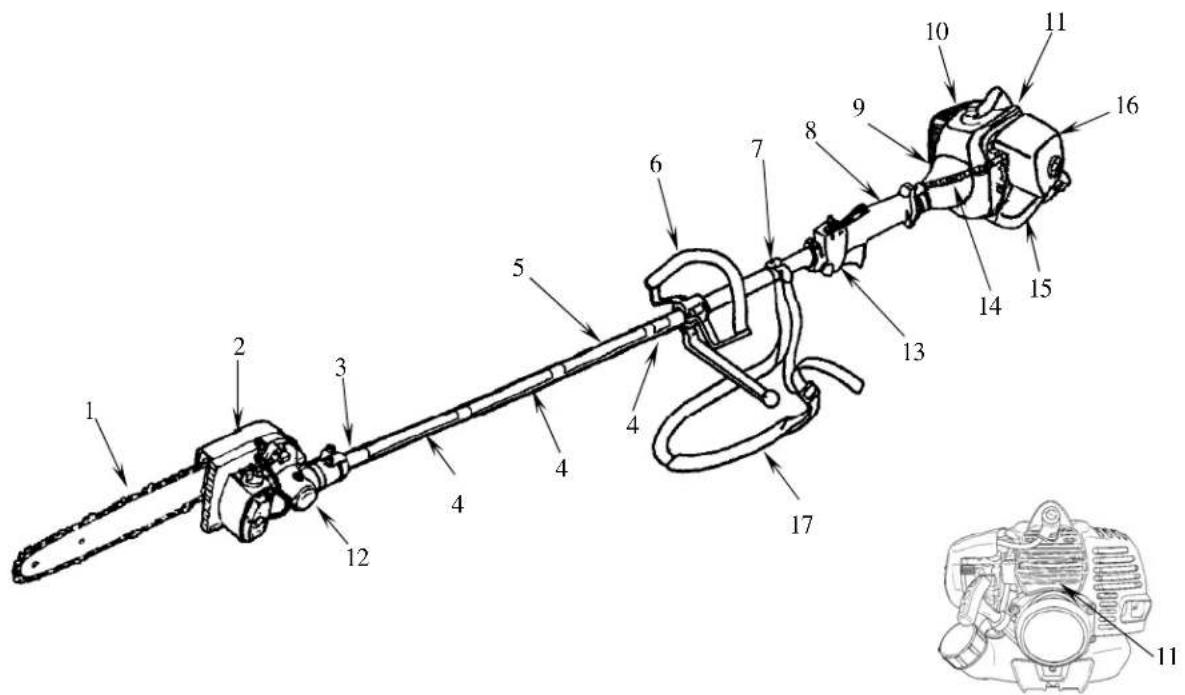

Technical diagram of a mechanical device with numbered components, including a chain-linking tool and a gear assembly.

1. Chain and Guide Bar
2. Pruner Head
3. Shaft Assembly
4. Safety Decal
5. Model Name
6. Loop Handle
7. Attachment Ring for Shoulder Strap
8. Shaft Grip

9. Clutch Drum Housing

10. Engine

11. Serial Number (on rear of engine)
12. Gearcase
13. Throttle Trigger and Stop Switch
14. Throttle Cable and Stop Switch Wires
15. Fuel Tank
16. Air Filter
17. Shoulder Strap

Introduction

Thank you for purchasing a MARUYAMA product.

Maruyama, it's distributors, and dealers want you to be completely satisfied with your new product. Please feel free to contact your local Authorized Service Dealer for help with service, genuine Maruyama parts, or other information you may require.

Whenever you contact your Authorized Service Dealer or the factory, always know the serial number of your product. This number will help the Service Dealer or Service Representative provide exact information about your specific product. You will find the model and serial number located in a unique place on the product (Product Description on page US-7).

For your convenience, write the product model name and serial number in the space below.

Model Name

Serial No.

Read this manual carefully to learn how to operate and maintain your product correctly. Reading this manual will help you and others avoid personal injury and damage to the product. Although MARUYAMA designs, produces and markets safe, state of the art products, you are responsible for using the product properly and safely. You are also responsible for training persons who you allow to use the product about safe operation.

The MARUYAMA warning system in this manual identifies potential hazards and has special safety messages that help you and others avoid personal injury, even death.

DANGER, WARNING and CAUTION are signal words used to identify the level of hazard. However, regardless of the hazard, be extremely careful.

DANGER signals an extreme hazard that will cause serious injury or death if the recommended precautions are not followed.

WARNING signals a hazard that may cause serious injury or death if the recommended precautions are not followed.

CAUTION signals a hazard that may cause minor or moderate injury if the recommended precautions are not followed. Two other words are also used to highlight information. "Important" calls attention to special mechanical information and "Note" emphasizes general information worthy of special attention.

Safety

Operator Safety

1. Read and understand this Operator's Manual before using this product. Be thoroughly familiar with the proper use of this product.

2. Never allow children to operate the Pruner. It is not a toy. Never allow adults to operate the unit without first reading the Operator's Manual.

3. Always wear eye protection that complies with ANSI (American National Standards Institute) Z87-1.

1. Always wear hearing protection.

1. Always wear heavy, long pants, a long sleeved shirt, boots and gloves. Do not wear loose clothing, jewelry, short pants, sandals, or go barefoot. Secure hair so it is above shoulder length.

2. Never operate this Pruner when you are tired, ill, or under the influence of alcohol, drugs or medication.

3. Never start or run the engine inside a closed room or building. Breathing exhaust fumes can cause death.

1. Keep handles clean of oil, fuel and dirt.

Pruner Safety

1. Make sure the Unit is assembled correctly and that the guide bar and chain are correctly installed and securely fastened as instructed in the Assembly section. fuel to store gasoline and/or fuel/oil mixture.

2. Inspect the Unit before each use. Replace damaged parts. Check for fuel leaks. Make sure all fasteners are in place and tightened securely. Follow the maintenance instructions beginning on page US-19.

3. Do not smoke near fuel or Pruner, or while using the

4. Make sure the chain does not move at engine idle speed. Pruner. Refer to Idle Speed Adjustment, page US-19.

5. Do not overfill the fuel tank. Stop filling 1/4-1/2 inch

6. Inspect the chain and guide bar and replace any parts that are cracked, worn or damaged before using the Pruner.

7. Wipe up any spilled fuel before starting the engine.

8. Never use a cutting chain or replacement parts that are not approved by MARUYAMA. fueling location before starting the engine.

9. Maintain the Pruner according to the recommended maintenance intervals and procedures in the Maintenance section.

10. Shut off the engine and be certain the cutting chain has completely stopped moving before inverting the Pruner, performing maintenance on or working on the Pruner machine.

11. If running problems or excessive vibration occur, stop immediately and inspect the unit for the cause. If the cause cannot be determined or is beyond your ability to correct, return the Pruner to your servicing dealer for repair.

Fuel Safety

1. Gasoline is highly flammable and must be handled and stored carefully. Use a container approved for

2. Mix and pour fuel outdoors, where there are no sparks or flames.

(6 mm-13 mm) from the top of the tank.

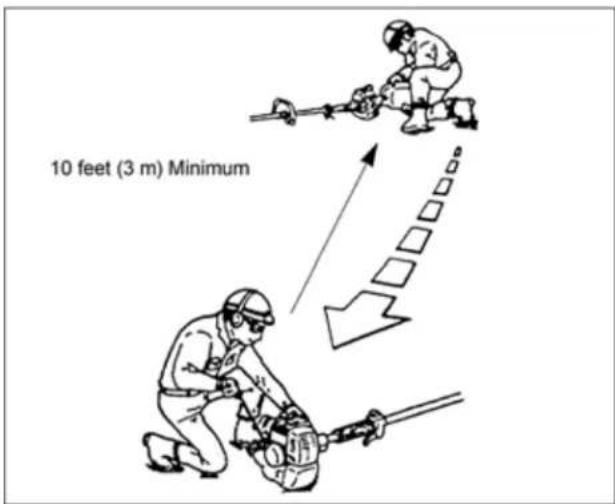

1. Move the Pruner at least 10 feet (3 m) away from the

10 feet (3 m) Minimum

1. Do not remove the fuel tank cap while the engine is running, or right after stopping the engine.

2. Allow the engine to cool before refueling.

3. Drain the tank and run the engine dry before storing the unit.

4. Store fuel and Pruner away from open flame, sparks and excessive heat. Make sure fuel vapors cannot reach sparks or open flames from water heaters, furnaces, electric motors, etc.

Pruner Operating Safety

1. THIS PRUNER CAN CAUSE SERIOUS INJURIES. Read the instructions carefully. Be familiar with all controls and the proper use of the Pruner.
2. The Pruner is designed to cut wood and can therefore be potentially dangerous. Careless or improper use can cause serious or even fatal injury.
3. This Pruner can conduct electricity. Do not use where contact can be made with live electrical circuits. Never use around electrical power sources and lines. Failure to observe this warning can result in serious injury or death.
4. Beware of where material will fall after being cut. Do not stand underneath falling material.
5. Inspect your work area before you begin. Remove objects such as broken glass, nails, wire and rocks which can become dangerous projectiles if thrown by the Pruner. Remove string, rope or similar materials which can become entangled in the Pruner head.
6. This Pruner will throw objects and cut. Keep children, bystanders and animals outside a 50 ft. (15m) radius from the operator and Trimmer. Beyond the 50 ft. (15 m) there still may be a risk of injury to bystanders from thrown objects. It is recommended that bystanders wear eye protection. A thrown object can ricochet. (See the String Trimmer Operating Safety)
7. If you are approached while operating the Pruner, stop the engine and Pruner chain motion.
8. Use the Pruner only in daylight or good artificial light.
9. Do not put hands or feet near or under any rotating parts. Keep clear at all times. Keep all parts of your body away from the Pruner chain and hot surfaces such as the muffler.
10. Keep firm footing and balance. Do not overreach.
11. Use the right tool for the job. Do not use the Pruner for any job that is not recommended by MARUYAMA.

Safety and Instruction Decals

Safety decals and instructions are easily visible to the operator and are located near any area of potential danger. Replace any decal that is damaged or lost.

WARNING BEFORE OPERATING THIS EQUIPMENT, READ THE OPERATOR'S MANUAL. FAILURE TO FOLLOW ALL MANUFACTURER'S WARNINGS AND INSTRUCTIONS CAN RESULT IN SERIOUS INJURY. HURLED OBJECTS CAN CAUSE INJURY. ALWAYS WEAR PROTECTIVE CLOTHING AND GOGGLES WHEN OPERATING THIS EQUIPMENT. [SEE OPERATOR'S MANUAL] WARNING THIS EQUIPMENT PRODUCES SOUNDS WHICH CAN DAMAGE HEARING ALWAYS USE HEARING PROTECTION WHEN OPERATING THIS EQUIPMENT. (SEE OPERATOR'S MANUAL) - DO NOT OPERATE WITHIN 50 FEET FROM OTHER PEOPLE -

ON SHAFT

(Part No.221501)

DANGER THIS PRODUCT CAN CONDUCT ELECTRICITY. DO NOT USE WHERE CONTACT MAY BE MADE WITH LIVE ELECTRICAL CIRCUITS. NEVER USE AROUND-ELECTRICAL POWER SOURCES AND LINES. FAILURE TO OBSERVISE THIS WARNING CAN RESULT IN SERIOUS INJURY OR DEATH. (READ ALL LABELS) THIS EQUIPMENT IS DESIGNED TO CUT WOOD, AND CAN BE POTENTIALLY DANGEROUS, STAY CLEAR OF POTATING SAW CHAIN, STOP THE ENGINE BEFORE ADJUSTING THE SAW CHAIN OR PERFORMING ANY SERVICE, CARELESS OR IMPROPER USE MAY CAUSE SERIOUS OR EVEN RETAIL INJURY. UNDER MD CONDITIONS MAY THIS PRODUCT DE MODIFIED FROM ITS ORIGINAL DESIGN WITHOUT WRITTEN PERMISSION OF THE MANUFACTURER, NON-AUTHORIZED MODIFICATIONS AND/OR ACCESSORIES CAN LEAD TO SERIOUS INJURY OR DEATH TO YOURSELF OR OTHERS. (SEE OWNERS/OPERATORS MANUAL) ALWAYS OPERATE THIS EQUIPMENT AT LEAST SO FEET (THM) FROM OTHER PEOPLE AND/OR ANIMALS TO PREVENT DAMAGE OR INJURY.

ON SHAFT

(Part No.221529)

DANGER THIS PRODUCT CONDUCTS ELECTRICITY. WATCH FOR WIRES. KEEP SUFFICIENT DISTANCE AWAY FROM ELECTRICAL POWER LINES.

ON SHAFT
(Part No.219937)

Assembly

Assembling Engine and Drive Shaft Assembly

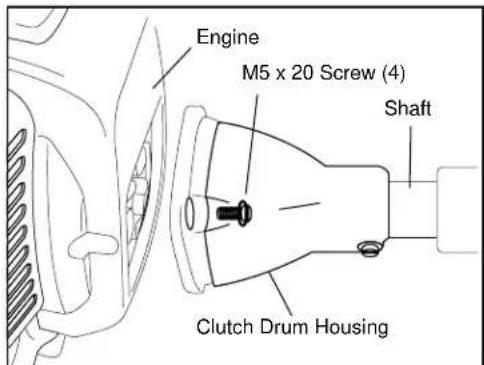

The drive shaft, clutch drum housing and gearcase are assembled. Attach the clutch drum housing to the engine using the four M5 x 20 screws supplied with the unit.

Engine M5 x 20 Screw (4) Shaft Clutch Drum Housing

Loop Handle Installation

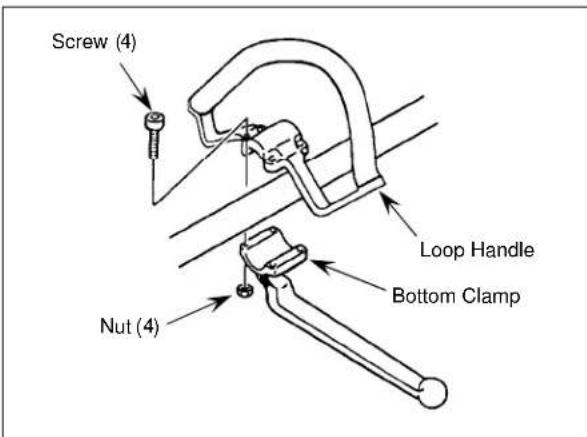

The loop handle kit contains a package of four screws and nuts and the bottom clamp for the loop handle.

Screw (4) Loop Handle Bottom Clamp Nut (4)

1. Place the loop handle and the bottom clamp on the shaft approximately 28cm(11 inches) from the end of the stop switch/throttle trigger assembly.

2. Install the four screws and nuts. Leave the screws fingertight.

3. Reposition the loop handle up or down the driveshaft to the most comfortable position, but no closer than 9 inches (22.8 cm) from the end of the stop switch.

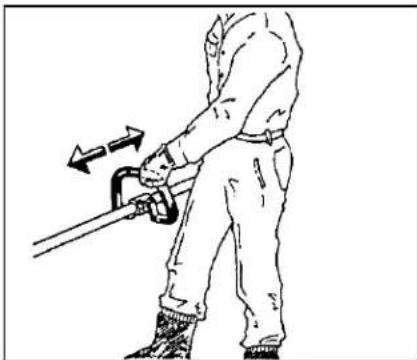

Line drawing of a person using a tool to lift a hose, with arrows indicating direction (no text or symbols)

1. Tighten the screws and nuts.

Connecting Throttle Cable and Stop Switch Wires

1. Loosen the knob and remove the air filter cover, insert the throttle cable through the carburetor bracket, then screw a cable adjuster sleeve into the carburetor bracket fully.

2. Position the slotted fitting on the carburetor so the recessed hole for the lug is away from the cable adjuster sleeve.

3. Rotate the carburetor throttle cam and slip the throttle cable through the slot in the slotted fitting, making sure the cable lug drops into the recessed hole.

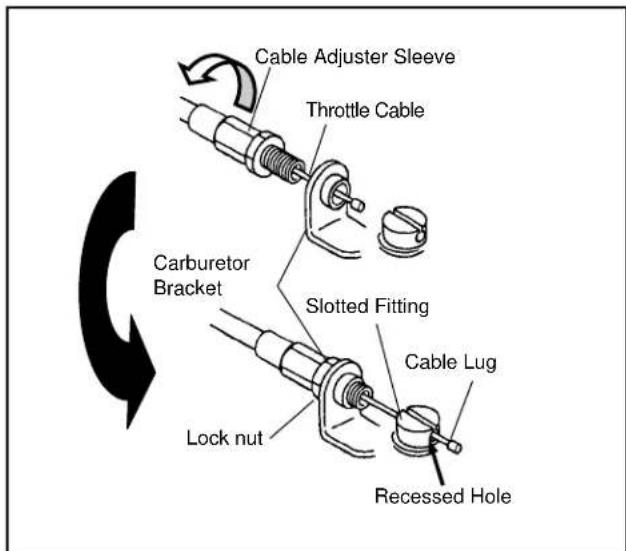

Cable Adjuster Sleeve Throttle Cable Carburetor Bracket Slotted Fitting Cable Lug Lock nut Recessed Hole

1. Operate the throttle trigger a few times to make sure that it works correctly.

2. Adjust the cable adjuster sleeve so the stop on the carburetor throttle cam just contacts the throttle stop and the cable position keep 1-2mm play between cable lug and slotted fittings when the throttle trigger is fully depressed.

1-2mm Play

1. When the throttle cable is adjusted correctly, tighten the lock-nut.

2. Plug the stop switch wires into the matching connectors from the engine. Note that wire polarity is not important.

3. Lap and fix the stop switch wires and connectors with clamp.

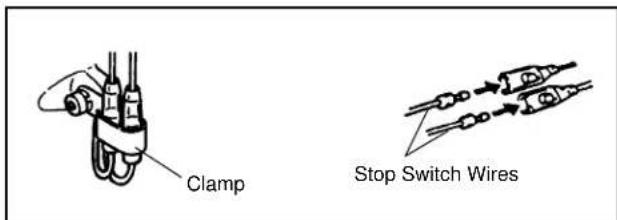

Clamp Stop Switch Wires

1. Reinstall the air filter cover and tighten the knob.

Installing Shaft and Gearcase

Attach the driveshaft tube assembly to the gearcase assembly.

NOTE: Carefully inspect both ends of the driveshaft protruding from the driveshaft tube. The squared end of the driveshaft positions toward the connector of the power unit. The splined end of the driveshaft connects to the gearcase assembly.

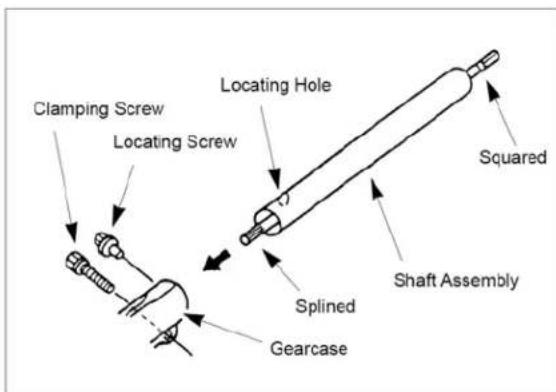

Clamping Screw Locating Screw Locating Hole Squared Shaft Assembly Splined Gearcase Gearcase

Insert the driveshaft tube assembly into the gearcase assembly whilerotating the driveshaft to engage the splines. Align the locating holes and install the locat-ing screw through the side of the gearcase. Then tight-en the clamping screws. If properly installed, rotating the square end of the driveshaft will cause the Rim sprocket to turn.

Installing Guide Bar and Chain

Chain Tensioner Adjustment Pin Bar Stud (2) Chain Tensioner Screw Bar Stud Spacer Guide Bar Chain Tensioner Adjustment Pin Hole

1. Remove the nuts from the two bar studs.

2. Fit the guide bar over the two bar studs.

If you are using the 11-inch Prolite bar, make sure the bar stud spacer is installed over the bar studs, and is completely against the bar mount. Place the bar in its rearmost position.

Do not engage the chain tensioner adjustment pin in the chain tensioner adjustment pin hole at this time.

Rim Sprocket Chain Guide Bar

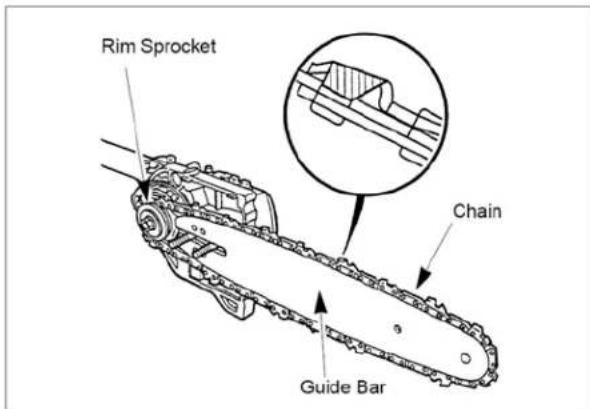

1. Place the chain over the rim sprocket and into the groove on the guide bar. Make sure the cutting teeth edges are facing forward on the top side of the guide bar.

CAUTION

• Always wear gloves when handling the Pruner chain.

1. Pull the guide bar forward until the chain tensioner adjustment pin hole is positioned over the chain tensioner adjustment pin. If necessary, turn the chain tensioner screw in the appropriate direction to align the pin with the hole. Check that the drive links on the chain fit correctly into the rim sprocket and guide bar groove.

2. Install the sprocket cover onto the two bar studs. Install the bar stud nuts, but leave the nuts finger-tight).

Sprocket Cover Chain Travel Direction Bar Stud Nuts No Clearance or Slack between Chain and Bottom of Guide Bar

1. Rotate the chain tensioner screw until all slack is removed between the chain and the bottom of the guide bar, but loose enough to allow you to pull the chain around the guide bar by hand.

2. Tighten the bar stud nuts and recheck the chain tension.

IMPORTANT: When using a new chain, you must check the chain tension frequently and adjust the tension as necessary until the chain breaks in. A correctly adjusted chain gives optimum cutting performance and prevents premature wear to both the chain and guide bar.

Before Operation

Chain Oil

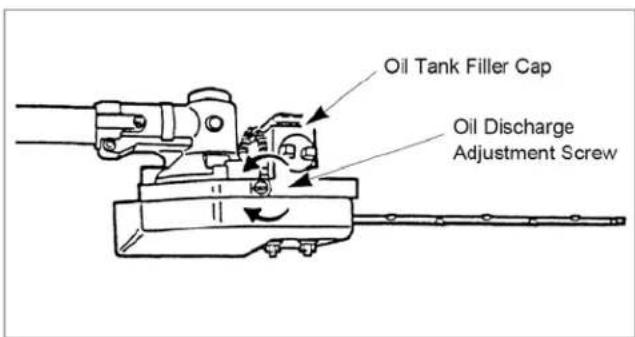

The chain and guide bar are lubricated by a centrifugal pump. The oil discharge rate is controlled by the oil discharge adjustment screw on the top of the pruner head.

Remove the oil tank filler cap fill the tank, then replace the cap.

Oil Tank Filler Cap Oil Discharge Adjustment Screw

IMPORTANT: Only use oil designed for lubricating chain saw chains and guide bars. Do not use waste oil. Never run the chain dry. In temperatures below freezing, check the chain oil viscosity (pour point). If the oil is not rated for use below freezing, it may not provide adequate lubrication, resulting in damage to the oil pump, chain and guide bar.

IMPORTANT: When filling the oil tank for the first time, or when the tank is completely empty, wait approximately 60-90 seconds before starting the Pruner. This will give the oil time to flow from the tank to the pump. Otherwise, an air lock can occur which will prevent oil from moving through the pump. This will result in damage to the chain and guide bar.

Oil and Fuel

! DANGER

POTENTIAL HAZARD

- In certain conditions gasoline is extremely flammable and highly explosive.

WHAT CAN HAPPEN

• A fire or explosion from gasoline can burn you, others and cause property damage.

HOW TO AVOID THE HAZARD

- Use a funnel and fill the fuel tank outdoors, in an open area, when the engine is cold. Wipe up any gasoline that spills.

- Do not fill the fuel tank completely full. Add gasoline to the fuel tank until the level is 1/4" to 1/2" (6 mm to 13mm) below the bottom of the filler neck. This empty space in the tank allows gasoline to expand.

- Never smoke when handling gasoline, and stay away from an open flame or where gasoline fume may be ignited by a spark.

- Store gasoline in an approved container and keep it out of the reach of children.

- Never buy more than a 30-day supply of gasoline.

1. Do not smoke near fuel.

2. Mix and pour fuel outdoors and where there are no sparks or flames.

WARNING

POTENTIAL HAZARD

- Gasoline contains gasses that can build up pressure inside a gas tank.

WHAT CAN HAPPEN

- Fuel can be sprayed on you when removing gas cap.

HOW TO AVOID THE HAZARD

- Remove fuel cap slowly to avoid injury from fuel spray.

1. Always shut off the engine before refueling. Never remove the fuel tank cap while the engine is running or right after just stopping the engine.

2. Always open the fuel tank cap slowly to release any possible overpressure inside the tank.

3. Do not overfill the fuel tank. Stop filling 1/4-1/2 inch (6 mm-13 mm) from the top of the tank.
4. Tighten the tank fuel cap carefully but firmly after refilling.
5. Wipe up any spilled fuel before starting the engine.
6. Move the unit at least 10 feet (3 m) away from the fueling location and fuel storage container before starting the engine.

Recommended Oil Type

Only use a two-cycle engine oil formulated for use in high performance, air cooled two cycle engines. MARUYAMA brand 2-cycle oil is formulated for use in high performance, air cooled two-cycle engines.

IMPORTANT: Do not use National Marine Manufacturer's Association (NMMA) or BIA certified oils. This type of 2-cycle engine oil does not have the proper additives for air cooled, 2-cycle engines and can cause engine damage.

Do not use automotive motor oil. This type of oil does not have the proper additives for air cooled, 2-cycle engines and can cause engine damage.

Recommended Fuel Type

Use clean, fresh lead-free gasoline, including oxygenated or reformulated gasoline, with an octane rating of 89 or higher. To ensure freshness, purchase only the quantity of gasoline that can be used in 30 days. Use of lead-free gasoline results in fewer combustion chamber deposits and longer spark plug life. Use of premium grade fuel is not necessary or recommended.

Use Of Fuel Additives

IMPORTANT: NEVER USE ALCOHOL, GASOHOL CONTAINING MORE THAN 10% ALCOHOL BECAUSE ENGINE FUEL SYSTEM DAMAGE COULD RESULT.

DO NOT USE FUEL ADDITIVES OTHER THAN THOSE MANUFACTURED FOR FUEL STABILIZATION DURING STORAGE SUCH AS MARUYAMA'S STABILIZER/ CONDITIONER OR A SIMILAR PRODUCT. MARUYAMA'S STABILIZER/CONDITIONER IS A PETROLEUM DISTILLATE BASED CONDITIONER/STABILIZER.

MARUYAMA DOES NOT RECOMMEND STABILIZERS WITH AN ALCOHOL BASE SUCH AS ETHANOL, METHANOL OR ISOPROPYL. ADDITIVES SHOULD NOT BE USED TO TRY TO ENHANCE THE POWER OR PERFORMANCE OF MACHINE.

Mixing Gasoline And Oil

IMPORTANT: The engine used on this Pruner is of a 2-cycle design. The internal moving parts of the engine, i.e., crankshaft bearings, piston pin bearings and piston to cylinder wall contact surfaces, require oil mixed with the gasoline for lubrication.

Failure to add oil to the gasoline or failure to mix oil with the gasoline at the appropriate ratio will cause major engine damage which will void your warranty.

For your fuel premix, use Maruyama Premium 2-cycle Oil Mix, or equivalent ISO-L-EGD & JASO FD oil with a minimum 89 octane high Quality gasoline. Maruyama 2-cycle oil is specially formulated to meet the requirements of high-performance, low-emission air-cooled 2-cycle engines. Use of other oils may lead to service issues which may not be covered by your warranty.

Fuel Mixture

The fuel: oil ratio is 50 parts gasoline to 1 part oil or 50:1.

50:1

Note: Never use a mixing ratio less than 50:1 regardless of the oil package mixing instructions. Ratios less than 50:1, (for example, 60:1, 80:1, 100:1), reduce the amount of lubrication to the internal moving parts of the engine and can cause damage.

Fuel Mixture Chart

Gasoline	50:1 2-cycle oil
1 gallon	2.6 oz.
2 gallons	5.1 oz.
5 gallons	12.8 oz.
1 liter	20 ml
5 liter	100 ml

Mixing Instructions

IMPORTANT: Never mix gasoline and oil directly in the Pruner fuel tank.

1. Always mix fuel and oil in a clean container approved for gasoline.
2. Mark the container to identify it as fuel mix for the Pruner.
3. Use regular unleaded gasoline and fill the container with half the required amount of gasoline.
4. Pour the correct amount of oil into the container then add the remaining amount of gasoline.
5. Close the container tightly and shake it momentarily to evenly mix the oil and the gasoline before filling the fuel tank on the Pruner.
6. When refilling the Pruner fuel tank, clean around the fuel tank cap to prevent dirt and debris from entering the tank during cap removal.
7. Always shake the premix fuel container momentarily before filling the fuel tank.
8. Always use a spout or funnel when fueling to reduce fuel spillage.
9. Fill the tank only to within 1/4-1/2 inch (6 mm-13 mm) from the top of the tank. Avoid filling to the top of the tank filler neck.

Starting And Stopping

Before Starting The Engine

1. Fill the fuel tank as instructed in the Before Operation section of this manual (page US-14).
2. Rest the Pruner on the ground.
3. Make sure the cutting attachment is clear of any broken glass, nails, wire, rocks or other debris.
4. Keep all bystanders, children and animals away from the working area.

Cold Starting Procedure

This Pruner is equipped with a fuel primer and a choke system. To start a “cold” engine properly, perform the following procedure:

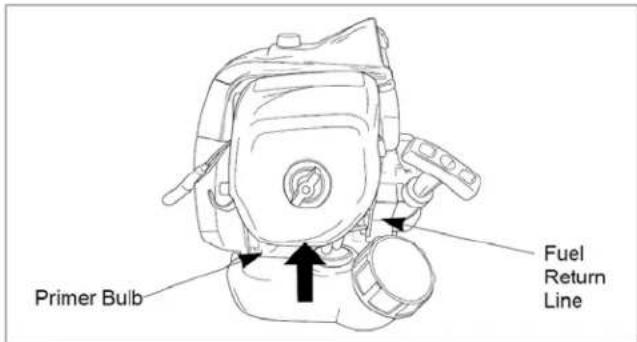

1. Pump the primer bulb at the bottom of the carburetor until fuel can be seen flowing through the fuel return line to the fuel tank. (Flowing fuel should be almost clear, not foamy or full of bubbles.)

Primer Bulb Fuel Return Line

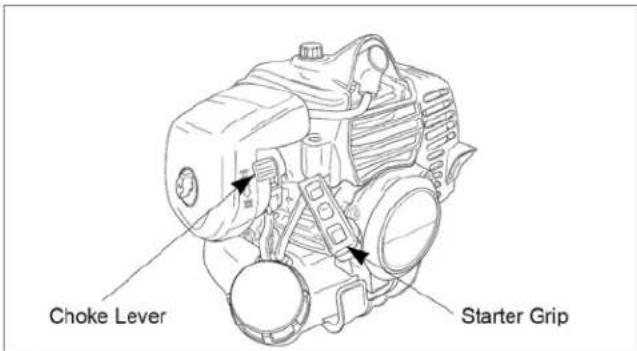

1. Move the choke lever to the closed ( |+·| ) position and move the stop switch to the “ON” position.

Choke Lever Starter Grip

1. Lock the throttle trigger in the fast-idle start position, then pull the starter grip.

Fast-idle start lock STOP(OFF) Stop switch START(ON) Fast-idle start position Idle position

CAUTION • Do not pull the Starter rope all the wayout. WARNING • Do not disassemble the Starter. Please ask for an authorized MARYAMA service dealer.

1. After the engine starts, squeeze and release the throttle trigger to return it to the idle position, then move the choke lever to the open (| | |) position.

If the engine stops running before you move the choke lever to the open (| | |) position:

A. Go ahead and open the choke.
B. Make sure the throttle trigger is set to the idle position.
C. Pull the starter grip until the engine starts.

Hot Restart

To start an engine that is already warmed up (hot restart), or if the ambient temperature exceeds 68^ F ( 20^ C):

1. Pump the primer bulb at the bottom of the carburetor until fuel can be seen flowing through the fuel return line to the fuel tank.
2. Move the choke lever to the open (|+) position and move the stop switch to the "ON" position.

3. Leave the throttle trigger in the idle position and pull the starter grip.

4. If the engine fails to start after three to four pulls, follow the instruction in the Cold Starting Procedure section (page US-17).

If the engine fails to start after you follow the above procedures, contact an authorized Maruyama dealer.

To Stop The Engine

1. Release the throttle trigger.
2. Slide the stop switch to the "STOP" position.

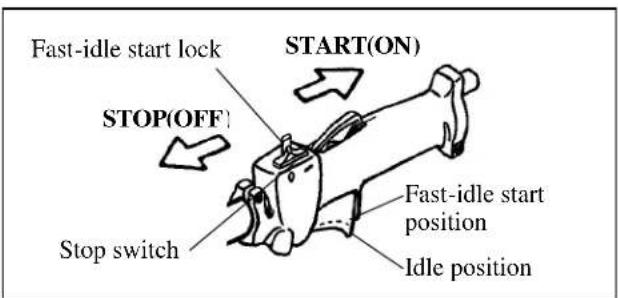

Fast-idle start lock STOP(OFF) Stop switch START(ON) Fast-idle start position Idle position

Operation

WARNING

POTENTIAL HAZARD

• The Pruner can conduct electricity. WHAT CAN HAPPEN
- Contact with live electrical wires or circuits can cause serious injury or death.
- Never use the Pruner around electrical lines, circuits or components.

HOW TO AVOID THE HAZARD

CAUTION

- Read the Safety instructions on page US-11 concerning proper use of the Pruner.

Before using the Pruner, check the following:

1. Make sure the chain oil tank on the pruner head is full.

Oil Tank Filler Cap Oil Discharge Adjustment Screw

IMPORTANT: When filling an empty oil tank, wait approximately 60-90 seconds before starting the Pruner. This will give the oil time to flow from the tank to the pump. Otherwise, an air lock can occur which will prevent oil from moving through the pump. This will result in damage to the chain and guide bar.

IMPORTANT: Never run the chain dry.

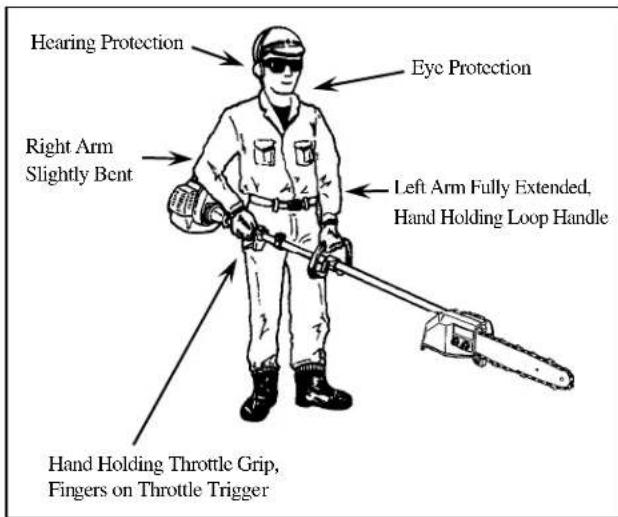

1. The operator must be set the shaft assembly on the operator's right side.
2. The operator's right hand should be holding the shaft grip, with his or her fingers on the throttle trigger. The right arm should be slightly bent.
3. The left hand should be holding the loop handle with the fingers and thumb fully enclosed around the grip. The left arm should be extended. Reposition the loop handle up or down the driveshaft if necessary for a comfortable position.

Hearing Protection Eye Protection Right Arm Slightly Bent Left Arm Fully Extended, Hand Holding Loop Handle Hand Holding Throttle Grip, Fingers on Throttle Trigger

1. The Pruner weight should be evenly distributed between the arms.
2. Always release the throttle trigger and allow the engine to return to idle speed when not cutting.
3. Stop the engine when moving between work sites.

CAUTION

• Always wear gloves and protective clothing when operating the Pruner.

• If the Pruner chain becomes jammed, stop the engine immediately.
• Make certain all moving parts have stopped and disconnect the spark plug before inspecting the equipment for damage.
• Never use a Pruner that has a damaged chain or guide bar.

Maintenance

Maintenance, replacement or repair of emission control devices and systems may be performed by any repair establishment or individual; however, warranty repairs must be performed by a dealer or service center authorized by Maruyama Manufacturing Company, Inc. The use of parts that are not equivalent in performance and durability to authorized parts may impair the effectiveness of the emission control system and may have a bearing on the outcome of a warranty claim.

Maintenance on today's low-emission engines is even more critical for longest life and best performance. particularly critical are air and fuel filters, spark plug heat range, cooling air intake area and proper gaps of coil and plug.

Engine

Idle Speed Adjustment

This Pruner is equipped with non-adjustable fuel mixture carburetor. The engine idle speed is the only adjustment for the operator.

WARNING

POTENTIAL HAZARD

• Engine must be running to make carburetor adjustments.
• When engine is running, attached tool and other parts is rotating/ moving and other parts are moving.

WHAT CAN HAPPEN

- Contact with rotating / moving tool or other moving parts could cause serious personal injury or death.

HOW TO AVOID THE HAZARD

• Keep hands, feet and clothing away from attached tool and other moving parts.
• Keep all bystanders and pets away from unit while making carburetor adjustments.

The Attached Tool may be rotating/ moving during idle speed adjustment. Wear the recommended personal protective equipment and observe all safety instructions. Keep hands and body away from the Attached Tool.

When the throttle trigger is released, the engine should return to an idle speed between 2700 and 3300 RPM, or just below the clutch engagement speed. The Attached Tool must not rotate/move and the engine should not stall (stop running) at engine idle speed.

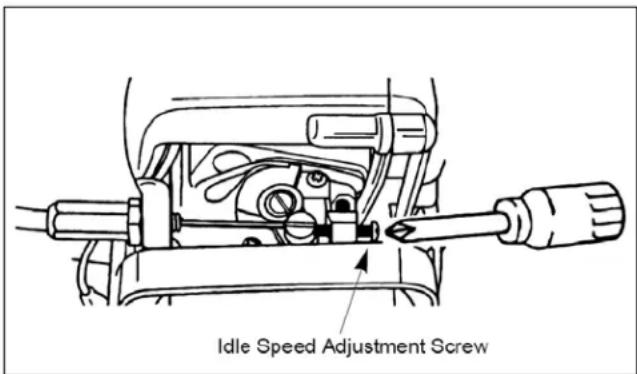

To adjust the engine idle speed, rotate the idle speed adjustment screw on the carburetor.

Idle Speed Adjustment Screw

• Turn the idle speed screw in (clockwise) to increase the engine idle speed.
• Turn the screw out (counterclockwise) to decrease the engine idle speed.

If idle speed adjustment is necessary, and after adjustment the Attached Tool rotates/moves or the engine stalls, stop using the Pruner immediately!

Contact your local authorized MARUYAMA Dealer for assistance and servicing.

Air Filter

Maintenance Interval

• The air filter should be cleaned daily, or more often when working in extremely dusty conditions.
• Replace after every 100 hours of operation.

Air Filter Cleaning

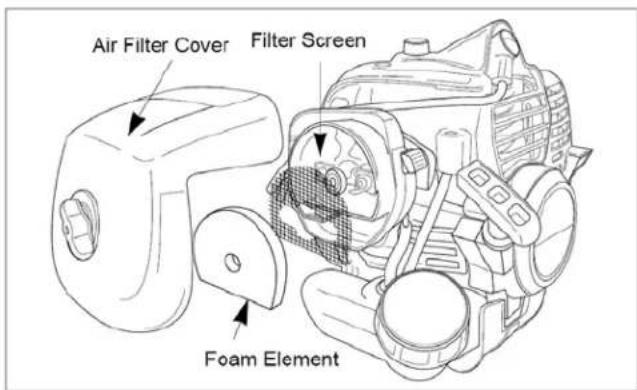

1. Loosen the knob and remove the air filter cover.
2. Remove the foam element and filter screen from the air filter body.
3. Clean the foam element and filter screen with warm, soapy water. Let the screen and element dry completely.
4. Apply a light coat of SAE 30 motor oil to the foam element and squeeze out all excess oil.
5. Reassemble the filter screen, foam element and to the air filter cover.

Air Filter Cover Filter Screen Foam Element

Fuel Filter

Maintenance Interval

The fuel filter should be replaced after every 100 hours of operation.

Fuel filters needing more frequent replacement may indicate debris in fuel tank.

Fuel Filter Replacement

The fuel filter is attached to the end of the fuel pick-up hose inside the fuel tank.

1. Make sure the fuel tank is empty.
2. Remove the fuel cap.
3. Using a wire hook, gently pull the fuel filter out through the fuel filler opening. Use caution not to "fishhook" the fuel tube. Replace immediately if punctured!

4. Grasp the fuel hose next to the fuel filter fitting and remove the filter, but do not release the hose.

5. While still holding on to the fuel hose, attach the new fuel filter.

6. Drop the new fuel filter back into the fuel tank.

7. Make sure that the fuel filter is not stuck in a corner of the tank, and that the fuel hose is not doubled over (kinked) before refueling.

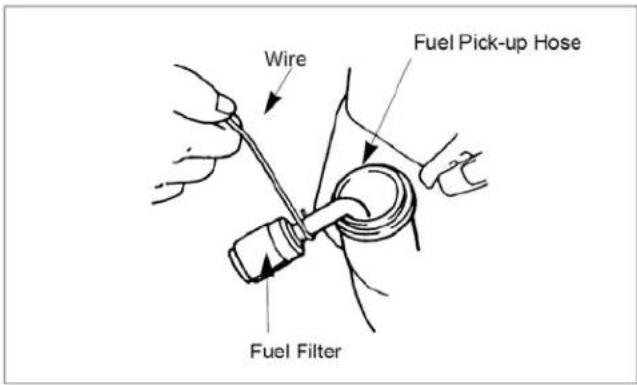

Wire Fuel Pick-up Hose Fuel Filter

Spark Plug

Maintenance Interval

• The spark plug should be removed from the engine and checked after each 25 hours of operation.
• Replace the spark plug after every 100 hours of operation.

Spark Plug Maintenance

1. Twist the high tension lead boot on the spark plug back and forth a couple of times to loosen the boot, then pull the boot off of the spark plug.
2. Remove the spark plug.
3. Clean the electrodes with a stiff brush.
4. Adjust the electrode air gap to .024-.028 in (0.6- 0.7mm).
5. Replace the spark plug if it is oil-fouled, damaged, or if the electrodes are worn down.
6. Do not overtighten the spark plug when installing. The tightening torque is 95-148 in. lbs. (10.7-16.6 N·m).
7. Always use only the specific heat range of spark plug. This is particularly critical with today's lowemission engines. For best results, use the exact replacement.

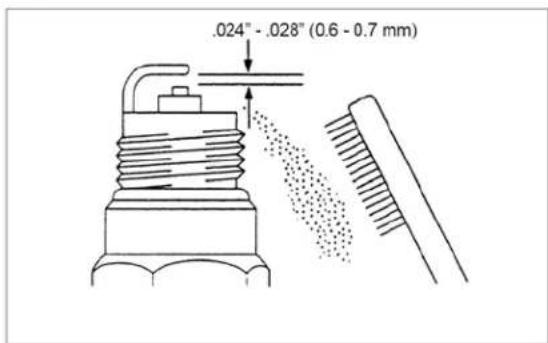

.024" - .028" (0.6 - 0.7 mm)

Cylinder Cooling Fins

Maintenance Interval

The cylinder cooling fins should be cleaned after every 25 hours of operation, or once a week, whichever comes first.

Air must flow freely around and through the cylinder cooling fins to prevent engine overheating. Leaves, grass, dirt and debris buildup on the fins will increase the operating temperature of the engine, which can reduce engine performance and shorten engine life.

Cooling Fin Cleaning

1. With the engine at ambient (room) temperature, loosen the knob and remove the air filter cover.
2. Twist the high tension lead boot on the spark plug back and forth a couple of times to loosen the boot, then pull the boot off of the spark plug.
3. Loosen the knob and lift off the cylinder cover.
4. Clean all dirt and debris from the cooling fins and from around the cylinder base.
5. DO NOT overlook cleaning of the cooling air intake area below the crankcase and above the fuel tank! This area must be free of debris and obstruction for the engine to cool properly.
6. Reinstall the fan cover and the filter cover.

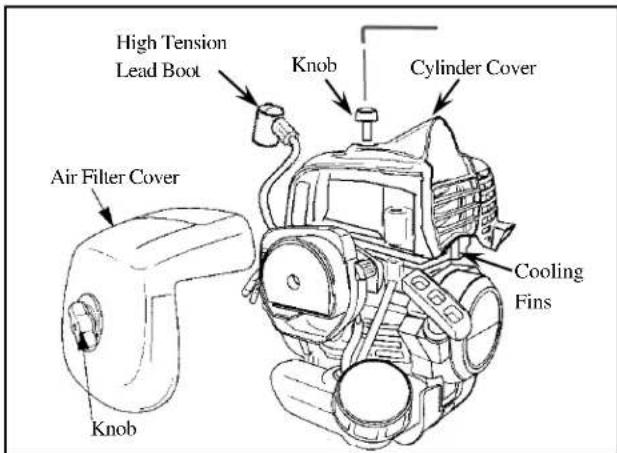

High Tension Lead Boot Knob Cylinder Cover Air Filter Cover Knob Cooling Fins

Spark Arrester

WARNING

POTENTIAL HAZARD

- Muffler surface becomes hot when the Pruner is in operation and remains hot for some time after the engine is shut off.

WHAT CAN HAPPEN

- Contact with hot muffler surfaces could cause a burn.

HOW TO AVOID THE HAZARD

- Make sure the muffler is cool before inspecting and cleaning the spark arrester.

Maintenance Interval

• The spark arrester should be inspected and cleaned after every 25 hours of use.
• Replace the screen if it cannot be thoroughly cleaned, or if it is damaged.

Spark Arrester Maintenance

1. With the engine at ambient (room) temperature, loosen the knob and remove the air filter cover.
2. Twist the high tension lead boot on the spark plug back and forth a couple of times to loosen the boot, then pull the boot off of the spark plug.
3. Loosen the knob and lift off the cylinder cover.

Spark Arrester Socket Head Screw Tail

1. Remove and clean the tail, gasket and spark arrester with a safety solvent and a stiff brush. If any part cannot be thoroughly cleaned, it must be replaced.
2. Reinstall the spark arrester and tail onto the muffler, then reinstall and tighten the two socket headscrews.
3. Reinstall the cylinder cover and the air filter cover.

Exhaust Muffler

Maintenance Interval

The muffler should be inspected and cleaned after each 100 hours of use.

Muffler Maintenance

1. With the engine at ambient (room) temperature, loosen the knob and remove the air cleaner cover.

2. Twist the high tension lead boot on the spark plug back and forth a couple of times to loosen the boot, then pull the boot off of the spark plug.

3. Loosen the knob and lift off the cylinder cover.
4. Remove the spark arrester (see spark arrester maintenance). Clean the muffler with a stiff brush.

IMPORTANT: Don't use solvent for cleaning inside of muffler, because of the catalytic converter in muffler.

Be careful not to allow any dirt or debris to fall into the exhaust port, as this can cause engine damage.

1. Reinstall the spark arrester and tail onto muffler, then reinstall and tighten the two socket head screws.
2. Reinstall the cylinder cover and the air filter cover.

Lubrication

Maintenance Interval

The gearcase should be inspect after each 30 hours of use.

Lubrication

The gearcase should be checked for lubrication after each 10 hours of use. Grease fittings are installed into gearcase. Use #2 lithiumbase bearing lubricant.

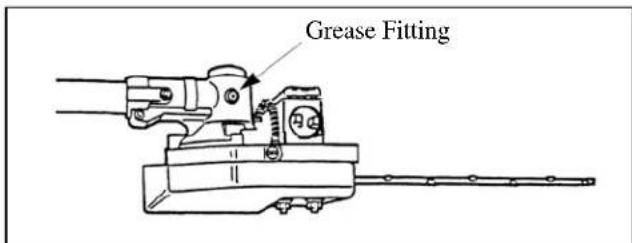

Grease Fitting

General Cleaning and Tightening

The Pruner will provide maximum performance for many, many hours if it is maintained properly.

WARNING

POTENTIAL HAZARD

- When engine is running, Attached Tool is rotating/moving and other parts are moving.

WHAT CAN HAPPEN

- Contact with rotating/moving Tool or other moving parts could cause serious personal injury or death.

HOW TO AVOID THE HAZARD

• Always turn off your Pruner before you clean or perform any maintenance on it.

Good maintenance includes regular checking of all fasteners for correct tightness and cleaning the entire machine.

Storage

For long term storage of the Pruner:

1. Empty the fuel tank into a suitable fuel storage container.
2. Pump the primer bulb on the carburetor until all fuel is discharged through the clear fuel return hose.
3. Run the engine to remove any fuel that may remain in the carburetor.
4. Perform all regular maintenance procedures and any needed repairs.

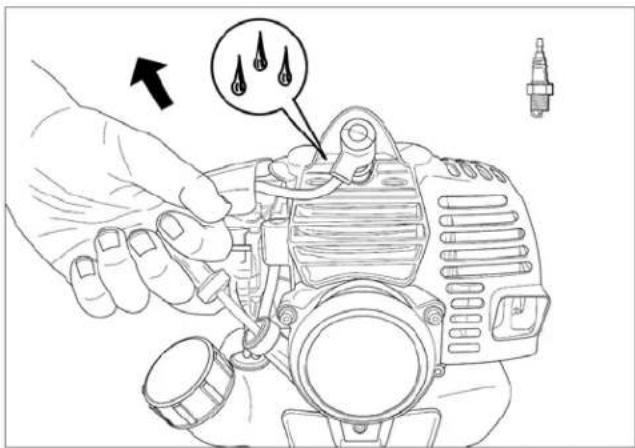

5. Remove the spark plug and squirt a very small amount of oil into the cylinder.

Technical diagram showing a hand adjusting a mechanical component with droplet and spark plug annotations

CAUTION

POTENTIAL HAZARD

• Oil may squirt out of the spark plug opening when you pull the starter grip. WHAT CAN HAPPEN
• Oil can cause eye injuries. HOW TO AVOID THE HAZARD

• Protect your eyes and keep your face away from the spark plug opening.

• Pull the starter grip once.

• Slowly pull the starter grip to bring the piston to the top of the cylinder (TDC).

• Reinstall the spark plug.

• Store the Pruner in a dry place away from excessive heat, sparks or open flame.

TroubleShooting

Problem	Cause Action
Engine Will Not Start	STOP switch set to off positionEmpty fuel tankPrimer bulb wasn't pushed enoughEngine flooded	Move switch to on positionFill fuel tankPress primer bulb until fuel flows through fuel return lineUse warm engine starting procedure
Engine Will Not Idle	Idle speed set incorrectly	Set idle speed
Engine Lacks Power or Stall When Cutting	Throttle wire has come loose Tighten thrDirty air filter Clean or replace air filterClogged spark arrester or exhaust port	trottle wireClean spark arrester or exhaust port

Maintenance Period

	Maintenance	Daily	Every 20 hours	Every 50 hours	Every 100 hours
	Check and replenish fuel	●
	Check for fuel leakage	●
	Check bolts, nuts and screws for tightness or missing	●
■	Tighten bolts and nuts			●
	Clean air filter element		●
■	Clean spark plug and adjust electrode gap			●
●	Remove dust and dirt from cylinder fins			●
●	Remove carbon deposits in exhaust port			●
	Clean spark arrester			●
●	Replace fuel filter				●
●	Remove carbon deposits on piston head and combustion chamber				●
	Remove carbon deposits in transfer ports				●
	Replete fuel tube, fuel tank cap gasket	It is recommended to replace every 3 years

● : Service to be performed by an authorized Maruyama engine dealer.

■ : Service more frequently under dusty conditions.

NOTE:

The service intervals indicated are to be used as a guide.

Service to be performed more frequently as necessary depending on operating condition.

Use Maruyama standard 50:1 two-cycle engine oil.

Specifications

P23
Weight (lbs)	^*1 13.6 (6.2kg)
Engine Displacement ( cm^3 )	22.5
Anti Vibration	Dual Isolation - grip and engine mount
Carburetor	Walbro Diaphragm Type
Ignition System Solid State
Fuel Tank Capacity (qts.) 0.53 (0.5l)
Gas to Oil Ratio 50:1
Spark Plug NGK BPM8Y
Spark Plug Gap (in.) .024 -.028 (0.6 - 0.7 mm)
EPA and CARB Approved	Phase3, Tier 3

Emission durability of 300 hours.

*1. Dry weight without fuel, Chain, Bar and Rim.

Contenido

Página ES- Pá

Contenido 1

Technical diagram of a mechanical linkage system with numbered components and a close-up of the device's internal structure.

DANGER THIS PRODUCT CAN CONDUCT ELECTRICITY. DO NOT USE WHERE CONTACT MAY BE MADE WITH LIVE ELECTRICAL CIRCUITS. NEVER USE AROUND/ELECTRICAL POWER SOURCES AND LINES, FAILURE TO OBSERVISE THIS WARNING CAN RESULT IN SERIOUS BLAIRY OR DEATH. READ ALL LABELS WARNING THIS EQUIPMENT IS DESIGNED TO CUT WOOD, AND CAN BE POTENTIALLY GAMERIOUS, STAY CLEAR OF POTATINGS SAV CHAIN, STOP THE ENGINE BEFORE ADJUSTING THE SAV CHAIN OR PERFORMING ANY SERVICE, CARELESS OR IMPROPER USE MAY CAUSE SERIOUS OR EVEN NOTAL BLINERY. UNDER MD CONDITIONS MAY THIS PRODUCT BE MODIFIED FROM ITS ORIGINAL DESIGN WITHOUT WRITTEN PERMISSION OF THE MANUFACTURER, NON-AUTHORIZED MODIFICATIONS AND/OR ACCESSORIES CAN LEAD TO SERIOUS BLINERY OR DEATH TO YOURSELF OR OTHERS. (SEE OWNERS/OPERATOR'S MANUAL) WARNING ALWAYS OPERATE THIS EQUIPMENT AT LEAST NO FEET CHAND FROM OTHER PEOPLE AND/OR ANIMALS TO PREVENT DIAMAGE OR INJURY.

Sobre el Eje

(221529)

DANGER THIS PRODUCT CONDUCTS ELECTRICITY. WATCH FOR WIRES. KEEP SUFFICIENT DISTANCE AWAY FROM ELECTRICAL POWER LINES.

Line drawing of a person using a tool to lift a hose, with arrows indicating direction (no text or symbols)

Engrasador

Technical diagram showing engine component assembly with labeled parts and a directional arrow indicating motion

CUIDADO

PELIGRO EN POTENCIA

Lubrification.... 18

Technical diagram of a mechanical device with numbered components and an inset image of the engine component.

DANGER THIS PRODUCT CONDUCTS ELECTRICITY. WATCH FOR WIRES. KEEP SUFFICIENT DISTANCE AWAY FROM ELECTRICAL POWER LINES.

SUR LE ARBRE

(Pièce No.219937)

Montage

Line drawing of a person using a tool to lift a hose, with arrows indicating direction (no text or symbols)

.024" - .028" (0.6 - 0.7 mm)

Technical diagram showing a hand adjusting a mechanical component with droplet and spark drop annotations

! ATTENTION

DANGER POTENTIEL
