USER MANUAL VT-5130 V-TAC

WARNING! Please power off before transmission! WiFi&432M Receiver Model: SW-RC Input: 90-275V/ AC μ Load: no-1000W (led) OUT IN

works with the Google Assistant

works with amazon alexa

INTRODUCTION & WARRANTY

Thank you for selecting and buying V-TAC Product. V-TAC will serve you the best. Please read these instructions carefully before starting the installation and keep this manual handy for future reference. If you have any other query, please contact our dealer or local vendor from whom you have purchased the product. They are trained and ready to serve you at the best. The warranty is valid for 2 years from the date of purchase. The warranty does not apply to damage caused by incorrect installation or abnormal wear and tear. The company gives no warranty against damage to any surface due to incorrect removal and installation of the product. This product is warranted for manufacturing defects only.

WARNING

1. Please make sure to turn off the power before starting the installation.
2. Installation must be performed by a certified person.

This marking indicates that this product should not be disposed of with other household wastes.

Caution, risk of electric shock.

QR code image containing encoded data, no visible human-readable text

MULTI-LANGUAGE MANUAL QR CODE

Please scan the QR code to access the manual in multiple languages.

(FR) INTRODUCTION & GARANTIE

(PL) WSTĘP I GWARANCJAD

(RO) INTRODUCERE, GARANTIA

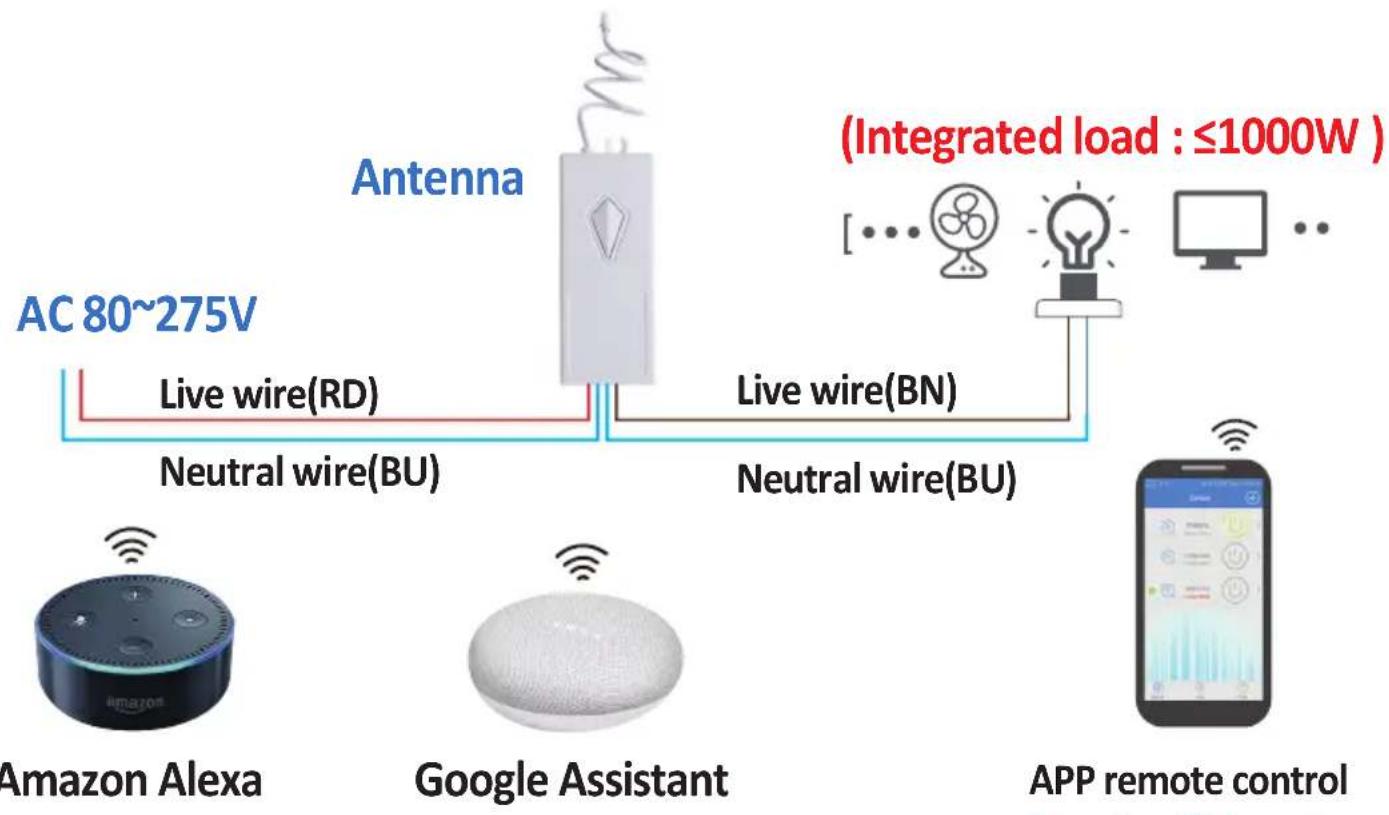

Please follow the below installation diagram to install the receiver.

Notes: Keep WIFI receiver connected with WIFI

PAIRING WI-FI RECEIVER WITH V-TAC WIRELESS SWITCHES

You can also now connect V-TAC's Wi-Fi Receiver with V-TAC Wireless Switches (VT-5131, VT-5132, and VT-5133 & VT-5143). In order to pair the receiver with the switch. Please scan the QR code to access the pairing steps.

QR code image containing encoded data, no visible human-readable text

APP INSTALLATION

Step 1: Scan the given QR code, or download "V-TAC Smart Light" from the App Store (iOS) or the Google Play Store (Android).

For ANDROID

QR code with red and black pixelated logo in center, likely linking to a digital service or website

For IOS

QR code with red and black pixelated logo in center, likely for digital link or payment

Step 2: Open the V-TAC Smart Light app and tap on register for creating a new account.

V-TAC Smart Light

Login Register

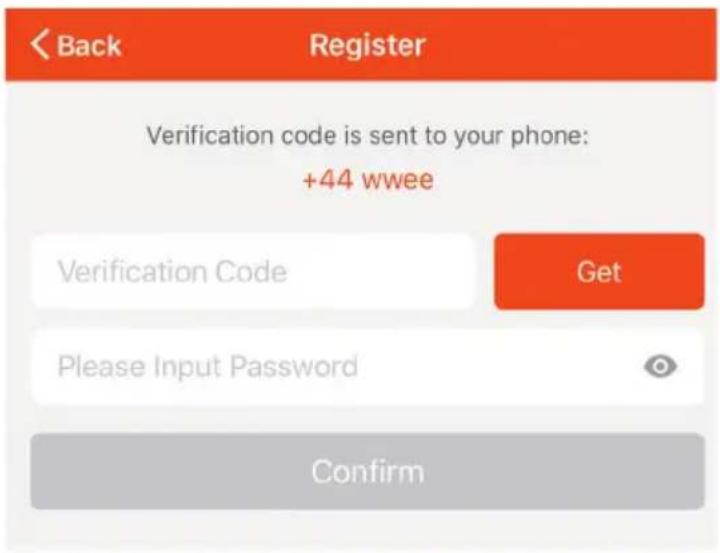

Step 4: Enter the verification code which will be sent to your mobile number/email id, then assign a new password to your account and tap on "Confirm".

Back Register Verification code is sent to your phone: +44 wwee Verification Code Get Please Input Password Confirm

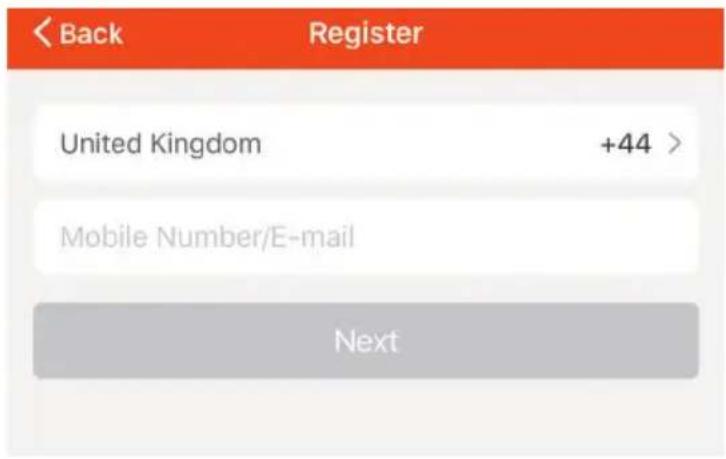

Step 3:

A) Mobile Number: Select the country, then enter your mobile number. Once done, tap 'Next'.

B) E-Mail: Enter your email id and tap on 'Next'.

< Back Register United Kingdom +44 > Mobile Number/E-mail Next

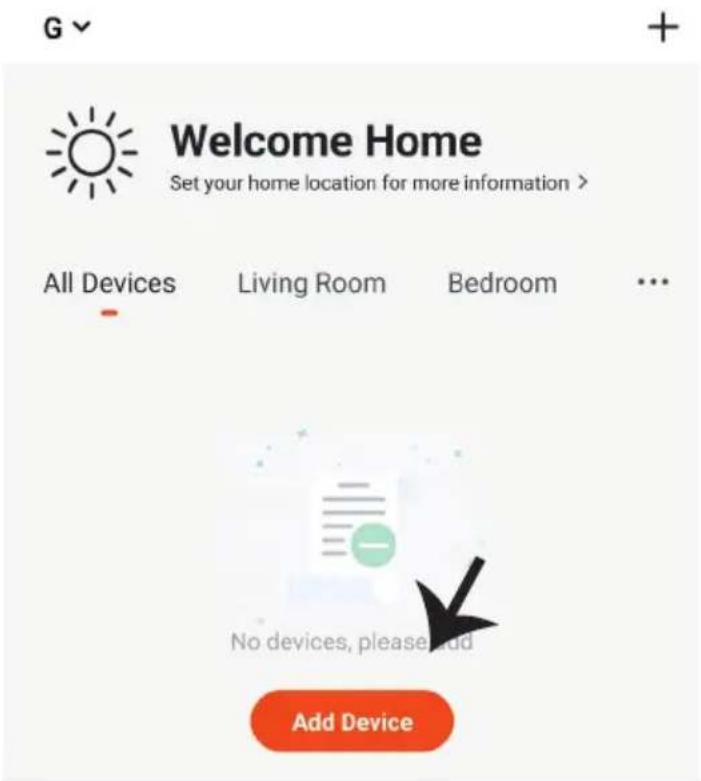

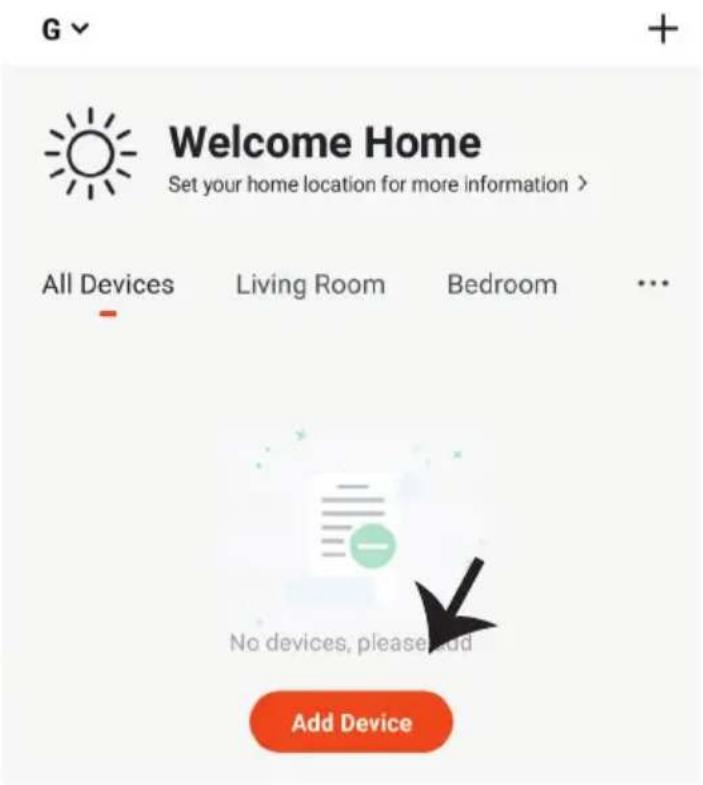

Step 5: Tap on 'Add Device' or the + sign. Make sure the lamp is switched on.

G Welcome Home Set your home location for more information > All Devices Living Room Bedroom ... No devices, please add Add Device

Electrician Lighting Large Home Appliances Small Home Appliances Kitchen Appliances Security & Sensors Card Switch Card Switch (ZigBee) Switch Module Breaker (Wi-Fi) Breaker Breaker (ZigBee)

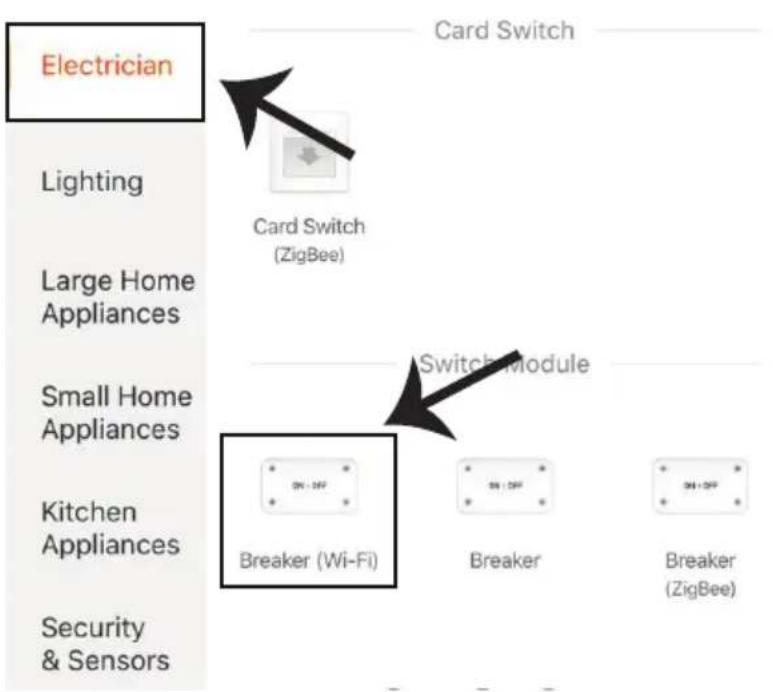

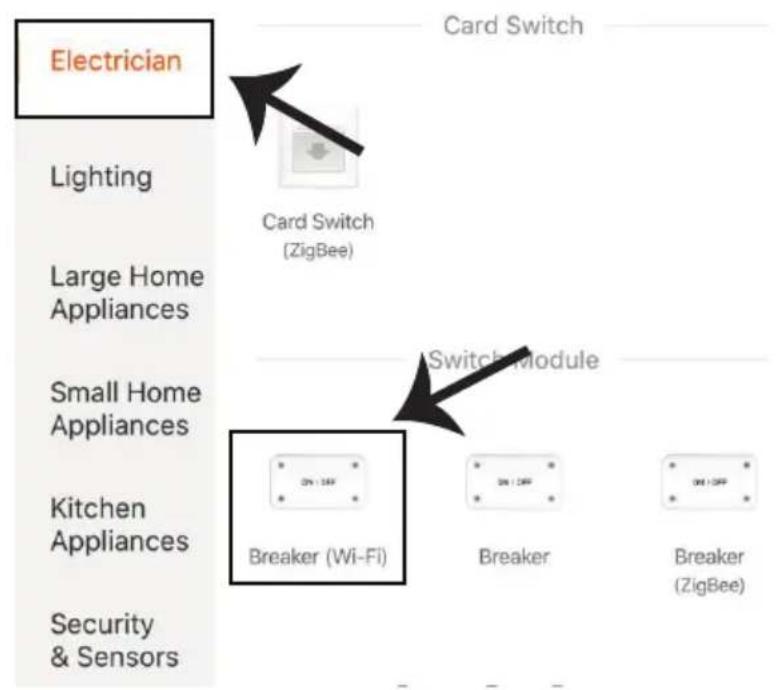

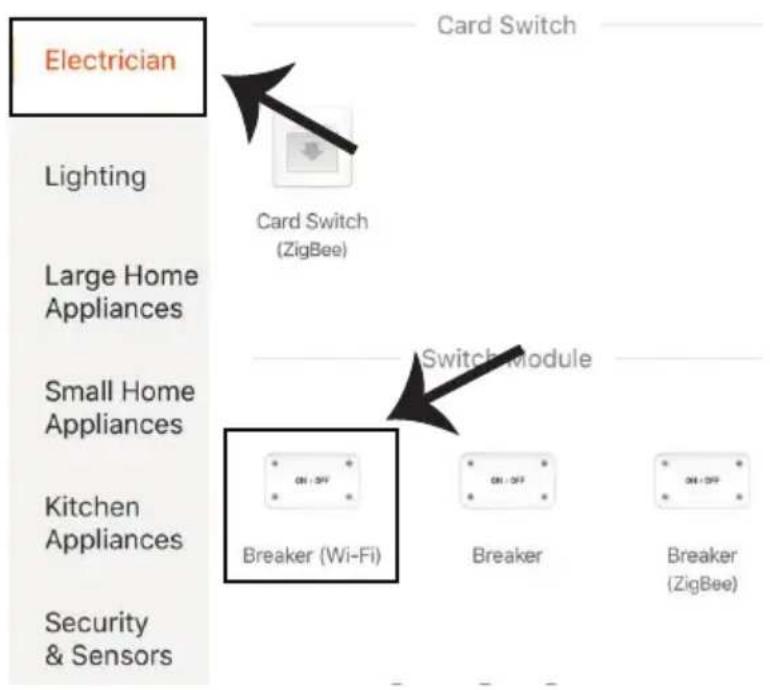

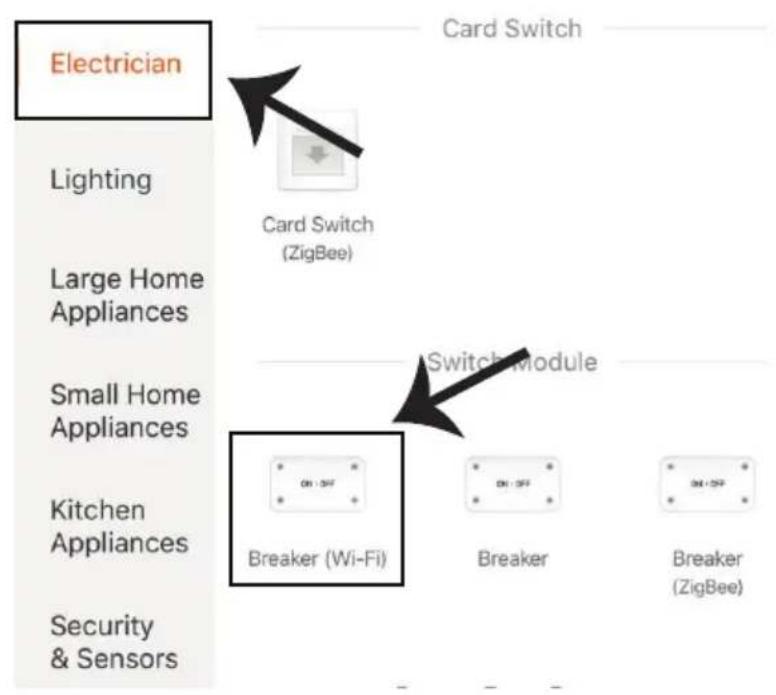

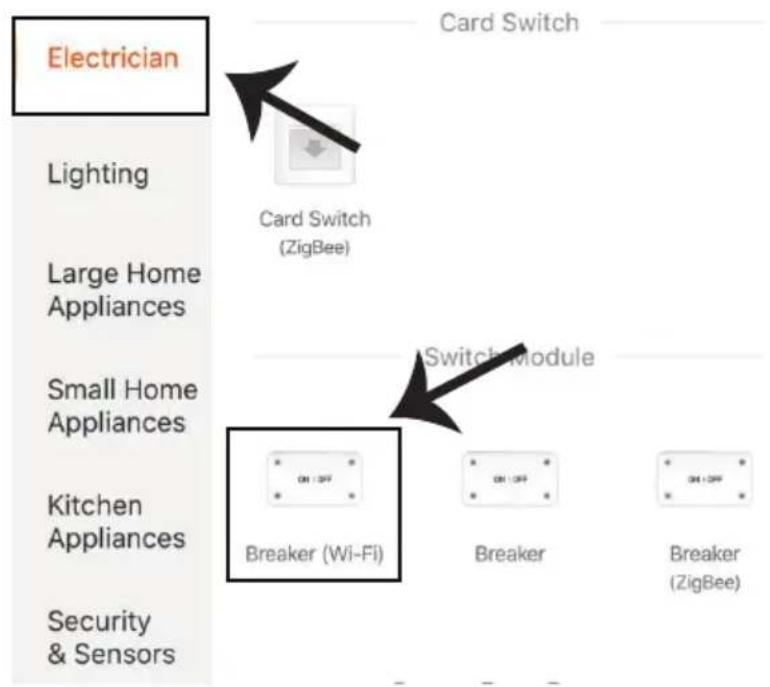

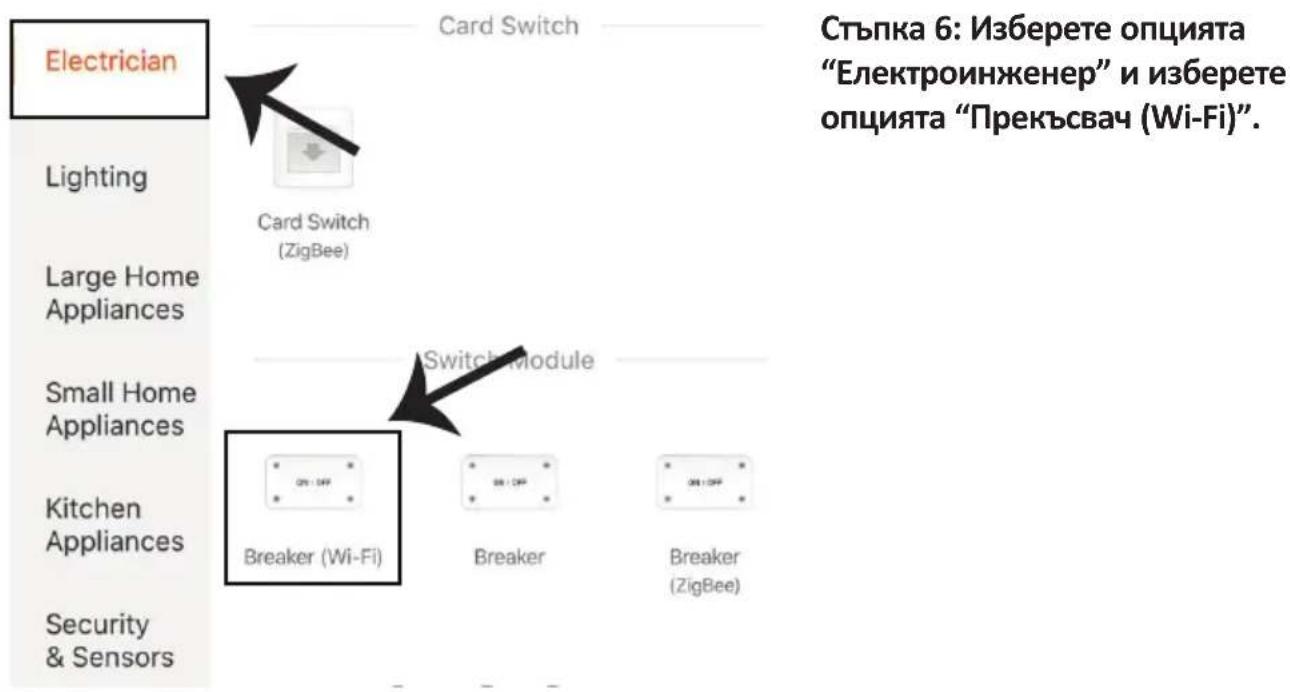

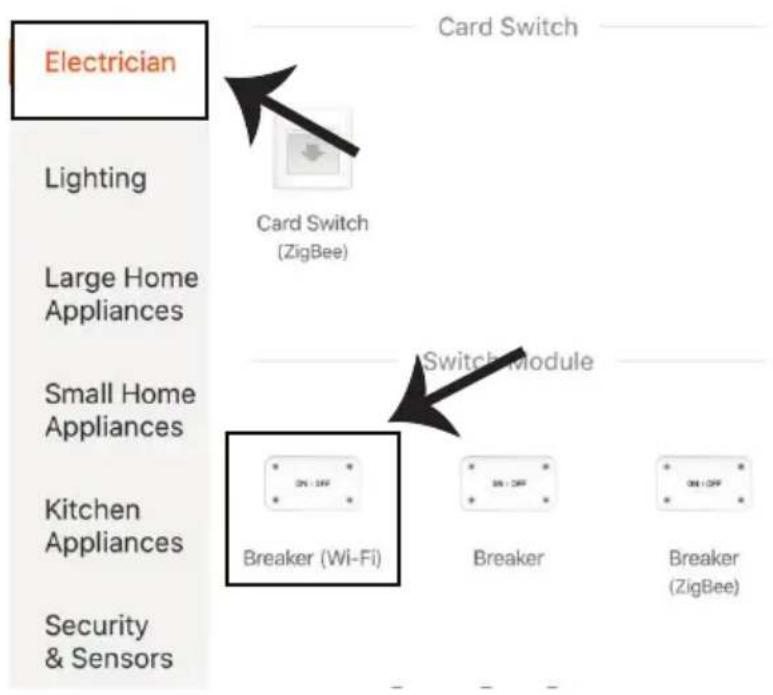

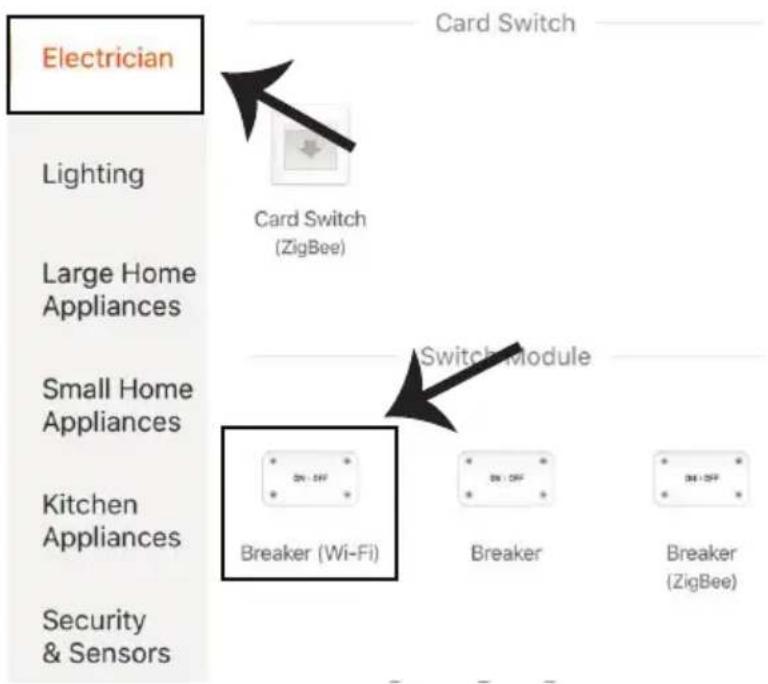

Step 6: Select the option "Electrician" and select "Breaker (Wi-Fi)" option.

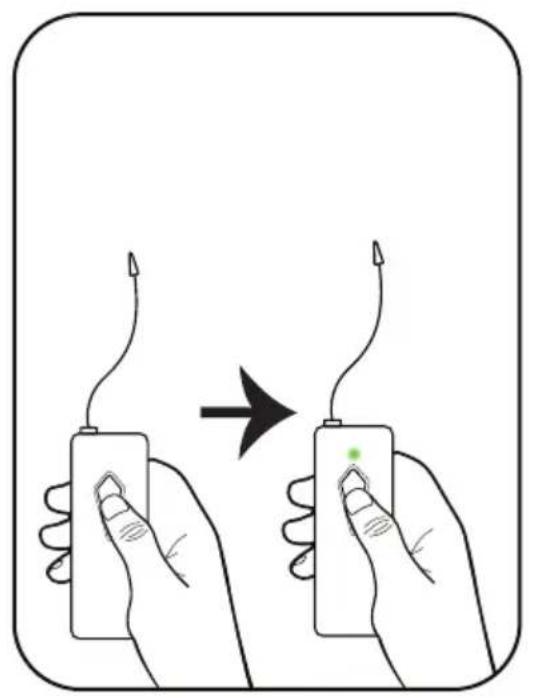

Step 7: To begin the pairing process, firstly tap and hold the wireless receiver for 5-7 seconds until it starts flashing Green light as shown in the below image.

Once the wireless receiver indicates with flashing Green light, it has been successfully connected in pairing mode. Tap on "confirm indicator is blinking rapidly" and enter the Wi-Fi username and password and tap on confirm. (Ensure Wi-Fi Frequency should be 2.4Ghz Only)

Troubleshooting: If the wireless receiver is flashing Red color, please wait for 30 - 60 seconds till the light disappears. Then follow the above process to connect the wireless receiver in pairing mode.

Note: Before starting the pairing process please ensure the wireless receiver is connected to a device and the power is switched ON.

Illustration of two hands holding batteries with wires, one pointing to a green dot (no text or symbols)

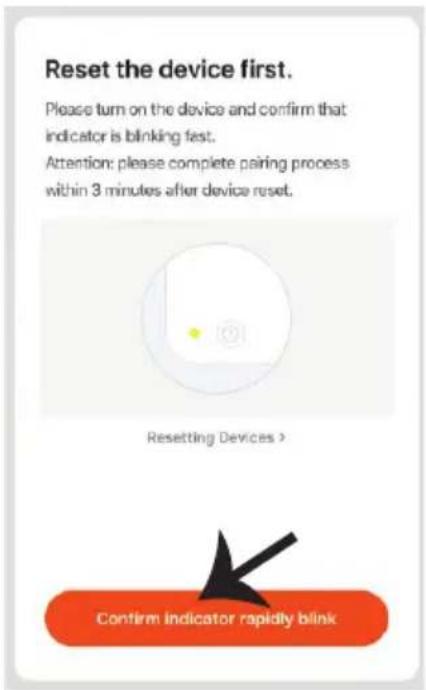

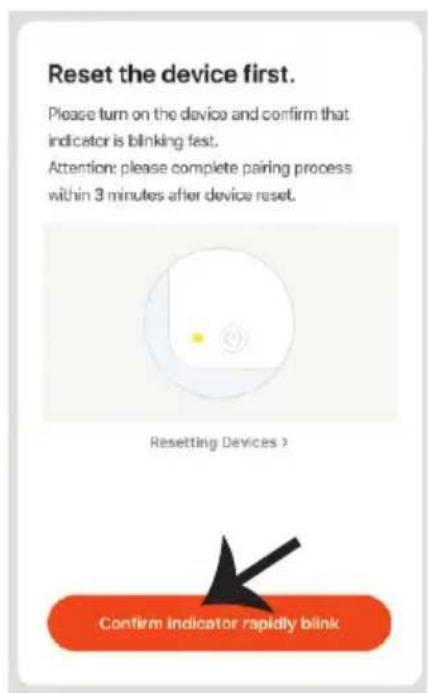

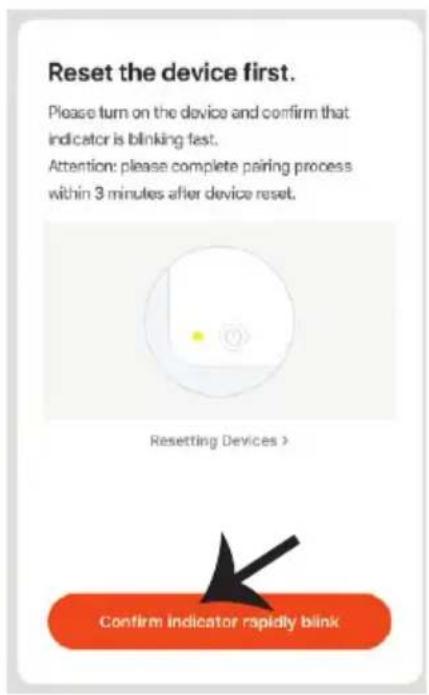

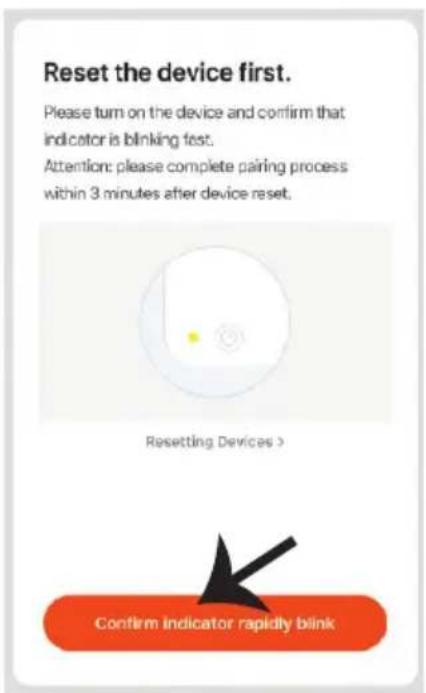

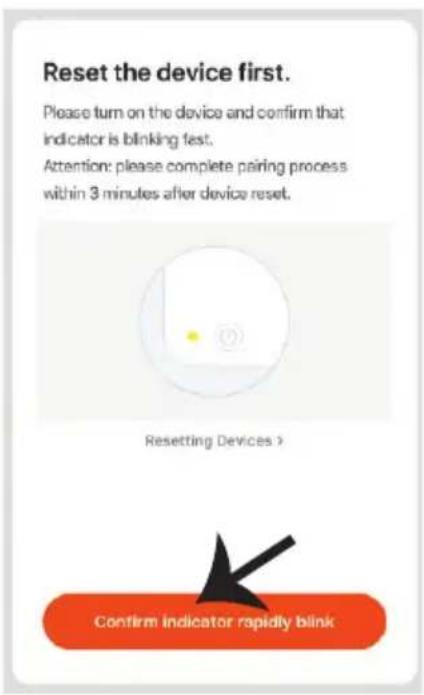

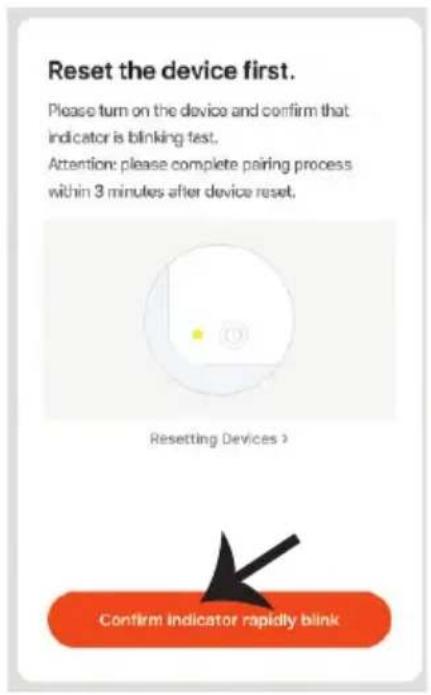

Reset the device first. Please turn on the device and confirm that indicator is blinking fast. Attention: please complete pairing process within 3 minutes after device reset. Resetting Devices > Confirm indicator rapidly blink

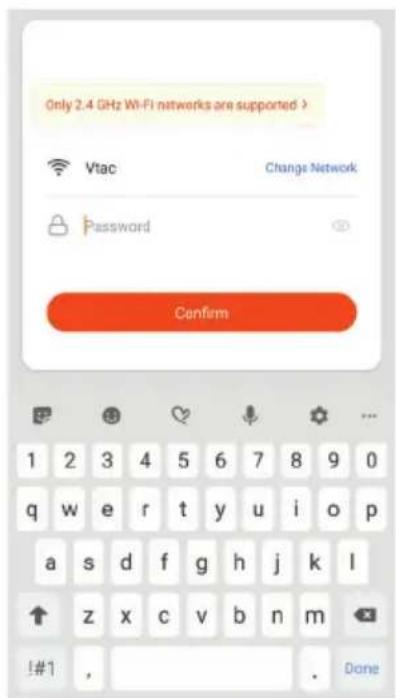

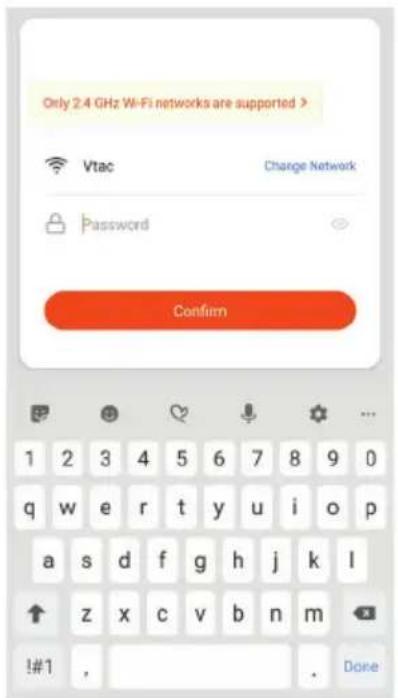

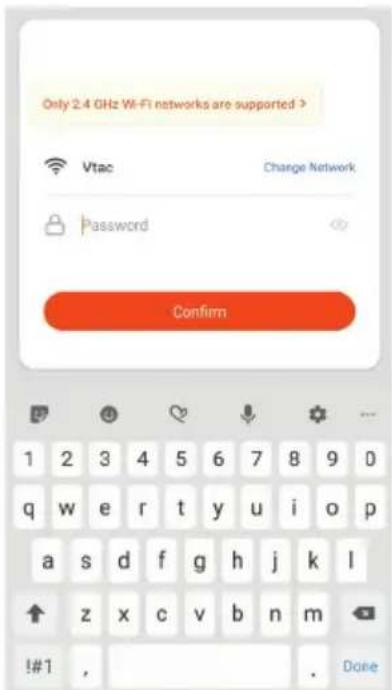

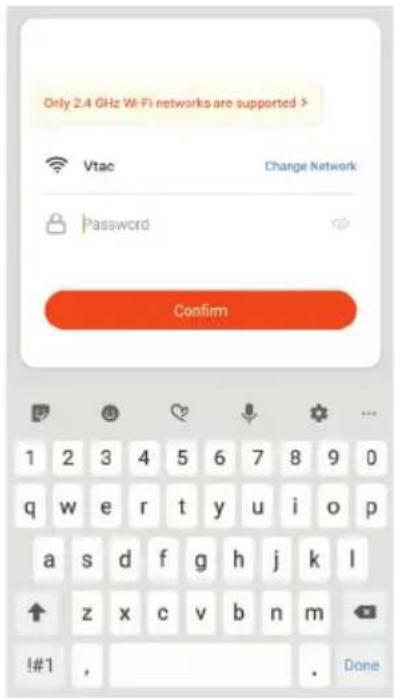

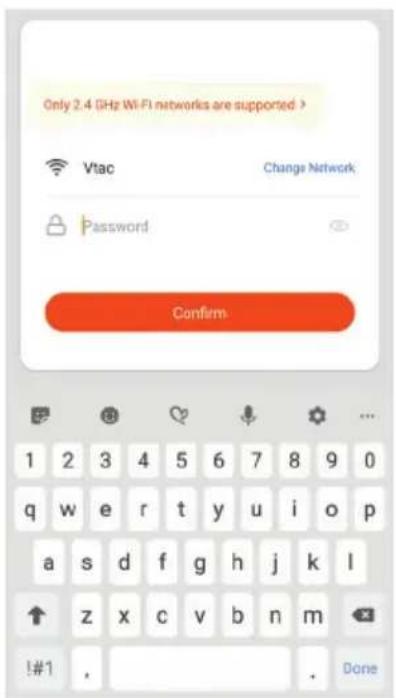

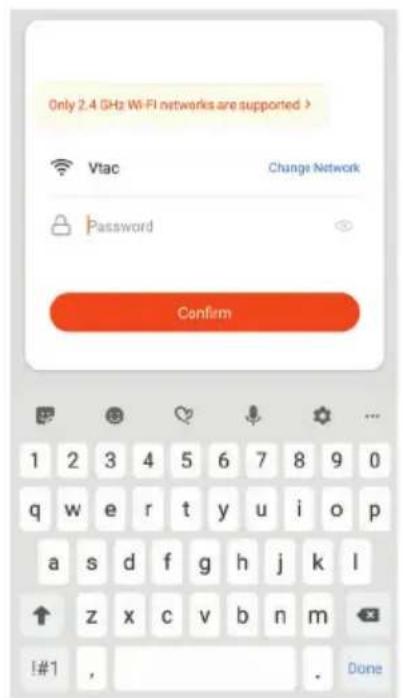

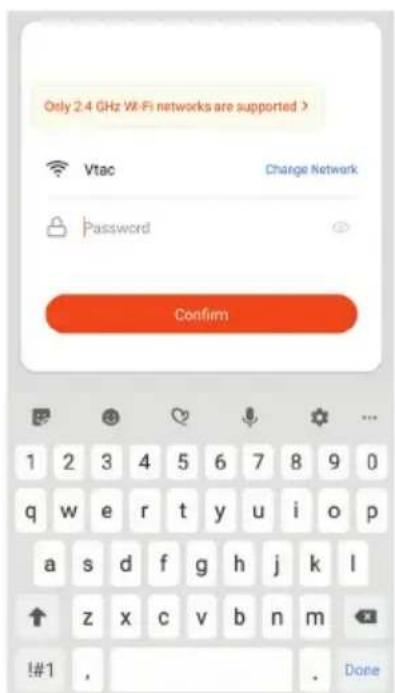

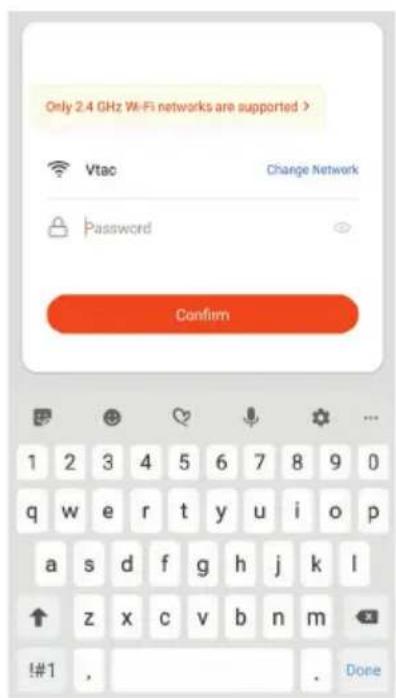

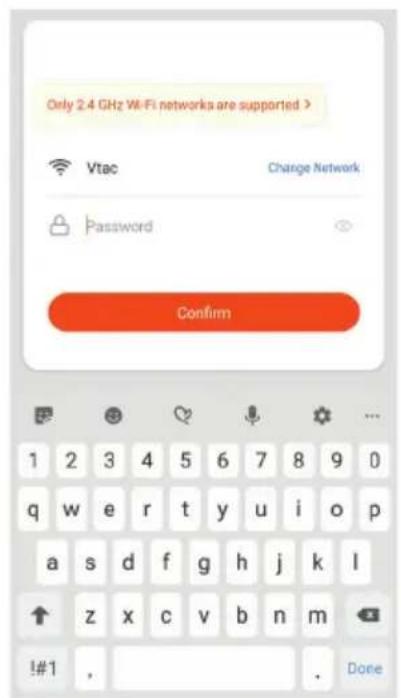

Only 2.4 GHz Wi-Fi networks are supported > Vtac Change Network Password Confirm 1 2 3 4 5 6 7 8 9 0 q w e r t y u i o p a s d f g h j k l ↑ z x c v b n m !#1 , . Done

Step 8 Once you have successfully completed step 7, you will be redirected to below page, where the App searches, registers and initializes the device(lamp) (ref image below)

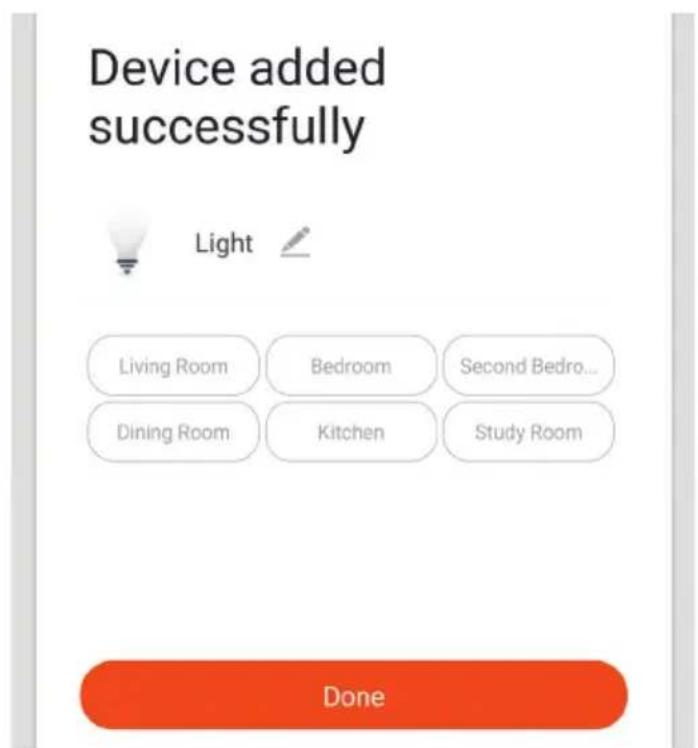

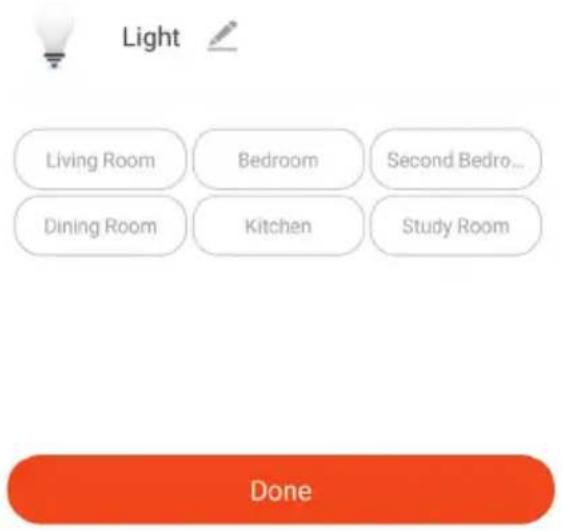

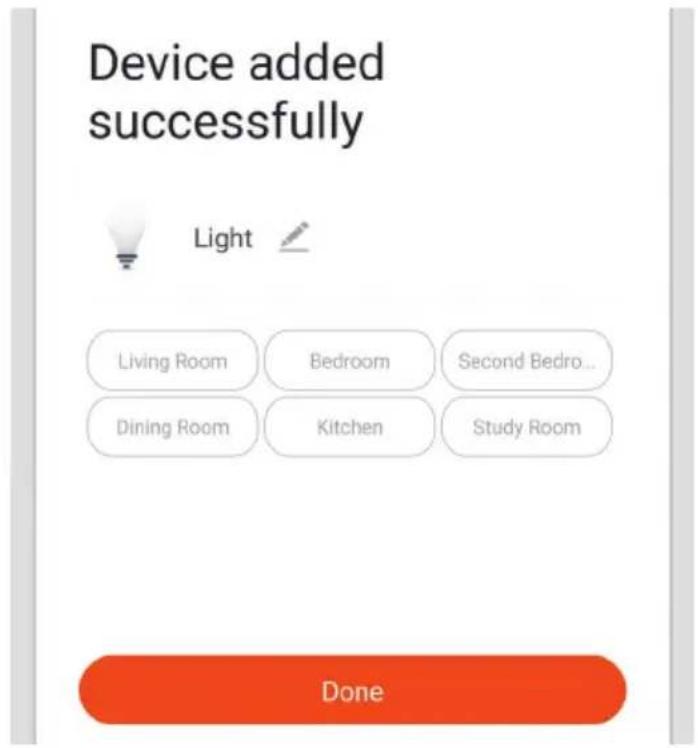

Step 9: Once your device is successfully added, rename the device to your preference.

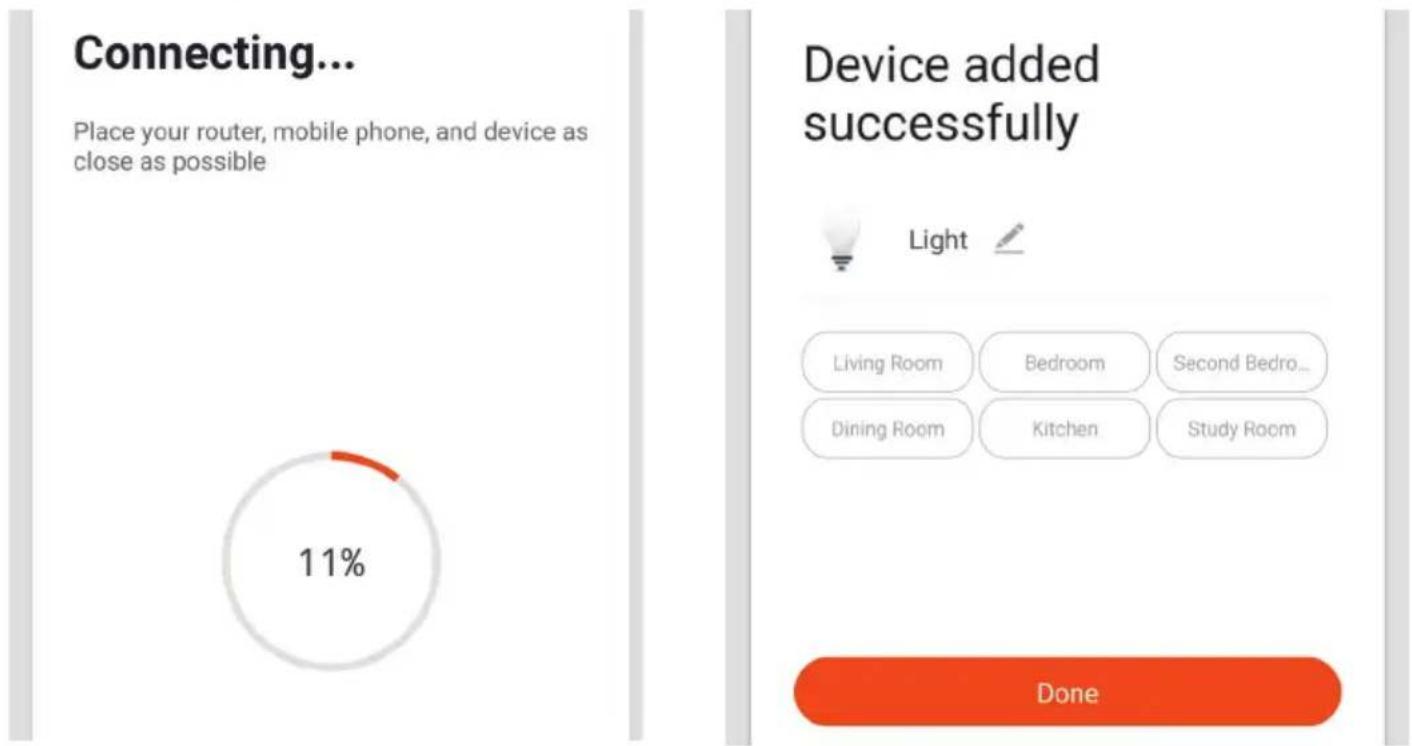

Connecting... Place your router, mobile phone, and device as close as possible 11% Device added successfully Light Living Room Bedroom Second Bedroom... Dining Room Kitchen Study Room Done

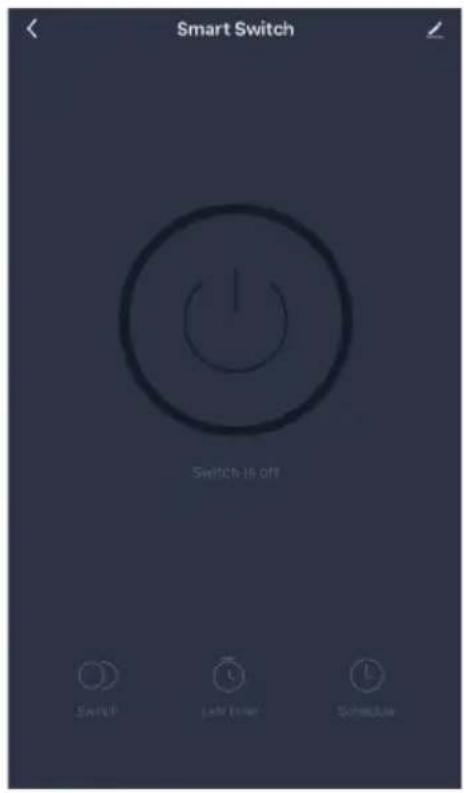

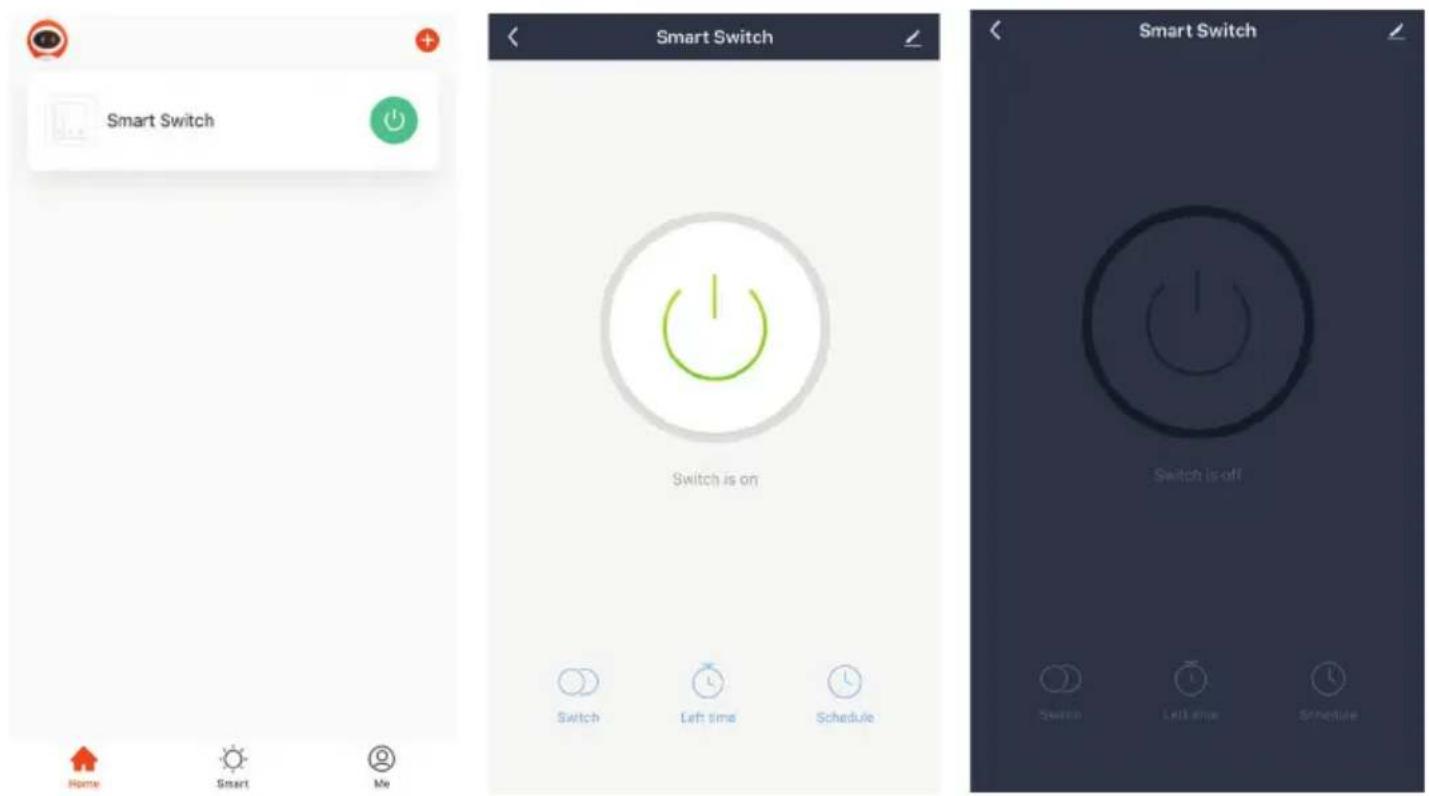

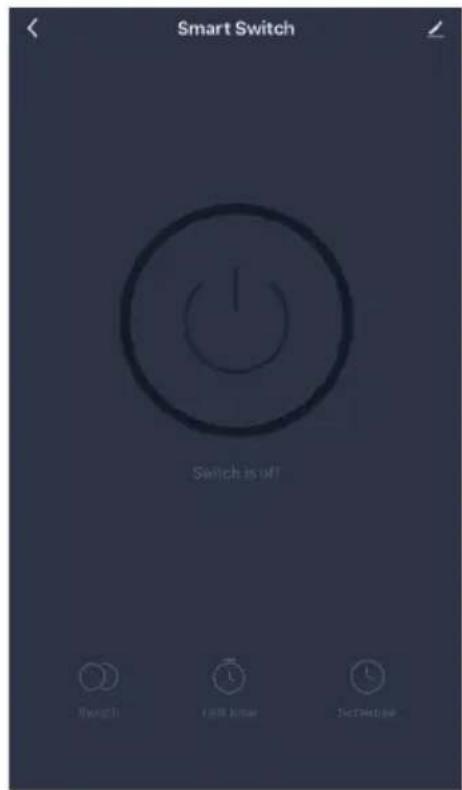

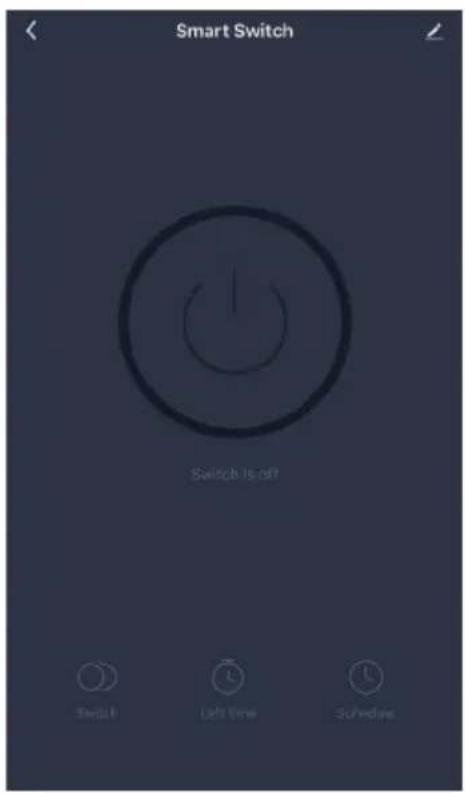

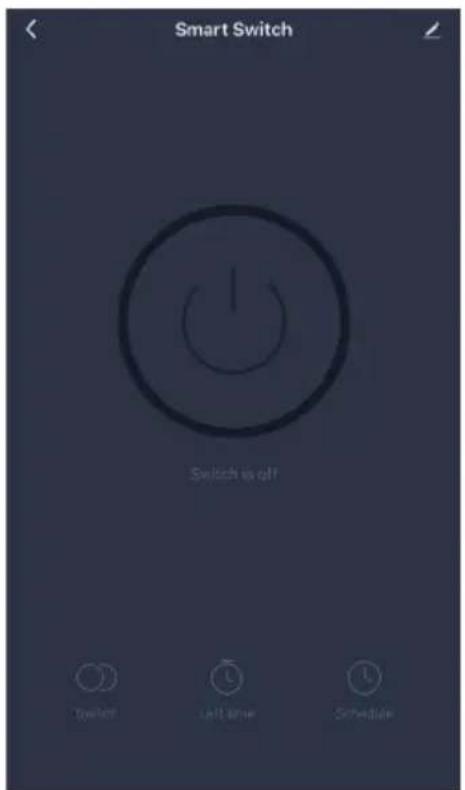

Step 10: After successfully pairing the Wi-Fi receiver with the app, you can start controlling multiple features of the lamp through your mobile—on/off switch, timing & schedules, and more.

Smart Switch Smart Switch Switch is on Switch is off Switch Left time Schedule Name Smart Me Switch Left time Schedule

ALEXA SETTINGS

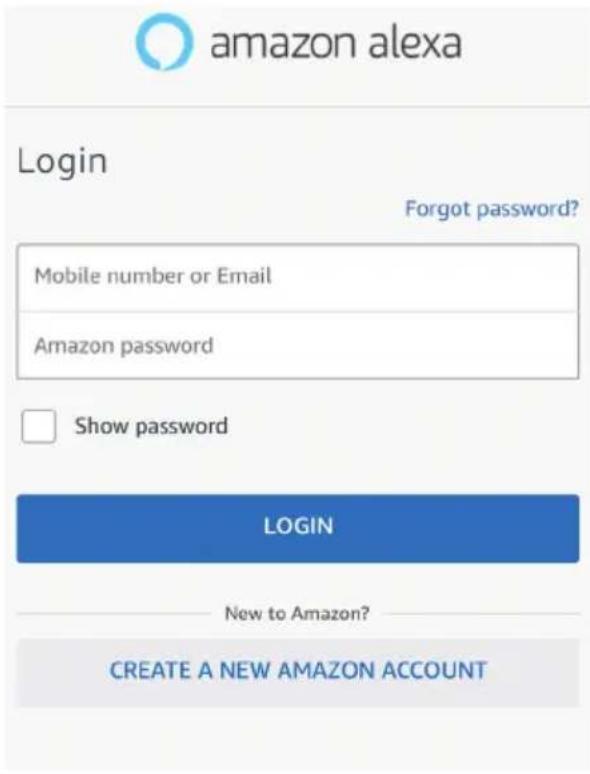

Step1: Install the Amazon Alexa app via the App Store(iOS) or the Play Store (Android) and register. If you already have an existing account with Amazon Alexa, please proceed to logging in.

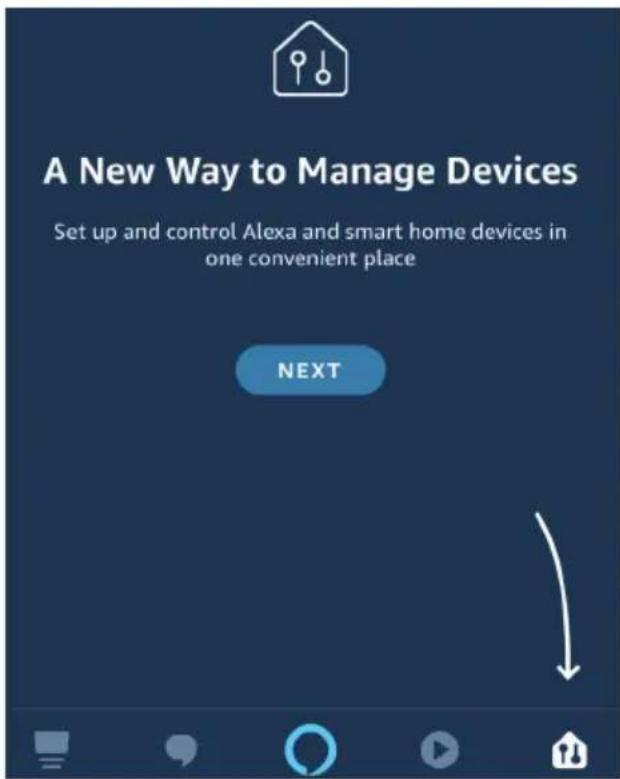

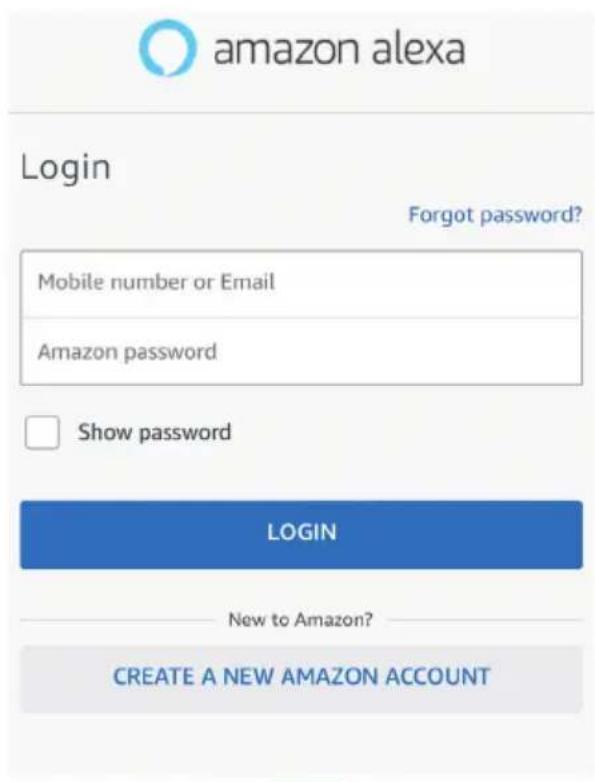

Step2: Once you are on the Amazon Alexa home page, tap on the lower right icon — where the arrow is pointed— to add a new device and skill.

amazon alexa Login Forgot password? Mobile number or Email Amazon password Show password LOGIN New to Amazon? CREATE A NEW AMAZON ACCOUNT

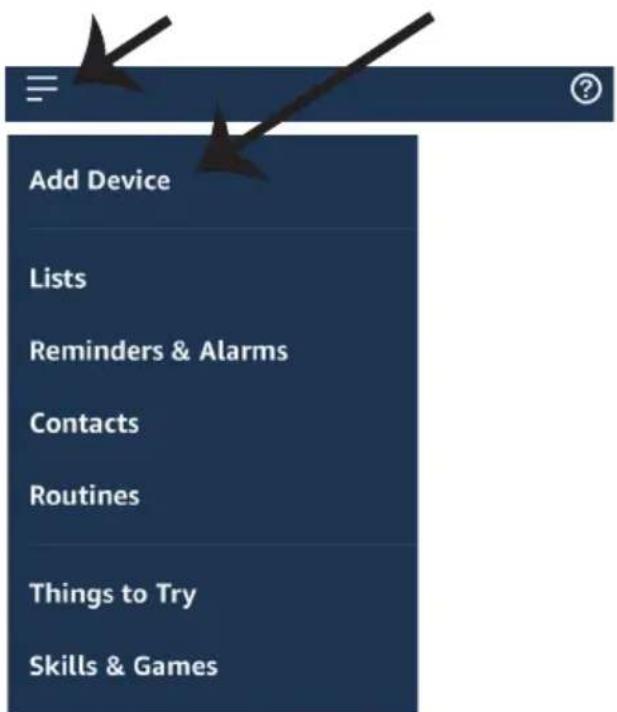

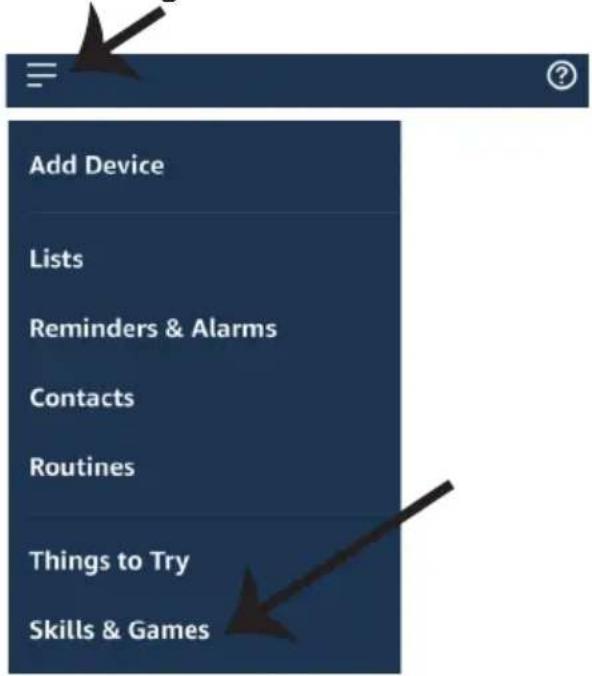

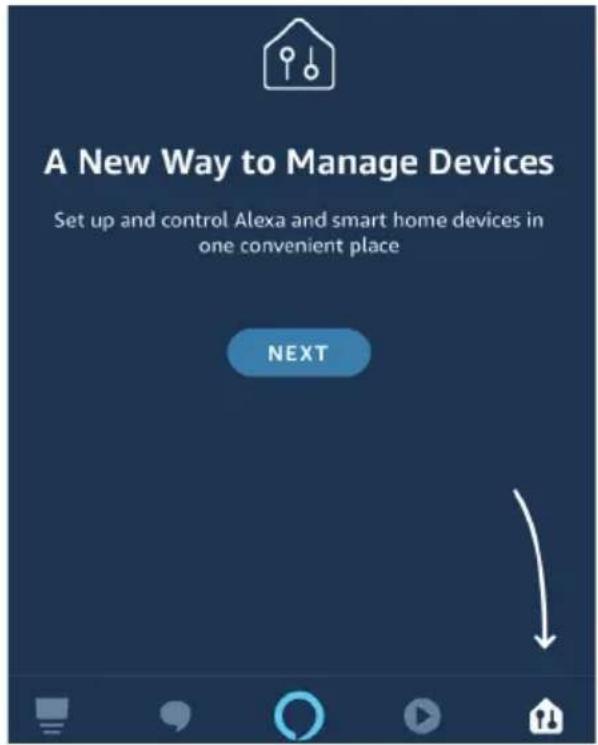

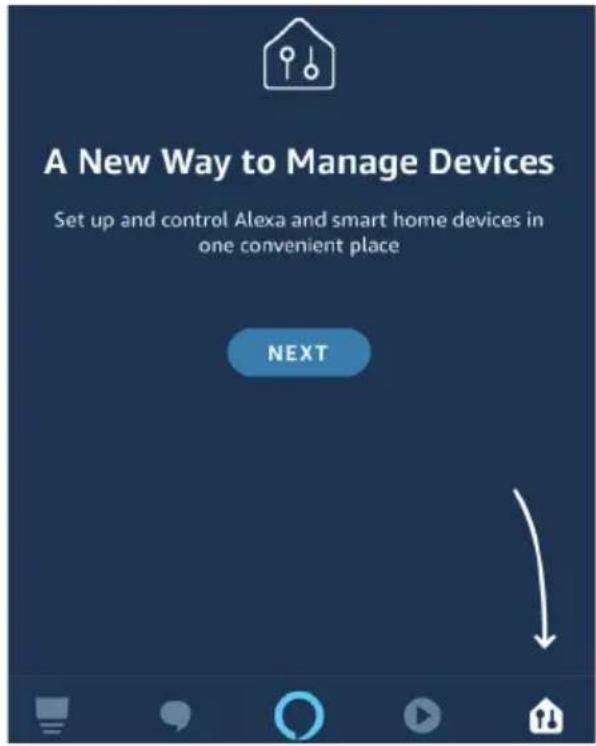

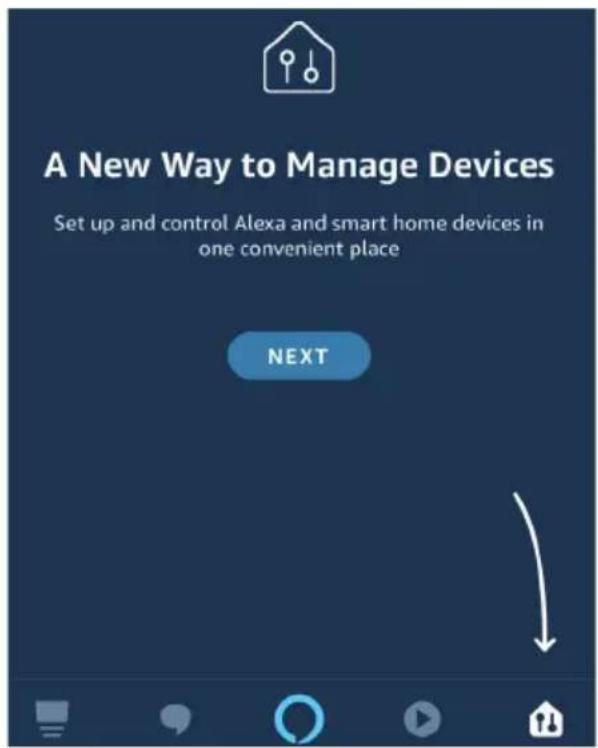

Step3: Tap on = settings and tap on

A New Way to Manage Devices Set up and control Alexa and smart home devices in one convenient place NEXT

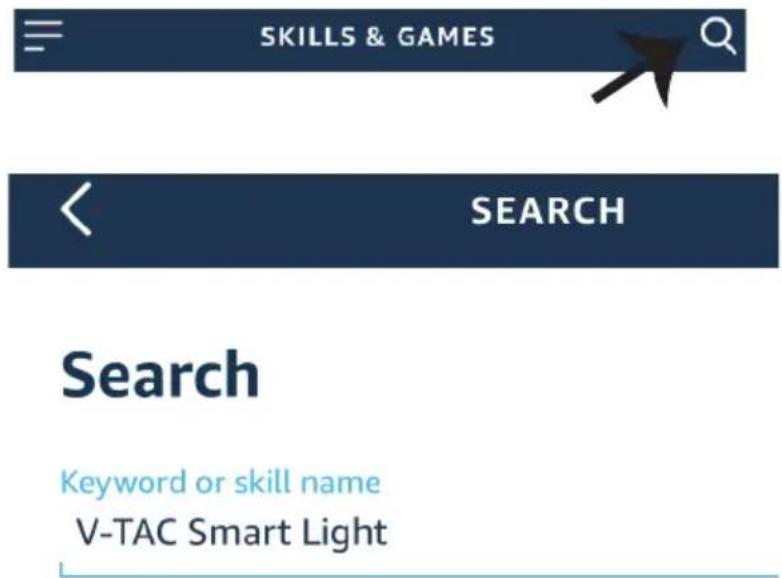

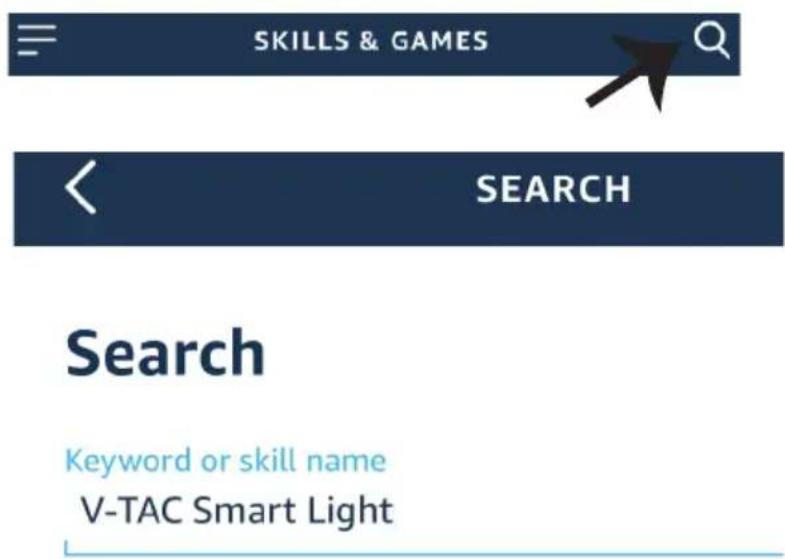

Step4: Search for 'V-TAC Smart Light' on the "Skills & Games" page as shown below.

"skills and games" as shown below.

Add Device Lists Reminders & Alarms Contacts Routines Things to Try Skills & Games

SKILLS & GAMES SEARCH Search Keyword or skill name V-TAC Smart Light

Step5: Enable the Skill.

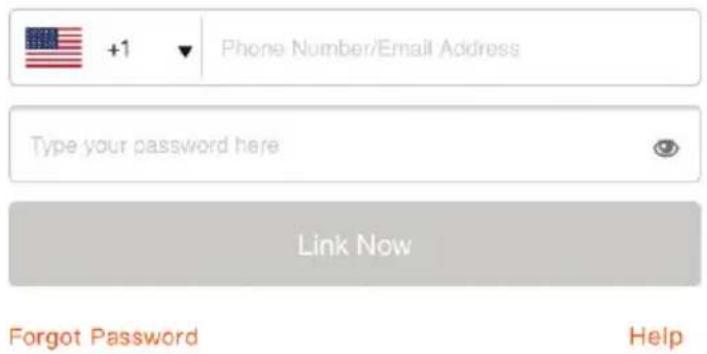

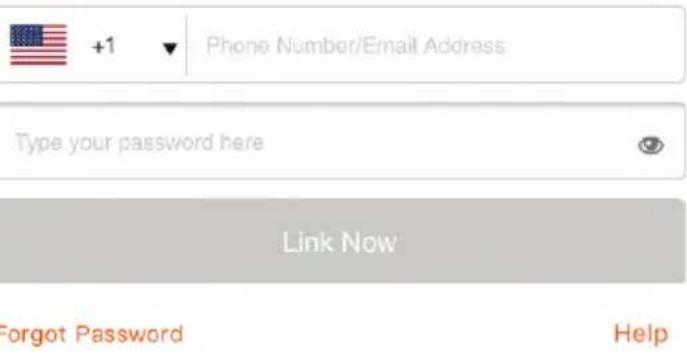

Step6: Enter your V-TAC Smart Light login ID and password and tap on "Link Now"

ENABLE

Account linking in progress

+1 Phone Number/Email Address Type your password here Link Now Forgot Password Help

Step7: Once you tap on Link Now, you will be redirected to a new page requesting for authorization(Ref Image below). Tap on "Authorize"

Step8: You will receive confirmation of the account being linked successfully (Ref Image below)

Alexa by Amazon will be able to:

Receive your public profile Control your devices over internet

Authorize

Done

skills-store.amazon.in

amazon alexa

V-TAC has been successfully linked.

What to do next:

→ Close this window to discover smart home devices you can control with Alexa.

Step8: Discover your smart device on Alexa. Once you have enabled the skill

A) You can use voice command "Alexa discover devices" to the Alexa device which you have.

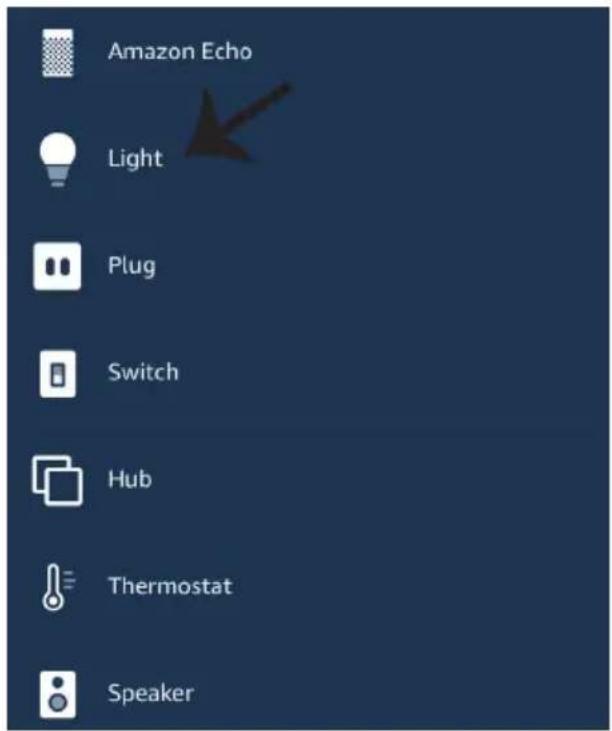

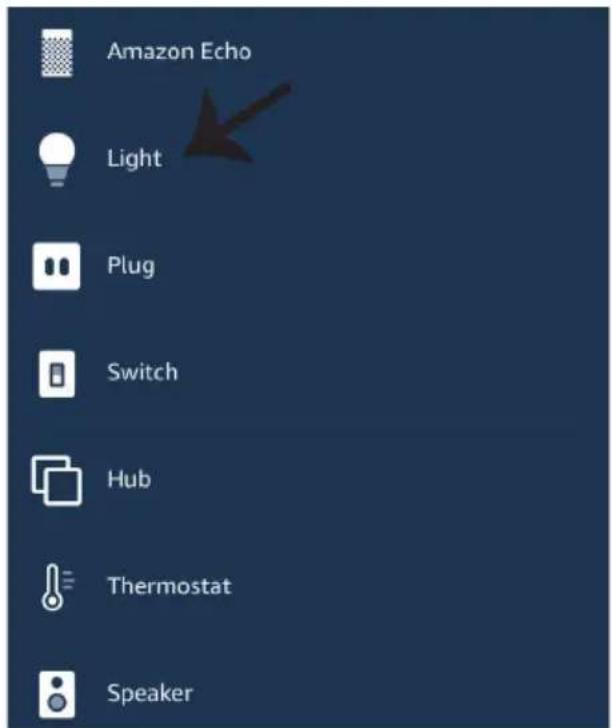

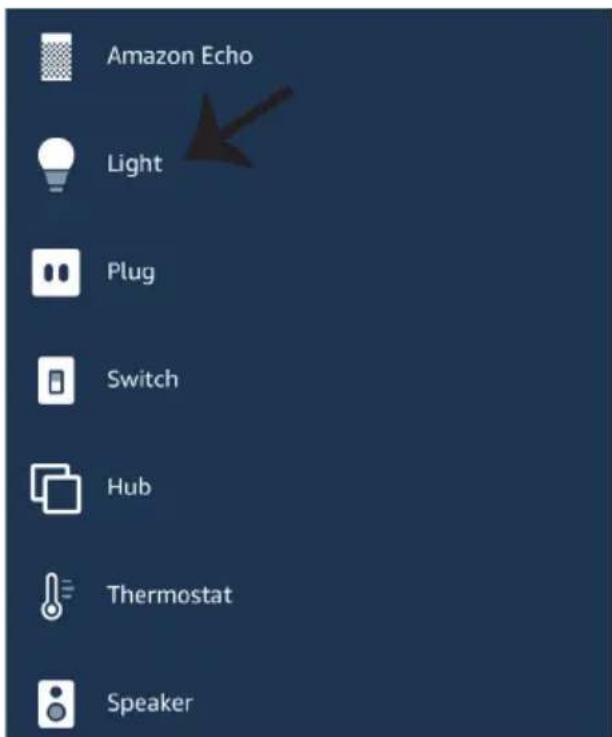

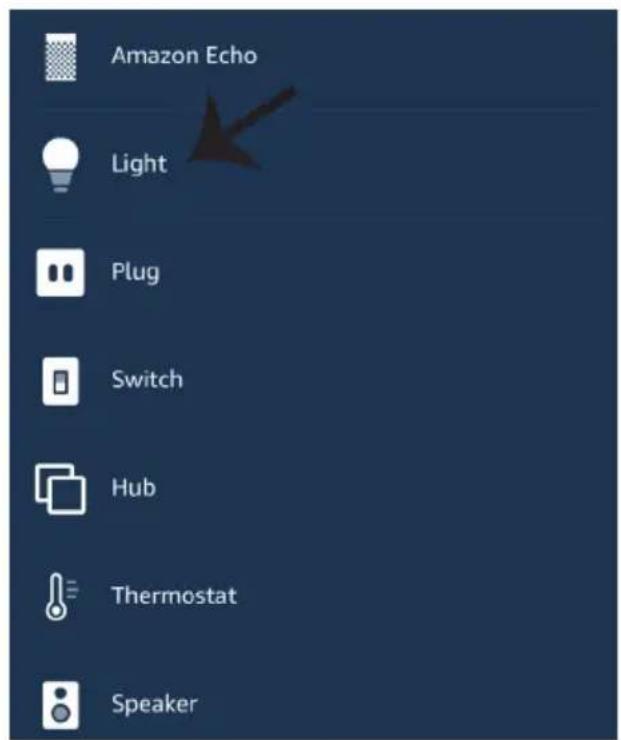

B) To add device manually on home page tap on which you are adding and tap on discover device.

and tap on Add device, select the device

Add Device Lists Reminders & Alarms Contacts Routines Things to Try Skills & Games

Amazon Echo Light Plug Switch Hub Thermostat Speaker

Note: Discovering the device must be done every time the device's name is changed on the app.

ALEXA Commands

Now, you can control your smart device using voice commands on Alexa. Below are a few commands you can use:

➢! Alexa, turn on/off bedroom light.
➢! Alexa, set bedroom light to 50 percent.

THINGS TO REMEMBER BEFORE STARTING INSTALLATION:

1. V-TAC Smart Light App & Amazon Alexa App
2. Make sure you have Amazon Alexa Device(including Echo, Echo Tap, or Echo Dot)
3. Smart Device - Lamp
4. Stable Wifi network

GOOGLE HOME SETTINGS

Step1:

a&b) Install the Google Home app via the App Store (iOS) or the Play Store (Android) and register. If you already have an existing account with Google Home, please proceed to logging in.
c) Create a New Home/Choose from the existing home if any.
d) Power ON the Google Home device and connect it to the App.(Then Proceed to step 2)

a. Welcome home

Your content and devices all in one place

Abstract geometric shapes including squares, circles, and triangles (no text or symbols)

GET STARTED >

b. Choose account

This account will be used to personalize your experience

c. Choose a home

You will be able to control the devices and services in this home.

Create another home

d. Plug in your device

Make sure your device is nearby and connected to power, then try again

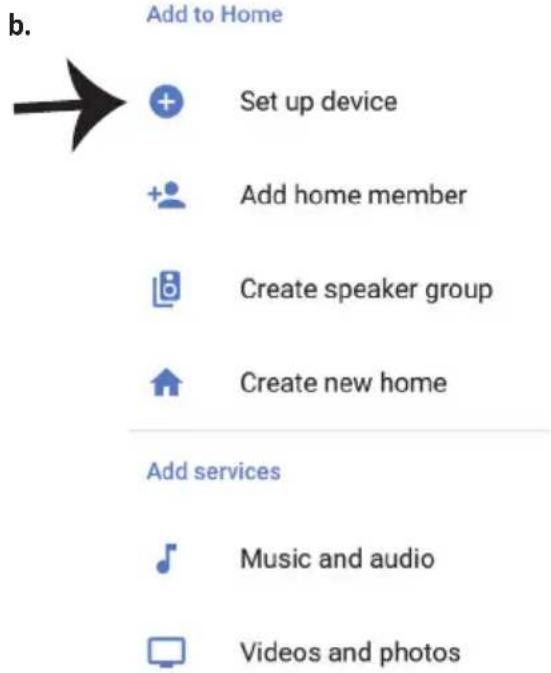

Step2: Once you are on the Google home page, tap on the Add "+" icon—to add a new device and skill. And then tap on Set up device as shown in below image.

a.

Play

Office

Broadcast

Add

Settings

Office
1 device

Office Speaker
Pause

b.

Add to Home

Set up device

Add home member

Create speaker group

Create new home

Add services

Music and audio

Videos and photos

Step3: Make sure the Smart Bulb is paired with V-TAC Smart Light app before starting step 3. Tap on the arrow section as highlighted in the below image.

Set up

Set up new devices or add existing devices and services to your home

Step4: Type "V-TAC Smart Light" on the search bar and tap on the icon of "V-TAC Smart Light"

V-TAC Smart Light

New devices

Set up new devices

Google Home, smart displays and devices labelled 'Made for Google' such as C by GE smart bulbs

Works with Google

Have something already set up?

Link your smart home services such as Philips Hue and TP-Link

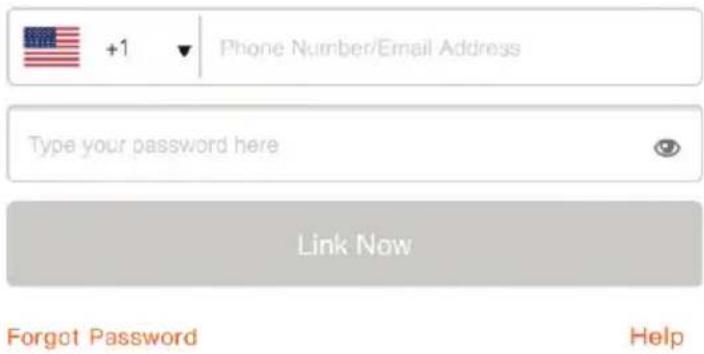

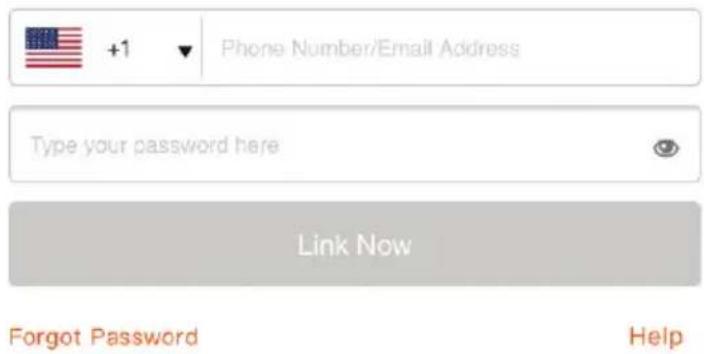

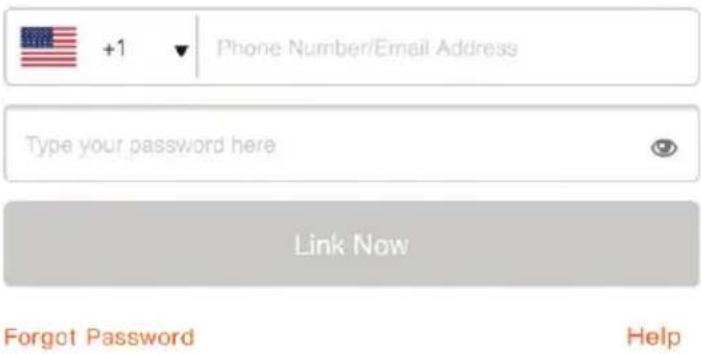

Step5: Sign In with your V-TAC Smart Light Login credentials to Link the Smart Light device

Step6: Tap on Authorize in order to proceed to linking the device.

+1 Phone Number/Email Address Type your password here Link Now Forgot Password Help

Google will be able to:

Receive your public profile Control your devices over internet

Authorize

Step7

a. Account will now be linked, please stay on the page you will be redirected in few seconds to select the device to add to your home.
b. Select the device and tap on Next as show in image b.

a. Done

assistant.google.com

Account is now Linked

b.

Choose device

home light Light

Step8: Select the Home where you would like to add the Smart Light under. (Or) you can create a New home in order to add the Smart Light to it.

Step9: You have successfully added Smart Light device to your Google home App.

Choose a home

You will be able to control the devices and services in this home.

Smart-Home

Office

Smart Home

Create another home

Smart-Home

Off

On

Add

Settings

Master bedroom

1 device

home light

Off

*

On

Local devices

1 device

Office Speaker

Step10:

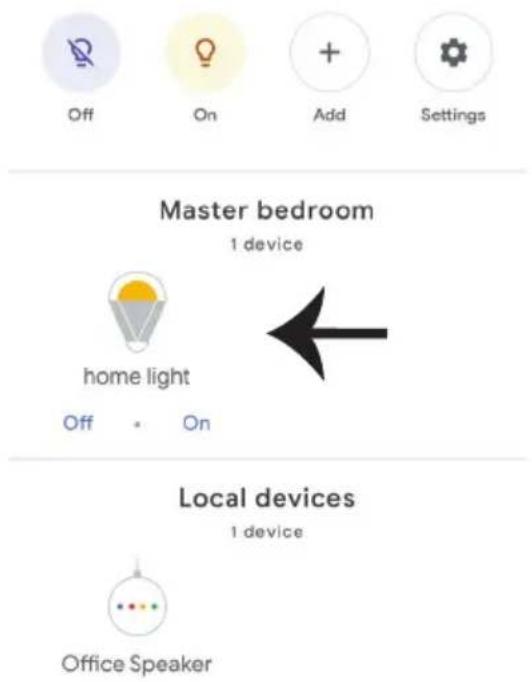

a. You can turn the Lamp On/OFF by taping on On/Off options as shown below. (OR) You can tap on the Smart Lamp.

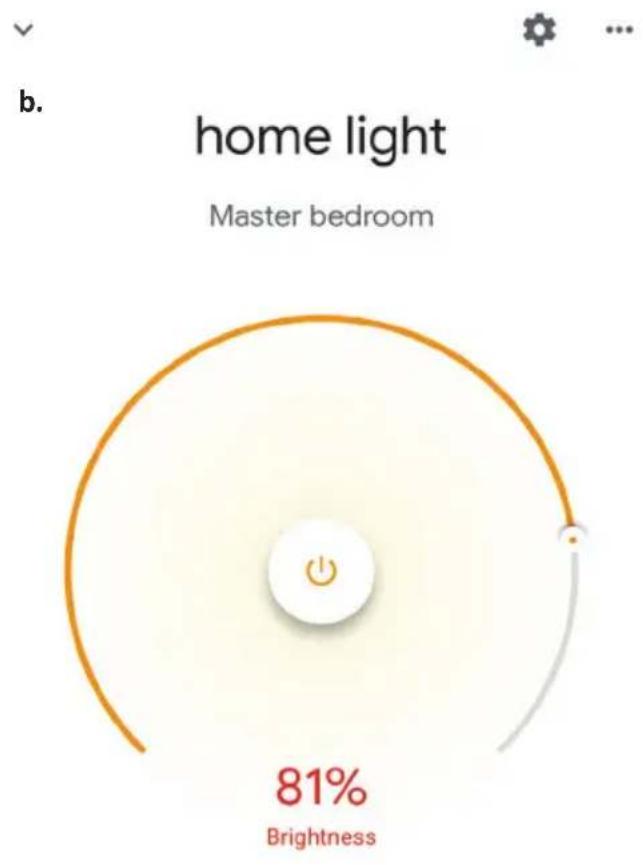

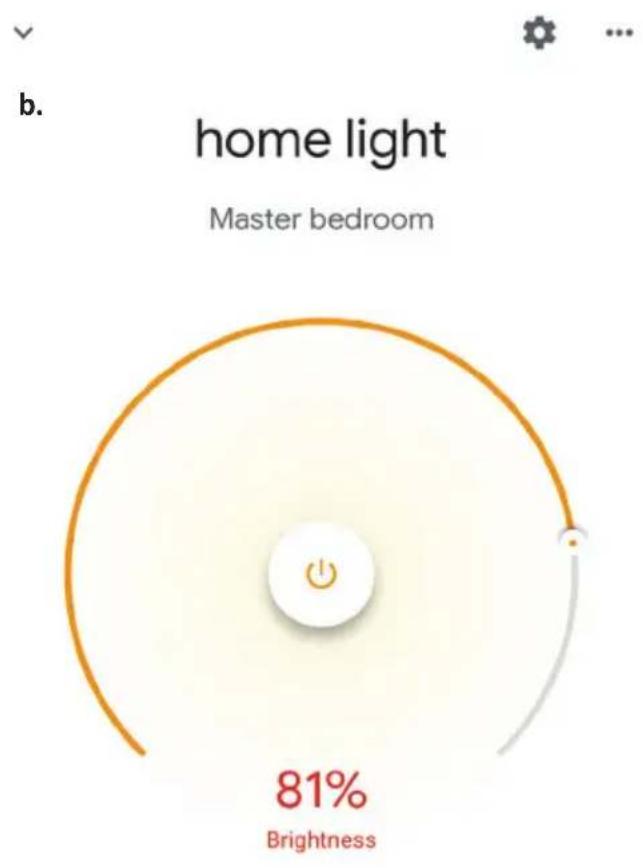

b. You will be redirected to page(as shown in image b) where you can control the lights "Power and Dimmingfunctionality".

a. Smart-Home

Off On Add Settings Master bedroom 1 device home light Off + On Local devices 1 device Office Speaker

Google Commands:

Now, you can control your smart device using voice commands on Google Home. Below are a few commands you can use:

➢! OK Google, turn on/off bedroom light
➢! OK Google, set bedroom light to 50 percent.

THINGS TO REMEMBER BEFORE STARTING INSTALLATION:

1. V-TAC Smart Light App & Google Home App
2. Make sure you have Google Home Device
3. Smart Device - Lamp
4. Stable Wifi network

INSTALLATION DU RÉCEPTEUR

Notes: Keep WIFI receiver connected with WIFI

COUPLAGE DU RÉCEPTEUR WI-FI AVEC LES COMMUTATEURS SANS FIL V-TAC

QR code image containing encoded data, no visible human-readable text

APP INSTALLATION

QR code with red and black triangular logo in center, likely linking to a digital service or website

For IOS

QR code with red and black pixelated logo in center, likely linking to a digital resource or website

Back Register Verification code is sent to your phone: +44 wwee Verification Code Get Please Input Password Confirm

Étape 3:

< Back Register United Kingdom +44 > Mobile Number/E-mail Next

G Welcome Home Set your home location for more information > All Devices Living Room Bedroom No devices, please add Add Device

Electrician Lighting Large Home Appliances Small Home Appliances Kitchen Appliances Security & Sensors Card Switch Card Switch (ZigBee) Switch Module Breaker (Wi-Fi) Breaker Breaker (ZigBee)

Illustration of two hands holding batteries with wires, one being twisted and the other holding a terminal device (no text or symbols)

Reset the device first. Please turn on the device and confirm that indicator is blinking test. Attention: please complete pairing process within 3 minutes after device reset. Resetting Devices > Confirm indicator rapidly blink

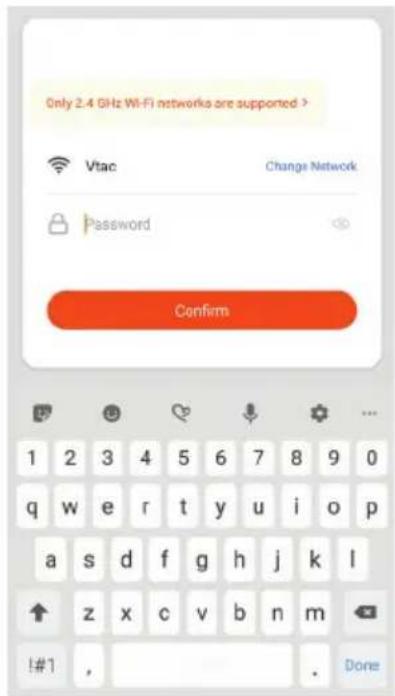

Only 2.4 GHz Wi-Fi networks are supported > Vtac Change Network Password Confirm 1 2 3 4 5 6 7 8 9 0 q w e r t y u i o p a s d f g h j k l ↑ z x c v b n m !#1 , Done

Connecting... Place your router, mobile phone, and device as close as possible 11% Device added successfully Light Living Room Bedroom Second Bedroom Dining Room Kitchen Study Room Done

Smart Switch Home Smart Me Smart Switch Switch is on Switch Left time Schedule Smart Switch Switch is off Switch Left time Schedule

RÉGLAGES ALEXA

amazon alexa Login Forgot password? Mobile number or Email Amazon password Show password LOGIN New to Amazon? CREATE A NEW AMAZON ACCOUNT

Add Device Lists Reminders & Alarms Contacts Routines Things to Try Skills & Games

A New Way to Manage Devices Set up and control Alexa and smart home devices in one convenient place NEXT

Account linking in progress

+1 Phone Number/Email Address Type your password here Link Now Forgot Password Help

Alexa by Amazon will be able to:

Receive your public profile Control your devices over internet

Authorize

skills-store.amazon.in

amazon alexa

V-TAC has been successfully linked.

What to do next:

→ Close this window to discover smart home devices you can control with Alexa.

Add Device Lists Reminders & Alarms Contacts Routines Things to Try Skills & Games

Amazon Echo Light Plug Switch Hub Thermostat Speaker

➢! Alexa, turn on/off bedroom light.
➢! Alexa, set bedroom light to 50 percent.

CHOSES À RAPPELER AVANT DE COMMENCER L'INSTALLATION:

Your content and devices all in one place

Abstract geometric shapes including squares, circles, and triangles (no text or symbols)

GET STARTED >

b. Choose account

This account will be used to personalize your experience

c. Choose a home

You will be able to control the devices and services in this home.

Create another home

d. Plug in your device

Make sure your device is nearby and connected to power, then try again

Office
1 device

Office Speaker
Pause

b.

Add to Home

Set up device

Add home member

Create speaker group

Create new home

Add services

Music and audio

Videos and photos

Set up new devices or add existing devices and services to your home

Google Home, smart displays and devices labelled 'Made for Google' such as C by GE smart bulbs

Works with Google

Have something already set up?

Link your smart home services such as Philips Hue and TP-Link

+1 Phone Number/Email Address Type your password here Link Now Forgot Password Help

Google will be able to:

Receive your public profile Control your devices over internet

Authorize

Étape 7:

Account is now Linked

b.

Choose device

home light Light

You will be able to control the devices and services in this home.

Smart-Home

Office

Smart Home

Create another home

Smart-Home

Off

On

Add

Settings

Master bedroom

1 device

home light

Off

*

On

Local devices

1 device

Office Speaker

Étape 11:

Master bedroom
1 device

home light

Local devices
1 device

Office Speaker

b.

home light
Master bedroom

Circular diagram with a power button and a small dot, no text or symbols present

81%
Brightness

Commandes Google:

➢! OK Google, turn on/off bedroom light
➢! OK Google, set bedroom light to 50 percent.

CHOSES À RAPPELER AVANT DE COMMENCER L'INSTALLATION:

Notes: Keep WIFI receiver connected with WIFI

KOPPELN DES WIFI-EMPFÄNGERS MIT DEN DRAHTLOSEN V-TAC-SCHALTERN

QR code image containing encoded data, no visible human-readable text

APP INSTALLATION

QR code with red and black triangular logo in center, likely linking to a digital service or website

For IOS

QR code with red and black pixelated logo in center, containing machine-readable data

Back Register Verification code is sent to your phone: +44 wwee Verification Code Get Please Input Password Confirm

Schritt 3:

< Back Register United Kingdom +44 > Mobile Number/E-mail Next

Set your home location for more information >

All Devices Living Room Bedroom ...

No devices, please add Add Device

Electrician Lighting Large Home Appliances Small Home Appliances Kitchen Appliances Security & Sensors Card Switch Card Switch (ZigBee) Switch Module Breaker (Wi-Fi) Breaker Breaker (ZigBee)

Illustration of two hands holding batteries with wires, one pointing at a green dot (no text or symbols)

Reset the device first. Please turn on the device and confirm that indicator is blinking test. Attention: please complete pairing process within 3 minutes after device reset. Resetting Devices> Confirm indicator rapidly blink

Only 2.4 GHz Wi-Fi networks are supported > Vtac Change Network Password Confirm 1 2 3 4 5 6 7 8 9 0 q w e r t y u i o p a s d f g h j k l ↑ z x c v b n m !#1 , Done

Device added successfully Light Living Room Bedroom Second Bedro... Dining Room Kitchen Study Room Done

Smart Switch Switch is on Switch Left time Schedule

Smart Switch Switch is off Rough Call Inner Set Back

ALEXA SETTINGS

amazon alexa Login Forgot password? Mobile number or Email Amazon password Show password LOGIN New to Amazon? CREATE A NEW AMAZON ACCOUNT

Add Device Lists Reminders & Alarms Contacts Routines Things to Try Skills & Games

A New Way to Manage Devices Set up and control Alexa and smart home devices in one convenient place NEXT

Account linking in progress

Phone Number/Email Address

Type your password here

Link Now

Forgot Password

Help

Alexa by Amazon will be able to:

Receive your public profile Control your devices over internet

Authorize

skills-store.amazon.in

amazon alexa

V-TAC has been successfully linked.

What to do next:

→ Close this window to discover smart home devices you can control with Alexa.

Add Device Lists Reminders & Alarms Contacts Routines Things to Try Skills & Games

Amazon Echo Light Plug Switch Hub Thermostat Speaker

Your content and devices all in one place

Abstract geometric shapes including squares, circles, and triangles (no text or symbols)

GET STARTED >

b. Choose account

This account will be used to personalize your experience

c. Choose a home

You will be able to control the devices and services in this home.

Create another home

d. Plug in your device

Make sure your device is nearby and connected to power, then try again

a. Office Play Broadcast Add Settings Office 1 device Office Speaker Pause

b. Add to Home + Set up device + Add home member Create speaker group Create new home Add services Music and audio Videos and photos

Set up new devices or add existing devices and services to your home

Google Home, smart displays and devices labelled 'Made for Google' such as C by GE smart bulbs

Works with Google

Have something already set up?

Link your smart home services such as Philips Hue and TP-Link

+1 Phone Number/Email Address Type your password here Link Now Forgot Password Help

Google will be able to:

Receive your public profile Control your devices over internet

Authorize

Schritt 7:

Account is now Linked

b.

Choose device

home light Light

You will be able to control the devices and services in this home.

Smart-Home

Office

Smart Home

Create another home

Master bedroom
1 device

home light

Local devices
1 device

Office Speaker

b.

home light
Master bedroom

Circular diagram with a power button and a small dot, no text or symbols present

81%
Brightness

GOOGLE HOME-Befehle

➢! OK Google, turn on/off bedroom.light
➢! OK Google, set bedroom light to 50 percent.

EMPFEHLUNGEN VOR DEM START DER INSTALLATION:

Notes: Keep WIFI receiver connected with WIFI

СВЪРЗВАНЕ НА WI-FI ПРИЕМНИК С БЕЗЖИЧНИ КОМУТАТОРИ НА ВИ-ТЕК.

QR code image containing encoded data, no visible human-readable text

АРР ИНСТАЛАЦИЯ

QR code with red and black triangular logo in center, likely linking to a digital service or website

For IOS

QR code with red and black triangular logo in center, likely linking to a digital service or website

< Back Register Verification code is sent to your phone: +44 wwee Verification Code Get Please Input Password Confirm

Стъпка 3:

< Back Register United Kingdom +44 > Mobile Number/E-mail Next

Set your home location for more information >

All Devices

Living Room

Bedroom

...

No devices, please add Add Device

Electrician Lighting Large Home Appliances Small Home Appliances Kitchen Appliances Security & Sensors Card Switch Card Switch (ZigBee) Switch Module Breaker (Wi-Fi) Breaker Breaker (ZigBee) Стъпка 6: Изберете опцията "Електроинженер" и изберете опцията "Прекъсвач (Wi-Fi)".

Illustration of two hands holding batteries with wires, one pointing to a green dot (no text or symbols)

Reset the device first. Please turn on the device and confirm that indicator is blinking fast. Attention: please complete pairing process within 3 minutes after device reset. Resetting Devices > Confirm indicator rapidly blink

Only 2.4 GHz Wi-Fi networks are supported > Vtac Change Network Password Confirm 1 2 3 4 5 6 7 8 9 0 q w e r t y u i o p a s d f g h j k l ↑ z x c v b n m !#1 , . Done

Place your router, mobile phone, and device as close as possible

Device added successfully

Light Living Room Bedroom Second Bedroom... Dining Room Kitchen Study Room Done

Smart Switch Switch is on Switch Left time Schedule

Smart Switch Switch is off Switch Left Timer Schedule

НАСТРОЙКИ НА АЛЕКСА

CREATE A NEW AMAZON ACCOUNT

Add Device Lists Reminders & Alarms Contacts Routines Things to Try Skills & Games

A New Way to Manage Devices Set up and control Alexa and smart home devices in one convenient place NEXT

Account linking in progress

Phone Number/Email Address

Type your password here

Link Now

Forgot Password

Help

Alexa by Amazon will be able to:

Receive your public profile Control your devices over internet

Authorize

Done

skills-store.amazon.in

amazon alexa

V-TAC has been successfully linked.

What to do next:

→ Close this window to discover smart home devices you can control with Alexa.

Add Device Lists Reminders & Alarms Contacts Routines Things to Try Skills & Games

Amazon Echo Light Plug Switch Hub Thermostat Speaker

Your content and devices all in one place

Abstract geometric shapes including squares, circles, and triangles (no text or symbols)

GET STARTED >

b. Choose account

This account will be used to personalize your experience

d. Plug in your device

Make sure your device is nearby and connected to power, then try again

c. Choose a home

You will be able to control the devices and services in this home.

Create another home

a. Office Play Broadcast Add Settings Office 1 device Office Speaker Pause

b. Add to Home + Set up device + Add home member Create speaker group Create new home Add services Music and audio Videos and photos

Set up new devices or add existing devices and services to your home

Google Home, smart displays and devices labelled 'Made for Google' such as C by GE smart bulbs

Works with Google

Have something already set up?

Link your smart home services such as Philips Hue and TP-Link

+1 Phone Number/Email Address Type your password here Link Now Forgot Password Help

Google will be able to:

Receive your public profile Control your devices over internet

Authorize

Стъпка 7:

Account is now Linked

b. ×

Choose device

home light Light

You will be able to control the devices and services in this home.

Smart-Home

Office

Smart Home

Create another home

Off On Add Settings Master bedroom 1 device home light Off + On Local devices 1 device Office Speaker

Команди на Google:

➢! OK Google, turn on/off bedroom·light
➢! OK Google, set bedroom light to 50 percent.

КАКВО ДА НЕ ЗАБРАВЯМЕ ПРЕДИ ДА СТАРТИРАМЕ ИНСТАЛАЦИЯТА:

Notes: Keep WIFI receiver connected with WIFI

POVEZIVANJE WI-FI PRIJEMNIKA S BEŽIČNIM KOMUTATORIMA V-TAC.

Sada možete spojiti Wi-Fi prijemnik V-Tac s Bežičnim komutatorima V-Tac (VT-5131, VT-5132 i VT-5133 & VT-5143). Za spajanje prijemnika sa komutatorom, molimo, skenirajte QR, da bi dobili pristup postupku uprivanja.

QR code image containing encoded data, no visible human-readable text

APP INSTALACIJA

Korak 1: Skenirajte QR kod ili preuzmite 'V-TAC Smart Light' iz App Store-a (iOS) u Google Play Store-u (Android).

For ANDROID

QR code with red and black triangular logo in center, likely linking to a digital service or website

For IOS

QR code with red and black pixelated logo in center, likely for digital link or payment

Korak 2: Otvorite aplikaciju V-TAC Smart Light i kliknite Register (registriranje) da biste registrirali novi račun (account).

V-TAC Smart Light

Login Register

< Back Register Verification code is sent to your phone: +44 wwee Verification Code Get Please Input Password Confirm

Korak 3:

A) Broj mobitela: Odaberite svoju zemlju i unesite broj mobilnog telefona. Zatim pritisnite 'Next'. B) E-mail: Unesite adresu e-pošte i pritisnite 'Next'.

< Back Register United Kingdom +44 > Mobile Number/E-mail Next

G Welcome Home Set your home location for more information > All Devices Living Room Bedroom ... No devices, please add Add Device

Electrician Lighting Large Home Appliances Small Home Appliances Kitchen Appliances Security & Sensors Card Switch Card Switch (ZigBee) Switch Module Breaker (Wi-Fi) Breaker Breaker (ZigBee)

Korak 6: Odaberite opciju "Inženjer elektrotehnike" i odaberite opciju "Prekidač (Wi-Fi)".

Illustration of two hands holding batteries with wires, one pointing to a green dot (no text or symbols)

Reset the device first. Please turn on the device and confirm that indicator is blinking test. Attention: please complete pairing process within 3 minutes after device reset. Resetting Devices> Confirm indicator rapidly blink

Only 2.4 GHz Wi-Fi networks are supported > Vtac Change Network Password Confirm 1 2 3 4 5 6 7 8 9 0 q w e r t y u i o p a s d f g h j k l ↑ z x c v b n m !#1 , . Done

Connecting... Place your router, mobile phone, and device as close as possible 11% Device added successfully Light Living Room Bedroom Second Bedroom Dining Room Kitchen Study Room Done

Smart Switch Smart Switch Switch is on Switch Left time Schedule Smart Switch Switch is on! Switch Left time Schedule

POSTAVKE ZA ALEXA

Korak 1: Instalirajte Amazon Alexa aplikaciju s App Store-a (iOS) ili Play Store-a (Android) i registrirajte ju. Ako već imate račun za Amazon Alexa, jednostavno se prijavite.

amazon alexa Login Forgot password? Mobile number or Email Amazon password Show password LOGIN New to Amazon? CREATE A NEW AMAZON ACCOUNT

Add Device Lists Reminders & Alarms Contacts Routines Things to Try Skills & Games

Korak 2: Kada dođete na domaću stranicu Amazon Alexa, pritisnite donju desnu ikonu — kuda ukazuje strelica — da biste dodali novi uređaj ili vještinu.

A New Way to Manage Devices Set up and control Alexa and smart home devices in one convenient place NEXT

Account linking in progress

Korak 6.: Unesite korisničko ime i lozinku za „V-TAC Smart Light“ i kliknite "Link Now".

+1 Phone Number/Email Address Type your password here Link Now Forgot Password Help

Korak 7.: Nakon što kliknete "Link Now" bit ćete preusmjereni na novu stranicu koja zahtijeva autorizaciju (pogledajte sliku u nastavku). Pritisnite "Authorize".

Alexa by Amazon will be able to:

Receive your public profile Control your devices over internet

Authorize

skills-store.amazon.in

amazon alexa

V-TAC has been successfully linked.

What to do next:

→ Close this window to discover smart home devices you can control with Alexa.

Korak 9. Otkrijte Vaš pametni uređaj u Alexa. Nakon što odobrite opciju:

A) Možete dati glasovnu naredbu „Alexa discover devices“ Vašem uređaju Alexa.

B) Da biste ručno dodali uređaj, na početnoj stranici pritisnite 📋, a zatim Add devices, odaberite uređaj, koji želite dodati, i pritisnite Discover device.

Add Device Lists Reminders & Alarms Contacts Routines Things to Try Skills & Games

Amazon Echo Light Plug Switch Hub Thermostat Speaker

➢! Alexa, turn on/off bedroom light.
➢! Alexa, set bedroom light to 50 percent.

PRIJE POČETKA INSTALACIJE NEMOJTE ZABORAVITI:

1. Aplikaciju V-TAC Smart Light i aplikaciju Amazon Alexa
2. Uvjerite se da imate uređaj Amazon Alexa (uključujući Echo, Echo Tap, ili Echo Dot)
3. Pametni uređaj – Svjetiljku
4. Stabilnu Wifi mrežu

GOOGLE HOME POSTAVKE

Korak 1:

a&b) Instalirajte aplikaciju Google Home s App Store-a (iOS) ili Play Store-a (Android) i registrirajte ju. Ako već imate račun za Google Home, jednostavno se prijavite.
c) Napravite novi Home/Odaberite postojeći, ukoliko postoji.
d) Uključite uređaj Google Home ai povežite ga s aplikacijom. (Zatim nastavite s korakom 2)

a. Welcome home

Your content and devices all in one place

Abstract geometric shapes including squares, circles, and triangles (no text or symbols)

GET STARTED >

b. Choose account

This account will be used to personalize your experience

c. Choose a home

You will be able to control the devices and services in this home.

Create another home

d. Plug in your device

Make sure your device is nearby and connected to power, then try again

Korak 2: Čim dođete do Googlove početne stranice, pritisnite ikonu Dodaj("+") da biste dodali novi uređaj ili vještinu. Zatim pređite na "Postavi uređaj" kao što je prikazano na slici ispod.

a.

Play

Office

Broadcast

Add

Settings

Office
1 device

Office Speaker
Pause

b.

Add to Home

Set up device

Add home member

Create speaker group

Create new home

Add services

Music and audio

Videos and photos

Korak 3: Uvjerite se da je Pametna žarulja uparena s aplikacijom V-TAC Smart Light prije nego prijeđete na korak 3. Pritisnite strelicu kao što je prikazano na slici ispod.

Set up

Set up new devices or add existing devices and services to your home

Korak 4.: Upišite "V-TAC Smart Light" u traku za pretraživanje i pritisnite ikonu "V-TAC Smart Light"

V-TAC Smart Light

New devices

Set up new devices

Google Home, smart displays and devices labelled 'Made for Google' such as C by GE smart bulbs

Works with Google

Have something already set up?

Link your smart home services such as Philips Hue and TP-Link

Korak 5: Prijavite se sa svojim V-TAC Smart Light vjerodajnicama da biste uključili Smart Light uređaj

Korak 6: Odaberite V-TAC Smart Light kao što je prikazano ispod i pritisnite Poveži sada (Link Now).

+1 Phone Number/Email Address Type your password here Link Now Forgot Password Help

Google will be able to:

Receive your public profile Control your devices over internet

Authorize

Korak 8:

a. Računi će biti povezani, ostanite na strani te ćete za par sekundi biti preusmjereni na odabir domaćeg uređaja.
b. Odaberite uređaj i pritisnite Dalje (kao što je prikazano na slici b).

a. Done

assistant.google.com

Account is now Linked

b.

Choose device

home light Light

Korak 9: Odaberite Home, kojem ćete dodati Smart Light (ili) možete napraviti novi Home kojem ćete dodati Smart Light.

Choose a home

You will be able to control the devices and services in this home.

Smart-Home

Office

Smart Home

Create another home

Master bedroom
1 device

home light

Local devices
1 device

Office Speaker

b.

home light
Master bedroom

Circular diagram with a power button and a small dot, no text or symbols present

81%
Brightness

Google Naredbe:

Sada možete kontrolirati Vaš pametni uređaj pomoću glasovnih naredbi na Google Home. Ispod ćete naći nekoliko naredbi koje možete koristiti:

➢! OK Google, turn on/off bedroomlight
➢! OK Google, set bedroom light to 50 percent.

PRIJE POČETKA INSTALACIJE NEMOJTE ZABORAVITI:

1. Aplikaciju V-TAC Smart Light i aplikaciju Google Home
2. Provjerite da li imate uređaj Google Home
3. Pametni uređaj - svjetiljku
4. Stabilnu Wifi mrežu

Notes: Keep WIFI receiver connected with WIFI

CONETAR UM RECEPTOR WI-FI A COMUTADOR SEM FIO V-TAC.

QR code image containing encoded data, no visible human-readable text

APP INSTALAÇÃO

Passo 1: Digitalize o código QR indicad ou baixe "V-TAC Smart Light" a partir da App Store (iOS) ou "Google Play Store" (Android).

For ANDROID

QR code with red and black triangular logo in center, likely linking to a digital service or website

For IOS

QR code with red and black pixelated logo in center, likely for digital link or payment

Back Register Verification code is sent to your phone: +44 wwee Verification Code Get Please Input Password Confirm

Passo 3:

< Back Register United Kingdom +44 > Mobile Number/E-mail Next

Passo 5: Clique em

Set your home location for more information >

All Devices

Living Room

Bedroom

...

No devices, please add

Add Device

Electrician Lighting Large Home Appliances Small Home Appliances Kitchen Appliances Security & Sensors Card Switch Card Switch (ZigBee) Switch Module Breaker (Wi-Fi) Breaker Breaker (ZigBee)

Illustration of two hands holding batteries with wires, one pointing to a green dot (no text or symbols)

Reset the device first. Please turn on the device and confirm that indicator is blinking fast. Attention: please complete pairing process within 3 minutes after device reset. Resetting Devices> Confirm indicator rapidly blink

Only 2.4 GHz Wi-Fi networks are supported > Vtac Change Network Password Confirm 1 2 3 4 5 6 7 8 9 0 q w e r t y u i o p a s d f g h j k l ↑ z x c v b n m !#1 , . Done

Connecting... Place your router, mobile phone, and device as close as possible 11% Device added successfully Light Living Room Bedroom Second Bedroom... Dining Room Kitchen Study Room Done

Smart Switch Smart Switch Switch is on Switch Left time Schedule Smart Switch Switch is off! Left time Structure

CONFIGURAÇÕES ALEXA

amazon alexa Login Forgot password? Mobile number or Email Amazon password Show password LOGIN New to Amazon? CREATE A NEW AMAZON ACCOUNT

Add Device Lists Reminders & Alarms Contacts Routines Things to Try Skills & Games

A New Way to Manage Devices Set up and control Alexa and smart home devices in one convenient place NEXT

Account linking in progress

+1 Phone Number/Email Address Type your password here Link Now Forgot Password Help

Alexa by Amazon will be able to:

Receive your public profile Control your devices over internet

Authorize

Done

skills-store.amazon.in

amazon alexa

V-TAC has been successfully linked.

What to do next:

→ Close this window to discover smart home devices you can control with Alexa.

Add Device Lists Reminders & Alarms Contacts Routines Things to Try Skills & Games

Amazon Echo Light Plug Switch Hub Thermostat Speaker

➢! Alexa, turn on/off bedroom light.
➢! Alexa, set bedroom light to 50 percent.

DICAS QUE DEVERÁ MEMORIZAR ANTES DE COMEÇAR A INSTALAÇÃO:

Your content and devices all in one place

Abstract geometric shapes including squares, circles, and triangles (no text or symbols)

GET STARTED >

b. Choose account

This account will be used to personalize your experience

d. Plug in your device

Make sure your device is nearby and connected to power, then try again

c. Choose a home

You will be able to control the devices and services in this home.

Office
1 device

Office Speaker
Pause

b.

Add to Home

Set up device

Add home member

Create speaker group

Create new home
Add services
Passo 4: Digite "V-TAC Smart Light" na barra de pesquisa e toque no ícone de "V-TAC Smart Light"

Set up new devices or add existing devices and services to your home

Passo 4: Digite "V-TAC Smart Light" na barra de pesquisa e toque no ícone de "V-TAC Smart Light"

V-TAC Smart Light

New devices

Set up new devices

Google Home, smart displays and devices labelled 'Made for Google' such as C by GE smart bulbs

Works with Google

Have something already set up?

Link your smart home services such as Philips Hue and TP-Link

+1 Phone Number/Email Address Type your password here Link Now Forgot Password Help

Google will be able to:

Receive your public profile Control your devices over internet

Authorize

Passo 8:

Account is now Linked

b.

Choose device

home light Light

You will be able to control the devices and services in this home.

Smart-Home

Office

Smart Home

Create another home

Master bedroom
1 device

home light

Local devices
1 device

Office Speaker

b.

home light
Master bedroom

Circular diagram with a power button and a small dot, no text or symbols present

81%
Brightness

Comados do Google:

➢! OK Google, turn on/off bedroom light t.
➢! OK Google, set bedroom light to 50 percent.

Notes: Keep WIFI receiver connected with WIFI

CONECTE UN RECEPTOR DE WI-FI A CON- MUTADORES INALÁMBRICOS V-TAC.

QR code image containing encoded data, no visible human-readable text

APP INSTALACIÓN

QR code with red and black stylized logo in center, likely linking to a digital service or website

For IOS

QR code with red and black pixelated logo in center, containing machine-readable data

Back Register Verification code is sent to your phone: +44 wwee Verification Code Get Please Input Password Confirm

Paso 3:

< Back Register United Kingdom +44 > Mobile. Number/E-mail Next

G Welcome Home Set your home location for more information > All Devices Living Room Bedroom ... No devices, please add Add Device

Electrician Lighting Large Home Appliances Small Home Appliances Kitchen Appliances Security & Sensors Card Switch Card Switch (ZigBee) Switch Module Breaker (Wi-Fi) Breaker Breaker (ZigBee)

Illustration of two hands holding batteries with wires, one pointing at a green dot (no text or symbols)

Reset the device first. Please turn on the device and confirm that indicator is blinking test. Attention: please complete pairing process within 3 minutes after device reset. Resetting Devices > Confirm Indicator rapidly blink

Only 2.4 GHz Wi-Fi networks are supported > Vtac Change Network Password Confirm 1 2 3 4 5 6 7 8 9 0 q w e r t y u i o p a s d f g h j k l ↑ z x c v b n m !#1 , Done

Connecting... Place your router, mobile phone, and device as close as possible 11% Device added successfully Light Living Room Bedroom Second Bedroom... Dining Room Kitchen Study Room Done

Smart Switch Home Smart Me Switch is on Switch is off! Switch Left time Schedule Switch Left time Schedule

amazon alexa Login Forgot password? Mobile number or Email Amazon password Show password LOGIN New to Amazon? CREATE A NEW AMAZON ACCOUNT

Add Device Lists Reminders & Alarms Contacts Routines Things to Try Skills & Games

A New Way to Manage Devices Set up and control Alexa and smart home devices in one convenient place NEXT

Account linking in progress

+1 Phone Number/Email Address Type your password here Link Now Forgot Password Help

Alexa by Amazon will be able to:

Receive your public profile Control your devices over internet

Authorize

Done

skills-store.amazon.in

amazon alexa

V-TAC has been successfully linked.

What to do next:

→ Close this window to discover smart home devices you can control with Alexa.

Add Device Lists Reminders & Alarms Contacts Routines Things to Try Skills & Games

Amazon Echo Light Plug Switch Hub Thermostat Speaker

➢! Alexa, turn on/off bedroom light.
➢! Alexa, set bedroom light to 50 percent.

Your content and devices all in one place

Abstract geometric shapes including squares, circles, and triangles (no text or symbols)

GET STARTED >

b. Choose account

This account will be used to personalize your experience

c. Choose a home

You will be able to control the devices and services in this home.

Create another home

d. Plug in your device

Make sure your device is nearby and connected to power, then try again

Create speaker group

Create new home

Add services

Music and audio

Videos and photos

Set up new devices or add existing devices and services to your home

Google Home, smart displays and devices labelled 'Made for Google' such as C by GE smart bulbs

Works with Google

Have something already set up?

Link your smart home services such as Philips Hue and TP-Link

+1 Phone Number/Email Address Type your password here Link Now Forgot Password Help

Google will be able to:

Receive your public profile Control your devices over internet

Authorize

Paso 7:

Account is now Linked

b. ×

Choose device

home light Light

Paso 8:

You will be able to control the devices and services in this home.

Smart-Home

Office

Smart Home

Create another home

Master bedroom
1 device

home light

Local devices
1 device

Office Speaker

b.

home light
Master bedroom

Circular diagram with a power button and a small dot, no text or symbols present

81%
Brightness

Comandos de Google:

➢! OK Google, turn on/off bedroom light
➢! OK Google, set bedroom light to 50 percent.

Amazon Alexa Google Assistant
APP remote control
Notes: Keep WIFI receiver connected with WIFI

A WI-FI VEVŐ PÁROSÍTÁSA A V-TAC VEZETÉK NÉLKÜLI KAPCSOLÓKKAL

QR code image containing encoded data, no visible human-readable text

APP SZERELÉS

QR code with red and black triangular logo in center, likely linking to a digital service or website

For IOS

QR code with red and black triangular logo in center, likely linking to a digital resource or website

Back Register Verification code is sent to your phone: +44 wwee Verification Code Get Please Input Password Confirm

G ∨

+

Welcome Home

Set your home location for more information >

All Devices

Living Room

Bedroom

...

No devices, please add Add Device

Electrician Lighting Large Home Appliances Small Home Appliances Kitchen Appliances Security & Sensors Card Switch Card Switch (ZigBee) Switch Module Breaker (Wi-Fi) Breaker Breaker (ZigBee)

Illustration of two hands holding batteries with wires, one pointing to a green dot (no text or symbols)

Reset the device first. Please turn on the device and confirm that indicator is blinking test. Attention: please complete pairing process within 3 minutes after device reset. Resetting Devices> Confirm indicator rapidly blink

Only 2.4 GHz Wi-Fi networks are supported > Vtac Change Network Password Confirm 1 2 3 4 5 6 7 8 9 0 q w e r t y u i o p a s d f g h j k l ↑ z x c v b n m !#1 , Done

Connecting... Place your router, mobile phone, and device as close as possible 11% Device added successfully Light Living Room Bedroom Second Bedroom... Dining Room Kitchen Study Room Done

Smart Switch Smart Switch Switch is on Switch Left time Schedule Smart Switch Switch is off Switch Left time Schedule

ALEXA BEÁLLÍTÁSAI

Add Device Lists Reminders & Alarms Contacts Routines Things to Try Skills & Games

A New Way to Manage Devices Set up and control Alexa and smart home devices in one convenient place NEXT

Account linking in progress

+1 Phone Number/Email Address Type your password here Link Now Forgot Password Help

Alexa by Amazon will be able to:

Receive your public profile Control your devices over internet

Authorize

skills-store.amazon.in

amazon alexa

V-TAC has been successfully linked.

What to do next:

→ Close this window to discover smart home devices you can control with Alexa.

Add Device Lists Reminders & Alarms Contacts Routines Things to Try Skills & Games

Amazon Echo Light Plug Switch Hub Thermostat Speaker

➢! Alexa, turn on/off bedroom light.
➢! Alexa, set bedroom light to 50 percent.

Your content and devices all in one place

Abstract geometric shapes including a square, circle, and crescent (no text or symbols)

GET STARTED >

b. Choose account

This account will be used to personalize your experience

c. Choose a home

You will be able to control the devices and services in this home.

Create another home

d. Plug in your device

Make sure your device is nearby and connected to power, then try again

Office
1 device

Office Speaker
Pause

b.

Add to Home

Set up device

Add home member

Create speaker group

Create new home

Add services

Music and audio

Videos and photos

Set up new devices or add existing devices and services to your home

Google Home, smart displays and devices labelled 'Made for Google' such as C by GE smart bulbs

Works with Google

Have something already set up?

Link your smart home services such as Philips Hue and TP-Link

+1 Phone Number/Email Address Type your password here Link Now Forgot Password Help

Google will be able to:

Receive your public profile Control your devices over internet

Authorize

7. lépés:

Account is now Linked

b. ×

Choose device

home light Light

You will be able to control the devices and services in this home.

Smart-Home

Office

Smart Home

Create another home

Smart-Home

Off

On

Add

Settings

Master bedroom

1 device

home light

Off

On

Local devices

1 device

Office Speaker

11. lépés:

Master bedroom
1 device

home light

On

Local devices
1 device

Office Speaker

b.

home light
Master bedroom

Circular diagram with a power button and a small dot, no text or symbols present

81%
Brightness

Google Parancsai:

➢! OK Google, turn on/off bedroom light
➢! OK Google, set bedroom light to 50 percent.

Amazon Alexa Google Assistant
APP remote control
Notes: Keep WIFI receiver connected with WIFI

ACCOPPIAMENTO DEL RICEVITORE WI-FI CON GLI INTERRUTTORI WIRELESS DELLA V-TAC

QR code image containing encoded data, no visible human-readable text

APP INSTALLAZIONE

QR code with red and black stylized logo in center, likely linking to a digital service or website

For IOS

QR code with red and black pixelated logo in center, likely for digital link or payment

Back Register Verification code is sent to your phone: +44 wwee Verification Code Get Please Input Password Confirm

Passo 3:

< Back Register United Kingdom +44 > Mobile Number/E-mail Next

Set your home location for more information >

All Devices

Living Room

Bedroom

...

No devices, please add Add Device

Electrician Lighting Large Home Appliances Small Home Appliances Kitchen Appliances Security & Sensors Card Switch Card Switch (ZigBee) Switch Module Breaker (Wi-Fi) Breaker Breaker (ZigBee)

Illustration of two hands holding batteries with wires, one pointing at a green dot (no text or symbols)

Reset the device first. Please turn on the device and confirm that indicator is blinking test. Attention: please complete pairing process within 3 minutes after device reset. Resetting Devices > Confirm indicator rapidly blink

Only 2.4 GHz Wi-Fi networks are supported > Vtac Change Network Password Confirm 1 2 3 4 5 6 7 8 9 0 q w e r t y u i o p a s d f g h j k l ↑ z x c v b n m !#1 , Date

Connecting... Place your router, mobile phone, and device as close as possible 11% Device added successfully Light Living Room Bedroom Second Bedroom... Dining Room Kitchen Study Room Done

Smart Switch Smart Switch Switch is on Switch is off Switch Left time Schedule Home Smart Me

amazon alexa Login Forgot password? Mobile number or Email Amazon password Show password LOGIN New to Amazon? CREATE A NEW AMAZON ACCOUNT

A New Way to Manage Devices Set up and control Alexa and smart home devices in one convenient place NEXT

Add Device Lists Reminders & Alarms Contacts Routines Things to Try Skills & Games

SKILLS & GAMES SEARCH Search Keyword or skill name V-TAC Smart Light

Account linking in progress

+1 Phone Number/Email Address Type your password here Link Now Forgot Password Help

Alexa by Amazon will be able to:

Receive your public profile Control your devices over internet

Authorize

skills-store.amazon.in

amazon alexa

V-TAC has been successfully linked.

What to do next:

→ Close this window to discover smart home devices you can control with Alexa.

Add Device Lists Reminders & Alarms Contacts Routines Things to Try Skills & Games

Amazon Echo Light Plug Switch Hub Thermostat Speaker

➢! Alexa, turn on/off bedroom light.
➢! Alexa, set bedroom light to 50 percent.

Your content and devices all in one place

Abstract geometric shapes including a triangle, square, circle, and partial rectangle (no text or symbols)

GET STARTED >

b. Choose account

This account will be used to personalize your experience

c. Choose a home

You will be able to control the devices and services in this home.

Create another home

d. Plug in your device

Make sure your device is nearby and connected to power, then try again

Office
1 device

Office Speaker
Pause

b.

Add to Home

Set up device

Add home member

Create speaker group

Create new home

Add services

Music and audio

Videos and photos

Set up new devices or add existing devices and services to your home

Google Home, smart displays and devices labelled 'Made for Google' such as C by GE smart bulbs.

Works with Google

Have something already set up?

Link your smart home services such as Philips Hue and TP-Link

+1 Phone Number/Email Address Type your password here Link Now Forgot Password Help

Google will be able to:

Receive your public profile Control your devices over internet

Authorize

Passo 7:

Account is now Linked

b.

Choose device

home light Light

You will be able to control the devices and services in this home.

Smart-Home

Office

Smart Home

Create another home

Smart-Home Off On Add Settings Master bedroom 1 device home light Off • On Local devices 1 device Office Speaker

Passo 11:

Master bedroom
1 device

home light

On

Local devices
1 device

Office Speaker

b.

home light
Master bedroom

Circular diagram with a power button and a small dot, no text or symbols present

81%
Brightness

Comandi di Google:

➢! OK Google, turn on/off bedroom light
➢! OK Google, set bedroom light to 50 percent.

Amazon Alexa Google Assistant
APP remote control
Notes: Keep WIFI receiver connected with WIFI

QR code image containing encoded data, no visible human-readable text

APP TOΠΟΘΕΤΗΣΗ

QR code with red and black pixelated logo in center, likely for digital link or payment

For IOS

QR code with red and black pixelated logo in center, likely linking to a digital resource or website

Verification code is sent to your phone:

+44 wwee

Verification Code

Get

Please Input Password

©

Confirm

G ∨

+

Welcome Home

Set your home location for more information >

All Devices

Living Room

Bedroom

...

No devices, please add Add Device

Electrician Lighting Large Home Appliances Small Home Appliances Kitchen Appliances Security & Sensors Card Switch Card Switch (ZigBee) Switch Module Breaker (Wi-Fi) Breaker Breaker (ZigBee)

Illustration of two hands holding batteries with wires, one pointing at a green dot (no text or symbols)

Reset the device first. Please turn on the device and confirm that indicator is blinking test. Attention: please complete pairing process within 3 minutes after device reset. Resetting Devices> Confirm indicator rapidly blink

Only 2.4 GHz Wi-Fi networks are supported > Vtac Change Network Password Confirm 1 2 3 4 5 6 7 8 9 0 q w e r t y u i o p a s d f g h j k l ↑ z x c v b n m !#1 , . Done

Connecting... Place your router, mobile phone, and device as close as possible 11% Device added successfully Light Living Room Bedroom Second Bedroom Dining Room Kitchen Study Room Done

Smart Switch Home Smart Me Switch is on Switch Left time Schedule Switch Left time Schedule Switch is off

PYOMISEIIS THΣ ALEXA

amazon alexa Login Forgot password? Mobile number or Email Amazon password Show password LOGIN New to Amazon? CREATE A NEW AMAZON ACCOUNT

Add Device Lists Reminders & Alarms Contacts Routines Things to Try Skills & Games

A New Way to Manage Devices Set up and control Alexa and smart home devices in one convenient place NEXT

Account linking in progress

+1 Phone Number/Email Address Type your password here Link Now Forgot Password Help

Alexa by Amazon will be able to:

Receive your public profile Control your devices over internet

Authorize

skills-store.amazon.in

amazon alexa

V-TAC has been successfully linked.

What to do next:

→ Close this window to discover smart home devices you can control with Alexa.

Add Device Lists Reminders & Alarms Contacts Routines Things to Try Skills & Games

Amazon Echo Light Plug Switch Hub Thermostat Speaker

➢! Alexa, turn on/off bedroom light.
➢! Alexa, set bedroom light to 50 percent.

Your content and devices all in one place

Abstract geometric shapes including a triangle, circle, and rectangle (no text or symbols)

GET STARTED >

b. Choose account

This account will be used to personalize your experience

c. Choose a home

You will be able to control the devices and services in this home.

Create another home

d. Plug in your device

Make sure your device is nearby and connected to power, then try again

Office
1 device

Office Speaker
Pause

b.

Add to Home

Set up device

Add home member

Create speaker group

Create new home

Add services

Music and audio

Videos and photos

Set up new devices or add existing devices and services to your home

Google Home, smart displays and devices labelled 'Made for Google' such as C by GE smart bulbs

Works with Google

Have something already set up?

Link your smart home services such as Philips Hue and TP-Link

+1 Phone Number/Email Address Type your password here Link Now Forgot Password Help

Google will be able to:

Receive your public profile Control your devices over internet

Authorize

Βήμα 7:

Account is now Linked

b. ×

Choose device

home light Light

You will be able to control the devices and services in this home.

Smart-Home

Office

Smart Home

Create another home

Smart-Home

Off

On

Add

Settings

Master bedroom

1 device

home light

Off

On

Local devices

1 device

Office Speaker

Βήμα 11:

a. Smart-Home Off On Add Settings Master bedroom 1 device home light Off • On Local devices 1 device Office Speaker

Εντολές στο Google:

➢! OK Google, turn on/off bedroom light
➢! OK Google, set bedroom light to 50 percent.

Amazon Alexa Google Assistant
APP remote control
Notes: Keep WIFI receiver connected with WIFI

ZASTOSOWANIE ODBIORNIKA WI-FI Z BEZ-PRZEWODOWYMI PRZEŁĄCZNIKAMI VI-TEX.

QR code image containing encoded data, no visible human-readable text

APP INSTALACJA

QR code with red and black pixelated logo in center, likely linking to a digital service or website

For IOS

QR code with a red and black stylized logo in the center, likely linking to a digital resource or website.

Back Register Verification code is sent to your phone: +44 wwee Verification Code Get Please Input Password Confirm

Krok 3:

< Back Register United Kingdom +44 > Mobile Number/E-mail Next

G Welcome Home Set your home location for more information > All Devices Living Room Bedroom ... No devices, please add Add Device

Electrician Lighting Large Home Appliances Small Home Appliances Kitchen Appliances Security & Sensors Card Switch Card Switch (ZigBee) Switch Module Breaker (Wi-Fi) Breaker Breaker (ZigBee)

Illustration of two hands holding batteries with wires, one pointing at a green dot (no text or symbols)

Reset the device first. Please turn on the device and confirm that indicator is blinking test. Attention: please complete pairing process within 3 minutes after device reset. Resetting Devices > Confirm indicator rapidly blink

Only 2.4 GHz Wi-Fi networks are supported > Vtac Change Network Password Confirm 1 2 3 4 5 6 7 8 9 0 q w e r t y u i o p a s d f g h j k l ↑ z x c v b n m !#1 , Done

Connecting... Place your router, mobile phone, and device as close as possible 11% Device added successfully Light Living Room Bedroom Second Bedroom... Dining Room Kitchen Study Room Done

Smart Switch Home Smart Me Smart Switch Switch is on Switch Left time Schedule Smart Switch Switch Left time Schedule Switch Left time Schedule

USTAWIENIA ALEXA

amazon alexa Login Forgot password? Mobile number or Email Amazon password Show password LOGIN New to Amazon? CREATE A NEW AMAZON ACCOUNT

Add Device Lists Reminders & Alarms Contacts Routines Things to Try Skills & Games

A New Way to Manage Devices Set up and control Alexa and smart home devices in one convenient place NEXT

Account linking in progress

Phone Number/Email Address

Type your password here

Link Now

Forgot Password

Help

Alexa by Amazon will be able to:

Receive your public profile Control your devices over internet

Authorize

Done

skills-store.amazon.in

amazon alexa

V-TAC has been successfully linked.

What to do next:

→ Close this window to discover smart home devices you can control with Alexa.

Add Device Lists Reminders & Alarms Contacts Routines Things to Try Skills & Games

Amazon Echo Light Plug Switch Hub Thermostat Speaker

➢! Alexa, turn on/off bedroom light.
➢! Alexa, set bedroom light to 50 percent.

RZECZY O KTÓRYCH MUSISZ PAMIĘTAĆ PRZED PRZYSTĄPIENIEM DO INSTALACJI:

Your content and devices all in one place

Abstract geometric shapes including a triangle, circle, and rectangle (no text or symbols)

GET STARTED >

b. Choose account

This account will be used to personalize your experience

c. Choose a home

You will be able to control the devices and services in this home.

Create another home

d. Plug in your device

Make sure your device is nearby and connected to power, then try again

Office
1 device

Office Speaker
Pause

b.

Add to Home

Set up device

Add home member

Create speaker group

Create new home

Add services

Music and audio

Videos and photos

Set up new devices or add existing devices and services to your home

Google Home, smart displays and devices labelled 'Made for Google' such as C by GE smart bulbs.

Works with Google

Have something already set up?

Link your smart home services such as Philips Hue and TP-Link

+1 Phone Number/Email Address Type your password here Link Now Forgot Password Help

Google will be able to:

Receive your public profile Control your devices over internet

Authorize

Krok 7:

Account is now Linked

b.

Choose device

home light Light

You will be able to control the devices and services in this home.

Smart-Home

Office

Smart Home

Create another home

a. Smart-Home Off On Add Settings Master bedroom 1 device home light Off • On Local devices 1 device Office Speaker

Komendy Google:

➢! OK Google, turn on/off bedroom light
➢! OK Google, set bedroom light to 50 percent.

RZECZY O KTÓRYCH MUSISZ PAMIĘTAĆ PRZED PRZYSTĄPIENIEM DO INSTALACJI:

INSTALAREA UNUI RECEPTOR

Amazon Alexa Google Assistant
APP remote control
Notes: Keep WIFI receiver connected with WIFI

CONECTAREA UNUI RECEPTOR WI-FI LA COMUTATOARELE WIRELESS V-TAC.

Acum puteti conecta receptorul Wi-Fi V-TAC la comutatoarele wireless V-TAC (VT-5131, VT-5132 si VT-5133 & VT-5143).

QR code image containing encoded data, no visible human-readable text

APP INSTALAREA

QR code with red and black pixelated logo in center, likely linking to a digital service or website

For IOS

QR code with red and black pixelated logo in center, likely linking to a digital resource or website

< Back Register United Kingdom +44 > Mobile Number/E-mail Next

< Back Register Verification code is sent to your phone: +44 wwee Verification Code Get Please Input Password Confirm

G Welcome Home Set your home location for more information > All Devices Living Room Bedroom No devices, please add Add Device

Electrician Lighting Large Home Appliances Small Home Appliances Kitchen Appliances Security & Sensors Card Switch Card Switch (ZigBee) Switch Module Breaker (Wi-Fi) Breaker Breaker (ZigBee)

Pasul 6: Selectati optiunea „Electrician” si selectati optiunea „Breaker (Wi-Fi)”.

Illustration of two hands holding batteries with wires, one pointing to a green dot (no text or symbols)

Reset the device first. Please turn on the device and confirm that indicator is blinking test. Attention: please complete pairing process within 3 minutes after device reset. Resetting Devices > Confirm indicator rapidly blink

Only 2.4 GHz Wi-Fi networks are supported > Vtac Change Network Password Confirm 1 2 3 4 5 6 7 8 9 0 q w e r t y u i o p a s d f g h j k l ↑ z x c v b n m !#1 , Done

Device added successfully Light Living Room Bedroom Second Bedro... Dining Room Kitchen Study Room Done

Smart Switch Switch is on Switch Left time Schedule

Smart Switch Switch is off Switch Left time Schedule

SETĂRI ALEXA

amazon alexa Login Forgot password? Mobile number or Email Amazon password Show password LOGIN New to Amazon? CREATE A NEW AMAZON ACCOUNT

Add Device Lists Reminders & Alarms Contacts Routines Things to Try Skills & Games

A New Way to Manage Devices Set up and control Alexa and smart home devices in one convenient place NEXT

Account linking in progress

+1 Phone Number/Email Address Type your password here Link Now Forgot Password Help

Alexa by Amazon will be able to:

Receive your public profile Control your devices over internet

Authorize

Done

skills-store.amazon.in

amazon alexa

V-TAC has been successfully linked.

What to do next:

→ Close this window to discover smart home devices you can control with Alexa.

Add Device Lists Reminders & Alarms Contacts Routines Things to Try Skills & Games

Amazon Echo Light Plug Switch Hub Thermostat Speaker

➢! Alexa, turn on/off bedroom light.
➢! Alexa, set bedroom light to 50 percent.

LUCRURILE PE CARE TREBUIE SĂ LE RETINETI ÎNAINTE SĂ ÎNCEPETI INSTALAREA:

Your content and devices all in one place

Abstract geometric shapes including a triangle, circle, and rectangle (no text or symbols)

GET STARTED >

b. Choose account

This account will be used to personalize your experience

c. Choose a home

You will be able to control the devices and services in this home.

Create another home

d. Plug in your device

Make sure your device is nearby and connected to power, then try again

Office
1 device

Office Speaker
Pause

b.

Add to Home

Set up device

Add home member

Create speaker group

Create new home

Add services

Music and audio

Videos and photos

Set up new devices or add existing devices and services to your home

Google Home, smart displays and devices labelled 'Made for Google' such as C by GE smart bulbs

Works with Google

Have something already set up?

Link your smart home services such as Philips Hue and TP-Link

+1 Phone Number/Email Address Type your password here Link Now Forgot Password Help

Google will be able to:

Receive your public profile Control your devices over internet

Authorize

Pasul 8:

Account is now Linked

b.

Choose device

home light Light

You will be able to control the devices and services in this home.

Smart-Home

Office

Smart Home

Create another home

Smart-Home

Off

On

Add

Settings

Master bedroom

1 device

home light

Off

On

Local devices

1 device

Office Speaker

Pasul 11:

a. Smart-Home Off On Add Settings Master bedroom 1 device home light Off • On Local devices 1 device Office Speaker

Comenzile Google:

➢! OK Google, turn on/off bedroom light
➢! OK Google, set bedroom light to 50 percent.

CE NU TREBUIE SĂ UITĂM ÎNAINTE SĂ ÎNCEPEM INSTALAREA:

Amazon Alexa Google Assistant
APP remote control
Notes: Keep WIFI receiver connected with WIFI

PŘIPOJTE PŘIJÍMAČ WI-FI K BEZDRÁTOVÝM SPÍNAČŮM V-TAC.

QR code image containing encoded data, no visible human-readable text

APP INSTALACE

QR code with red and black pixelated logo in center, likely linking to a digital service or website

For IOS

QR code with embedded logo and red graphic elements, likely for digital linking or authentication

Back Register Verification code is sent to your phone: +44 wwee Verification Code Get Please Input Password Confirm

Krok 3:

< Back Register United Kingdom +44 > Mobile Number/E-mail Next

G Welcome Home Set your home location for more information > All Devices Living Room Bedroom No devices, please add Add Device

Electrician Lighting Large Home Appliances Small Home Appliances Kitchen Appliances Security & Sensors Card Switch Card Switch (ZigBee) Switch Module Breaker (Wi-Fi) Breaker Breaker (ZigBee)

Krok 6: Vyberte možnost „Elektrotechnik“ a vyberte možnost „Jistič (Wi-Fi)“.

Illustration of two hands holding batteries with wires, one pointing at a green dot (no text or symbols)

Reset the device first. Please turn on the device and confirm that indicator is blinking fast. Attention: please complete pairing process within 3 minutes after device reset. Resetting Devices > Confirm indicator rapidly blink

Only 2.4 GHz Wi-Fi networks are supported > Vtac Change Network Password Confirm 1 2 3 4 5 6 7 8 9 0 q w e r t y u i o p a s d f g h j k l ↑ z x c v b n m !#1 , Done

Place your router, mobile phone, and device as close as possible

Device added successfully

Light

Living Room

Bedroom

Second Bedro...

Dining Room

Kitchen

Study Room

Done

Smart Switch Switch is on Switch Left time Schedule

Smart Switch Switch is off! Swinter Left time Schedule

NASTAVENÍ APLIKACE ALEXA

amazon alexa Login Forgot password? Mobile number or Email Amazon password Show password LOGIN New to Amazon? CREATE A NEW AMAZON ACCOUNT

Add Device Lists Reminders & Alarms Contacts Routines Things to Try Skills & Games

A New Way to Manage Devices Set up and control Alexa and smart home devices in one convenient place NEXT

Account linking in progress

+1 Phone Number/Email Address Type your password here Link Now Forgot Password Help

Alexa by Amazon will be able to:

Receive your public profile Control your devices over internet

Authorize

Done

skills-store.amazon.in

amazon alexa

V-TAC has been successfully linked.

What to do next:

→ Close this window to discover smart home devices you can control with Alexa.

Add Device Lists Reminders & Alarms Contacts Routines Things to Try Skills & Games

Amazon Echo Light Plug Switch Hub Thermostat Speaker

POVELY APLIKACE ALEXA

➢! Alexa, turn on/off bedroom ligh
➢! Alexa, set bedroom light to 50 percent.

DOPORUČENÍ PŘED ZAHÁJENÍM INSTALACE:

Your content and devices all in one place

Abstract geometric shapes including a triangle, square, circle, and partial rectangle (no text or symbols)

GET STARTED >

b. Choose account

This account will be used to personalize your experience

d. Plug in your device

Make sure your device is nearby and connected to power, then try again

c. Choose a home

You will be able to control the devices and services in this home.

Create another home

Office
1 device

Office Speaker
Pause

b.

Add to Home

Set up device

Add home member

Create speaker group

Create new home

Add services

Music and audio

Videos and photos

Set up new devices or add existing devices and services to your home

Google Home, smart displays and devices labelled 'Made for Google' such as C by GE smart bulbs

Works with Google

Have something already set up?

Link your smart home services such as Philips Hue and TP-Link

+1 Phone Number/Email Address Type your password here Link Now Forgot Password Help

Google will be able to:

Receive your public profile Control your devices over internet

Authorize

Krok 7:

Account is now Linked

b.

Choose device

home light Light

You will be able to control the devices and services in this home.

Smart-Home

Office

Smart Home

Create another home

Smart-Home

Off

On

Add

Settings

Master bedroom

1 device

home light

Off

。

On

Local devices

1 device

Office Speaker

Krok 10:

Master bedroom
1 device

home light

On

Local devices
1 device

Office Speaker

b.
home light
Master bedroom

Circular diagram with a power button and cable, no text or symbols present

81%
Brightness

Povely v Google:

➢! OK Google, turn on/off bedroom light
➢! OK Google, set bedroom light to 50 percent.

DOPORUČENÍ PŘED ZAHÁJENÍM INSTALACE:
