VT-6212 - Speaker V-TAC - Free user manual and instructions

Product Type	Portable Speaker
Brand	V-TAC
Model	VT-6212
Dimensions (approx.)	30 x 20 x 15 cm
Weight (approx.)	1.5 kg
Power Supply	Built-in rechargeable battery (charges via AC/DC adapter)
Battery Life	2 to 4 hours depending on usage
Initial Charging Time	10 to 12 hours for first charge
Wireless Connectivity	Bluetooth
Audio Inputs	AUX, USB, SD/TF, FM, Bluetooth
Main Functions	USB/SD playback, FM radio, recording, microphone, remote control, equalizer (Normal, Jazz, Rock, Pop, Classic)
Recording Function	Yes, via REC button on remote (requires USB drive or TF card)
Voice Guide	Yes, Chinese/English (enable/disable by long pressing mode button)
Remote Control	Yes, included
Care and Cleaning	Wipe with a soft, dry cloth. Do not use abrasive products.
Safety	Do not open the device. Keep out of reach of children. Use only the correct input voltage.
Spare Parts and Repairability	Built-in rechargeable battery; for any repairs, contact a professional technician.
General Information	User manual available in French. The manufacturer reserves the right to modify the product without notice.

Frequently Asked Questions - VT-6212 V-TAC

How to connect the speaker via Bluetooth?

Press the mode button to select Bluetooth. Enable Bluetooth on your phone and search for 'V-TAC VT-6212'. If a code is requested, enter '0000'. The connection is automatic.

How to use the recording function?

Insert a USB drive or TF card into the slot. Connect a microphone (not included). Press the 'REC' button on the remote to start/stop recording. To listen, press 'REC/PLAY'.

What is the battery charging time?

The first charge must last 10 to 12 hours. Subsequent charges last about 2 to 4 hours depending on battery condition. The battery life is 2 to 4 hours.

How to scan FM stations automatically?

In FM mode, briefly press the play/pause button on the remote (or the corresponding button on the device) to start automatic scanning of all available stations.

Can I use an SD card with the device?

Yes, the device has a TF card (microSD) slot and a USB port. Insert the card or USB drive, then select USB or SD mode via the mode button.

How to adjust the equalizer?

Press the EQ button on the remote to switch between Normal, Jazz, Rock, Pop, and Classic modes.

What to do if the battery does not hold a charge?

Make sure to fully charge the battery. If the problem persists, the battery may be damaged. Recharge it regularly even if not in use. Contact a technician for replacement.

How to enable or disable the voice guide?

Long press the mode button (which also switches between inputs) to enable/disable the voice guide. By default, it is in Chinese; another long press switches to English.

Can I connect an external microphone?

Yes, the device is compatible with a wired microphone (not included). Plug it into the microphone input to use the recording or karaoke function.

How to clean the speaker?

Use a soft, dry cloth to wipe the exterior. Do not use chemical or abrasive products. Avoid water entering the openings.

USER MANUAL VT-6212 V-TAC

Thank you for selecting and buying V-TAC Product. V-TAC will serve you the best. Please read these instructions carefully & keep this user manual handy for future reference. If you have any another query, please contact our dealer or local vendor from whom you have purchased the product. They are trained and ready to serve you at the best.

Multi-Language Manual QR CODE

Please scan the QR code to access the manual in multiple languages.

(FR) INTRODUCTION

• Frequency Range: 2.4-2.48Ghz
• Working Distance: up to 15m in open space.
• Supporting: USB/TF card play
  FM Radio: frequency 87.5~1080MHz
• Remote Control: up to 5m in open space.
• LED light with on/off Switch
  Output power: 35w
• Distortion ≤ 1.0%
  Frequency response: 180Hz-20Khz
• Microphone sensitivity: -40dB
• Working time: Music time 2 to 4 hours
• Input jack: Aux input, wired microphone input
• Charging input power: AC INPUT 100-240V
• Charging time: 3 to 4 hours

CHARGING INDICATOR

Charging: The led light will be in red color

Full: When full-charged the led light will be in green color.

Charging Time: 3 to 4 hours

Working Time: 2 to 4 hours

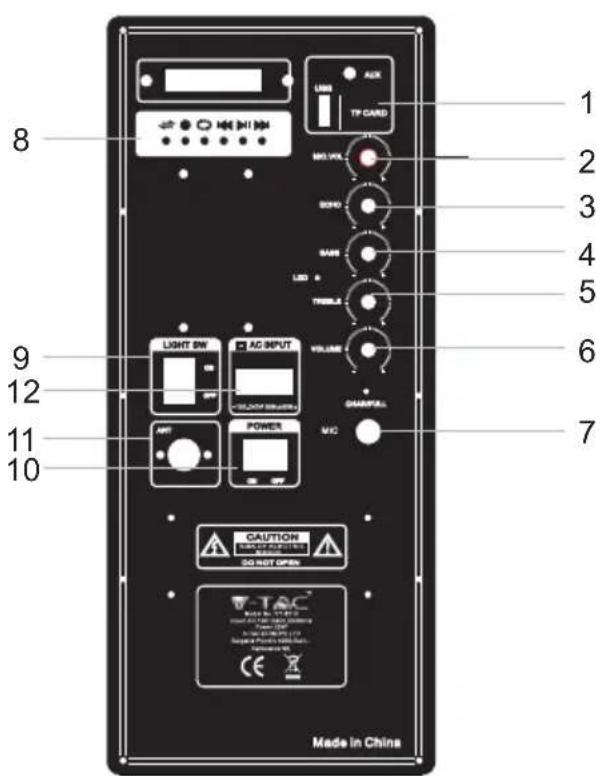

PANEL FUNCTION

1. USB/TF/CARD/AUX/LED
2. ADJUST THE VOLUME OF MICROPHONE
3. ECHO
4. BASS
5. TREBLE
6. ADJUST THE VOLUME OF WHOLE UNIT
7. MIC INPUT
8. : INTERCHANGE

：REPEAT
: PREVIOUS SONG
:PLAY PAUSE
NEXT SONG
RAC

1. LIGHT: ON/OFF

10: POWER: ON/OFF
11: ANTENA FOR FM RADIO
12. AC INPUT 100-240V

REMOTE FUNCTION

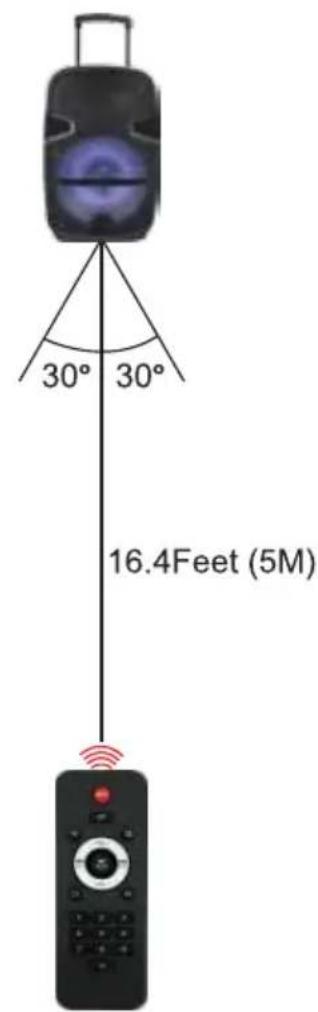

PICTURE 1

1. MUTE: Press this button to mute the unit.
2. Press this button to toggle between the various inputs (AUX,USB,SD,FM, BLUETOOTH), Long press this button to turn on/off the voice prompt.
3. Press button to start recording.
4. Press this button to increase the master volume for the unit.
5. Press this button to pause or play the unit when it is on the mode of USB. When it is on the mode of FM, press this button to auto scan all channels. Long press to change language to Chinese/English for the voice prompt.
6. Press this button to select the previous song/channels
7. Press this button to reduce the master volume for the unit.
8. Press this button to repeat one/repeat all.
9. Press this button to play the recording.
10. Press this button to select the next song/channel.
11. Press this button to the EQ mode of Normal, Jazz, Rock, POP & Classical
12. 0-9, Key number for selecting the certain songs in the USB/SD/TF Card.

REC FUNCTION

HOW TO USE RECORDING FUNCTION:

STEP 1: Make sure the unit is switched on, and there is a USB memory stick or TF card inserted in the slot.

STEP 2: Plug and test the microphone upon plugging. The device is ready to record once your voice is audible from the speaker.

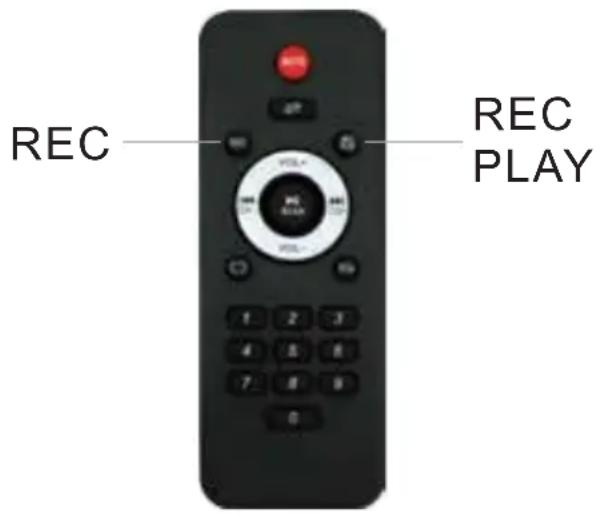

STEP 3:

Press the button 'REC' on the remote control to start/stop recording, you are freely to rec what you want.

Press the button 'REC/PLAY' to play your recording.

PICTURE 2

WIRELESS FUNCTION

STEP 1: Press the mode button on front panel to launch the bluetooth application. This will show the Bluetooth logo show on the screen.

STEP 2: Toggle the Bluetooth switch on to activate. The device will automatically begin to scan for nearby Bluetooth devices.

STEP 3: Tap "V-TAC VT-6212" on your list of devices. Depending on the device you are trying to connect the speaker to, it may be necessary to enter a pass code. Enter the default passcode "0000" if prompted by the device. Then, wait for your device to be connected successfully.

STEP 4: Tap the entry for bluetooth accessory when it is detected by the smart phone or computer and displayed on the screen. Then it can use bluetooth to operate in conjunction with accessory.

INSTRUCTIONS

1. This unit uses a rechargeable battery. When the battery power is depleted, please plug the device to an electric socket with the correct input voltage.

2. When the unit is charging, please make sure to switch on the AC/DC option, then safely unplug when finished.

3. On first use, the battery must be charged for 10 to 12 hours.

4. The unit's battery working time lasts up to 2 to 4 hours, depending on the usage.

ATTENTION

1. To maintain battery life, please charge the battery every time the power is completely depleted. Damage may occur if the battery is not charged for longer periods, so please use and charge the battery at regular intervals.
2. Our company reserves the right to update the product without any notice.
3. If you have any issue with the product, kindly contact a professional technician. Do not open the unit yourself.
4. For safety reasons, keep the device away from children.

TELECOMMANDE
