Product type	Portable Bluetooth speaker
Brand	V-TAC
Model	VT6315
Power supply	Built-in rechargeable battery or mains via AC/DC adapter
Battery life	2 to 4 hours depending on usage
Initial charging time	10 to 12 hours
Connectivity	Bluetooth, USB, SD/TF, AUX, FM
Bluetooth function	Yes, automatic search and pairing
Display	Yes, digital display
Remote control	Yes, included
Microphone	Yes, built-in for recording
Recording	Yes, on USB key or SD/TF card
Equalization modes	Normal, Jazz, Rock, Pop, Classical
MUTE function	Yes
Voice guide	Yes, can be enabled/disabled (Chinese/English)
FM scanning	Automatic with station memory
Repeat	One or all tracks
Numbered keys	0-9 to select songs on USB/SD
Additional inputs	AUX, USB, SD/TF
Included accessories	Remote control
Safety	Do not open the device, keep out of reach of children
Maintenance	Clean with a soft dry cloth
Repairability	Contact a professional technician, do not open

Frequently Asked Questions - VT6315 V-TAC

How to connect my smartphone via Bluetooth?

Press the Mode button until Bluetooth is selected. The Bluetooth logo appears on the screen. Enable Bluetooth on your smartphone and search for devices. Select "V-TAC VT-6315". If a code is required, enter "0000". Wait for connection.

What is the battery life?

Battery life is 2 to 4 hours depending on usage (volume, functions activated). For first use, charge the battery for 10 to 12 hours.

How to record music to a USB key?

Insert a USB key or SD/TF card into the slot. Connect a microphone (not included) and press the "REC" button on the remote control to start recording. Press again to stop. To listen, press "REC/PLAY".

How to adjust the equalization modes?

Press the EQ button to cycle through modes: Normal, Jazz, Rock, Pop, and Classical. The mode changes with each press.

What to do if the speaker does not turn on?

Check that the battery is charged. Plug in the AC adapter and set the switch to AC/DC. If the problem persists, contact a technician.

The remote control does not work, what to do?

Make sure there is no obstacle between the remote control and the receiver. Replace the batteries if necessary. Check that you are within range (usually 5 meters).

How to use the FM function?

Press the Mode button until FM is selected. Briefly press the search button for automatic channel scanning. Use the previous/next buttons to navigate.

Can I connect an additional microphone?

Yes, the speaker has a microphone input (jack). Connect a wired microphone and test it. Recording is done via the REC buttons on the remote control.

How to repeat one song or all songs?

Press the repeat button (usually symbolized by a loop arrow) to switch from repeat one to repeat all, or disable repeat.

How to change the voice guide language?

Press and hold the auto scanning (search) button in FM mode to toggle between Chinese and English for the voice guide.

USER MANUAL VT6315 V-TAC

Black portable electronic device with a purple and blue spherical speaker grille (no visible text or symbols)

INTRODUCTION & WARRANTY

Thank you for selecting and buying V-TAC Product. V-TAC will serve you the best. Please read these instructions carefully & keep this user manual handy for future reference. If you have any another query, please contact our dealer or local vendor from whom you have purchased the product. They are trained and ready to serve you at the best.

Multi-Language Manual QR CODE

Please scan the QR code to access the manual in multiple languages.

(FR) INTRODUCTION

• Frequency Range: 2.4-2.48Ghz
- Working Distance: up to 15m in open space.
• Supporting: USB/TF card play
• FM Radio: frequency 87.5\~1080MHz

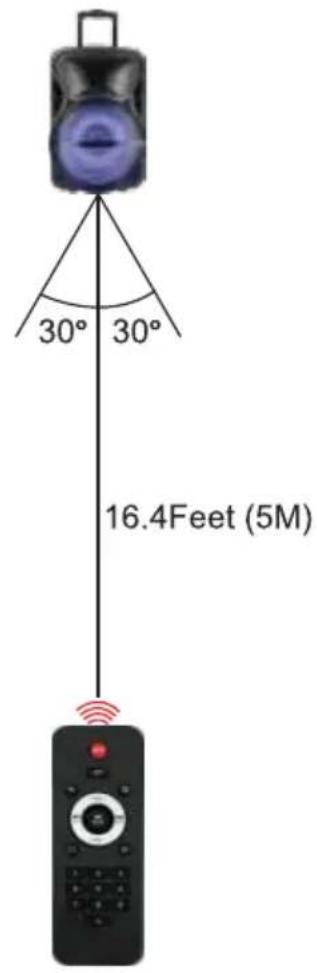

- Remote Control: up to 5m in open space.
• LED light with on/off Switch
• Output power: 50w
- Distortion ≤ 1.0%
• Frequency response: 180Hz-20Khz
- Microphone sensitivity: -40dB
• Working time: Music time 3 to 4 hours
- Input jack: Aux input, wired microphone input
- Charging input power: AC INPUT 100-240V
- Charging time: 3 to 4 hours

CHARGING INDICATOR

Charging: The led light will be in red color

Full: When full-charged the led light will be in green color.

Charging Time: 3 to 4 hours

Working Time: 2 to 4 hours

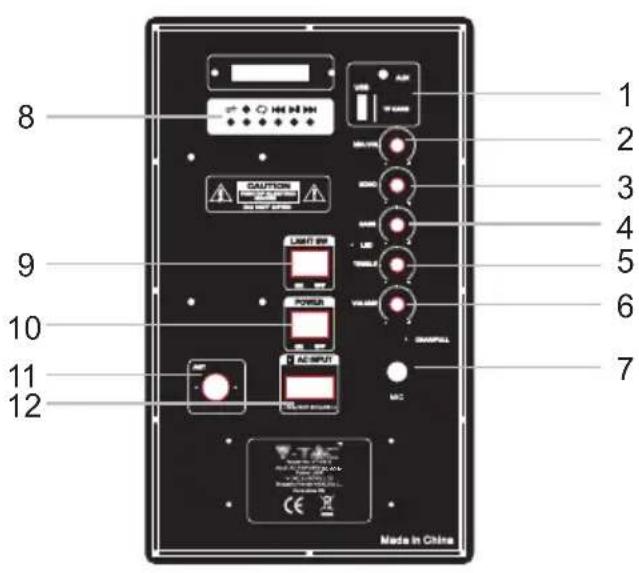

PANEL FUNCTION

1. USB/TF/CARD/AUX/LED
2. ADJUST THE VOLUME OF MICROPHONE
3. ECHO
4. BASS
5. TREBLE
6. ADJUST THE VOLUME OF WHOLE UNIT

7. MIC INPUT

8. ⇌: INTERCHANGE

: REPEAT
◀ : PREVIOUS SONG
▶ : PLAY PAUSE
▶: NEXT SONG
● : RAC

1. LIGHT: ON/OFF

2. POWER: ON/OFF

3. ANTTENA FOR FM RADIO
4. AC: INPUT 100-240V

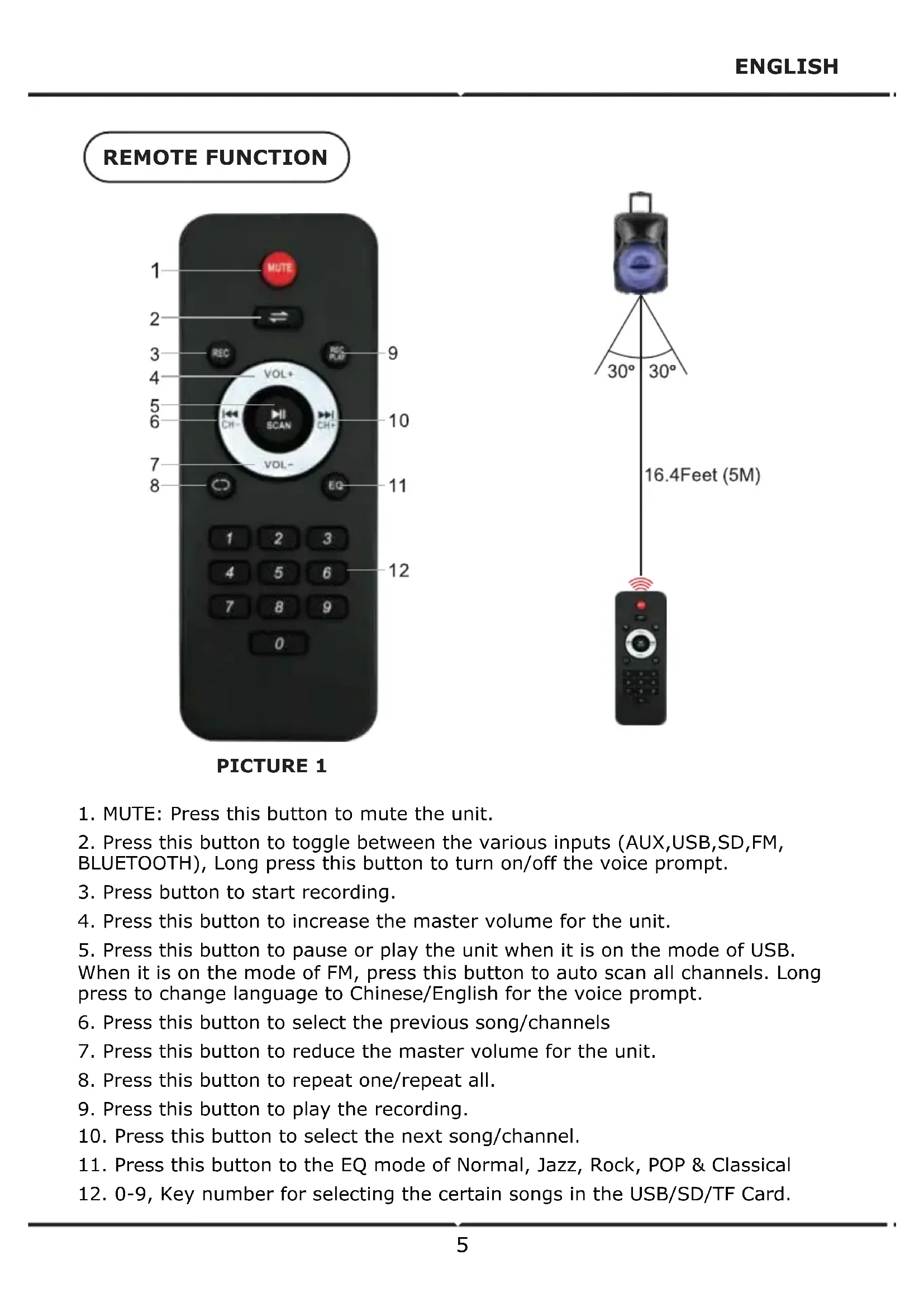

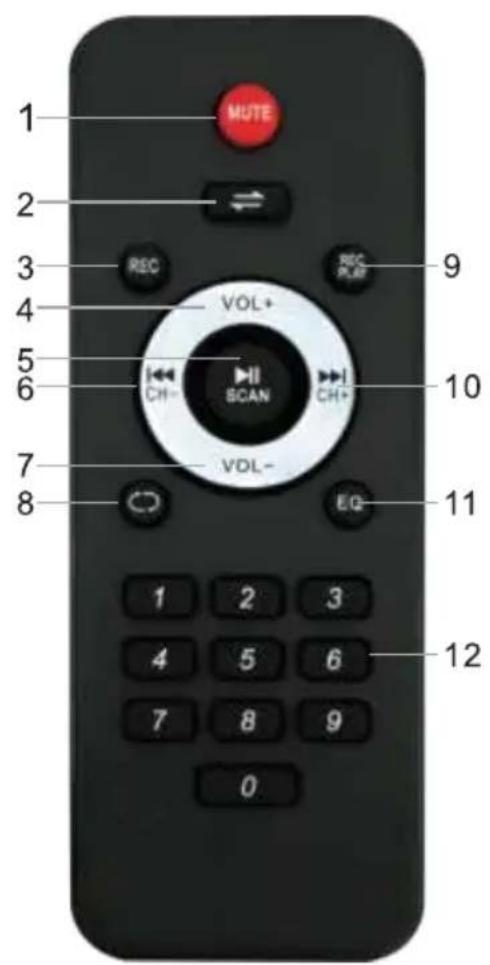

REMOTE FUNCTION

PICTURE 1

1. MUTE: Press this button to mute the unit.
2. Press this button to toggle between the various inputs (AUX,USB,SD,FM, BLUETOOTH), Long press this button to turn on/off the voice prompt.
3. Press button to start recording.
4. Press this button to increase the master volume for the unit.
5. Press this button to pause or play the unit when it is on the mode of USB. When it is on the mode of FM, press this button to auto scan all channels. Long press to change language to Chinese/English for the voice prompt.
6. Press this button to select the previous song/channels
7. Press this button to reduce the master volume for the unit.
8. Press this button to repeat one/repeat all.
9. Press this button to play the recording.
10. Press this button to select the next song/channel.
11. Press this button to the EQ mode of Normal, Jazz, Rock, POP & Classical
12. 0-9, Key number for selecting the certain songs in the USB/SD/TF Card.

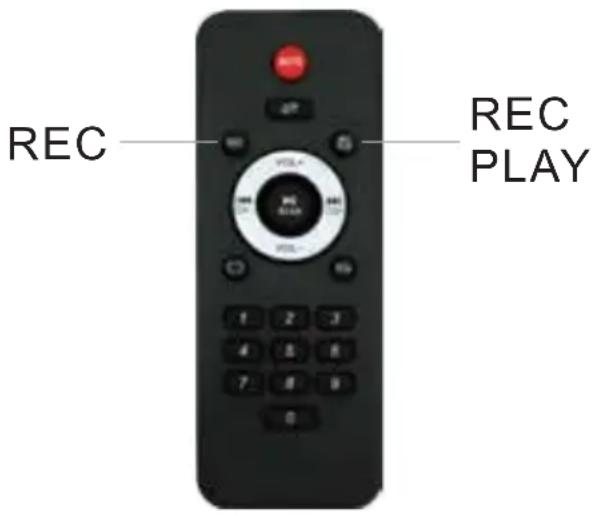

REC FUNCTION

HOW TO USE RECORDING FUNCTION:

STEP 1: Make sure the unit is switched on, and there is a USB memory stick or TF card inserted in the slot.

STEP 2: Plug and test the microphone upon plugging. The device is ready to record once your voice is audible from the speaker.

STEP 3:

Press the button 'REC' on the remote control to start/stop recording, you are freely to rec what you want.

Press the button 'REC/PLAY' to play your recording.

PICTURE 2

WIRELESS FUNCTION

STEP 1: Press the mode button on front panel to launch the bluetooth application. This will show the Bluetooth logo show on the screen.

STEP 2: Toggle the Bluetooth switch on to activate. The device will automatically begin to scan for nearby Bluetooth devices.

STEP 3: Tap "V-TAC VT-6315" on your list of devices. Depending on the device you are trying to connect the speaker to, it may be necessary to enter a pass code. Enter the default passcode "0000" if prompted by the device. Then, wait for your device to be connected successfully.

STEP 4: Tap the entry for bluetooth accessory when it is detected by the smart phone or computer and displayed on the screen. Then it can use bluetooth to operate in conjunction with accessory.

INSTRUCTIONS

1. This unit uses a rechargeable battery. When the battery power is depleted, please plug the device to an electric socket with the correct input voltage.
2. When the unit is charging, please make sure to switch on the AC/DC option, then safely unplug when finished.
3. On first use, the battery must be charged for 10 to 12 hours.
4. The unit's battery working time lasts up to 2 to 4 hours, depending on the usage.

ATTENTION

1. To maintain battery life, please charge the battery every time the power is completely depleted. Damage may occur if the battery is not charged for longer periods, so please use and charge the battery at regular intervals.
2. Our company reserves the right to update the product without any notice.
3. If you have any issue with the product, kindly contact a professional technician. Do not open the unit yourself.
4. For safety reasons, keep the device away from children.
