USER MANUAL TP715D01 SIEMENS

Simple white line drawing of a stylized yin-yang symbol on dark background (no text or symbols)

A D C E I H

Labeled diagram of a 16-inch refrigerator with numbered parts for identification

Diagram showing airflow or ventilation process with labeled arrows and a circled number 1


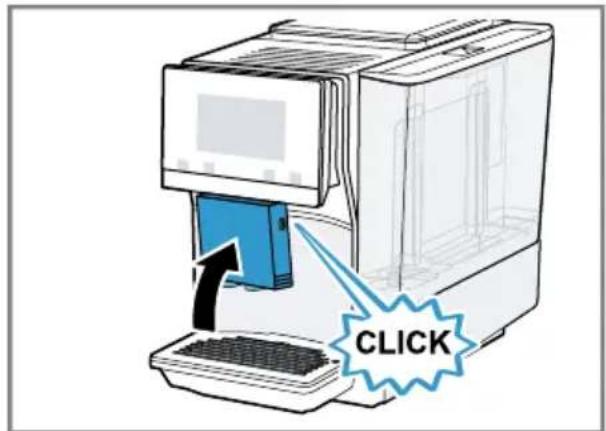

CLICK

3

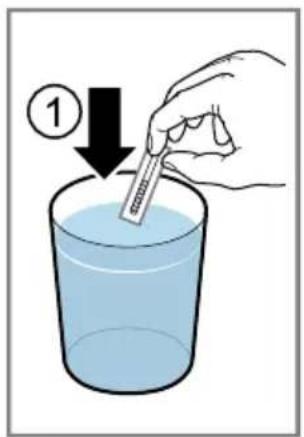

Diagram showing a hand pouring liquid into a glass with a labeled step indicator (1) pointing to the drop.

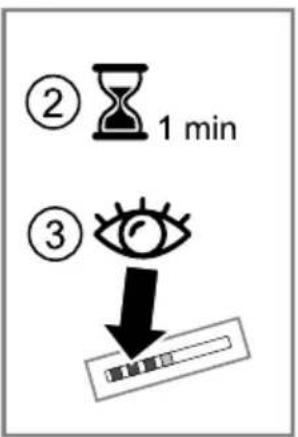

② 1 min ③ ↓

4

Diagram showing a blue briefcase with arrows indicating upward motion, likely illustrating a mechanical or electrical process.

Diagram illustrating a hand cleaning a small kitchen bag with a water drop, accompanied by a labeled diagram showing a shower and a crossed-out funnel.

5

①

press ②

6

ABC

Illustration of a laboratory bag with a blue plastic tube inserted into it, no text or symbols present.

7

Illustration of a hand washing a small rectangular object with liquid, no text or symbols present

Diagram showing a blue tool pressing down on a light blue briefcase with downward arrows indicating process flow or movement.

8

Illustration of a microwave oven with a blue lid and black arrows indicating airflow or disposal (no text or symbols)

9
10

Diagram showing a device with labeled parts and directional arrows, likely illustrating a process or system.

Diagram showing a device with labeled parts and a numbered arrow indicating direction, likely illustrating a process or assembly.

Diagram showing a device with labeled parts and directional arrows, likely illustrating a cable or wiring connection.

11

Diagram illustrating a kitchen sink with water spray, showing components and a water level indicator.

13

Illustration of a blue office drawer with a black arrow pointing to the interior (no text or symbols)

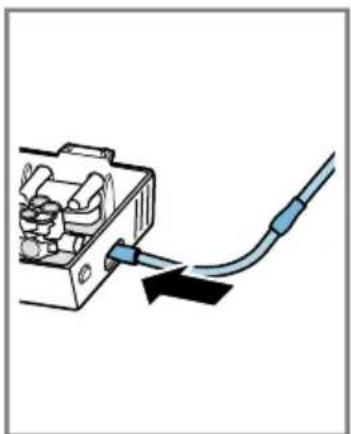

Diagram of a cable being inserted into an electrical component, showing a black arrow pointing to the cable (no text or symbols present)

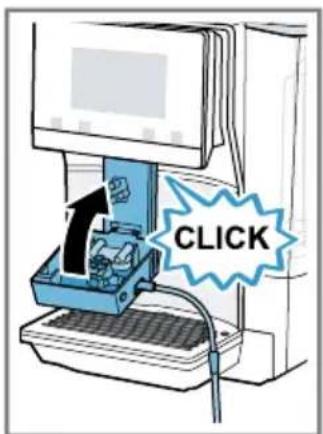

CLICK

Technical line drawing of a mechanical device with a base and support structure (no text or symbols)

15

Illustration of a medical or laboratory setup with a monitor and blue container, showing a downward arrow (no text or symbols)

Diagram showing three blue plastic containers with arrows indicating upward movement, no text or symbols present

Diagram illustrating a cleaning or disinfection procedure with labeled components and a checkmark indicating inspection.

Illustration of a monitor mounted on a blue base with an arrow pointing to it (no text or symbols)

17

QR code image containing encoded data, no visible human-readable text

Inhaltsverzeichnis

1 Sicherheit .... 7

Illustration of a roof drainage system with cloud-shaped ventilation ducts (no text or symbols)

QR code image containing encoded data, no visible human-readable text

Four symbolic icons: a rolled-up document, a rectangular block with X marks, a rolled-up dough, and a textured food item (no text or symbols present)

Tipps

Further information and explanations are available online:

QR code image containing encoded data, no visible human-readable text

Table of contents

1 Safety.... 38

1.1 General information...... 38
1.2 Intended use.... 38
1.3 Restriction on user group...... 38
1.4 Safety information.... 38

2 Environmental protection and saving energy.... 42

2.1 Disposing of packaging ..... 42
2.2 Tips for saving energy...... 42

3 Installation and connection..... 42

3.1 Scope of delivery.... 42
3.2 Installing and connecting the appliance.... 42

4 Familiarising yourself with your appliance.... 43

4.1 Appliance 43
4.2 Controls 43

5 Accessories.... 44

5 Accessories.... 44

6 Before using for the first time .. 44

6.1 Preparing and cleaning the appliance.... 44
6.2 Checking the water hardness.... 44
6.3 Overview of water hardness levels 45

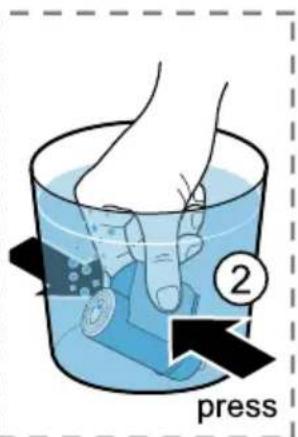

6.4 Water filter ^1 45
6.5 Performing initial start-up ..... 46
6.6 General information...... 46

7 Basic operation 47

7.1 Switching the appliance on or off 47

7.2 Dispensing beverages ..... 47
7.3 doubleShot and tripleShot..... 47
7.4 Slow Brew and Cold Brew ..... 47
7.5 Dispensing a coffee beverage with milk 47
7.6 Dispensing two cups at once.. 48

8 Grinder.... 48

8.1 Adjusting the grinding level..... 48
9 Childproof lock.... 49

9.1 Activating the child-proof lock.... 49
9.2 Deactivating the childproof lock.... 49

10 Cup heater ^1 49
10.1 Activating and deactivating the cup heater ^1 49

11 Favourites...... 49

11.1 Saving beverages from the beverage selection.... 50
11.2 Saving the beverage in the menu.... 50
11.3 Changing beverage settings.... 50
11.4 Deleting favourites.... 50
11.5 Sorting favourites 50

12 Home Connect 50

12.1 Setting up the Home Connect app 51
12.2 Setting up Home Connect..... 51
12.3 Home Connect settings...... 51

12.4 Remote diagnostics ..... 52
12.5 Data protection.... 52

13 Basic settings.... 52

13.1 Changing the basic set- tings.... 52
13.2 Overview of the basic settings.... 52

14 Cleaning and servicing...... 54

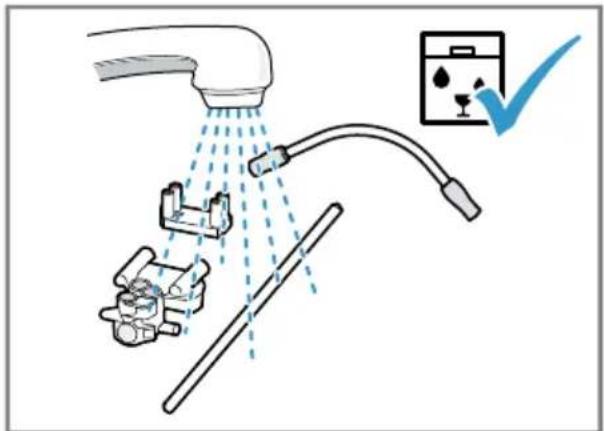

14.1 Dishwasher-safe components.... 54
14.2 Cleaning agent 54
14.3 Cleaning the appliance ..... 55

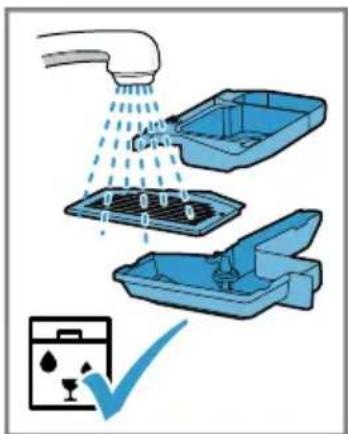

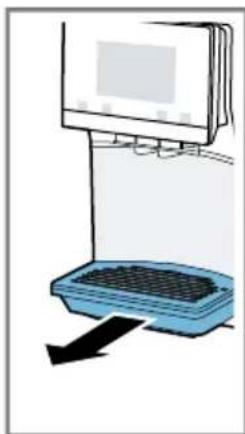

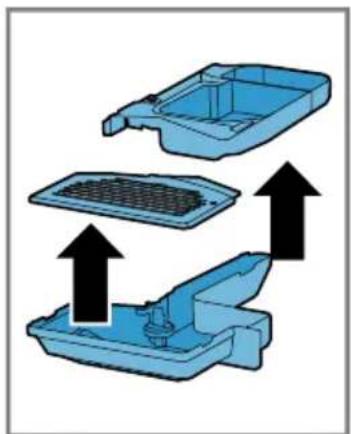

14.4 Cleaning the drip tray and coffee dregs container ..... 55
14.5 Service programmes...... 55

15 Troubleshooting.... 58

16 Transportation, storage and disposal 63

16.1 Activating frost protection ..... 63
16.2 Disposing of old appliance ... 63

17 Customer Service.... 63

17.1 Product number (E-Nr.), production number (FD) and consecutive numbering (Z-Nr.) 63

18 Technical specifications...... 64

18.1 Information regarding Free and Open Source Software... 64

19 Declaration of Conformity ..... 64

19.1 Statement of Compliance for Great Britain.... 65

1 Safety

Observe the following safety instructions.

1.1 General information

• Read this instruction manual carefully.
• Keep the instruction manual and the product information safe for future reference or for the next owner.
  ■ Do not connect the appliance if it has been damaged in transit.

1.2 Intended use

Only use this appliance:

■ for preparing hot drinks.
■ To make cold-brewed drinks.
■ in private households and in enclosed spaces in a domestic environment.
■ up to an altitude of max. 2000 m above sea level.

1.3 Restriction on user group

This appliance may be used by children aged 8 or over and by people who have reduced physical, sensory or mental abilities or inadequate experience and/or knowledge, provided that they are supervised or have been instructed on how to use the appliance safely and have understood the resulting dangers.

Do not let children play with the appliance.

Children must not perform cleaning or user maintenance unless they are at least 8 years old and are being supervised.

Keep children under the age of 8 years away from the appliance and power cable.

1.4 Safety information

⚠ WARNING – Risk of suffocation!

Children may put packaging material over their heads or wrap themselves up in it and suffocate.

- Keep packaging material away from children.

- Do not let children play with packaging material.

Children may breathe in or swallow small parts, causing them to suffocate.

• Keep small parts away from children.
  ▶ Do not let children play with small parts.

⚠ WARNING – Risk of electric shock!

Incorrect installation is dangerous.

• Connect and operate the appliance only in accordance with the specifications on the rating plate.
• Connect the appliance to a power supply with alternating current only via a properly installed socket with earthing.
• The protective conductor system of the domestic electrical installation must be properly installed.

If the appliance or the power cord is damaged, this is dangerous.

▶ Never operate a damaged appliance.
▶ Never operate an appliance with a cracked or fractured surface.
▶ Never pull on the power cord to unplug the appliance. Always unplug the appliance at the mains.

▶ If the appliance or the power cord is damaged, immediately unplug the power cord or switch off the fuse in the fuse box.

▶ Call customer services. → Page 63

Improper repairs are dangerous.

▶ Repairs to the appliance should only be carried out by trained specialist staff.
▶ Only use genuine spare parts when repairing the appliance.
If the power cord of this appliance is damaged, it must be replaced by the manufacturer, the manufacturer's Customer Service or a similarly qualified person in order to prevent any risk.
An ingress of moisture can cause an electric shock.

▶ Never immerse the appliance or the power cord in water.
- Liquids must not be spilled on the appliance plug connection.
▶ Only use the appliance in enclosed spaces.
▶ Never expose the appliance to intense heat or humidity.
- Do not use steam- or high-pressure cleaners to clean the appliance.

⚠ WARNING – Risk of fire!

The appliance will become hot.

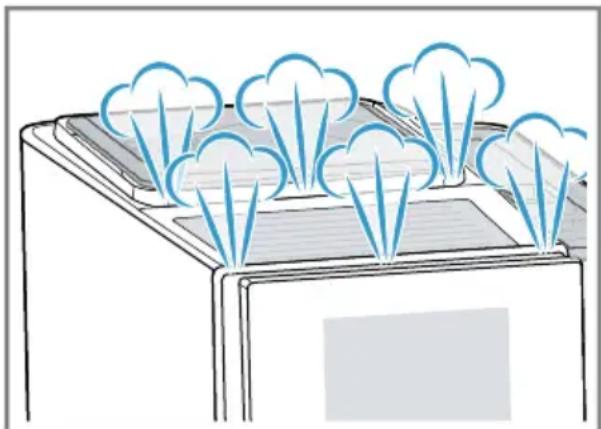

▶ Ventilate the appliance adequately.
▶ Never operate the appliance in a cabinet.
It is dangerous to use an extended power cord and non-approved adapters.
▶ Do not use extension cables or multiple socket strips.
▶ Only use adapters and power cords approved by the manufacturer.
- If the power cord is too short and a longer one is not available, please contact an electrician to have the domestic installation adapted.

⚠ WARNING – Risk of burns!

Some parts of the appliance become very hot.

▶ Never touch hot appliance parts.
▶ After use, allow hot appliance parts to cool down before touching.

⚠ WARNING – Risk of scalding!

Freshly prepared drinks are very hot.

Leave drinks to cool down if necessary.
- Do not let escaping liquids or steam come into contact with your skin.

A remote start via the Home Connect app while the appliance is unattended may cause scalding to third parties.

▶ Do not reach under the beverage outlet when dispensing drinks.
- Keep persons, particularly children, away from the appliance.

⚠ WARNING – Risk of injury!

Improper use of the appliance may endanger the user.

▶ To avoid injuries, only use the appliance for its intended purpose.

Trapped fingers when closing the appliance door.

▶ Be careful of your fingers when closing the appliance door. The grinder rotates.

▶ Never reach into the grinder.

⚠ WARNING – Danger: Magnetism!

The appliance contains permanent magnets. These may affect electronic implants, e.g. pacemakers or insulin pumps.

▶ People with electronic implants must stand at least 10 cm away from the appliance.
- This minimum distance of 10 cm must also be observed for the water tank when removed.

⚠ WARNING – Risk of harm to health!

During filtering there may be a slight increase in the potassium level, which is possibly not good for dialysis patients and people with kidney disease.

- Consult a doctor before use if you have kidney disease or follow a special potassium diet.

Soiling on the appliance may be harmful to health.

- To ensure hygiene, follow the cleaning instructions for the appliance.

Water from the hot water circuit can be harmful to health.

▶ Only ever use the appliance with fresh, cold, non-carbonated drinking water.

2 Environmental protection and saving energy

2.1 Disposing of packaging

The packaging materials are environmentally compatible and can be recycled.

- Sort the individual components by type and dispose of them separately.

2.2 Tips for saving energy

If you follow these instructions, your appliance will use less energy.

Set the interval for automatic switch-off to the smallest value.

√ If the appliance is not being used, it will switch itself off earlier.
→ "Basic settings", Page 52

Do not interrupt the dispensing process prematurely.

√ The amount of water or milk that is heated is used optimally.

Descale the appliance regularly.

√ Limescale deposits increase the appliance's energy consumption.

3 Installation and connection

3.1 Scope of delivery

After unpacking all parts, check for any damage in transit and completeness of the delivery.

Note: Different accessories are enclosed depending on the appliance model. This accessory is shown in a frame with a dashed line.

→ Fig. 1

A	Fully automatic coffee machine
B	Milk tube
C	User manual
D	Insertion aid for water filter
E	Milk container, glass ^1
F	Descaling tablet ^1
G	Cleaning tablet ^1
H	Water filter ^1
I	Water hardness testing strip

^1 Depending on the appliance specifications

3.2 Installing and connecting the appliance

ATTENTION!

Risk of damage to the appliance. If the appliance is not started up correctly, it may be damaged.

• Use the appliance in frost-free rooms only.

• If the appliance has been transported or stored below 0 °C, wait 3 hours at room temperature before starting it up.
  ▶ After plugging in, always wait approx. 5 seconds.

• Place the appliance on a level, water-resistant surface that is capable of bearing its weight.

• Using the mains plug, connect the appliance to an earthed socket that has been correctly installed.

4 Familiarising yourself with your appliance

4.1 Appliance

You can find an overview of the parts of your appliance here.

Note: Individual details and colours may differ, depending on the appliance model.

→ Fig. 2

1	Touch fields
2	Cup heater ^1
3	Aroma lid
4	Bean container
5	Rotary selector for grinder setting
6	Tablet compartment
7	Cover for water tank
8	Water tank
9	Touch display
10	Cup lighting
11	Brewing chamber door
12	Rating plate
13	Milk system
14	Beverage outlet cover
15	Milk hose and suction pipe
16	Drip tray

^1 Depending on the appliance specifications

4.2 Controls

You can find an overview of the controls for your appliance here.

Touch fields

Here you can find an overview of the symbols that are always visible.

	Switch the appliance on or off.
	Dispense two cups.
	Open or close the service programmes.
	Open or exit the settings.

Touch display

The touch display functions both as a display and a control.

Favour-ites	Select saved beverages with personal settings. → Page 49
Classic	Select standard bever-ages.
coffee-World	Select basic beverages which can be extended in conjunction with Home Connect.
	Cup warmer is switched on.
	Appliance is connected to Home Connect.

Note: When the appliance is switched on, you have additional operating options with relevant displays and messages, e.g. beverage settings.

∅	Set strength.
	Set per-cup quantity.
	Set milk ratio.
	Set aroma.
	Set temperature.

5 Accessories

Use original accessories. These have been made especially for your appliance.

Accessories Retail Customer service
Cleaning tablets TZ80001A	TZ80001B	0031209700312098
Descaling tablets TZ80002A	TZ80002B	0031209400312095
Water filter TZ70003 00575491
Water filter pack of 3 TZ70033A -
Microfibre cloth - 00460770
Care set TZ80004A	TZ80004B	0031210500312106
Milk container, glass

6 Before using for the first time

Prepare the appliance for use.

6.1 Preparing and cleaning the appliance

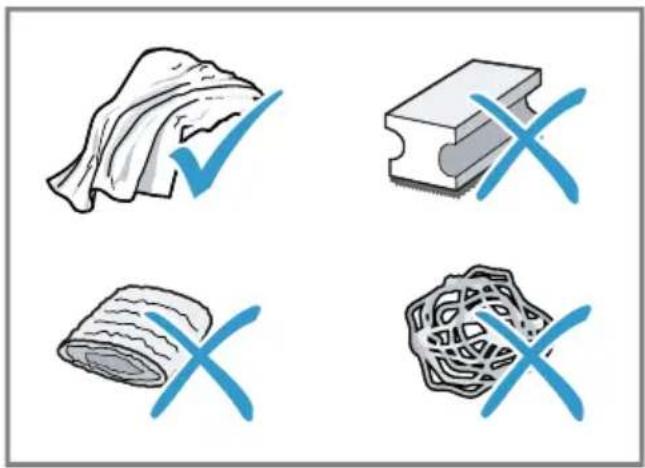

Remove the protective foils and clean the appliance and individual parts. Follow the illustrated instructions at the beginning of this manual.

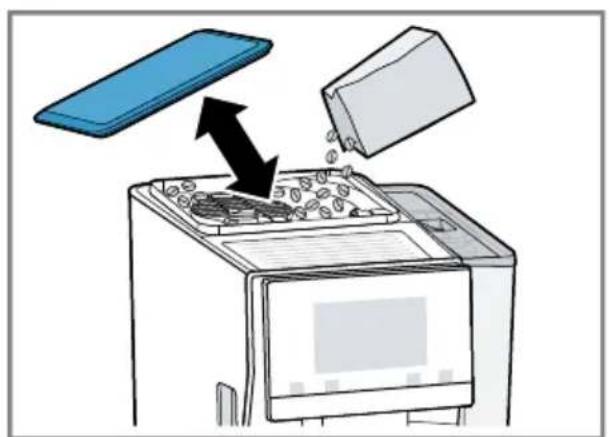

ATTENTION!

Unsuitable beans can block the grinder.

▶ Only use pure, roasted bean mixes that are suitable for use in fully automatic coffee or espresso machines.
▶ Do not use glazed coffee beans.
▶ Do not use caramelised coffee beans.
▶ Do not use coffee beans that have been treated with additives containing sugar.

▶ Do not add instant coffee.

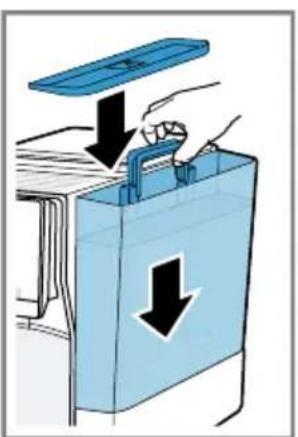

→ Fig ■

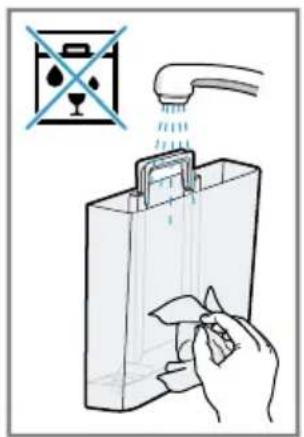

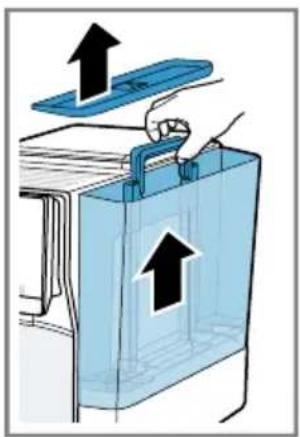

Note: Fill the water tank with fresh, cold, non-carbonated drinking water every day.

Tip: To keep the coffee beans at their best, store them in a sealed container in a cool place. You can keep the coffee beans in the bean container for several days without them losing their aroma.

6.2 Checking the water hardness

It is important to set the water hardness correctly so that your appliance indicates in good time that it needs descaling. You can use the enclosed test strip to check the water hardness or ask your local water company.

1. Briefly dip the test strip in fresh tap water.

2. Allow the water to drain off the test strip.

3. Read the water hardness off the test strip after 1 minute.

→ "Overview of water hardness levels", Page 45

Note: Please use the test strip even if you have a water softening system installed as they generate different water hardnesses.

Tips

■ You can change the settings at any time.
→ "Basic settings", Page 52
■ If the water hardness exceeds 21^ dH (3.8 mmol/l), you can fill the water tank with prefiltered water to reduce limescale deposits.

6.3 Overview of water hardness levels

The table shows allocation of the levels to the different degrees of water hardness.

Setting Ring setting on INTENZA filter		German degrees in °dH	Total hardness in mmol/l
1 A 1 - 7 < 1.3
2 A 8 - 14 1.3 - 2.5
3 B 15 - 21 2.5 - 3.8
4^1	C 22 - 30 > 3.8
^1 Factory setting

6.4 Water filter ^1

You can use a water filter to minimise limescale deposits and reduce impurities in the water.

The limescale content of the water influences the aroma and crema of coffee. There is an aroma ring on the underside of the BRITA INTENZA water filter. Turn the aroma ring to set the optimum aroma level for your mains water.

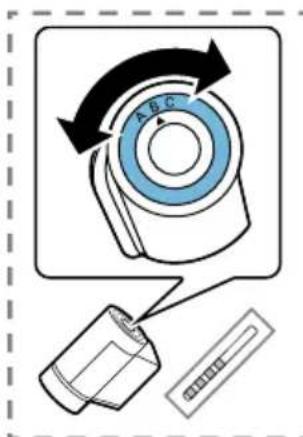

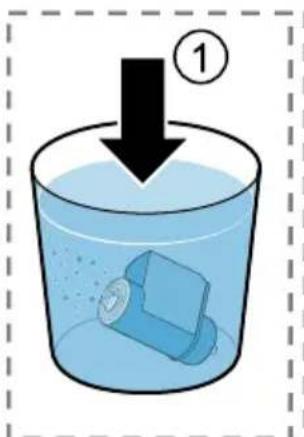

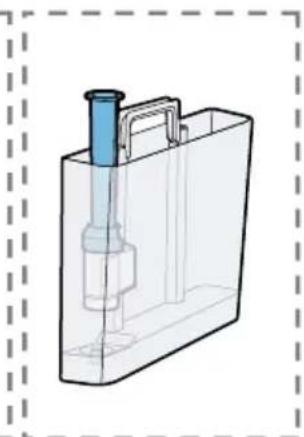

Inserting the water filter

ATTENTION!

Possible damage to the appliance due to limescale build-up.

• Change the water filter in good time.
  ▶ Change the water filter after 2 months at the latest.
  ▶ Observe the display messages.

• Press

• Press "INTENZA filter" and follow the instructions on the display.

Changing or removing the water filter

You can also operate your appliance without a water filter.

1. Press

2. Press "INTENZA filter".

3. Press "Replace" or "Remove" and follow the instructions on the display.

Notes

■ Dispose of spent water filters according to local regulations.
■ Always store replacement water filters in a cool and dry place in their original sealed packaging.

Tips

■ You should also change your water filter for reasons of hygiene.
■ With a water filter you need to de-scale your appliance less frequently.
■ If you use a water filter, your coffee will be more flavoursome.
■ If your appliance has not been used for a long time, for example if you were on holiday, you should rinse the water filter before use by dispensing a cup of hot water.
■ The water filter can be purchased from retailers or customer service. → "Accessories", Page 44

6.5 Performing initial start-up

After connecting the appliance to the power supply, configure the settings for first use. First use appears when switching on for the first time or after resetting to the factory settings.

1. Press to switch the appliance on.
2. Follow the instructions on the display.
   √ The display will guide you through the programme.

Notes

■ If you want to set up Home Connect now, follow the instructions in the Home Connect app.
→ "Setting up Home Connect", Page 51
■ If "Demo mode" is selected, only the displays will work. You cannot dispense a beverage or run a programme.

6.6 General information

Please bear this information in mind so that you can get the best out of your appliance.

Notes

■ The appliance has been programmed at the factory with standard settings for optimum operation.
■ The grinder has been factory-set for optimum operation. If coffee is only dispensed drop by drop or is too thin and with too little crema, you can adjust the grinding level when the grinder is running.
→ "Adjusting the grinding level", Page 48
■ During operation water droplets may form at the ventilation slits and on the lid of the tablet compartment.
■ If you do not perform any actions on the appliance for a certain period, it will switch off automatically. You can change the duration in the basic settings. → Page 52
■ For technical reasons steam can escape from the appliance.

Illustration of a cabinet with cloud-shaped ventilation ducts above (no text or symbols)

■ The first beverage will not yet have its full aroma if:
- You are using the appliance for the first time.
- You have run a service programme.
- You have not used the appliance for a long time.
Do not drink the beverage.

Tip: You will get a stable, fine-pored crema after you have started up your appliance and dispensed a few cups.

7 Basic operation

7.1 Switching the appliance on or off

▶ Press ⏻

When the appliance switches on, the display shows the logo. When the appliance is switched on or off, it will rinse itself automatically. When switched off, the appliance will emit steam into the drip tray for cleaning. The appliance will not rinse itself if the appliance is still warm when switched on or if no beverage was dispensed before it was switched off.

7.2 Dispensing beverages

Find out how to prepare a drink of your choice.

WARNING

Risk of scalding!

Freshly prepared drinks are very hot.

Leave drinks to cool down if necessary.
- Do not let escaping liquids or steam come into contact with your skin.

Notes

■ With a number of settings your coffee is prepared in several steps. Wait until the process is fully completed.
■ If you are dispensing a beverage with milk, always connect a container filled with milk to the milk hose and suction pipe.
■ If the milk system has not been cleaned, small amounts of milk may escape when hot water is dispensed.

7.3 doubleShot and tripleShot

Your appliance grinds the coffee two or three times.

To ensure that only pleasant-tasting and easily digestible aromatic substances are released, coffee beans are freshly ground and brewed again by the appliance.

The longer coffee brews, the more bitter substances and undesirable aromas are released. These bitter substances and undesirable aromas affect the taste and digestibility of coffee.

Note: The functions "doubleShot" and "tripleShot" depend on the beverage strength and beverage size selected.

7.4 Slow Brew and Cold Brew

Slow Brew and Cold Brew are slowly brewed beverages that your appliance dispenses in a pulsating beverage flow that is not continuous. This type of coffee preparation exists as a hot and a cold version. Dispensing of the beverage takes several minutes.

Note: Fill the water tank with fresh, cold, non-carbonated drinking water before dispensing drinks.

7.5 Dispensing a coffee beverage with milk

An example explains how to make a latte macchiato.

WARNING Risk of burns!

The milk system can become extremely hot.

▶ Never touch the milk system when it is hot.
- Allow the hot milk system to cool down before touching it.

Requirements

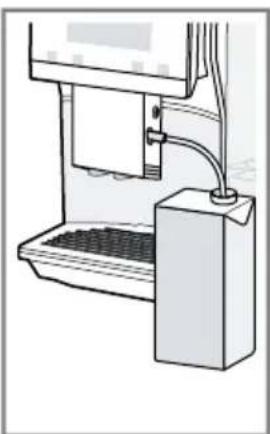

■ The milk hose with the suction pipe is connected to the milk system.
■ The suction pipe is immersed in milk.
1. Place a glass underneath the beverage outlet.
2. Press "Classic".
3. Select and press the beverage symbol for latte macchiato.

• To change the strength, press ①.
• To change the per-cup quantity, press ☐

• To change the milk ratio, press

• Press "Start".

• To completely stop dispensing the beverage, press "Stop".

• To only stop the current dispensing step, press "Skip".

After preparing the beverage, the milk system will automatically clean itself with a short jet of steam.

√ The beverage is prepared and then runs into the glass.

Notes

■ If you do not change any settings for approx. 30 seconds, the appliance will exit settings mode.
■ The appliance saves the settings automatically.

Tips

• You can also pre-heat cups before dispensing using hot water or the cup heater ^1 .
  ■ You can also use plant-based alternatives to milk, e.g. soya milk.
  ■ The quality of the milk froth depends on the type of milk or plant-based alternative used.

7.6 Dispensing two cups at once

Depending on your beverage, you can make 2 cups at the same time.

Note: If the "doubleShot" or "tripleShot" function is active, the function for dispensing two cups at once is not possible.

1. Press the symbol for your desired drink.
2. Press

√ The display shows the setting ^7 .

1. Place two cups on the left and right underneath the beverage outlet.
2. Press "Start".

The drink is prepared in 2 steps. The beans are ground in 2 grinding operations.

√ The beverage is brewed and then runs into the cups.
5. Wait until the process is complete.

8 Grinder

Your appliance has an adjustable grinder, which you can use to customise the grinding level of your coffee beans.

8.1 Adjusting the grinding level

Set the desired grinding level while the coffee beans are being ground.

WARNING

Risk of injury!

The grinder rotates.

▶ Never reach into the grinder.

ATTENTION!

Risk of damage to the grinder. The grinder may be damaged if the grinding level is not set properly.

▶ Only set the grinding level when the grinder is running.
- Select the grinding level using the rotary selector step by step.

Grinding level Setting

Fine grinding level for lightly roasted beans

Turn rotary selector anticlockwise.

Coarse grinding level for dark-roasted beans

Turn rotary selector clockwise.

The grinding level setting only takes effect after the second cup.

Tip: If the coffee is only dispensed drop by drop, set a coarser grinding level.

If the coffee is dispensed too quickly and with too little crema, set a finer grinding level.

9 Childproof lock

You can lock the appliance, to protect children against scalding and burns.

9.1 Activating the child-proof lock

Requirement: The appliance is switched on.

• Press and hold ⚙ for at least 3 seconds.
  √ The childproof lock is activated.

9.2 Deactivating the child-proof lock

• Press and hold ⚙ for at least 3 seconds.
  √ The childproof lock is deactivated.

10 Cup heater ^1

You can use the cup heater to pre-heat your cups.

10.1 Activating and deactivating the cup heater ^1

WARNING Risk of burns!

The cup heater ^1 can become very hot.

▶ Never touch the cup heater ^1 while hot.
- Allow the hot cup heater ^1 to cool down before touching it.

Tip: Place the cups with their base on the cup heater to warm them to optimum effect ^1 .

11 Favourites

Save beverages with your personal settings as a favourite. You can mark your favourites with a colour. A favourite is a beverage with personal settings. You can change the settings at any time.

Note: To exit the settings, press or start dispensing the beverage.

11.1 Saving beverages from the beverage selection

1. Select a beverage from "Classic" or "coffeeWorld".
2. Select the personal beverage settings.
3. Press "Favourite".
4. Select the required colour for the beverage.
5. Press "Save".

11.2 Saving the beverage in the menu

1. Press "Favourites".
2. Press
   √ The display shows all available beverages.
3. Select the required beverage.
4. Select the personal beverage settings.
5. Press "Next".
6. Select the required colour for the beverage.
7. Press "Save".

11.3 Changing beverage settings

1. Press "Favourites".
2. Select the beverage and press briefly.
3. Change the beverage settings.
4. Press "Apply".
   √ The new settings are saved.

11.4 Deleting favourites

1. Press "Favourites".
2. Select the beverage.

3. Press the beverage for at least 3 seconds.

4. Confirm "Delete".

11.5 Sorting favourites

1. Press "Settings".
2. Press "Personalisation".
3. Press "Sort favourites".
4. Sort favourites, e.g. by name or colour.

12 Home Connect

This appliance is network-capable. Connecting your appliance to a mobile device lets you control its functions via the Home Connect app, adjust its basic settings and monitor its operating status. The Home Connect services are not available in every country. The availability of the Home Connect function depends on the availability of Home Connect services in your country. You can find information about this at: www.home-connect.com. To be able to use Home Connect, you must first set up the connection to the WLAN home network (Wi-Fi ^1 ) and to the Home Connect app.

The Home Connect app guides you through the entire login process. Follow the instructions in the Home Connect app to configure the settings.

Tip: Please also follow the instructions in the Home Connect app.

Notes

■ Please note the safety precautions in this instruction manual and make sure that they are also observed when operating the appliance via the Home Connect app. → "Safety", Page 38

■ Operating the appliance on the appliance itself always takes priority. During this time it is not possible to operate the appliance using the Home Connect app.

12.1 Setting up the Home Connect app

1. Install the Home Connect app on your mobile device.
2. Start the Home Connect app and set up access for Home Connect. The Home Connect app guides you through the entire login process.

12.2 Setting up Home Connect

Requirements

■ The Home Connect app has been installed on your mobile device.
■ The appliance is receiving signals from the WLAN home network (Wi-Fi) at its installation location.

1. Open the Home Connect app and scan the following QR code.

QR code image containing encoded data, no visible human-readable text

1. Follow the instructions in the Home Connect app.

12.3 Home Connect settings

Adapt Home Connect to your needs. You can find the Home Connect settings in the basic settings for your appliance. Which settings the display shows will depend on whether Home Connect has been set up and whether the appliance is connected to your home network.

Overview of the Home Connect settings

You can find an overview of the Home Connect settings and network settings here.

Basic setting Selection Description
WiFi connection On	Off	Switch off the wireless module during long absences or to save energy. Note: In networked standby mode your appliance requires max. 2 W.
Remote start On	Off	Switch remote start on the appliance on and off. Note: With the Home Connect app only switch-off is possible.
Add mobile device	- Connect the appliance to the "Home Connect" app or additional accounts.
Network information	- Display network information and appli-ance information.

Basic setting Selection Description

Delete network settings

- Note: You cannot operate your appli-ance via the "Home Connect" app without a network connection.

Software update - Note: This setting is only available with a software update.

12.4 Remote diagnostics

Customer Service can use Remote Diagnostics to access your appliance if you contact them, have your appliance connected to the Home Connect server and if Remote Diagnostics is available in the country in which you are using the appliance.

Tip: For further information and details about the availability of Remote Diagnostics in your country, please visit the service/support section of your local website: www.home-connect.com.

12.5 Data protection

Please see the information on data protection.

The first time your appliance is registered on a home network connected to the Internet, your appliance will transmit the following types of data to the Home Connect server (initial registration):

■ Unique appliance identification (consisting of appliance codes as well as the MAC address of the installed Wi-Fi communication module).
■ Security certificate of the Wi-Fi communication module (to ensure a secure data connection).

■ The current software and hardware version of your appliance.
■ Status of any previous resetting to factory settings.

This initial registration prepares the Home Connect functions for use and is only required when you want to use the Home Connect functions for the first time.

Note: Please note that the Home Connect functions can only be utilised with the Home Connect app. Information on data protection can be retrieved in the Home Connect app.

13 Basic settings

You can configure the basic settings for your appliance to meet your needs and call up additional functions.

13.1 Changing the basic settings

1. Press ⚙️

√ The display shows the list of basic settings.

1. Change the required basic setting.

√ The appliance saves the basic setting automatically.

1. To exit the basic settings, press ←

13.2 Overview of the basic settings

You can find an overview of the basic settings here.

Beverage setting Brewing temperature Set the brewing temperature.
	Milk sequence Select the sequence for milk and coffee.
	Latte macchiato pause Select the pause between milk and coffee.
	Resetting beverage parameters Reset the beverage settings.
Appliance setting Cup heater1	Switch the cup heater1on or off.
	Automatic switch-off Set the time after which the appliance switches off.
	Display brightness Set the brightness in steps.
	Sounds ■ Switch sounds on and off.■ Set the volume.
	Water hardness Set the water hardness.
	Language Set the language.
	Factory settings Reset the appliance to the factory settings.
Personalisation
	Operation after switch-on Set the display screen for "Favourites", "Classic" or "coffeeWorld".
	Sort favourites Set the sequence of favourites.
Home Connect Information about Home Connect	→ "Setting up Home Connect", Page 51
Appliance information Beverage counter Display the number of beverages dispensed.
	Cleaning information Time until the water filter should next be changed or a service programme started.
	Version information Display network information and appliance information.
1 Depending on the appliance specifications

	Licence information Display FOSS licence text.
	Mode for demo purposes	Switch "Demo mode" on or off.

^1 Depending on the appliance specifications

14 Cleaning and servicing

To keep your appliance working efficiently for a long time, it is important to clean and maintain it carefully.

14.1 Dishwasher-safe components

Here you can find an overview of the components you can clean in the dishwasher.

ATTENTION!

Some components are sensitive to heat and may be damaged if they are cleaned in a dishwasher.

- Follow the operating instructions of the dishwasher.

▶ Only clean dishwasher-safe components in the dishwasher.
- Only use programmes that do not heat the components above 60 °C.

Suitable:

■ Drip tray
- Drip plate
- Coffee dregs container
- Mechanical fill level indicator
■ Milk system with adapter

Not suitable: 圈

■ Water tank
■ Water tank lid
■ Brewing unit
■ Beverage dispenser cover

14.2 Cleaning agent

Only use suitable cleaning agents.

ATTENTION!

Unsuitable cleaning products may damage the surfaces of the appli-ance.

• Do not use harsh or abrasive detergents.
• Do not use cleaning agents containing alcohol or spirits.
• Do not use hard scouring pads or cleaning sponges.

Unsuitable cleaning and descaling agents may damage the appliance.

• Do not use pure citric acid, vinegar or any vinegar-based agents to de-scale the appliance.
• Do not use descaling agent with phosphoric acid.
• Only use cleaning tablets and descaling tablets that have been specially developed for the appliance. → "Accessories", Page 44

Four symbolic illustrations: a rolled-up document, a rectangular block with X marks, a rolled-up dough, and a textured surface (no text or symbols)

Tips

■ Wash new sponge cloths thoroughly to remove any salt adhering to them. Salt can cause rust film to develop on stainless steel surfaces.
■ Always remove any residues of limescale, coffee, milk and cleaning/descaling solutions immediately to prevent corrosion.

14.3 Cleaning the appliance

WARNING

Risk of electric shock!

An ingress of moisture can cause an electric shock.

▶ Never immerse the appliance or the power cord in water.
- Liquids must not be spilled on the appliance plug connection.
- Do not use steam- or high-pressure cleaners to clean the appliance.

WARNING

Risk of burns!

Some parts of the appliance become very hot.

▶ Never touch hot appliance parts.
▶ After use, allow hot appliance parts to cool down before touching.

1. Clean the housing, the high-gloss surfaces and the control panel with a microfibre cloth.
2. Clean the outlet system with a soft, damp cloth after beverages have been dispensed.
3. Rinse the water tank with fresh, clean water.
4. If the appliance has not been used for a long time, e.g. after a holiday, clean the entire appliance, including moving parts such as the brewing unit or water tank.

Note: The appliance will rinse itself automatically if you switch it on when it is cold or switch it off after it has dispensed coffee. The system is therefore self-cleaning.

14.4 Cleaning the drip tray and coffee dregs container

Clean and empty the drip tray and coffee dregs container every day to prevent deposits.

1. Pull the drip tray and the coffee dregs container forwards and out.

2. Insert the coffee dregs container in the drip tray and put the drip plate on top.
   → Fig. 17

3. Clean and dry all parts.

4. Insert the coffee dregs container in the drip tray and put the drip plate on top.

5. Insert the drip tray with the coffee dregs container in the appliance.

→ Fig. 18

14.5 Service programmes

Use the service programmes if you insert or remove a water filter or in order to clean your appliance thor-

en Cleaning and servicing

oughly. Your appliance will tell you when you need to perform a service programme, e.g. cleaning.

ATTENTION!

Improper cleaning and descaling or a delay in doing so may damage the appliance.

• Immediately perform the descaling process in accordance with the instructions.
  ▶ Only use cleaning tablets in the tablet compartment.
• Do not put descaling tablets or other products in the tablet compartment.

Notes

■ The display indicates the progress of the descaling or cleaning process.
■ If your appliance has been locked, you can only operate it again once the descaling process has been carried out.

Tip: In addition to the automatic rinsing process, regularly also remove and clean the brewing unit.

Using the service programmes

1. Press
2. Press the symbol for the required programme.
   √ Display indicates progress of the programme.

Overview of service programmes

You can find an overview of the service programmes here.

Note: The start image shows the remaining number of beverages that can be dispensed until running the programme and the duration.

	INTENZA filter Insert, replace or remove the water filter.
	Milk system cleaning Rinse the milk system automatically.
	calc'nClean Combine cleaning and descaling. Remove residues of limescale and coffee from the pipes.
	Cleaning Remove residues of coffee from the pipes.
	Descaling Remove residues of limescale from the pipes.
	Brewing unit cleaning The display shows optimum cleaning of the brewing unit step by step.

	Beverage outlet cleaning	The display shows optimum cleaning of the outlet step by step.
	Frost protection Drain the pipes to protect the appliance during transport or storage.
	Special rinsing If a service programme is interrupted, e.g. due to a power failure, it will rinse itself automatically. The appliance is then ready for use again.

Tips

If you are starting the "Descaling" or "calc'nClean" programme, keep a container with a capacity of min. 1 l at the ready.
■ If you use a water filter, this will prolong the time until you have to run a service programme.
■ You can combine "Descaling" and "Cleaning" with the "calc'nClean" service programme.

15 Troubleshooting

You can rectify minor faults on your appliance yourself. Read the troubleshooting information before contacting after-sales service. This will avoid unnecessary costs.

WARNING

Risk of electric shock!

Improper repairs are dangerous.

• Repairs to the appliance should only be carried out by trained specialist staff.
  ▶ Only use genuine spare parts when repairing the appliance.
• If the power cord of this appliance is damaged, it must be replaced by the manufacturer, the manufacturer's Customer Service or a similarly qualified person in order to prevent any risk.

Fault Cause and troubleshooting

Appliance no longer responds.	Appliance has a fault.1.Pull out the mains plug and wait 60 seconds.2.Re-insert the mains plug.
Home Connect is not working properly.	Different causes are possible.► Go to www.home-connect.com.
Appliance only dispenses water, not coffee.	Empty bean container is not detected by the appliance.► Pour in coffee beans.
	Coffee shaft on brewing unit is blocked.► Clean the brewing unit.
	Coffee beans are too oily and do not fall into the grinder.► Gently tap the bean container.► Change the coffee variety.► Do not use oily beans.► Clean the empty bean container with a damp cloth.
	Brewing unit is not inserted properly.1.Check whether the brewing unit is inserted correctly and is securely locked.2.Push the red lever up to the left.3.Insert the brewing unit cover.
Appliance is not dispensing milk froth.	Milk system is soiled.► Clean the milk system in the dishwasher.
	Milk tube not immersed in milk.► Use more milk.
Fault Cause and troubleshooting
Appliance is not dispensing milk froth.	Check whether the milk tube is immersed in the milk.
	Heavy build-up of limescale in the appliance.Descale the appliance.
No milk intake by the milk system.	The milk system is assembled incorrectly.Assemble the milk system correctly.
	Milk tube not immersed in milk.Use more milk.Check whether the milk tube is immersed in the milk.
Milk froth is too cold. Milk is too cold.Use lukewarm milk.
Cold-brewed beverage is not cold enough.	Water in water tank is warm.Fill the water tank with fresh, cold, non-carbonated drinking water.You can add ice cubes to cool the beverage down even more.
Appliance is not dispensing hot water.	Milk system is soiled.Clean the milk system in the dishwasher.
Appliance is not dispensing drinks.	Air is in the water filter.Immerse the water filter in water with the opening facing upwards until no more air bubbles escape.Reinsert the filter.Firmly press the water filter straight down into the tank connection.Residues of limescale remover are blocking the water tank.Remove the water tank.Clean the water tank thoroughly.
There is dripping water on the inner floor of the appliance.	Drip tray was removed too soon.Wait a few seconds after the last drink was dispensed before removing the drip tray.
Brewing unit cannot be removed.	Locking device cannot be released, brewing unit is jammed.Switch the appliance off and back on after 3 minutes.
Grinder won't start. Appliance is too hot.Disconnect the appliance from the mains.Wait 1 hour so the appliance can cool down.
Grinder is not grinding any coffee beans despite full bean container.	Coffee beans are too oily and do not fall into the grinder.► Gently tap the bean container.► Change the coffee variety.► Do not use oily beans.► Clean the empty bean container with a damp cloth.
Coffee or milk froth quality varies widely.	Build-up of limescale in the appliance.► Descale the appliance.
Milk froth quality varies widely.	Milk froth quality depends on the type of milk or plant-based alternative used.► Optimise the result through the selection of the milk or vegetable-based drink type.
Coffee is not dispensed or has slowed to a trickle.Set quantity is not reached.	Grinding level is set too fine.► Set a coarser grinding level.→ "Adjusting the grinding level", Page 48
	Heavy build-up of limescale in the appliance.► Descale the appliance.
	Air is in the water filter.1. Immerse the water filter in water with the opening facing upwards until no more air bubbles escape.2. Reinsert the filter.
	Appliance is soiled.► Clean the brewing unit.► Descale and clean the appliance.
Coffee has no crema. Type of coffee is not optimal.► Use a coffee variety with a higher proportion of Robusta beans.► Use beans with a darker roast.
Coffee is too acidic. Grinding level is set too coarse.► Adjust the grinder to a finer setting.→ "Adjusting the grinding level", Page 48
Coffee is too acidic. ▶ Use beans with a darker roast.
Coffee is too bitter. Grinding level is set too fine. ▶ Set a coarser grinding level. → "Adjusting the grinding level", Page 48
Type of coffee is not optimal. ▶ Change the coffee variety.
Coffee tastes burnt. Grinding level is set too fine. ▶ Set a coarser grinding level. → "Adjusting the grinding level", Page 48
Type of coffee is not optimal. ▶ Change the coffee variety.
Brewing temperature is too high. ▶ Set the brewing temperature lower.
Coffee grounds are not compact and are too wet.	The grinding level is not set optimally. ▶ Adjust the grinder to a coarser or finer setting. → "Adjusting the grinding level", Page 48
	Coffee beans are too oily. ▶ Use a different type of bean.
Display shows "Please insert brewing unit.".	Cover is wrongly inserted.1. Check whether the brewing unit is inserted correctly and is securely locked.2. Push the red lever up to the left.3. Insert the brewing unit cover.
Display shows "Please fill water tank." despite the fact that the water tank is full.	Water tank is wrongly inserted. ▶ Insert the water tank correctly.
	Carbonated water is in the water tank. ▶ Fill the water tank with fresh drinking water.
	Float is stuck in the water tank.1. Remove the water tank.2. Clean the water tank thoroughly.
	New water filter was not rinsed as per instructions.1. Rinse the water filter according to the instructions.2. Place the water filter into operation.
	Air is in the water filter.1. Immerse the water filter in water with the opening facing upwards until no more air bubbles escape.2. Reinsert the filter.
	Water filter is old.
Display shows "Please fill water tank." despite the fact that the water tank is full.	Insert a new water filter.
	Limescale deposits in the water tank are blocking the system.1. Clean the water tank thoroughly.2. Start the descaling programme.
Display shows "Please clean brewing unit.".	Brewing unit is soiled.Clean the brewing unit.
	Mechanism of brewing unit is stiff.Clean the brewing unit.
Display shows "Over-voltage or under-voltage".	There are problems with the power supply.Only operate the appliance at 220 - 240 V.
Display shows "Error in water system.Please restart appli-ance.".	Appliance has a fault.Pull out the mains plug and wait 60 seconds.Re-insert the mains plug.
Display very frequently shows "Please run calc'nClean pro-gramme!".	Decalcified water still contains small amounts of lime.Insert a new water filter.Set the corresponding water hardness.
	Incorrect or too little descaling agent used.When descaling, only use suitable tablets.
	Service programme has not been carried out in its en-tirety.Start the "Special rinsing" service programme.→ "Service programmes", Page 55

16 Transportation, storage and disposal

of used appliances as applicable throughout the EU.

16.1 Activating frost protection

Protect your appliance from frost during transport and storage.

ATTENTION!

Residues of liquid in the appliance may damage it during transport or storage.

▶ Empty the pipe system before transport or storage.

1. Run the "Frost protection" programme.
2. Disconnect the appliance from the power supply.

16.2 Disposing of old appli- ance

Valuable raw materials can be re-used by recycling.

1. Unplug the appliance from the mains.
2. Cut through the power cord.
3. Dispose of the appliance in an environmentally friendly manner. Information about current disposal methods are available from your specialist dealer or local authority.

This appliance is labelled in accordance with European Directive 2012/19/EU concerning used electrical and electronic appliances (waste electrical and electronic equipment - WEEE). The guideline determines the framework for the return and recycling

17 Customer Service

Function-relevant genuine spare parts according to the corresponding Eco-design Order can be obtained from Customer Service for a period of at least 7 years from the date on which your appliance was placed on the market within the European Economic Area.

Note: Under the terms of the manufacturer's warranty the use of Customer Service is free of charge.

Detailed information on the warranty period and terms of warranty in your country is available from our after-sales service, your retailer or on our website.

If you contact Customer Service, you will require the product number (E-Nr.), the production number (FD) and the consecutive numbering (Z-Nr.) of your appliance.

The contact details for Customer Service can be found in the enclosed Customer Service directory or on our website.

17.1 Product number (E-Nr.), production number (FD) and consecutive numbering (Z-Nr.)

You can find the product number (E-Nr.), the production number (FD) and the consecutive numbering (Z-Nr.) on the appliance's rating plate.

Make a note of your appliance's details and the Customer Service telephone number to find them again quickly.

18 Technical specifications

Voltage 220-	240 V ~
Frequency 50 Hz
Connection rating 1500 W
Maximum static pump pressure	20 bar
Maximum capacity of water tank (without filter)	2,6 l
Maximum capacity of bean container	350 g
Length of the power cable	100 cm
Appliance height 38 cm
Appliance width 30 cm
Appliance depth 46,7 cm
Weight, empty 9 kg
Type of grinder Ceramic

This product contains light sources from energy efficiency classes D and F. These light sources are available as spare parts and may only be replaced by trained specialist staff.

18.1 Information regarding Free and Open Source Software

This product includes software components that are licensed by the copyright holders as free or open source software.

The applicable licence information is stored on your home appliance. You can also access the applicable licence information via your

Home Connect app: "Profile -> Legal

information -> Licence Information".¹ You can download the licence information on the brand product website. (Please search on the product website for your appliance model and additional documents). Alternatively, you can request the relevant information from oss-

The source code will be made available to you on request.

Please send your request to [e-mail] or BSH Hausgeräte GmbH, Carl-Wery-Str.34, 81739 Munich, Germany.

Subject: „OSSRÉQUEST“

The cost of performing your request will be charged to you. This offer is valid for three years from the date of purchase or at least as long as we offer support and spare parts for the relevant appliance.

19 Declaration of Con- formity

BSH Hausgeräte GmbH hereby declares that the appliance with Home Connect functionality conforms to the essential requirements and other relevant provisions of Directive 2014/53/EU.

A detailed RED Declaration of Conformity can be found online at siemens-home.bsh-group.com among the additional documents on the product page for your appliance.

Hereby, BSH Hausgeräte GmbH declares that the appliance with Home Connect functionality is in compliance with relevant statutory requirements. ^1 A detailed Declaration of Conformity can be found online at siemens-home.bsh-group.com/uk/ among the additional documents on the product page for your appliance. ^1

2.4 GHz band (2400–2483.5 MHz): Max. 100 mW 5 GHz band (5150–5350 MHz + 5470–5725 MHz): max. 200 mW

19.1 Statement of Compliance for Great Britain

The full Statement of Compliance according to the Product Security and Telecommunications Infrastructure (Security Requirements for Relevant Connectable Products) Regulations 2023 can be found online at www.siemens-home.bsh-group.com/uk/home among the additional documents on the product page for your appliance.

Product type

This statement of compliance covers the products described in this information for use whose model identifier group is seen on the title page. The full model identifier is made up of the characters before the slash in the product number (E no.) which can be found on the rating plate. Alternat-

ively, you can also find the model identifier in the first line of the UK Energy Label.

Name and address of manufacturer

BSH Hausgeräte GmbH, Carl-Wery-Strasse 34, 81739 München, Germany This statement of compliance is prepared by the manufacturer. The manufacturer, BSH Hausgeräte GmbH deems that it has complied with

■ provision 5.1-1 of ETSI EN 303 645 v2.1.1 and, where relevant, provision 5.1-2 of ETSI EN 303 645 v2.1.1;
■ provision 5.2-1 of ETSI EN 303645 v2.1.1;
■ provision 5.3-13 of ETSI EN 303645 v2.1.1.

en Declaration of Conformity

Support period

BSH Hausgeräte GmbH will provide security updates that are necessary to maintain the main functions free of charge until at least 28/02/2034.

QR code image containing encoded data, no visible human-readable text

Table des matières

1 Sécurité.... 69

Illustration of a roof structure with cloud patterns and ventilation ducts (no text or symbols)

QR code image containing encoded data, no visible human-readable text

Four symbolic icons: a rolled document, a rectangular block, a rolled paper, and a textured surface with blue X marks (no text or labels)

Conseils

usagés (waste electrical and electronic equipment - WEEE).

QR code image containing encoded data, no visible human-readable text

Indice

1 Sicurezza 102

Illustration of a roof structure with cloud patterns and ventilation ducts (no text or symbols)

7.3 doubleShot e tripleShot

7.4 Slow Brew e Cold Brew

QR code image containing encoded data, no visible human-readable text

Four symbolic illustrations: a rolled document, a rectangular block with X marks, a rolled parchment, and a textured surface (no text or symbols)

Consigli

Valid within Great Britain:

Imported to Great Britain by

BSH Home Appliances Ltd.

Grand Union House

Old Wolverton Road

Wolverton, Milton Keynes

MK12 5PT

United Kingdom

BSH Hausgeräte GmbH

Carl-Wery-Straße 34

81739 München, GERMANY

siemens-home.bsh-group.com

8001320856 (040607)

de, en, fr, it
