USER MANUAL highpod Phil & Teds

Line drawing of a robotic steering wheel with no text or symbols

highpod™

IMPORTANT! KEEP FOR FUTURE REFERENCE.

Congratulations on choosing the phil&teds highpod, the world's first certified newborn-friendly feed & snooze high chair that really grows with your child.

Please read the instructions carefully before use of your highpod and keep them for future reference.

The highpod has attained the following safety standards:

EN 14988:2006

ASTM F404-08

AS 4684-2009

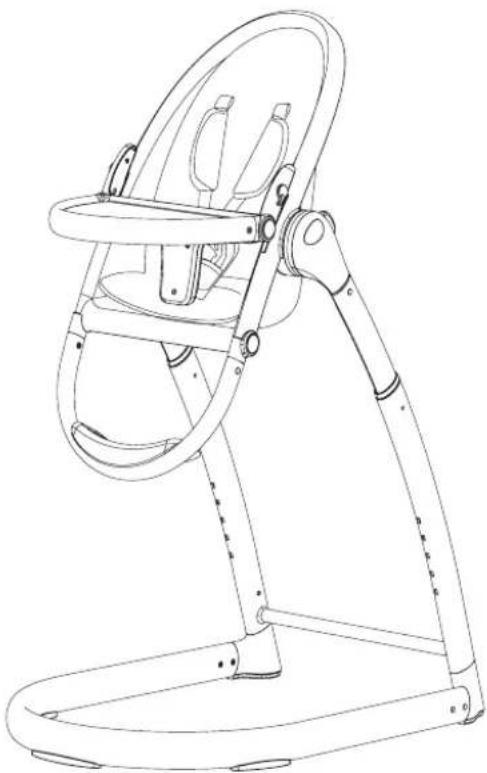

Line drawing of a modern chair with adjustable arm and seat (no text or symbols)

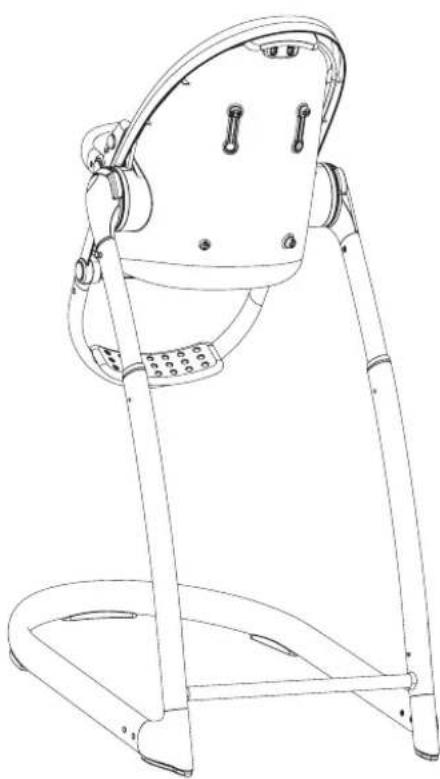

Line drawing of a baby boom chair with steering wheel and adjustable arm (no text or symbols)

highpod™

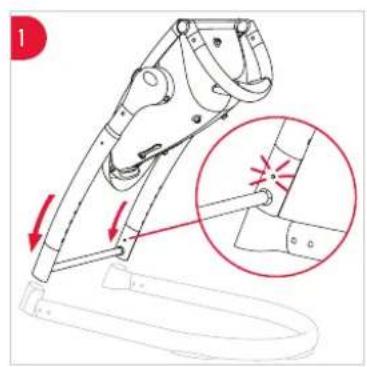

Technical diagram showing a mechanical device with red arrows indicating motion and a magnified inset highlighting a joint detail.

Diagram of a mechanical linkage or lever mechanism with red arrows indicating motion direction (no text or symbols)

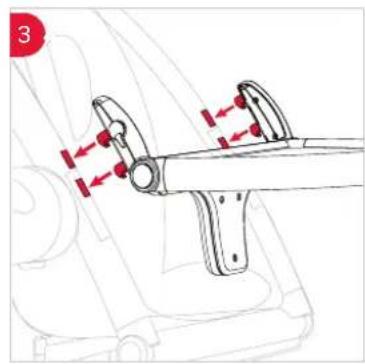

3

Diagram of a mechanical device with a red arrow indicating downward motion (no text or symbols)

Line drawing of a bicycle steering wheel with hands adjusting the seat (no text or symbols)

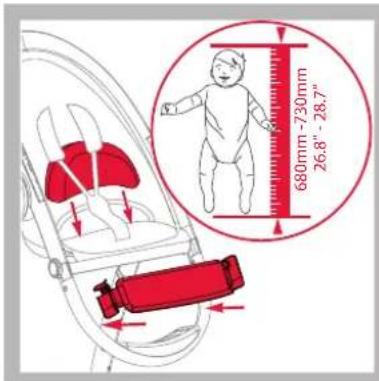

680mm -730mm 26.8" - 28.7"

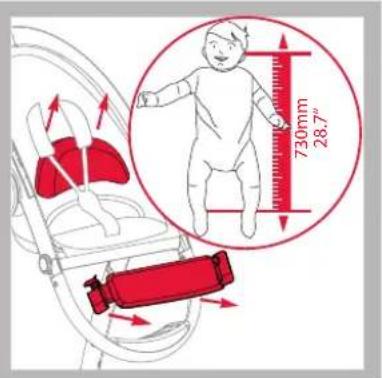

730mm 28.7°

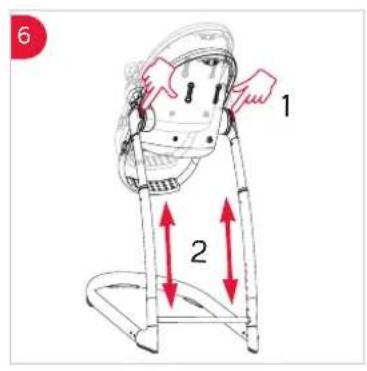

6 1 2

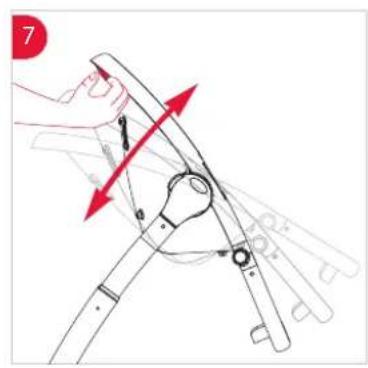

7

8

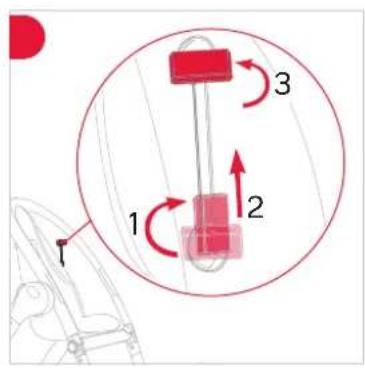

1 2 3

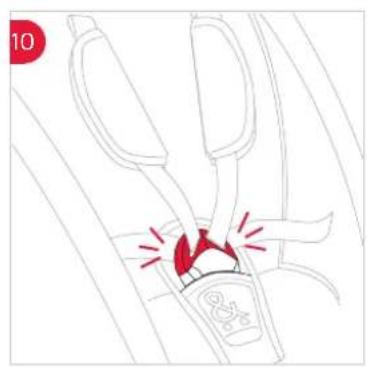

Line drawing of a car seatbelt with red stress lines indicating stress or shock (no text or symbols)

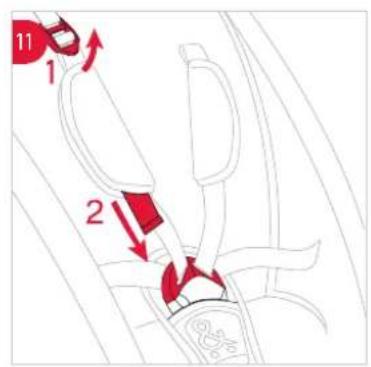

11 1 2

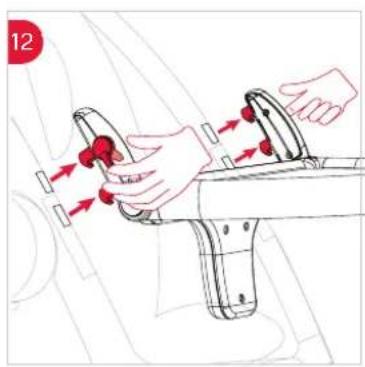

12

1 2

highpod™

General Instructions:

Your highpod has 3 seat positions.

IMPORTANT only use for children within the recommended ages and weighing no more than the weights stipulated below;

max. 20kg/44lbs max

upright

0kg/44lbs max. 7kg/16lbs

layback sleepy

Line drawing of a mechanical device with a curved handle and lever mechanism (no text or symbols)

• upright – for feeding fiestas. Not recommended for newborns.
• layback – ideal for bottle feeding. Not recommended for newborns.

Use only when child can sit upright unassisted from approximately 6 months to 4 years.

- sleepy – for the newborn feeding frenzy, ideal for bottle feeding and the newborn post fiesta-siesta! Newborn to approximately 6 months. Not recommended for older or heavier children.

IMPORTANT Make sure the seat is locked in position before placing a child in the seat.

IMPORTANT Do not adjust the seat position with a child in the seat.

IMPORTANT Do not allow a child to stand on the footrest.

add & adapt

Other stuff that works fantastically with highpod:

• snack attack™ (extra large food tray for highpod™)
  • high heels™ (fit-to-frame footrest for highpod™)
• lumbar jack™ (lumbar control insert for highpod™)

cleaning & caring

The once over

Check the highpod for cuts & bruises. If your highpod is damaged in any way, or you're not sure how to use it, contact your retailer immediately.

Caring for highpod

Unlike children, your highpod likes to stay clean. In case of little accidents, sponge wipe with warm water and a mild detergent. Do not submerse the highpod, its seat or tray in water. Do not use any solvents or bleach based products as these may harm the materials or your child. Dry your highpod thoroughly before use or storage. Store in a well ventilated space, away from direct sunlight which could damage or fade your highpod's colourful coat.

The food tray cover can be washed, either by hand using warm water and mild detergent or placed in a dishwasher. Brush off dirt from the seat insert. For more intense cleaning: hand wash in warm water only. Do not use detergents. Do not bleach. Air dry out of direct sunlight.

NOTE Improper care will void any warranties. Do not use the highpod if deterioration is detected or suspected. Contact us if you are unsure.

rights & remedies

*Consumers may have extra rights in some countries or states.

Our products are warranted against defects in materials and workmanship for one year from the date of purchase. If the product has a manufacturing fault we will repair it free of charge. If not practical to repair it, we will, at our discretion, replace the part in question. If the product fails due to wear and tear, accident, neglect or negligence, or is outside the warranty, we will happily repair it for a reasonable charge.*

Who is covered? The original purchaser buying product from an authorised dealer in the same country as the purchaser. Proof of purchase is required.

What is covered? Workmanship or materials that are deemed by us to be faulty, providing the product has at all times been used in normal conditions in accordance with instructions, and has been properly maintained.

What is not covered? Second hand product, modified product, poorly maintained product, normal wear, fading and fabric cuts, improper use (by way of example): abnormal use; not following instructions; child left unattended; excessive load; transport damage i.e. airline or freight damage.

highpod™

Customer costs within warranty. The customer is responsible for any inwards freight charge to return the product to the manufacturer or its representative for warranty and/or service.

Customer costs outside warranty. Where proof of purchase is not provided or the product is outside of the one year warranty period, the manufacturer (or agent) reserves the right to charge a service fee and/or charge for parts replaced/ repaired. A return freight charge will also apply.

Exclusions. Any consequential loss or damage to any person or property directly or indirectly as a result of using the product.

Who do I contact? Consult the service and warranty section of the phil&teds website (www.philandteds.com/warranty) which guides you through the warranty claim process. Note: you will need to provide proof of purchase.

log on & relax

Please register your product purchase through our online product registration by visiting

www.philandteds.com

WARNINGS

IMPORTANT: Use only for children within the recommended ages and weights stipulated below; Upright & layback positions – for use when child can sit up unaided (approx. 6 months), until 20kg/44lbs (approx. 4 years)

Sleepy position – newborn up to 7kg/16lbs (approx. 6 months)

IMPORTANT: Do not allow a child to stand on the footrest

WARNINGS

European Safety Standard (EN 14988:2006) states:

WARNING

Do not leave the child unattended

WARNING

Make sure the child safety harness is securely fastened and correctly adjusted at all times.

WARNING

Do not use the high chair unless all components are correctly fitted and adjusted.

WARNING

Be aware of the risk of open fires, gas and electric heaters, and other sources of strong heat in the vicinity of your high chair.

WARNING

Do not use the high chair in the upright or layback positions until the child can sit up unaided.

WARNING

Do not use the high chair if any part is broken, torn or missing.

WARNINGS

American Safety Standard (ASTM F404-08) states:

WARNING

Prevent serious injury or death from falls or sliding out.

WARNING

Always secure the child in the restraint. Making sure the safety harness is securely fastened and correctly adjusted.

WARNING

Never leave child unattended.

WARNING

The child should be secured in the high chair at all times by the restraining system, either in the sleepy, layback or upright position. The tray is not designed to hold the child in the chair. It is recommended that the high chair be used in

highpod™

the upright or layback position only by children capable of sitting upright unassisted.

WARNINGS

Australian Safety Standard (AS 4684-2009) states:

WARNING

FOLLOW THE MANUFACTURER'S INSTRUCTIONS

DO NOT LEAVE CHILDREN UNATTENDED

THE HARNESS MUST ALWAYS BE USED AND CORRECTLY FITTED – MOST INJURIES FROM HIGH CHAIRS ARE CAUSED BY FALLS.

POSITION THE HIGH CHAIR AWAY FROM SOLID STRUCTURES AND BENCHES TO AVOID INJURIES CAUSED BY FALLS AND BY ACCESS TO DANGEROUS ITEMS.

WARNING

Always use on a flat, even and horizontal floor. Do not elevate the high chair on any structure or table.

WARNING

To reduce the risk of injury position the high chair away from furniture, walls, hot surfaces and liquids, window covering cords and electrical cords. Position the high chair away from furniture when the chair is not being used at a table with a tray removed.

WARNING

The high chair should only be used in the upright or layback position once the child is capable of reliably and consistently sitting upright.

snack attack™ extra large food tray (sold separately) high heels™ lit-to-frame footrest (sold separately) lumbar jack™ lumbar control insert (sold separately) see www.philandteds.com

1 Telescoping legs

2 Height adjuster

3 Seat pad

4 Harness adjuster

5 Seat angle adjuster

6 Footrest

7 Footwell adjuster

8 Tray

9 Food tray small

10 Food tray latch lever

highpod™

IMPORTANT! CONSERVEZ CETTE NOTICE POUR UNE CONSULTATION ULTERIEURE

Line drawing of a mechanical device with a curved handle and lever (no text or symbols)

Line drawing of a mechanical device with a curved handle and lever (no text or symbols)

Line drawing of a mechanical device with a curved handle and lever (no text or symbols)

Line drawing of a desk lamp with adjustable arm and base (no text or symbols)
