USER MANUAL lobster Phil & Teds

lobster™ instructions

Red stylized illustration of a hat and tree on a hillside (no text or symbols)

so you chose a lobster™? fine choice I must say!

Red silhouette illustration of a rabbit sitting on a slope with a seesaw in the background (no text or symbols)

IMPORTANT! READ CAREFULLY AND KEEP FOR FUTURE REFERENCE.

Please read thoroughly before assembly and use.

the lobster™ seat is designed for children who are sitting up on their own unaided, up to approx three years of age.

• maximum load EN standard – 15kg / 33lbs
• maximum load ASTM standard – 16.8kg / 37lbs
• maximum clamp height – 95mm / 3.7"
- minimum clamp height – 20mm / 0.8"

please register your product

purchase online now at

philandteds.com/register

cleaning & caring

check lobster™ for cuts & bruises. if your product is damaged in any way, or you're not sure how to use it, please consult our web support (www.philandteds.com/support). here you can get in touch with a local customer care team, made of real live people.

caring for lobster ^TM

unlike children, your lobster™ likes to stay clean.

• brush off dirt. hand wash in warm water only. let it air dry in shade.
• do not store the lobster ^TM when wet. do not wash fabric with harsh soap, solvents, bleach or detergents which may harm the lobster ^TM materials.
• store in a well ventilated space, away from direct sunlight (which can harm & fade fabric), and moisture.
• improper care will void any warranties. do not use the lobster ^TM if deterioration is detected or suspected.

important information

• before loading a child for the first time familiarise yourself with all fittings & straps.
• do not use tablecloths, place mats or other objects on the 'table' surface as these might interfere with the effectiveness of the lobster™ clamps.

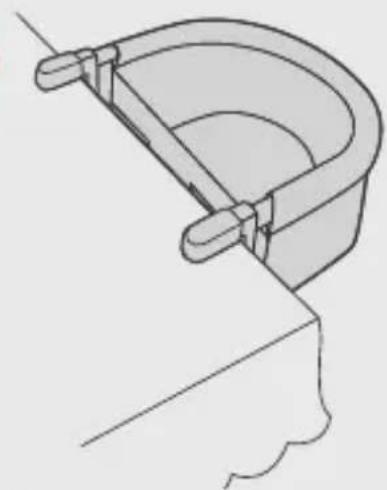

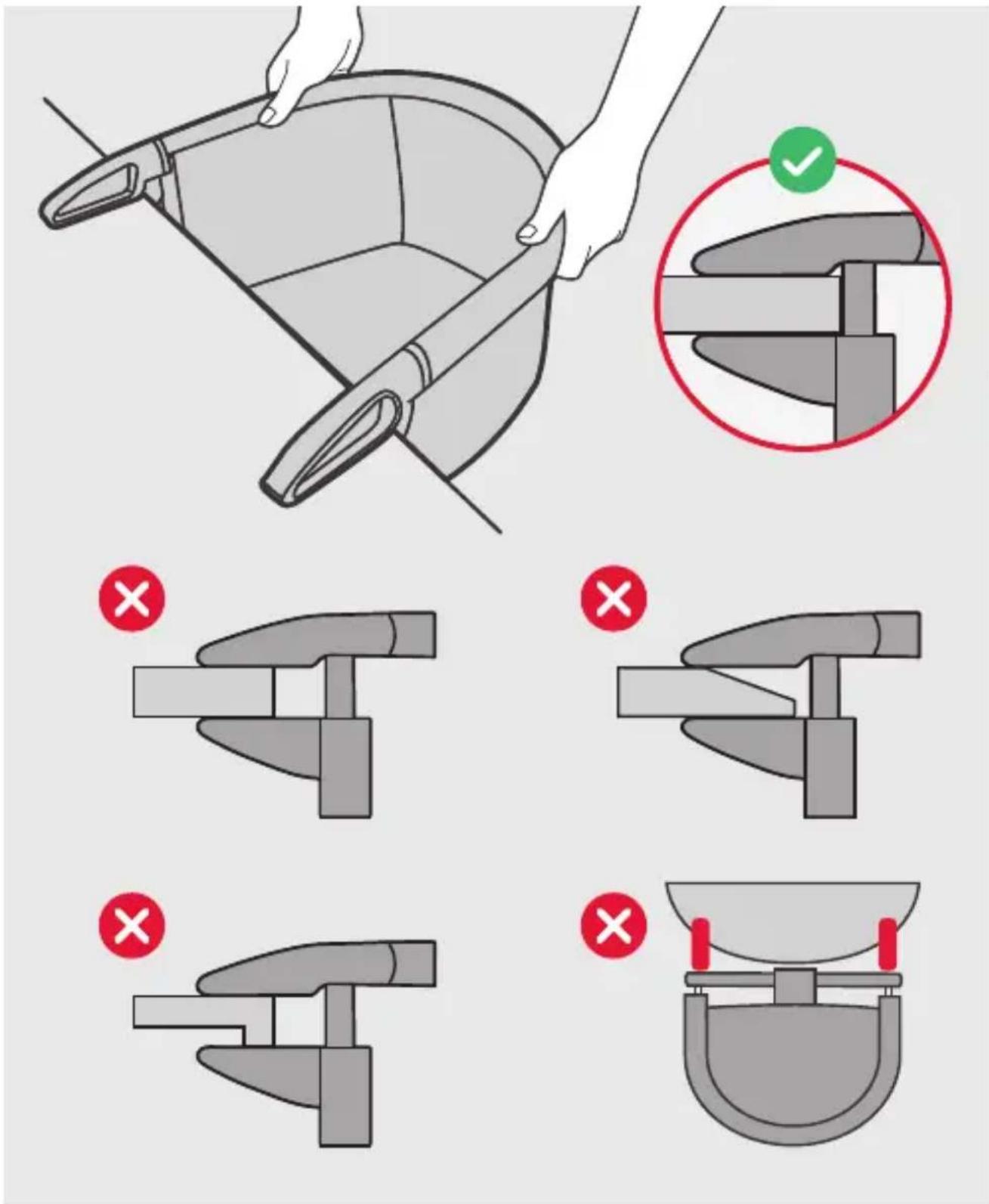

• only use on tables where both the upper and lower parts of the clamps make full contact with the table surfaces.
• the person in charge bears the responsibility for attaching the lobster™ seat firmly to a safe and stable structure, and securely fastening the child safety harness buckle.
• the lobster ^TM seat is designed for children who are sitting up on their own unaided, up to approx three years of age and recommended for children up to 15kg / 33lbs (EN standard) and recommended for children up to 16.8kg / 37lbs (ASTM standard).

WARNINGS

European safety standard

• Never leave the child unattended. • Always use the child restraint and table attachment systems. • Always check the security and the stability of the product before use.
  • Maximum weight: 15 kg • This product is intended for children able to sit up unaided. • Do not use tablecloths or other objects on the table that might interfere with the proper functioning of the anchoring elements. Keep the table structure and surface clean and dry. • Routinely check any clamping devices and tighten them if required.
• Do not use the product if any components are broken or missing.
• Do not use accessories or replacement parts other than those approved by the manufacturer or distributor.
• Do not attach the product where the child might use its feet to push against a part of the table,

another chair or any other structure as this could cause the product to come off the table. • This product is not suitable for use with all tables. Do not use with glass-topped tables, tables with loose table tops, table leaves, single pedestal tables, card tables, camping tables or any other table that does not offer sufficiently stable support. • Check that the table will not tip over when the product, attached to it, is in use. • Minimum thickness of support surface 20mm (approx 0.8 inches). • Maximum thickness of support surface 95mm (approx 3.7 inches). • The table mounted chair shall not be used by children weighing more than 15kg/33lbs. • Keep packaging materials away from children.

WARNINGS

American safety standard states:

• Discontinue use if hook-on chair is broken. Contact manufacturer immediately for replacement parts or service. • Do not use without all tips attached securely to table surface. • Discontinue use if child, when seated in hook-on chair, is able to move the hook-on chair arms on the table top. • Do not allow other children to play near or walk under hook-on chair while in use.
• Before removing child from hook-on chair, be sure child's legs are free from hook-on chair supports.
• Keep table and seat clean and dry to prevent slipping.

WARNINGS

Failure to follow all warnings and instructions could result in serious injury or death.

Fall Hazard. To prevent falls:

- ALWAYS use restraints. Adjust to fit snugly. • Keep child in view. • To prevent tipover, check stability of table before and after seating child.

- NEVER use with:

× glass table top × loose table top × table leaf × card table × single pedestal table × table cloths or place mats.

- Child can use nearby structures to kick or push chair off table or counter.

- NEVER use hook-on chair:

× with ordinary chair underneath × in reach of table legs × near island below countertop

Use only for:

- Child who can sit upright without help. • Child up to 37lbs / 16.8kg. • Tables 0.8 to 3.7" thick (20 to 95mm).

Red stylized illustration of a hat and tree on a hillside (no text or symbols)

Red silhouette illustration of a rabbit sitting on a slope with a seesaw in the background (no text or symbols)

Red stylized illustration of a hat and tree on a hillside (no text or symbols)

Red silhouette illustration of a rabbit sitting on a slope with a seesaw in the background (no text or symbols)

Red stylized illustration of a hat and tree on a hillside (no text or symbols)

Red silhouette illustration of a rabbit sitting on a slope with a seesaw in the background (no text or symbols)

Red stylized illustration of a hat and tree on a hillside (no text or symbols)

Dus je hebt een

lobster™ gekozen?

Goede keus!

Red silhouette illustration of a rabbit sitting on a slope with a seesaw in the background (no text or symbols)

European Safety Standard:

Technical diagram of a car steering wheel with numbered parts and component annotations in Chinese

1 shoulder adjustment clips (found inside shoulder padding)

2 claws

3 velcro tabs

4 food tray

5 rubber support pads

6 harness buckle

7 fabric seat

8 handles

9 recyclable carry bag

Line drawing of a small toy car with wheels and handle (no text or symbols)

A

EN standard max load

15kg / 33lbs

ASTM standard max load

16.8kg / 37lbs

1

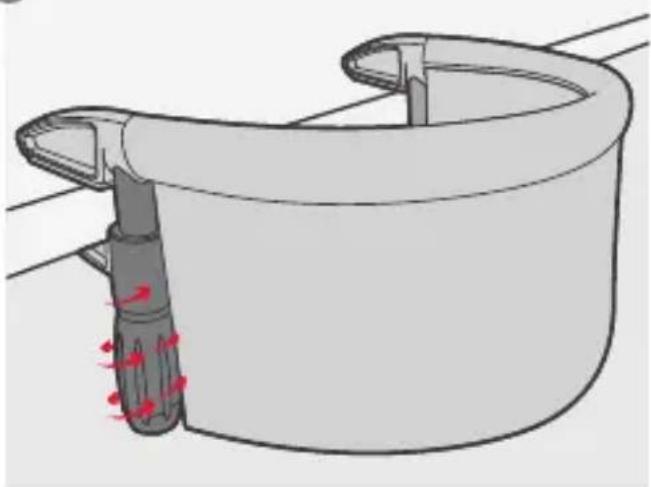

Illustration of a robotic hand gripping a device with red directional arrows indicating motion (no text or symbols)

2

Diagram of a mechanical device with red arrows indicating motion or force direction (no text or symbols)

3

Diagram illustrating car seatbelting mechanism with red arrows indicating rotation and movement steps

4

Diagram of a mechanical component with red arrows indicating motion or force direction (no text or symbols)

5

3D diagram of a mechanical component with red arrows indicating force or motion, no text or symbols present

×

Simple line drawing of a U-shaped clamp or clamp device with a rectangular base, no text or symbols present.

×

Line drawing of a mechanical clamp or bracket with a curved handle and flange, no text or symbols present

×

Simple line drawing of a folding table with four legs (no text or symbols)

×

Simple line drawing of a four-legged table with legs and side supports, no text or symbols present.

×

Simple line drawing of a rectangular table with a circular base and a vertical rod (no text or symbols)

×

Line drawing of a simple four-legged table with no text or symbols

×

Line drawing of a simple four-legged table with no text or symbols

1

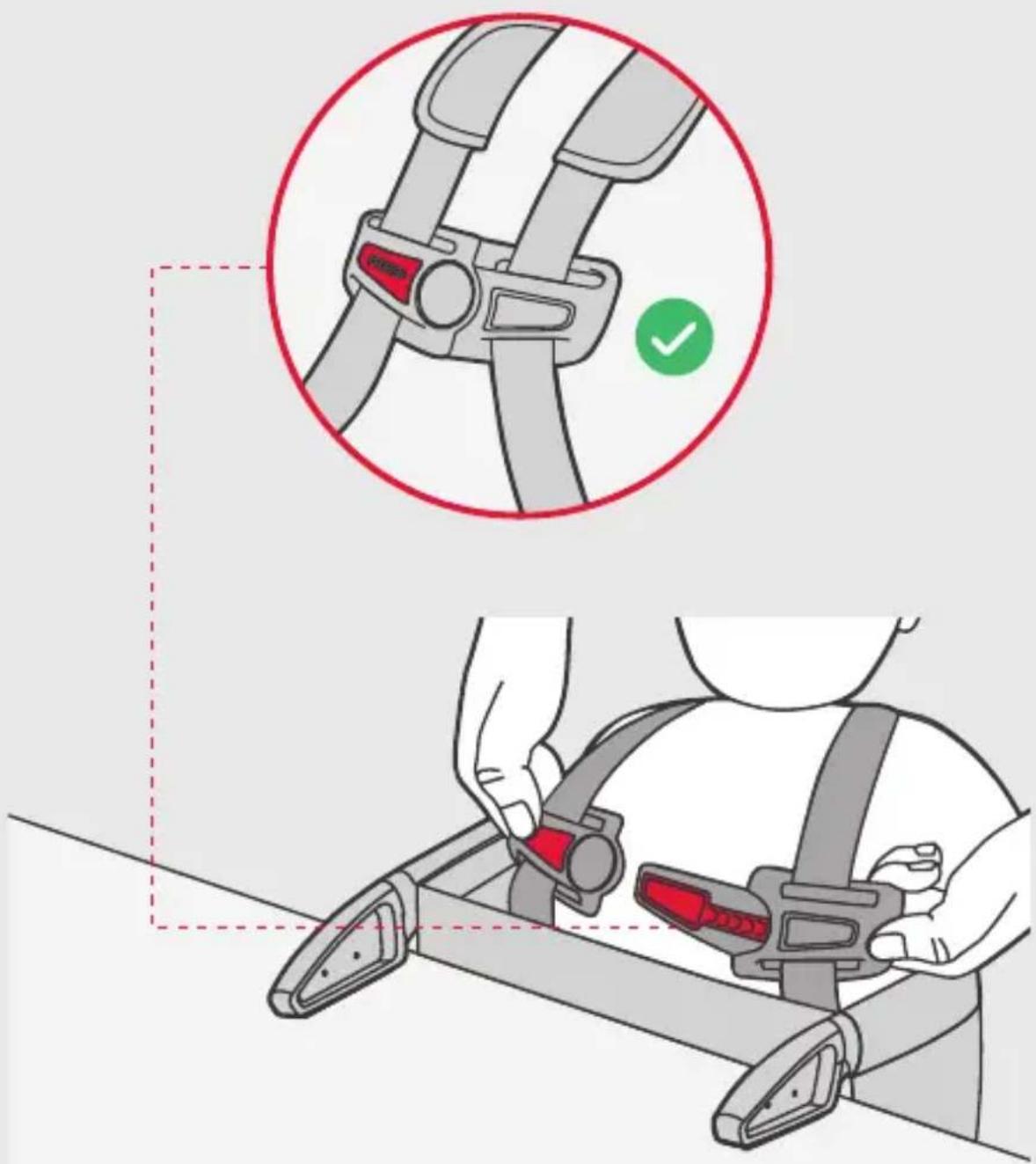

Diagram illustrating seatbelt adjustment with a magnified view showing the correct and incorrect states of the seatbelt.

1

Diagram illustrating the internal mechanism of a car seatbelt, showing rotation and clockwise movement with red arrows indicating direction.

2

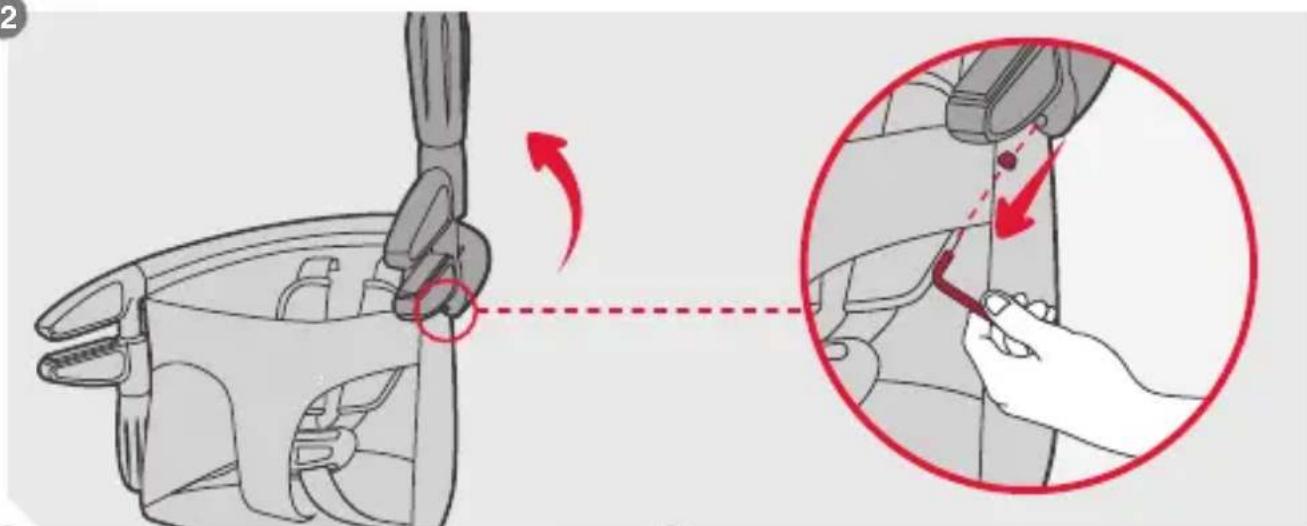

Diagram illustrating car interior adjustment with red arrows and dashed line indicating movement, showing hand positioning and tool path.

3

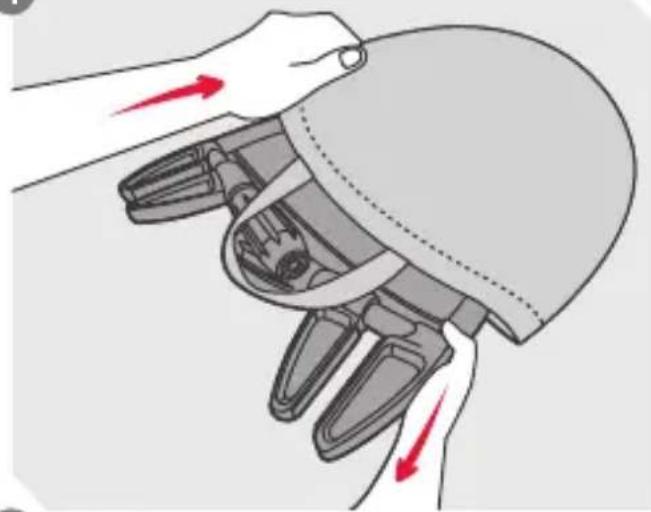

Illustration of a hand gripping a bag with a red arrow indicating motion (no text or symbols)

4

© Phil and Teds Most Excellent Buggy Company Ltd 2017.

We (Phil and Teds Most Excellent Buggy Company Ltd) own the intellectual property rights in our brands, designs and inventions featured in this publication. These include, without limitation, the Mountain Buggy, life without limit, and INLINE trade marks and product names. We actively pursue people who infringe our intellectual property.

©Phil & Teds Most Excellent Buggy Company Ltd 2017.

© Phil and Teds Most Excellent Buggy Company Ltd 2017.

© Phil and Teds Most Excellent Buggy Company Ltd 2017.

© Phil and Teds Most Excellent Buggy Company Ltd 2017.

© Phil and Teds Most Excellent Buggy Company Ltd 2017.

Designed in New Zealand. Made in China
