USER MANUAL sport v3 Phil & Teds

This document contains instructions and must be kept for future reference.

Please read thoroughly before use.

please register your product purchase online now at

philandteds.com/register

Red stylized illustration of a rabbit sitting on a hill with a wooden bench in the background (no text or symbols)

cleaning & caring

check sport™ for cuts & bruises. if your product is damaged in any way, or you're not sure how to use it, please consult our web support (www.philandteds.com/support). here you can get in touch with a local customer care team, made of real live people.

caring for sport™

unlike your children, your sport™ likes to stay clean.

- code brown got you down? never fear! sport ^TM fabric can be sponge cleaned with warm water, using mild natural soap. do not use detergents or bleach on sport ^TM .

- improper care will void any warranties. do not use sport ^TM if deterioration is detected or suspected.

-- important information

tyres & tubes

the valve is car-size. manually inflate to 20 - 22psi max. releasing air gives a softer ride but lower pressure reduces tread life.

new inner tubes & tyres are generally available (2 1/4" x 12 1/2" tyre) from your dealer, cycle or specialist wheel shops. standard tyre kits can repair punctures.

a flat tyre can result from grit holding the valve open; to check: inflate tyre, deflate rapidly, & re-inflate.

tyres & tubes are not under warranty. do not over inflate. tyre pressure is affected by heat especially when inside parked cars.

for more information on caring for your sport™, visit philandteds.com/support

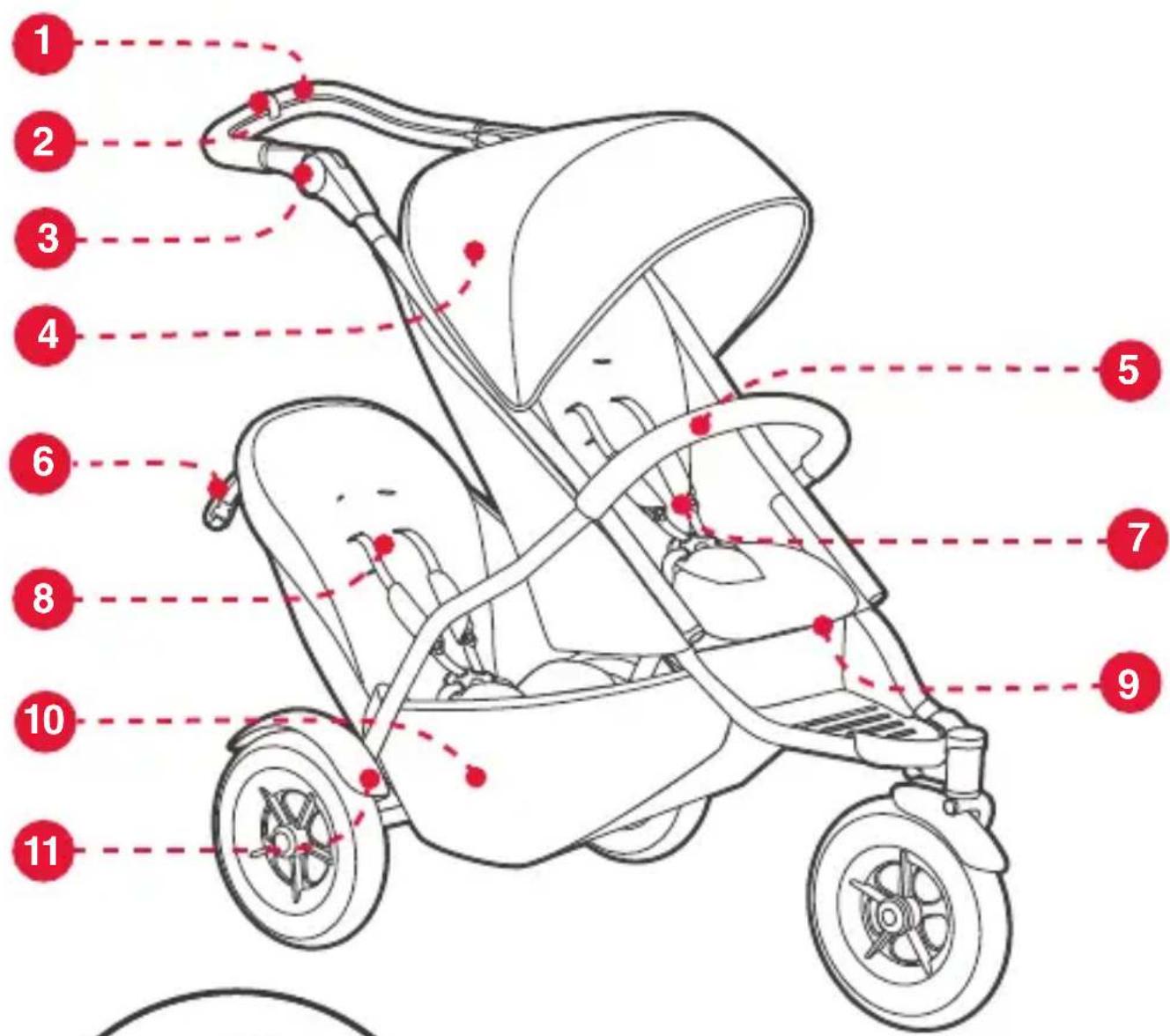

Diagram of a stroller with numbered parts for identification and positioning reference

12 13

1 handlebar
2 brake off clip
3 handle bar adjustor
4 sunhood
5 grab bar
6 retaining strap
7 harness
8 double kit
9 single hand fold
10 parcel tray
(5kg / 11lbs)
11 mud guards

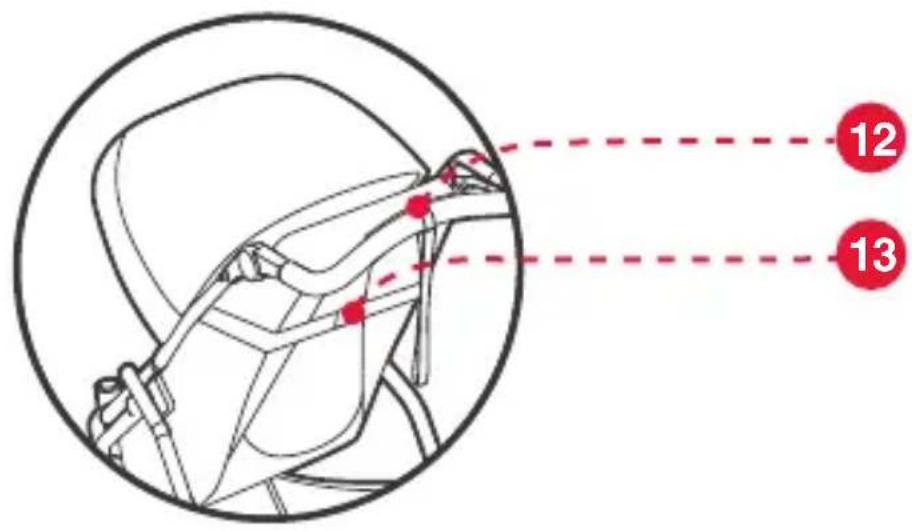

12 auto stop brake lever

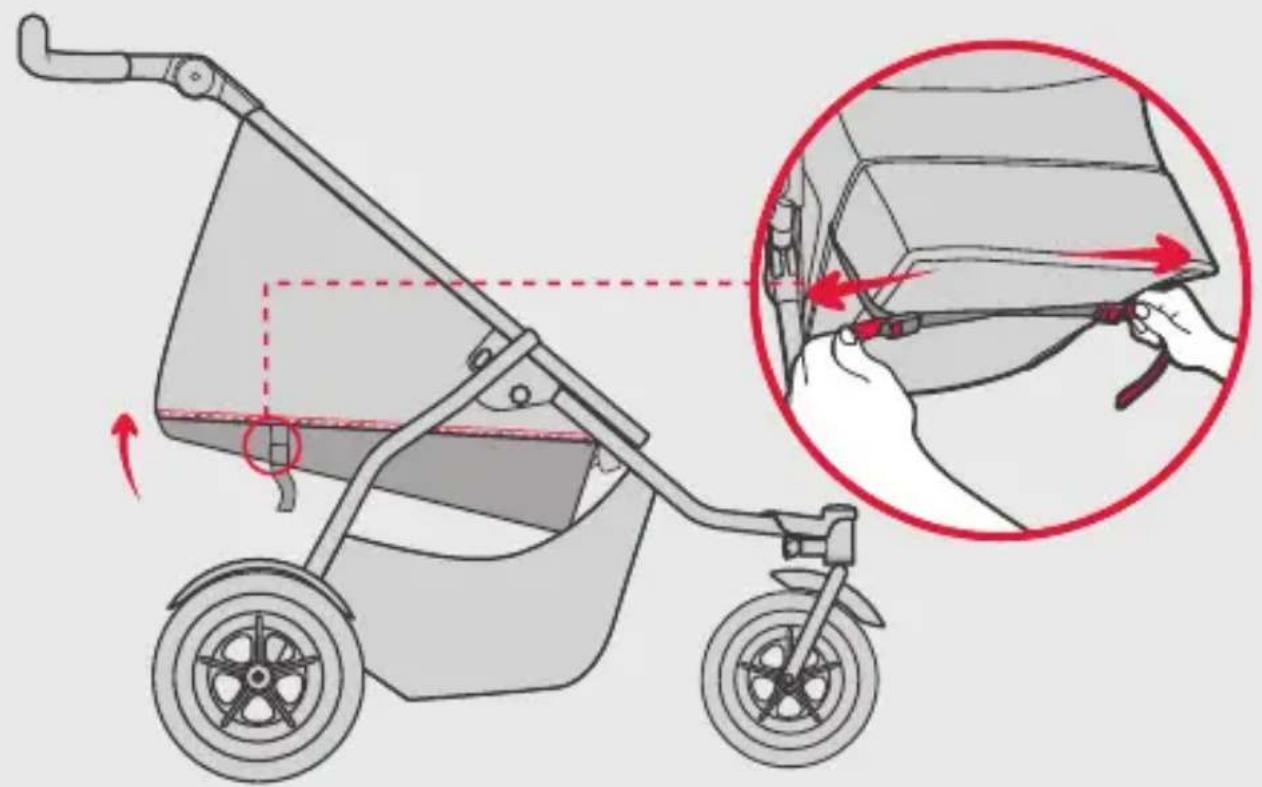

13 recline strap

1 Guidon

10 Canastilla (5kg / 11lbs)

11 protectores traseros

10 Boodschappenmandje (5kg / 11lbs)

11 Zit-positie verstelriem

Line drawing of a two-wheeled stroller with wheels and handle (no text or symbols)

B

max load

9kg / 20lbs

C1 C2

C

C1

max load

20kg / 44lbs

C2

max load

9kg / 20lbs

D1 D2

Red circular logo with a white stylized 'E' or exclamation mark (no text or symbols)

max load

20kg / 44lbs

max load

15kg / 33lbs

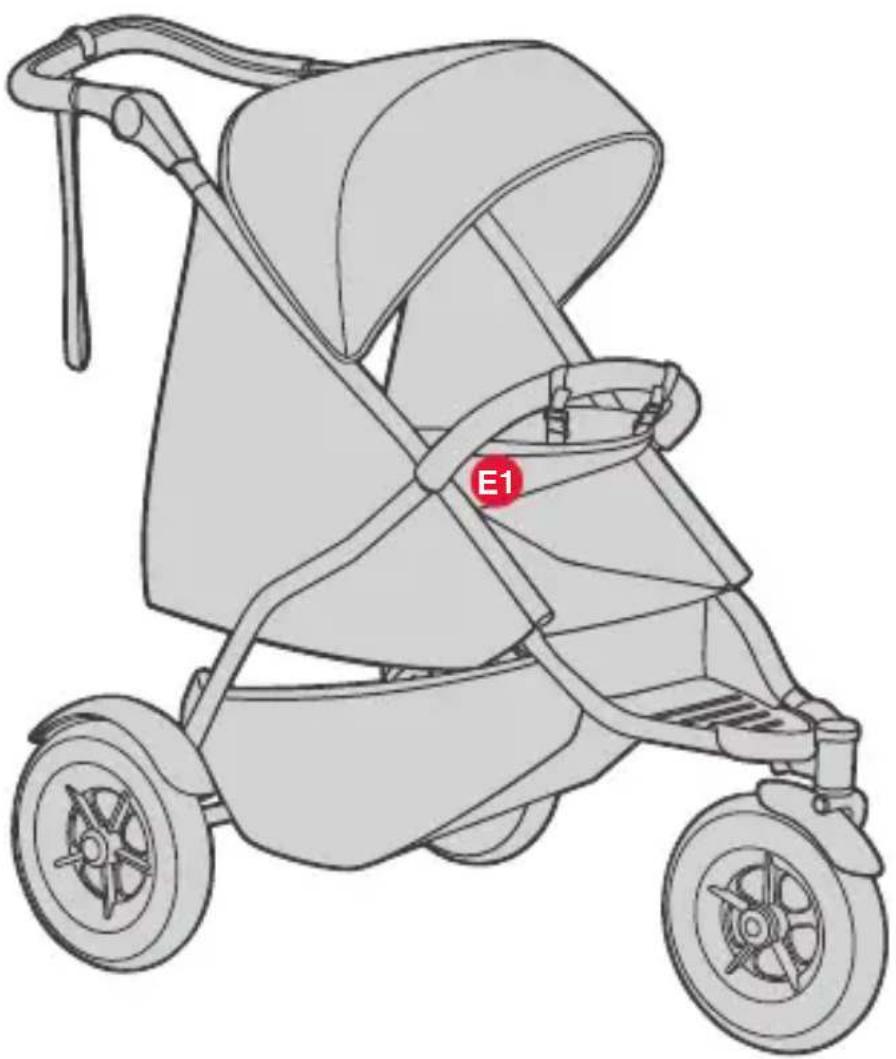

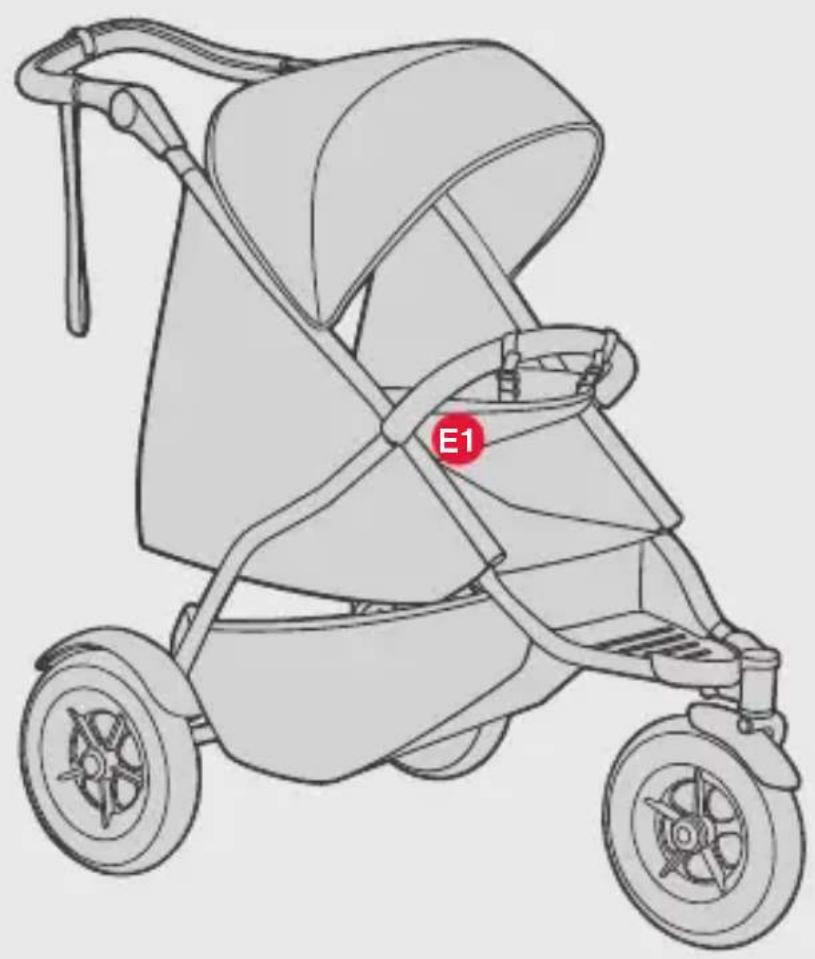

Line drawing of a two-wheeled stroller with a red circular label 'E1' on the side (no text or symbols on the device itself)

E

max load

12kg / 26lbs*

*parent facing mode

is for single use only

Exploded view diagram of car seat assembly and maintenance components (no text or labels)

1

Diagram illustrating a lock mechanism with red clamps and lock, showing step-by-step installation of the lock.

2

Illustration of a person using a balance scale device with a red curved arrow indicating motion (no text or symbols)

3

Illustration of a person using a mobility device with red arrows indicating motion (no text or symbols)

4

Technical line drawing of a mechanical assembly with articulated limbs and a curved base, no text or symbols present.

1

Diagram of a car seat assembly showing front and side views with red circles highlighting specific components (no text or labels)

2

2a 2b

3

X2

4

Diagram illustrating the use of a car seatbelt device with labeled parts and zoomed-in detail view

1

Technical diagram showing mechanical assembly with red arrows indicating motion and a magnified inset highlighting a specific component.

2

Diagram illustrating the use of a scooter seatbelt mechanism with red arrows indicating motion and a green checkmark highlighting the correct state.

3

Illustration showing a scooter with red buttons and a close-up of the wheel being locked, indicating mechanical adjustment or repair.

a

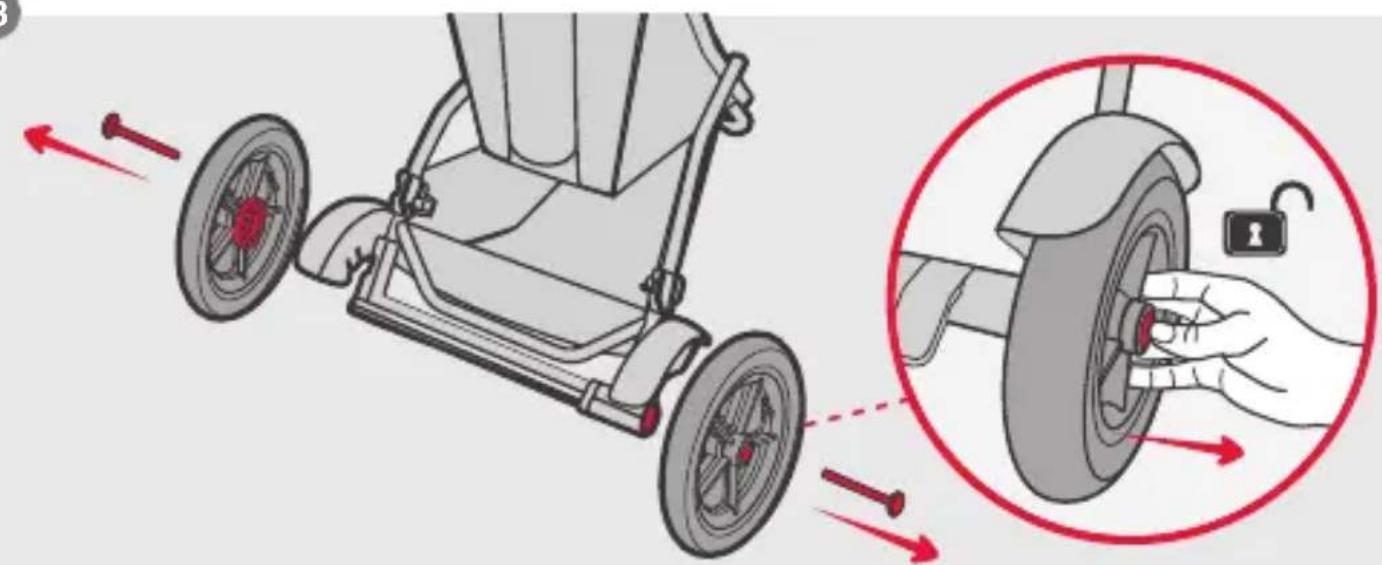

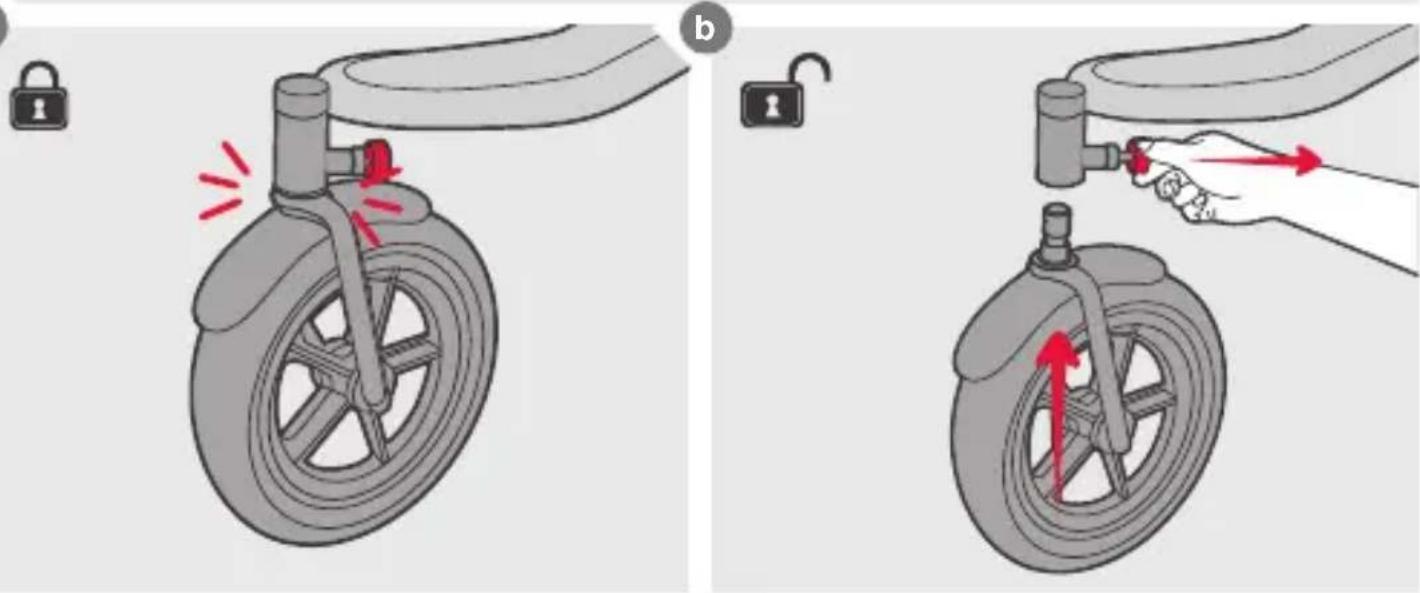

Diagram illustrating a lock mechanism and wheel assembly with labeled parts and red motion arrows

b

Diagram illustrating a mechanical assembly with lock and lock icon, showing a component being connected to a wheel with a red pin.

a

Illustration of a bicycle steering wheel with red motion arrows indicating clockwise motion (no text or symbols)

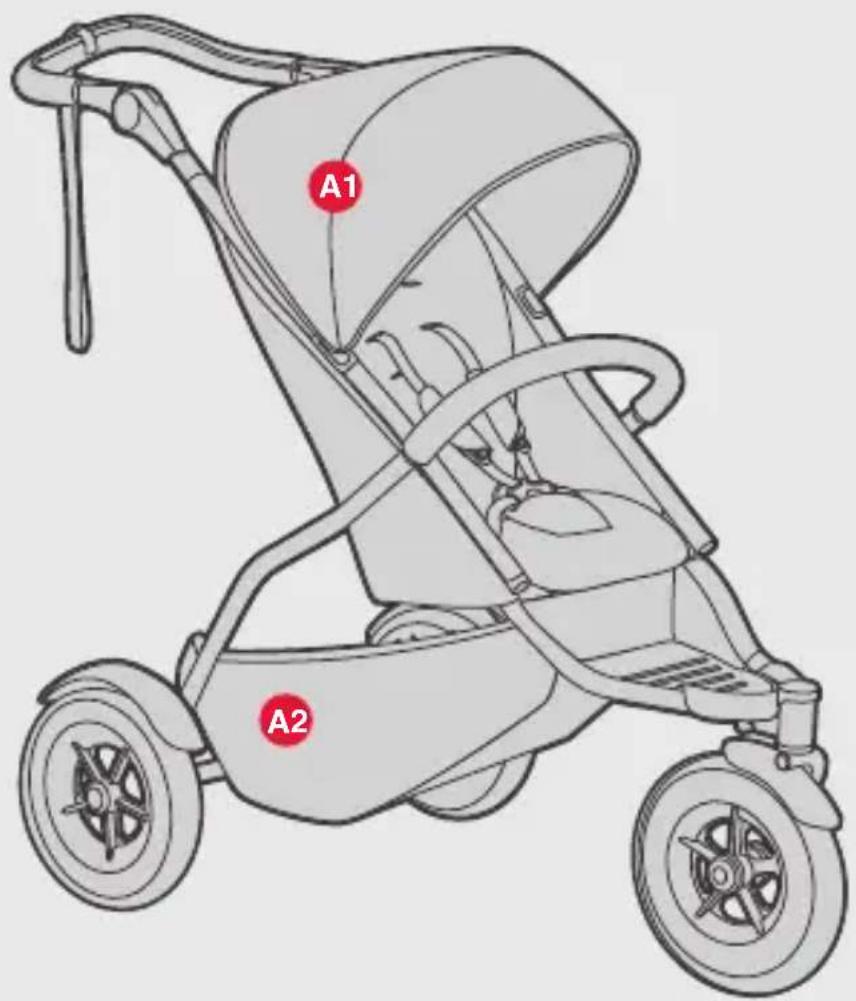

A1 A2

A

A1

max load

20kg / 44lbs

A2

max load

5kg / 11lbs

1

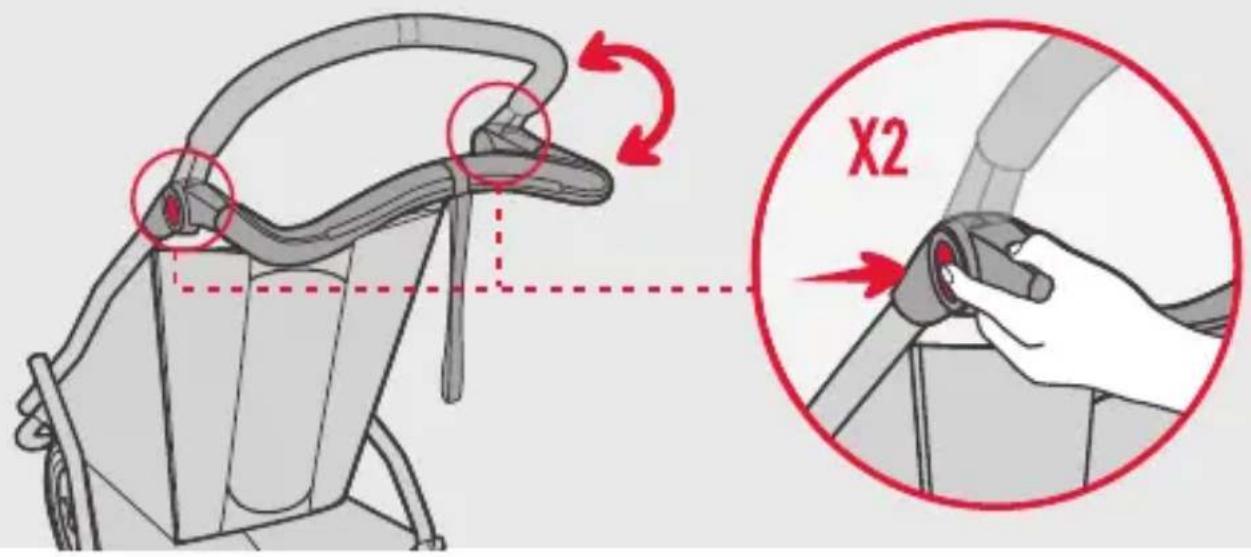

Illustration of a bicycle seat with red arrows indicating motion or movement, showing structural details without any text or symbols.

2

X2

3

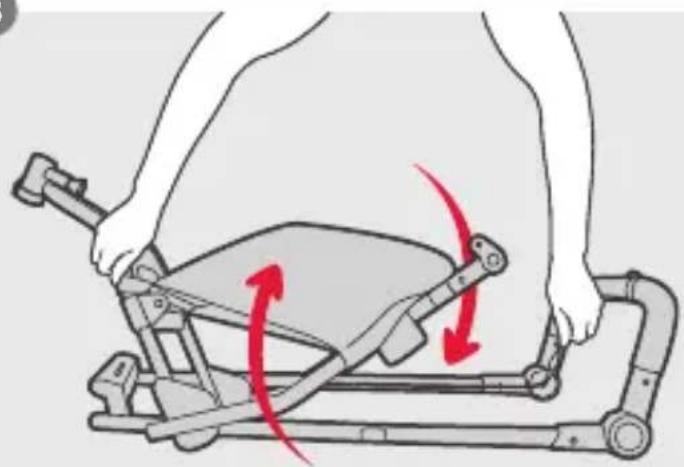

Diagram illustrating how to adjust a stroller with red arrows indicating adjustment, alongside a magnified view of the device's handle.

1

2

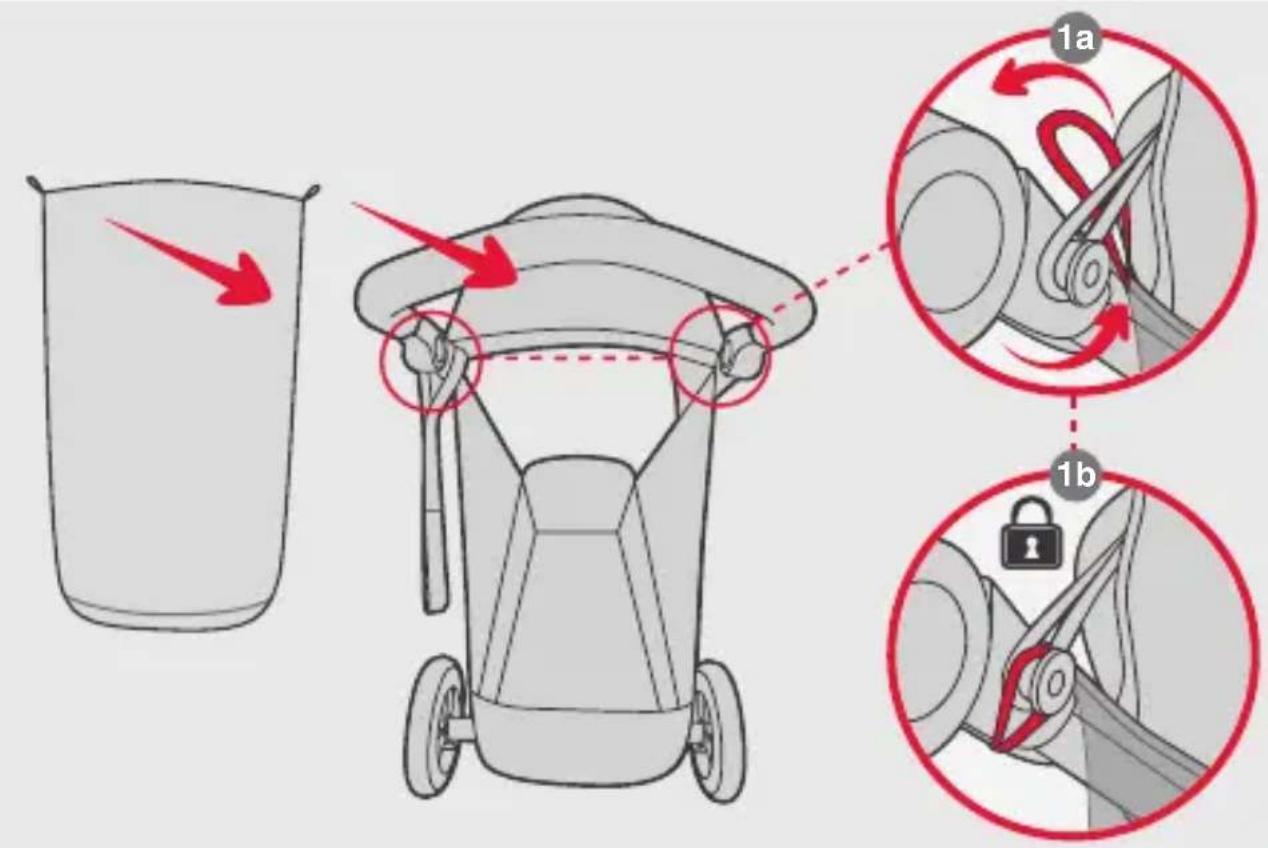

Illustration showing a stroller with hand positioning and lock mechanism, illustrating how to adjust the door handle.

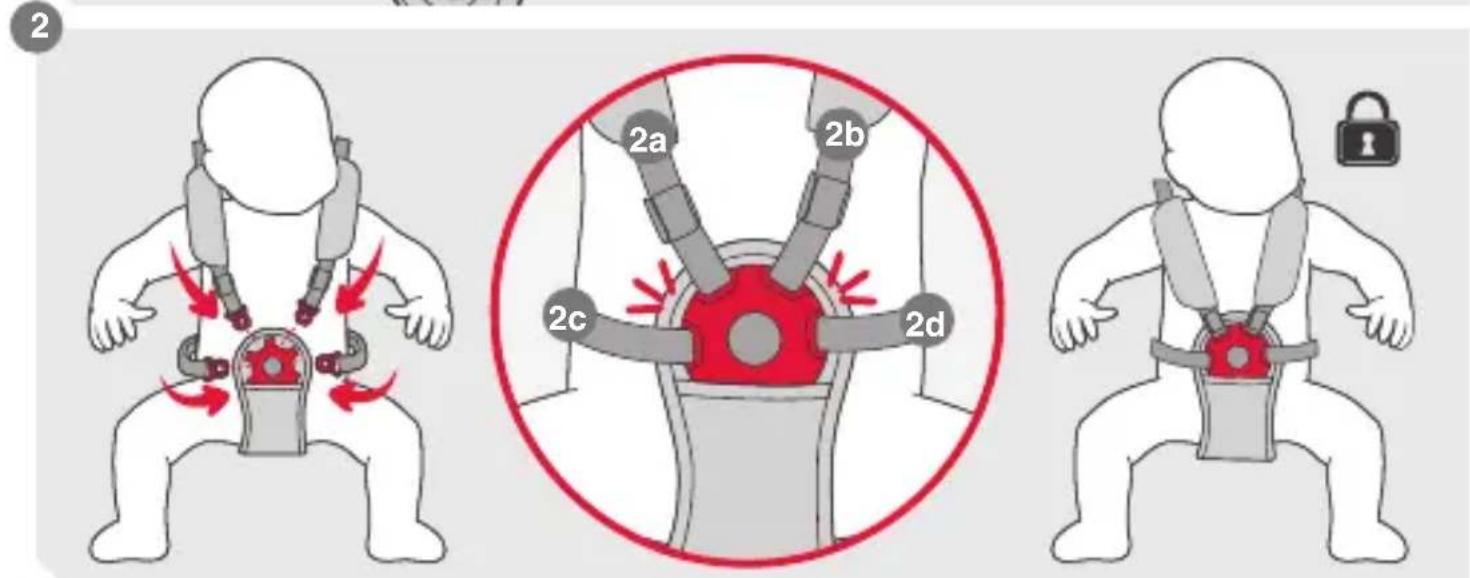

2 2a 2b 2c 2d

Illustration showing how to tie a person's seatbelt using a lock mechanism, with red arrows indicating the rope movement.

1

Anatomical diagram of a mechanical or surgical device with numbered annotations pointing to specific parts.

2

Illustration of a person applying pressure on a shoulder with red arrows indicating direction (no text or symbols)

3

Diagram showing three-step assembly steps of a robotic hand with red clamps and labeled parts 1, 2, and 3.

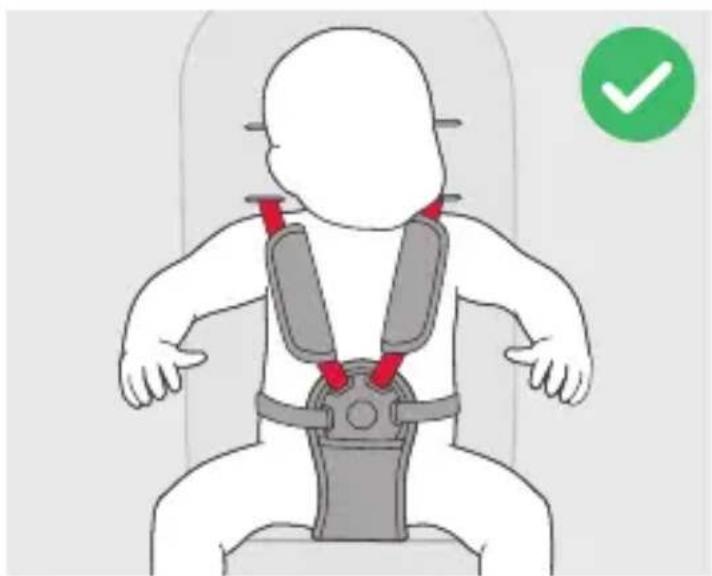

Illustration of a baby in a seatbelt with red straps and a green checkmark (no text or symbols)

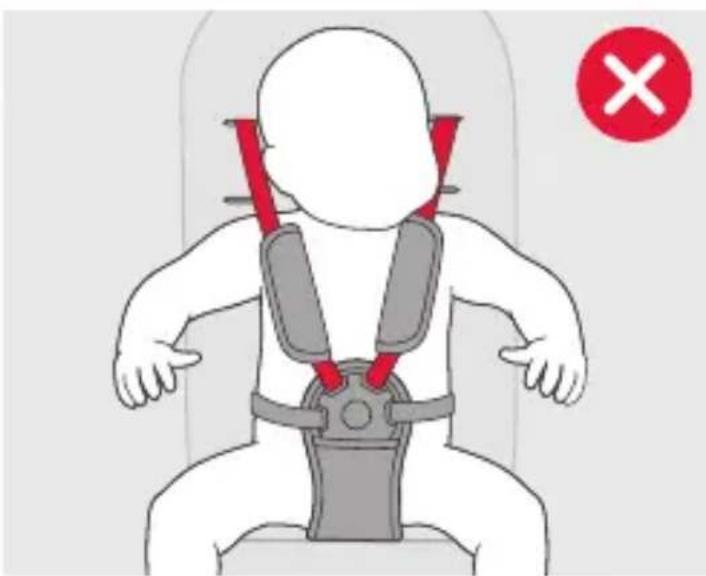

Illustration of a baby in a seatbelt with red straps and a red 'X' symbol (no text or symbols on the diagram itself)

1

1a 1b

2

Line drawing of a baby stroller with wheels and a person standing beside it (no text or symbols)

3

Illustration of a baby stroller with red arrows indicating motion or change (no text or symbols)

Illustration of a person pushing a stroller with red directional arrows indicating motion (no text or symbols)

Illustration of a person pushing a stroller with a red arrow indicating motion (no text or symbols)

Line drawing of a person using a vacuum cleaner with red motion arrows indicating force or movement (no text or symbols)

Line drawing of a car with wheels and suspension components (no text or symbols)

Line drawing of a two-wheeled stroller with wheels and handle (no text or symbols)

Diagram of a stroller with numbered parts indicating motion sequence

1

1-2 1a 1b

2

Diagram illustrating the use of a stroller to adjust the seat, with an inset showing the insertion process.

3

Diagram illustrating the use of a stroller to adjust a box, with an inset showing hand positioning and red arrows indicating motion.

1

Diagram illustrating a mechanical device with labeled parts and directional arrows, including zoomed-in insets for component analysis.

2

Diagram showing a stroller with a highlighted side view and a close-up of the body, annotated with red arrows indicating motion or positioning.

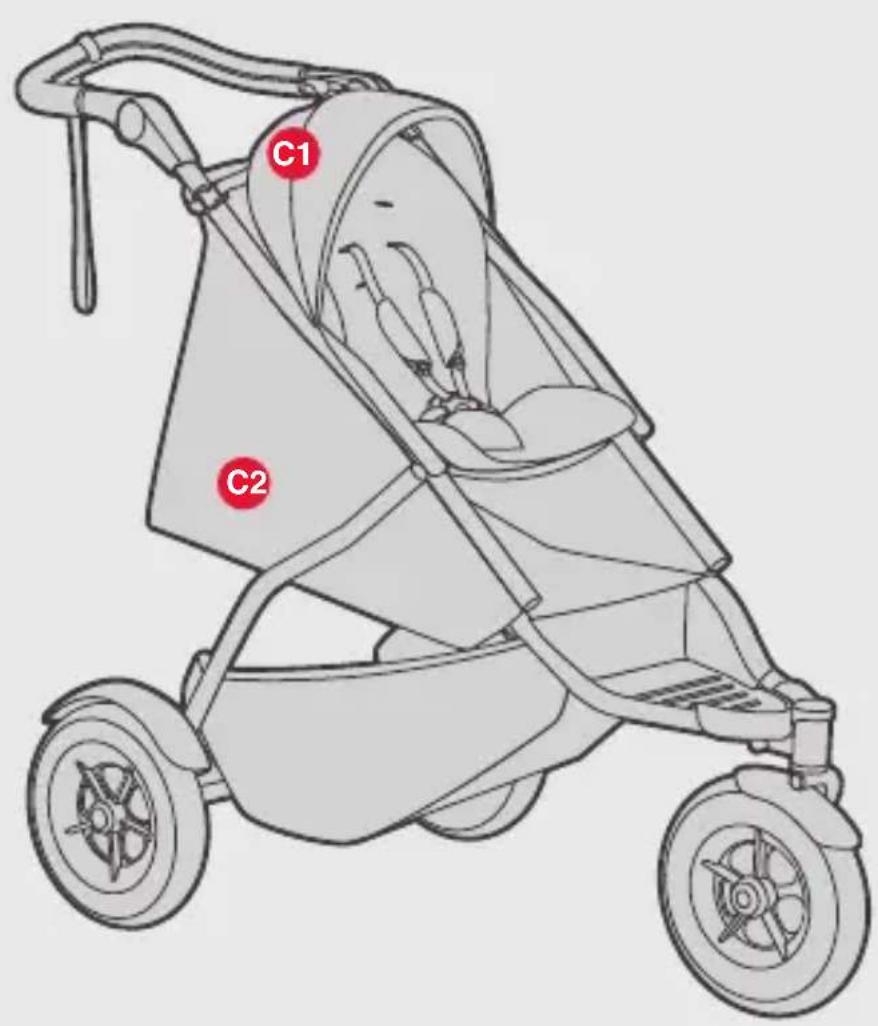

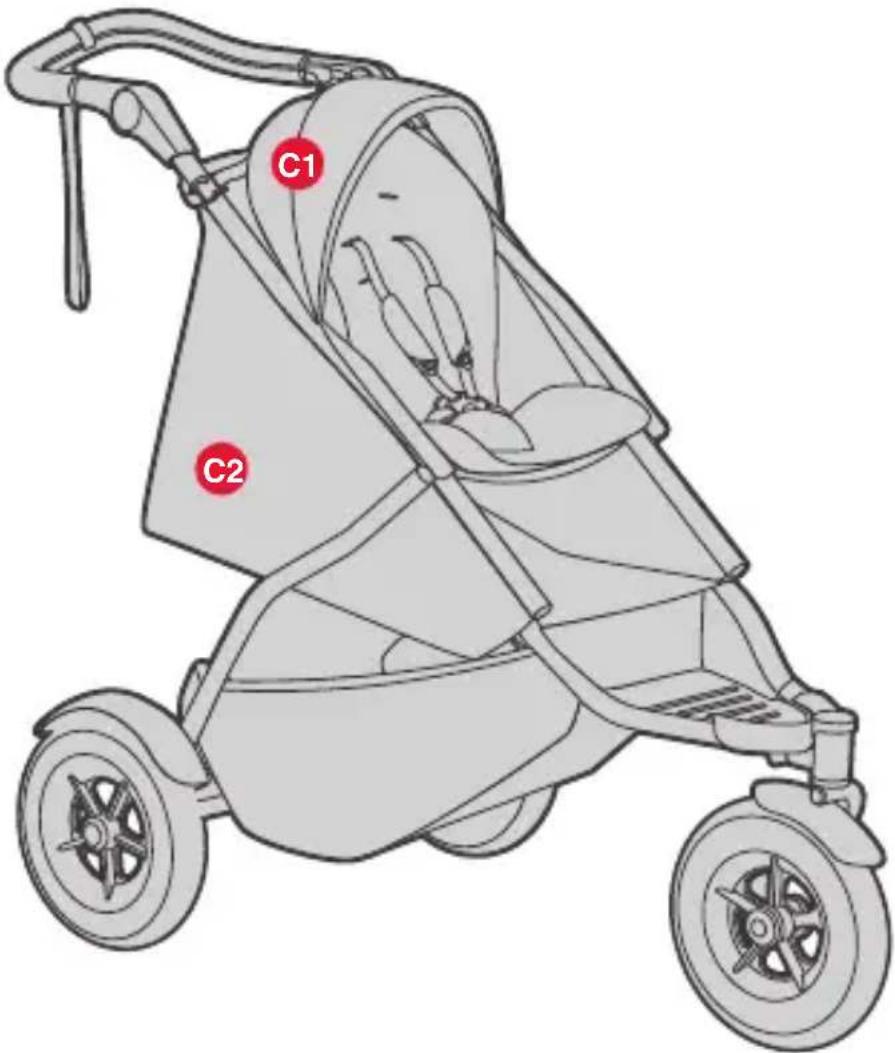

C1 C2

C

C1

max load

20kg / 44lbs

C2

max load

9kg / 20lbs

Illustration of hands using a tool to adjust or install a component on a vehicle (no text or symbols visible)

Diagram of a mechanical device with propeller and two red adjustment knobs, no text or symbols present

Illustration of a baby stroller with red circles highlighting the seat area (no text or symbols present)

Illustration of a hand using a switch to lift a car, enclosed in a red circle with dashed lines and a lock icon (no text or symbols)

4

Illustration of a baby stroller with a green checkmark icon (no text or symbols on the diagram itself)

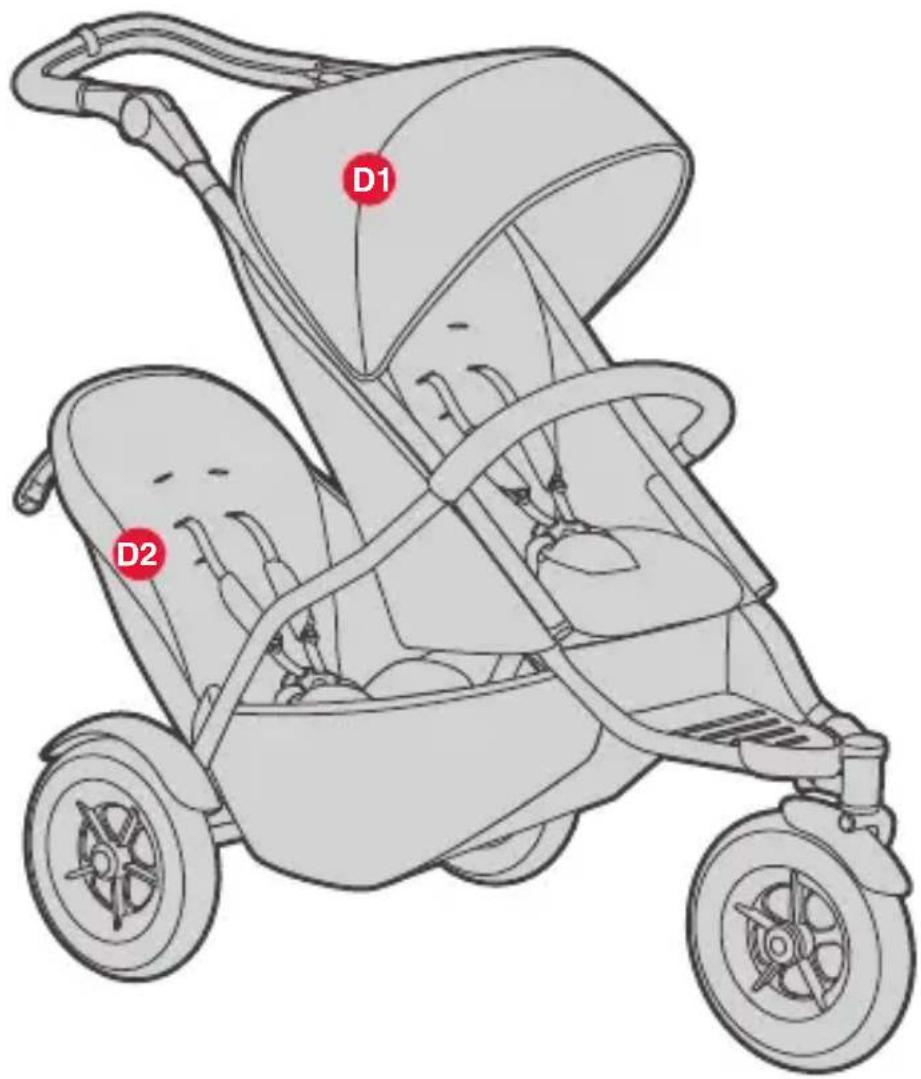

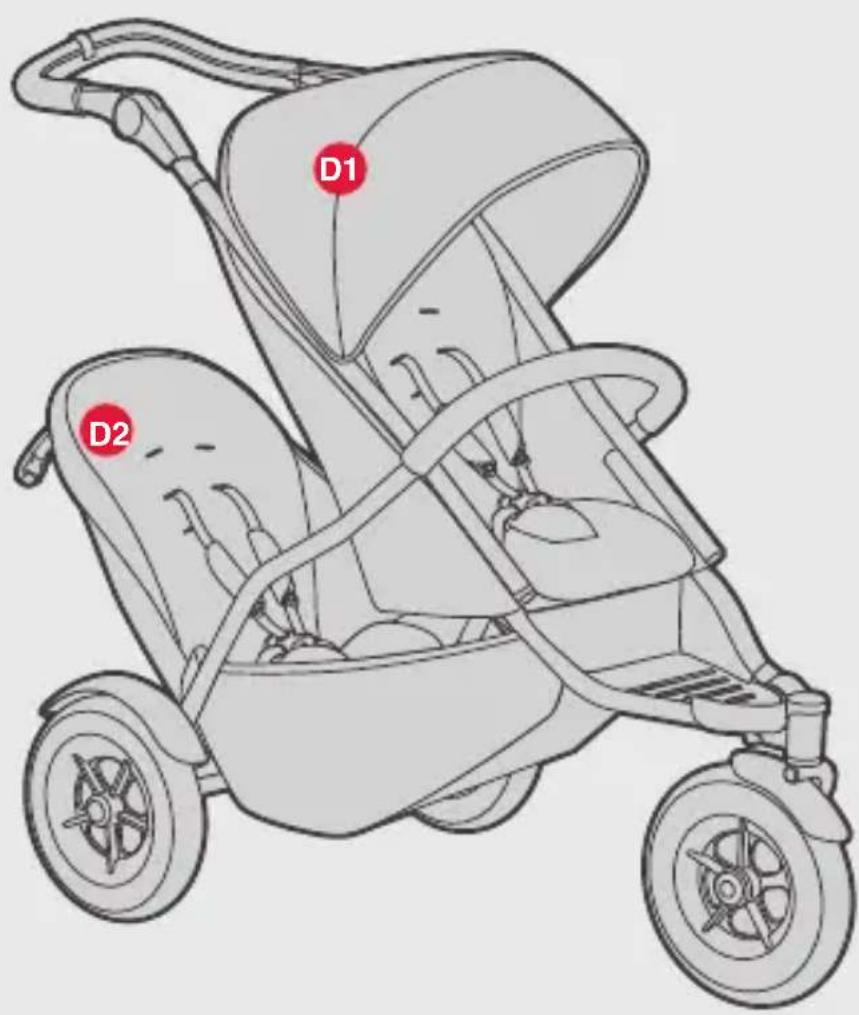

D1 D2

D

max load

20kg / 44lbs

max load

15kg / 33lbs

1

Illustration of a baby stroller with red arrows indicating motion or force, showing no text or symbols.

2

Technical line drawing of a scooter's front wheel assembly with two red circles highlighting key components (no text or symbols present)

Diagram showing a tool interacting with a mechanical component, enclosed in a red circle (no text or symbols)

3

Diagram of a stroller with red circles highlighting specific parts, including a dashed line and arrows indicating motion or force.

Diagram of a mechanical locking mechanism with red warning symbols (no text or labels)

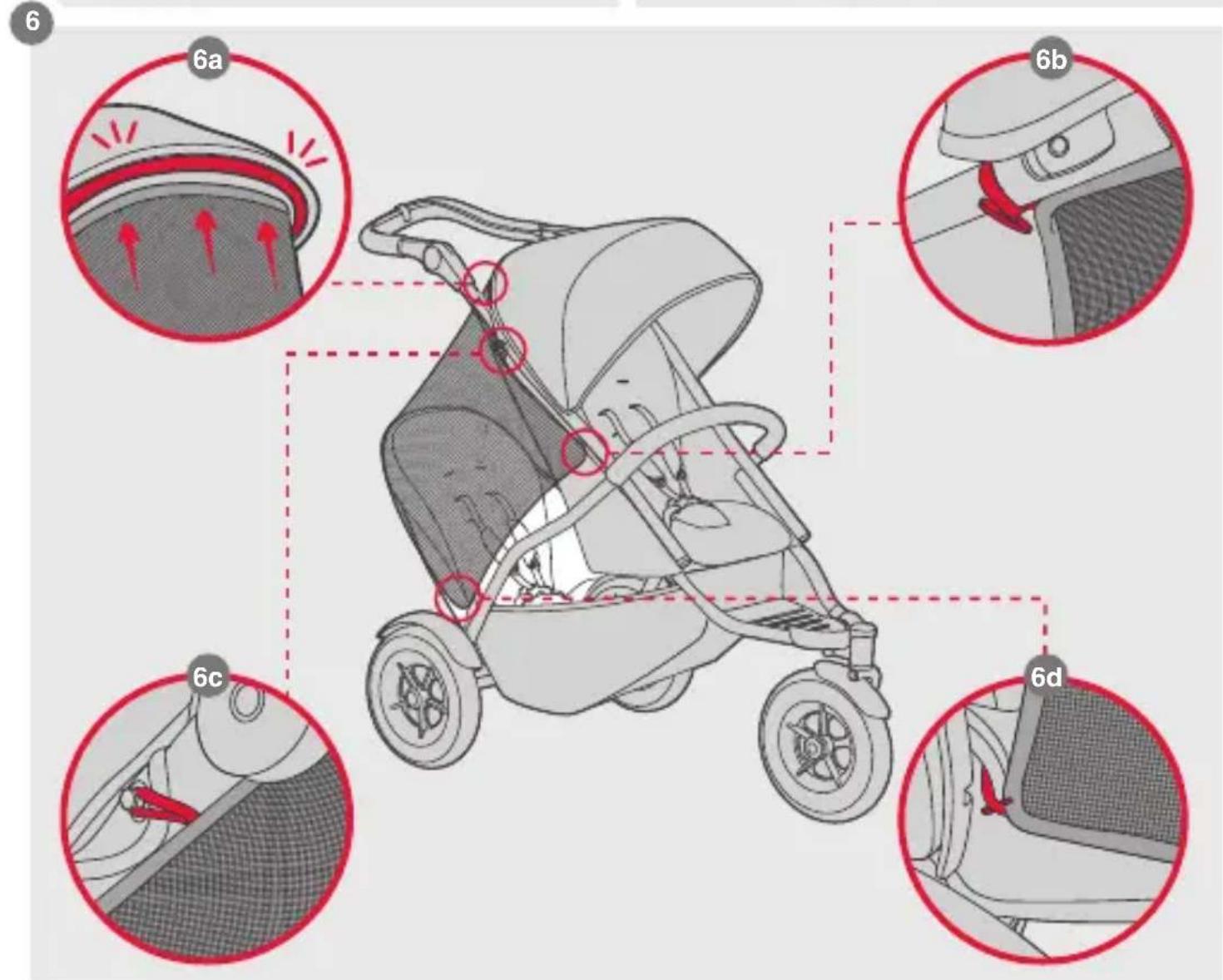

Diagram showing car seatbelt usage on a stroller, with magnified view highlighting the seatbelt component.

Line drawing of a stroller with wheels and a red arrow indicating motion (no text or symbols)

6 6a 6b 6c 6d

Line drawing of a two-wheeled stroller with a red circular label 'E1' on the side (no text or symbols on the device itself)

E

max load

12kg / 26lbs*

*parent facing mode

is for single use only

1

1a 1b

2

Diagram illustrating the use of a stroller to adjust the seat, with an inset showing the hand adjusting the seat.

1

Illustration of a stroller with a hand holding a shoe, showing a red arrow indicating the motion (no text or symbols present)

2

Illustration of a stroller with a red arrow pointing to the backrest area (no text or symbols)

3

Illustration of a car interior with hands and red arrows indicating motion or pressure points (no text or symbols)

4

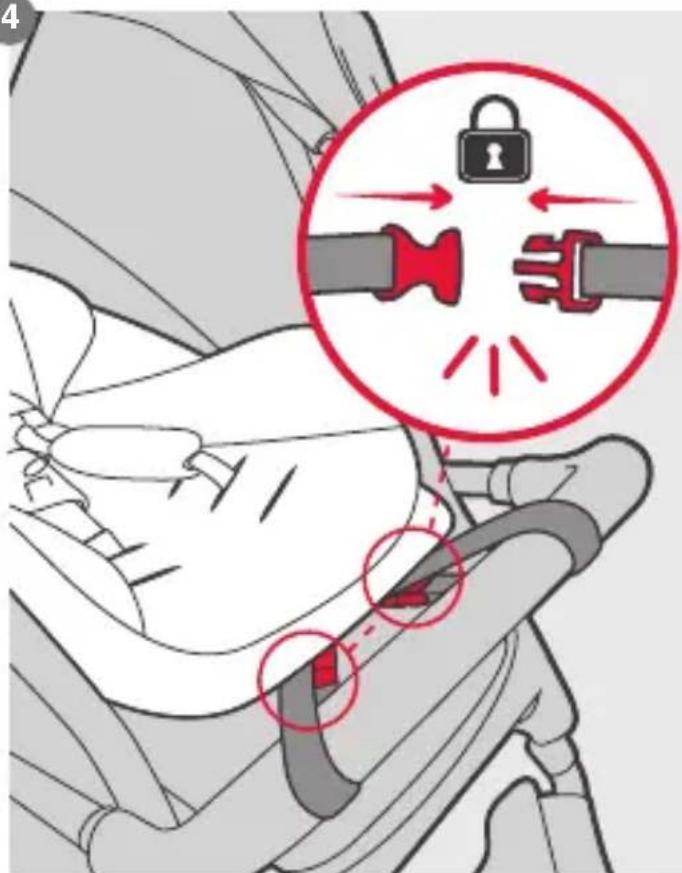

Diagram illustrating car seatbelt buckle locking mechanism with magnified view showing key points and red arrows indicating movement.

AUS/NZL

phil&teds

102-112 Daniell Street

Newtown, Wellington 6021

New Zealand

+ 64 4 3800 833

EUR /FRA

phil&teds

Calle Linaje, 3

Malaga 29001,

Spain

[phone]

USA/CAN

phil&teds USA Inc

221 Jefferson Street

Fort Collins, CO 80524

USA.

1 800 839 4985

CHN

phil&teds

No.10 East Chuangyeyuan

Road, Yangzhou

China

0086-514-87634533

GBR

phil&teds

71-73 Victoria St

Windsor, Berkshire

SL4 1EH, United Kingdom

[phone]

Designed in New Zealand. Made in China

Red silhouette of a baby stroller on a hillside, no text or symbols present

so you chose a

sport™? fine choice

I must say!

Red silhouette illustration of a rabbit sitting on a slope with a seesaw in the background (no text or symbols)

This document contains important information and must be kept for future reference.

Please read thoroughly before use.

this vehicle is intended for children from newborn to 5 years.

• main seat – 20kg / 44lbs
• main seat (lie flat) – 9kg / 20lbs
• double kit (back) – 15kg / 33lbs
• double kit (front) – 20kg / 44lbs
  • parent facing seat – 12kg / 26lbs
• when double kit is on back, main seat – 20kg / 44lbs

please register your product purchase online now at

philandteds.com/register

cleaning & caring

check sport™ for cuts & bruises. if your product is damaged in any way, or you're not sure how to use it, please consult our web support (www.philandteds.com/support). here you can get in touch with a local customer care team, made of real live people.

caring for sport™

unlike your children, your sport™ likes to stay clean.

• brush dirt (or cracker crumbs) off the frame & wheels regularly.
• clean frame with non-abrasive household cleaner & a soft cloth & always dry frame if wet.
• sport ^TM doesn't like sand or sea salt in its crannies (does anyone?), so give sport ^TM a good rinse after visiting the beach.
• code brown got you down? never fear! sport ^TM fabric can be sponge cleaned with warm water, using mild natural soap. do not use detergents or bleach on sport ^TM .
• keep sport ^TM cool & somewhere dark when in storage.
• improper care will void any warranties. do not use sport ^TM if deterioration is detected or suspected.

important information

• always load / unload your children on level ground.
- ensure the brake is engaged during the loading & unloading of children.
• do not use stroller on stairs or escalators.
• always use the wrist safety strap.
- excessive wear can reduce effectiveness & safety. parts may need lubrication. inspect essential components for:

• fraying – especially webbing straps & safety harness.
• wear – locks, snap fasteners, tyres, plastic & moving parts.
• safety – locks must not be loose.

important information

tyres & tubes

- the valve is car-size. manually inflate to 20 – 22psi max. releasing air gives a softer ride but lower pressure reduces tread life.

- new inner tubes & tyres are generally available (2 1/4" x 12 1/2" tyre) from your dealer, cycle or specialist wheel shops. standard tyre kits can repair punctures.

- a flat tyre can result from grit holding the valve open; to check: inflate tyre, deflate rapidly, & re-inflate.

- tyres & tubes are not under warranty. do not over inflate. tyre pressure is affected by heat especially when inside parked cars.

Red silhouette of a stroller with a dotted trajectory line, no text or symbols present

WARNINGS

European safety standard states:

IMPORTANT: Read the instructions carefully before use and keep them for future reference. Your child's safety may be affected if you do not follow these instructions.

• This vehicle is intended for children from newborn up to 5 years and up to a maximum weight of 20 ~kg / 44 ~lbs . • The buggy shall only be used for a maximum of 2 children.
• Never leave your child unattended. • Accessories or replacement parts that are not approved by the manufacturer or distributor should not be used. • Any load attached to the handle and/or back of the backrest and/or the sides of the stroller will affect stability of the stroller. •
  Always use the restraint system. • Always use the crotch

strap in combination with the waist belt. • Check that the pram body or seat unit attachment devices are correctly engaged before use. • This product is not suitable for running or skating. • Ensure that all locking devices are engaged before use. • Use a harness as soon as your child can sit unaided. • The parking device shall be engaged during the loading and unloading of children. • The carry handles must be left out of the reclined position when in use (if applicable). • To avoid injury ensure that your child is kept away when unfolding and folding this product. • The reclined position is suitable for a child who cannot sit up by itself, roll over and cannot push itself up on its hands and knees. Maximum weight of child in reclined position is 9kg/20lbs. • Do not let your child play with this product. • It is recommended that the most reclined position be used for new born babies. • Do not place more than 5kg/11lbs in the parcel tray. • Do not add a mattress thicker than 20mm. • A car seat used on a stroller does not replace a cot or a bed. Should your child need to sleep, place it in a suitable pram body, cot or bed.

WARNINGS

American safety standard states:

- Never leave your child unattended in the stroller. • Always use the safety harness to avoid serious injury from falling or sliding out. • Always secure all safety harness straps. Child may slip into leg openings and strangle. Never use in a reclined carriage position unless child securely restrained. • This vehicle is intended for children from newborn to 5 years and up to a maximum weight of 20kg/44lbs. • To prevent the stroller from becoming unstable, do not place parcels or accessory items anywhere except in the storage basket and pockets provided. Do not hang items such as shopping bags from the frame. • Do not place more than 5kg/11lbs in the parcel tray. • Excessive weight may cause a hazardous unstable condition to exist.

WARNINGS

Australia / New Zealand safety standard states:

To avoid injury or death:

• Always apply the brakes whenever the stroller is stationary. Do not leave children unattended. • Secure the child in the harness at all times. • Do not carry extra children or bags on this stroller. • Make sure children are clear of any moving parts if you adjust the stroller. • Use the harness at all times. • When not in use disconnect shoulder straps from the waist buckle or strap as harness can form loops that can lead to strangulation. • Do not use this seat with any other models of stroller. • It is unsafe to use accessories other than those approved by the vehicles manufacturer. • Care should be taken if the stroller is used on stairs or escalators. • The stroller should not be used near an open fire or exposed flame. • This vehicle is intended for children up to a maximum weight of 20kg/44lbs. • Do not place more than 5kg/11lbs in

the parcel tray. • Use the tether strap to stop the stroller rolling away. • Do not use the bassinet once the child can sit up unaided. • Maximum weight of child in reclined position is 9kg/20lbs. • The stroller is designed for use on flat or gently sloping surfaces and maybe unstable on higher sloping and uneven surfaces, resulting in the possibility of the stroller tipping over. • Due care should be exercised when folding or unfolding the stroller, as there is potential for fingers or body parts to be injured. • The stroller should only be carried or lifted when it is properly folded. Do not carry or lift the stroller by the wheels, the grab bar or the harness - position your hands at the center of the side frame. • When folding the stroller, please check visually that the automatic frame lock is engaged.

WARNINGS

Canadian safety standard states:

- Never leave your child unattended in the stroller. • Always use the safety harness to avoid serious injury from falling or sliding out. • Do not place more than 5kg/11lbs in the parcel tray. • The stroller may become unstable if a parcel bag, other than one recommended by the manufacturer, is used. • The stroller may become unstable if the recommended load is exceeded. • Take care when folding or unfolding the stroller to prevent your fingers being entrapped. • Maximum weight in the upright main seat 20kg/44lbs. • Maximum height for upright main seat is 100cm/39.4".

Red silhouette of a baby stroller on a hillside, no text or symbols present

Red silhouette illustration of a rabbit sitting on a slope with a seesaw in the background (no text or symbols)

Red silhouette of a stroller with a dotted trajectory line, no text or symbols present

WARNINGS

Red silhouette of a baby stroller on a hillside, no text or symbols present

Red silhouette illustration of a rabbit sitting on a slope with a seesaw in the background (no text or symbols)

Red silhouette of a stroller with a dotted trajectory line, no text or symbols present

WARNUNGEN

Red silhouette of a baby stroller on a hillside, no text or symbols present

Red silhouette illustration of a rabbit sitting on a slope with a seesaw in the background (no text or symbols)

Red silhouette of a stroller with a dotted trajectory line, no text or symbols present

ADVERTENCIAS

Red silhouette of a baby stroller on a hillside, no text or symbols present

Dus je hebt een

sport™? gekozen?

Goede keus!

Red silhouette illustration of a rabbit sitting on a slope with a seesaw in the background (no text or symbols)

Red silhouette of a stroller with a dotted trajectory line, no text or symbols present

WAARSCHUWINGEN

European safety standard states:

© Phil and Teds Most Excellent Buggy Company Ltd 2010.

We (Phil and Teds Most Excellent Buggy Company Ltd) own the intellectual property rights in our brands, designs and inventions featured in this publication. These include, without limitation, the Mountain Buggy, life without limit, and INLINE trade marks and product names. We actively pursue people who infringe our intellectual property.

©Phil & Teds Most Excellent Buggy Company Ltd 2010.

© Phil and Teds Most Excellent Buggy Company Ltd 2010.

© Phil and Teds Most Excellent Buggy Company Ltd 2010.

© Phil and Teds Most Excellent Buggy Company Ltd 2010.

© Phil and Teds Most Excellent Buggy Company Ltd 2010.

Designed in New Zealand. Made in China
