Product type	Microwave oven
Brand	DOMO
Model	DO3120
External dimensions (W x D x H)	43.9 x 35.7 x 25.8 cm
Interior volume	20 liters
Turntable diameter	25.5 cm
Output power	800 W
Rated input power	1270 W
Voltage / Frequency	230 V~ 50 Hz
Timer	Up to 35 minutes (1 min increments up to 10 min, then 5 min increments)
Power levels	5: Low (17%), M.Low/Defrost (33%), Med (55%), M.High (77%), High (100%)
Main functions	Cooking, reheating, defrosting
Interior lighting	Built-in LED lamp (not user-replaceable)
Safety	Automatic shut-off when door opens, child lock, mandatory grounding
Cleaning	Clean interior with a damp cloth after each use; do not immerse the appliance
Included accessories	Glass turntable, turntable ring
Suitable materials	Heat-resistant glass, microwave-safe plastic, metal-free ceramic, microwave cooking bags
Prohibited materials	Metal, aluminum, containers with metal handles, metal fasteners, wood, foam plastic, paper bags
Installation - minimum distances	Rear and sides: 20 cm; top: 30 cm; minimum height: 85 cm; do not install in a cabinet
Warranty	2 years
Spare parts and repairability	Parts available on the online shop: webshop.domo-elektro.be

Frequently Asked Questions - DO3120 DOMO

What types of utensils can I use in the DO3120 microwave oven?

Use only microwave-safe utensils: heat-resistant glass, microwave-safe plastic (with 'microwave safe' symbol), metal-free ceramic, perforated cooking bags. Avoid metal, aluminum, wood, foam plastic, and paper bags.

How to correctly install the DO3120 microwave oven?

Place the oven on a flat, stable surface. Respect the minimum distances: 20 cm at the rear and sides, 30 cm above, and a minimum height of 85 cm. Do not install in a cabinet and keep away from heat or moisture sources.

What to do if the oven does not start?

Check that the plug is fully inserted into the outlet, the door is properly closed, and the fuse has not blown. Unplug and replug after 10 seconds. If the problem persists, contact a professional.

How to clean the interior of the microwave oven?

Unplug the appliance. Clean the interior with a slightly damp cloth after each use. The turntable and ring can be washed in warm water with mild detergent. Never use abrasive or corrosive products, and never immerse the appliance.

Can I heat hard-boiled eggs or food in sealed containers?

No, this presents an explosion risk. Never heat eggs in their shell or hard-boiled eggs, nor sealed containers (baby bottles, jars, etc.). Always remove lids and pierce bags to allow steam to escape.

How to defrost food with the DO3120?

Set the power knob to 'M.Low' (Defrost, 33% power). Place food in a suitable container on the turntable. Select the defrost time according to the table in the manual (e.g., 1min30 to 26min for 0.1-1 kg of meat).

The turntable makes noise during operation, is this normal?

A slight noise can be normal, but if excessive, clean the oven bottom and turntable ring to remove debris. Make sure the turntable is correctly placed on the ring.

Can I use the microwave oven without the turntable?

No, the turntable and ring must always be used during cooking. All food and containers must be placed on the turntable to ensure even cooking.

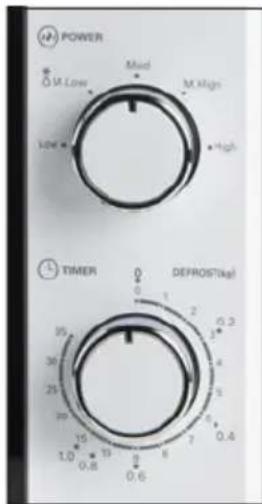

How to adjust the power and cooking time?

Use the upper knob to select the power (Low, M.Low, Med, M.High, High). The lower knob sets the time up to 35 minutes (in 1 min increments up to 10 min, then 5 min increments). Turn it past 15 min first if you want a time under 15 min.

What to do if the interior light no longer works?

The LED lamp cannot be replaced by the user. If it does not work, contact an authorized repair service. In the meantime, the oven can still be used normally.

USER MANUAL DO3120 DOMO

White microwave oven with a black mesh chamber, accompanied by fresh dishes including tomatoes and bread, next to a bowl of noodles (no text or symbols visible on main objects)

EN Instruction booklet Microwave oven

Read all instructions carefully.

Save this instruction manual for future reference.

⚠PRODUCTSPECIFIEKE WAARSCHUWINGEN

Diagram showing a circular plate with a central hole and a downward arrow pointing to a small irregular shape at the bottom (no text or symbols)

Symbol of a trash bin with crossed lines indicating no waste or discharge, and a solid black rectangle below (no text or labels)

Recycling symbol with three chasing arrows forming a triangle (no text or labels)

⚠AVERTISSEMENTS SPÉCIFIQUES AU PRODUIT

Circular cropped image showing a dark mechanical component with a scale marker and a numbered label '7' (no readable text or symbols beyond the number)

AVANT LA PREMIÈRE UTILISATION

Diagram showing a circular disc with internal structure and a downward arrow pointing to a small particle (no text or symbols)

Attention:

Symbol of a trash bin crossed with two crossed lines and a solid black rectangle below (no text or labels)

Diagram showing a circular object with a downward arrow and a small particle at the bottom (no text or symbols)

Achtung:

Symbol of a trash bin crossed with two crossed lines and a solid black rectangle below (no text or labels)

Thank you for your confidence in DOMO. We do hope you enjoy your new purchase. Before reaching you, all our products undergo a strict quality inspection. Should you still encounter problems with your appliance, then we are truly sorry and will do everything possible to resolve the situation quickly. Do not hesitate to contact our customer service. Our staff will do all they can to help you!

[phone] [e-mail]

Monday - Thursday: 8.30 - 12.00 and 13.00 - 17.00

Friday: 8.30 - 12.00 and 13.00 - 16.30

This device has a warranty period of 2 years from the date of purchase. During this warranty period, the distributor will assume responsibility for any defects that can be shown to be the result of material, construction or manufacturing errors. Such defects will be remedied by repair or replacement of the device. The 2-year warranty period will be suspended during the repair period and will continue after the repair has taken place for the remaining duration of the warranty period. The warranty will be honoured if proof of purchase clearly showing the date of purchase is provided. If your device becomes defective within the 2-year warranty period, please return it with your proof of purchase to the store you purchased it from or follow the procedure of the relevant webshop if you bought it online.

The warranty does not cover damage to the device, accessories or parts caused by:

• normal wear and tear from use;
• non-compliance with the instructions for use, maintenance and cleaning in the manual;
- incorrect connection, e.g. electrical voltage too high;
- incorrect, heavy-handed or abnormal use;
• repairs or alterations carried out by the consumer or unauthorised third parties;
- use of parts or accessories not recommended nor supplied by the distributor.

SAFETY INSTRUCTIONS

When using electrical appliances, basic safety precautions should always be taken, including the following. Any injury or damage caused by failure to comply with these rules are at your own risk. Neither the manufacturer, importer, or the supplier may be held liable.

• Read all instructions carefully.
• Make sure all packaging materials and promotional stickers have been removed before using the appliance for the first time. Make sure children cannot play with the packaging materials.

• This appliance is only suitable for use in domestic and similar environments, such as:

• staff kitchen areas in shops, offices and other working environments;

• farm houses;
• by clients in hotels, motels and other residential type environments;
• bed and breakfast type environments.

- Children should be supervised to ensure that they do not play with the appliance.

- This appliance can be used by children aged from 16 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.

• Children shall not play with the appliance.

- Cleaning and user maintenance shall not be made by children unless they are older than 16 or supervised.

- Keep the appliance and its cord out of reach of children younger than 16 years.

- All repairs should be carried out by the manufacturer or its aftersales service.

▲ELECTRICAL WARNINGS

- In order to avoid a hazard this appliance must not be supplied through an external switching device, such as a timer or a

separate remote control, or connected to a circuit that is regularly switched on and off by the utility.

- The appliance must be disconnected from its power source when not in use, during service and when replacing parts. If present, first turn all the buttons to the 'off' position, then pull the plug out of the socket by grasping the plug itself. Never pull the cord or appliance to remove the plug from the socket.

- Before use, check carefully that the electric tension and frequency of the power net at your home match the indications on the rating label of the appliance.

- The appliance must be plugged into an appropriate outlet that is installed and grounded in accordance with local installation regulations.

- Do not let the power supply cord hang over the edge of a counter, or touch hot surfaces.

- Keep the power cord away from hot parts and don't cover the appliance.

- Unwrap the cord completely to prevent overheating of the cord. Do not allow the power cord supply to run underneath or around the unit.

- For safety reasons, never use the appliance if the cord, plug, or appliance itself is damaged, or after a malfunction of the appliance. Return the appliance to the DOMO Service Department or its service agent for examination, repair, or electrical or mechanical adjustment. Do not try to repair the appliance yourself.

⚠️INSTALLATION

- Do not place near flammable materials, gases or explosives.

- Do not use or store this appliance outdoors.

• Always use the appliance on a steady, dry and level surface.

- Never place this appliance near a gas stove or electrical stove or in a place where it may come into contact with a warm appliance.

⚠ USE

- Only use the appliance for its intended purpose, i.e. heating food and drinks.

• Use this appliance only for its intended uses as described in this manual.
• Never leave the appliance unattended while it is functioning.
• Do not operate the appliance with wet hands.
• The use of accessories that are not recommended or sold by the manufacturer can cause fire, electrical shock or injuries. Only use the utensils delivered with the appliance.

⚠️ CLEANING AND MAINTENANCE

• To protect against electrical shock or burns, do not immerse unit, cord, or plug in water or other liquid.
• Failure to maintain this appliance in a clean condition could adversely affect the life of the appliance and possibly result in a hazardous situation.

⚠️PRODUCTSPECIFIC WARNINGS

The appliance can become hot during use. Keep the power cord away from hot parts and don't cover the appliance.

To reduce the risk of fire, electric shock, injury or exposure to excessive microwave oven energy when using your appliance, follow basic precautions, including the following:

• WARNING: Liquids and other foods must not be heated in sealed containers since they can explode.
• WARNING: It is hazardous for anyone other than a competent person to carry out maintenance or repairs involving the removal of a cover that protects from exposure to microwave energy.
• Only use utensils suitable for use in microwave ovens.
• The oven should be cleaned regularly and any food remainders should be removed.
• When heating food in plastic or paper containers, keep an eye on the oven due to the possibility of ignition.
• If smoke is observed, switch off or unplug the appliance and keep the door closed in order to stifle any flames.
• Do not overcook food.
• Do not use the oven cavity for storage purposes. Do not store items, such as bread, cookies, etc. inside the oven.

- Remove wire twist-ties and metal handles from paper or plastic containers/bags before placing them in the oven.

- Install or locate this oven only in accordance with the installation instructions provided.

- Eggs in the shell and whole hard-boiled eggs should not be heated in microwave ovens since they may explode, even after microwave heating has ended.

- Do not use corrosive chemicals or vapors in this appliance.

- This oven is not designed for industrial or laboratory use.

- Do not use this oven near water, in a wet area or near a swimming pool.

- The content of feeding bottles and baby food jars always needs to be stirred or shaken. The temperature needs to be checked before consumption, in order to avoid burns.

- Microwave heating of beverages can result in delayed eruptive boiling, therefore take care when handling the container.

- This appliance should not be placed into a cupboard.

- Do not use a steam cleaner to clean the appliance.

- Do not use abrasive cleaners or sharp metal scrapers to clean the oven door glass, since they can scratch the surface, which may result in shattering of the glass.

- The door or the outer surface of the appliance may get hot when the appliance is operating.

- The microwave oven is designed to heat food and beverages. Drying food or clothes and heating heat pads, slippers, sponges, damp cloths and the like can lead to risks of injury, ignition or fire.

⚠️PRECAUTIONS TO AVOID POSSIBLE EXPOSURE TO EXCESSIVE MICROWAVE ENERGY

- Do not attempt to operate this oven with the door open since this can result in harmful exposure to microwave energy. It is important not to break or tamper with the safety interlocks.

- Do not place any object between the oven front face and the door or allow soil or cleaner residue to accumulate on sealing surfaces.

WARNING: If the door or door seals are damaged, the oven must not be operated until it has been repaired by a competent person.

- If the appliance is not maintained properly, the appliance could be damaged, which may affect the lifespan of the apparatus and may lead to a dangerous situation.

⚠ TO REDUCE THE RISK OF INJURY

• Caution: touching some of the internal components may cause serious personal injury or death.
• Do not disassemble this appliance.
• Improper use of the appliance and the grounding can result in electric shock. Do not turn on the appliance until it is properly installed and grounded.
• This appliance is equipped with a cord having a grounding wire with a grounding plug. The plug must be plugged into an outlet that is properly installed and grounded. Consult a qualified electrician or serviceman if the grounding instructions are not completely understood or if doubt exists as to whether the appliance is properly grounded.
• A short power-supply cord is provided to reduce the risk of becoming entangled in or tripping over a longer cord.

SAVE THESE INSTRUCTIONS FOR FUTURE REFERENCE

All images and descriptions in this manual are purely indicative and may differ slightly from the actual device.

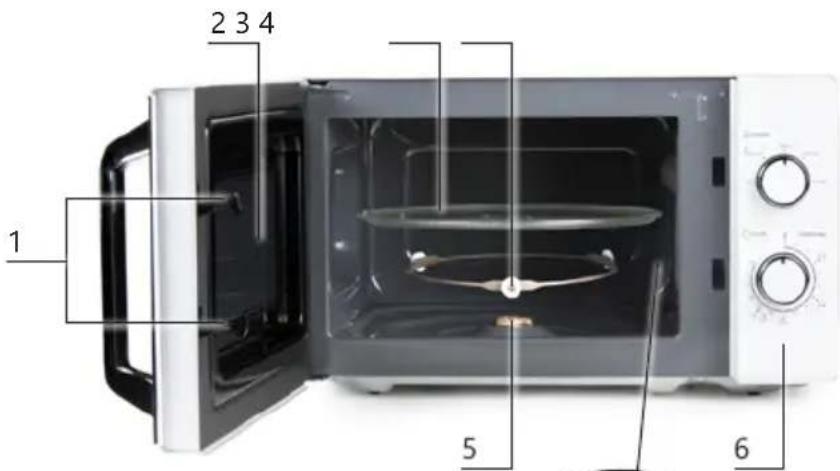

PARTS

1. Safety interlock system
2. Observation window
3. Glass turntable
4. Turntable ring assembly
5. Turntable shaft
6. Control panel

1 2 3 4 5 6

1. Protection cover wave guide - never remove this cover!

Close-up of a kitchen interior with a bowl and a scale, no visible text or symbols

BEFORE THE FIRST USE

• Remove all packaging material and accessories.
• Remove the protective film around the machine, this is applied to avoid scratches.
• Check the oven for any damage, such as dents or a damaged door. Do not use the oven if it is damaged.

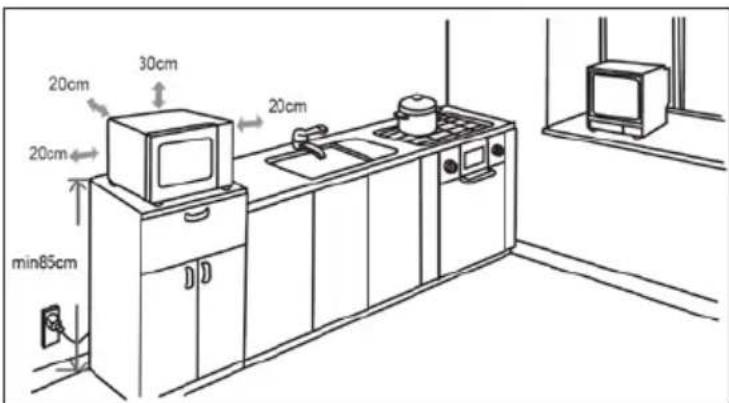

INSTALLATION

- Choose a place to install the microwave, where there is sufficient open space for the air intake and exhaust.

• The microwave oven must stand at least 85 cm high.
• Make sure that the left, right and back side are at least 20 cm from the wall or cupboard.
• The open space above the microwave must be at least 30 cm.

- The microwave may not be built into a cabinet.

20cm 30cm 20cm min85cm 20cm

• Place the oven as far as possible away from radio and TV, because the oven may cause reception problems.
• The microwave must be placed in a dry environment, away from heat and humidity, for example gas burners and water tanks.
• Blocking the air intake and exhaust opening can lead to damage.

Do not place the oven above a stove or other heat producing device. This may damage the machine and void your warranty.

The accessible part of your machine may become warm during use.

TURNTABLE INSTALLATION

• First place the turntable ring in the middle of the microwave oven.
• Place the turntable on the ring. Make sure that the middle of the turntable fits into the turntable shaft.

Diagram showing a rotating disc with a downward arrow indicating rotation or flow (no text or symbols)

Caution:

• Never place the glass tray upside down. The glass tray should never be restricted.

- Both glass tray and turntable ring assembly must always be used during cooking.

- All food and containers should be placed onto the glass turntable during cooking at all times.

- If the glass tray or turntable ring assembly cracks or breaks, contact your nearest authorized service center. Or you can order the accessories in our webshop: webshop.domo-elektro.be

Make sure that the timer knob is set to 0 so that the microwave oven is turned off and plug the plug of your oven into the wall outlet. Be sure to check that the voltage at home is consistent with the voltage indicated on the label on the appliance.

WHAT MATERIALS CAN BE USED IN THE MICROWAVE OVEN?

In the list below you can find which materials can and can not be used in the microwave oven. If in doubt, or if you can not find the material in the list below, you can test the utensil in question, following the procedure below:

• Fill a microwave-safe container with 1 cup of cold water (250 ml) along with the utensil. Cook on maximum power for 1 minute.
• Carefully feel the utensil. If the empty utensil is warm, do not use it for microwave cooking.
  ⚠️CAUTION: Do not exceed the 1 minute cooking time.

Materials that can be used in the microwave oven

• Dinnerware: microwave-safe only. Do not use cracked or chipped dishes.
• Glass jars: always remove the lid. Use only to heat up food until it is just about warm. Most glass jars are not heat-resistant and may break.
• Glassware: heat-resistant oven glass ware only. Make sure there is no metallic elements or parts. Do not use cracked or chipped dishes.
• Oven cooking bags: follow manufacturer's instructions. Do not close with metal tie. Make slits to allow steam to escape.

- Plastic: microwave-safe only. Follow the manufacturer's instructions. Should be labeled "microwave safe". Some plastic containers soften, as the food inside gets hot. Cooking bags and closed packaging must be punctured to allow steam to escape.

- Plastic wrap: microwave-safe only. Use to cover food during cooking to retain moisture. Do not allow plastic wrap to touch food.

• Thermometers: microwave-safe only.

Materials to be avoided in the microwave oven

• Aluminum tray: may cause arcing. Transfer food into a microwave-safe dish.
• Food carton with metal handle: may cause arcing. Transfer food into a microwave-safe dish.
• Metal or metal-trimmed utensils: metal shields the food from microwave energy. Metal trim may cause arcing.
  • Metal twist ties: may cause arcing and could cause a fire in the oven.
  • Paper bags: may cause a fire in the oven.
• Plastic foam: plastic foam may melt or contaminate the liquid inside when exposed to high temperature.
• Wood: wood will dry out when used in the microwave oven and may split or crack.

USE

CONTROL PANEL

- With the top knob of the control panel, you can set the desired power by turning the knob to one of the 5 positions (power levels).

- With the bottom knob, you can set the cooking time by turning the knob, up to 35 minutes. Each turn of the knob is equal to 1 minute, up to 10 minutes. After that, the turns are always equal to 5 minutes.

• Always set the time to 0 when the machine is not in use.

POWER M.Low M.High Low High TIMER DEFROST(kg) 0.2 1.4 3 6 7 0.4 0.6 1.0 25 30 35 40 45 50 55 60 65 70 75 80 85 90 95 100

You can consult the table below as a guideline for settings:

Power Output Application
Low 17% 136 W Keep warm, softening ice cream
M. Low (Defrost) 33% 264 W Thawing, softening butter
Med. 55% 440 W Slow cooking: stew, fish,...
M. High 77% 616 W Normal cooking: rice, fish, chicken, meat
High 100% 800 W Quick cooking: heating up, boiling water, vegetables,...

The table below is an indication for the defrost time for various foods.

Food, weight	Defrost time
Meat 0.1-1 kg	1:30-26:00
Poultry 0.2-1 kg	2:30-22:00
Seafood 0.1-0.9 kg	1:30-14:00

INSTRUCTIONS FOR USE

- Place the food on the glass turntable and close the door. Make sure the food is in a microwave-safe container.

- Choose the correct setting.

- Choose the desired time. If the desired cooking time is less than 15 minutes, then first turn the knob over 15 minutes and turn back the knob to the desired cooking time.

- The microwave oven will automatically start after the time has been set. During cooking you can open the door of the microwave any time. The microwave oven will automatically interrupt its cooking process. Close the door again to continue the cooking cycle.

- When the cooking time is over, a bell signal will sound.

- When you take food out of the microwave oven, make sure that the oven is off by turning the timer button to 0. Otherwise, the microwave oven may start to operate empty, which can cause overheating and damage to the microwave oven.

LIGHTING

The lighting in the microwave oven is a LED light. LED lights are more ecological and manufactured for a long life. For this reason, these may not be replaced. If there is a problem with the lighting, contact a qualified service centre in your area.

CLEANING AND MAINTENANCE

- Always make sure you remove the plug from the socket before cleaning the appliance.

- Clean the inside of the appliance after every use with a slightly damp cloth.

- Clean the parts like the glass turntable,... in warm water with a mild detergent.

- The door, the lock and the control panel can be cleaned with a slightly damp cloth when dirty.

⚠️Do not immerse unit, cord, or plug in water or other liquid.

⚠️ Never use aggressive or abrasive cleaning agents.

PROBLEMS AND SOLUTIONS

PROBLEMS SOLUTIONS
The microwave oven is causing disruptions to radio or TV.	·You may notice a slight interference with your TV or radio when the microwave oven is in operation. Try to place the appliance as far away as possible from any TVs, radios, or antennas.
The light in the oven is dim. ·When cooking on low power, the light may be less bright in the oven. This is normal.
The oven is started without food in it. The machine operates when empty.	·Turn the oven off immediately. The oven may never be used without food in it. This is very dangerous.
The microwave oven does not start. ·It may be that the plug is not correctly plugged into the outlet. Pull the plug out and after 10 seconds plug it back into the outlet. ·Check the fuse in the fusebox and have it repaired by a professional if necessary. ·There may be something wrong with the outlet. Test the outlet with other devices and have it repaired by a professional if necessary.
The oven does not heat up. ·Make sure the door is shut properly.
The revolving glass plate makes noise when the oven is in use.	• The floor of the oven and the ring on which the revolving glass plate sits may be dirty. Clean the oven according to the instructions.

SPECIFICATIONS

Model DO3120
Rated voltage	230 V~ 50 Hz
Nominal microwave input power 1270 W
Nominal microwave output power 800 W
Oven capacity 20 l
Turntable diameter 25.5 cm
Exterior dimensions 43.9 x 35.7 x 25.8 cm

GUIDELINES

Symbol of a trash bin crossed with two crossed lines, no text or numbers present

This symbol on the product or on its packaging indicates that this product may not be treated as household waste. Instead it must be brought to the applicable collection point for recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product. For more detailed information about recycling of this product, please contact your local city office, your household waste disposal service or the shop where you purchased the product.

The packaging is recyclable. Please treat the packaging ecologically.

This appliance conforms to all European requirements in the areas of safety, health, and environmental protection.

The EU declaration concerning this appliance can be requested at any time from [e-mail]

GARANTIA

Estimado cliente,

Diagram showing a circular object with internal structure and a downward arrow pointing to a small particle (no text or symbols)

Precaución:

Prohibition sign depicting a trash bin crossed with a crossed-out line, indicating no waste or discharge.

Diagram showing a rotating disc with a downward arrow indicating rotation or flow (no text or symbols)

Attenzione:

Symbol of a trash bin crossed with diagonal lines, no text or numbers present

Close-up of a mechanical device with a curved surface and a scale marker (7), no visible text or symbols.

PŘED PRVNÍM POUŽITÍM

Diagram showing a circular object with internal features and a downward arrow pointing to a small irregular shape (no text or symbols)

JAKÉ NÁDOBÍ LZE POUŽÍVAT V MIKROVLNNÉ TROUBĚ?

Symbol of a trash bin crossed with two crossed lines, no text or numbers present

Diagram showing a circular plate with internal features and a downward arrow pointing to a small particle (no text or symbols)

Symbol of a trash bin with crossed lines indicating no waste or discharge, and a solid black rectangle below (no text or labels)

Looking for extra accessories or you have a broken piece?

ORDER the original DOMO accessories and parts on our webshop.

QR code image containing encoded data, no visible human-readable text

Webshop

Stack of sheets of paper with a circular inset showing a small object, no visible text or symbols

Two white plastic electrical connectors with mounting holes (no text or symbols visible)

White rectangular container with black interior, no visible text or symbols

Clear glass coffee maker with black handle and lid (no text or symbols visible)
