USER MANUAL 303579 Brandson

Line drawing of a desk lamp with adjustable arm and base (no text or symbols)

CALENDAR DESK LAMP

ENG: Latest information, drivers, user manuals and data sheets can be found at www.ganzeinfach.de in our download area.

Thank you for choosing a Brandon product. Please read the following user manual carefully so that you can enjoy the purchased product for a long time. Before using the product, first check that the delivered item is complete, accurate and undamaged.

1. Scope of delivery

• LED lamp
  • DC coaxial power adapter (3.5mm / 1.35mm)
• User manual

2. Technical data

Operating voltage 12V DC /	1.5A
Output USB, 5V 2.1A
Backup battery CR2032
Dimensions (H x W x D) 330mm x 145mm x 145mm
Features • 3 colours	• Temperature and calendar function• Alarm function• Touch-controlled• Dimmable

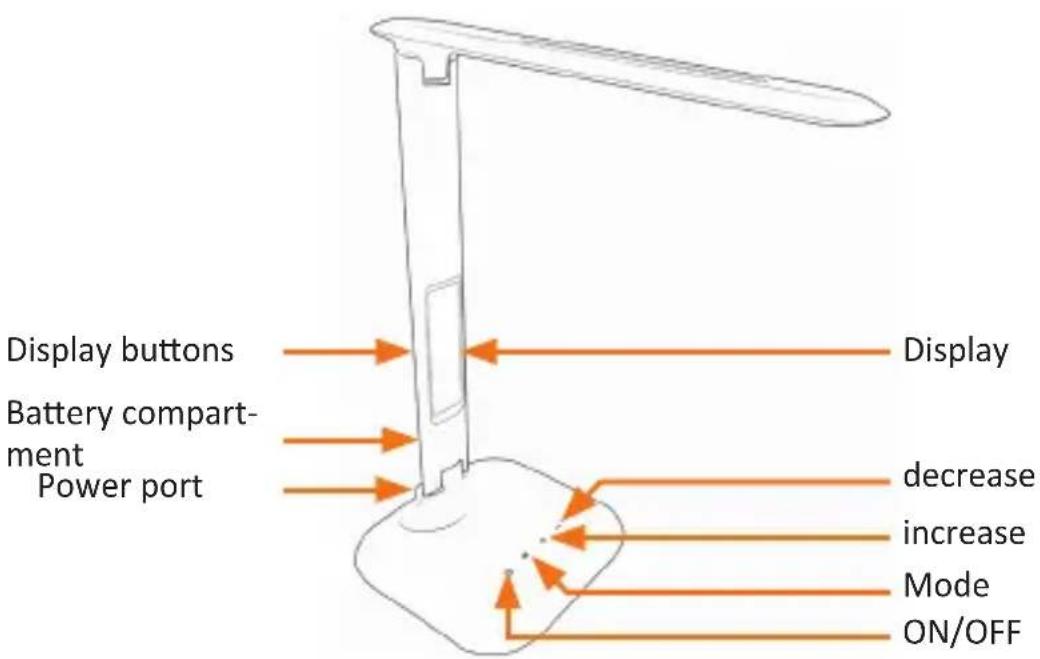

3. Product details

Display buttons Battery compartment Power port Display decrease increase Mode ON/OFF

4. Initial use

Check that the product and the components are intact and that the device is working properly when using it for the first time Take the device out of the package and remove all the packaging material. Place the lamp on a flat and even surface, so that it does not fall over. Remove the battery safeguard on the rear of the lamp by turning the battery compartment anticlockwise and removing the plastic washer between the battery and the contact. Then close the battery compartment properly again.

Then insert the supplied DC coaxial power connector into a properly installed power socket and connect it to the lamp in order to start using it.

You can switch the lamp on or off by touching "ON/OFF" on the front.

Touch the "Mode" button on the front to select one of the three light modes (natural, white and yellow light). To adjust the brightness of the lamp, touch the "Increase" or "Decrease" button (with the lamp switched on) until you obtain the desired brightness.

You can charge your mobile phone, for example, using the USB port on the back of the device.

5. Display functions

First, set the current time and the current date. To do this, press the "SET" button on the back of the lamp. The time starts flashing. Set the desired time using the "UP" and "DOWN" buttons. Confirm your entry using the "SET" button. The setting sequence is as follows: Hour -> Minutes -> Year -> Month -> Day.

Press the "UP" button to change between the 12-hour and 24-hour display.

Press the "DOWN" button to change between °C and °F.

Press the "Backlight" button repeatedly to select the display backlight or to switch it on or off.

Alarm function:

Press the "MODE" button on the back of the device to display the currently set alarm. Press the "SET" button once the display shows the alarm time. Now you can enter the desired alarm time. Confirm the settings by pressing the "SET" button. The setting sequence is: Hours -> Minutes -> Snooze time -> Alarm.

Press any button on the rear of the device to stop the alarm and to turn off the alarm completely.

Press the "MODE" button to turn on the alarm, so that you are in the alarm mode. You can turn the alarm on or off using the "UP" and "DOWN" button. The alarm is turned on when the symbol "Z" appears in the display. The setting sequence of the alarm is as follows: Alarm On -> Alarm and Snooze function On -> Alarm Off.

The alarm rings for one minute. If you do not press any button during this time and the alarm is thus turned off, the previously set snooze mode is enabled. The alarm goes off once again after the set snooze time, till a button is pressed on the rear of the device and the alarm is completely turned off.

6. Safety instructions and disclaimer

Never try to open the device to repair or make modifications. Avoid contact with the mains voltage. Do not short-circuit the product. The device is not approved for outdoor use. Therefore please use it only in dry surroundings. Protect it from high humidity, water and snow. Keep the device away from high temperatures. Do not expose the device to sudden changes in temperature or strong vibrations, as this could damage the electronic components. Check the device for any damage before using it. The device should not be used if it was subject to impact or has been damaged in some other manner. Please comply with the local regulations and restrictions. Do not use the device for purposes other than those described in the user manual. This product is not a toy. Keep it out of the reach of children or mentally disabled persons. Any repair or modifications to the device, which is not carried out by the original supplier will void any warranty and guarantee claims. The product should be used only by persons who have read and understood this user manual. The specifications of the device may be changed without prior intimation.

7. Disposal instructions

In line with the European WEEE directive, electrical and electronic devices should not be disposed of along with domestic waste. Their components have to be separately sent for recycling or disposal, because improper disposal of toxic and dangerous components may permanently damage the environment. According to the Electrical and Electronic Equipment Act (ElektroG), you are obliged (as a consumer) to return (free of charge) all electrical and electronic devices to the manufacturer, the point of sale, or public collection points at the end of their service life. The relevant local laws regulate the details in this regard. The symbol displayed on the product, in the user manual or/and on the packaging refers to these regulations. With this manner of sorting, recycling and disposal of used devices, you make an important contribution towards protecting our environment.

8. Instructions for battery disposal

In conjunction with the sale of batteries along with the supply of devices that include batteries, the supplier is obliged to point out the following to the customer: The customer is legally obliged to return used batteries. He can return used batteries which the supplier offers or has offered as new batteries in his assortment free of charge to the supplier's dispatch warehouse (shipping address). The symbols shown on the batteries indicate the following: Pb = battery contains more than 0.004 percent lead by weight, Cd = battery contains more than 0.002 percent cadmium by weight, Hg = battery contains more than 0.0005 percent mercury by weight.

The symbol of the crossed-out dustbin means that the battery may not be disposed of in household waste.

WEEE Guideline: 2012/19/EU WEEE Register no.: DE 67896761

The company WD Plus GmbH hereby certifies that the device 303579/20190128SZ242 complies with the fundamental requirements and all other relevant stipulations. A complete conformity statement can be obtained from: WD Plus GmbH, Wohlenbergstraße 16, 30179 Hanover
