USER MANUAL 304337 Brandson

QR code image containing encoded data, no visible human-readable text

ENG: Current drivers, user manuals and other relevant documents for this product can be found on our homepage.

Thank you for choosing a Brandon product. Please read the following user manual carefully so that you can enjoy the purchased product for a long time. Before using the product, first check that the delivered item is complete, accurate and undamaged.

1. Scope of delivery

• LED lamp
  • DC coaxial power connector (5.5 mm)
• User manual

2. Technical data

Operating voltage 12V DC /	500 mA
Features • 3 light colours (natural, white, yellow)• Touch-controlled• Timer function (about 40 minutes)• Dimmable (5 levels)

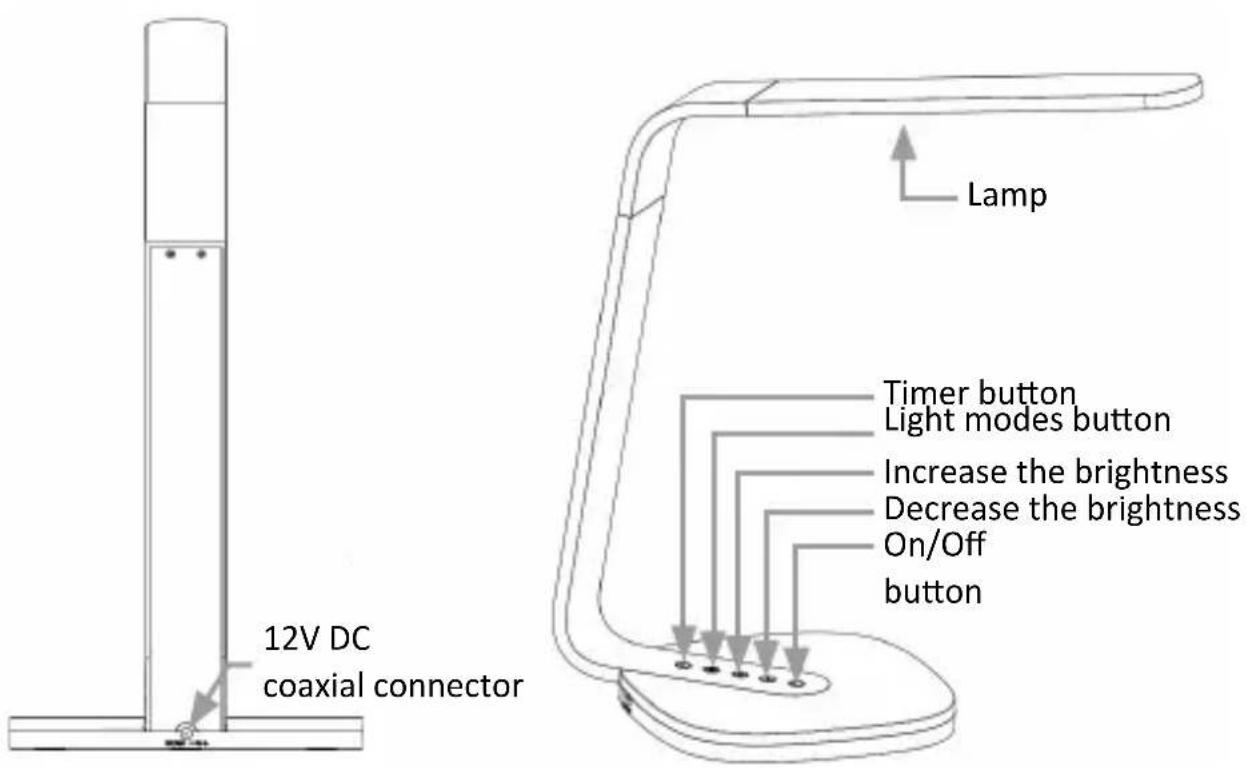

3. Product details

12V DC coaxial connector Lamp Timer button Light modes button Increase the brightness Decrease the brightness On/Off button

4. Initial use

Check that the product and the components are intact and that the device is working properly when using it for the first time Take the device out of the package and remove all the packaging material. Place the lamp on a flat and even surface, so that it does not fall over.

Then insert the supplied 12V DC coaxial power adapter into a properly installed power socket and connect it to the lamp in order to start using it.

You can switch the lamp on or off by touching the "On/Off" button.

5. Timer function

Press and hold the "Timer" button to switch on the timer function. The LED flashes twice and you will hear a beep. The timer is now switched on for about 40 minutes. The lamp switches off after this timer period. If you press and hold the "Timer" button again when the timer is running, the timer is reset to 40 minutes.

6. Changing the light modes

Touch the "Mode" button to select one of the three light modes (natural, white and yellow light).

7. Dimming function (adjusting the brightness)

To adjust the brightness of the lamp, touch the "Increase brightness" or "Decrease brightness" button (with the lamp switched on) until you obtain the desired brightness.

8. Safety instructions and disclaimer

Never try to open the device to repair or make modifications. Avoid contact with the mains voltage. Do not short-circuit the product. The device is not approved for outdoor use. Therefore please use it only in dry surroundings. Protect it from high humidity, water and snow. Keep the device away from high temperatures. Do not expose the device to sudden changes in temperature or strong vibrations, as this could damage the electronic components. Check the device for any damage before

using it. The device should not be used if it was subject to impact or has been damaged in some other manner. Please comply with the local regulations and restrictions. Do not use the device for purposes other than those described in the user manual. This product is not a toy. Keep it out of the reach of children or mentally disabled persons. Any repair or modification to the device, which is not carried out by the original supplier, will void any warranty and guarantee claims. The product should be used only by persons who have read and understood this user manual. The specifications of the device may be changed without any special prior notice.

9. Disposal instructions

In line with the European WEEE directive, electrical and electronic devices should not be disposed of along with domestic waste. Their components have to be separately sent for recycling or disposal, because improper disposal of toxic and dangerous components may permanently damage the environment. According to the electrical and electronic equipment act (ElektroG), you are obliged (as a consumer) to return (free of charge) all electrical and electronic devices to the manufacturer, the point of sale or public collection points at the end of their service life. The relevant local laws regulate the details in this regard. The symbol displayed on the product, in the user manual or/and on the packaging refers to these regulations. With this manner of sorting, recycling and disposal of used devices, you make an important contribution towards protecting our environment. For information on authorised collection points in your area, please contact your local city or municipal administration.

WEEE directive: 2012/19/EU WEEE Register no.: DE 67896761

The company WD Plus GmbH hereby certifies that the device 304337 complies with the fundamental requirements and all other relevant stipulations. A complete conformity statement can be obtained from: WD Plus GmbH, Wohlenbergstraße 16, 30179 Hanover

MO-FR 9:30am - 18pm CET

QR code image containing encoded data, no visible human-readable text

brandson-equipment.de
