302931 - Lamp Brandson - Free user manual and instructions

USER MANUAL 302931 Brandson

ENG: Latest information, drivers, user manuals and data sheets can be found at www.ganzeinfach.de in our download area.

Simple line drawing of a mechanical or electrical component with two vertical posts and an upward arrow, no text or symbols present.

4 Deutsch

Diagram of a mechanical or electrical component with two curved arms and directional arrows indicating motion (no text or symbols)

Mechanical diagram showing a lever mechanism with motion arrows and pivot point (no text or labels)

ACHTUNG!

Thank you for choosing a BRANDSON product. Please read the following user manual carefully so that you can enjoy your purchased product for a long time.

1. Scope of supply

• LED recessed spotlight
- User manual

2 Technical data

Power supply	220 - 240V~ AC, 50/60Hz, 4W
Diameter	• Device: BxWxH : 85x85x30mm• Recess: approx. ø 75 mm
Recess depth approx. 50 mm
Colour temperature 3000K
Luminous flux (lumens) ~320lm
Colour rendering (CRI) >= 80RA
Beam angle Approx. 120°
Weight approx. 165 g
Number of LEDs 68x SMD LED

3. Important safety guidelines for this appliance

• Installation and maintenance work should be carried out only by a trained electrician in accordance with local safety regulations
• Check the device for possible damage prior to commissioning

• The manufacturer is not liable for any damage which may occur due to technical changes and non-compliance with these instructions.

• Ensure that power is switched off before starting the assembly.

• Please observe all the safety rules given below.
• Disconnect from the mains: Ensure that the output power circuit is free of voltage
• Secure against switching on again: Ensure that no one accidentally switches on the power again. Mask the fuse so as to prevent an accidental switching-on again!
• Ensure that there is no voltage: Using a measuring device or a voltage tester (phase tester), verify that the circuit has no power.

4. Installation

Take the device out of the package and remove all the packaging material. Deactivate the fuse of the power circuit at the place where you want to connect the spotlight.

1. Make a hole with the required diameter for the recessed spotlight at the desired location.
2. Connect the recessed spotlight to the mains.

Ø75mm

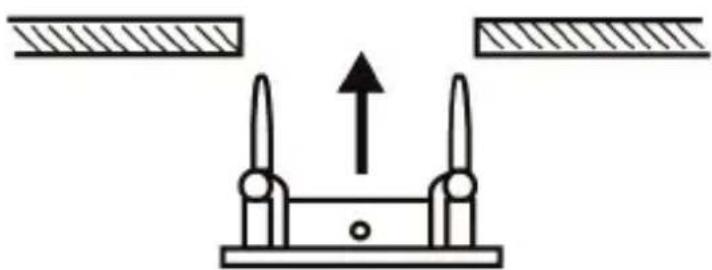

1. Press the clips of the spotlight upwards and insert it into the drilled hole.

Simple line drawing of a mechanical or electrical component with two vertical posts and an upward arrow, no text or symbols present.

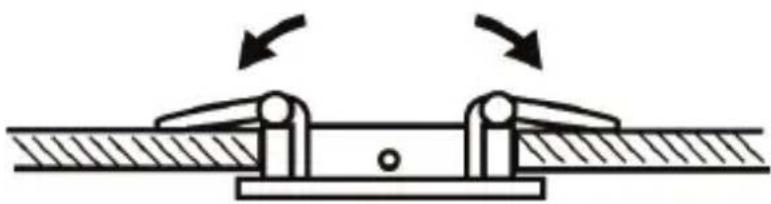

The clips automatically attach themselves to the edges of the hole, thereby giving the recessed spotlight the necessary hold.

1. When the installation is complete, you must re-activate the previously deactivated fuse.

Diagram of a mechanical or structural assembly with two vertical supports and directional arrows indicating motion (no text or symbols)

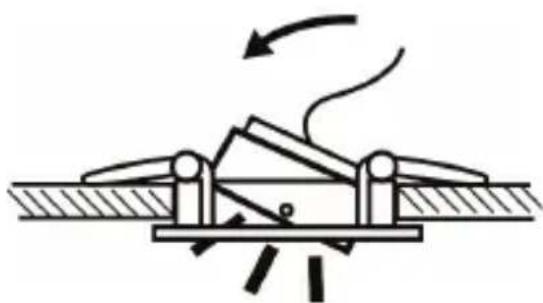

1. Thanks to the flexibility of the recessed light, you can change the beam direction and tilt the device to the desired side. The spotlight is now ready for operation.

Diagram of a mechanical device with rotating arm and base, showing motion direction (no text or symbols)

CAUTION!

1. Safety instructions and Disclaimer

Note: During assembly, please keep a safe distance of at least 5cm between the lamp and the ceiling (cavity)! If necessary, please inform yourself in advance about the properties and heat tolerance of the building material or the insulating material!

Never try to open the device to carry out repairs or conversions. Avoid contact with mains voltages. Do not short-circuit the product. The device is not certified for use in the open air; only use it in dry conditions. Protect it from high humidity, water and snow. Keep it away from high temperatures. Do not subject the device to sudden changes in temperature or heavy vibration as this might damage electronic components. Examine the device for damage before using it. The unit

should not be used if it has received an impact or has been damaged in any other way. Please observe national regulations and restrictions. Do not use the device for purposes other than those described in the instructions. This product is not a toy. Keep it out of the reach of children or mentally impaired persons. Any repair or alteration to the device not carried out by the original supplier, will invalidate the warranty or guarantee. The product may only be used by persons who have read and understood these instructions. The device specifications may change without any separate prior notice to this effect.

6. Disposal instructions

Electrical and electronic devices may only be disposed of in accordance with the European WEEE Directive and not with household rubbish. Components must be disposed of or recycled separately as dangerous, toxic elements can inflict sustained damage on the environment if they are disposed of incorrectly. As a consumer, you are bound by the Electrical and Electronic Devices Act (ElektroG) to return electrical and electronic goods free of charge at the end of their useful life to the manufacturer, the place of purchase or to specially set up, public collection points. The details in each case are governed by national law. The symbol on the product, the operating instructions and/or the packaging refers to these regulations. By separating materials in this way, recycling and disposing of old devices, you are making an important contribution towards protecting our environment.

WEEE guideline: 2012/19/EU

WEEE register number: DE 67896761

WD Plus GmbH, herewith declares that this product 302931/20181024NB025 conforms to the principle requirements and other relevant stipulations. The complete Declaration of Conformity can be obtained from: WD Plus GmbH, Wohlenbergstraße 16, 30179 Hanover
