USER MANUAL TT-02S Elmo

Please read this instruction manual carefully before using this product and keep it for future reference.

PART NAMES AND FUNCTIONS

SETTING UP

STORING

OPERATION PROCEDURE

VARIOUS FUNCTIONS AND OPERATIONS

TROUBLE SHOOTING

SPECIFICATIONS

IMPORTANT SAFEGUARDS

• Read Instructions All the safety and operating instructions should be read before the appliance is operated.
  ■ Retain Instructions The safety and operating instructions should be retained for future reference.
  ■ Heed Warnings All warnings on the product and in the operating instructions should be adhered to.
  ■ Follow Instructions All operating and use instructions should be followed.
  ■ Cleaning Unplug this product from the wall outlet before cleaning. Do not use liquid cleaners or aerosol cleaners. Use a damp cloth for cleaning.
  ■ Attachments Do not use attachments not recommended by the product manufacturer as they may cause hazards.
  ■ Water and Moisture Do not use this product near water - for example, near a bath tub, wash bowl, kitchen sink, or laundry tub, in a wet basement, or near a swimming pool, and the like.
  ■ Placement Do not place this product on an unstable cart, stand, tripod, bracket, or table. The product may fall, causing serious injury to a child or adult, and serious damage to the product. Use only with a cart, stand, tripod, bracket, or table recommended by the manufacturer, or sold with the product. Any mounting of the product should follow the manufacturer's instructions,

and should use a mounting accessory recommended by the manufacturer.

■ Ventilation Slots and openings in the cabinet are provided for ventilation and to ensure reliable operation of the product and to protect it from overheating, and these openings must not be blocked or covered. The openings should never be blocked by placing the product on a bed, sofa, rug, or other similar surface. This product should not be placed in a built-in installation such as a bookcase or rack unless proper ventilation is provided or the manufacturer's instructions have been adhered to.

■ Power Sources This product should be operated only from the type of power source indicated on the marking label. If you are not sure of the type of power supply to your home consult your appliance dealer or local power company. For products intended to operate from battery power, or other sources, refer to the operating instructions.

■ Grounding or Polarization This product may be equipped with either a polarized 2-wire AC line plug (a plug having one blade wider than the other) or a 3-wire grounding type plug, a plug having a third (grounding) pin. The 2-wire polarized plug will fit into the power outlet only one way. This is a safety feature. If you are unable to insert the plug fully into the outlet, try reversing the plug. If the plug still fails to fit, contact your electrician to replace your obsolete outlet. Do not defeat the safety purpose of the polarized plug. The 3-wire grounding type plug will fit into a grounding type power outlet. This is a safety feature. If you are unable to insert the plug into the outlet, contact your electrician to replace your obsolete outlet. Do not defeat the safety purpose of the grounding type plug.
■ Power-Cord Protection Power-supply cords should be routed so that they are not likely to be walked on or pinched by items placed upon or against them, paying particular attention to cords at plugs, convenience receptacles, and the point where they exit from the product.
■ Lightning For added protection for this product during a lightning storm, or when it is left unattended and unused for long periods of time, unplug it from the wall outlet and disconnect the antenna or cable system. This will prevent damage to the product due to lightning and

power-line surges.

■ Overloading Do not overload wall outlets, extension cords, or integral convenience receptacles as this can result in a risk of fire or electric shock.
■ A product and cart combination should be moved with care. Quick stops, excessive force, and uneven surfaces may cause the pr combination to ov
■ Object and Liquid Entry Never push objects of any kind into this product through openings as they may touch dangerous voltage points or short-out parts that could result in a fire or electric shock. Never spill liquid of any kind on the product.
■ Servicing Do not attempt to service this product yourself as opening or removing covers may expose you to dangerous voltage or other hazards. Refer all servicing to qualified service personnel.

Symbolic icon of a person pushing a large object, enclosed in a circle (no text or symbols)

English

■ Damage Requiring Service Unplug this product from the wall outlet and refer servicing to qualified service personnel under the following conditions:

• When the power-supply cord or plug is damaged.
• If liquid has been spilled, or objects have fallen into the product.
• If the product has been exposed to rain or water.

- If the product does not operate normally by following the operating instructions. Adjust only those controls that are covered by the operating instructions as an improper adjustment of other controls may result in damage and will often require extensive work by a qualified technician to restore the product to its normal operation.

• If the product has been dropped or damaged in any way.
• When the product exhibits a distinct change in performance - this indicates a need for service.

■ Replacement Parts When replacement parts are required, be sure the service technician has used replacement parts specified by the manufacturer or have the same characteristics as the original part. Unauthorized substitutions may result in fire, electric shock or other hazards.
■ Safety Check Upon completion of any service or repairs to this product, ask the service technician to perform safety checks to determine that the product is in proper operating condition.

■ Heat The product should be situated away from heat sources such as radiators, heat registers, stoves, or other products (including amplifiers) that produce heat.

CAUTION RISK OF ELECTRIC SHOCK DO NOT OPEN CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK). NO USER-SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

SA 1965

The lightning flash with arrowhead symbol, within an equilateral triangle, is intended to alert the user to the presence of uninsulated "dangerous voltage" within the product's enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons. This marking is located at the bottom of product.

SA 1966

The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the product.

WARNING:

TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS PRODUCT TO RAIN OR MOISTURE.

The connection of a non-shielded equipment interface cable to this equipment will invalidate the FCC Certification or Declaration of this device and may cause interference levels which exceed the limits established by the FCC for this equipment. It is the responsibility of the user to obtain and use a shielded equipment interface cable with this device. If this equipment has more than one interface connector, do not leave cables connected to unused interfaces. Changes or modifications not expressly approved by the manufacturer could void the user's authority to operate the equipment.

FOR UNITED STATES USERS: INFORMATION

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio or television reception. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause interference to radio and television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures.

• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.

USER-INSTALLER

CAUTION:

Your authority to operate this FCC verified equipment could be voided if you make changes or modifications not expressly approved by the party responsible for compliance to Part 15 of the FCC rules.

BEFORE YOU USE

■ Use the product under the rated electrical conditions. The power cord applicable to the local power specifications is attached. Be sure to use the power cord applicable to your local power specifications.
■ Do not leave this product under direct sunlight or by heaters, or it may be discolored, deformed or damaged.
■ Do not keep this product in any humid, dusty, salt bearing wind or vibrating location. Use it under the following environmental conditions:

Temperature: 0°C - 40°C (32°F - 104°F)

Humidity: 30% - 85% (No condensation)

■ Use a soft, dry cloth for cleaning. Do not use any volatile solvent such as thinner or benzene.
■ Do not directly point the camera lens into the sun, or the camera may be damaged.

■ Luminescent and Black Spots

There may be some pixels that do not properly operate due to the use of CCD Area Image Sensors made-up of many pixels. Though luminescent or black spots may be found on the screen, it is a phenomenon peculiar to the Sensors and is not a malfunction.

■ Follow the guidelines below to prevent the unit from dropping or overturning.

• Use the product on a stable base, desk or table. Do not place the product on unstable base or slant place.
• Place or wire the unit to prevent the AC adapter cord or video cable from pulling.

- Carry the product holding the lower part of the main unit held in your both hands. Never hold the product by the column or the camera head.

English

■ Use (including set-up and storage) or transfer with your closest attention to prevent the camera head from shocking. When a magnetic sheet is brought close to a cathode ray tube (Braun tube), a speaker, a CD-player, a DVD, or cellular phone, etc, the normal operation may be interrupted or failure may occur.
■ Do not look directly into the LED light. If you look directly into it at point-blank range, your eyes may be hurt.
■ Transfer the data from the SD card into a device such as PC to save a backup copy. Malfunction of the product or repairs to it may cause the data saved in the SD card to be deleted.
If this product is used for longer than the warranty period, its performance and quality may deteriorate due to the lifetime of its parts. In this case, we will replace the parts for a charge. Consult the seller from whom you have purchased this product or our branch/office near your location.

English

CONTENTS

PART NAMES AND FUNCTIONS

UP SETTING

STORING

OPERATION PROCEDURE

VARIOUS FUNCTIONS AND OPERATIONS

TROUBLE SHOOTING

SPECIFICATIONS

IMPORTANT SAFEGUARDS .... 2 BEFORE YOU USE .... 6

CONTENTS 8

1. PART NAMES AND FUNCTIONS .... 10 Name of Each Part.... 10

Appearance 10

Functions 11

Operating buttons 11

Rear Panel 12

Side Panel 13

OSD (On Screen Display) 14

SD Mode (Menu when image stored in an SD card is in display) .....16

2.SETTING UP 18

Setting Up 18

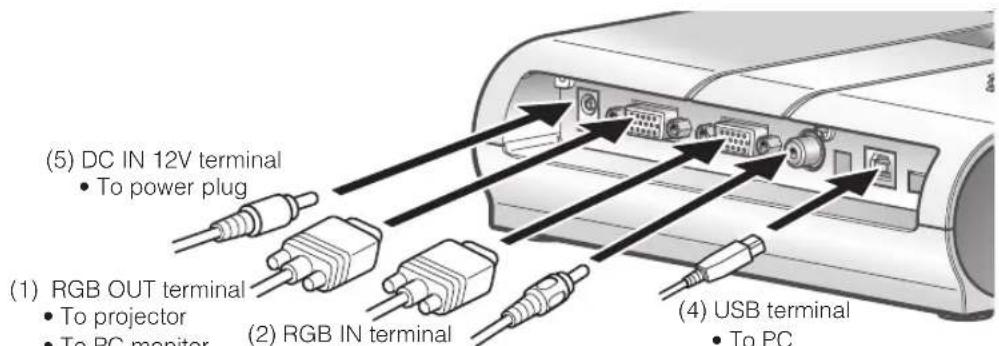

Connecting of AC adapter and Video cable 20

3.STORING 22

Storing 22

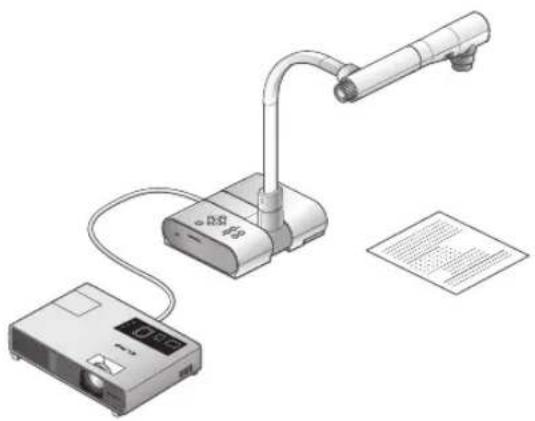

Presentation using printed materials, etc. 24

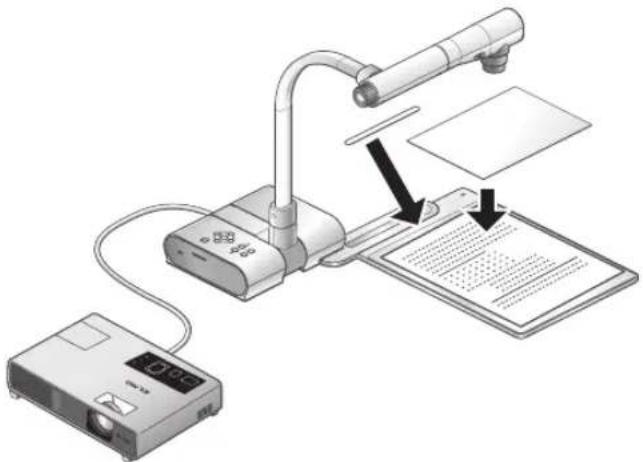

Presentation using printed materials, etc. (Using the stage) ......25

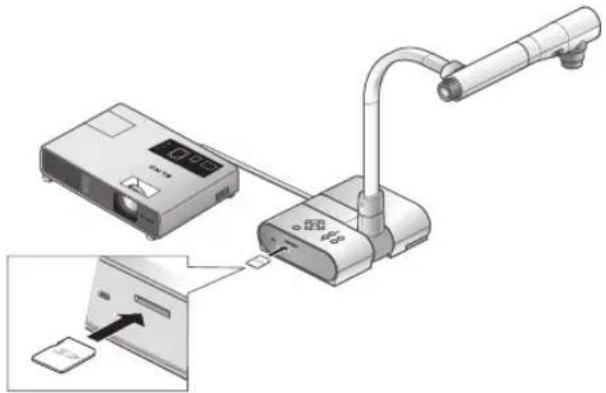

Presentation using an optional SD card (Option) 26

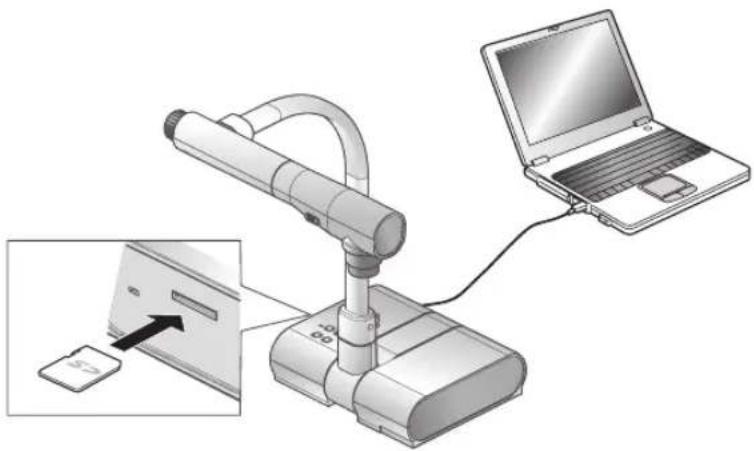

Transferring the images from the SD card into the USB-connected PC .....29

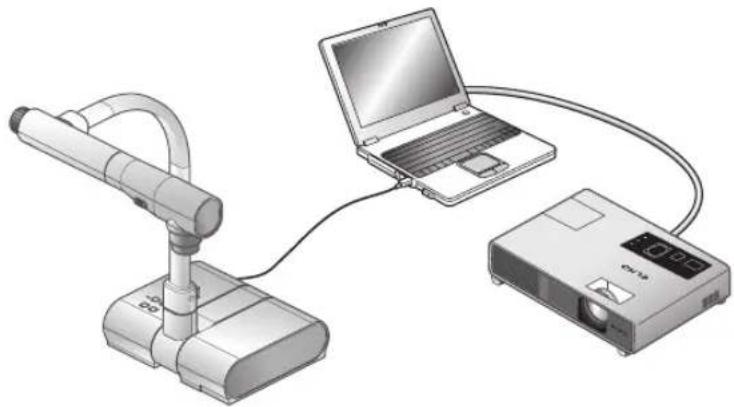

Presentation using the supplied software with the USB-connected PC .....31

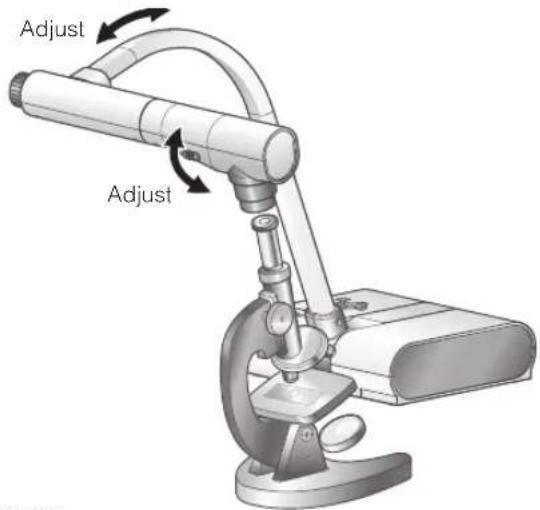

Presentation using a Microscope 32

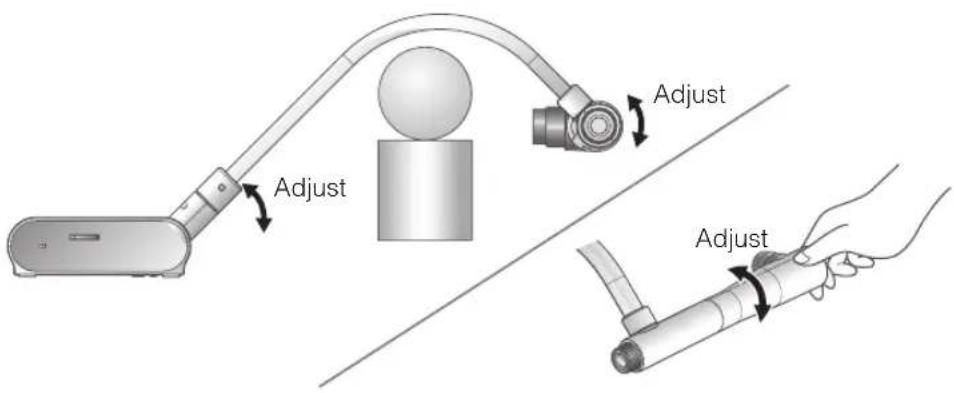

Shooting a 3-D object ....33

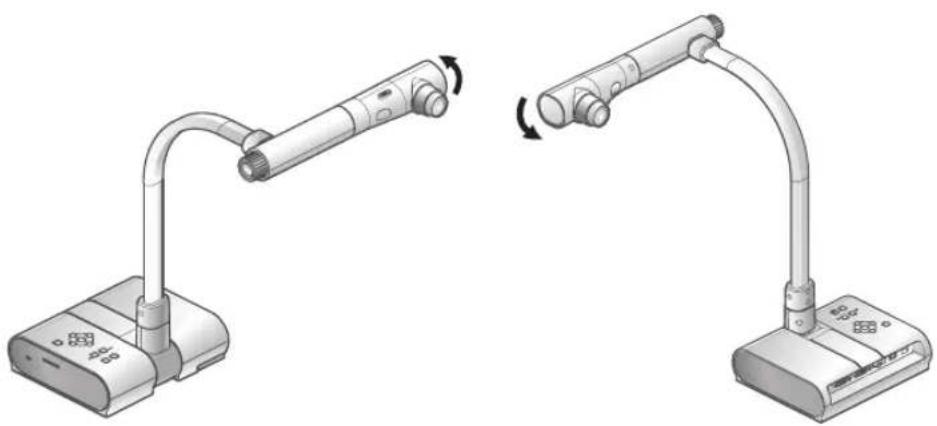

Shooting wall surface or distant view 34

5.VARIOUS FUNCTIONS AND OPERATIONS 35

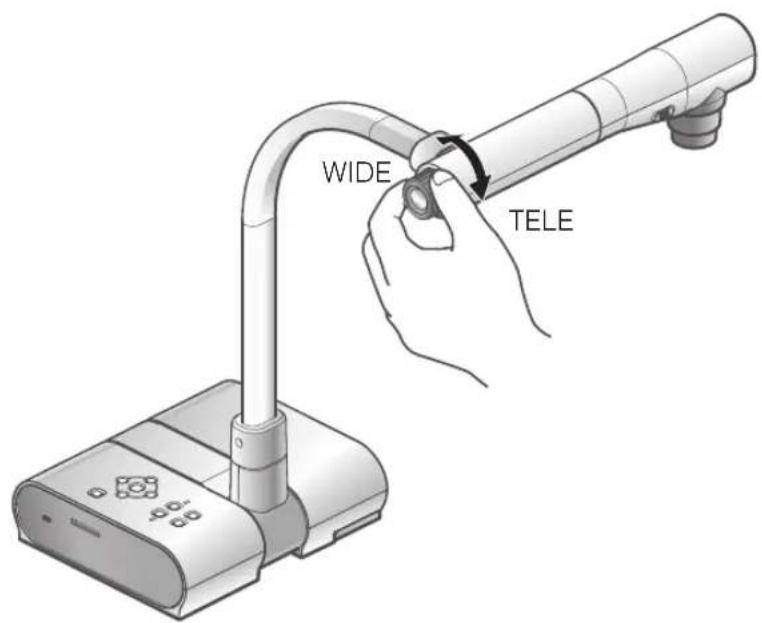

Zoom 35

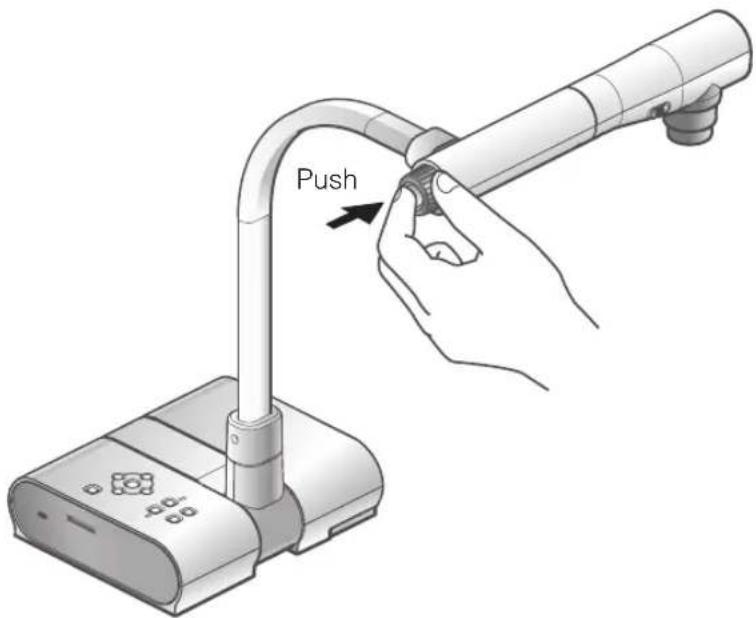

Focus 36

Auto focus 36

Manual focus 37

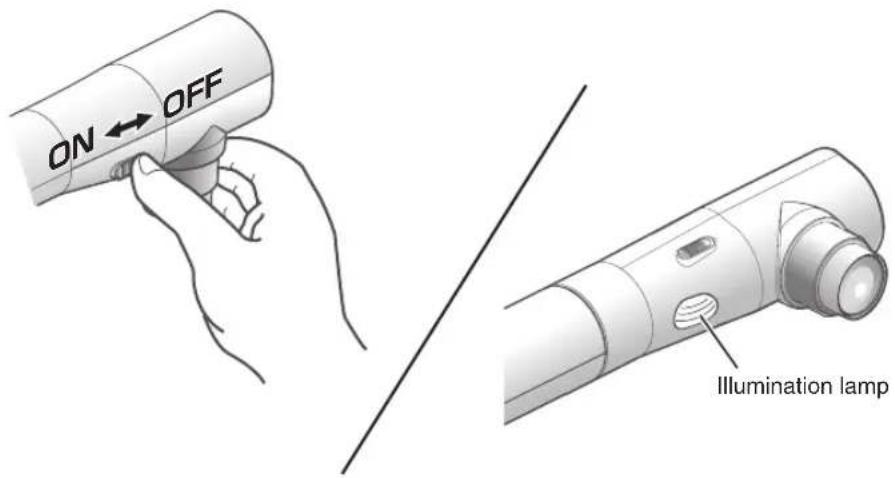

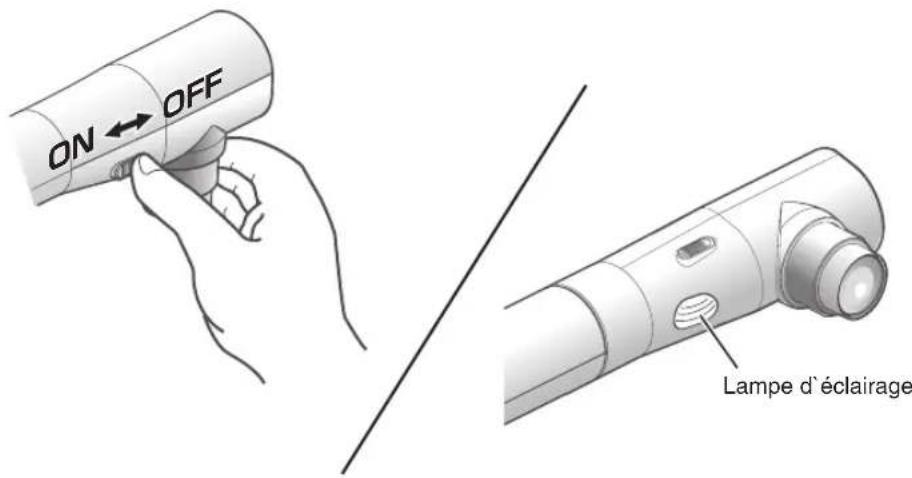

Illumination lamp 38

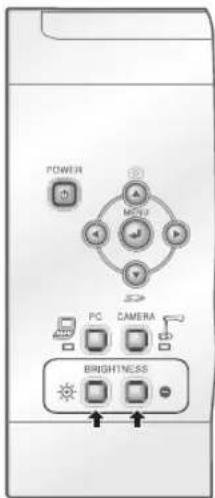

Adjusting the brightness 39

Automatic brightness adjustment 39

Manual brightness adjustment 39

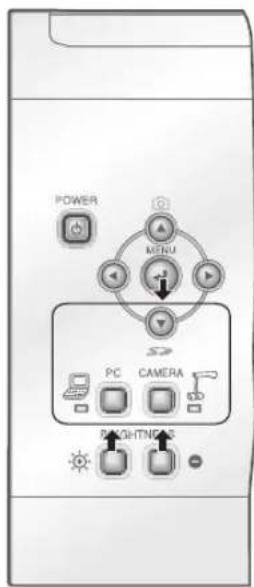

Image selection 40

White Balance 41

How to use [Auto] 41

How to use [One-Push] 41

How to use [Manual] 41

Save/call setting 42

How to save setting 42

How to call setting 42

English

6.TROUBLE SHOOTING .... 43 Symptoms and Confirmation .... 43

7.SPECIFICATIONS....44 General....44 Main Camera....45 Illumination Device....45 Supplied Accessories....46

PART NAMES AND FUNCTIONS

UP SETTING

STORING

OPERATION PROCEDURE

VARIOUS FUNCTIONS AND OPERATIONS

TROUBLE SHOOTING

SPECIFICATIONS

1 PART NAMES AND FUNCTIONS

PART NAMES AND FUNCTIONS

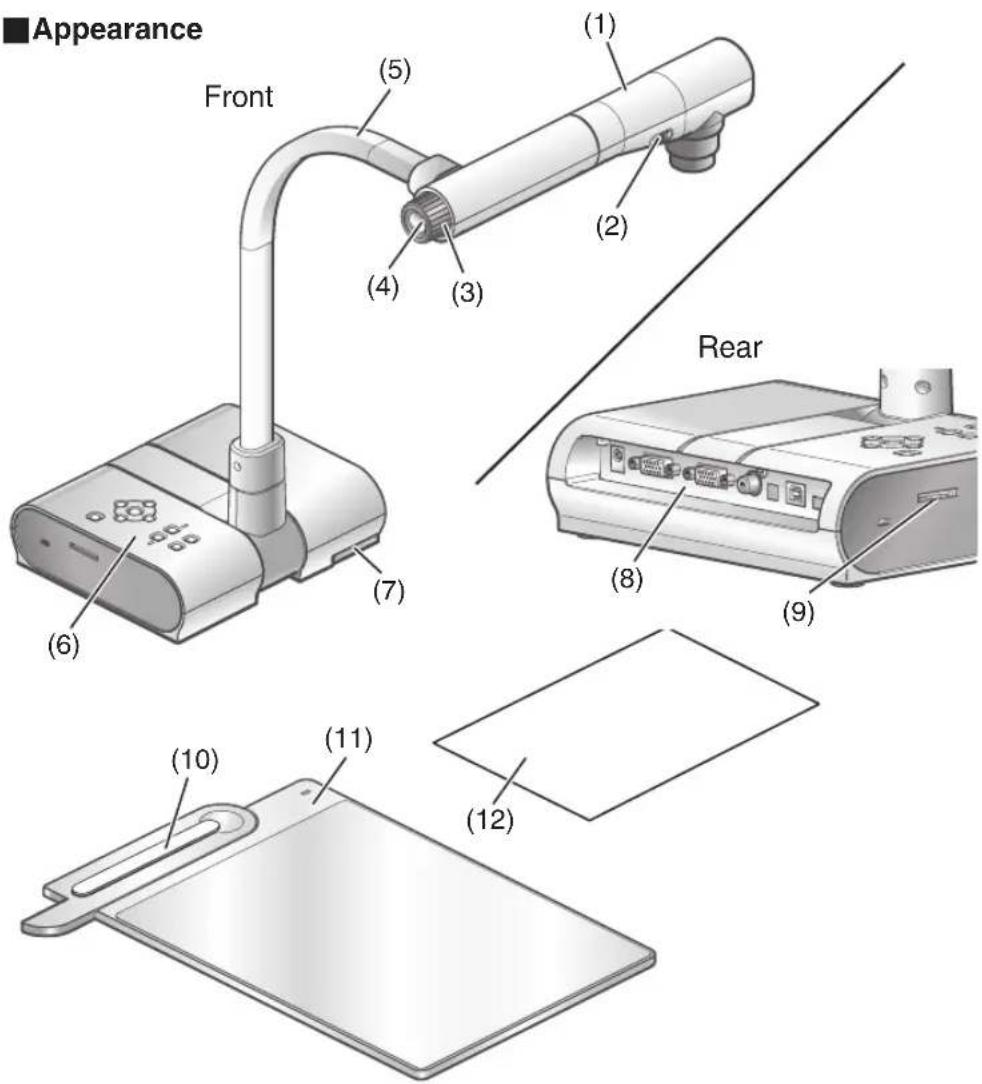

Name of Each Part

■Appearance Front (1) (2) (3) (4) (5) (6) (7) Rear (8) (9) (10) (11) (12)

No Name No Name
(1) Camera head (7) Stage positioning
(2) Illumination lamp switch (8) Rear pa
(3) Zoom dial	P.35
(4) AF Button	P.36
(5) Camera column (11) Stage
(6) Operating button	P.11

	P.25
	P.12
(9) Side panel	P.13
(10) Magnetic sheet	P.25
	P.25
(12) Anti-glare sheet	P.25

Functions

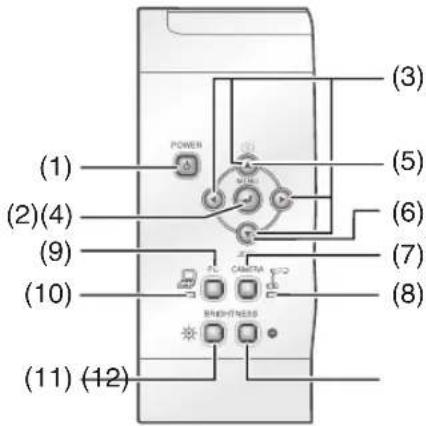

■ Operating buttons

(1) (2)(4) (9) (10) (11) (12) POWER CANADA BRUSHNESS (3) (5) (6) (7) (8)

PART NAMES AND FUNCTIONS

	Name Function		on Name Function
(1)	POWER(Power switch ON/OFF standby)		To turn ON/OFF the power.Power ON: Green light turns onPower OFF standby: Red light turns on
(2)	OSD operation	MENU To display/delete MENU OSD.
(3)		▲▼◀(Direction)	To select the OSD item.
(4)		◀(Decision)	To decide the OSD item.
(5)	(Image save)		To save the image in the SD card.P27
(6)	(SD mode)		To switch the output image to the SD mode.P27

(7)	Image select	CAMERA (Camera image)	To output the camera image from the output terminal.P40
(8)		(Camera image selection display lamp)	To turn on when the camera image is selected as the output image.
(9)	PC	([RGB IN] terminal image)	To output the image input to [RGB IN] terminal from RGB output terminal.P40
(10)		([RGB IN] terminal image selection lamp)	To turn on when [RGB IN] terminal image is selected as the output image.
(11)	BRIGHT NESS		To brighten the camera image.P39
(12)			To darken the camera image.P39

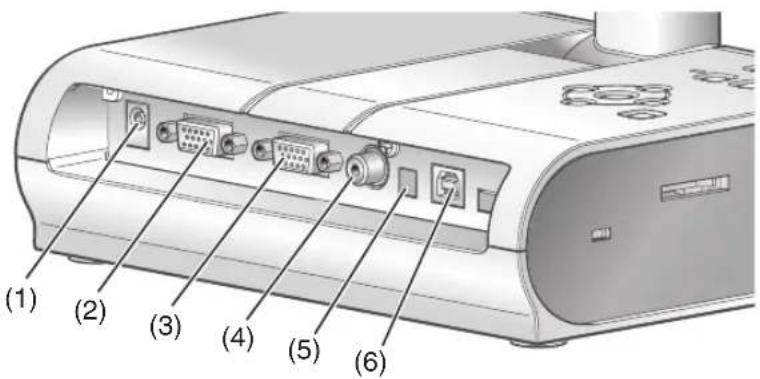

Rear Panel

(1) (2) (3) (4) (5) (6)

	Name Function
(1)	DC IN 12V(Power Socket) [IMAGE] DC IN 12V	Plug-in for the AC adapter
(2)	RGB OUT(Analog RGB Output Terminal) RGB OUT	To output analog video signal to the projector, the PC monitor or other RGB input device.P.20
(3)	RGB IN(Analog RGB Input Terminal) RGB IN	To output the image input to this terminal, when [PC] is selected by Image select button.P.20
(4)	VIDEO OUT(Composite Video Output Terminal) VIDEO OUT	To output image from the RCA pin-jack terminal to the NTSC/PAL-system monitor (e.g., TV monitor)P.21
(5)	OUTPUT(DIP Switch)	To switch the following:Left key : Output terminalRight key : VIDEO output systemWhen switching the DIP switch key settings, be sure to turn OFF the power switch of the main unit.Switching the DIP switch key with the power switch of the main unit ON does not switch the output image.Either one of [RGB OUT] or [VIDEO OUT] images can be output. (Unable to simultaneously output both of [RGB OUT] and [VIDEO OUT] images)When the left key is set to [VIDEO], the image input to [RGB IN] can not be output.(Unable to operate the [PC] button on the main unit.) In addition, the image cannot be output from the USB.Factory setting provides left key : RGB and right key : NTSC.
(6)	USB(2.0 Compliant) [IMAGE] USB	To transfer image or control the main unit using the software contained in the supplied Utility Software CD-ROM by connecting with the PC.P.31

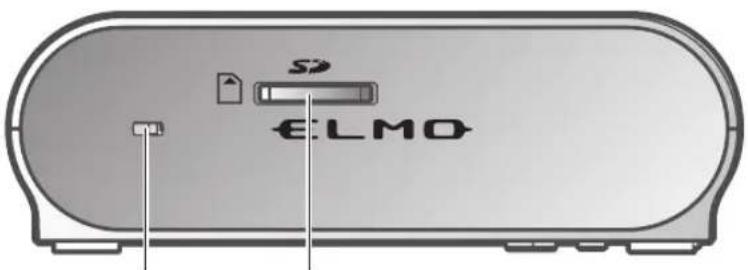

Side Panel

ELMO

(1)(2)

	Name Function
(1)	(SD Card Slot)	To insert an SD card into the SD card slot. Push the card again to remove the SD card.
(2)	Security slot

OSD (On Screen Display)

The menu items displayed/selected on the monitor or the projection screen are referred to as "OSD (On-Screen Display)."

When the [MENU] button is pressed, the OSD menu appears on the monitor screen. (By pressing the [MENU] button again, the OSD menu disappears.)

Move the cursor to the item to be set with the direction buttons [▲▼◀▶] and press operating button [◀] to decide setting. Pressing the direction button [◀] moves the cursor back to the OSD menu by one hierarchy. Pressing it on the top hierarchy allows the OSD menu to disappear.

SELECT MENJOK Focus Brightness Auto Mode Manual Pause The 2nd hierarchy Image Rotation The top hierarchy

The top hierarchy	The 2nd hierarchy Function
Focus (Displayed in arrows (▲F, ▼))	upper/lower	To focus manually. P36
Brightness Auto Mode to change brightness which		automatically follows the object. P39
		Manual Mode to fi x the brightness of the image to a specific level. P39
Mode Text3 To share pen B&W characters and lines		of image. The larger the figure is, the higher the effect is. When setting this mode to “Graphics”, color image such as a color drawing and a photo can be shown vividly. Edge enhancement and gamma settings can be set only when this mode is set to “Graphics.”
Pause On To pause the camera image.
Image Rotation	On To rotate the camera image	by 180° when this function is On.
	Off √
Microscope	Set	Mode to shoot the microscope. P32
	Off √

* [√] shows factory setting.

The top hierarchy	The 2nd hierarchy Function
White Balance	Auto √	To set the white balance to Auto.P41
	One-Push To set the white balance to One-Push.
	Manual To manually adjust the red/blue elements.
R-Gain (Displayed)	n level bar) To adjust the red element when the white balance is set to Manual.
B-Gain (Displayed)	n level bar) To adjust the blue element when the white balance is set to Manual.
Posi/Nega Posi	√	To switch the Posi/Nega of the camera image.· Factory setting for Nega Gamma: Normal
	Nega
Color/B&W Color	√	To switch the color/B&W of the camera image. Use this function to make B&W document easy-to-read.
	B&W
Edge Effect 3 To set	the level of edge enhancement	when the “Graphics” mode is selected. The larger the figures is, the higher the effect is.
	2
	1 √
	Off
Gamma High To set	gamma curve when the	“Graphics” mode is selected. Tone wedge can be changed depending on user's preference.
	Normal √
	Low
USB Mode	Mass Storage	Mode to transfer the image from SD card into the PC connected by USB.
	Application √	Mode to control the main unit and to transfer the images with PC connected to the main unit by USB.
Preset	1 To save the setting in the selected memory. P42
	2
	3
	Power On
Call	1 To call the setting saved in the selected memory. P42[Default] (Default) provides the factory default setting (excluding the settings for the USB mode and language.)
	2
	3
	Power On
	Default
Guide	On √	To set whether the operation state of the main unit should be displayed on the screen or not.
	Off
Language	English √	To set the language for the OSD menu.
	Japanese

* [✓] shows factory setting.
* For the USB mode and language, the most recent settings are retained.

PART NAMES AND FUNCTIONS

English

PART NAMES AND FUNCTIONS

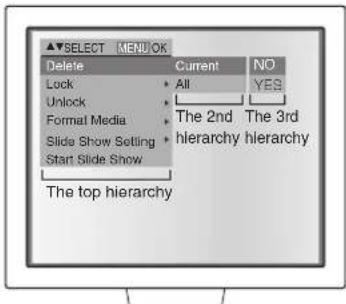

SELECT MENU OK Delete Current NO Lock All YES Unlock Formal Media Slide Show Setting Start Slide Show The 2nd The 3rd hierarchy hierarchy The top hierarchy

■ SD Mode (Menu when image stored in an SD card is in display)

Name			Function
Top hierarchy	2nd hierarchy 3rd hierarchy
DeleteP.28	Current NO To cancel the delete.
			YES To delete the image in display.Locked image cannot be deleted.
	All NO To cancel the delete.
			YES To delete all images.
Lock Current To	lock the image in display. Can set		the image not to be deleted or select the images for slide show. On locked images, “L” appears on the right of the index number displayed at the bottom right.
	All To lock all image fi les. Can select the delete-protected images or the images for slide show.
Unlock Current To	to release the lock of the images in display.
	All To release the lock of all image fi les.

English

Name			Function
Top hierarchy	2nd hierarchy	3rd hierarchy
Slide Show SettingsP.28	Display Interval	3 Sec√	To set the interval of slide show until displaying the next image from 3 to 30 Sec.
		5 Sec
		10 Sec
		15 Sec
		30 Sec
	Effect	Left to right To slide from left to right.
		LT to RB	To slide diagonally from left top to right bottom.
		RT to LB	To slide diagonally from right top to left bottom.
		None√	To show no visual effect.
	Select All	√	To set the slide show objects to all displayable images in an SD card.
		Locked Only To set the slide show objects only to the locked image fi les.
	Order Forward	√	To give slide show in ascending order of serial No.
		Backward To give slide show in descending order of serial No.
	Repeat	Off√	To set whether the slide show should be played repeatedly or not.
		On
Start Slide Show	Start? To start the slide show,		P28
Format MediaP.28	Format? NO	To cancel the format.
		YES	To format the SD card.Since all records in the SD card will be cleared, use this function carefully.

PART NAMES AND FUNCTIONS

* [✓] shows factory setting.

2 SETTING UP

Setting Up

SETTING UP

Note

• Be sure to hold the lower part of the main unit in both hands when carrying the unit. Never hold the column or the camera head.
• Pay attention to prevent the camera head from knocking against the desk or the like.

Illustration of a desk lamp with a curved arm and a base, showing no text or symbols on the lamp itself.

1 Turn the column to the direction shown in the figure.

Note

• Never turn the column to the opposite direction.
• Be sure to hold the column when turning it. Never hold the camera head.

180°

2 Turn the camera head.

Note

• Proper set up position of the camera head is as shown in the right figure.
  Never apply excessive force to the camera head.

90°

English

3 Connect the analog RGB cable to the [RGB OUT] terminal and connect the DC plug of AC adapter to [DC IN 12V] terminal.

Illustration of a desktop computer with a curved arm and power cord (no text or symbols)

SETTING UP

4 Turn the power switch of the main unit ON.

Illustration of a handheld electronic device with a curved arm and a display unit (no text or symbols visible)

Connecting of AC adapter and Video cable

(5) DC IN 12V terminal • To power plug (1) RGB OUT terminal • To projector • To PC monitor (2) RGB IN terminal (4) USB terminal • To PC

(3) VIDEO OUT terminal
- To TV monitor

(1) Connecting to the unit with analog RGB input terminal equipped

Connect the supplied analog RGB cable to the [RGB OUT] terminal on the rear panel.

• The display position may be displaced from the center of the screen. In such case, adjust the horizontal and vertical positions manually from the connected device.
• Vertical strips may appear on the projector or PC monitor screen. This can be mitigated by manually adjusting the dot clock from the connected device.

(2) Connecting to the unit with analog RGB output terminal equipped

Connect the supplied analog RGB cable to the [RGB IN] terminal on the rear panel.

Note

• When using a laptop PC with an external output mode switching, set the laptop PC side to the external output mode after pushing the manual operation button [PC] of this equipment.
• In the power OFF standby state, images that have been input into the [RGB IN] terminal will be output from the [RGB OUT] terminal.

■ Specifications of the analog RGB input terminal of this product

Signal allocation

DSUB 15P shrink terminal (Female)

Pin assignment

Video signal : Analog 0.7V(p-p) with 75Ω terminated

Horizontal synchronized signal : TTL level (Positive/negative polarity)

Vertical synchronized signal : TTL level (Positive/negative polarity)

Pin No.	Name Pin No.
1	Video signal (Red)
2	Video signal (Green)
3	Video signal (Blue)
4 N.C	9 N.C 14 Vertica
5 GND	10 GND 15 N.C

Name Pin No. Name
6 GND	(Red) 11 GND
7 GND	(Green) 12 N.C
8 GND	(Blue) 13 Horiz

tal	sync. signal
	sync. signal

(3) Connecting to the unit with composite video input terminal equipped

Connect the video cable with RCA pin plug to the [VIDEO OUT] terminal on the rear panel.

(4) Connecting to the PC with a USB cable

Connect a USB cable to the [USB] terminal on the rear panel.

• The USB cable compliant with USB2.0 is recommended.
• If you plug into a USB connector with power on, PC may not recognize this product.
• Depending on the USB environment of PC or the USB2.0 compliant cable is recommended. Peripheral units, the image transfer may be disturbed.
• This does not guarantee operations in any environment.

(5) Connecting the AC adapter

Connect the DC plug of the supplied AC adapter to the [DC IN 12V] terminal on the rear panel before inserting the AC adapter in an outlet.

• As for switching-over of the image output, refer to "OUTPUT (DIP switch)" on page 12.
• To protect the unit and peripheral devices, unplug the power plug and the AC adapter, turn OFF power switches of all other devices before connecting video cable.
• Hold the plug of cable to plug/unplug the power plug/the AC adapter or video cable.

3 STORING

Storing

1 Turn the power switch of the main unit OFF

(Continuously press the power switch for approx. 2 sec. The green light turns to red and the power switch of the main unit is OFF.)

- Before storing, be sure to turn the power switch of the main unit OFF.

2 Unplug the AC adapter and the video cable.

Illustration of a handheld electronic device with a curved arm and control panel (no text or symbols)

Illustration of a desktop computer with a curved arm and base unit (no text or symbols)

3 Turn the camera head to the direction shown in the figure.

90°

Turn the column to the direction shown in the figure.

180°

Note

• Never turn the column to the opposite direction.
• Be sure to hold the column when turning it.
  Never hold the camera head.
• Proper storing position of the camera head is as shown in the above figure.
  Never apply excessive force to the camera head.
• Pay attention to prevent the camera head from knocking against desk or the like.
• Unplug the power cord and the AC adapter when the unit is not used.
• Turn the illumination lamp switch OFF when folding the main unit.

Presentation using printed materials, etc.

Illustration of a medical imaging device with a monitor, cable, and adjustable arm (no text or symbols visible)

■ Setting the main unit

Set the main unit as shown in the above figure, connect the main unit to the projector or the PC monitor, and then turn the power switch of the main unit ON.

■ Adjusting the size

Place an object, adjust the position of the object with the zoom dial so that the objective part fits the screen size.

P.35

■ Adjusting the focus

Press the [AF] button to focus the camera on the object.

P.36

■ Adjusting the brightness

Press the [BRIGHTNESS • 🎨] and [BRIGHTNESS • ⏻ buttons on the main unit to adjust image brightness.

■ Turning the illumination lamp ON/OFF

Move the illumination lamp switch to the left/right to turn it ON/OFF.

Note

- When connecting to other devices, be sure to turn OFF the power of all the devices.

Note

- For best results, we recommend LCD projectors over DLP projectors to be used with TT-02s. A better image may be produced by selecting "Graphics" mode with DLP projector.

Presentation using printed materials, etc. (Using the stage)

Diagram showing a device setup with an oscilloscope, paper holder, and screen, highlighting a component with arrows indicating assembly or operation.

Using the supplied stage, magnetic sheet or anti-glare sheet, effective presentation is possible.

■ Setting the main unit

Attach the stage to the specified position as shown in the above figure and connect to the projector or the PC monitor. Then turn the power switch of the main unit ON.

- To prevent the printed materials, etc. from moving, use the supplied magnet sheet to properly fix the printed materials, etc. on the stage.

■ Adjusting the size

Place an object on the stage, adjusting the position of the object with the zoom dial so that the objective part fits the screen size. P.35

■ Adjusting the focus

Press the [AF] button to focus the camera on the object.

■ Adjusting the brightness

Press the [BRIGHTNESS • 🎨] and [BRIGHTNESS • 🎨 buttons on the main unit to adjust image brightness.

■ Turning the lamp ON/OFF

Slide the lamp switch to the left/right to turn it ON/OFF.

- When shooting glossy documents, etc, the images may be hard to see due to glare, etc. In such cases, place the anti-glare sheet, supplied, over the area where glare is occurring. This will reduce glare and the images will become easier to see.

Presentation using an optional SD card (Option)

Diagram showing a projector connected to a device via a pipe, with an inset view of a device being inserted (no text or symbols present)

Note

• Before starting the operation, insert an optional SD card (Option) into the SD slot on the side panel. Push the card again to remove the SD card.
• Insert the SD card with the labeled side up. Forcing it in the wrong way may cause a malfunction.
• When loading or unloading the SD card or the power is turned OFF, be sure to select the camera image by pressing the camera button [ ] on the front operating panel and confirm that the output image has been turned to the camera image beforehand. Otherwise, the SD card contents could be broken or failure could be caused to the camera.
• The SD card is composed of parts vulnerable to static electricity. Therefore, due to static electricity, the SD card could malfunction or its contents could be destroyed. When handling the SD card, take care to avoid static electricity.
• The image data viewable on this product is limited to the image data saved in this product and the image data converted using the conversion function of the software attached to this product.
• If you try displaying the image data whose format is not compatible with this product, a black or gray image will be displayed.
• If you try displaying the image data in the SD card without inserting the SD card, a black image will be displayed. (The message "NO CARD" will appear on the screen.)
  • After using the SD card, do not leave it inside this product, but be sure to remove it.
• Panasonic SD card (256MB or 512MB) is recommended. The resolution of the image to be stored is 1024 × 768 (XGA output).
  This product can store images up to 2048 pcs.
• ELMO is not liable for any damage caused by the loss of the data in the SD card or passive damage.
• This product is not compatible with SDHC cards. Use a card recommended for this product.
• When the SD mode is selected, the specific software supplied with this product can not be used.

■ Saving the image

(1) Press the [ ] button on the front operating panel to switch the mode to the Camera mode.
(2) Make sure that the OSD is not displayed, and then press the [☐] button on the front operating panel.
(3) When the [☐] mark lights up on the screen, the image saving starts. When this mark goes out, the image saving is completed.

Note

• When an image is saved during digital zooming, the digital zooming operation is canceled and the image is saved at the factory setting zoom ratio.
• The correct date/time is not saved on the image files.
• Be sure to try shooting and confirm the normal saving of the image beforehand. If the image can not be saved normally due to some problem with this camera or the SD card, ELMO is not liable to compensate for such failure.
• The [icon] mark on the screen is displayed only when the [Guide] menu is set to ON.
• When the SD card is write-protected, the image cannot be saved in the SD card.
• When the capacity of the SD card becomes full and no more images can be saved, the [ × ] mark lights up. Then, delete unnecessary images or use a new SD card.
• When the SD card is in the read/write mode, do not remove the SD card, or failure could occur with this product.

■ Displaying the image

(1) When you make sure that the OSD is not displayed and then press the [SD] button on the front operating panel to switch the output image mode to the SD mode, the images saved in the SD card are displayed.
(2) When the direction button [▶] or [▼] on the front operating panel is pressed, the next image is displayed. When the direction button [◀] or [▲] is pressed, the previous image is displayed again.
(3) The image in display can be zoomed in/out by using the zoom dial and the zoomed in/out image can be reset by using the AF button. When the image is zoomed in, the displayed part of the image can be scrolled by using the direction buttons [▲▼◀▶].

■ Deleting the image

(1) Make sure that the OSD is not displayed, and then press the [SD] button on the front operating panel to display the images stored in the SD card.
(2) Display the image to be deleted by using the direction buttons [▲]▼on the front operating panel.
(3) Press the [MENU] button on the front operating panel, and select the [Delete] menu of the OSD. To delete only the image in display, select [Current]. To delete all images, select [All].

When you select [YES] by pressing the [◀] button on the front operating panel, the deletion is executed. (To cancel the deletion, select [NO].)

■ Slide show

(1) Make sure that the OSD is not displayed, and then press the button [SD] on the front operating panel to switch the output image mode to the SD mode.
(2) Display the OSD by pressing the [MENU] button on the front operating panel. When [Start?] of the [Start Slide Show] menu is selected, the slide show starts.
(3) When the [←] button on the front operating panel is pressed, the slide show stops.

- [Effect], [Interval] and [Repeat] can be set from the [Slide Show Settings] menu of the OSD.

■ Formatting the SD card

When you need to format the SD card, insert the SD card into this product, and execute formatting.

(1) Make sure that the OSD is not displayed, and then press the [SD] button on the front operating panel to switch the mode to the SD mode.
(2) Display the OSD by pressing the [MENU] button on the front operating panel, and select [Format Media].
(3) Select [Format?].

Note

- When [USB Mode] has been set to [Mass Storage] and a USB cable has been connected to the PC, an SD card cannot be deleted, locked, unlocked, formatted, and saved with image data.

Transferring the images from the SD card into the USB-connected PC

Diagram of a robotic device connected to a laptop via cable, showing a close-up of its base panel and a separate view of the device's screen (no text or symbols present)

Note

• Set [USB Mode] to [Mass Storage] on the OSD.
• Insert the SD card with the labeled side up. Forcing it in the wrong way may cause a malfunction.

When this product is USB-connected to the PC, image data in the SD card can be transferred into the PC.

The Operating System (OS) for the connected PC should be Microsoft Windows 2000 (SP4 or newer)/XP (SP2 or newer).

(1) Turn ON the power supply to this product and to the PC.
(2) Connect this product to the PC with the supplied USB cable.

Note

- When this product is connected to the PC for the first time, the required drivers are installed automatically due to the plug-and-play function of Windows. For the second time and thereafter, the drivers are no longer installed.

English

(3) This product is recognized as a removable disk. You can view the image data in an SD on the viewer software for the PC.

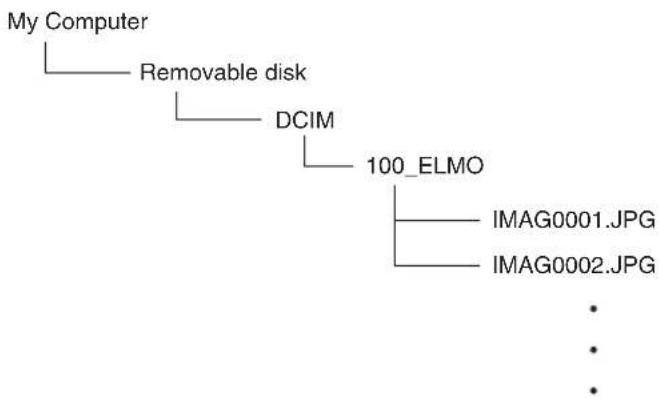

The image data are stored in JPEG format in the following folders:

Note

• An SD card set in this product cannot be saved, deleted, locked, unlocked, and formatted with image data from the PC.
• The image data cannot be recorded with the correct date and time.
• When the front operating panel is in operation, do not connect/disconnect the USB cable, or malfunction will be caused to this product.
• Do not switch [USB Mode] on the OSD when this product is in USB-connection.
• The USB2.0 compliant cable is recommended.
• Depending on the USB environment used by the PC or the USB2.0 compliant cable peripheral units, the image transfer could be disturbed.
  • This does not guarantee operations in any environment.
• When [USB Mode] has been set to [Mass Storage] and a USB cable has been connected to the PC, an SD card cannot be deleted, locked, unlocked, formatted, and saved with image data by operating the main unit.

Presentation using the supplied software with the USB-connected PC

Illustration of a medical device connected to a laptop and a projector (no text or symbols visible)

Note

- Set [USB Mode] to [Application] on the OSD.

"Utility Software" is in the supplied CD-ROM.

"Utility Software" contains the PC link software "Image Mate for Presentation" and the TWAIN driver "ELMO TWAIN DS (VHO)" for the following operations:

• Transfer of moving/still images to the PC
  • Operation of this product from the PC

For details on the operating environment and the Operating System (OS) for the connected PC and how to use the PC link software etc., refer to the "Utility Software" Installation Manual and the "HELP Folder" in the CD-ROM.

Note

• When the SD mode is selected, the specific software supplied with this product can not be used. Do not switch to the SD mode during operations using the specific software, as this may cause a malfunction.
• When the operating button is in operation, do not connect/disconnect the USB cable, or malfunction will be caused to this product.
• The USB cable compliant with USB2.0 is recommended.
• When the DIP switch is set to the VIDEO, the image cannot be output from the USB. Refer to "OUTPUT (DIP switch)" on page 12 to switch the image output to the RGB.
• Depending on the USB environment used by the PC or peripheral units, the image transfer could be disturbed.
  • This does not guarantee operations in any environment.

Presentation using a Microscope

Adjust Adjust

OPERATION PROCEDURE

■ Setting a microscope

Place an object such as a prepared slide on a microscope. Adjust focus by checking with eyes at the microscope side.

■ Setting the main unit

Connect the main unit to a projector or a PC monitor. Then turn the power switch of the main unit ON.

■ Changing to the Microscope mode

Change the Microscope mode to [Set] from the OSD menu. Then connect the main unit to a microscope as shown in the above figure.

Note

• Pay attention to prevent the lens from knocking on a microscope.
• When being changed to the microscope mode, [Graphics] is automatically selected as [Mode].

■ Adjusting the focus

Adjust the focus on the microscope. At this time, please take care to ensure that the eyepiece does not come into contact with the lens of the main unit, and that the objective lens does not damage the prepared slide.

■ Adjusting the brightness

Press the [BRIGHTNESS • 🎨] and [BRIGHTNESS • 🎨] buttons on the main unit to adjust the image brightness.

Note

• When using the document camera successively after the use of microscope, set [Set] [Off] in the OSD.
• When setting [Set] [Off] in the OSD, [Mode] gets back to the selected [Mode] just before being changed to the microscope mode.

Shooting a 3-D object

Adjust Adjust Adjust

By adjusting angle of the camera column and the camera head, a 3-D object can be shot from the side.

■ Setting the main unit

Connect the main unit to a projector or a PC monitor.

Then turn the power switch of the main unit ON. Adjust angle of the camera column and the camera head as shown in the above figure to shoot a 3-D object.

■ Adjusting the size

Adjust the position of the object with the zoom dial so that the objective part fits the screen size.

■ Adjusting the focus

Press the [AF] button to focus the camera. In a case when the object can not be brought into focus with the [AF] button, adjust focus with the manual focus by selecting [Focus] in the OSD menu.

Note

• The focus can be achieved from 50mm to ∞

■ Adjusting the brightness

Press the [BRIGHTNESS • 🎨] and [BRIGHTNESS • 🎨] buttons on the main unit to adjust image brightness.

■ Turning the illumination lamp ON/OFF

Move the illumination lamp switch to the left/right to turn it ON/OFF.

Shooting wall surface or distant view

Illustration of two robotic devices with curved arms and a device on top, showing rotational motion (no text or symbols)

Forward shooting Backward shooting

When the camera head is set horizontally, wall, distant view, etc, can be shot.

Note

• To shoot forward of the main unit, set to [Image Rotation] [On] in the OSD to rotate the image by 180^ .
• Camera head rotation angle
  Forward shooting : 110° from the normal downward shooting position Backward shooting : 110° from the normal downward shooting position
• The focus can be achieved from 50mm to .

Note

- To take shots of people, turn the illumination lamp switch OFF. - Make sure that the light from the illumination lamp does not shine directly into their eyes.

5 VARIOUS FUNCTIONS AND OPERATIONS

Zoom

WIDE TELE

The display range of the document can be adjusted by rotating the zoom dial.

(Zoom-OUT ☐) : Object can be shown in small size.

(Zoom-IN ☐): Object can be shown in large size.

Note

• Zoom ratio : Optical 5.2x, Digital 8x
• Within the digital zoom range, the image quality is degraded.
• In the SD mode, SD images can be digitally zoomed (enlarged/reduced).

English

Focus

Push

OPERATIONS

FUNCTIONS AND

VARIOUS

Auto focus

Press the [AF] button to automatically focus. The unit provides one-shot auto-focus system. Once the camera is focused, the auto focus operation is released, and then focus position is maintained.

Note

- The objects listed below may not be brought into focus in the auto focus. In such cases, use the manual focus.

• Low contrast object
• Objects with fine repeated patterns, such as lateral stripes and cross stripes
• Objects glittering or reflecting strong light
• Objects with bright background or excessive contrast
• Objects that are entirely dark
• Objects located near and far away at the same time
• Objects in motion

• The focus can be achieved from 50mm to ∞.
- In the SD mode, the digital zoom settings for SD images can be reset.

English

■ Manual focus

The position to focus can be changed with [▲[ ] buttons on the main unit after selecting [Focus] in the OSD menu. Use the manual focus to focus on any position of a 3-D object.

MENU OK Focus Brightness Mode Pause Image Rotation

POWER CO2 PC CAMERA BRIGHTNESS

VARIOUS FUNCTIONS AND OPERATIONS

Illumination lamp

ON ← OFF Illumination lamp

By sliding the illumination lamp switch, the illumination lamp can be turned ON/OFF.

• [ON] : The illumination lamp lights.
• [OFF] : The illumination lamp goes out.

Note

• To take shots of people, turn the illumination lamp switch OFF.
(Make sure that the light from the illumination lamp does not shine directly into their eyes.)
- This product is equipped with the high-brightness LED lamp. You can safely use the lamp to light objects. However, its brightness will gradually degrade with long-term usage. This is not a malfunction of the lamp, but a feature of the LED performance.
- Do not touch the illumination lamp while it is ON. Its temperature may be higher.

OPERATIONS

FUNCTIONS AND

VARIOUS

Adjusting the brightness

Press the [BRIGHTNESS • 🍒 and [BRIGHTNESS • 🍒] buttons on the main unit to adjust image brightness. Following two adjustment mode can be selected from the OSD menu.

POWER MCPU PC CAMERA BRIGHTNESS

■ Automatic brightness adjustment

([Brightness] → [Auto] in the OSD)

Brightness of the image changes automatically according to the brightness of the object.

SELECTanclock Focus Brightness Auto Mode Manual Pause Image Rotation

■ Manual brightness adjustment

([Brightness] → [Manual] in the OSD)

Brightness of the image is fixed to the specified level.

SELECT MENU OK Focus Brightness Auto Mode Manual Pause Image Rotation

Note

• Factory setting is set to [Auto].
- Manual adjustment fixes the brightness and does not follow the change in brightness of the object.
- When the brightness becomes dark, the frame rate slows, and the image may become hard to see.
- By setting [Guide] to [On] in the OSD menu, the setting details is displayed on the screen.
• To go back to factory settings, press the [BRIGHTNESS • and [BRIGHTNESS •
buttons on the main unit at the same time.

Image selection

POWER MENU PC CAMERA BACKLIGHTS

OPERATIONS

FUNCTIONS AND

VARIOUS

The camera image is displayed by [CAMERA] button while the input image into the analog RGB input [RGB IN] is displayed by [PC] and the images in SD card is displayed by [SD] button.

The camera image and the image input in the RGB input terminal [RGB IN] can be switched by pressing the [CAMERA] button and the [PC] button respectively.

By using these functions, output images can be switched without disconnecting cables.

Note

• The [PC] button can not be used when the dip switch is set to VIDEO.
• When using a laptop PC with external output selection equipped, set the output mode of the PC to "external" after pressing the [PC] button on the main unit.
• When the OSD is displayed, the [SD] button functions as [▼ (lower arrow button)].

White Balance

How to use [Auto]

Adjust the white balance automatically according to the color status of the document.

Factory setting : Auto

SELECT MENITOK Microscope White Balance Auto R-Gain One-Push B-Gain Manual Post/Nega

■ How to use [One-Push]

To be used when the color balance of the image is lost.

Firstly shoot a sheet of white paper and set the OSD menu [White Balance] → [One-Push]. And then, the white balance for the then color temperature is fixed.

SELECT MEN/LOCK Microscope White Balance Auto R-Gain One-Push B-Gain Manual Post/Nega

■ How to use [Manual]

Setting to [White Balance] → [Manual] for the OSD fixes the white balance to allow [R-Gain] and [B-Gain] for the OSD to be adjustable.

▼SELECT MENU OK Microscope White Balance R-Gain B-Gain Post/Nega Auto One-Push Manual

VARIOUS FUNCTIONS AND OPERATIONS

MENJOK Microscope White Balance R-Gain B-Gain Post/Nega

Note

• The automatically followed color temperature ranges from approx. 3000K - 8000K.
• By setting [Guide] to [On] in the OSD menu, the setting details are displayed on the screen

English

Save/call setting

The operation status of the unit can be saved/called in the memory. The unit saves 4 conditions (1-3, ON setting) and the storable condition are as follows.

• Current zoom angle of view (The range of the optical zoom)
- Brightness
- Mode setting
- Edge enhancement (in Graphics mode)
• Gamma value setting (in Graphics mode)
• Status of image rotation

Note

- The saved conditions are retained even if the power is turned OFF.

How to save setting

Selecting [Preset] → [1] \~ [3] in the OSD menu saves the current unit condition in the selected number.

Selecting [Preset] → [Power On] in the OSD menu saves the setting to be called when the power switch of the main unit is ON.

▼SELECT MENUOK Gamma Preset Call Guide Language 1 2 3 Power On

Note

• The status of a presentation done with microscope can not be saved.
• The status of image rotation can be saved only to [1] \~ [3]. (Not to [Power ON])
• Zoom angle of view in digital zoom mode can not be saved. When the status saving is done in digital zoom mode, saved zoom angle of view is the maximum TELE position [Zoom-IN] of optical zoom.

How to call setting

Selecting [Call] → the memory number for the OSD provides the setting for the selected number.

Selecting [Call] → [Power On] for the OSD provides the setting for the power supply ON.

Selecting [Call] → [Default] for the OSD provides the factory setting (excluding the USB mode setting).

SELECT MENU:OK Gamma Preset Call Guide Language 1 2 3 Power On Default

6 TROUBLE SHOOTING

Symptoms and Confirmation

Check the following items. If any abnormality is found, consult the seller from whom you have purchased this product or our branch/office near your location

Symptom Possible cause/counter measure
No image is displayed.	The cable is not correctly connected.The AC adapter is disconnected from the wall outlet.The AC adapter is disconnected from the power supply socket of the presenter.The power supply is not ON. (Green light does not turn on)Zoom is set at the TELE side, displaying only the white/black part of the document.Turning ON the power supply immediately after turning OFF may not start the unit. Wait for several seconds after turning OFF the power supply, and then turn it ON.The dip switch is not set to proper image output (RGB/VIDEO). In such case, set the dip switch properly by referring to p.12 [OUTPUT].
No image is displayed from the USB.	The DIP switch is not set to [RGB]. When the DIP switch is set to [VIDEO], the image cannot be output from the USB. Refer to “OUTPUT (DIP switch)” on p.12 to switch the output to [RGB].
The image is out of focus.	The document (object) is too close to the lens.Zoom is set at the TELE side after focusing at a wide angle (WIDE side). Focus to its maximum limit at the TELE side.Some auto focus may be diffi cult to adjust. Focus on an image manually referring to “Manual focus” on p.37.
The video output image is disarrayed.	Video output is set to [NTSC]. If this product with the NTSC system set is connected to the monitor specially designed for the PAL system, the video image may not be normally output but be disarrayed or in black and white. Refer to “OUTPUT” (p.12) to switch the video output system.
The image is too dark.	The intensity of the lighting is insufficient. Press the [BRIGHTNESS • ⚙] button on the main unit adjust brightness.
The image is striped.	This may be interference fringes between dots of printed matter and TV scanning lines or CCD pixels. Changing the projection range may mitigate the trouble.Vertical stripes may appear on an LCD projector image. Manually adjusting dot clock at projector side may mitigate the trouble.
The image does not move.	Camera image is set to [Pause]. Set [Pause] → [Off] in the OSD.

About the lamp (LED lighting)

The brightness of the lamp with which this product is equipped will degrade with long-term usage. If its brightness has been degraded greatly, we will replace the part for a charge. Consult the seller from whom you have purchased this product or our branch/offi ce near your location.

About the long-term usage of this product

If this product is used for longer than the warranty period, its performance and quality may deteriorate due to the lifetime of its parts. In this case, we will replace the parts for a charge. Consult the seller from whom you have purchased this product or our branch/offi ce near your location.

7 SPECIFICATIONS

General

Item Specifi	cations
Power source 12VDC	(AC adapter AC100 - 240V)
Power consumption 9W	(AC adapter included)
Outside dimensions	W350xD370.5xH411.5mm (W13.8xD14.6xH16.2 in) (When setup)
	W195xD254.5xH444.5mm (W7.7xD10.0xH17.5 in) (When folded)
Weight Approx. 2.9kg	(6.4 lbs) (Main body only)
Input selection Main/External
Output terminal RGB o	output Mini Dsub 15P connector, female x 1
	Composite video output RCA pin jack/75 Ω unbalanced x 1 (NTSC/PAL)
Input terminal Input ter	minal RGB input Mini Dsub 15P connector female x 1
Ext. control terminal US	SB (2.0 compliant) Type B receptacle x 1
Memory interface	SD card slot x 1

*Use pin plug for RCA pin in accordance with EIAJ RC-6703.

Main Camera

Item Specifications
Lens f = 3.85mm - 20	02mm (5.2-time zoom) F2.8 - 3.2
Frame rate Max. 20 frames/sec.
Shooting area Max. 42	6x317mm (16.8x12.5 in) Min. 94x71mm (3.7x2.8 in)
Limit of focus adjustment	50mm -∞ (2.0 in x from lens top
Optical zoom 5.2X
Digital zoom 8X
Focus Auto/Manual
Image pick-up element	1/3" CCD
Total pixels Horizontal	1077, Vertical 788 ... Approx. 850,000 pixels
Effective pixels Horizontal	1024, Vertical 768
Synchronized signal Internal
Resolution Analog RGB	Horizontal 600TV lines or more Vertical 600TV lines or moreVideo output Horizontal 400TV lines or more
Analog RGB output	Analog RGB output 0.7 V(p-p) 75Ω unbalancedSync. signal: Negative polarity	XGA Horizontal frequency 48.363 kHzVertical frequency 60.004 HzCompliant with VESA
Composite video output	Compliant with NTSC/PAL
White balance	Full auto/One-push/Manual
Video output selection switch	Provided (NTSC/PAL)
Brightness control	Auto (level control provided)/Manual
Posi/Nega conversion	Provided
Color/B&W selection	Provided
Image rotation	Provided (0°/180°)
Mode	Text1/Text2/Text3/Graphics
Gamma setting	Provided (Only for graphic mode))
Edge enhancement	Provided (Only for graphic mode)
Pause	Provided
Image storage	Provided (SD card)
Slide show Provided (SD image data)

Illumination Device

Illumination lamp

White LED

English

Supplied Accessories

Name Quantity
AC adapter 1
AC cord 1
Analog RGB cable (Dsub 15P connector) (2m) 1
Stage 1
Magnetic sheet 1
Anti-glare sheet 1
Dust cover 1
Warranty Card 1
Instruction Manual 1
Utility Software Installation Manual 1
Utility Software CD-ROM 1
USB cable (1.8m) 1

*The above specifications are subject to change without notice.

Trademark

ELMO is a trademark of ELMO Co., Ltd.

VESA is the registered trademarks of Video Electronics Standards Association.

XGA is the trademark/registered trademark of International Business Machines Corporation.

SD : SD card is a trademark.

All other company/products names described in the manual are trademarks or registered trademarks of respective companies.

ELMO

DOCUMENT CAMERA

TT-02S

Teacher's Tool

MODE D'EMPLOI

The connection of a non-shielded equipment interface cable to this equipment will invalidate the FCC Certification or Declaration of this device and may cause interference levels which exceed the limits established by the FCC for this equipment. It is the responsibility of the user to obtain and use a shielded equipment interface cable with this device. If this equipment has more than one interface connector, do not leave cables connected to unused interfaces. Changes or modifications not expressly approved by the manufacturer could void the user's authority to operate the equipment.

FOR UNITED STATES USERS: INFORMATION

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio or television reception. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause interference to radio and television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures.

• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.

USER-INSTALLER CAUTION:

Your authority to operate this FCC verified equipment could be voided if you make changes or modifications not expressly approved by the party responsible for compliance to Part 15 of the FCC rules.

AVANT L'EMPLOI

SELECT MENU OK Delete Current NO Lock All YES Unlock Format Media Slide Show Setting Start Slide Show The top hierarchy

Illustration of a desk lamp with a curved arm and a base, showing no text or symbols on the lamp itself.

Illustration of a desktop computer with a curved arm and power cord (no text or symbols)

MISE EN MARCHE

Illustration of a handheld electronic device with a curved arm and a base (no text or symbols visible)

Illustration of a handheld electronic device with a curved arm and control panel (no text or symbols)

Illustration of a desktop computer with a curved arm and base unit (no text or symbols)

Illustration of a medical imaging device with a monitor, cables, and a vertical rod (no text or symbols visible)

Diagram showing a digital camera setup with an LCD unit, a monitor, and a tablet displaying text content.

Diagram showing a device connected to an open access port with a monitor, highlighting a location pin.

Remarque

Diagram of a medical imaging device connected to a laptop, showing a device with an attached arm and a close-up of its screen (no text or symbols present)

Remarque

Illustration of a robotic arm connected to a laptop and a projector (no text or symbols present)

Remarque

Illustration of two robotic devices with curved arms and a display unit, showing rotational motion (no text or symbols)

MENU OK Focus Brightness Mode Pause Image Rotation

POWER CPU PC CAMERA BRIGHTNESS

FONCTIONS

DES

DESCRIPTION

Lampe d'éclairage

ON ← OFF Lampe d'éclairage
