USER MANUAL HVEDS 5162XH HOOVER

SAFETY INFORMATION 2

Safety warnings .... 5

Installing and operating your fridge freezer 6

Before Using your fridge freezer.... 6

THE VARIOUS FUNCTION AND POSSIBILITIES....7

Thermostat setting 7

Warnings about temperature adjustments 7

Accessories 8

Ice tray 8

Plastic scraper 8

Temperature indicator....9

ARRANGING FOOD IN THE APPLIANCE 11

Fridge compartment 11

Freezer compartment 11

CLEANING AND MAINTENANCE 12

Defrosting 13

Replacing the light bulb 14

TRANSPORTATION AND CHANGING OF

INSTALLATION POSITION 14

Transportation and changing of Installation position 14

Repositioning the door 14

BEFORE CALLING YOUR AFTER SALES SERVICE 15

Tips For Saving Energy 16

THE PARTS OF THE APPLIANCE AND THE COMPARTMENTS .....18

Thank you for purchasing this product.

Before using your refrigerator, please carefully read this instruction manual in order to maximize its performance. Store all documentation for subsequent use or for other owners. This product is intended solely for household use or similar applications such as:

the kitchen area for personnel in shops, offices and other working environments on farms, by clientele of hotels, motels and other environments of a residential type at bed and breakfasts (B & B)

for catering services and similar applications not for retail sale.

This appliance must be used only for purposes of storage of food, any other use is considered dangerous and the manufacturer will not be responsible for any omissions. Also, it is recommended that you take note of the warranty conditions.

PART- 1. BEFORE USING THE APPLIANCE

SAFETY INFORMATION

The refrigerator contains a refrigerant gas (R600a: isobutane) and insulating gas (cyclopentane), with high compatibility with the environment, that are, however, infl ammable.

We recommend that you follow the following regulations so as to avoid situations dangerous to you:

Before performing any operation, unplug the power cord from the power socket.

- The refrigeration system positioned behind and inside the Wine Coolers contains refrigerant. Therefore, avoid damaging the tubes.

- If in the refrigeration system a leak is noted, do not touch the wall outlet and do not use open flames. Open the window and let air into the room. Then call a service centre to ask for repair.

- Do not scrape with a knife or sharp object to remove frost or ice that occurs. With these, the refrigerant circuit can be damaged, the spill from which can cause a fire or damage your eyes.

- Do not install the appliance in humid, oily or dusty places, nor expose it to direct sunlight and to water.

• Do not install the appliance near heaters or inflammable materials.
• Do not use extension cords or adapters.
• Do not excessively pull or fold the power cord or touch the plug with wet hands.
• Do not damage the plug and/or the power cord; this could cause electrical shocks or fires.
• It is recommended to keep the plug clean, any excessive dust residues on the plug can be the cause fire.

WARNING: Do not use mechanical devices or other equipment to hasten the defrosting process.

• Absolutely avoid the use of open flame or electrical equipment, such as heaters, steam cleaners, candles, oil lamps and the like in order to speed up the defrosting phase.
• Do not use or store inflammable sprays, such as spray paint, near the Wine Coolers. It could cause an explosion or fire.

WARNING: Do not use electrical appliances inside the food storage compartments, unless they are of the type recommended by the manufacturer.

• Do not place or store inflammable and highly volatile materials such as ether, petrol, LPG, propane gas, aerosol spray cans, adhesives, pure alcohol, etc. These materials may cause an explosion.
• Do not store medicine or research materials in the Wine Coolers. When the material that requires a strict control of storage temperatures is to be stored, it is possible that it will deteriorate or an uncontrolled reaction may occur that can cause risks.
• Maintain the ventilation openings in the appliance enclosure or in the built-in structure, free of obstruction.

• Do not place objects and/or containers filled with water on the top of the appliance.

• Do not perform repairs on this Wine Coolers. All interventions must be performed solely by qualified personnel.

• This appliance can be used by children aged from 8 years and above and by persons with reduced physical, sensory or mental capabilities or with a lack of experience and knowledge; provided that they have been given adequate supervision or instruction concerning how to use the appliance in a safe way and understand the hazards involved.
• Children should not play with the appliance. Cleaning and user maintenance should not be made by children without supervision

WARNING: Keep ventilation openings, in the appliance enclosure or in the built-in structure, clear of obstruction.

WARNING: Do not damage the refrigerant circuit.

- If the socket does not match the refrigerator plug, it must be replaced by the manufacturer, a service agent or similarly qualified persons in order to avoid a hazard.

- A specially grounded plug has been connected to the power cable of your refrigerator. This plug should be used with a specially grounded socket of 16 amperes. If there is no such socket in your house, please have one installed by an authorised electrician.

- If the supply cord is damaged, it must be replaced by the manufacturer, an authorised service agent or similar qualified persons, in order to avoid a hazard.

- This appliance is not intended for use at altitudes exceeding 2000 m.

Notes:

- Please read the instruction manual carefully before installing and using your appliance. We are not responsible for the damage occurred due to misuse.

- Follow all instructions on your appliance and instruction manual, and keep this manual in a safe place to resolve the problems that may occur in the future.

- This appliance is produced to be used in homes and it can only be used in domestic environments and for the specified purposes. It is not suitable for commercial or common use. Such use will cause the guarantee of the appliance to be cancelled and our company will not be responsible for losses incurred.

- This appliance is produced to be used in houses and it is only suitable for cooling / storing food. It is not suitable for commercial or common use and/or for storing substances except for food. Our company is not responsible for losses to be incurred in the contrary case.

Safety warnings

- Do not connect your Fridge Freezer to the mains electricity supply using an extension lead.

- Do not plug in damaged, torn or old plugs.

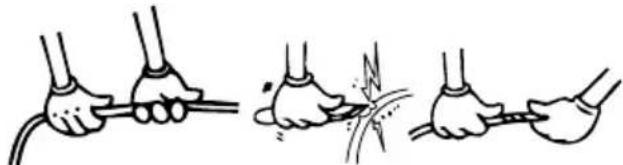

- Do not pull, bend or damage the cord.

Illustration of three hands performing a manual tool manipulation technique (no text or symbols present)

- This appliance is designed for use by adults, do not allow children to play with the appliance or let them hang off the door.

- Never touch the power cord/plug with wet hands as this could cause a short circuit or electric shock.

- Do not use any metal or sharp objects to accelerate the defrosting process.

- Do not place glass bottles or beverage cans in the ice-making compartment as they can burst as the contents freeze.

- Do not place explosive or flammable material in your fridge. Place drinks with high alcohol content vertically in the fridge compartment and make sure that their tops are tightly closed.

- When removing ice from the ice-making compartment, do not touch it. Ice may cause frost burns and/or cuts.

- Do not touch frozen goods with wet hands. Do not eat ice-cream or ice cubes immediately after you have taken them out of the ice-making compartment.

- Do not re-freeze frozen goods after they have melted. This may cause health issues such as food poisoning.

- Do not cover the body or top of fridge with lace. This affects the performance of your fridge.

- Secure any accessories in the fridge during transportation to prevent damage to the accessories.

Cartoon illustration of a person peeking through a door (no text or symbols)

Illustration of a hand holding a prohibition symbol, a smiling emoji, and a crossed-out hand (no text or labels)

Simple line drawing of a bottle and glass with a spray bottle (no text or symbols)

Installing and operating your fridge freezer

Before using your fridge freezer, you should pay attention to the following points:

• The operating voltage for your fridge freezer is 220-240 V at 50Hz.
• We do not accept responsibility for any damages that occur due to ungrounded usage.
• Place your fridge freezer where it will not be exposed to direct sunlight.

- Your appliance should be at least 50 cm away from stoves, gas ovens and heater cores, and at least 5 cm away from electrical ovens.

- Your fridge freezer should never be used outdoors or exposed to rain.

- When your fridge freezer is placed next to a deep freezer, there should be at least 2 cm between them to prevent humidity forming on the outer surface.

- Do not place anything on your fridge freezer, and install your fridge freezer in a suitable place so that at least 15 cm of free space is available above it.

- Do not place heavy items on the appliance.

- Use the adjustable front legs to make sure your appliance is level and stable. You can adjust the legs by turning them in either direction. This should be done before placing food in the fridge freezer.

- Before using your fridge freezer, wipe all parts with a solution of warm water and a teaspoon of sodium bicarbonate, then rinse with clean water and dry.

Place all parts in the fridge after cleaning.

• Install the plastic distance guide (the part with black vanes at the rear) by turning it 90° (as shown in the figure) to prevent the condenser from touching the wall.

- The refrigerator should be placed against a wall with a free space not exceeding 75 mm.

Cartoon illustration of a distressed container character with arms and facial expressions (no text or symbols)

Before Using your fridge freezer

- When using your fridge for the first time, or after transportation, keep it in an upright position for at least 3 hours before plugging into the mains. This allows efficient operation and prevents damage to the compressor.

- Your fridge may have a smell when it is operated for the first time. This is normal and the smell will fade away when your fridge starts to cool.

Simple line drawing of a hand holding a smiling square character (no text or symbols)

PART - 2. THE VARIOUS FUNCTION AND POSSIBILITIES

Thermostat setting

Technical line drawing of a handheld hair dryer with spiral blades and a circular button (no text or symbols)

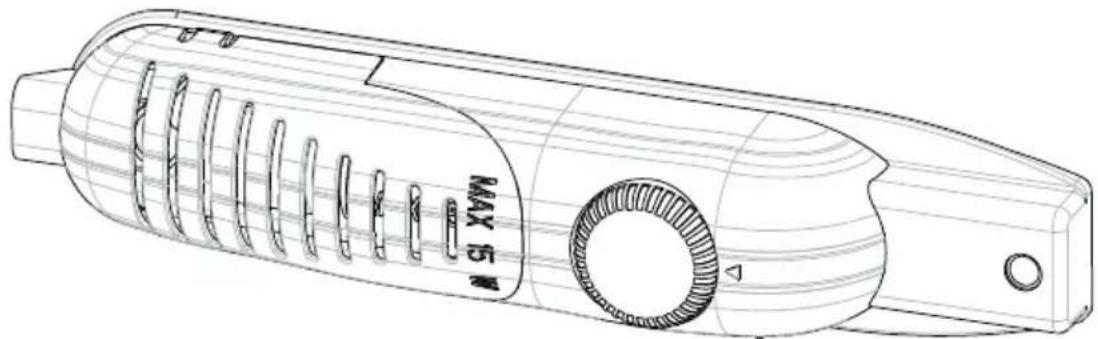

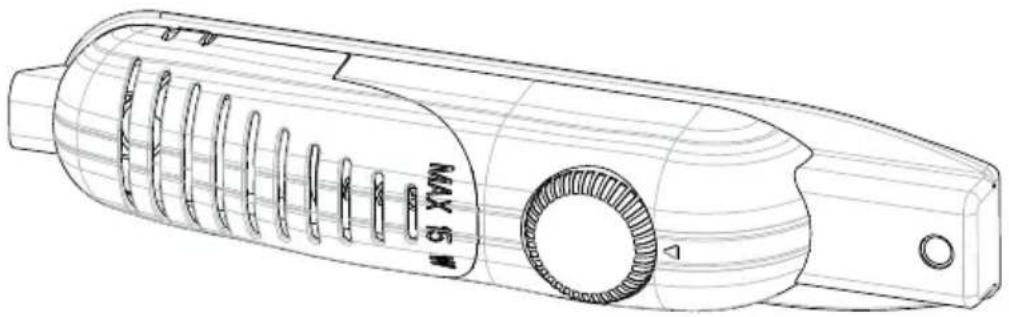

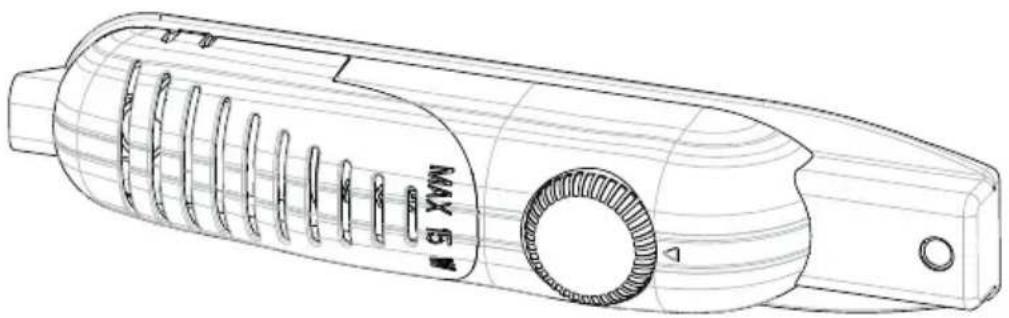

The fridge freezer thermostat automatically regulates the inside temperature of the compartments. By rotating the knob from position 1 to 5, colder temperatures can be obtained.

Important note: Do not try to rotate knob beyond 1 position it will stop your appliance.

1 – 2 : For short-term storage of food in the freezer compartment, you can set the knob between the minimum and medium position.

3 - 4 : For long-term storage of food in the freezer compartment, you can set the knob to the medium position.

5: For freezing fresh food. The appliance will work for longer. So, after the desired condition is reached, return the knob to the previous setting.

Warnings about temperature adjustments

- It is not recommended that you operate your fridge freezer in environments colder than 10°C in terms of its efficiency.

- Temperature adjustments should be made according to the frequency of door openings and the quantity of food kept inside the fridge freezer.

- When you first switch on the appliance, you should ideally try to run it without any food in for 24 hours and not open the door. If you need to use it straight away, try not to put a large quantity of food inside.

- A 5 minute delay function is included to prevent damage to the compressor of your fridge freezer, when you unplug it and then plug it in again to operate it, or when an energy breakdown occurs. Your fridge freezer will start to operate normally after 5 minutes.

- Your fridge freezer is designed to operate in the ambient temperature intervals stated in the standards, according to the climate class stated in the information

label. It is not recommended that your fridge freezer is operated in the environments which are out of the stated temperature intervals. This will reduce the cooling efficiency of the fridge.

- This appliance is designed for use at an ambient temperature within the 16°C - 32°C range.

Climate Class	Ambient Temperature (°C)
T	Between 16 and 43 (°C)
ST	Between 16 and 38 (°C)
N	Between 16 and 32 (°C)
SN	Between 10 and 32 (°C)

Accessories

Ice tray

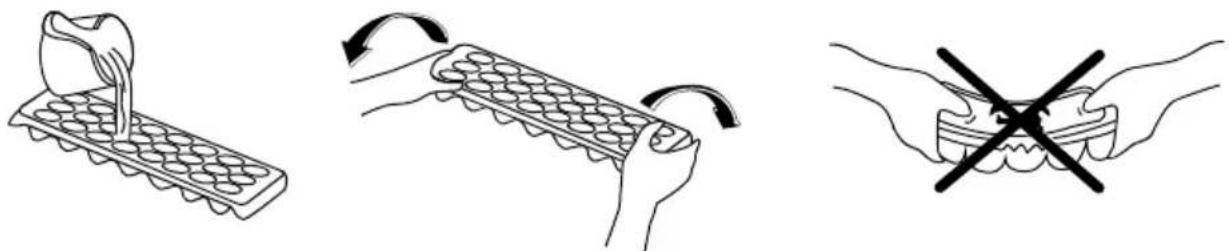

- Fill the ice tray with water and place in the freezer compartment.

• After the water has completely turned into ice, you can twist the tray as shown below to remove the ice cubes.

Illustration showing three steps of a dental procedure: using an abacus to form a grid, then using a toothbrush to cut the teeth.

Plastic scraper

After a period of time frost will build up in certain areas in the freezer compartment. The frost accumulated in the freezer should be removed periodically. Use the plastic scraper provided if necessary. Do not use sharp metal objects for this operation. They could puncture the refrigerator circuit and cause irreparable damage to the unit.

Line drawing of a paintbrush with handle and circular end (no text or symbols)

All written and visual descriptions in the accessories may vary according to the appliance model.

Temperature indicator ( In some models )

In order to help you better set your refrigerator, we have equipped it with a temperature indicator located in the coldest area.

To better store the food in your refrigerator, especially in the coldest area, make sure the message “OK” appears on the temperature indicator. If « OK » does not appear, this means that the temperature setting has not been done properly.

Since “OK” appears in black, it will be difficult to see this indication if the temperature indicator is badly lit. To be able to see this indication properly, there should be enough light.

OK

Each time the temperature setting device is changed, wait for the stabilisation of the temperature inside the appliance before proceeding, if necessary, with a new temperature setting. Please change the position of the temperature setting device progressively and wait at least 12 hours before starting a new check and potential change.

NOTE: Following repeated openings (or prolonged opening) of the door or after putting fresh food into the appliance, it is normal for the indication “OK” not to appear in the temperature setting indicator. If there is an abnormal ice crystals build up (bottom wall of the appliance) on the refrigerator compartment evaporator (overloaded appliance, high room temperature, frequent door openings), put the temperature setting device on a lower position until compressor off periods are obtained again.

Putting food in the coldest area of the refrigerator

Warning symbol with exclamation mark inside a shield shape (no text or numbers)

Your foods will be better stored if you put them in the most appropriate cooling area. The coldest area is just above the crisper.

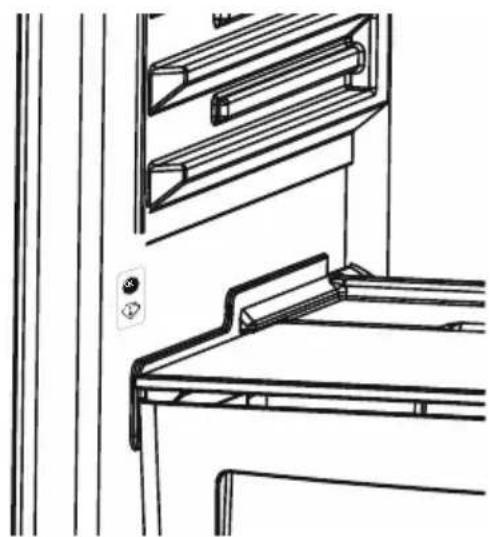

The following symbol indicates the coldest area of your refrigerator. To be sure to have a low temperature in this area, make sure the shelf is located at the level of this symbol, as shown in the illustration.

The upper limit of the coldest area is indicated by the lower side of the sticker (head of the arrow). The coldest area upper shelf must be at the same level with the arrow head. The coldest area is below this level.

As these shelves are removable, make sure they are always at the same level with these zone limits described on the stickers, in order to guarantee temperatures in this area.

Each type of food has an ideal conservation temperature and consequently a particular location to follow.

Technical line drawing of a cabinet or rack assembly with no visible text or symbols

Locations Products
Upper shelves	Cooked foods, desserts and all foods to be eaten fast enough
Coldest area	Meat, poultry, game and raw fishMaximum conservation time: 1 to 2 days.Fresh fruits, cooked pork meat.
Crisper Fresh vegetables and fruits.
Door-liner	Door trays shall contain bottles at the bottom side and, in their upper parts, low volume and currently used products like yoghurt, fresh cream, etc.Butter, cooked cheese and eggs shall be introduced in appropriate holders.

PART - 3. ARRANGING FOOD IN THE APPLIANCE

Fridge compartment

• To reduce humidity and the consequent increase in frost, never place liquids in unsealed containers in the fridge compartment. Frost tends to concentrate in the coldest parts of the evaporating liquid and in time will more frequent defrosting will be required.
• Never place warm food in the fridge compartment. Warm food should be allowed to cool at room temperature and should be arranged to ensure adequate air circulation in the fridge compartment.
• Nothing should touch the back wall of the appliance as it will cause frost and packaging to stick to it. Do not open the fridge door too frequently.
• Arrange meat and cleaned fish (wrapped in packages or sheets of plastic) which you intend to use in 1-2 days, in the bottom section of the fridge compartment.
• Store fruit and vegetable items loose in the crisper containers.

Freezer compartment

• The use of freezer is, storing of deep-frozen or frozen foods for long periods of time and making ice cubes.
• To freeze fresh food, ensure that as much of the surface as possible of food to be frozen is in contact with the cooling surface.
• Do not put fresh food with frozen on side by side as it can thaw the frozen food.
• While freezing fresh foods(i.e meat,fish and mincemeat), divide them in parts you will use in one time.
• Once the unit has been defrosted replace the foods into freezer and remember to consume them in as short period of time.
• Never place warm food in the freezer compartment. As it will disturb the frozen foods.
• For storing the frozen foods; the instructions shown on frozen food packages should always be followed carefully and if no information is provided food should not be stored for more than 3 months from the purchased date.
• When buying frozen foods ensure that these have been frozen at suitable temperatures and that the packing is intact.
• Frozen foods should be transported in appropriate containers to maintain the quality of the food and should be returned to the freezing surfaces of the unit in the shortest possible time.
• If a package of frozen food shows the sign of humidity and abnormal swelling it is probable that it has been previously stored at an unsuitable temperature and that the contents have deteriorated.
• The storage life of frozen foods depends on the room temperature, thermostat setting, how often the door is opened, the type of food and the length of time required to transport the product from the shop to your home. Always follow the instructions printed on the package and never exceed the maximum storage life indicated.

Not that; if you want to open again immediately after closing the freezer door, it will not be opened easily. It's quite normal! After reaching equilibrium condition, the door will be opened easily.

PART 4. CLEANING AND MAINTENANCE

- Disconnect the unit from the power supply before cleaning.

- Do not clean the appliance by pouring water.

• Make sure that no water enters the lamp housing and other electrical components.

- The appliance should be cleaned periodically using a solution of bicarbonate of soda and lukewarm water.

Cartoon illustration of a hand using a tool to interact with a box, showing facial expression (no text or symbols)

Cartoon illustration of a smiling refrigerator with a hand holding a spoon, accompanied by a small bottle and cup (no text or symbols)

Cartoon illustration of a smiling refrigerator with thumbs up and a bowl of food (no text or symbols)

- Clean the accessories separately with soap and water Do not clean them in the dishwasher.

Illustration of a refrigerator with a red X symbol crossed out, indicating no text or symbols present.

- Do not use abrasive products, detergents or soaps. After washing, rinse with clean water and dry carefully. When you have finished cleaning, reconnect the plugto the mains supply with dry hands.

Cartoon illustration of a smiling rectangular character with arms and legs, accompanied by two small figures (no text or symbols)

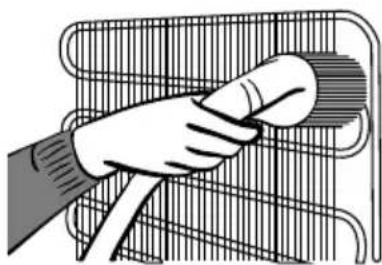

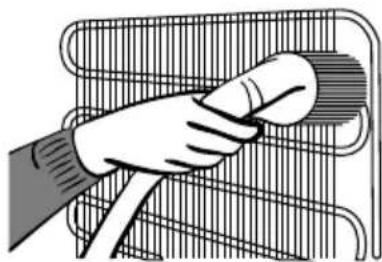

- Clean the condenser with a broom at least twice a year. This will help you to save on energy costs and increase productivity.

Illustration of a hand cleaning a wire mesh (no text or symbols)

THE POWER SUPPLY MUST BE DISCONNECTED.

Defrosting

Fridge compartment;

Technical line drawing of a mechanical component and its magnified view showing a hand holding a circular object (no text or symbols present)

- Defrosting occurs automatically in the refrigerator compartment during operation; the water is collected by the evaporation tray and evaporates automatically.

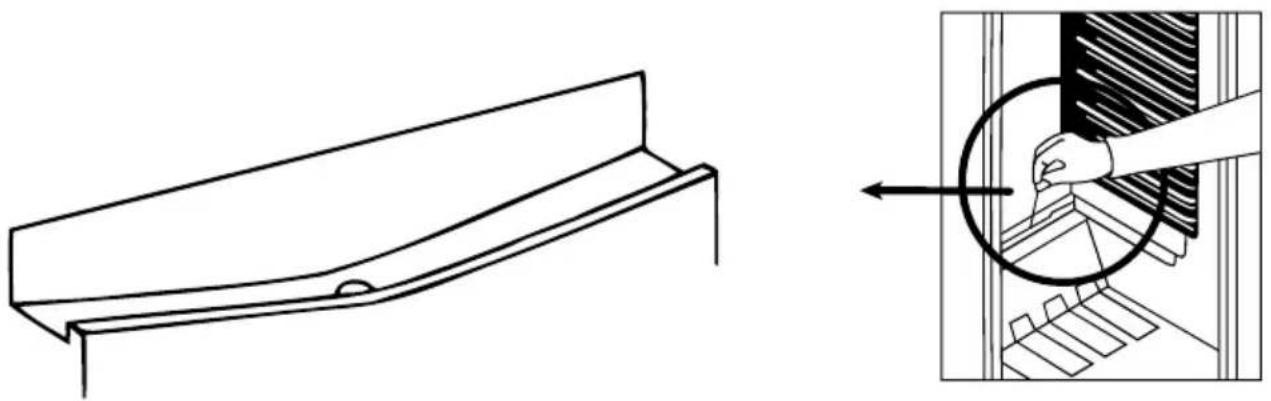

- The evaporation tray and the water drain hole should be cleaned periodically with the defrost drain plug to prevent the water from collecting at the bottom of the refrigerator instead of flowing out.

- You can also clean the drain hole by pouring 1/2 glass of water down it.

Freezer compartment;

The frost, accumulated in the freezer compartment, should be removed periodically (Use the plastic scraper provided). The freezer compartment should be cleaned in the same way as the refrigerator compartment, with the defrost function of the compartment at least twice a year.

For this:

- The day before you defrost, set the thermostat dial to "5" position to freeze the food completely.

- During defrosting, frozen food should be wrapped in several layers of paper and kept in a cool place. The inevitable rise in temperature will shorten its storage life. Remember to use this food within a relatively short period of time.

- Set the thermostat knob to position “•” or unplug the unit. Leave the door open until the unit is completely defrosted.

• To accelerate the defrosting process, one or more bowls of warm water can be placed in the freezer compartment.

- Dry the inside of the unit carefully and set the thermostat knob to the MAX position.

Replacing the light bulb

MAX 15W MAX 5

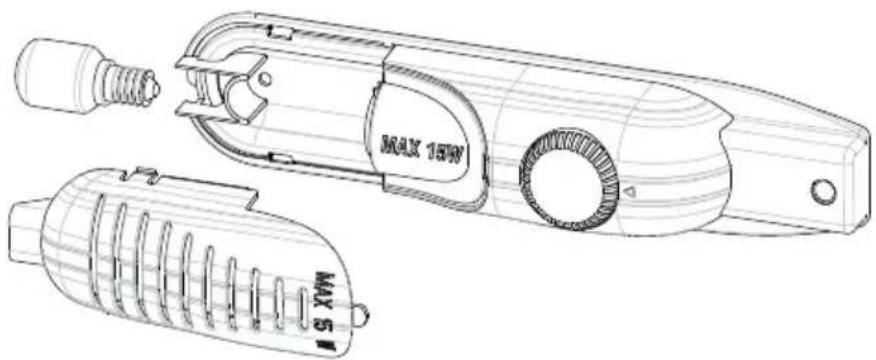

To replace the bulb in fridge compartment;

1- Unplug your fridge freezer.
2- Remove the cover of the box from the claws using a screwdriver.
3- Replace with a bulb of maximum 15 Watts.
4- Install the cover.

5- Wait for 5 minutes before re-plugging and bring the thermostat to its original position.

Replacing LED lighting

If your refrigerator has LED lighting contact the help desk as this should be changed by authorized personnel only.

PART - 5. TRANSPORTATION AND CHANGING OF INSTALLATION POSITION

Transportation and changing of Installation position

• The original packages and foamed polystyrene (PS) can be retained if required.
• During transportation, the appliance should be secured with a wide string or a strong rope. The instructions written on the corrugated box must be followed while transporting.

- Before transporting or changing the installation position, all the moving objects (ie,shelves,crisper...) should be taken out or fixed with bands in order to prevent them from getting damaged.

Carry your fridge in the upright position.

Simple line drawing of two children holding a large rectangular object (no text or symbols)

Repositioning the door

• It is not possible to change the opening direction of your refrigerator door, if the door handle on your refrigerator is installed from the front surface of the door.
• It is possible to change the opening direction of the door on models without any handles.
• If the door opening direction of your refrigerator may be changed, you should contact the nearest Authorised Service Agent to have the opening direction changed.

PART - 6. BEFORE CALLING YOUR AFTER SALES SERVICE

If your fridge freezer is not working properly, it may be a minor problem, therefore to save time and money, check the following, before calling an electrician.

What to do if your appliance does not operate

Check that:

• There is no power,
• The general switch in your home is disconnected,
• The thermostat setting is on “•” position,
• The socket is not faulty. To check this, plug the appliance in to another socket which you know is working.

What to do if your appliance performs poorly

Check that:

• You have overloaded the appliance,
• The thermostat setting is on position "1" (if so set the thermostat dial to a suitable value).
  • The doors are closed properly,
• There is no dust on the condenser,
• There is enough space at the rear and side walls.

If your fridge is operating too loudly

Normal Noises

Compressor noise

• Normal motor noise: This noise means that the compressor operates normally
• Compressor may cause more noise for a short time when it starts.

Bubbling noise and splash:

• This noise is caused by the flow of the refrigerant in the tubes of the system.
• If you hear any other noises check that:
• The appliance is level
• Nothing is touching the rear of the appliance
• The objects on the appliance are vibrating.

If there is water in the lower part of the refrigerator,

Check that:

- The drain hole for the water is not clogged (use the defrost drain plug to clean the drain hole).

Recommendations

- If you do not intend to use the appliance for long time (for example during the summer holidays) unplug and clean the appliance and leave the door open to prevent the formation of mildew and smells.

- To stop the appliance completely, unplug it from the main socket (for cleaning and when the doors are left open).

- If a problem persists after you have followed all the instructions above, please consult the nearest Authorised Service Centre.

- The lifetime of your appliance is stated and declared by the Department of Industry. The length of time for retaining parts required for the proper operation of the appliance is 10 years.

Tips For Saving Energy

1. For better energy saving we suggest :
2. Installing tge appliance away from heat sources and not exposed to direct sunlight and in a well ventilated roof.
3. Avoid putting hot food into the refrigerator to avoid increasing the internal temperature and therefore causing continuos functionaliting of the compressor.
4. Do not excessively stuff foods so as to ensure proper air circulation.
5. Defrost the appliance in case there is ice to facilitate the transfer of cold.
   In case of absence of electrical energy, it is advisable to keep the refrigerator door closed.
   6.Open or keep the doors of the appliance open as little as possible
6. Avoid adjusting the setting to temperatures too cold.
7. Remove dust present on the rear of the appliance

SCRAPPING OLD APPLIANCES

Two black-and-white safety symbols: a crossed-out waste bin and a triangular warning sign with flame.

This appliance is marked according to the European directive 2012/19/EU on Waste Electrical and Electronic Equipment (WEEE).

WEEE contains both polluting substances (which can cause negative consequences for the environment) and basic components (which can be re-used). It is important to have WEEE subjected to specific treatments, in order to remove and dispose properly all pollutants, and recover and recycle all materials.

Individuals can play an important role in ensuring that WEEE does not become an environmental issue; it is essential to follow some basic rules:

- WEEE should not be treated as household waste:

- WEEE should be handed over to the relevant collection points managed by the municipality or by registered companies. In many countries, for large WEEE, home collection could be present.

In many countries, when you buy a new appliance, the old one may be returned to the retailer who has to collect it free of charge on a one-to-one basis, as long as the equipment is of equivalent type and has the same functions as the supplied equipment.

Conformity

By placing the C€ mark on this product, we are confirming compliance to all relevant European safety, health and environmental requirements which are applicable in legislation for this product.

THE PARTS OF THE APPLIANCE AND THE COMPARTMENTS

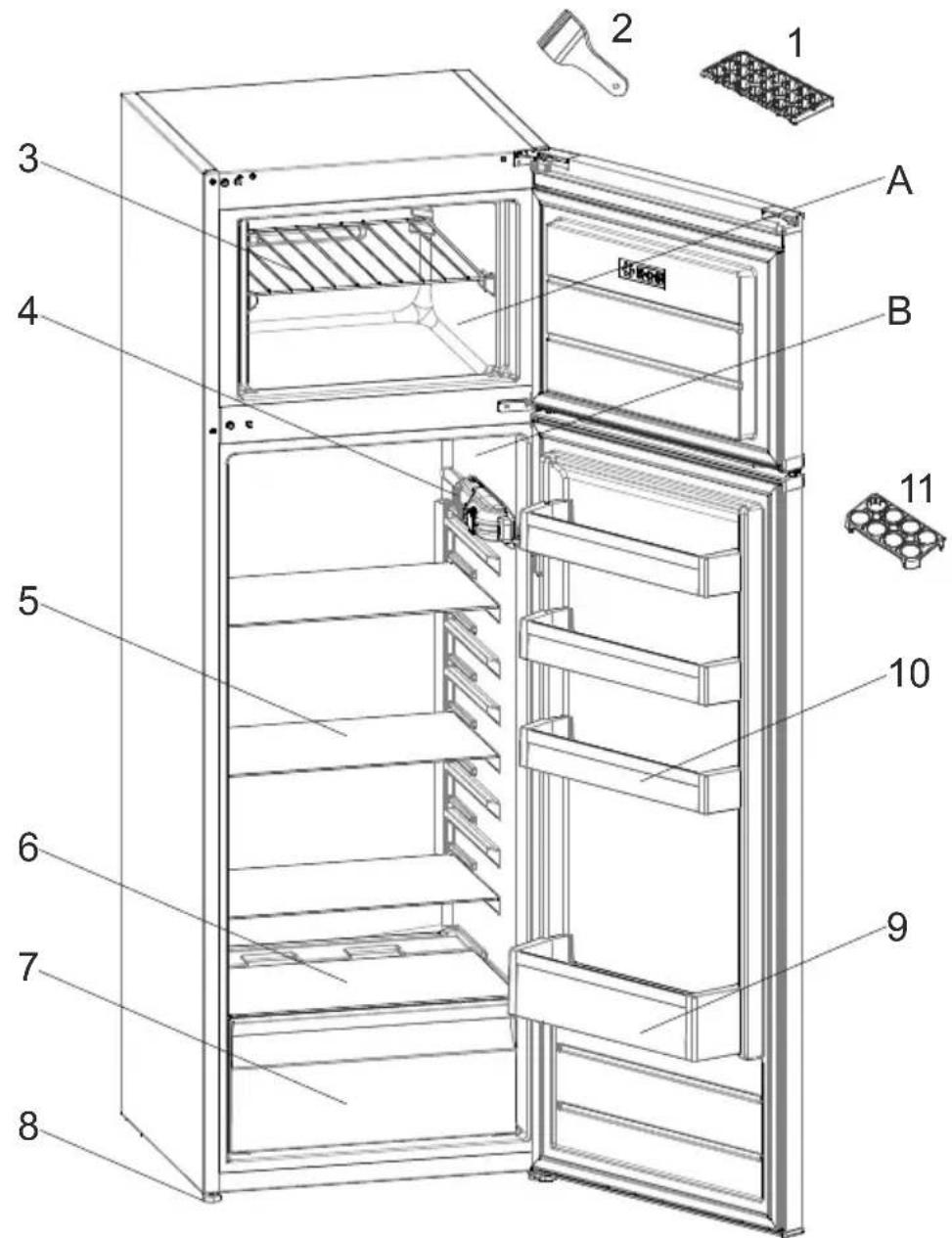

Technical diagram of a refrigerator with numbered parts for identification and assembly reference

This presentation is only for information about the parts of the appliance. Parts may vary according to the appliance model.

A. Freezer compartment

1. Fridge shelves

B. Fridge compartment

1. Crisper cover

2. Crisper

3. Ice tray

4. Levelling feet

5. Plastic ice blade

6. Bottle shelf

7. Freezer shelf

8. Butter / Cheese shelves

9. Thermostat box

10. Egg holder

Inhalt

Illustration of four hands performing a manual cable or wire manipulation technique (no text or symbols present)

Cartoon illustration of a person peeking through a door (no text or symbols)

Safety warning illustration showing a smiling face on a device, a crossed-out hand holding a prohibition symbol, and a hand adjusting the device.

Simple line drawing of two bottles and a glass with splashes, no text or symbols present

Cartoon illustration of a distressed container with arms and legs, holding a box labeled 'KG' (no text or symbols beyond the label)

Vor Inbetriebnahme

Simple line drawing of a hand holding a smiling square character (no text or symbols)

TEIL 2. FUNKTIONEN

Temperaturregelung

Technical line drawing of a handheld hair dryer with spiral blades and a circular button (no text or symbols)

Illustration showing three steps of a dental tool: opening a tooth, pressing down on a grid, and removing it with a black X (no text or symbols)

Plastikschaber

Line drawing of a mechanical tool or bracket with a handle and mounting hole (no text or symbols)

Technical line drawing of a cabinet or shelf assembly with no visible text or symbols

Cartoon illustration of a hand using a tool to interact with a device (no text or symbols present)

Cartoon illustration of a smiling refrigerator character giving thumbs up and holding a mortar and brush (no text or symbols)

Simple line drawing of a hand holding a smiling square icon (no text or symbols)

Cartoon illustration of a smiling refrigerator with hands cleaning it, accompanied by a small bottle and cup (no text or symbols)

Simple line drawing of a refrigerator with a red X symbol crossed out (no text or symbols present)

Cartoon illustration of a smiling rectangular character with arms and facial features, accompanied by two small puffer-like figures (no text or symbols)

Illustration of a hand using a tool to clean or inspect a wire mesh structure (no text or symbols)

Abtauen Kühlteil;

Technical line drawing of a structural component before and after assembly, showing internal detail (no text or symbols)

MAX 18M MAX 5.1

Stromschlaggefahr!

Simple line drawing of two children holding a large rectangular object (no text or symbols)

Warning symbols including a trash can and a flame symbol with hazard zone

Technical diagram of a refrigerator with numbered parts for identification and assembly reference

TRANSPORT ET DEPLACEMENT 57

Illustration of three hands performing a manual labor procedure with tools and a tool, no text or symbols present.

Cartoon illustration of a character peeking out of a door (no text or symbols)

Illustration of a hand holding a smiling face, a crossed-out hand, and a prohibition symbol (no text or labels)

Simple line drawing of two bottles and a glass with bubbles, no text or symbols present

Cartoon illustration of a distressed container character holding a paper labeled 'KG', with expressive faces (no text or symbols on the character itself)

Simple line drawing of a smiling face on a rounded square held by a hand (no text or symbols)

Technical line drawing of a handheld device with spiral slots and a circular handle (no text or symbols)

Illustration showing three steps of a dental tool: pressing a tooth with a bandage, opening a grid, and removing teeth into a cross (no text or symbols present)

Line drawing of a mechanical tool or bracket (no text or symbols)

Solid black circular shape with no text, symbols, or patterns

OK

Warning symbol with exclamation mark inside a shield shape (no text or numbers)

Technical line drawing of a mechanical assembly with brackets and mounting feet (no text or symbols)

Cartoon illustration of a hand washing a refrigerator with a smiling face (no text or symbols)

Cartoon illustration of a smiling refrigerator with sunglasses and a bowl of food (no text or symbols)

Illustration of a hand cleaning a wire rack (no text or symbols)

Technical line drawing of a mechanical component and its magnified cross-section showing internal components (no text or symbols)

SECTION 5. TRANSPORT ET DEPLACEMENT

Simple line drawing of two children holding a large rectangular object (no text or symbols)

Warning symbol image showing a crossed-out waste bin and a triangular hazard sign with flame

Labeled diagram of a refrigerator interior showing numbered compartments and components

Illustration showing three different techniques for using a tool, with no visible text or symbols.

Cartoon illustration of a person opening a door with arms outstretched (no text or symbols)

Hand-drawn safety warning illustration showing a smiling face, a crossed-out hand gesture, and a raised fist.

Simple line drawing of a bottle and glass with decorative sparkles (no text or symbols)

Technical line drawing of a handheld hair dryer with spiral blades and a circular handle (no text or symbols)

Line drawing of a hand pouring liquid into a tray of circular containers (no text or symbols)

Illustration of hands holding a grid-like object with curved arrows indicating rotation (no text or symbols)

Illustration of two hands holding teeth with a black X symbol indicating a dental or dental procedure (no text or labels)

Line drawing of a mechanical tool or bracket with a handle and mounting hole (no text or symbols)

Solid black circular shape with no text, symbols, or patterns

OK

Warning symbol with exclamation mark inside a shield shape (no text or numbers)

Line drawing of a cabinet or rack with shelves and a door, no text or symbols present

Cartoon illustration of a hand cleaning a door with a knife, showing the gesture (no text or symbols)

Simple line drawing of a hand holding a smiling emoji on a square object (no text or symbols)

Cartoon illustration of a smiling refrigerator with a hand holding the door, accompanied by a smaller bottle and cup (no text or symbols)

Cartoon illustration of a smiling refrigerator with sunglasses and a bowl of food (no text or symbols)

Diagram of a refrigerator with a red X symbol crossed out, indicating no text or symbols present.

Illustration of a hand using a tool to clean or adjust a metal grate (no text or symbols visible)

Technical line drawing of a structural component and its magnified cross-section showing internal components (no text or symbols)

MAX 18W MAX 5Ω

Simple line drawing of two children playing a game with a large block (no text or symbols)

Warning symbols including a waste bin with crossbones and a flame symbol

Labeled diagram of a refrigerator interior showing numbered compartments and components

Illustration showing three different techniques for using a tool, with no visible text or symbols.

Cartoon illustration of a character inside a door, showing arms and legs (no text or symbols)

Safety warning illustration showing a smiling face, a crossed-out hand holding a prohibition symbol, and a hand adjusting the mask.

Simple line drawing of two bottles and a container with explosion effects (no text or symbols)

Cartoon illustration of a distressed container with arms and legs, holding a box labeled 'KG' (no text or symbols beyond the label)

Diagram showing two coiled structures with arrows indicating motion or force direction (no text or symbols)

Simple line drawing of a hand holding a smiling square character (no text or symbols)

PARTE -2. AS MÚLTIPLAS FUNÇÕES E POSSIBILIDADES

Funcionamento do Termóstato

Technical line drawing of a handheld hair dryer with spiral blades and a circular button (no text or symbols)

Line drawing of a hand pouring liquid into a tray of honeycomb cells (no text or symbols)

Illustration of hands holding a grid-like object with curved arrows indicating rotation (no text or symbols)

Illustration of two hands holding teeth with a black X symbol indicating a dental or dental procedure (no text or labels)

Line drawing of a mechanical tool or bracket with a handle and mounting hole (no text or symbols)

Warning symbol with exclamation mark inside a shield shape (no text or numbers)

Technical line drawing of a mechanical assembly with no visible text or symbols

Cartoon illustration of a hand using a tool to clean or remove a device (no text or symbols present)

Cartoon illustration of a refrigerator with a smiling face, accompanied by a bottle and cup (no text or symbols)

Cartoon illustration of a smiling refrigerator with sunglasses and a bowl of food (no text or symbols)

Simple line drawing of a multi-tiered kitchen appliance with a red X symbol crossed out (no text or labels)

Illustration of a hand cleaning a metal rack with a cloth (no text or symbols)

Descongelação

Technical line drawing of a mechanical component and its magnified cross-section showing internal components (no text or symbols)

MAX 15W MAX 15M

Simple line drawing of two children holding a large rectangular object (no text or symbols)

Warning symbol image showing a waste bin with crossbones and a flame inside a triangle

Technical diagram of a refrigerator with numbered parts for identification and assembly reference
