U224-1R4-R - USB hub Tripp Lite - Free user manual and instructions

Product Type	USB Extender/Hub over Cat5
Brand	Tripp Lite
Model	U224-1R4-R
Category	USB Hub
Power	5V DC, 2A (power adapter included)
Local USB Ports	3 USB 2.0 ports
Remote USB Ports	1 USB 1.1 port (compatible with USB 2.0 at 1.1 speed)
Maximum Distance	45.7 m (150 ft) via Cat5e/6 cable
Connection Between Modules	RJ45
Compatibility	Plug-and-play, no software required
LED Indicators	Connection and activity indicators
Warranty	1 year limited
Included Accessories	Local unit, remote unit, 5V/2A power adapter, manual
Optional Accessories	Cat6 cables N202-series, USB A/B cables
Safety	Do not use in presence of flammable anesthetic mixture, avoid vital medical use
Maintenance	Clean with a dry cloth, avoid moisture
Repairability	Contact Tripp Lite support for warranty repair

Frequently Asked Questions - U224-1R4-R Tripp Lite

What is the maximum operating distance of the U224-1R4-R?

Up to 45.7 meters (150 feet) using a quality Cat5e/6 cable.

How many USB ports does the U224-1R4-R offer?

It offers 3 USB 2.0 ports on the local unit and 1 USB 1.1 port on the remote unit, compatible with USB 2.0 devices at 1.1 speed.

Does the U224-1R4-R require software or drivers?

No, it is plug-and-play and requires no additional drivers or software. Plug and use.

What type of power supply is required for the U224-1R4-R?

An external 5V DC, 2A power supply, included with the device. Plug it into a protected source (surge suppressor, PDU, UPS).

Can I use a USB cable longer than 5 meters with the extender?

No, USB cables between the hub and devices should not exceed 5 meters (16 feet) to ensure reliable operation.

What do the LED indicators on the local unit mean?

The red LED indicates that the remote unit is connected; the green LEDs next to the USB ports light up when a device is connected and recognized.

What to do if the device does not work?

Check that the power adapter is plugged in, that the Cat5e/6 cable does not exceed 45 m, that the USB cables are shorter than 5 m, and test with another Cat5e/6 cable or USB device.

Is the U224-1R4-R compatible with USB 3.0?

No, it supports USB 2.0 on the local ports and USB 1.1 on the remote port. USB 3.0 devices will work but at USB 2.0/1.1 speed.

What is the warranty of the U224-1R4-R?

One-year limited warranty against defects in materials and workmanship. For a return, contact Tripp Lite to obtain an RMA number.

Can I use this product for medical applications?

It is not recommended for use in life support or critical medical equipment, as a failure could compromise safety.

USER MANUAL U224-1R4-R Tripp Lite

Warranty Registration: register online today for a chance to win a FREE Tripp Lite product—www.triplite.com/warranty

Owner's Manual

USB Cat5 Extender/Hub

Models: U224-1R4-R, U224-4R4-R

1111 W. 35th Street, Chicago, IL 60609 USA www.tripplite.com/support

NOTE: Follow these instructions to ensure proper operation and prevent damage to this device and its connected equipment.

Copyright © 2011 Tripp Lite. All rights reserved. All trademarks are the property of their respective owners.

Table of Contents

Package	Contents	3
Optional	Accessories	3
Product	Features	3
Installation	4
Troubleshooting		6
Warranty	7
Español		9
Français	17

Package Contents

• Local unit
• Remote unit
  • 5V, 2A DC power supply
• Owner's manual

Optional Accessories

• N202-Series Cat6 Cables
• U012-Series USB 1.1 A/B Cables
• U022-Series USB 2.0 A/B Cables

Product Features

• Extend a USB 1.1 signal up to 150 ft. away from a computer
  • U224-1R4-R features 3 local USB 2.0 ports and 1 remote USB 1.1 port
  • U224-4R4-R features 4 remote USB 1.1 ports
  • Remote ports support USB 2.0 devices at USB 1.1 speeds
  • Plug-and-play; No software required

Installation

Notes:

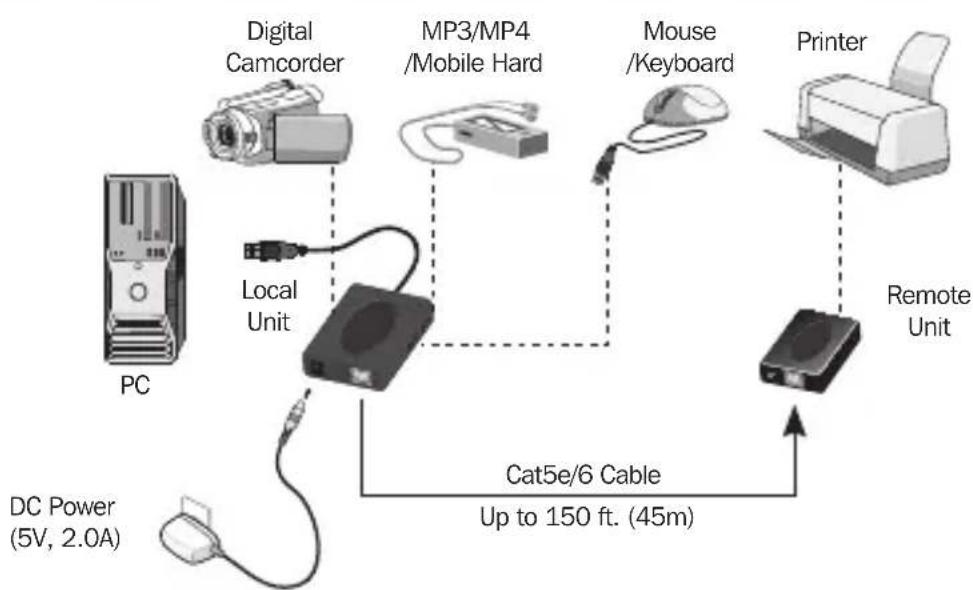

1. The diagram above shows a U224-1R4-R installation. Installation for the U224-4R4-R will be the same, except that all 4 USB ports are located on the remote unit, and the external power supply connects to the remote unit.
2. Test to make sure that the entire installation works properly before pulling cables through ceilings/walls.
3. Local USB ports will provide a USB 2.0 signal, whereas remote USB ports will provide only a USB 1.1 signal.

Installation

1 Connect the local unit to a computer using the built-in USB cable.

• U224-1R4-R – No LEDs illuminate at this point.
- U224-4R4-R – The Red LED on the local unit illuminates to indicate it is receiving power from the computer's USB port.

2 (U224-1R4-R only) Connect the external power supply to the local unit, and then plug it into a Tripp Lite Surge Suppressor, Power Distribution Unit (PDU) or Uninterruptible Power Supply (UPS).

3 Using Cat5e/6 cable, connect the RJ45 ports on the local and remote units.

• U224-1R4-R – The Red LED on the remote unit illuminates to indicate it is connected to the local unit.
  • U224-4R4-R – No additional LEDs illuminate at this point.

4 (U224-4R4-R only) Connect the external power supply to the remote unit, and then plug it into a Tripp Lite Surge Suppressor, Power Distribution Unit (PDU), or Uninterruptible Power Supply (UPS).

- U224-4R4-R – The Red LED on the remote unit illuminates to indicate it is receiving power from the external power supply.

5 Connect a USB device to an available port on the local and/or remote units. Note: Remote ports support USB 2.0 devices at USB 1.1 speeds.

• U224-1R4-R – On the local unit, the Green LEDs next to the USB ports illuminate to indicate a USB device is connected, and the Red LED in between the power and RJ45 jacks illuminates to indicate a USB device is connected to the remote unit.
• U224-4R4-R – On the remote unit, the Green LEDs next to the USB ports illuminate to indicate a USB device is connected.

6 Repeat step 5 for each additional USB device you wish to connect.

Troubleshooting

If your USB Cat5 Extender/Hub is not working properly, try the following:

• Make sure that the unit is connected to the included AC Adapter and plugged into a working power source
• Ensure that the Cat5e/6 cable connecting the Local and Remote Units does not exceed 150 ft. (45m)
• Ensure that none of the USB cables being used to connect a device to the USB Cat5 Extender/Hub are longer than 16 ft. (5m)
• Ensure that the Cat5e/6 cable is working properly by connecting it between two devices you know work properly (e.g. connect a working computer to a live network and try accessing the internet). If the Cat5e/6 cable does not work in this environment, try using another Cat5e/6 cable.
• Ensure that the USB cable functions properly by connecting to a device that you know works properly (e.g. plug a USB printer directly into a computer). If this does not work, try using another USB cable.
• Ensure that the USB device you are plugging in works properly by connecting it to a working device using a USB cable that you know works (e.g. connect a USB printer to a working computer using a cable you know works). If this does not work, your USB device may not be working properly.

Warranty

1-Year Limited Warranty

TRIPP LITE warrants its products to be free from defects in materials and workmanship for a period of one (1) year from the date of initial purchase. TRIPP LITE's obligation under this warranty is limited to repairing or replacing (at its sole option) any such defective products. To obtain service under this warranty, you must obtain a Returned Material Authorization (RMA) number from TRIPP LITE or an authorized TRIPP LITE service center. Products must be returned to TRIPP LITE or an authorized TRIPP LITE service center with transportation charges prepaid and must be accompanied by a brief description of the problem encountered and proof of date and place of purchase. This warranty does not apply to equipment which has been damaged by accident, negligence or misapplication or has been altered or modified in any way.

EXCEPT AS PROVIDED HEREIN, TRIPP LITE MAKES NO WARRANTIES, EXPRESS OR IMPLIED, INCLUDING WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE. Some states do not permit limitation or exclusion of implied warranties; therefore, the aforesaid limitation(s) or exclusion(s) may not apply to the purchaser.

EXCEPT AS PROVIDED ABOVE, IN NO EVENT WILL TRIPP LITE BE LIABLE FOR DIRECT, INDIRECT, SPECIAL, INCIDENTAL OR CONSEQUENTIAL DAMAGES ARISING OUT OF THE USE OF THIS PRODUCT, EVEN IF ADVISED OF THE POSSIBILITY OF SUCH DAMAGE. Specifically, TRIPP LITE is not liable for any costs, such as lost profits or revenue, loss of equipment, loss of use of equipment, loss of software, loss of data, costs of substitutes, claims by third parties, or otherwise.

Warranty

WARRANTY REGISTRATION

Visit www.triplite.com/warranty today to register the warranty for your new Tripp Lite product. You'll be automatically entered into a drawing for a chance to win a FREE Tripp Lite product!*

* No purchase necessary. Void where prohibited. Some restrictions apply. See website for details.

WEEE Compliance Information for Tripp Lite Customers and Recyclers (European Union)

Under the Waste Electrical and Electronic Equipment (WEEE) Directive and implementing regulations, when customers buy new electrical and electronic equipment from Tripp Lite they are entitled to:

• Send old equipment for recycling on a one-for-one, like-for-like basis (this varies depending on the country)
• Send the new equipment back for recycling when this ultimately becomes waste

WARNING

Use of this equipment in life support applications where failure of this equipment can reasonably be expected to cause the failure of the life support equipment or to significantly affect its safety or effectiveness is not recommended. Do not use this equipment in the presence of a flammable anesthetic mixture with air, oxygen or nitrous oxide.

Tripp Lite follows a policy of continuous improvement. Product specifications are subject to change without notice.

Tripp Lite World Headquarters

1111 W. 35th Street, Chicago, IL 60609 USA

www.tripplite.com/support

201111079 93-2836-EN
