USER MANUAL H4F306WCH1 HAIER
Upright Freezer
H4F306*AH1 H4F306*CH1 H4F306*DH1 H4F306*DH1BE H4F272*CH1 H4F272*DH1 H4F272*DH1BE H4F272*EH1 H4F272*EH1K H4F226*DH1 H4F226*EH1 H4F226*EH1K
*-Colour code
EN
Thank you for purchasing a Haier Product.
Please read these instructions carefully before using this appliance. The instructions contain important information which will help you get the best out of the appliance and ensure safe and proper installation, use and maintenance.
Keep this manual in a convenient place so you can always refer to it for the safe and proper use of the appliance.
If you sell the appliance, give it away, or leave it behind when you move house, make sure you also pass this manual so that the new owner can become familiar with the appliance and safety warnings.
Legend
General information and tips
Warning – Important Safety information
Environmental information
Disposal
Help protect the environment and human health. Put the packaging in applicable containers to recycle it. Help to recycle waste of electrical and electronic appliances. Do not dispose appliances marked with this symbol with the household waste. Return the product to your local recycling facility or contact your municipal office.
Warning!
Risk of injury or suffocation!
Refrigerants and gases must be disposed of professionally. Ensure that the tubing of the refrigerant circuit is not damaged before being properly disposed of. Disconnect the appliance from the mains supply. Cut off the mains cable and dispose of it. Remove the door, the door catch and seals, to prevent children and pets from getting closed in the appliance.
1 - Safety 4 2 - Intended Use....8 3 - Product Description....9 4 - Control panel....10 5 - Use....11 6 - Energy saving....14 7 - Equipment 14 8 - Care and Cleaning.... 15 9 - Troubleshooting.... 17 10 - Installation....20 11 - Technical Data....24 12 - Customer Service.... 25
Before switching on the appliance for the first time, read the following safety hints!
WARNING!
Before first use
\~ Make sure there is no transport damage. \~ Remove all packaging and keep out of children's reach.

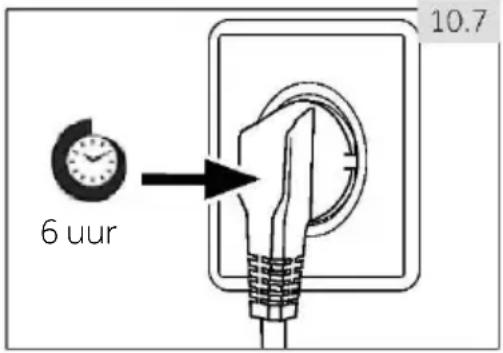

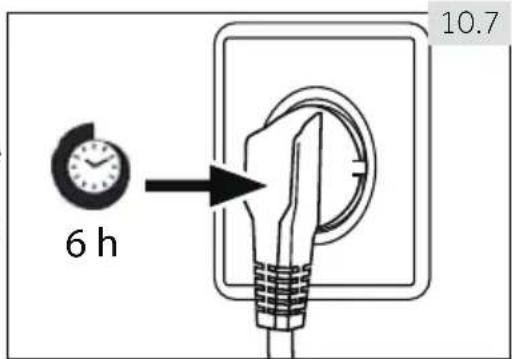

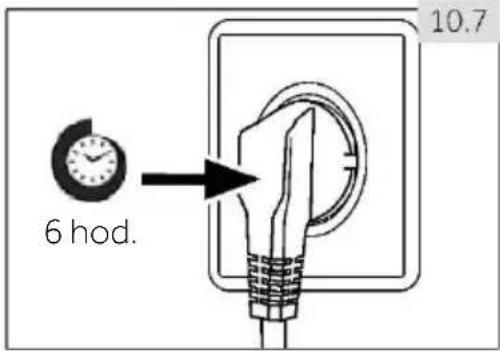

\~ Wait at least six hours before installing the appliance in order to ensure the refrigerant circuit is fully efficient.
\~ Handle the appliance always with at least two persons because it is heavy.
Installation

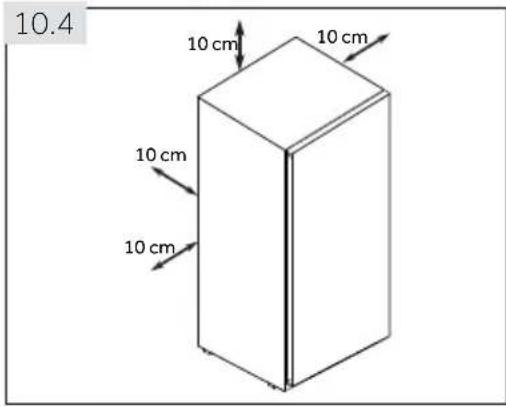

\~ The appliance should be placed in a well-ventilated place. Ensure a space of at least 10 cm above and around the appliance.
\~ Do not cover air vent openings.
\~ Never place the appliance in a damp area or location where it might be splashed with water. Clean and dry water splashes and stains with a soft clean cloth.
\~ Do not install the appliance in direct sunlight or in the near of heat sources (e.g. stoves, heaters).

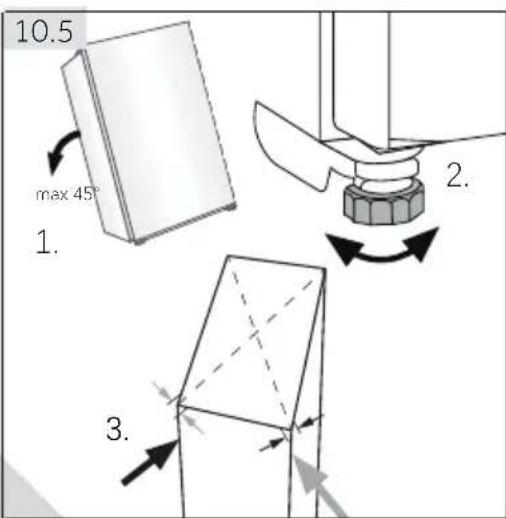

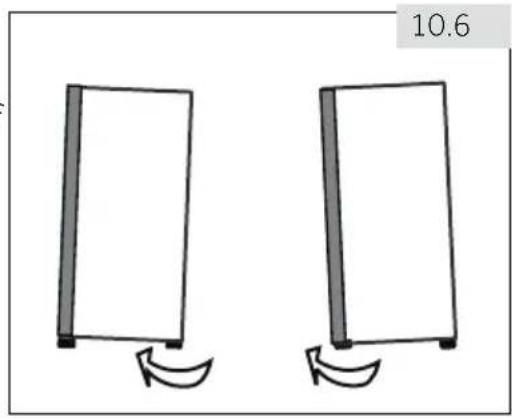

\~ Install and level the appliance in an area suitable for its size and use.
Keep ventilation openings in the appliance or in the built-in structure clear of obstruction.
Make sure that the electrical information on the rating plate agrees with the power supply. If it does not, contact an electrician.
The appliance is operated by a 220-240 VAC/50 Hz power supply. Abnormal voltage fluctuation may cause the appliance to fail to start, or damage to the temperature control or compressor, or there may be an abnormal noise when operating. In such case, an automatic regulator shall be mounted.
Use a separate earthed socket for the power supply which is easily accessible during cleaning. The appliance must be earthed.
Only for UK: The appliance's power cable is fitted with a 3-cord (grounding) plug that fits a standard 3-cord (grounded) socket. Never cut off or dismount the third pin (grounding). After the appliance is installed, the plug should be accessible.
Do not use multi-plug adapters and extension cables.
Ensure that the power cable is not trapped by the freezer. Do not step on the power cable.
Do not damage the refrigerant circuit.
WARNING!
Daily use
This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Keep children under 3 years of age away from the appliance unless they are constantly supervised. Children shall not play with the appliance. If cool gas or other inflammable gas is leaking in the vicinity of the appliance, turn off the valve of the leaking gas, open the doors and windows and do not unplug a plug in the power cable of the freezer or any other appliance. The freezing function works at ambient temperature as low as -15°C. *works at -15°C ambient room temperature when set at maximum power, at -24°C. Do not place objects containing water on top of the freezer, to avoid personal injury caused by falling or electric shock caused by contact with water. Do not place unstable articles (heavy objects, containers filled with water) on top of the freezer. Open and close the doors only with the handles. The gap between the doors and between the doors and the cabinet is very narrow. Do not extend your hands in these areas to avoid pinching your fingers. Open or close the freezer doors only when there are no children standing within the range of door movement. Do not store or use inflammable, explosive or corrosive materials in the appliance or in the vicinity. Do not store medicines, bacteria or chemical agents in the appliance. This appliance is a household appliance. It is not recommended to store materials that require strict temperatures. On refrigerating mode without a 4-star compartment: this refrigerating appliance is not suitable for freezing foodstuffs; on freezing mode with a 4-star compartment: this freezing appliance is not suitable for refrigerating foodstuffs. Never store liquids in bottles or cans (besides high percentage spirits) especially carbonated beverages in the freezer, as these will burst during freezing. Check the condition of food if a warming in the freezer has taken place. Do not set unnecessarily low temperature in the freezer compartment. Attention: Bottles can burst.
Daily use
Do not touch frozen goods with wet hands (wear gloves). Especially do not eat ice lollies immediately after removal from the freezer compartment. There is the risk of frostbite or the formation of frost blisters. First aid: keep immediately under running cold water. Do not pull away!
Do not touch the inside surface of the freezer when in operation, especially with wet hands. Your hands may freeze onto the surface.
Unplug the appliance in the event of a power interruption or before cleaning. Allow at least 5 minutes before restarting the appliance, as frequent starting may damage the compressor.
Do not use electrical devices inside the food storage compartments of the appliance, unless they are of the type recommended by the manufacturer.
If the illuminating lamp is damaged, it must be replaced by the manufacturer or by a qualified person at the specified maintenance provider.
Maintenance/cleaning
Make sure children are supervised if they carry out cleaning and maintenance.
Disconnect the appliance from the electrical supply before undertaking any routine maintenance. Allow at least 5 minutes before restarting the appliance, as frequent starting may damage the compressor.
Hold the plug, not the cable, when unplugging the appliance.
Do not scrape off frost and ice with sharp objects. Do not use sprays, electric heaters like heater, hair dryer, steam cleaners or other sources of heat in order to avoid damage to the plastic parts.
Do not use mechanical devices or other means to accelerate the defrosting process, other than those recommended by the manufacturer.
Do not spray or flush the appliance during cleaning.
Do not use water spray or steam to clean the appliance.
If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.
Do not try to repair, disassemble or modify the appliance by yourself. In case of repair please contact our customer service.
Refrigerant gas information
WARNING!
The appliance contains the flammable refrigerant ISOBUTHANE (R600a). Make sure the refrigerant circuit is not damaged during transportation or installation. Leaking refrigerant may cause eye injuries or ignite. If a damage has occurred, keep away open fire sources, thoroughly ventilate the room, do not plug or unplug the power cords of the appliance or any other appliance. Inform the customer service.
In case of eyes get into contact with the refrigerant, rinse immediately it under running water and call immediately the eye specialist.
WARNING!
WARNING: Take care to avoid causing a fire by igniting flammable material. WARNING: When positioning the appliance, ensure the supply cord is not trapped or damaged. WARNING: Do not locate multiple portable socket-outlets or portable power supplies at the rear of the appliance. Do not store explosive substances such as aerosol cans with a flammable propellant in this appliance. Flammable refrigerant is used in the freezer; please be careful when installing, handling, servicing, and recycling the appliance. Please contact the service agent to dispose of the appliance because flammable blowing gas was used.
2 - Intended use
2.1 Intended Use
This appliance is intended to be used in household and similar applications such as staff kitchen areas in shops, offices, and other working environments; farm houses and by clients in hotels, motels, and other residential type environments; bed and breakfast type environments; catering and similar non-retail applications.
This appliance is intended for freezing food. It has been designed exclusively for use in dry-interior households. It is not intended for commercial or industrial use. On demand, this appliance can be used as a fresh food compartment.
Changes or modifications to the device are not allowed. Unintended use may cause hazards and loss of warranty claims.
2.2 Accessories
Check the accessories and literature in accordance with this list:
2.2
Energy label
Quick Guide
User manual, Warranty card
Door extension cord

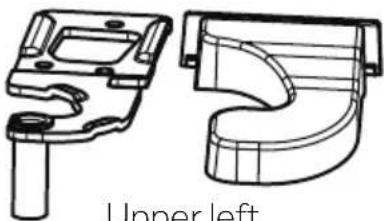

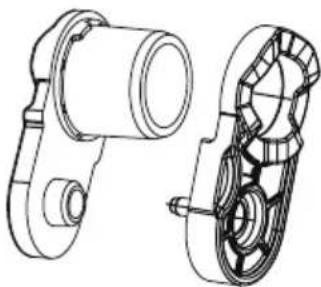

Upper left hinge for door reversibility, Upper left hinge cover
Axis covers
Notice: Differences
Due to technical changes and different models, some of the illustrations in this manual may differ from your model.

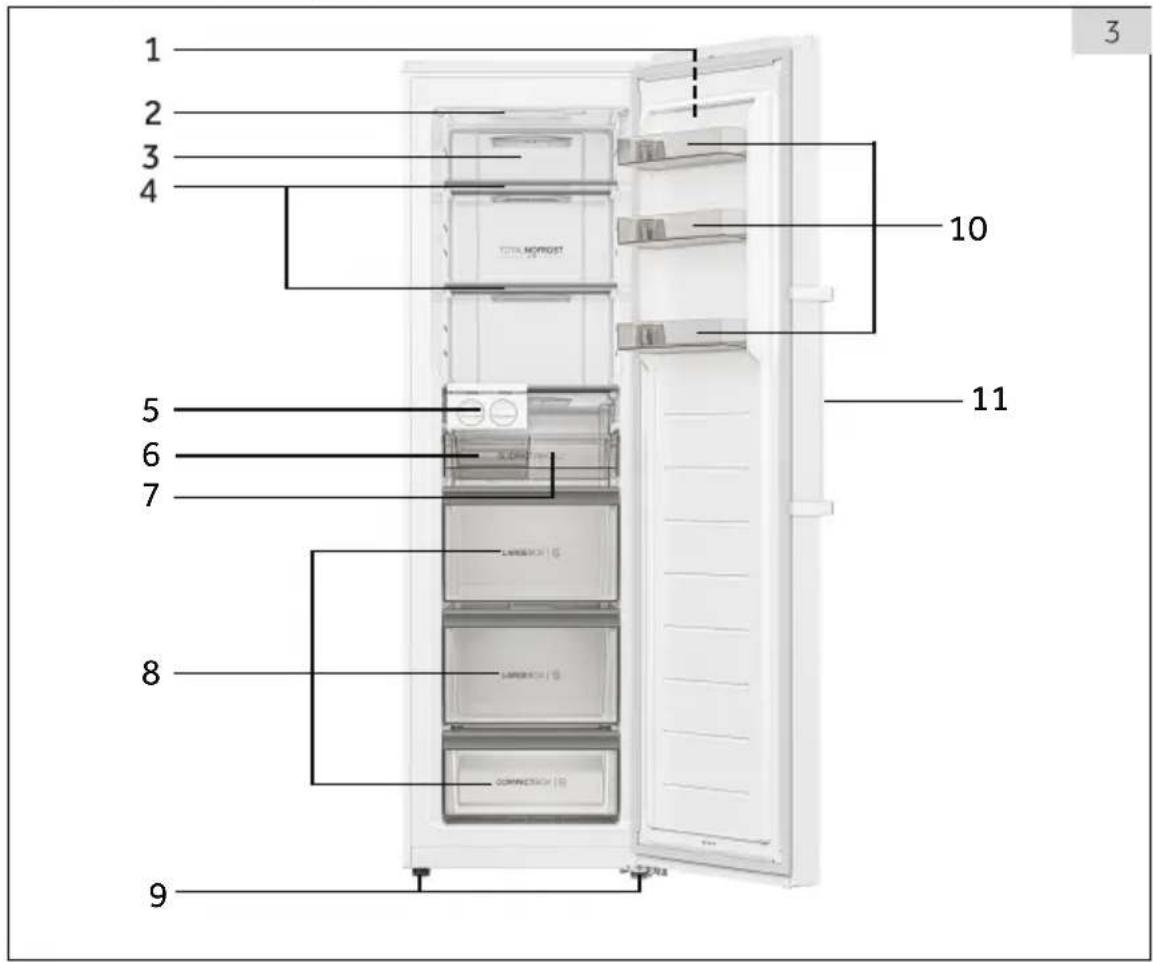

Picture of appliance (Fig. 3)
1 Control panel 2 LED light 3 Air duct 4 Glass shelves 5 Ice maker assembly 6 Ice receiver
7 Sliding tray 8 Drawers 9 Adjustable feet 10 Removable door racks 11 Door handle
Note: This product contains a light source of energy efficiency class
Notice: Components 5/6/7 available for H4F306/272/226*A/C/DH1/BE.
H4F272/226*EH1/K has four drawers, without components 5/6/7. H4F226 without components 10
4 - Control panel

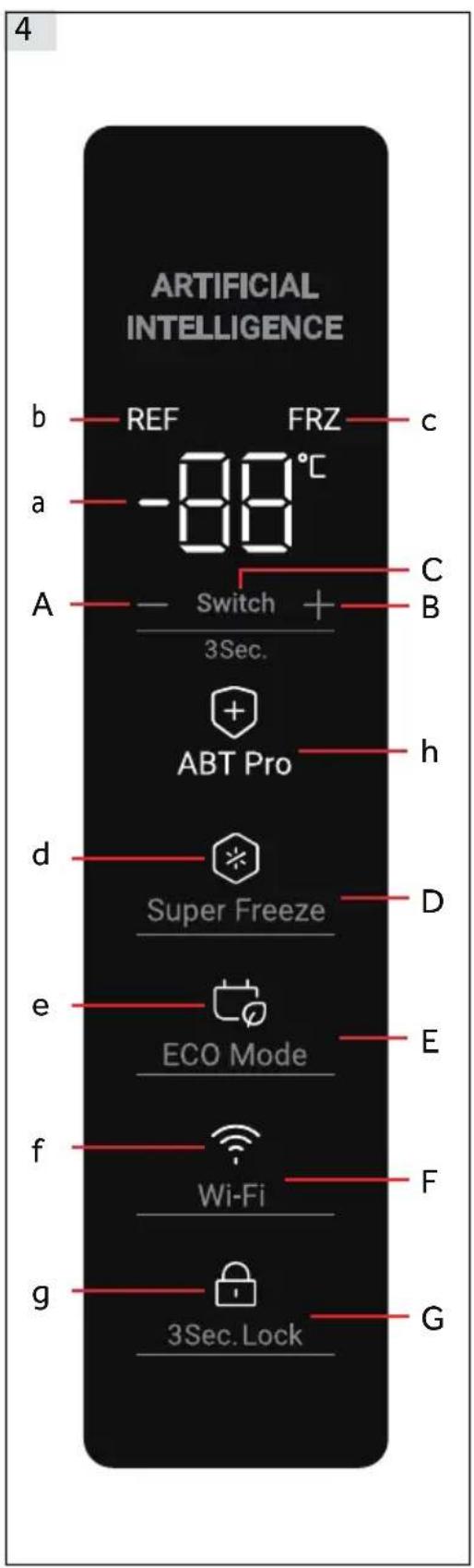

Control panel (Fig. 4)
A - (Temperature decrease)
C Instaswitch
B + (Temperature increase)
D Super Freeze mode
E ECO Mode
F Wi-Fi
G 3 Sec. Lock
5.1 Before first Use
Remove all packaging materials, keep them out of children's reach and dispose of them in an environmentally friendly manner. Clean the inside and outside of the appliance with water and a mild detergent before putting any food in it. After the appliance has been levelled and cleaned, wait for at least 6 hours before connecting it to the power supply. See Section INSTALLATION. Precool the compartment for 2 hours at high settings before loading with food. To do so, please set the temperature to lower than -20°C.
5.2 Switching the appliance on/off
The appliance is in operation as soon as it is connected to the power supply.
The freezer temperature is automatically set to -18 °C. This is the recommended setting and the ideal temperature for frozen goods. If desired, you can change the temperatures manually. Please see ADJUSTING THE TEMPERATURE.
Indicators (a-g) will flash once consecutively. If the door is closed, the display switches off after 30 seconds. The panel lock might be active.
Notice: Presettings
The appliance is preset to the recommended temperature of -18 °C. Under normal ambient conditions you don't need to set a temperature. When the appliance is switched on after being disconnected from the main power supply, it may take up to 12 hours for the correct temperature to be reached.
Empty the appliance before switching off. To switch off the appliance, pull the power cord out of the power socket.
5.3 Standby-mode of display
When the door is closed the display screen turns off automatically 30 seconds after without operation. The display locks automatically. It lights up automatically when touching any button or opening the door.
5.4 Display lock and unlock
Automatic locking
The display is automatically locked after about 30 seconds without operation.
Manual locking
When the display is unlocked, press and hold the "3 Sec. Lock" button (G) for 3 seconds. After a beep, the "3 Sec. Lock" indicator lights up, and the display is locked. When the display is locked, press and hold the "3 Sec. Lock" button (G) for 3 seconds. After a beep, the "3 Sec. Lock" indicator turns off, and the display is unlocked.
Notice: Display lock
When the display is locked, functions such as temperature setting or Super Freeze are disabled. If an attempt is made to use these functions, the "3 Sec. Lock" indicator will blink 3 times to remind you that the display is locked.
5.5 Freeze/Refrigerate mode switch
When the display is unlocked, press and hold the "Switch" button (C) for 3 seconds to switch the freezer between Freeze and Refrigerate modes. In Freeze mode, the default setting is -18°C, the "REF" indicator (b) is off, and the "FRZ" indicator (c) is on. In Refrigerate mode, the default setting is 4°C, the "REF" indicator (b) is on, and the "FRZ" indicator (c) is off.
There is a significant difference in temperature between Freeze and Refrigerate modes, which affects food storage. Before changing modes, make sure to remove or adjust the food inside the freezer to prevent damage due to the mode change.
5.6 Temperature setting
Freeze mode range: -16°C to -24°C.
Refrigerate mode range: 2°C to 8°C.
When the display is unlocked and the freezer is not in Super Freeze or ECO mode, touch the "-" (A) or "+" (B) buttons to set the desired temperature. The temperature will flash on the indicator (a) and be accompanied by beeps. After 5 seconds without touching the buttons, the indicator (a) will stop flashing and display the temperature before adjustment. The set temperature is displayed after the cooling effect is achieved.
5.7 Super Freeze mode (D)
Super Freeze mode is optimal for preserving food nutrition and can freeze food in less time. Before placing a large amount of food inside the freezer, activate the Super Freeze function to lower the temperature and ensure better freezing results.
When the display is unlocked and the freezer is in Freeze mode, touching "Super Freeze mode" (D) will highlight the "Super Freeze" indicator (d) and the freezer will operate in Super Freeze mode. To deactivate manually, repeat the steps above and the "Super Freeze" indicator (d) will dim. If not deactivated manually, the mode will automatically deactivate after 50 hours. If you have a large amount of food to freeze at once, it is recommended to activate this function 24 hours before inserting the food. The function will stop automatically after 50 hours or can be stopped manually. Power consumption will increase while this function is active.
Note: Super Freeze
If the set temperature before entering Super Freeze mode is ≥ -18°C, the freezer will exit Super Freeze mode and return to the -18°C setting. If the set temperature before entering Super Freeze mode is < -18°C, the freezer will exit Super Freeze mode and return to the original set temperature. In Super Freeze mode, the temperature cannot be adjusted. If you attempt to adjust it, the Super Freeze indicator will blink for a while to remind you that the freezer is in Super Freeze mode. Super Freeze mode can only be set in Freeze mode. In Refrigerate mode, the Super Freeze indicator is off and Super Freeze mode cannot be set. For models H4F226WDH1/H4F226WEH1/K, it is recommended to turn on "Super Freeze" 30 hours before placing large amounts of food.
5.8 ECO mode (E)
In ECO mode, energy saving is achieved. The temperature will be automatically set to -16°C in Freeze mode or 8°C in Refrigerate mode.
When the display is unlocked, touching "ECO Mode" (E) will highlight the "ECO Mode" indicator (e) and the freezer will operate in ECO mode. To deactivate ECO mode manually, repeat the steps above and the "ECO Mode" indicator (e) will dim.

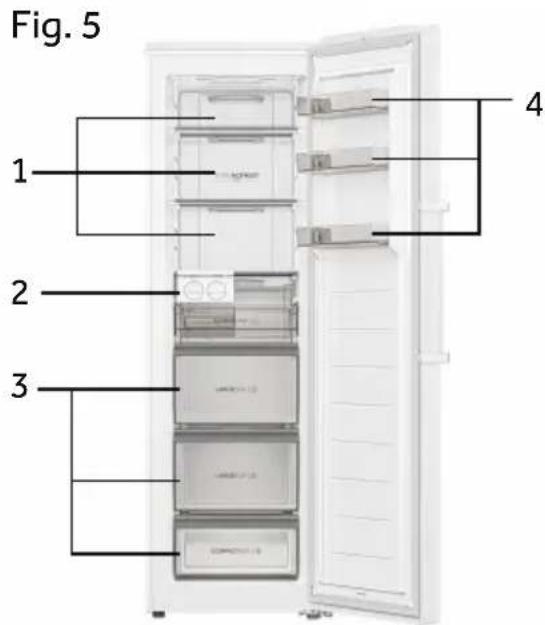

Different foods should be placed in different areas according to their properties (Fig. 5).
1. Pickled foods, canned food, fruit, vegetables, salad, etc. 2. Ice maker components. 3. Meat products, snack foods, etc. 4. Eggs, canned food, spices, drinks, and bottled foods, etc.
In refrigerating mode without a 4-star compartment: this refrigerating appliance is not suitable for freezing foodstuffs; in freezing mode with a 4-star compartment, this freezing appliance is not suitable for refrigerating foodstuffs.
Food can be stored in the freezer at a temperature of at least -18°C for 2 to 12 months, depending on
its properties (e.g., meat: 3-12 months, vegetables: 6-12 months).
To avoid exceeding storage periods, please note the freezing date, time limit, and name of the food on the packaging according to the storage periods of different foods.
5.9 ABT Pro (only for H4F306*A/C/DH1/BE)
The freezer is equipped with an antibacterial module that runs autonomously after power-on; users do not need to operate it. The indicator (h) lights up to show that the module is running.
5.10 Power-off memory
This freezer has power-off memory, settings before power-off will be memorized. When power is back on, freezer will return to settings before power-off and continue to function. Display lock is not memorized, after power back on, display is unlocked.
5.11 Door open alarm
When freezer is kept open for more than 1 minute, alarm tone is sounded. The alarm tone will be sounded every 30 seconds if door is kept open. The alarm will stop until door is closed or after 7 minutes from door opening. The alarm tone stops and freezer light goes off.
5.12 High temperature alarm
The freezer is equipped with high temperature alarm. In Freeze mode, if "HH" is flashing displayed on indicator (a) with alarm tone sounded, touch any button, the alarm tone stops, that means temperature in the freezer is too high. Please check if freezer door is tightly closed or if large amount of warm food is put inside the freezer. After a period, "HH" will disappear. If not, and the alarm tone come back, please contact aftersales service.
5.13 Error indication
This freezer is equipped with error indication. When an error is encountered, display will show flashing codes for different errors. In this situation, the freezer could still freeze but user should contact after sales service as soon as possible for optimal control of the freezer.
5.14 Wi-Fi
After the refrigerator is connected to Wi-Fi, it can be remotely controlled through a mobile app. (Please refer to the configuration page for specific configuration methods)
6 - Energy saving tips
Energy saving tips
~ Make sure the appliance is properly ventilated (see INSTALLATION). Do not install the appliance in direct sunlight or in the near of heat sources (e.g. stoves, heaters). ~ Avoid unnecessarily low temperature in the appliance. The energy consumption increases the lower the temperature in the appliance is set. ~ Allow warm food to cool down before placing it in the appliance. ~ Open the appliance door as little and as briefly as possible. ~ Make sure the door always closes correctly and unimpaired by food position. Keep door seals clean. ~ Defreeze frozen food in a fridge. ~ Clean the rear of the appliance regularly. Dust increases energy consumption. The most energy-saving configuration requires drawer, food box and shelves to be positioned in the appliance on factory-fresh condition, and food to be placed without blocking the air outlet of the duct.
7 - Equipment
7.1 Removable door racks
The door rack can be removed for cleaning:

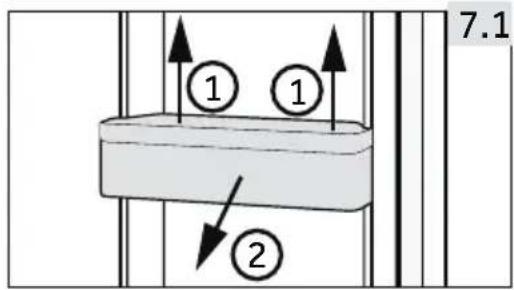

Place hands on each side of the rack, lift it upwards (1) and pull it out (2) (Fig. 7.1).
In order to insert the door rack, the above steps are carried out in reverse order.

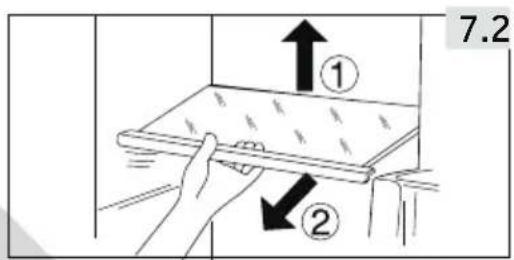

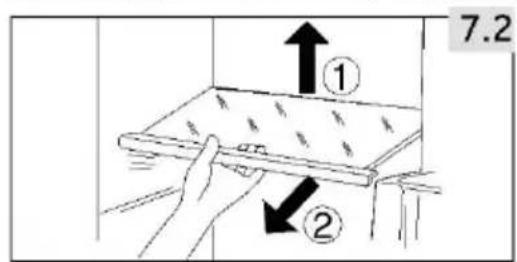

7.2 Glass shelves

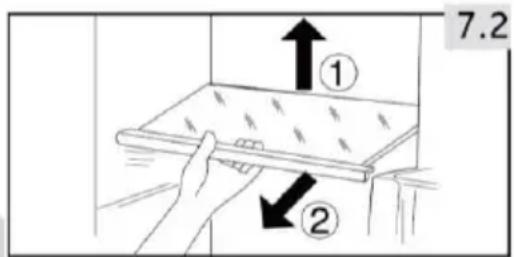

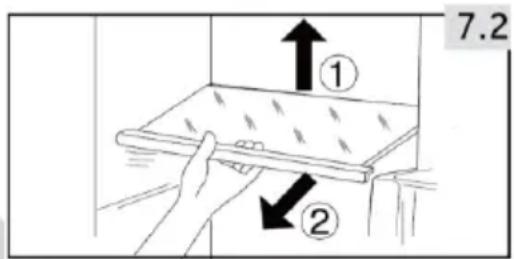

- To take out a shelf, remove it first by uplifting its hind edge (1) and pulling it out (2) (Fig. 7.2).
- To reinstall it, put it on the lugs on both sides and push it to the most rearward position until the rear of the shelf is fixed inside the slots in the sides.
WARNING!
Disconnect the appliance from the power supply before cleaning.

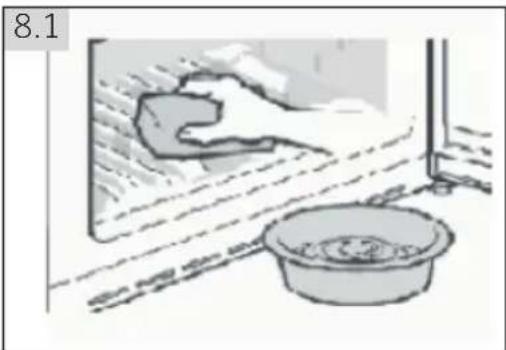

8.1 General
Clean the appliance when only little or no food is stored.
WARNING!
~ Do not clean the appliance with hard brushes, wire brushes, detergent powder, petrol, amyl acetate, acetone and similar organic solutions, acid or alkaline solutions. Please clean with special freezer detergent to avoid damage. ~ Do not spray or flush the appliance during cleaning. Do not scrape off frost and ice with sharp objects. ~ Do not use sprays, electric heaters like heater, hair dryer, steam cleaners or other sources of heat in order to avoid damage to the plastic parts. ~ Do not clean the cold glass shelves with hot water. Sudden temperature change may cause the glass to break. ~ Do not touch the inside surface of the freezer storage compartment, especially with wet hands, as your hands may freeze onto the surface. ~ In case of heating check the condition of frozen goods. ~ Do not try to repair the appliance by yourself. In case of repair please contact our customer service.
~ Always keep the door gasket clean. ~ Clean the inside and housing of the appliance with a soft cloth or sponge dampened in warm water and neutral detergent (Fig. 8.1). ~ Rinse and dry with soft cloth. ~ Do not clean any of the parts of the appliance in a dishwasher. ~ Clean the accessory only with warm water and mild neutral detergent.
8 - Care and Cleaning
The user manual includes instructions for the using and operation of multiple models. Please refer to the instructions for the purchased models.
Drawer cleaning steps
- Remove the front cover of the drawer:
- Cleaning the drawer body:
3. Cleaning the drawer cover:
- Assembly after cleaning:

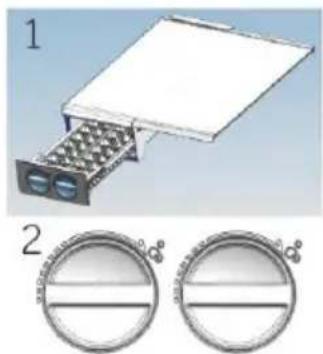

Ice maker cleaning
- Remove the ice maker and glass shelf
2. Remove the ice maker from the shelf in the left and right directions
- Pull the ice box out of the frame:
- Cleaning the ice box:
- Assembly after cleaning:
Door seal cleaning
- Remove the door seal strip
- Clean the door seal
- Installation after cleaning
8 - Care and Cleaning
8.2 Non-use for a long period
If the appliance is not used for an extended period of time:
Take out the food. Unplug the power cord. Clean the appliance as described above. Keep the door and freezer drawers open to prevent the creation of bad odours inside.
Remove the door of the appliance (open the door and hold it before removing the screws) to avoid children entering into the appliance and getting locked in.
Notice: Switch off
To ensure the service life of the appliance, turn it off only if strictly necessary.
8.3 Moving the appliance
- Remove all food and unplug the appliance.
- Secure shelves and other moveable parts in the freezer with adhesive tape.
- Close the door and secure it with tape.
- Do not tilt the freezer more than 45 degrees to avoid damaging the refrigerating system.
- Wrap the feet of the freezer to avoid scratching the floor. Never move the freezer forcefully.
WARNING!
Do not lift the appliance by its handles. Never place the appliance horizontally on the ground.
Many occurring problems could be solved by yourself without specific expertise. In case of a problem please check all shown possibilities and follow below instructions before you contact an after sales service. See CUSTOMER SERVICE.
Before maintenance, deactivate the appliance and disconnect the mains plug from the mains socket. Electrical equipment should be serviced only by qualified electrical experts, because improper repairs can cause considerable consequential damages. A damaged supply should only be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.
The acoustic alarm can be switched off by pressing any button.
9.1 Troubleshooting
| Problem Possible Cause Possible Solution | ||
| The compressor does not work. | · Mains plug is not connected in the mains socket. | · Connect the mains plug. |
| The appliance runs frequently or for a too long period of time. | · The indoor or outdoor temperature is too high. · The appliance has been off power for a period of time. · The door of the appliance is not tightly closed. · The door has been opened too frequently or for too long. · The temperature setting is too low. · The door gasket is dirty, worn, cracked or mis-matched. · The required air circulation is not guaranteed. · The interior is covered in ice. | · In this case, it is normal for the appliance to run longer. · Normally, it takes 8 to 12 hours for the appliance to cool down completely. · Close the door and ensure the appliance is located on a level ground and there is no food or container jarring the door. · Do not open the door too frequently. · Set the temperature higher until a satisfactory temperature is obtained. It takes 24 hours for the temperature to become stable. · Clean the door gasket or replace them by the customer service. · Ensure adequate ventilation. · Defrost the appliance. |
| The appliance makes abnormal sounds. | · The appliance is not located on level ground. · The appliance touches an object close to it. · The appliance stands on a wooden floor or near wooden walls. | · Level the appliance. · Remove objects around the appliance. · Wood amplifies the sound. Set the appliance somewhere else. |
9 - Troubleshooting
| Problem Possible Cause Possible Solution | ||
| The appliance makes a clicking sound | ·This is normal. It is caused by the refrigeration unit switching on or off. | ·- |
| A slight sound is to be heard similar to that of flowing water. | ·This is normal. - | · |
| The appliance makes a motor sound | ·The refrigeration unit has just turned itself on. This is normal | ·- |
| It is not cold enough inside the appliance. | ·The temperature is set too high.·Goods that are too warm have been stored.·Too much food has been stored at a time.·The goods are too close to each other.·The door is not tightly closed.·The door has been opened too frequently or for too long. | ·Reset the temperature.·Always cool down goods before storing them.·Always store small quantities of food.·Leave a gap between several foods allowing air flowing.·Close the door.·Do not open the door too frequently. |
| It is too cold inside the appliance. | ·The temperature is set too low.·The Fast-freezing function is activated or has been running too long. | ·Reset the temperature.·Switch off the Fast-freezing function. |
| Moisture accumulates on the surface of the appliance. | ·The climate is too warm and too damp. | ·This is normal in damp climate and will change when the humidity decreases. Wipe dry with a cloth. |
| Strong ice and frost in the freezer compartment. | ·The goods were not adequately packaged.·The door is not tightly closed.·The door has been opened too frequently or for too long.·The door gasket is dirty, worn, cracked or mis-matched.·Something on the inside prevents the door from closing properly. | ·Always pack the goods well.·Close the door.·Do not open the door too frequently.·Clean the door gasket or replace them by the customer service.·Reposition the shelves, door racks, or internal containers to allow the door to close. |
| The cooling system does not work. | ·Mains plug is not connected to the mains socket.·The power supply is not intact. | ·Connect the mains plug.·Check the electrical supply to the room. Call the local electricity company! |
| The sides of the cabinet and door strip get warm. | This is normal. | - |
| You hear an alarm signal. | The door is openThe temperature inside product is too high | Close the door or silence the alarm manually. |
| The door is difficult to open. | Once the appliance runs, it has an internal vacuum. | Open the door seal gently to let air enter the appliacne. |
| The door can't be closed properly. It always leaves a gap. | Because of the appliances's low temperature, the door seal can easily get hard and deformed. | Use a hair dryer or put a hot towel on the spot where the gasket is deformed.When the gasket is soft once again, close the door and compress it tightly. |
Minimum guarantee is: 2 years for EU Countries, 3 years for Turkey, 1 year for UK, 1 year for Russia, 3 years for Sweden, 2 years for Serbia, 5 years for Norway, 1 year for Morocco, 6 months for Algeria, Tunisia no legal warranty required.
Thermostats, temperature sensors, printed circuit boards and light sources are available for a minimum period of seven years after placing the last unit of the model on the market.
Door handles, door hinges, trays and baskets for a minimum period of seven years and door gaskets for a minimum period of 10 year, after placing the last unit of the model on the market.
9.2 Power Interruption
In the event of a power cut, food should remain safely cold for about 18 hours. Follow these tips during a prolonged power interruption, especially in summer:
Open the door as few times as possible. Do not put additional food into the freezer during a power interruption. If prior notice of a power interruption is given and the interruption duration is longer than 15 hours, make some ice and put it in a container in the top of the freezer compartment. As temperature in the freezer will rise during a power interruption or other failure, the storage period and edible quality of food will be reduced. Any food that defrosts should be either consumed, or cooked and refrozen (where suitable) soon afterwards in order to prevent health risks.
Notice: Memory function during power interruption
After restoration of power the appliance continues with the settings that were set before the power failure.
10 - Installation
10.1 Unpacking
WARNING!
~ The appliance is heavy. Always handle with at least two persons. ~ Keep all packaging materials out of children's reach and dispose of them in an environmentally friendly manner.
~ Take the appliance out of the packaging.
~ Remove all packaging materials.
10.2 Environmental conditions
The room temperature should always be between 18 °C and 43 °C, since it can influence the temperature inside the appliance and its energy consumption. Do not install the appliance near other heat-emitting appliances (ovens, refrigerators) without isolation.
10.3 Space requirements

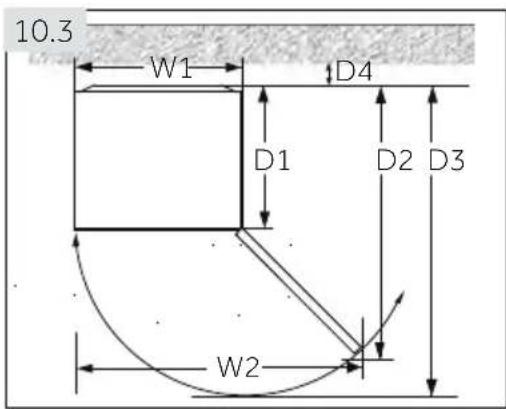

Required space to open the door (Fig. 10.3):
| Width Depthin mm in mm | Distance towall in mm | Modelidentifier | ||||
| W1 | W2 | D1 | D2 | D3 D4 | ||
| 595 | 964 | 603 | 1148.5 | 1231.5 | 100 | H4F272/226*EH1/K |
| 595 | 964 | 608 | 1153.5 | 1236.5 | 100 | H4F306/272/226*A/C/DH1/BE |
This appliance is not intended to be used as a built-in appliance.
10.4 Ventilation cross-section
To achieve sufficient ventilation of the appliance for safety reasons, the information of the required ventilation cross sections must be observed (Fig. 10.4).
10.5 Aligning the appliance
The appliance should be placed on a flat and solid surface. If the appliance is placed on a pedestal, strong and fire-resistant materials must be used. Never use the foam packing material as a pedestal.
- Tilt the appliance slightly backwards (Fig. 10.5).
- Set the feet to the desired level.
- The stability can be checked by alternately bumping on the diagonals. The slight swaying should be the same in both directions. Otherwise the frame can warp; possible leaking door seals are the result. A low tendency to the rear eases the closing of the door.
10.6 Using adjustable feet
If the freezer is unstable, the feet can be adjusted: Rotate the adjustable feet according to the direction of arrow (Fig. 10.6) to turn them up or down:
Turning the feet clockwise raises the appliance. Turning the feet counterclockwise lowers it.

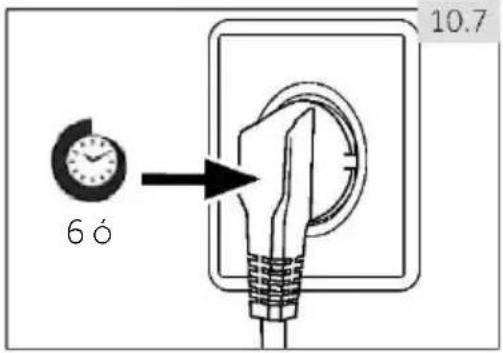

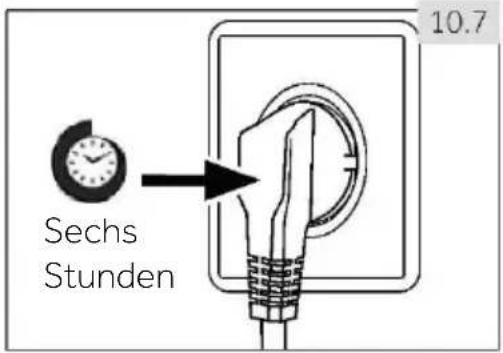

10.7 Waiting time
The maintenance-free lubrication oil is located in the capsule of the compressor. This oil can get through the closed pipe system during slanting transport. Before connecting the appliance to the power supply you have to wait 6 hours (Fig. 10.7) so that the oil runs back into the capsule.
10.8 Electrical connection
Before each connection check if:
Power supply, socket and fusing are appropriate to the rating plate. The power socket is earthed and no multi-plug or extension. The power plug and socket are strictly according.
Connect the plug to a properly installed household socket.
WARNING!
To avoid risks a damaged power cord must be replaced by the customer service (see warranty card).
10 - Installation
10.9 Door Reversibility
Before connecting the appliance to the power supply, check whether the door swing must be changed from right (as delivered) to left, if this is required by the installation location and usability.
WARNING!
~ The appliance is heavy. You need two persons to carry out the door reversibility. ~ Before any operation, first unplug the appliance from the mains. Do not tilt the appliance more than 45° to prevent damage to the cooling system.

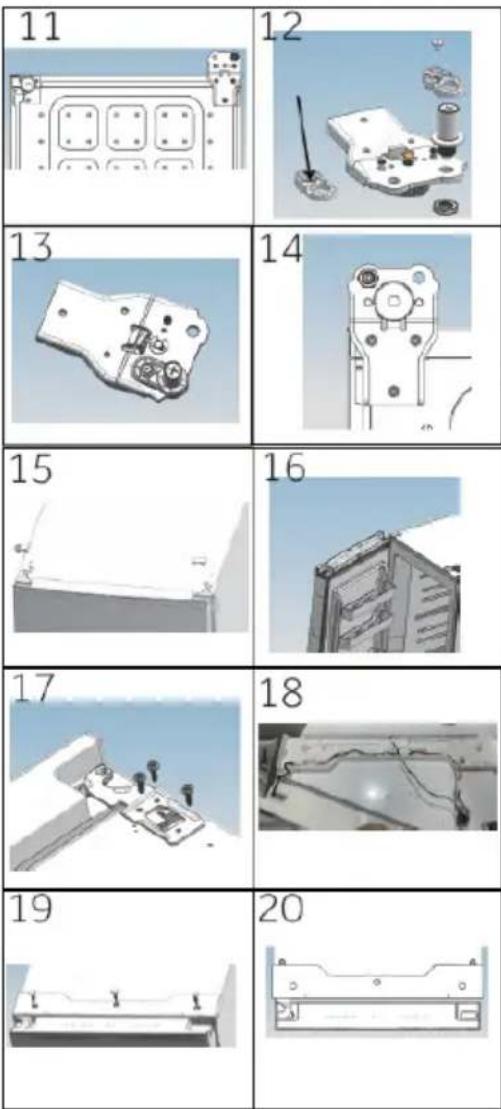

Assembly steps (Fig. 10.9):
- Provide necessary tools.
- Unplug the appliance.
- Remove the screw hole cover, bolts, and hinge cover.
- Unplug the connection cable.
- Take the upper left hinge cover and door extension cord out of the gift bag, as shown in the figure. Replace the hinge cover and install the extension cord into the wiring slot of the hinge cover.
- Remove screws and hinge.
- Remove cover on door. Remove axe cover on door
- Open and remove the door.
- Turn the door upside down, remove 3 screws on the bottom of the door. Remove 3 screws, door stopper and Lifting shaft sleeve on the bottom of the door
- Take Lifting shaft sleeve out of the gift bag. Fix the lifting stop, Door stop, and 3 screws on the left side of the door
11 12
13
14
15
16
17
18
19 20
- Tilt slightly backwards the cabinet, remove 3 screws and then the lower hinge.
- Take lifting shaft sleeve out of the gift bag. Remove 2 bolts, remove the lifting shaft sleeve and lifting shaft
- Install the lifting shaft sleeve and lifting shaft in the left hole and secure with 2 bolts. (Add lubricating oil to the shaft.)
- Fix the hinge to the opposite position of the cabinet with 3 screws.
- On the opposite side of the door, pull out the left side connection cable and put it through the axle cover from step 5, then mount the axle cover. Mount the hole cover on the right side.
- Mount the door.
- Fix the upper right hinge with 3 screws. (Add lubricating oil to the upper hinge before installation.)
- Connect the wiring harness as shown in the figure.
- Install the assembled hinge cover from step 5, secure the three screws and screw hole covers.
- Finished.
10.10 Ice Maker
2
- Pull the ice maker to the position as shown in Fig. 1.
- Pour fresh drinking water into each ice tray according to the scale mark inside the measuring cup, do not exceed the scale mark. 3. Push the ice maker back.
- After the ice forms, rotate the knob by hand. Then ice blocks will fall into the ice storage bin automatically. Remove the drawer and fetch the ice cubes 2.
Notice: The ice maker can be moved according to user habits.
- The formation of ice will make it difficult to turn the knob. You can rotate it back and forth several times to remove the ice, and avoid damaging the parts.
- For ice-makers not intended to be connected to the water supply. (WARNING: Fill with potable water only)
- It is suggested to place the ice maker on each side to achieve faster treatment speed.
11 - Technical Data
11.1 Producting factor regulation EU No. 2019/2016
| Trade mark | Haier | |||||||
| Model identifier | H4F306•AH1 | H4F306•CH1 | H4F306•DH1H4F306•DH1BE | H4F272•CH1 | H4F272•DH1H4F272•DH1BE | H4F272•EH1H4F272•EH1K | H4F228•DH1 | H4F226•EH1H4F226•EH1K |
| Category of the model | Upright freezer | |||||||
| Energy efficiency class A C D D D E D E | ||||||||
| Annual energy consumption (kWh/year) | 105 | 163 204 | 158 197 2 | 47 184 230 | ||||
| Storage volume cooling(L) | not applicable | |||||||
| Storage volume freezing(L)**** | 301 | 276 | 226 | |||||
| Star rating | **** | |||||||
| Temperature of other compartments>14°C | not applicable | |||||||
| Frostfree system | yes | |||||||
| Power cut safe(h) | 12 | 12 | 12 | 10 | 10 | 10 | 10 | 10 |
| Freezing capacity(kg/24h) | 20 | 20 | 20 | 20 | 20 | 16 | 17 | 14 |
| Climate classThis appliance is intended to be used at an ambiend temperature between 10°C Cand 43°C 1) | SN-T | |||||||
| Maximum noise level (dB) | 36 | 37 | 36 | 37 | ||||
| Construction type | freestanding | |||||||
1) based on standard test results for 24 hours. Actual energy consumption will depend on how the appliance is used and where it is located. Regarding specification details, please consult the rating plate and energy label inside the product. This appliance is intended to be used at an ambient temperature indicated below:
| SN + 10°C~+32°C |
| N + 16°C~+32°C |
| ST + 16°C~+38°C |
| T + 16°C~+43°C |
11.2 Additional Technical Data
| Voltage / Frequency | 220-240V ~/ 50Hz |
| Rated current (A) H4F306/272/226*A/C/DH1/BE | 1.5 |
| Rated current (A) H4F272/226*EH1/K | 0.8 |
| Coolant | R600a |
| Dimensions (H/W/D in cm) H4F306*A/C/DH1/BE | 190/60/74.2 |
| Dimensions (H/W/D in cm) H4F272*C/DH1/BE | 177.5/60/74.2 |
| Dimensions (H/W/D in cm) H4F272*EH1/K | 177.5/60/73.7 |
| Dimensions (H/W/D in cm) H4F226*DH1 | 153.5/60/74.2 |
| Dimensions (H/W/D in cm) H4F226*EH1/K | 153.5/60/73.7 |
| Light power/Light voltage | 1.5W/ DC 12V |
11.3 Standards and directives
This product meets the requirements of all applicable EC directives with the corresponding harmonised standards, which provide for CE marking.
We recommend our Haier Customer Service and the use of original spare parts.
If you have a problem with your appliance, please first check section TROUBLESHOOTING
If you cannot find a solution there, please contact
~ your local dealer or
~ the Service & Support area at www.haier.com where you can find telephone numbers and FAQs and where you can activate the service claim.
To contact our Service, ensure that you have the following data available.
The information can be found on the rating plate.
Model
Serial No. ____
Also check the Warranty Card supplied with the product in case of warranty.
For general business enquiries please find below our addresses in Europe:
| European Haier addresses | |||
| Country* Postal address Country* Postal address | |||
| Italy | Haier Europe Trading SRLVia De Cristoforis, 1221100 VareseITALY | France | Haier France SAS3-5 rue des Graviers92200 Neuilly sur SeineFRANCE |
| Spain Portugal | Haier Iberia SLPg. Garcia Faria, 49-5108019 BarcelonaSPAIN | Belgium-FRBelgium-NLNetherlandsLuxembourg | Haier Benelux SAAnderlechtRoute de Lennik 451BELGIUM |
| Germany Austria | Haier Deutschland GmbHHewlett-Packard-Str. 4D-61352 Bad HomburgGERMANY | PolandCzechiaHungaryGreeceRomaniaRussia | Haier Poland Sp. zo.o.Al. Jerozolimskie 181B02-222 WarszawaPOLAND |
| United Kingdom | Haier Appliances UK Co.Ltd.One Crown SquareChurch Street EastWoking, Surrey, GU21 6HRUK | ||
*For more information please refer to www.haier.com
Haier
Vertical freezer
H4F306*AH1 H4F306*CH1 H4F306*DH1 H4F306*DH1BE H4F272*CH1 H4F272*DH1 H4F272*DH1BE H4F272*EH1 H4F272*EH1K H4F226*DH1 H4F226*EH1 H4F226*EH1K
*-Color code
Disposal
Haier
Disposal
- Assembly after cleaning:
- Assembly after cleaning:
10.7 Waiting time
2
Haier
User manual
Stand freezer
H4F306*AH1 H4F306*CH1 H4F306*DH1 H4F306*DH1BE H4F272*CH1 H4F272*DH1 H4F272*DH1BE H4F272*EH1 H4F272*EH1K H4F226*DH1 H4F226*EH1 H4F226*EH1K
*-Color code
Disposal
2
Haier
User Manual
Upright Freezer
H4F306*AH1 H4F306*CH1 H4F306*DH1 H4F306*DH1BE H4F272*CH1 H4F272*DH1 H4F272*DH1BE H4F272*EH1 H4F272*EH1K H4F226*DH1 H4F226*EH1 H4F226*EH1K
*-Color code
Disposal
2
Haier
User Manual
Upright Freezer
H4F306*AH1 H4F306*CH1 H4F306*DH1 H4F306*DH1BE H4F272*CH1 H4F272*DH1 H4F272*DH1BE H4F272*EH1 H4F272*EH1K H4F226*DH1 H4F226*EH1 H4F226*EH1K
*-Color code
*-Color code
Disposal
Axle covers
Notice: Differences
Haier
Legend
Axle covers
Haier
Disposal
Haier
User manual
Disposal
Axle covers
Notice: Differences
8 - Care and cleaning
IT
IT
8 - Care and cleaning
Haier
Disposal
- Cleaning the drawer:
- Cleaning the drawer cover:
- Cleaning the ice container:
Haier
User manual
Upright freezer
H4F306*AH1 H4F306*CH1 H4F306*DH1 H4F306*DH1BE H4F272*CH1 H4F272*DH1 H4F272*DH1BE H4F272*EH1 H4F272*EH1K H4F226*DH1 H4F226*EH1 H4F226*EH1K
*-Color code
Disposal
Shaft covers
Note: Differences
PL
Haier
User Manual
Upright Freezer
H4F306*AH1 H4F306*CH1 H4F306*DH1 H4F306*DH1BE H4F272*CH1 H4F272*DH1 H4F272*DH1BE H4F272*EH1 H4F272*EH1K H4F226*DH1 H4F226*EH1 H4F226*EH1K
*-Color code
Disposal
Shaft covers
Warning: Differences
- Cleaning the drawer cover:
- Cleaning the ice box:
Haier
User Manual
Upright Freezer
H4F306*AH1 H4F306*CH1 H4F306*DH1 H4F306*DH1BE H4F272*CH1 H4F272*DH1 H4F272*DH1BE H4F272*EH1 H4F272*EH1K H4F226*DH1 H4F226*EH1 H4F226*EH1K
*-Color code
Disposal
Shaft covers
Haier
User manual
Disposal
Corner covers
7.1 Removable door shelves
8 - Care and cleaning
SK
Haier
Upright freezer
H4F306*AH1 H4F306*CH1 H4F306*DH1 H4F306*DH1BE H4F272*CH1 H4F272*DH1 H4F272*DH1BE H4F272*EH1 H4F272*EH1K H4F226*DH1 H4F226*EH1 H4F226*EH1K
* - color code
HR
Thank you for purchasing a Haier product.
Please read these instructions carefully before using the appliance. The instructions contain important information that will help you get the most out of your appliance and ensure safe and correct installation, use, and maintenance.
Disposal
Helps protect the environment and human health. Place packaging in appropriate containers to recycle it. Help recycle waste from electrical and electronic appliances. Do not dispose of appliances marked with this symbol with household waste. Return the product to your local recycling facility or contact your municipal office.
Warning!
Risk of injury from suffocation!
Shaft covers
Notice: Differences
Due to technical changes and model differences, some illustrations in this manual may differ from your model.
7.1 Removable door shelves
Door shelves can be removed for cleaning:
Place your hands on both sides of the shelf, lift it upwards (1) and pull it out (2) (figure 7.1).
When reinstalling the door shelf, carry out the described steps in reverse order.
7.2 Glass shelves
- To remove a shelf, first remove it by lifting the rear edge (1) and then pulling it out (2) (figure 7.2).
- To reinstall it, place it on the tabs on both sides and push it to the rearmost position until the back of the shelf is secured within the groove on the side panels.
WARNING!
8 - Care and Cleaning
The user manual contains instructions for use and operation of multiple models. Refer to the instructions for the purchased models.
- Cleaning the drawer cover:
Cleaning the ice maker
- Remove the ice maker and glass shelf
- Remove the ice maker from the shelf in the left and right direction
- Pull the ice drawer out of the frame:
Cleaning the door gasket
- Removing the door gasket strip
Assembly instructions (Figure 10.9):
- Obtain the necessary tools.
- Disconnect the appliance from the power supply.
- Remove the screw hole cover, screws, and hinge cover.
- Disconnect the connection cable.
- Remove the upper left hinge cover and the door extension cable from the gift bag, as shown in the figure, replace the hinge cover and place the extension cable in the wiring groove of the hinge cover.
- Removing the screws and hinge.
- Remove the cover from the door. Remove the shaft cover from the door.
- Open and remove the door.
- Turn the door upside down, remove the 3 screws at the bottom of the door. Remove the 3 screws, the lifting shaft sleeve at the bottom of the door.
- Take the lifting shaft sleeve out of the gift bag.
Attach the lifting limiter, door limiter, and 3 screws to the left side of the door.
- Tilt the cabinet backwards, remove 3 screws and the lower hinge.
- Take the lift shaft bushing out of the gift bag. Remove 2 screws, the lift shaft bushing and the lift shaft.
- Place the lift shaft bushing and the lift shaft into the left opening and secure with 2 screws (add lubricating oil to the shaft). 14 Attach the hinge to the opposite position of the cabinet using 3 screws.
- On the opposite side of the door, pull out the left connection cable and thread it through the shaft cover from step 5, then install the shaft cover. Place the opening cover on the right side.
- Install the door.
- Attach the upper right top hinge with 3 screws. (Add lubricating oil to the top hinge before installation)
- Connect the cable harness as shown in the figure.
- Install the hinge cover assembled in step 5, secure the three screws and the screw hole covers.
- Completed.
10.10 Ice maker
- Pull the ice maker to the position shown in figure 1.
- Pour fresh drinking water into each ice tray according to the mark inside the measuring cup - do not exceed that mark.
- Pull the ice maker back.
- After ice forms, turn the knob by hand. The ice blocks will then automatically fall into the ice container. Remove the tray and retrieve the ice cubes 2.
Haier
Removal
Help protect the environment and human health. Dispose of packaging in appropriate recycling containers.
Help recycle waste electrical and electronic appliances. Do not dispose of appliances marked with this symbol in household waste.
Axle covers
Notice: Differences
7.1 Removable containers in the door
8- Care and cleaning
Cleaning the ice maker
1. Remove the ice maker and glass shelf
- Remove the ice maker from the shelf by moving it left and right
- Pull the ice container out of the frame:
8.2 Prolonged non-use
10.7 Waiting time
Assembly steps (figure 10.9):
11.3 Standards and directives
Haier
- UPRIGHT FREEZER
- THANK YOU FOR PURCHASING A HAIER PRODUCT
- LEGEND
- DISPOSAL
- WARNING
- RISK OF INJURY OR SUFFOCATION
- BEFORE FIRST USE
- INSTALLATION
- DAILY USE
- MAINTENANCE/CLEANING
- REFRIGERANT GAS INFORMATION
- INTENDED USE
- ACCESSORIES
- NOTICE: DIFFERENCES
- CONTROL PANEL
- CONTROL PANEL (FIG. 4)
- SWITCHING THE APPLIANCE ON/OFF
- NOTICE: PRESETTINGS
- STANDBY-MODE OF DISPLAY
- DISPLAY LOCK AND UNLOCK
- AUTOMATIC LOCKING
- MANUAL LOCKING
- NOTICE: DISPLAY LOCK
- FREEZE/REFRIGERATE MODE SWITCH
- TEMPERATURE SETTING
- SUPER FREEZE MODE (D)
- NOTE: SUPER FREEZE
- ECO MODE (E)
- ABT PRO (ONLY FOR H4F306*A/C/DH1/BE)
- POWER-OFF MEMORY
- DOOR OPEN ALARM
- HIGH TEMPERATURE ALARM
- ERROR INDICATION
- WI-FI
- ENERGY SAVING TIPS
- EQUIPMENT
- REMOVABLE DOOR RACKS
- GLASS SHELVES
- GENERAL
- CARE AND CLEANING
- DRAWER CLEANING STEPS
- ICE MAKER CLEANING
- DOOR SEAL CLEANING
- NON-USE FOR A LONG PERIOD
- NOTICE: SWITCH OFF
- MOVING THE APPLIANCE
- TROUBLESHOOTING
- POWER INTERRUPTION
- UNPACKING
- ENVIRONMENTAL CONDITIONS
- SPACE REQUIREMENTS
- VENTILATION CROSS-SECTION
- ALIGNING THE APPLIANCE
- USING ADJUSTABLE FEET
- WAITING TIME
- ELECTRICAL CONNECTION
- BEFORE EACH CONNECTION CHECK IF
- DOOR REVERSIBILITY
- ASSEMBLY STEPS (FIG. 10.9)
- ICE MAKER
- TECHNICAL DATA
- STANDARDS AND DIRECTIVES
- HAIER
- VERTICAL FREEZER
- USER MANUAL
- STAND FREEZER
- H4F306*AH1 H4F306*CH1 H4F306*DH1 H4F306*DH1BE H4F272*CH1 H4F272*DH1 H4F272*DH1BE H4F272*EH1 H4F272*EH1K H4F226*DH1 H4F226*EH1 H4F226*EH1K
- NOTE: DIFFERENCES
- WARNING: DIFFERENCES
- REMOVABLE DOOR SHELVES
- RISK OF INJURY FROM SUFFOCATION
- CLEANING THE ICE MAKER
- CLEANING THE DOOR GASKET
- ASSEMBLY INSTRUCTIONS (FIGURE 10.9)
- REMOVAL
- REMOVABLE CONTAINERS IN THE DOOR
- PROLONGED NON-USE
- ASSEMBLY STEPS (FIGURE 10.9)
Brand : HAIER
Model : H4F306WCH1
Category : Freezer
