USER MANUAL PR304IKP PRIMO

Black PRIMO portable electrical stove with two circular vented burners and control knobs (no visible text or symbols)

Two simple line icons: a triangular warning triangle and an open book, both without any text or symbols.

Read all instructions carefully - save this instruction manual for future reference.

NL Nederlands 4
FR Français 16
DE Deutsch 29
EN English 42

GARANTIE (NL)

Geachte klant,

⚠PRODUCTSPECIFIEKE WAARSCHUWINGEN

Simple line drawing of a cooking pot with a handle (no text or symbols)

Three cooking pots with 'X' symbols indicating failure or incorrect cooking conditions

GEBRUIK

Two hand-drawn diagrams showing correct and incorrect finger positioning, with checkmark and cross symbols (no text or labels)

AANSLUITEN

200 W 35	0 W 500 W	650 W 800	W 1000 W	1100 W 12	00 W 1400	W 1600 W
Kookzone 2
200 W 35	0 W 500 W	650 W 800	W 900 W 1	000 W 110	0 W 1200	W 1300 W

⚠️ AVERTISSEMENTS SPÉCIFIQUES AU PRODUIT

Simple line drawing of a cooking pot with a curved handle (no text or symbols)

Illustration showing three cooking pots with 'X' symbols indicating incorrect or incorrect conditions, likely for cooking instructions.

UTILISATION

Diagram showing two hand-drawn foot positions with checkmark and cross symbols indicating correct and incorrect states.

BRANCHER

200 W 350

0 W 500 W

650 W 800

W 1000 W

1100 W 12

00 W 1400

W 1600 W

Zone de cuisson 2

200 W 35

0 W 500 W

650 W 800

W 900 W 1

000 W 110

0 W 1200 W

1300 W

Simple line drawing of a cooking pot with a handle, no text or symbols present

Illustration showing three cooking pots with 'X' symbols indicating incorrect cooking conditions

GEBRAUCH

Diagram showing two hand-drawn line styles with checkmark and cross symbols, likely illustrating correct and incorrect writing or drawing instructions.

ANSCHLIESSEN

200 W 35

0 W 500 W

650 W 800

W 1000 W

1100 W 12

00 W 1400

W 1600 W

Kochzone 2

200 W 350

W 500 W

650 W 800

W 900 W 1

000 W 110

W 1200 W

W 1300 W

All of our products are always submitted to a strict quality control before they are sold to you. Should you nevertheless experience problems with your device, we sincerely regret this.

In that case, we kindly request you to contact our customer service. Our staff will gladly assist you.

www.primo-elektro.be

Monday – Thursday: 8.30 – 12.00 and 13.00 – 17.00

Friday: 8.30 – 12.00 and 13.00 – 16.30

This appliance has a two year warranty period. During this period the manufacturer is responsible for any failures that are the direct result of construction failure.

When these failures occur the appliance will be repaired or replaced if necessary. The warranty will not be valid when the damage to the appliance is caused by wrong use, not following the instructions or repairs executed by a third party. The guarantee issued with the original till receipt. All parts, which are subject to wear, are excluded from the warranty. If your device breaks down within the 2-year warranty period, you can return the device together with your receipt to the shop where you purchased it. The guarantee on accessories and components that are liable to wear-and-tear is only 6 months.

The guarantee and responsibility of the supplier and manufacturer lapse automatically in the following cases:

• If the instructions in this manual have not been followed.
• In case of incorrect connection, e.g. electrical voltage that is too high.
• In case of incorrect, rough or abnormal use.
  • In case of insufficient or incorrect maintenance.
• In case of repairs or alterations to the device by the consumer or non-authorised third parties.
• If the customer used parts or accessories that are not recommended or provided by the supplier / manufacturer.

SAFETY INSTRUCTIONS

When using electrical appliances, basic safety precautions should always be taken, including the following:

• Read all instructions carefully. Keep this manual for future reference.
• Make sure all packaging materials and promotional stickers have been removed before using the appliance for the first time. Make sure children cannot play with the packaging materials.

- This appliance is intended to be used in household and similar applications such as:

• staff kitchen areas in shops, offices and other working environments;
• farm houses;
• by clients in hotels, motels and other residential type environments;
  • bed and breakfast type environments.

• Children should be supervised to ensure that they do not play with the appliance.

- This appliance can be used by children aged from 16 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.

• Children shall not play with the appliance.

• Cleaning and user maintenance shall not be made by children unless they are older than 16 or supervised.
• Keep the appliance and its cord out of reach of children younger than 16 years.
• All repairs should be carried out by the manufacturer or its aftersales service.
• Using the appliance incorrectly may cause an injury. Any injury or damage caused by failure to comply with these rules are at your own risk. Neither the manufacturer, importer, or the supplier may be held liable.

▲ELECTRICAL WARNINGS

- In order to avoid a hazard this appliance must not be supplied through an external switching device, such as a timer or a separate remote control, or connected to a circuit that is regularly switched on and off by the utility.

- The appliance must be disconnected from its power source when not in use, during service and when replacing parts. Allow to cool before putting on or taking off parts, and before cleaning the appliance. To disconnect, turn controls to “OFF” or “0” position, then remove the plug from the wall. Never pull the cord or appliance to remove the plug from the socket.

- Before use, check carefully that the electric tension and frequency of the power net at your home match

the indications on the rating label of the appliance.

• The appliance must be plugged into an appropriate outlet that is installed and grounded in accordance with local installation regulations.
• Do not let the power supply cord hang over the edge of a counter, or touch hot surfaces.
• Keep the power cord away from hot parts and don't cover the appliance.
• Unwrap the cord completely to prevent overheating of the cord. Do not allow the power cord supply to run underneath or around the unit.
• To avoid danger, do not operate this appliance with a damaged cord or plug or in the event the appliance malfunctions or has been damaged in any manner. Return the appliance to the PRIMO Service Department or its service agent for examination, repair, or electrical or mechanical adjustment. Do not try to repair the appliance yourself.

⚠️INSTALLATION

• Do not place near flammable materials, gases or explosives.
• Do not use or store this appliance outdoors.
• Always use the appliance on a steady, dry and level surface.
• Never place this appliance near a gas stove or electrical stove or in a place where it may come into contact with a warm appliance.

⚠ USE

• Do not use this appliance for other than intended use.
• Only use the appliance for domestic use. The manufacturer cannot be held responsible for accidents that result from improper use of the appliance or not following the instructions described in this manual.
• Never leave the appliance unattended while it is functioning.
• Do not operate the appliance with wet hands.
• The use of accessories that are not recommended or sold by the manufacturer can cause fire, electrical shock or injuries. Only use the utensils delivered with the appliance.

⚠️CLEANING AND MAINTENANCE

- To protect against electrical shock or burns, do not immerse unit, cord, or plug in water or other liquid.

- Failure to maintain this appliance in a clean condition could adversely affect the life of the appliance and possibly result in a hazardous situation.

⚠️PRODUCT-SPECIFIC WARNINGS

The appliance can become hot during use. Keep the power cord away from hot parts and don't cover the appliance.

• Never place the device on metal or a flammable surface (e.g. table cloth, carpet, etc.).
• Do not block the ventilation slots of the device. This may overheat the device. Keep a min. distance of 10 cm (2.5 inches) to walls or other items.
• Do not place the induction hotplate next to devices or objects, which react sensitively to magnetic fields (e.g. radios, TVs, cassette recorders, etc.).
• Do not place induction hotplates next to open fires, heaters or other sources of heat.
• Make sure that the mains connection cable is not damaged or squashed beneath the device.
• Make sure that the mains connection cable does not come into contact with sharp edges and/or hot surfaces.
• If the surface is cracked, switch off the appliance to avoid the possibility of electric shock.
• Metallic objects such as knives, forks, spoons and lids should not be placed on the hotplate since they can get hot.
• Do not place any magnetic objects like credit cards, cassettes etc. on the glass surface while the device is in operation.
• In order to avoid overheating, do not place any aluminium foil or metal plates on the device.

• Do not insert any objects like wires or tools into the ventilation slots. Attention: this may cause electric shocks.

• Do not touch the hot surface of the plate. Please note: the induction hotplate does not heat up itself during cooking, but the temperature of the cookware heats up the hotplate!

• Do not heat up any unopened tins on the induction hotplate. A heated tin could explode; therefore remove the lid under all circumstances beforehand.
• Scientific tests have proven that induction hotplates do not pose a risk. However, persons with a pacemaker should keep a minimum distance of 60 cm to the device while it is in operation.
• Never heat empty pots or pans. Empty containers may become damaged or deformed.
• Make sure the appliance has cooled down before cleaning and storing it.
• Don't move the hot plate when it is still hot or when there are pots on the plate.
• Don’t place the hot plate near flammable materials, such as curtains, to prevent fire.
• Immediately unplug the appliance if a crack appears and make sure it is controlled by a qualified competent electrician.
• Never put the appliance in the dishwasher.

SAVE THESE INSTRUCTIONS FOR FUTURE REFERENCE

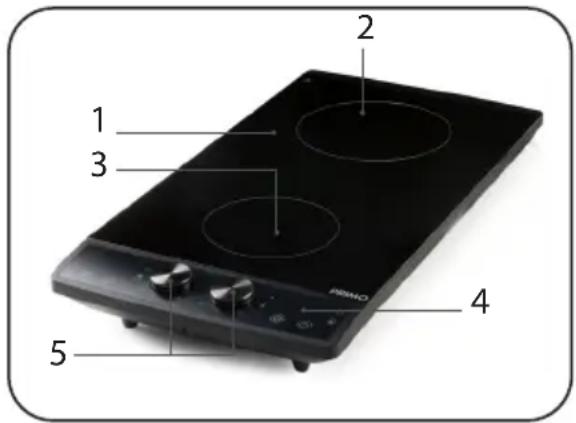

PARTS

1. Glass plate
2. Cooking zone 1
3. Cooking zone 2
4. Controller
5. Rotary knobs

Controller

1. Display
2. Timer indicator light
3. Indicator light On/Off
4. On/Off button
5. Mode knob
6. Temperature indicator light
7. Power indicator light

1 2 3 4 5 PISO

6 12 11 PRIMO 78910

BEFORE THE FIRST USE

• Make sure all packaging materials and promotional stickers have been removed before using the appliance for the first time.
  • Always use the appliance on a steady, dry and level surface.
• Use pots and pans that are suited for induction hobs. These come with the following symbol you can easily test them yourself. The bottom of your pots and pans must be magnetic. Take a magnet and place it on the bottom of your pot or pan, if it sticks the bottom is magnetic and the pot is suited for ceramic cooking plates.
• The diameter of your pot or pan must be at least 12 cm, but no larger than 26 cm.

Simple line drawing of a cooking pot with a coiled tube attached (no text or symbols)

- Always use a pot or pan with a flat bottom, to have a good contact with the hot plate. If the bottom is hollow or convex, the heat distribution will not be optimal.

Illustration showing three cooking pots with 'X' symbols indicating incorrect or incorrect conditions, likely for cooking instructions.

USE

The control panel is equipped with touch-screen operation. You do not need to press any buttons - the appliance will respond to touch. Make sure that the control panel is always clean. Each time it is touched, the appliance will respond with a signal.

Two hand-drawn diagrams showing a checkmark and an X symbol, no text or labels present.

CONNECTING

• When you place the plug in the outlet, you will hear a signal. You will then see 'OFF' on the display and the on-off indicator light will flash.
• You can choose from different settings by pressing the mode knob. The selected setting is shown on the display.
• Attention: The appliance will sound several times if the correct pot is not on the hob and will then automatically switch off after one minute. The display shows the error message [E0].

POWER

1. When operating the device, please put on a pan/pot firstly.
   Attention: Always place the pot or pan in the centre of the hotplate.
2. Press and hold the on-off button to turn the cooking plate on. You hear a signal and 'ON' appears on the display. The device switches off automatically if you haven't entered a setting after 10 seconds.
3. Press the mode knob to start heating. The default power setting is turned on and the power indicator is illuminated. The standard for the cooking zones is 200 W. You can decrease or increase the power by using the rotary knobs.

Cooking zone 1

200 W 35

0 W 500 W

650 W 800

W 1000 W

1100 W 12

00 W 1400

W 1600 W

Cooking zone 2

200 W 350

W 500 W

650 W 800

W 900 W 1

000 W 110

W 1200 W

W 1300 W

1. Press the on/off button again to turn off the appliance. The ventilation stays on for a while to cool down. Do not unplug the appliance before it has cooled down completely.

TEMPERATURE

Instead of displaying in power setting, you can also choose to display in temperature expressed in ^ C.

1. When operating the device, please put on a pan/pot firstly.
   Attention: Always place the pot or pan in the centre of the hotplate.
2. Press and hold the on-off button to turn the cooking plate on. You hear a signal and 'ON' appears on the display. The device switches off automatically if you haven't entered a setting after 10 seconds.
3. Press the function button 2 times to start heating. The default setting of 60^ C is switched on and the temperature indicator light is illuminated.
4. You can adjust the temperature with the rotary knobs. You can choose from different settings. The selected setting is shown on the display.

60°C 80°C

100°C 120°C

140°C

160°C 180°C

200°C 220°C

240°C

1. Press the on/off button again to turn off the appliance. The ventilation stays on for a while to cool down. Do not unplug the appliance before it has cooled down completely.

TIMER

1. First, set the desired power or temperature as described previously.
2. Press the mode knob several times to set the timer until the timer indicator light comes on. You will then see '0:00' on the display.
3. Use the rotary knobs to select the desired time. You can set the timer between 1 minute and 3 hours. It is not necessary to confirm the desired setting. If you don't enter any more settings for a few seconds, the timer is set.
4. After setting the desired time, the timer will appear on the display alternating with the selected temperature setting or power setting. The power/temperature and timer lights light up.
5. If you want to turn off the timer, set it to 0.
6. When the timer is ready, the hob switches off automatically.

MAINTENANCE AND CLEANING

Attention: To protect yourself from electric shock, never immerse the device, its cables and the plug in water or other liquids.

• Pull the power plug prior to cleaning the device. Allow the appliance to cool down. Do not use any caustic cleaning agents and make sure that no water penetrates the device.
• Wipe off the surface with a damp cloth or use a mild, non-abrasive soap solution.
• Wipe off the casing and the operating panel with a soft cloth or a mild detergent.
• Make sure that the device was properly cleaned before storing it in a dry place.

FREQUENTLY ASKED QUESTIONS

PROBLEM SOLUTION
The hob does not respond.	· Check whether the display shows an error message.
E0 · There is no pot or pan	on the cooking plate.· The pot or pan used is not suitable for induction.
E1 · A short circuit occurred	because the temperature was too high. Contact the shop of purchase or an authorised service centre.
E2 · The temperature sensor is broken. Contact the shop of purchase or an authorised service centre.
E3 · High-voltage protection.	Check the electricity grid. Pull the plug out of the power socket. Wait 2 minutes. Try again.
E4 · Low-voltage protection.	Check the electricity grid. Pull the plug out of the power socket. Wait 2 minutes. Try again.
E5 · Temperature is too high.	Turn off the appliance and let the pan/pot and the appliance cool down. Check that the pan/pot is not empty.
E6 · The ventilation is broken.	Make sure that the ventilation openings at the bottom are not covered. Ensure adequate circulation around the appliance. If the problem still occurs, contact the shop of purchase or an authorised service centre.

ENVIRONMENTAL GUIDELINES

This symbol on the product or on its packaging indicates that this product may not be treated as household waste. Instead it must be brought to the applicable collection point for recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product. For more detailed information about recycling of this product, please contact your local city office, your household waste disposal service or the shop where you purchased the product.

The packaging is recyclable. Please treat the packaging ecologically.

WEBSHOP

Following accessories have 6 months warranty, and can be easily ordered using the link below.

WWW.PRIMO-ELEKTRO.BE
