Specifications

Modelo: EMW-2010-IG
Rated Voltage: 230 V~50 Hz
Rated Input Power(Microwave): 1250 W
Rated Output Power(Microwave): 800 W
Rated Input Power(Grill): 1 000 W
Oven Capacity: 20 l
Turntable Diameter: ∅ 245 mm
External Dimensions(WxDxH): 595 x 343,5 x 388 mm
Net Weight: Aprox. 15 kg

IMPORTANT SAFETY INSTRUCTIONS WARNING

T1. Warning : Liquids and other foods must not be heated in sealed containers since they are liable to explode.

1. Warning : It is hazardous for anyone other than a competent person to carry out any service or repair operation that involves the removal of a cover which gives protection against exposure to microwave energy.

2. This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children unless they are older than 8 and supervised.

3. Keep the appliance and its cord out of reach of children less than 8 years.

4. Only use utensils suitable for use in microwave ovens.

5. The oven should be cleaned regularly and any food deposits should be removed.

6. Read and follow the specific:"PRECAUTIONS TO AVOID POSSIBLE EXPOSURE TO EXCESSIVE MICROWAVE ENERGY".

7. When heating food in plastic or paper containers, keep an eye on the oven due to the possibility of ignition.

8. If smoke is emitted, switch off or unplug the appliance and keep the door closed in order to stifle any flames.

9. Do not overcook food.

10. Do not use the oven cavity for storage purposes. Do not store items, such as bread, cookies, etc. inside the oven.

11. Remove wire twist-ties and metal handles from paper or plastic containers/bags before placing them in the oven.

12. Install or locate this oven only in accordance with the installation instructions provided.

13. Eggs in the shell and whole hard-boiled eggs should not be heated in microwave ovens since they may explode, even after microwave heating has ended.

14. This appliance is intended to be used in household and similar applications such as: -staff kitchen areas in shops, offices and other working environments;

-by clients in hotels, motels and other residential type environments;

-farm houses;

-bed and breakfast type environments.

1. If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.

2. Do not store or use this appliance outdoors.

3. Do not use this oven near water, in a wet basement or near a swimming pool.

4. The temperature of accessible surfaces may be high when the appliance is operating. The surfaces are liable to get hot during use. Keep cord away from heated surface, and do not cover any events on the oven.

5. Do not let cord hang over edge of table or counter.

6. Failure to maintain the oven in a clean

condition could lead to deterioration of the surface that could adversely affect the life of the appliance and possibly result in a hazardous situation.

1. The contents of feeding bottles and baby food jars shall be stirred or shaken and the temperature checked before consumption, in order to avoid burns.

2. Microwave heating of beverages can result in delayed eruptive boiling, therefore care must be taken when handling the container.

3. The appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.

4. Children should be supervised to ensure that they do not play with the appliance.

5. The appliances are not intended to be operated by means of an external timer or separate remote-control system.

6. Accessible parts may become hot during use. Young children should be kept away.

28.Steam cleaner is not to be used.

29 During use the appliance becomes hot. Care should be taken to avoid touching heating elements inside the oven.

1. Only use the temperature probe recommended for this oven.(for ovens provided with a facility to use a temperature-sensing probe.)

2. WARNING: The appliance and its accessible parts become hot during use. Care should be taken to avoid touching heating elements. Children less than 8 years of age shall be kept away unless continuously su-

pervised.

1. The microwave oven must be operated with the decorative door open.(for ovens with a decorative door.)

2. surface of a storage cabinet can get hot.

READ CAREFULLY AND KEEP FOR FUTURE REFERENCE

To Reduce the Risk of Injury to Persons Grounding Installation

DANGER

Electric Shock Hazard

Touching some of the interna components can cause serious personal injury or death.

Do not disassemble this appliance.

WARNING

Electric Shock Hazard

Improper use of the grounding can result in electric shock. Do not plug into an outlet until

appliance is properly installed and grounded.

This appliance must be grounded. In the event of an electrical short circuit, grounding reduces the risk of electric shock by providing an escape wire for the electric current.

This appliance is equipped with a cord having a grounding wire with a grounding plug. The plug must be plugged into an outlet that is properly installed and grounded.

Consult a qualified electrician or service-man if the grounding instructions are not completely understood or if doubt exists as to whether the appliance is properly grounded. If it is necessary to use an extension

20cord , use only a 3-wire extension cord.

1. A short power-supply cord is provided to reduce the risks resulting from becoming entangled in or tripping over a longer cord.

2. If a long cord set or extension cord is used:
   1) The marked electrical rating of the cord set or extension cord should be at least as great as the electrical rating of the appliance.
   2) The extension cord must be a grounding-type 3-wire cord.
   3) The long cord should be arranged so that it will not drape over the counter top or tabletop where it can be pulled on by children or tripped over unintentionally.

CLEANING

Be sure to unplug the appliance from the power supply.

1. Clean the cavity of the oven after using with a slightly damp cloth.
2. Clean the accessories in the usual way in soapy water.
3. The door frame and seal and neighbouring parts must be cleaned carefully with a damp cloth when they are dirty.
4. Do not use harsh abrasive cleaners or sharp metal scrapers to clean the oven door glass since they can scratch the surface, which may result in shattering of the glass.
5. Cleaning Tip---For easier cleaning of the cavity walls that the food cooked can touch: Place half a lemon in a bowl, add 300ml (1/2 pint) water and heat on 100% microwave power for 10 minutes.
   Wipe the oven clean using a soft, dry cloth.

UTENSILS

CAUTION

Personal Injury Hazard

It is hazardous for anyone other than a competent person to carry out any service or repair operation that involves the removal of a cover which gives protection against exposure to microwave energy.

See the instructions on "Materials you can use in microwave oven or to be avoided in microwave oven."

There may be certain non-metallic utensils that are not safe to use for microwaving. If in doubt, you can test the utensil in question following the procedure below.

Utensil Test:

1. Fill a microwave-safe container with 1 cup of cold water (250ml) along with the utensil in question.
2. Cook on maximum power for 1 minute.
3. Carefully feel the utensil. If the empty utensil is warm, do not use it for microwave cooking.
4. Do not exceed 1 minute cooking time.

MATERIALS YOU CAN USE IN MICROWAVE OVEN

Utensils Remarks
Browning dish Follow manufacturer's instructions. The bottom of browning dish must be at least 3/16 inch (5mm) above the turntable. Incorrect usage may cause the turntable to break.
Dinnerware Microwave-safe only. Follow manufacturer's instructions. Do not use cracked or chipped dishes.
Glass jars Always remove lid. Use only to heat food until just warm. Most glass jars are not heat resistant and may break.
Glassware Heat-resistant oven glassware only. Make sure there is no metallic trim. Do not use cracked or chipped dishes.
Oven cooking bags	Follow manufacturer's instructions. Do not close with metal tie. Make slits to allow steam to escape.
Paper plates and cups	Use for short-term cooking/warming only. Do not leave oven unattended while cooking.
Paper towels Use to cover food for reheating and absorbing fat. Use with supervision for a short-term cooking only.
Parchment paper	Use as a cover to prevent splattering or a wrap for steaming.
Plastic Microwave-safe only. Follow the manufacturer's instructions. Should be labeled "Microwave Safe". Some plastic containers soften, as the food inside gets hot. "Boiling bags" and tightly closed plastic bags should be slit, pierced or vented as directed by package.
Plastic wrap Microwave-safe only. Use to cover food during cooking to retain moisture. Do not allow plastic wrap to touch food.
Thermometers Microwave-safe only (meat and candy thermometers).
Wax paper Use as a cover to prevent splattering and retain moisture.

MATERIALS TO BE AVOIDED IN MICROWAVE OVEN

Utensils Remarks
Aluminum tray May	cause arcing. Transfer food into microwave-safe dish.
Food carton with metal handle	May cause arcing. Transfer food into microwave-safe dish.
Metal or metal-trimmed utensils	Metal shields the food from microwave energy. Metal trim may cause arcing.
Metal twist ties May	cause arcing and could cause a fire in the oven.
Paper bags May cause a fire in the oven.
Plastic foam	Plastic foam may melt or contaminate the liquid inside when exposed to high temperature.
Wood Wood will dry out when used in the microwave oven and may split or crack.

SETTING UP YOUR OVEN

Names of Oven Parts and Accessories

Remove the oven and all materials from the carton and oven cavity. Your oven comes with the following accessories:

Glass tray 1

Turntable ring assembly 1

Instruction Manual 1

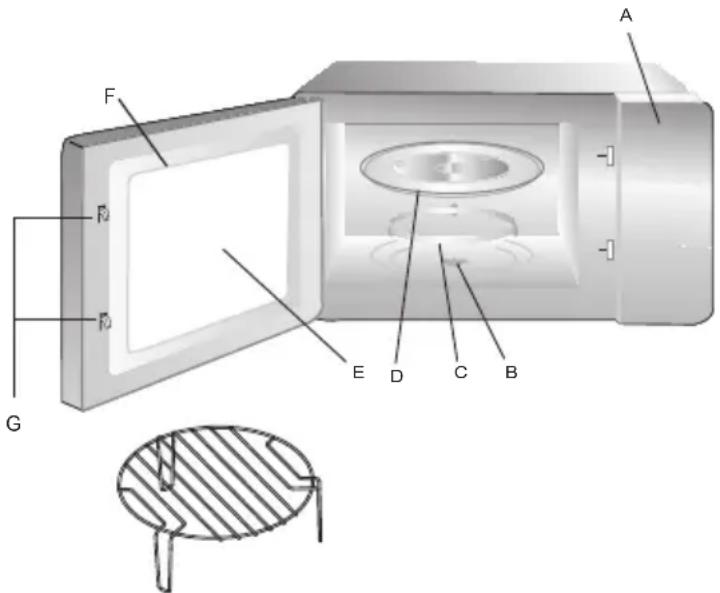

A) Control panel
B) Turntable shaft
C) Turntable ring assembly
D) Glass tray
E) Observation window
F) Door assembly
G) Safety interlock system

A F R R G E D C B

Grill Rack( Only be used in grill function and be placed on the glass tray )

Installation and connection

1. This appliance is only intended for domestic use.
2. This oven is intended for built-in use only. It is not intended for counter-top use or for use inside a cupboard.
3. Please observe the special installation instructions.
4. The appliance can be installed in a 60cm wide wall-mounted cupboard (at lease 55cm deep and 85cm off the floor).
5. The appliance is fitted with a plug and must only be connected to a properly installed earthed socket.
6. The mains voltage must correspond to the voltage specified on the rating plate.
7. The socket must be installed and connecting cable must only be replaced by a qualified electrician. If the plug is no longer to accessible following installation, an all-pole disconnecting device must be present on the installation side with a contact gap of at lease 3mm.
8. Adapters, multi-way strips and extension leads must not be used. Overloading can result

in a risk of fire.

The accessible surface may be hot during operation.

Warning symbol with steam inside a triangle, indicating heat or smoke hazard

Installation Instructions

Please Read the Manual Carefully Before Installation

Please note

Electricalconnection

The oven is fitted with a plug and must only be connected to a properly installed earthrd socket. Only a qualified electrician can install the plug and replace the connecting cable in accordance with the appropriate regulations. If the is not accessible after installation, there must be an omnipolar disconnecting device at installation with a contact distance of at least 3 mm. The cabinet should not have a back panel, covering the unit. Minimum installation height: 85 cm. Do not cover ventilation or suction holes.

Note:

Do not trap or bend the power cable

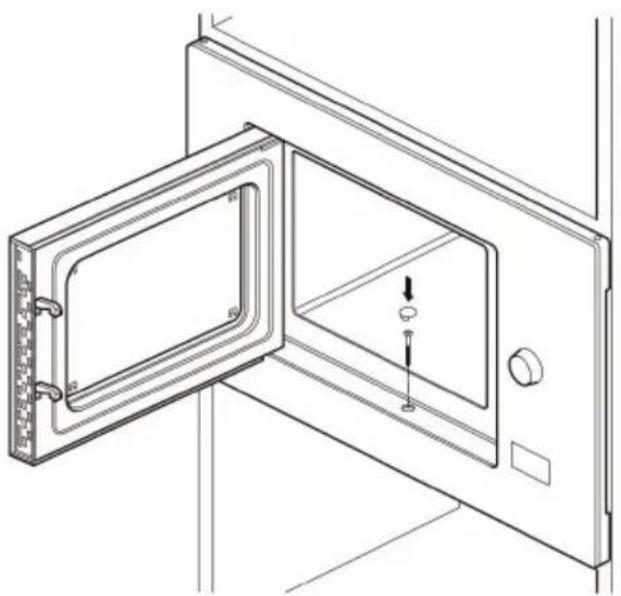

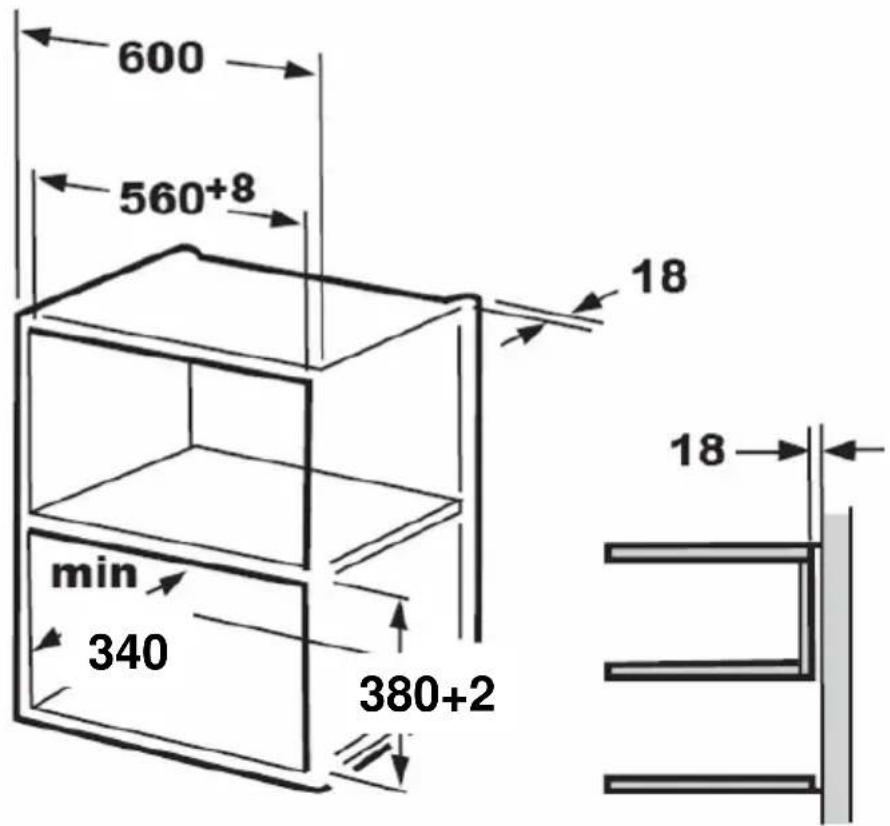

A. Built-in furniture

The built-in cabinet shall not have a rear wall behind the appliance. Minimum installation height is 85cm.

Do not cover ventilation slots and air intake points.

1.

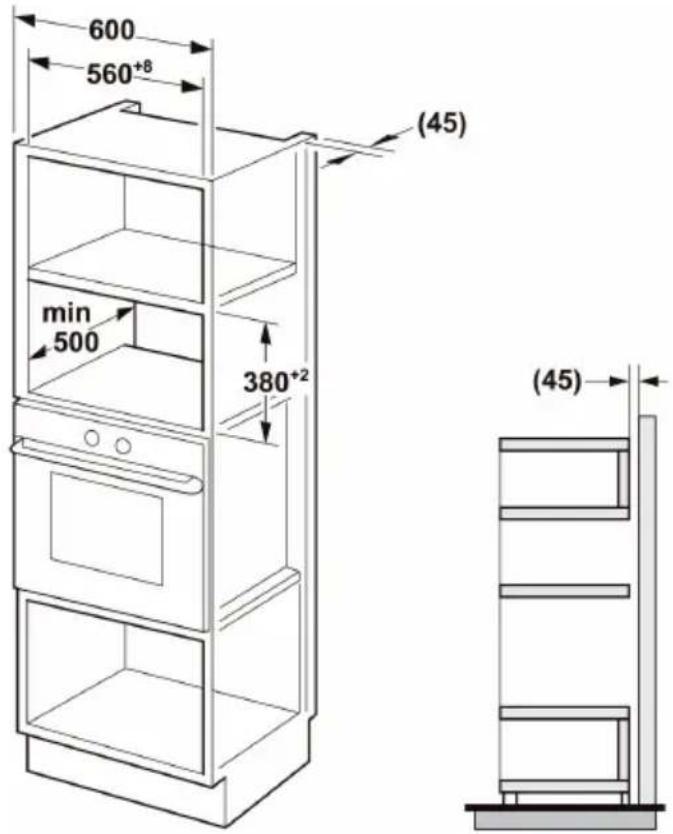

600 560+8 18 min 340 380+2 18

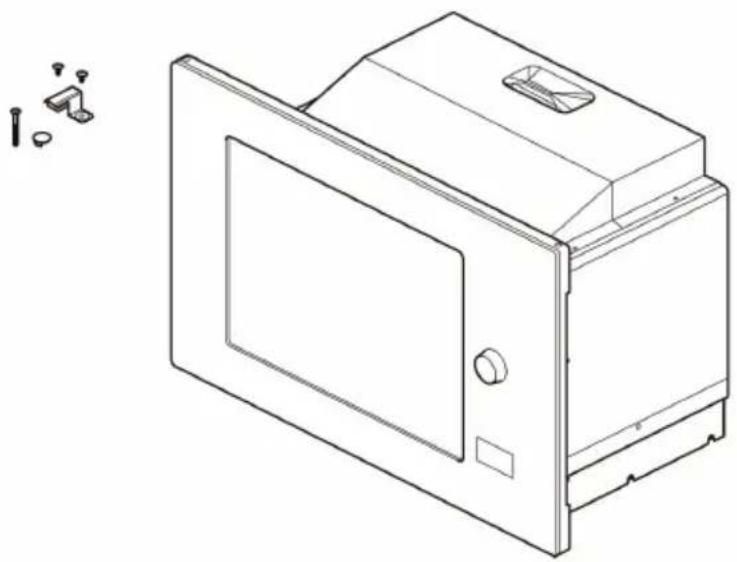

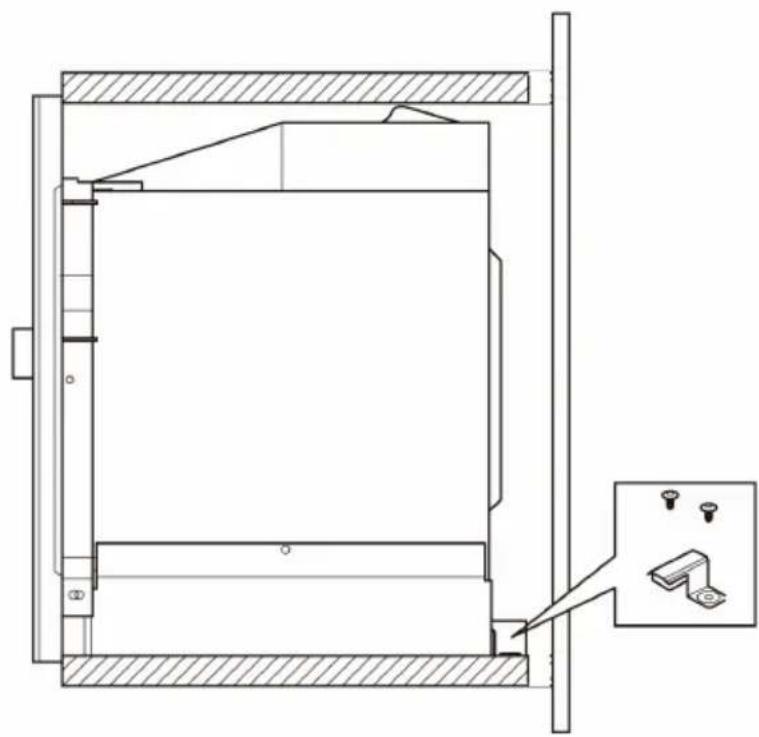

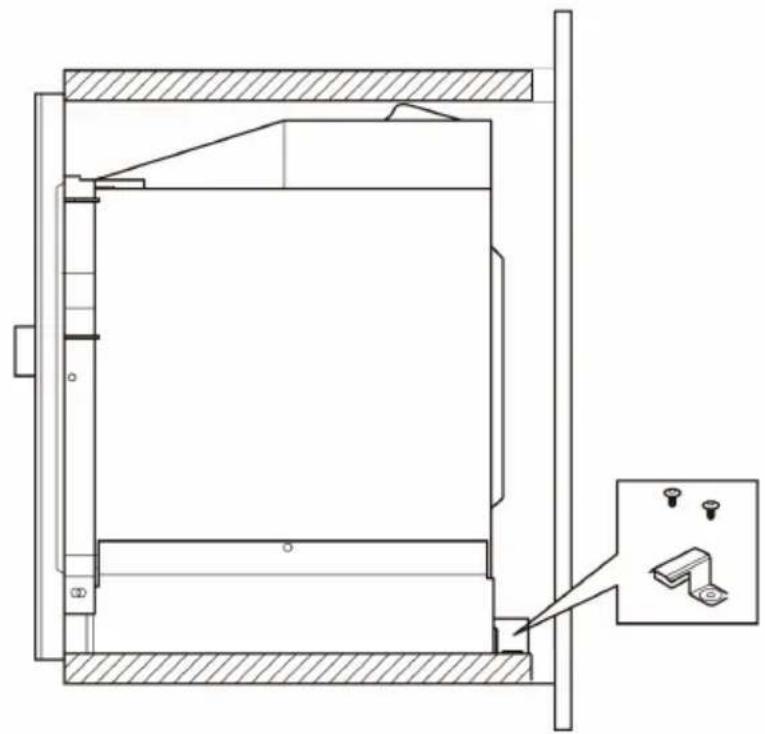

B. Install the Oven

600 560+8 min 500 380+2 (45) (45)

1. • Do not trap or kink the power cord.

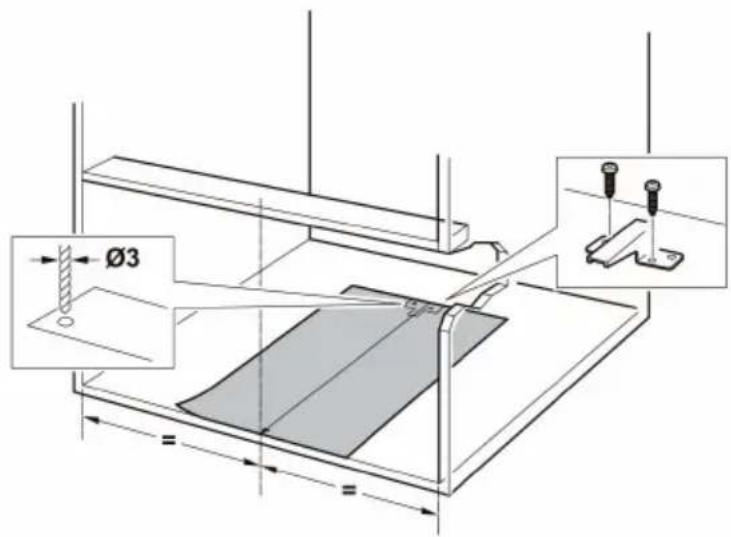

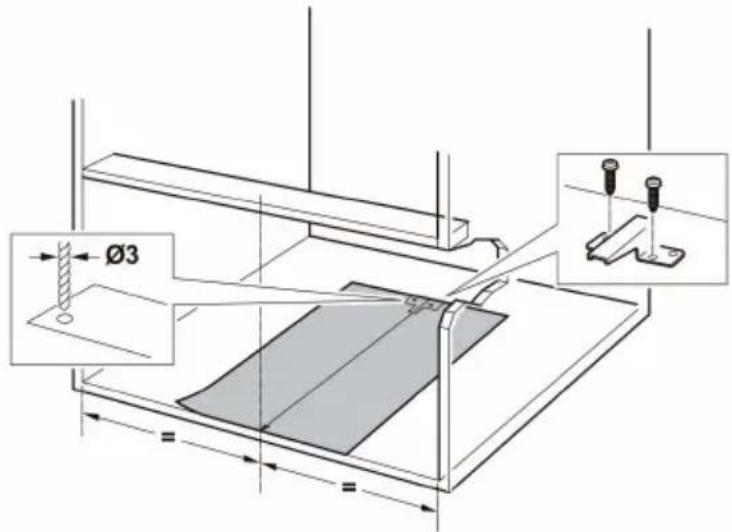

2. Make sure that the oven is installed in the center of the cabinet.

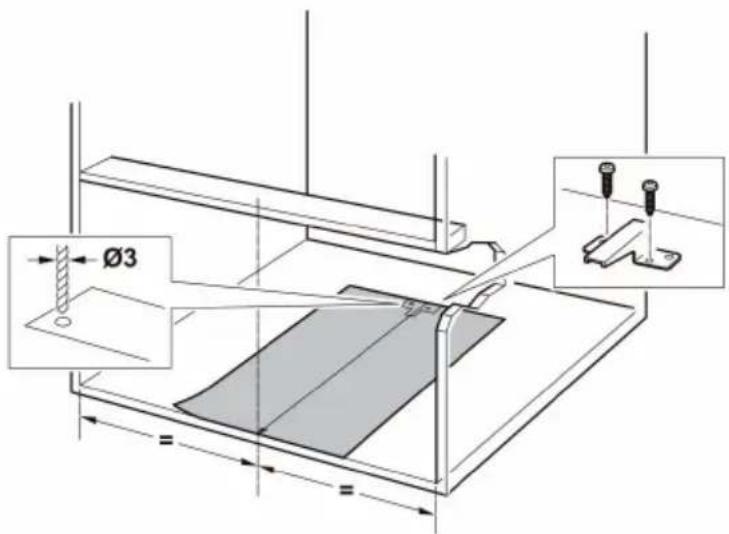

2

Line drawing of a microwave oven with mounting bracket and side panel, accompanied by small mechanical components (no text or symbols)

3

Technical line drawing of a mechanical assembly with a close-up inset showing a bracket and mounting bracket (no text or symbols)

4

Technical diagram showing mechanical assembly with dimension annotations and component detail views

5

Line drawing of a microwave oven with an open door and internal doors, showing internal components and a central outlet (no text or symbols)

OPERATION

Control Panel and Features

Operation Instructions

Power

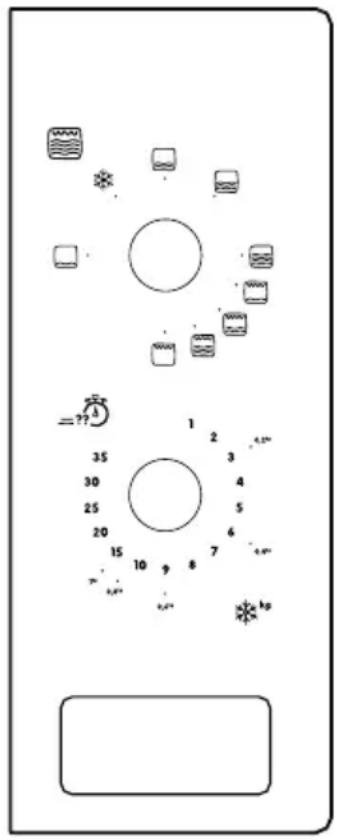

Diagram of a device control panel with labeled components and numerical readings

1. To set cooking power by turning the power knob to desired level.
2. To set the time of cooking by turning the timer knob to desired time per your food cooking guide.
3. The microwave oven will automatically start cooking after power level and time are set.
4. After the cooking time is up, the unit will "Dong" to stop.
5. If the unit is not in use, always set time to "0".

Function/Power Output Application
Low 17 % micro. Soften ice cream
Med. Low (Defrost) 33 % micro. Soup stew, soften butter or defrost
Med. 55 % micro. Stew, fish
Med. High 77 % micro. Rice, fi sh, chicken, ground meat
High 100 % micro. Reheat, milk, boil water, vegetables, beverage

Function/Power	Output	Application
Combi. 1	80 % grill 20 % micro.	Sausage, Lamb, Kabobs, Seafood, Steak
Combi. 2 70 % grill 30 % micro.	Chicken pieces,	Chicken breasts, Pork chops
Combi. 3 60 % grill 40 % micro.	Whole chicken
Gril	100 % grill	Baken bread, Slice food

Notice: When removing food from the oven, please ensure that the oven power is switched off by turning the timer switch to 0 (zero).

Failure to do so, and operating the microwave oven without food in it, can result in overheating and damage to the magnetron.

Trouble shooting

Normal
Microwave oven interfering TV reception	Radio and TV reception may be interfered when microwave oven operating. It is similar to the microwave oven operating. It is similar to the interference of small electrical appliances, like mixer, vacuum cleaner, and electric fan. It is normal.
Dim oven light In low power	microvawe cooking, oven light may become dim. It is normal.
Steam accumulating on door, hot air out of vents	In cooking, steam may come out of food. Most will get out from vents. But ome may accumulate on cool place like oven door. It is normal.
Oven started accidentally with no food in	It is forbidden to run the unit without any food inside. It is very dangerous.

Trouble Possible Cause Remedy
Oven can not be started. (1) Power cord not plugged n tightly.		Unplug. Then plug again after 10 seconds.
		(2) Fuse blowing or circuit breaker works..
		(3) Trouble with outlet. Test outlet with other electrical
Oven does not heat. (4) Door not closed well. Close door well

According to Waste of Electrical and Electronic Equipment (WEEE) directive, WEEE should be separately collected and treated. If at any time in future you need to dispose of this product please do NOT dispose of this product with household waste. Please send this product to WEEE collecting points where available.

Symbol of a trash bin crossed out by two crossed lines, with a solid black rectangle below (no text or labels)

FORNO DE MICROONDAS MANUAL DE INSTRUÇÕES

MODELO: EMW-2010-IG

Diagram of a mechanical assembly with a rotating disk and a base, showing no text or symbols

Estrutura de anel rotativo

Warning symbol with steam inside a triangle, indicating heat or smoke hazard

Line drawing of a microwave oven with internal door and side panel, accompanied by a small inset diagram showing mechanical components (no text or symbols)

3

Technical line drawing of a mechanical assembly with a close-up inset showing a bracket and mounting base (no text or symbols)

4

Technical diagram showing mechanical assembly with dimension annotations and component detail view

5

Line drawing of a microwave oven with an open door and internal doors, showing internal components and a central outlet (no text or symbols)

FUNCIONAMENTO

Symbol of a trash bin with no text or labels, crossed by two diagonal lines and a solid rectangle below (no text or symbols present)

Installation et raccordement

Warning symbol depicting steam inside a triangle, indicating heat or hazard

Line drawing of a microwave oven with mounting bracket and side panel, accompanied by small mechanical parts (no text or symbols)

3

Technical line drawing of a mechanical assembly with a close-up inset showing a bracket and mounting features (no text or symbols)

4

Technical diagram showing a mechanical assembly with dimension annotations and component details, including Ø3 and mounting bracket.

5

Line drawing of a microwave oven with an open door and internal doors, showing internal components and a screwdriver inserted (no text or symbols)

FONCTIONNEMENT

Diagram of a device control panel with labeled components and numerical readings

Illustration of a microwave with a wavy line above it and a rectangular base (no text or symbols)

Sticker

RATING PLATE

CNA group
