USER MANUAL EMW-2530-IG WH EDESA

Illustration of a microwave with a wavy line above it and a rectangular front panel with control buttons (no text or symbols)

ES Manual de instrucciones
FR Manuel d'instructions
EN Instruction manual
PT Manual de instruções
DE Bedienungsanleitung

HORNO MICROONDAS MANUAL DE INSTRUCCIONES

MODELO: EMW-2530-IG

Warning symbol with steam inside a triangle, indicating heat or smoke hazard

Line drawing of a microwave oven with front panel and control buttons (no text or symbols)

Line drawing of a cabinet with a checkmark on the door (no text or symbols)

Diagram of a cabinet with a double X-shaped component and wiring, no text or symbols present

Diagram of a microwave oven with labeled parts and directional arrows indicating assembly or installation steps.

Diagram showing a microwave oven with labeled parts and directional arrows indicating assembly or installation steps.

min. 3 mm

INSTRUCCIONES DE USO

Symbol of a trash bin with no text or labels, crossed by two diagonal lines and a solid rectangle below (no text or symbols present)

A F R R G E D C B

Installation et raccordement

Warning symbol of a triangle with steam and horizontal line (no text or numbers)

Illustration of a microwave oven with two screw screws nearby (no text or symbols)

Two technical illustrations of a cabinet with checkmark and cross symbols, no text or labels present

Diagram of a microwave oven with labeled parts and directional arrows indicating assembly or installation steps.

Diagram showing a microwave oven with labeled parts and directional arrows indicating assembly or installation steps.

min. 3 mm

INSTRUCTIONS DE FONCTIONNEMENT

Symbol of a trash bin crossed with no visible text or labels

Read these instructions carefully before using your microwave oven, and keep it carefully.

If you follow the instructions, your oven will provide you with many years of good service.

SAVE THESE INSTRUCTIONS CAREFULLY

PRECAUTIONS TO AVOID POSSIBLE EXPOSURE TO EXCESSIVE MICROWAVE ENERGY

(a) Do not attempt to operate this oven with the door open since this can result in harmful exposure to microwave energy. It is important not to break or tamper with the safety interlocks.
(b) Do not place any object between the oven front face and the door or allow soil or cleaner residue to accumulate on sealing surfaces.
(c) WARNING: If the door or door seals are damaged, the oven must not be operated until it has been repaired by a competent person..

ADDENDUM

If the apparatus is not maintained in a good state of cleanliness, its surface could be degraded and affect the lifespan of the apparatus and lead to a dangerous situation.

Specifications

Modelo: EMW-2530-IG
Rated Voltage: 230 V~50 Hz
Rated Input Power(Microwave): 1 450 W
Rated Output Power(Microwave): 900 W
Rated Input Power(Grill): 1 000 W
Oven Capacity: 25 l
Turntable Diameter: ∅ 315 mm
External Dimensions(WxDxH): 594 x 403 x 382 mm
Net Weight: Aprox. 17,6 kg

IMPORTANT SAFETY INSTRUCTIONS WARNING

T1. Warning : Liquids and other foods must not be heated in sealed containers since they are liable to explode.

1. Warning : It is hazardous for anyone other than a competent person to carry out any service or repair operation that involves the removal of a cover which gives protection against exposure to microwave energy.

2. This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children unless they are older than 8 and supervised.

3. Keep the appliance and its cord out of reach of children less than 8 years.

4. Only use utensils suitable for use in microwave ovens.

5. The oven should be cleaned regularly and any food deposits should be removed.

6. Read and follow the specific:"PRECAUTIONS TO AVOID POSSIBLE EXPOSURE TO EXCESSIVE MICROWAVE ENERGY".

7. When heating food in plastic or paper containers, keep an eye on the oven due to the possibility of ignition.

8. If smoke is emitted, switch off or unplug the appliance and keep the door closed in order to stifle any flames.

9. Do not overcook food.

10. Do not use the oven cavity for storage purposes. Do not store items, such as bread, cookies, etc. inside the oven.

11. Remove wire twist-ties and metal handles from paper or plastic containers/bags before placing them in the oven.

12. Install or locate this oven only in accordance with the installation instructions provided.

13. Eggs in the shell and whole hard-boiled eggs should not be heated in microwave ovens since they may explode, even after microwave heating has ended.

14. This appliance is intended to be used in household and similar applications such as: -staff kitchen areas in shops, offices and other working environments;

-by clients in hotels, motels and other residential type environments;

-farm houses;

-bed and breakfast type environments.

1. If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.

2. Do not store or use this appliance outdoors.

3. Do not use this oven near water, in a wet basement or near a swimming pool.

4. The temperature of accessible surfaces may be high when the appliance is operating. The surfaces are liable to get hot during use. Keep cord away from heated surface, and do not cover any events on the oven.

5. Do not let cord hang over edge of table or counter.

6. Failure to maintain the oven in a clean

condition could lead to deterioration of the surface that could adversely affect the life of the appliance and possibly result in a hazardous situation.

1. The contents of feeding bottles and baby food jars shall be stirred or shaken and the temperature checked before consumption, in order to avoid burns.

2. Microwave heating of beverages can result in delayed eruptive boiling, therefore care must be taken when handling the container.

3. The appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.

4. Children should be supervised to ensure that they do not play with the appliance.

5. The appliances are not intended to be operated by means of an external timer or separate remote-control system.

6. Accessible parts may become hot during use. Young children should be kept away.

28.Steam cleaner is not to be used.

29 During use the appliance becomes hot. Care should be taken to avoid touching heating elements inside the oven.

1. Only use the temperature probe recommended for this oven.(for ovens provided with a facility to use a temperature-sensing probe.)

2. WARNING: The appliance and its accessible parts become hot during use. Care should be taken to avoid touching heating elements. Children less than 8 years of age shall be kept away unless continuously su-

pervised.

1. The microwave oven must be operated with the decorative door open.(for ovens with a decorative door.)

33.surface of a storage cabinet can get hot.

READ CAREFULLY AND KEEP FOR FUTURE REFERENCE

To Reduce the Risk of Injury to Persons Grounding Installation

DANGER

Electric Shock Hazard

Touching some of the interna components can cause serious personal injury or death.

Do not disassemble this appliance.

WARNING

Electric Shock Hazard

Improper use of the grounding can result in electric shock. Do not plug into an outlet until

appliance is properly installed and grounded.

This appliance must be grounded. In the event of an electrical short circuit, grounding reduces the risk of electric shock by providing an escape wire for the electric current.

This appliance is equipped with a cord having a grounding wire with a grounding plug. The plug must be plugged into an outlet that is properly installed and grounded.

Consult a qualified electrician or serviceman if the grounding instructions are not completely understood or if doubt exists as to whether the appliance is properly grounded. If it is necessary to use an extension cord, use only a 3-wire extension cord.

1. A short power-supply cord is provided to reduce the risks resulting from becoming entangled in or tripping over a longer cord.

2. If a long cord set or extension cord is used: 1) The marked electrical rating of the cord set or extension cord should be at least as great as the electrical rating of the appliance.
   2) The extension cord must be a grounding-type 3-wire cord.
   3) The long cord should be arranged so that it will not drape over the counter top or tabletop where it can be pulled on by children or tripped over unintentionally.

CLEANING

Be sure to unplug the appliance from the power supply.

1. Clean the cavity of the oven after using with a slightly damp cloth.
2. Clean the accessories in the usual way in soapy water.
3. The door frame and seal and neighbouring parts must be cleaned carefully with a damp cloth when they are dirty.
4. Do not use harsh abrasive cleaners or sharp metal scrapers to clean the oven door glass since they can scratch the surface, which may result in shattering of the glass.
5. Cleaning Tip---For easier cleaning of the cavity walls that the food cooked can touch: Place half a lemon in a bowl, add 300ml (1/2 pint) water and heat on 100% microwave power for 10 minutes.
   Wipe the oven clean using a soft, dry cloth.

UTENSILS

CAUTION

Personal Injury Hazard

It is hazardous for anyone other than a competent person to carry out any service or repair operation that involves the removal of a cover which gives protection against exposure to microwave energy.

See the instructions on "Materials you can use in microwave oven or to be avoided in microwave oven."

There may be certain non-metallic utensils that are not safe to use for microwaving. If in doubt, you can test the utensil in question following the procedure below.

Utensil Test:

1. Fill a microwave-safe container with 1 cup of cold water (250ml) along with the utensil in question.
2. Cook on maximum power for 1 minute.
3. Carefully feel the utensil. If the empty utensil is warm, do not use it for microwave cooking.
4. Do not exceed 1 minute cooking time.

MATERIALS YOU CAN USE IN MICROWAVE OVEN

Utensils Remarks
Browning dish Follow	w anufacturer's instructions. The bottom of browning dish must be at least 3/16 inch (5mm) above the turntable. Incorrect usage may cause the turntable to break.
Dinnerware Microwave	ave-safe only. Follow manufacturer's instructions. Do not use cracked or chipped dishes.
Glass jars Always remove lid. Use only to heat food until just warm. Most glass jars are not heat resistant and may break.
Glassware Heat-resistant oven glassware only. Make sure there is no metallic trim. Do not use cracked or chipped dishes.
Oven cooking bags	Follow manufacturer's instructions. Do not close with metal tie. Make slits to allow steam to escape.
Paper plates and cups	Use for short-term cooking/warming only. Do not leave oven unattended while cooking.
Paper towels Use to cover food for reheating and absorbing fat. Use with supervision for a short-term cooking only.
Parchment paper	Use as a cover to prevent splattering or a wrap for steaming.
Plastic Microwave-safe only. Follow the manufacturer's instructions. Should be labeled "Microwave Safe". Some plastic containers soften, as the food inside gets hot. "Boiling bags" and tightly closed plastic bags should be slit, pierced or vented as directed by package.
Plastic wrap Microwave-safe only. Use to cover food during cooking to retain moisture. Do not allow plastic wrap to touch food.
Thermometers Microwave safe only (meat and candy thermometers).
Wax paper Use as a cover to prevent splattering and retain moisture.

MATERIALS TO BE AVOIDED IN MICROWAVE OVEN

Utensils Remarks
Aluminum tray May	cause arcing. Transfer food into microwave-safe dish.
Food carton with metal handle	May cause arcing. Transfer food into microwave-safe dish.
Metal or metal-trimmed utensils	Metal shields the food from microwave energy. Metal trim may cause arcing.
Metal twist ties May	cause arcing and could cause a fire in the oven.
Paper bags May cause a fire in the oven.
Plastic foam	Plastic foam may melt or contaminate the liquid inside when exposed to high temperature.
Wood Wood will dry out when used in the microwave oven and may split or crack.

SETTING UP YOUR OVEN

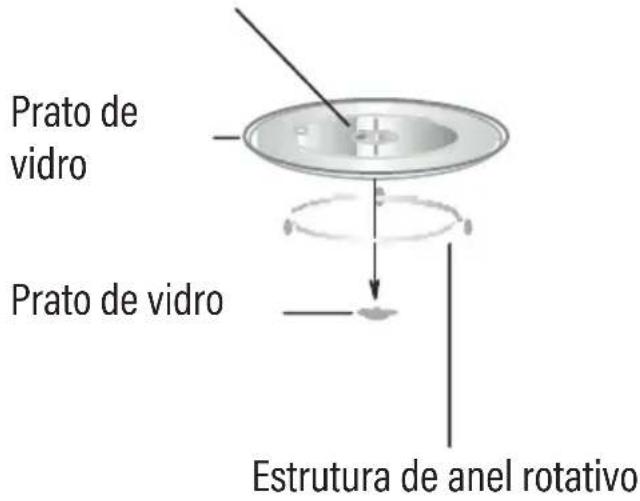

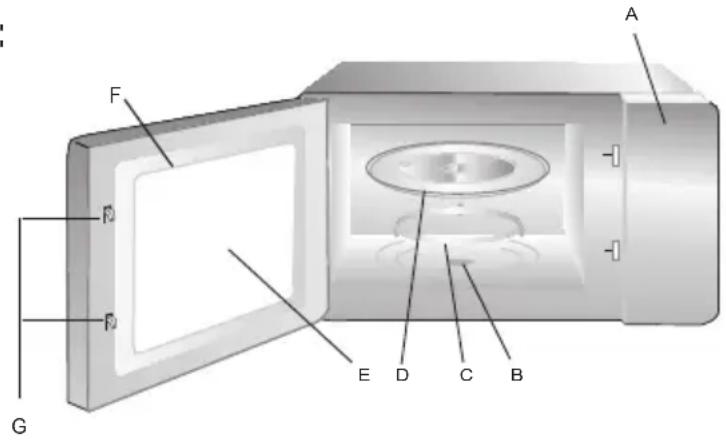

Names of Oven Parts and Accessories

Remove the oven and all materials from the carton and oven cavity. Your oven comes

with the following accessories:

Glass tray 1

Turntable ring assembly 1

Instruction Manual 1

A) Control panel
B) Turntable shaft
C) Turntable ring assembly
D) Glass tray
E) Observation window
F) Door assembly
G) Safety interlock system

A F B E D C B G

Installation and connection

1. This appliance is only intended for domestic use.
2. This oven is intended for built-in use only. It is not intended for counter-top use or for use inside a cupboard.
3. Please observe the special installation instructions.
4. The appliance can be installed in a 60cm wide wall-mounted cupboard (at lease 55cm deep and 85cm off the floor).
5. The appliance is fitted with a plug and must only be connected to a properly installed earthed socket.
6. The mains voltage must correspond to the voltage specified on the rating plate.

7. The socket must be installed and connecting cable must only be replaced by a qualified electrician. If the plug is no longer to accessible following installation, an all-pole disconnecting device must be present on the installation side with a contact gap of at lease 3mm.

8. Adapters, multi-way strips and extension leads must not be used. Overloading can result in a risk of fire.

The accessible surface may be hot during operation.

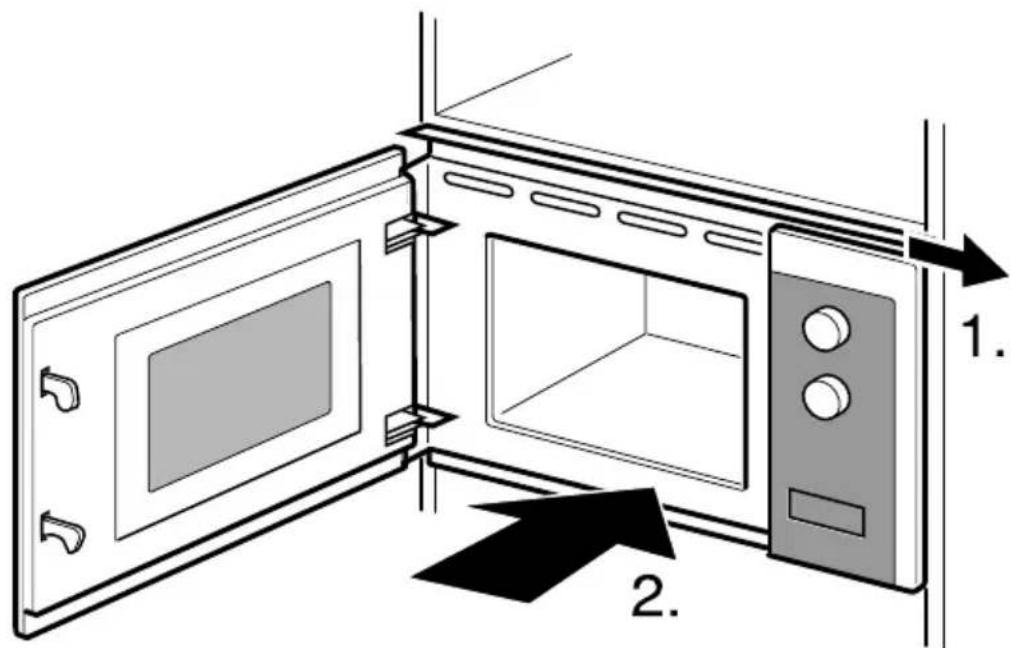

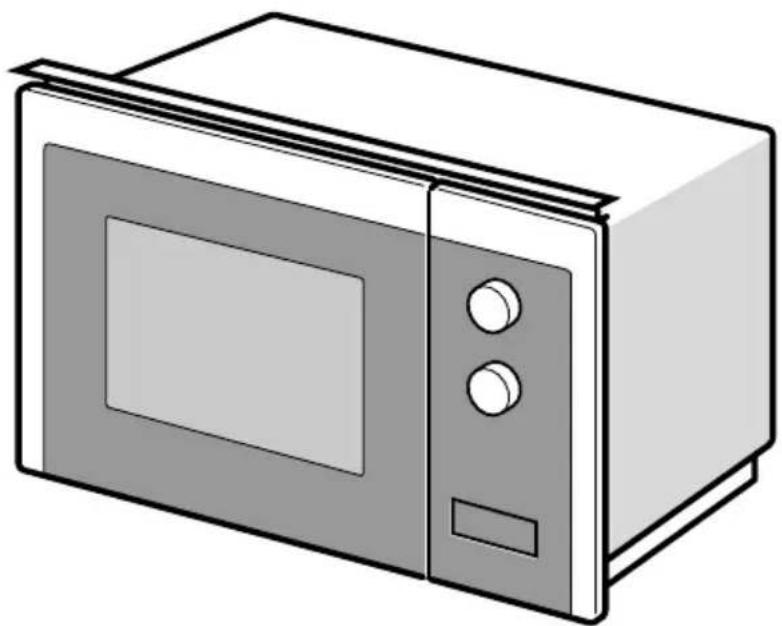

Installation Instructions

Please Read the Manual Carefully Before Installation

Please note

Electricalconnection

The oven is fitted with a plug and must only be connected to a properly installed earthrd socket. Only a qualified electrician can install the plug and replace the connecting cable in accordance with the appropriate regulations. If the is not accessible after installation, there must be an omnipolar disconnecting device at installation with a contact distance of at least 3 mm. The cabinet should not have a back panel, covering the unit. Minimum installation height: 85 cm. Do not cover ventilation or suction holes.

Note:

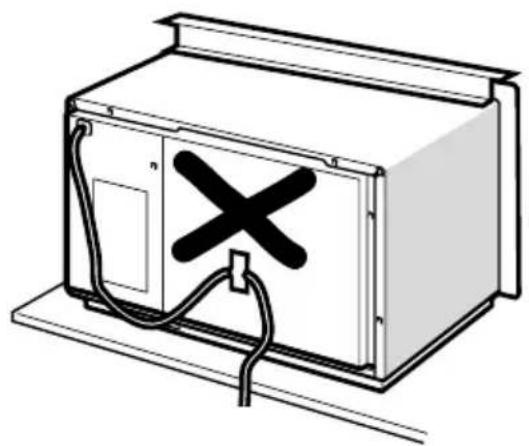

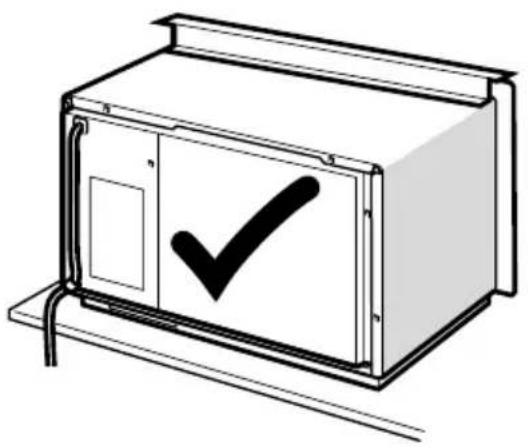

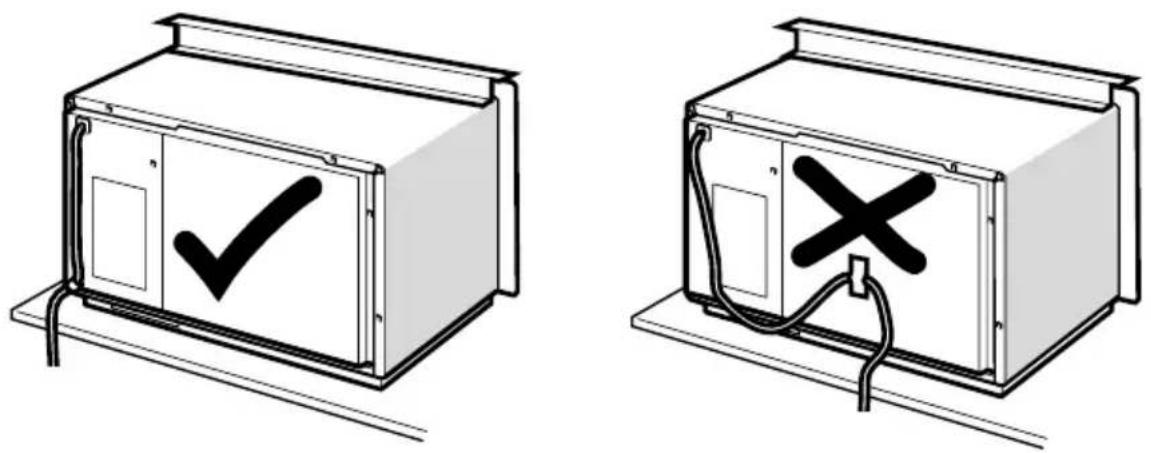

Do not trap or bend the power cable

Warning symbol depicting steam inside a triangle, indicating heat or smoke hazard

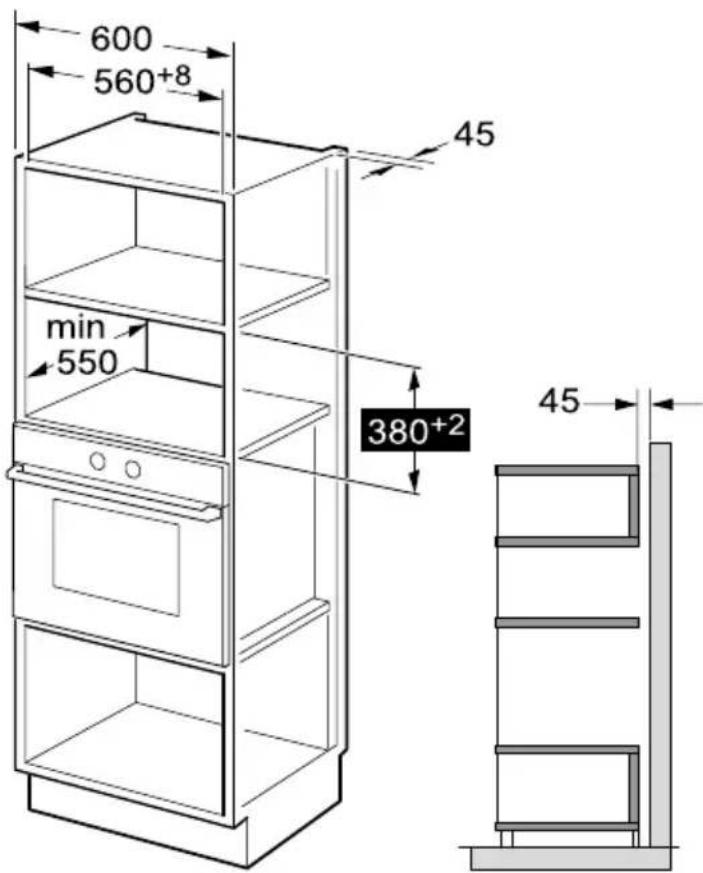

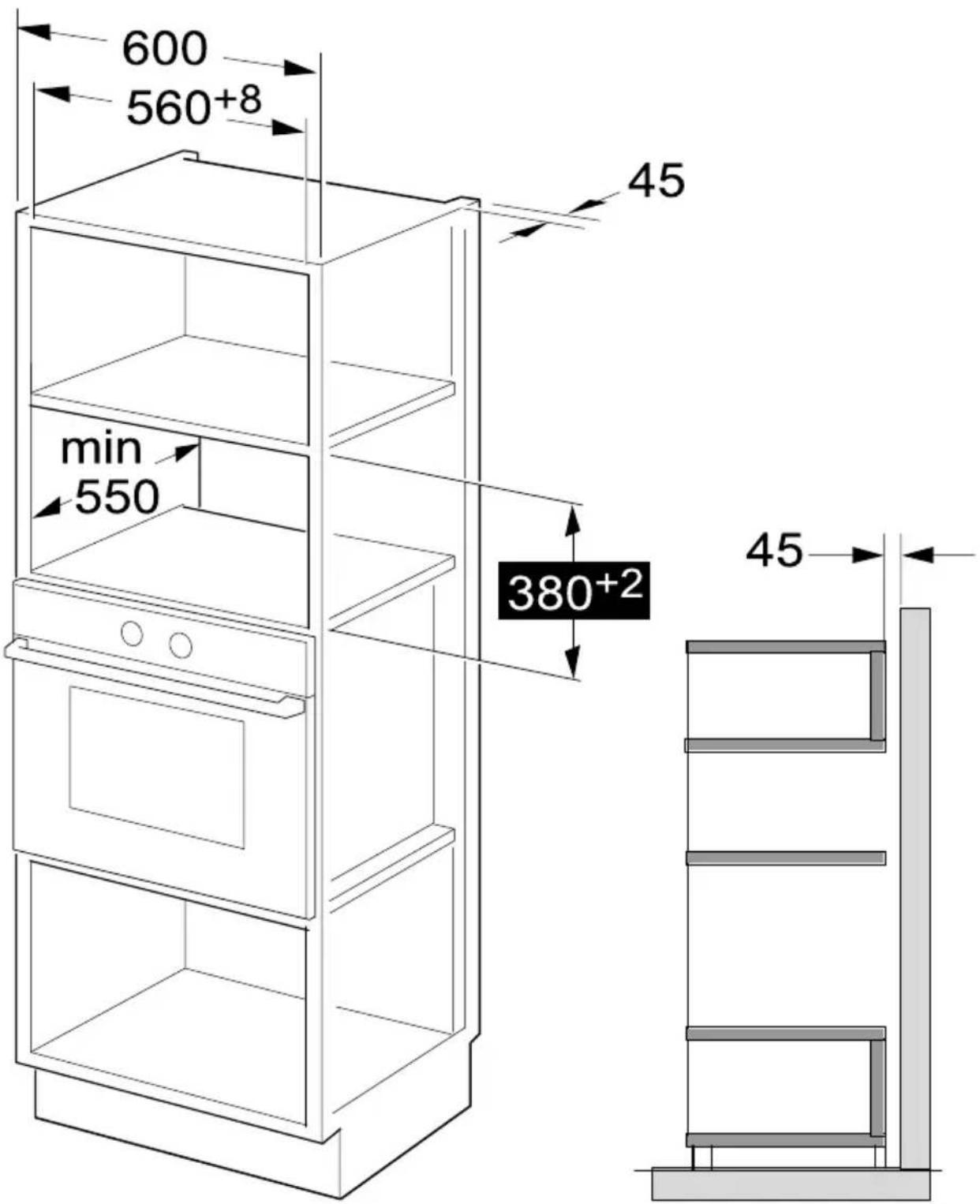

A. ARMÁRIO ENCASTRADO

600 560+8 45 min 550 380+2 45

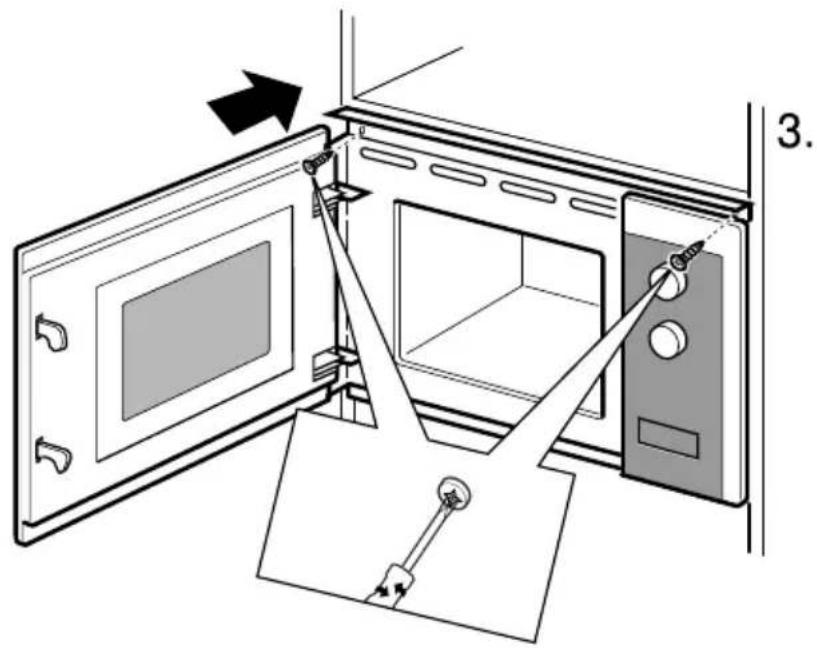

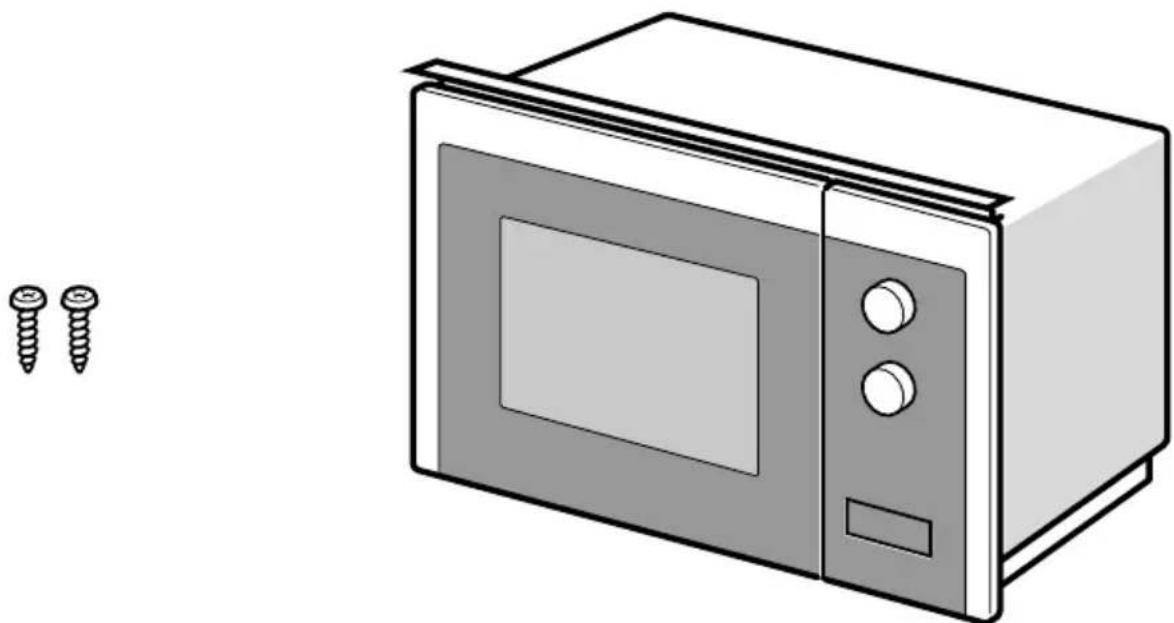

Illustration of a microwave oven with two screw screws nearby (no text or symbols)

Two technical illustrations of a double-chamber appliance with checkmark and cross symbols, no text or labels present.

Diagram of a microwave oven with labeled parts and directional arrows indicating assembly or installation steps.

Diagram showing a microwave oven with labeled parts and directional arrows indicating assembly or installation steps.

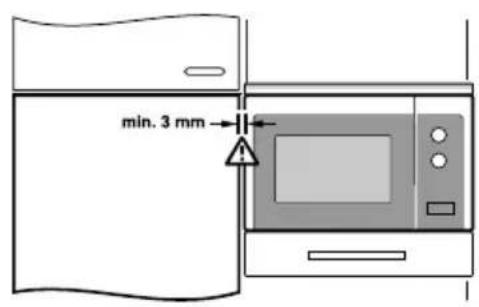

min. 3 mm

This microwave oven uses modern electronic control to adjust cooking parameters to meet your needs better for cooking.

1. Clock Setting

When the microwave oven is electrified, the oven will display "0:00", buzzer will ring once.

1) Press "≡, the hour figure flash;
2) Turn " " to adjust the hour figures. the input time should be within 0--23.
3) Press "", the minute figures will flash.
5) Press "=" / " to finish clock setting. ":" will flash, the " " indicator will go out. The clock setting has been finished.

Note:

1) If the clock is not set, it would not function when powered.
2) During the process of clock setting, if you press "stop/clear will go back to the previous status automatically.

1. Microwave Cooking

1) Press the "key once, and "P100" will display.
2) Press "☐" for times or "☐" to select the microwave power from 100% to 10%. "P100", "P80", "P50", "P30", "P10" will display in order.
3) Press "to confirm."
4) 2) Turn " " to adjust the cooking time. (The time setting should be 0:05- 95:00.)
5) Press "" to start cooking.

NOTE: the step quantities for the adjustment time of the coding switch are as follow:

Microwave Power Chart

Microwave Power	100%	80%	50%	30%	10%
Display P100 P	80 P50 P30 P10

1. Grill or Combi. Cooking

Press "☐/☐" once the LED will display "G", and press "☐/☐" for times or turn to choose the power you want, and "G","C-1" or "C-2" will display. Then press "/30"/☑ "to confirm, and turn "☐" to set cooking time from 0:05 to 95:00. Press "/30"/☑ " again to start cooking.

Example: If you want to use 55% microwave power and 45% grill power(C-1) to cook for 10 minutes, you can operate the oven as the following steps.

1) Press "☐/☐" once, the screen display "G".
2) Continue to press "☐/☐" until the screen displays "C-1".
3) Press "to confirm."
4) Turn " " to adjust the cooking time until the oven displays "10:00".
5) Press "to start cooking.

Combination Power instructions:

Program Display Microwave Power Grill Power
Grill G 0% 100%
Combi. 1 C-1 55% 45%
Combi. 2 C-2 36%	64%

Nota: If half the grill time passes, the oven sounds twice, and this is normal. In order to have a better effect of grilling food, you should turn the food over, close the door, and then press "D/30"/√" to continue cooking. If no operation, the oven will continue working.

1. Defrost By Weight

1) Press "kg" once, the screen will display "dEF1".
2) " " to select the food weight. The range of weight is 100-2000g.
3) Press "key to start defrosting.

1. Defrost By Time

1) Press " *min" once, the screen will display "dEF2".
2) Turn "○" to select the cooking time. The maximum time is 95 minutes.

3) Press "key to start defrosting.

6.Multi-Stage Cooking

Two stages can be maximumly set. If one stages is defrosting, it should be put in the first stage. The buzzer will ring once after each stage and the next stage will begin.

Note: Auto menu cannot be set as one of the multi-stage.

Example: if you want to defrost the food for 5 minutes, then to cook with 80% microwave power for 7 minutes. The steps are as following:

1) Press " *_min " once, the LED display "dEF2".
2) Turn "" to adjust the defrost time of 5 minutes;
3) Press "☐" once, LED will dispaly "P100".
4) Turn "" to choose microwave power till "P80" display;
5) Press "" to confirm, LED will display "P80".
6) Turn " " to adjust the cooking time of 7 minutes;
7) Press " ▷/30"/√" to start cooking.

7. Kitchen Timer

(1) Press "==once, LED will display 00:00.
(2)Thermäxitouenteokkengotirectis95 minutes)
(3) Press "1" to confirm setting, timer indicator will be lighted.
(4) When the kitchen time is reached, timer indicator will go out. The buzzer will ring 5 times. If the clock be set(24-hour system), LED will display the current time.
Note: The kitchen Time is differ from 24-hour system, Kitchen Timer is a timer.

8. Auto Menu

1) In waiting state, turn " " right to choose the menu from "A-1" to "A-8".
2) Press " " to confirm the menu you choose.
3) Turn "" to choose the food weight.
4) Press " " to start cooking.
5) After cooking finish, the buzzer sounds five times. The LED display "0:00". If the time has been set, current time will be displayed.

The menu chart:

Menu Weight	Display
A-1 Pizza	200 g 200
	400 g 400
A-2 Meat	250 g 250
	350 g 350
	450 g 450
A-3 Vegetable	200 g 200
	300 g 300
	400 g 400
A-4 Pasta	50g (with 450 ml cold water) 50
	100g (with 800 ml cold water) 100
A-5 Potato	200 g 200
	400 g 400
	600 g 600
A-6 Fish	250 g 250
	350 g 350
	450 g 450
A-7 Beverage	1 cup (120 ml) 1
	2 cups (240 ml) 2
	3 cups (360ml) 3
A-8 Popcorn	50 g 50
	100 g	100

9. Speedy Cooking

1) In waiting state, press "key to cook with 100% power level for 30 seconds.

Each press on the same key can increase 30 seconds. The maximum cooking time is 95 minutes.

2) During the microwave, grill, combination cooking and the defrost by time process, press "to increase the cooking time.

3) In waiting state, turn " " to set cooking time with 100% microwave power, then press " " to start cooking.

Note:

Under the states of auto menu and defrost by weight, cooking time cannot be increased by pressing "/30"/√

10. Lock Function for Children

Lock: In waiting state, press "stop 3/seconds, there will be a long beep denoting entering the children-lock state and the current time will display if the time has been set, otherwise, the LED will display "{____".

Lock quitting: In locked state, press "stop 3 seconds, there will be a long "beep" denoting that the lock is released.

11. Inquiring Function

1) In cooking states of microwave, grill and combination. Press "the current power will be displayed for 2-3 seconds.
2) During cooking state, press " " to check the current time. It will be displayed for 2-3 seconds.

12. Specification

(1) "" must be pressed to continue cooking if the door is opened during coo-king;
(2) Once the cooking programme has been set, "is not pressed in 1 minute. The current time will be displayed. The setting will be cancelled.
(3) The buzzer sounds once by efficient press, inefficient press will be no response.

Trouble shooting

Normal
Microwave oven interfering TV reception	Radio and TV reception may be interfered when microwave oven operating. It is similar to the microwave oven operating. It is similar to the interference of small electrical appliances, like mixer, vacuum cleaner, and electric fan. It is normal.
Dim oven light in low power	Power microvawe cooking, oven light may become dim. It is normal.
Steam accumulating on door, hot air out of vents	In cooking, steam may come out of food. Most will get out from vents. But ome may accumulate on cool place like oven door. It is normal.
Oven started accidentally with no food in	It is forbidden to run the unit without any food inside. It is very dangerous.

Trouble Possible Cause Remedy
Oven can not be started. (1)	Power cord not plug- ged n tightly.	Unplug. Then plug again after 10 seconds.
	(2) Fuse blowing or circuit breaker works..	Replace fuse or reset circuit breaker (repaired by professional personnel of our com- pany)
	(3) Trouble with outlet. Test	outlet with other electri- cal
Oven does not heat. (4) Door	or not closed well. Close door	well

According to Waste of Electrical and Electronic Equipment (WEEE) directive, WEEE should be separately collected and treated. If at any time in future you need to dispose of this product please do NOT dispose of this product with household waste. Please send this product to WEEE collecting points where available.

Symbol of a trash bin with no text or labels, crossed by two diagonal lines and a solid rectangle below (no text or symbols present)

FORNO DE MICROONDAS MANUAL DE INSTRUÇÕES

MODELO: EMW-2530-IG

A F R G E D C B

Cubo central (parte inferior)

Prato de vidro Prato de vidro Estrutura de anel rotativo

Warning symbol with steam inside a triangle, indicating heat or smoke hazard

Illustration of a microwave oven with two screw screws nearby (no text or symbols)

Two technical illustrations of a double-chamber appliance with checkmark and cross symbols, no text or labels present.

Diagram of a microwave oven with labeled parts and directional arrows indicating assembly or installation steps.

Diagram showing a microwave oven with labeled parts and directional arrows indicating assembly or installation steps.

min. 3 mm

Symbol of a trash bin with crossed lines and a solid rectangle below (no text or labels)

A F R R G E D C B

Warning symbol with steam inside a triangle, indicating heat or smoke hazard

600 560+8 min 550 45 380+2 45

Line drawing of a microwave oven with control panel and door (no text or symbols)

Line drawing of a cabinet with a black checkmark on the door (no text or symbols)

Line drawing of a cabinet with a double X-shaped mark on the door, connected to wires (no text or symbols)

Diagram of a microwave oven with labeled parts and directional arrows indicating assembly or installation steps.

Diagram of a microwave oven with labeled parts and directional arrow indicating assembly or operation

min. 3 mm

GEBRAUCHSANWEISUNG

Symbol of a trash bin crossed with no text or labels, accompanied by a solid black rectangle below (no text or symbols present)

edesa

Illustration of a microwave with a wavy line above it and a rectangular screen below (no text or symbols)

Sticker

RATING PLATE

CNA group
