USER MANUAL EZH-1011 EDESA

Abstract line drawing of a stylized door with wavy lines above it, no text or symbols present

EZH-3011 /A EZH-2011 /C EZH-1011 /C

ES Manual de instrucciones
EN Instruction manual
PT Manual de instruções
F: Manuel d'instructions
D: Bedienungsanleitung

ÍNDICE

Warning sign depicting a flame symbol in a yellow triangle with black border

Diagram showing three electrical installation methods: switch, power socket, and plug-in socket with checkmarks indicating no protection.

Simple line drawing of a plug with a cable and an exclamation mark (no text or symbols)

Simple line drawing of a room interior with a monitor and wall-mounted equipment (no text or symbols)

Simple line drawing of a box with a small rectangular object on top and a warning symbol below (no text or labels)

Diagram showing a box with a circular symbol and a warning sign, alongside a broken-out box and a crossed-out arrow.

Simple line drawing of a box with a starburst on top and an exclamation mark in the bottom right corner (no text or symbols on the box itself)

Illustration of a child climbing inside a cube with abstract symbols (no text or labels)

Cartoon character with a sad expression, carrying a stack of boxes, with an exclamation mark and warning symbol (no text or labels)

Illustration showing a hand holding a tray with a bottle labeled 'Zanomix' and a block, with a cross symbol and an exclamation mark.

Illustration showing a hand holding beer bottles with a cross symbol and an exclamation mark, likely indicating a warning or warning about the beer.

Technical diagram of an open refrigerator with numbered parts for identification and assembly reference.

Illustration of a person lifting a large cardboard box (no text or symbols present)

Simple line drawing of a box next to a cabinet with a door (no text or symbols)

Cartoon illustration of a sad cube with a frowning face and a potted plant, under a sun (no text or symbols)

100° 240°

Diagram of a mechanical assembly with a spring-loaded component and a grid-patterned panel (no text or symbols)

Diagram of a mounted electronic device with a grid-patterned panel and cable connection (no text or symbols)

Simple line drawing of a rectangular box with a smiley face and a small plug attached to the side (no text or symbols)

1.2 Meaning of safety warning symbols 14

1.3 Electricity-related matters 14

1.4 Matters related to use 15

1.5 Matters relating to the placement of items 16

1.6 Warnings for energy

1.7 Matters related to disposal 16

2 The correct usage of freezer

2.1 Names of each component 17

2.2 Temperature control panel 18

2.3 Placement 18

2.4 Changing the light (optional) 18

2.5 Start 19

2.6 Energy saving tips 19

3 Maintenance and service of freezer

3.1 Cleaning 20

3.2 Defrost 20

3.3 When out of use ....

4 Trouble shooting ....21

1 Safety warnings

1.1 Warning

Warning sign depicting a flame symbol in yellow and black, indicating hazard or electrical hazard.

Warning: risk of fire/flammable materials

THIS appliance is intended to be used in household and similar applications such as staff kitchen areas in shops, offices and other working environments; farm houses and by clients in hotels, motels and other residential type environments; bed and breakfast type environments; catering and similar non-retail applications.

THIS appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.

CHILDREN should be supervised to ensure that they do not play with the appliance.

IF the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.

DO not store explosive substances such as aerosol cans with a flammable propellant in this appliance.

THE appliance has to be unplugged after use and before carrying out user maintenance on the appliance.

WARNING: Keep ventilation openings, in the appliance enclosure or in the built-in structure, clear of obstruction.

WARNING: Do not use mechanical devices or other means to accelerate the defrosting process, other than those recommended by the manufacturer.

WARNING: Do not damage the refrigerant circuit.

WARNING: Do not use electrical appliances inside the food storage compartments of the appliance, unless they are of the type recommended by the manufacturer.

WARNING: Please abandon the refrigerator according to local regulators for it use flammable blowing gas and refrigerant.

WARNING:

When positioning the

appliance, ensure

the supply

WARNING: Do not locate multiple portable socket-outlets or portable power supplies at the rear of the appliance.

DO not use extension cords or ungrounded (two prong) adapters.

DANGER: Risk of child entrapment. Before you throw away your old refrigerator or freezer:

-Take off the doors.

-Leave the shelves in place so that children may not easily climb inside.

THE refrigerator must be disconnected from the source of electrical supply before attempting the installation of accessory.

REFRIGERANT

and cyclopentane foaming material used for the appliance are flammable.

Therefore, when the appliance is scrapped, it shall be kept away from any fire source and be recovered by a special recovering company with corresponding qualification other than be disposed by combustion, so as to prevent damage to the environment or any other harm.

THE necessity that, for doors or lids fitted with locks and keys, the keys be kept out of the reach of children and not in the vicinity of the refrigerating appliance, in order to prevent children from being locked inside.

FOR EU standard: This appliance can be used by children aged from 8 years and above and persons with reduce physical sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision. Children aged from 3 to 8 years are allowed to load and unload refrigerating appliances.

TO avoid contamination of food, please respect the following instructions:

• Opening the door for long periods can cause a significant increase of the temperature in the compartments of the appliance.
• Clean regularly surfaces that can come in contact with food and accessible drainage systems.
• Clean water tanks if they have not been used for 48 h; flush the water system connected to a water supply if water has not been drawn for 5 days. (note 1)
• Store raw meat and fish in suitable containers in the refrigerator, so that it is not in contact with or drip onto other food.
• Two-star frozen-food compartments are suitable for storing pre-frozen food, storing or making ice-cream and making ice cubes. (note 2)
• One-, two- and three-star compartments are not suitable for the freezing of fresh food. (note 3)
• For appliances without a 4-star compartment: this refrigerating appliance is not suitable for freezing foodstuffs. (note 4)
• If the refrigerating appliance is left empty for long periods, switch off, defrost, clean, dry, and leave the door open to prevent mould developing within the appliance.

Note 1,2,3,4: Please confirm whether it is applicable according to your product compartment type.

FOR a freestanding appliance: this refrigerating appliance is not intended to be used as a built-in appliance.

ANY replacement or maintenance of the LED lamps is intended to be made by the manufacturer, its service agent or similar qualified person. (See chapter 2.4 for lamp replacement)

1.2 Meaning of safety warning symbols

Prohibition symbol

This symbol indicates prohibited matters which the behaviors related to must be prohibited. Failure to follow instructions may result in damage to the product or endanger the user's personal safety.

Warning symbol

This symbol indicates matters that must be complied with and which the behaviors related to must be carried out in strict accordance with the required operation.

Failure to follow instructions may result in damage to the product or endanger the user's personal safety.

Note symbol

This symbol indicates matters requiring attention, which the behaviors related to require special attention. If left unguarded, this could result in minor or moderate injuries or product damage.

This Manual contains a lot of important safety information, please be sure to follow all of it.

1.3 Electricity-related matters

Electrical safety instructions showing hand installation, switch protection, and no warning symbol

Simple line drawing of a plug with a cable and an exclamation mark (no text or symbols)

Simple line drawing of a room interior with a monitor and keyboard (no text or symbols)

Simple line drawing of a box with a small rectangular object on top and warning symbols at the bottom (no text or labels)

• Do not pull on the power line when unplugging the freezer. Be sure to hold the plug firmly and pull it straight out of the socket.
• For safe use, do not damage the power line at any time, and do not use the power line when it is broken or the plug is worn.
• If the power line is worn or damaged, it must be replaced at the manufacturer's designated service point.

- The power line plug should be kept in firm contact with the socket, otherwise it may cause a fire. Please ensure that the grounding electrode of the socket should have a reliable ground wire.

- When flammable gases, such as coal gas, leak the valve that causes the gas leak, and then open the doors and windows. At this time, do not pull out the plugs of electrical appliances, such as freezer, so as to avoid electric sparks causing a fire.

- For safety, it is recommended that electrical sockets, voltage stabilizers, rice cookers, microwave ovens, and other appliances are not placed on top of the freezer; and that appliances are not used in the food storage room of the appliance, except for the type recommended for use by the manufacturer.

1.4 Matters related to use

Diagram showing a box with a circular symbol and a warning sign, alongside a broken-out box and a crossed-out arrow.

- It is strictly prohibited to privately disassemble and to damage the refrigeration pipeline, and the maintenance of the freezer must be carried out by professional personnel.

- To avoid danger, if the supply cord is the manufacturer, its maintenance department, and relevant professionals.

Simple line drawing of a box with a starburst on top and an exclamation mark in the corner (no text or symbols)

- There are small gaps between the doors and freezer case, so be careful not to put your hand in these areas to prevent squeezing your fingers. When opening and clo door, do not use excessive force to prevent items from falling.

- After the freezer starts running, do not reach the freezer with wet hands, especially metal containers, to avoid frostbite on your hands.

Illustration of a child climbing inside a cube with cracks and a warning symbol (no text or labels)

- Do not allow children to enter or clir children into the freezer or the freezer falling down, which may cause injury to children.

- Do not spray or rinse the freezer with freezer in a damp, easily splashed place, and do not fill or load the freezer with water to avoid affecting the electrical insulation of the freezer, which may even lead to electric shock, fire and other accidents.

Cartoon character with a sad expression, carrying a stack of boxes, with an exclamation mark and warning symbol (no text or symbols on the character itself)

Please do not place heavy objects on the top of the freezer, as it is easy to cause the objects to fall down when closing the door, resulting in accidental damage.

1.5 Matters relating to the placement of items

Illustration showing a hand holding a tray with a bottle labeled 'Tobacco' and a box, with a cross symbol and an exclamation mark.

- Please do not place flammable, explosive, volatile and items into the freezer, so as not to cause product damage or fire and other accidents.

- Do not place or use combustible ite

Blood Drugs Animal milk

- This product is a household refrigeration and national standards, it is only suitable for storing food, and cannot be used for other purposes, such as storing blood, medicines and biological products.

Illustration showing a hand holding beer bottles with a warning symbol and a cross mark, next to stacked cylindrical containers.

- Please do not put bottled or closed co bottled beer, drinks, etc. into the freezer to avoid freezing and cracking, which may cause other losses.

1.6 Warnings for energy

• Freezer might not operate consistently when sited for of the range of temperatures for which the freezer appliance is designed.
- The fact that effervescent drinks should not be low-temperature compartments or cabinets, and that some products such as water ices should not be consumed too cold;
- The need to not exceed the storage time recommend and particularly for commercially quick-frozen food in food-freezer and frozen-food storage compartments or cabinets;
- The precautions necessary to prevent an undue rise defrosting the refrigerating appliance, such as wrapping the frozen food in several layers of newspaper.
• The fact that a rise in temperature of cleaning could shorten the storage life.
- The necessity that, for doors or lids fitted with children and not in the vicinity of the freezer appliance, in order to prevent children from being locked inside.

1.7 Matters related to disposal

The refrigerant and cyclopentane foaming material used in this freezer are flammable materials, and the used freezer should be isolated from sources of ignition and cannot be burned for disposal.

Please hand over to qualified professional recycling company for disposal to avoid harming the environment or causing other dangers.

When the freezer is abandoned and not in use, the door seal and shelf basket, and place the door and shelf basket in a suitable position, so as to avoid children from entering and playing, which may cause accidents.

Properly dispose of the product:

This symbol means that throughout the European Union, this product is not suitable to be disposed of with other household waste. To avoid causing potential danger to environment or human health because of uncontrolled waste treatment, recycle the waste to promote the sustainable reuse of material. In order to recycle the used devices, please use the recycle system or collecting system, or contact the product retailers. They can guarantee that the recycling process is environmental friendly and safe.

2 The correct usage of freezer

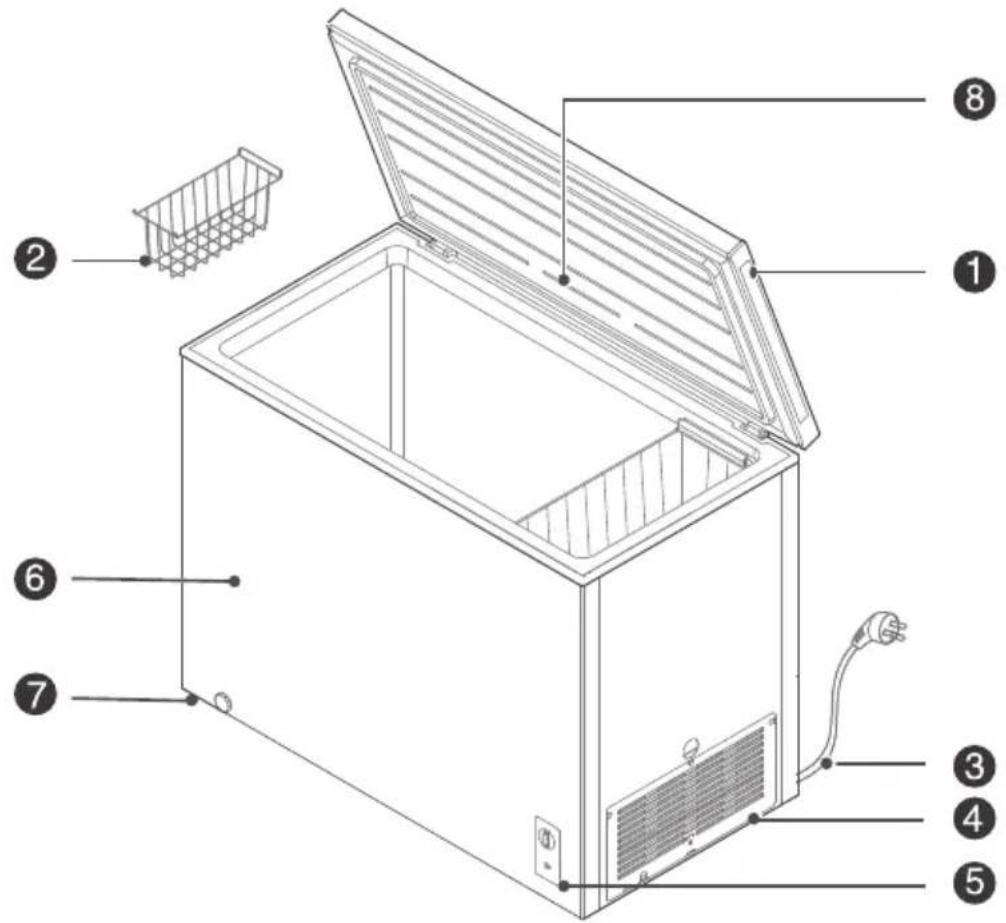

2.1 Names of each component

Technical diagram of an open refrigerator with numbered parts for identification and assembly reference.

1 Door handle 5 Temperature control panel
2 Shelving basket 6 Cabinet
3 Power cord 7 Leveling foot (optional)
4 Shutter 8 Lamp (optional)

(The above pictures are for reference only, and the actual configuration shall be subject to the actual purchase or the seller's statement)

• The freezer can maintain the freshness of food fo storing frozen food and making ice cubes.
- The freezer is suitable for storing meat, fish, and short term. It is not suitable for storing fluids in bottled or sealed containers, such as bottled beer or beverages.
- Please note that the food should be consumed by - The freezing speed of the product depends on th

If too much food at room temperature is placed at once, it is recommended to set the temperature controller to the maximum level and operate it for 24 hours in advance or use ice cubes for cooling. Moreover, large pieces of food should be divided into small pieces and stored separately to ensure proper freezing. Otherwise, certain parts of large or excessive food may not freeze properly, leading to potential spoilage.

Reminder:

Due to the wear and tear of the hinge during long-term opening and closing, the hinge's service life could be affected and noise may occur. It is recommended that users regularly apply lubricating oil to the hinges for maintenance, which can effectively eliminate noise and extend the service life of the hinges.

2.2 Temperature control panel

Recommended gear power "COOLING" frozen area; When the temperature inside the freezer decreases; When the temperature counterclockwise, the temperature inside the freezer increases; "recommended Please refer to the scher power After power on the "POW the area where the tempere is the refrigeration are the temperature When the temperature counterclockwise, the temperature inside the freezer increases; "recommended gear".

(The above pictures are for reference only, and the actual configuration shall be subject to the actual purchase or the seller's statement)

2.3 Placement

Illustration of a person lifting a large box next to a smaller box (no text or symbols)

- Before using the please remove all the package, which includes the base pad, the foam cushion block in the freezer and adhesive tape, etc. And tear off the protective film on the door body and case.

freezer,

- Place the well-ventilated indoor area with a flat and sturdy ground.

Cartoon illustration of a sad cube character with a potted plant nearby, under a sun (no text or symbols)

- Select the pla far away from the heat source and direct sunlight Do not place it in damp or watery areas to prevent rusting or weakening the insulation effect.

ce that is 240.0 240.0 240.0

• The to should be greater than 70cm and the distance between the sides and back of the freezer and the wall should be greater than 20cm, so as to facilitate the opening and closing of the freezer door and heat dissipation.

2.4 Changing the light (optional)

The LED light must be replaced by a professional from the manufacturer, its maintenance department or other similar departments.

(The above are for reference only, and the actual configuration shall be subject to the actual purchase or the seller's statement)

2.5 Start

TITLE LINE

- Taking a tool (flat screwdriver or cone), position in the figure and gently pry it outward to open the flip.

Diagram of a mechanical assembly with a spring-loaded component and a grid-patterned panel (no text or symbols)

● After opening, the freezer is as shown in line from the hole;

Diagram of a wall-mounted electronic device with ventilation grille and power outlet (no text or symbols)

After removing the power line, cover the cover

Simple line drawing of a rectangular box with a smiley face and a small icon on the left (no text or symbols)

After transportation, please let the freezer connecting to the power supply, otherwise it may cause performance degradation or damage to the freezer. Before storing fresh or frozen food in the freezer, run the freezer for 2 to 3 hours; in hot summer days, users should run the freezer for 4 hours in advance. During the power cut or cleaning, users should pull the plug off and plug in again after a 5-minute interval in case the continuous start damage the compressor.

(The above are for reference only, and the actual configuration shall be subject to the actual purchase or the seller's statement)

2.6 Energy saving tips

- The appliance should be located in the coolest area of appliances or heating ducts, and out of the direct sunlight.

Let hot foods cool to room temperature before placing in the appliance. Overloading the appliance forces the compressor to run longer. Foods that freeze too slowly may lose quality, or spoil. Be sure to wrap foods properly, and wipe containers dry before placing them in the appliance. This cuts down on frost build-up inside the appliance.

Appliance storage bin should not be lined with aluminum foil, wax paper, or paper toweling. Liners interfere with cold air circulation, making the appliance less efficient.

Organize and label food to reduce door openings and extended searches. Remove as many items as needed at one time, and close the door as soon as possible.

3 Maintenance and service of freezer

3.1 Cleaning

• Regularly inspect the door seal to ensure the door seal with a soft cloth dipped in soapy water or diluted cleaning agent.
• The interior of the freezer should be
• Before cleaning the interior of the freezer, all the food, hanging baskets and containers.
• Please use a soft cloth or sponge. You can use two tablespoons of baking soda and one quart of warm water solution to clean it first, then clean it with clean water and wipe it clean. After cleaning, open the door and let it dry naturally before connecting to the power supply.

- Please clean the dust behind and around the freezer on energy.

it is regularly please cleaned turn to clean

• For areas inside the freezer that are not easy to soft cloths, soft brushes, etc. and some necessary aids (e.g. thin sticks, etc.) to carry out regular cleaning to ensure that there are no accumulation of pollutants or bacteria.
• Do not use soaps, detergents, spray cleaners, etc. to clean contamination.
• Clean the hanging basket with a soft cloth dipped in it with a soft cloth or air dry naturally.
• Wipe the outside surface of the freezer with a soft then dry with a soft cloth.
• Do not use hard hairbrush, steel wire ball, steel wire solvent (such as alcohol, acetone, isoamyl acetate, etc.), boiling water, or acidic or alkaline substances during cleaning, as it may damage the surface and inner liner of the freezer. Organic solvents such as boiling water and benzene may deform or damage plastic parts.
• Do not rinse directly with water or other liquids during insulation performance after soaking.
• When, defrosting and cleaning the

When defrosting and cleaning unplug the power supply first.

3.2 Defrost

• Freezers need to be manually defrosted:
  When defrosting, please unplug the power plug first, open the hanging baskets, etc.; Open the drain hole and outlet hole (and place a water container at the outlet hole) to allow the indoor ice and frost to naturally melt, and dry the defrosting water with a dry soft cloth. Once the frost softens, you can use an ice shovel to speed up deicing.

- When defrosting, please keep the removed food in a cool

Do not use mechanical devices or other means of acceleration other than those recommended by the manufacturer. The refrigeration circuit must not be damaged.

3.3 When out of use

• In case of power failure: Even in the summer, food period, the number of opening door should be reduced, and fresh food should not be put in.
• When not in use for a long period of time: freezer door open to prevent the freezer from generating odors.
• When moving the freezer: Do not invert, transport horizontally, transportation. The inclination angle during transportation should not exceed 45^ . Do not grab the door or hinge while moving.

Once the freezer is activated, it is best to use it continuously, and under normal circumstances, do not stop using the freezer, so as not to affect the service life.

4 Trouble shooting

For some of the following simple problems, you can try to solve them by yourself. If there is no improvement, please call the after-sales service department.

The freezer does not work	Whether the power supply is connected and Whether the voltage is too low Whether the temperature control knob is Is there a power outage or partial circuit tripping	the in
The freezer smells bad	Odorous food should be tightly packed Check for rotten food The interior of the freezer needs to be cleaned
Long term operation of the compressor	It is normal for freezers to work for a long time due to high temperatures in summer Do not put too much food into the freezer at one time. Put the food into the freezer after it has cooled down Open the freezer door too often The frost layer of the freezer is too thick (defrosting is required at this time)	whethe
The freezer light does not light up	Whether the freezer is powered on and damaged
The freezer door cannot be closed correctly	The food package is jammed so the door cannot be closed Too much food has been put in Freezer tilts	freezer are
Loud noise	Whether the ground is flat and the Whether the accessories of the freezer
It is difficult to open the freezer for a short time	After the refrigeration of the freezer, there is a pressure difference between the inside and outside of the case, which can cause a temporary difficulty in opening the door. This is a normal physical phenomenon.	shell there seal,
Case emits heat External condensation	When the freezer is running, the outer even generating more heat in the early stages of operation and summer. This is caused by the heat dissipation of the condenser and is a normal phenomenon. When the environmental humidity is high, surface of the case and the door dry with a dry towel.
Airflow sound Buzzing sound Clattering sound	The refrigerant circulating in the refrigeration pipeline will produce an eruption sound and a grunt sound, which is a normal sound and will not affect the cooling effect. The compressor produces a buzzing sound during operation, and the sound is loud when starting or stopping. The electromagnetic valve or electric switching valve will make a clattering sound, which is a normal phenomenon and will not affect its use.

Table 1 Climate classes

Class Symbol Ambient temperature range °C
Extended temperate SN + 10 to + 32
Temperate N + 16 to + 32
Subtropical ST + 16 to + 38
Tropical T + 16 to + 43

Extended temperate: 'this refrigerating appliance is intended to be used at ambient temperatures ranging from 10 °C to 32 °C';

temperate: 'this refrigerating appliance is intended to be used at ambient temperatures ranging from 16 °C to 32 °C';

Subtropical: 'this refrigerating appliance is intended to be used at ambient temperatures ranging from 16 °C to 38 °C';

Tropical: 'this refrigerating appliance is intended to be used at ambient temperatures ranging from 16 °C to 43 °C';

If the wine cooler operates outside the climate class(ambient temperature range)for which it is rated then it may not be able to maintain satisfactory ieternal temperatures.

Special for new European standard

Ordered part Provided by Minimum Time Required for Provision
Thermostats Professional maintenance personnel		At least 7 years after the last model is launched on the market
Temperature sensors Professional maintenance personnel		At least 7 years after the last model is launched on the market
Printed circuit boards	Professional maintenance personnel	At least 7 years after the last model is launched on the market
Light sources	Professional maintenance personnel	At least 7 years after the last model is launched on the market
Door handles	Professional repairers and final users	At least 7 years after the last model is launched on the market
Door hinges	Professional repairers and final users	At least 7 years after the last model is launched on the market
Trays	Professional repairers and final users	At least 7 years after the last model is launched on the market
Baskets	Professional repairers and final users	At least 7 years after the last model is launched on the market
Door gaskets	Professional repairers and final users	At least 7 years after the last model is launched on the market

● The shortest period for providing after-sales spare parts is 15 working days.
- The model information and model identification in the product database can be obtained by scanning the web link on the QR code (if any) on the product energy efficiency label.

Dear customer:

1. If you want to return or replace the product, please contact the store where you buy.

(Remember to bring the purchase invoice)

1. If your product breaks down which needs to repair, please contact after-sales service provider.

Telephone:

Email address:

ÍNDICE

Warning sign depicting a flame symbol in yellow and black on white background

Electrical safety instructions showing hand installation, switch protection, and no warning symbol

Simple line drawing of a plug with a cable and an exclamation mark (no text or symbols)

Simple line drawing of a room interior with a monitor and wall-mounted equipment (no text or symbols)

Simple line drawing of a box with a small rectangular object on top and warning symbols at the bottom (no text or labels)

Diagram showing a box with a circular symbol and a warning sign, alongside a broken-out box and a crossed-out arrow.

Simple line drawing of a box with a starburst on top and an exclamation mark in the corner (no text or symbols)

Illustration of a child climbing inside a cube with cracks and a warning symbol (no text or labels)

Cartoon character with a sad expression, carrying a stack of boxes, with an exclamation mark and warning symbol (no text or symbols on the character itself)

Blood Drugs Biological products

Diagram showing a hand holding beer bottles with a cross symbol and warning sign, likely illustrating a safety or safety hazard.

1.6 Avisos relativos à energia

Technical diagram of an open refrigerator with numbered parts for identification and assembly reference.

Illustration of a person lifting a large box, next to a smaller box (no text or symbols)

Simple line drawing of a box next to a cabinet with a door (no text or symbols)

Cartoon illustration of a sad cube with a frowning face and a potted plant, under a sun (no text or symbols)

14mm 20mm

Diagram of a mechanical assembly with a spring-loaded component and a grid-patterned panel (no text or symbols)

Diagram of a mounted electronic device with a grid-patterned panel and power outlet (no text or symbols)

Simple line drawing of a rectangular box with a smiley face and a small icon on the left (no text or symbols)

Warning sign depicting a flame symbol in yellow and black on white background

Electrical safety instructions showing hand installation, switch protection, and no warning symbols

Simple line drawing of a plug with a cable and an exclamation mark (no text or symbols)

Simple line drawing of a room interior with a monitor and wall-mounted equipment (no text or symbols)

Simple line drawing of a box with a small rectangular object on top and warning symbols at the bottom (no text or labels)

Diagram showing a box with a circular symbol and a warning sign, alongside a broken-out box and a crossed-out arrow.

Simple line drawing of a box with a starburst on top and an exclamation mark in the corner (no text or symbols)

Illustration of a child climbing inside a cube with cracks and a warning symbol (no text or labels)

Cartoon character with a sad expression, carrying a stack of boxes, with an exclamation mark and warning symbol (no text or symbols on the character itself)

Zanobutty !

Blood Drugs Bilament drink

Illustration showing a hand holding beer bottles with a warning symbol and crossed-out box, next to stacked cylindrical containers.

Technical diagram of an open refrigerator with numbered parts for identification and assembly reference.

Illustration of a person lifting a large cardboard box next to a smaller box (no text or symbols)

Simple line drawing of a box next to a cabinet with a door (no text or symbols)

Cartoon illustration of a sad cube with a frowning face and a potted plant, next to a sun (no text or symbols)

20mm 240mm

Diagram of a mechanical assembly with a spring-loaded component and a grid-patterned panel (no text or symbols)

Diagram of a wall-mounted electronic device with ventilation grilles and a cable (no text or symbols)

Simple line drawing of a rectangular box with a smiley face and a small plug attached to the side (no text or symbols)

Warning sign depicting a flame symbol in yellow and black on a white background, indicating hazardous hazard or hazard.

Diagram showing three electrical installation methods: switch, switch with magnified view, and plug-in with no power.

Simple line drawing of a plug with a cable and an exclamation mark (no text or symbols)

Simple line drawing of a room interior with a monitor and wall-mounted equipment (no text or symbols)

Simple line drawing of a box with a small rectangular object on top and warning symbols at the bottom (no text or labels)

Diagram showing a box with a circular arrow and a warning symbol, alongside a broken-out box and a crossed-out arrow.

Simple line drawing of a box with a starburst on top and an exclamation mark in the corner (no text or symbols)

Illustration of a child climbing inside a cube with cracks and a warning symbol (no text or labels)

Cartoon character with a sad expression, carrying a stack of boxes, with an exclamation mark and warning symbol (no text or symbols on the character itself)

Zan'anilax !

Bil fuol Drugs Natural product

Diagram showing a hand holding beer bottles with a cross symbol and an exclamation mark, likely illustrating a warning or warning about the beer.

Technical diagram of an open refrigerator with numbered parts for identification and assembly reference.

Illustration of a person lifting a large cardboard box (no text or symbols present)

Simple line drawing of a cube next to a door with numbered windows (no text or symbols)

Cartoon illustration of a sad cube character with a sun and water droplets nearby (no text or symbols)

Diagram of a mechanical assembly with a spring-loaded component and a grid-patterned panel (no text or symbols)

Diagram of a wall-mounted electronic device with ventilation grilles and a cable (no text or symbols)

Simple line drawing of a rectangular box with a smiley face and a small plug attached to the side (no text or symbols)
