ORH-553-X - Fridge Orima - Free user manual and instructions

Product Type	American Side by Side Refrigerator
Brand	Orima
Model	ORH-553-X
Dimensions (H x W x D)	1770 x 900 x 590 mm
Total Volume	442 L
Refrigerator Volume	291 L
Freezer Volume	151 L
Energy Class	E (EU 2019/2016)
Annual Energy Consumption	287 kWh/year
Climate Class	SN, N, ST, T (10°C to 43°C)
Noise Level	39 dB(A)
Power Supply	220-240 V ~ 50 Hz, 1.5 A
Total Power	150 W
Freezing Capacity	9.5 kg/24h
Defrost Type	Automatic (No Frost)
Refrigerant	R600a (isobutane)
Interior Lighting	LED, efficiency class G
Cooling System	Ventilated (No Frost)
Special Functions	Super (quick freeze), ECO, Fast Cool, Open door alarm
Door Reversibility	Yes (reversible)
Adjustable Feet	Yes
Included Accessories	Glass shelves, drawers, door bins
Warranty	36 months

Frequently Asked Questions - ORH-553-X Orima

How to adjust the refrigerator temperature?

Press the FRIDGE button to scroll through available temperatures: 2°C, 3°C, 4°C, 6°C, 8°C. The selection flashes for 5 seconds then is confirmed.

How to activate Super mode for quick freezing?

Press the MODE button until the SUPER mode is selected. The SUPER icon flashes for 5 seconds then the mode is activated. It deactivates automatically after 50 hours or manually.

What to do if the open door alarm sounds?

The alarm sounds if the refrigerator door remains open for more than 90 seconds. Close the door to stop it.

How to clean the interior of the refrigerator?

Unplug the appliance. Wash the interior with warm water and a little mild soap. Do not use abrasive detergents. Dry thoroughly before plugging back in.

How to reverse the door opening?

Unplug the appliance and empty it. Tilt the appliance back on a solid surface. Use a Phillips screwdriver and an Allen key to disassemble the upper and lower hinges, then reassemble the doors in the opposite direction. Consult the manual for more details.

What is the recommended temperature for the refrigerator and freezer?

Refrigerator: +4°C. Freezer: -18°C. These settings optimize food preservation and energy efficiency.

Can I freeze fresh food in the freezer?

Yes, the 4-star compartment is suitable for freezing fresh food. The maximum capacity is 9.5 kg in 24 hours. Use SUPER mode 24 hours before for large quantities.

What to do if water accumulates at the bottom of the refrigerator?

This may be due to a clogged defrost drain. Clean the drain with a plastic scraper or a soft rod. Refer to the cleaning section of the manual.

The appliance makes noise, is this normal?

Yes, some noises are normal: compressor, refrigerant circulation. If the noises are abnormal, check that the appliance is level and not touching walls or other objects.

How to save energy with this refrigerator?

Place the appliance away from heat sources, leave a 100 mm space above, do not open the door too often, do not put hot food inside, and use ECO mode.

USER MANUAL ORH-553-X Orima

Abstract red spiral logo with a gray crescent shape (no text or symbols)

orima

eletrodomésticos

MANUAL DE INSTRUÇÕES

INSTRUCTION MANUAL LIVRE D'INSTRUCTIONS LIBRO DE INSTRUCCIONES

www.orima.pt

facebook.com/orima.pt

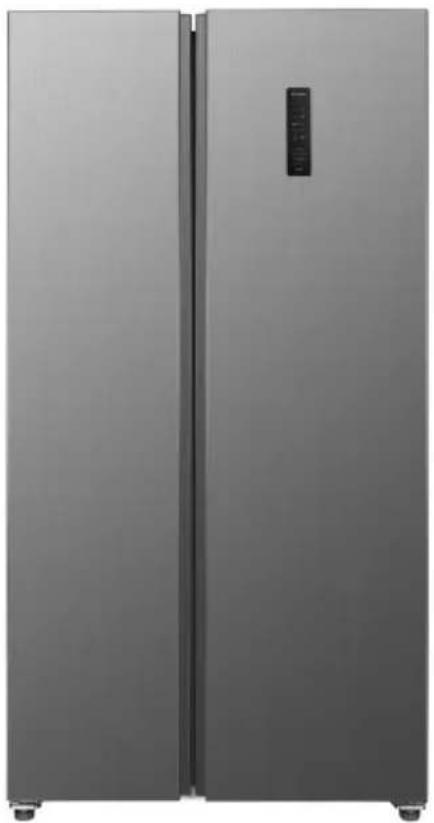

Front view of a modern stainless steel refrigerator with dual doors and a digital display (no visible text or symbols)

MMA

HARIO AMFANZA DE ALMEIDA

SIDE BY SIDE

Simple line drawing of a mechanical setup with a vertical rod and base table (no text or symbols)

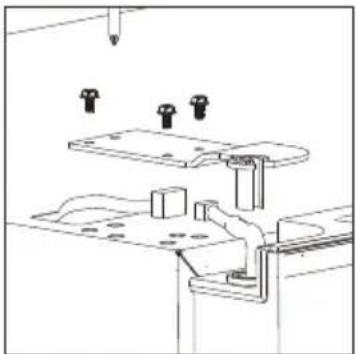

Technical line drawing of a mechanical assembly with mounting brackets and joints (no text or symbols)

Technical line drawing of a mechanical assembly with mounting brackets and a downward arrow (no text or symbols)

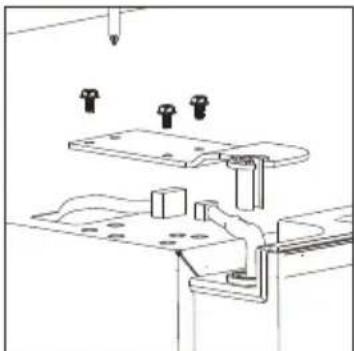

Porta Reversível

Line drawing of a door with an open lid and internal compartments (no text or symbols)

Simple line drawing of a ladder with two people, one standing and one seated, no text or symbols present.

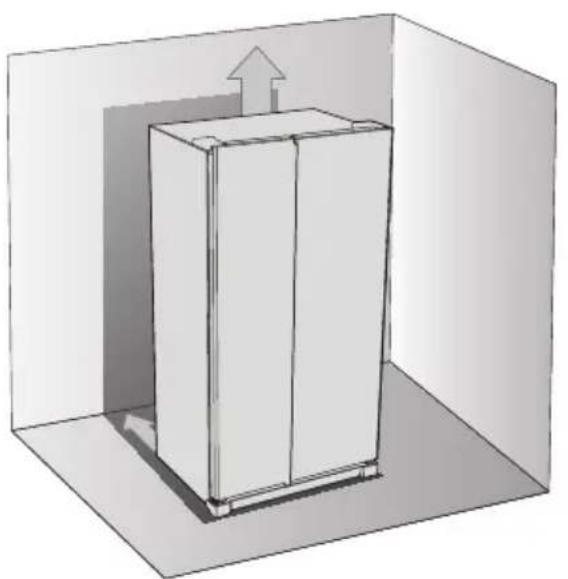

3D diagram of a rectangular box with a 100mm dimension label and an upward arrow, enclosed in a transparent enclosure (no text or symbols on the box itself)

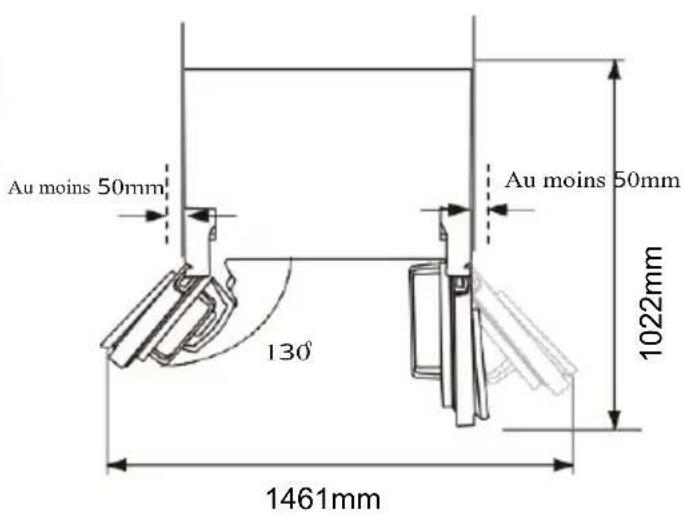

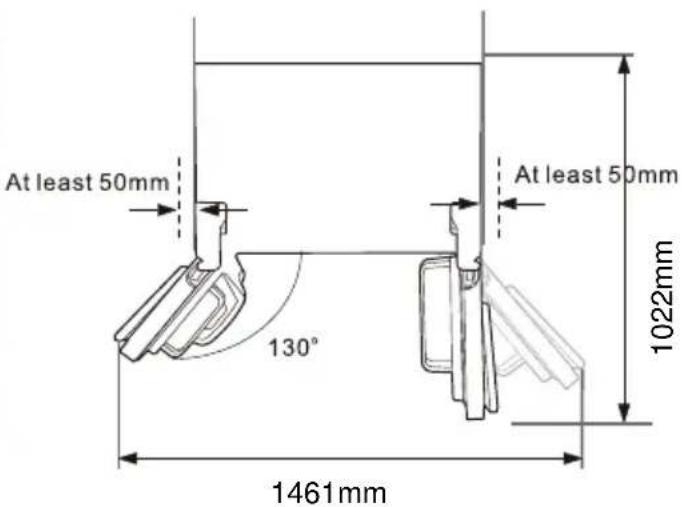

At least 50mm 130° At least 50mm 1022mm 1461mm

[Pelo menos 50 mm]

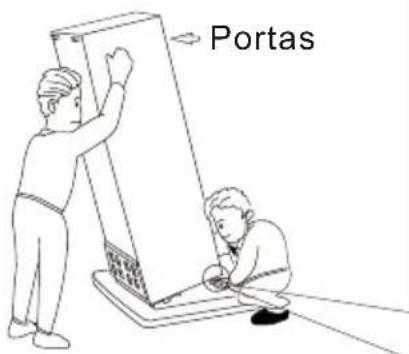

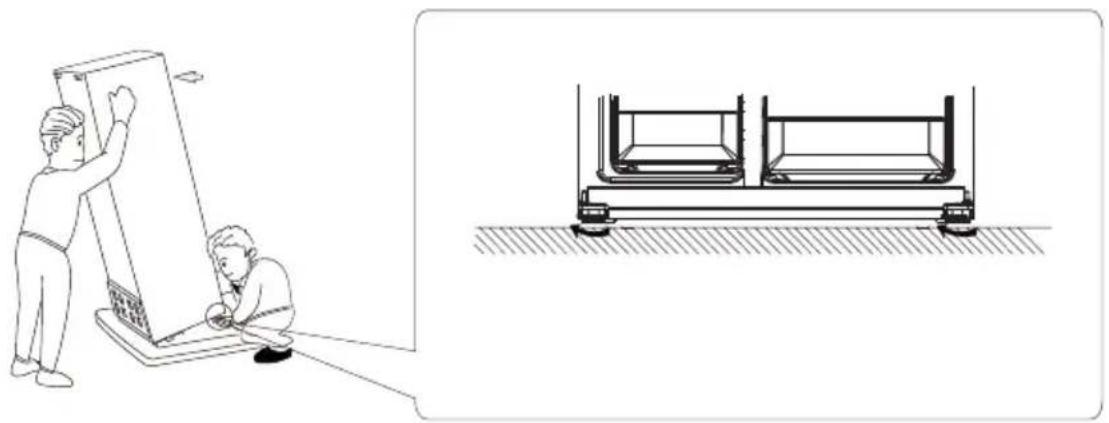

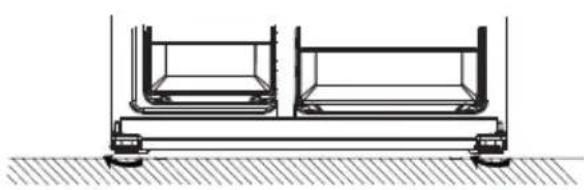

Nivelar e fixar o aparelho

Portas

Technical line drawing of a mechanical support system with two cylindrical components mounted on a base (no text or symbols)

Pure geometric diagram with lines and shapes, no text or symbols present

Diagram showing two labeled signs: a checkmark and an 'X' symbol, likely indicating approval or rejection status.

Posicionamento

Instale este aparelho num local onde a temperatura ambiente corresponda à classe climática indicada na placa de características do aparelho:

Classe Climatica	Temperatura Ambiente

Localização

Illustration showing a hand placing a shelf item into a rack, and a close-up of a container with upward arrows indicating flow or movement (no text or symbols)

Posicionamento das prateleiras das portas

Side By Side Refrigerator

	9
	11 14

•

•

!

!

process, other

!

!

!

•

•

•

•

•

!

CE

!

!

• •

•

:

•

•

•

•

•

•

recommendations

!

During using, service and disposal the appliance, please pay attention to symbol similar as left side, which is located on rear of appliance (rear panel or compressor) and with yellow or orange color.

It's risk of fire warning symbol. There are flammable materials in refrigerant pipes and compressor.

Please be far away fire source during using, service and disposal.

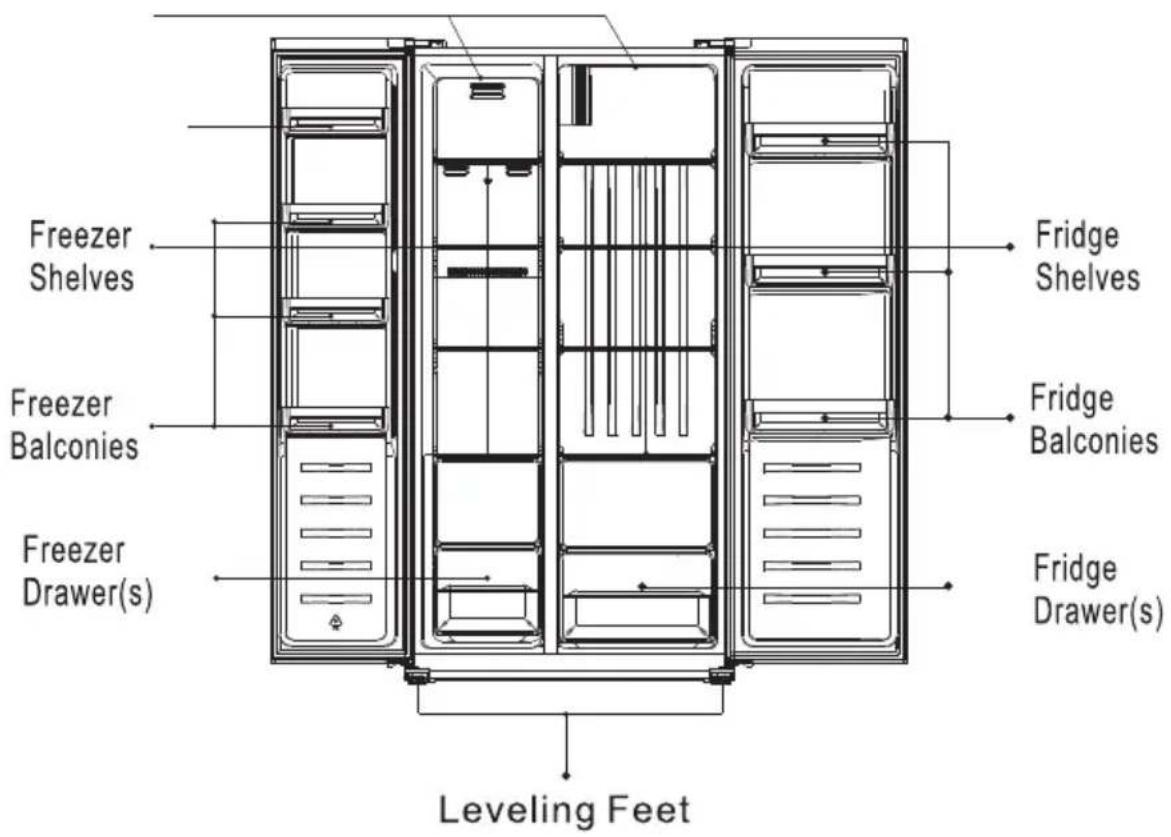

Freezer Shelves Freezer Balconies Freezer Drawer(s) Fridge Shelves Fridge Balconies Fridge Drawer(s) Leveling Feet

Line drawing of a mechanical setup with a vertical rod and a base table (no text or symbols)

Technical line drawing of a mechanical assembly with mounting brackets and a central component (no text or symbols)

Technical line drawing of a mechanical assembly with mounting holes and structural supports (no text or symbols)

Line drawing of a cabinet with internal components and a door open (no text or symbols)

Simple line drawing of a ladder with two people and a horizontal bar, no text or symbols present

3D diagram of a rectangular cabinet inside a room with an upward arrow indicating airflow or movement (no text or symbols)

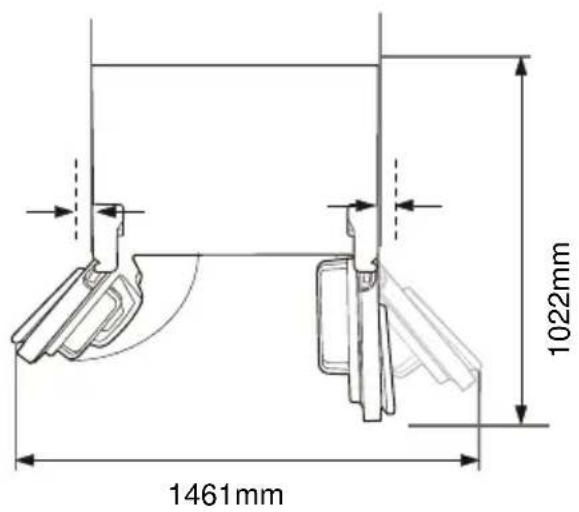

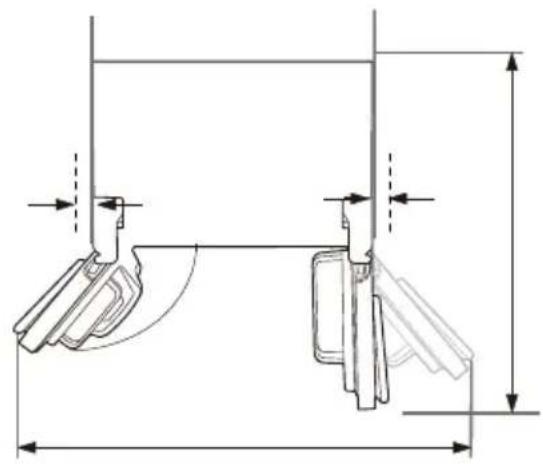

1461mm 1022mm

Illustration showing a person installing or adjusting a large panel with a child nearby, alongside a simplified train car on a ground surface (no text or symbols)

Two vertical panels of gray horizontal bands, no text or symbols present

Using the Control Panel

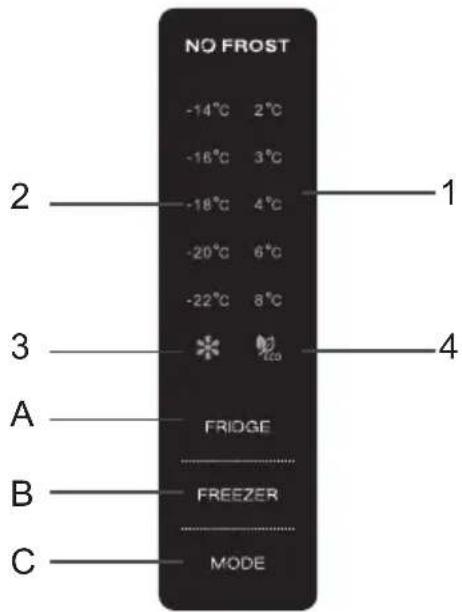

NO FROST -14°C 2°C -16°C 3°C -18°C 4°C -20°C 6°C -22°C 8°C A FRIDGE B FREEZER C MODE

A.Temperature Control of Fridge Compartment B.Temperature Control of Freezer Compartment C.Mode

1.2 LED DISPLAY

1.Temperature of Fridge Comparment
2.Temperature of Freezer Comparment
3.Super Mode
4.ECO Mode

The control panel will be 100% lit up for 3 seconds after power on, and then show previous setting temperature or running mode before power off. After that, you can adjust temperature of freezer or fridge compartments or running mode.

2.1 DISPLAY

2.1.1 The panel will be lit up for 2 minutes once the door of fridge compartment is opened.

2.1.2 The panel will be lit up by any button operation whereas the light would be out 2 minutes after the last operation.

2.1.3 Display during normal operation

Temperature Display of the Fridge Compartment: Indicating the temperature of the current setting. Temperature Display of the Freezer Compartment: Indicating the temperature of the current setting.

3.0 BUTTONS

3.1 FRIDGE

Press FRIDGE button to adjust temperature of fridge compartment in user mode or SUPER mode. Touch the button consecutively, the temperature will change in a circle of "2°C, 3°C, 4°C, 6°C, 8°C, the selection will be confirmed after 5 seconds of flash of fridge temperature icons. In ECO mode, this button is not react.

3.2 FREEZER

Press FREEZER button to adjust temperature of freezer compartment in user mode. Touch the button consecutively, the temperature will change in a circle of “-14°C, -16°C, -18°C, -20°C, -22°C, the selection will be confirmed after 5 seconds of flash of freezer temperature icons. In ECO and SUPER modes, this button is not react.

3.3 MODE

Press MODE button to select running mode: ECO, SUPER and user mode. Once select ECO mode, ECO icon will be lit and other icons will be switched off. Once select SUPER mode, SUPER icon and Fridge temperature icon will be lit, other icons will be switch off. Once select user mode, you can adjust temperature of fridge and freezer compartments by press FRIDGE and FREEZER button.

4.0 ECO MODE

Press MODE button to select ECO mode, ECO icon will flash 5 seconds and then ECO mode is confirmed. In ECO mode, the appliance will automatically set temperature of freezer and fridge compartments according to ambient temperature. Press MODE button to select other running mode to exit ECO mode.

5.0 Super mode

Press MODE button to select Super mode. And it will be confirmed after 5 seconds of flash of Super icon. In Super mode, "FREEZER" button will not response any press. To exit Super mode,

- Adjust mode by MODE button, - Or after 50 hours of Super mode, the refrigerator will automatically stop it and enter to previous setting.

Helpful hint: If you plan to freeze a large number food in one time, please set Super mode 24 hours ahead.

Warning: In Super mode, the refrigerator will work hard. So the noise of refrigerator will be slightly higher than normal running.

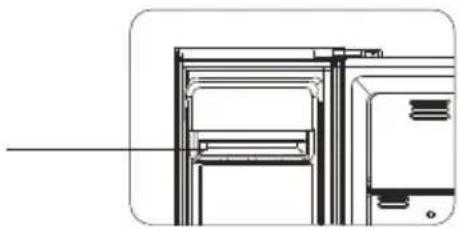

6.0 Door Open Alarm

If fridge (upper) door keeps open for 90 seconds, periodical alarm will be arisen until the door is closed.

Refrigerator compartments	Type of food
Door or balconies of fridge compartment	·Foods with natural preservatives, such as jams, juices, drinks, condiments.·Do not store perishable foods.
Crisper drawer (salad drawer)	·Fruits, herbs and vegetables should be placed separately in the crisper bin.·Do not store bananas, onions, potatoes, garlic in the refrigerator.
Fridge shelf – bottomFresh box	Raw meat, poultry, fish (for short-term storage)
Fridge shelf – middle	Dairy products, eggs
Fridge shelf – top	Foods that do not need cooking, such as ready-to-eat foods, deli meats, leftovers.
Freezer drawer(s)/shelf	·Foods for long-term storage.·Bottom drawer/shelf for raw meat, poultry, fish.·Middle drawer/shelf for frozen vegetables, chips.·Top drawer/shelf for ice cream, frozen fruit, frozen baked goods.

Pure technical line drawing of a refrigerator or oven unit (no text or symbols)

Illustration of a hand using a tool to clean or store shelves (no text or symbols visible)

Diagram of a container with two upward arrows indicating flow or movement (no text or symbols)

This list provides all Eco-design requirements (following the (EU)2019/2019 Eco-design and (EU)2019/2016 Energy labelling), if the requirement is applicable to your product.

The refrigerating appliance is not intended to be used as a built-in appliance, unless specifically shown as such into its instruction manual.

The drawers, baskets and shelves should be kept in their current position unless otherwise specified in this document.

Doors and lids of the refrigeration appliance should be removed before disposal in the landfill, to avoid children or animals getting trapped inside.

Recommended setting:

Refrigerator compartment: +4°C

Freezer compartment: -18°C

FAST FREEZE

The use of this function is recommended when placing a very high quantity of food to be frozen in the freezer compartment. 24 hours before freezing fresh food, press the Fast Freeze button to activate the Fast Freeze function. When activated, the Fast Freeze indicator turns on. After 24 hours place the food to be frozen in the freezing zone of freezer compartment. The function is automatically disabled after 72 hours, or can be manually disabled by pressing Fast Freeze button.

FAST COOL

Using Fast Cool function it is possible to increase the cooling capacity in the refrigerator compartment. The use of this function is recommended when placing a very high quantity of food in the refrigerator compartment. Press the Fast Cool button to activate Fast Cool function. When activated, the Fast Cool indicator turns on. The function is automatically disabled after 6 hours, or can be manually disabled by pressing Fast Cool button again.

How to store foodstuffs:

To avoid food waste, please refer to the recommended setting and storage times:

Fridge compartment: Different food, especially vegetable and fruit, have different storage temperature. The storage time is 1 to 3 days （temp setting: middle）

Freezer compartment: 1 week (temp setting: Min) and 1 month (temp setting: Max)

To optimize freezing speed and get more storage space, the freezer compartment can be used without the freezer drawers.

The quantity of fresh food that can be frozen in a specific time period is indicated on the rating plate. Load limits are determined by baskets, flaps, drawers, shelves etc. Make sure that these components can still close easily after loading.

To avoid food waste, please refer to the recommended setting and storage times found in the user manual.

The model information can be retrieved using the QR-Code reported in the energy label.

The label also includes the model identifier that can be used to consult the portal of the registry at

https://eprel.ec.europa.eu

This product contains a light source of energy efficiency class G (if present).

Technical Information

Model
Category	Side by Side
Volume of refrigerator compartment (L)	291
Freezer compartment volume (L)	151
Actual consumption depends on how the appliance is used and its location
Energy Class based onUE 2019/2016	E
Energy consumption: kWh/ano	287
Current (V)	220-240
Frequency (Hz)	50
Current Value (A)	1.5
Total Input Power (W)	150
Defrost Power (W)	240
Freezing capacity (kg/24h)	9.5
Climate Class SN,N,ST,T
Dimensions(A x L x P), mm 1770*900*590
Noise level, db(A) re 1pw	39
Electric information Check Rating Label
This appliance is intended for use at na ambient temperature between
10°C and 43°C.
Note: The manufacturer reserves the right to make future changes to the specifications and technical parameters.

IMPORTADO POR: MÁRIO MIRANDA DE ALMEIDA, SA APARTADO 1, 3060-752 CORTICEIRO DE CIMA, PORTUGAL

orima

3D diagram of a white refrigerator inside a room with a 100mm dimension label and upward arrow (no text or symbols on the device itself)

Technical line drawing of a mechanical assembly with two vertical supports and dimension lines (no text or symbols)

Line drawing of a hand using a tool to clean or store shelves (no text or symbols)

Simple diagram of a container with two upward arrows indicating flow or movement (no text or symbols)

Consejos útiles

Assistance Technique

Simple line drawing of a mechanical setup with a downward arrow and a table (no text or symbols)

1. Dégagez le support

Pure technical line drawing of a mechanical assembly or bracket (no text or symbols)

Technical line drawing of a mechanical assembly with mounting brackets and a tool (no text or symbols)

Installation

Line drawing of a server rack cabinet with doors open, showing internal components and no text or symbols

Simple line drawing of a person climbing an inclined ladder with a horizontal bar and arrow (no text or symbols)

3D diagram of a rectangular cabinet inside a transparent enclosure, with an upward arrow indicating direction (no text or symbols)

Au moins 50mm 130° Au moins 50mm 1022mm 1461mm

Illustration showing a hand installing or adjusting a shelf panel and a container with upward arrows (no text or symbols)

Model placed on the Union market from 01/04/2024.

EPREL registration number: 1864342

https://eprel.ec.europa.eu/qr/1864342

Supplier: MARIO MIRANDA DE ALMEIDA, S.A. (Importer)

Website: www.orima.pt

Customer care service:

Name: MARIO MIRANDA ALMEIDA, SA Website: www.orima.pt

Email: [e-mail] Phone: [phone]

Address:

RUA PADRE BASILIO COSTA MORGADO 23/25

3060-752 CORTICEIRO DE CIMA

Portugal

Product Information SheetCOMMISSION DELEGATED REGULATION (EU) 2019/2016 with regard to energy labelling of refrigerating appliances
Supplier's name or trade mark: ORIMA
Supplier's address: MARIO MIRANDA ALMEIDA, SA, RUA PADRE BASILIO COSTA MORGADO 23/25, 3060-752CORTICEIRO DE CIMA, PT
Model identifier: ORH 553 X
Type of refrigerating appliance:
Low-noise appliance: No Design type: freestanding
Wine storage appliance: No			Other refrigerating appli-ance:		Yes
General product parameters:
Parameter Value Parameter Value
Overall dimensions (millimetre)	Height 1770		Total volume (dm3 or l) 442
	Width 900
	Depth 590
EEI 100 Energy efficiency class		E
Airborne acoustical noise emis-sions (dB(A) re 1 pW)		39	Airborne acoustical noise emission class		C
Annual energy consumption (kWh/a)		287 Climate class:			extended temperate, temperate, subtropi-cal, tropical
Minimum ambient tempera-ture (oC), for which the refrigerating appliance is suitable		10	Maximum ambient tem-perature (oC), for which the refrigerating appliance is suitable		43
Winter setting		No
Compartment Parameters:
Compartment type		Compartment parameters and values
		Compartment Vol-ume (dm3 or l)	Recommended temperature setting for opti-mised food storage (oC) These set-tings shall not con-tradict the storage conditions set out inAnnex IV, Table 3	Freezing capacity (kg/24h)	Defrosting type (auto-defrost=A, manual defrost=M)
Pantry No - - - -
Wine storage No - - - -
Cellar No - - - -
Fresh food Yes 291,0 - - A
Chill No - - - -
0-star or ice-making No - - - -
1-star No - - - -
2-star No - - - -
3-star No - - - -
4-star Yes 148,0	-18	11,2	A
2-star section	Yes	3,0 -12	- A
Variable temperature compartment	-	- - - -
For 4-star compartments
Fast freeze facility			Yes
Light source parameters:
Type of light source			LED
Energy efficiency class			G
Minimum duration of the guarantee offered by the manufacturer: 36 months
Additional information:
Weblink to the supplier's website, where the information in point 4 of Annex II of Commission Regulation (EU) 2019/2019 is found: www.orima.pt

Model placed on the Union market from 01/04/2024.

EPREL registration number: 1864342

https://eprel.ec.europa.eu/qr/1864342

Supplier: MARIO MIRANDA DE ALMEIDA, S.A. (Importer)

Website: www.orima.pt

Customer care service:

Name: MARIO MIRANDA ALMEIDA, SA

Website: www.orima.pt

Email: [e-mail]

Phone: [phone]

Address:

RUA PADRE BASILIO COSTA MORGADO 23/25

3060-752 CORTICEIRO DE CIMA

Portugal

Model placed on the Union market from 01/04/2024.

EPREL registration number: 1864342

https://eprel.ec.europa.eu/qr/1864342

Supplier: MARIO MIRANDA DE ALMEIDA, S.A. (Importer)

Website: www.orima.pt

Customer care service:

Name: MARIO MIRANDA ALMEIDA, SA Website: www.orima.pt

Email: [e-mail] Phone: [phone]

Address:

RUA PADRE BASILIO COSTA MORGADO 23/25

3060-752 CORTICEIRO DE CIMA

Portugal

Model placed on the Union market from 01/04/2024.

EPREL registration number: 1864342

https://eprel.ec.europa.eu/qr/1864342

Supplier: MARIO MIRANDA DE ALMEIDA, S.A. (Importer)

Website: www.orima.pt

Customer care service:

Name: MARIO MIRANDA ALMEIDA, SA Website: www.orima.pt

Email: [e-mail] Phone: [phone]

Address:

RUA PADRE BASILIO COSTA MORGADO 23/25

3060-752 CORTICEIRO DE CIMA

Portugal
